Open AccessArticle

The Use of Succinonitrile as an Electrolyte Additive for Composite-Fiber Membranes in Lithium-Ion Batteries

1
Department of Mechanical Engineering, University of Texas, Rio Grande Valley, Edinburg, TX 78539, USA
2
Department of Chemical Engineering and Materials Science and Department of Chemistry, University of Minnesota, Minneapolis, MN 55455, USA
*
Author to whom correspondence should be addressed.
Membranes 2020, 10(3), 45; https://doi.org/10.3390/membranes10030045
Received: 13 January 2020 / Revised: 11 March 2020 / Accepted: 11 March 2020 / Published: 17 March 2020

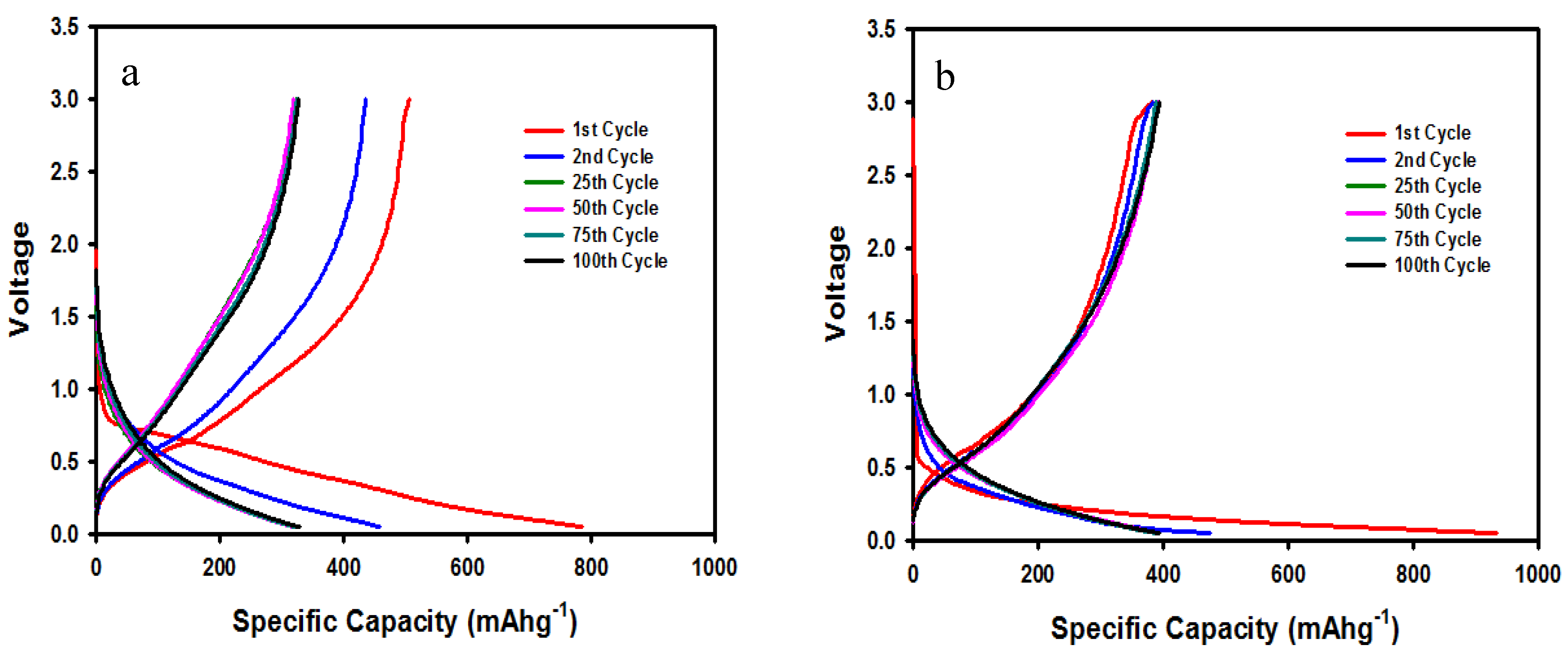

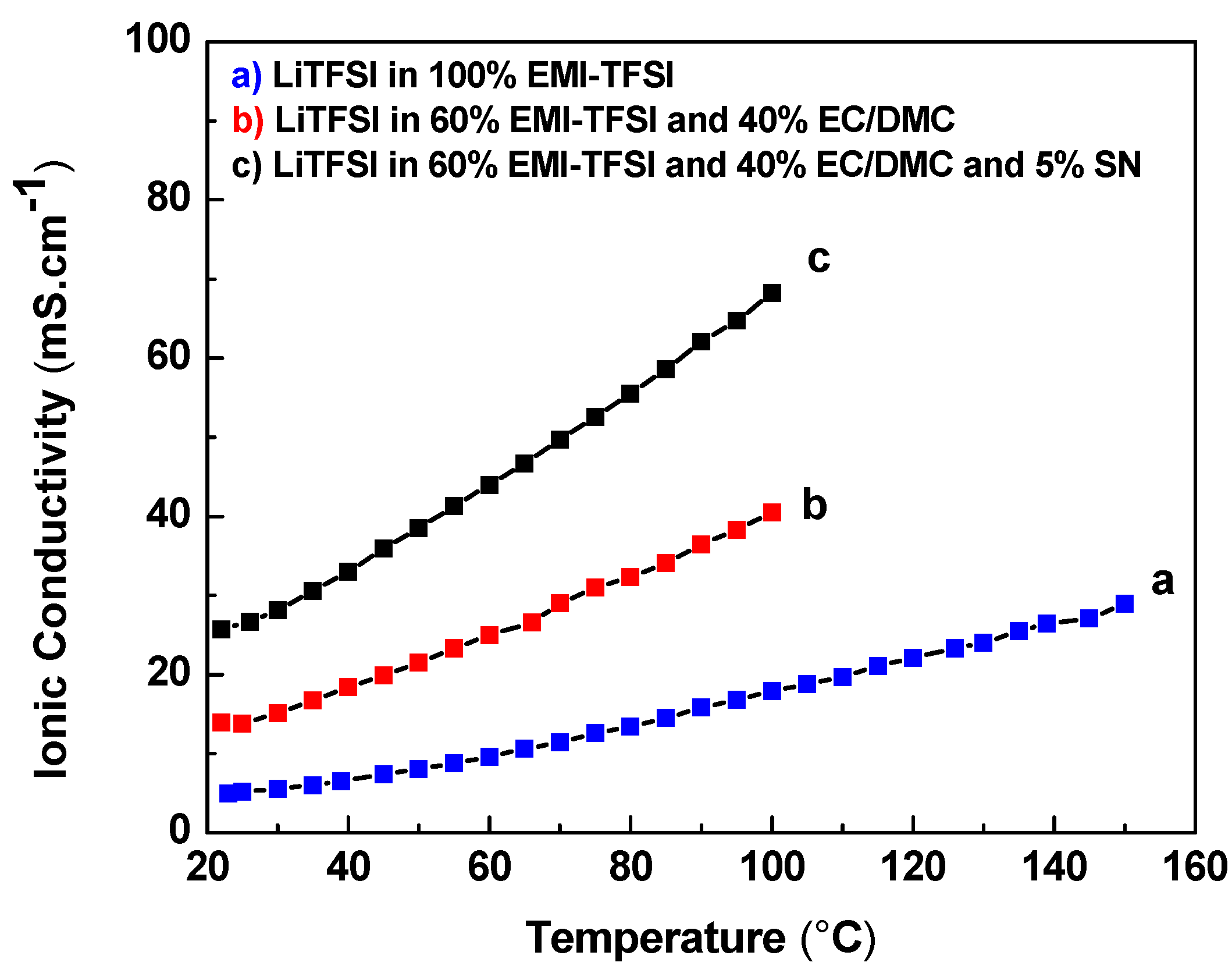

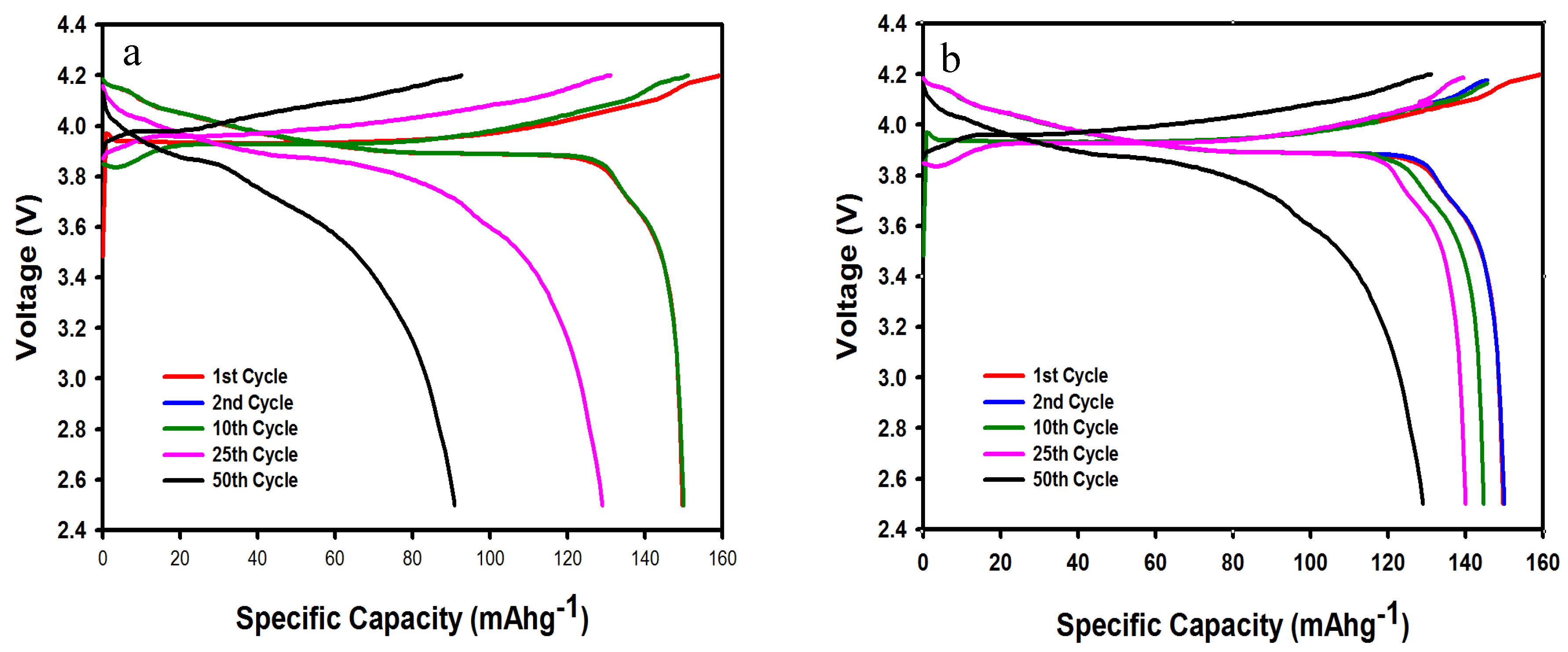

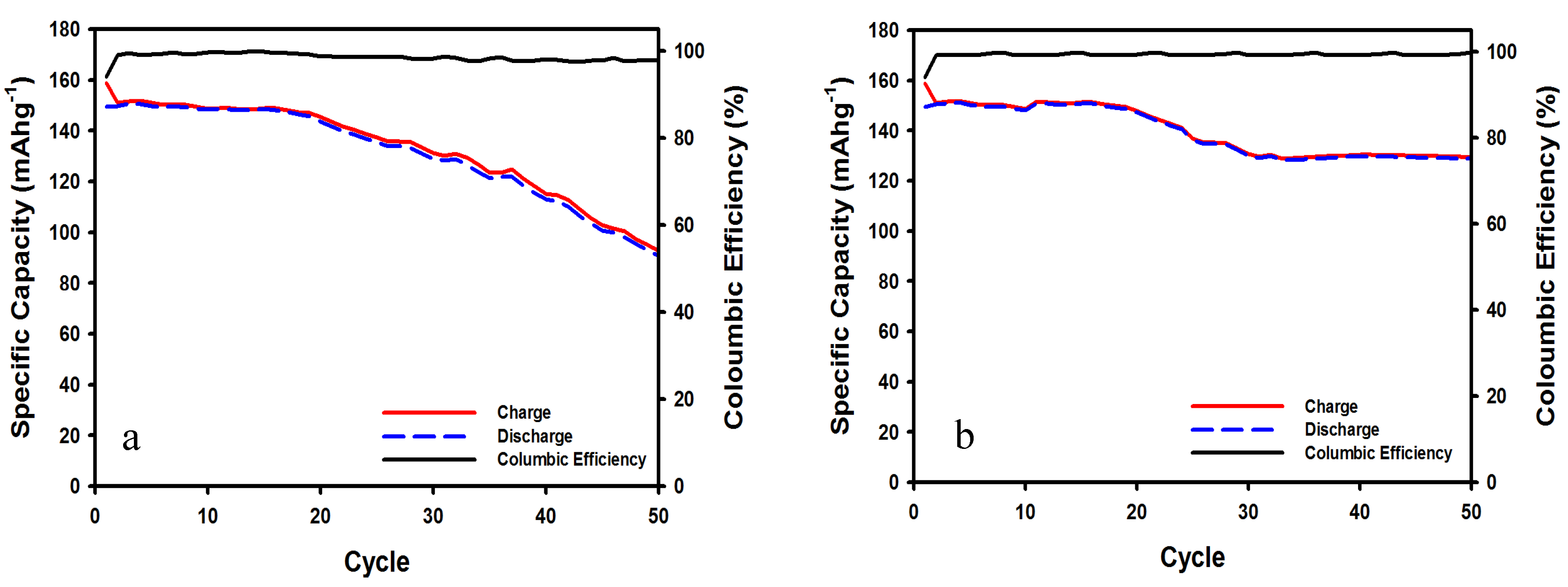

In the present work, the effect of temperature and additives on the ionic conductivity of mixed organic/ionic liquid electrolytes (MOILEs) was investigated by conducting galvanostatic charge/discharge and ionic conductivity experiments. The mixed electrolyte is based on the ionic liquid (IL) (EMI/TFSI/LiTFSI) and organic solvents EC/DMC (1:1 v/v). The effect of electrolyte type on the electrochemical performance of a LiCoO2 cathode and a SnO2/C composite anode in lithium anode (or cathode) half-cells was also investigated. The results demonstrated that the addition of 5 wt.% succinonitrile (SN) resulted in enhanced ionic conductivity of a 60% EMI-TFSI 40% EC/DMC MOILE from ~14 mS·cm−1 to ~26 mS·cm−1 at room temperature. Additionally, at a temperature of 100 °C, an increase in ionic conductivity from ~38 to ~69 mS·cm−1 was observed for the MOILE with 5 wt% SN. The improvement in the ionic conductivity is attributed to the high polarity of SN and its ability to dissolve various types of salts such as LiTFSI. The galvanostatic charge/discharge results showed that the LiCoO2 cathode with the MOILE (without SN) exhibited a 39% specific capacity loss at the 50th cycle while the LiCoO2 cathode in the MOILE with 5 wt.% SN showed a decrease in specific capacity of only 14%. The addition of 5 wt.% SN to the MOILE with a SnO2/C composite-fiber anode resulted in improved cycling performance and rate capability of the SnO2/C composite-membrane anode in lithium anode half-cells. Based on the results reported in this work, a new avenue and promising outcome for the future use of MOILEs with SN in lithium-ion batteries (LIBs) can be opened. View Full-Text
Keywords: ionic liquids; succinonitrile; electrolyte; lithium ion batteries; composite fibers; mixtures ionic liquids; succinonitrile; electrolyte; lithium ion batteries; composite fibers; mixtures
Show Figures

Graphical abstract

MDPI and ACS Style

Villarreal, J.; Orrostieta Chavez, R.; Chopade, S.A.; Lodge, T.P.; Alcoutlabi, M. The Use of Succinonitrile as an Electrolyte Additive for Composite-Fiber Membranes in Lithium-Ion Batteries. Membranes 2020, 10, 45.
