Evaluation of Recombinant Herpesvirus of Turkey Laryngotracheitis (rHVT-LT) Vaccine against Genotype VI Canadian Wild-Type Infectious Laryngotracheitis Virus (ILTV) Infection

1
Health Research Innovation Center 2C53, Faculty of Veterinary Medicine, University of Calgary, 3330 Hospital Drive NW, Calgary, AB T2N 4N1, Canada
2
Department of Pathology, Beni-Suef University, Beni Suef 62511, Egypt
3
Animal Health Centre, Ministry of Agriculture, Food and Fisheries, Abbotsford, BC V3G 2M3, Canada
4
Agri Food Laboratories, Alberta Agriculture and Forestry, Edmonton, AB T6H 4P2, Canada
5
Animal Health and Assurance, Alberta Agriculture and Forestry, Edmonton, AB T6H 4P2, Canada
6
Provincial Laboratory for Public Health, Calgary, AB T2N 4W4, Canada
7
Swine and Poultry Infectious Diseases Research Center (CRIPA), Faculty of Veterinary Medicine, University of Montreal, 3200 Sicotte, Saint-Hyacinthe, QC J2S 2M2, Canada
*
Author to whom correspondence should be addressed.
Vaccines 2021, 9(12), 1425; https://doi.org/10.3390/vaccines9121425
Submission received: 6 November 2021 / Revised: 26 November 2021 / Accepted: 30 November 2021 / Published: 3 December 2021
(This article belongs to the Special Issue Poultry Vaccines)

Abstract

:
In Alberta, infectious laryngotracheitis virus (ILTV) infection is endemic in backyard poultry flocks; however, outbreaks are only sporadically observed in commercial flocks. In addition to ILTV vaccine revertant strains, wild-type strains are among the most common causes of infectious laryngotracheitis (ILT). Given the surge in live attenuated vaccine-related outbreaks, the goal of this study was to assess the efficacy of a recombinant herpesvirus of turkey (rHVT-LT) vaccine against a genotype VI Canadian wild-type ILTV infection. One-day-old specific pathogen-free (SPF) White Leghorn chickens were vaccinated with the rHVT-LT vaccine or mock vaccinated. At three weeks of age, half of the vaccinated and the mock-vaccinated animals were challenged. Throughout the experiment, weights were recorded, and feather tips, cloacal and oropharyngeal swabs were collected for ILTV genome quantification. Blood was collected to isolate peripheral blood mononuclear cells (PBMC) and quantify CD4+ and CD8+ T cells. At 14 dpi, the chickens were euthanized, and respiratory tissues were collected to quantify genome loads and histological examination. Results showed that the vaccine failed to decrease the clinical signs at 6 days post-infection. However, it was able to significantly reduce ILTV shedding through the oropharyngeal route. Overall, rHVT-LT produced a partial protection against genotype VI ILTV infection.

1. Introduction

Gallid herpesvirus-1 (GaHV-1) or infectious laryngotracheitis virus (ILTV, by its historic nomenclature) is an alphaherpesvirus belonging to the genus Iltovirus and family Herpesviridae, which causes infectious laryngotracheitis (ILT) in chickens [1]. There is also published evidence that shows that ILTV is capable of infecting pheasants, peafowls and turkeys [2,3,4,5]. ILT is an acute upper respiratory disease that impacts mainly chickens reared in high-density populations [6]. The transmission of ILTV is horizontal [7]. The pathogenicity of the virus is dependent on the isolate, age of the bird and the infective dose [6]. Chickens of all ages are susceptible to ILTV infection, with reports as early as 3 weeks of age [8]. Some of the clinical signs observed are conjunctivitis, nasal discharge, drop in egg production and reduced weight gain [6]. As a herpesvirus, ILTV can establish latency mainly in the trigeminal ganglion [9] and to a lesser degree in trachea [10].
In 1925, the first case of ILT was reported in Canada [2]; since then, outbreaks in backyard and commercial poultry flocks in the country have been reported [11,12,13,14,15,16,17]. In Ontario (ON) and Alberta (AB), ILT is endemic in backyard poultry flocks that are known to house multi-age chickens and generally have low biosecurity standards. These practices allow ILTV establishment and maintenance, causing a continuous risk for commercial poultry operations [18]. To tackle ILT, a combination of biosecurity measures and vaccination strategies were implemented.
The live attenuated vaccine was the first of its type to be commercially available against ILT [19]. Based on the method of attenuation, there are two types of live attenuated vaccines: the chicken embryo origin (CEO), derived from consecutive passages in embryonated chicken eggs [19], and the tissue culture origin (TCO), produced by consecutive passages of the ILTV ASL L-6 strain in primary avian-origin cells [20]. Some limitations of the live attenuated ILT vaccines are their ability to regain virulence following bird-to-bird passage [21], and establish latency [22]. CEO vaccine-related ILTV strains cause frequent ILT outbreaks in North America [11,13,23]. Additionally, there has been a surge in ILTV recombination involving CEO or TCO vaccinal ILTV strains [11,12,24,25,26]. This has resulted in ILT vaccine failures, leading to ILT outbreaks in vaccinated flocks [27].
There have been several outbreaks of ILT in recent years, predominantly involving CEO revertant and wild-type strains in Canada [11,12,28]. In AB, outbreaks are more commonly seen in backyard flocks where only 13% are vaccinated against ILTV [29]. In addition to the live attenuated vaccines, in AB, recombinant vaccines are recommended to be administered at hatchery in ovo or post-hatch. These viral vector vaccines replicate to a similar degree in the secondary lymphoid organs of chickens, such as the spleen, regardless of the application route [30]. There are three recombinant viral vector vaccines licensed in Canada. One uses fowlpox virus (rFPV) as a vector, and the other two use a turkey herpesvirus (rHVT) as a backbone. The rFPV-LT vaccine uses glycoprotein (g) B and UL-32 genes of ILTV as inserts (Vectormune® FP LT+AE, CEVA Biomune, Lenexa, KS, USA) [31]. On the other hand, both rHVT-LTs use ILTV gI and gD (Innovax® ILT, Merck Animal Health, Summit, NJ, USA) [30] or the gB and UL-32 genes (Vectormune® HVT LT, CEVA Biomune, Lenexa, KS, USA) [32] as inserts. Some of the advantages of these vaccines are the prevention of bird-to-bird transmission [32] and lack of reversion to virulence [33].
The efficacy of rHVT-LT and rFPV-LT vaccines is variable [32,34,35,36,37,38]. It has been suggested that rHVT-LT has a slower onset of immunity [32,35] and is most efficacious after 7 weeks of age [32]. This prompted us to investigate if an immune response is induced when the vaccinated chickens are infected at 3 weeks post-vaccination, since ILTV can occur at this early age. Previous studies have only investigated the humoral immune response, where results showed no correlation between antibodies and protection elicited by vaccination [34,35,36]. It has been noted that performing vaccine evaluation studies using field-derived challenge strains closely mimics field conditions [27]. At this stage, there are no experimental data on the protective efficacy of the rHVT-LT vaccine against Canadian ILTV field strains. In this study, we evaluated if 1-day-old chickens vaccinated with a rHVT-LT vaccine were sufficiently protected against a challenge with a wild-type Canadian ILTV isolate at 3 weeks post-vaccination.

2. Materials and Methods

2.1. Animals and Ethics Statement

The Health Science Animal Care Committee (HSACC) of the University of Calgary, AB, Canada (Protocol number: AC19-0013), approved the use of specific pathogen-free (SPF) eggs, embryos and live chickens. The SPF eggs and chickens were obtained from the Canadian Food Inspection Agency, Ottawa, Canada. The ILTV-infected chickens were maintained in high containment poultry isolators (Plas LabsTM, Fisher scientific, Ottawa, ON, Canada) at the Prion/Virology Facility at the Foothills Campus of the University of Calgary. Mock-infected chickens were kept in the Animal Resource Center (ARC) at the Foothills Campus of the University of Calgary. The experimental animals were provided with ad libitum access to food and water, and veterinary care was provided by resident veterinarians.

2.2. ILTV Virus

ILTV AB-S63, which belongs to genotype VI [11], was obtained from the Agri Food Laboratories (Alberta Agriculture and Forestry, Edmonton, AB, Canada). This ILTV strain was isolated from an ILT outbreak in backyard chicken flock in AB, Canada [12]. The virus was propagated in the chorioallantoic membrane (CAM) of 10-day-old SPF chicken embryos as previously described [11]. The virus stock was titrated in chicken embryo liver cells (CELIC) prepared from 14-day-old chicken embryos as previously described [39]. The median tissue culture infective dose (TCID50) was calculated following the Reed and Muench method [40]. Previously, it has been shown that ILTV AB-S63 was virulent and induced ILT in SPF chickens [39].

2.3. Vaccine and Vaccine Titration

The recombinant vaccine, rHVT-LT (Innovax® ILT, Merck Animal Health, Summit, NJ, USA), was used to vaccinate the chickens. The vaccine was titrated in a secondary chicken embryo fibroblast (CEF) monolayer in 60 mm plates. Ten-fold dilutions of the reconstituted vaccine were produced in Dulbecco’s modified Eagle medium (DMEM), and 200 μL of each dilution was added to three plate replicates. The inoculated cells were incubated at 37 °C and 5% CO2 for 5 days. At day 5 following inoculation, plaques were microscopically counted. Virus titer was calculated and recorded as 6360 plaque forming units (PFU)/per dose.

2.4. Experimental Design

The SPF eggs were incubated in digital egg incubators (Kingsuromax 20 and Rcom MARU Deluxe max, Autoelex Co., Ltd., GimHae, GyeongNam, Korea) according to the manufacturer’s instructions. Upon hatching, 44 1-day-old chickens were randomly assigned to four different groups (n = 11 per group). Two groups of chickens were vaccinated with a full dose of rHVT-LT subcutaneously, as prescribed by the manufacturer. The other two groups were mock vaccinated with the vaccine diluent provided by the manufacturer (Merck Animal Health, Summit, NJ, USA). At three weeks of age, one group of the vaccinated and one group of the mock-vaccinated chickens were infected with the ILTV AB-S63 strain. A dose of 103.5 TCID50 in a total volume of 200 μL per chicken (100 μL was delivered via intratracheal administration and 50 μL per eye mucosal surface) [39]. The other two groups were mock infected with phosphate buffered saline (PBS) (Table 1).
Following ILTV infection, the chickens were observed twice a day for 14 days to record clinical signs. The clinical signs were scored with a value from 1 to 4 depending on their severity, as described previously [39]. Briefly, the clinical signs of ruffled feathers, droopy wings, depression, and bodyweight loss received a score of 1. The clinical signs of increased respiratory rate with an open beak and conjunctivitis received a score of 2. A severe increase in respiratory rate, marked by gasping and bloody mucus expectoration, received a score of 3 or 4, respectively. The obtained clinical sign scores were added together to obtain a cumulative clinical score per day. A cumulative clinical score of 4 was considered the humane end point. Oropharyngeal and cloacal swabs were collected at 3, 7, 10 and 14 days post-infection (dpi). All the collected swabs were placed in 1 mL of viral transport medium (Dulbecco’s modified Eagle medium (DMEM) supplemented with 3% fetal bovine serum (FBS), 0.02M HEPES and 0.25 mg/mL of penicillin and streptomycin (Gibco, Carlsbad, CA, USA). At the same time points, body weights were recorded, and feather tips were collected for DNA extraction (RNA Save, BI, Cromwell, CT, USA). The samples were stored at −80 °C until processed. At 5 and 12 dpi, 1.5 mL of blood was collected from the jugular vein with syringes previously filled with sodium citrate [41]. The samples were stored on ice until processed for PBMC isolation. At 14 dpi, all the chickens were euthanized, and post-mortem examination was performed to record gross lesions in the respiratory tissues. Trachea and lung samples were collected in 10% buffered formalin (VWR International, Radnor, PA, USA) for histological examination. Additionally, the trachea, lung and spleen were collected in RNA Save (Biological Industries, FroggaBio, Toronto, ON, Canada) for ILTV genome load quantification and HVT genome load quantification. At the end of the experiment, serum samples were also collected for the quantification of anti-ILTV antibodies.

2.5. Serology

The blood samples were kept overnight at room temperature, and serum was collected following centrifugation at 2500 rounds per minute (rpm) for 15 min (4 °C). The serum samples were analyzed for the quantification of anti-ILTV antibodies using a commercial enzyme-linked immunosorbent assay (ELISA) kit (ProFLOCK LT ELISA Kit; Synbiotics Corp., San Diego, CA, USA). The sample to positive value (s/p) and titer calculations were performed according to the manufacturer’s instructions. This kit does not detect antibodies produced by the rHVT-LT vaccine [30].

2.6. DNA Extraction and Quantitative Polymerase Chain Reaction (qPCR) Assay

DNA extraction from swabs, feather tips and tissues (trachea, lung and spleen) were performed using the QIAamp® DNA Mini Kit (Qiagen, Hilden, Germany) based on the manufacturer’s instructions. The extracted DNA was quantified with the Nanodrop 1000 spectrophotometer (Thermo Scientific, Wilmington, DE, USA). The qPCR assay was carried out using a CFX96-c1000 Thermocycler (Bio Rad laboratories, Mississauga, ON, Canada), as previously described [42]. For the ILTV genome load quantification, the primers targeted the proteinase K (PK) gene. For the genome load quantification of the vaccine, the primers targeted the glycoprotein B (gB) gene of HVT (F: 5′-GCC AGT TGG ATA TCT GCC G-3′ and R: 5′-CGG CCA ATC ATC GTA GGT AC-3′). Additionally, the β-actin gene (F: 5′–CAA CAC AGT GCT GTC TGG TGG TA–3′ and R: 5′–ATC GTA CTC CTG CTT GCT GAT CC–3′) was used in each sample to normalize variation in the template amount. The total volume per reaction was 20 μL; this included DNA as a template (20 ng for swabs, 200 ng for tissues and 100 ng for feather tips), 10 pmol/μL of forward and reverse primer, 10 μL of SYBR Green Master Mix (Invitrogen, Burlington, ON, Canada) and DNAse/RNAse-free water (Thermo Scientific, Wilmington, DE, USA). Thermocycler conditions for PK and β-actin genes were as follows: 95 °C for 20 s (s) for initial denaturation, then 40 cycles of denaturation at 95 °C for 3 s, annealing at 57 °C for 30 s and elongation at 95 °C for 10 s. Thermocycler conditions for the gB gene were as follows: 95 °C for 20 s for initial denaturation, then 40 cycles of denaturation at 95 °C for 3 s, annealing at 60 °C for 30 s and elongation at 95 °C for 10 s.

2.7. Peripheral Blood Mononuclear Cell (PBMC) Isolation

The collected whole blood (1.5 mL) samples were diluted in 2.5 mL of Hank’s balanced salt solution (HBSS) and carefully layered into 15 mL SepMateTM tubes (StemCell Technologies, Vancouver, BC, Canada) containing 3.5 mL Ficoll Plaque Premium (GE Healthcare, Chicago, IL, USA). The tubes were centrifuged for 15 min (min) at 1200× g, 20 °C. The upper layer consisting of PBMCs was decanted into a 15 mL falcon tube containing 7 mL of HBSS. Following mixing, the tubes were centrifuged at 400× g (18 °C) for 15 min. Following centrifugation, the supernatant was discarded, and the pellet was resuspended in 7 mL of HBSS. The resuspended cells were centrifuged again under the same conditions. Then, the supernatant was discarded, and the pellet was resuspended in Roswell Park Memorial Institute medium (RPMI; Gibco, Carlsbad, CA, USA) containing 1% l-glutamine, 1% of antibiotic (100 U/mL penicillin and 100 µg/mL streptomycin) and 10% fetal bovine serum (FBS, Gibco, Carlsbad, CA, USA). The PBMCs in each sample were counted using LUNATM Cell Counting Slides (Logos Biosystems, Annandale, VA, USA) with the LunaTM Automated Cell Counter (Logos Biosystems, Annandale, VA, USA).

2.8. Staining for Flow Cytometry Analysis

The obtained PBMCs were strained with monoclonal antibodies as previously described [43]. Briefly, cells were washed with 1% bovine serum albumin (BSA) fraction V (OmniPur, EMD, Darmstadt, Germany) made in PBS and centrifuged at 211× g for 10 min at 4 °C. They were then suspended in 100 μL of 1:100 chicken serum (diluted in 1% BSA) for Fc blocking. After 10 min, the plate was centrifuged at 211× g for 10 min at 4 °C, and the cells were resuspended and incubated in the dark with phycoerythrin (PE)-conjugated mouse anti-chicken CD4 (Southern Biotech, Birmingham, AL, USA) and fluorescein isothiocyanate (FITC)-conjugated mouse anti-chicken CD8 (Southern Biotech, Birmingham, AL, USA). Their respective isotypes were used as controls, and 1% BSA was used for the unstained control. Samples were incubated in the dark for 30 min and spun at 211× g for 10 min (4 °C). The supernatant was discarded, and the pellet was resuspended in 1% paraformaldehyde [44] and submitted to the University of Calgary’s Flow Cytometry Core Facility (Calgary, AB, Canada). Flow cytometry was performed with a D LSR 11 (BD Bioscience, San Jose, CA, USA) with 4 lasers: violet, blue, yellow-green and red laser. Data analysis was performed with BD FACSDiva software version 6.1.3 (BD Bioscience, San Jose, CA, USA).

2.9. Histology

Tissue samples of the trachea preserved in 10% formalin were submitted to the Diagnostic Services Unit (DSU) of the University of Calgary Faculty of Veterinary Medicine (UCVM) to produce hematoxylin and eosin (H&E) stained sections.

2.10. Data and Statistical Analyses

The ILTV and HVT viral load quantification was based on standard curves of the PK and gB gene plasmids; in both cases, the β-actin gene was used as a housekeeping gene. For absolute quantification of the genome loads, threshold cycle (Ct) values were plotted against the standard curve data. To determine the starting quantities, the following formula was used:
Log   starting   quantity = [ C t i n t e r c e p t ] m
Starting   quantity = 10 logstarting   quantity
m = Y − C of the standard curve.
The ELISA data processing, sample to positive value (s/p value) and titer calculations were performed according to the manufacturer’s instructions. Serum samples with a s/p ratio value of ≤0.150 received a “0” titer value and were considered negative for ILT antibody.
The tracheal histopathology was scored by a scale (0–5) developed by Guy and colleagues [45]. In this scale, a score of 0 represents normal tissue (thin pseudostratified columnar epithelium and normal mucous glands), a score of 1 represents minimal changes (normal epithelium with mild to moderate infiltration of lymphocytes, rare heterophils, normal mucous glands, no syncytia or cells with intranuclear inclusion bodies), a score of 2 represents mild changes (mucosa thickened due to mild to moderate cell infiltration and/or an essentially normal epithelium, except for foci of syncytia with intranuclear inclusion bodies; hyperemia, occasionally with cell cuffs), a score of 3 represents moderate changes (mucosa thickened due to moderate to marked cell infiltration; numerous syncytia with intranuclear inclusion bodies; patches of affected epithelium often separating from or, less commonly, sloughed from the lamina propria; mucosal surface well covered by normal or affected epithelium; mucous glands reduced; marked hyperemia; cuffs of mononuclear cells around vessels outside the mucosa), a score of 4 represents severe changes (mucosa thickened due to edema, proteinaceous fluid, cellular exudate or adherent fibrinohemorrhagic to cellular pseudo membrane on the surface; normal epithelium absent; mucosal surface covered by a thin layer of basal cells; syncytia with inclusion bodies sometimes present) and a score of 5 represents very severe changes (same as a score of 4, except that the mucosa has no residual epithelium, and syncytia with inclusion bodies are rarely found).
For the statistical analysis of the data, GraphPad Prism 9.0.0 (GraphPad Software, San Diego, CA, USA) was used. Kruskal–Wallis test and Dunn’s multiple comparison test were used to analyze bodyweight data, clinical scores, viral genome load, anti-ILTV antibody titer, CD4+ and CD8+ cell fractions. The percentage of remaining animals following the euthanasia of chickens that reach humane end points were analyzed using the log rank (Mantel–Cox) test and Gehan–Breslow–Wilcoxon test. The group differences were considered significant at p ≤ 0.05.

3. Results

3.1. HVT Genome Loads

The HVT genome loads in spleen samples obtained at 14 dpi are illustrated in Figure 1 as an indication of correct rHVT-LT vaccine application. The HVT genome could be quantified in all spleen samples from the vaccinated groups (V-MI and V-I). No HVT genome was detectable in the spleens of the mock-vaccinated groups (MV-MI and MV-I). There was no statistically significant difference between the vaccinated groups (p > 0.05).

3.2. Percentages of Remaining Animals Following Euthanasia of Chickens Reaching Humane Endpoint

The clinical signs were scored, the chicken accumulating a critical clinical score were humanely euthanized and the remaining animals are illustrated as percentages of survival in Figure 2a. No difference was found between the groups’ percentage of survival. Two chickens were euthanized, one at 5 and the other at 6 dpi. In the post-mortem examination of the one chicken that reached endpoint at 6 dpi, we observed a fibrinous exudate buildup in the lumen of the trachea (Figure 2b).

3.3. Clinical Signs

None of the mock-infected animals (vaccinated and unvaccinated) had clinical signs throughout the experimental period. At 4 dpi, the mean clinical scores of the MV-I group were significantly higher than in the MV-MI (p < 0.05), V-MI (p < 0.05) and V-I (p < 0.05) groups. The peak of clinical signs was observed at 6 dpi in both ILTV-infected groups. At 6 dpi, the V-I groups had higher clinical scores than MV-MI (p < 0.05) and V-MI (p < 0.05) groups. The MV-I group also had higher clinical scores than the MV-MI (p < 0.05) and V-MI (p < 0.05) groups. However, at the peak of the disease (6 dpi) there was no difference between the infected groups (Figure 3, p > 0.05).
The clinical signs observed in the V-I group were open beak respiration, depression and conjunctivitis. On the other hand, the MV-I group exhibited ruffled feathers, depression, constant open beak respiration, severe dyspnea marked by gasping, bodyweight loss and conjunctivitis.

3.4. Bodyweight

Mean bodyweights at 0, 3, 7, 10 and 14 dpi are shown in Figure 4. At 14 dpi, the MV-I group had significantly lower mean bodyweights than the MV-MI group (p < 0.05). However, the difference between the V-I and MV-I groups was not significant (p > 0.05).

3.5. ILTV Genome Loads

3.5.1. ILTV Genome Loads in Oropharyngeal Swabs

The ILTV genome loads in oropharyngeal swabs are illustrated in Figure 5a. As expected, the mock-infected groups were negative for the ILTV genome at the observed time points. At 3, 7 and 10 dpi, the ILTV genome loads in the MV-I group were significantly higher than those observed in the V-I (p < 0.05), V-MI (p < 0.05) and MV-MI groups (p < 0.05). At 14 dpi, none of the ILTV-infected groups were positive for the ILTV genome.

3.5.2. ILTV Genome Loads in Cloacal Swabs

The ILTV genome loads in cloacal swabs are illustrated in Figure 5b. Only one bird in the MV-I group was positive at 3 and 10 dpi. There were no statistically significant differences between the groups at any time point (p > 0.05).

3.5.3. ILTV Genome Loads in Feather Tips

The ILTV genome loads in feather tips are illustrated in Figure 5c. None of the groups were positive for ILTV genome at 3 and 14 dpi. At 7 dpi, the MV-I group had significantly higher ILTV loads than the MV-MI (p < 0.05) and V-MI groups (p < 0.05). At 10 dpi, the V-I group had significantly higher ILTV loads than the MV-MI (p < 0.05) and V-MI groups (p < 0.05). The MV-I group also had a significantly higher ILTV loads at 10 dpi compared to the MV-MI (p < 0.05) and V-MI (p < 0.05) groups. There was no difference between the V-I and MV-I groups at 7 and 10 dpi (p > 0.05).

3.5.4. ILTV Genome Loads in Trachea and Lungs

The ILTV genome loads in trachea and lungs quantified at 14 dpi are illustrated in Figure 6a,b, respectively. The MV-I had higher ILTV genome loads in the trachea when compared to the MV-MI (p < 0.05) and V-MI (p < 0.05) groups. Similarly, the V-I group had significantly higher ILTV genome loads in the trachea when compared to the MV-MI (p < 0.05) and V-MI (p < 0.05) groups. However, ILTV genome loads in the trachea between the MV-I group and the V-I group showed no difference (p > 0.05). Although we observed a similar pattern of ILTV genome loads in the trachea and lungs (Figure 7a,b), there were no significant differences in the ILTV genome loads in the lungs between the groups (p > 0.05).

3.6. Peripheral Blood CD4+ and CD8+ T Cells

The results of the flow cytometry analysis of peripheral blood CD4+ and CD8+ T cells are illustrated in Figure 7a,b, respectively. The percentage of CD8+ T cells in the MV-I group at 5 dpi was significantly lower when compared with the MV-MI (p < 0.05) and V-I (p < 0.05) groups. There was no statistical difference in CD8+ T cell percentage at 12 dpi between the groups. Additionally, we did not observe group differences in CD4+ T-cell percentages in any of the observed time points (p > 0.05).

3.7. Anti-ILTV Antibody Response

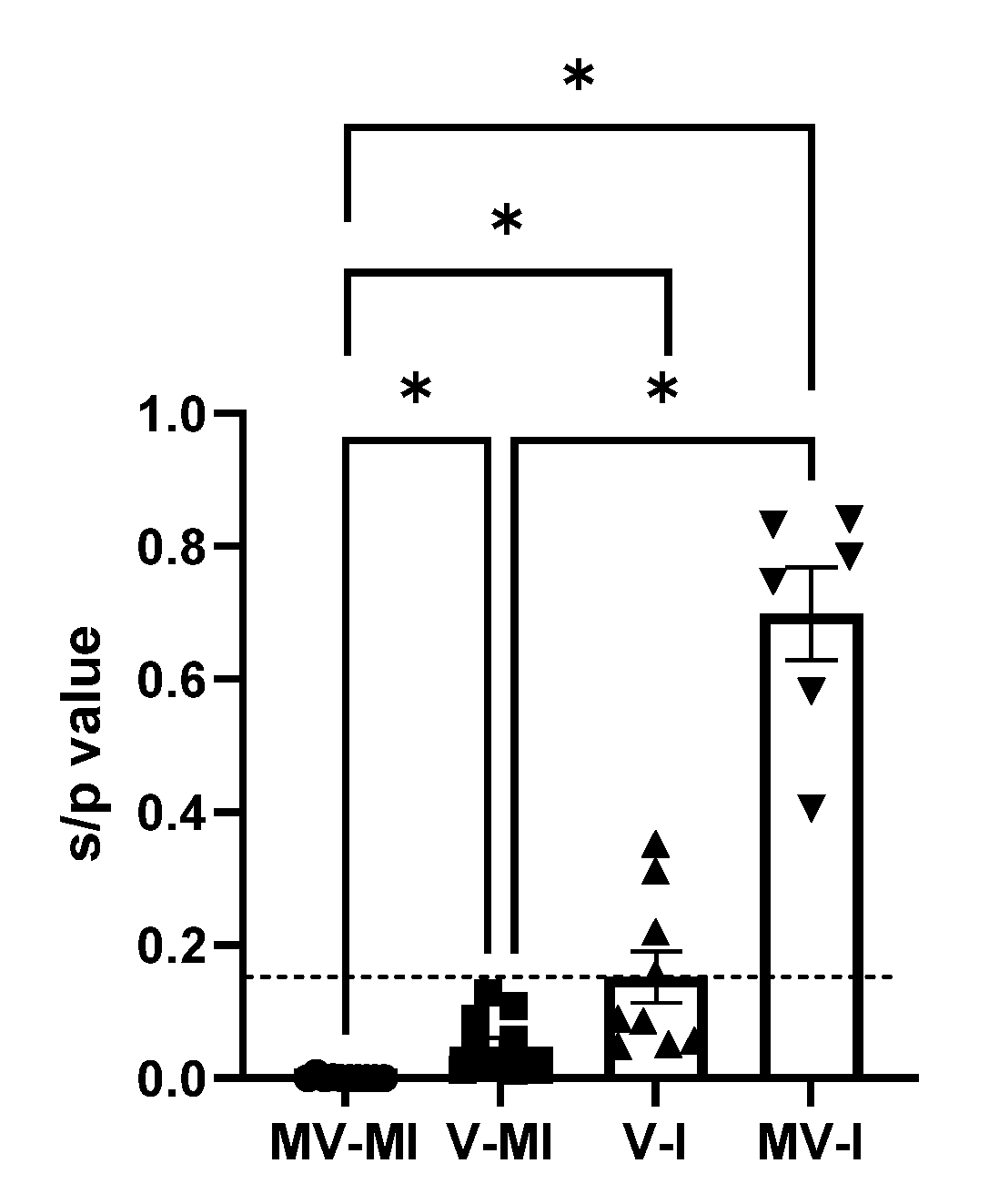

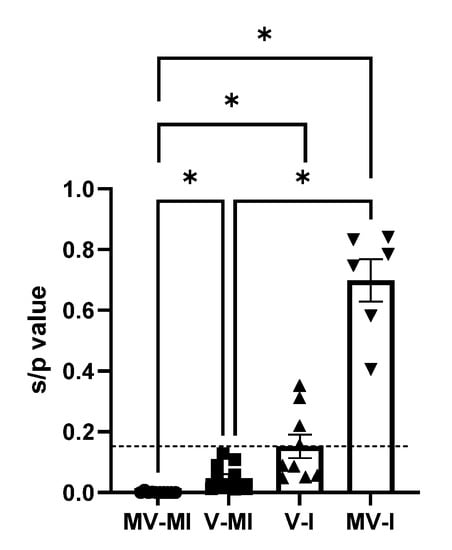

The s/p values obtained by ELISA at 14 dpi are illustrated in Figure 8. The MV-I group had a significantly higher s/p value than the MV-MI group (p < 0.05) and the V-MI group (p < 0.05). The V-I group had a statistically higher s/p value than the MV-MI (p < 0.05). Neither the V-MI nor the MV-MI had values above the cut-off point (0.15). There was no statistically significant difference between the two infected groups.

3.8. Histology

In general, the most severe microscopic lesions were detected in the trachea after the exposure of chickens to ILTV isolate in comparison to the V-I group and the controls (Table 2). It was clear that there were variations in tracheal lesion scores among birds of the same group (Figure 9). The MV-MI group had very minimal pathological lesions (Figure 9) with a mean tracheal lesion score of 0.
Initially, the MV-I group was associated with wide patches of necrosis, desquamation of the epithelial lining with deciliation, intraluminal fibrinohemorrhagic and cellular exudates (heterophils and necrotic epithelial cells); the lamina propria was infiltrated with mononuclear cells; and the underlying connective tissue was projected into the tracheal lumen (tracheal lesion score = 5) (Figure 9a,b). In some cases, there were infiltrated heterophils together with mononuclear cells in the lamina propria, and the tracheal lumen was filled with abundant necrotic epithelial cells; fibrin, heterophils and intranuclear viral inclusion could be observed in some epithelial cells (tracheal lesion score = 4) (Figure 9c). Additionally, the epithelial lining revealed squamous metaplasia and vacuolar degeneration with the formation of vacuolar spaces containing cellular debris, the sub epithelial tissue was infiltrated with mononuclear cell infiltration (tracheal lesion score = 3) (Figure 9d).
In the V-I group, the trachea showed necrosis with desquamation of the epithelial lining and ciliary loss and intraluminal ciliated cuffs of necrotic cells admixed with mucous, and hyperemia was observed in the lamina propria (tracheal lesion score = 3) (Figure 9e). Focal mononuclear cell infiltrations, hyperemia and edema were also observed (tracheal lesion score = 2) (Figure 9f).
The V-MI group showed necrosis and sloughed epithelium with ciliary loss in some areas and cuffs of desquamated ciliated epithelial cells in the tracheal lumen (tracheal lesion score = 3) (Figure 9g).

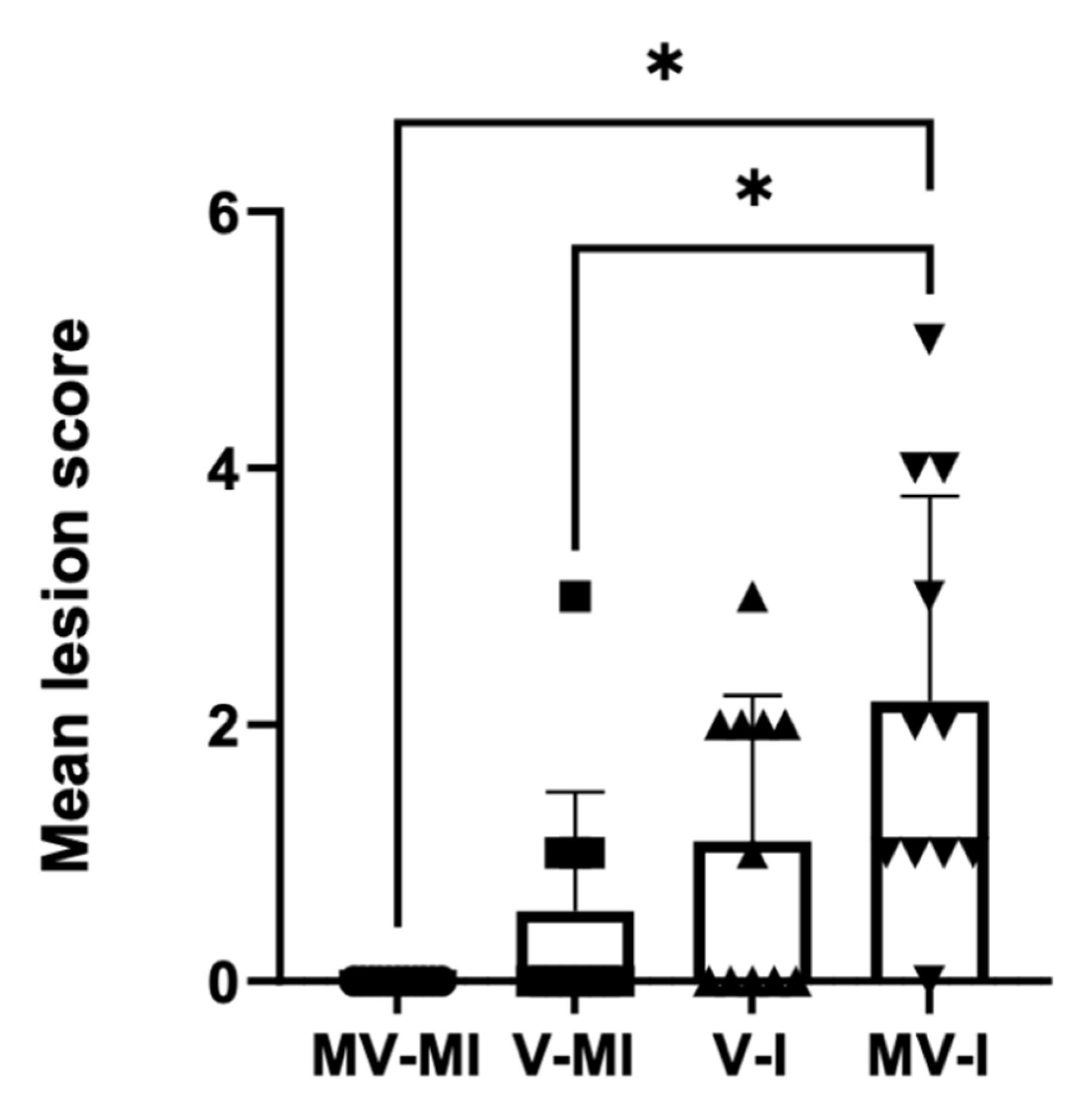

The quantitative tracheal histological scores are given in Figure 10.

4. Discussion

Several of the expected outcomes of vaccination in poultry are as follows: protection against clinical disease, a reduction in susceptibility to infection and reduction in viral shedding [46]. The vaccine protection of a rHVT-LT-based vaccine was assessed after challenge with a field strain of ILTV AB-S63 by comparing weight gain, histopathological changes, and clinical sign scores. The rHVT-LT vaccine induced a level of protection in our study. This was demonstrated by a slower onset of clinical signs in V-I group. At the peak of the clinical signs (6 dpi), there was no difference between the infected groups. Previous studies have shown that the recombinant vaccine administered to chicken that were challenged between 28 days to 35 weeks of age appears to reduce clinical signs [32,35,36,37,38]. Nonetheless, protection elicited by the rHVT-LT vaccine administered in chickens challenged at 74 weeks of age was minimal [38]. In the case of chickens given rHVT-LT that contained gB only and challenged at a younger age (21 days of age), the protection against clinical disease was partial, with 67% of vaccinated birds protected [32].
We evaluated ILTV genome loads as an indicator of ILTV shedding in feather tips, oropharyngeal and cloacal swabs. In agreement with our observation of decreased viral shedding via the oropharyngeal route, previous studies have demonstrated that the rHVT-LT vaccine can significantly reduce viral shedding (3 dpi) as indicated by viral loads determined using tracheal swabs [35,36,37]. However, it is worth noting that some of these studies did not record significant reductions in viral loads in tracheal swabs at 7 dpi [35,36] or beyond this time point [36], contradicting our findings. Although it is difficult to explain the difference in respiratory tract viral shedding between the current study and previous studies, it is possible that it may be related to the difference in time between vaccination and ILTV infection (21 days vs. 55–57 days). In support of this hypothesis, it has been shown that the vaccine induced immune response wanes by 57 days after vaccination [35]. Another study showed no significant viral reduction using tracheal swabs at 5 and 8 dpi in the rHVT-LT vaccinated group [34]. This study attributed the failure in protection efficacy due to incorrect in ovo delivery of the vaccine. It is also important to note that some of these studies used live attenuated vaccine-related ILTV strains as the challenge strain [32,34,35,38]. In our study, we used a Canadian origin genotype VI wild-type ILTV. One of the chickens of the MV-I group tested positive at 3 and 10 dpi. Previously, it has been shown that the ILTV is quantifiable in feather tips [39,47,48]. However, we did not observe that the rHVT-LT vaccine given at 1 day of age is effective in reducing ILTV genome loads in feather tips.
However, we observed that ILTV genome loads in oropharyngeal swabs were reduced in the vaccinated group; we did not observe a difference in ILTV genome loads in the lungs and trachea (14 dpi) between these two groups. Our observation agrees with the previous literature, which indicates that ILTV can persist at 14 dpi due to the reactivation of latent ILTV infection or viral residue from a previous lytic infection [49,50]. A similar trend was observed in the histopathological lesion scores with no difference in lesion scores between V-I and MV-I groups. The V-MI group presented some mild lesions on trachea. However, it seems highly unlikely that this was caused by the vaccine, as the birds were vaccinated at 1 day of age and the tissues were collected 5 weeks later.
It is known that cellular immune response plays an essential role in vaccine-induced antiviral immunity and viral infections [51,52]. In the case of ILTV infections, it is well documented that cell-mediated immunity is the primary immune response [8,53,54]. While there are no prior studies that evaluate the dynamics of T cells in PBMCs after ILTV infection or rHVT-LT vaccination in chickens, there are studies that have investigated T-cell response in the context of other respiratory viruses, such as Newcastle disease virus (NDV) and avian influenza virus (AIV) [43,55,56,57]. Our experimental findings suggested that the rHVT-LT vaccine promotes the presence of CD8+ T in early infection (5 dpi). This could explain the lower clinical sign score in the V-I at 4 dpi. Similarly, one study showed a significant increase in CD8+ T cells at 2, 3 and 7 dpi when compared to the non-vaccinated and NDV-infected group [56]. In a different context, a significant increase in CD8+ T cells in vaccinated chickens has also been shown [43]. On the other hand, researchers observing the cellular and humoral immune response after challenge with a low pathogenic AIV found a significant increase in CD4+ T cells in the challenged group at 14 dpi [55]. However, in our study, we did not observe a difference in CD4+ T at any of the sampling time points among the groups.
In the current study, we observed that the s/p value of MV-I chickens did not exhibit a statistically significant difference when compared to V-I chickens. Additionally, we observed that none of the birds in the vaccinated and mock-infected group had s/p values that reached the cut-off value. The role of antibody-mediated immune response against ILTV infection is unclear [8,54,58,59]. It is also important to note that previous studies have demonstrated that the gG of ILTV can inhibit T-cell responses and favor the humoral immune response as an immune evasion strategy [60,61].

5. Conclusions

In conclusion, the rHVT-LT vaccine diminishes viral shedding and augments the peripheral blood CD8+ T-cell response. Nonetheless, it does not reduce the clinical signs at the peak of the disease or prevent ILTV genome loads or lesions in respiratory tissues. Additional studies with contact birds are needed to assess if a reduction in viral shedding might reduce the transmission of ILTV.

Author Contributions

Conceptualization, M.F.A.-C., T.J., R.K., M.R., D.P. and C.A.G.; methodology, M.F.A.-C., T.J., R.K., M.R., D.P., F.v.d.M., C.A.G. and K.F.; formal analysis, C.B.-S., A.P.-C., S.M.N., A.A. and M.F.A.-C.; investigation, C.B.-S., A.P.-C., S.M.N., A.A. and M.F.A.-C.; resources, T.J., R.K., M.R., D.P., C.A.G. and M.F.A.-C.; writing—original draft preparation, C.B.-S., A.A. and M.F.A.-C.; writing—review and editing, C.B.-S., A.A., T.J., R.K., M.R., D.P., C.A.G., A.A., M.F.A.-C., K.F. and F.v.d.M.; supervision, M.F.A.-C., K.F. and F.v.d.M.; project administration, M.F.A.-C.; funding acquisition, M.F.A.-C., T.J., R.K., M.R., D.P., C.A.G., F.v.d.M. All authors have read and agreed to the published version of the manuscript.

Funding

We acknowledge funding from Agriculture and Agri Food Canada (AAFC, project number 10020202) and Egg Farmers of Alberta (EFA, grant number 10022788).

Institutional Review Board Statement

The use of embryonated eggs for ILTV propagation and chickens for the in vivo studies was approved by the Health Science Animal Care Committee (HSACC) of the University of Calgary, Alberta, Canada (Protocol number: AC19-0013).

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

We acknowledge Mohamed S.H. Hassan, Victor A. Palomino-Tapia and Sabrina M. Buharideen for their help with the sample collection of the animal experiment at the University of Calgary. We would also like to acknowledge Lilian Oribhabo and Bukola Ali, from the Prion/Virology Animal Facility (PVF), for their assistance in animal care and facility management.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. La, T.-M.; Choi, E.-J.; Lee, J.-B.; Park, S.-Y.; Song, C.-S.; Choi, I.-S.; Lee, S.-W. Comparative genome analysis of Korean field strains of infectious laryngotracheitis virus. PLoS ONE 2019, 14, e0211158. [Google Scholar] [CrossRef]
  2. Cover, M.S. The Early History of Infectious Laryngotracheitis. Avian Dis. 1996, 40, 494–500. [Google Scholar] [CrossRef]
  3. Cruickshank, J.G.; Berry, D.M.; Hay, B. The fine structure of infectious laryngotracheitis virus. Virology 1963, 20, 376–378. [Google Scholar] [CrossRef]
  4. Winterfield, R.W.; So, I.G. Susceptibility of turkeys to infectious laryngotracheitis. Avian Dis. 1968, 12, 191–202. [Google Scholar] [CrossRef]
  5. Seddon, H.R.; Hart, L. Infectivity Experiments With the Virus of Laryngotracheitis of Fowls*. Aust. Vet. J. 1936, 12, 13–16. [Google Scholar] [CrossRef]
  6. Garcia, M.; Spatz, S.; Guy, J.S. Infectious Laryngotracheitis. In Disease of Poultry, 13th ed.; Swayne, D.E., Ed.; Wiley-Blackwell: West Sussex, UK, 2013; pp. 161–174. [Google Scholar]
  7. Bagust, T.J.; Jones, R.C.; Guy, J.S. Avian infectious laryngotracheitis. Rev. Sci. Tech. 2000, 19, 483–492. [Google Scholar] [CrossRef]
  8. Fahey, K.J.; Bagust, T.J.; York, J.J. Laryngotracheitis herpesvirus infection in the chicken: The role of humoral antibody in immunity to a graded challenge infection. Avian Pathol. 1983, 12, 505–514. [Google Scholar] [CrossRef]
  9. Williams, R.A.; Bennett, M.; Bradbury, J.M.; Gaskell, R.M.; Jones, R.C.; Jordan, F.T.W. Demonstration of sites of latency of infectious laryngotracheitis virus using the polymerase chain reaction. J. Gen. Virol. 1992, 73, 2415–2420. [Google Scholar] [CrossRef]
  10. Bagust, T.J. Laryngotracheitis (Gallid-1) herpesvirus infection in the chicken 4. latency establishment by wild and vaccine strains of ILT virus. Avian Pathol. 1986, 15, 581–595. [Google Scholar] [CrossRef]
  11. Barboza-Solis, C.; Contreras, A.P.; Palomino-Tapia, V.A.; Joseph, T.; King, R.; Ravi, M.; Peters, D.; Fonseca, K.; Gagnon, C.A.; van der Meer, F.; et al. Genotyping of Infectious Laryngotracheitis Virus (ILTV) Isolates from Western Canadian Provinces of Alberta and British Columbia Based on Partial Open Reading Frame (ORF) a and b. Animals 2020, 10, 1634. [Google Scholar] [CrossRef]
  12. Perez-Contreras, A.; van der Meer, F.; Checkley, S.; Joseph, T.; King, R.; Ravi, M.; Peters, D.; Fonseca, K.; Gagnon, C.A.; Provost, C.; et al. Analysis of Whole-Genome Sequences of Infectious laryngotracheitis Virus Isolates from Poultry Flocks in Canada: Evidence of Recombination. Viruses 2020, 12, 1302. [Google Scholar] [CrossRef]
  13. Ojkic, D.; Swinton, J.; Vallieres, M.; Martin, E.; Shapiro, J.; Sanei, B.; Binnington, B. Characterization of field isolates of infectious laryngotracheitis virus from Ontario. Avian Pathol. 2006, 35, 286–292. [Google Scholar] [CrossRef]
  14. Canadian Poultry Magazine. Available online: https://www.canadianpoultrymag.com/ilt-quebec-30886/ (accessed on 28 December 2018).
  15. Canadian Poultry Magazine. Available online: https://www.canadianpoultrymag.com/disease-watch-infectious-laryngotracheitis-ilt-canada-30562/ (accessed on 14 July 2018).
  16. Hein, T. ILT Outbreaks hit Ontario Region. Available online: https://www.canadianpoultrymag.com/ilt-outbreaks-hit-ontario-region/ (accessed on 24 February 2021).
  17. Centre, F.B.C. Disease Watch: ILT—Niagara, Ont. Available online: https://www.canadianpoultrymag.com/disease-watch-ilt-peterborough-county-ont-2/ (accessed on 3 December 2020).
  18. Chacon, J.L.; Ferreira, A.J. Differentiation of field isolates and vaccine strains of infectious laryngotracheitis virus by DNA sequencing. Vaccine 2009, 27, 6731–6738. [Google Scholar] [CrossRef] [PubMed]
  19. Benton, W.J.; Cover, M.S.; Greene, L.M. The Clinical and Serological Response of Chickens to Certain Laryngotracheitis Viruses. Avian Dis. 1958, 2, 383–396. [Google Scholar] [CrossRef]
  20. Gelenczei, E.F.; Marty, E.W. Studies on a Tissue-Culture-Modified Infectious Laryngotracheitis Virus. Avian Dis. 1964, 8, 105–122. [Google Scholar] [CrossRef]
  21. Shehata, A.A.; Halami, M.Y.; Sultan, H.H.; El-Razik, A.G.A.; Vahlenkamp, T.W. Chicken embryo origin-like strains are responsible for Infectious laryngotracheitis virus outbreaks in Egyptian cross-bred broiler chickens. Virus Genes 2013, 46, 423–430. [Google Scholar] [CrossRef]
  22. Guy, J.S.; Barnes, H.J.; Smith, L. Increased Virulence of Modified-Live Infectious Laryngotracheitis Vaccine Virus Following Bird-to-Bird Passage. Avian Dis. 1991, 35, 348–355. [Google Scholar] [CrossRef]
  23. Garcia, M.; Zavala, G. Commercial Vaccines and Vaccination Strategies Against Infectious Laryngotracheitis: What We Have Learned and Knowledge Gaps That Remain. Avian Dis. 2019, 63, 325–334. [Google Scholar] [CrossRef]
  24. Bayoumi, M.; El-Saied, M.; Amer, H.; Bastami, M.; Sakr, E.E.; El-Mahdy, M. Molecular characterization and genetic diversity of the infectious laryngotracheitis virus strains circulating in Egypt during the outbreaks of 2018 and 2019. Arch. Virol. 2020, 165, 661–670. [Google Scholar] [CrossRef] [PubMed]
  25. Agnew-Crumpton, R.; Vaz, P.K.; Devlin, J.M.; O’Rourke, D.; Blacker-Smith, H.P.; Konsak-Ilievski, B.; Hartley, C.A.; Noormohammadi, A.H. Spread of the newly emerging infectious laryngotracheitis viruses in Australia. Infect. Genet. Evol. 2016, 43, 67–73. [Google Scholar] [CrossRef]
  26. Lee, S.-W.; Hartley, C.A.; Coppo, M.J.C.; Vaz, P.K.; Legione, A.R.; Quinteros, J.A.; Noormohammadi, A.H.; Markham, P.F.; Browning, G.F.; Devlin, J.M. Growth Kinetics and Transmission Potential of Existing and Emerging Field Strains of Infectious Laryngotracheitis Virus. PLoS ONE 2015, 10, e0120282. [Google Scholar] [CrossRef] [Green Version]
  27. Koski, D.M.; Predgen, A.S.; Trampel, D.W.; Conrad, S.K.; Narwold, D.R.; Hermann, J.R. Comparison of the pathogenicity of the USDA challenge virus strain to a field strain of infectious laryngotracheitis virus. Biologicals 2015, 43, 232–237. [Google Scholar] [CrossRef] [PubMed]
  28. Lin, G. Infectious laryngotracheitis cases in the Fraser Valley of British Columbia 2017 to 2020. In Proceedings of the 70th Western Poultry Disease Conference, Virtual Conference, 15–16 March 2021; pp. 116–117. [Google Scholar]
  29. Van Esch, H. Characterization of Alberta Backyard Poultry Flocks. Master’s Thesis, University of Calgary, Calgary, AB, Canada, 2021. [Google Scholar]
  30. Gimeno, I.M.; Cortes, A.L.; Guy, J.S.; Turpin, E.; Williams, C. Replication of recombinant herpesvirus of turkey expressing genes of infectious laryngotracheitis virus in specific pathogen free and broiler chickens following in ovo and subcutaneous vaccination. Avian Pathol. 2011, 40, 395–403. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  31. Davison, S.; Eric, N.G.; Susan, C.; Eckroade, R.J. Evaluation of the Efficacy of a Live Fowlpox-Vectored Infectious Laryngotracheitis/Avian Encephalomyelitis Vaccine against ILT Viral Challenge. Avian Dis. 2006, 50, 50–54. [Google Scholar] [CrossRef]
  32. Esaki, M.; Noland, L.; Eddins, T.; Godoy, A.; Saeki, S.; Saitoh, S.; Yasuda, A.; Dorsey, K.M. Safety and Efficacy of a Turkey Herpesvirus Vector Laryngotracheitis Vaccine for Chickens. Avian Dis. 2013, 57, 192–198. [Google Scholar] [CrossRef]
  33. Islam, A.; Walkden-Brown, S.W.; Groves, P.J.; Underwood, G.J. Kinetics of Marek’s disease virus (MDV) infection in broiler chickens 1: Effect of varying vaccination to challenge interval on vaccinal protection and load of MDV and herpesvirus of turkey in the spleen and feather dander over time. Avian Pathol. 2008, 37, 225–235. [Google Scholar] [CrossRef]
  34. Johnson, D.I.; Vagnozzi, A.; Dorea, F.; Riblet, S.M.; Mundt, A.; Zavala, G.; Garcia, M. Protection Against Infectious Laryngotracheitis by In Ovo Vaccination with Commercially Available Viral Vector Recombinant Vaccines. Avian Dis. 2010, 54, 1251–1259. [Google Scholar] [CrossRef]
  35. Vagnozzi, A.; Zavala, G.; Riblet, S.M.; Mundt, A.; García, M. Protection induced by commercially available live-attenuated and recombinant viral vector vaccines against infectious laryngotracheitis virus in broiler chickens. Avian Pathol. 2012, 41, 21–31. [Google Scholar] [CrossRef] [PubMed]
  36. Maekawa, D.; Beltran, G.; Riblet, S.M.; Garcia, M. Protection Efficacy of a Recombinant Herpesvirus of Turkey Vaccine Against Infectious Laryngotracheitis Virus Administered In Ovo to Broilers at Three Standardized Doses. Avian Dis. 2019, 63, 351–358. [Google Scholar] [CrossRef]
  37. Maekawa, D.; Riblet, S.M.; Newman, L.; Koopman, R.; Barbosa, T.; Garcia, M. Evaluation of vaccination against infectious laryngotracheitis (ILT) with recombinant herpesvirus of turkey (rHVT-LT) and chicken embryo origin (CEO) vaccines applied alone or in combination. Avian Pathol. 2019, 48, 573–581. [Google Scholar] [CrossRef]
  38. Palomino-Tapia, V.A.; Zavala, G.; Cheng, S.; Garcia, M. Long-term protection against a virulent field isolate of infectious laryngotracheitis virus induced by inactivated, recombinant, and modified live virus vaccines in commercial layers. Avian Pathol. 2019, 48, 209–220. [Google Scholar] [CrossRef]
  39. Perez-Contreras, A.; Barboza-Solis, C.; Najimudeen, S.M.; Checkley, S.; van der Meer, F.; Joseph, T.; King, R.; Ravi, M.; Peters, D.; Fonseca, K.; et al. Pathogenic and Transmission Potential of Wildtype and Chicken Embryo Origin (CEO) Vaccine Revertant Infectious Laryngotracheitis Virus. Viruses 2021, 13, 541. [Google Scholar] [CrossRef]
  40. Reed, L.J.; Muench, H. A simple method of estimating fifty per cent endpoints. Am. J. Epidemiol. 1938, 27, 493–497. [Google Scholar] [CrossRef]
  41. Rodenbaugh, C.I.; Lyon, S.D.; Hanzlicek, A.S.; Kanda, I.; Payton, M.E.; Rizzi, T.E.; Holland, L.A.; Brandao, J. Dynamic viscoelastic coagulometry of blood obtained from healthy chickens. Am. J. Vet. Res. 2019, 80, 441–448. [Google Scholar] [CrossRef]
  42. Thapa, S.; Nagy, E.; Abdul-Careem, M.F. In ovo delivery of toll-like receptor 2 ligand, lipoteichoic acid induces pro-inflammatory mediators reducing post-hatch infectious laryngotracheitis virus infection. Vet. Immunol. Immunopathol. 2015, 164, 170–178. [Google Scholar] [CrossRef]
  43. Dalgaard, T.S.; Norup, L.R.; Rubbenstroth, D.; Wattrang, E.; Juul-Madsen, H.R. Flow cytometric assessment of antigen-specific proliferation in peripheral chicken T cells by CFSE dilution. Vet. Immunol. Immunopathol. 2010, 138, 85–94. [Google Scholar] [CrossRef] [PubMed]
  44. Lanier, L.L.; Warner, N.L. Paraformaldehyde fixation of hematopoietic cells for quantitative flow cytometry (FACS) analysis. J. Immunol. Methods 1981, 47, 25–30. [Google Scholar] [CrossRef]
  45. Guy, J.S.; Barnes, H.J.; Morgan, L.M. Virulence of infectious laryngotracheitis viruses: Comparison of modified-live vaccine viruses and North Carolina field isolates. Avian Dis. 1990, 34, 106–113. [Google Scholar] [CrossRef] [PubMed]
  46. Marangon, S.; Busani, L. The use of vaccination in poultry production. Rev. Sci. Tech. 2007, 26, 265–274. [Google Scholar] [CrossRef] [Green Version]
  47. Davidson, I.; Raibshtein, I.; Altori, A.; Elkin, N. Infectious laryngotracheitis virus (ILTV) vaccine intake evaluation by detection of virus amplification in feather pulps of vaccinated chickens. Vaccine 2016, 34, 1630–1633. [Google Scholar] [CrossRef] [PubMed]
  48. Thilakarathne, D.S.; Noormohammadi, A.H.; Browning, G.F.; Quinteros, J.A.; Underwood, G.J.; Hartley, C.A.; Coppo, M.J.; Devlin, J.M.; Diaz-Mendez, A. Pathogenesis and tissue tropism of natural field recombinants of infectious laryngotracheitis virus. Vet. Microbiol. 2020, 243, 108635. [Google Scholar] [CrossRef]
  49. Thilakarathne, D.S.; Hartley, C.A.; Diaz-Méndez, A.; Coppo, M.J.C.; Devlin, J.M. Development and application of a combined molecular and tissue culture-based approach to detect latent infectious laryngotracheitis virus (ILTV) in chickens. J. Virol. Methods 2020, 277, 113797. [Google Scholar] [CrossRef]
  50. Thilakarathne, D.S.; Hartley, C.A.; Diaz-Méndez, A.; Quinteros, J.A.; Fakhri, O.; Coppo, M.J.C.; Devlin, J.M. Latency characteristics in specific pathogen-free chickens 21 and 35 days after intra-tracheal inoculation with vaccine or field strains of infectious laryngotracheitis virus. Avian Pathol. 2020, 49, 369–379. [Google Scholar] [CrossRef]
  51. Ahmed, R.; Gray, D. Immunological memory and protective immunity: Understanding their relation. Science 1996, 272, 54–60. [Google Scholar] [CrossRef]
  52. Zinkernagel, R.; Hengartner, H. Antiviral immunity. Immunol. Today 1997, 18, 258–260. [Google Scholar] [CrossRef]
  53. Fahey, K.J.; York, J.J. The role of mucosal antibody in immunity to infectious laryngotracheitis virus in chickens. J. Gen. Virol. 1990, 71, 2401–2405. [Google Scholar] [CrossRef]
  54. Honda, T.; Okamura, H.; Taneno, A.; Yamada, S.; Takahashi, E. The Role of Cell-Mediated Immunity in Chickens Inoculated with the Cell-Associated Vaccine of Attenuated Infectious Laryngotracheitis Virus. J. Vet. Med Sci. 1994, 56, 1051–1055. [Google Scholar] [CrossRef] [Green Version]
  55. Hao, X.L.; Li, S.; Chen, L.N.; Dong, M.L.; Wang, J.J.; Hu, J.; Gu, M.; Wang, X.Q.; Hu, S.L.; Peng, D.X.; et al. Establishing a Multicolor Flow Cytometry to Characterize Cellular Immune Response in Chickens Following H7N9 Avian Influenza Virus Infection. Viruses 2020, 12, 1396. [Google Scholar] [CrossRef]
  56. Taebipour, M.J.; Dadras, H.; Nazifi, S.; Afsar, M.; Ansari-Lari, M. Evaluation of blood monocyte and lymphocyte population in broiler chicken after vaccination and experimental challenge with Newcastle disease virus. Vet. Immunol. Immunopathol. 2017, 190, 31–38. [Google Scholar] [CrossRef]
  57. Norup, L.R.; Dalgaard, T.S.; Pedersen, A.R.; Juul-Madsen, H.R. Assessment of Newcastle Disease–Specific T Cell Proliferation in Different Inbred MHC Chicken Lines. Scand. J. Immunol. 2011, 74, 23–30. [Google Scholar] [CrossRef]
  58. Fahey, K.J.; York, J.J.; Bagust, T.J. Laryngotracheitis herpesvirus infection in the chicken. II. The adoptive transfer of resistance with immune spleen cells. Avian Pathol. 1984, 13, 265–275. [Google Scholar] [CrossRef] [Green Version]
  59. York, J.J.; Fahey, K.J. Humoral and cell-mediated immune responses to the glycoproteins of infectious laryngotracheitis herpesvirus. Arch. Virol. 1990, 115, 289–297. [Google Scholar] [CrossRef]
  60. Devlin, J.M.; Browning, G.F.; Gilkerson, J.R. A glycoprotein I- and glycoprotein E-deficient mutant of infectious laryngotracheitis virus exhibits impaired cell-to-cell spread in cultured cells. Arch. Virol. 2006, 151, 1281–1289. [Google Scholar] [CrossRef]
  61. Devlin, J.M.; Viejo-Borbolla, A.; Browning, G.F.; Noormohammadi, A.H.; Gilkerson, J.R.; Alcami, A.; Hartley, C.A. Evaluation of immunological responses to a glycoprotein G deficient candidate vaccine strain of infectious laryngotracheitis virus. Vaccine 2010, 28, 1325–1332. [Google Scholar] [CrossRef]

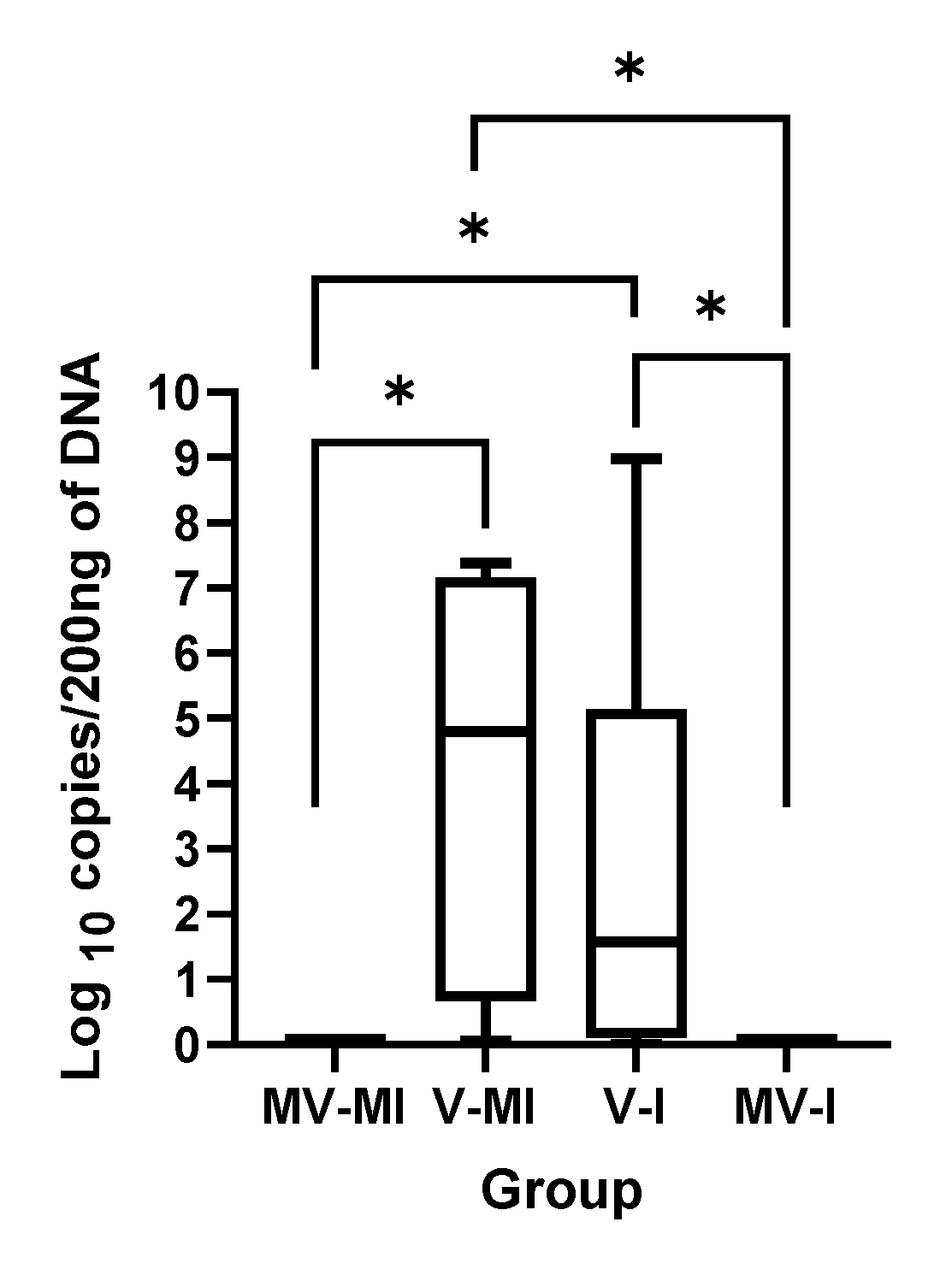

Figure 1. rHVT-LT genome load in spleen at 5 weeks post-vaccination (14 dpi) as an indicator of rHVT-LT vaccine successful application. The rHVT-LT genome loads targeting the gB gene of the HVT were quantified using the qPCR technique. The Kruskal–Wallis test followed by Dunn’s multiple comparison test was used to compare group differences. * = p < 0.05.
Figure 1. rHVT-LT genome load in spleen at 5 weeks post-vaccination (14 dpi) as an indicator of rHVT-LT vaccine successful application. The rHVT-LT genome loads targeting the gB gene of the HVT were quantified using the qPCR technique. The Kruskal–Wallis test followed by Dunn’s multiple comparison test was used to compare group differences. * = p < 0.05.
Vaccines 09 01425 g001

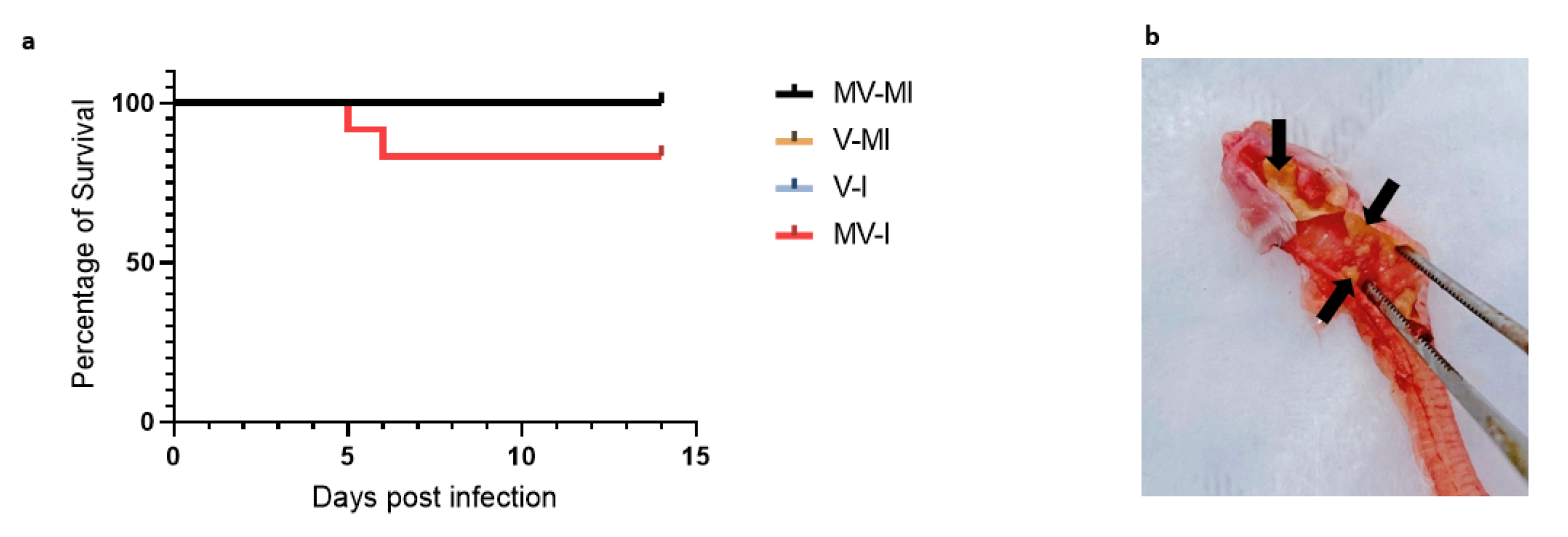

Figure 2. Percentage of survival (a) Percentages of remaining chicken following euthanasia of chickens reaching humane end point. Log rank (Mantel–Cox) test and Gehan–Breslow–Wilcoxon test were performed to identify group differences. (b) Post-mortem examination of trachea of a chicken euthanized at 6 dpi with fibrinous exudate in trachea (black arrows).
Figure 2. Percentage of survival (a) Percentages of remaining chicken following euthanasia of chickens reaching humane end point. Log rank (Mantel–Cox) test and Gehan–Breslow–Wilcoxon test were performed to identify group differences. (b) Post-mortem examination of trachea of a chicken euthanized at 6 dpi with fibrinous exudate in trachea (black arrows).
Vaccines 09 01425 g002

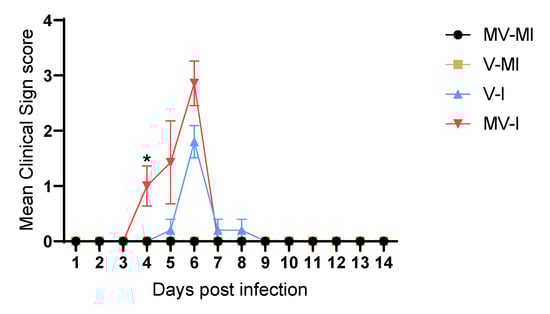

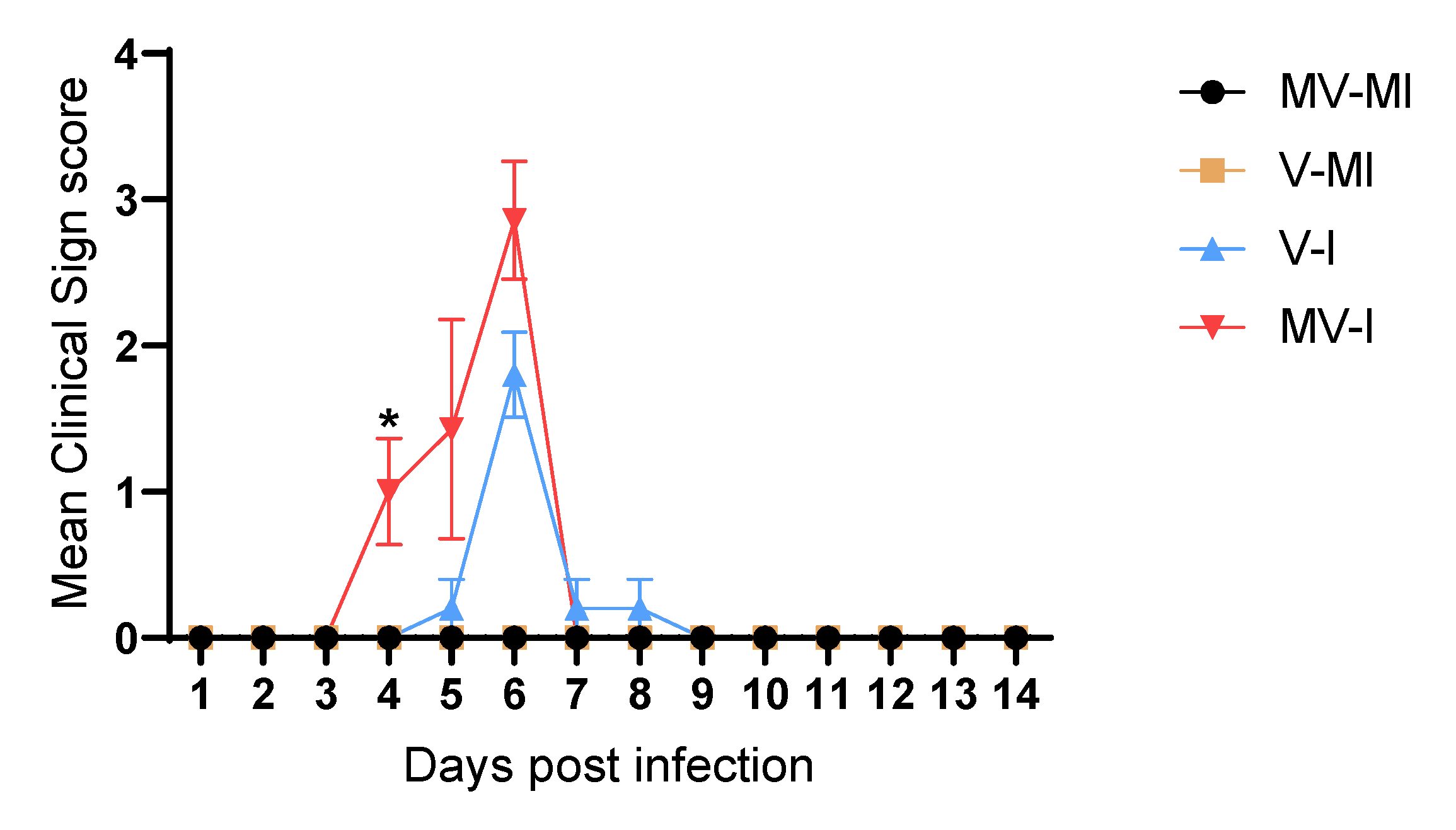

Figure 3. The observed mean clinical scores during experimental period. The mean clinical scores are given, and the error bars represent the standard error of means (SEM). Kruskal–Wallis test followed by Dunn’s multiple comparison test was performed to compare mean clinical scores of groups. * = p < 0.05.
Figure 3. The observed mean clinical scores during experimental period. The mean clinical scores are given, and the error bars represent the standard error of means (SEM). Kruskal–Wallis test followed by Dunn’s multiple comparison test was performed to compare mean clinical scores of groups. * = p < 0.05.
Vaccines 09 01425 g003

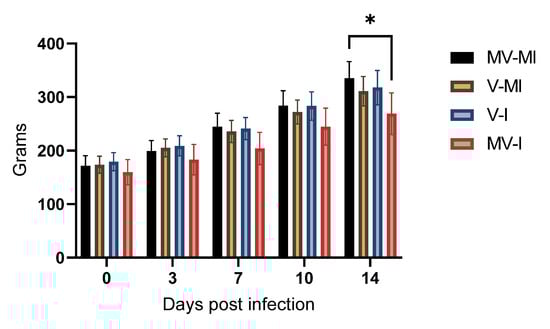

Figure 4. Bodyweight gains of experimental chickens at 0, 3, 7, 10 and 14 days post-infection (dpi). Data are presented as mean, and the error bars represent the standard error of means (SEM). Kruskal–Wallis test followed by Dunn’s multiple comparison test was used to identify group differences. * = p < 0.05.
Figure 4. Bodyweight gains of experimental chickens at 0, 3, 7, 10 and 14 days post-infection (dpi). Data are presented as mean, and the error bars represent the standard error of means (SEM). Kruskal–Wallis test followed by Dunn’s multiple comparison test was used to identify group differences. * = p < 0.05.
Vaccines 09 01425 g004

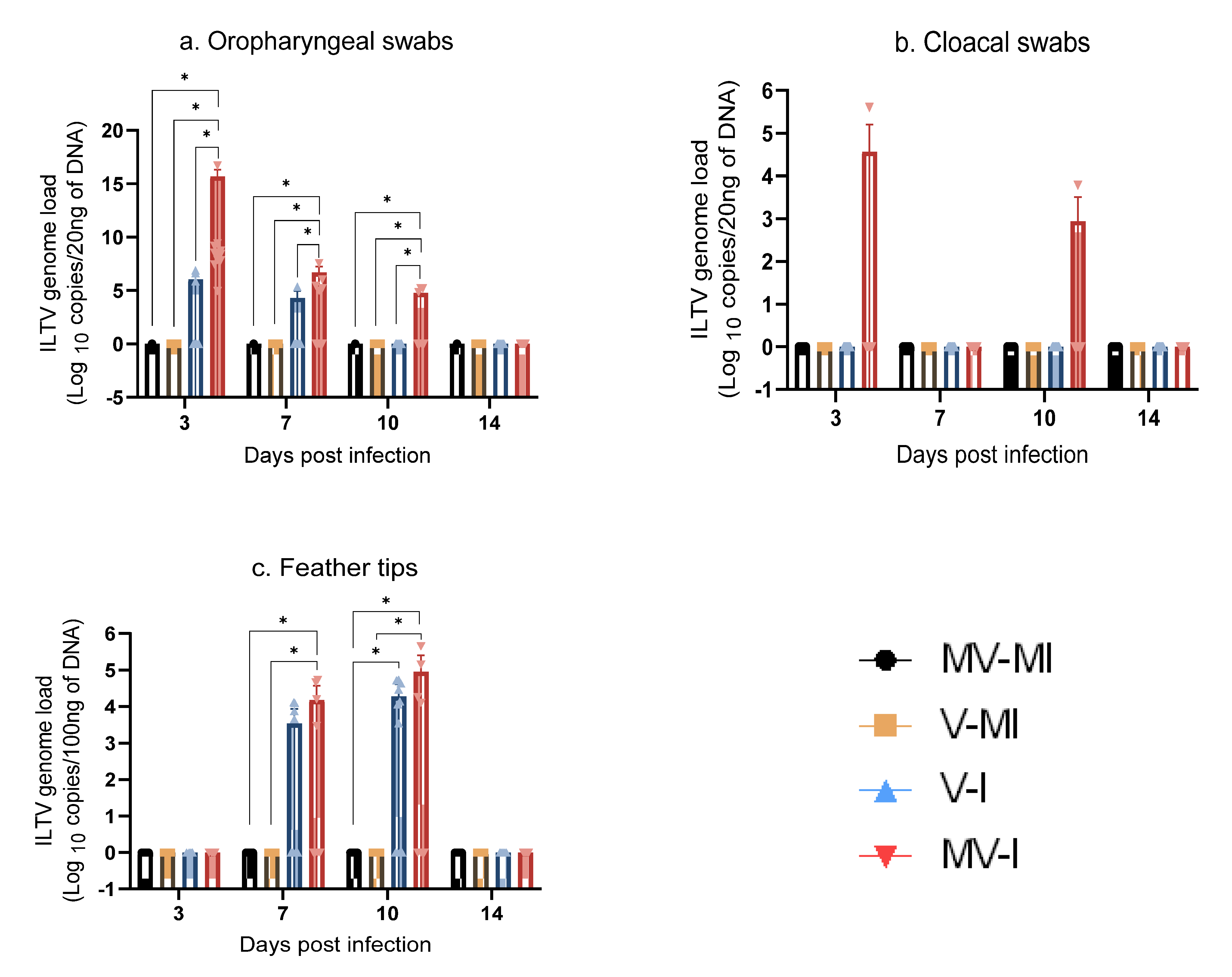

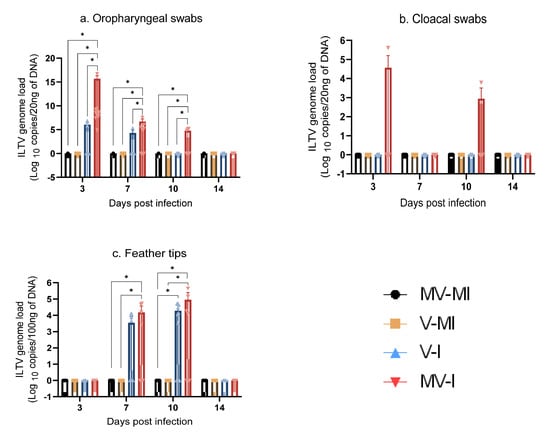

Figure 5. ILTV genome loads quantified targeting the PK gene at 3, 7, 10 and 14 days post-infection (dpi). The bars represent the mean, and error bars indicate the standard error of mean (SEM). Kruskal–Wallis test followed by Dunn’s multiple comparison test was used to identify group differences. (a) ILTV genome loads in oropharyngeal swabs; (b) ILTV genome loads in cloacal swabs; (c) ILTV genome loads in feather tips. * = p < 0.05.
Figure 5. ILTV genome loads quantified targeting the PK gene at 3, 7, 10 and 14 days post-infection (dpi). The bars represent the mean, and error bars indicate the standard error of mean (SEM). Kruskal–Wallis test followed by Dunn’s multiple comparison test was used to identify group differences. (a) ILTV genome loads in oropharyngeal swabs; (b) ILTV genome loads in cloacal swabs; (c) ILTV genome loads in feather tips. * = p < 0.05.
Vaccines 09 01425 g005

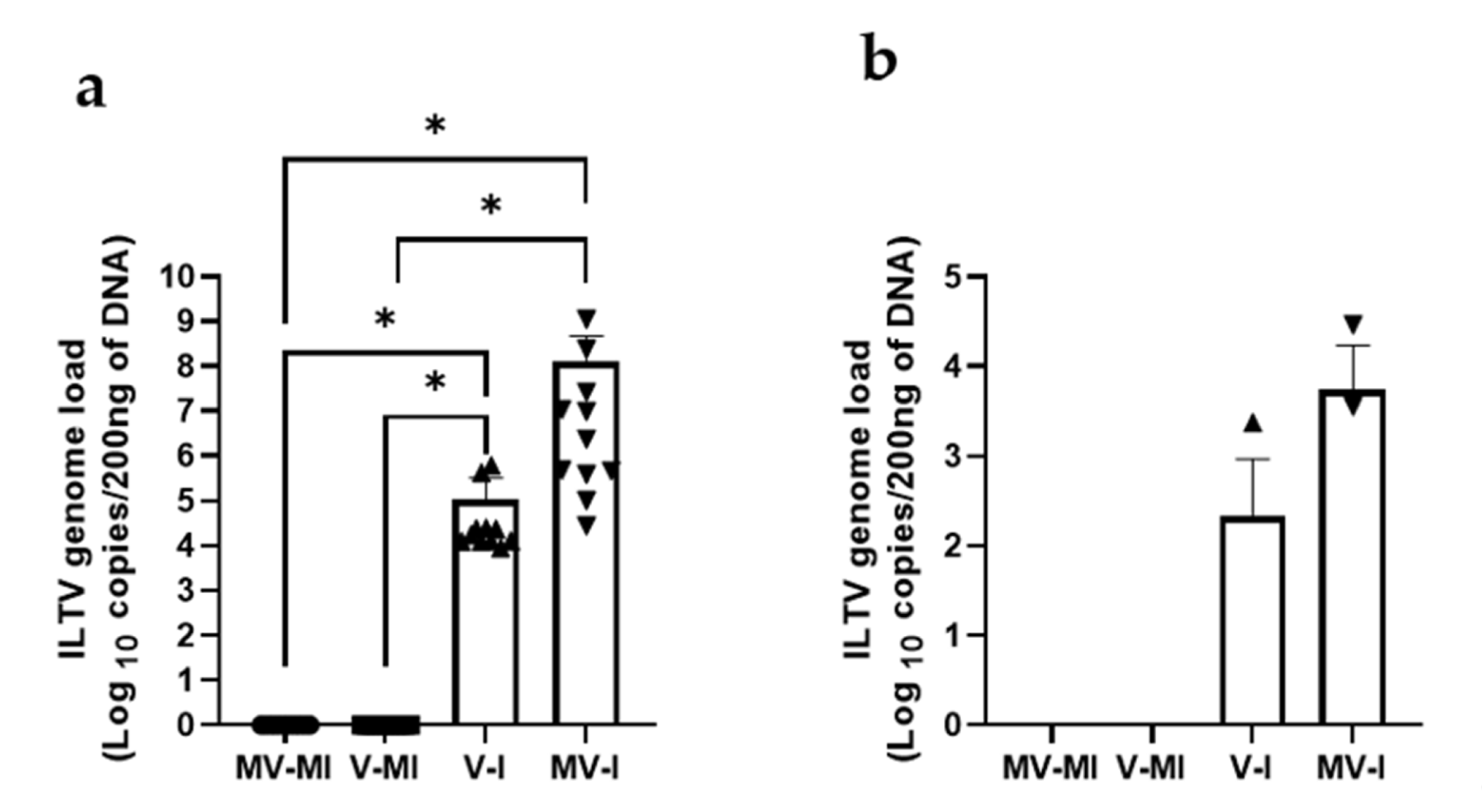

Figure 6. ILTV genome loads in trachea (a) and lungs (b) at 14 dpi. The quantification of ILTV genome loads was performed targeting the ILTV PK gene using qPCR assay. Mean genome load is plotted in log10 scale and represented in bars with standard error of means (SEM). Kruskal–Wallis test followed by Dunn’s multiple comparison test was performed to identify group differences. * = p < 0.05.
Figure 6. ILTV genome loads in trachea (a) and lungs (b) at 14 dpi. The quantification of ILTV genome loads was performed targeting the ILTV PK gene using qPCR assay. Mean genome load is plotted in log10 scale and represented in bars with standard error of means (SEM). Kruskal–Wallis test followed by Dunn’s multiple comparison test was performed to identify group differences. * = p < 0.05.
Vaccines 09 01425 g006

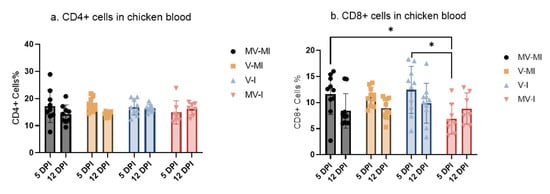

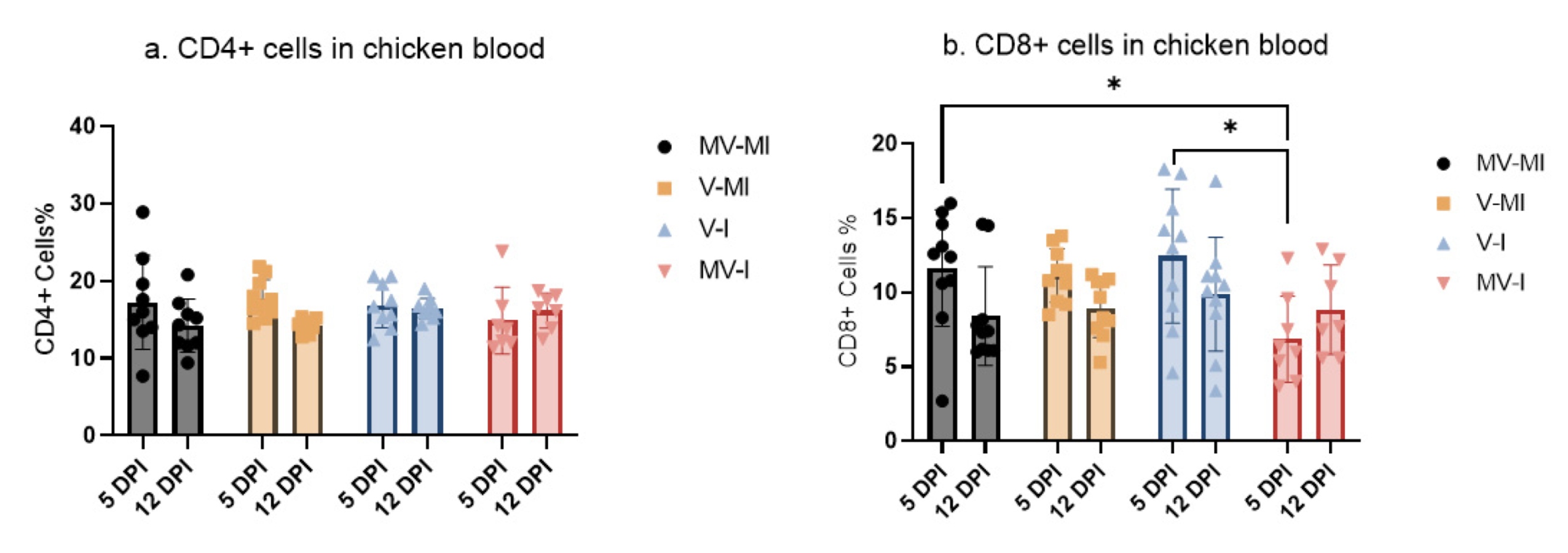

Figure 7. Percentage of (a) CD4+ and (b) CD8+ T cells in peripheral blood mononuclear cells (PBMCs) at 5 and 12 dpi. Mean percentage of CD4+ and CD8+ T cells is given, and error bars represent the standard error of means (SEM). Kruskal–Wallis test was performed followed by Dunn’s multiple comparison test to identify the group differences. * = p < 0.05.
Figure 7. Percentage of (a) CD4+ and (b) CD8+ T cells in peripheral blood mononuclear cells (PBMCs) at 5 and 12 dpi. Mean percentage of CD4+ and CD8+ T cells is given, and error bars represent the standard error of means (SEM). Kruskal–Wallis test was performed followed by Dunn’s multiple comparison test to identify the group differences. * = p < 0.05.
Vaccines 09 01425 g007
Figure 8. Serum sample to positive value (s/p) at 14 dpi. The bars represent mean; the geometric figures, the individual values; and the error bars, the standard error of mean (SEM). The horizontal discontinuous line represents the cut-off value of negative to positive serological diagnostic results, corresponding to 0.15. Kruskal–Wallis test followed by Dunn’s multiple comparison test was used to compare the group differences. * = p < 0.05.
Figure 8. Serum sample to positive value (s/p) at 14 dpi. The bars represent mean; the geometric figures, the individual values; and the error bars, the standard error of mean (SEM). The horizontal discontinuous line represents the cut-off value of negative to positive serological diagnostic results, corresponding to 0.15. Kruskal–Wallis test followed by Dunn’s multiple comparison test was used to compare the group differences. * = p < 0.05.
Vaccines 09 01425 g008
Figure 9. Representative histology images of trachea at 14 dpi and quantitative tracheal histological score. (a): Black arrow represents fibrinohemorrhagic membrane containing cellular exudates. (b): Black arrow represents mononuclear cell infiltration and hyperemia; head arrow indicates projection of the underlying connective tissue into the lumen. (c): Eosinophilic intranuclear viral inclusion inside sloughed epithelial cells around heterophilic infiltrates (inset). (d): Vacuolar spaces containing cellular debris and mononuclear cell infiltration with hyperemia in l. propria (head arrow); the epithelium lining exhibited squamous metaplasia (black arrow). (e): Black head arrow represents cuffs of sloughed epithelial cells in the tracheal lumen. (f): Black arrow represents mononuclear cell infiltration, hyperemia and edema. (g): Black head arrow represents intraluminal sloughed epithelial cells. (h): Normal trachea without pathological lesion.
Figure 9. Representative histology images of trachea at 14 dpi and quantitative tracheal histological score. (a): Black arrow represents fibrinohemorrhagic membrane containing cellular exudates. (b): Black arrow represents mononuclear cell infiltration and hyperemia; head arrow indicates projection of the underlying connective tissue into the lumen. (c): Eosinophilic intranuclear viral inclusion inside sloughed epithelial cells around heterophilic infiltrates (inset). (d): Vacuolar spaces containing cellular debris and mononuclear cell infiltration with hyperemia in l. propria (head arrow); the epithelium lining exhibited squamous metaplasia (black arrow). (e): Black head arrow represents cuffs of sloughed epithelial cells in the tracheal lumen. (f): Black arrow represents mononuclear cell infiltration, hyperemia and edema. (g): Black head arrow represents intraluminal sloughed epithelial cells. (h): Normal trachea without pathological lesion.
Vaccines 09 01425 g009
Figure 10. The mean lesion scores are given, and the error bars represent the standard error of means (SEM). Kruskal–Wallis test followed by Dunn’s multiple comparison test was performed to compare mean clinical scores of groups. * = p < 0.05.
Figure 10. The mean lesion scores are given, and the error bars represent the standard error of means (SEM). Kruskal–Wallis test followed by Dunn’s multiple comparison test was performed to compare mean clinical scores of groups. * = p < 0.05.
Vaccines 09 01425 g010
Table 1. Experimental design.
Table 1. Experimental design.
GroupnVaccination (1 Day of Age)ILTV Infection (3 Weeks of Age)
MV-MI 1110.2 mL of vaccine diluent 0.2 mL of PBS
V-MI 2110.2 mL of Innovax® ILT vaccine 0.2 mL of PBS
V-I 3110.2 mL of Innovax® ILT vaccine 0.2 mL of AB-S63 ILTV
MV-I ⁴110.2 mL of vaccine diluent 0.2 mL of AB-S63 ILTV
1 Mock vaccinated and mock infected; 2 vaccinated and mock infected; 3 vaccinated and infected; ⁴ mock-vaccinated and infected.
Table 2. The mean microscopic lesions detected in 4 groups.
Table 2. The mean microscopic lesions detected in 4 groups.
Microscopic LesionsMV-I 1V-I 2V-MI 3MV-MI 4
Lamina epithelialis and intratracheal lumen:
Necrotic desquamated epithelial cells and deciliation8/113/111/110/11
Cellular exudate (heterophils, necrotic epithelium, erythrocytes)3/110/110/110/11
Fibrinohemorrhagic exudate2/110/110/110/11
Eosinophilic intra nuclear viral inclusions2/110/110/110/11
Lamina propria:
Mononuclear cell infiltration8/112/113/110/11
Hyperemia3/111/112/111/11
1 Mock vaccinated and infected; 2 vaccinated and infected; 3 vaccinated and mock infected; ⁴ mock vaccinated and mock infected.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Barboza-Solis, C.; Najimudeen, S.M.; Perez-Contreras, A.; Ali, A.; Joseph, T.; King, R.; Ravi, M.; Peters, D.; Fonseca, K.; Gagnon, C.A.; et al. Evaluation of Recombinant Herpesvirus of Turkey Laryngotracheitis (rHVT-LT) Vaccine against Genotype VI Canadian Wild-Type Infectious Laryngotracheitis Virus (ILTV) Infection. Vaccines 2021, 9, 1425. https://doi.org/10.3390/vaccines9121425

AMA Style

Barboza-Solis C, Najimudeen SM, Perez-Contreras A, Ali A, Joseph T, King R, Ravi M, Peters D, Fonseca K, Gagnon CA, et al. Evaluation of Recombinant Herpesvirus of Turkey Laryngotracheitis (rHVT-LT) Vaccine against Genotype VI Canadian Wild-Type Infectious Laryngotracheitis Virus (ILTV) Infection. Vaccines. 2021; 9(12):1425. https://doi.org/10.3390/vaccines9121425

Chicago/Turabian Style

Barboza-Solis, Catalina, Shahnas M. Najimudeen, Ana Perez-Contreras, Ahmed Ali, Tomy Joseph, Robin King, Madhu Ravi, Delores Peters, Kevin Fonseca, Carl A. Gagnon, and et al. 2021. "Evaluation of Recombinant Herpesvirus of Turkey Laryngotracheitis (rHVT-LT) Vaccine against Genotype VI Canadian Wild-Type Infectious Laryngotracheitis Virus (ILTV) Infection" Vaccines 9, no. 12: 1425. https://doi.org/10.3390/vaccines9121425

APA Style

Barboza-Solis, C., Najimudeen, S. M., Perez-Contreras, A., Ali, A., Joseph, T., King, R., Ravi, M., Peters, D., Fonseca, K., Gagnon, C. A., van der Meer, F., & Abdul-Careem, M. F. (2021). Evaluation of Recombinant Herpesvirus of Turkey Laryngotracheitis (rHVT-LT) Vaccine against Genotype VI Canadian Wild-Type Infectious Laryngotracheitis Virus (ILTV) Infection. Vaccines, 9(12), 1425. https://doi.org/10.3390/vaccines9121425

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
