Generation of a Live-Attenuated Strain of Chikungunya Virus from an Indian Isolate for Vaccine Development

by
Sreeja R. Nair
1,2,†,
Rachy Abraham
1,†,‡ and
Easwaran Sreekumar
1,3,*
1
Molecular Virology Laboratory, Rajiv Gandhi Centre for Biotechnology (RGCB), Thiruvananthapuram 695 014, Kerala, India
2
Bioscience Research and Training Centre (BRTC), Kerala Veterinary and Animal Sciences University, Bio360 Life Sciences Park, Thonnakkal, Thiruvananthapuram 695 317, Kerala, India
3
Institute of Advanced Virology (IAV), Bio360 Life Sciences Park, Thonnakkal, Thiruvananthapuram 695 317, Kerala, India
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
‡
Current address: Department of Biochemistry and Molecular Biology, Johns Hopkins Bloomberg School of Public Health, Baltimore, MD 21205, USA.
Vaccines 2022, 10(11), 1939; https://doi.org/10.3390/vaccines10111939
Submission received: 14 October 2022 / Revised: 2 November 2022 / Accepted: 7 November 2022 / Published: 16 November 2022
(This article belongs to the Special Issue Vaccines against Flaviviruses and Alphaviruses: Recent Advances and Future Challenges)
Browse Figures
Versions Notes

Abstract

:
Chikungunya virus (CHIKV) re-emergence in the last decade has resulted in explosive epidemics. Along with the classical symptoms of fever and debilitating arthralgia, there were occurrences of unusual clinical presentations such as neurovirulence and mortality. These generated a renewed global interest to develop prophylactic vaccines. Here, using the classical approach of virus attenuation, we developed an attenuated CHIKV strain (RGCB355/KL08-p75) for the purpose. Repeated passaging (75 times) of a local clinical isolate of ECSA lineage virus in U-87 MG human astrocytoma cells, an interferon-response-deficient cell line, resulted in efficient adaptation and attenuation. While experimental infection of 3-day old CHIKV-susceptible BALB/c pups with the parent strain RGCB355/KL08-p4 resulted in death of all the animals, there was 100% survival in mice infected with the attenuated p75. In adult, immunocompetent, CHIKV-non-susceptible C57BL/6 mice, inoculation with p75 induced high antibody response without any signs of disease. Both p4 and p75 strains are uniformly lethal to interferon-response-deficient AG129 mice. Passive protection studies in AG129 mice using immune serum against p75 resulted in complete survival. Whole-genome sequencing identified novel mutations that might be responsible for virus attenuation. Our results establish the usefulness of RGCB355/KL08-p75 as a strain for vaccine development against chikungunya.

1. Introduction

Chikungunya virus (CHIKV; family Togaviridae, genus Alphavirus) is an arthropod-borne virus transmitted to humans mainly by the Aedes species [1,2]. The disease presents as an acute illness in infected patients, characterized by a high fever, severe and debilitating joint pain often associated with a rash, muscle pain, headache, nausea and fatigue [3]. Extensive chikungunya outbreaks were described earlier in Southeast Asia and especially in India during the 1950s and 1960s [4,5]. The re-emergence of the disease in 2004, the first after 32 years of quiescence, documented with massive disease outbreaks in the islands of the Indian Ocean and Indian subcontinent, has subsequently spread to many parts of the world [6,7]. These newer outbreaks were associated with numerous other complications including cardiomyopathies, neurological disease, multi-organ failure and death [8,9,10]. Currently, CHIKV has been identified in over 114 countries and territories throughout the globe, affecting millions of people [11].
Even though the CHIKV resurgence has a wide geographic spread and extreme economic impact, there are currently no licensed vaccines or approved therapeutics against the disease. Attempts to develop a CHIKV vaccine started as early as the 1960s, with formalin-inactivated virus preparations [12]. Strategies for the development of live-attenuated vaccines were given preference because of the decreased production costs and the reduction in the possible risks associated with handling large quantities of un-attenuated viruses prior to inactivation. The first CHIKV-attenuated strain, TSI-GSD-218 (strain 181/clone25, derived from Asian lineage strain AF15561), which reached Phase II clinical trials, was developed during the 1980s by the US Army Medical Research Institute for Infectious Diseases (USAMRIID). This live-attenuated strain was generated by serial plaque-to-plaque passaging of a wild-type Thailand CHIKV strain in human lung cells, MRC-5 cells, and was proved to be highly immunogenic in humans [13,14]. However, it resulted in mild, transient arthralgia in a subsection of the vaccine recipients, which pointed out its tendency of reversion to virulence [15]. Currently, Phase III trials of a virus-like particle (VLP)-based VRC-CHKVLP059-00-VP (PXVX0317), sponsored by Emergent BioSolutions [16,17,18,19,20]; a live-attenuated Δ5nsP3 VLA1553-301, of Butantan Institute and Valneva Austria GmbH [21,22,23,24]; a Phase II/III adaptive seamless designed trial of inactivated virus BBV87, of Bharat Biotech International Limited [25]; and a Phase II trial of measles virus vector-based MV-CHIK, of Themis Bioscience GmBH [26,27,28,29,30], are ongoing. Nearly 30 novel CHIKV vaccine candidates are presently under development in various strategies based on inactivated, live-attenuated, viral-vectored, chimeric, virus-like particles, subunit proteins, DNA and mRNA [31,32,33,34]. A comprehensive list of vaccine candidates that were considered for clinical and preclinical trials until 2022 are listed out in Table 1.
Genome sequencing of CHIKV isolates has identified three geographically associated genotypes: Asian; East, Central and South African (ECSA); and West African. However, there is only one known serotype [7,77]. Additionally, two important sub-lineages emerged during the epidemics of the past two decades: the Indian Ocean Lineage (IOL) from the ECSA genotype during the Indian Ocean outbreak of 2005 [78,79], and the Asian/American lineage within the Asian genotype, originated during 2013 Caribbean outbreak [80,81]. Studies have indicated that the protective immune response against CHIKV is not genotype-specific, leading to cross-lineage protective immunity against all others [82,83]. However, a recent study has shown that maximum neutralization by anti-CHIKV antibodies is exhibited against viral strains of the same lineage [84]. This has pointed to the need for using homotypic strains for making more efficient anti-CHIKV vaccines suitable for different geographical areas depending on the CHIKV lineage prevalent in the region.
The ECSA genotype is the most circulating strain in the Indian subcontinent and many parts of South Asia, and hence most of the recent vaccine candidates are based on the ECSA strain (Table 1). In the present study, we sought to develop an attenuated strain of the CHIKV ECSA genotype for supporting the development of live-attenuated vaccines.

2. Materials and Methods

2.1. Cell Culture and Viruses

Vero cells (African green monkey kidney cells; National Centre for Cell Sciences, Pune, India) and U-87 MG cells (ATCC- HTB14; American Type Culture collection) were grown in DMEM (Dulbecco’s modified Eagle’s medium; Gibco, Thermo Fisher Scientific, Waltham, MA, USA) supplemented with 10% heat-inactivated fetal bovine serum (FBS) and 1× antibiotic-antimycotic mixture (all from Sigma-Aldrich, Bangalore, India). Cultures were incubated at 37 °C in a humidified atmosphere containing 5% CO2.
The virus strain used, a 2008 human isolate from Kerala, India, designated as RGCB 355/KL08, was described earlier [85]. It was passaged four times in Vero cells and was designated as RGCB 355/KL08-p4 (p4). RGCB 355/KL08-p4 was further used to infect U-87MG cells and was passaged 75 times to produce the attenuated strain designated as RGCB 355/KL08-p75 (p75). The replication kinetics of the virus stocks (p4 and p75) in U-87 MG cells were assessed on Vero cell monolayers by plaque assay as previously described [85].

2.2. Immunofluorescence Staining

Cells were grown on glass cover slips and infected at MOI 1. At different times post-infection, cells were fixed using 4% paraformaldehyde in phosphate-buffered saline (PBS; pH 7.2; Gibco) for 15 min at 4 °C and washed three times with PBS. The cells were permeabilized with 0.2% TritonX-100 for 10 min at room temperature, washed with PBS and blocked by incubating in PBS containing 8% normal goat serum for 1 h at 37 °C. After washing with PBS, cells were incubated in a 1:50 dilution of primary antibody (in-house rabbit anti-CHIKV polyclonal serum against recombinant E2 protein) for 2 h. After three washes with PBS, cells were incubated with a 1:2000 dilution of Alexafluor 488-conjugated anti-rabbit IgG (Invitrogen). Nucleus morphology was revealed by DAPI staining (final concentration: 1 μg/mL). Cover slips were mounted on glass slides and images were captured using a confocal microscope (Nikon A1R; Nikon Instruments, Melville, NY, USA), with identical settings for the infected cells and the controls, and images were analyzed with NIS elements software.

2.3. Animal Experiments

2.3.1. Ethics Statement

All animal experiments were carried out strictly following the approved study protocol of Institutional Animal Ethics Committee (IAEC) of Rajiv Gandhi Centre for Biotechnology (RGCB) (IAEC/502/ES/2015). Inbred un-weaned 3-day-old BALB/c mice of either sex; 4- to 6-week-old C57BL/6 of either sex; and 3- to 4-week-old AG129 (Interferon-α/β and -γ receptor knockout IFNα/β/γR-/-, B&K Universal, Grimston, UK) mice of either sex, bred and housed under specific pathogen-free conditions at the Animal Research Facility of RGCB, were used in the study. All animals were provided with pellet diet and water ad libitum.

2.3.2. CHIKV Virus Infection in Mouse Models

Timed pregnant BALB/c mice were maintained in the animal facility and 3-day-old BALB/c pups (n = 24 from 3 litters for each group) as well as 3- to 4-week-old AG129 mice (n = 6 for each group) were infected subcutaneously in the loose skin on the back with 102 Plaque Forming Unit (PFU) and 10 PFU of the CHIKV p4 and p75 in 50 µL of DMEM. For mock infection, 50 µL of DMEM without virus was injected. Following infection, mice were monitored daily at a regular interval of 24 h until day 10 post infection (dpi) for morbidity/mortality, and clinical signs were scored daily from 0 to 10 dpi. For BALB/c pups, clinical signs were scored as 0—normal behavior, 1—generalized cachexia, 2—walking difficulty and patchy alopecia, 3—epileptic seizures and ataxic gait, and 4—dead, while for AG129 mice the clinical signs were scored as 0—normal behavior, 1—lethargy and starting of weight loss, 2—hunched back posture, 3—convulsions, and 4—dead.

2.3.3. Mice Immunization

Two groups (n = 3 each) of 4- to 6-week-old C57BL/6 mice were injected subcutaneously with 10 PFU of the CHIKV p75 in DMEM with 2% FBS. Booster injections with same formulation were given on day 28 and day 56. Serum samples were collected from individual mice at weekly intervals until day 84 post-infection.

2.3.4. Enzyme Linked Immunosorbent Assay

The predicted antigenic region of the CHIKV E2 protein was identified (aa 1–62, ∆E2) based on the hydrophilicity profile, and it was cloned and expressed as a recombinant protein in BL-21 DE3 E. coli using a pET-32 (Novagen) expression system. For indirect ELISA, a 96-well microtiter plate (Nunc-Immuno Plate, MaxiSorp; Thermo Fisher Scientific, Waltham, MA, USA) was coated with recombinant ∆E2 protein at 5 µg/µL in coating buffer (50 mM carbonate/bicarbonate buffer, pH 9.6), and kept overnight at 4 °C. Plates were blocked with 2% BSA (Sigma, St. Louis, MO, USA) in PBS at room temperature for 1 h. The wells were incubated with a 1:100 dilution of the serum in triplicate wells (100 µL/well) at room temperature for 1 h. Sufficient washes with PBS-Tween were performed after each step. The bound antibodies were detected by HRP-conjugated goat anti-mouse IgG (1:30,000, Sigma) and developed using TMB substrate (Sigma). The reaction was stopped using 2N HCl and plates were read on a microplate reader at 415 nm.

2.3.5. Plaque Reduction Neutralization Tests

Serum samples were heat inactivated at 56 °C for 30 min and then serially diluted 2-fold in DMEM without FBS. Diluted test sera were incubated with an equal volume of p75 variant at a concentration of 100 PFU/mL, at 37 °C and 5% CO2 for 1.5 h. Confluent Vero cell monolayer in 24-well plates was incubated with 100 μL of virus–sera mixture at 37 °C with 5% CO2 for 1 h, after which the inoculum was removed and the cells were overlaid with 1 mL of 1.5% carboxymethyl cellulose (Sigma) in 2× DMEM with 2% heat-inactivated FBS. The plates were incubated at 37 °C with 5% CO2 for 48 h, fixed with 30% formalin (Himedia, Thane, India) in PBS followed by staining with 0.05% crystal violet solution (Sigma). The number of plaques was counted and the PRNT90 titer was calculated and defined as the dilution of serum required to neutralize 90% or more of the virus infection.

2.3.6. Passive Protection Assays

Two groups of 3- to 4-week-old AG129 (n = 3 each) mice were infected subcutaneously with 10 PFU of p75 variant, followed by immediate intraperitoneal administration of 200 µL pooled anti-CHIK immune serum collected from the mice previously immunized with 10 PFU of the attenuated strain p75. Control mice received normal mouse serum. Animals were observed daily for 10 days for scoring morbidity and mortality.

2.4. Whole-Genome Sequencing

Whole-genome characterization of p4 and p75 was conducted as previously mentioned [86]. The region spanning the whole genome was amplified in small fragments by reverse transcription (RT)-PCR, which was performed under the conditions 42 °C for 30 min and 35 cycles of thermal cycling, which included denaturation at 95 °C for 1 min, annealing at 55 °C for 1 min, and an extension at 68 °C for 3 min. The amplified products were purified using Illustra GFX PCR purification kit (GE Healthcare, Buckinghamshire, UK) and subjected to bi-directional sequencing with overlapping primers using the Big-dye Terminator Cycle sequencing kit in an ABI 3730 Genetic Analyzer automated DNA sequencer (PE Applied Biosystems, Foster City, CA, USA). The sequence contigs were assembled using CAP contig assembly program in BioEdit software.

2.5. Statistics

Data from 3 independent experiments of at least 3 mice per group were used. Survival was compared using Kaplan–Meyer survival curves (log rank test). Association measures of survival, such as the hazard ratio and its 95% CI, were calculated using the log rank test. Differences between groups during the course of infection were determined using two-way ANOVA and Bonferroni post-tests. Differences between groups at a single time point were determined using an unpaired, two-tailed Student’s t-test with a 95% confidence interval. Data were analyzed with GraphPad Prism version 7 software (GraphPad software, La Jolla, CA, USA).

3. Results

3.1. Infectivity Phenotype of the Wild-Type and Attenuated CHIKV Strains

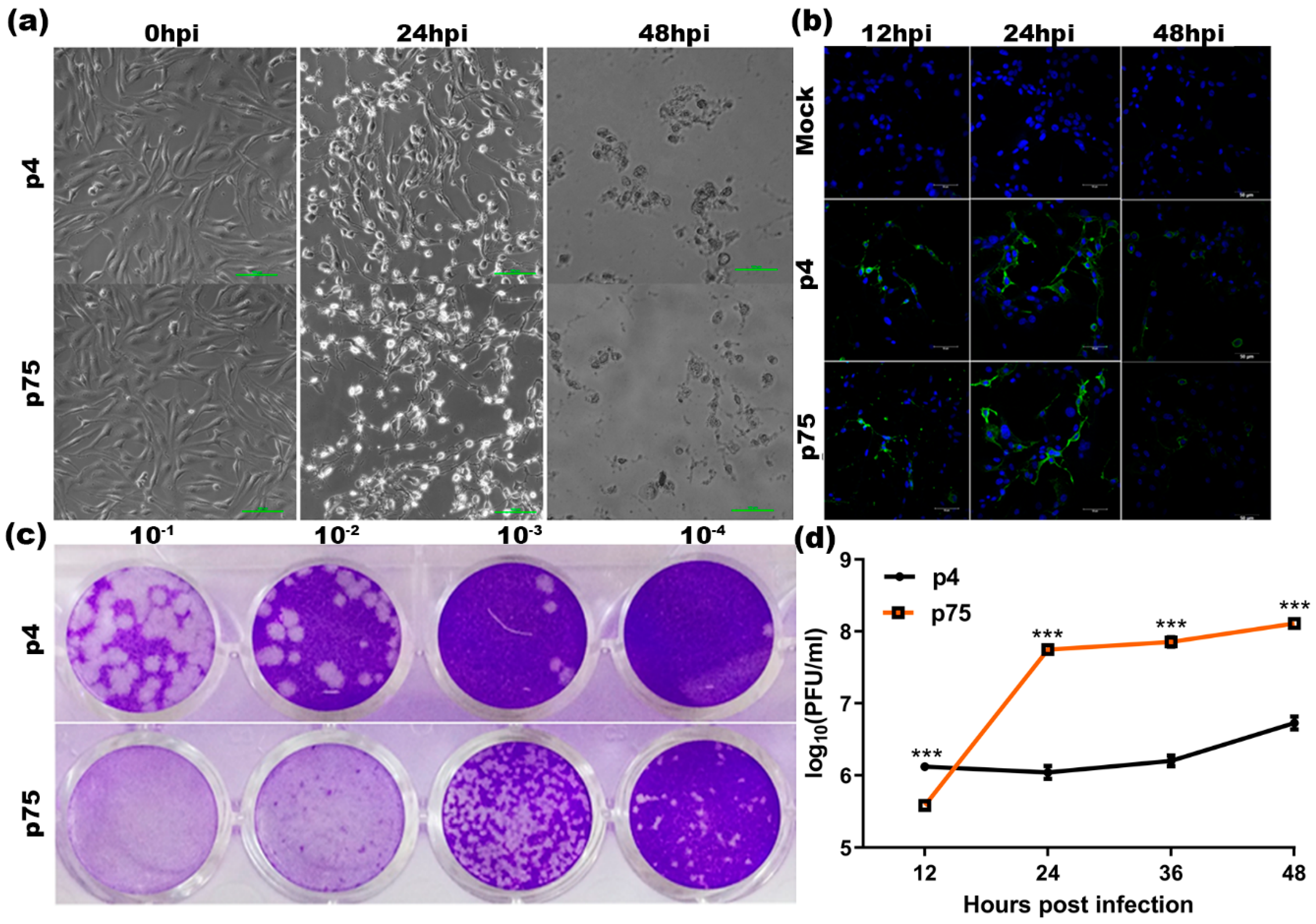

RGCB 355/KL08, a whole-genome characterized human isolate from the 2008 outbreak that belonged to the East/Central/South African genotype [85,86] was passaged four times in Vero cells and was labelled as parent virus RGCB 355/KL08-p4 (p4) for this study. U-87 MG cells, human astrocytoma cells, were infected with RGCB 355/KL08-p4 and sequential passaging was continued until the 75th passage to produce the live-attenuated CHIKV strain, RGCB 355/KL08-p75 (p75). The replication kinetics of the parent virus (p4) and the attenuated strain (p75), as well as the changes in the cell morphology upon infection, were compared by infecting the U-87 MG cells with both of the viral variants at MOI 1. The incidence of cytopathic effect was early for p75 and was evident with changes such as rounding and intracytoplasmic granulation, as seen from the bright field as well as the immunocytochemistry images (Figure 1a,b). Plaque morphology was consistent throughout the experiment, with p75 forming small discrete plaques, as compared to p4, which had larger and more diffused plaques (Figure 1c). To understand the replication efficiency of the viral variants, the supernatants at different times post infection were collected and titrated in Vero cells through plaque assay. The viral titer of p75 started to peak at 24 h post-infection (hpi) with a 2-log increase (p75 vs. p4 *** p < 0.001) and then plateaued until 48 hpi (36 hpi and 48 hpi *** p < 0.001), whereas p4 replicated gradually and peaked only at 48 hpi.

3.2. Evaluation of CHIKV p75 Attenuation in Mouse Models

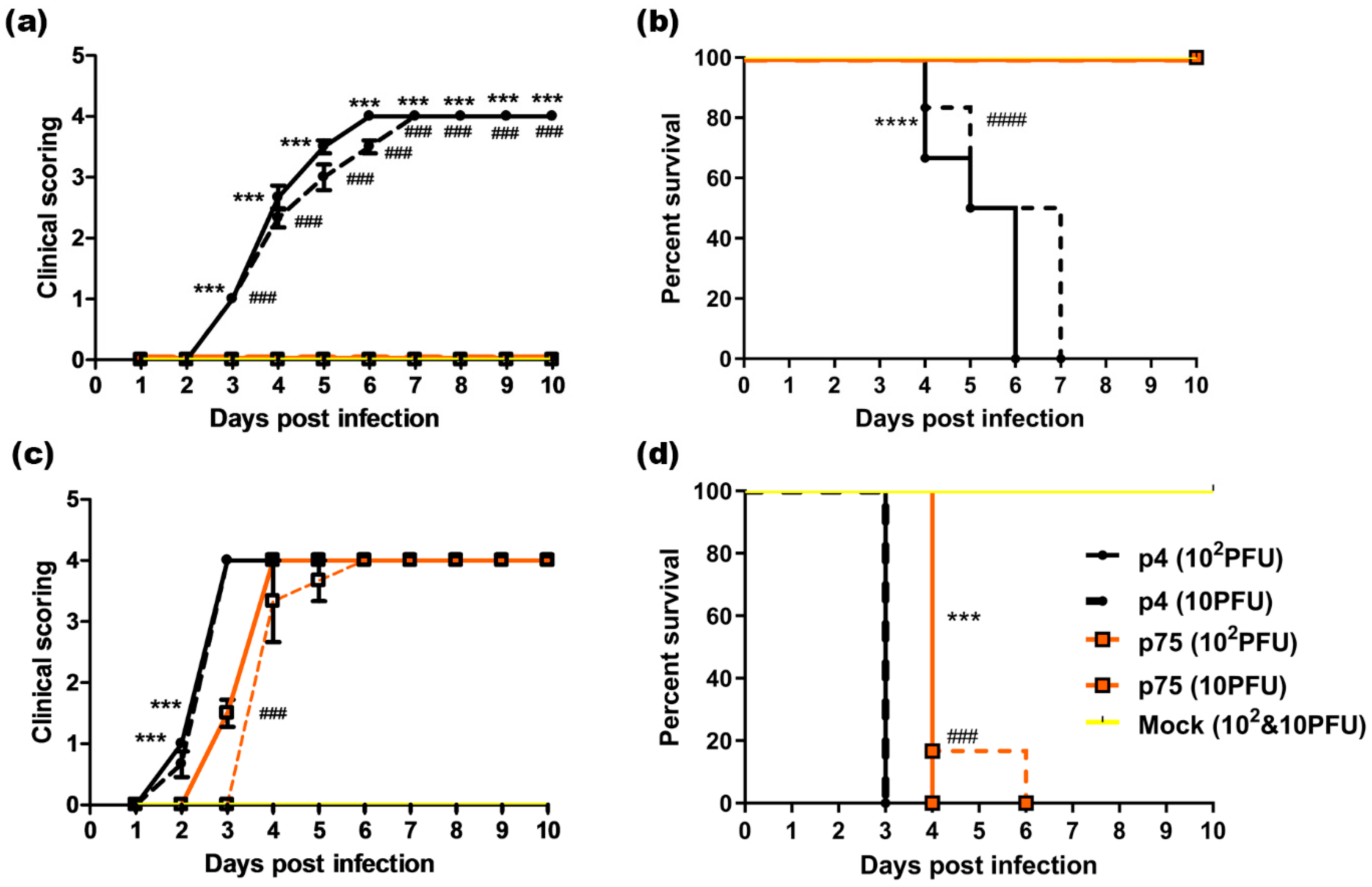

We had previously confirmed symptomatic CHIKV infection in neonatal 3-day-old BALB/c mice [87,88]. Hence, the same model was used for the study. Inoculation of the wild-type virus (p4) in neonatal BALB/c (n = 24) at a dose of 102 PFU resulted in the onset of clinical signs of lethargy and generalized cachexia on day 3 (clinical score—1). The disease progressed with patchy alopecia and walking difficulties (clinical score—2) by day 4, with convulsive movements, epileptic seizures and ataxic gait (clinical score—3) on day 5 and finally death (clinical score—4) in 5–6 days. With a lower dose of 10 PFU (n = 24), the infection started on day 3 itself but progressed more slowly, with death delayed by a day. The mean days of death (MDOD) for mice when inoculated with 102 PFU and 10 PFU of p4 were 5.2 and 5.8 days (Figure 2a,b). In contrast, infection of neonatal BALB/c with the attenuated strain (p75, n = 24) with the two different doses (102 PFU and 10 PFU) progressed without any obvious symptoms and resulted in no morbidity or mortality until the last day of observation (day 10) (Figure 2a,b).
Type I interferons have a distinct protective role against acute CHIKV infection [89], and hence, in immunocompetent adult mice, virus replication is restricted faster, and the animals do not develop apparent infection or lethality. So, in order to evaluate the infectivity of the attenuated strain in adult animals, we used AG129, an IFN-α/β/γ receptor, to knock out mice. Inoculation of AG129 (n = 6/group) mice with 102 and 10 PFU of either wild-type virus or the attenuated strain p75 resulted in infection and death (Figure 2c,d). The disease in both groups progressed rapidly with lethargy and start of weight loss (clinical score—1), hunched back posture (clinical score—2), with convulsive movements (clinical score—3) and finally death (clinical score—4). The mortality was delayed by one day in the mice group inoculated with the attenuated strain as compared to the wild-type virus at both doses of virus inoculation. The MDOD for mice when inoculated with 102 PFU and 10 PFU of p4 was 3 days, while for the ones with p75 it was 4.3 days for 10 PFU and 4 days for 102 PFU. The hazard ratio upon infection with p4 and p75 viruses in AG129 mice for any dose given was calculated to be 3 (95% CI ratio to be in the range of 0.8122–11.08), indicating the significantly higher infectivity of the p4 virus.

3.3. Passive Protection in AG129 Mice

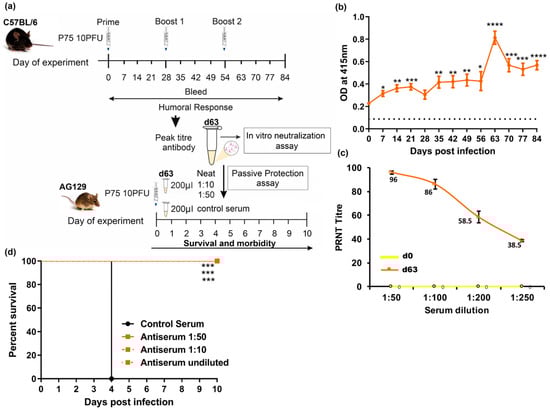

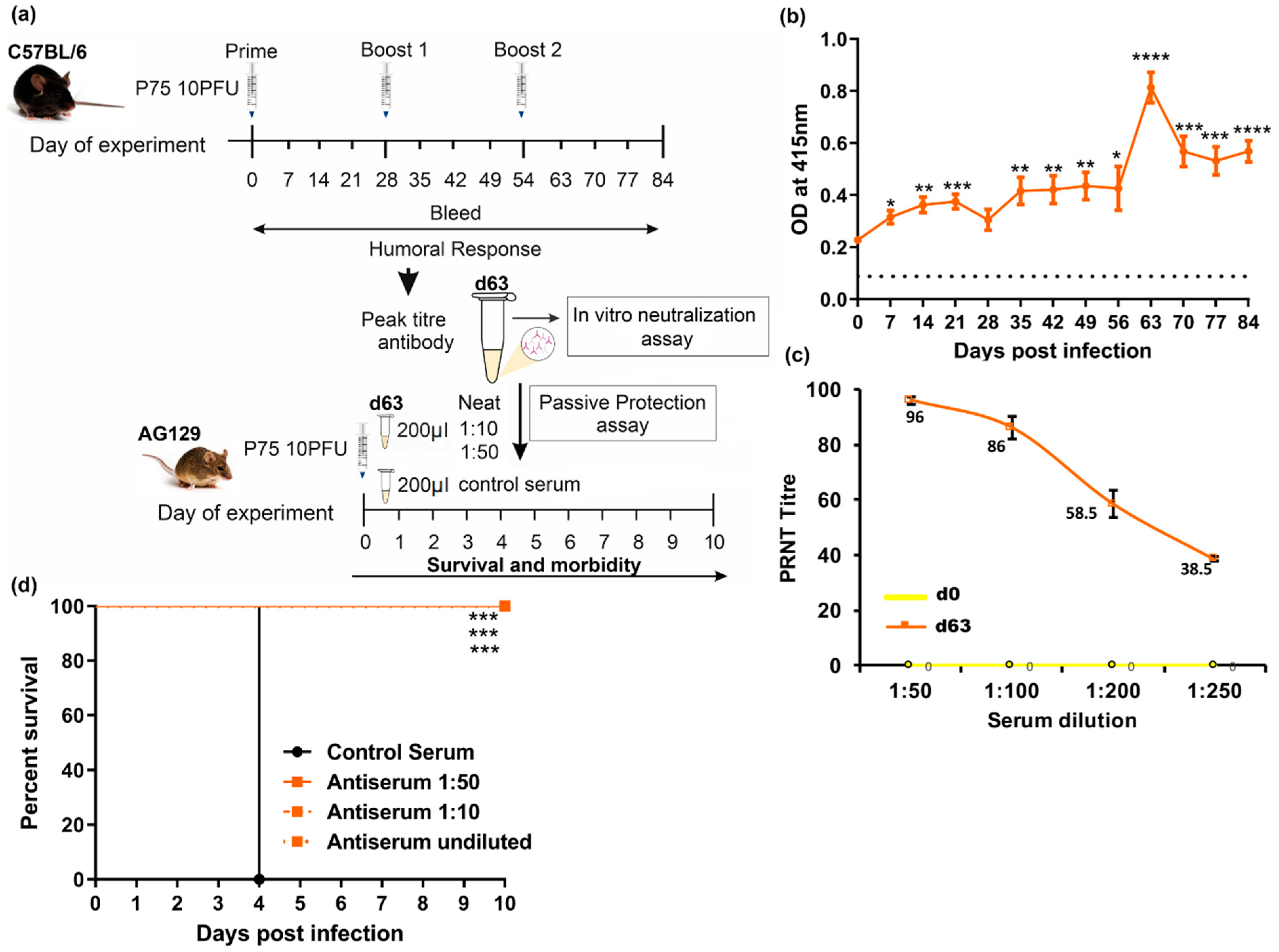

A schematic representation of the experiment is depicted in Figure 3a. Initially, we generated the protective antibody containing sera by immunizing 4- to 6-week-old C57BL/6 mice (n = 6) subcutaneously with 10 PFU of the attenuated strain p75. Booster doses were given on day 28 and day 56 of immunization and serum was collected in weekly intervals up to day 84 of immunization. The humoral response was evaluated in an indirect ELISA using a purified ΔE2 CHIKV antigen. We observed that CHIKV-specific antibody levels significantly elevated at day 63, soon after the administration of the second booster dose (Figure 3b). Sera from mice at day 63 post-vaccination (n = 6) had the maximum titer and were pooled. The serum was checked for its ability to neutralize the CHIKV infection in vitro using the plaque reduction neutralization test (PRNT). These antibodies neutralized CHIKV efficiently and a PRNT90 was obtained in a 1:75 dilution (Figure 3c) of the serum.
Further, to evaluate the protection of immune serum in an in vivo infection model, we used adult AG129 mice. AG129 mice are susceptible to both the wild-type and p75-attenuated strain of CHIKV. We used a virus challenge model by infecting two groups of 3–4-week-old AG129 (n = 6) mice with 10 PFU of the p75 virus subcutaneously. It was immediately followed by intraperitoneal administration of antiserum, either undiluted (neat) or in a 1:10 and 1:50 dilution. As shown in Figure 3d, passively transferred antiserum, either undiluted or diluted, conferred full protection in these mice until the end of the observation period of 10 days, by which time all the control animals were dead. Protected mice had no weight loss or any significant clinical signs, while control animals injected with neat normal mouse serum succumbed to infection by day 4 (MDOD = 4 days). The hazard ratio of CHIKV-infected mice with control serum passively administered vs. CHIKV-infected mice plus immune serum passively administered was found to be undefined, as all the animals in the latter group survived for the observation period.

3.4. Comparative Whole-Genome Sequence Analysis of the Wild-Type and Attenuated CHIKV Strains to Identify Adaptive Mutations

The wild-type virus p4 as well as p75 were subjected to whole-genome sequencing, to identify the adaptive mutations acquired during passaging of the virus, multiple times in the human cell line. We compared the amino acid changes in the attenuated strain (p75) and wild-type virus (p4) with the first live-attenuated prototype vaccine strain 181/25 and its parent Asian strain AF15561 (Genbank accession number-EF452493). The changes in the amino acids are provided in Table 2.
One common mutation identified in both attenuated strains (p75 of ECSA genotype and 181/25 of Asian genotype) was the glycine to arginine change in the envelope glycoprotein 2 (E2; G82R). The strain 181/25 differed from its parent virus by having four more substitutions: in nsP1 (T301I), E2 (T12I), TF (C42F) and E1 (A404V) [13]. However, these mutations were absent in the current vaccine strain (p75) under study. There were five novel mutations unique to p75, whereas the corresponding positions in the wild-type p4, 181/25 strain and AF15561 strain had the residues conserved. The positions identified were in nsP1 (R171Q), nsP2 (V740A), nsp3 (N409T), capsid (Q15L) and E2 (T196). The 252 position in envelope glycoprotein E2 of p75 changed from glutamine to histidine (Q252H) as compared to p4, whereas the same position occupied lysine (K) in 181/25 and its parent strain. Another interesting mutation that occurred in the E1 glycoprotein of vaccine strain p75 is mutation of the reversion of alanine to valine (A226V), the critical adaptive mutation of Indian Ocean sub-lineage of the ECSA genotype that contributed to new vector competence in the Aedes albopictus species of mosquitoes [90].

4. Discussion

There is a definite need for safe and efficient prophylactic vaccines against chikungunya considering the epidemic potential of the virus and the economic burden caused by the disease. Even while the development of new-generation vaccines is being actively pursued (Table 1), classical approaches are still attractive. Among them, vaccines based on live-attenuated strains are preferred for managing chikungunya in developing nations due to their high immunogenicity in smaller doses and long-lasting protection without the need for repeated immunizations. Hence, in the present study, the attempt was to generate a live-attenuated strain of an ECSA-lineage virus, which was predominant in recent outbreaks [91], by serial passaging in cultured cells. We chose the U-87 MG astrocytoma cell line for virus adaptation for multiple reasons. Our earlier study [85] had found that these cells are very susceptible to CHIKV infection as they are interferon-response-deficient due to multiple mutations in the interferon genes [92,93], and they allow virus growth to a high titer. Secondly, we hoped that the adaptation may help us to obtain a virus strain with exclusive infection-specificity to U-87 MG cells, which represent malignant glioblastoma, a deadly cancer with no efficient treatment and poor prognosis, for developing oncolytic virotherapy [94]. While we could obtain a strain satisfying the first objective, we could not achieve the second one as the strain did not have the cell-type specificity as expected.
Serial passaging in U-87 MG cells resulted in the efficient adaptation of the CHIKV strain. A clear phenotype was evident via the faster vacuolation of cells and cell death in p75 infection as compared to that caused by the un-adapted virus (Figure 1). The presence of the G82R mutation in the envelope protein E2-coding region in the genome, along with the formation of smaller plaques and better replication as compared to the p4 parent strain, points out the efficient mammalian cell adaptation [54]. We identified a total of eight mutations in the structural and nonstructural proteins of p75 in the sequence comparison. Studies using reverse genetics have identified that the attenuation of the CHIK 181/25 strain is by two mutations in the E2 envelope protein: T12I and G82R [15]. CHIKV strains with G82R mutation have altered glycosaminoglycan binding, reduced in vivo replication, the establishment of viremia, and the activation of early inflammatory responses upon infection, thereby regulating virus virulence and the host responses that contribute to the disease outcome [95,96,97]. However, the mutation T12I, which complements attenuation caused by the G82R mutation in strain 181/25, is absent in p75.
We presume that several other mutations, both in the nonstructural and structural proteins, generated during the adaptation, could further contribute to the virus attenuation. These include changes such as nsP1 R171Q, nsP2 V740A, nsP3 N409T, capsid Q15L and E2 T196K. The role of nonstructural proteins in virulence is evidenced by the fact that in a few CHIKV vaccines under development, the portions of key nonstructural protein coding regions are deleted to effect attenuation (Table 1). It was seen that CHIKV ECSA variants isolated from the patients by culturing in mammalian or mosquito cells acquire the nsP1 R171Q mutation at low passage levels; therefore, this should be considered as the fastest occurring adaptive mutation in the genome [98,99,100,101,102,103]. Studies confirm the beneficial effect of nsP1 R171Q in increasing the fitness [104]. Further, the mutations nsP1 R171Q and nsP2 V740A were the key adaptive mutations that were seen in antiviral compound-resistant CHIKV variants [105,106,107]. E2 T196K mutation in the structural protein region seems to be a cell-type-dependent adaption. Its presence increased CHIKV replication in human lung epithelial cell line A549 but imparted a negative effect on virus replication in African green monkey kidney epithelial cells (Vero cells) [108]. Another interesting observation was the reversion of the Aedes albopictus-adaptive mutation [90], E1 A226V, in the p75 virus. It indicates the primary requirement of the amino acid alanine in the 226th position of the protein for sustained replication in mammalian cells. Further studies using reverse genetics approaches would be required to reveal the functional relevance of each of these mutations in the ECSA lineage on its role in viral replication and virulence.
Humoral immune response effectively protects against CHIKV infection, as is evident from previous studies. It was observed that the passive transfer of neutralizing monoclonal antibodies prevents infection or disease symptoms in mice and nonhuman primates [109,110,111,112]. In our study, while all neonatal BALB/c mice pups infected with p4 died, complete survival of p75-infected animals was observed, pointing to its efficient attenuation (Figure 2). However, in AG129 animals, which are absolutely deficient in IFN-mediated antiviral response, infection with p75 was equally as lethal as with p4. This underscored the role of an efficient IFN response in protection against CHIKV [89]. Immune serum generated from p75-vaccinated BALB/c animals (Figure 3b), when administered to AG129 mice, offered complete survival in passive protection studies (Figure 3d). This indicated that the attenuated p75 strain induces an optimal neutralizing antibody response. These results were consistent with earlier findings demonstrating the antibody-mediated protection of AG129 mice against CHIKV 181/25 virus infection [113].
In conclusion, in the present study, we developed an attenuated CHIKV ECSA lineage strain and characterized its efficacy to protect against infection. This strain could serve as a candidate virus for developing newer live-attenuated vaccines against chikungunya. However, in the present set of experiments, we carried out challenge studies with only a homologous virus strain. Further studies with heterologous virus strains, including clinical isolates belonging to multiple lineages, are essential to evaluate the spectrum of protection offered by p75 and exploit the utility of p75 as a strain for vaccine production.

Author Contributions

Conceptualization: E.S., S.R.N. and R.A.; Methodology: S.R.N. and R.A. All authors have read and agreed to the published version of the manuscript.

Funding

We acknowledge the funding from Department of Biotechnology (DBT), Government of India (No. BT/PR13801/MED/29/952/2015) and also intramural support from RGCB.

Institutional Review Board Statement

The animal study protocol was approved by the Institutional Animal Ethics Committee of Rajiv Gandhi Centre for Biotechnology (IAEC/502/ES/2015 dated 22 October 2015).

Informed Consent Statement

Not applicable.

Data Availability Statement

All data from the study have been included in the manuscript itself.

Acknowledgments

The authors acknowledge the staff of the Animal Research Facility (ARF), RGCB for supporting the animal experiments. SRN acknowledges the Kerala Veterinary and Animal Sciences University (KVASU) for support through Faculty Improvement Program (FIP). RA acknowledges the INSPIRE Fellowship from Department of Science and Technology, Government of India.

Conflicts of Interest

The authors declare no conflict of interests.
