Influence of N₂/O₂ Partial Pressure Ratio during Channel Layer Deposition on the Temperature and Light Stability of a-InGaZnO TFTs

Abstract

The electrical characteristics of amorphous InGaZnO (a-IGZO) thin film transistors (TFTs) deposited with different N₂/O₂ partial pressure ratios (P_N/O) are investigated. It is found that the device with 20% P_N/O exhibits enhanced electrical stability after positive-bias-stress temperature (PBST) and negative-bias-stress illumination (NBSI), presenting decreased threshold voltage drift (ΔV_th). Compared to the N-free TFT, the average effective interface barrier energy (E_τ) of the TFT with 20% P_N/O is increased from 0.37 eV to 0.57 eV during the bias-stress process, which agrees with the suppressed ΔV_th from 3.0 V to 1.12 V after the PBS at T = 70 °C. X-ray photoelectron spectroscopy analysis revealed that the enhanced stability of the a-IGZO TFT with 20% P_N/O should be ascribed to the control of oxygen vacancy defects at the interfacial region.

1. Introduction

Transparent metal oxide-based thin film transistors (TFTs) have attracted substantial attention as backplane technology for next-generation active matrix display applications. In particular, amorphous InGaZnO (a-IGZO) TFTs have been extensively studied because they show attractive characteristics including desirable channel electron mobility, large-area uniformity, and low off-state leakage compared with conventional a-Si:H TFTs [1,2]. However, high density localized states originating from oxygen vacancies (O_V) exist within the bandgap of the a-IGZO active layer due to the disordered amorphous nature, which would considerably degrade the device performance and reliability [3,4]. It has been demonstrated that the threshold voltage instability in a-IGZO TFTs induced by electrical, light, and thermal stress is generally related to the O_V defects trapping electrons or holes within the a-IGZO active layer and at the device interface region [5,6,7]. Hence, suppressing the O_V defects in the active layer or at the interface is crucial to enhance the reliability of a-IGZO TFTs.

In previous reports, the nitrogen has been used to passivate O_V-related defects within a-IGZO by forming N-metal (In, Ga and Zn) bonds [8,9]. For example, the ambient stability of N-doped a-IGZO TFTs can be enhanced by the mitigation of the oxygen absorption/desorption behavior due to the substitution of the O atom by an N atom within the a-IGZO [10]. Moreover, the a-IGZO TFTs fabricated with N-doped a-IGZO layer inserted at the a-IGZO/SiO₂ interface exhibit superior bias stability, which is improved by the passivation of the interface O_V defects [11]. However, excess N incorporation into the a-IGZO channel layer would induce extra O_V-related defects or N-related defects within the active layer or at the channel/dielectric interface, which would cause the degradation of device performance and electrical reliability [12,13]. In this work, to achieve an optimal level of nitrogen doping in the active layer, a-IGZO TFTs with various nitrogen/oxygen partial pressure ratios (P_N/O) during active layer deposition are fabricated. The electrical characteristics of the fabricated devices are investigated under positive-bias-stress temperature (PBST) and negative-bias-stress illumination (NBSI). The TFT fabricated with a proper P_N/O exhibits improved reliability with decreased threshold voltage drift (ΔV_th) after PBST and NBSI conditions. Such improvements are related to the passivation of O_V defects at the a-IGZO/SiO₂ interface.

2. Experiments

The inverted staggered TFTs structure are fabricated in this work. Firstly, a 200 nm SiO₂ gate insulator layer is prepared on a heavily doped n-Si substrate by plasma enhanced chemical vapor deposition (PECVD). Next, the channel layer of a 45 nm a-IGZO film is grown by dc reactive sputtering. During the a-IGZO film sputtering process, the Ar flow rate is set to 30 sccm, and the gas mixing ratio of N₂/(O₂ + N₂) is set to 0%, 20%, and 40% under a total sputtering pressure of 5 × 10⁻³ Torr. Then, the TFTs active region with a channel width/length of 100 μm/20 μm are fabricated by photolithography and wet chemical etching. Next, the drain/source (Ti/Au) contact electrodes and passivation layer (100 nm SiO₂) are prepared successively. Lastly, the fabricated devices are annealed at 300 °C in air for 1 h. The inset of Figure 1 shows the cross-sectional schematic of the fabricated TFT.

3. Results and Discussion

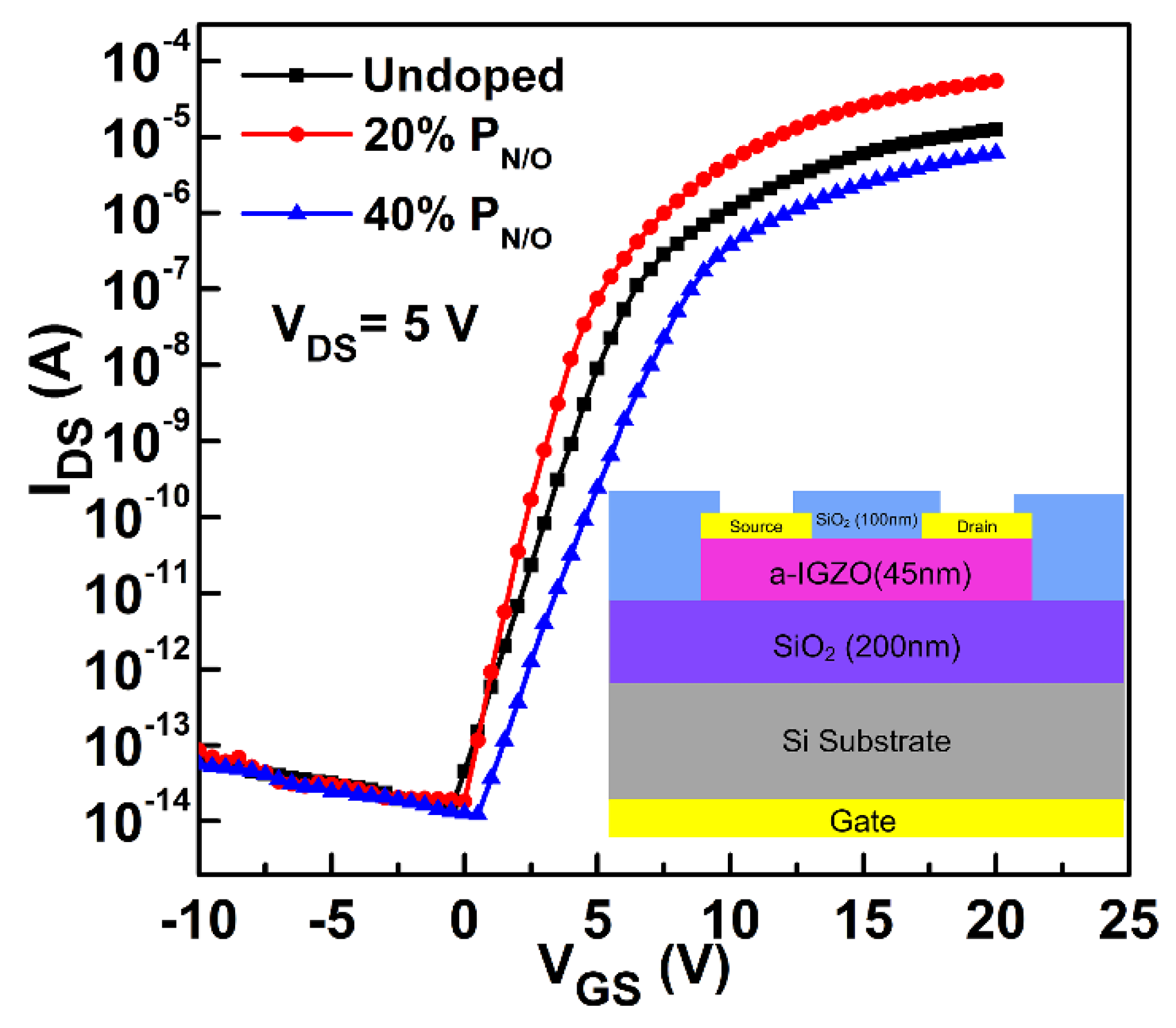

Figure 1 shows the transfer characteristics of the a-IGZO TFTs fabricated with 0%, 20%, and 40% P_N/O. The corresponding device parameters are extracted in

Table 1. Extracted electrical parameters of the a-IGZO TFTs with different P_N/O.

PN/O (%)	Vth (V)	μFE (cm2/Vs)	SS (V/dec)	Ion/off
0	5.0	2.2	0.8	>108
20	3.8	8.0	0.6	>109
40	7.0	1.2	0.9	>107

. In this study, the V_th is determined by the gate voltage (V_GS) at which the drain current (I_DS) reaches 10 nA. The subthreshold swing (SS) can be calculated by the equation:

$$\mathrm{SS}={\left[\frac{\partial \log \left(I_{DS}\right)}{\partial V_{GS}}\right]}^{-1}$$

(1)

It can be seen that the V_th and SS of the a-IGZO TFT with 20% P_N/O are improved than that of the undoped a-IGZO TFT, where the V_th is decreased from 5.0 V to 3.8 V, and the SS is reduced from 0.8 V/dec to 0.6 V/dec. It has been demonstrated that the V_th and SS in TFTs are mainly associated with the density of trap states in the active region and at the a-IGZO/SiO₂ interface [14]. Therefore, the improved electrical properties of a-IGZO TFT fabricated with 20% P_N/O can be determined by the decrease of trap density in the device active region. In contrast, the V_th and SS of the a-IGZO TFT with 40% P_N/O are increased, which indicates that the new trap states are generated by excess N-doping.

The reliability of the a-IGZO TFTs with different P_N/O are evaluated by positive-bias-stress temperatures. During the bias stress process, the devices are applied at V_GS = 15 V for 5000 s at T = 30 °C, 50 °C, and 70 °C, respectively. Figure 2a–c selectively show the transfer characteristics for the a-IGZO TFTs with different P_N/O against the PBS time at T = 70 °C. The transfer curves of the TFTs show a parallel shift toward the positive direction with no apparent degradation in SS and field effect mobility (μ_FE) after PBS, which indicates that the ΔV_th of the TFTs after PBS should be ascribed to the field-induced electron trapping at the a-IGZO/SiO₂ interface [5,11]. Meanwhile, it is clearly observed that the a-IGZO TFT with 20% P_N/O apparently exhibits better electrical stability compared with the undoped and 40% P_N/O devices after PBST at T = 70 °C. Correspondingly, the ΔV_th of the a-IGZO TFT fabricated with 20% P_N/O (1.12 V) is lower than that of the undoped a-IGZO TFT (3.0 V) and 40% P_N/O device (2.75 V).

Figure 3a–c show the quantity of the ΔV_th for the a-IGZO TFTs with different P_N/O against the bias-stress time at different temperatures. It is observed that the relationship between ΔV_th and time is fitted by a stretched-exponential equation, which reveals the mechanism of the carrier trapping near the active layer/dielectric interface [15,16]. The stretched-exponential function is described as below

$$∆V_{th}=∆V_{th0}\left\{1-exp\left[-{\left(t/\tau \right)}^{\beta }\right]\right\}$$

(2)

where ∆_Vth0 is the ∆V_th at infinite stressing time, β is a stretched-exponential exponent, and τ is the time content for the charge trapping process, which is given by $\tau ={\tau }_{0}exp\left(E_{\tau }/k_{B}T\right)$. In this expression, E_τ is the average effective interface energy barrier, which needs to exceed for channel carrier to inject into the device interface region or insulator. To investigate the effect of N-doping on the carrier trapping process in the a-IGZO TFTs, the E_τ is extracted by the Arrhenius plot of τ. As shown in Figure 3d, a good linear relationship in the lnτ-1000/T plots is observed, which indicates that the carrier trapping process in the a-IGZO TFT is thermally activated [15]. Meanwhile, the E_τ of the a-IGZO TFT with 20% P_N/O (0.57 eV) is increased to that of the undoped a-IGZO TFT (0.37 eV). The increased E_τ suggests that fewer channel carriers can be trapped into the a-IGZO/SiO₂ interface or insulator during the bias-stress process and the corresponding device exhibits better bias-stress stability. On the contrary, compared with the a-IGZO TFT with 20% P_N/O, the E_τ of the a-IGZO TFT with 40% P_N/O is decreased to 0.43 eV, which means that the interface quality is degraded when excess N is incorporated into the a-IGZO active layer. Therefore, the results indicate that the drift of V_th for the a-IGZO TFTs could be mitigated by the moderate N-doping.

In addition, in real applications, switching TFTs are usually negatively biased for keeping off-state and exposed to light emitted from the backlight in active-matrix displays [17,18]. Thus, the electrical reliability of the TFTs fabricated with different P_N/O is also evaluated by negative- bias-stress illumination (NBSI). Figure 4a–c show the transfer curves of the a-IGZO TFTs fabricated with different P_N/O against NBS time under white light illumination, in which the device is stressed at V_GS = −15 V for 5000 s. The transfer curves of the TFTs exhibit a shift toward negative gate voltage direction with no apparent change in SS and μ_FE after the NBSI condition, which indicates that the negative shift of V_th should be determined by photo-induced holes trapped into the a-IGZO/SiO₂ interface [19,20]. Meanwhile, as shown in Figure 4a,b, it is clear that the negative shift of V_th is decreased from 3.0 V to 1.1 V for N-free a-IGZO TFT and 20% P_N/O a-IGZO TFT after 5000 s NBSI, which means that the a-IGZO/SiO₂ interface quality is improved by N-doping. However, as shown in Figure 4c, the a-IGZO TFT with 40% P_N/O exhibits a large negative shift of V_th (2.65 V) compared with TFT with 20% P_N/O after 5000 s NBIS, which indicates that additional defects are generated at the a-IGZO/SiO₂ interface by heavy N-doping.

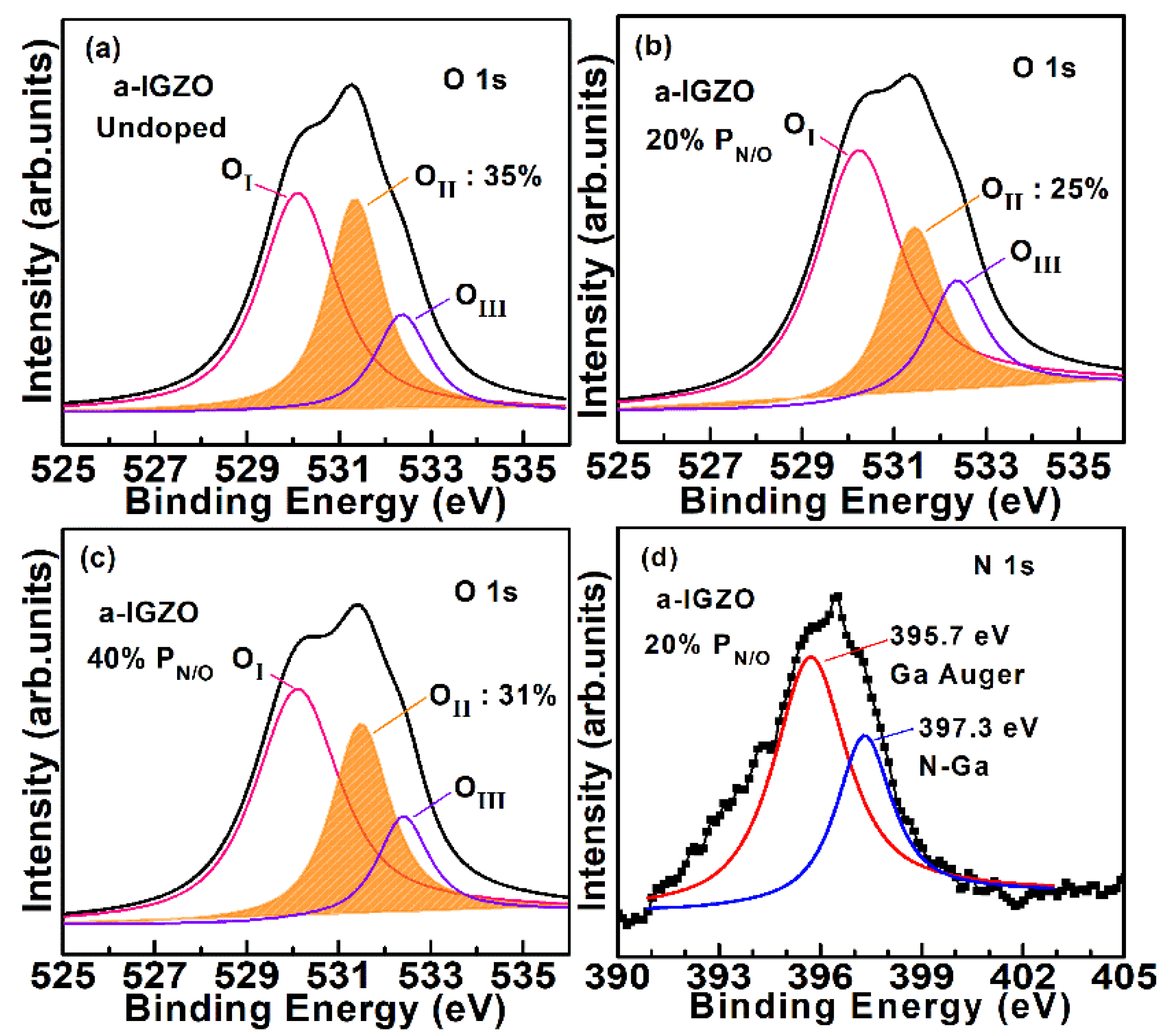

To reveal the mechanism of the effect of N-doping on the reliability of the a-IGZO TFTs, the chemical properties of the a-IGZO, a-IGZO: 20% P_N/O, and a-IGZO: 40% P_N/O films are analyzed by the X-ray photoelectron spectroscopy (XPS) measurement. The deconvolution of XPS spectra of O 1s is shown in Figure 5a–c. The combined O 1s peak could be divided into three components by Gaussian fitting, which is located at 530.1 eV (O_I), 531.3 eV (O_II), and 532.4 eV (O_III), respectively. The peaks of O_I, O_II, and O_III are associated with the oxygen ions in the lattice surrounded by Ga, In, and Zn atoms, O_V and oxygen in hydroxide (O_OH), respectively [11,21]. Thus, the relative amount of O_V existing in the a-IGZO film can be calculated by the proportion of the peak area O_V to the whole area O 1s (O_whole). As shown in Figure 5a,b, it can be seen that the area ratio of O_II/O_whole is clearly reduced from 35% to 25% for the undoped a-IGZO film and a-IGZO: 20% P_N/O film, indicating that the O_V is suppressed by N-doping. In contrast, compared with the a-IGZO: 20% P_N/O film, the O_V rises to 31% in a-IGZO: 40% P_N/O film as shown in Figure 5c, suggesting that the extra O_V is generated when excess nitrogen atoms are incorporated into the a-IGZO film. This result agrees with previous reports that heavy N-doping in the a-IGZO film could suppress the bonding of O and Ga because of the facilitated formation of N-Ga bonds, which could result in the increase of O_V within the a-IGZO film. Besides, as shown in Figure 5d, the N 1s spectrum of the a-IGZO: 20% P_N/O film is fitted by two energy bonds centered at 395.7 eV and 397.3 eV corresponding to the Ga Auger and N-Ga bonds [22], respectively. Thus, the XPS analysis reveals that the enhanced reliability of the a-IGZO TFT with moderate P_N/O is determined by passivating the O_V at the a-IGZO/SiO₂ interface.

4. Conclusions

In this work, the effect of different P_N/O during the a-IGZO layer deposition on the electrical properties of a-IGZO TFTs is investigated. It is found that the electrical performances of a-IGZO TFT with 20% P_N/O are improved. Correspondingly, the device shows considerably enhanced electrical stability after PBST and NBSI conditions, with a significantly suppressed threshold voltage drift. According to XPS analysis, the concentration of O_V defects in the a-IGZO with moderate P_N/O film exhibits an apparent decrease, which causes the increased E_τ of the a-IGZO TFT. Thus, the enhanced reliability of the a-IGZO TFT with moderate P_N/O is ascribed to the suppressed V_O defects at the a-IGZO/SiO₂ interface.
