# Efficient Characterization of Macroscopic Composite Cement Mortars with Various Contents of Phase Change Material

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

- the thermal conductivity is searched for in [31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46] using either hot wire [31,45], hot plate [32,34,35,36,39,42,43,44,46], or laser flash [33,40] techniques.Let us mention here that the thermal contact resistances and their influence on the measured conductivity are rarely taken into account.
- the heat capacity is mainly investigated as an apparent capacity, which is supposed to integrate the latent heat and goes continuously from the solid value to the liquid one [31,33,34,36,37,38,40,44,45,47,48,49,50,51,52,53]. However, many of these studies determine this property from a differential scanning calorimetry (DSC) experiment [33,34,38,40,44,45,47,48,49,50,51,53,54,55], where the size of the sample is such that it is not very representative of the macroscopic material [5,31,36,52]. As far as real scales are concerned, one can also note the possible use of the dynamic heat flow meter method (DHFM), which resembles the isothermal mode of calorimeters [56,57]. Practically, this apparent capacity is very often obtained by directly integrating the heat-flow rate. Unfortunately, it can potentially lead to inconsistent or imprecise characterization [58,59,60,61,62] and be responsible for erroneous predictions when modeling the macroscopic material [60,63,64].
- in recent studies, a more generic approach based on inversion methods has been developed in order to determine separately the main thermo-physical properties, such as the heat capacities (solid and liquid) and/or the latent heat etc. [36,52,65]. The main idea is to combine some experimental measurements, usually the temporal evolution of the heat-flow rate, with a numerical model of the composite sample. The correct values for the intrinsic parameters of the material are retrieved by minimizing an objective function.

## 2. Method

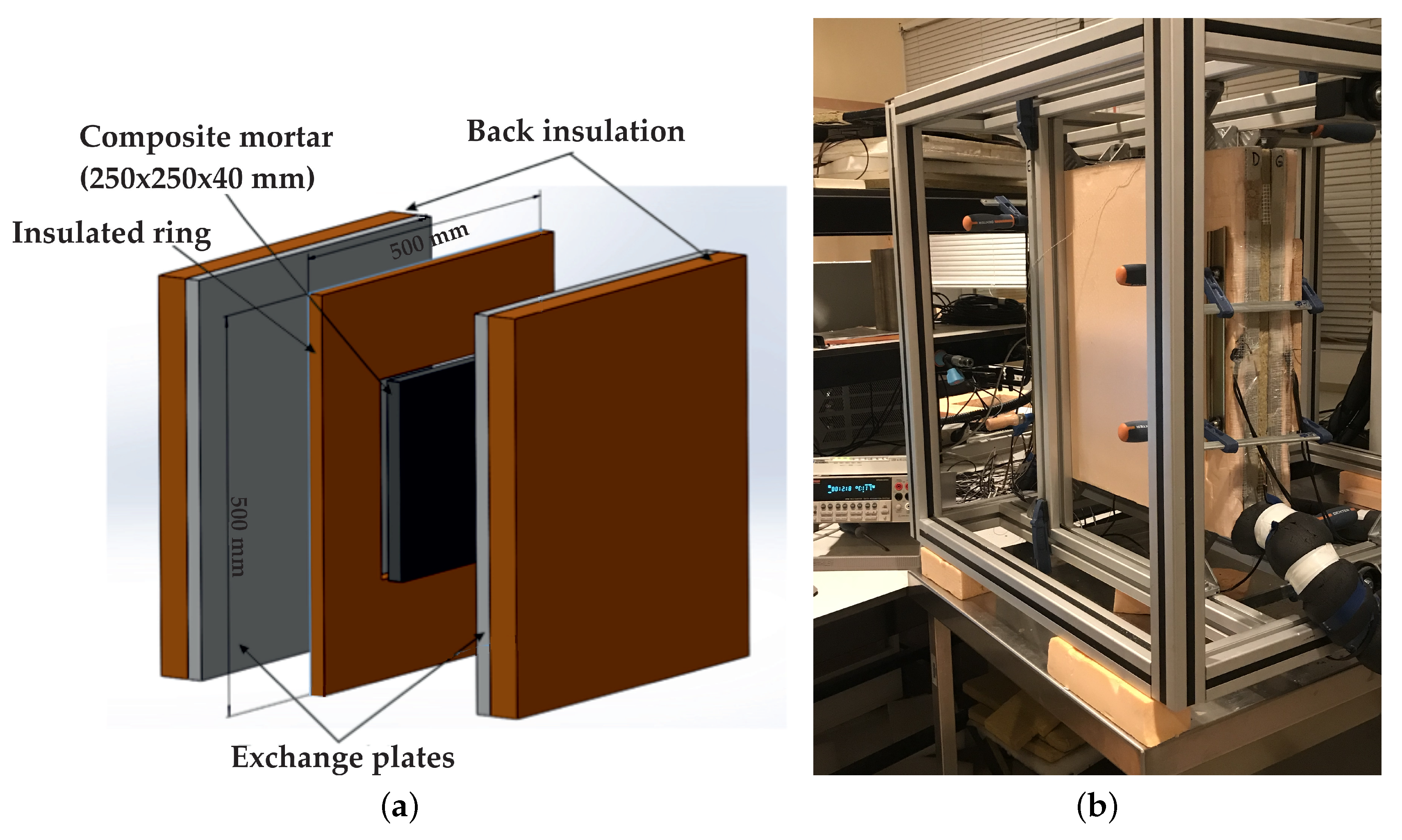

#### 2.1. Experimental Protocol

^{®}DS 5001 X, where the PCM is contained in the core of micro-capsules ranging from $2\phantom{\rule{0.166667em}{0ex}}\mathsf{\mu}\mathrm{m}$ to $20\phantom{\rule{0.166667em}{0ex}}\mathsf{\mu}\mathrm{m}$ in diameter. Practically, BASF claims that the micro-capsules are completely sealed, safe to process, and free of formaldehyde. It is also specified that the encapsulation process protects the wax in its very pure form, resulting in a high heat storage capacity of $110\phantom{\rule{0.166667em}{0ex}}\mathrm{k}\mathrm{J}\phantom{\rule{0.166667em}{0ex}}{\mathrm{kg}}^{-1}$ being permanently guaranteed. The melting point of Micronal

^{®}DS 5001 X, given by the manufacturer, is about $26{\phantom{\rule{0.166667em}{0ex}}}^{\circ}\mathrm{C}$. We realized the characterization of the PCM included in our composite materials with a pyris Diamond Perkin-Elmer DSC and we concluded that the latent heat is around $99\pm 10\phantom{\rule{0.166667em}{0ex}}\mathrm{k}\mathrm{J}\phantom{\rule{0.166667em}{0ex}}{\mathrm{kg}}^{-1}$. This result is detailed within [68].

^{2}. Practically, these are CAPTEC products, whose thicknesses are about 0.2 mm and sensitivity are $120\phantom{\rule{0.166667em}{0ex}}\mathsf{\mu}\mathrm{V}\phantom{\rule{0.166667em}{0ex}}{\mathrm{W}}^{-1}\phantom{\rule{0.166667em}{0ex}}{\mathrm{m}}^{2}$. The calibration procedure, described in [69,70], permits us to calibrate these sensors with a precision of $\pm 3\%$ as demonstrated for the example in [71]. Secondly, the entire sample is positioned between two exchange plates in order to impose the temperature on the two main faces. The plates are held compressed against the sample by means of clamps, as shown in Figure 2b.

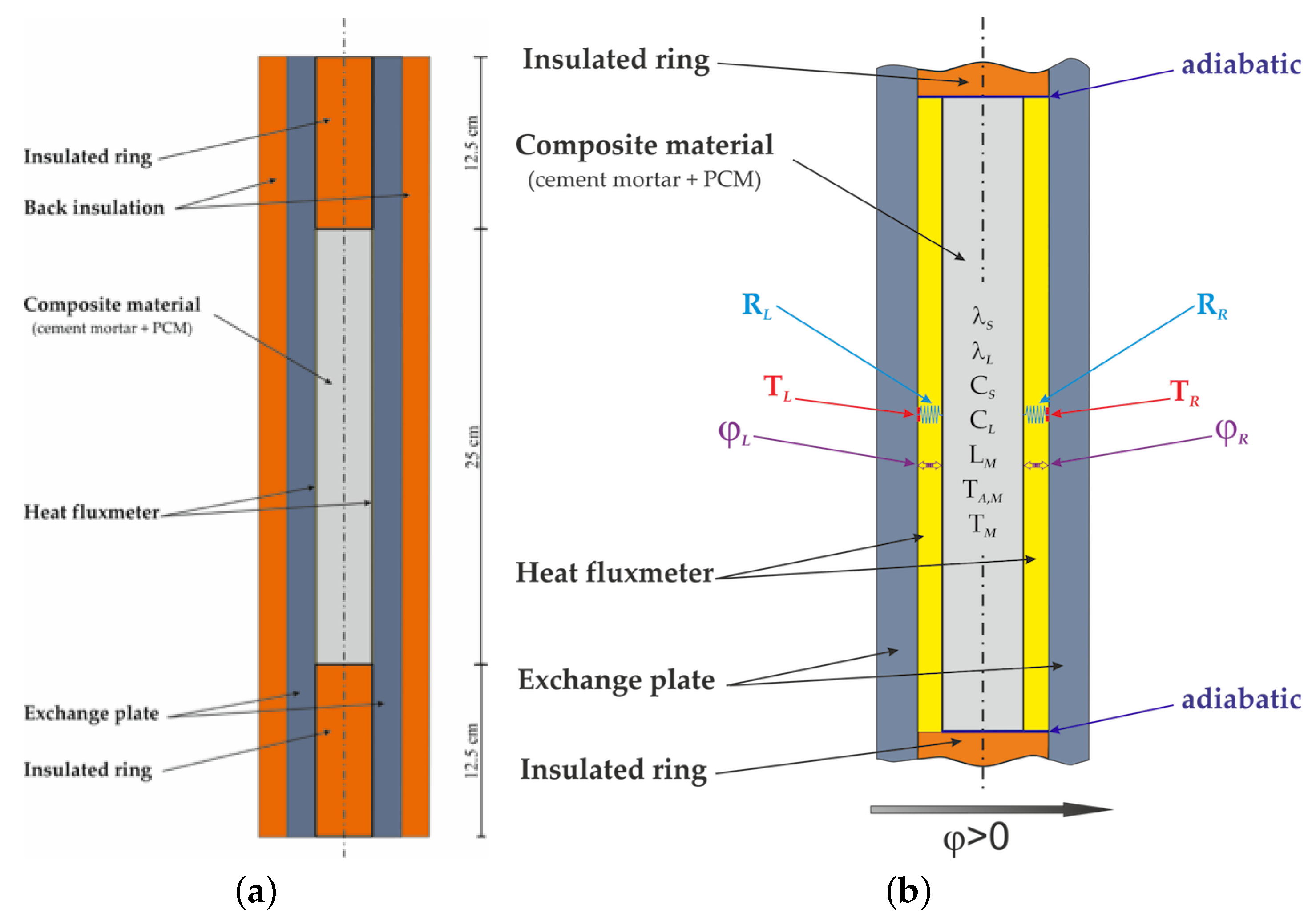

#### 2.2. Numerical Method

- The PCM being micro-encapsulated, the thermal expansion during the phase transition can be neglected, which implies that solid and liquid densities are equal.n.b. in such a case, there is no difference between the mass and volume fractions, which are therefore both denoted by $\chi $.
- The thermodynamic behavior of the PCM, i.e., its enthalpy function, obeys a binary solution model [68]:$$\begin{array}{cc}\hfill \mathrm{d}\chi & ={\displaystyle \frac{{T}_{M}^{\star}-{T}_{M}}{{\left(\right)open="("\; close=")">{T}_{M}^{\star}-T}^{}}}\phantom{\rule{0.166667em}{0ex}}\mathrm{d}T\hfill \end{array}$$$$\begin{array}{cc}\hfill {\displaystyle \frac{\mathrm{d}h}{\mathrm{d}T}}& ={\displaystyle \frac{{T}_{M}^{\star}-{T}_{M}}{{\left(\right)open="("\; close=")">{T}_{M}^{\star}-T}^{}}}{L}_{M}(T)+{c}_{s}\left(\right)open="("\; close=")">1-{\displaystyle \frac{{T}_{M}^{\star}-{T}_{M}}{{T}_{M}^{\star}-T}}\hfill & +{c}_{l}{\displaystyle \frac{{T}_{M}^{\star}-{T}_{M}}{{T}_{M}^{\star}-T}}\end{array}$$Here, the involved latent heat for the composite mortar depends on the mass fraction Y of the PCM included in this latter one:$${L}_{M}=Y{L}_{M}^{\star}$$

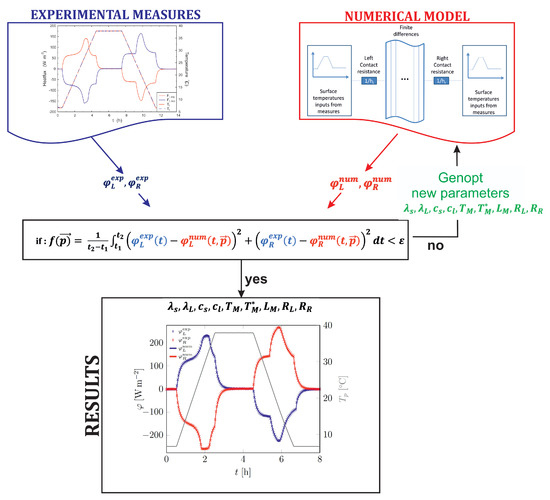

#### 2.3. Inversion Process

`GenOpt`free tool from the Lawrence Berkeley National Laboratory [79,80]. It indeed implements several classic algorithms, including the ‘

`GPSCoordinateSearch`’ that has been used here: the basic principle of the generalized pattern search (GPS) is to link monodimensional minimizations according to the different directions of the search space (dimension N). The version implemented in

`GenOpt`automatically adapts the search accuracy to obtain an acceptable solution without requiring too much computation time. As any optimization method,

`GenOpt`requires to define all the N parameters to be identified ($\overrightarrow{p}\in {\mathbb{R}}^{N}$) so as to minimize the cost function $f(\overrightarrow{p}):{\mathbb{R}}^{N}\u27f6\mathbb{R}$ given by relation (6). Let us mention here that

`GenOpt`always delegates the evaluation of the cost function f to an external program, which corresponds here to the code implementing the aforementioned system of PDE. From a practical point of view, the raw text files that ensure the communication between these two threads are configured following the documentation [81]. As a rule of thumb, all identified parameters are described by their name, used only for display purpose, and by an initial value (first guess), as well as by lower and upper bounds. As an example, the latent heat and solid thermal conductivity are initialized, respectively, at $16.5\phantom{\rule{0.166667em}{0ex}}\mathrm{k}\mathrm{J}\phantom{\rule{0.166667em}{0ex}}{\mathrm{kg}}^{-1}$ and $0.4\phantom{\rule{0.166667em}{0ex}}\mathrm{W}\phantom{\rule{0.166667em}{0ex}}{\mathrm{K}}^{-1}\phantom{\rule{0.166667em}{0ex}}{\mathrm{m}}^{-1}$, and their minimal and maximal authorized values are 14 and $18\phantom{\rule{0.166667em}{0ex}}\mathrm{k}\mathrm{J}\phantom{\rule{0.166667em}{0ex}}{\mathrm{kg}}^{-1}$, and 0.3 and $0.5\phantom{\rule{0.166667em}{0ex}}\mathrm{W}\phantom{\rule{0.166667em}{0ex}}{\mathrm{K}}^{-1}\phantom{\rule{0.166667em}{0ex}}{\mathrm{m}}^{-1}$. Moreover, each run is repeated three times: in one case, the initial seed is set by the user, and in the two others, they are randomly chosen inside the search space. In these latter cases, it is obviously checked that the chosen first guess will lay inside the respective bounds defined hereinbefore.

`GenOpt`therefore proposes to re-launch the same optimization several times (three times in this work) by randomly selecting the initial estimate in the search space: this lengthens computation times but increases the chances of converging towards the global minimum.

## 3. Results

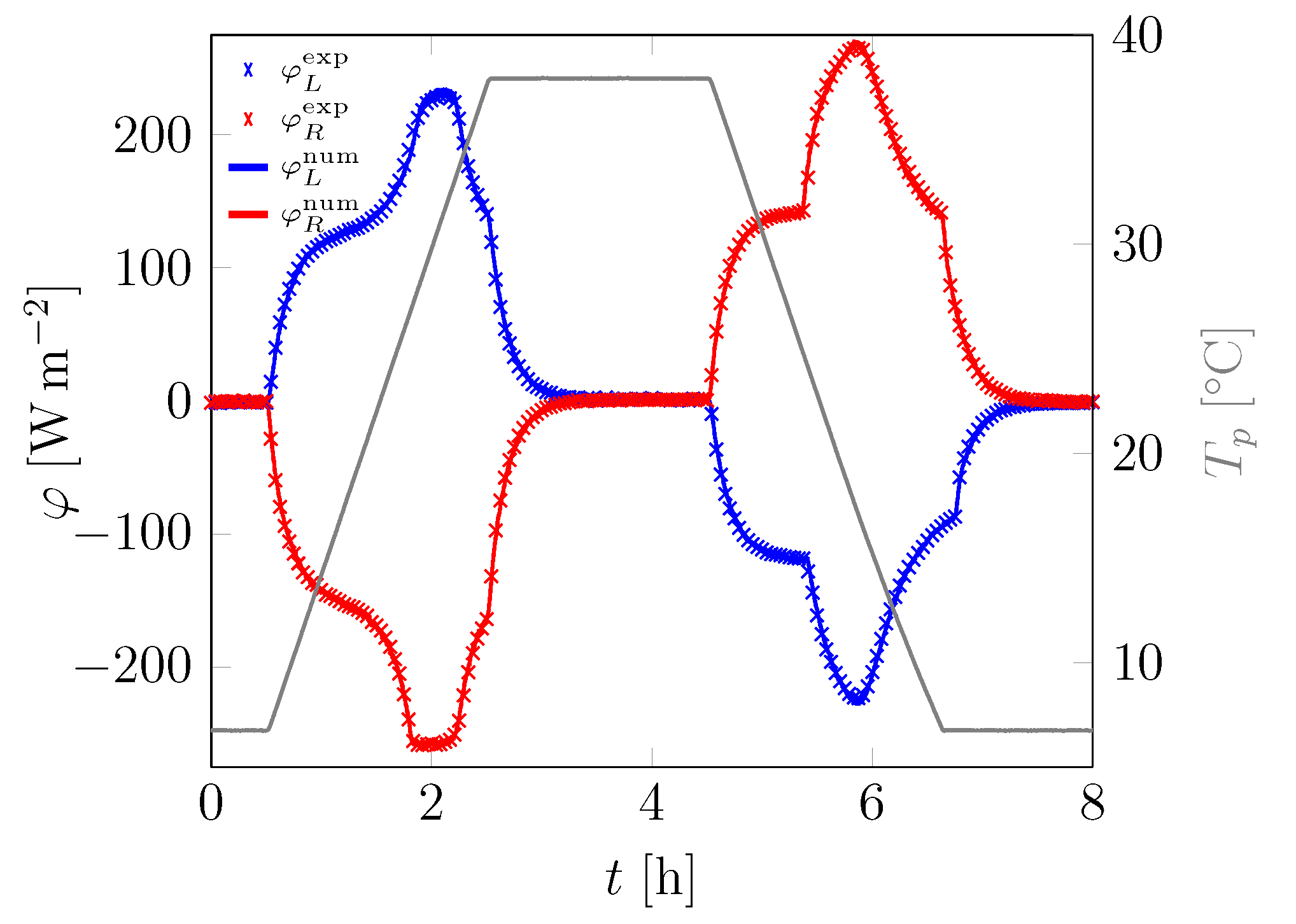

#### 3.1. First Sample

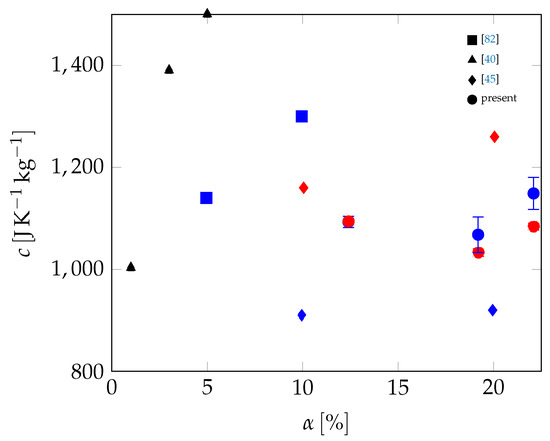

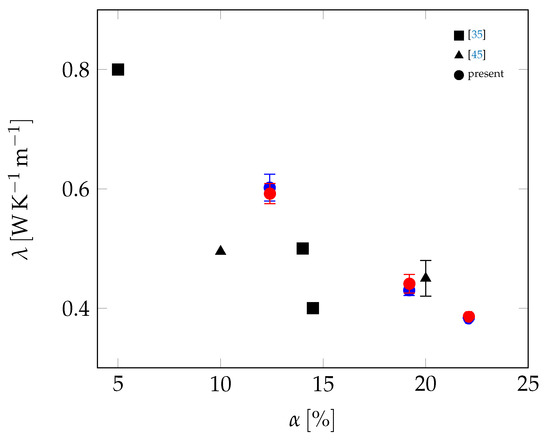

#### 3.2. All Samples

## 4. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## Nomenclature

Latin symbols | |

c | specific heat capacity, $\mathrm{J}\phantom{\rule{0.166667em}{0ex}}{\mathrm{K}}^{-1}\phantom{\rule{0.166667em}{0ex}}{\mathrm{kg}}^{-1}$ |

D | duration, $\mathrm{h}$ |

e | thickness, $\mathrm{m}$ |

f | cost function, ${\mathrm{W}}^{2}\phantom{\rule{0.166667em}{0ex}}{\mathrm{m}}^{-4}$ |

h | specific enthalpy, $\mathrm{J}\phantom{\rule{0.166667em}{0ex}}{\mathrm{kg}}^{-1}$ |

L | latent heat, $\mathrm{J}\phantom{\rule{0.166667em}{0ex}}{\mathrm{kg}}^{-1}$ |

$\overrightarrow{p}$ | set of parameters, − |

R | thermal resistance, ${\mathrm{W}}^{-1}\phantom{\rule{0.166667em}{0ex}}\mathrm{K}\phantom{\rule{0.166667em}{0ex}}{\mathrm{m}}^{2}$ |

T | temperature, ${}^{\circ}\mathrm{C}$ |

t | time, $\mathrm{s}$ or min |

$\overrightarrow{X}$ | vector of coordinates, $\mathrm{m}$ |

Y | mass fraction of PCM, − |

Greek symbols | |

$\epsilon $ | error, % |

$\phi $ | heat flux, $\mathrm{W}\phantom{\rule{0.166667em}{0ex}}{\mathrm{m}}^{-2}$ |

$\lambda $ | thermal conductivity, $\mathrm{W}\phantom{\rule{0.166667em}{0ex}}{\mathrm{K}}^{-1}\phantom{\rule{0.166667em}{0ex}}{\mathrm{m}}^{-1}$ |

$\rho $ | density, $\mathrm{k}\mathrm{g}\phantom{\rule{0.166667em}{0ex}}{\mathrm{m}}^{-3}$ |

$\chi $ | liquid fraction, − |

Subscripts and superscripts | |

$\star $ | pure component (solvent phase) |

$ex$ | execution |

$\mathrm{exp}$ | experimental |

L | left |

l | liquid |

M | melting |

$\mathrm{num}$ | numerical |

p | exchange plate |

R | right |

s | solid |

w | weight |

Acronyms | |

DSC | differential scanning calorimetry |

GPS | generalized pattern search |

PCM | phase change material |

## Appendix A. Additional Data

**Table A1.**19.2%

_{w}-PCM mortar: values of the identified parameters for each heating/cooling ramp and for the first, second, third, and all cycles together cases.

D | f | R_{L} | R_{R} | λ_{s} | λ_{l} | c_{s} | c_{l} | T_{M} | ${\mathit{T}}_{\mathit{M}}^{\star}$ | L_{M} | t_{ex} |
---|---|---|---|---|---|---|---|---|---|---|---|

22,577 | 1.098 · 10^{−2} | 4.638 · 10^{−3} | 0.606 | 0.6 | 1094 | 1094 | 25.57 | 27.18 | 12,322 | 0:22:39 | |

2 h | 22,596 | 1.085 · 10^{−2} | 4.39 · 10^{−3} | 0.594 | 0.589 | 1094 | 1094 | 25.57 | 27.17 | 12,317 | 1:05:41 |

23,028 | 1.084 · 10^{−2} | 4.39 · 10^{−3} | 0.594 | 0.589 | 1100 | 1094 | 25.58 | 27.17 | 12,267 | 1:12:19 | |

68,175 | 1.084 · 10^{−2} | 4.412 · 10^{−3} | 0.594 | 0.589 | 1094 | 1094 | 25.57 | 27.17 | 12,322 | 0:56:43 | |

20,403 | 1.125 · 10^{−2} | 4.737 · 10^{−3} | 0.594 | 0.589 | 1089 | 1089 | 25.57 | 27.17 | 12,478 | 2:05:37 | |

3 h | 19,899 | 1.154 · 10^{−2} | 5.028 · 10^{−3} | 0.611 | 0.6 | 1089 | 1089 | 25.58 | 27.19 | 12,461 | 2:06:14 |

19,774 | 1.139 · 10^{−2} | 4.918 · 10^{−3} | 0.606 | 0.594 | 1094 | 1094 | 25.54 | 27.09 | 12,294 | 2:05:01 | |

59,337 | 1.139 · 10^{−2} | 4.891 · 10^{−3} | 0.606 | 0.594 | 1089 | 1094 | 25.56 | 27.14 | 12,400 | 1:45:29 | |

18,095 | 1.111 · 10^{−2} | 5 · 10^{−3} | 0.6 | 0.589 | 1094 | 1094 | 25.53 | 27.06 | 12,328 | 2:27:47 | |

4 h | 18,642 | 1.111 · 10^{−2} | 4.918 · 10^{−3} | 0.594 | 0.583 | 1089 | 1094 | 25.54 | 27.11 | 12,422 | 0:44:17 |

18,230 | 1.125 · 10^{−2} | 5 · 10^{−3} | 0.6 | 0.589 | 1094 | 1094 | 25.53 | 27.07 | 12,328 | 2:50:45 | |

55,793 | 1.111 · 10^{−2} | 4.891 · 10^{−3} | 0.594 | 0.583 | 1089 | 1094 | 25.54 | 27.11 | 12,422 | 2:05:56 | |

17,821 | 1.2 · 10^{−2} | 5.455 · 10^{−3} | 0.606 | 0.594 | 1094 | 1094 | 25.53 | 27.03 | 12,300 | 4:12:57 | |

5 h | 17,924 | 1.2 · 10^{−2} | 5.455 · 10^{−3} | 0.606 | 0.594 | 1094 | 1094 | 25.52 | 27.01 | 12,283 | 4:31:10 |

17,518 | 1.216 · 10^{−2} | 5.625 · 10^{−3} | 0.617 | 0.6 | 1089 | 1094 | 25.54 | 27.08 | 12,361 | 1:20:27 | |

52,845 | 1.2 · 10^{−2} | 5.455 · 10^{−3} | 0.606 | 0.594 | 1094 | 1094 | 25.52 | 27 | 12,261 | 3:28:31 |

**Table A2.**19.2%

_{w}-PCM mortar: values of the identified parameters for each heating/cooling ramp and for the first, second, third, and all cycles together cases.

D | f | R_{L} | R_{R} | λ_{s} | λ_{l} | c_{s} | c_{l} | T_{M} | ${\mathit{T}}_{\mathit{M}}^{\star}$ | L_{M} | t_{ex} |
---|---|---|---|---|---|---|---|---|---|---|---|

30,313 | 1.159 · 10^{−2} | 3.127 · 10^{−2} | 0.435 | 0.442 | 1096 | 1035 | 25.59 | 27.31 | 18,135 | 01:43:24 | |

2 h | 23,390 | 1.224 · 10^{−2} | 3.14 · 10^{−2} | 0.431 | 0.436 | 1067 | 1037 | 25.57 | 27.28 | 18,233 | 00:50:28 |

21,859 | 1.24 · 10^{−2} | 3.127 · 10^{−2} | 0.431 | 0.436 | 1069 | 1036 | 25.58 | 27.28 | 18,168 | 00:59:37 | |

85,878 | 1.204 · 10^{−2} | 3.127 · 10^{−2} | 0.431 | 0.437 | 1074 | 1035 | 25.59 | 27.34 | 18,279 | 02:16:47 | |

20,785 | 1.304 · 10^{−2} | 3.176 · 10^{−2} | 0.427 | 0.437 | 1062 | 1035 | 25.7 | 27.51 | 18,352 | 06:43:38 | |

3 h | 20,551 | 1.321 · 10^{−2} | 3.189 · 10^{−2} | 0.427 | 0.436 | 1065 | 1031 | 25.68 | 27.43 | 18,241 | 08:27:05 |

21,697 | 1.33 · 10^{−2} | 3.189 · 10^{−2} | 0.428 | 0.438 | 1067 | 1030 | 25.69 | 27.46 | 18,265 | 10:36:33 | |

61,906 | 1.313 · 10^{−2} | 3.176 · 10^{−2} | 0.426 | 0.436 | 1066 | 1032 | 25.69 | 27.47 | 18,273 | 08:26:34 | |

19,051 | 1.399 · 10^{−2} | 3.24 · 10^{−2} | 0.427 | 0.443 | 1062 | 1031 | 25.76 | 27.59 | 18,343 | 13:48:26 | |

4h | 19,216 | 1.397 · 10^{−2} | 3.24 · 10^{−2} | 0.428 | 0.442 | 1067 | 1031 | 25.74 | 27.54 | 18,207 | 11:21:10 |

19,216 | 1.397 · 10^{−2} | 3.24 · 10^{−2} | 0.428 | 0.442 | 1067 | 1031 | 25.74 | 27.54 | 18,207 | 08:59:56 | |

57,062 | 1.399 · 10^{−2} | 3.24 · 10^{−2} | 0.427 | 0.442 | 1065 | 1031 | 25.75 | 27.57 | 18,270 | 08:19:15 | |

18,094 | 1.434 · 10^{−2} | 3.266 · 10^{−2} | 0.429 | 0.443 | 1073 | 1035 | 25.77 | 27.54 | 17,978 | 10:20:06 | |

5 h | 19,170 | 1.467 · 10^{−2} | 3.293 · 10^{−2} | 0.433 | 0.45 | 1066 | 1032 | 25.78 | 27.61 | 18,190 | 06:04:20 |

18,679 | 1.473 · 10^{−2} | 3.306 · 10^{−2} | 0.433 | 0.451 | 1063 | 1031 | 25.78 | 27.63 | 18,260 | 06:47:33 | |

56,006 | 1.465 · 10^{−2} | 3.293 · 10^{−2} | 0.433 | 0.449 | 1064 | 1032 | 25.78 | 27.63 | 18,222 | 07:19:31 |

**Table A3.**22.1%

_{w}-PCM mortar: values of the identified parameters for each heating/cooling ramp and for the first, second, third, and all cycles together cases.

D | f | R_{L} | R_{R} | λ_{s} | λ_{l} | c_{s} | c_{l} | T_{M} | ${\mathit{T}}_{\mathit{M}}^{\star}$ | L_{M} | t_{ex} |
---|---|---|---|---|---|---|---|---|---|---|---|

17,511 | 7.893 · 10^{−3} | 1.364 · 10^{−2} | 0.384 | 0.384 | 1154 | 1088 | 25.52 | 26.91 | 20,679 | 00:54:19 | |

2 h | 18,899 | 7.825 · 10^{−3} | 1.364 · 10^{−2} | 0.384 | 0.384 | 1151 | 1084 | 25.52 | 26.94 | 20,778 | 04:15:25 |

21,183 | 7.826 · 10^{−3} | 1.364 · 10^{−2} | 0.382 | 0.382 | 1137 | 1084 | 25.54 | 27.02 | 21,027 | 3:43:08 | |

57,935 | 7.895 · 10^{−3} | 1.364 · 10^{−2} | 0.384 | 0.384 | 1150 | 1087 | 25.52 | 26.93 | 20,757 | 8:31:31 | |

21,014 | 8.333 · 10^{−3} | 1.429 · 10^{−2} | 0.384 | 0.387 | 1132 | 1081 | 25.72 | 27.37 | 21,336 | 18:28:41 | |

3 h | 20,915 | 8.257 · 10^{−3} | 1.429 · 10^{−2} | 0.382 | 0.387 | 1142 | 1081 | 25.63 | 27.19 | 21,094 | 41:58:24 |

23,850 | 8.333 · 10^{−3} | 1.429 · 10^{−2} | 0.384 | 0.387 | 1153 | 1081 | 25.62 | 27.1 | 20,848 | 10:45:50 | |

66,027 | 8.333 · 10^{−3} | 1.429 · 10^{−2} | 0.384 | 0.389 | 1144 | 1083 | 25.66 | 27.21 | 21,052 | 40:53:30 | |

28,680 | 8.571 · 10^{−3} | 1.452 · 10^{−2} | 0.382 | 0.384 | 1144 | 1081 | 25.67 | 27.26 | 21,053 | 42:29:36 | |

4 h | 26,641 | 8.654 · 10^{−3} | 1.452 · 10^{−2} | 0.384 | 0.387 | 1151 | 1081 | 25.67 | 27.23 | 20,983 | 108:57:29 |

25,323 | 8.571 · 10^{−3} | 1.452 · 10^{−2} | 0.382 | 0.387 | 1144 | 1082 | 25.67 | 27.26 | 21,067 | 32:22:59 | |

80,789 | 8.571 · 10^{−3} | 1.452 · 10^{−2} | 0.382 | 0.387 | 1146 | 1081 | 25.67 | 27.26 | 21,079 | 59:49:49 | |

28,322 | 8.824 · 10^{−3} | 1.475 · 10^{−2} | 0.384 | 0.387 | 1160 | 1086 | 25.67 | 27.16 | 20,682 | 9:59:39 | |

5 h | 26,548 | 8.738 · 10^{−3} | 1.475 · 10^{−2} | 0.382 | 0.387 | 1159 | 1084 | 25.67 | 27.2 | 20,763 | 44:44:31 |

27,889 | 8.654 · 10^{−3} | 1.475 · 10^{−2} | 0.382 | 0.387 | 1163 | 1087 | 25.67 | 27.16 | 20,587 | 13:43:08 | |

80,419 | 8.738 · 10^{−3} | 1.475 · 10^{−2} | 0.382 | 0.387 | 1147 | 1086 | 25.69 | 27.28 | 21,000 | 74:28:11 |

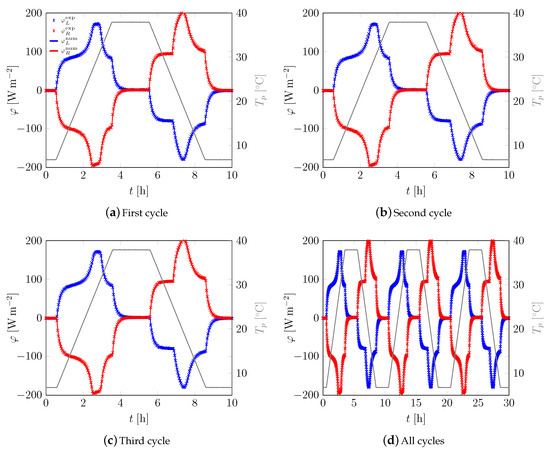

**Figure A1.**12.4%

_{w}-PCM mortar: comparisons of the experimental fluxes with the numerical ones after identification for the 3 h heating/cooling ramp experiment.

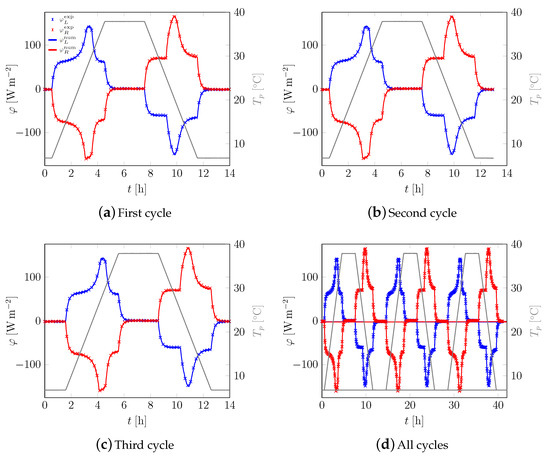

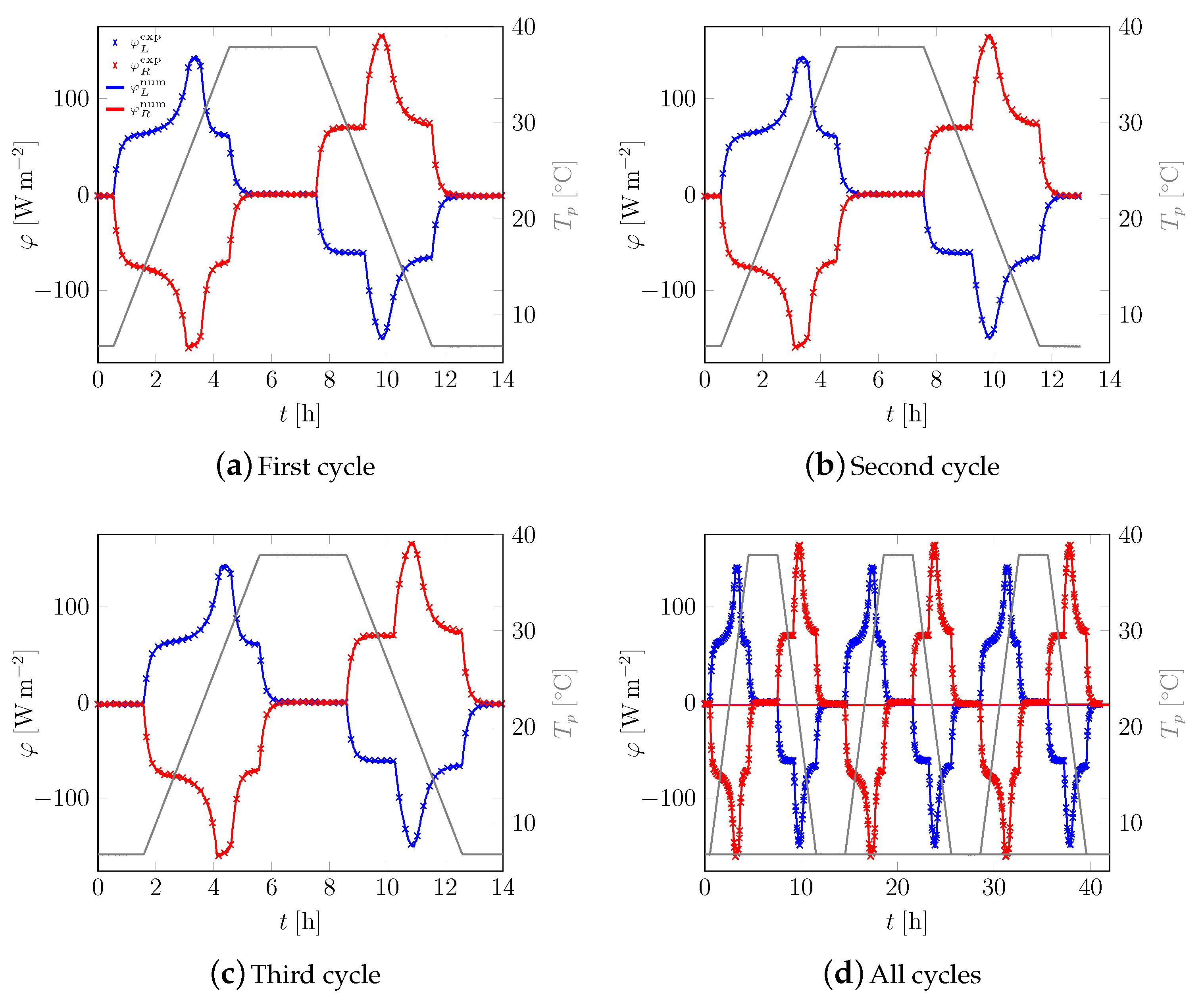

**Figure A2.**12.4%

_{w}-PCM mortar: comparisons of the experimental fluxes with the numerical ones after identification for the 4 h heating/cooling ramp experiment.

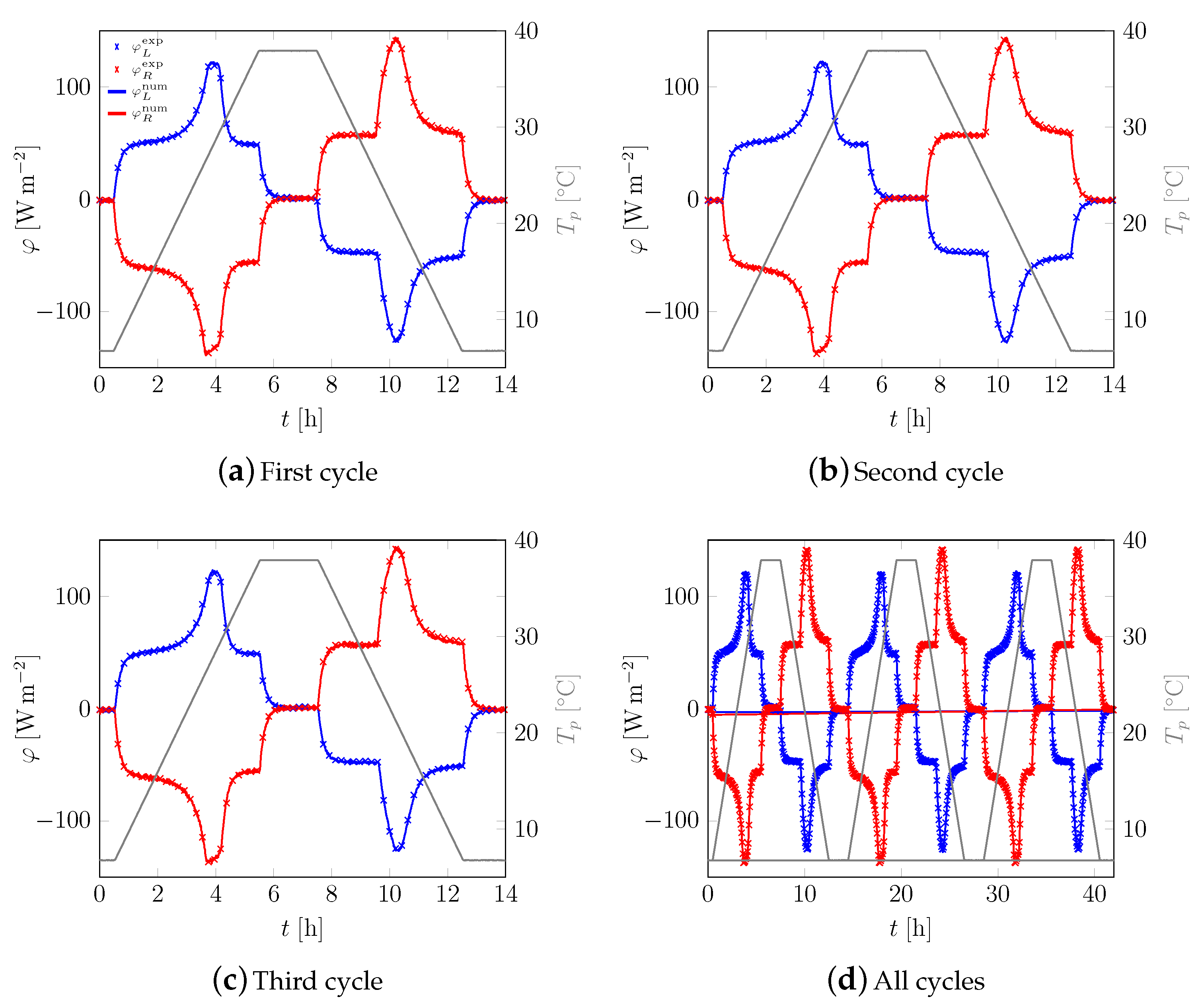

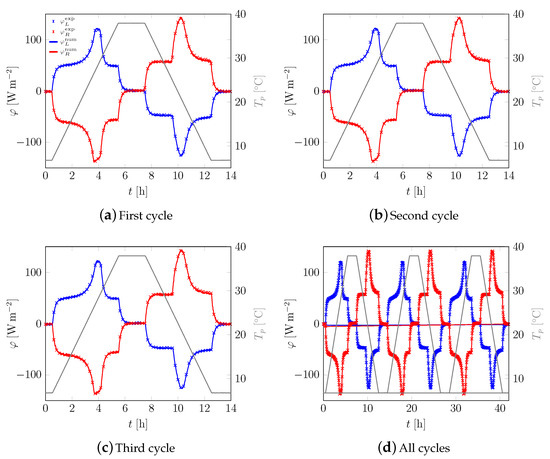

**Figure A3.**12.4%

_{w}-PCM mortar: comparisons of the experimental fluxes with the numerical ones after identification for the 5 h heating/cooling ramp experiment.

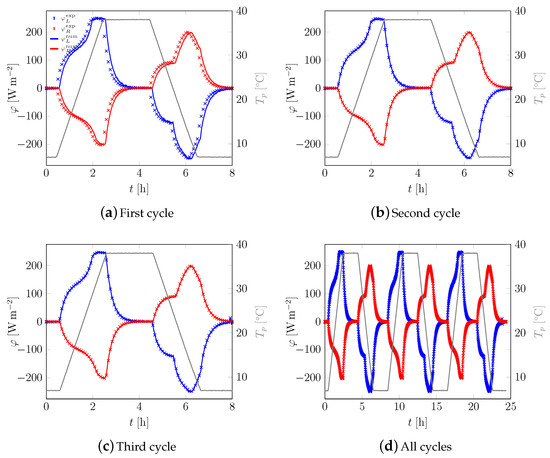

**Figure A4.**19.2%

_{w}-PCM mortar: comparisons of the experimental fluxes with the numerical ones after identification for the 2 h heating/cooling ramp experiment.

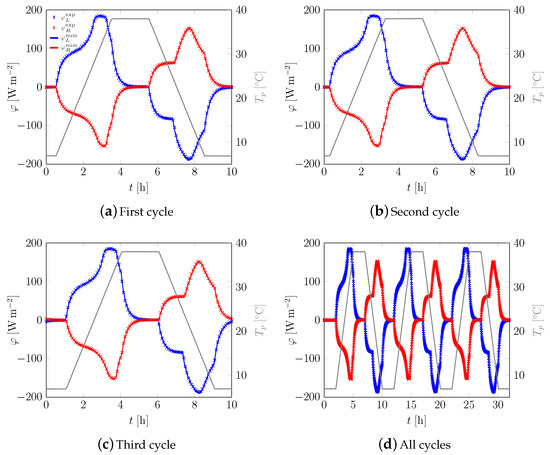

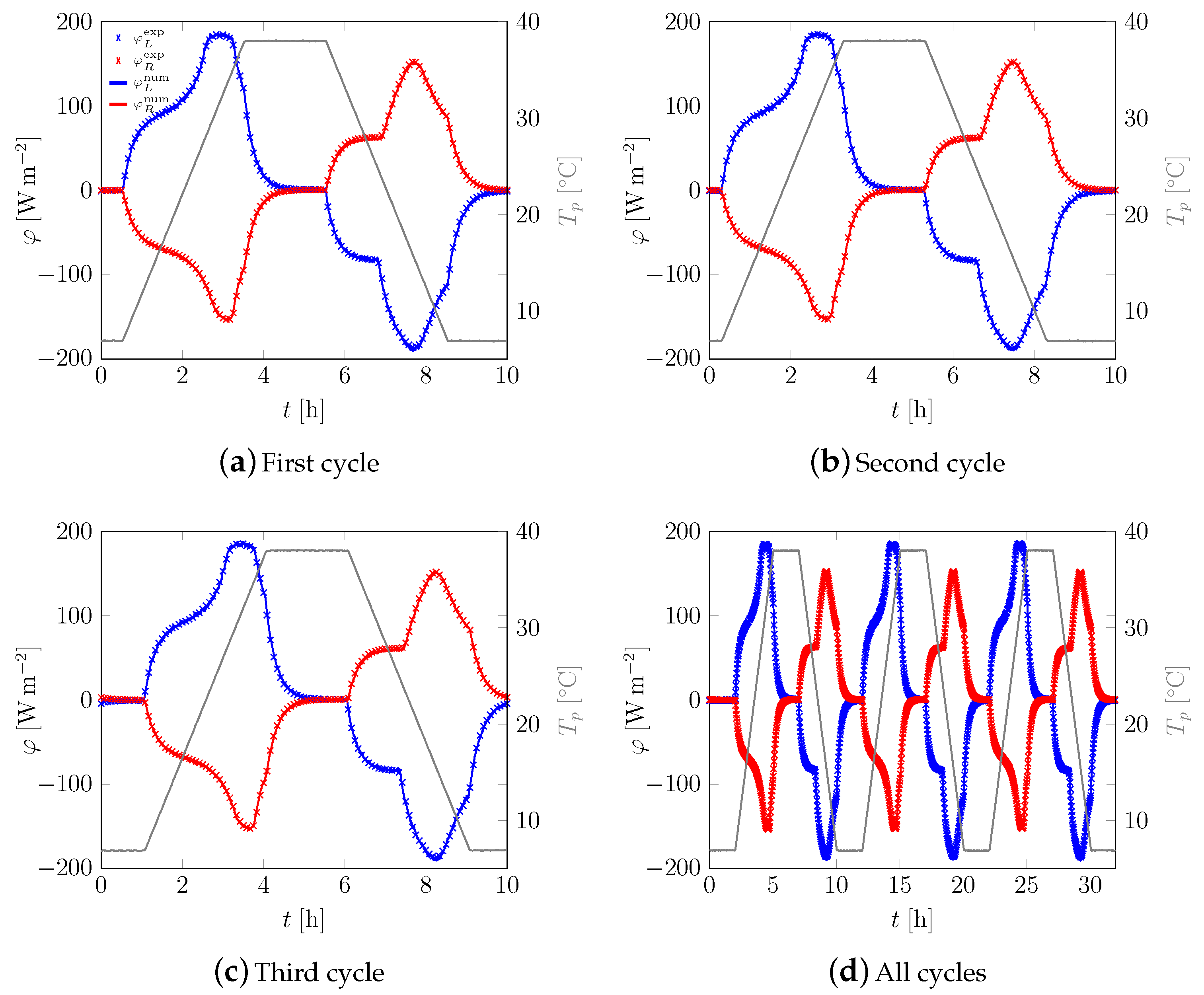

**Figure A5.**19.2%

_{w}-PCM mortar: comparisons of the experimental fluxes with the numerical ones after identification for the 3 h heating/cooling ramp experiment.

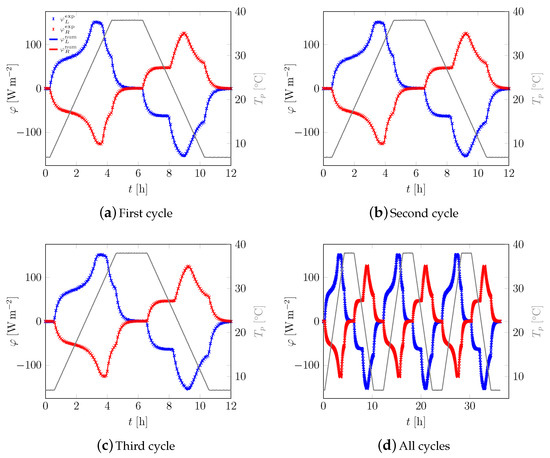

**Figure A6.**19.2%

_{w}-PCM mortar: comparisons of the experimental fluxes with the numerical ones after identification for the 4 h heating/cooling ramp experiment.

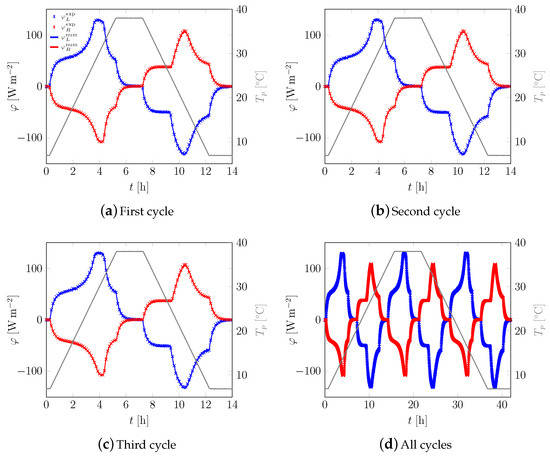

**Figure A7.**19.2%

_{w}-PCM mortar: comparisons of the experimental fluxes with the numerical ones after identification for the 5 h heating/cooling ramp experiment.

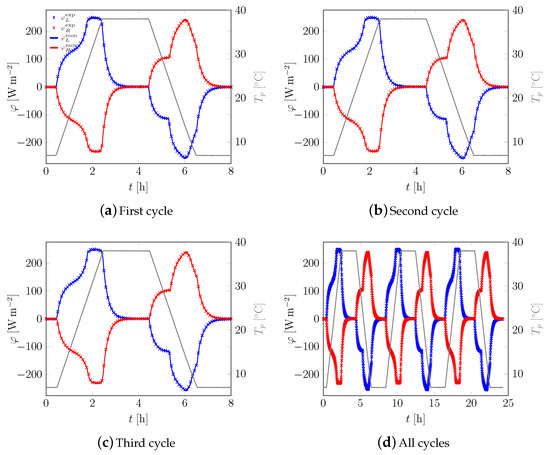

**Figure A8.**22.1%

_{w}-PCM mortar: comparisons of the experimental fluxes with the numerical ones after identification for the 2 h heating/cooling ramp experiment.

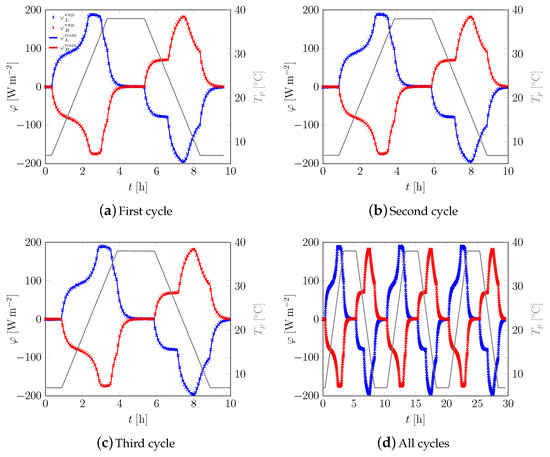

**Figure A9.**22.1%

_{w}-PCM mortar: comparisons of the experimental fluxes with the numerical ones after identification for the 3 h heating/cooling ramp experiment.

**Figure A10.**22.1%

_{w}-PCM mortar: comparisons of the experimental fluxes with the numerical ones after identification for the 4 h heating/cooling ramp experiment.

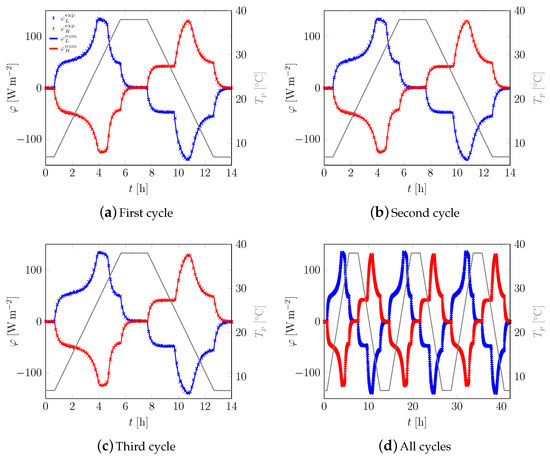

**Figure A11.**22.1%

_{w}-PCM mortar: comparisons of the experimental fluxes with the numerical ones after identification for the 5 h heating/cooling ramp experiment.

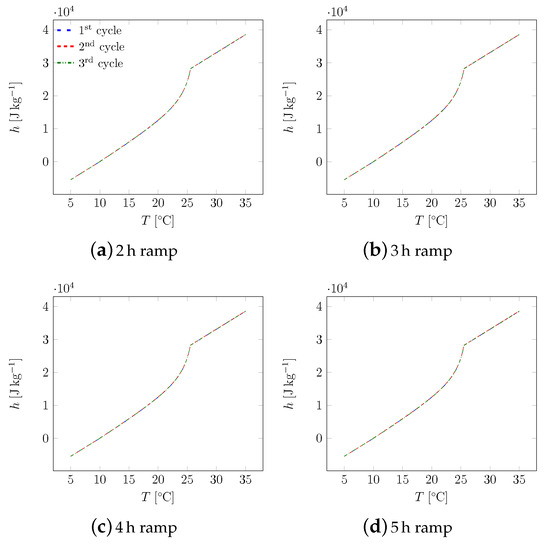

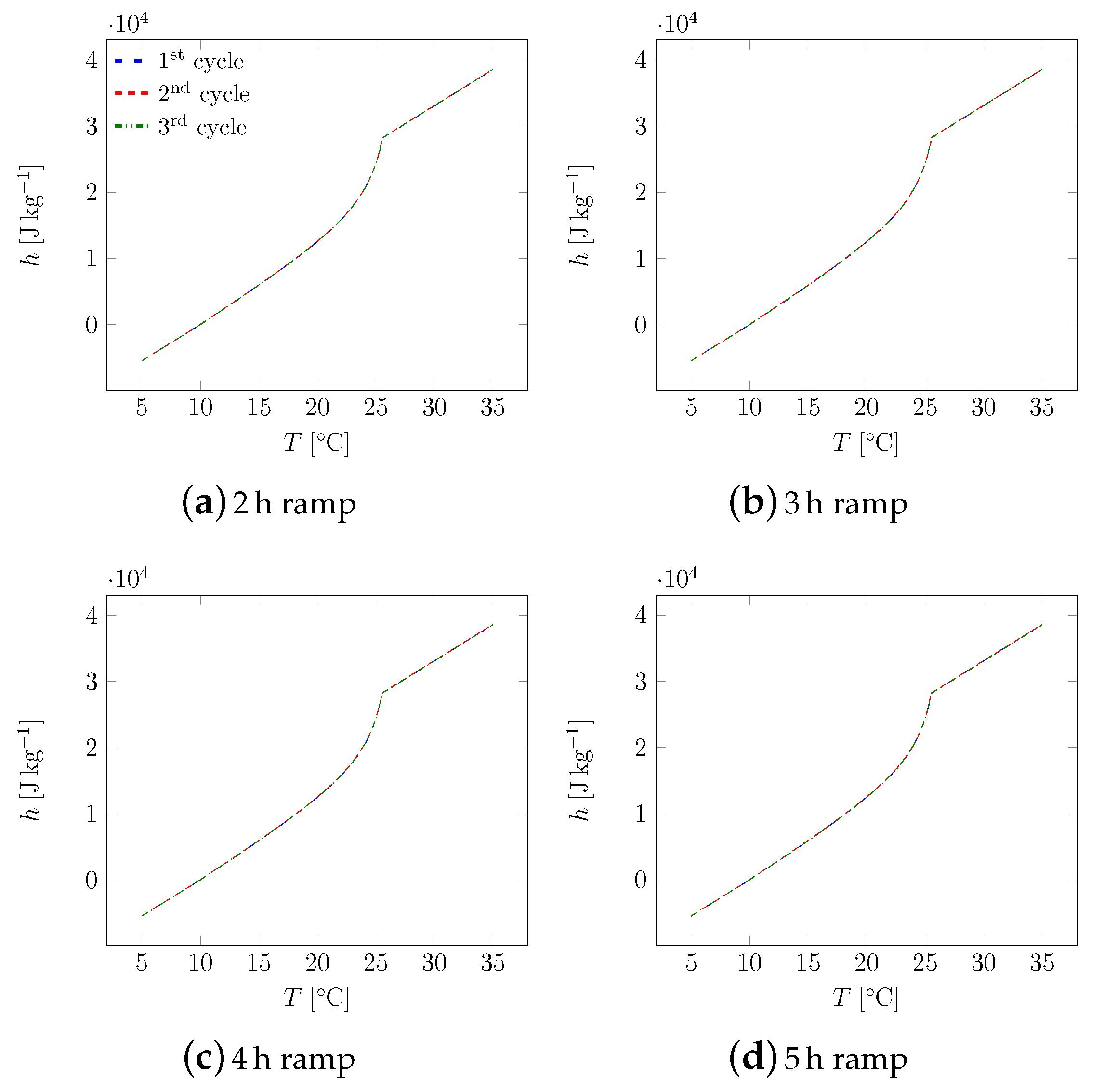

**Figure A12.**12.4%

_{w}-PCM mortar: comparisons of the identified enthalpy functions with respect to the heating/cooling ramp (n.b. unique formulation pertaining for both fusion and crystallization).

**Figure A13.**19.2%

_{w}-PCM mortar: comparisons of the identified enthalpy functions with respect to the heating/cooling ramp (n.b. unique formulation pertaining for both fusion and crystallization).

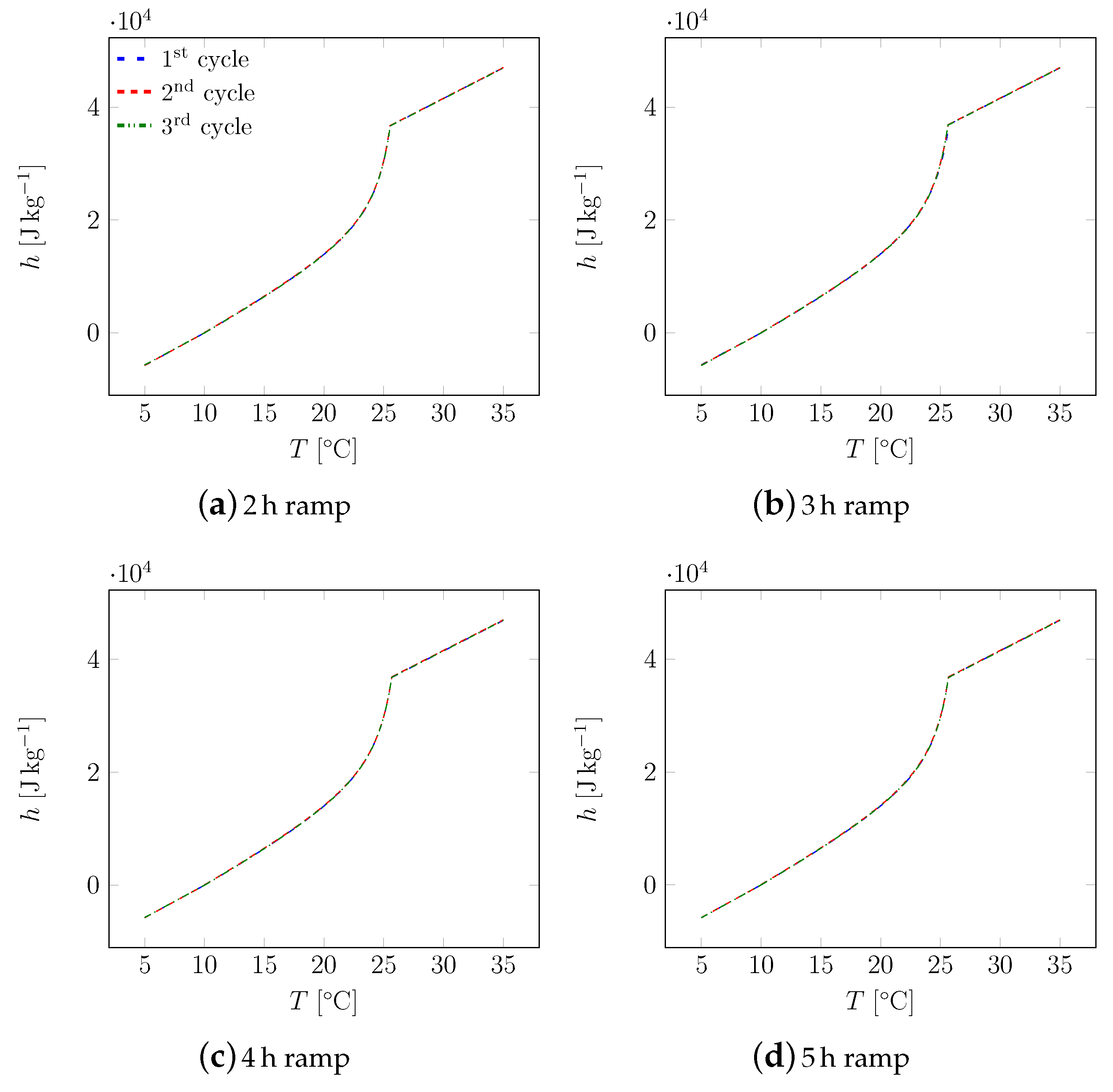

**Figure A14.**22.1%

_{w}-PCM mortar: comparisons of the identified enthalpy functions with respect to the heating/cooling ramp (n.b. unique formulation pertaining for both fusion and crystallization).

## References

- Ürge-Vorsatz, D.; Cabeza, L.F.; Serrano, S.; Barreneche, C.; Petrichenko, K. Heating and cooling energy trends and drivers in buildings. Renew. Sustain. Energy Rev.
**2015**, 41, 85–98. [Google Scholar] [CrossRef] - Serrano, S.; Ürge-Vorsatz, D.; Barreneche, C.; Palacios, A.; Cabeza, L.F. Heating and cooling energy trends and drivers in Europe. Energy
**2017**, 119, 425–434. [Google Scholar] [CrossRef] - Zhu, N.; Ma, Z.; Wang, S. Dynamic characteristics and energy performance of buildings using phase change materials: A review. Energy Convers. Manag.
**2009**, 50, 3169–3181. [Google Scholar] [CrossRef] - Tyagi, V.; Kaushik, S.; Tyagi, S.; Akiyama, T. Development of phase change materials based microencapsulated technology for buildings: A review. Renew. Sustain. Energy Rev.
**2011**, 15, 1373–1391. [Google Scholar] [CrossRef] - Pomianowski, M.; Heiselberg, P.; Zhang, Y. Review of thermal energy storage technologies based on PCM application in buildings. Energy Build.
**2013**, 67, 56–69. [Google Scholar] [CrossRef] - Konuklu, Y.; Ostry, M.; Paksoy, H.O.; Charvat, P. Review on using microencapsulated phase change materials (PCM) in building applications. Energy Build.
**2015**, 106, 134–155. [Google Scholar] [CrossRef] - Khadiran, T.; Hussein, M.Z.; Zainal, Z.; Rusli, R. Advanced energy storage materials for building applications and their thermal performance characterization: A review. Renew. Sustain. Energy Rev.
**2016**, 57, 916–928. [Google Scholar] [CrossRef] - Kasaeian, A.; bahrami, L.; Pourfayaz, F.; Khodabandeh, E.; Yan, W.M. Experimental studies on the applications of PCMs and nano-PCMs in buildings: A critical review. Energy Build.
**2017**, 154, 96–112. [Google Scholar] [CrossRef] - Cabeza, L.; Castell, A.; Barreneche, C.; de Gracia, A.; Fernández, A. Materials used as PCM in thermal energy storage in buildings: A review. Renew. Sustain. Energy Rev.
**2011**, 15, 1675–1695. [Google Scholar] [CrossRef] - Heier, J.; Bales, C.; Martin, V. Combining thermal energy storage with buildings—A review. Renew. Sustain. Energy Rev.
**2015**, 42, 1305–1325. [Google Scholar] [CrossRef] - Stritih, U.; Butala, V. Energy saving in building with PCM cold storage. Int. J. Energy Res.
**2007**, 31, 1532–1544. [Google Scholar] [CrossRef] - Waqas, A.; Din, Z.U. Phase change material (PCM) storage for free cooling of buildings—A review. Renew. Sustain. Energy Rev.
**2013**, 18, 607–625. [Google Scholar] [CrossRef] - Kamali, S. Review of free cooling system using phase change material for building. Energy Build.
**2014**, 80, 131–136. [Google Scholar] [CrossRef] - Akeiber, H.; Nejat, P.; Majid, M.Z.A.; Wahid, M.A.; Jomehzadeh, F.; Famileh, I.Z.; Calautit, J.K.; Hughes, B.R.; Zaki, S.A. A review on phase change material (PCM) for sustainable passive cooling in building envelopes. Renew. Sustain. Energy Rev.
**2016**, 60, 1470–1497. [Google Scholar] [CrossRef] - Souayfane, F.; Fardoun, F.; Biwole, P.H. Phase change materials (PCM) for cooling applications in buildings: A review. Energy Build.
**2016**, 129, 396–431. [Google Scholar] [CrossRef] - Islam, M.; Pandey, A.; Hasanuzzaman, M.; Rahim, N. Recent progresses and achievements in photovoltaic-phase change material technology: A review with special treatment on photovoltaic thermal-phase change material systems. Energy Convers. Manag.
**2016**, 126, 177–204. [Google Scholar] [CrossRef] - Shukla, A.; Buddhi, D.; Sawhney, R. Solar water heaters with phase change material thermal energy storage medium: A review. Renew. Sustain. Energy Rev.
**2009**, 13, 2119–2125. [Google Scholar] [CrossRef] - Abokersh, M.H.; Osman, M.; El-Baz, O.; El-Morsi, M.; Sharaf, O. Review of the phase change material (PCM) usage for solar domestic water heating systems (SDWHS). Int. J. Energy Res.
**2017**, 42, 329–357. [Google Scholar] [CrossRef] - Moreno, P.; Solé, C.; Castell, A.; Cabeza, L.F. The use of phase change materials in domestic heat pump and air-conditioning systems for short term storage: A review. Renew. Sustain. Energy Rev.
**2014**, 39, 1–13. [Google Scholar] [CrossRef] - Kapsalis, V.; Karamanis, D. Solar thermal energy storage and heat pumps with phase change materials. Appl. Therm. Eng.
**2016**, 99, 1212–1224. [Google Scholar] [CrossRef] - Tyagi, V.V.; Buddhi, D. PCM thermal storage in buildings: A state of art. Renew. Sustain. Energy Rev.
**2007**, 11, 1146–1166. [Google Scholar] [CrossRef] - Zhang, Y.; Zhou, G.; Lin, K.; Zhang, Q.; Di, H. Application of latent heat thermal energy storage in buildings: State-of-the-art and outlook. Build. Environ.
**2007**, 42, 2197–2209. [Google Scholar] [CrossRef] - Baetens, R.; Petter Jelle, B.; Gustavsen, A. Phase change materials for building applications: A state-of-the-art review. Energy Build.
**2010**, 42, 1361–1368. [Google Scholar] - Kuznik, F.; David, D.; Johannes, K.; Roux, J.J. A review on phase change materials integrated in building walls. Renew. Sustain. Energy Rev.
**2011**, 15, 379–391. [Google Scholar] - Zhou, D.; Zhao, C.; Tian, Y. Review on thermal energy storage with phase change materials (PCMs) in building applications. Appl. Energy
**2012**, 92, 593–605. [Google Scholar] [CrossRef] - Soares, N.; Costa, J.J.; Gaspar, A.R.; Santos, P. Review of passive PCM latent heat thermal energy storage systems towards buildings’ energy efficiency. Energy Build.
**2013**, 59, 82–103. [Google Scholar] [CrossRef] - Memon, S.A. Phase change materials integrated in building walls: A state of the art review. Renew. Sustain. Energy Rev.
**2014**, 31, 870–906. [Google Scholar] [CrossRef] - Abuelnuor, A.A.A.; Omara, A.A.M.; Saqr, K.M.; Elhag, I.H.I. Improving indoor thermal comfort by using phase change materials: A review. Int. J. Energy Res.
**2018**, 42, 2084–2103. [Google Scholar] [CrossRef] - Ling, T.C.; Poon, C.S. Use of phase change materials for thermal energy storage in concrete: An overview. Constr. Build. Mater.
**2013**, 46, 55–62. [Google Scholar] [CrossRef] - Rao, V.V.; Parameshwaran, R.; Ram, V.V. PCM-mortar based construction materials for energy efficient buildings: A review on research trends. Energy Build.
**2018**, 158, 95–122. [Google Scholar] [CrossRef] - Hunger, M.; Entrop, A.; Mandilaras, I.; Brouwers, H.; Founti, M. The behavior of self-compacting concrete containing micro-encapsulated Phase Change Materials. Cement Concr. Compos.
**2009**, 31, 731–743. [Google Scholar] [CrossRef] - Joulin, A.; Younsi, Z.; Zalewski, L.; Lassue, S.; Rousse, D.R.; Cavrot, J.P. Experimental and numerical investigation of a phase change material: Thermal-energy storage and release. Appl. Energy
**2011**, 88, 2454–2462. [Google Scholar] - Meshgin, P.; Xi, Y.; Li, Y. Utilization of phase change materials and rubber particles to improve thermal and mechanical properties of mortar. Constr. Build. Mater.
**2012**, 28, 713–721. [Google Scholar] [CrossRef] - Sakulich, A.; Bentz, D. Incorporation of phase change materials in cementitious systems via fine lightweight aggregate. Constr. Build. Mater.
**2012**, 35, 483–490. [Google Scholar] [CrossRef] - Barreneche, C.; Navarro, M.E.; Fernández, A.I.; Cabeza, L.F. Improvement of the thermal inertia of building materials incorporating PCM. Evaluation in the macroscale. Appl. Energy
**2013**, 109, 428–432. [Google Scholar] [CrossRef] - Cheng, R.; Pomianowski, M.; Wang, X.; Heiselberg, P.; Zhang, Y. A new method to determine thermophysical properties of PCM-concrete brick. Appl. Energy
**2013**, 112, 988–998. [Google Scholar] [CrossRef] - Li, M.; Wu, Z.; Tan, J. Heat storage properties of the cement mortar incorporated with composite phase change material. Appl. Energy
**2013**, 103, 393–399. [Google Scholar] [CrossRef] - Xu, B.; Li, Z. Paraffin/diatomite composite phase change material incorporated cement-based composite for thermal energy storage. Appl. Energy
**2013**, 105, 229–237. [Google Scholar] [CrossRef] - Zhang, Z.; Shi, G.; Wang, S.; Fang, X.; Liu, X. Thermal energy storage cement mortar containing n-octadecane/expanded graphite composite phase change material. Renew. Energy
**2013**, 50, 670–675. [Google Scholar] [CrossRef] - Eddhahak-Ouni, A.; Drissi, S.; Colin, J.; Neji, J.; Care, S. Experimental and multi-scale analysis of the thermal properties of Portland cement concretes embedded with microencapsulated Phase Change Materials (PCMs). Appl. Therm. Eng.
**2014**, 64, 32–39. [Google Scholar] [CrossRef] - He, Y.; Zhang, X.; Zhang, Y. Preparation technology of phase change perlite and performance research of phase change and temperature control mortar. Energy Build.
**2014**, 85, 506–514. [Google Scholar] [CrossRef] - Vieira, J.; Senff, L.; Gonçalves, H.; Silva, L.; Ferreira, V.; Labrincha, J. Functionalization of mortars for controlling the indoor ambient of buildings. Energy Build.
**2014**, 70, 224–236. [Google Scholar] [CrossRef] - Shi, J.; Chen, Z.; Shao, S.; Zheng, J. Experimental and numerical study on effective thermal conductivity of novel form-stable basalt fiber composite concrete with PCMs for thermal storage. Appl. Therm. Eng.
**2014**, 66, 156–161. [Google Scholar] [CrossRef] - Lecompte, T.; Bideau, P.L.; Glouannec, P.; Nortershauser, D.; Masson, S.L. Mechanical and thermo-physical behaviour of concretes and mortars containing phase change material. Energy Build.
**2015**, 94, 52–60. [Google Scholar] [CrossRef] - Haurie, L.; Serrano, S.; Bosch, M.; Fernandez, A.I.; Cabeza, L.F. Single layer mortars with microencapsulated PCM: Study of physical and thermal properties, and fire behaviour. Energy Build.
**2016**, 111, 393–400. [Google Scholar] [CrossRef] - Li, T.; Yuan, Y.; Zhang, N. Thermal properties of phase change cement board with capric acid/expanded perlite form-stable phase change material. Adv. Mech. Eng.
**2017**, 9, 1–8. [Google Scholar] [CrossRef] - Hawes, D.; Banu, D.; Feldman, D. Latent heat storage in concrete. Sol. Energy Mater.
**1989**, 19, 335–348. [Google Scholar] [CrossRef] - Hawes, D.; Banu, D.; Feldman, D. Latent heat storage in concrete. II. Sol. Energy Mater.
**1990**, 21, 61–80. [Google Scholar] [CrossRef] - Hawes, D.; Feldman, D.; Banu, D. Latent heat storage in building materials. Energy Build.
**1993**, 20, 77–86. [Google Scholar] [CrossRef] - Zhang, D.; Li, Z.; Zhou, J.; Wu, K. Development of thermal energy storage concrete. Cement Concr. Res.
**2004**, 34, 927–934. [Google Scholar] [CrossRef] - Bentz, D.P.; Turpin, R. Potential applications of phase change materials in concrete technology. Cement Concr. Compos.
**2007**, 29, 527–532. [Google Scholar] [CrossRef] - Pomianowski, M.; Heiselberg, P.; Jensen, R.L.; Cheng, R.; Zhang, Y. A new experimental method to determine specific heat capacity of inhomogeneous concrete material with incorporated microencapsulated-PCM. Cement Concr. Res.
**2014**, 55, 22–34. [Google Scholar] [CrossRef] - Shadnia, R.; Zhang, L.; Li, P. Experimental study of geopolymer mortar with incorporated PCM. Constr. Build. Mater.
**2015**, 84, 95–102. [Google Scholar] [CrossRef] - Kheradmand, M.; Azenha, M.; de Aguiar, J.L.; Krakowiak, K.J. Thermal behavior of cement based plastering mortar containing hybrid microencapsulated phase change materials. Energy Build.
**2014**, 84, 526–536. [Google Scholar] [CrossRef] - Sari, A.; Alkan, C.; Biçer, A.; Bilgin, C. Latent heat energy storage characteristics of building composites of bentonite clay and pumice sand with different organic PCMs. Int. J. Energy Res.
**2014**, 38, 1478–1491. [Google Scholar] [CrossRef] - ASTM C1784. Standard Test Method for Using a Heat Flow Meter Apparatus for Measuring Thermal Storage Properties of Phase Change Materials and Products; ASTM International: West Conshohocken, PA, USA, 2014. [Google Scholar]
- Shukla, N.; Kosny, J. DHFMA Method for Dynamic Thermal Property Measurement of PCM-integrated Building Materials. Curr. Sustain. Renew. Energy Rep.
**2015**, 2, 41–46. [Google Scholar] - Albright, G.; Farid, M.; Al-Hallaj, S. Development of a model for compensating the influence of temperature gradients within the sample on DSC-results on phase change materials. J. Therm. Anal. Calorim.
**2010**, 101, 1155–1160. [Google Scholar] - Franquet, E.; Gibout, S.; Bédécarrats, J.P.; Haillot, D.; Dumas, J.P. Inverse method for the identification of the enthalpy of phase change materials from calorimetry experiment. Thermochim. Acta
**2012**, 546, 61–80. [Google Scholar] - Dumas, J.P.; Gibout, S.; Zalewski, L.; Johannes, K.; Franquet, E.; Lassue, S.; Bédécarrats, J.P.; Tittelein, P.; Kuznik, F. Interpretation of calorimetry experiments to characterise phase change materials. Int. J. Therm. Sci.
**2014**, 78, 48–55. [Google Scholar] [CrossRef] - Jin, X.; Xu, X.; Zhang, X.; Yin, Y. Determination of the PCM melting temperature range using DSC. Thermochim. Acta
**2014**, 595, 17–21. [Google Scholar] [CrossRef] - Gibout, S.; Franquet, E.; Haillot, D.; Bédécarrats, J.P.; Dumas, J.P. Challenges of the Usual Graphical Methods Used to Characterize Phase Change Materials by Differential Scanning Calorimetry. Appl. Sci.
**2018**, 8, 66. [Google Scholar] [CrossRef] - Tittelein, P.; Gibout, S.; Franquet, E.; Johannes, K.; Zalewski, L.; Kuznik, F.; Dumas, J.P.; Lassue, S.; Bédécarrats, J.P.; David, D. Simulation of the thermal and energy behaviour of a composite material containing encapsulated-PCM: Influence of the thermodynamical modelling. Appl. Energy
**2015**, 140, 269–274. [Google Scholar] [CrossRef] - Kuznik, F.; Johannes, K.; Franquet, E.; Zalewski, L.; Gibout, S.; Tittelein, P.; Dumas, J.P.; David, D.; Bédécarrats, J.P.; Lassue, S. Impact of the enthalpy function on the simulation of a building with phase change material wall. Energy Build.
**2016**, 126, 220–229. [Google Scholar] [CrossRef] - Tittelein, P.; Gibout, S.; Franquet, E.; Zalewski, L.; Defer, D. Identification of thermal properties and thermodynamic model for a cement mortar containing PCM by using inverse method. Energy Procedia
**2015**, 78, 1696–1701. [Google Scholar] [CrossRef] - Castellon, C.; Gunther, E.; Mehling, H.; Hiebler, S.; Cabeza, L.F. Determination of the enthalpy of PCM as a function of temperature using a heat-flux DSC—A study of different measurement procedures and their accuracy. Int. J. Energy Res.
**2008**, 32, 1258–1265. [Google Scholar] - Günther, E.; Hiebler, S.; Mehling, H.; Redlich, R. Enthalpy of phase change materials as a function of temperature: required accuracy and suitable measurments methods. Int. J. Thermophys.
**2009**, 30, 1257–1269. [Google Scholar] - Franquet, E.; Gibout, S.; Tittelein, P.; Zalewski, L.; Dumas, J.P. Experimental and theoretical analysis of a cement mortar containing microencapsulated PCM. Appl. Therm. Eng.
**2014**, 73, 30–38. [Google Scholar] - Leclercq, D.; Thery, P. Apparatus for simultaneous temperature and heat-flow measurements under transient conditions. Rev. Sci. Instrum.
**1983**, 54, 374–380. [Google Scholar] - Cherif, Y.; Joulin, A.; Zalewski, L.; Lassue, S. Superficial heat transfer by forced convection and radiation in a horizontal channel. Int. J. Therm. Sci.
**2009**, 48, 1696–1706. [Google Scholar] - Joulin, A.; Zalewski, L.; Lassue, S.; Naji, H. Experimental investigation of thermal characteristics of a mortar with or without a micro-encapsulated phase change material. Appl. Therm. Eng.
**2014**, 66, 171–180. [Google Scholar] [CrossRef] - Beckermann, C.; Viskanta, R. Natural convection solid/liquid phase change in porous media. Int. J. Heat Mass Transf.
**1988**, 31, 35–46. [Google Scholar] - Beckermann, C.; Viskanta, R. Double-diffusive convection during dendritic solidification of a binary mixture. Phys. Chem. Hydrodyn.
**1988**, 10, 195–213. [Google Scholar] - Ni, J.; Incropera, F. Extension of the continuum model for transport phenomena occurring during metal alloy solidification—I. The conservation equations. Int. J. Heat Mass Transf.
**1995**, 38, 1271–1284. [Google Scholar] [CrossRef] - Nelder, J.A.; Mead, R. A Simplex Method for Function Minimization. Comput. J.
**1965**, 7, 308–313. [Google Scholar] - Beck, J.; Arnold, K. Parameter Estimation in Engineering and Science; Wiley: New York, NY, USA, 1977. [Google Scholar]
- Goldberg, D.E. Genetic Algorithms in Search, Optimization and Machine Learning; Addison Wesley: New York, NY, USA, 1989. [Google Scholar]
- Gosselin, L.; Tye-Gingras, M.; Mathieu-Potvin, F. Review of utilization of genetic algorithms in heat transfer problems. Int. J. Heat Mass Transf.
**2009**, 52, 2169–2188. [Google Scholar] - Wetter, M. Design optimization with GenOpt. Build. Energy Simul. User News
**2000**, 21, 19–28. [Google Scholar] - Wetter, M. GenOpt
^{®}—A Generic Optimization Program. In Proceedings of the Seventh International IBPSA Conference, Rio de Janeiro, Brazil, 13–15 August 2001; Volume 1, pp. 601–608. [Google Scholar] - Wetter, M. Generic Optimization Program User Manual Version 3.0.0; Technical Report; Lawrence Berkeley National Laboratory: Berkeley, CA, USA, 2009.
- Ventolà, L.; Vendrell, M.; Giraldez, P. Newly-designed traditional lime mortar with a phase change material as an additive. Constr. Build. Mater.
**2013**, 47, 1210–1216. [Google Scholar] [CrossRef] - Lee, T.; Hawes, D.; Banu, D.; Feldman, D. Control aspects of latent heat storage and recovery in concrete. Sol. Energy Mater. Sol. Cells
**2000**, 62, 217–237. [Google Scholar] [CrossRef] - Cabeza, L.F.; Castellón, C.; Nogués, M.; Medrano, M.; Leppers, R.; Zubillaga, O. Use of microencapsulated PCM in concrete walls for energy savings. Energy Build.
**2007**, 39, 113–119. [Google Scholar] [CrossRef] - Sá, A.V.; Azenha, M.; de Sousa, H.; Samagaio, A. Thermal enhancement of plastering mortars with Phase Change Materials: Experimental and numerical approach. Energy Build.
**2012**, 49, 16–27. [Google Scholar] [CrossRef] - Snoeck, D.; Priem, B.; Dubruel, P.; De Belie, N. Encapsulated Phase-Change Materials as additives in cementitious materials to promote thermal comfort in concrete constructions. Mater. Struct.
**2016**, 49, 225–239. [Google Scholar] [CrossRef] - Zhang, H.; Xing, F.; Cui, H.Z.; Chen, D.Z.; Ouyang, X.; Xu, S.Z.; Wang, J.X.; Huang, Y.T.; Zuo, J.D.; Tang, J.N. A novel phase-change cement composite for thermal energy storage: Fabrication, thermal and mechanical properties. Appl. Energy
**2016**, 170, 130–139. [Google Scholar] [CrossRef]

**Figure 3.**Detailed description of the experimental set-up. (

**a**) Schematic view; (

**b**) Detailed view (with boundary conditions).

**Figure 5.**12.4${\%}_{w}$-PCM mortar: comparisons of the experimental fluxes with the numerical ones after identification for the first cycle of the $2\phantom{\rule{0.166667em}{0ex}}\mathrm{h}$ heating/cooling ramp experiment.

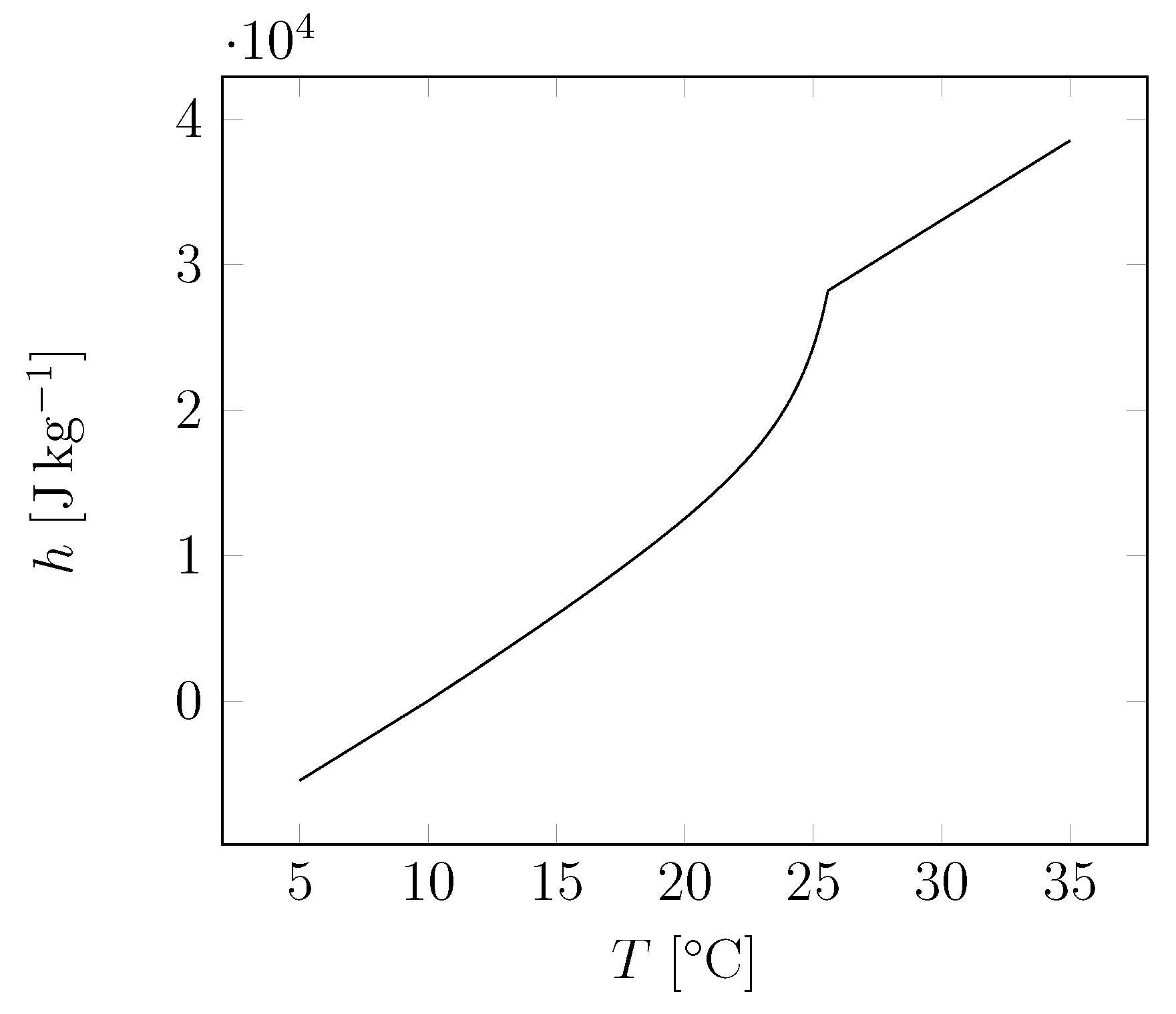

**Figure 6.**12.4${\%}_{w}$-PCM mortar: identified enthalpy function for the first cycle of the $2\phantom{\rule{0.166667em}{0ex}}\mathrm{h}$ heating/cooling ramp (n.b. unique formulation pertaining for both fusion and crystallization).

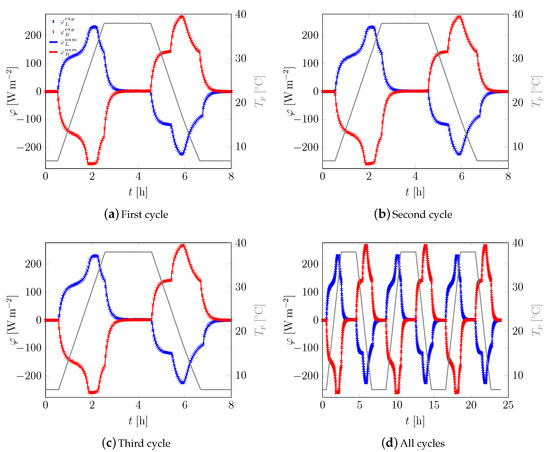

**Figure 7.**12.4%

_{w}-PCM mortar: comparisons of the experimental fluxes with the numerical ones after identification for the 2 h heating/cooling ramp experiment

**Figure 8.**12.4%

_{w}-PCM mortar: comparisons of the identified enthalpy functions for 2 h heating/cooling ramp (n.b. unique formulation pertaining for both fusion and crystallization).

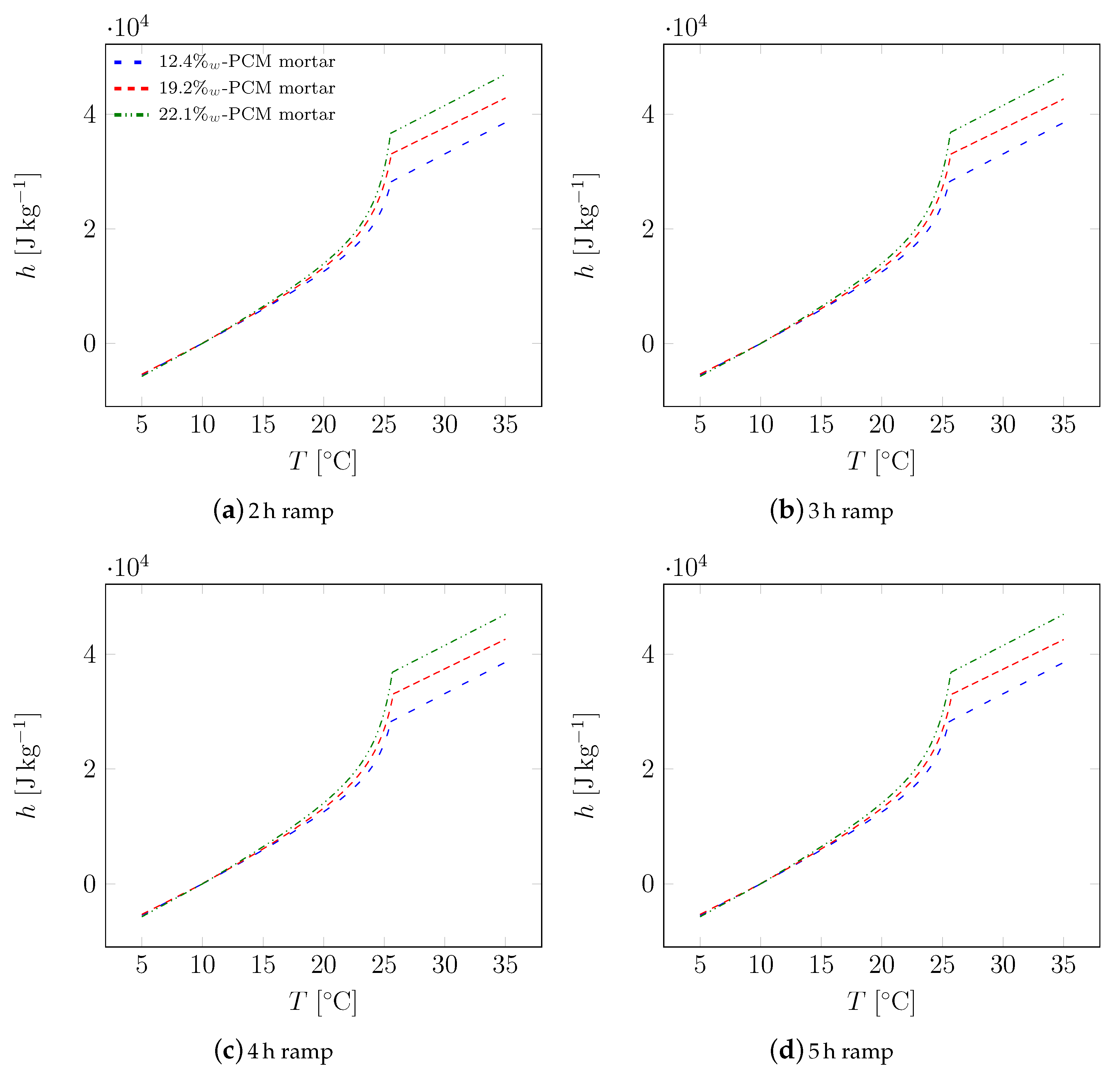

**Figure 9.**Comparisons of the identified enthalpy functions for all the heating/cooling ramps (n.b. unique formulation pertaining for both fusion and crystallization).

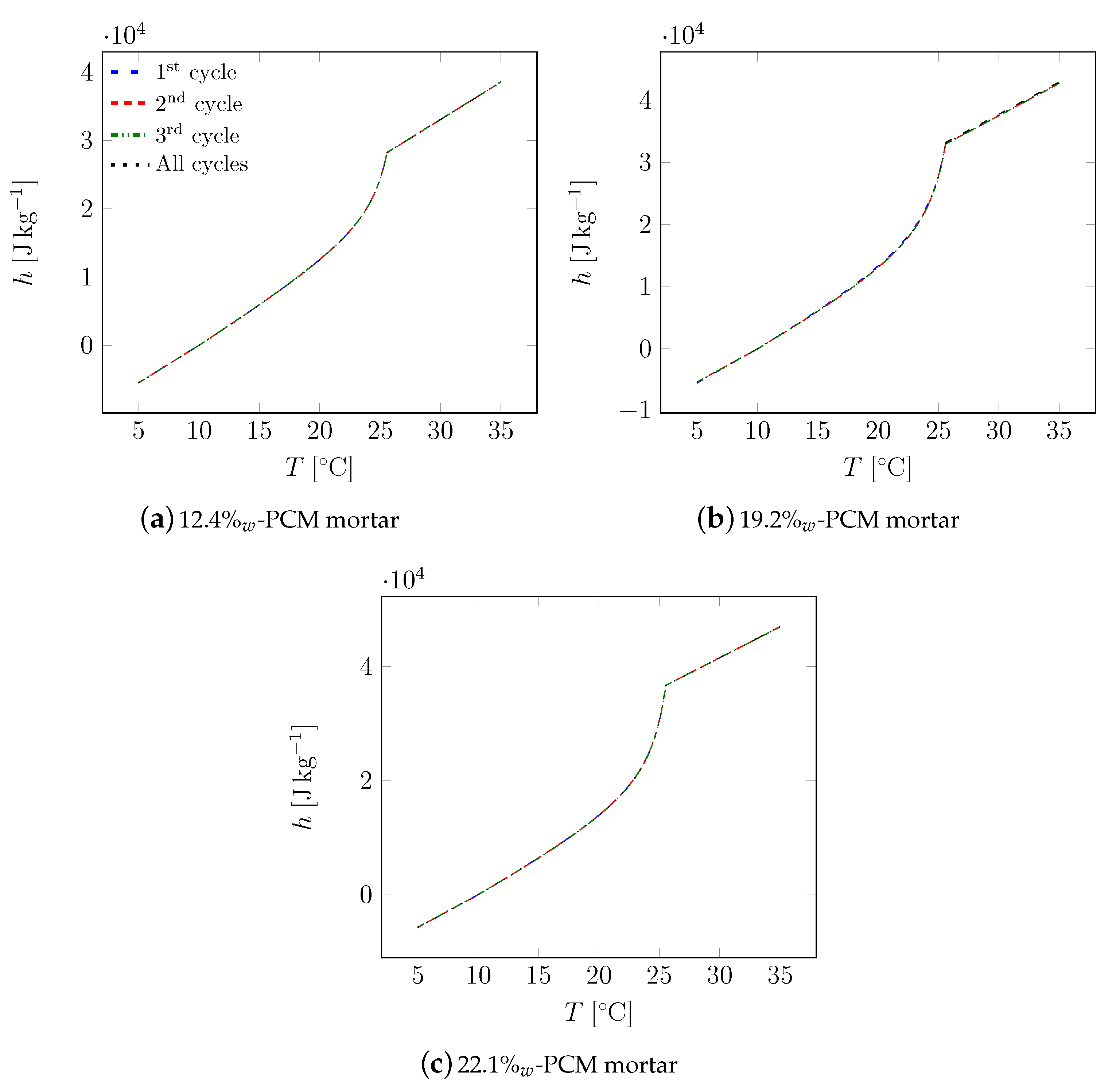

**Figure 10.**Comparisons of the identified enthalpy functions for all the mortars (n.b. unique formulation pertaining for both fusion and crystallization).

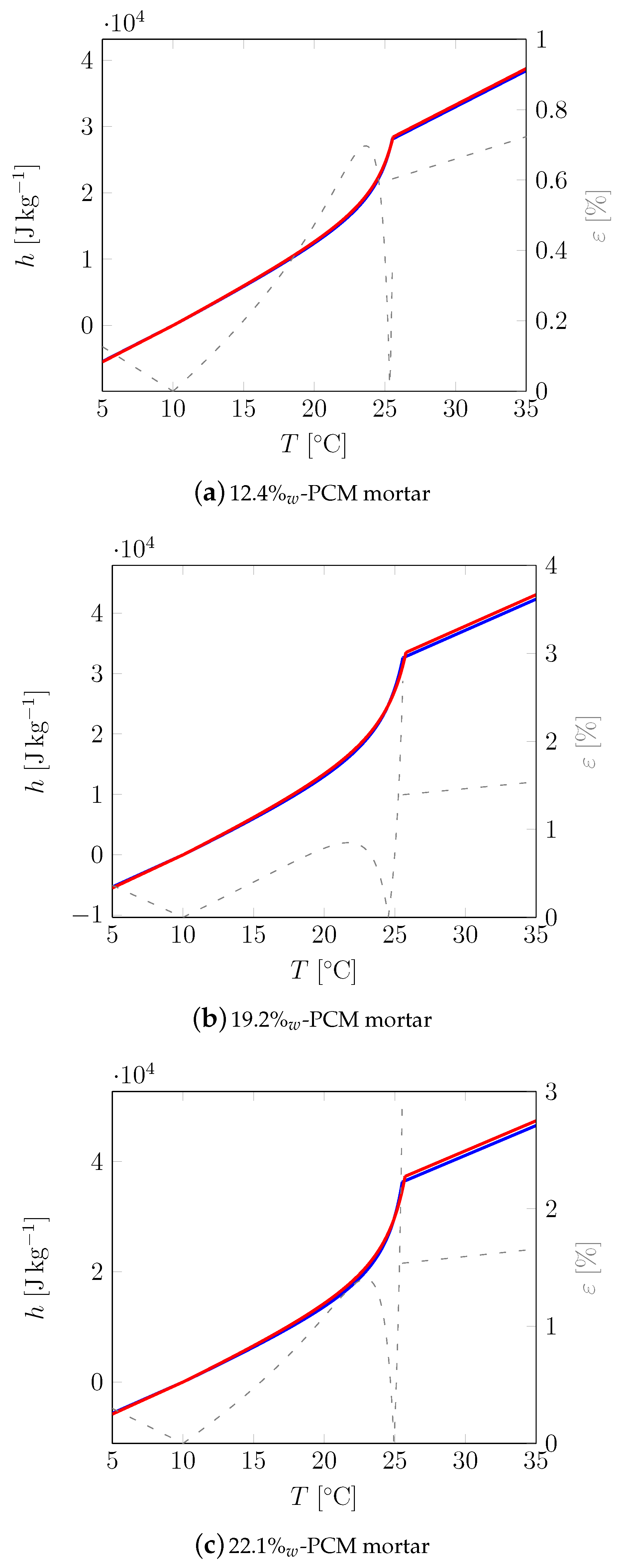

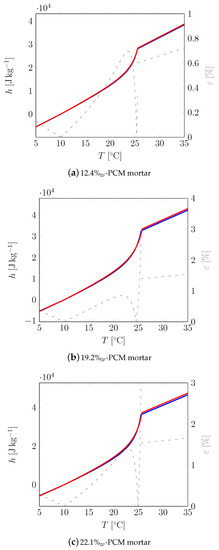

**Figure 11.**Comparisons of the enthalpy functions obtained with minimal (blue) and maximal (red) values of the identified parameters, together with the absolute discrepancy, for all the mortars (n.b. unique formulation pertaining for both fusion and crystallization).

**Figure 12.**Comparisons of the present estimations for the thermal conductivities for the solid (blue) and liquid (red) state with similar studies (black data mean that only an unique value has been given, without specifying the physical state (solid or liquid)).

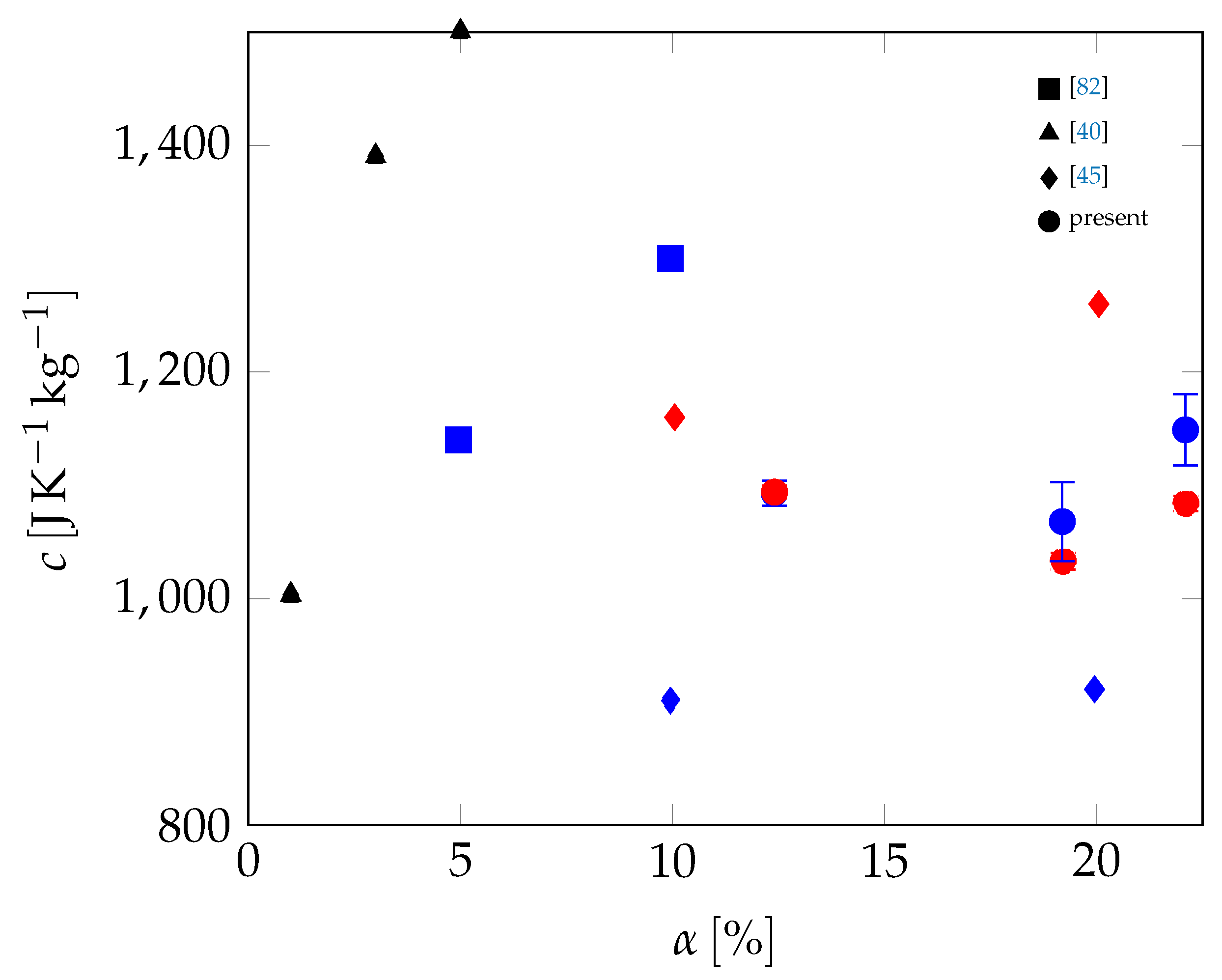

**Figure 13.**Comparisons of the present estimations for the specific heat capacities for the solid (blue) and liquid (red) state with similar studies (black data mean that only an unique value has been given, without specifying the physical state (solid or liquid)).

Material | Sand | Cement | Water | PCM |
---|---|---|---|---|

$\rho \phantom{\rule{0.166667em}{0ex}}(\mathrm{k}\mathrm{g}\phantom{\rule{0.166667em}{0ex}}{\mathrm{m}}^{-3})$ | 1600 | 3060 | 1000 | 300 |

Mortar | $\mathit{e}\phantom{\rule{0.166667em}{0ex}}(\mathbf{m})$ | $\mathit{\rho}$ (kg m${}^{-3}$) |
---|---|---|

12.4${\%}_{w}$ | 0.039 | 1412 |

19.2${\%}_{w}$ | 0.0388 | 1257 |

22.1${\%}_{w}$ | 0.0385 | 1231 |

**Table 3.**Minimal, maximal, average values, and discrepancy between each identified parameter for each mortar (considering all ramps and various cycles).

Mortar | Stat. | R_{L} (W^{−1}K m^{2}) | R_{R} (W^{−1}K m^{2}) | λ_{s} (W K^{−1} m^{−1}) | λ_{l} (W K^{−1} m^{−1}) | c_{s} (J K^{−1} kg^{−1}) | c_{l} (J K^{−1} kg^{−1}) | T_{M} (°C) | ${\mathit{T}}_{\mathit{M}}^{\star}$ (°C) | L_{M} (J kg^{−1}) |
---|---|---|---|---|---|---|---|---|---|---|

Min | 1.216 · 10^{−2} | 5.625 · 10^{−3} | 0.594 | 0.583 | 1089 | 1089 | 25.52 | 27 | 12,26 | |

12.4%_{w} | Max | 1.084 · 10^{−2} | 4.39 · 10^{−3} | 0.617 | 0.6 | 1100 | 1094 | 25.58 | 27.19 | 12,478 |

Avg. | 1.135 · 10^{−2} | 4.921 · 10^{−3} | 0.602 | 0.592 | 1093 | 1094 | 25.55 | 27.11 | 12,348 | |

ε | 12.16% | 28.12% | 3.74% | 2.86% | 1.02% | 0.51% | 0.22% | 0.7% | 1.77% | |

Min | 1.473 · 10^{−2} | 3.306 · 10^{−2} | 0.426 | 0.436 | 1062 | 1030 | 25.57 | 27.28 | 17,978 | |

19.2%_{w} | Max | 1.159 · 10^{−2} | 3.127 · 10^{−2} | 0.435 | 0.451 | 1096 | 1037 | 25.78 | 27.63 | 18,352 |

Avg. | 1.338 · 10^{−2} | 3.21 · 10^{−2} | 0.43 | 0.441 | 1068 | 1033 | 25.7 | 27.48 | 18,227 | |

ε | 27.09% | 5.71% | 2.03% | 3.54% | 3.26% | 0.72% | 0.85% | 1.3% | 2.08% | |

Min | 8.824 · 10^{−3} | 1.475 · 10^{−2} | 0.382 | 0.382 | 1132 | 1081 | 25.52 | 26.91 | 20,587 | |

22.1%_{w} | Max | 7.826 · 10^{−3} | 1.364 · 10^{−2} | 0.384 | 0.389 | 1163 | 1088 | 25.72 | 27.37 | 21,336 |

Avg. | 8.362 · 10^{−3} | 1.429 · 10^{−2} | 0.383 | 0.386 | 1149 | 1084 | 25.63 | 27.15 | 20,924 | |

ε | 12.75% | 8.2% | 0.58% | 1.74% | 2.75% | 0.62% | 0.78% | 1.69% | 3.64% |

**Table 4.**Overview of the phase change material (PCM) possibilities for use in combination with mortars.

Fatty Acids | Alcohols | Ethers | Paraffins | |||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

Micronal | Mikrathermic | Devan | ||||||||||||||||||||||

Reference | Hexadecanoic Acid (Butyl Palmitate) | Octadecanoic Acid (Butyl Stearate) | Decanoic Acid (Capric Acid) | Dodecanoic Acid (Lauric Acid) | Tetradecanoic Acid (Myristic Acid) | Dodecanol | Tetradecanol | PEG400 | PEG600 | PEG1000 | DS5001 | DS5001 X | DS 5008 X | DS 5039 X | DS5040X | D18 | D24 | D28 | Microtek MPCM28 | MC18 | MC24 | MC28 | Octadecan | Unicere 55 |

[47] | ✓ | ✓ | ✓ | |||||||||||||||||||||

[48] | ✓ | ✓ | ✓ | ✓ | ||||||||||||||||||||

[49] | ✓ | ✓ | ✓ | ✓ | ||||||||||||||||||||

[83] | ✓ | ✓ | ||||||||||||||||||||||

[51] | ✓ | ✓ | ✓ | ✓ | ||||||||||||||||||||

[84] | ✓ | |||||||||||||||||||||||

[31] | ✓ | |||||||||||||||||||||||

[85] | ✓ | |||||||||||||||||||||||

[33] | ✓ | |||||||||||||||||||||||

[34] | ✓ | ✓ | ||||||||||||||||||||||

[35] | ✓ | |||||||||||||||||||||||

[37] | ✓ | |||||||||||||||||||||||

[82] | ✓ | |||||||||||||||||||||||

[39] | ✓ | |||||||||||||||||||||||

[40] | ✓ | |||||||||||||||||||||||

[41] | ✓(eutectic mixture) | |||||||||||||||||||||||

[54] | ✓ | ✓ | ✓ | |||||||||||||||||||||

[52] | ✓ | |||||||||||||||||||||||

[42] | ✓ | |||||||||||||||||||||||

[44] | ✓ | |||||||||||||||||||||||

[53] | ✓ | |||||||||||||||||||||||

[45] | ✓ | |||||||||||||||||||||||

[86] | ✓ | ✓ | ✓ | ✓ | ✓ | |||||||||||||||||||

[87] | ✓ | |||||||||||||||||||||||

[46] | ✓ |

**Table 5.**Estimated values of the micronal latent heat and comparison with the experimental value obtained by DSC [68].

12.4${\%}_{\mathit{w}}$ | 19.2${\%}_{\mathit{w}}$ | 22.1${\%}_{\mathit{w}}$ | |
---|---|---|---|

Avg. (J kg${}^{-1}$) | 99,696 | 94,930 | 94,792 |

$\epsilon $ | 0.7% | 4.11% | 4.25% |

© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Zalewski, L.; Franquet, E.; Gibout, S.; Tittelein, P.; Defer, D.
Efficient Characterization of Macroscopic Composite Cement Mortars with Various Contents of Phase Change Material. *Appl. Sci.* **2019**, *9*, 1104.
https://doi.org/10.3390/app9061104

**AMA Style**

Zalewski L, Franquet E, Gibout S, Tittelein P, Defer D.
Efficient Characterization of Macroscopic Composite Cement Mortars with Various Contents of Phase Change Material. *Applied Sciences*. 2019; 9(6):1104.
https://doi.org/10.3390/app9061104

**Chicago/Turabian Style**

Zalewski, Laurent, Erwin Franquet, Stéphane Gibout, Pierre Tittelein, and Didier Defer.
2019. "Efficient Characterization of Macroscopic Composite Cement Mortars with Various Contents of Phase Change Material" *Applied Sciences* 9, no. 6: 1104.
https://doi.org/10.3390/app9061104
