Article

Aluminum-Doped Zinc Oxide as Front Electrode for Rear Emitter Silicon Heterojunction Solar Cells with High Efficiency

1
Helmholtz-Zentrum Berlin für Materialien und Energie, Institute for Silicon Photovoltaics, Kekuléstraße 5, 12489 Berlin, Germany
2
PVcomB, Helmholtz-Zentrum Berlin für Materialien und Energie, Schwarzschildstr. 3, 12489 Berlin, Germany
*
Author to whom correspondence should be addressed.
Appl. Sci. 2019, 9(5), 862; https://doi.org/10.3390/app9050862
Received: 21 December 2018 / Revised: 22 January 2019 / Accepted: 18 February 2019 / Published: 28 February 2019
(This article belongs to the Special Issue Next Generation Photovoltaic Solar Cells)

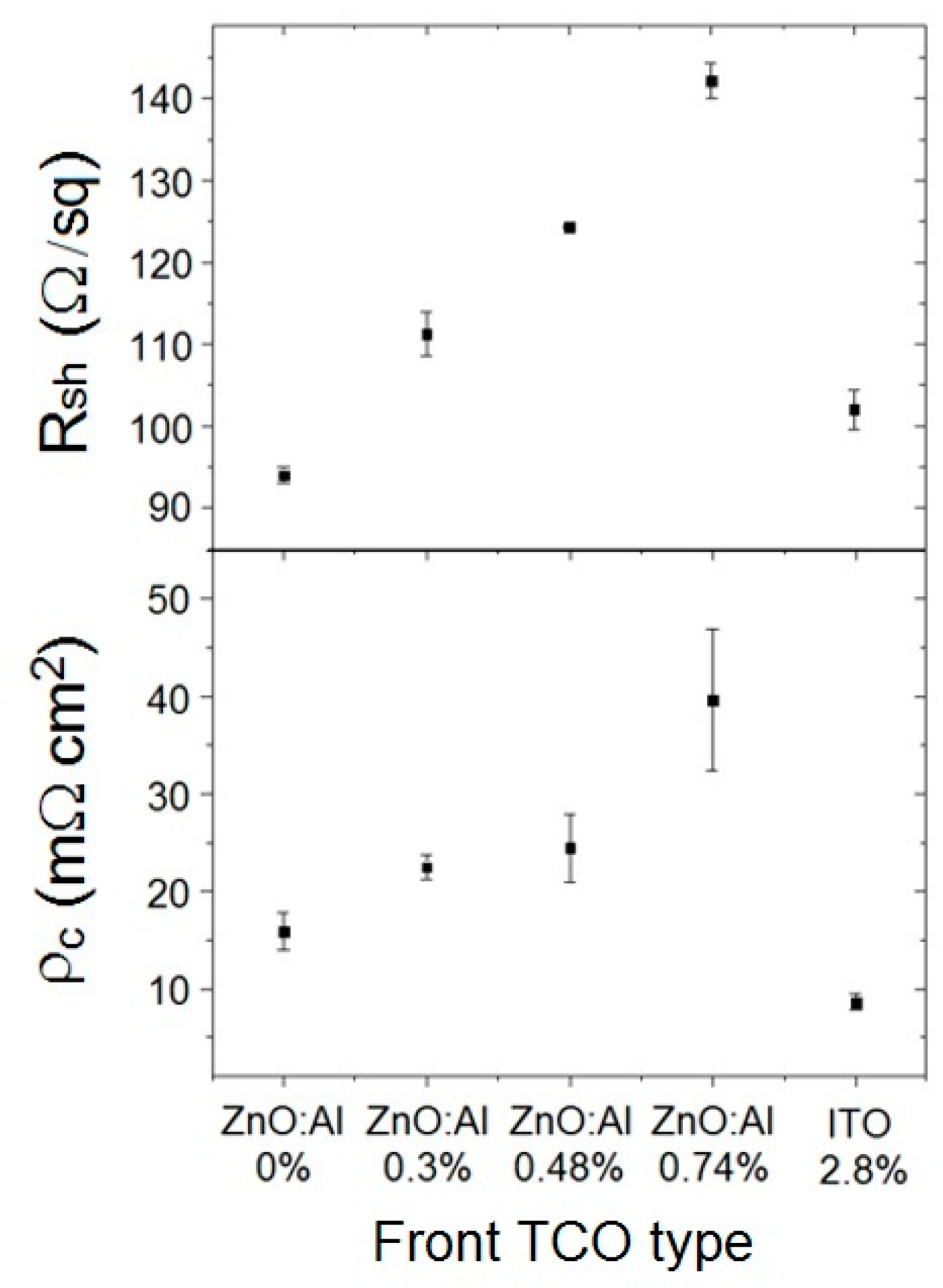

Transparent conductive oxide (TCO) layers of aluminum-doped zinc oxide (ZnO:Al) were investigated as a potential replacement of indium tin oxide (ITO) for the front contact in silicon heterojunction (SHJ) solar cells in the rear emitter configuration. It was found that ZnO:Al can be tuned to yield cell performance almost at the same level as ITO with a power conversion efficiency of 22.6% and 22.8%, respectively. The main reason for the slight underperformance of ZnO:Al compared to ITO was found to be a higher contact resistivity between this material and the silver grid on the front side. An entirely indium-free SHJ solar cell, replacing the ITO on the rear side by ZnO:Al as well, reached a power conversion efficiency of 22.5%. View Full-Text
Keywords: photovoltaics; silicon heterojunction; transparent conductive oxide; rear emitter photovoltaics; silicon heterojunction; transparent conductive oxide; rear emitter
Show Figures

Figure 1
