Application of Self-Organizing Neural Networks to Electrical Fault Classification in Induction Motors
Abstract
:1. Introduction
- bearings–~40%,
- stator faults–~38%,
- rotor faults–~10%,
- others–~12%.

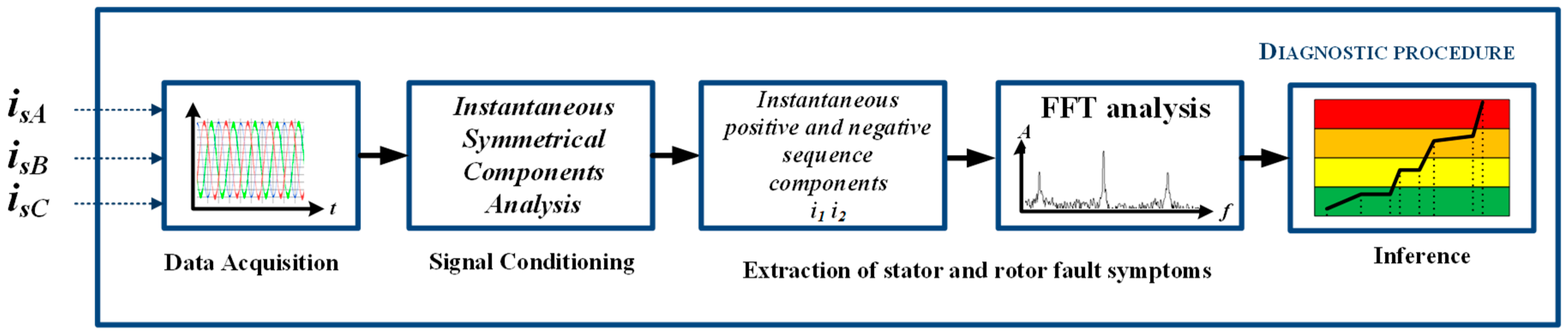

2. Symmetrical Component Analysis of Electrical Winding Faults
- IsA, IsB, IsC—stator phase currents in steady state in phases A, B, C, respectively;
- I0, I1, I2—zero-, positive- and negative-sequence components of the stator current in steady state, respectively;
- .
- isA(t), isB(t), isC(t)—corresponding instantaneous current signals of the three phases,
- i0, i1, i2—instantaneous zero-, positive-, and negative-sequence symmetrical components of the stator current.

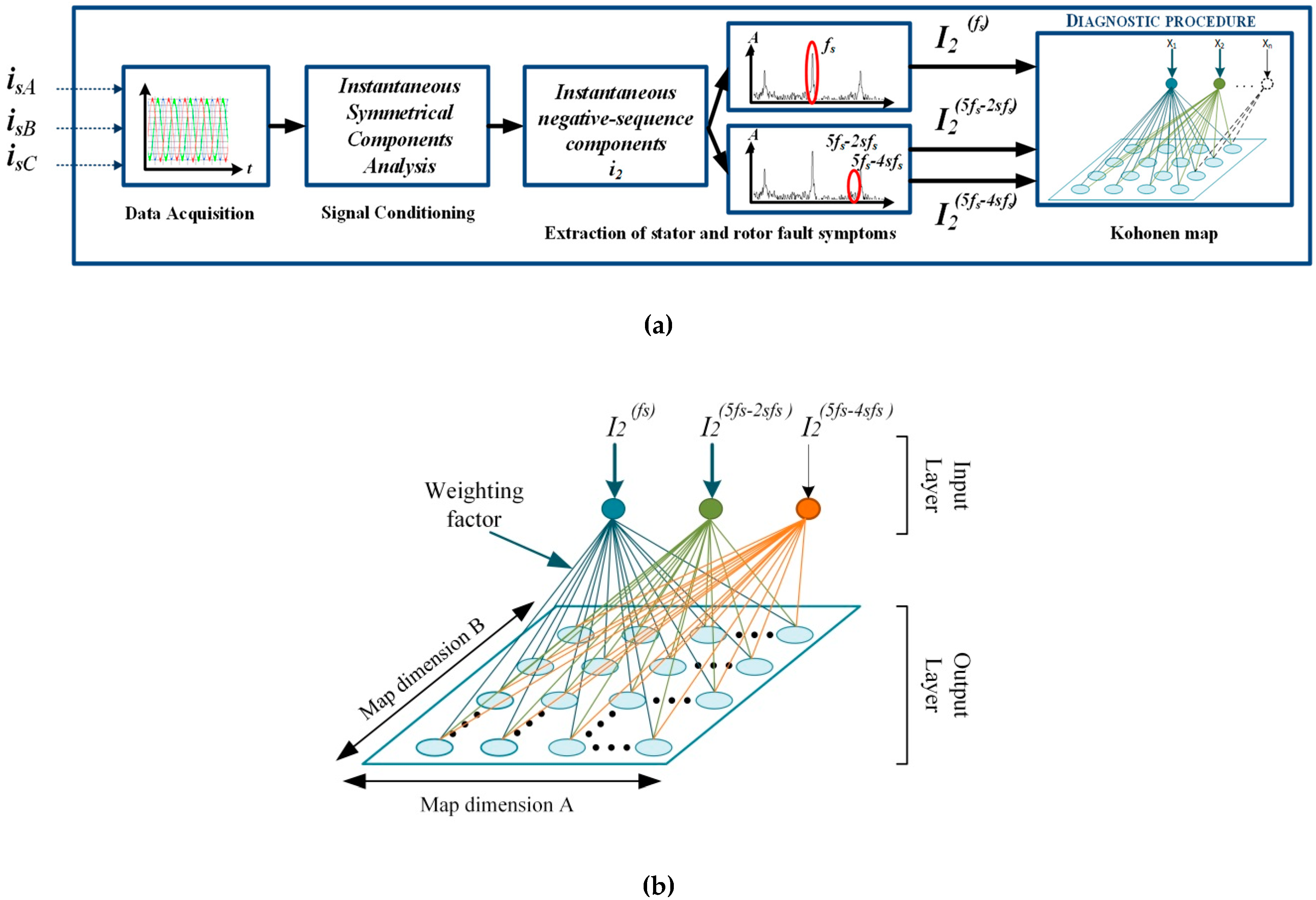

3. Design of the Neural Fault Classifier Based on the Kohonen Network
3.1. General Remarks

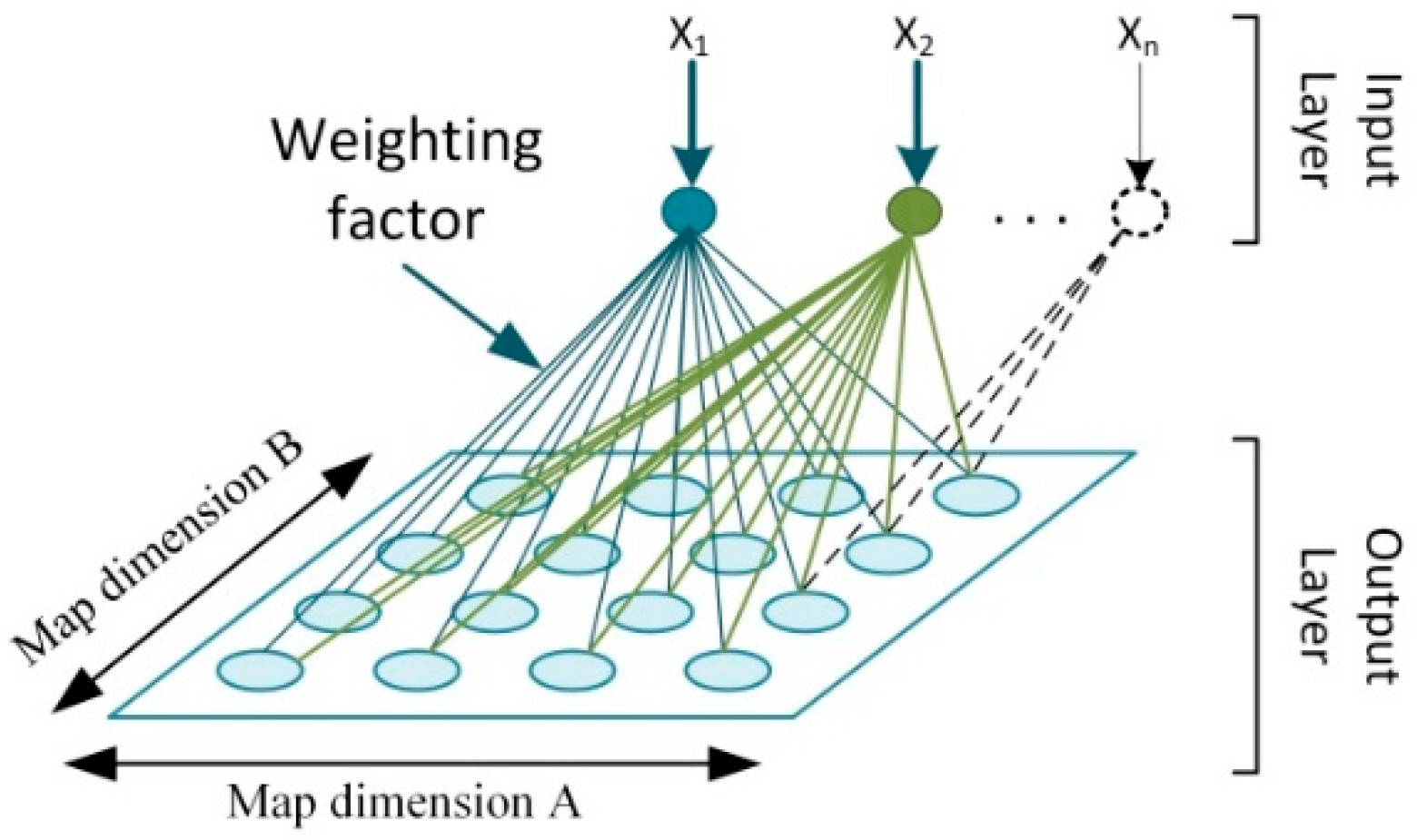

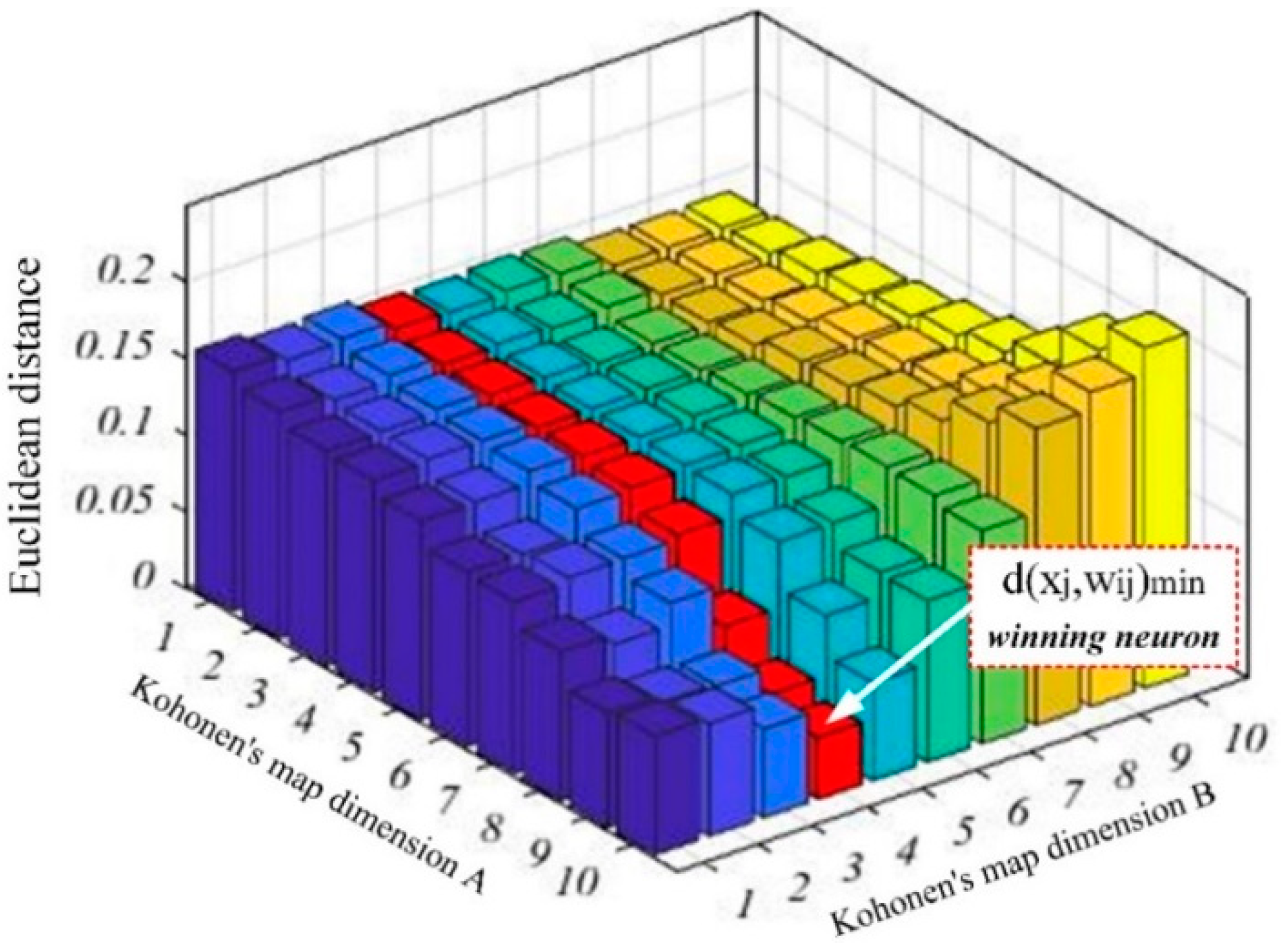

3.2. Self-Organizing Kohonen Network
4. Analysis of the Diagnostic Signals—Experimental Results

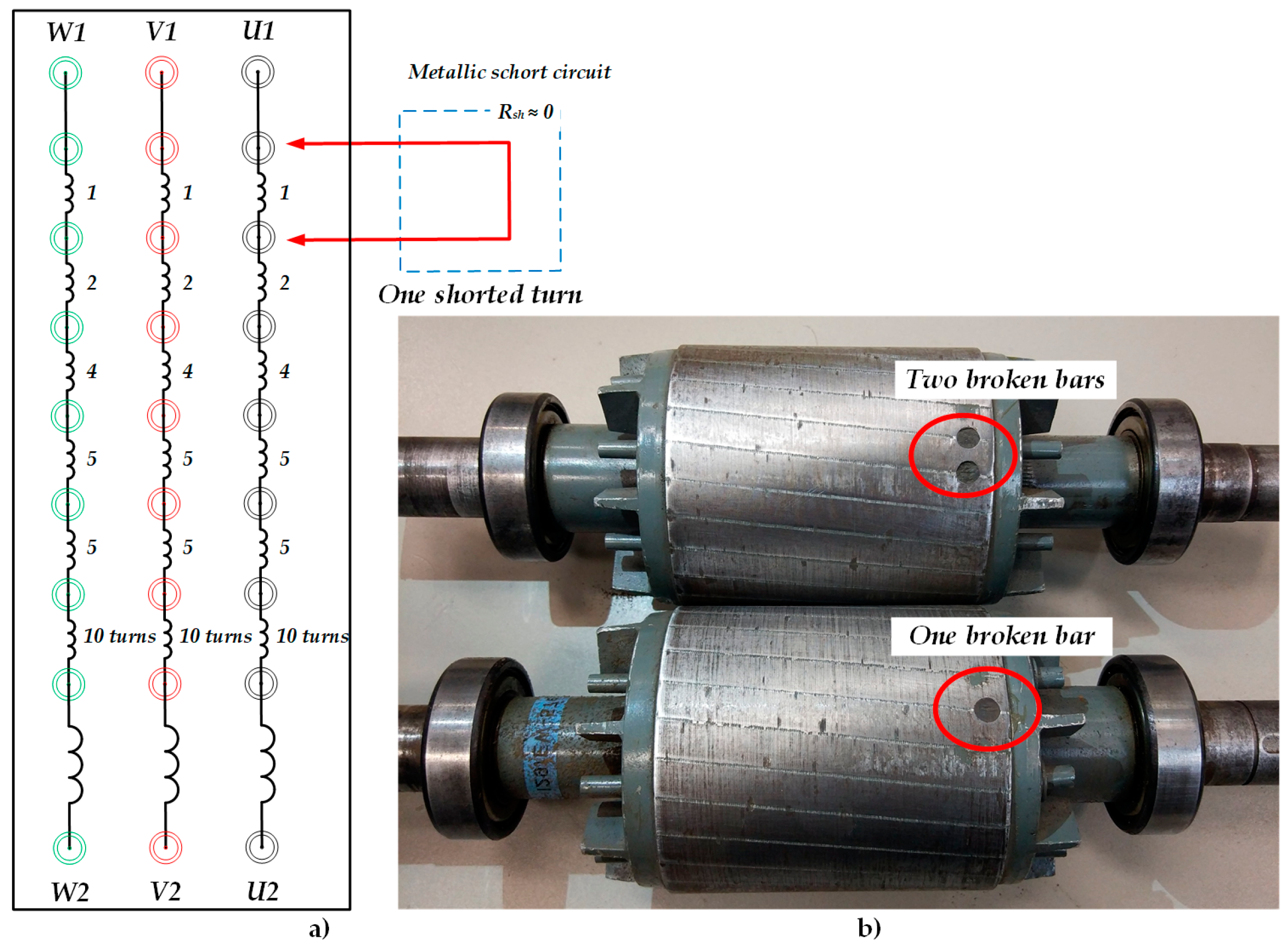

4.1. Short Description of the Experimental Setup
- 0 ÷ 5 shorted turns of one stator phase that constituted 1.6% of stator turns in phase A,
- 0 ÷ 2 damaged rotor cage bars that constituted 7.7% of rotor bars.

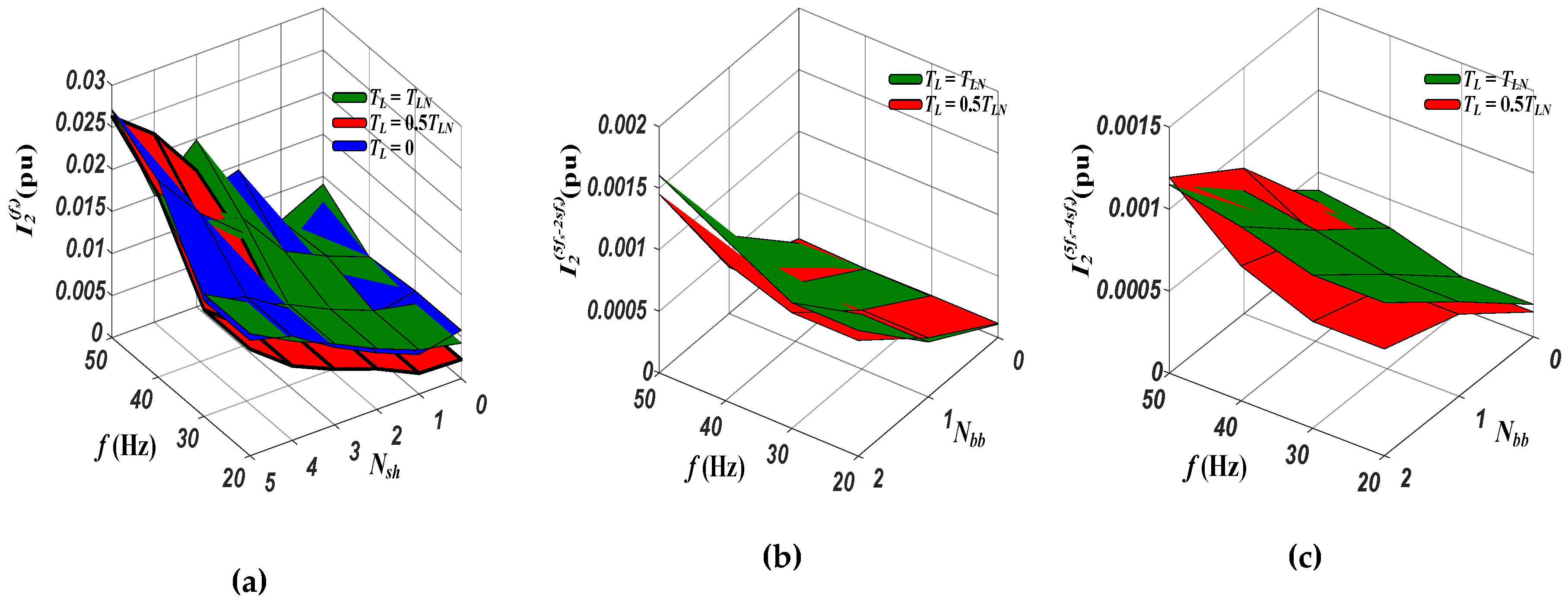

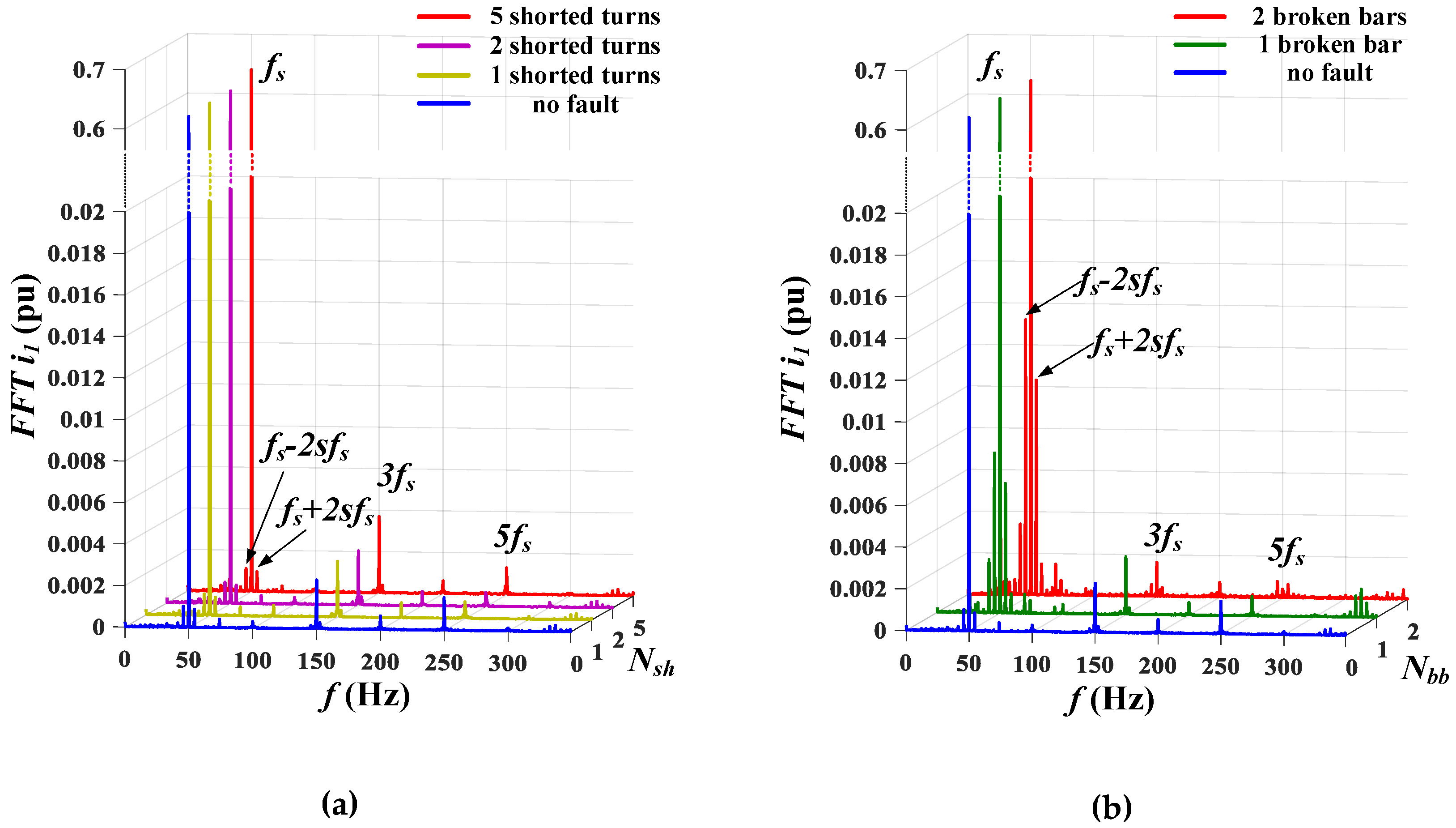

4.2. Results of Stator and Rotor Fault Extraction
5. Experimental Tests of SOM Classifiers of IM Winding Faults
5.1. Training Pattern Selection for Self-Organizing Kohonen Network

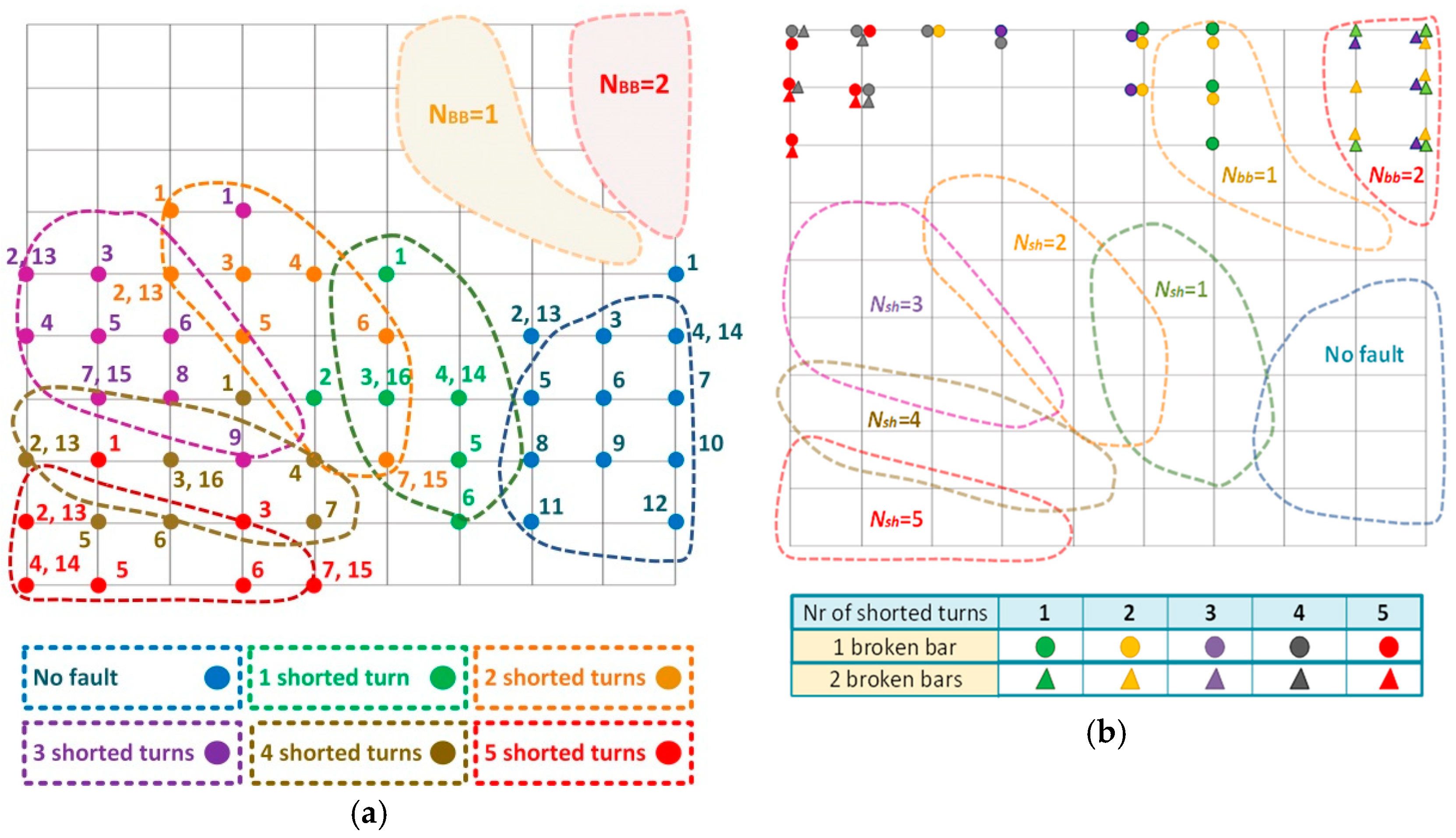

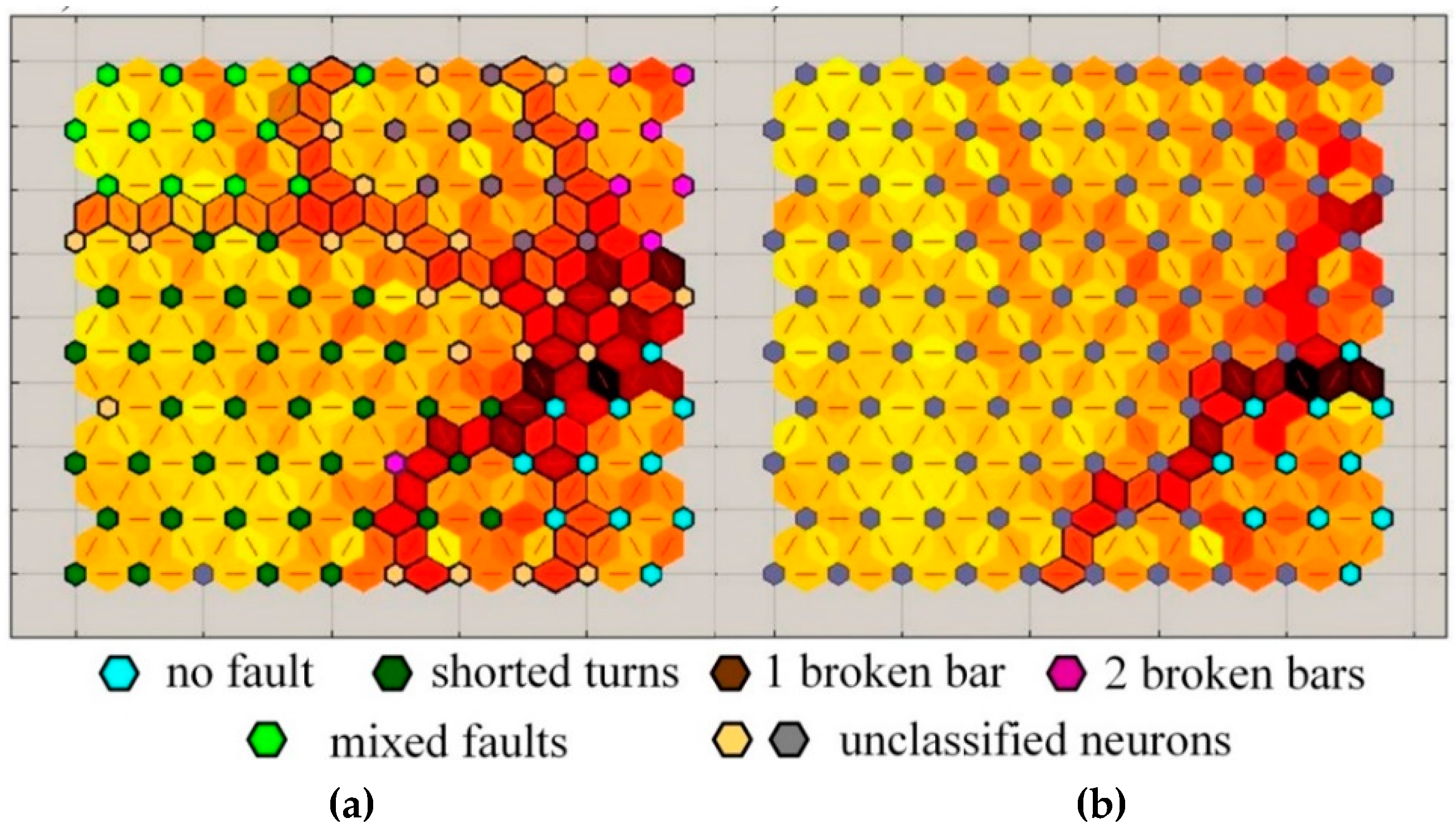

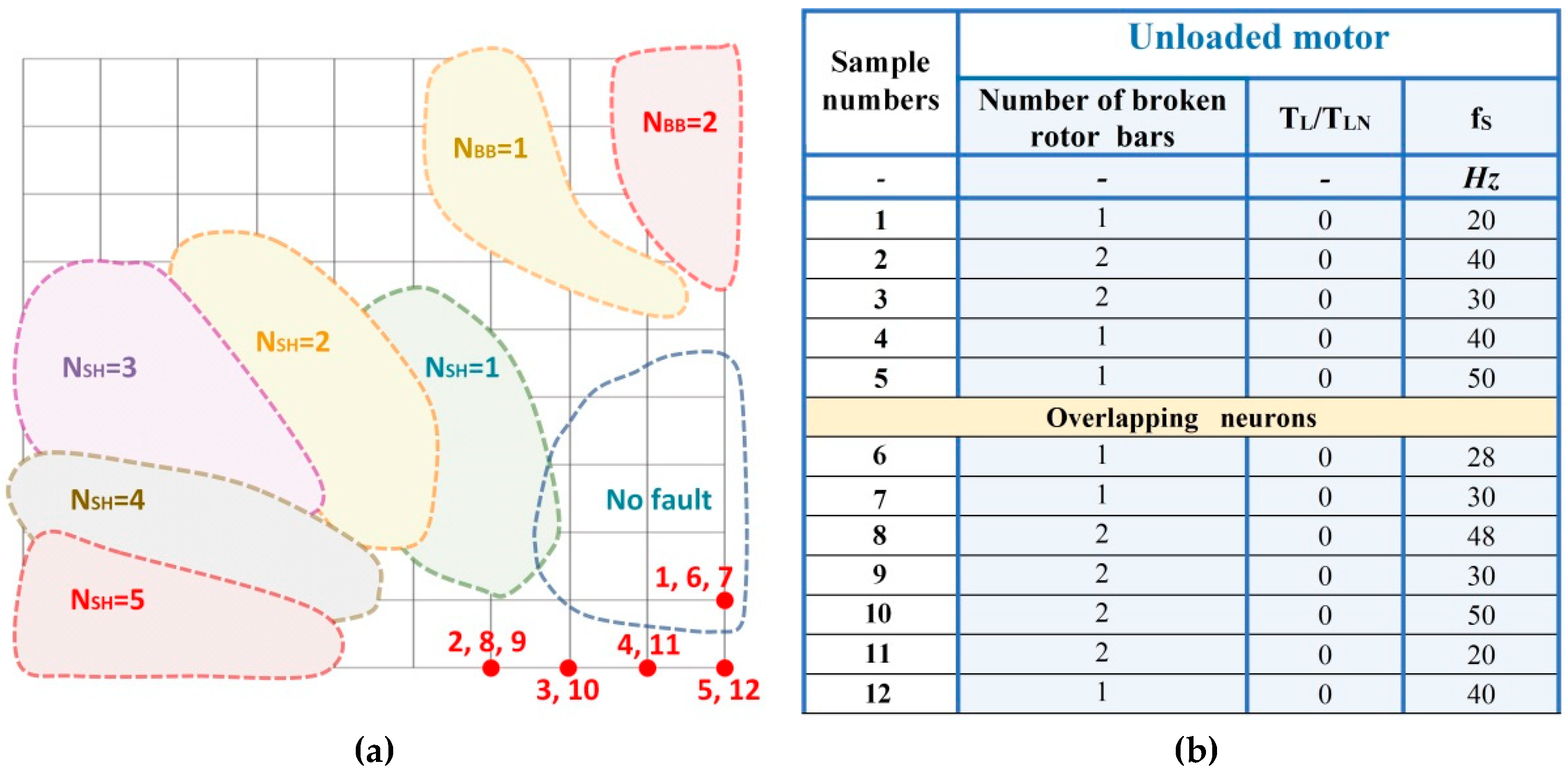

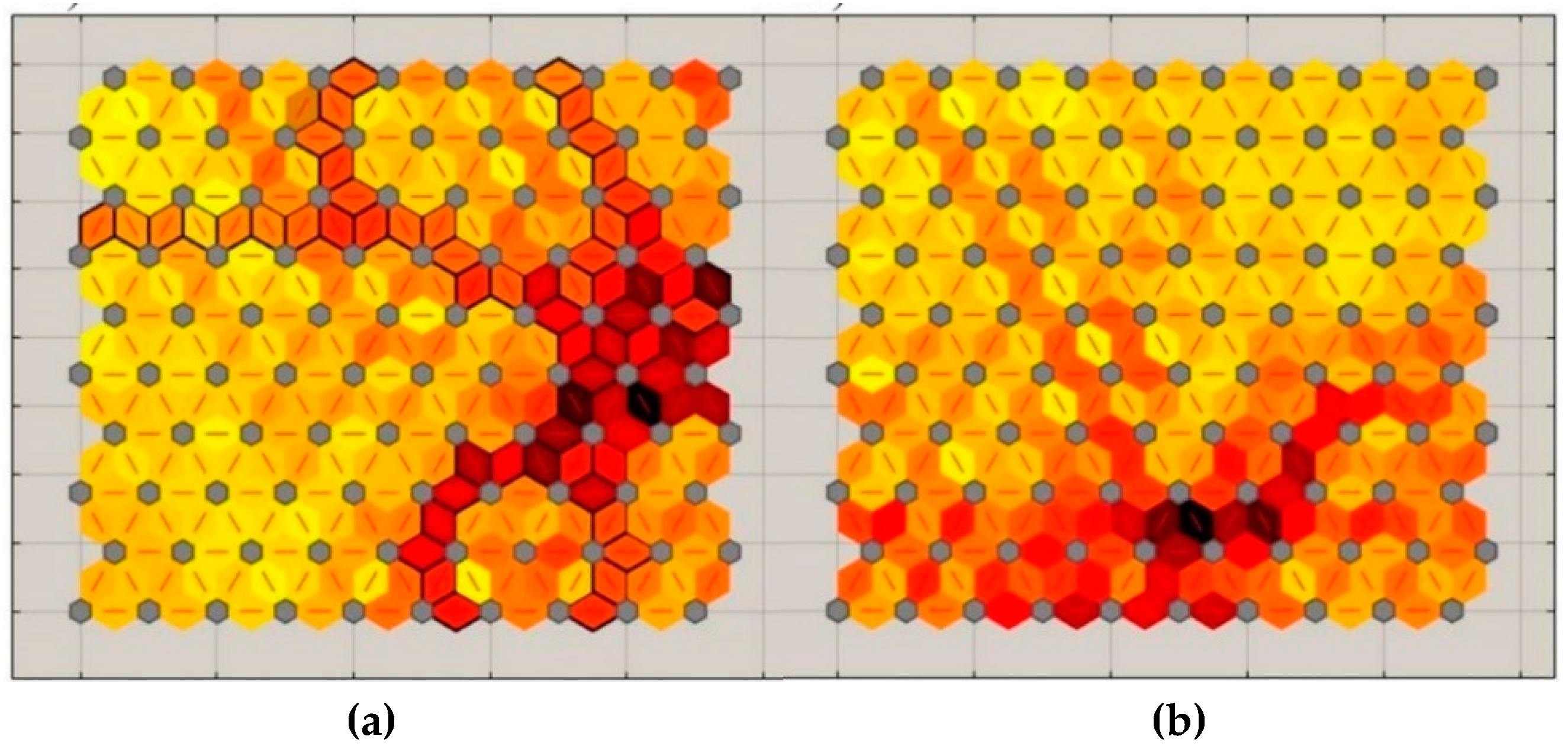

5.2. Results of Stator and Rotor Fault Classification
6. Conclusions
- -
- separate faults of stator winding (incipient short-turns; 1–5 turns),
- -
- separate faults of rotor winding (incipient rotor bar brakes; 1–2 bars),
- -
- simultaneous occurrence of stator and rotor incipient faults.
Author Contributions
Funding
Conflicts of Interest
References
- Capolino, G.A.; Antonino-Daviu, J.A.; Riera-Guasp, J.A.M. Modern diagnostics techniques for electrical machines, power electronics, and drives. IEEE Trans. Ind. Electron. 2015, 62, 1738–1745. [Google Scholar] [CrossRef]
- Henao, H.; Capolino, G.-A.; Fernandez-Cabanas, M.; Filippetti, F.; Bruzzese, C.; Strangas, E.; Pusca, R.; Estima, J.; Riera-Guasp, M.; Hedayati-Kia, S. Trends in Fault Diagnosis for Electrical Machines: A Review of Diagnostic Techniques. IEEE Ind. Electron. Mag. 2014, 8, 31–42. [Google Scholar] [CrossRef] [Green Version]
- Orłowska-Kowalska, T.; Kowalski, C.T.; Dybkowski, M. Fault-Diagnosis and Fault-Tolerant-Control in Industrial Processes and Electrical Drives. In Advanced Control of Electrical Drives and Power Electronic Converters; Studies in Systems, Decision and Control Series; Kabzinski, J., Ed.; Springer International Publishing: Cham, Switzerland, 2017; Volume 75, pp. 101–120. ISBN 978-3-319-45734-5. [Google Scholar]
- IEEE Motor Reliability Working Group. Report of large motor reliability survey of industrial and commercial installation, Part I–III. IEEE Trans. Ind. Appl. 1985, 21, 853–872. [Google Scholar]
- Electric Power Research Institute. Motor and Generator Insulation Life Estimation; EPRI Reports; Electric Power Research Institute: Palo Alto, CA, USA, 1992; Volume 1000185. [Google Scholar]
- Tavner, P.; Ran, L.; Penman, J.; Sedding, H. Condition Monitoring of Rotating Electrical Machines, 2nd ed.; IET Power and Energy Series; IET: London, UK, 2008; Volume 59. [Google Scholar]
- Thomson, W.T. A review of on-line condition monitoring techniques for three-phase squirrel-cage induction motors—Past, present and future. In Proceedings of the IEEE International Symposium on SDEMPED 1999, Gijón, Spain, 1–3 September 1999; pp. 3–18. [Google Scholar]
- Nussbaumer, P.; Mitteregger, A.; Wolbank, T.M. Online Detection of Insulation Degradation in Inverter Fed Drive Systems Based on High Frequency Current Sampling. In Proceeding of the 37th Annual Conference of the IEEE Inductrial Electronics Society (IECON 2011), Melbourne, Australia, 7–10 November 2011; pp. 1883–1888. [Google Scholar]
- Pinjia, Z.; Younsi, K.; Neti, V.A. Novel Online Stator Ground-Wall Insulation Monitoring Scheme for Inverter-Fed AC Motors. IEEE Trans. Ind. Appl. 2015, 51, 2201–2207. [Google Scholar]
- Grubic, S.; Aller, J.M.; Bin, L.; Habetler, T.G. A Survey on Testing and Monitoring Methods for Stator Insulation Systems of Low-Voltage Induction Machines Focusing on Turn Insulation Problems. IEEE Trans. Ind. Electron. 2008, 12, 4127–4136. [Google Scholar] [CrossRef]
- Zhang, P.; Du, Y.; Habetler, T.G.; Lu, B.A. Survey of condition monitoring and protection methods for medium-voltage induction motors. IEEE Trans. Ind. Appl. 2011, 47, 34–46. [Google Scholar] [CrossRef]
- Stone, G.C. Condition monitoring and diagnostics of motor and stator windings—A review. IEEE Trans. Dielectr. Electr. Insul. 2013, 20, 2073–2080. [Google Scholar] [CrossRef]
- Tallam, R.M.; Lee, S.B.; Stone, G.C.; Kliman, G.B.; Yoo, J.; Habetler, T.G.; Harley, R.G. A Survey of Methods for Detection of Stator-Related Faults in Induction Machine. IEEE Trans. Ind. Appl. 2007, 43, 920–933. [Google Scholar] [CrossRef]
- Nandi, S.; Toliyat, H.A.; Li, X. Condition monitoring and fault diagnosis of electrical motors—A review. IEEE Trans. Energy Convers. 2005, 20, 719–729. [Google Scholar] [CrossRef]
- Tallam, R.M.; Habetler, T.G.; Harley, R.G. Stator Winding Turn-Fault Detection for Closed-Loop Induction Motor Drives. IEEE Trans. Ind. Appl. 2003, 39, 720–724. [Google Scholar] [CrossRef]
- Wolkiewicz, M.; Tarchala, G.; Orlowska-Kowalska, T.; Kowalski, C.T. On-line stator inter-turn short circuits monitoring in the DFOC induction motor drive. IEEE Trans. Ind. Electron. 2016, 63, 2517–2528. [Google Scholar] [CrossRef]
- Kowalski, C.T.; Wierzbicki, R.; Wolkiewicz, M. Stator and rotor faults monitoring of the inverter-fed induction motor drive using state estimators. Automatika 2013, 54, 348–355. [Google Scholar] [CrossRef]
- Sharifi, R.; Ebrahimi, M. Detection of stator winding faults in induction motors using three-phase current monitoring. ISA Trans. 2011, 50, 14–20. [Google Scholar] [CrossRef]
- Kowalski, C.T.; Orlowska-Kowalska, T.; Wierzbicki, R.; Wolkiewicz, M. Analysis of the Inter-turn Fault Symptoms for the Converter-Fed Induction Motor Based on the Phase-Shift Calculation. In Proceedings of the 36th Annual Conference on IEEE Industrial Electronics Society (IECON), Glendale, AZ, USA, 7–10 November 2010; pp. 760–765. [Google Scholar]
- Mirzaeva, G.; Saad, K.I.; Jahromi, M.G. Comprehensive diagnostics of induction motor faults based on measurement of space and time dependencies of air gap flux. IEEE Trans. Ind. Appl. 2017, 53, 2657–2666. [Google Scholar] [CrossRef]
- Driff, M.; Cardoso, A.J.M. Stator fault diagnosis in squirrel cage three-phase induction motor drives using instantaneous active and reactive power signature analyses. IEEE Trans. Ind. Inform. 2014, 10, 1348–1360. [Google Scholar] [CrossRef]
- Tsypkin, M. Induction motor condition monitoring: Vibration analysis technique—A twice line frequency component as a diagnostic tool. In Proceedings of the IEEE International Electric Machines and Drives Conference (IEMDC), Chicago, IL, USA, 12–15 May 2013; pp. 117–124. [Google Scholar]
- Bouzid, M.; Champenois, G.A. Novel reliable indicator of stator windings fault in induction motor extracted from the symmetrical components. In Proceedings of the 20th IEEE International Symposium on Industrial Electronics (ISIE), Gdansk, Poland, 27–30 June 2011; pp. 1–7. [Google Scholar]
- Bouzid, M.B.K.; Champenois, G.; Tnani, S. Reliable stator fault detection based on the induction motor negative sequence current compensation. Electr. Power Energy Syst. 2018, 95, 490–498. [Google Scholar] [CrossRef]
- Kowalski, C.T.; Wolkiewicz, M. Stator faults of the converter-fed induction motor using symmetrical components and neural network. In Proceedings of the 13th European Conference on Power Electronics and Applications EPE, Barcelona, Spain, 8–10 September 2009; pp. 1–6. [Google Scholar]
- Wolkiewicz, M.; Kowalski, C.T. Incipient stator fault detector based on neural networks and symmetrical components analysis for induction motor drives. In Proceedings of the 2016 Selected Issues of Electrical Engineering and Electronics (WZEE), Rzeszow, Poland, 4–8 May 2016; pp. 1–7. [Google Scholar]
- García, P.; Briz, F.; Degner, M.W.; Diez, A.B. Diagnostics of Induction Machines using the Zero Sequence Voltage. In Proceedings of the 39th IAS Annual Meeting 2004 IEEE Industry Applications Conference, Seattle, WA, USA, 3–7 October 2004; pp. 735–742. [Google Scholar]
- Dahi, K.; El Hani, S.; Ouachtouk, I. Reliable Detection of Rotor Faults in IM using Frequency Tracking and Zero Sequence Voltage. Adv. Electr. Electron. Eng. 2017, 15, 136–145. [Google Scholar] [CrossRef]
- Kowalski, C.T.; Orlowska-Kowalska, T. Neural Networks Application for the Induction Motor Faults Detection. Math. Comput. Simul. 2003, 63, 435–448. [Google Scholar]
- Mehrjou, M.R.; Mariun, N.; Marhaban, M.H.; Norhisam, M. Rotor fault condition monitoring techniques for squirrel-cage induction machine—A review. Mech. Syst. Signal Process. 2011, 25, 2827–2848. [Google Scholar] [CrossRef]
- Benbouzid, M.A. Review of Induction Motors Signature Analysis as a Medium for Faults Detection. IEEE Trans. Ind. Electron. 2000, 47, 984–993. [Google Scholar] [CrossRef]
- Liu, Y.; Bazzi, A.M. A review and comparison of fault detection and diagnosis methods for squirrel-cage induction motors: State of the art. ISA Trans. 2017, 70, 400–409. [Google Scholar] [CrossRef]
- Kowalski, C.T.; Orlowska-Kowalska, T. Application of Neural Networks for the Induction Motor Faults Detection. Trans. IMACS Math. Comput. Simul. 2003, 63, 435–448. [Google Scholar] [CrossRef]
- Bellini, A.; Filippetti, F.; Tassoni, C.; Capolino, G.A. Advances in Diagnostic Techniques for Induction Machines. IEEE Trans. Ind. Electron. 2008, 55, 4109–4125. [Google Scholar] [CrossRef]
- Asfani, D.A.; Muhammad, A.K.; Syafaruddin; Purnomo, M.H.; Hiyama, T. Temporary short circuit detection in induction motor winding using combination of wavelet transform and neural network. Expert Syst. Appl. 2012, 39, 5367–5375. [Google Scholar] [CrossRef] [Green Version]
- Wolkiewicz, M.; Kowalski, C.T. On-line Neural Network based Stator Fault Diagnosis system of the Converter-Fed Induction Motor Drive. In Proceedings of the 39th Annual Conference of the IEEE Industrial Electronics Society (IECON 2013), Vienna, Austria, 10–13 November 2013; pp. 5561–5566. [Google Scholar]
- Khalfaoui, N.; Salah Salhi, M.; Amiri, H. The SOM tool in mechanical fault detection over an electric asynchronous drive. In Proceedings of the 2016 4th International Conference on Control Engineering & Information Technology (CEIT 2016), Hammamet, Tunisia, 16–18 December 2016; pp. 1–6. [Google Scholar]
- Sid, O.; Menaa, M.; Hamdani, S.; Touhami, O.; Ibtiouen, R. Self-organizing map approach for classification of electricals rotor faults in induction motors. In Proceedings of the 2nd International Conference on Electric Power and Energy Conversion Systems (EPECS 2011), Sharjah, UAE, 15–17 November 2011; pp. 1–6. [Google Scholar]
- Germen, E.; Basaran, M.; Fidan, M. Sound based induction motor fault diagnosis using Kohonen self-organizing map. Mech. Syst. Signal Process. 2014, 46, 45–58. [Google Scholar] [CrossRef]
- Paap, G.C. Symmetrical components in the time domain and their application to power network calculations. IEEE Trans. Power Syst. 2000, 15, 522–528. [Google Scholar] [CrossRef] [Green Version]
- Hsu, J.S. Instantaneous phasor method for obtaining instantaneous balanced fundamental components for power quality control and continuous diagnostics. IEEE Trans. Power Deliv. 1998, 13, 1494–1500. [Google Scholar] [CrossRef] [Green Version]
- Chen, C.C.; Hsu, Y.Y. A novel approach to the design of a shunt active filter for an unbalanced three-phase four-wire system under nonsinusoidal conditions. IEEE Trans. Power Deliv. 2000, 15, 1258–1264. [Google Scholar] [CrossRef]
- Iravani, M.R.; Karimi-Ghartemani, M. Online estimation of steady state and instantaneous symmetrical components. IEE Proc. Gener. Transm. Distrib. 2003, 150, 616–622. [Google Scholar] [CrossRef]
- Freeman, J.A.; Skapura, D.M. Neural Networks Algorithms. Applications and Programming Techniques; Addison-Wesley Publishing Company: Boston, MA, USA, 1992; pp. 263–289. ISBN 0-201-51376-5. [Google Scholar]
- Demuth, H.; Beale, M. Neural Network Toolbox—User’s Guide; Version 4; The MathWorks, Inc.: Natick, MA, USA, 2004. [Google Scholar]
Name of the Parameter | Symbol | Units | |
---|---|---|---|
Power | PN | 1500 | [W] |
Torque | MN | 10.16 | [Nm] |
Speed | NN | 1410 | [r/min] |
Stator phase voltage | UsN | 230 | [V] |
Stator current | IsN | 3.5 | [A] |
Frequency | fsN | 50 | [Hz] |
Pole pairs number | pp | 2 | [-] |
Number of rotor bars | Nr | 26 | [-] |
Number of stator turns in each phase | Ns | 312 | [-] |
Training Vector Size | 104 | |
Test Vector Size | 150 | |
Number of Faults Categories | Shorted turns: 5 Broken bars: 3 | |
Neural Network Inputs | I2(fs), I2(5 s − 2fbb), I2(5fs − fbb) | |
Training Method | WTM (Winner Takes Most) | |
Neural Network Structure | 20 × 20 | 10 × 10 |
Number of Training Epochs | 700 | 600 |
Neural Network Topology | hexagonal | |
Neighbourhood Function | Gaussian | |
Neighbourhood Radius | 2 | |
Learning Rate | 0.8 |
Shorted Turns | Broken Cars | Mixed Faults | No Fault | |
---|---|---|---|---|
Approximate effectiveness of faults detection | 90 % | 93% | 72% | 95% |
Approximate effectiveness of faults classification | 74% | 93% | - | 95% |
