Sensitivity Analysis of a Numerical Model for Percutaneous Auricular Vagus Nerve Stimulation

1
Department of Information Technology Ghent University/imec, Ghent 9052, Belgium
2
Research Group Biomedical Sensing, Institute of Electrodynamics, Microwave and Circuit Engineering, TU Wien, Vienna 1040, Austria
3
Department of Surgery, Medical University Vienna, Vienna 1090, Austria
*
Author to whom correspondence should be addressed.
Appl. Sci. 2019, 9(3), 540; https://doi.org/10.3390/app9030540
Received: 7 January 2019 / Revised: 29 January 2019 / Accepted: 1 February 2019 / Published: 6 February 2019
(This article belongs to the Section Applied Biosciences and Bioengineering)
  |
PDF [4933 KB, uploaded 6 February 2019]
  |

Abstract

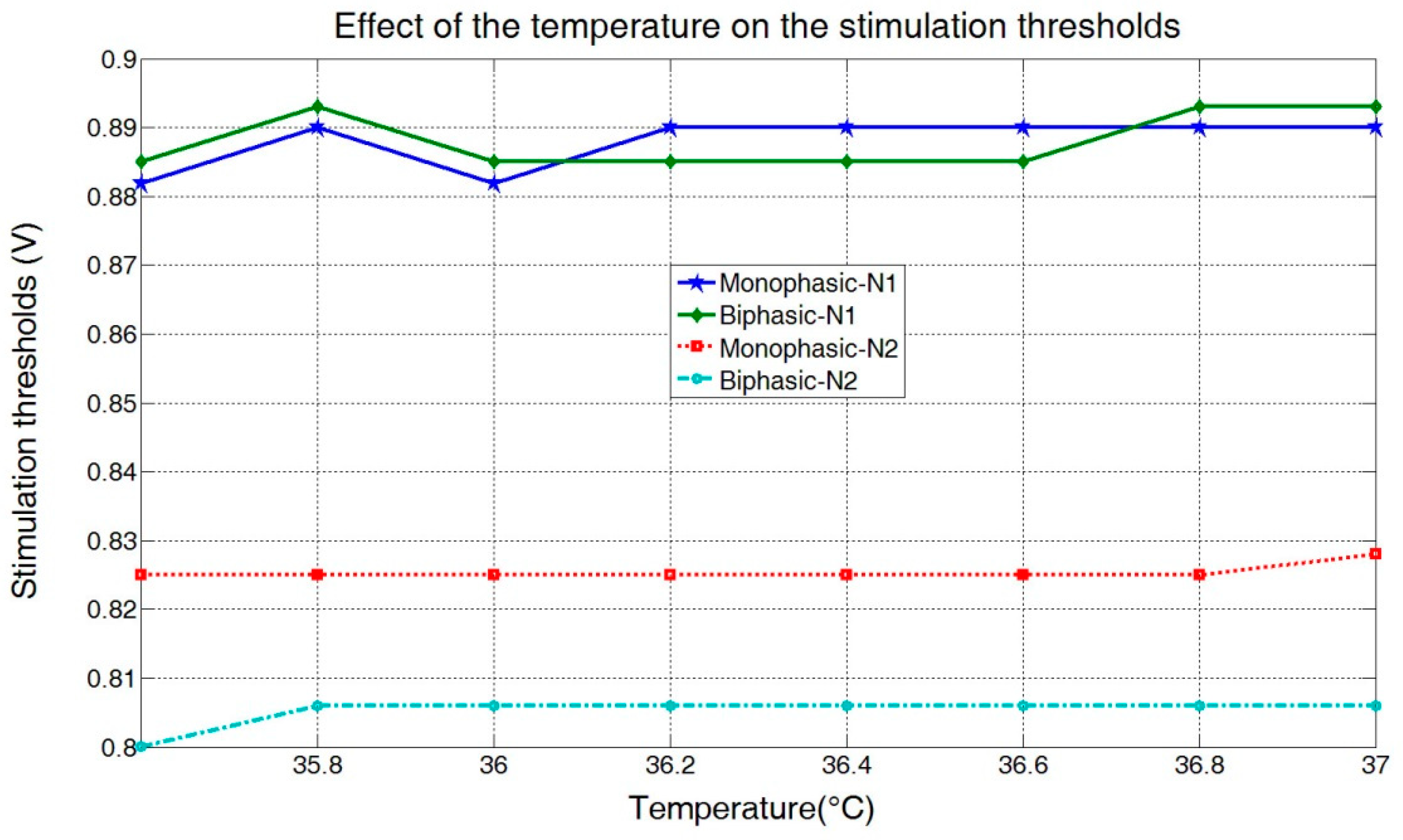

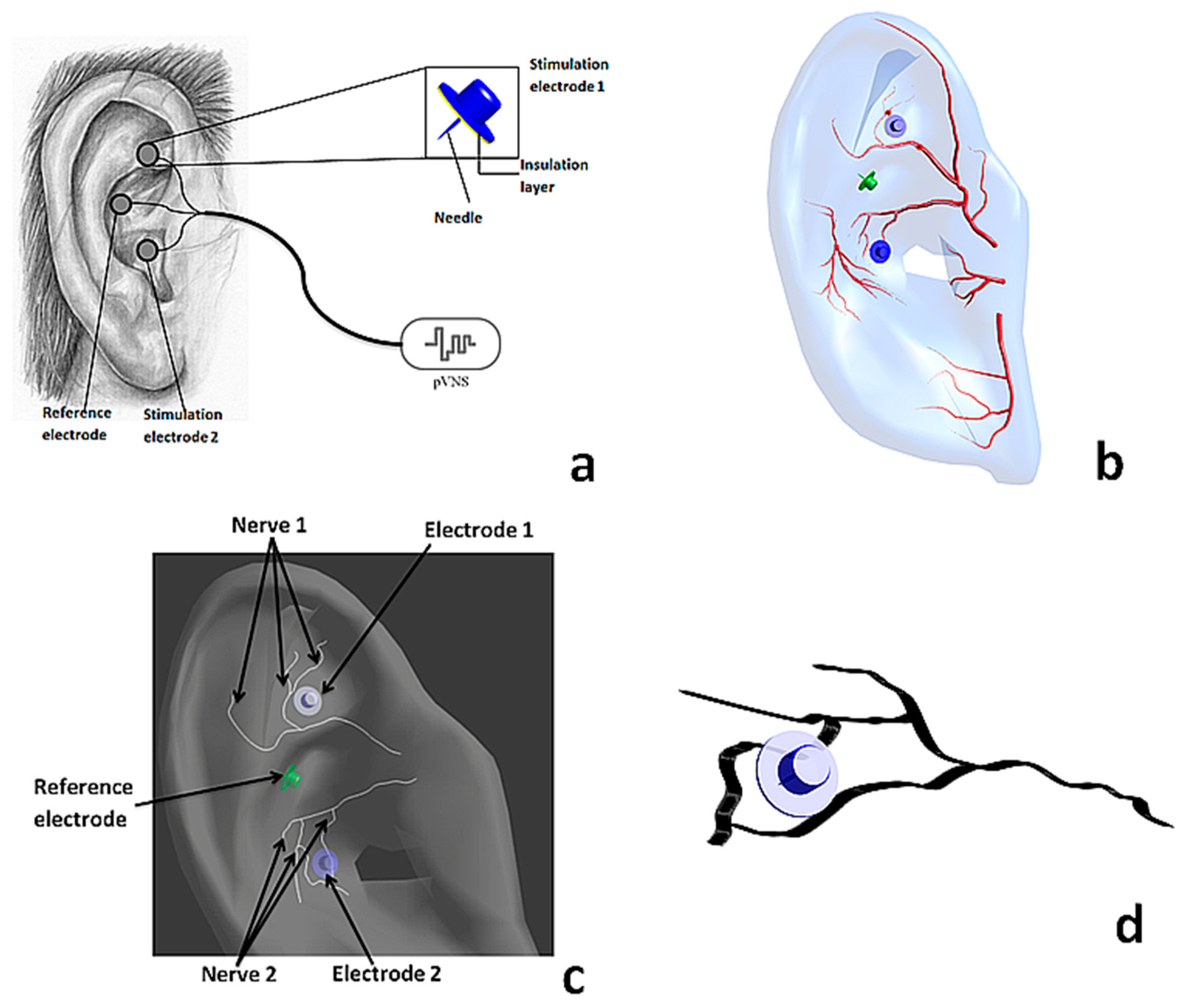

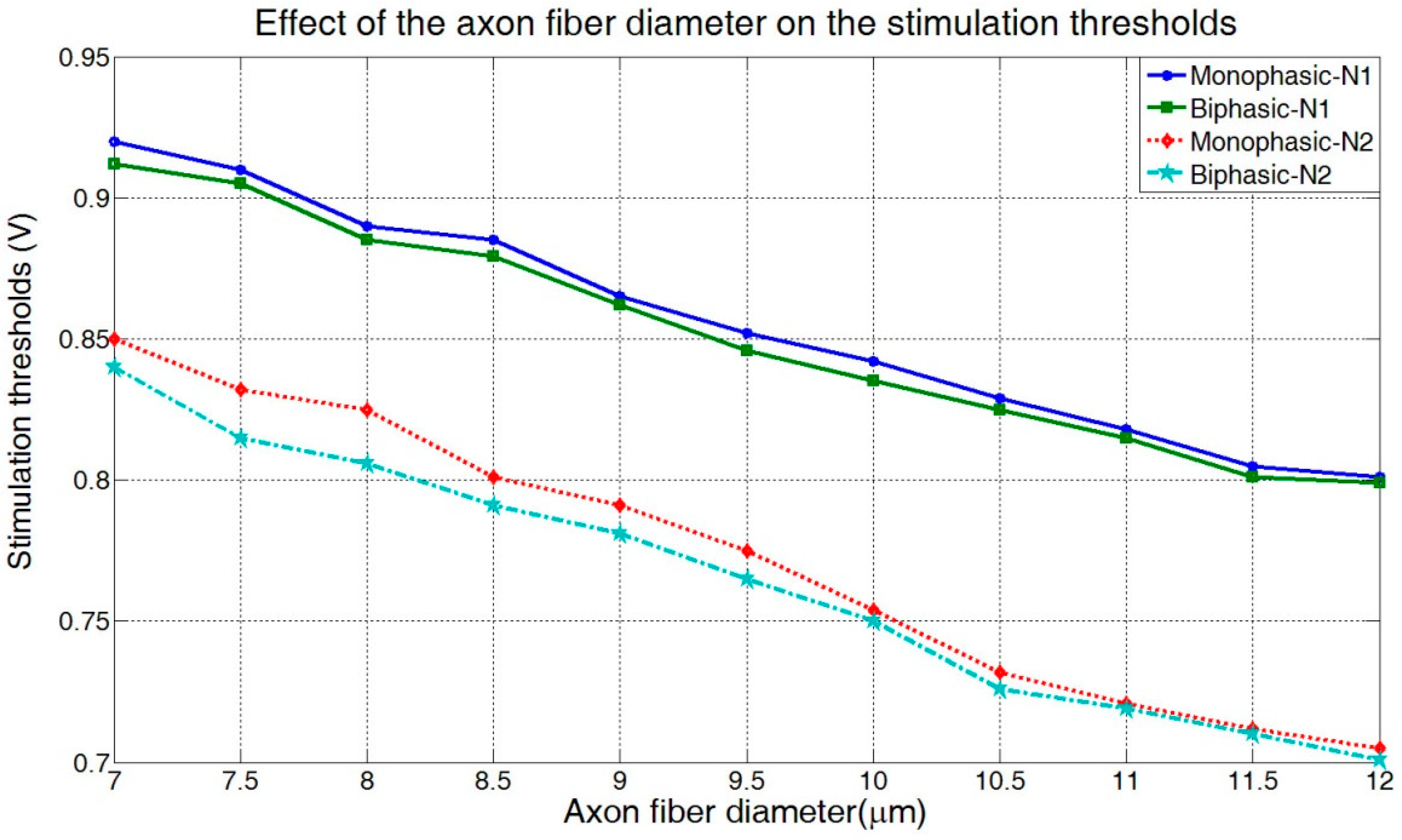

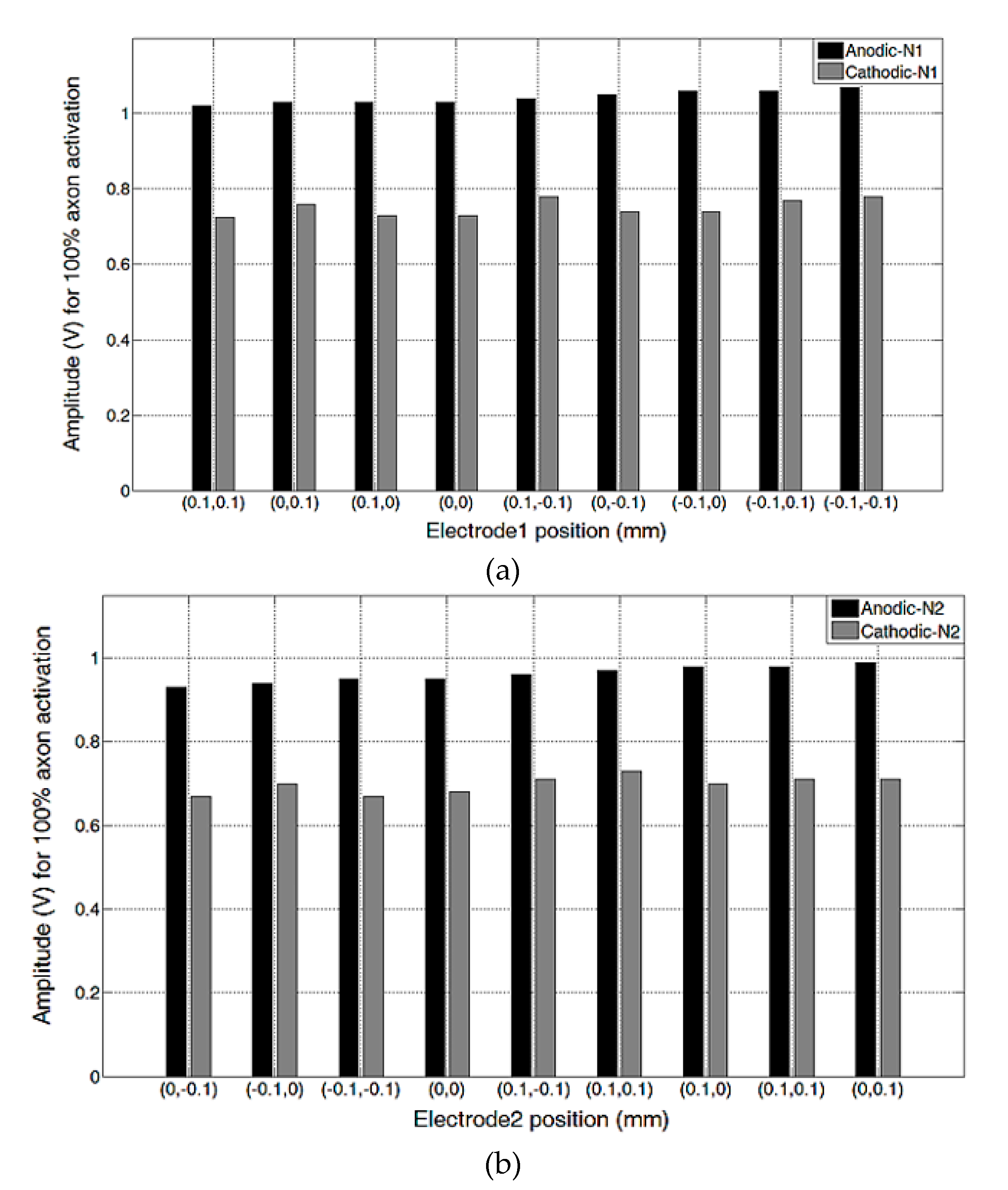

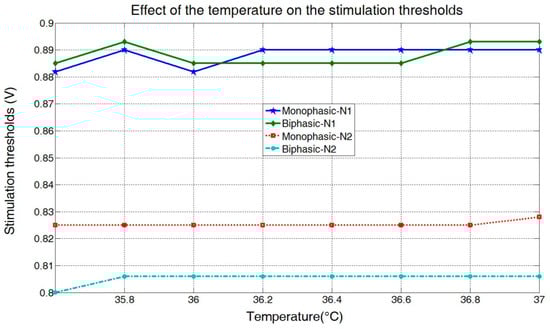

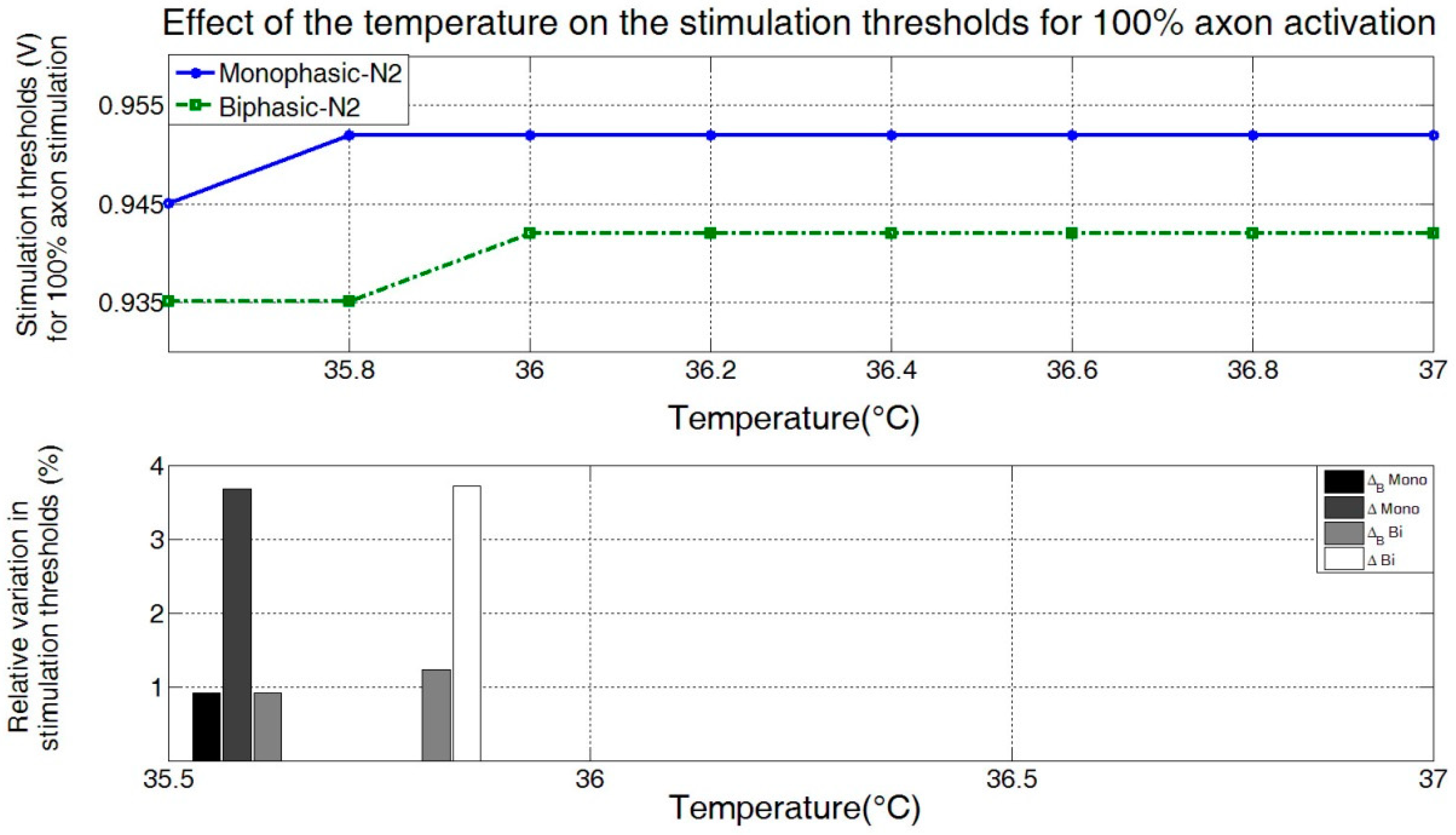

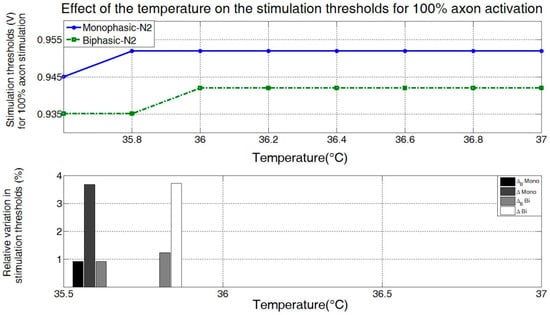

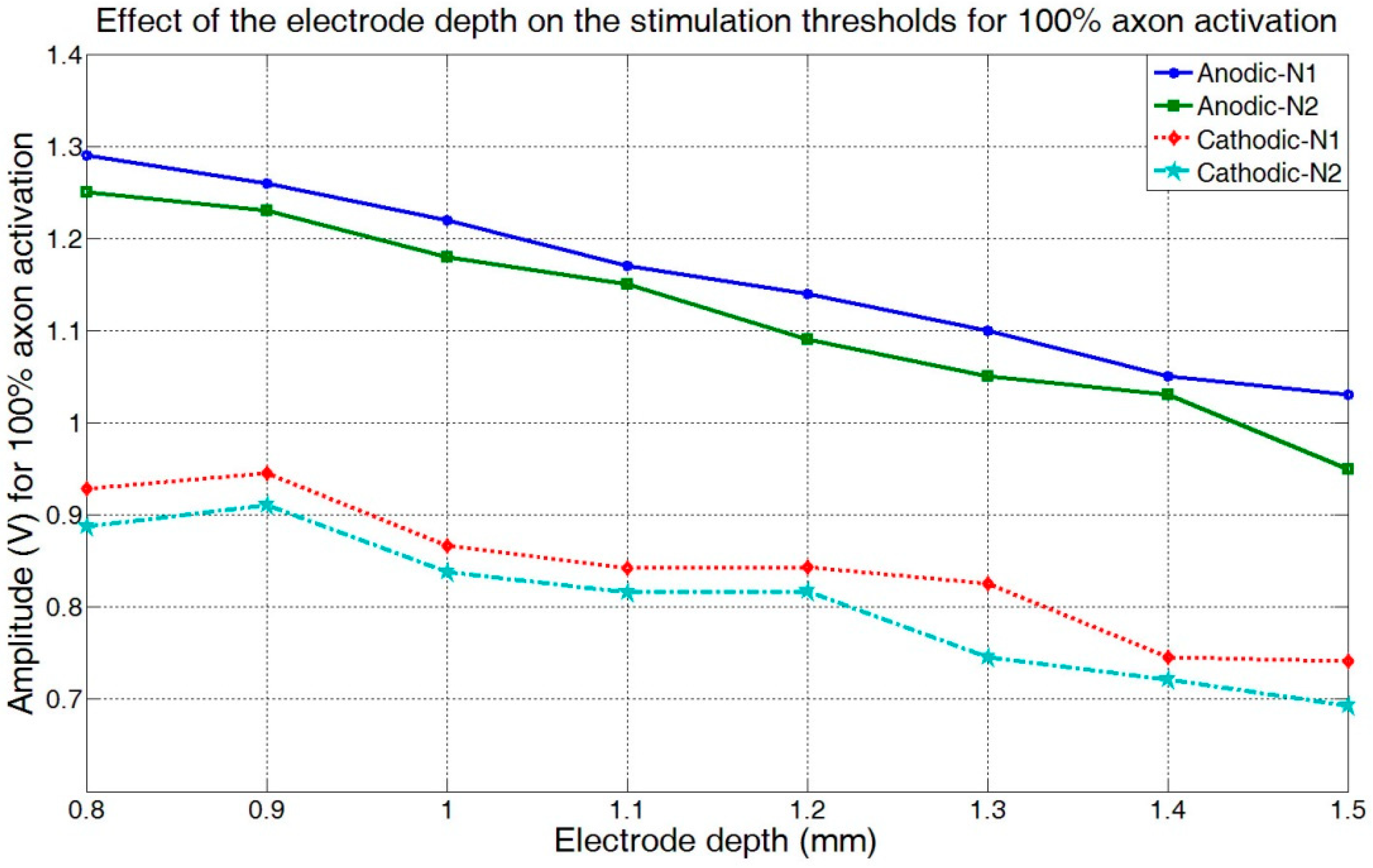

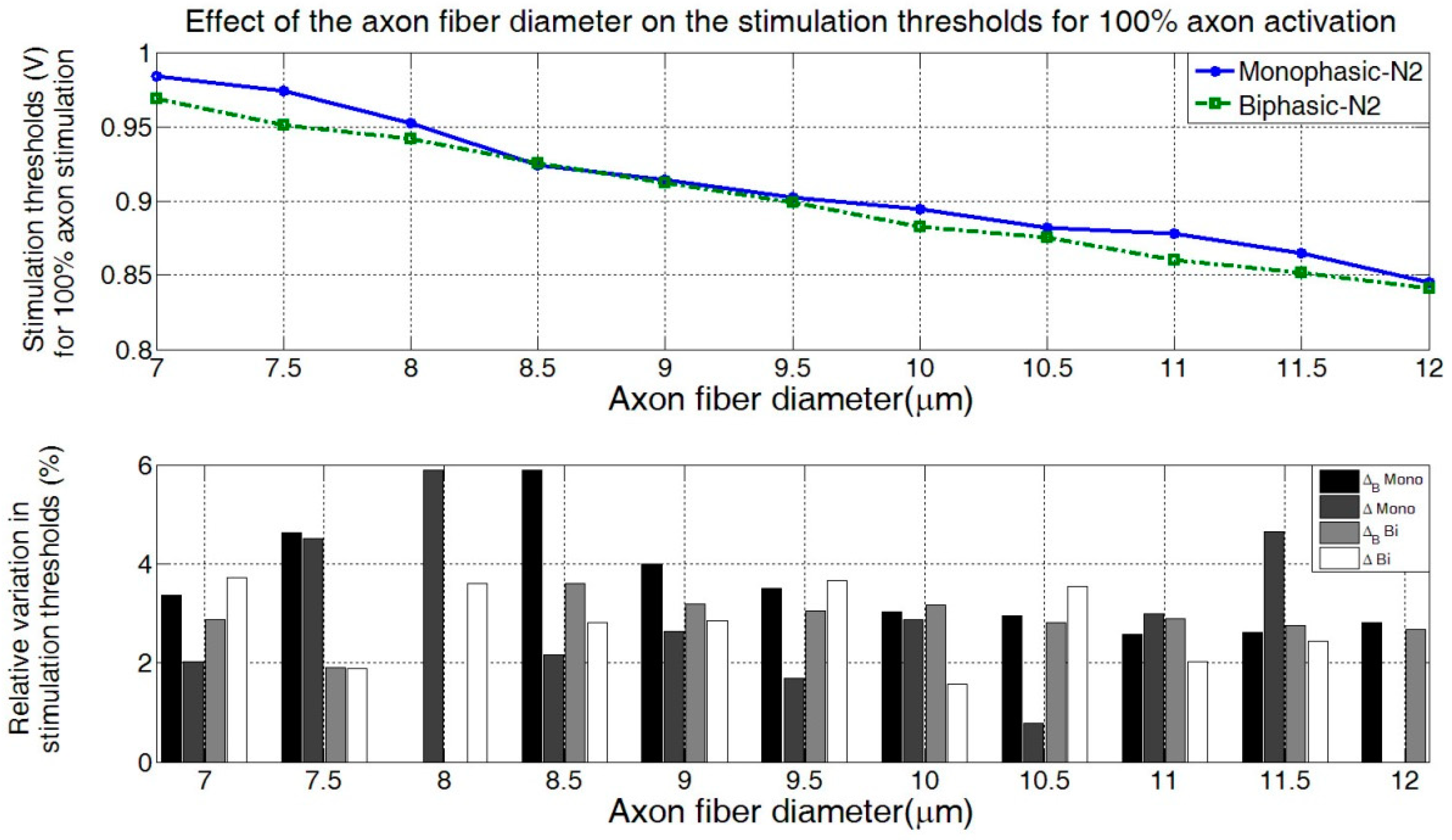

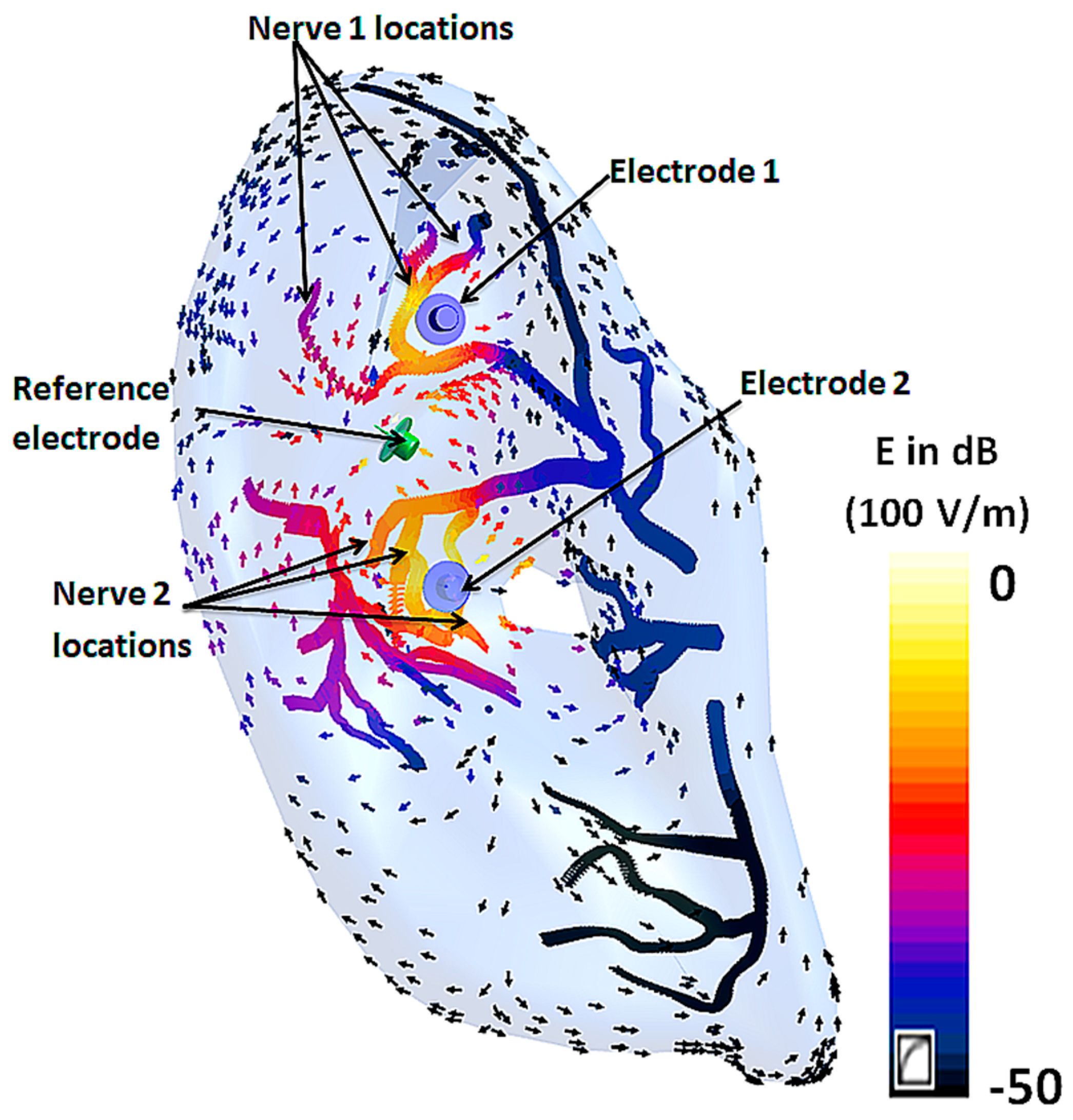

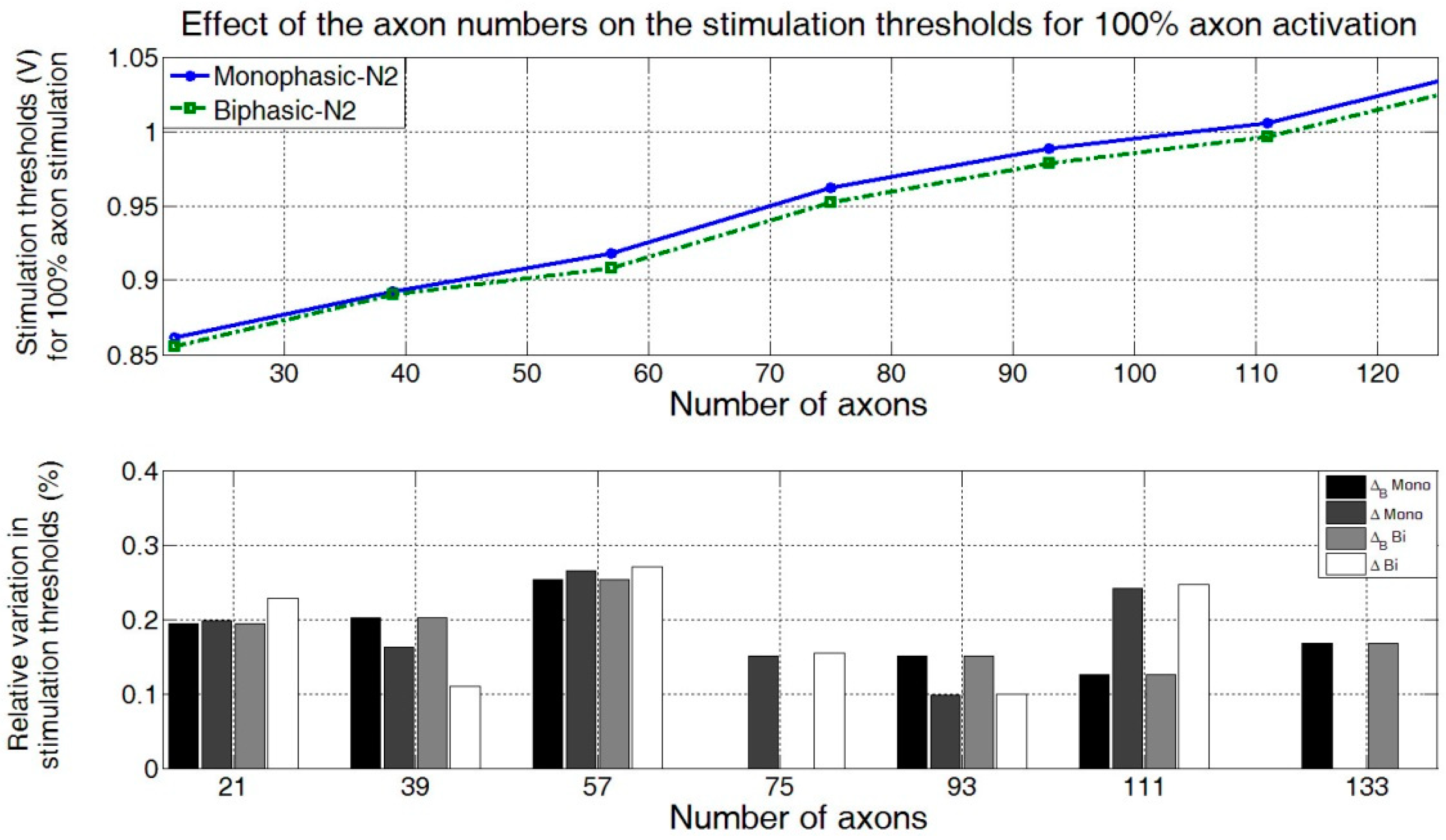

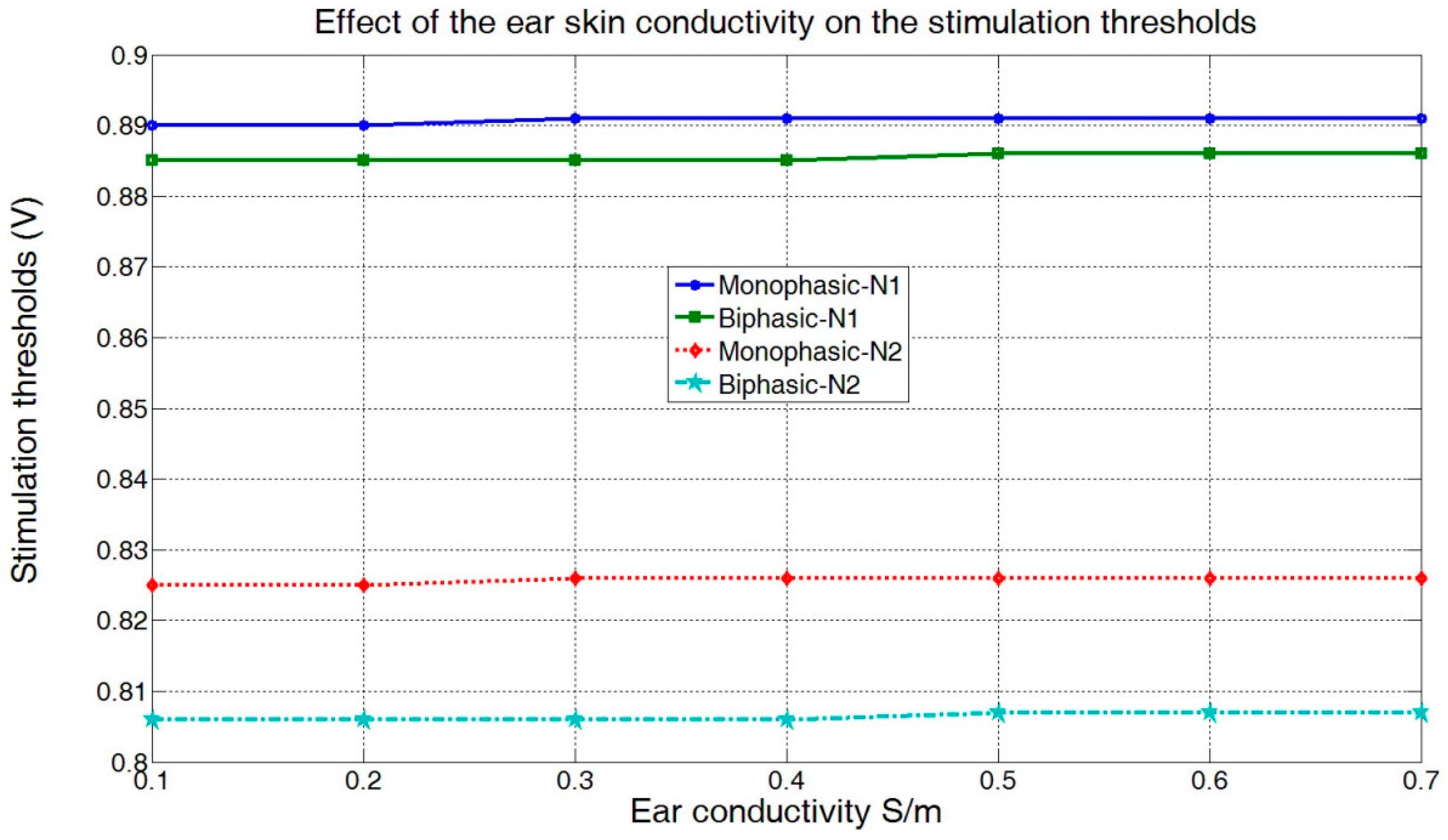

Background: Less-invasive percutaneous stimulation of the auricular branch of the vagus nerve (pVNS) gained importance as a possible nonpharmacological treatment for various diseases. The objective is to perform a sensitivity analysis of a realistic numerical model of pVNS and to investigate the effects of the model parameters on the excitation threshold for single and bundled axons. Methods: Sim4Life electrostatic solver and neural tissue models were combined for electromagnetic and neural simulation. The numerical model consisted of a high-resolution model of a human ear, blood vessels, nerves, and three needle electrodes. Investigated parameters include the axon diameter and number, model temperature, ear conductivity, and electrodes’ penetration depth and position. Results: The electric field distribution was evaluated. Model temperature and ear conductivity are the non-influential parameters. Axons fiber diameter and the electrodes’ penetration depth are the most influential parameters with a maximum threshold voltage sensitivity of 32 mV for each 1 μm change in the axon diameter and 38 mV for each 0.1 mm change in the electrodes’ penetration depth. Conclusions: The established sensitivity analysis allows the identification of the influential and the non-influential parameters with a sensitivity quantification. Results suggest that the electrodes’ penetration depth is the most influential parameter. View Full-Text
Keywords: sensitivity analysis; auricular branch of the vagus nerve; neuromodulation; SENN; electromagnetic simulation sensitivity analysis; auricular branch of the vagus nerve; neuromodulation; SENN; electromagnetic simulation
Figures

Graphical abstract
