Determination of Residual Welding Stresses in a Steel Bridge Component by Finite Element Modeling of the Incremental Hole-Drilling Method

Department of Civil Engineering, Ghent University, Technologiepark 60, 9052 Zwijnaarde, Belgium
*
Author to whom correspondence should be addressed.
Appl. Sci. 2019, 9(3), 536; https://doi.org/10.3390/app9030536
Received: 9 January 2019 / Revised: 25 January 2019 / Accepted: 1 February 2019 / Published: 5 February 2019
(This article belongs to the Special Issue Welding of Steels)
  |
PDF [3575 KB, uploaded 11 February 2019]
  |

Abstract

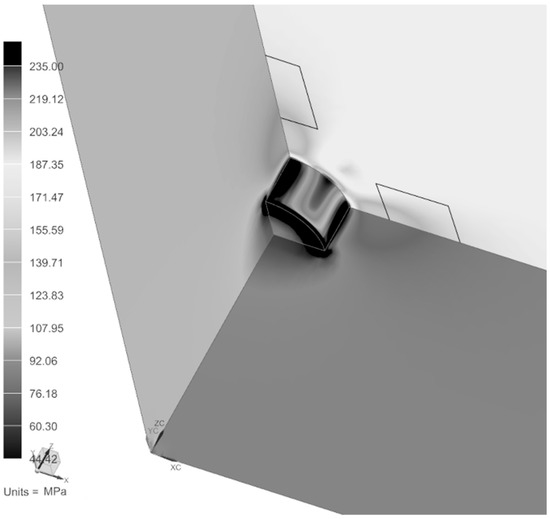

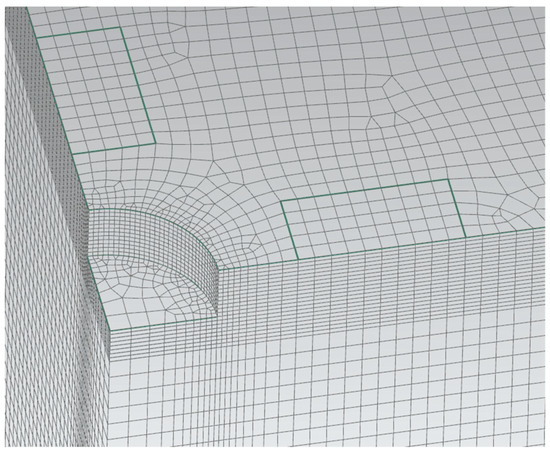

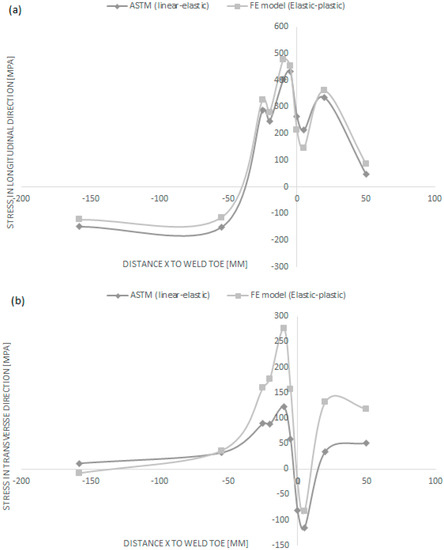

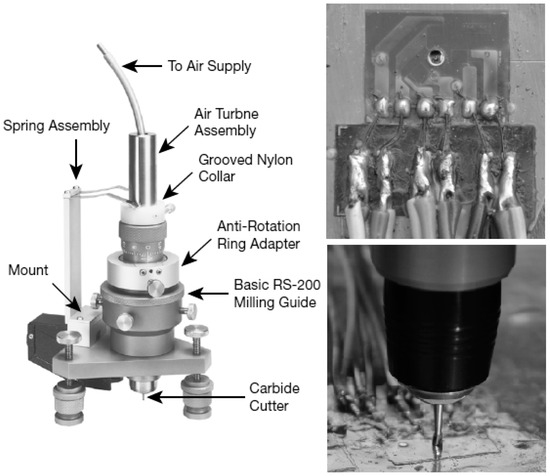

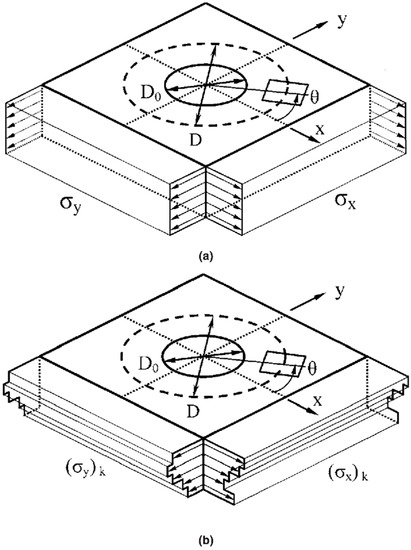

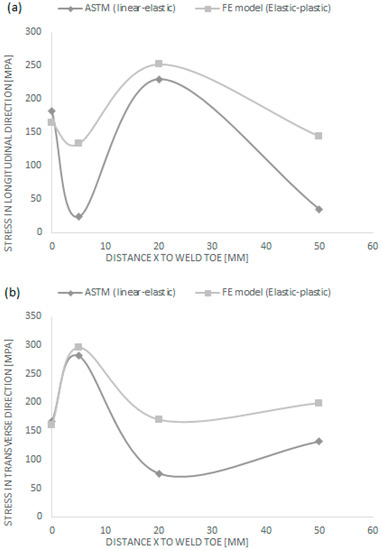

For welded bridge components, the knowledge of residual stresses induced by welding is essential to determine their effect on the fatigue life behavior resulting in optimal fatigue design and a better knowledge about the fatigue strength of these welded connections. The residual stresses of a welded component in an orthotropic steel bridge deck are determined with the incremental hole-drilling method. This method is specified by the American Society for Testing and Materials ASTM E837-13a and it can be used only when the material behavior is linear-elastic. However in the region of the bored hole, there are relaxed plastic strains present that can lead to significant error of the measured stresses. The hole-drilling procedure is simulated with three-dimensional finite element modeling including a simplistic model of plasticity. The effect of plasticity on uniform in-depth residual stresses is determined and it is concluded that residual stresses obtained under the assumption of linear-elastic material behavior are an overestimation. Including plasticity for non-uniform in-depth residual stress fields results in larger tensile and smaller compressive residual stresses. Larger tensile residual stresses cause premature fatigue failure. Therefore, it is important to take these larger tensile residual stresses into account for the fatigue design of a welded component. View Full-Text
Keywords: finite element modeling; incremental hole-drilling method; residual welding stresses; welded bridge components finite element modeling; incremental hole-drilling method; residual welding stresses; welded bridge components
Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
