Cryptanalysis of Permutation–Diffusion-Based Lightweight Chaotic Image Encryption Scheme Using CPA

Abstract

In order to meet the requirement of secure image communication in a resource-constrained network environment, a novel lightweight chaotic image encryption scheme based on permutation and diffusion has been proposed. It was claimed that this scheme can resist differential attacks, statistical attacks, etc. However, the original encryption scheme is found to be vulnerable and insecure to chosen-plaintext attack (CPA). In this paper, the original encryption scheme is analyzed comprehensively and attacked successfully. Only by choosing a full zero image as the chosen-plaintext of the diffusion phase, the encrypted image can be restored into permutation-only phase, and by applying the other chosen images as the chosen-plaintexts of the permutation phase, the map matrix which is equivalent to the secret key of the permutation phase can be further revealed. Experiments and analysis verify the feasibility of our proposed attack strategy.

1. Introduction

With the development of Internet and information technology, ever-increasing multimedia data is emerging in our daily lives. Among multimedia data, digital image carrying information in a visualized manner has become a widely used data format. Many of these digital images in networks may be involved in personal privacy, military secrets, trade secrets, and even national security. If such digital images are intercepted by some unauthorized users, serious security disasters can occur. Thus, it is essential to protect private images with some effective solutions [1,2,3,4]. Image encryption [5,6,7], which aims at preventing unauthorized access by converting the data into an unrecognized form, has been a well-known effective and popular method to secure them.

Among different types of image encryption algorithms, the Chaos-based cryptosystem is particularly efficient and popular in image processing fields as it has many significant characteristics such as ergodicity, unpredictability, and initial state sensitivity [8,9,10,11]. In general, the existing chaotic systems can be partitioned into two primary types: one dimension (1D) maps [9] and high dimension (HD) maps [11]. 1D chaotic maps often have simple structures and low computational complexity; thus, it is efficient and easy to generate pseudorandom sequence during image cryptography. However, they face some potential drawbacks like vulnerability and limited chaotic ranges [12,13]. The demanding for higher level of security of image cryptosystems motivates researchers to extend 1D maps to HD chaotic maps. Generally speaking, HD maps have larger chaotic ranges and at least two variables to acquire better chaotic behaviors. These properties also make their chaotic orbits more unpredictable, and thus lead to a higher security for cryptosystems. However, higher computational overhead and implementation difficulty of these HD chaotic maps make them impractical for resource-limited devises as well [14,15,16]. Thus, to balance chaotic behaviors and computational cost, it is necessary and vital to develop such a scheme, which not only ensures larger key space to resist brute attack and key sensitivity to control parameters, but also can be implemented in a low computational overhead.

To meet the demanding for practical scenarios, a novel and lightweight chaotic image encryption scheme using 2D dimension Baker’s map has been proposed for secure communication [17]. The image cryptography algorithm [17] under study, involves the use of Permutation–Diffusion based on Fridrich’s structure. First, based on the two sets of initial settings—$(\alpha ,x_0,y_0)$ and $({\alpha }^{\prime },x_0^{\prime },y_0^{\prime })$—of 2D Baker’s map, the key matrices $\mathbf{X}$ and $\mathbf{Y}$, both used for the permutation phase, and the diffusion key $R$ (random number), used for the diffusion phase, are obtained. Then, in the permutation phase, the original plaintext is permuted based on the generated key matrices $\mathbf{X}$ and $\mathbf{Y}$; the permuted plaintext is further diffused by the XOR operation between the matrix $r$ and the permuted plaintext $\mathbf{P}$. The original cryptosystem can provide good security for image to some degree; nevertheless, the simple XOR operation of the diffusion phase is insecure enough since it can be completely cracked by using only one time of CPA. In turn, the permutation phase can be further broken with the other CPA attack proposed by the state-of-the-art works [18]. Based on the above, the original encryption design may be not suitable for privacy protection with higher level of security requirements.

The main contributions of this paper are as follows.

(1)

We propose a feasible attack strategy that can completely break the original Permutation–Diffusion based image cryptosystem with high security and low computational overhead, which is especially applicable for secure image communication in the resource-constrained modern network environment.

(2)

Our cryptanalysis is also efficient with little computing, especially in the case of attack permutation phase where the equivalent rule for any complex scrambling method can be obtained. The proposed method is instructive for cryptanalysis researches of other image encryption schemes with a structure of permutation–diffusion.

(3)

The corresponding improvements are proposed by analyzing the complexity and security of the original encryption scheme [17], which will provide a useful reference for the development of image cryptosystem.

The rest of this paper is presented as follows. Section 2 presents a simple review of the original scheme. Section 3 discusses the cryptanalysis on the basis of CPA attack. Section 4 concludes this paper.

2. Review of the Original Scheme

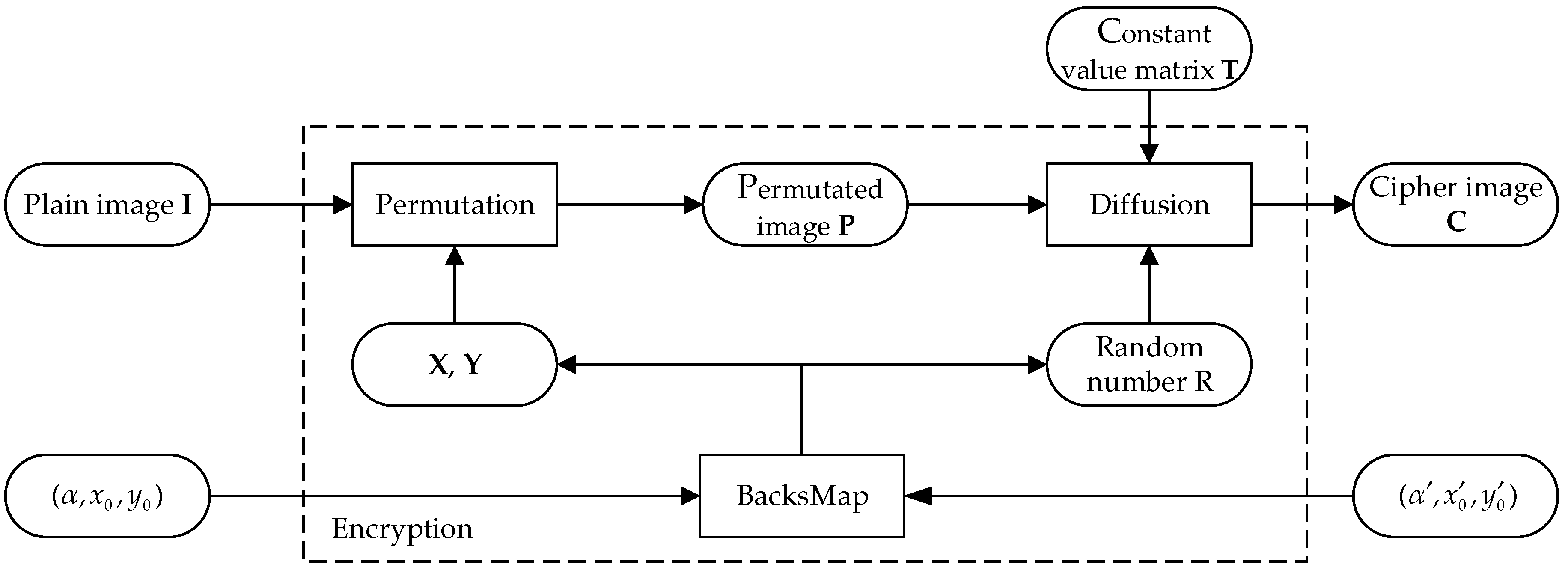

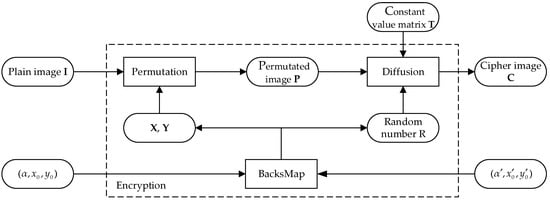

A general flowchart of the original scheme is presented in Figure 1. As shown in Figure 1, the encryption design of the original scheme is composed of two processes: the permutation phase and diffusion phase. The permutation phase scrambles the original pixels by swapping the pixel values in the original image with the element values in the key matrices $\mathbf{X}$ and $\mathbf{Y}$, which can be carried out due to the superiority of the 2D Baker’s map, i.e., it can perform one-to-one the unit square onto itself. The diffusion phase further diffuses the permuted pixels by XORing a random matrix $r$ that depends on a random number $R$ generated by the initial setting, constant value matrix $T(i, j)=((M/i)+(N/j))$ of the permuted plaintext $\mathbf{P}$.

In the following, we discuss the permutation and diffusion phases of the original scheme in detail. Let $I$ denote a grayscale plaintext image with the size of $M\times N$ and let $\zeta$ and $\vartheta$ denote the 2D Baker’s map function and the swap function, respectively. The details of the pixel scramble and diffusion of the original plaintext are as follows.

Step 1: Input the plaintext image $I$ and compute the key matrices $\mathbf{X}$ and $\mathbf{Y}$ using the map function $\zeta$.

$$\mathbf{X}, \mathbf{Y}=\zeta (\alpha , x_0, y_0).$$

(1)

Step 2: Scramble the original plaintext $I(i, j)$ by swapping it with $I(x, y)$ to generate the permuted image $\mathbf{P}$, as shown in (2).

$$\mathbf{P}=\vartheta (I(i, j), I(x, y)),$$

(2)

where $x$ and $y$ meet the conditions $x\in X(i, j)$ and $y\in Y(i, j)$, respectively; $i$ and $j$ satisfy the conditions $i=1, 2, \cdots , M$ and $j=1, 2, \cdots , N$.

Step 3: Compute the random number $R$ by using the map function $\zeta$ again, and compute the matrix $r$ used to diffuse the permuted plaintext $\mathbf{P}$.

$$R=\zeta ({\alpha }^{\prime }, x_0^{\prime }, y_0^{\prime }),$$

(3)

$$\mathbf{r}=\mathrm{mod}((P(i, j)+R), 256).$$

(4)

Step 4: Diffuse the permuted image $\mathbf{P}$ by performing XOR operation on the permuted image $\mathbf{P}$, the matrix $\mathbf{r}$, and the constant value matrix $T(i, j)=((M/i)+(N/j))$ controlled by the image sizes and the position of each pixel directly.

$$\mathbf{C}=\mathrm{mod}((\mathbf{r}\oplus P(i, j)\oplus T(i, j)), 256).$$

(5)

Until now, we have obtained the permuted and diffused image, i.e., the final ciphertext image $\mathbf{C}$.

3. Cryptanalysis of the Original Scheme

According to Kerchoff’s principle [19], the security of a cryptosystem only relies on the secret keys, regardless of the algorithm design and complexity of the cryptosystem. From the perspective of cryptanalysts, they know everything about the cryptosystem except for the secrecy of the key. Thus, after knowledge of the cryptographic algorithm, one can easily carry out cryptanalysis if there exist some possible loopholes in original cryptosystems.

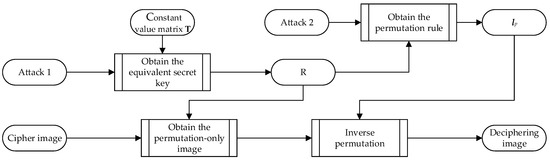

In order to collapse the encryption scheme [17], a general framework of the proposed attack strategy is presented in Figure 2. As presented in Figure 2, the total cryptanalysis processes of the presented attack strategy include Attack 1 and Attack 2. Attack 1 is used to acquire the secret key $R$ of the original diffusion phase so as to retrieve the permutation-only image $\mathbf{P}$; with the help of the revealed diffusion key $R$, Attack 2 is further adopted to obtain the permutation rule ${\mathit{l}}_p$ of the original permutation phase. If one has knowledge of the permutation rule ${\mathit{l}}_p$, he/she can recover the plaintext image accurately, i.e., the deciphering image; as such, the original cryptosystem can be completely collapsed. In the following, we will discuss the cryptanalysis process in detail.

3.1. Obtain the Equivalent Secret Key $R$

In this section, we discuss how to obtain the secret key R of the original diffusion phase in detail. For the original diffusion process, even if it employs the superiority, such as larger key space and key sensitivity of the 2D Baker’s map to diffuse the permuted image, the key equivalent that is functionally equal to the secret key of the diffusion phase can be easily obtained with a CPA attack (called the zero image $I_0$ as the chosen plaintext), as shown in the flowchart of Figure 3. Furthermore, the cipher image $C_0$ generated by encrypting the full zero image $I_0$ is exactly the key equivalent of the original diffusion phase, which will be discussed in detail next. With the help of the known constant value matrix $T$, the correct secret key $R$ can be revealed completely.

According to the assumption of chosen-plaintext that the plaintext is chosen in advance and its corresponding ciphertext can be generated from the chosen-plaintext, let a full zero image act as the chosen-plaintext image $I_0$. Note: all of the existing permutation algorithms will lose their efficacies if a full zero image is used to act as the plaintext image. Therefore, after the original permutation phase, the permuted image of the chosen-plaintext image $I_0$ is still itself. For the diffusion phase, although we do not know the secret key used in the diffusion phase, the diffusion algorithm is public and available. Thus, according to (3), (4) and the permuted image $I_0$, we have

$$\mathbf{r}=\mathrm{mod}((I_0+R), 256)=\mathrm{mod}(R, 256).$$

(6)

Based on the above (6), the matrix $r$ has become a matrix in which all element values equal to the random number $R$ generated by Bake’s map or its equivalent; in other word, the plaintext-related process of the original scheme has become invalid. Then, with the assistance of (5), the matrix $r$ and the permuted plaintext image $I_0$, the ciphertext image $C_0$ can be obtained as

$${\mathbf{C}}_0=\mathrm{mod}((\mathbf{r}\oplus {\mathbf{I}}_0\oplus T(i,j)), 256)=\mathrm{mod}((\mathbf{r}\oplus T(i,j)), 256),$$

(7)

where $T(i, j)=((M/i)+(N/j))$ is a constant value matrix relying on an image size and its pixel position; or rather, it can be available by anyone who wants to know the content of the matrix. The obtained ciphertext image $C_0$ is the final encryption resultant of the chosen-plaintext image ${\mathbf{I}}_0$, and it is known and available according to the assumption of chosen-plaintext. Apparently, the ciphertext image $C_0$ only relies on the matrix $r$; also, the matrix $r$ is exactly decided by the random number $R$ or its equivalent. Thus, ciphertext image $C_0$ is the key equivalent of the diffusion phase. By further XORing the known constant value matrix $T(i, j)=((M/i)+(N/j))$, as show in (8), the correct diffusion key $R$ of the original diffusion phase can be completely revealed.

$$C_0\oplus T(i, j)=\mathrm{mod}((\mathbf{r}\oplus T(i, j)), 256)\oplus T(i, j)=\mathbf{r}$$

(8)

For clarity, we also provide the process of revealing the diffusion key $R$. As depicted in Algorithm 1, the diffusion key $R$ can be easily obtained by using the full zero plain image $I_0$ and the constant value matrix $T$, which also provides the indicator of a large loophole existing in the original cryptosystem.

Algorithm 1 Obtain the secret key R

Input: Full zero plain image I0

Output: The secret key R

1: procedure Key(I0)

2:  M, N ← size(I0)          // Get the size of the plain image

3:  T ← zeros(M, N)

4:  for i from 1 to M

5:   for j from 1 to N

6:    T(i, j) ← mod(M/i + N/j, 256)   // Obtain the constant matrix

7:   end

8:  end

9:  C ← encryption(I0)         // Obtain the ciphertext image

10:  R ← bitxor(T, C)

11: end procedure

After revealing the diffusion key $R$, the permutation-only image can be obtained by decrypting the final ciphertext image $C$, which is the encryption resultant of the exploited test image $I$ in the original cryptosystem. Algorithm 2 depicts the generation of permutation-only image $P$ in detail. Apparently, the permutation-only image $P$ can be successfully obtained.

Algorithm 2 Obtain the permutation rule lp

Input: N pairs of permutation-only images of chosen images

Output: Permutation rule lp and B

1: procedure Rule(P1, P2, …, Pn)     // Define a function to obtain the permutation rule

2:  M, N ← size(P1)         // Get the size of the image

3:  B ← zeros(M, N)

4:  for i from 1 to M

5:   for j from 1 to N

6:    B(i, j) ← P1(i, j) * 256 + P2(i, j)

7:   end

8:  end

9:  lp ← reshape(B, 1, M * N)     // Turn the matrix into a vector

10: end procedure

3.2. Obtain the Permutation Rule $l_p$

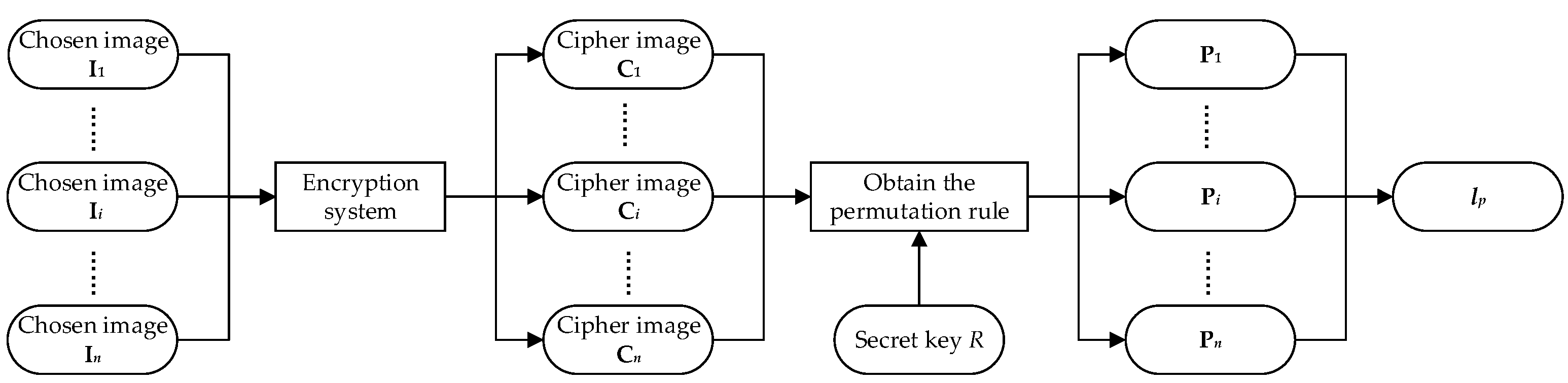

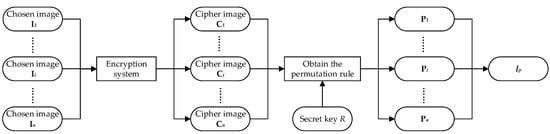

Having attacked the diffusion phase of the original scheme, the final encrypted resultant generated by the original cryptosystem could be restored into permutation-only phase. In this section, we further analyze and attack the permutation phase of the original scheme so as to retrieve the original plaintext image. The flowchart structure of revealing the permutation rule ${\mathit{l}}_p$ is presented in Figure 4. First, n pairs of plain images ${\mathbf{I}}_1, {\mathbf{I}}_2, \cdots , {\mathbf{I}}_n$ are chosen as the $n$ chosen-plaintext images. Based on the original cryptosystem, we can easily obtain their corresponding final cipher images $C_1, C_2, \cdots , C_n$. With the help of the diffusion key $R$ revealed in the previous section, we can obtain the permutation rule ${\mathit{l}}_p$, which is composed of ${\mathbf{P}}_1, {\mathbf{P}}_2, \cdots , {\mathbf{P}}_n$. Next, the detailed analysis process of revealing the permutation rule will be described.

For the permutation process of the original cryptosystem, both the key space and key sensitivity are reliable and effective; it is almost impossible to obtain the key directly from the permutation phase. Nevertheless, the map matrix which is equivalent to the secret key of the permutation phase can be revealed by using the state-of-the-art work [18], which will be discussed in the following. Note that for any of the existing scrambling algorithms, they cannot modify the pixel values of an image, but merely scramble the pixel positions. Therefore, if one can utilize some possible means to uniquely identify a pixel position, the permutation rules of all permutation-only cryptosystems will be revealed accurately and efficiently under any conditions (regardless of the cryptosystem structures). The assumption has been successfully implemented in recent proposed the state-of-the-art work [18], which can completely determine the correct plaintext elements by utilizing a deterministic method. For a plain image $I$ of size $M\times N$, which acts as the test image in original cryptosystem, the position of each pixel row by row in the plaintext image can be determined by a dimension vector $\mathit{p}\mathit{o}{\mathit{s}}_p={\{po{s}_p(i)\}}_{i=0}^{M\times N-1}$. According to the Lemma 1 of Jolfaei et al.’s work [18], the number of the chosen-plaintext images to break any of the existing permutation-only cryptosystems is $n$, which can be formulized as follows.

$$n\ge \lceil {\log }_L(M\times N)\rceil ,$$

(9)

where $M\times N$ denotes the number of locations, i.e., the size of an image; $L$ denotes the number of all entries, and there will be 256 entries for an image of 8 bit in depth. In the following, we will discuss two concrete cases to completely determine the correct plaintext elements of the permutation-only cryptosystem on the basis of (9).

Case 1: If the size of a plaintext image I is $256\times 256$, only two chosen plaintext images—${\mathbf{I}}_1$ and ${\mathbf{I}}_2$—will be chosen to obtain the permutation rule. The following will give some related analyses.

For the plaintext image $I$ of size $256\times 256$ which will be restored using the two chosen plaintext images $I_1$ and $I_2$, the position vector $\mathit{p}\mathit{o}{\mathit{s}}_p={\{po{s}_p(i)\}}_{i=0}^{M\times N-1}$ of all pixels in the plaintext image can be rearranged row by row in the matrix $\mathbf{A}$, as shown in (10), where each element includes two digits in base 256 across the character set $[0, 1, 2, \cdots , 255]$ to express the position of $[0, 1, 2, \cdots , 256\times 256-1]$.

$$\mathbf{A}={[\begin{array}{ccccc}(0)(0)& (0)(1)& (0)(2)& \cdots & (0)(255)\\ (1)(0)& (1)(1)& (1)(2)& \cdots & (1)(255)\\ ⋮& ⋮& ⋮& \ddots & ⋮\\ (254)(0)& (254)(1)& (254)(2)& \cdots & (254)(255)\\ (255)(0)& (255)(1)& (255)(2)& \cdots & (255)(255)\end{array}]}_{256\times 256},$$

(10)

where the element $(p_i)(q_j)$ is exactly the position $256\times p_i+q_j$ of the position vector $\mathit{p}\mathit{o}{\mathit{s}}_p$.

Since the pixel value in the original plaintext image $\mathbf{I}$ varies from 0 to 255, i.e., all of the entries $L=256$ in (9), we can obtain the two matrices with entries $[0, 1, 2, \cdots , 255]$ by splitting matrix $\mathbf{A}$ into two bit-plane images. Actually, the bit-plane images are exactly the chosen plaintext images $I_1$ and $I_2$ mentioned above, as shown in (11,12).

$$I_1={[\begin{array}{ccccc}0& 0& 0& \cdots & 0\\ 1& 1& 1& \cdots & 1\\ ⋮& ⋮& ⋮& \ddots & ⋮\\ 254& 254& 254& \cdots & 254\\ 255& 255& 255& \cdots & 255\end{array}]}_{256\times 256},$$

(11)

$$I_2={[\begin{array}{ccccc}0& 1& 2& \cdots & 255\\ 0& 1& 2& \cdots & 255\\ ⋮& ⋮& ⋮& \ddots & ⋮\\ 0& 1& 2& \cdots & 255\\ 0& 1& 2& \cdots & 255\end{array}]}_{256\times 256}.$$

(12)

Based on above, the pixel position vector $\mathit{p}\mathit{o}{\mathit{s}}_p={\{po{s}_p(i)\}}_{i=0}^{M\times N-1}$ of the original plaintext image $\mathbf{I}$ has completely relied on $I_1$ and $I_2$. In the following, we only need to generate the pixel position vector $\mathit{p}\mathit{o}{\mathit{s}}_p={\{po{s}_p(i)\}}_{i=0}^{M\times N-1}$ of the permutation-only image $\mathbf{P}$ by recovering the final ciphertext image $\mathbf{C}$ of the original plaintext image $\mathbf{I}$ into the permutation-only phase, the permutation rule of the original permutation phase will be able to be revealed. Here, the final ciphertext image—$\mathbf{C}$—includes two parts—${\mathbf{C}}_1$ and ${\mathbf{C}}_2$ (encrypted by the original permutation and diffusion phases). Furthermore, the pixel position vector $\mathit{p}\mathit{o}{\mathit{s}}_p={\{po{s}_p(i)\}}_{i=0}^{M\times N-1}$ of permutation-only image $\mathbf{P}$ is indirectly determined by ${\mathbf{C}}_1$ and ${\mathbf{C}}_2$. With the help of the generated diffusion key $R$, the ciphertext images ${\mathbf{C}}_1$ and ${\mathbf{C}}_2$ can be easily restored to the permutation-only images ${\mathbf{P}}_1$ and ${\mathbf{P}}_2$; the position vector $\mathit{p}\mathit{o}{\mathit{s}}_p={\{po{s}_p(i)\}}_{i=0}^{M\times N-1}$ of permutation-only image $\mathbf{P}$ is exactly the combination resultant of the two obtained ${\mathbf{P}}_1$ and ${\mathbf{P}}_2$ is exactly the position vector $\mathit{p}\mathit{o}{\mathit{s}}_e={\{po{s}_e(i)\}}_{i=0}^{M\times N-1}$ of the permutation-only image $\mathbf{P}$. Therefore, the permutation rule ${\mathit{l}}_p$ has been revealed, which can be seen in Algorithm 3.

Algorithm 3 Proposed diffusion attack algorithm

Input: A known ciphertext image C, full zero plain image I0

Output: The permutation-only image P of known ciphertext image C

1: procedure De_ diffusion(C, I0)

2:  M, N ← size (C)          // Get the size of the image

3:  R ← Key (I0)            // Invoke algorithm 1 to obtain the key R

4:  r ← 0

5:  for i from 1 to M

6:   for j from 1 to N

7:    r ← mod(C(i−1, j−1) + R, 256)

8:    P(i, j) ← bitxor(r, C(i, j))

9:    T(i, j) ← mod(M/i + N/j, 256)  // Obtain the constant matrix

10:   end

11:  end

12:  P ← bitxor(P, T)         // Return the permutation-only image

13: end procedure

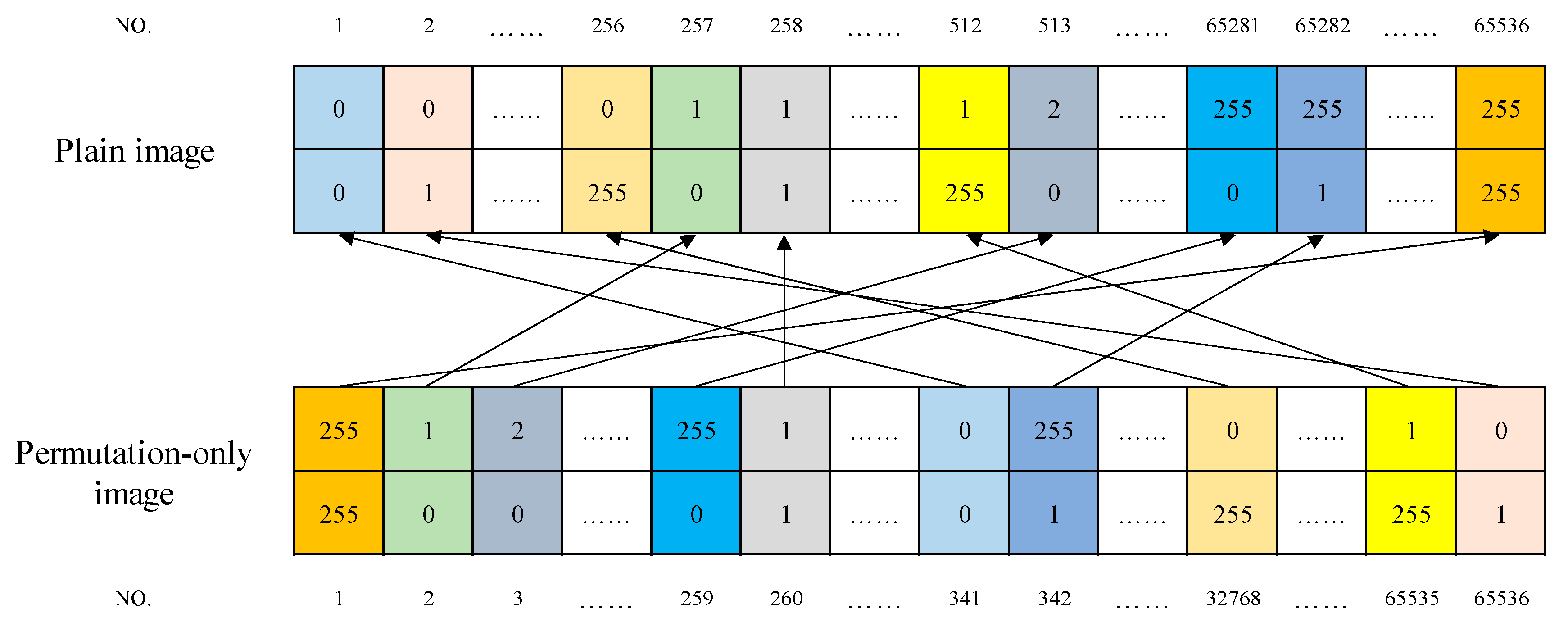

In Algorithm 3, one can easily find that a one-to-one map between the permutation rule ${\mathit{l}}_p$ and the position vector $\mathit{p}\mathit{o}{\mathit{s}}_p={\{po{s}_p(i)\}}_{i=0}^{M\times N-1}$ of the original plaintext has been established. For clarity, Figure 4 further illustrates the map between permutation rule ${\mathit{l}}_p$ and the position vector $\mathit{p}\mathit{o}{\mathit{s}}_p={\{po{s}_p(i)\}}_{i=0}^{M\times N-1}$ of the original plaintext image. As depicted in Figure 5, we reshape the chosen-plaintext images—$I_1$ and $I_2$—into the position vector $\mathit{p}\mathit{o}{\mathit{s}}_p={\{po{s}_p(i)\}}_{i=0}^{M\times N-1}$ of the original plaintext image in the top half part, and ${\mathbf{P}}_1$ and ${\mathbf{P}}_2$ into the position vector $\mathit{p}\mathit{o}{\mathit{s}}_p={\{po{s}_p(i)\}}_{i=0}^{M\times N-1}$ of the permutation-only images in the upper half part, respectively. Obviously, one can deterministically find out all of the correct plaintext elements by one-to-one mapping all pixels of the permutation-only image into the original plain image.

Case 2: If the size of a plaintext image $I$ is $512\times 512$, only three chosen plaintext images will be required to obtain the permutation rule ${\mathit{l}}_p$. For the plaintext image $I$ of size $512\times 512$ which will be restored using three chose plaintext images, the position vector $\mathit{p}\mathit{o}{\mathit{s}}_p={\{po{s}_p(i)\}}_{i=0}^{M\times N-1}$ of all pixels in the plaintext image can be rearranged row by row in the matrix $\mathbf{A}$, where each element includes three digits in base $256$ across the character set $[0, 1, 2, \cdots , 255]$ to express the position of $[0, 1, 2, \cdots , 512\times 512-1]$.

$$A={\left[\begin{array}{cccccc}(0)(0)(0)& \cdots & (0)(0)(255)& (0)(1)(0)& \cdots & (0)(1)(255)\\ ⋮& \ddots & ⋮& ⋮& \ddots & ⋮\\ (0)(254)(0)& \cdots & (0)(254)(255)& (0)(255)(0)& \cdots & (0)(255)(255)\\ (1)(0)(0)& \cdots & (1)(0)(255)& (1)(1)(0)& \cdots & (1)(1)(255)\\ ⋮& \ddots & ⋮& ⋮& \ddots & ⋮\\ (3)(254)(0)& \cdots & (3)(254)(255)& (3)(255)(0)& \cdots & (3)(255)(255)\end{array}\right]}_{512\times 512}.$$

(13)

In a similar manner, the permutation rule of the original cryptosystem can also be revealed by the three chosen-plaintext images. Here, we will not describe the similar process again.

Once permutation rule ${\mathit{l}}_p$ is accurately revealed, the exploited test image—$I$—in the original cryptosystem can be restored by decrypting the permutation-only image $\mathbf{P}$. Algorithm 4 also describes the generation of the exploited test image $I$ in the original cryptosystem in detail. Apparently, the permutation-only image $\mathbf{P}$ can be successfully obtained.

Algorithm 4 Proposed confusion attack algorithm

Input: The permutation-only image P, and n pairs of permutation-only images of chosen images

Output: The deciphering image I

1: procedure De_ confusion(P, P1, P2, …, Pn)

2:  M, N ← size(P)          // Get the size of the image

3:  I ← zeros(M, N)

4:  lp, B ← Rule(P1, P2, …, Pn)    // Invoke algorithm 2 to obtain the permutation rule

5:  x, y ← 0

6:  for i from 1 to M

7:   for j from 1 to N

8:    x ← floor(B(i, j) / M) + 1   // Obtain the original row number

9:    y ← mod(B(i, j), M)     // Obtain the original column number

10:    I(x, y) ← P(i, j)       // Return the permutation-only image

11:   end

12:  end

13: end procedure

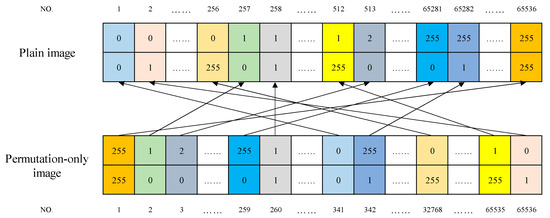

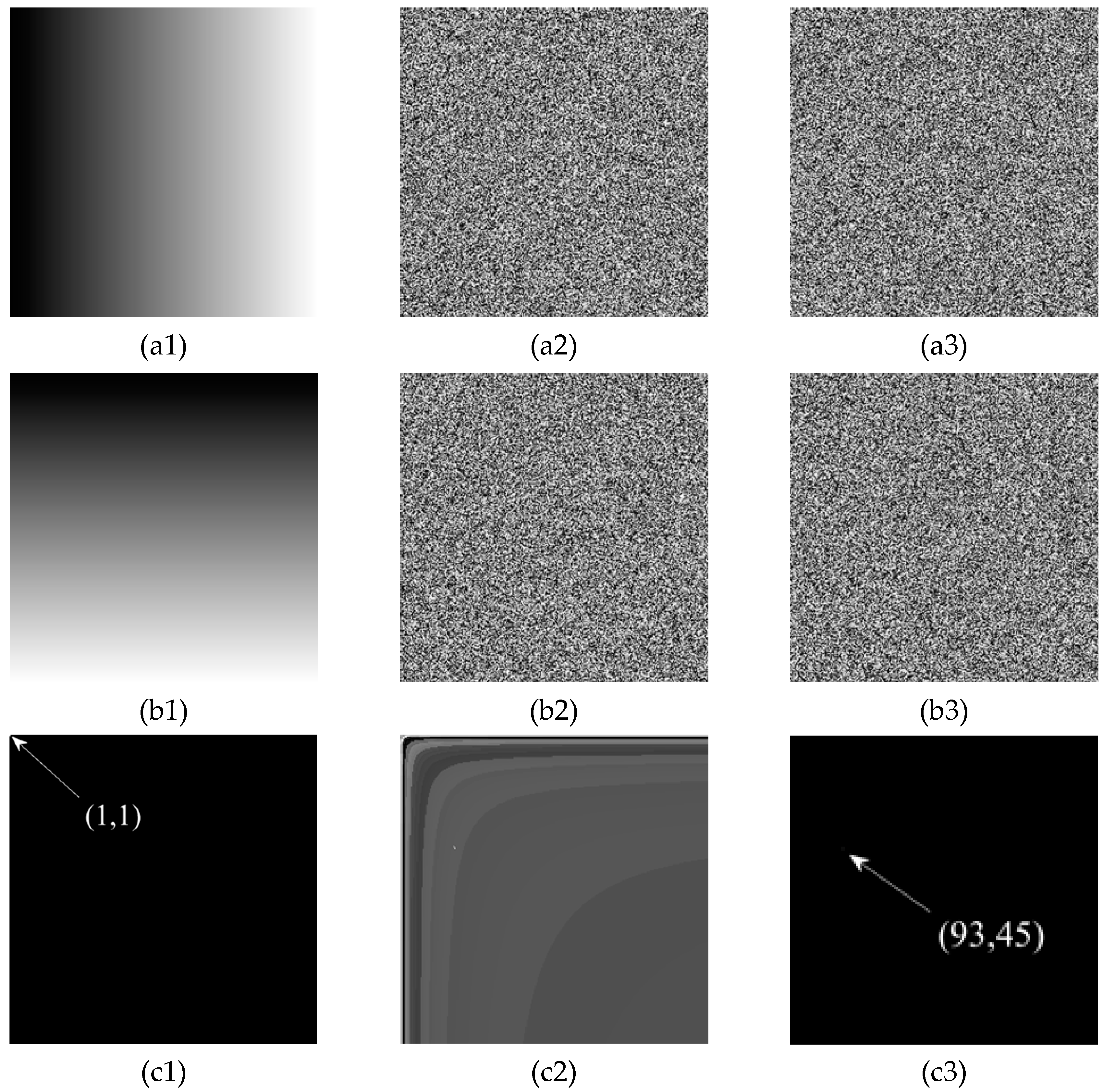

For clarity and the ease explanation, Figure 6 shows the process of chosen-plaintext attack for obtaining the permutation rule ${\mathit{l}}_p$. In Figure 6, the first, second, and third columns represent plaintext, final ciphertext, and permutation-only images, respectively; Figure 6(a1,b1) represents the two original chosen-plaintext images; Figure 6(a2,b2) represents the final ciphertext image of Figure 6(a1,b1) encrypted by the original cryptosystem; and Figure 6(a3,b3) is the permutation-only images obtained by decrypting the final ciphertext images Figure 6(a2,b2) with the revealed diffusion secret key R in the previous section. Once the permutation-only images are obtained, the original plaintext image can be found by one-to-one maps the permuted positions into the original positions, as mentioned above. In addition, the element of the first pixel position $(1, 1)$ of the original plaintext image is also marked for analyzing the permutation rule of the original scheme. After obtaining the permutation-only image, the element of the first pixel position $(1, 1)$ of the original plaintext image has been scrambled into position $(93, 45)$ in the permutation-only image, indicating that based on Jolfaei et al.’s work [18], a one-to-one map can be successfully established.

3.3. Summary of the Attack Strategy

In this section, the total attack process, including revealing the diffusion key $R$ and the permutation rule ${\mathit{l}}_p$, is briefly summarized as follows.

• Step 1: According to Algorithm 1, obtain the secret key or equivalent key $R$ via a known full zero image (Attack 1) as stated in Section 3.1.
• Step 2: Obtain permutation rule ${\mathit{l}}_p$ using the following substeps.
  • Determine the number $n$ of chosen images $I_1, I_2, \cdots , I_n$ (Attack 2) according to (9).
  • According to Algorithm 2, obtain the permutation-only images ${\mathbf{P}}_1, {\mathbf{P}}_2, \cdots , {\mathbf{P}}_n$ of chosen images with the diffusion key $R$.
  • According to Algorithm 3, obtain the permutation rule ${\mathit{l}}_p$ with the permutation-only images.
• Step 3: Invoke Algorithm 3 to obtain the permutation-only image of the final ciphertext image.
• Step 4: Invoke Algorithm 4 to obtain the deciphering image of the final ciphertext image.

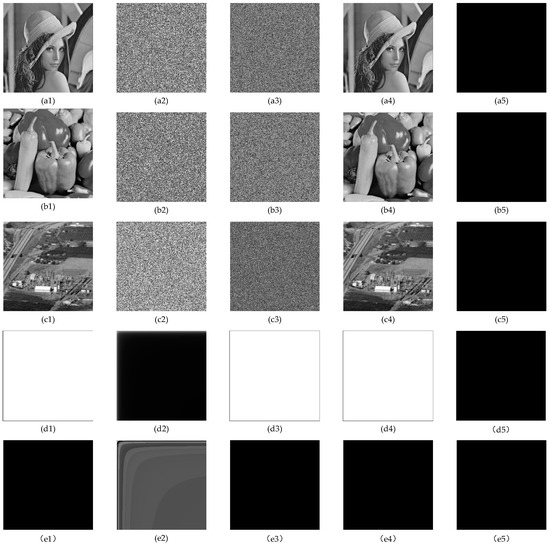

In addition, the effectiveness of the proposed attack strategy is verified by a series of simulation experiments. All of the experiments were executed on a personal computer equipped with an Intel(R) Core(TM) i7-7500U 2.90 GHz CPU and 8 GB memory capacity. MATLAB R2016b was used for the simulations. The most typical representatives with the size of $256\times 256$, including ‘Lena’, ‘Peppers’, ‘Chemical plant’, complete black, and complete white image, were tested for verification. The original test images in Figure 7(a1–e1) were firstly encrypted by the original cryptosystem, and the final encrypted resultants are shown in Figure 7(a2,b2,c2,d2,e2), respectively. Based on this, we can attack the final encrypted resultants step by step by using the obtained diffusion key $R$ and the permutation rule ${\mathit{l}}_p$. Specifically, by utilizing CPA, i.e., the Algorithm 1 mentioned above, the final the final encrypted resultants can be restored into the permutation-only images, as shown in Figure 7(a3–e3). With the help of the obtained permutation rule ${\mathit{l}}_p$, i.e., the Algorithm 2 mentioned before, these permutation-only images can be further restored the original plaintext images, as shown in Figure 7(a4–c4), which are completely identical the original plaintext images by observing the XOR operation resultants between the original images and the restored ones, as shown in Figure 7(a5–d5). Therefore, the proposed attack strategy is effective.

For the solid gray image that has the same pixel value such as complete black image shown in Figure 7(d1) and complete white image shown in Figure 7(e1), their ciphertext images shown in Figure 7(d2,e2) show a hierarchy of symmetry from the diagonal. Additionally, their permutation-only images shown in Figure 7(d3,e3) are the same as the final recovered images shown in Figure 7(d4,e4). Therefore, it is proved that the original encryption scheme does not applicable to this kind of solid gray images. Because scrambling does not work on images with the same pixel values, it is easy to obtain the secret key. Nevertheless, our proposed strategy is still effective for this kind of solid gray images.

3.4. Computational Complexity Analysis

In the proposed cryptanalysis structure, the original diffusion phase can be cracked with only one full zero image, and the original permutation phase can be broken by $\lceil {\log }_L(M\times N)\rceil$ chosen-plaintext images. Thus, the total plaintext images $1+\lceil {\log }_L(M\times N)\rceil$ are required to collapse the original cryptosystem, which is acceptable for the requirements of the computational complexity and cryptanalysis feasibility. In addition, The running times of attacking permutation and diffusion phases for different sizes of images, including $256\times 256$, $512\times 512$, and $1024\times 1024$, are also shown in

Table 1. Execution time (seconds).

Image Size	Image	Encrypted			Attack
		Permutation	Diffusion	Total	Permutation	Diffusion	Total
256 × 256	Lena	0.0654	0.1445	0.2099	0.4619	2.4130	2.8749
	Peppers	0.1285	0.1359	0.2644	0.3859	2.4044	2.7903
	Chemical plant	0.0691	0.1343	0.2034	0.4268	2.4500	2.8768
Average running time		0.0877	0.1382	0.2259	0.4249	2.4225	2.8473
512 × 512	Lena	0.3460	0.5924	0.9384	1.8203	8.2682	10.0885
	Peppers	0.3620	0.5283	0.8903	1.6024	8.0715	9.6739
	Chemical plant	0.3739	0.6094	0.9833	1.4860	8.3940	9.8800
Average running time		0.3606	0.5767	0.9373	1.6362	8.2446	9.8808
1024 × 1024	Lena	1.3516	2.3106	3.6622	0.4619	32.7784	33.2403
	Peppers	1.2991	2.2230	3.5221	6.6447	34.2910	40.9357
	Chemical plant	1.3232	2.3558	3.6790	6.0613	32.3943	38.4556
Average running time		1.3246	2.2965	3.6211	4.3893	33.1546	37.5439

. From Table 1, one can easily find that given an image size $256\times 256$ ($512\times 512$), the average running times for attacking permutation and diffusion are 0.4249 and 2.4225 (1.6362 and 8.2446), respectively; the average running times for breaking the total cryptosystem is 2.8473 (9.8808 for $512\times 512$). Therefore, the proposed attack strategy is satisfactory in terms of executive efficiency. In addition, as expected, the running time is increased with the increase of the size of an image; in other words, the proposed attack strategy can be applicable for breaking the cryptosystem with an image of any size.

4. Conclusions

This paper has proposed a novel means of attacking the recent proposed 2D chaotic encryption scheme. The original cryptosystem is based on permutation–diffusion structure, and its security merely relies on two permutation key matrices—$\mathbf{X}$ and $\mathbf{Y}$—and an diffusion key $R$. We found the cryptosystem has potential vulnerability for resistance against CPA attacks. In this paper, the total $1+\lceil {\log }_L(M\times N)\rceil$ chosen-plaintext images can completely collapse the original cryptosystem: one full zero image was used for breaking the original diffusion phase and $\lceil {\log }_L(M\times N)\rceil$ plaintext images used for cracking the original permutation phase. Experiments has verified the feasibility the proposed attack strategy, especially applicable for images with any sizes.

Additionally, it is clear from the above discussion that the methods may be effective to improve the security of the original encryption scheme. (1) Associate the key with the plain image closely to reduce the possibility of violent attacks; the key is dynamic, and each plain image corresponds to a set of keys. (2) Add a substitute phase before the original diffusion phase to protect against chosen plaintext attacks to a certain extent. (3) Improve encryption structures, such as diffusion between row circular shift and column circular shift, increasing the number of pixels for boundary substitution and so on. Actually, the complexity and security of encryption schemes mainly depends on the structure of the encryption scheme and the choice of the key, which are difficult to preserve at the same time. Therefore, sometimes there is a trade-off between the security and complexity of encryption schemes.
