In-Band OSNR Measurement Method for All-Optical Regenerators in Optical Domain

Key Lab of Optical Fiber Sensing and Communication Networks, Ministry of Education, University of Electronic Science and Technology of China, Chengdu 611731, China
*
Author to whom correspondence should be addressed.
Appl. Sci. 2019, 9(24), 5438; https://doi.org/10.3390/app9245438
Received: 20 November 2019 / Revised: 6 December 2019 / Accepted: 9 December 2019 / Published: 11 December 2019
(This article belongs to the Special Issue Fiber-Based Optical Data Processing)

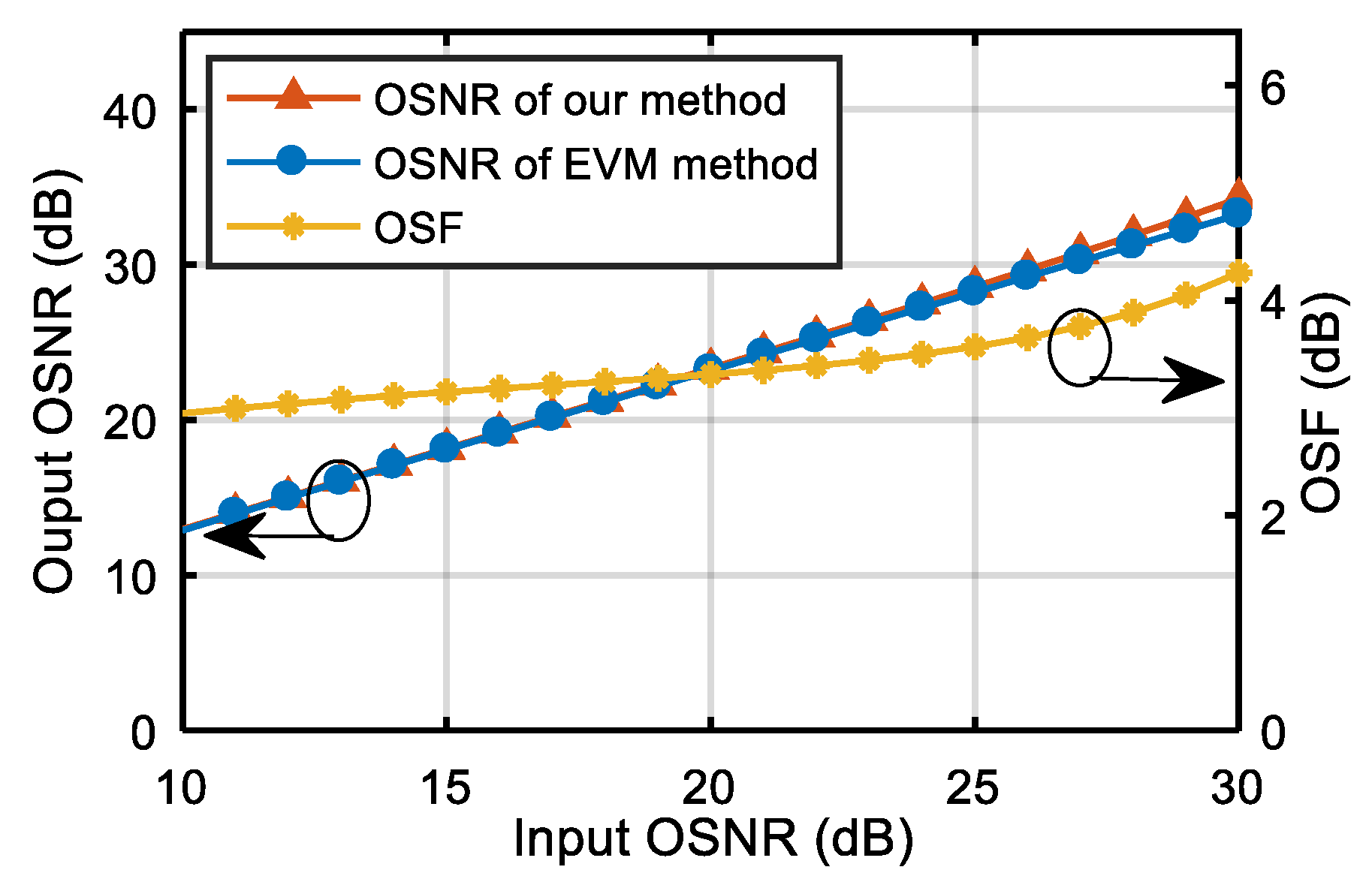

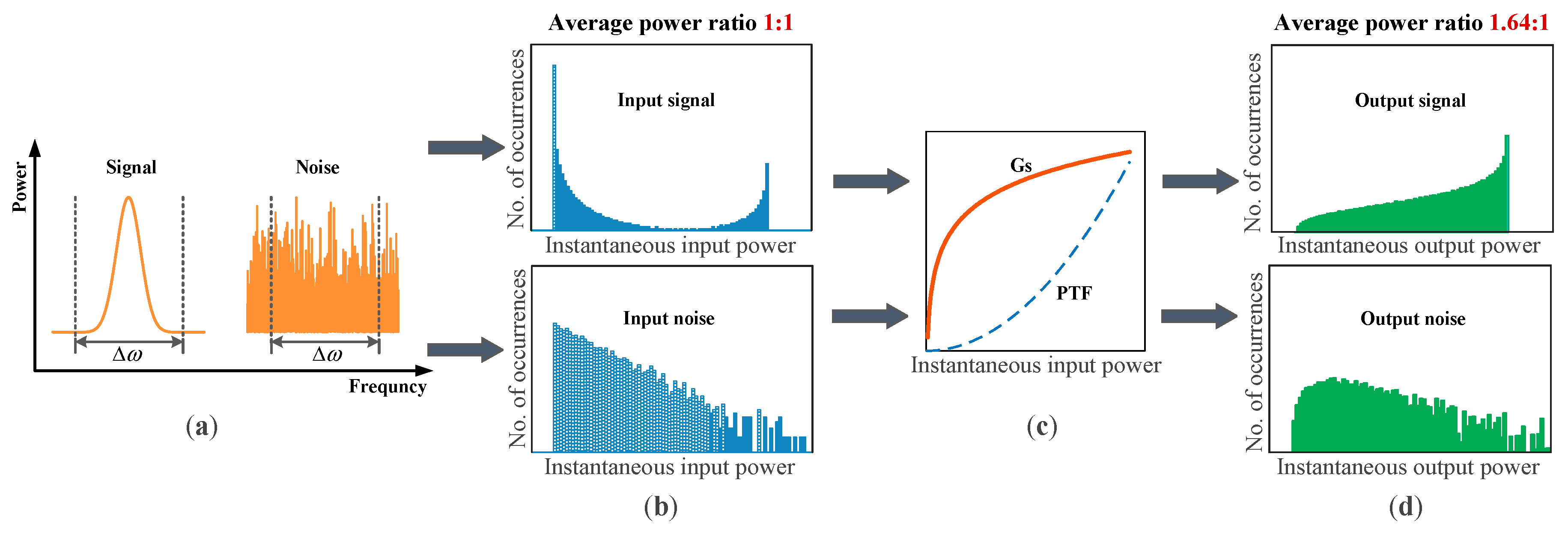

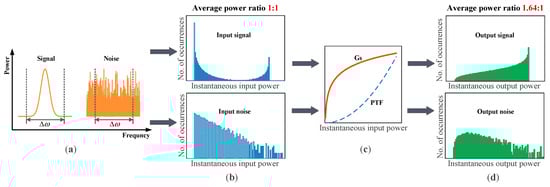

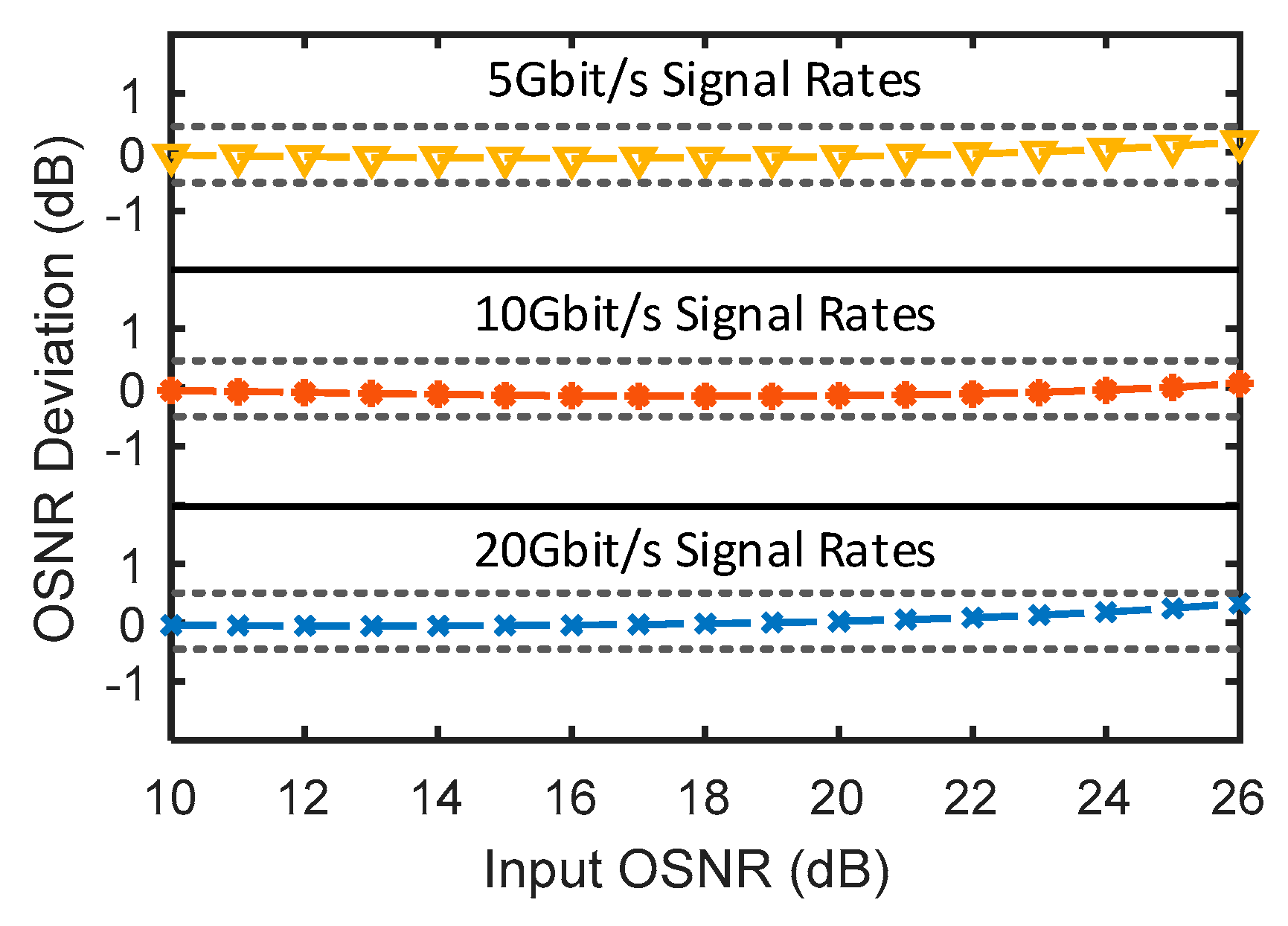

We propose an in-band measurement method of optical signal-to-noise ratio (OSNR) output from an all-optical regeneration system with a nonlinear power transfer function (PTF) according to the fact that there are different average gains of signal and noise. For the all-optical quadrature phase-shift keying (QPSK) regenerator as an example, the output OSNR is derived from the input OSNR and the total gain of the degraded QPSK signal. Our simulation shows that the OSNR results obtained by this method are in agreement with those calculated from the error vector magnitude (EVM) formula. The method presented here has good applicability for different data rates but is also useful for analyzing the OSNR degradation of other nonlinear devices in optical communication links. View Full-Text
Keywords: nonlinear optics; optical information processing; all-optical regeneration; four-wave mixing nonlinear optics; optical information processing; all-optical regeneration; four-wave mixing
Show Figures

Figure 1

MDPI and ACS Style

Wan, F.; Wu, B.; Wen, F.; Qiu, K. In-Band OSNR Measurement Method for All-Optical Regenerators in Optical Domain. Appl. Sci. 2019, 9, 5438.
