Calculation Model of High-Pressure Water Jet Slotting Depth for Coalbed Methane Development in Underground Coal Mine

1
State Key Laboratory of Coking Coal Exploitation and Comprehensive Utilization, Pingdingshan 467000, China
2
State Key Laboratory of Coal Mine Disaster Dynamics and Control, Chongqing University, Chongqing 400044, China
3
School of Resources and Safety Engineering, Chongqing University, Chongqing 400044, China
*
Authors to whom correspondence should be addressed.
Appl. Sci. 2019, 9(23), 5250; https://doi.org/10.3390/app9235250
Received: 6 November 2019 / Revised: 28 November 2019 / Accepted: 29 November 2019 / Published: 3 December 2019

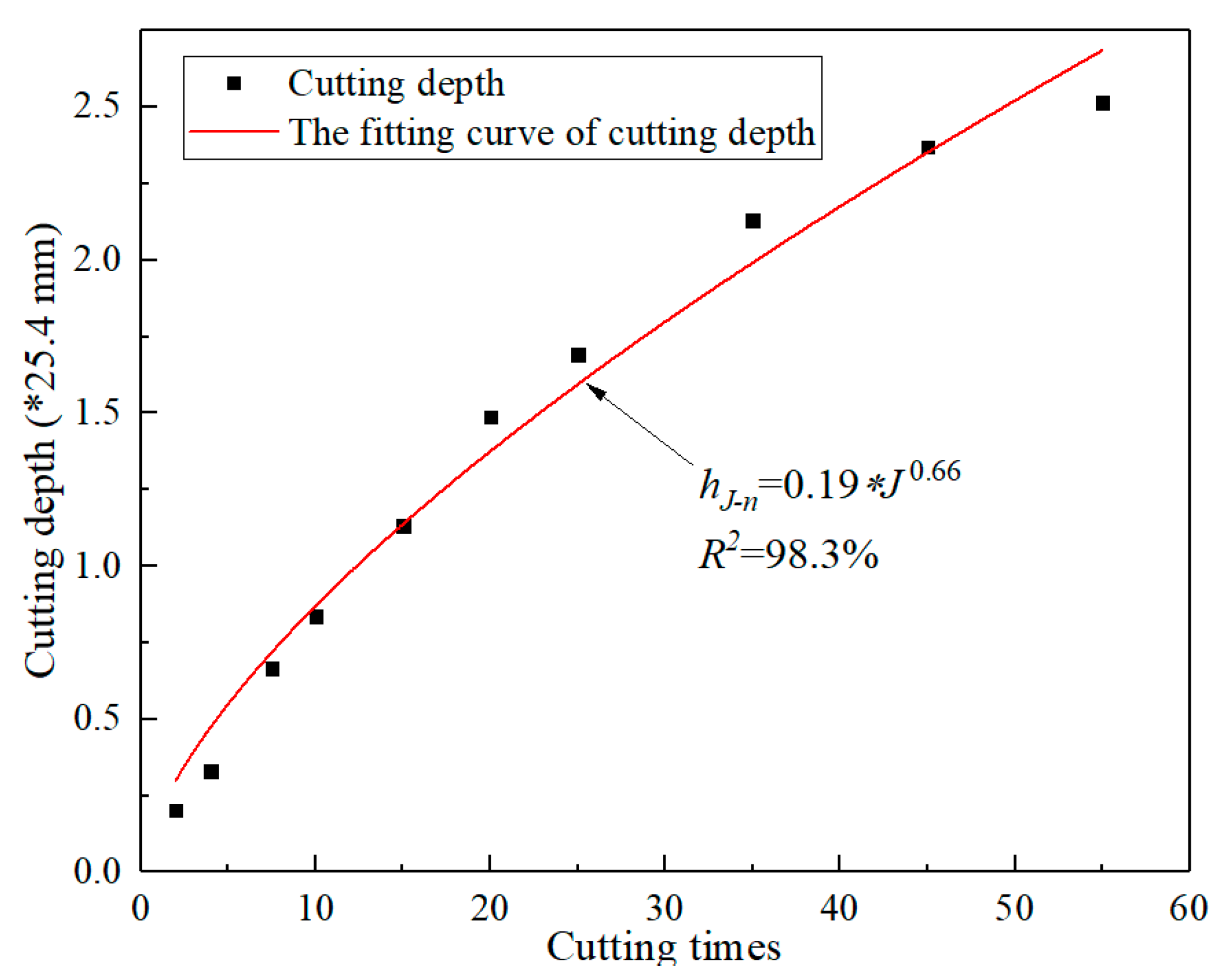

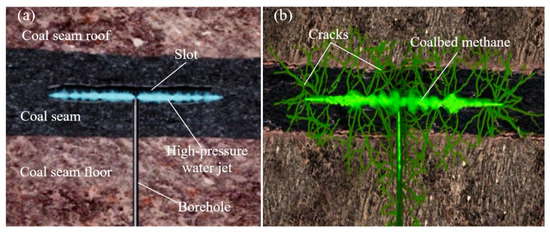

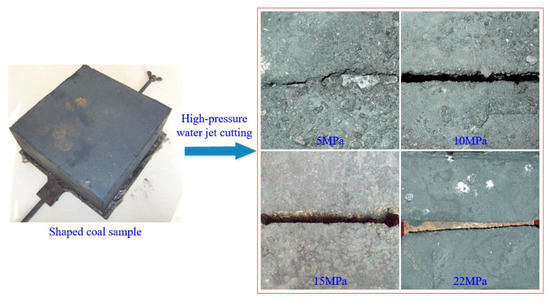

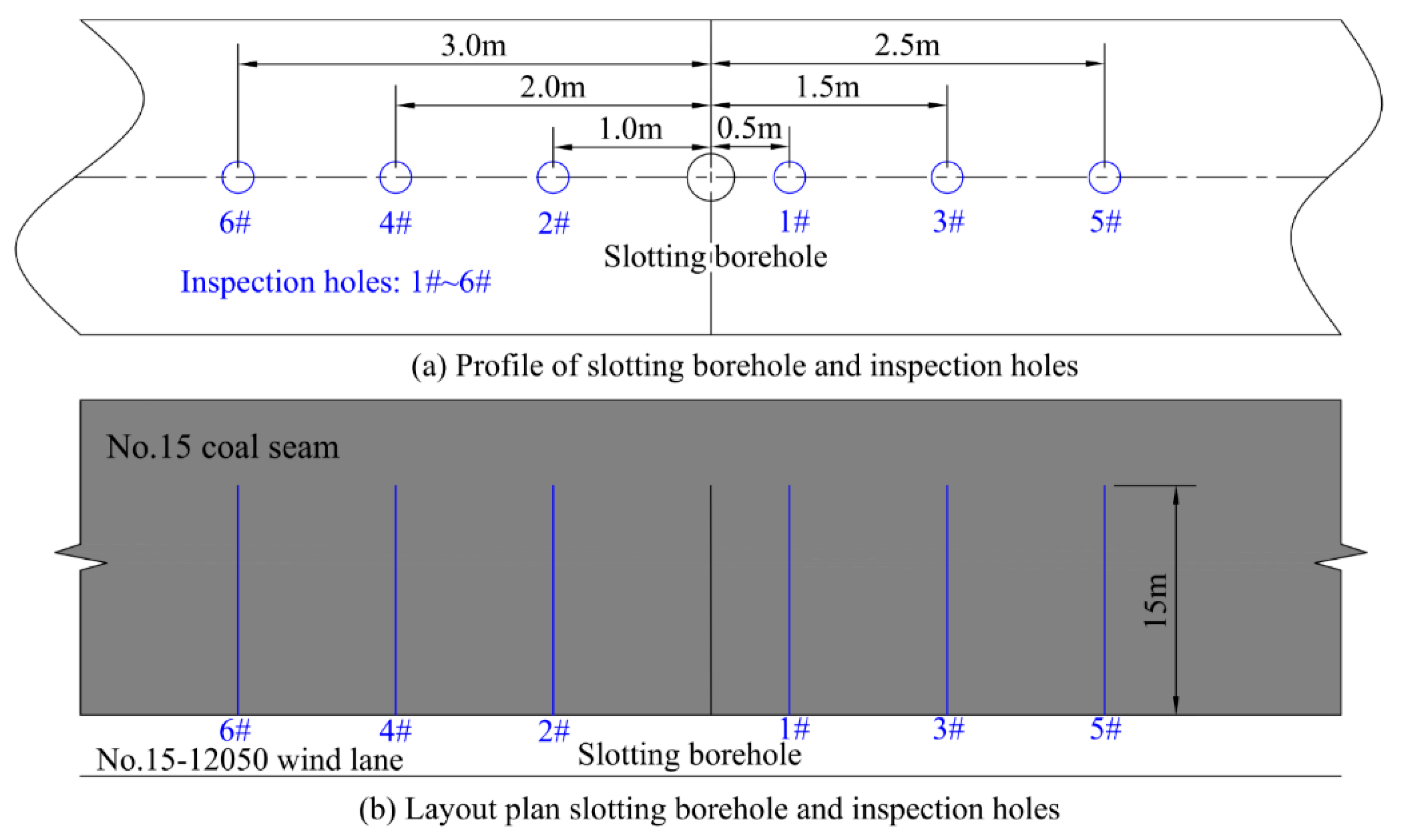

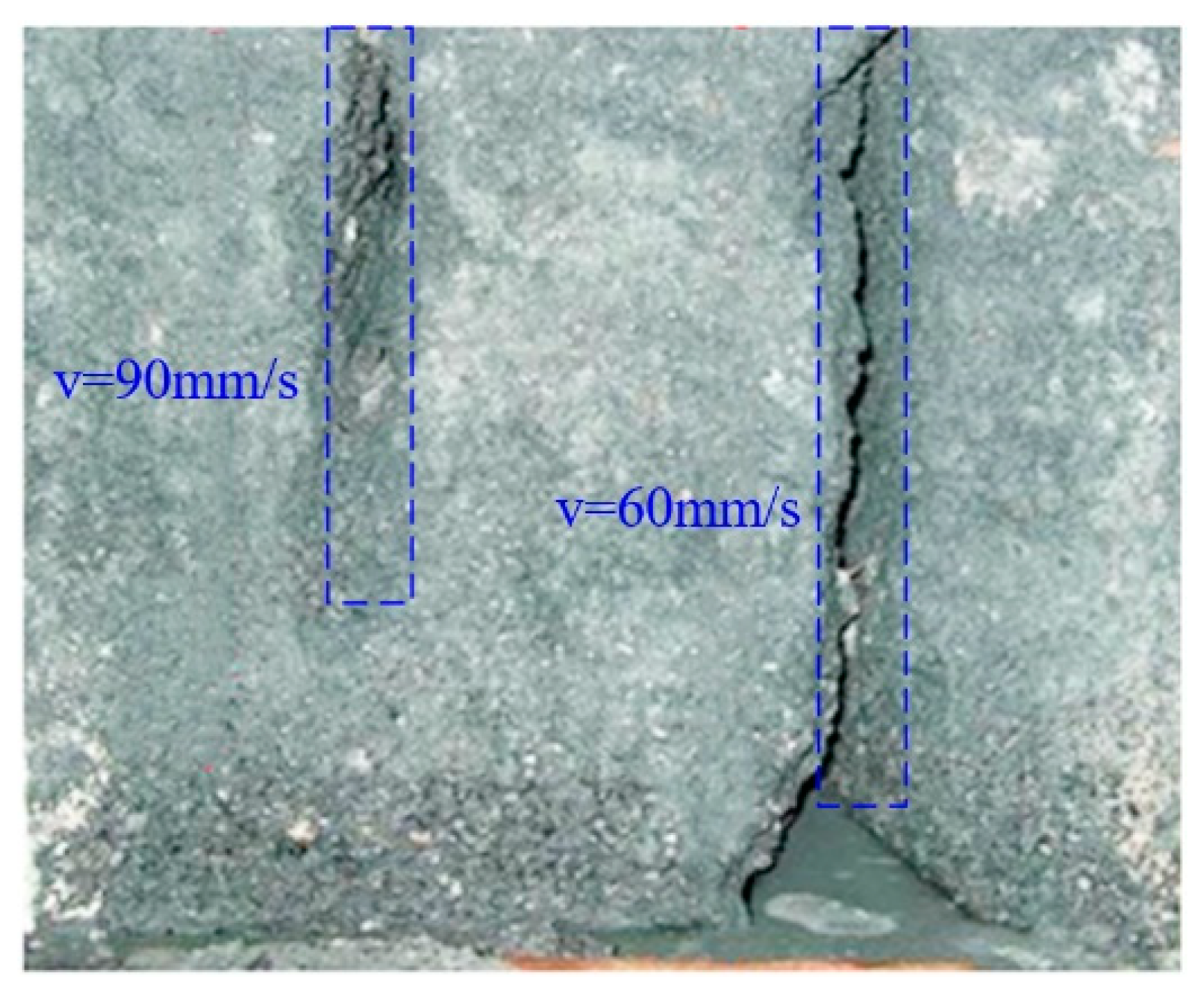

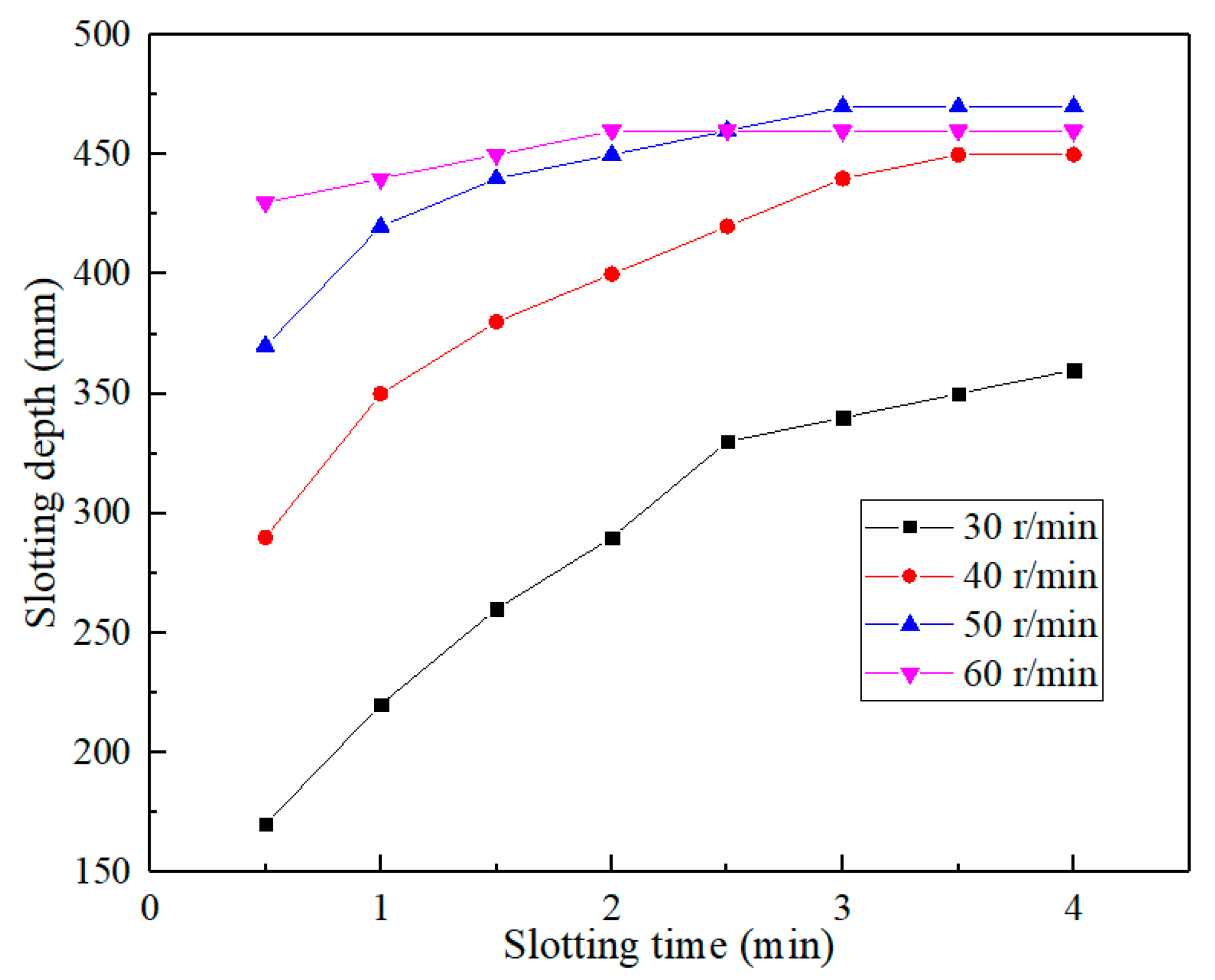

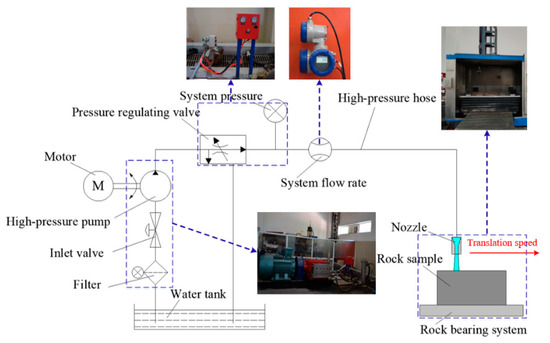

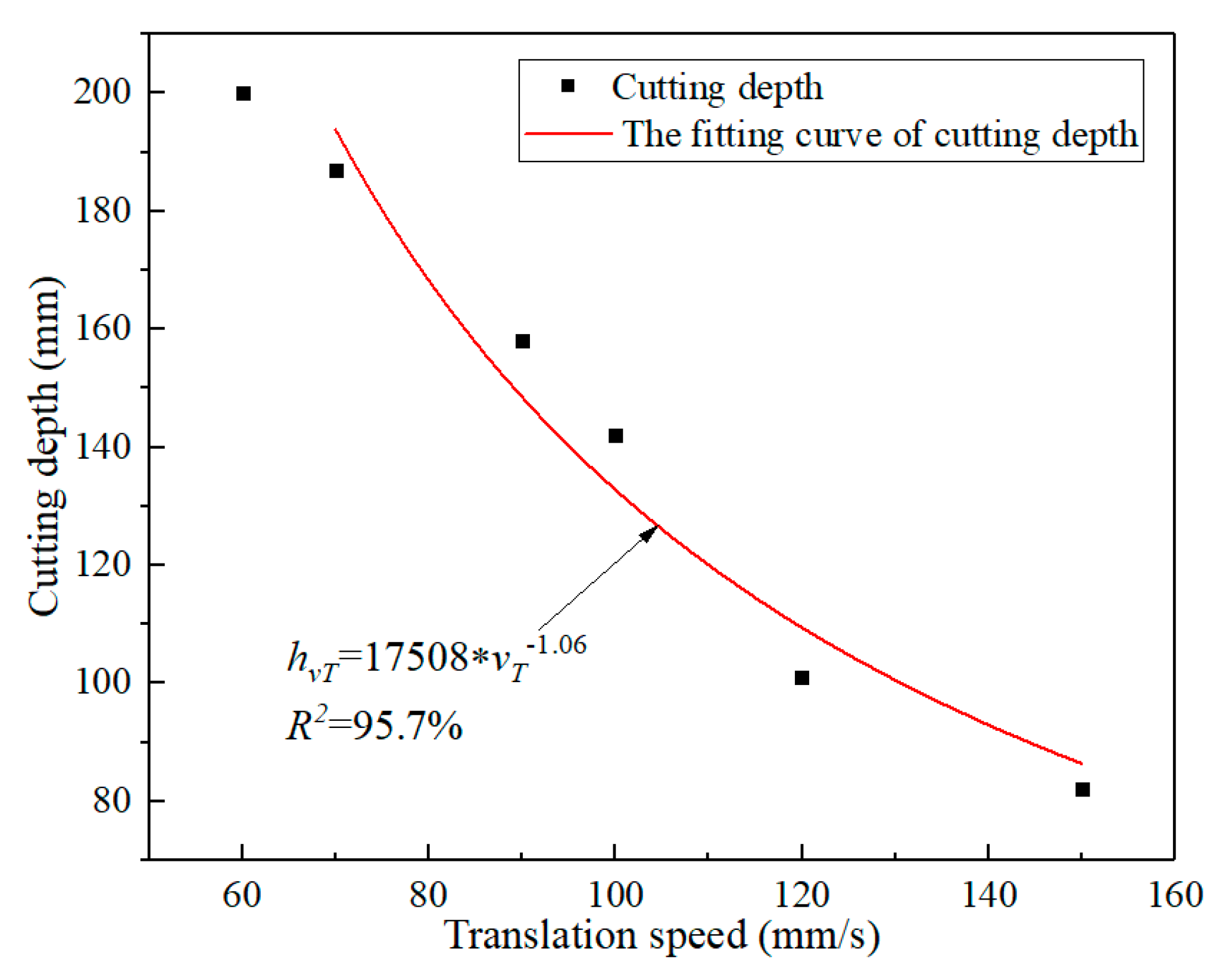

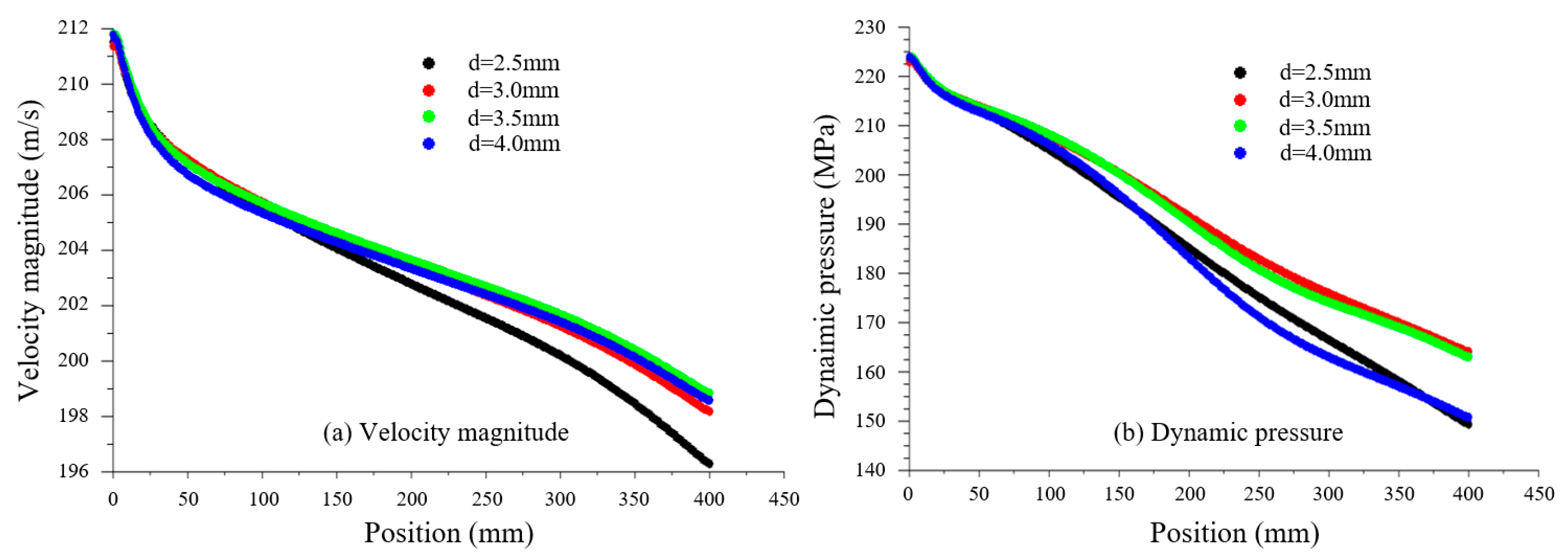

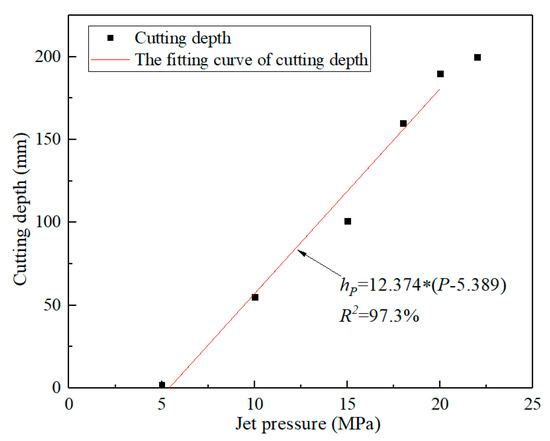

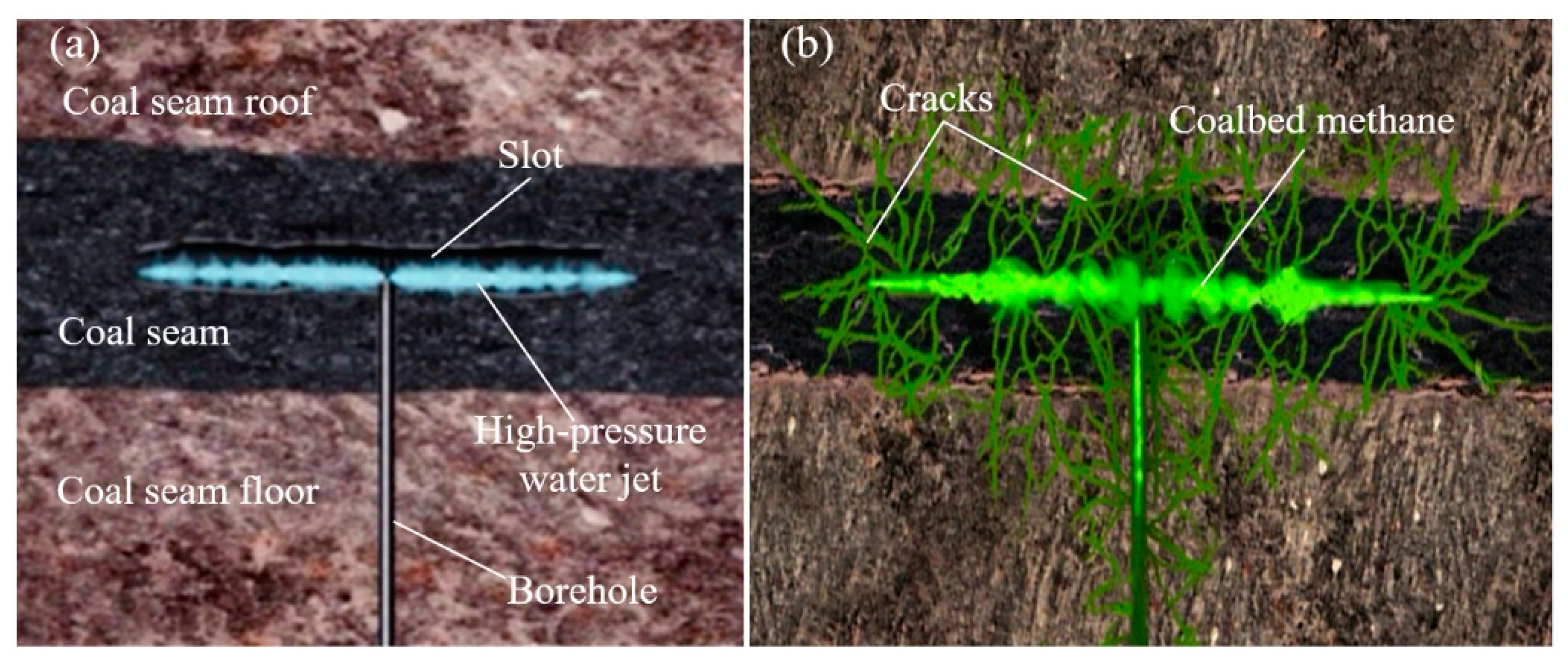

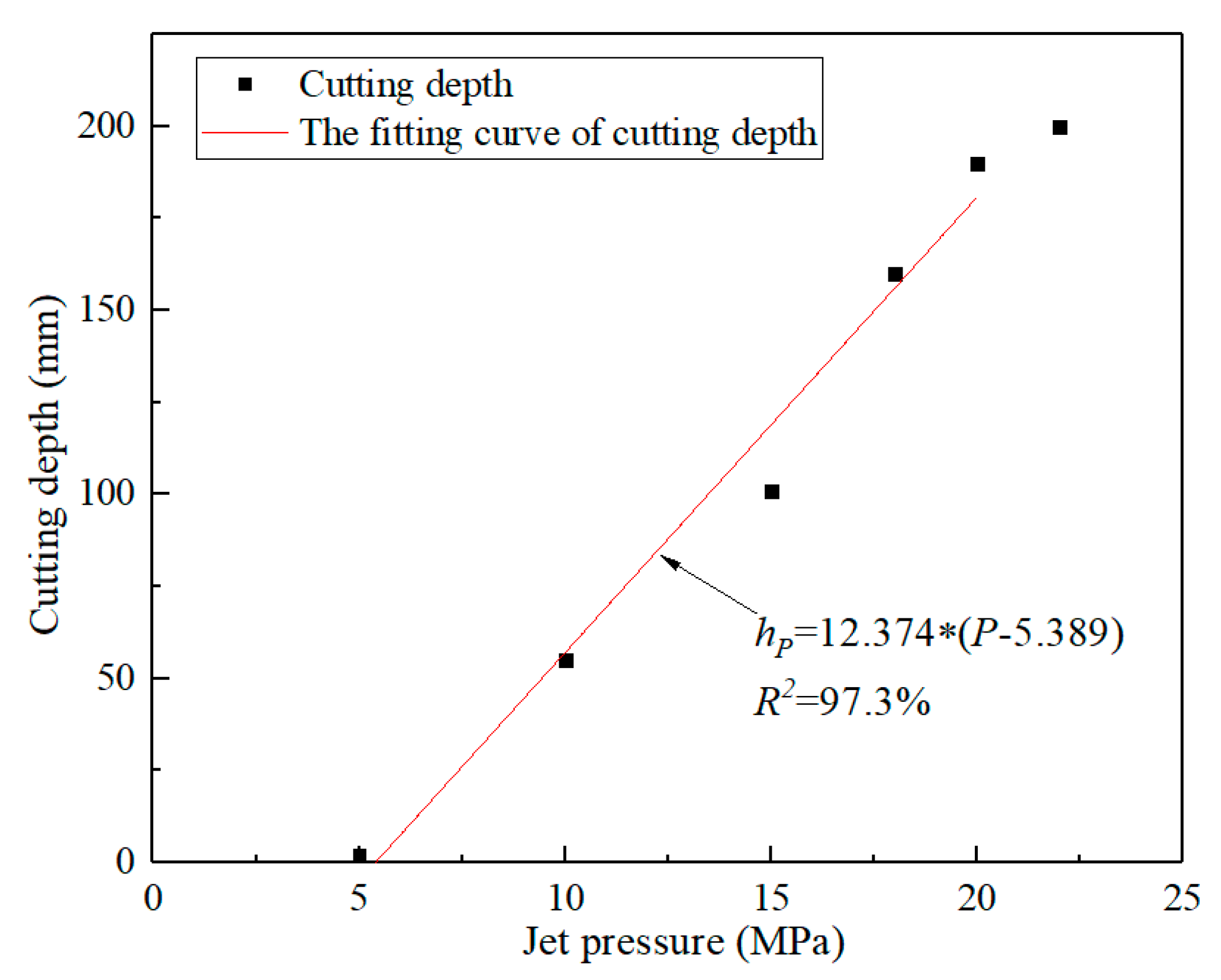

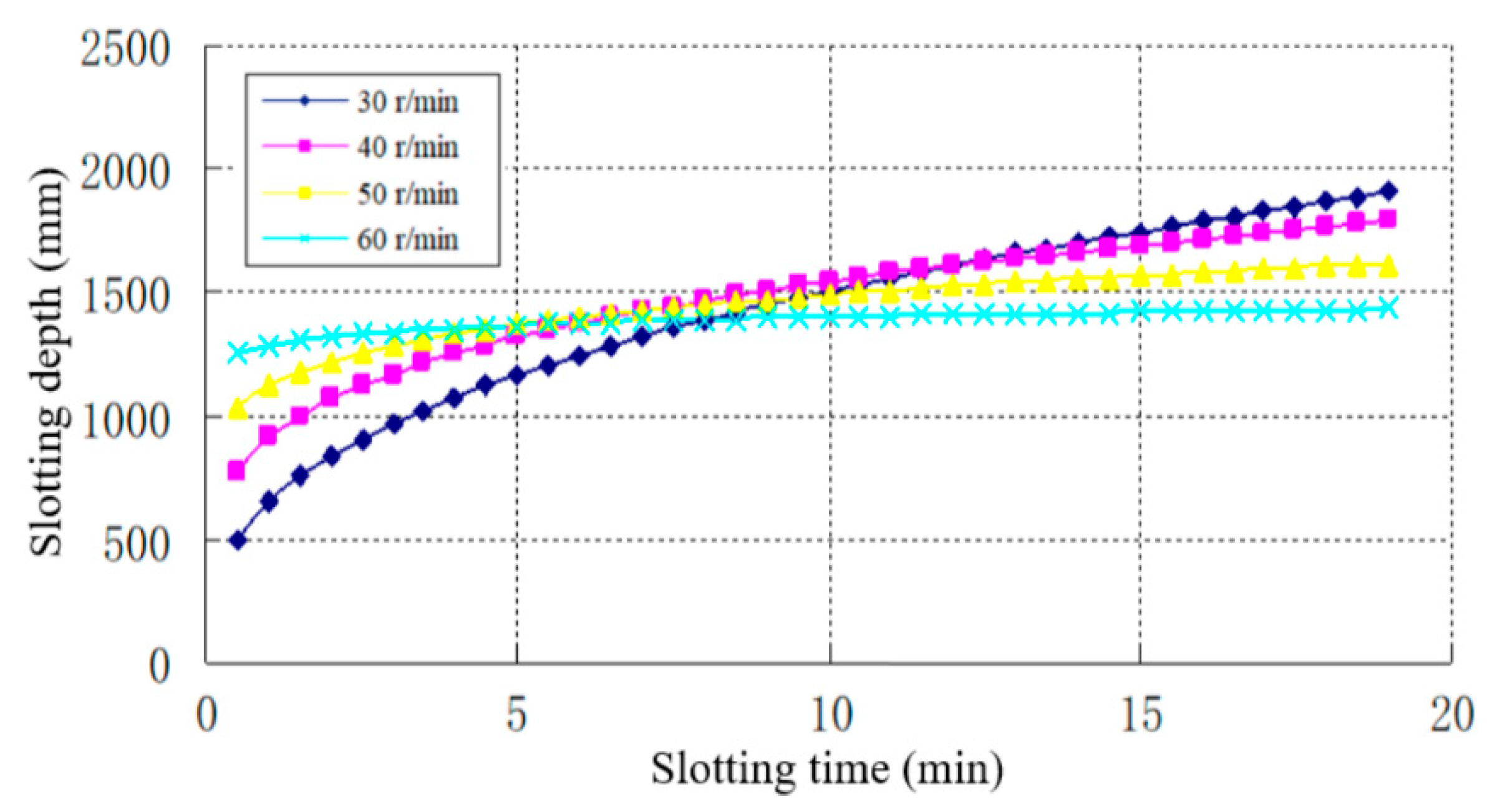

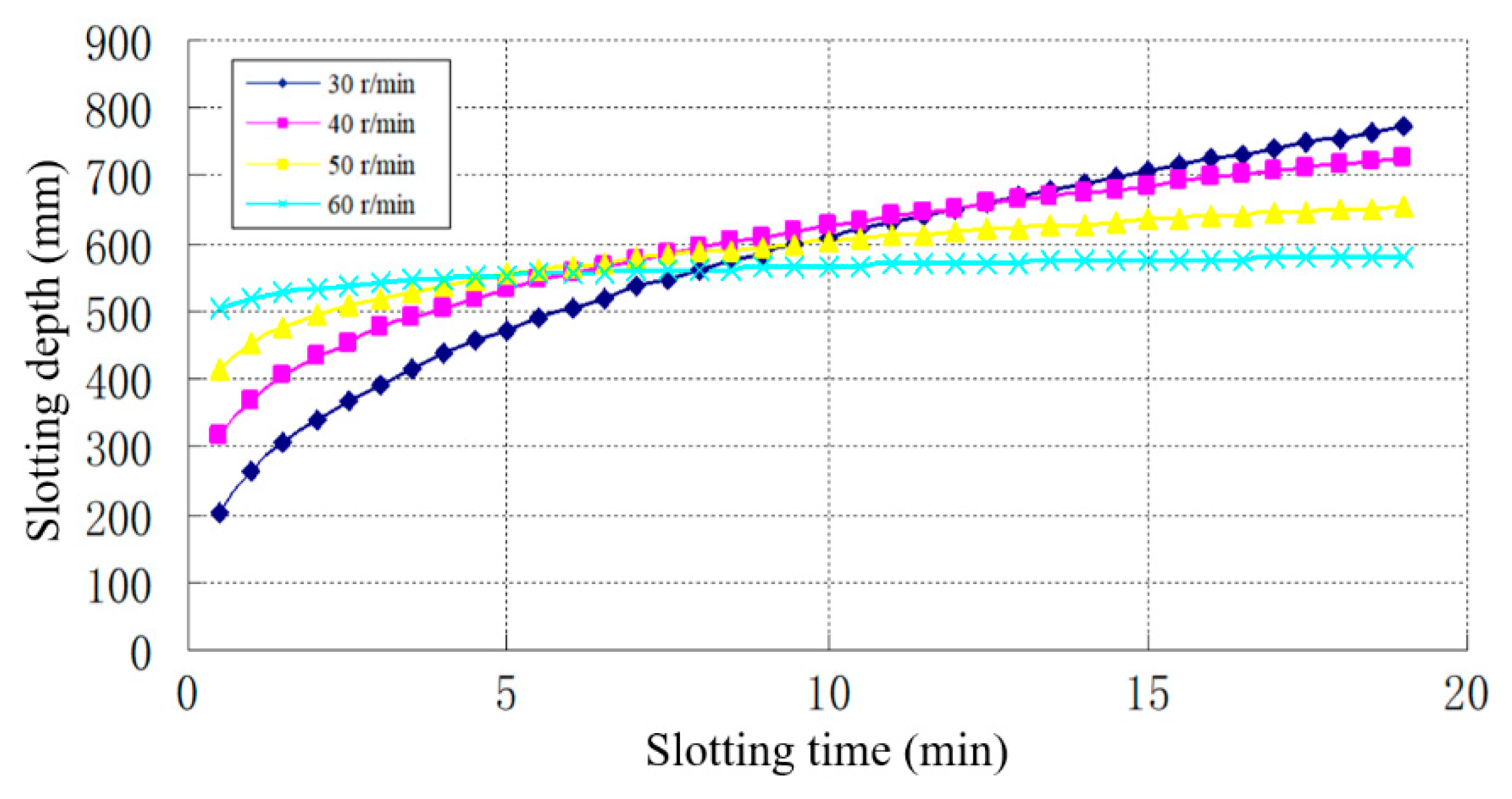

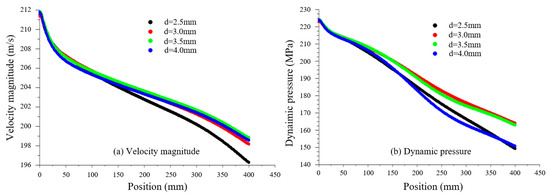

In underground coal mines, high-pressure water jet slotting is effective at improving coal seams’ permeability. The slotting depth determines the effect of pressure relief and permeability enhancement in coal seams. However, there is no effective and feasible way of determining the slotting depth; thus, the operational parameters and borehole layout are unknown. This study determined the effects of key parameters, including the nozzle diameter, jet pressure, rotation speed, and slotting time, on the slotting depth. A water jet slotting depth calculation model was established and verified according to the slotting experiments under different operational conditions. The slotting depths were investigated based on the results of field slotting experiments. The results revealed that there exists an optimal nozzle diameter for a higher jet impact velocity. The slotting depth linearly increased with the jet pressure and decreased as a power function with the increase of the jet translation speed. The slotting depth increased with the slotting time, but the growth rate gradually decreased and tended to be stable. As the rotation speed increased, the slotting depth became greater at the initial period and the limit depth was reached faster. Laboratory and field slotting experiments were conducted to verify the model, and the experimental results are approximately in agreement with the theoretical predictions. The results of this study can be useful as guidelines for the hydraulic parameter selection of water jet slotting and for optimizing the layout of coal gas drainage boreholes. View Full-Text
Keywords: gas drainage; water jet slotting; slotting depth; coal and gas outburst gas drainage; water jet slotting; slotting depth; coal and gas outburst
