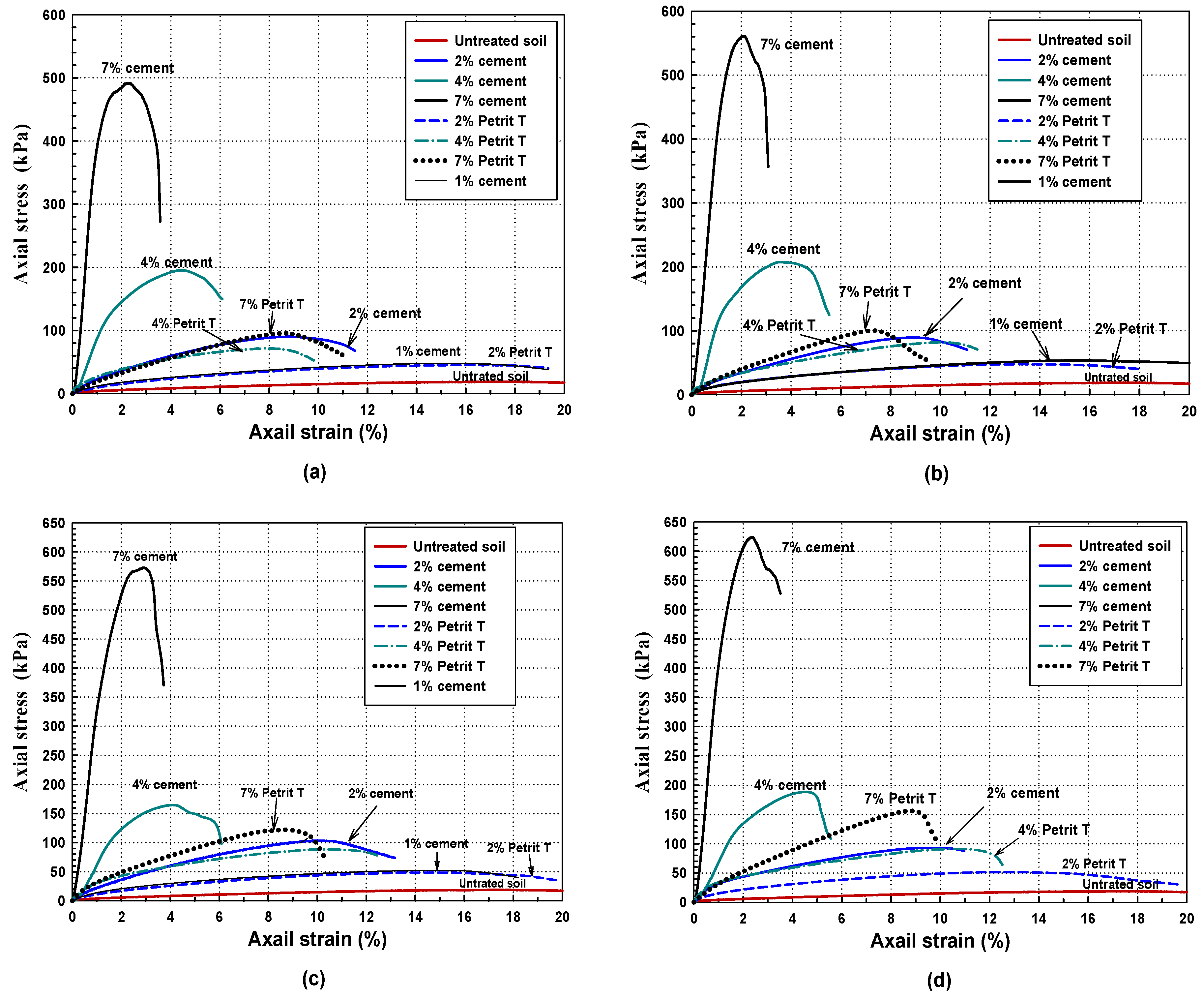

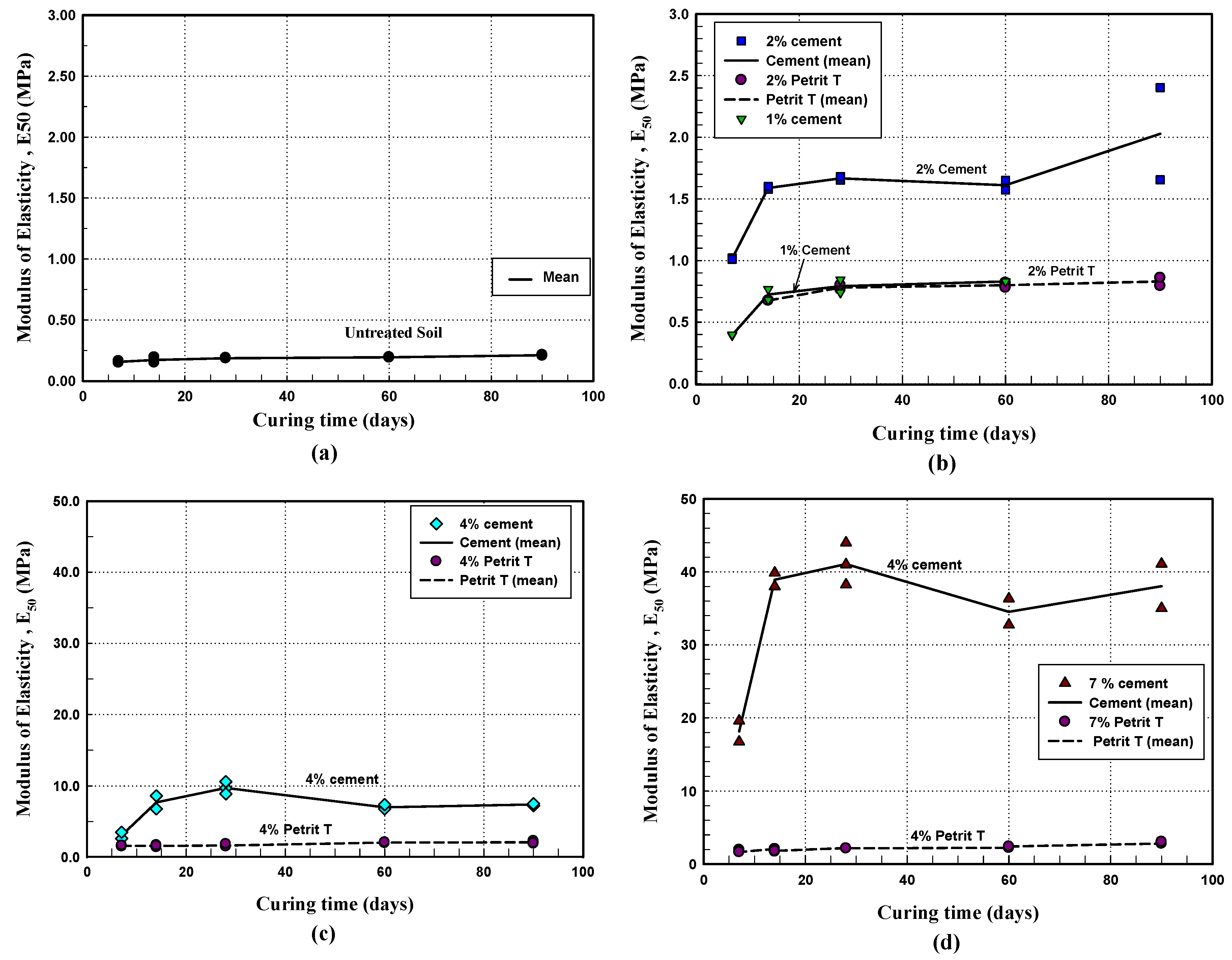

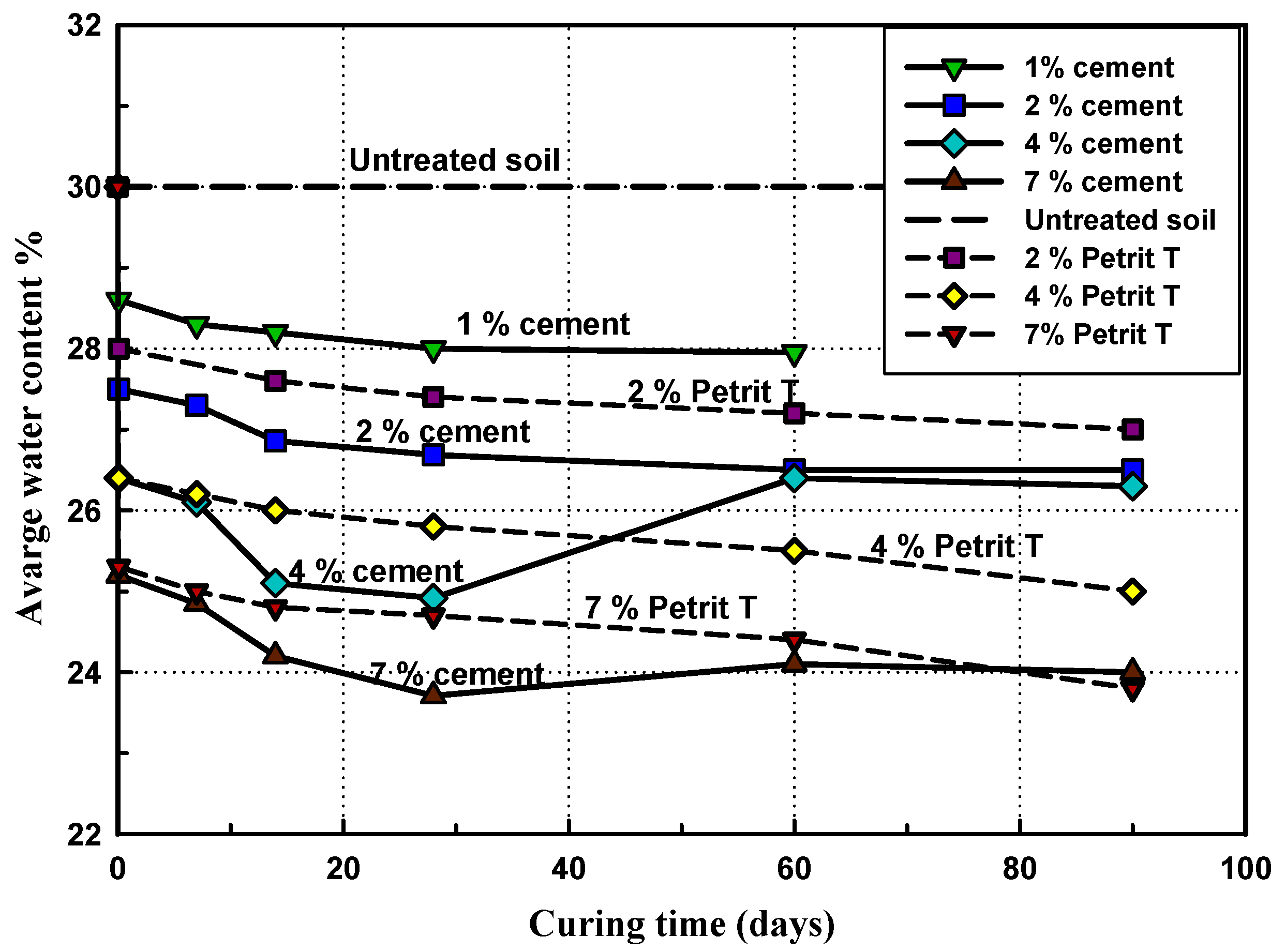

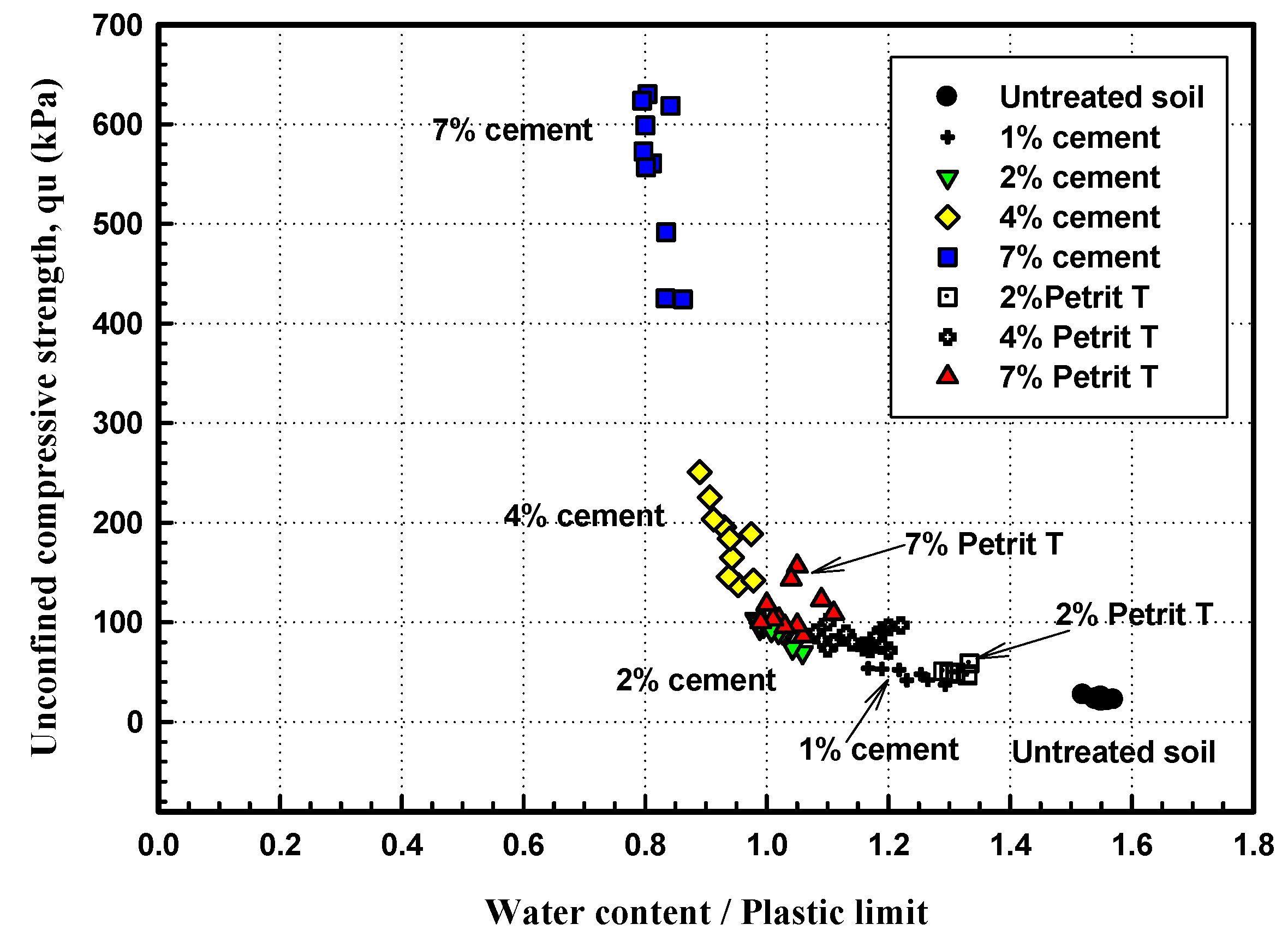

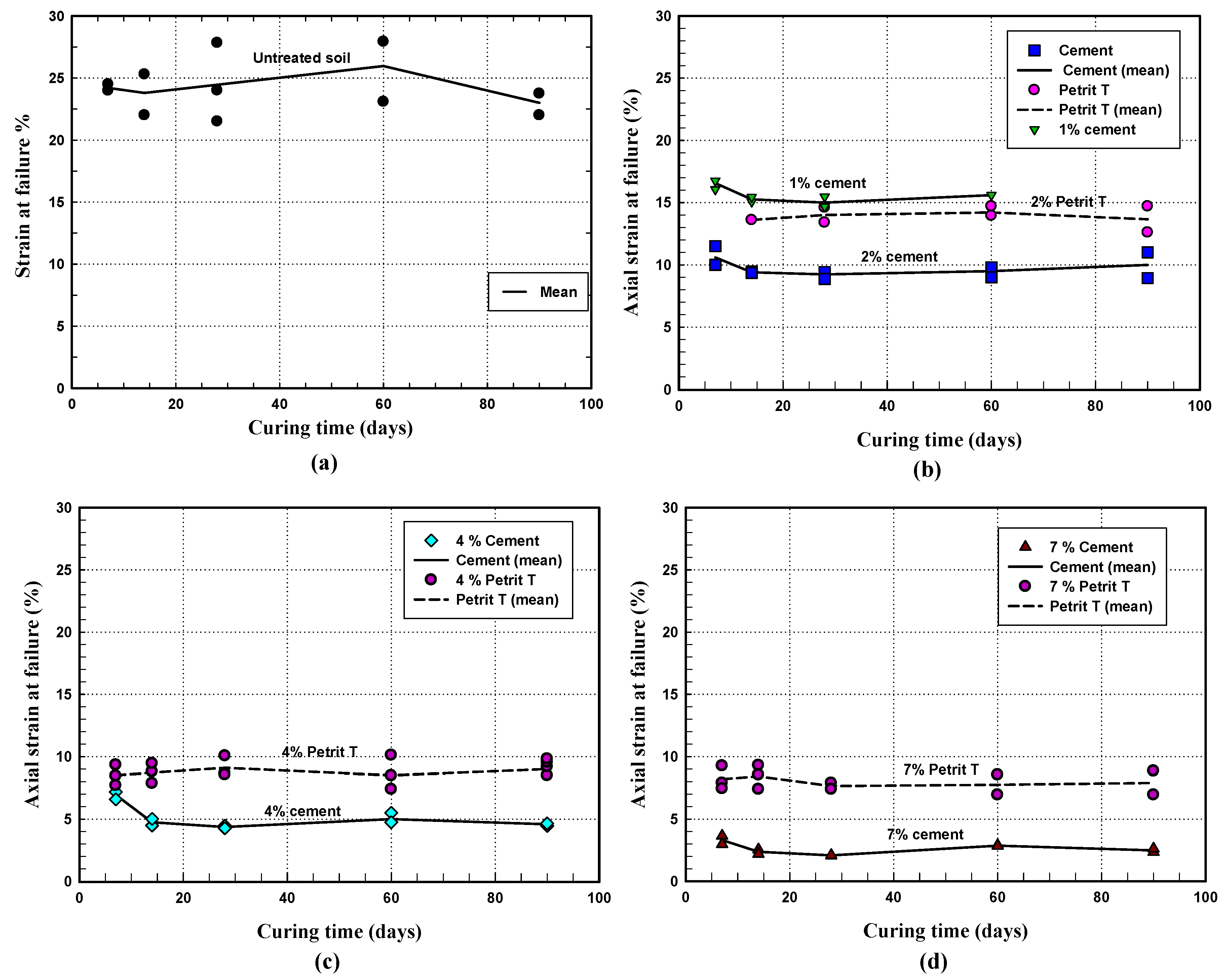

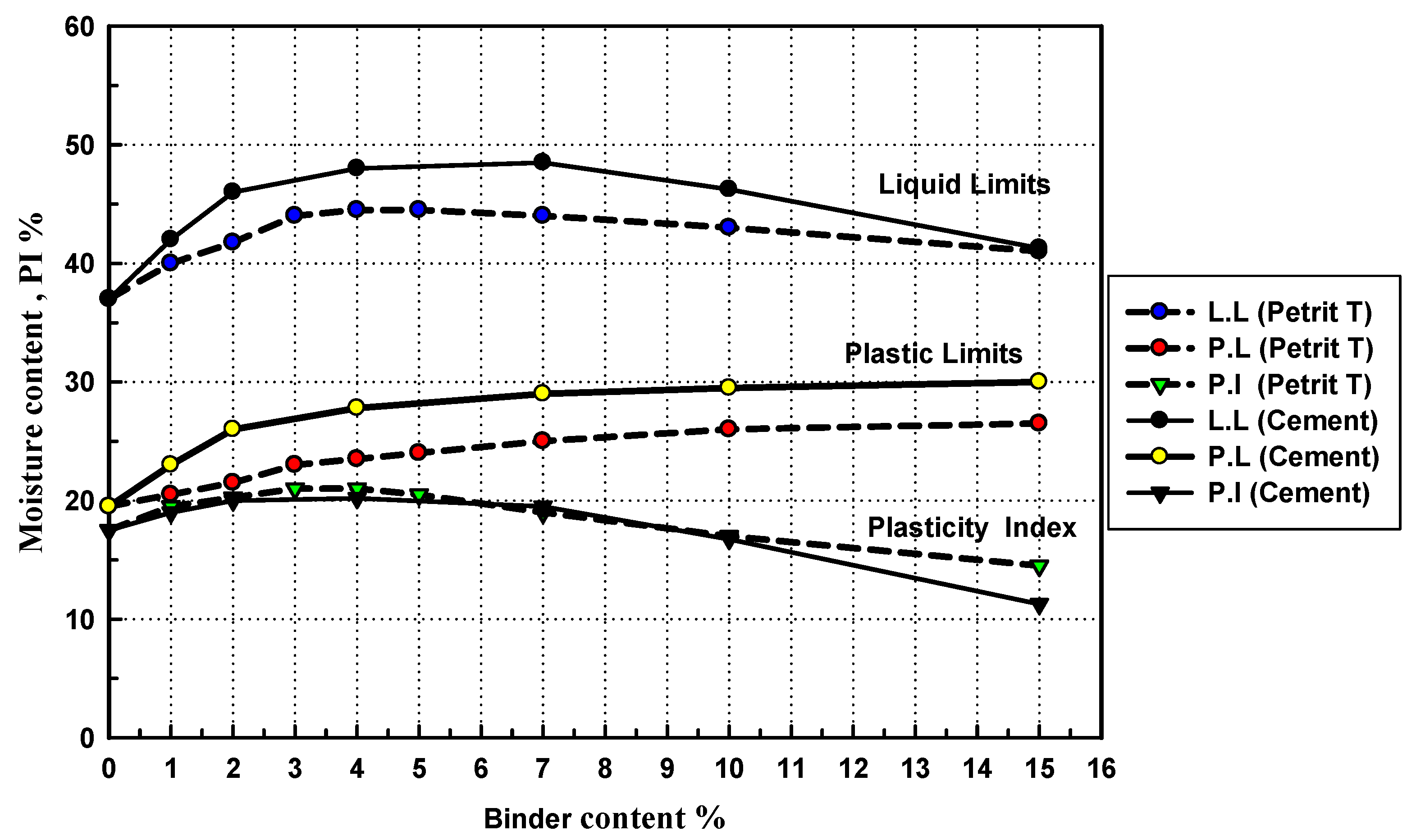

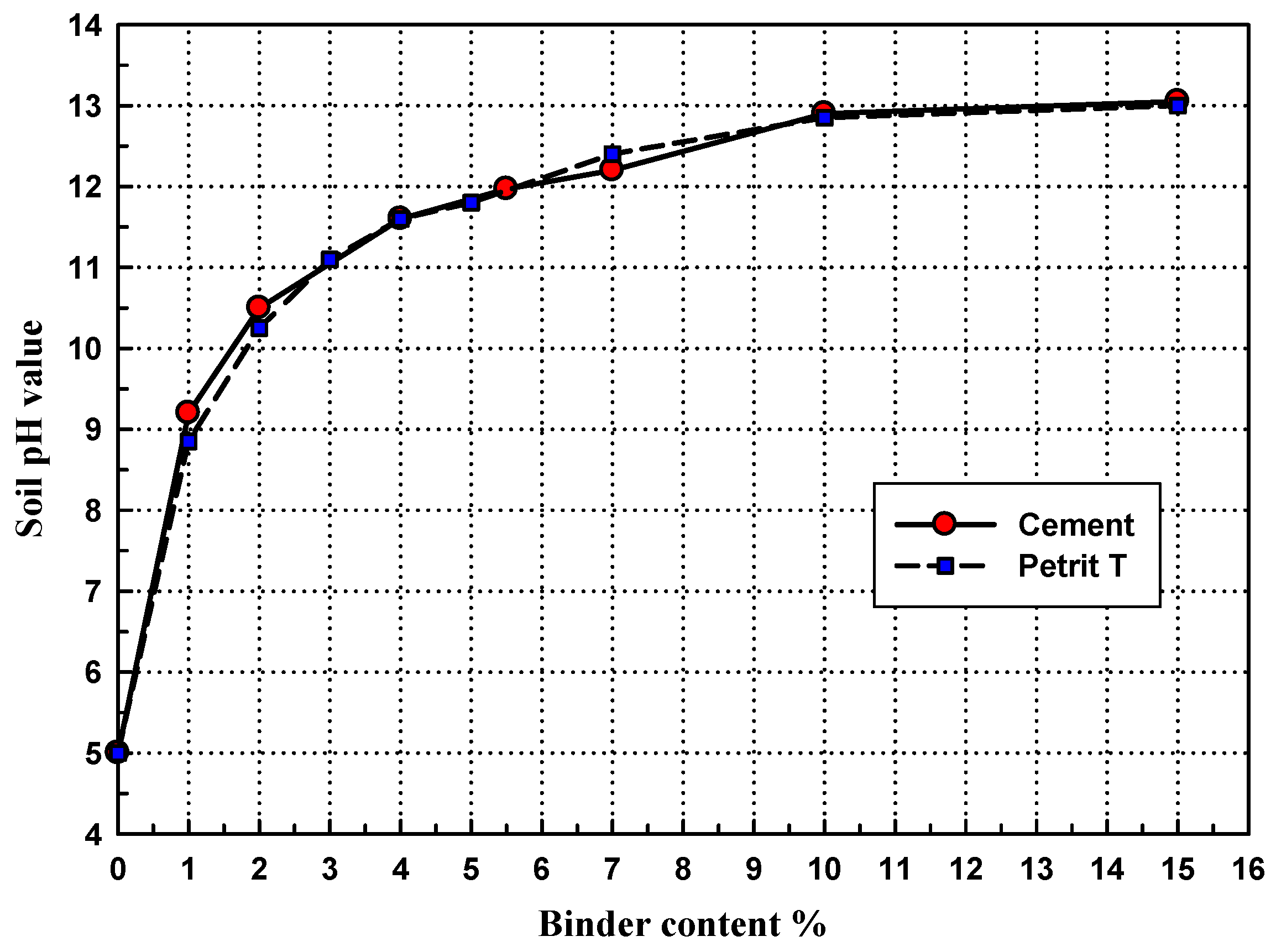

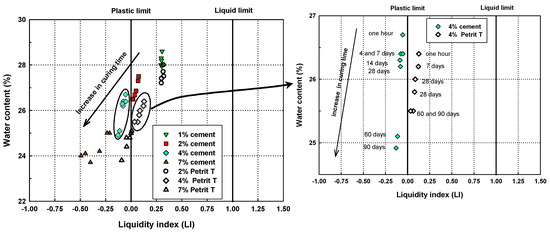

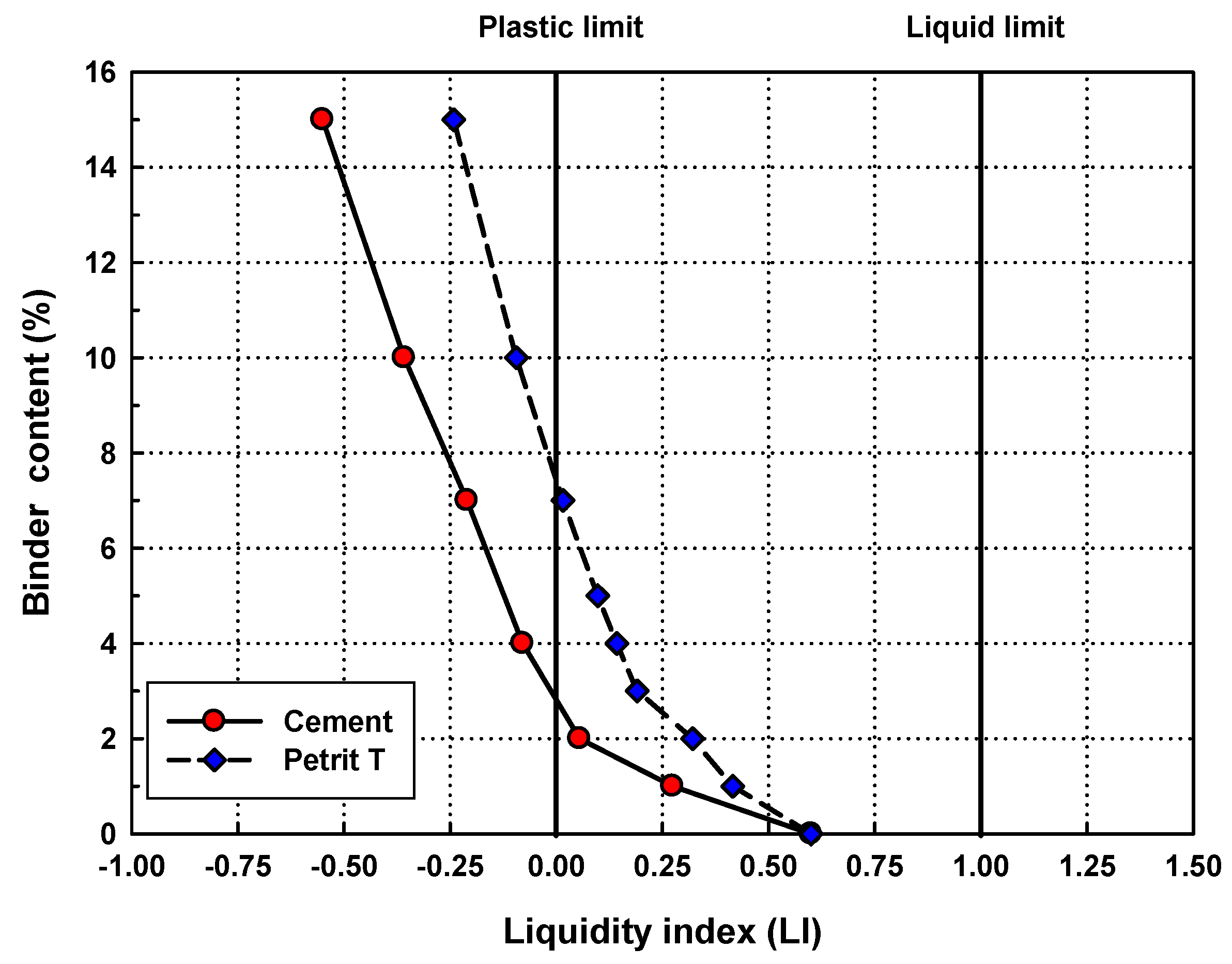

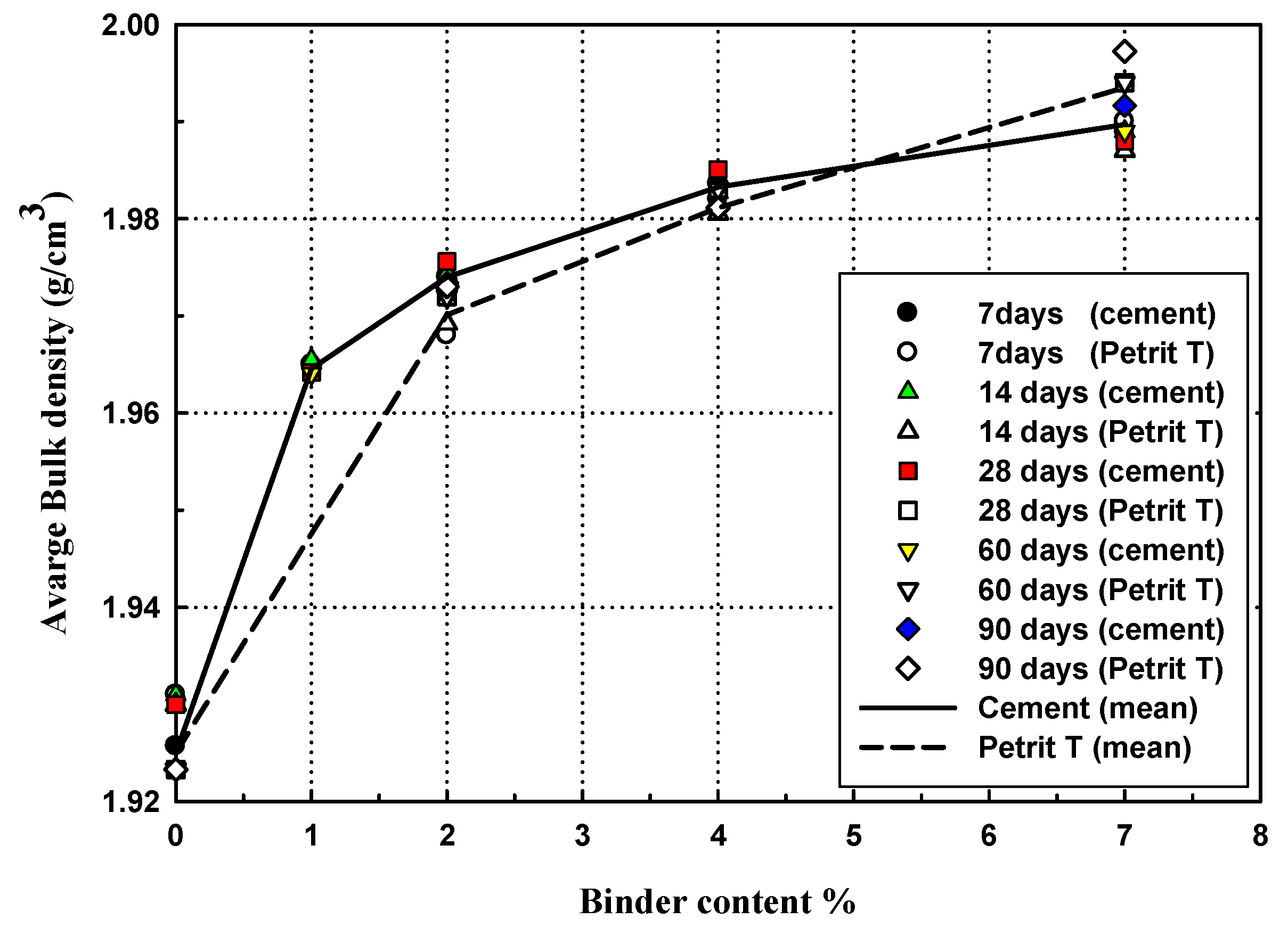

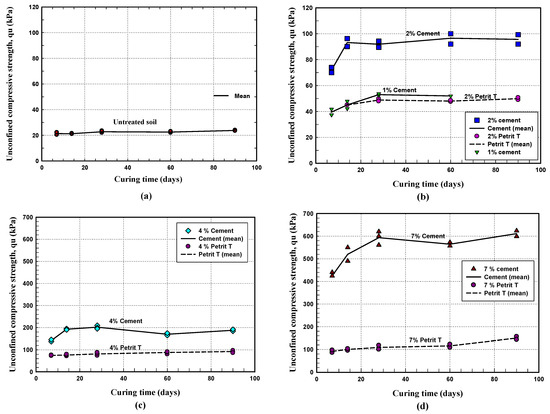

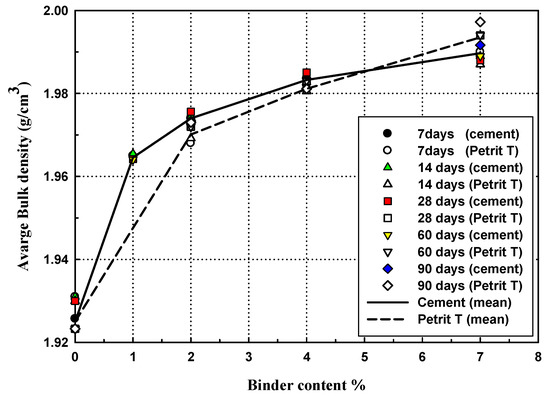

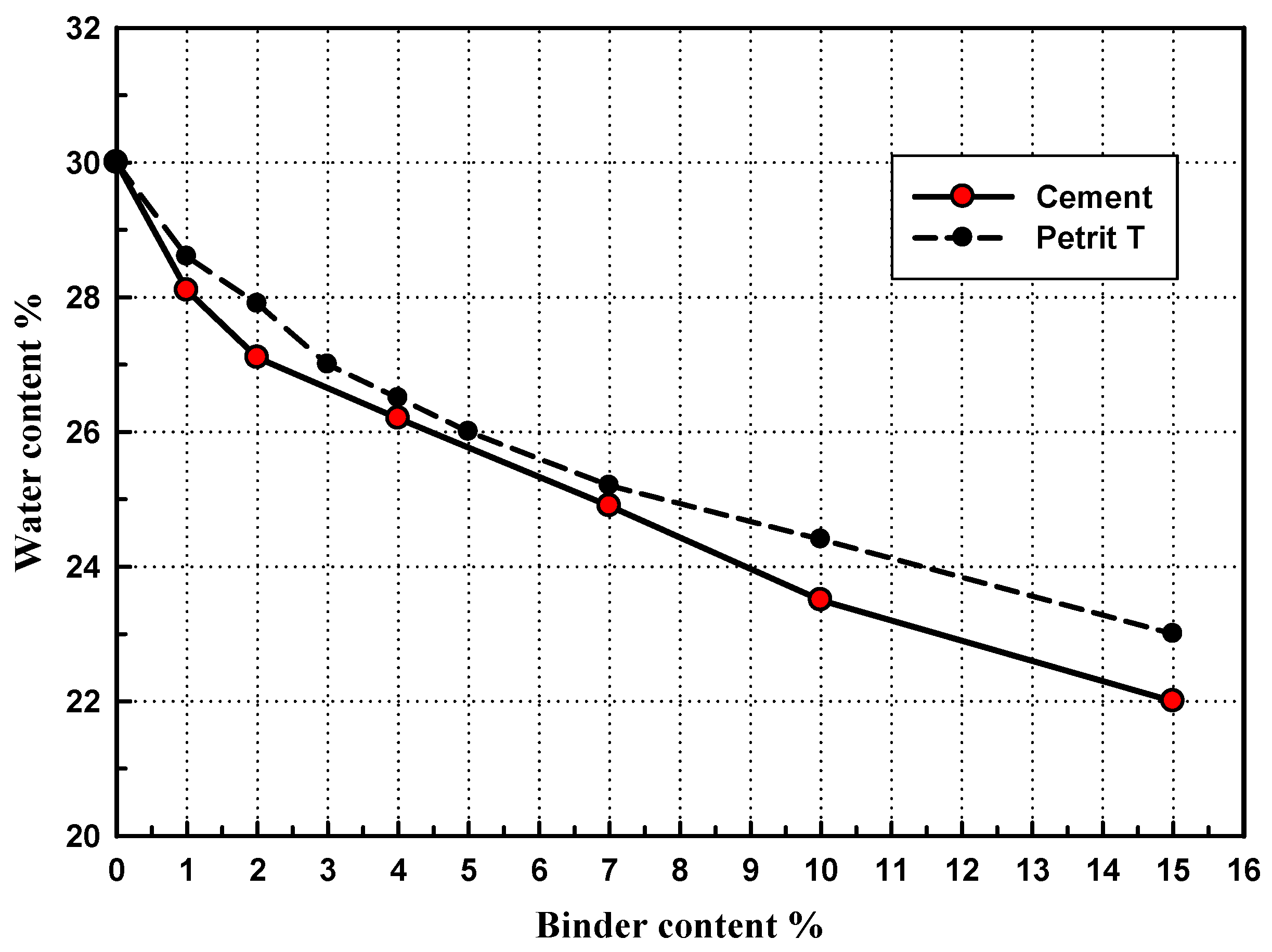

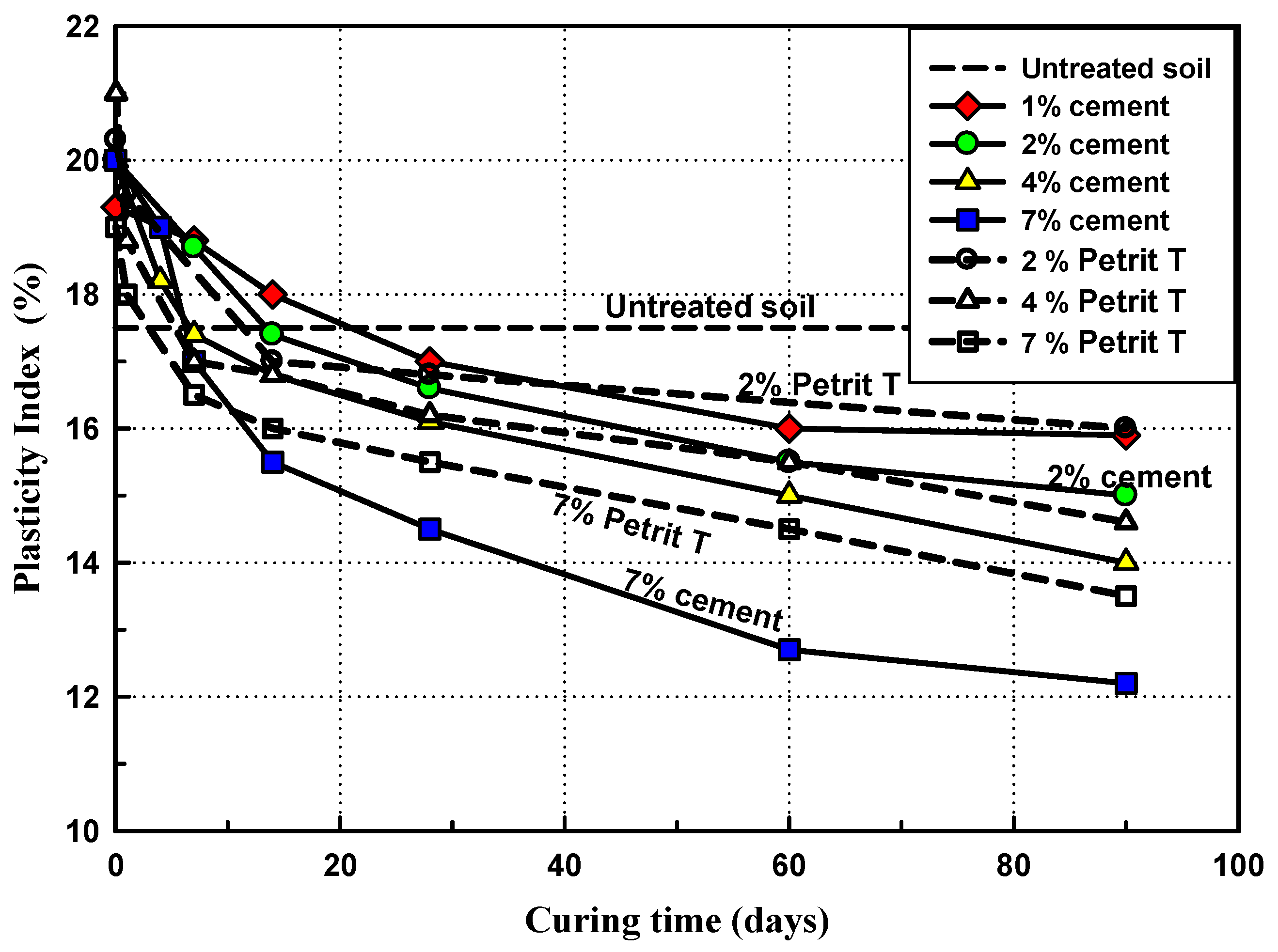

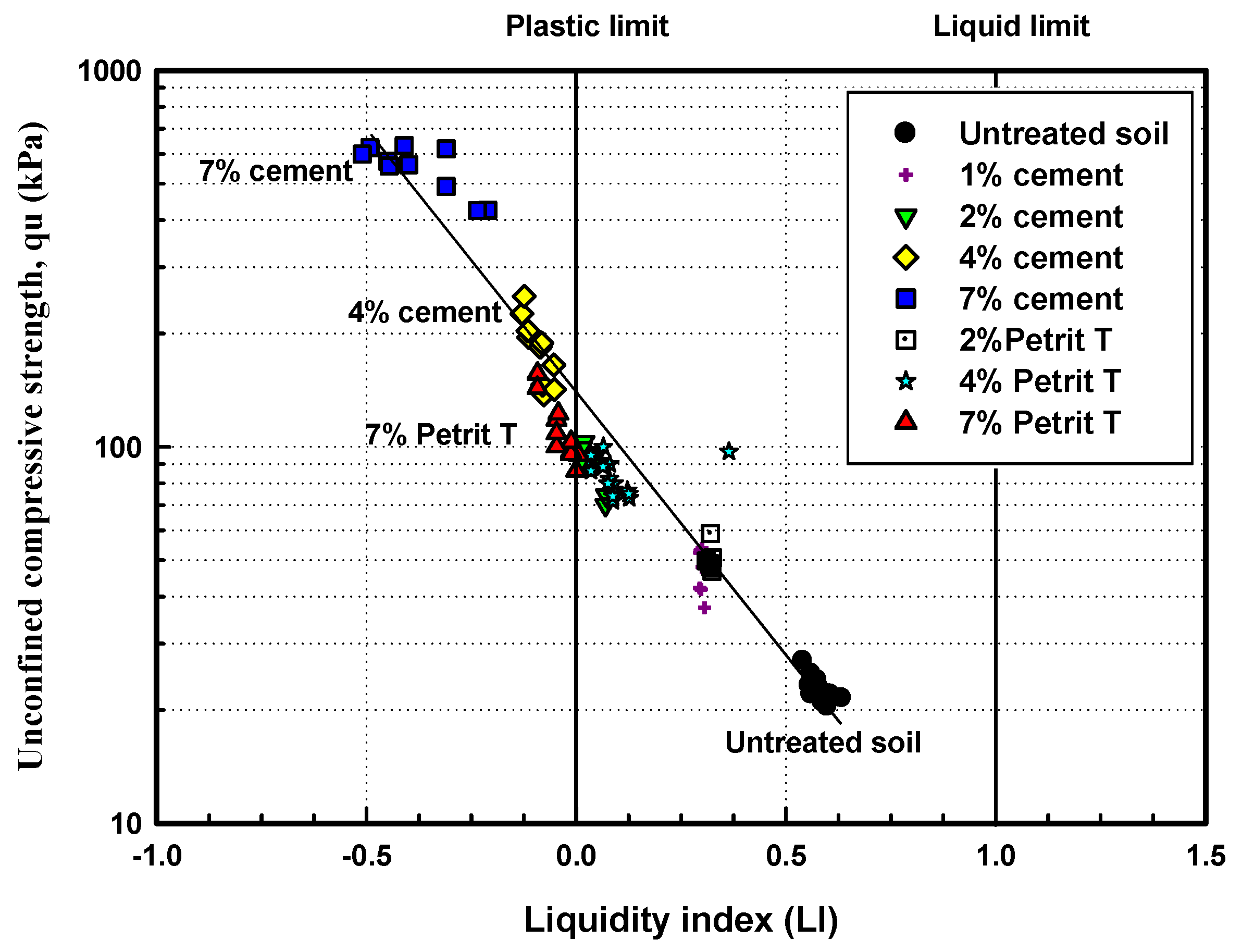

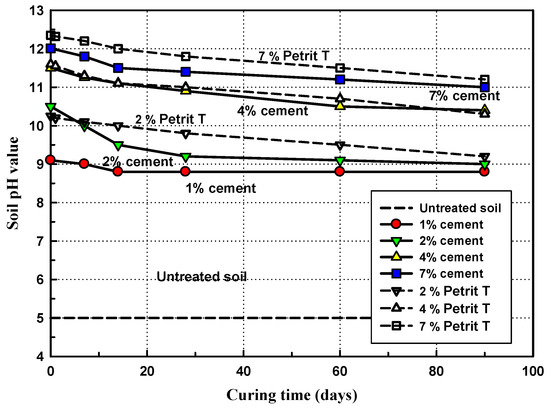

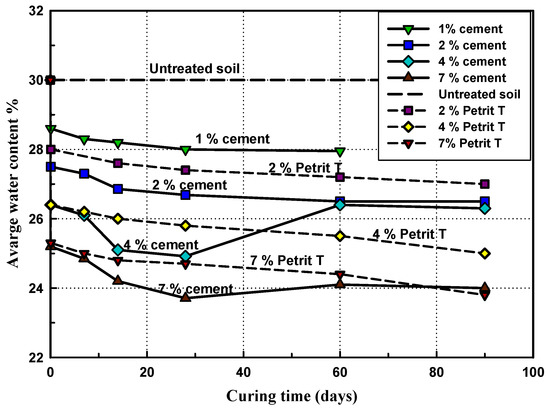

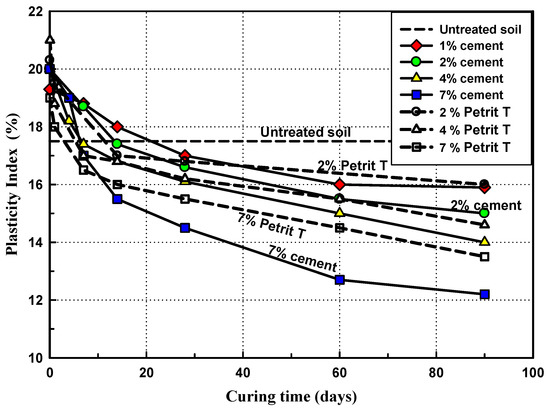

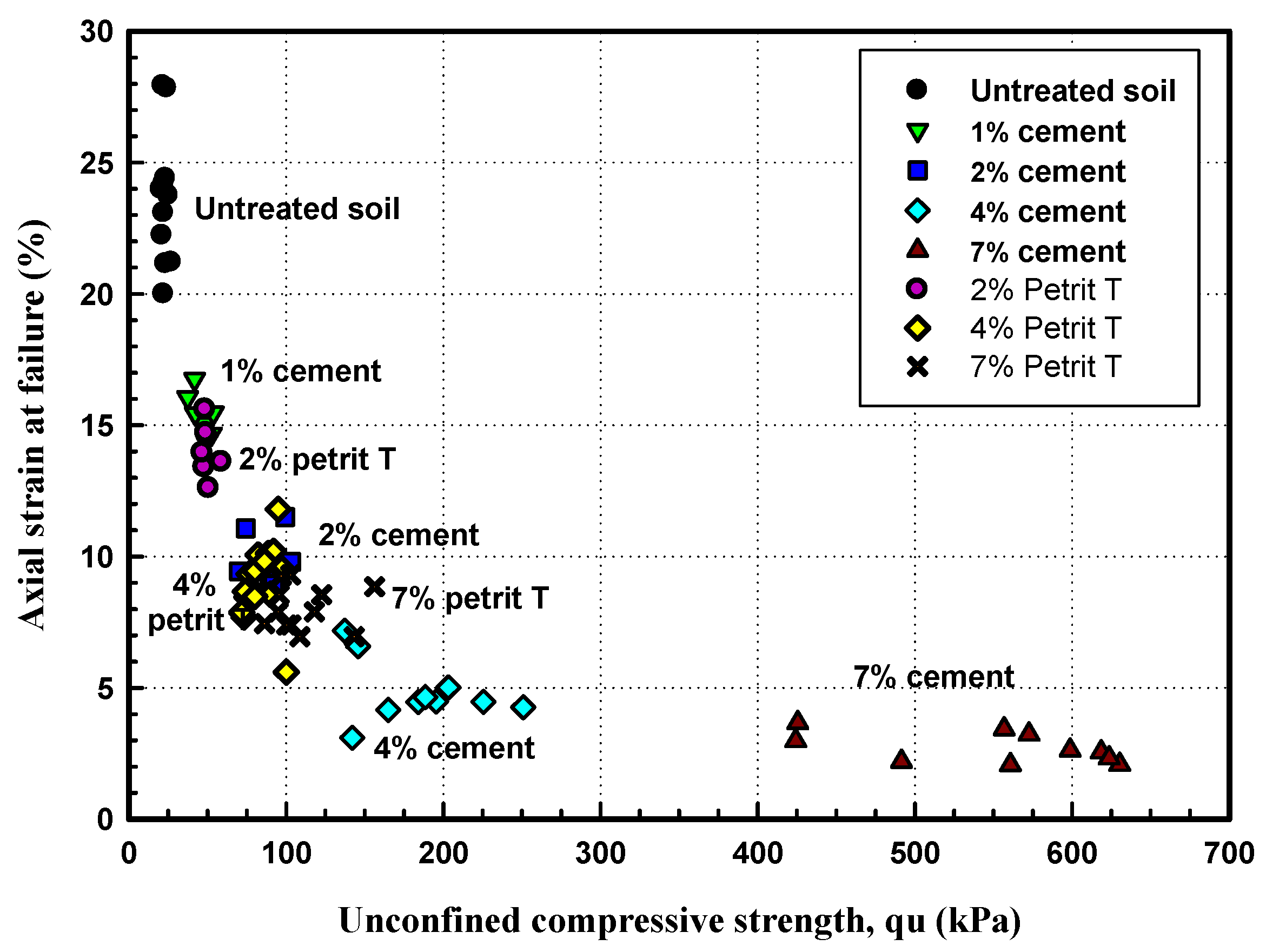

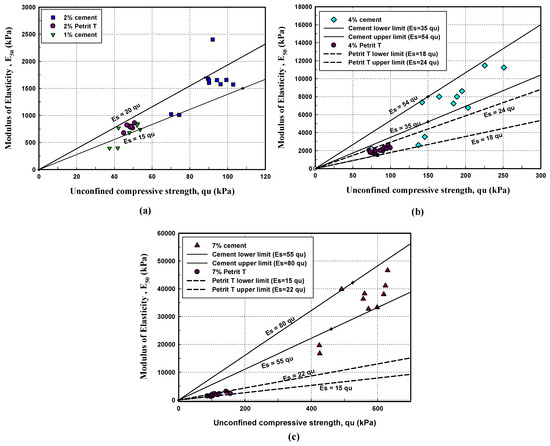

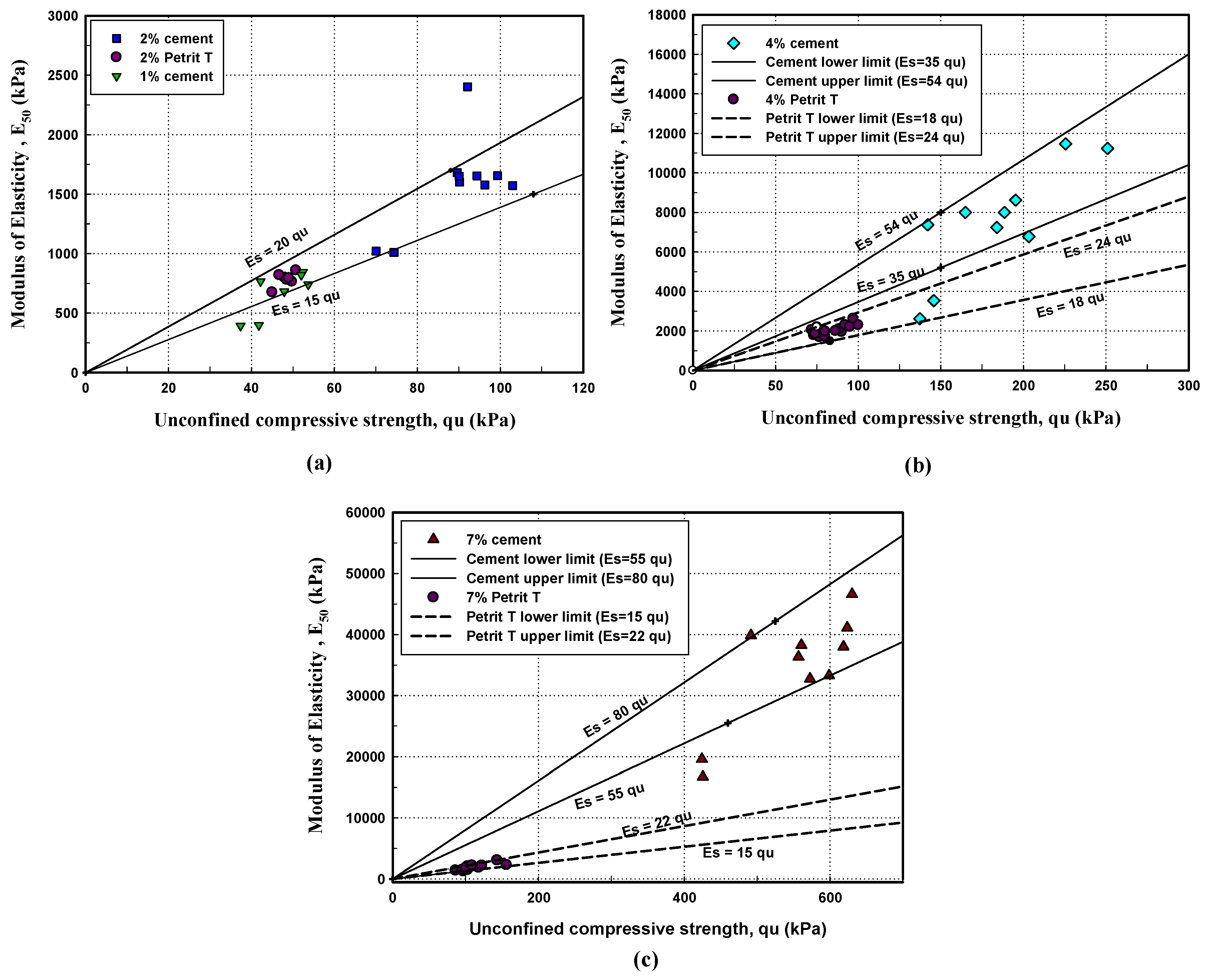

This study presents a comparison between the effectiveness of adding low binder amounts of industrial by-product Petrit T as well as cement to modify and improve fine-grained soil. Binder amount was added by soil dry weight; cement at 1%, 2%, 4% and 7% and Petrit T at 2%, 4% and 7%. The unconfined compressive strength (UCS) was used as an indicator of soil strength. In addition, the consistency limits, laser particle size analysis, and pH tests were also conducted on the treated soil. The samples were cured at 20 °C for different periods from 7 to 90 days before testing. Results indicate that cement is more effective at improving the physical and engineering properties of the treated soil. Soil plasticity index decreases after treatment and with time. Liquidity index and the water content to plastic limit ratio are introduced as new indices to define the improvement in the workability of treated soil. Soil particle size distribution is changed by reducing the clay size fraction and increasing the silt size fraction after treatment. The findings confirm that adding small binder contents improve soil properties, which subsequently reduce the environmental threats and costs that are associated with using a high amount of binder.
This is an open access article distributed under the Creative Commons Attribution License
which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited
