# A Correction Method for Heat Wave Distortion in Digital Image Correlation Measurements Based on Background-Oriented Schlieren

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Theoretical Background

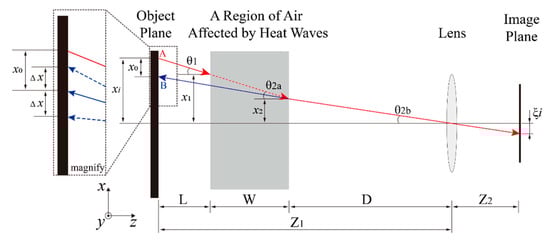

#### 2.1. The Principle of the Influence of Heat Waves on DIC Measurement

#### 2.2. Principle of Background-Oriented Schlieren

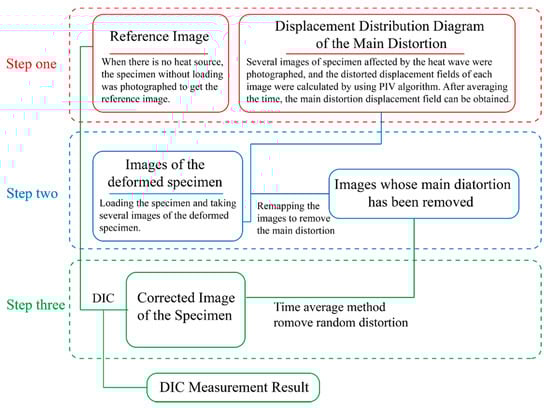

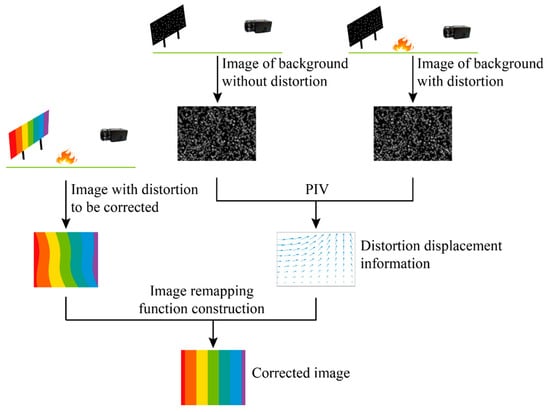

#### 2.3. Correlation Algorithm Flow

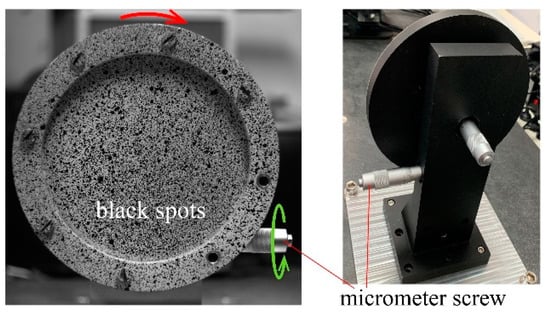

## 3. Experimental System

## 4. Experiments and Results

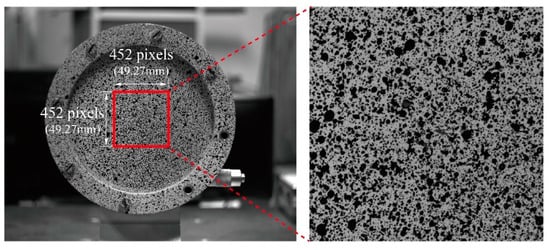

#### 4.1. Baseline Noise of the Experimental Setup

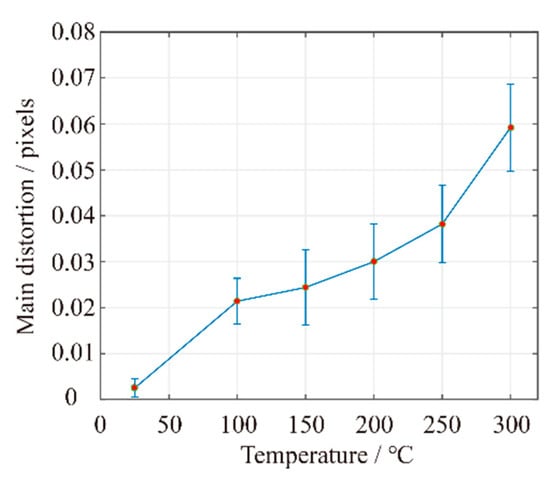

#### 4.2. Characteristics of Distortions due to Heat Waves

#### 4.3. Influence of Heat Waves on DIC Measurement Results

#### 4.4. Verification of the Correction Algorithm

## 5. Conclusions

- The distortion on the images caused by heat waves can be divided into the main distortion and a random distortion. In the experiments performed in this paper, the main distortion reached 0.05 pixels, and the most significant swing amplitude of the random distortion reached 0.2 pixels. The effect of this distortion on the measurement results of digital image correlation is not negligible.
- Spot patterns used in digital image correlation measurements can also be used in the background-oriented schlieren technique. The background schlieren method can be used to obtain the vector displacement fields of the main distortion caused by heat waves.
- The main distortion vector obtained by the background-oriented schlieren technique remap the deformed images to eliminate the main distortion. Then, the time-average method should be used to eliminate the random distortion. The experimental results showed that the proposed correction method can effectively remove the disturbance of heat waves and obtain high precision DIC measurement results.

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Zettergren, M.D.; Semeter, J.L.; Dahlgren, H. Dynamics of density cavities generated by frictional heating: Formation, distortion, and instability. Geophys. Res. Lett.
**2015**, 42, 10120–10125. [Google Scholar] [CrossRef] - Santos, A.C. High temperature modal analysis of a non-uniformly heated rectangular plate: Experiments and simulations. J. Sound. Vib.
**2019**, 443, 397–410. [Google Scholar] [CrossRef] - Devesse, W.; De Baere, D.; Guillaume, P. High Resolution Temperature Measurement of Liquid Stainless Steel Using Hyperspectral Imaging. Sensors
**2017**, 1, 91. [Google Scholar] [CrossRef] [PubMed] - Pan, B. Digital image correlation for surface deformation measurement: History developments, recent advances and future goals. Meas. Sci. Technol.
**2018**, 29, 082001. [Google Scholar] [CrossRef] - Yoneyama, S. Basic principle of digital image correlation for in-plane displacement and strain measurement. Adv. Compos. Mater.
**2016**, 25, 105–123. [Google Scholar] [CrossRef] - Hu, Y.J.; Jiang, C.; Liu, W.; Yu, Q.Q.; Zhou, Y.L. Degradation of the In-plane Shear Modulus of Structural BFRP Laminates Due to High Temperature. Sensors
**2018**, 10, 3361. [Google Scholar] [CrossRef] - Moazzami, M.; Ayatollahi, M.R.; Chamani, H.R. Determination of higher order stress terms in cracked Brazilian disc specimen under mode I loading using digital image correlation technique. Opt. Lasers. Eng.
**2018**, 107, 344–352. [Google Scholar] [CrossRef] - Rahmatabadi, D.; Shahmirzaloo, A.; Hashemi, R. Using digital image correlation for characterizing the elastic and plastic parameters of ultrafine-grained Al 1050 strips fabricated via accumulative roll bonding process. Mater. Res. Express
**2019**, 6, 086542. [Google Scholar] [CrossRef] - Sutton, M.A.; Hild, F. Recent advances and perspectives in digital image correlation. Exp. Mech.
**2015**, 55, 1–8. [Google Scholar] [CrossRef] - Smrkic, M.F.; Koscak, J.; Damjanovic, D. Application of 2D digital image correlation for displacement and crack width measurement on RC elements. Građevinar
**2018**, 70, 771–781. [Google Scholar] - Novak, M.D.; Zok, F.W. High-temperature materials testing with full-field strain measurement: Experimental design and practice. Rev. Sci. Instrum.
**2011**, 82, 115101. [Google Scholar] [CrossRef] [PubMed] - Jenner, F.; Walter, F.W. Application of high-speed video extensometry for high-temperature tensile characterization of boron heat-treated steels. J. Strain. Anal. Eng. Des.
**2014**, 49, 378–387. [Google Scholar] [CrossRef] - Chen, L.; Wang, Y.H.; Dan, X.Z. Experimental research of digital image correlation system in high temperature test. In Proceedings of the 7th International Symposium on Precision Mechanical Measurements, Xiamen, China, 7–12 August 2015. [Google Scholar]
- Bao, S.; Wang, Y.H.; Liu, L. An error elimination method for high-temperature digital image correlation using color speckle and camera. Opt. Lasers. Eng.
**2019**, 116, 47–54. [Google Scholar] [CrossRef] - Dong, Y.; Pan, B. In-situ 3D shape and recession measurements of ablative materials in an arc-heated wind tunnel by stereo-digital image correlation. Opt. Lasers. Eng.
**2019**, 116, 75–81. [Google Scholar] [CrossRef] - Song, J.; Yang, J.; Liu, F. High temperature strain measurement method by combining digital image correlation of laser speckle and improved RANSAC smoothing algorithm. Opt. Lasers. Eng.
**2018**, 111, 8–18. [Google Scholar] [CrossRef] - Zhang, M.; Miao, H.; Xiong, C. On the correction method for distortion caused by heat flow in high temperature deformation measurement. J. Exp. Mech.
**2017**, 32, 718–724. [Google Scholar] - Hu, Y.; Bao, S.; Dan, X. Improvement of high-temperature deformation measurement accuracy based on image restoration method. Meas. Sci. Technol.
**2018**, 29, 094002. [Google Scholar] [CrossRef] - Hao, W.F.; Zhu, J.G.; Zhu, Q. Displacement field denoising for high-temperature digital image correlation using principal component analysis. Mech. Adv. Mater. Struc.
**2016**, 24, 830–839. [Google Scholar] [CrossRef] - Su, Y.Q.; Yao, X.F.; Wang, S. Improvement on measurement accuracy of high-temperature DIC by grayscale-average technique. Opt. Lasers. Eng.
**2015**, 75, 10–16. [Google Scholar] [CrossRef] - Raffel, M. Background-oriented schlieren (BOS) techniques. Exp. Fluids.
**2015**, 56, 60. [Google Scholar] [CrossRef] [Green Version] - Born, M.; Wolf, E.; Bhatia, A.B. Principles of Optics: Electromagnetic Theory of Propagation, Interference and Diffraction of Light, 7rd ed.; Cambridge University Press: Cambridge, UK, 2016; pp. 99–117. [Google Scholar]
- Iizuka, K. Engineering Optics, 3rd ed.; Springer: Berlin, Germany, 2008; pp. 235–290. [Google Scholar]
- Ciddor, P.E. Refractive index of air: New equations for the visible and near infrared. Appl. Optics.
**1996**, 35, 1566–1573. [Google Scholar] [CrossRef] [PubMed] - Meier, G.E.A. Computerized background-oriented schlieren. Exp. Fluids.
**2002**, 33, 181–187. [Google Scholar] [CrossRef] - Verso, L.; Liberzon, A. Background oriented schlieren in a density stratified fluid. Rev. Sci. Instrum.
**2015**, 86, 103705. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Mizukaki, T.; Wakabayashi, K.; Matsumura, T. Background-oriented schlieren with natural background for quantitative visualization of open-air explosions. Shock Waves
**2014**, 24, 69–78. [Google Scholar] [CrossRef] - Tanda, G.; Foss, A.M.; Misale, M. Heat transfer measurements in water using a schlieren technique. Int. J. Heat. Mass. Tran.
**2014**, 71, 451–458. [Google Scholar] [CrossRef] - Blaber, J.; Adair, B.; Antoniou, A. Ncorr: Open-source 2D digital image correlation software. Exp. Mech.
**2015**, 55, 1105–1122. [Google Scholar] [CrossRef] - Jones, E.M.C.; Reu, P.L.; Antoniou, A. Distortion of digital image correlation (DIC) displacements and strains from heat waves. Exp. Mech.
**2018**, 58, 1133–1156. [Google Scholar] [CrossRef] - Sutton, M.A.; Orteu, J.J. Image Correlation for Shape, Motion and Deformation Measurement: Basic Concepts, Theory and Applications; Springer: New York, NY, USA, 2009. [Google Scholar]
- Schreier, H.W.; Braasch, J.R.; Sutton, M.A. Systematic errors in digital image correlation caused by intensity interpolation. Opt. Eng.
**2000**, 39, 2915–2921. [Google Scholar] [CrossRef] - Baldi, A.; Bertolino, F. Experimental analysis of the errors due to polynomial interpolation in digital image correlation. Strain
**2015**, 51, 248–263. [Google Scholar] [CrossRef] - Reu, P.L. Introduction to digital image correlation: Best practices and applications. Exp. Tech.
**2012**, 36, 3–4. [Google Scholar] [CrossRef] - Chai, T.; Draxler, R.R. Root mean square error (RMSE) or mean absolute error (MAE)?—Arguments against avoiding RMSE in the literature. Geosci. Model. Dev.
**2014**, 7, 1247–1250. [Google Scholar] [CrossRef]

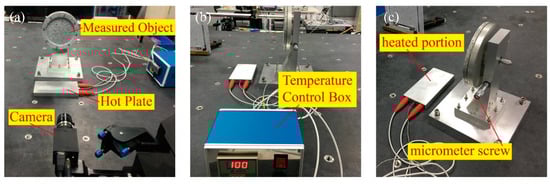

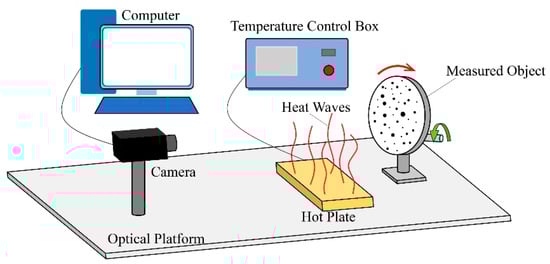

**Figure 6.**Experimental device diagram: (

**a**) The camera is facing vertically to the measured object; (

**b**) Temperature control box; (

**c**) Hot plate in front of the measured object.

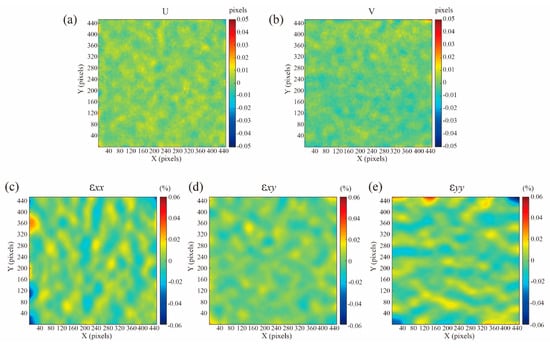

**Figure 8.**Representative contour plots of the displacements and strains computed in the DIC measurement without the introduction of a heat source: (

**a**) Displacement in U direction; (

**b**) displacement in V direction; (

**c**) strain ε

_{xx}; (

**d**) strain ε

_{xy}; (

**e**) strain ε

_{yy}.

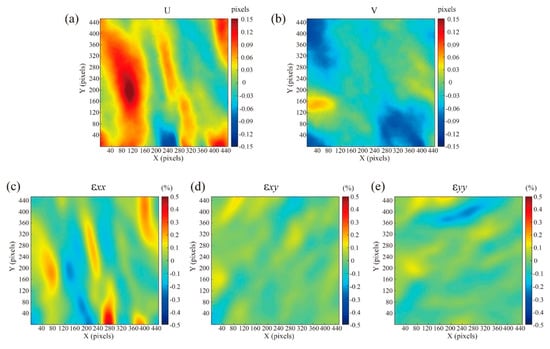

**Figure 9.**Representative contour plots of the displacements and strains computed in DIC measurement affected by heat waves: (

**a**) Displacement in U direction; (

**b**) displacement in V direction; (

**c**) strain ε

_{xx}; (

**d**) strain ε

_{xy}; (

**e**) strain ε

_{yy}.

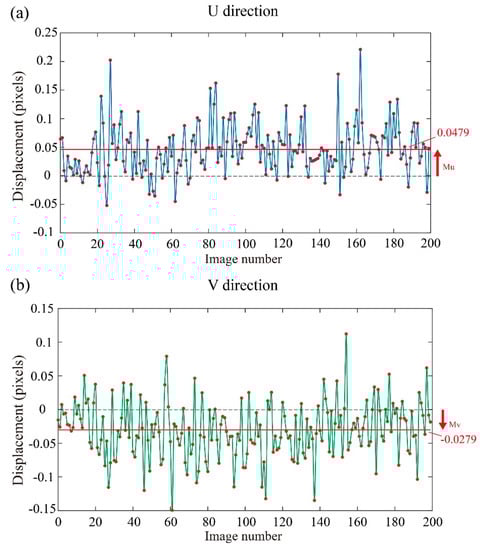

**Figure 10.**Displacement of the center subset as a function of time: (

**a**) U direction; (

**b**) V direction.

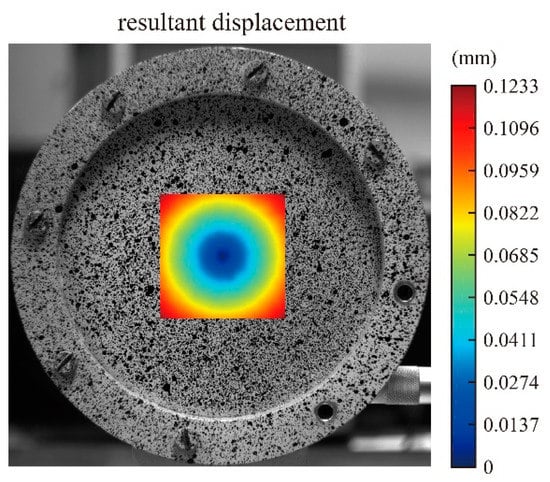

**Figure 13.**Displacement fields obtained from the DIC measurement without the influence of heat waves: (

**a**) Component in U direction; (

**b**) component in V direction.

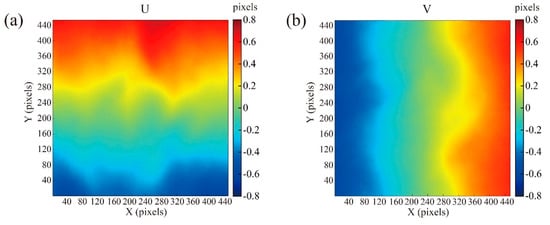

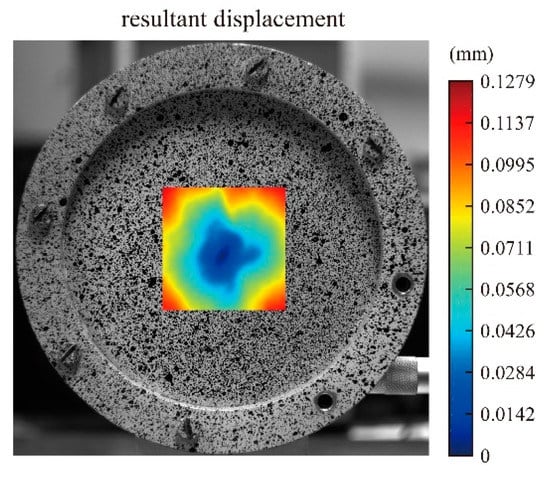

**Figure 15.**Displacement fields obtained from DIC measurement with the influence of heat waves: (

**a**) Component in U direction; (

**b**) component in V direction.

**Figure 16.**Displacement field after time average: (

**a**) Component in U direction; (

**b**) Component in V direction.

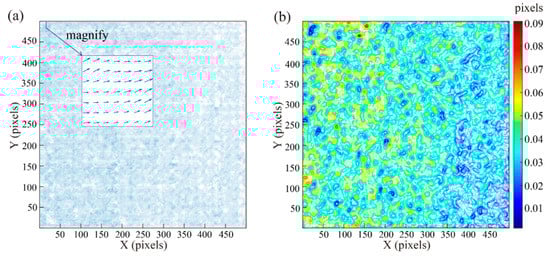

**Figure 17.**Main distortion measured by the BOS technique: (

**a**) Displacement vector distribution (the box represents local amplification results); (

**b**) resultant displacement vector distribution.

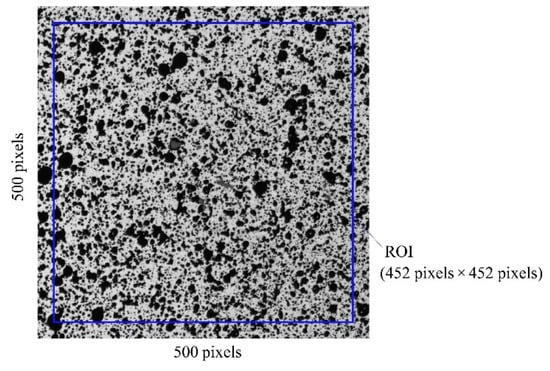

**Figure 18.**Corrected image obtained by the proposed method (The blue box is the region where the DIC calculation is performed).

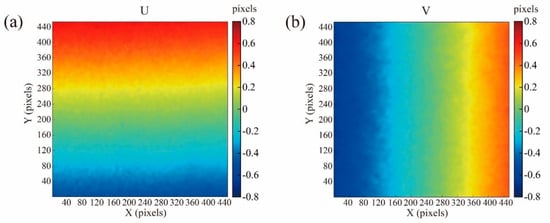

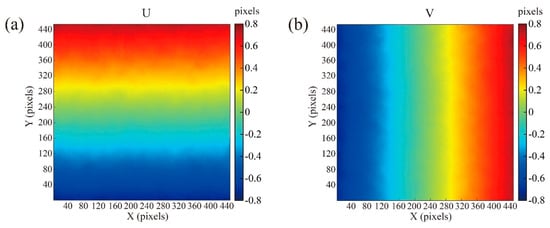

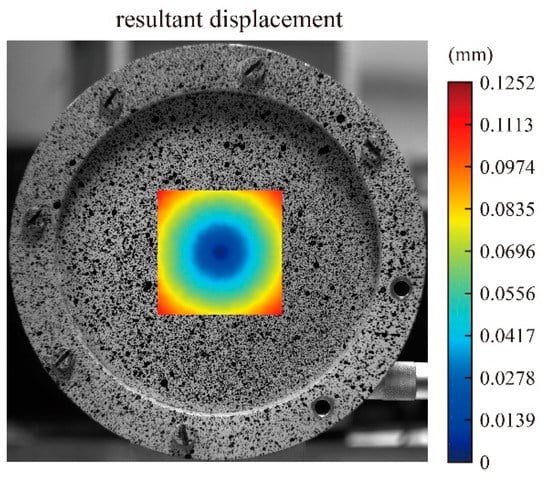

**Figure 20.**Displacement fields obtained from DIC measurement using the corrected image: (

**a**) Component in U direction; (

**b**) component in V direction.

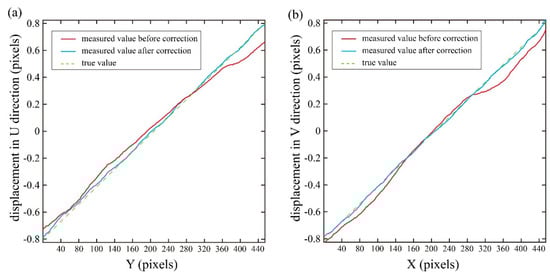

**Figure 21.**Plots of displacement in U vs. Y and in V vs. X: (

**a**) Displacement component in U direction vs. Y (X = 226); (

**b**) displacement component in V direction vs. X (Y = 226).

**Table 1.**Baseline noise floor for the experimental setup, without the purposeful introduction of a heat source, quantified by spatial and temporal standard deviations (STD) of the data.

Component | Spatial STD | Temporal STD |
---|---|---|

U (pixels) | 0.0037 | 0.0023 |

V (pixels) | 0.0040 | 0.0024 |

ε_{xx} (%) | 0.0077 | 0.0040 |

ε_{xy} (%) | 0.0047 | 0.0027 |

ε_{yy} (%) | 0.0076 | 0.0039 |

**Table 2.**Mean error of displacements and strains caused by imaging through heat waves, quantified by spatial and temporal standard deviations (STD) of the data.

Component | Spatial STD | Temporal STD |
---|---|---|

U (pixels) | 0.0516 | 0.0108 |

V (pixels) | 0.0365 | 0.0069 |

ε_{xx} (%) | 0.1100 | 0.0336 |

ε_{xy} (%) | 0.0490 | 0.0139 |

ε_{yy} (%) | 0.0590 | 0.0149 |
