Free Vibration Analysis of Triclinic Nanobeams Based on the Differential Quadrature Method

Abstract

In this work, the nonlocal strain gradient theory is applied to study the free vibration response of a Timoshenko beam made of triclinic material. The governing equations of the problem and the associated boundary conditions are obtained by means of the Hamiltonian principle, whereby the generalized differential quadrature (GDQ) method is implemented as numerical tool to solve the eigenvalue problem in a discrete form. Different combinations of boundary conditions are also considered, which include simply-supports, clamped supports and free edges. Starting with some pioneering works from the literature about isotropic nanobeams, a convergence analysis is first performed, and the accuracy of the proposed size-dependent anisotropic beam model is checked. A large parametric investigation studies the effect of the nonlocal, geometry, and strain gradient parameters, together with the boundary conditions, on the vibration response of the anisotropic nanobeams, as useful for practical engineering applications.

1. Introduction

In the past decades, different analytical and numerical approaches have been applied in literature to study the structural response of even more complicated structures [1,2,3,4,5,6]. Based on the literature, it is well known that many analytical solutions based on the Navier approximations cannot satisfy the governing equations of the problem, such that numerical approaches are usually required. In this context, the differential quadrature method (DQM) has been increasingly applied in several works and demanding applications as a powerful and efficient numerical method [7,8,9,10,11,12], due to its beneficial properties. This method, indeed, is user-friendly for different engineering problems and it features a high accuracy even with few grid points and a reduced computational effort, (see [7,8,9,10,11]). In most cases, the DQM has been used to study the dynamic, static or stability response of structures such as beams, plates, and shells, whereas any application of the DQM in literature has focused to nanostructures made of anisotropic materials, as typically occurs in the actual nature of materials due to their mechanical properties, with different elastic components in each direction. If an isotropic behavior is related to a certain uniformity along all the orientations, on the other hand, anisotropy refers to situations where properties vary systematically. For example, a triclinic material features different properties in different directions, with 21 elastic constants and three components of the propagation vector [13]. Due to the complexity of anisotropic material models, a large amount of simplification in most works in the literature is generally based on isotropic material assumptions. To date, only a few studies have focused on the mechanical response of anisotropic structures. More specifically, in [14,15,16] the authors analyzed the vibration response of square plates made of orthotropic, monoclinic and hexagonal materials for different boundary conditions, whereby the recent works [17,18,19,20] have focused on the wave propagation and buckling response of anisotropic materials at the nanoscale.

The development of nanotechnology has led to significant contributions in the scientific community, due to its advantages for many practical applications, i.e., water purification, medical applications, electronic and mechanical systems, among many. Therefore, the research and development of these novel materials has received special attention in the last decades, especially at a nanoscale level, where classical theories are inapplicable and can fail. Hence, different methods, i.e., experimental tests, molecular dynamics (MD) simulations and non-classical mathematical formulations, have been proposed as alternative ways to predict the behavior of nanomaterials [21,22,23,24,25,26,27,28,29,30,31,32,33,34,35]. In work by Aifantis and Askes [36], a nonlocal strain gradient theory was proposed as an alternative non-classical method to capture both the hardening and softening stiffness mechanisms of nanostructured systems. Moreover, Challamel and Wang [37] proposed the application of a nonlocal strain gradient model to overcome the reported paradox in nonlocal cantilever beams subjected to a point load, whereby in [38] the authors accounted for the effect of three small-scale parameters within the model, while checking for its accuracy with respect to some MD-based results for carbon nanotubes. Further numerical predictions about the size-dependent behavior of functionally graded materials and structures can be found in [39,40,41,42,43,44,45,46], in the presence or not of porosities, in accordance to the nonlocal strain gradient model of elasticity. Based on limitations from the literature, in the current work the free vibrations of triclinic nanobeams with varying thickness along the length are studied for the first time, while applying the Timoshenko beam theory in conjunction with the nonlocal strain gradient model. The Hamiltonian principle is here adopted to drive the governing equations and boundary conditions of the problem, and the DQM is proposed as an efficient numerical tool to discretize and solve the vibrational problem. The influence of some important parameters, e.g., small-scale parameters, geometry and thickness variation, is investigated and discussed in detail. These results could represent some useful benchmark predictions for possible further works on anisotropic nanostructures. The paper is arranged as follows. After this Introduction, in Section 2 the basics of the proposed formulation assumed for the triclinic nanobeam are presented. The problem is solved numerically according to the DQM in Section 3, its efficiency is checked and discussed comparatively in Section 4, together with a large parametric investigation. Finally, the conclusions are drawn in Section 5.

2. Theory and Formulation

In what follows, the nonlocal strain gradient theory [36] is applied to account for both the nonlocal stress field and the strain gradient effects, by means of two small-scale parameters. This theory defines the stress field as

$${\sigma }_{ij}-l_1^2{\sigma }_{ij,mm}=C_{ijkl}({\epsilon }_{kl}-l_2^2{\epsilon }_{kl,mm})$$

(1)

where σ_ij and ε_ij are the stress and strain tensors; C_ijkl refers to the elastic properties’ matrix, while l₁ and l₂ denote the internal length scales to be determined experimentally or numerically by means of microscopic models, e.g., the MD simulations.

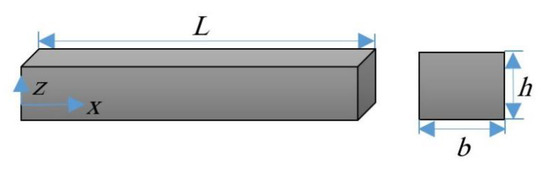

A triclinic nanobeam of length L, width b, thickness h is shown in Figure 1. In the current study, it is assumed that the stress components depend on both the longitudinal and transverse shear strains, i.e.,

$$\left\{\begin{array}{l}{\sigma }_{xx}\\ {\tau }_{xz}\end{array}\right\}=\left[\begin{array}{cc}{c}_{11}& c_{15}\\ c_{51}& c_{55}\end{array}\right]\left\{\begin{array}{l}{\epsilon }_{xx}\\ {\gamma }_{xz}\end{array}\right\}$$

(2)

where ε_xx, γ_xz denote the longitudinal and transverse shear strains, respectively, whereas σ_xx, τ_xz stand for the axial and shear stress, respectively.

In a context where the Timoshenko beam theory has been largely applied to model isotropic structures, herein the theory is extended to handle triclinic beams. According to the proposed continuum model, the displacement field takes the following form

$$u_x(x,z,t)=z\psi (x,t)$$

(3)

$$u_y(x,z,t)=0$$

(4)

$$u_z(x,z,t)=w(x,t)$$

(5)

where w refers to the transverse displacements; ψ stands for the rotation of the cross-section and t denotes the time. According to the small deformations assumption, the constitutive relations for the anisotropic nanobeam are defined as follows

$${\epsilon }_{xx}=z\frac{\partial \psi (x,t)}{\partial x}$$

(6)

$${\gamma }_{xz}=\frac{\partial w(x,t)}{\partial x}+\psi (x,t)$$

(7)

$${\sigma }_{xx}=c_{11}(z\frac{\partial \psi (x,t)}{\partial x})+c_{15}(\frac{\partial w(x,t)}{\partial x}+\psi (x,t))$$

(8)

$${\tau }_{xz}=c_{51}(z\frac{\partial \psi (x,t)}{\partial x})+c_{55}(\frac{\partial w(x,t)}{\partial x}+\psi (x,t))$$

(9)

c_ij being the elastic components of the triclinic material, defined as [13]

$$\begin{array}{l}{c}_{11}=98.84\times {10}^9 \mathrm{Pa}\\ c_{15}=c_{51}=1.05\times {10}^9 \mathrm{Pa}\\ c_{55}=21.10\times {10}^9 \mathrm{Pa}\end{array}$$

(10)

The governing Equations of the problem are determined through the Hamiltonian principle as follows

$${\displaystyle {\int }_0^t\delta (U-T)dt=0}$$

(11)

U and T being the strain and kinetic energy, respectively. More specifically, the strain energy has the following form

$$\begin{array}{l}\delta U={\displaystyle {\int }_V{\sigma }_{ij}}\delta {\epsilon }_{ij}dV={\displaystyle {\int }_V{\sigma }_{xx}\delta {\epsilon }_{xx}}+{\tau }_{xz}\delta {\gamma }_{xz}={\displaystyle {\int }_0^{L}M\frac{\partial \delta \psi }{\partial x}}+Q(\delta \psi +\frac{\partial \delta w}{\partial x})dx\\ ={\displaystyle {\int }_0^L\left[(-\frac{\partial M}{\partial x}+Q)\delta \psi -\frac{\partial Q}{\partial x}\delta w\right]}dx+{\left[M\delta \psi \right]}_0^L+{\left[Q\delta w\right]}_0^L\end{array}$$

(12)

where

$$M={\displaystyle {\int }_{A}z{\sigma }_{xx}}dA$$

(13)

$$Q=\kappa {\displaystyle {\int }_A{\tau }_{xz}}dA$$

(14)

And κ is the shear correction factor which depends on the material properties. By using the nonlocal strain gradient theory relations (Equation (1)) and by mathematical manipulation with Equations (13) and (14), the following relations can be obtained

$$M-l_1^2\frac{{\partial }^{2}M}{\partial x^2}=c_{11}I(1-l_2^2\frac{{\partial }^2}{\partial x^2})\frac{\partial \psi }{\partial x}+c_{15}T(1-l_2^2\frac{{\partial }^2}{\partial x^2})(\frac{\partial w}{\partial x}+\psi )$$

(15)

$$Q-l_1^2\frac{{\partial }^{2}Q}{\partial x^2}=\kappa c_{51}T(1-l_2^2\frac{{\partial }^2}{\partial x^2})\frac{\partial \psi }{\partial x}+\kappa c_{55}A(1-l_2^2\frac{{\partial }^2}{\partial x^2})(\psi +\frac{\partial w}{\partial x})$$

(16)

where

$$A={\displaystyle {\int }_{A}dA}$$

(17)

$$T={\displaystyle {\int }_{A}zdA}$$

(18)

$$I={\displaystyle {\int }_A{z}^{2}dA}$$

(19)

In addition, the kinetic energy is expressed as follows

$$\delta T={\displaystyle {\int }_V{\dot{u}}_i}\delta {\dot{u}}_{i}dV$$

(20)

By substituting Equations (12) and (20) into Equation (11), the following equations are obtained, when the coefficients of dw and dψ are assumed to be null, i.e.,

$$\rho A\frac{{\partial }^{2}w}{\partial t^2}=\frac{\partial Q}{\partial x}$$

(21)

$$\rho I\frac{{\partial }^2\psi }{\partial t^2}=\frac{\partial M}{\partial x}-Q$$

(22)

Thus, the introduction of Equations (15) and (16) into Equations (21) and (22), respectively, yields to the following expressions

$$M=l_1^2(\rho I\frac{{\partial }^3\psi }{\partial x\partial t^2}+\rho A\frac{{\partial }^{2}w}{\partial t^2})+c_{11}I(1-l_2^2\frac{{\partial }^2}{\partial x^2})\frac{\partial \psi }{\partial x}+c_{15}T(1-l_2^2\frac{{\partial }^2}{\partial x^2})(\frac{\partial w}{\partial x}+\psi )$$

(23)

$$Q=l_1^2(\rho A\frac{{\partial }^{3}w}{\partial x\partial t^2})+\kappa c_{51}T(1-l_2^2\frac{{\partial }^2}{\partial x^2})\frac{\partial \psi }{\partial x}+\kappa c_{55}A(1-l_2^2\frac{{\partial }^2}{\partial x^2})(\psi +\frac{\partial w}{\partial x})$$

(24)

The governing equations of a nonlocal strain gradient triclinic beam with a continuous variation in thickness, are obtained by substituting Equations (23) and (24) into Equations (21) and (22) as follows,

$$\begin{array}{l}\rho A\frac{{\partial }^{2}w}{\partial t^2}-l_1^2({\partial }^2(\rho A)/\partial x^2\frac{{\partial }^{2}w}{\partial t^2}+2(\partial (\rho A)/\partial x)\frac{{\partial }^{3}w}{\partial x\partial t^2}+\rho A\frac{{\partial }^{4}w}{\partial x^2\partial t^2})\\ -\kappa c_{51}T(1-l_2^2\frac{{\partial }^2}{\partial x^2})\frac{{\partial }^2\psi }{\partial x^2}-\kappa c_{55}A(1-l_2^2\frac{{\partial }^2}{\partial x^2})(\frac{\partial \psi }{\partial x}+\frac{{\partial }^{2}w}{\partial x^2})=0\end{array}$$

(25)

$$\begin{array}{l}\rho I\frac{{\partial }^2\psi }{\partial t^2}-l_1^2({\partial }^2(\rho I)/\partial x^2\frac{{\partial }^2\psi }{\partial t^2}+2(\partial (\rho I)/\partial x)\frac{{\partial }^3\psi }{\partial x\partial t^2}+\rho I\frac{{\partial }^4\psi }{\partial x^2\partial t^2})\\ -c_{11}I(1-l_2^2\frac{{\partial }^2}{\partial x^2})\frac{{\partial }^2\psi }{\partial x^2}-c_{15}T(1-l_2^2\frac{{\partial }^2}{\partial x^2})(\frac{{\partial }^{2}w}{\partial x^2}+\frac{\partial \psi }{\partial x})\\ +\kappa c_{51}T(1-l_2^2\frac{{\partial }^2}{\partial x^2})\frac{\partial \psi }{\partial x}+\kappa c_{55}A(1-l_2^2\frac{{\partial }^2}{\partial x^2})(\psi +\frac{\partial w}{\partial x})=0\end{array}$$

(26)

In the current study, a combination of simply supported, clamped, and free edges is investigated, which satisfy the following conditions

• Simply supported/Simply supported (SS)

  w(x, t) = 0, M(x, t) = 0 at x = 0, L
• Clamped/Clamped (CC)

  w(x, t) = 0, ψ(x, t) = 0 at x = 0, L
• Clamped/Simply supported (CS)

  w(x, t) = 0, ψ(x, t) = 0 at x = 0

  w(x, t) = 0, M(x, t) = 0 at x = L
• Clamped/Free (CF)

  w(x, t) = 0, ψ(x, t) = 0 at x = 0

  M(x, t) = 0, Q (x, t) = 0 at x = L

3. Solution Procure

3.1. Generalized Differential Quadrature Method (GDQM)

In what follows, the GDQM is proposed as a numerical method to solve the equations of motion to free the above-mentioned vibration problem of nanobeams, due to its fast convergence and accuracy as largely demonstrated in the literature for different demanding applications [47,48,49,50,51,52,53]. The GDQM discretizes the partial derivative of a function with respect to a variable by a weighted linear sum of function values at all grid points in that direction. This approximation yields the following relation [7],

$${\frac{{\partial }^{r}f(\zeta ,\eta )}{\partial {\zeta }^r}|}_{(\zeta ,\eta )=({\zeta }_i,{\eta }_j)}={\displaystyle \sum _{m=1}^{N_{\zeta }}{A}_{im}^{\zeta (r)}}f({\zeta }_m,{\eta }_j)={\displaystyle \sum _{m=1}^{N_{\zeta }}{A}_{im}^{\zeta (r)}}{f}_{mj}$$

(27)

for i = 1, 2…, N_ζ; j = 1, 2…, N_η; and r = 1, 2…, N_ζ − 1.

According to this technique, two important factors should be considered, namely, the appropriate distribution of grid points and weighting coefficients for discretization purposes.

As far as the first key aspect is concerned, different distributions could be selected, involving both uniform or not uniform discretizations, whose numerical performances have been largely discussed and compared in literature [54,55]. In this research the Chebyshev–Gauss–Lobatto sampling point rule is selected, due its high accuracy and fast convergence, and defined by the following relation

$$\frac{{\zeta }_i}{a}=\frac{1}{2}\left\{1-\cos \left[\frac{(i-1)\pi }{N_{\zeta }-1}\right]\right\};\frac{{\zeta }_j}{b}=\frac{1}{2}\left\{1-\cos \left[\frac{(j-1)\pi }{N_{\eta }-1}\right]\right\}$$

(28)

for i = 1, 2…, N_ζ; j = 1, 2…, N_η; and r = 1, 2…, N_ζ − 1.

As far as the weighting coefficients are concerned, the following expressions for the first and second derivatives are considered

$$A_{ij}^{\zeta }=\{\begin{array}{l}\frac{1}{L_{\zeta }}\frac{M({\zeta }_i)}{({\zeta }_i-{\zeta }_j)M({\zeta }_j)}\hspace{1em}\mathrm{for}i\ne j\\ -{\displaystyle \sum _{\begin{array}{l}j=1\\ i\ne j\end{array}}^{N_{\zeta }}{A}_{ij}^{\zeta }\hspace{1em}\mathrm{for}i=j;i,j=1,2,\mathrm{...},N_{\zeta }}\end{array}$$

(29)

where L_ζ is the length of the domain along the ζ-direction and

$$M({\zeta }_i)={\displaystyle \prod _{k=1,i\ne k}^{N_{\zeta }}({\zeta }_i-{\zeta }_k)}$$

(30)

The weighting coefficients of second-forth order derivative can be obtained as follows

$$\begin{array}{l}[B_{ij}^{\zeta }]=[A_{ij}^{\zeta }][A_{ij}^{\zeta }]={[A_{ij}^{\zeta }]}^2\\ [C_{ij}^{\zeta }]=[A_{ij}^{\zeta }][B_{ij}^{\zeta }]\\ [D_{ij}^{\zeta }]=[B_{ij}^{\zeta }][B_{ij}^{\zeta }]\end{array}$$

(31)

Before applying this numerical approach, it is worth mentioning the large variety of versions available in literature. For example, Zhu et al. [56] developed a new Crank–Nicolson type DQM to discretize the 2D space-fractional advection-diffusion equations based on a set of cubic B-splines. Dahiya and Mittal [57] presented a modified cubic B-spline DQM to solve numerically a three-dimensional non-linear diffusion problem, and the pertaining equations. Eftekhari [58] proposed a combined differential quadrature–integral quadrature procedure, to handle singular functions, and possible related drawbacks.

3.2. Implementation of the GDQM

The combination of simply supported, clamped and free triclinic nanobeams are here discretized into N grid points (i = 1, 2…, N). Considering the GDQM, the equations of motion for the nanobeam at the i-th grid point can be discretized as

$$\begin{array}{l}\rho A{\ddot{w}}_i-{\mu }^2(({\partial }^2(\rho A)/\partial x^2){\ddot{w}}_i+2(\partial (\rho A)/\partial x){\displaystyle \sum _{j=1}^N{A}_{ij}}{\ddot{w}}_i+\rho A{\displaystyle \sum _{j=1}^N{B}_{ij}}{\ddot{w}}_i)\\ -\kappa c_{51}T{\displaystyle \sum _{j=1}^N{B}_{ij}}{\psi }_i-\kappa c_{55}A({\displaystyle \sum _{j=1}^N{A}_{ij}}{\psi }_i+{\displaystyle \sum _{j=1}^N{B}_{ij}}{w}_i)+l^2(\kappa c_{51}T{\displaystyle \sum _{j=1}^N{D}_{ij}}{\psi }_i+\kappa c_{55}A({\displaystyle \sum _{j=1}^N{C}_{ij}}{\psi }_i+{\displaystyle \sum _{j=1}^N{D}_{ij}}{w}_i))=0\end{array}$$

(32)

$$\begin{array}{l}\rho I{\ddot{\psi }}_i-{\mu }^2(({\partial }^2(\rho I)/\partial x^2{\ddot{\psi }}_i+2(\partial (\rho I)/\partial x){\displaystyle \sum _{j=1}^N{A}_{ij}}{\ddot{\psi }}_i+\rho I{\displaystyle \sum _{j=1}^N{B}_{ij}}{\ddot{\psi }}_i)\\ -c_{11}I{\displaystyle \sum _{j=1}^N{B}_{ij}}{\psi }_i-c_{15}T({\displaystyle \sum _{j=1}^N{B}_{ij}}{w}_i+{\displaystyle \sum _{j=1}^N{A}_{ij}}{\psi }_i)+\kappa c_{51}T{\displaystyle \sum _{j=1}^N{A}_{ij}}{\psi }_i+\kappa c_{55}A({\psi }_i+{\displaystyle \sum _{j=1}^N{A}_{ij}}{w}_i)\\ +l^2(c_{11}I{\displaystyle \sum _{j=1}^N{D}_{ij}}{\psi }_i+c_{15}T({\displaystyle \sum _{j=1}^N{D}_{ij}}{w}_i+{\displaystyle \sum _{j=1}^N{C}_{ij}}{\psi }_i)-\kappa c_{51}T{\displaystyle \sum _{j=1}^N{B}_{ij}}{\psi }_i-\kappa c_{55}A({\displaystyle \sum _{j=1}^N{B}_{ij}}{\psi }_i+{\displaystyle \sum _{j=1}^N{C}_{ij}}{w}_i))=0\end{array}$$

(33)

where µ = l₁ and l = l₂. To find the unknown frequencies, the above equations can be written in the following form,

$$\left[\begin{array}{cc}{K}_{dd}& K_{db}\\ K_{bd}& K_{bb}\end{array}\right]\left\{\begin{array}{l}{U}_d\\ U_b\end{array}\right\}+\left[\begin{array}{cc}{M}_{dd}& M_{db}\\ 0& 0\end{array}\right]\left\{\begin{array}{l}{\ddot{U}}_d\\ {\ddot{U}}_b\end{array}\right\}=0$$

(34)

where the subscripts d and b represent, respectively, the domain and boundary points related to the stiffness and mass matrices. Considering the eigenvalue and eigenvector system, the natural frequencies will be computed as

$$([KK]-{\omega }^2[M])\left\{X\right\}=\left\{0\right\}$$

(35)

where $M=M_{dd}-M_{db}{K}_{bb}^{-1}{K}_{bd},KK=K_{dd}-K_{db}{K}_{bb}^{-1}{K}_{bd}$. To obtain a non-trivial solution of Equation (35), the determinant of the coefficient matrix must be enforced equal to zero, namely

$$\det ([KK]-{\omega }^2[M])=0$$

(36)

After computing the eigenvalues from Equation (36), the system frequencies can be easily obtained.

4. Numerical Results

In this section a triclinic nanobeam is considered with length L = 36.8 nm, and thickness depending on its length. A preliminary convergence analysis is performed between our model and predictions from Ref. [7] based on the application of the DQM (see

Table 1. Convergence analysis of the size-independent Timoshenko beam model.

	Node
DQM [7]	5	7	9	11	13	15	17	19	21	23
3.1123	3.0875	3.1129	3.1123	3.1123	3.1123	3.1123	3.1123	3.1123	3.1123	3.1123
6.0676	8.9282	6.0430	6.0702	6.0675	6.0676	6.0676	6.0676	6.0676	6.0676	6.0676
8.7784	12.8690	8.6806	8.7981	8.7771	8.7784	8.7784	8.7784	8.7784	8.7784	8.7784
11.229	24.0798	15.288	11.377	11.248	11.228	11.229	11.229	11.229	11.229	11.229
13.441	24.3004	17.893	13.477	13.509	13.433	13.443	13.442	13.441	13.441	13.441
15.449	24.7858	24.080	21.134	16.092	15.527	15.449	15.450	15.449	15.449	15.449
17.285		24.307	22.975	17.684	17.416	17.261	17.289	17.284	17.285	17.285
18.975		25.859	24.080	24.080	20.430	19.224	18.991	18.977	18.975	18.975

). Then, using the present size-dependent model for anisotropic materials, the convergence of the model is studied for triclinic nanobeams with different boundary conditions (see

Table 2. Convergence analysis of the size-dependent triclinic beam model (L/h = 100, l = µ = 1 nm²).

	Simply Supported			Clamped-Simply Supported			Clamped-Clamped			Clamped-Free
Node	ω1	ω2	ω3	ω1	ω2	ω3	ω1	ω2	ω3	ω1	ω2	ω3
7	3.142	6.233	9.320	3.924	7.078	10.415	4.729	8.065	11.230	1.868	4.660	8.866
9	3.141	6.286	9.432	3.925	7.073	10.250	4.727	7.866	11.086	1.873	4.685	7.587
11	3.141	6.280	9.413	3.925	7.061	10.180	4.727	7.839	10.938	1.873	4.676	7.850
13	3.141	6.280	9.413	3.925	7.062	10.195	4.727	7.842	10.978	1.873	4.676	7.798
15	3.141	6.280	9.413	3.925	7.062	10.192	4.727	7.842	10.968	1.873	4.676	7.804
17	3.141	6.280	9.413	3.925	7.062	10.192	4.727	7.842	10.968	1.873	4.676	7.804

). Based on these two tables, a fast convergence of the results can be observed, even with a reduced number of grid points. This justifies the selection of the limited number of grid points N = 19, as done henceforth within the numerical investigation.

To validate the numerical size-dependent methodology of the present work, the first-two dimensionless natural frequencies of the nanostructure are compared to predictions by Eltehar [59] for different values of the nonlocal parameter, based on the Euler Bernoulli beam theory (EBBT), see

Table 3. Sensitivity of the size-dependent natural frequencies for different nonlocal parameters and boundary conditions.

		Simply Supported		Clamped-Simply Supported		Clamped-Clamped		Clamped-Free
µ	Method	ω1	ω2	ω1	ω2	ω1	ω2	ω1	ω2
0	EBBT [50]	9.87	39.4849	15.4189	49.9738	22.3744	61.6847	3.5161	22.0375
	DQM	9.8679	39.4517	1541.20	49.9098	22.3578	61.5739	3.5157	22.0222
1	EBBT [50]	9.4162	33.4301	14.9929	45.3417	21.1096	50.9844	3.5314	20.6817
	DQM	9.4143	33.4051	14.9864	45.2878	21.0946	50.9046	3.5310	20.6679
2	EBBT [50]	9.0197	29.5117	14.5997	41.7969	20.033	44.392	3.547	19.5111
	DQM	9.0180	29.4911	14.5934	41.7500	20.0193	44.3275	3.5466	19.4985
3	EBBT [50]	8.6695	26.7111	14.2353	38.9732	19.1028	39.822	3.563	18.4857
	DQM	8.6678	26.6934	14.2293	38.9312	19.0901	39.7667	3.5626	18.4740
4	EBBT [50]	8.3571	24.5814	13.8965	36.656	18.289	36.4184	3.5795	17.5767
	DQM	8.3555	24.5657	13.8907	36.6178	18.2773	36.3694	3.5791	17.5658
5	EBBT [50]	8.0762	22.8914	13.5803	34.7103	17.5696	33.7581	3.5963	16.7629
	DQM	8.0747	22.8771	13.5748	34.6750	18.5586	33.7137	3.5960	16.7527

. A systematic study is performed to check for the sensitivity of the response for different boundary conditions, with a clear good agreement between the two different approaches, and a general increase of the natural frequencies while moving to a clamped nanostructure at both sides.

More specifically, in

Table 4. Effect of the L/h and small-scale parameters on the natural frequencies for a simply-simply supported triclinic nanobeam.

L/h	l	µ	ω1	ω2	ω3	ω4
20	0	0	3.1310	6.200972	9.159842	11.9746
		1	3.1253	6.156585	9.01551	11.64893
		2	3.1197	6.113743	8.881877	11.36322
		3	3.1141	6.072352	8.757596	11.10944
	1	0	3.1367	6.245678	9.306478	12.31112
		1	3.1310	6.200972	9.159836	11.97634
		2	3.1254	6.157821	9.024064	11.68264
		3	3.1198	6.116131	8.897794	11.42175
	2	0	3.1424	6.289444	9.446385	12.64628
		1	3.1367	6.244425	9.297538	12.30263
		2	3.1310	6.200971	9.159726	12.00114
		3	3.1254	6.158989	9.031558	11.73333
100	0	0	3.1412	6.279769	9.413272	12.53916
		1	3.1355	6.234819	9.264947	12.19813
		2	3.1298	6.191432	9.127618	11.89895
		3	3.1242	6.149515	8.999898	11.6332
	1	0	3.1469	6.325044	9.563966	12.89129
		1	3.1412	6.279769	9.413267	12.54065
		2	3.1355	6.23607	9.273739	12.23304
		3	3.1299	6.19385	9.143974	11.9598
	2	0	3.1525	6.369366	9.707741	13.24306
		1	3.1468	6.323774	9.55478	12.88039
		2	3.1412	6.279769	9.413157	12.56281
		3	3.1355	6.237253	9.281444	12.28104

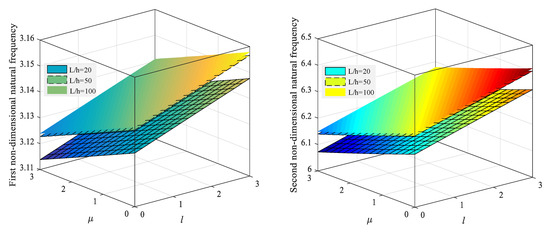

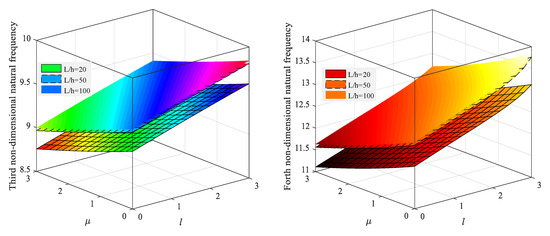

the first four non-dimensional frequencies of a simply supported triclinic nanobeam are summarized for a different length-to-thickness ratio (L/h), nonlocal parameter μ, and strain gradient l. The same results are also represented in the 3D plots of Figure 2. An increased mode number enables higher values of the frequency, which, in turn reduce for increasing nonlocal parameters, and increase with the strain gradient parameters. In addition, the small-scale parameter seems to affect the response especially for higher frequencies rather than the lower ones. For lower mode numbers, any meaningful impact can be observed for a varying length-to-thickness ratio, whereas a visible increase of the natural frequency can be observed by changing the length-to-thickness ratio, for higher modes of vibration (see e.g., the results associated to the forth mode of vibration), while keeping fixed the strain gradient and the nonlocal parameter.

Thus, the same systematic study is repeated for a clamped-simply nanobeam, whose results are listed in

Table 5. Effect of the L/h and small-scale parameters on the natural frequencies for a clamped-simply supported triclinic nanobeam.

L/h	l	µ	ω1	ω2	ω3	ω4
20	0	0	3.8937	6.9151	9.8060	12.5432
		1	3.8855	6.8620	9.6453	12.1940
		2	3.8774	6.8109	9.4968	11.8885
		3	3.8694	6.7616	9.3591	11.6178
	1	0	3.9018	6.9680	9.9669	12.8993
		1	3.8937	6.9151	9.8060	12.5476
		2	3.8856	6.8641	9.6573	12.2390
		3	3.8776	6.8150	9.5192	11.9651
	2	0	3.9098	7.0185	10.1150	13.2682
		1	3.9017	6.9658	9.9547	12.9287
		2	3.8937	6.9151	9.8062	12.6298
		3	3.8857	6.8661	9.6680	12.3634
100	0	0	3.9253	7.0621	10.1921	13.3133
		1	3.9170	7.0073	10.0226	12.9366
		2	3.9087	6.9545	9.8663	12.6078
		3	3.9006	6.9036	9.7214	12.3170
	1	0	3.9335	7.1167	10.3617	13.6911
		1	3.9253	7.0621	10.1922	13.3125
		2	3.9171	7.0095	10.0357	12.9807
		3	3.9090	6.9588	9.8905	12.6864
	2	0	3.9416	7.1687	10.5173	14.0230
		1	3.9334	7.1144	10.3490	13.6518
		2	3.9253	7.0621	10.1930	13.3228
		3	3.9172	7.0116	10.0480	13.0288

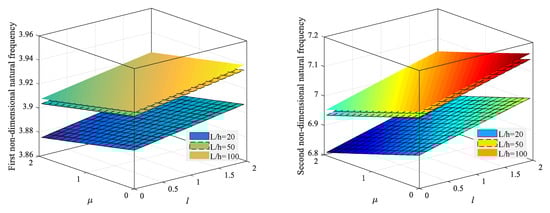

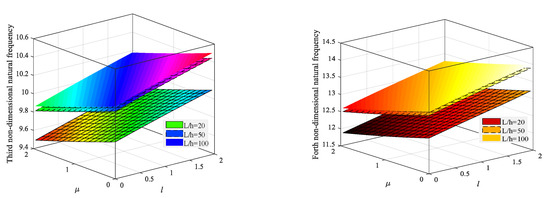

and are depicted in Figure 3, with the aim of understanding the role of the nonlocal parameter, the strain gradient parameter, and the nondimensional geometrical ratio L/h, in its vibration response. Based on a comparative evaluation of the response between the present case (clamped-simply supports) and the simply-supported case, a general increase in frequency is observed with respect to the previous example, due to the clamped boundary condition enforced on one side, and the general increase in stiffness of the structures. Moreover, an increasing nonlocality μ yields a decreasing structural stiffness, together with a general decrease in the fundamental frequencies. At the same time, an increase in the strain gradient l enables an increase in frequency, independently of the length-to-thickness ratio. Similar considerations can be repeated for the whole vibration modes here analyzed.

As a further boundary condition, a fully clamped triclinic nanobeam is analyzed under the same geometry and mechanical assumptions. The results are summarized in

Table 6. Effect of the L/h and small-scale parameters on the natural frequencies for a clamped-clamped triclinic nanobeam.

L/h	l	µ	ω1	ω2	ω3	ω4
20	0	0	4.6612	7.6057	10.4263	13.0858
		1	4.6508	7.5438	10.2495	12.7141
		2	4.6405	7.4842	10.0866	12.3894
		3	4.6303	7.4269	9.9357	12.1022
	1	0	4.6713	7.6664	10.6000	13.4597
		1	4.6612	7.6057	10.4265	13.0948
		2	4.6511	7.5472	10.2660	12.7746
		3	4.6411	7.4908	10.1171	12.4901
	2	0	4.6810	7.7223	10.7537	13.8615
		1	4.6710	7.6629	10.5849	13.5770
		2	4.6612	7.6057	10.4282	13.3568
		3	4.6514	7.5504	10.2821	13.2471
100	0	0	4.7272	7.8425	10.9694	14.0855
		1	4.7165	7.7772	10.7780	13.6723
		2	4.7060	7.7145	10.6022	13.3132
		3	4.6955	7.6542	10.4397	12.9968
	1	0	4.7376	7.9064	11.1569	14.4719
		1	4.7272	7.8425	10.9697	14.0681
		2	4.7168	7.7810	10.7970	13.7138
		3	4.7066	7.7218	10.6369	13.3994
	2	0	4.7476	7.9649	11.3204	14.6469
		1	4.7373	7.9026	11.1404	14.2838
		2	4.7272	7.8425	10.9730	13.9543
		3	4.7171	7.7846	10.8169	13.6558

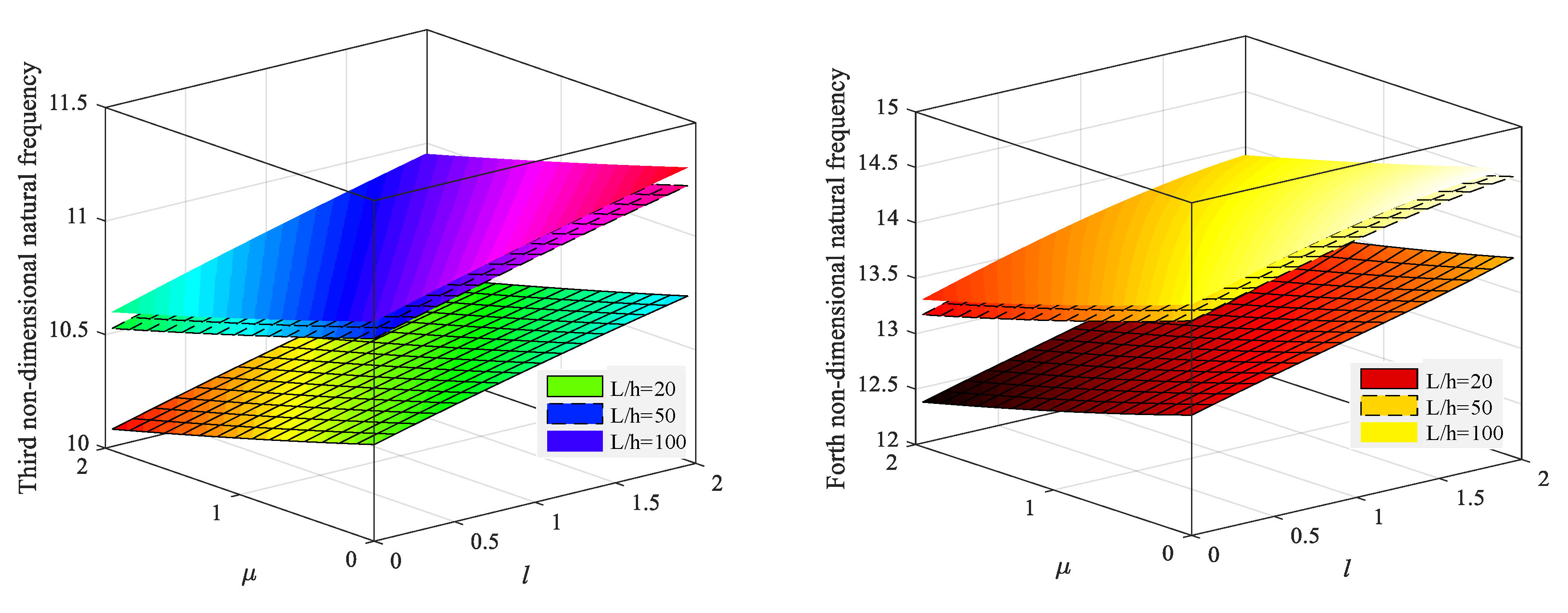

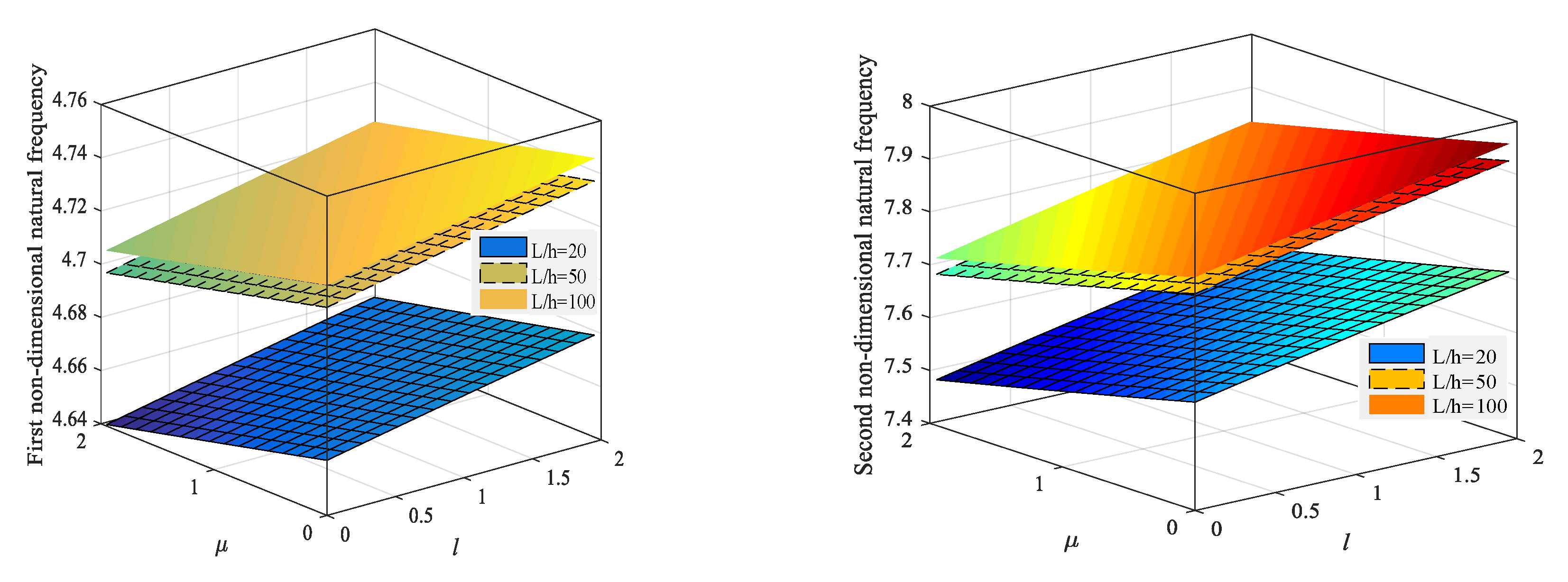

along with the plots in Figure 4. As expected, an overall increase in stiffness is observed, because of the clamped boundary condition at both sides of the structure. Note also that an increase in the strain gradient parameter l, and nonlocal parameter μ, cause a general increase and decrease of the fundamental frequencies, respectively, in line with the previous examples. As also reported in the pioneering work on the topic [60], the fundamental frequency computed according to the MD is always lower than predictions based on the classical continuum elasticity theory. This behavior is consistent with our findings for nonlocal clamped nanobeams. The last combination of boundary conditions analyzed herein, accounts for a clamped-free triclinic nanobeam, whose parametric vibration response is listed in

Table 7. Effect of the L/h and small-scale parameters on the natural frequencies for a clamped-free cantilever triclinic nanobeam.

L/h	l	µ	ω1	ω2	ω3	ω4
20	0	0	1.8721	4.6431	7.6597	10.5185
		1	1.8724	4.6317	7.5959	10.3340
		2	1.8727	4.6204	7.5345	10.1644
		3	1.8730	4.6092	7.4756	10.0078
	1	0	1.8711	4.6479	7.7057	10.6684
		1	1.8714	4.6368	7.6437	10.4891
		2	1.8717	4.6257	7.5840	10.3237
		3	1.8720	4.6148	7.5265	10.1705
	2	0	1.8692	4.6453	7.7270	10.7511
		1	1.8695	4.6345	7.6678	10.5819
		2	1.8703	4.6238	7.6107	10.4249
		3	1.8701	4.6132	7.5556	10.2785
100	0	0	1.8750	4.6920	7.8464	10.9740
		1	1.8753	4.6805	7.7813	10.7822
		2	1.8756	4.6692	7.7187	10.6059
		3	1.8759	4.6579	7.6585	10.4431
	1	0	1.8729	4.6873	7.8654	11.0694
		1	1.8731	4.6763	7.8035	10.8894
		2	1.8735	4.6653	7.7438	10.7227
		3	1.8738	4.6544	7.6864	10.5678
	2	0	1.8707	4.6813	7.8744	11.1201
		1	1.8710	4.6706	7.8160	10.9550
		2	1.9558	4.6645	7.7548	10.8016
		3	1.8711	4.6497	7.7051	10.6554

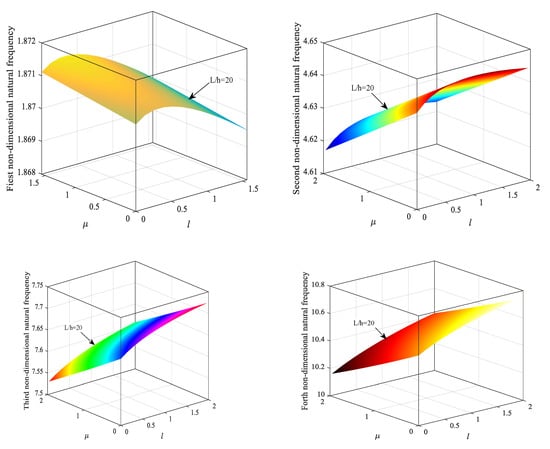

and represented in Figure 5, in terms of the first natural frequencies, while varying the strain gradient parameter l, the nonlocal parameter μ, and the geometrical ratio L/h. Based on the results, note that the clamped-free nanobeam exhibits a different behavior compared to the structural response for the other boundary conditions. Except for the first frequency, the other frequencies reduce for increasing values of μ, and increase for an increasing value of l. The contrary occurs for the first frequency, which decreases for an increasing strain gradient parameter l, and increases by increasing the nonlocal parameter μ. Remarkably, these results are perfectly in line with the findings of Eltaher et al. [59] for a nonlocal cantilever beam. Due to the higher flexibility of the free structure at one side, the lowest values of natural frequencies are registered and compared to all the other examples previously discussed.

Finally, the last parametric investigation compares the response of the triclinic nanobeam under the assumption of constant, linear or quadratic variation in thickness.

Table 8. Effect of the L/h and thickness variation on the first-three natural frequencies of a triclinic nanobeam for different boundary conditions.

	L = µ = 1			µ = 2, l = 1			µ = 1, l = 2
q	ω1	ω2	ω3	ω1	ω2	ω3	ω1	ω2	ω3
Simply supported
0.2	3.14119	6.27982	9.41334	3.13556	6.23616	9.27387	3.14686	6.32382	9.55485
0.5	3.14120	6.27985	9.41338	3.13559	6.23622	9.27394	3.14687	6.32385	9.55489
1	3.14117	6.27977	9.41326	3.13551	6.23607	9.27373	3.14683	6.32377	9.55478
1.5	3.14105	6.27954	9.41293	3.13528	6.23562	9.27310	3.14671	6.32354	9.55444
2	3.14085	6.27916	9.41237	3.13489	6.23488	9.27205	3.14652	6.32316	9.55387
Clamped-simply-supported
0.2	3.92529	7.06213	10.19228	3.91714	7.00959	10.03581	3.93342	7.11444	10.34900
0.5	3.92530	7.06215	10.19230	3.91718	7.00964	10.03584	3.93343	7.11446	10.34901
1	3.92525	7.06205	10.19214	3.91708	7.00945	10.03555	3.93338	7.11435	10.34881
1.5	3.92510	7.06178	10.19174	3.91678	7.00892	10.03480	3.93323	7.11407	10.34837
2	3.92486	7.06134	10.19111	3.91630	7.00807	10.03361	3.93298	7.11361	10.34768
Clamped
0.2	4.72722	7.84254	10.96980	4.71690	7.78110	10.79713	4.73737	7.90263	11.14051
0.5	4.72724	7.84257	10.96984	4.71694	7.78117	10.79721	4.73739	7.90267	11.14055
1	4.72718	7.84248	10.96971	4.71683	7.78098	10.79697	4.73733	7.90257	11.14042
1.5	4.72701	7.84219	10.96932	4.71648	7.78043	10.79624	4.73716	7.90228	11.14002
2	4.72671	7.84171	10.96867	4.71590	7.77951	10.79502	4.73686	7.90180	11.13936
Clamped-free
0.2	1.87289	4.67610	7.80322	1.87333	4.66500	7.74336	1.87082	4.67050	7.81578
0.5	1.87425	4.67587	7.80279	1.87311	4.66450	7.74256	1.87076	4.67024	7.81536
1	1.88070	4.67591	7.80177	1.87272	4.66347	7.74092	1.87061	4.66971	7.81449
1.5	1.87188	4.67471	7.80088	1.87217	4.66223	7.73892	1.87036	4.66907	7.81344
2	1.87278	4.67396	7.79966	1.87159	4.66074	7.73655	1.87001	4.66833	7.81219

summarizes the results in terms of the first-three non-dimensional natural frequencies, for different nonlocal and strain gradient parameters and boundary conditions. Based on the results in Table 8, a variation in the power-law index q yields a different vibration response. This is clearly affected by the combined values of power-law index and mode numbers. Moreover, it is worth noticing that the small-scale parameters do not affect significantly the response, for different power-law indexes, which is of great interest for design purposes.

5. Conclusions

In this paper, the free vibration of size-dependent nanobeams made of triclinic material has been investigated. The equations of motion and the associated boundary conditions have been handled by means of the Hamiltonian principle and the Timoshenko beam theory in the context of a nonlocal strain gradient theory. The GDQM has been applied as numerical tool to solve the problem under different boundary conditions assumptions. First, a convergence study verifies successfully the accuracy of the proposed formulation against the available literature. It follows a systematic investigation aimed at checking for the sensitivity of the structural response to small-scale parameters, geometrical dimensions, or possible variations in thickness. According to the parametric results, it is concluded that, the fundamental frequencies increase as the strain gradient parameter increases and nonlocal parameter decreases for all boundary conditions, except for the first mode (in the only case of clamped-free nanobeams). The structural sensitivity to the small-scale parameters becomes much pronounced for higher modes rather than the lower ones. Moreover, the thickness variation impact depends on the vibrational modes and boundary conditions. The highest frequency of the nanobeam is reached always for clamped-clamped boundary conditions, for the same nonlocal parameters and geometrical assumptions. A higher flexibility of the nanostructures is gradually permitted moving from clamped-simply supports, to simply-simply supports, and clamped-free supports. The last combination of boundary conditions yields the lowest values of the vibrational frequency.
