Enabling Technologies for Operator 4.0: A Survey

MTA-PE “Lendület” Complex Systems Monitoring Research Group, Department of Process Engineering, University of Pannonia, Egyetem u. 10, POB 158, H-8200 Veszprém, Hungary
Department of Applied Informatics, Nagykanizsa Campus, University of Pannonia, Zrínyi u. 18, H-8800 Nagykanizsa, Hungary
Author to whom correspondence should be addressed.
Appl. Sci. 2018, 8(9), 1650;
Submission received: 31 July 2018 / Revised: 25 August 2018 / Accepted: 7 September 2018 / Published: 13 September 2018
(This article belongs to the Special Issue Advanced Internet of Things for Smart Infrastructure System)


The fast development of smart sensors and wearable devices has provided the opportunity to develop intelligent operator workspaces. The resultant Human-Cyber-Physical Systems (H-CPS) integrate the operators into flexible and multi-purpose manufacturing processes. The primary enabling factor of the resultant Operator 4.0 paradigm is the integration of advanced sensor and actuator technologies and communications solutions. This work provides an extensive overview of these technologies and highlights that the design of future workplaces should be based on the concept of intelligent space.

1. Introduction

The continuous innovations of Cyber-Physical Systems (CPS), the Internet of Things (IoT), the Internet of Services (IoS), robotics, big data, cloud and cognitive computing and augmented reality (AR) result in significant change in production systems [1,2]. As these technologies revolutionize industrial production, the high-tech strategy of the German government launched to promote the computerization of manufacturing was named as the fourth industrial revolution (Industry 4.0). China developed its own initiative. Made-in-China 2025 is a strategic plan announced in 2015 to increase competitiveness in cutting-edge industries including the manufacturing sector [3,4,5]. The approach of China is also based on the most modern IT technologies [6] that are not only used to improve the efficiency of the production, but also to share manufacturing capacity and support cooperation [7]. The U.S. has introduced “reindustrialization” policies to reinvigorate its manufacturing industry. By releasing the “New Robot Strategy,” Japan is attempting to accelerate the development of cooperative robots and unmanned plants to revolutionize the robot industry, cope with the aggravation of Japanese social and economic issues and enhance international competitiveness. The “New Industrial France”, the “high-value manufacturing” strategy of the U.K. and the “advanced innovators’ strategy” of South Korea have similar CPS-based focus points [8]. The common goal of these developments is to integrate the supply chain. Industry 4.0 and additive manufacturing, when combined, can help enable the creation of products that are first-to-market and fully customized. Thanks to the benefits of additive manufacturing, not only the consumer can find more customized products and services, but also the manufacturer has a chance to create more efficient and scalable production flow [9]. All in all, these novel manufacturing technologies appear to herald a future in which value chains are shorter, more collaborative and offer significant sustainability benefits.
Organizations should be prepared for the introduction of Industry 4.0-based complex production systems. Recently developed maturity or readiness models are mainly technology focused [10,11] and assess the Industry 4.0 maturity of industrial enterprises in the domain of discrete manufacturing [12]. Thanks to the fast and flexible communications between CPSs, smart sensors and actuators, real-time and self-controlled operations can be realized [6,13]. The new smart IoT devices have the potential to design mobile machines that replace human minds [14]. Researchers at Oxford University estimated that approximately 47% of all U.S. employment will be at a high risk of computerization by the early 2030s [15]. A survey conducted by PricewaterhouseCoopers (PwC) found that 37% of employees were worried about the possibility of redundancy due to automation [15,16].
Although the increase in the degree of automation reduces costs and improves productivity [17], human operators are still essential elements of manufacturing systems [18,19]. The increasing degree of automation also does not necessarily lead to enhanced operator performance [20]. Handling human factors is a challenging problem concerning both cellular manufacturing [21] and human-robot interaction [22]. For example, smart factories have to take into consideration operators who are aging or apprentices by using advanced technologies to help people to integrate into the modern manufacturing workforce [23].
Industry 4.0 (especially IoT devices and CPS) allows new types of interactions between operators and machines [24]. These interactions will generate a new intelligent workforce and have significant effects on the nature of work. The integration of workers into an Industry 4.0 system consisting of different skills, educational levels and cultural backgrounds is a significant challenge. The new concept of Operator 4.0 was created for the integrated analysis of these challenges. The concept of Operator 4.0 is based on the so-called Human-Cyber-Physical Systems (H-CPSs) designed to facilitate cooperation between humans and machines [25].
Although the state of the art in the area of Industry 4.0 has been reviewed recently [3] and systematic literature reviews are frequently published [26,27,28], there is a need to study how the fourth industrial revolution will not entirely replace operators; instead, sensors, smart devices, mobile IoT assets and technologies will be used to design systems for operator support.
This paper focuses on the elements of this infrastructure and proposes an intelligent space-based design methodology for the design of Operator 4.0 solutions. According to this goal, the development and application of advanced Internet of Things technologies with regard to smart sensing technologies, IoT architectures, services and applications will be discussed by following the types of Operator 4.0 solutions proposed by Romero et al. [23,25].
The paper is comprised of the following structure. The elements of Operator 4.0 solutions are presented, and a novel design methodology based on the concept of intelligent space is proposed in Section 2. The required infrastructural background is presented in the remaining sections. The IoT solution for tracking operator activities is introduced in Section 3, while IoT-based solutions developed to support operator activities by providing feedback are summarized in Section 4. Conclusions and recommendations based on the review are proposed in Section 5.

2. Framework of Operator 4.0 Solutions

The concepts of Operator 4.0, cyber-physical systems and intelligent space are introduced and connections between these methodologies discussed in this section.

2.1. The Operator 4.0 Concept and Human-Cyber-Physical Systems

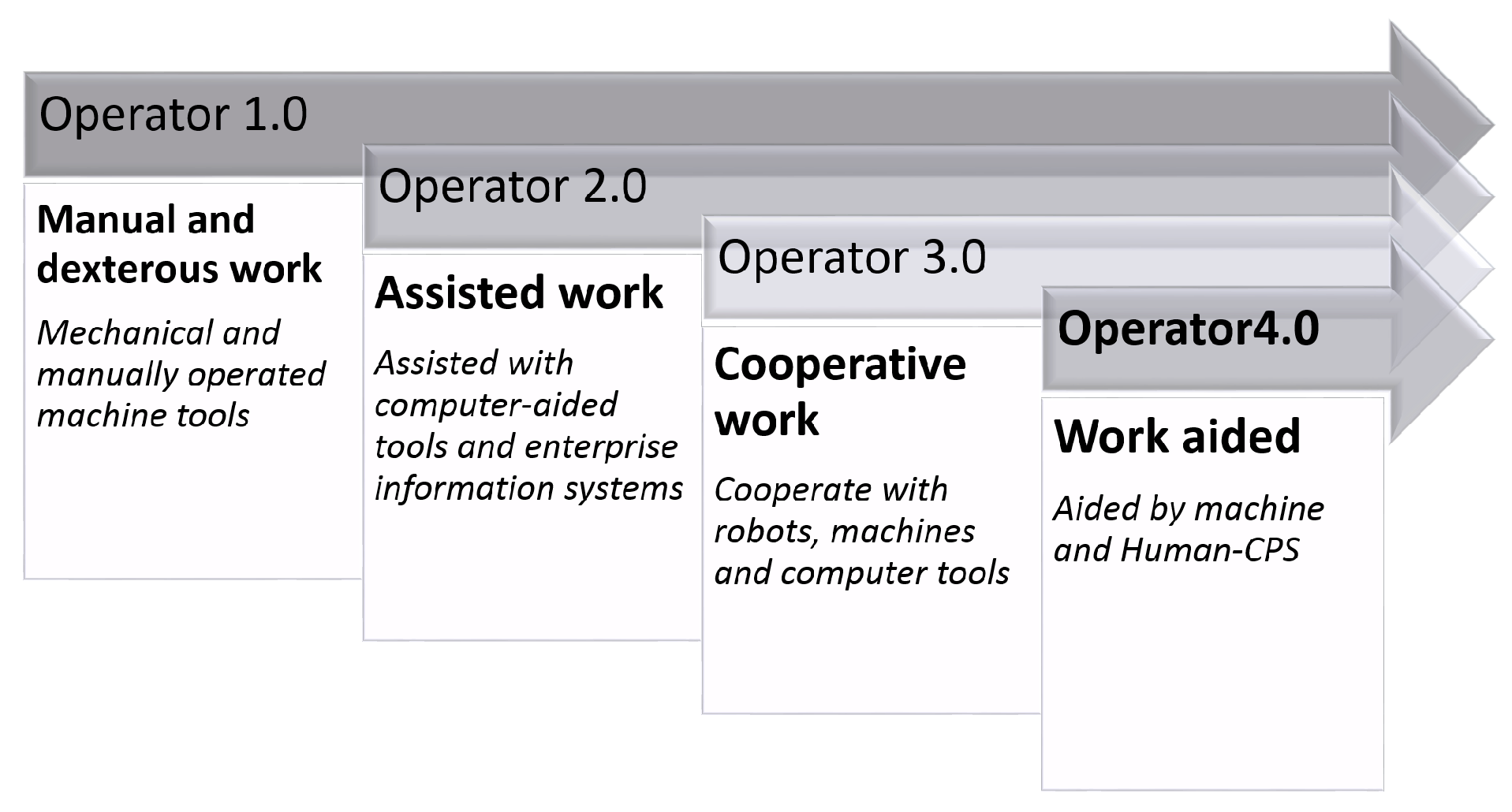

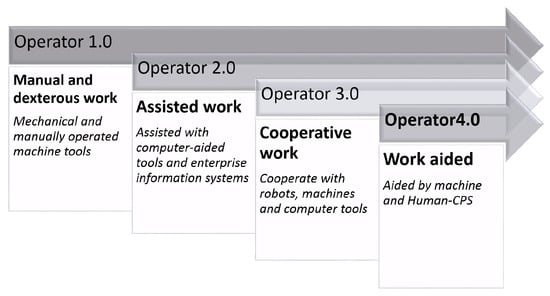

The Operator 4.0 typology depicts how the technologies of the fourth industrial revolution will assist the work of operators [25]. Operator 1.0 is defined as humans conducting manual work. The Operator 2.0 generation represents a human entity whose job is supported by tools, e.g., by Computer Numerical Control (CNC) of machine tools. In the third generation, the humans are involved in cooperative work with robots and computer tools, also known as human-robot collaboration. This human-robot collaboration in the industrial environment is a fascinating field with a specific focus on physical and cognitive interaction [29]. However, the new set of solutions is based on even more intensive cooperation between operators and production systems. This new Operator 4.0 concept represents the future of workplaces [25] (see Figure 1).
The main elements of the Operator 4.0 methodology are explained in Table 1. Analytical operator-type solutions utilize big data analytics to collect, organize and analyze large datasets [23]. Augmented Reality (AR) can be considered as a critical enabling technology for improving the transfer of information from the digital to the physical world of the smart operator. The collaborative operator works together with Collaborative robots (CoBots). Healthy operator solutions measure and store exercise activity, stress, heart rate and other health-related metrics, as well as GPS location and other personal data. Smarter operators interact with machines, computers, databases and other information systems, as well as receive useful information to support their work. Social operators use mobile and social collaborative methods to connect to smart factory resources. Super-strength operators increase the strength of human operators to be able to conduct manual tasks without effort using wearable exoskeletons, while virtual operators interact with the computer mapping of design, assembly or manufacturing environments.
With regards to the development of Operator 4.0-based automation systems, attention has to be paid to the design principles of Industry 4.0 solutions, which are decentralization, virtualization, reconfiguration and adaptability [45,46,47]. How these principles should be applied during the development process is presented in Table 2.
The Operator 4.0 concept aims to create Human-Cyber-Physical Production Systems (H-CPPS) that improve the abilities of the operators [23]. The allocation of tasks to machines and operators requires the complex semantic model of the H-CPS. Operator instructions can be programmed into a machine, but handling uncertainty and the stochastic nature are difficult. Adaptive systems are suitable to handle these problems with the help of more frequent monitoring and model adaptation functions [56,57,58,59]. Real-time operator support and performance monitoring require accurate information concerning the activities of operators, which means all data related to operator activities should be measured, converted, analyzed, transformed into actionable knowledge and fed back to the operators. Based on this requirement, the operator should be connected from the bottom (connection) to the top (configuration) levels of the cyber-physical systems [60]. To support this goal, an overview concerning the elements of CPS from the perspective of operators is given in Table 3, and the levels of CPSs with a description of the functions and tasks are presented in Figure 2.
As tasks should be transformed into a form that computers can understand, task analysis is becoming more and more crucial due to the difficulties of the externalization of the tacit knowledge of the operators [61]. Tacit knowledge contains all cognitive skills and technical know-how that are challenging to articulate [62,63]. Without elicit tacit knowledge, the chance of losing critical information and best practice is very high [64]. Hierarchical task analysis extended with the ‘skill, rule and knowledge” framework can capture tacit knowledge [65], an approach which has been proven to be useful in manufacturing [66]. Sensor technologies are essential to elicit tacit knowledge, for example the tacit knowledge of the operator can be captured by a ‘sensorized’ hand-held belt grinder and a 3D scanner to generate a program of a robot that can replace the operator [67]. The modeling of the physical reality and realizing it in the CPS are critical tasks [68,69,70,71].
These examples illustrate that Operator 4.0 solutions should be based on contextual task analysis, which requires precise chronological time-synchronization of the operator actions, sensory data and psycho-physiological signals to infer the cognitive states [72] and emotions [73] associated with the decisions and operator actions.

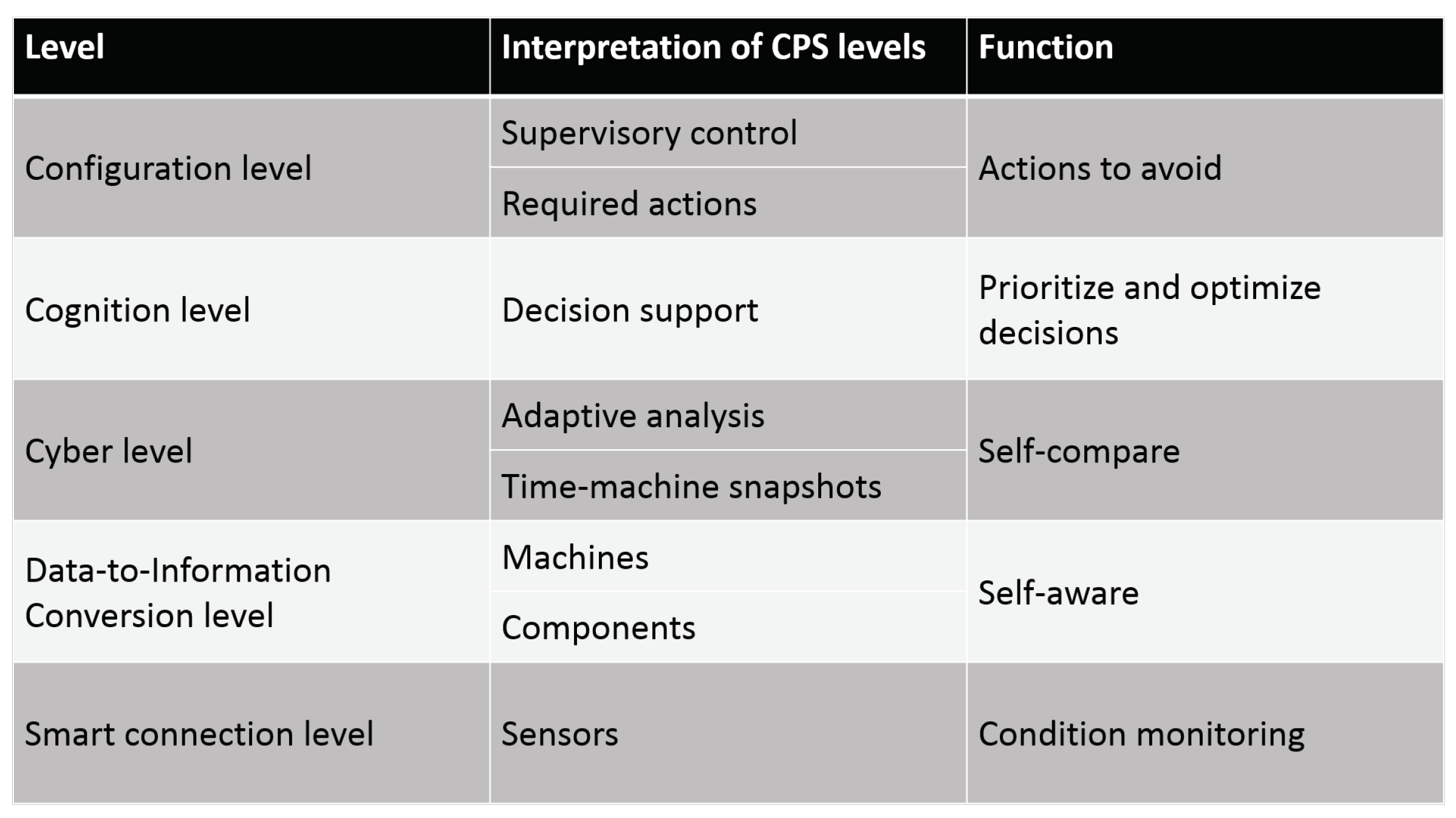

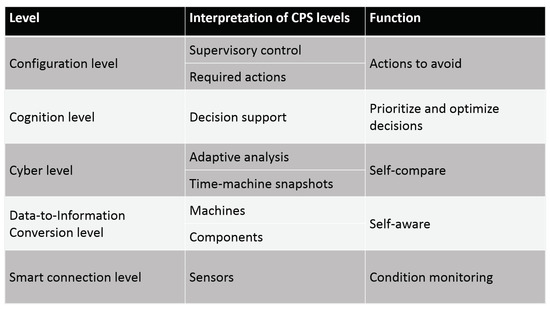

Sensors and feedback technologies of the interactive intelligent space can be used not only for improving the abilities of the operators, but also for the extraction of their tacit knowledge. In the following section, these technologies will be detailed.

2.2. The Operator 4.0 Concept and Intelligent Space

In the previous section, the key functions of Operator 4.0 solutions were shown to be related to the monitoring and support of operator activities. The most significant trend is related to the development of human-machine interfaces that embrace interaction in a set of novel ways [100]. As the operator performs tasks, real-time information is provided about the production system and real-time support is received from it. Interactive human-machine systems had already been introduced in the Hashimoto Laboratory at the of University of Tokyo [101] where an intelligent Space (iSpace) system has been designed for the virtual and physical support of people and mobile robots [102]. Intelligent interaction space supports the operators to complete their work with high efficiency, high success rate and low burden [103]. The iSpace framework is shown in Figure 3.

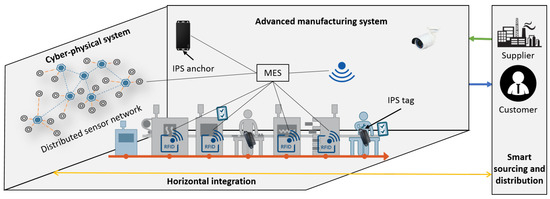

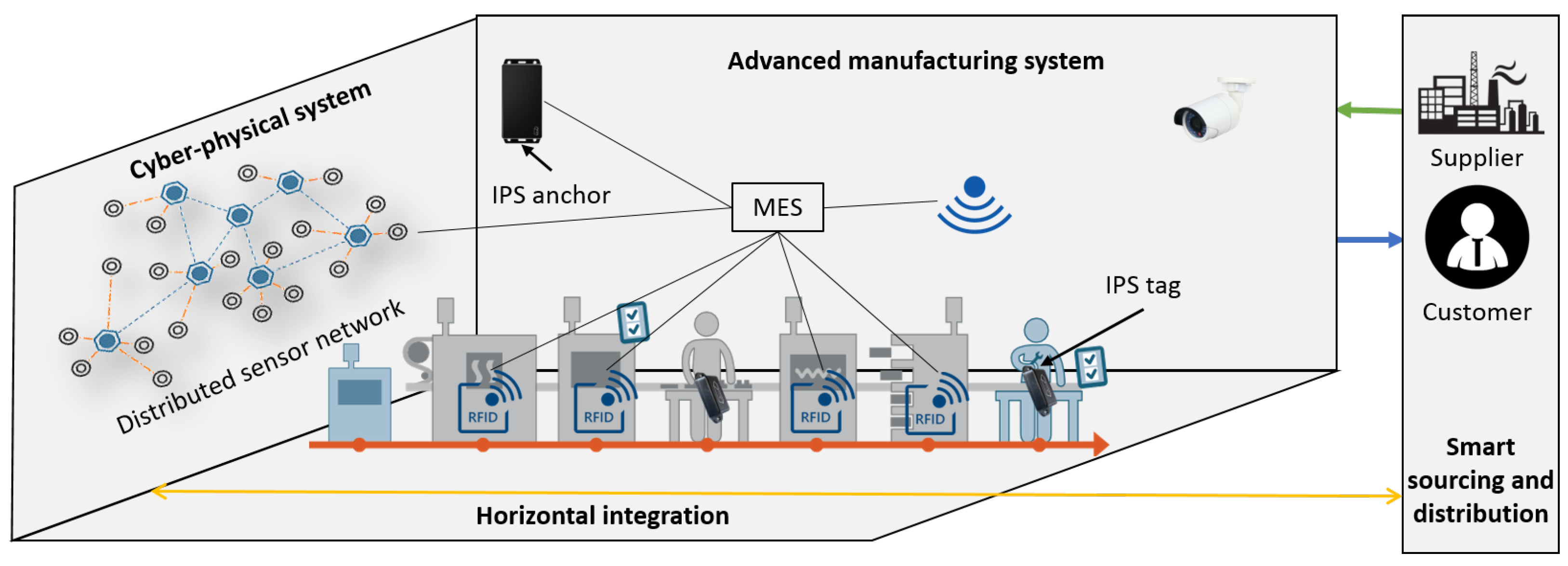

The events within iSpace are continuously monitored by Distributed Intelligent Network Devices (DINDs) consisting of various networked sensors, e.g., indoor positioning systems and cameras for localization. DINDs interpret events in the physical space and provide services (feedback) to operators using physical devices, e.g., microphones, displays, etc. According to the horizontal integration concept, the proposed iSpace is also connected to suppliers and customers. This concept highlights that iSpace should relay on the CloudThings architecture that integrates Internet of Things (IoT) and cloud computing [104], as cloud computing enables a convenient, on demand and scalable network access to a shared pool of configurable computing resources.

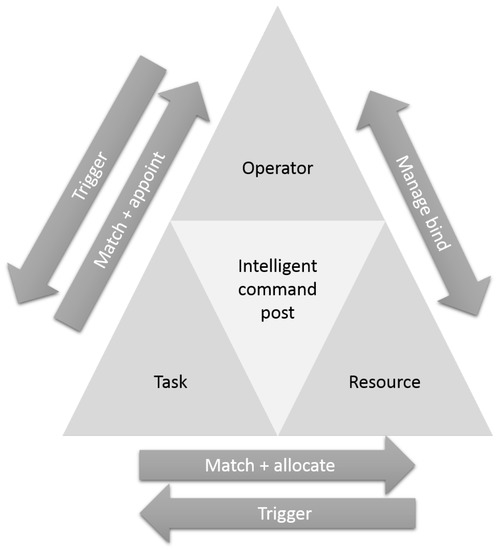

Resources, users and tasks are the three core elements of intelligent interaction space (see Figure 4). The user-resource-task model supports the design of interaction among these components [103], the interactions of which should handle how resources trigger the tasks and how the tasks are assigned to the operators based on their availability, performance and competence.
Intelligent space should respond to requests from people, so the activities of the operators must be identified by cameras, internal positioning systems or based on voice signals, and these multi-sensory data should be processed by artificial intelligence and machine learning solutions [102]. The acquired information is transmitted via a wireless network and processed by dedicated computers, so any event involving or a change in the monitored parameters inside the space is carefully analyzed and processed [105].
This section highlighted that the development of H-CPSs requires an appropriate design concept. According to the concept of intelligent space the architecture must be modular, scalable and integrated, which results in low installation and maintenance costs and easy configuration [106].

3. IoT-Based Solutions for Operator Activity Tracking

From the viewpoint of operators, connection and conversion are the most critical levels of cyber-physical systems as these two levels are responsible for interaction. As smart sensors are key components of solutions for Cyber-Physical Production Systems (CPPS) [13], it is necessary to overview what kinds of tools are available for monitoring the activity of the operators.
Usually, operator activity is monitored by Radio Frequency IDentification (RFID)-based object tracking [107]. This technology can collect real-time data about the activities of workers (operators) and machines, as well as movements of materials [108] and workpieces [109,110]. Multi-agent supported RFID systems realize location-sensing systems [111] and intelligent-guided view systems [112]. RFID systems for human-activity monitoring provide an excellent opportunity to observe the work of the operators [113]. With the help of these devices, the whole production process, as well as production and waiting times have become measurable online. Based on this information, Shop Floor Control (SFC) and optimization can also be realized. When the RFID readers are placed such that the duration of the tasks can be estimated, how the production line is balanced in addition to the effect of product changes can be evaluated, as well as real-time data for OEE (Overall Equipment Effectiveness) calculations provided [114].
The tracking of production can be significantly improved by the Indoor Positioning System (IPS) utilized for localizing the positions of the products and operators [95]. The applications of IPS and its potential benefits in terms of process development are complied in Table 4.
Context-aware systems require unobtrusive sensors to track each step of the performed task [115]. As wearable sensors are becoming more common, their utilization is also becoming more attractive [116]. However, hand motion-based activity recognition is still challenging [117] and requires the application of advanced machine learning algorithms [118]. Tracking operator activity is a challenging and highly infrastructure-demanding task, which should utilize information stream fusion approaches to improve the robustness of the algorithms [119]. How all these smart sensor-based IoT technologies can be used to design Operator 4.0-type solutions is compiled in Table 5.

4. IoT-Based Solutions to Support Operator Activities

The operators not only have to provide real-time information about their actions, but at the same time require real-time support in their work. Industrial wearable [93] and communication [138] solutions help to handle this challenge. The previous section showed what kind of techniques exist to collect information from the operator. In this section, potentially applicable feedback technologies will be introduced, which are related to the configuration level of cyber-physical systems [60].
In the early applications, the production activities required to complete orders were scheduled and managed by Shop Floor Control Systems (SFCS). In [139], a hierarchical SFCS (shop, workstation, equipment) was adopted. In [140], a vision-based human-computer interaction system was introduced that interacts with the operator and provides feedback. Complex hardware was installed in intelligent environments, equipped with a steerable projector and spatial sound system, to position the character within the environment [141].
A potential grouping of feedback technologies is the following: fix-mounted devices (e.g., LED TVs), mobile devices (e.g., tablets, smartphones) and wearable devices (e.g., smart glasses). Intuitive displays can reduce the cost of operator intervention as the performance of the operator is improved by the auditory and visual understanding [142]. Visual collaboration systems can provide appropriate instructions for each step of the assembly task [140]. All groups are used correctly and efficiently, but the novelty of wearable devices compared to the ‘simple’ mobile devices is the total freedom of movement and free use of limbs [143]. So far, some of these only provide a human-machine interface (HMI) and need a (mobile) computer (e.g., a smartphone) to operate, but the tendency is that every device will work separately and can cooperate with other devices through some communication solutions (e.g., LAN/WiFi, Bluetooth). Headsets, VR helmets, smart gloves and smart clothes are examples of the types of devices presented in Table 6. The importance of this area is shown in the statistical increase in the numbers of sales. So far, these kinds of solutions have resulted in approximately $5.8 billion in business [144].
The connections between the categories of Operator 4.0 solutions and potential feedback technologies are shown in Table 6. Which feedback opportunity is expedient is defined by the task in question. For example, in the case of the super-strength operator, the feedback indicating danger is a critical function. The next step of the design is to select the technology that delivers the information. Danger can be indicated with the help of smart glasses or by a speaker. As soon as the operator hears the warning alarm, the danger can be avoided. In the case of smart glasses, the worker can obtain more detailed information about the type and location of risk. The potential applications of these solutions are summarized in the last column of the table.
Some companies have been testing these innovative technologies in manufacturing processes. In every case when these techniques are used, the production process is complex, the quality management is strict and there is a wide variety of products. The results are impressive because the efficiency improves while the learning time reduces in every observed situation. In the following, some of these solutions will be introduced.
Smart glasses-based augmented reality is used in the manufacturing of high-horsepower wheeled tractors with hundreds of variations by the company AGCO [146]. Presently, 100 pairs of glasses are in use to visualize the next manufacturing step and necessary information for the inspection process. The results in numbers are promising:
  • 50% reduction in learning time (in the case of new workers)
  • 30% reduction in inspection time (eliminates paperwork and manual upload)
  • 25% reduction in production time (in the case of complex assemblies and low volumes)
Similar advantages of smart glasses were reported at DHL, which is one of the leading logistics companies in the world [154]. Ten workers who used smart glasses for three weeks managed to distribute 20,000 packages (9000 orders), leading to a 25% increase in the efficiency of the operators and a reduction in errors of 40%.
Quality and reliability are critical in aerospace manufacturing. Boeing and Model-Based Instructions (MBI) from Iowa State University support the work of the operators. The first solution was designed to show the instructions for the workers. The installation of the desktop MBI was static, and there were numerous situations when the operator could not see them during the assembly process. The tablet MBI used the same instructions as the desktop MBI, but it was mounted on a mobile arm. The tablet AR was the same tablet that provided the tablet MBI solution; however, the operator could see the real world on the display of the tablet, and the software added virtual elements into the video stream. It was observed that the AR technology yielded the best solutions with regard to first-time quality, speed and worker efficiency out of these three solutions [164,165].
These benefits are in accordance with what was observed in the introduction of general Industry 4.0 solutions [166]. The examination of 385 published applications shows that the most common benefits of Industry 4.0 are the enhanced efficiency (47%), prevention of errors (33%), reduction of cost (33%), employee support (32%) and minimization of lead time (31%). It is worth noting that the importance of communication (31%), human-machine interfaces (25%) and sensor technology (11%) were also highlighted.
The review concerning examples of applications showed clearly that the Operator 4.0 concept works in practice, and the following advantages were observed: (1) elimination of classical paper-based administration; (2) operators can use their arms freely and receive real-time feedback about the manufacturing process; (3) the duration of training of workers decreases; and (4) the efficiency of production increases and the number of errors decreases simultaneously in all cases. In summary, operators will be more efficient in smart workplaces, where new opportunities will be available to safeguard their activities and ensure alertness. Production systems will become safer, more controllable and manageable than ever before. A win-win situation will develop in which humans remain an important element. Operator 4.0 technologies are only capable of bringing about these benefits when the manufacturing process is complex and the variety of products is wide. Of course, some advantages can be observed in cases of traditional mass production, as well, but it is difficult to compensate due to the high investment and development costs of these technologies.

5. Conclusions

This paper provided an overview of what kind of Industrial Internet of Things-based infrastructure should be developed to improve the efficiency of operators in production systems. By following the Operator 4.0 concept proposed by Romero et al. [23,25], the literature survey demonstrated that smart sensors and wearable devices provide the opportunity to integrate operators into the concept of smart factories.
It was highlighted that integrated workspaces should have a modular and integrated architecture, and the development should be based on the concepts of human-in-the-loop cyber-physical systems and intelligent space to ensure low installation and maintenance costs.
In this work, the architecture and infrastructure of Operator 4.0 technologies were surveyed. Monitoring and data-driven analytics are the key to process development [26,138]. There are several exciting model- and algorithm-based aspects of these solutions, e.g., big data, sensor fusion and optimization and machine learning, whose review would also be timely as significant added value and reductions in cost can be achieved by the model-based monitoring, control and optimization of the presented production support systems.

Author Contributions

T.H., S.J. and T.R. prepared the original draft,. J.A. created the concept and reviewed and edited the manuscript.


This research was supported by the National Research, Development and Innovation Office (NKFIH) through the project OTKA-116674 (Process mining and deep learning in the natural sciences and process development) and Széchenyi 2020 under EFOP-3.6.1-16-2016-00015 Smart Specialization Strategy (S3) Comprehensive Institutional Development Program.

Conflicts of Interest

The authors declare that there is no conflict of interest with regard to the publication of this paper.


The following abbreviations are used in this manuscript:
5SWorkplace organization methoddology
ABCActivity-Based Costing
AIArtificial Intelligence
AMAdditive Manufacturing
ARAugmented Reality
BPRBusiness Process Reengineering
CNCComputer Numerical Control
CoBotCollaborative Robot
CPSCyber-Physical System
CPPSCyber-Physical Production System
CSComputer Science
DINDDistributed Intelligent Network Device
E-SNSEnterprise Social Networking Service
H-CPSHuman-Cyber-Physical System
H-CPPSHuman-Cyber-Physical Production System
HMIHuman Machine Interface
ICTInformation and Communication Technologies
IoTInternet of Things
IoSInternet of Services
IPAIntelligent Personal Assistant
IPSIndoor Positioning System
iSpaceIntelligent Space
KPIKey Performance Indicator
MaaSManufacturing as a Service
MBIModel-Based Instructions
MESManufacturing Execution System
MEMSMicro-Electro Mechanical System
MSTManufacturing Science and Technology
OEEOverall Equipment Effectiveness
RFIDRadio Frequency IDentification
SFCShop Floor Control
SFCSShop Floor Control System
VRVirtual Reality
