Appl. Sci. 2018, 8(9), 1541; https://doi.org/10.3390/app8091541

Mini Glider Design and Implementation with Wing-Folding Mechanism

Mechatronics Engineering Department, Yildiz Technical University, Yildiz Mah. Barbaros Blv. Besiktas, 34349 Istanbul, Turkey
*
Author to whom correspondence should be addressed.
Received: 8 August 2018 / Revised: 17 August 2018 / Accepted: 27 August 2018 / Published: 3 September 2018
Full-Text   |   PDF [24340 KB, uploaded 3 September 2018]   |

Abstract

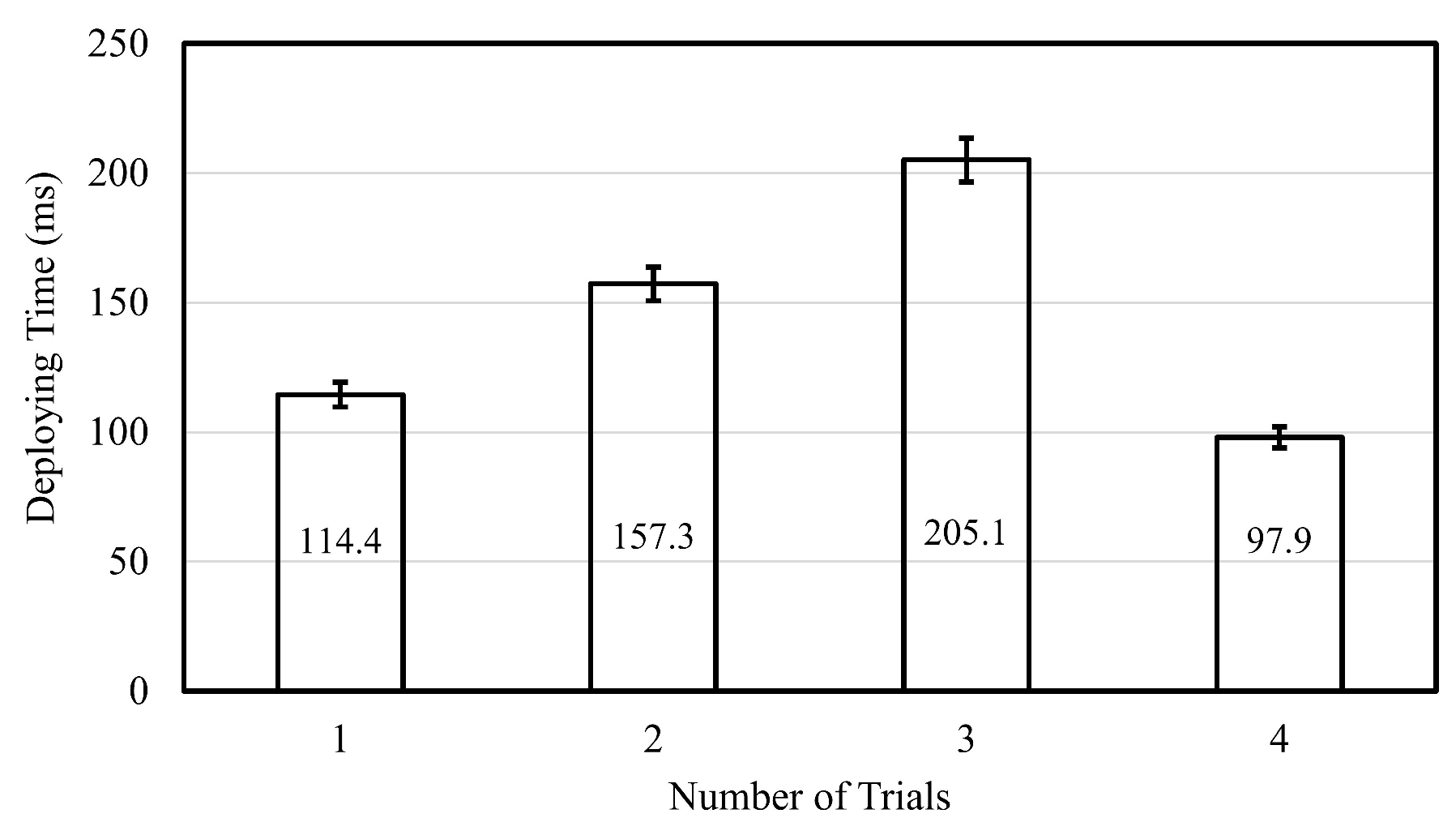

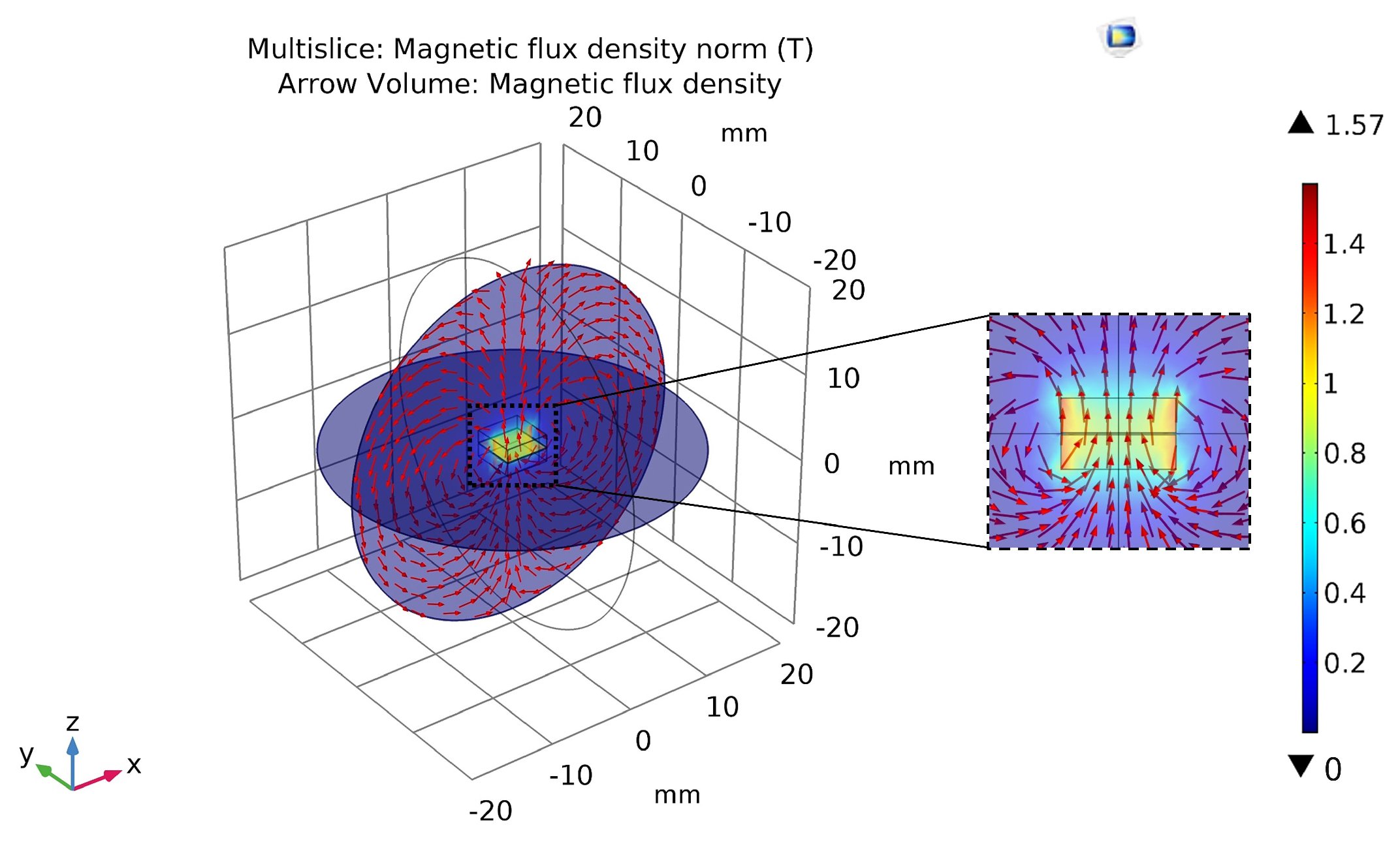

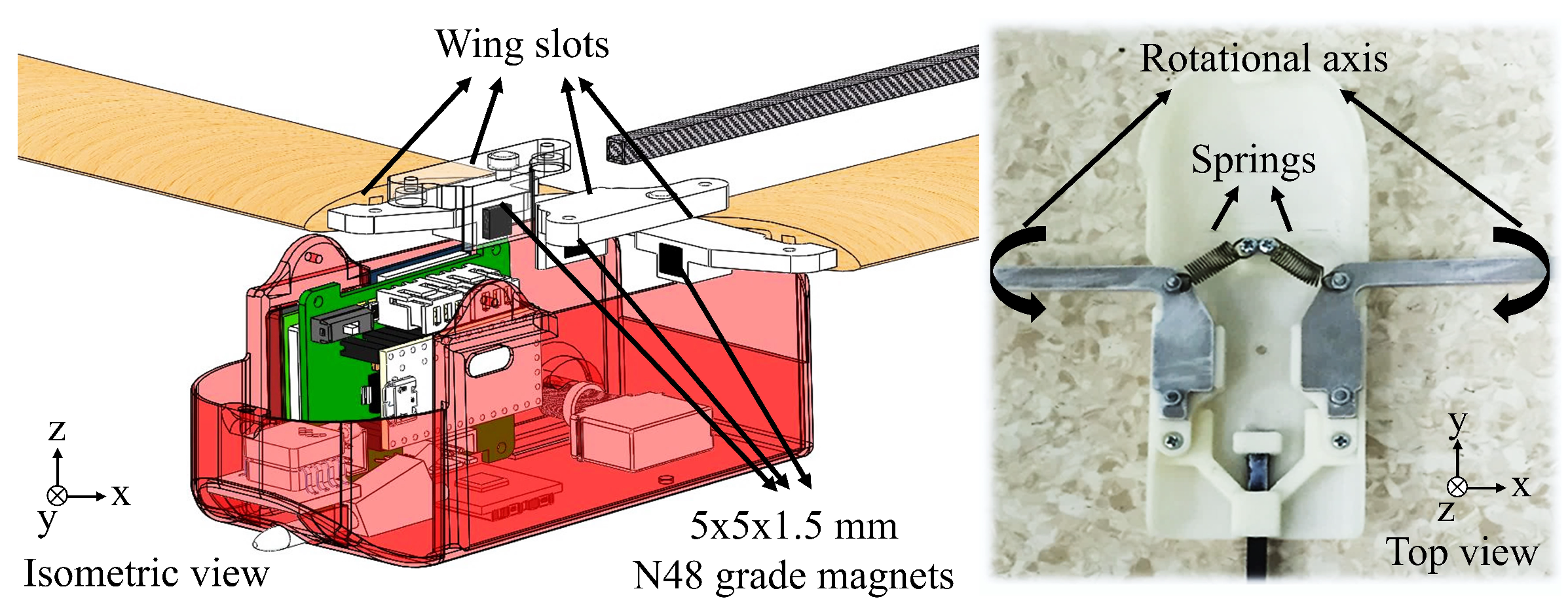

This paper describes a mini unmanned glider’s design, simulation, and manufacturing with a novel wing-folding mechanism. The mini-glider is designed for CanSat competition, which has a theme of a Mars glider concept with atmosphere data acquisition. The aim is to facilitate the transportation of the glider and to land it on the destination point by following strict rules. Having a light and compact design is important since it uses power for the transmission of sensory data only. Dimensions of the glider is produced with a wingspan that is 440 mm and a length of 304 mm. The wings can be stowed in a fixed size container that has a diameter of 125 mm and a height of 310 mm. Its weight is only 144 g and it can increase up to 500 g maximum with a payload. The mechanism, which includes springs and neodymium N48 grade magnets for a wing-folding system, is capable of being ready in 98 ms for gliding after separating from its container. The mini-glider is capable of telemetering, communicating, and conducting other sensory operations autonomously during the flight. View Full-Text
Keywords: MAV; autonomous system; wing-folding; reconnaissance MAV; autonomous system; wing-folding; reconnaissance
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Demircali, A.A.; Uvet, H. Mini Glider Design and Implementation with Wing-Folding Mechanism. Appl. Sci. 2018, 8, 1541.
