A Review of AlGaN-Based Deep-Ultraviolet Light-Emitting Diodes on Sapphire

Featured Application

Sterilization, UV curing and printing, and phototherapy.

Abstract

This paper reviews the progress of AlGaN-based deep-ultraviolet (DUV) light emitting diodes (LEDs), mainly focusing in the work of the authors’ group. The background to the development of the current device structure on sapphire is described and the reason for using a (0001) sapphire with a miscut angle of 1.0° relative to the m-axis is clarified. Our LEDs incorporate uneven quantum wells (QWs) grown on an AlN template with dense macrosteps. Due to the low threading dislocation density of AlGaN and AlN templates of about 5 × 10⁸/cm², the number of nonradiative recombination centers is decreased. In addition, the uneven QW show high external quantum efficiency (EQE) and wall-plug efficiency, which are considered to be boosted by the increased internal quantum efficiency (IQE) by enhancing carrier localization adjacent to macrosteps. The achieved LED performance is considered to be sufficient for practical applications. The advantage of the uneven QW is discussed in terms of the EQE and IQE. A DUV-LED die with an output of over 100 mW at 280–300 nm is considered feasible by applying techniques including the encapsulation. In addition, the fundamental achievements of various groups are reviewed for the future improvements of AlGaN-based DUV-LEDs. Finally, the applications of DUV-LEDs are described from an industrial viewpoint. The demonstrations of W/cm²-class irradiation modules are shown for UV curing.

1. Introduction

1.1. General Overview

AlGaN ternary alloy has a direct bandgap tunable between 3.43 eV and 6.11 eV and is suitable for the fabrication of optical devices with a wavelength range between about 200 nm and 365 nm. In this wavelength range, applications include sterilization [1,2,3,4], ultraviolet (UV) curing and printing [5,6], phototherapy and medical applications [7,8], deodorization by the use of a photocatalyst [9,10], and sensing applications for materials such as urea [11,12]. To date, these applications mainly involve the use of mercury-based lamps. The Minamata Convention on Mercury took effect on 16 August 2017, and AlGaN-based light-emitting diodes (LEDs) are expected to be used as an alternative to mercury lamps. The authors’ group has reported AlGaN-based deep-ultraviolet (DUV) LED bare dies with external quantum efficiencies (EQEs) of 3.5% at 265 nm, over 4.5% at 270 nm, and over 6% between 280 nm and 300 nm without encapsulation and with a p-GaN contact layer [13]. These EQEs correspond to high wall-plug-efficiencies (WPEs) due to the low turn-on voltage (V_f) of 5–6 V at 100 mA (31 A/cm² at the junction area on 1 × 1 mm² dies). The recorded WPEs of bare dies at 100 mA were 2.7%, 3.1%, 4.4%, and 4.3% at 266 nm, 271 nm, 281 nm, and 298 nm, respectively, and the peak WPEs of the 281 and 298 nm LEDs exceeded 5%. When similar DUV-LEDs in Ref. [13] were mounted on the commercialized packages, a lifetime of more than 10,000 h was achieved. If encapsulation is assumed to be used, the WPEs are expected to be improved 1.5-fold [14,15] and the WPEs are predicted to be 4.1%, 4.7%, 6.6%, and 6.5%, respectively, for 100 mA operation. These values are significantly greater than those of 2–3% for incandescent lamps. The WPEs of high- or ultrahigh-pressure mercury lamps are in the range of 10–15% over their entire spectra. Since UV applications often do not utilize all the spectral light of UV bulbs, the utilization factor should be considered; thus, these performances indicate that conventional mercury lamps can be replaced with such LEDs. The lifetimes of high- and ultrahigh-pressure mercury lamps are normally in the range of 100–2000 h, clearly illustrating the advantages of DUV-LEDs with lifetimes of over 10,000 h.

The trend of the EQE dependence on the wavelength is shown in Figure 1. Note that all the EQEs in Figure 1 were achieved for simple devices fabricated with a p-GaN contact layer opaque to DUV (λ < 300 nm) and without any reflective electrodes. DUV-LEDs with wavelength between 280 nm and 300 nm are considered to be suitable for obtaining higher EQEs and WPEs. The collection of published EQE values without distinguishing the incorporated features such as reflective electrodes [16] shows a similar trend to that in Figure 1. Figure 2 illustrates the LEDs demonstrated by the authors’ group. These samples also have a thick p-GaN contact layer.

The characteristic strong spectral peaks of mercury are located at 365 nm (i-line) and 253.7 nm (sterilization line). One of the advantages of AlGaN-based LEDs is their brightness in the region where bright lines from mercury lamps are lacking. In addition, the tunable wavelength of AlGaN-based LEDs is considered to be highly suitable for sensing applications, which are the most accessible applications for DUV-LEDs in their early stage of development. However, the WPE of low-pressure mercury lamps exceeds 25%. In addition, about 90% of the emitted light from low-pressure mercury lamps is sterilization line. Sterilization is currently considered to be a difficult application for DUV-LEDs when considering only WPE and the production cost. For example, a concept of intermittent lighting is necessary for applying DUV-LEDs to sterilization, because the bacteria do not increase soon after sterilization procedure.

1.2. Outlines and Objective of This Review

One of the objectives of this review is to compare various techniques to fabricate DUV-LEDs and clarify the reasons for our choices, including the use of high-miscut sapphire. The reports on DUV-LEDs from different groups mainly evaluated the LED performances using their own techniques. The discussion cross-linking papers from different groups or from the same group including our group is considered to be lacking, similar to the situation at the beginning of InGaN research. We aim to link the studies of various groups related to AlGaN-based DUV-LEDs despite their limited disclosure due to business and patent strategies. We also comment on how our independent results helped to determine our current device structure.

Following this section, the main approaches to obtaining AlN for the growth of AlGaN device layers are categorized in Section 2. The factors determining crystal quality of AlGaN on AlN are explained in Section 3. In the past, a conventional AlN template grown on sapphire within a reasonable growth time [23] had a threading dislocation density (TDD) on the order of 10⁹/cm², which was not sufficiently low. The improvement of TDD was a priority issue to be solved. In Section 4, the techniques for growing AlN with an improved TDD on the order of 10⁸/cm² on sapphire are compared. The reason for using high-miscut sapphire is partially clarified by discussion of the TDD, growth time, and growth temperature. In addition to epitaxial growth, the constitution and techniques necessary to fabricate our current LEDs are explained in Section 5, Section 6 and Section 7. Section 8 describes the packaging required for fabrication of DUV-LEDs. In Section 9, a factor to be considered when measuring the DUV output is briefly given. Following Section 10, where the device layers are clarified, Section 11, Section 12, Section 13 and Section 14 describe the performance of the DUV-LEDs with novel QWs. The expected performance of our dies in the near future upon improving the LEE is written in Section 15. From the viewpoint of the long-term future, the frontiers of DUV-LEDs are introduced showing the challenges by the various groups to improve DUV-LEDs in Section 16. Then, the application and the demonstration of irradiation modules are outlined in Section 17.

2. Groups Manufacturing AlGaN-Based DUV-LEDs

Currently, there are many groups manufacturing AlGaN-based near-ultraviolet (NUV: 300 nm < λ < 400 nm, about 300–350 nm for AlGaN devices) and DUV (200 nm < λ < 300 nm) LEDs. The groups can be distinguished into AlN bulk and sapphire groups according to the substrate. Mergers and alliances often occur in science ventures, and the owner of the intellectual properties and the manufacturer are often different. To our best knowledge, the major players can be grouped as shown in

Table 1. List of research, development and manufacturing groups of AlGaN-based DUV-LEDs, indicating the substrate type, the growth technique, and related techniques. EM, enhanced migration; CHT, continuous high-temperature growth by metal organic chemical vapor deposition (MOCVD); +HVPE, halide vapor phase epitaxy. +R and +LLO indicate roughening and laser liftoff, used as additional techniques, respectively.

Root of Science Venture	Start Up Company	Large Company or Alliance Partners	Substrate	Option	Refs.
RPI 1 Univ. South Carolina	SETi Nitek	Seoul Viosys(KR)	Sapphire	EM	[24,25,26,27,28]
RPI 1	Crystal IS	Asahi Kasei(JP)	AlN	+R	[17,29]
North Carolina State Univ.	Hexatech Adroit	Tokuyama(JP) → 3 Stanley(JP)	AlN	+HVPE +R	[18,30]
	Rayvio		Sapphire
Nagoya Univ. Meijo Univ.	UV Craftory	Nikkiso(JP) +FPG(TW)	Sapphire	CHT	[13,31,32,33,34,35,36,37,38,39,40]
RIKEN		NGK(JP) → 3 Dowa(JP) Panasonic(JP)	Sapphire	EM	[19,41,42,43,44,45]
		Nichia(JP)	Sapphire		[20,21,46]
		Toyoda Gosei(JP)	Sapphire
FBH 2 TU Berlin	UV Photonics				[47,48,49]
		Siemens AGDE)
	Bioraytron	HPL (TW) +Epileds(TW)	Sapphire
		LG Innotek(KR)	Sapphire	+LLO	[50]
		Samsung(KR)	Sapphire		[51,52]
		QD Jason(CN)	Sapphire	EM	[53,54]

¹ PRI, Rensselaer Polytechnic Institute; ² FBH, Ferdinand Braun Institut, ³ →, Business transfer.

, which is used to clarify the trends of research and development.

The groups employing AlN bulk substrates have mainly followed two approaches to fabricating AlGaN-based LEDs. The problem in growing AlN substrates by physical vapor transport (PVT) [55], which is also referred to as sublimation [56,57], is absorption in the UV region due to carbon [58] and oxygen [59] impurities. The advantage of AlN bulk substrates is high crystallinity with a TDD lower than 10⁴/cm² [55,56]. Normally, dislocations are considered to be related to nonradiative recombination centers (NRCs). Based on this superficial understanding, the advantage of using AlN substrates is expected to result in a higher internal quantum efficiency (IQE) [60,61].

It is conventionally considered that high crystal quality contributes to increased reliability [30,62]. However, nitride materials are robust and InGaN-based LEDs [63,64,65,66] and LDs [67,68] with high TDDs of 10⁹/cm² and 10⁶/cm², respectively, have been commercialized. According to the experimental data in Figure 1 for AlGaN-based DUV-LEDs, the EQEs of LEDs on a sapphire substrate are comparable to those on an AlN substrate with TDD of less than 10⁶/cm². The crystal quality required for AlGaN-based DUV-LEDs will be discussed and partially clarified in this paper.

The groups employing sapphire substrates can be roughly categorized in two subgroups: those attempting enhanced migration (EM) [23,53,69,70,71] by applying an alternating or pulsed supply of source precursors and us focusing on continuous high-temperature (CHT) growth [13,31,32,33,34,35,36,37,38,39,40]. Compared with GaN, mass transportation of AlN during the growth is very small and EM and CHT growth were investigated to recover the lack of mass transport. For the EM technique, the growth mechanism is similar to atomic-layer epitaxy, and the growth technique was first called as pulsed atomic-layer epitaxy (PALE) [23]. Improvements were then carried out by the following methods. Migration-enhanced MOCVD (MEMCVD) [25], ammonia pulse-flow method [70], and migration-enhanced epitaxy (MEE) [71] are based on a similar concept and their growth temperatures are generally lower than that required for continuous growth [31,72,73]. The problem with the EM technique from the industrial viewpoint is its slow growth rate. A growth rate of 0.6 µm/h [70] has been reported for EM, and the low growth rate is considered to be an intrinsic nature of the atomic-layer-like epitaxy. To overcome the lack of mass transport for AlN growth, CHT growth was attempted by increasing the growth temperature greater than 1300 °C. The growth rate in this case of continuous growth has been reported to be higher than 5 µm/h [34,72], enabling epitaxial lateral overgrowth (ELO) [31,73], the use of a patterned sapphire substrate (PSS) [39], and the thick AlN growth within a growth time of several hours. However, the problems of CHT growth were a large run-to-run fluctuation of growth machine and a short lifetime of waste parts inside the growth chamber, which must be solved for the mass production of DUV-LEDs.

Recently, a new approach to the fabrication of AlN templates on sapphire substrate has been demonstrated [74,75,76]. The crystallinity of a thin AlN film as deposited on sapphire by sputtering can be improved by annealing at over 1500 °C. AlGaN-based NUV- (λ = 350 nm) and DUV-LEDs (λ = 268 nm) have been demonstrated [47] using this new AlN templates. Currently, there are three main approaches to fabricating AlN templates on sapphire.

3. Crystal Quality of AlGaN on AlN

The TDD has a strong relationship with NRCs [77] for AlGaN QWs. To clarify the crystal quality required for AlN, the AlGaN QWs and n-AlGaN cladding layer must be discussed together. The EQEs of bare die LEDs on sapphire and AlN bulk substrates in Figure 1 do not substantially differ. It has been claimed that 2 × 10⁸/cm² is good enough to obtain a satisfactory IQE [24,41] for the flat QWs, showing AlN bulk substrate with TDD of less than 10⁶/cm² is over quality. However, the AlN template with TDD on the order of 10⁸/cm² to grow AlGaN LED layers was difficult to be fabricated on sapphire. In addition, misfit dislocations at the interface with AlN between AlGaN layer increased the TDD of the n-AlGaN cladding layer [78,79] in the case of using AlN bulk substrate with the TDD of less than 10⁶/cm², showing that n-Al_0.5Ga_0.5N cladding layers exhibited (10–12) and (0002) ω-scan X-ray rocking curves (XRCs) with full-width-half-maximum (FWHM) of greater than 600 arcs and 200 arcs, respectively [80]. Except in the case of AlGaN with a high AlN content, the TDD of n-AlGaN layer on AlN or AlN templates is considered to be limited to the order of 10⁸/cm² when AlGaN is grown on a planer AlN surface.

The required crystal quality should be discussed on the basis of point defects at the AlGaN QWs as well as the TDD. When the crystal quality is moderately improved, NRCs derived from point defects must be considered [81] because Al vacancies (V_Al) have been revealed to be NRCs in AlGaN QWs [82]. Carrier localization has been clarified to be the reason why GaN with a high TDD of between 10⁸/cm² and 10⁹/cm² enables the mass production of InGaN-LEDs [83,84,85]. Similarly, AlGaN-LEDs are considered to involve the carrier localization effect [86,87,88,89]. The effects of V_Al on IQE have been observed using samples with TDDs on the order of 10⁹/cm² [90].

Until about 2005, AlN on sapphire showed insufficient crystallinity to enable the growth of AlGaN LEDs, making it impossible to realize the practical efficiencies. The difficulty of improving AlGaN quality when AlN crystallinity is insufficient is due to crystal improvement mechanisms such as three-dimensional growth are not expected for AlGaN on AlN. Attempts to overcome this problem to obtain AlN with a moderate TDD on the order of 10⁸/cm² on sapphire substrate are described in the following.

4. Attempted Improvements of AlN on Sapphire to Obtain TDD Less Than 10⁹/cm²

4.1. Epitaxial Lateral Overgrowth (ELO) and Patterned Sapphire Substrate (PSS)

GaN improvement techniques are briefly introduced as a contrast to those for AlN. The low-temperature (LT) buffer layer technique [91,92] has enabled a GaN film with a TDD of less than 10⁹/cm² to be produced on sapphire. The additional technique to improving GaN on LT buffer layer on sapphire is well known as ELO, and a GaN with a TDD of lower than 10⁷/cm² successfully led to demonstrate laser diodes (LDs) [68,92]. The variations of crystal improvement techniques has been attempted for GaN on LT buffer, including pendeoepitaxy [93] and facet-controlled ELO [94], which involve the masking of dislocations and utilizing the mass transfer of GaN. In addition, the use of a PSS gives a TDD on the order of 10⁸/cm² [95,96]; PSS technique utilizes the decomposition of irregularly oriented GaN seed crystals on sapphire. GaN substrates with TDD of lower than 10⁶/cm² are currently used for the production of LDs, and ELO-GaN has been replaced by GaN substrates [97,98] to produce LDs. Despite the smaller improvement of GaN for PSSs, only the PSS technique is used to produce commercialized InGaN-based LEDs (<365 nm) on sapphire owing to its moderately good crystallinity on sapphire and the simple growth procedure without regrowth and masking of dislocations.

It is reasonable to consider that AlGaN with moderate crystal quality is desirable for fabrication of AlGaN LEDs. AlN and GaN have a wurtzite structure and similar techniques are expected to be effective for improving AlN. Similar to GaN, improvements of AlN and AlGaN using ELO and PSS have been attempted because TDD on the order of 10⁹/cm² is too high to obtain high IQEs [69,99]. With this background, the ELO of AlN on a PSS using trenched sapphire has been investigated [33,100,101]. The AlN crystallinity was reported to be improved using PSSs. DUV-LEDs were fabricated using ELO on PSS [27,39], but significant increases in EQEs have not been reported. Based on our experiment [39], although AlN improvement in the TDD of AlN (<10⁸/cm²) above the groove of sapphire was achieved, reducing the miss-coalescence of the entire wafer was difficult. The lack of mass transfer for AlN is considered to cause the difficulty. To overcome the lack of mass transfer of AlN, a nanoimprint (NIP) technique has been applied to a Si substrate, in which submicron circles were patterned [102,103]. Coalescence was observed, as were µm-size PSSs. However, the crystallinity was not improved significantly. All the experiments on AlN-ELO incorporated PSS with flat tops to obtain AlN seed crystals, and the misoriented small AlN grains around the grooves were observed. The misoriented AlN seed crystals are considered to remain due to the insufficient decomposition of the irregularly oriented seed AlN crystals. In addition, there are reports that the polarity of AlN is difficult to align [104,105]. AlN is expected to behave similarly to GaN [106,107,108] if the growth temperature of AlN is increased much higher than 1300 °C. Currently, the gap between AlN and GaN is difficult to close, and ELO and PSS techniques are unlikely to be used in practice. The coalescence faults resulted in low yield.

4.2. Growth of Thick AlN Layer

Compared with GaN, AlN hardly decomposes or undergoes mass transport [104,105]. Therefore, the techniques that can be used to improve crystal quality are limited. Since the quality of crystals naturally tends to improve during their growth, a method of improving the crystal quality of AlN is to grow a thick layer with a thickness of about 5 µm [32,109]. CHT growth at a temperature exceeding 1300 °C can reduce the growth time due to its growth rate of more than 5 µm/h. The growth of thick layer often results in cracks due to the limitation of critical film thickness, limiting the maximum AlN thickness; thus, the thickness of AlN is considered to be limited at around 5 µm in practice. The achieved FWHM values of ω-scans of (0002) and (10-10) XRCs for an AlN thickness of 4.5 µm were 150 and 700 arcsec, respectively, when using planar sapphire with a miscut of 0.3° at a growth rate of 5.5 µm/h [109]. In addition, by modulating the V/III ratio for CHT growth, (0002) and (10-10) XRCs with FWHMs of 220 and 475 arcsec were obtained [110] for an AlN thickness of 3–4 µm. Meanwhile, the groups employing EM have reported that thick AlN layers to obtain the AlN with a TDD of about 2 × 10⁸/cm² [24], which enables a high IQE of 49% for smooth and flat MQWs. A TDD of 2 × 10⁸/cm² was also reported by another EM group to have a high IQE [41]. Despite the growth rate of about 0.5 µm/h for EM, an attempt to grow thick AlN has also been reported [70] to obtain AlN with a low TDD. From the viewpoint of cost-feasible production, the growth of thick AlN layers by EM is not suitable because of the long growth time. Instead, in the early stage of development of CHT growth, the short lifetime of consumables, such as the heater and wafer tray, due to the high growth temperature (>1300 °C) were problems to be solved.

4.3. Use of High Miscut Sapphire

During our optimization for the miscut angle of sapphire oriented along the m-axis, the improved-AlN crystallinity was observed when changing the miscut angle from 0.3° to 1.5°. Similar phenomenon was observed for the CHT growth of AlN. However, based on the conventional understanding that a rough surface with macrosteps, of which height gap between flat surfaces is greater than a unit cell, is unsuitable to grow LED layers on it, Mg was added to AlN with an aim of making AlN template smoother in the case of using sapphire with 0.5° miscut [109]. The macrostep in this paper might include stairway structure of bunched m(10-10)-, r(1-102)- and narrow c(0001)-surfaces.

In the past, using molecular beam epitaxy at the temperature of 700 °C, an improved crystallinity of AlN was observed in the case of using sapphire with higher miscut of 1.0° in addition to the exhibit of multi-atomic layer macrosteps, and the maximum miscut angle to obtain stepflow surface was reported to be 0.5° [111]. Using molecular beam epitaxy, the improved (0002) and (10-12) XRCs of GaN were also observed in the case of using sapphire with higher miscut of 1.0° and 2.0° with the exhibit of bunched steps. The maximum miscut angle of 0.5° to exhibit the stepflow surface [112] was reported. The groups using EM reported the smooth surfaces of AlN with stepflow [71,113] to make LEDs. These reports indicate that the macrosteps were not expected to be useful to fabricate LEDs. Despite this general understanding that excess miscut angle cannot be suitable to fabricate LEDs due to macrosteps, not to miss the optimal angle, the investigation on a wide range of miscut angle between 0.1° and 3.0° was carried out. The result is shown in Figure 3. The maximum miscut angle for which a stepflow surface could be obtained was limited to below 0.3°. This agrees well with the results of other groups. The highest crystal quality was observed at a miscut angle of 1.5°. It was unexpectedly found that AlN with dense macrosteps is suitable for the fabrication of DUV-LEDs, contradicting the common understanding of QWs. In fact, the miscut angle is usually set to between 0.15° and 0.3° to produce InGaN LEDs with stepflow surfaces. There was indeed no evidence to indicate that AlN with macrosteps is suitable for fabrication of DUV-LEDs.

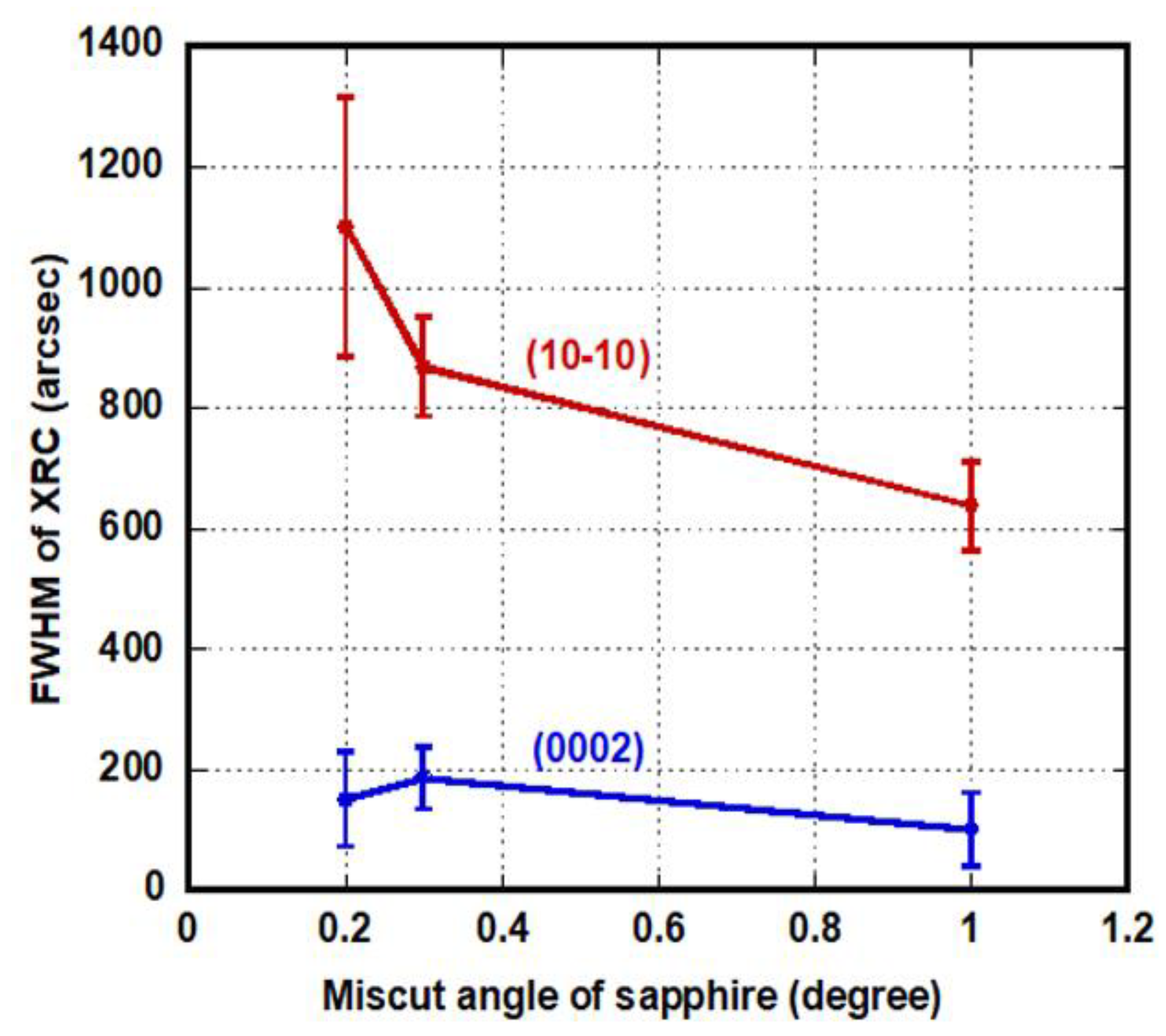

Figure 3a shows the average FWHM of the (10-10) XRC of AlN templates grown on sapphire with miscut angles between 0.1° and 3.0°. The FWHMs of (10-10) XRCs for n-AlGaN on AlN on sapphire with various miscut angles are also shown. The EL outputs of DUV-LEDs for different miscut angles reported in our articles [13,37,38] are shown in Figure 4. Figure 5 shows AFM images of our recently grown AlN templates [13] on sapphires with various miscut angles using the same growth recipe. After recipe optimization along with the increased EL, steps had unexpectedly appeared for all sapphire substrates with various miscut angles. Fortunately, AlN templates with macrosteps have been proven to be useful for producing AlGaN-based DUV-LEDs with superior performance to those grown on flat AlN.

To increase understanding of the background to achieving the current AlGaN-based LEDs with high performance, optimizing AlN growth recipes during the preparation before production is discussed in the following. The MOCVD performed in the experiment used a tray of multiple wafers. The effect of the miscut angles was investigated for two years, where we expected that AlN grown on 0.2°- and 0.3°-miscut sapphire would have a stepflow surface and that AlN on 1.0°-miscut sapphire would have dense macrosteps. The comparison was based on XRC measurements and EL output measurements in reliability tests. During the optimization procedure, the AlN growth recipe was modified on the basis of this routine analysis. The appearance of macrosteps on AlN on sapphire with miscut angles less than 0.3° was overlooked simply because there was no increase in the number of device faults. Before starting the production, AlN surfaces on sapphire with various miscut angles were observed by AFM for confirmation. It was indeed surprising to see that the entire AlN surface exhibited was rough. Including the case of AlN grown on 1.0°-miscut sapphire, which was expected to have dense macrosteps, the number of LED wafers subjected to the reliability tests was about 1000 and the number of LED dies was about 10,000. Statistically, the rough surface on AlN cannot be a reason for device faults. During this preparation before the mass production of DUV-LEDs, different reasons for device faults were revealed and measures were taken. Due to this background, the results using sapphire with a miscut of less than 0.3° reported in this article might include those of devices both smooth and rough surfaces.

The use of high miscut sapphire has the additional advantages of lowering the growth temperature and enabling the use of a thinner AlN layer to obtain AlN with a TDD on the order of 10⁸/cm². When the growth temperature was set to lower than 1300 °C [13,38], the growth rate of AlN was reduced to around 1 µm/h. However, the use of 1.0°-miscut sapphire enables the growth of a 2-3-µm-thick AlN layer with a TDD on 5 × 10⁸/cm² on sapphire. The growth time for the AlN layer did not exceed about 3 h, meaning that it is practically applicable to mass-produce DUV-LEDs. Despite the decreased growth rate, the lower growth temperature solved the problem of a short lifetime for the consumables in the growth chamber. The lifetime of the consumables is in a trade-off relationship to the growth rate and the lower growth temperature increases the interval between growth chamber maintenance. From an industrial viewpoint, increasing the yield of the dies in a wafer as well as the yield of wafers due to reduced run-to-run fluctuation is also important and the reduction of heat transfer due to infrared radiation contributes to reduce the run-to-run fluctuation. To conclude this Section, the use of high-miscut sapphire is considered to be effective in the current situation.

5. Reflective p- and n-Electrodes

5.1. Transparent p-Cladding Layer and Reflective p-Contact

InGaN-based LEDs normally comprise a p-GaN cladding layer with transparency to the wavelength about above 365 nm. Ag-based solder has reflectivity in λ > 365 nm and many silver-colored metals are well known to have significant reflectivity in NUV (λ > 300 nm). The use of indium tin oxide (InSnO: ITO) enables a conductive transparent (λ > 365 nm) p-contact. By integrating such a cladding layer and p-contact, when the metallized sapphire side of InGaN dies is bonded to the packaging, the pair of transparent p-contacts and the Ag-based solder realizes a high light extraction efficiency (LEE). In addition, when the reflective p-contact is flip-chip bonded to the mount, the utilization of EL reflected from the p-contact is possible.

Meanwhile, for DUV-LEDs, neither a transparent conductive p-cladding layer nor a low resistive p-contact on p-AlGaN cladding layer can be practically used. The conventional p-contact metal of Ni does not reflect DUV at λ < 280 nm. Although as-deposited Al reflects DUV, Al is unsuitable for formation of low-resistivity contacts on p-GaN, owing to its small work function. This explains why many reports of DUV-LEDs with a p-reflective electrode show a high V_f. V_f of 7 V [23] using a short-period superlattice (SPSL) has been reported. In addition, Ni/Au and Ni/Al contacts with an increased forward voltage of 2–4 V [114] when p-GaN contact layer is replaced by p-AlGaN. Furthermore, a Ni/Al contact with V_f over 15 V [42], a Rh electrode with V_f = 16 V [21], or a Ni/Mg electrode with an embedded photonic crystal (PhC) structure without recording V_f [43] were reported. None of the reports [21,24,42,43,114] mentioned the lifetime. We also attempted to form a contact on a p-AlGaN layer, resulting in LEDs with a very short lifetime. To suppress the increase in V_f and reduction in the lifetime, a meshed p-GaN contact layer was used [40], which increased V_f to 6–7 V. Although the reduction in the lifetime was suppressed, the problem was not sufficiently solved, as shown in Figure 6. The reasons for the short lifetime have not yet been clarified and the suggestion of the local heat generation due to insufficient contact is possibly among the reasons. Since LEDs must have a lifetime of over 10,000 h to be superior to the UV bulbs, a p-GaN contact layer is currently thought to be necessary. Simple approaches of the reflective p-contact did not lead to a practical solution. Attempts to solve the problem by inserting a thin InGaN layer [115,116,117], incorporating quantum dots [118], or fabricating nanorods [119] are ongoing. However, major manufacturers currently incorporate a p-GaN contact layer. Due to the insufficient conductivity of p-AlGaN [120] of about 10²/Ωcm, the p-AlGaN contact resistivity of about 10⁻² Ωcm² [121], and the absence of a practical reflective p-contact in DUV region, the waste EL towards the p-side is not expected to be utilized in near future.

5.2. Interdigital Reflective n-Contact

The part of the EL traveling backwards to the device layers, which is reflected from the sapphire–air boundary, is absorbed in the p-GaN layer of DUV-LEDs, resulting in the waste of the EL. To reduce the waste EL on this mechanism, an n-reflective contact was investigated [40]. The sheet resistance of the n-contact on Al_xGa_1−xN (x > 50%) was recorded to be around 10⁻⁴ Ωcm² [122] using vanadium. The carrier concentration of the n-AlGaN layer and the electron mobility were reported [123]. However, because the n-AlGaN cladding layer and the n-contact are highly resistive compared with those of n-GaN, an interdigital n-electrode is usually applied [13,26] to supply the current uniformly to the junction area, as shown in Figure 6. An increased length of the mesa sidewall enables a narrow n-contact area adjacent the junction area. The reflectivity in DUV at n-contact is lost by the annealing treatment to lower the contact resistivity. This annealing process is currently unavoidable to minimize the increase in V_f. The part of the n-electrode adjacent to the junction area was annealed to form a low-resistivity contact, and then the Al was post-deposited on the rest of the contact area of n-AlGaN. As a result, an EQE was improved by 1.2-fold [40] with a small increase in V_f. Since the area of an n-reflective electrode has a trade-off relationship with the junction area, the practical use of n-reflective electrodes should be limited, because the current density in the junction area must be reduced by increasing the junction area to obtain a longer lifetime. Therefore, a n-reflective contact is not applied to our device layers.

6. Factors Inhibited Light Extraction at the Interfaces with Different Refractive Indices

Currently, the use of p- or n-reflective electrodes does not practically improve DUV-LEDs. Since the waste EL comes mainly from the absorption in the p-GaN layer, the reduction of the reflection loss at the boundary between sapphire and air is recognized as a priority task to extract more light from the bare dies. Based on the concept without increasing both V_f and WPE, the control of the surfaces of sapphire or the AlN substrate opposite the device layer has been studied [18,37,62] to increase LEE. AlN substrates are thinned to reduce DUV absorption at AlN. By roughening the thin AlN surface, an enhancement of LEE greater than 1.5-fold was achieved [18,62]. A motheye (photonic crystal: PhC) structure [124] was fabricated on sapphire substrate [37]. As a result, the EL output obtained by wafer-based measurement without isolating into dies was improved 1.5-fold, as shown in Figure 7.

Since the Mohs hardness of sapphire is 9 (Vickers hardness of 2300), thinning the sapphire before scribing the LED wafer is generally used to mass-produce commoditized wire-bonded InGaN-based devices with a p-transparent electrode. For the flip-chip mounted devices, heat dissipation is mainly via the p-contact and the thickness of sapphire layer is not a serious disadvantage. However, the thinning process is normally applied before scribing sapphire due to its hardness. The use of thick sapphire became possible using the stealth-dicing-technique invented by Hamamatsu. When LED wafers were isolated without thinning 430-µm-thick sapphire, the improvement ratio of LEE resulting from using the moth-eye structure was decreased to around 5% because of the contribution of thick sapphire sidewalls for increasing in LEE. The moth-eye (PhC) structure is still substantially effective because there is no increase in V_f, no reduction of the lifetime, and disadvantages except for the cost. Currently, thick sapphire is considered to be a useful material with a refractive index of 1.8, between those of air and AlN (refractive index 2.1) [125]. Because of the improvement of only 5% by motheye (PhC) structure on the sapphire surface opposite to the device layers in the case of using thick sapphire, the encapsulation was focused on as a priority [14,15].

Due to the difference in the refractive indices between sapphire and AlN, the reflection between the sapphire and AlN layer cannot be negligible. The use of µm-size PSS [39] was studied, keeping in mind the future application of PhC instead of the µm-sized PPS. The use of PSS was expected to reduce this reflection loss and improve the quality of AlN crystal. For AlN to coalesce on PSS, the preferable miscut angle of sapphire was determined to be lower than 0.3° [126]. The use of PSS conflicted with the use high miscut sapphire. Consequently, the present device layers of DUV-LEDs were grown on planar sapphire with 1.0° miscut.

7. Present Simple Bare Die

As described in Section 4, high miscut sapphire is useful for obtaining moderate crystallinity with a TDD between 10⁸ and 10⁹/cm². As described in Section 5, reflective p-contact is considered to reduce the lifetime. In addition, due to increase in V_f due to the low electrical properties of the p-AlGaN cladding layer and reflective p-contact, WPEs cannot be expected to increase remarkably. In addition, reflective n-contact was not applied because the enlarging junction area in the limited die size is considered to be practical. Thick sapphire is considered to be effective technique to increase WPE and the moth-eye (PhC) structure is not currently used because it only increases the LEE by 5% in the case of using thick sapphire.

Consequently, planar thick sapphire with a high miscut angle of 1.0° has been used to obtain moderate crystallinity as well as to simplify the fabrication of DUV-LEDs. Figure 8a illustrates the DUV-LED structure presented in the sections from 10 to 14 and Figure 8b shows the electrode pattern and the dimensions of the die.

8. Packaging for DUV-LEDs

Packaging loss is often neglected in scientific research; however, even a simple mount such as a TO-5 stem causes packaging loss. This is mainly because of the low reflectivity of metals in the DUV region. AlN ceramic heatsink contains impurities because AlN ceramic is fabricated by sintering, reducing the transparency to DUV. Accordingly, the measurement of EQEs is unavoidably accompanied by packaging loss. Even though a high EQE is obtained, transverse or backward EL emission to the normal vector of the sapphire light extraction plane opposite to the device layers is not useful. It would be preferable to collect this EL closer to the light extraction side of devices. Practically, an Al reflector around the die is effective to reduce the waste of EL. An Al coating on the surface of the submount will also reduce the waste.

From the industrial viewpoint, packaging loss is a serious problem for DUV-LEDs. Today’s regular DUV-LEDs are mounted on ceramic container-type package, which enables applying established mass-production machines and attaching the quartz window, because it is well known that most polymers are decomposed by DUV light. In addition, heat dissipation is important to enable the injection of a larger current. High EQE does not necessarily lead to highly useful devices, and a high absolute output power or irradiation intensity is often required. Robust InGaN LEDs are often driven at a high current density over 50 A/cm² (500–700 mA per 1 × 1 mm² die).

Currently, WPEs of DUV-LEDs are less than 10% and the injected energy to DUV-LEDs is mainly converted into heat. Since AlGaN, as well as InGaN, material is robust, to increase usable EL outputs, heat dissipation of the packaging is the key to injecting a larger current. Sintered AlN ceramic has a thermal conductivity coefficient of more than 170 Wm⁻¹K⁻¹ and is durable against DUV light. One of the current problems in AlN packaging originates from the reflection between the quartz window and the atmosphere in DUV region. The loss at the quartz window is 8% or greater. In addition, the coefficients of thermal expansion differ for AlN and quartz window. To attach the packaged DUV-LEDs on the patterned circuit board (PCB), solder reflow process is desired to be used, which needs to increase the furnace temperature up to 260 °C. Despite the problems of reflow temperature and the reflection loss at the window, many manufacturers currently use precise ceramic packaging with a quartz window. To attach the quartz window, AlN multilayer sintering technique was applied to make the height of inner walls greater than the die thickness. However, the inner walls cause serious packaging loss of the EL flux oriented to transverse to the axis of light extraction direction, which is not expected to be highly reflected from the inner walls. The total packaging loss is estimated to be 40%, resulting EL output of 45 mW in the case of packaging when the output of the corresponding bare die is more than 70 mW [127]. To reduce the loss of the quartz window and low reflection from the inner walls, encapsulation using a fluoro-polymer is considered to be useful [14,15].

9. EL Output Measurement for DUV-LEDs

Normally, packaging loss is difficult to completely separate from EQE measurements. We attempted to attach an Al reflector on simple planar AlN submount and confirmed that the measured EQEs increased by 5–8% when using a four-inch integrating sphere with the sample mounted on the outer spherical surface. The following measurements do not incorporate reflector or a reflective coating on the AlN mount. Thus, the determined EL outputs are not considered to be overestimated. The container-type AlN packaging with inner walls were not used to determine the die performances.

When measuring DUV light, the absorption by the atmosphere, the sensitivity of sensors in the UV region, and the accuracy of the standard light source must be carefully considered. The international standard light source is based on the black body radiation and tungsten filament bulb (2855.6 K), which is defined by commission internationale de l’éclairage (CIE). The standard light source guarantees an accuracy of 5.6–11.6% for DUV in Japan, which might not differ significantly from the standard of other countries. The UV emission of a tungsten filament is weak and it is not user friendly. There are standard light sources with intense UV emission employing xenon or deuterium lamps calibrated by Japan Calibration Service System (JCSS) for regular use. The lifetime of the standard light source for regular use is only 100 h despite the need for stabilization time before its use. To perform a daily check between the checks using the standard light, a stable light source such as an NUV- or DUV-LED is helpful.

Our standard light source has been a Hamamatsu L7810-02 (xenon lamp) since the beginning of our research on AlGaN-based LEDs. Standard light sources without the guaranteed intensity of DUV region are on the market. UV measurement has pitfalls because of its similarity to that of visible light. Regarding absorption of atmosphere, O₂ with a nonsymmetrical magnetic moment absorbs light with a wavelength of around 210 nm. DUV light with wavelength between 100 nm and 230 nm creates ozone with absorption from 350 to 250 nm. In addition, OH molecules have absorption structures (A₂Σ⁺-X₂Σ⁺ transition) at around 245–315 nm [128], meaning the care of humidity is preferable. Therefore, the absorption along the optical path between the LED and detector must be considered. Our integrating sphere is a 4-inch sphere having a short optical path and with the inner sphere surface coated by the fluoro-polymer (polymerized tetra-fluoro-ethylene (PTFE)). This is designed to be used for DUV; however, the decomposition of PTFE by the DUV near 200 nm should be cared about. Based on our experience, when it is located in a clean room, it will give comparable accuracy to that of the standard light source at wavelengths of λ > 250 nm. Nitrogen gas with a symmetrical molecular structure is useful for purging the gas inside the sphere to eliminate UV absorption.

10. DUV-LED Layers with Uneven QWs Grown on Macrosteps

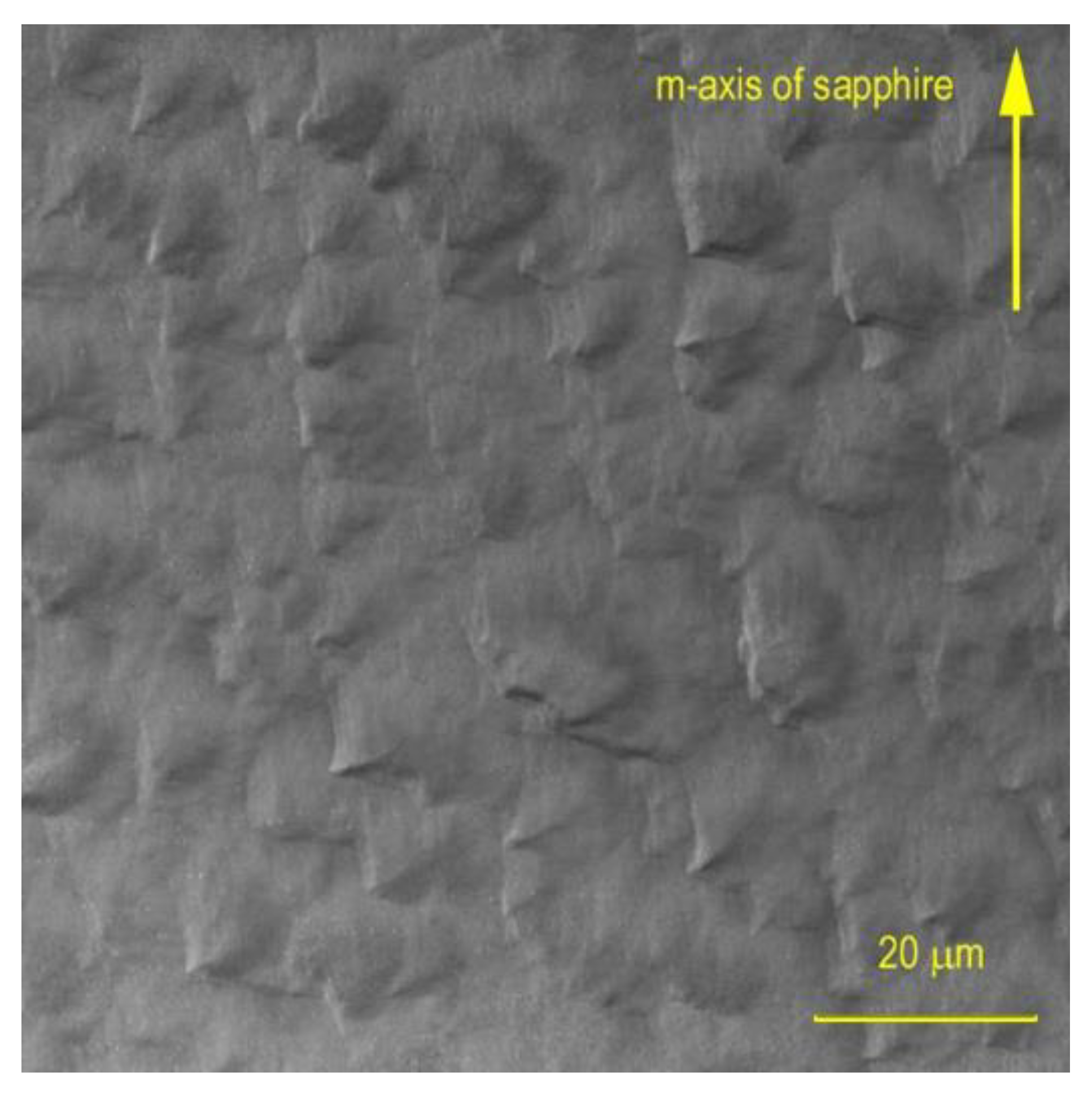

Figure 9 shows the result of AlN grown on 430-µm-thick sapphire with miscut angles of 0.2°, 0.3°, and 1.0° relative to the m-axis of (0001) sapphire. This experiment was performed in parallel with optimization of the growth recipe for AlN for two years. The growth temperature was set to be between 1220 and 1280 °C during the growth of AlN layer. Based on the result shown in Figure 9, the miscut angle of the sapphire substrate was set to 1.0° to fabricate LED wafers. The crystallinity of 2-µm-thick AlN in the case of 1.0°-miscut sapphire was stable [13]. The FWHMs of the ω-scans of (0002) and (10-10) XRCs were about 150 and 650 arcsec, respectively. The total of the FWHMs of the ω-scans of (0002) and (10-10) XRCs was determined to be quite stable at about 800 ± 15.5 arcsec because of the trade-off relationship between tilt (0002) and twist (10-10) [13]. A TDD of 5 × 10⁸/cm² was estimated for our AlN in the case of using 1.0°-miscut sapphire. The AlN on the sapphire exhibited dense macrosteps after optimizing the AlN growth recipe, as shown in Figure 5. In the case of the 1.0°-miscut sapphire, the terrace width was about 300 nm and the step height was often greater than 10 nm, which is greater than the well thickness of 2–3 nm or the quantum barrier thickness of 6–7 nm. To determine the roughness of the quantum well, n-Al_xGa_1−xN cladding layers were grown on AlN templates and atomic force microscope (AFM) images were taken for cladding layers with x = 0.67 and 0.61, which were prepared for 265 and 285 nm LEDs, respectively. After characterizing the n-Al_xGa_1−xN, 3QW and 20 nm-thick-electron blocking (EB) layers were regrown on the n-AlGaN templates. Figure 10 shows AFM images of the n-AlGaN templates and EB surfaces. Al-rich EB surfaces were used to determine the roughness of the final surface of the MQW because the decomposition of the Ga-rich MQW during the cooling process of MOCVD must be prevented. The large step edges on the AlN surface were divided into multiple macrosteps on the n-AlGaN and EB surfaces for both the x = 0.67 (265 nm) and 0.61 (285 nm) cases. This is considered as a footprint of mass transport during the AlGaN growth. In addition, the step edges lost their sharpness at the AlN surfaces which can be seen in Figure 5, suggesting that the macrosteps collapsed during the AlGaN growth. However, the height of the macrosteps on n-AlGaN and EB surfaces often exceeded 10 nm, which is greater than the quantum well and quantum barrier thicknesses. Since uneven QWs are thought to be unsuitable to grow QWs on it, the authors’ group previously attempted to make a flat template [109]. EM groups also reported n-AlGaN with a flat surface with an RMS of less than 0.3 nm [71,113]. We unexpectedly observed that the uneven QWs function well. Then, samples with EB surfaces were used to regrow p-GaN layers, where the thickness of each p-GaN layer was about 0.5 µm. A laser microscopic image of the p-GaN surface is shown in Figure 11. Due to compressive strain given by the EB surface, the p-GaN growth became three-dimensional mode before forming a smoother p-GaN surface. A high miscut angle of the sapphire prevented the formation of stepflow surfaces of p-GaN. Despite the surface having an arithmetic average roughness (Ra) of 5.86 for 6 × 6 µm² area, this thick p-GaN layer is considered to be indispensable for obtaining a lifetime of over 10,000 h. Similar to the manufacturers of DUV-LEDs using sapphire, manufacturers of DUV-LEDs on AlN bulk substrates also incorporate thick p-GaN layers [30,62].

11. EQEs, WPEs and IQEs of AlGaN-Based Bare Dies with Uneven QWs

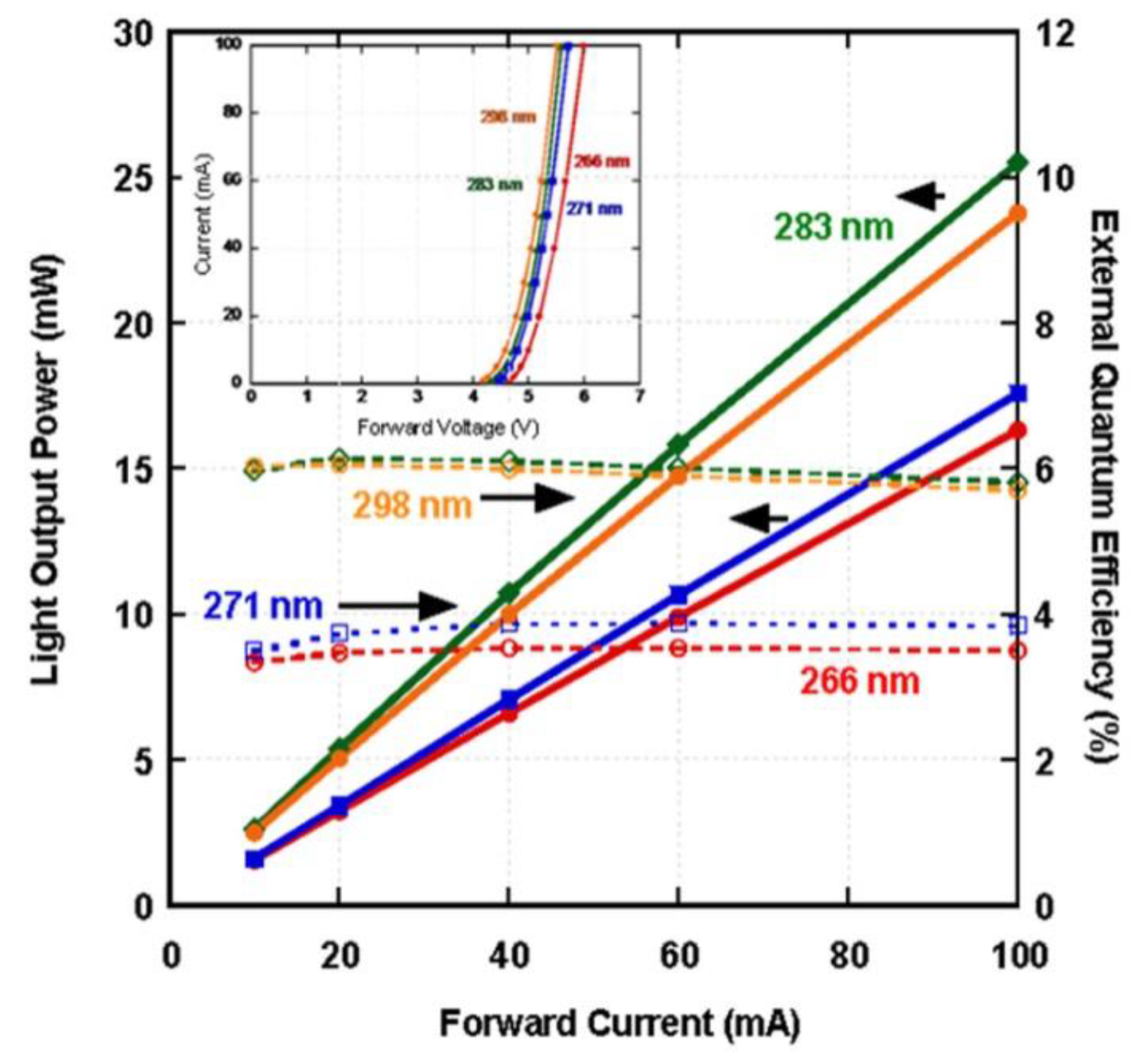

Due to the thickness of the p-GaN layer, approximately half of the generated EL propagating to the p-side is immediately absorbed in the p-GaN. To avoid the waste of EL propagating to the n-cladding layer, 430-µm-thick sapphire was used without thinning. Four samples of DUV-LEDs were fabricated: 266 and 271 nm LEDs were grown on a 265 nm template group (x = 0.67) and 283 and 297 nm LEDs were fabricated on a 285 nm template group (x = 0.61). Dies were placed on an AlN submount (3 × 3 mm²) with a thickness of 0.015 inch (0.381 mm) and then mounted on TO-5 headers. The specific heat dissipation for TO-5 is limited to 120 mW. Figure 12 shows the EL intensity as a function of the injected current (I-L characteristics) with the I-V characteristics shown in the inset. Figure 13 shows corresponding WPEs. The peak EQEs were obtained at 40 mA. EQEs of 3.5% at 266 nm, 3.8% at 271 nm, 6.1% at 283 nm, and 6.0% at 298 nm were achieved. The load of 40 mA is slightly larger than the specific heat dissipation of TO-5 headers because V_f is between 5 and 6 V. The peak WPEs were 3.0% at 266 nm, 3.4% at 271 nm, 5.4% at 283 nm, and 5.5% at 298 nm at DC currents of 40, 20, 10, and 5 mA, respectively. At 100 mA, the WPEs were reduced to 2.7, 3.1, 4.4, and 4.3% at 266, 271, 283, and 298 nm, respectively.

The IQEs of these samples could not be precisely determined. However, rough estimates of IQEs are possible using I-L curves [129]. The LEE of the structure with p-GaN has been estimated by several groups to be 8–9% using ray tracing [24,41]. We also estimated on LEE of 8% for our DUV-LEDs. Assuming a fixed LEE and eliminating the effects of the shunt and parallel resistances of the LEDs, the relationship between the EL intensity and injected current density in the junction area enables the current injection efficiency (CIE) and IQE to be calculated. However, this method is based on a fixed LEE and the effect from such as a chipping of sapphire sidewalls was neglected. Therefore, the IQEs were conservatively estimated assuming a LEE of 10% and an improbable CIE of 100%. Thus, conservative IQEs of 35, 39, 61, and 60% were estimated for the 266, 271, 283, and 298 nm LEDs, respectively. The high IQEs of these samples are recognized. Because the TDD was on the order of 10⁸/cm², these IQEs led us to consider the carrier localization effect. From our many CIE estimations based on I-L characteristics, CIE at around 265 nm is considered to be about 20–30% smaller compared with that at around 285 nm. The CIE of 70–80% at around 265 nm is considered to be moderately conservative, and the expected IQE ranges are shown in

Table 2. IQEs estimated from the fixed LEE and CIE. To show the expected range of the IQE at 40 mA, the values in the lower rows are considered to be the more probable IQEs. The values with CIE/LEE of 100/10 are conservative estimates for 283 and 298 nm LEDs. The values with CIE/LEE of 80/10 are the possible conservative estimates for the 266 nm LEDs, assuming that the CIE at 265 nm is 20% less than those of 283–298 nm LEDs. (Calculated from the data at 40 mA in Figure 12.).

CIE/LEE (%)	266 nm	271 nm	283 nm	298 nm
100/10	(35)	(38)	61	60
90/10	(39)	42	68	67
80/10	43	48	76	75
70/10	50	54

. The samples correspond to the solid red circles in Figure 1.

12. Reliable DUV-LEDs with Uneven QWs

QWs or MQWs are generally controlled to be flat. Accordingly, a tremendous number of reliability tests have been performed to determine that uneven QWs are robust and reliable using about 1000 wafers and 10,000 dies. In the following reliability test, a 5 × 5 mm² AlN submount and a patterned circuit board (PCB-MT) (16 × 16 mm²) with an isolation layer of diamond-like carbon (DLC) on an oxidized aluminum layer on 1.5-mm thick duralumin were prepared. Dies were mounted on the AlN submount, which was then mounted on the PCB-MT. Figure 14 shows the results of the reliability tests for 265 and 285 nm LED dies at an injected current of 350 mA. The current density in the junction area was more than 100 A/cm². Despite this heavy load, no serious reduction in their lifetimes was observed. By improving the bottleneck of heat dissipation due to the multiple bumps between the submount and the dies, the commercially available products show a lifetime much greater than 10,000 h.

13. Characteristic Behaviors of Uneven QWs

13.1. Redshift of EL Spectra with Increasing Number of Macrosteps

The FWHMs of the XRCs for the (0002) and (10-10) ω-scans in Figure 9 indicate a TDD higher than 10⁸/cm², which led us to consider the carrier localization effect for both 265 and 285 nm LEDs. The carrier localization effect for AlGaN QWs has been reported [86,130]. In addition, it is well known that reducing the TDD increases the IQE in QWs by reducing the number of nonradiative recombination centers (NRCs) [77]. Therefore, the following experiments are considered to be affected by both the lowered TDD and the enhanced carrier localization resulting from the use of high-miscut sapphire.

The redshift of the EL spectra as a function of miscut angle was observed in the case of high-miscut sapphire as shown in Figure 15. To minimize the run-to-run fluctuation, simultaneous growth using multiple wafer trays was performed several times and no exceptions to the results in Figure 15 were observed. In Figure 15a, the results for two pairs of the simultaneously grown 260 and 280 nm LEDs are shown, and in Figure 15b the results for three pairs of simultaneously grown 265, 285, and 300 nm LEDs are shown. The reasons for the spectral redshift in the case of higher-miscut sapphire are next hypothesized. The enhancement of compositional and thickness modulation by macrosteps may be among the reasons for the increased potential modulation. The potential nonuniformity will increase the IQE in MQWs due to the localized carriers. Note existence of a spectral shoulder at around 295 nm in two of the spectra in Figure 15b shown by a gray dashed line. The wavelength of the shoulder is common for the 285 and 300 nm LEDs and suggests the existence of quasi-stable AlN in AlGaN. This quasi-stable AlN is suggested to be related to the high-EQE region between 280 and 300 nm in Figure 1. The peak EQE of 295 nm can also be seen in the EQE mapping of Figure 1. Thus, enhanced compositional nonuniformity should occur around this wavelength, and the carrier localization induced by the compositional nonuniformity is considered to boost the IQE. Note that this does not imply that the compositional fluctuation on a flat terrace should be neglected, because somewhat lower EQEs were reported for flat QWs for the DUV-LEDs with p-GaN [19,21]. In addition, the enhanced mass transport near the macrosteps may cause thickness modulation because it is reasonable to consider the different growth rate between the surfaces of the step-edge and (0001) surface of AlGaN. The growth rate on the step-edge should be larger. Therefore, the enhanced carrier localization may be due to a complicated combination of mechanisms.

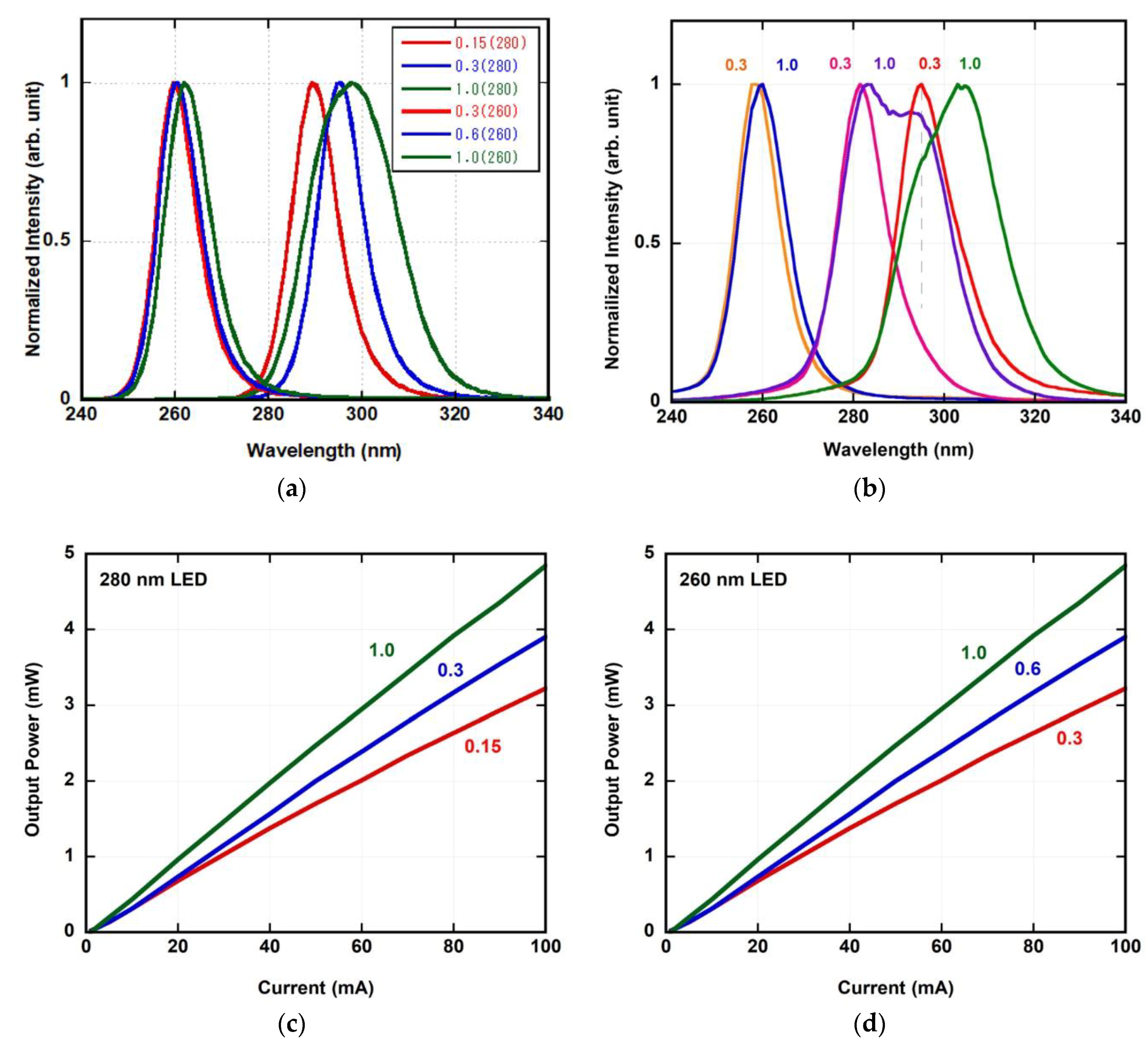

In Figure 15a, a smaller spectral redshift and less spectral broadening with the increase in the miscut angle of sapphire can be seen for the 260 nm LEDs. To explain the somewhat lower EQEs for the 260 nm LEDs, it is reasonable to consider the lower CIEs due to insufficient electrical properties of electron blocking layer compared with those for 280 nm LEDs. In addition, the lower mass transport and the lack of quasi-stable AlN for the QWs of the 260 nm LEDs may be a reason for the smaller enhancement of carrier localization than that for the 280 nm LEDs. Thus, the lower IQEs for the 260 nm LEDs than those for the 280 nm LEDs can be understood. Accordingly, the lower EQE for the 260 nm must be due to both lower CIE and lower IQE.

It is reasonable that the broadening of the EL spectra is accompanied by a redshift when the overlapped spectral structures are considered. Accordingly, Figure 15 shows indirect evidence of carrier localization due to enhanced potential modulation adjacent to the macrosteps for both the 265 and 285 nm LEDs. There might be a difference between the 265 and 285 nm LEDs due to the presence/absence of quasi-stable AlN. Although there are detailed differences between 265 and 285 nm LEDs, the EQEs can be increased by the use of high-miscut sapphire, which can be attributed to the increased IQEs achieved by reducing the TDD. To provide further indirect evidence of increased IQEs due to enhanced potential modulation adjacent to the macrosteps, the analysis of DUV-LEDs with a similar TDD is desirable to isolate the effect of the potential nonuniformity from that of the TDD.

13.2. EL Spectral Broadening with Increase in EL Output for the Same TDD

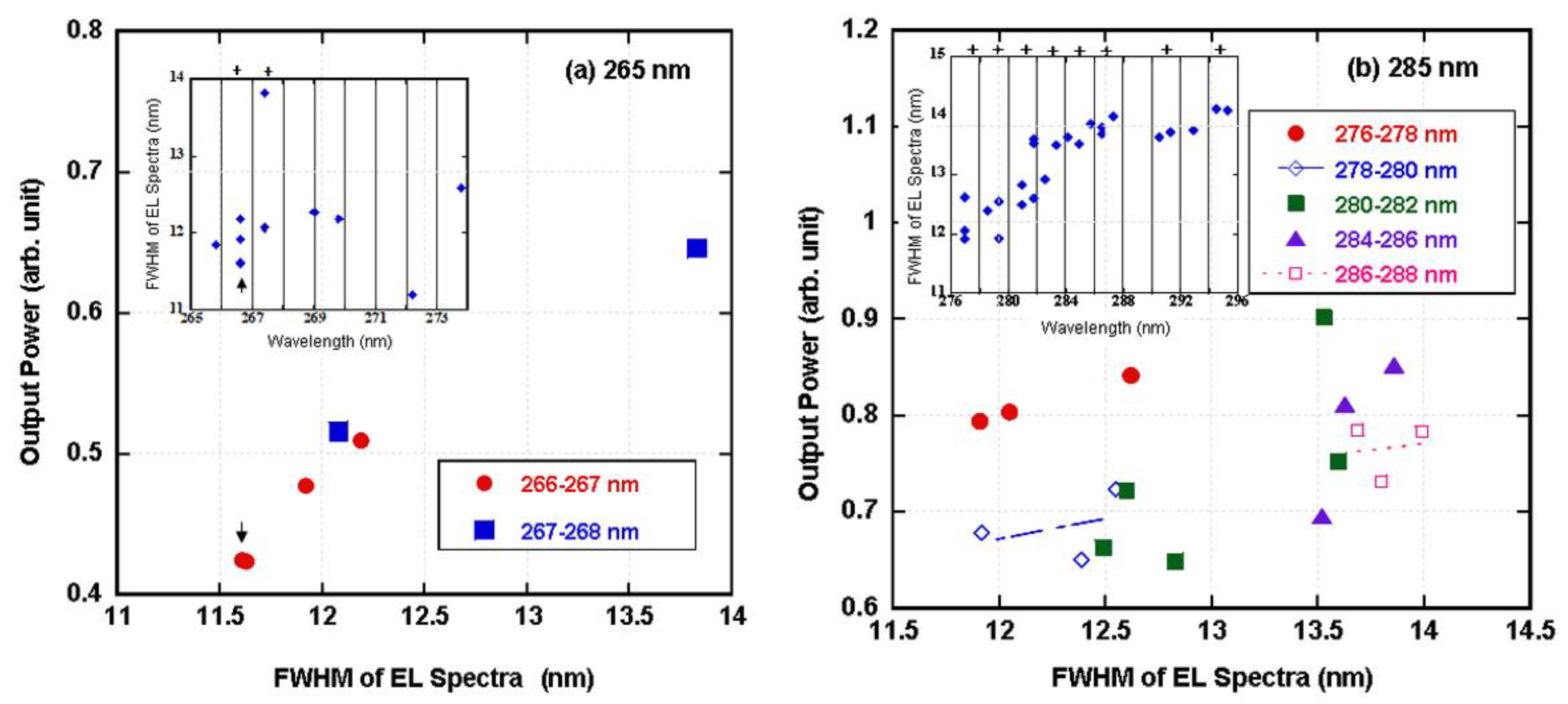

Higher output power is obtained for broader EL spectra when the miscut angle of sapphire is varied. However, the above results cannot eliminate the effect of the increase in EQE caused by the reduction of the TDD, because the TDD is improved by the use of high-miscut sapphire. Although the spectral redshift and the increase in EL output were accompanied with an increase in the number of macrosteps, increase in the EL output for the broader EL spectra was not clear for the sapphire with the same miscut angle. The authors expect that a simple mapping of the EL spectral width to the EL output power for the same TDD will reveal the positive relationship between the EL output and spectral width. Due to the large run-to-run fluctuation for AlGaN and AlN growth, it was difficult to ensure the relationship between EL output and spectral width during the improvement of the growth recipes. Countermeasures to the run-to-run fluctuation problem were intensively investigated before mass production. Next, a positive relationship between the EL output and spectral width was observed when the miscut angle was fixed to 1.0° in the routine growth of DUV-LEDs. Although it is difficult to separate the effects of potential fluctuation on the terrace and potential modulation adjacent to the macrosteps, the effect of carrier localization related to EL broadening in our experiments can be extracted.

LED wafers grown on n-AlGaN templates with similar XRCs were collected to minimize the effect of the TDD. In this procedure, the balance between the FWHMs of the-scans of the (0001) and (1010) XRCs was considered in the analysis of 285 nm LED wafers, where the detailed procedure is described in Ref. [13]. The EL outputs determined by a wafer prober were collected for both 265 and 285 nm LED wafers. The n-AlGaN templates have a TDD of about 5 × 10⁸/cm². The wafer prober measurement at the wafer center was strongly correlated with the EL output after fabricating LED dies at the wafer center, where the XRC measurements were performed. The linearity of the EL output measurements obtained with the wafer prober and the integrating sphere after isolation into dies was confirmed to be within 20%. To eliminate the wavelength dependence shown in Figure 1, the LED wafers were sorted into groups according to the wavelength of the peak EL output. Then, positive correlations between the spectral width and EL output power were observed for 265 and 285 nm LEDs, as shown in Figure 16a, b. These figures provide further evidence that the higher EL output is related to enhanced carrier localization due to increased potential nonuniformity. Using templates with similar TDDs and surfaces with macrosteps grown on 1.0°-miscut sapphire, an increase in the EL output for a broader spectral width was also observed. The results in Figure 16 cannot definitively conclude the enhancement of carrier localization by potential modulation adjacent to the macrosteps. However, this is considered to be in agreement with the hypothesis of the enhancement of EL output by carrier localization. Detailed microscopic analyses are in progress. Cathode-luminescence (CL) spectral peaks besides the macrosteps were confirmed to be redshifted, increasing the plausibility of the hypothesis that enhanced carrier localization is related to macrosteps.

14. IQEs of AlGaN-Based Uneven QWs

Many of the reported IQEs are determined using the ratio of photoluminescence (PL) intensity at room temperature (RT) to that at a low temperature (LT). The model for this measurement is simplified by considering one type of NRC. This model requires other assumptions. The electron (n_e) and hole (n_h) densities are assumed equal to the representative carrier density (n) at QWs, and the recombination terms are separated according to the order of the carrier density n: An, Bn², and Cn³.

Here, A is a nonradiative recombination coefficient related to the Shockley–Read–Hall (SRH) NRCs, which is related to the probability for the carriers to be captured by NRCs. Thus, A strongly varies with temperature (T). B is an emission coefficient linear to the Einstein A coefficient based on the concept of the possibility of a radiative combination of electron–hole pairs at the QWs. Thus, B is multiplied by the square of the carrier density in the QWs assuming free carriers. C implies nonradiative Auger recombination concerning three carriers, and the n³ term is multiplied. In the case of a device with a high carrier density such as LDs, the C-term is necessary. For LEDs, C is often approximated to be negligible [77]. At the LT limit, SRH-NRCs are assumed to be occupied and frozen out; thus, all the injected carriers are considered to be converted to EL. When SRH-NRCs are frozen at LT, the quantum yield (ϕ) can be near 100% by freezing A(T → 0) to zero. The quantum yield (ϕ) with a function of T is defined as

$$\phi \left(T\right)=\frac{Bn}{A\left(T\right)+Bn}$$

(1)

When the number of carriers (n) injected into QWs is sufficiently large to be A ≫ Bn, ϕ(T) is overestimated at T ≫ 0. Therefore, nonsaturated excitation is necessary to obtain appropriate IQE values in this measurement. The junction temperature (T_j) is considered to be increased by a high-energy excitation. The saturated excitation makes it difficult to assume T_j with approximation to the temperature of the sample holder.

In the discussion on IQEs, the reported data [24,25,41,61,90,113,132,133,134,135,136,137] are collected and shown as solid symbols (●, ■, ■, ●, ■, ●, ●) for the measurements under the nonsaturated conditions. Figure 17 shows the IQEs as a function of wavelength. The hollow symbols in Figure 17 indicate the calculated or measured IQEs reported without mentioning nonsaturated excitation. There is another method of enabling the separation of IQE and CIE [129] using I-L characteristics. However, it is based on the given LEE and considered to be a rough estimate. Thus, our IQEs (▲ and ▼) were calculated to be conservative estimates from I-L characteristics by assuming a fixed LEE of 10% and high CIEs ranging from 70% to 100%, as shown in Table 2. Our estimates of the IQEs of the uneven MQWs are compared with solid symbols (●, ■, ■, ●, ■, ●, ●) of the MQWs, which are considered to be flat. In the 265–290 nm range, the uneven QWs show equal or higher values than the reported ones measured with flat MQWs on AlN grown on a sapphire substrate (■, ●) and on a bulk AlN substrate (●). In the 255–265 nm region, data for AlGaN wells grown on the bulk AlN spread over a wide range of IQEs from 15 to 80% (● and ●). In the 230–245 nm region, IQEs on the macrosteps were reported for the samples grown on the bulk AlN substrates (●) as well as on the sapphire substrates (■). Also, flat MQW without Si doping grown on a sapphire substrate is indicated by (■).

Figure 18 shows a map of the relationship between TDD and IQEs, eliminating the IQE data measured under unclear excitation conditions. Our IQE ranges are shown by violet triangles. The upper solid triangles (▲) are conservative estimations for our DUV-LEDs using LEE/CIE of 10%/100%. The IQEs for undoped and Si doped MQWs are shown by ■ and ●, respectively [90]. In Figure 18, IQEs determined considering excitation conditions are added (●■◆▲ [77] with blue line) as the references of flat MQWs. For the AlGaN QWs, the aluminum vacancy (V_Al) is demonstrated to act as NRC. Si-doped MQWs show higher IQEs than that of the undoped MQW because of decreasing V_Al [90]. The results of MQWs grown on the bulk AlN substrates are plotted at a TDD of 10⁶ /cm² because of unknown TDDs at the MQWs. The IQEs for MQWs on the bulk AlN substrates range from 10 to 80% (●, ●, ●). The EL wavelength for the samples (●, ●) are located between 255 and 265 nm and the AlN content in AlGaN QWs are higher than those of our samples. Thus, V_Al is considered be among the reasons for the IQE difference [60,137]. The IQE estimates of the uneven MQWs (▲ and ▼) are above the IQE-TDD trend curve (blue) similarly to Si-doped MQWs (●) compared with undoped MQW (■), suggesting the boosted IQEs due to macrosteps. It is possible that the macrosteps cause the mass transport of Ga and GaN components in AlGaN [138] during the growth of the MQWs. It led us to consider the possibility that the number of V_Al has been reduced by the mass transport adjacent to macrosteps in addition to the enhanced carrier localization due to potential modulation. In Figure 17, the IQE of MQWs on the macrosteps on an AlN bulk substrate with a miscut of 3.0° (●) and that of a flat MQW grown on a sapphire substrate (■) are added. The increased IQE (●) on a 3.0°-miscut AlN substrate also supports the boosted IQE for AlGaN MQWs on the macrosteps.

15. Prospects for EQE and WPE with Advanced Packaging

For the devices with a p-GaN contact layer and no reflective p-contact, improving the LEE from the sapphire side is important. Using thick sapphire without thinning, the increase in the surface area of sapphire can increase the extraction of EL propagating to the sapphire. However, the shape of the sapphire opposite the device layers of dies is a rectangular parallelepiped, resulting in a significant amount of EL being wasted. EL from the MQWs is reflected at the sapphire–air boundary. Thus, a part of the EL returns to the device layers and is absorbed in the p-GaN or not reflected from the n-electrode area. The shape effect has not been sufficiently utilized to increase LEE. A material with a spherical shape is considered to be effective for improving our rectangular parallelepiped dies. However, the shaping of the thick sapphire is difficult due to its hardness. In addition, the difference between the refractive indices of sapphire (1.8) and air is large. The use of a material with a refractive index between those of air and sapphire is also desired.

To overcome these problems, resin encapsulation using silicone [54], fluorine [13,14], and unknown type of resins [17,19] has been reported. Our intensive studies on the use the fluoropolymer to encapsulate DUV-LED dies clarified a molecular structure with robustness against DUV [13,14,139]. The LEE and WPE were improved 1.5-fold in the case of hemispherical encapsulation using the fluoropolymer. In addition to the encapsulation, the minor practical improvements of: (i) using an Al reflector around the die; (ii) forming an Al coating on the submount; and (iii) forming an Al coating on the insulation film on the mesa sidewall are thought to be effective for improving the net WPE without reducing the lifetime due to the use of p-AlGaN and a reflective p-contact. In addition, (iv) the formation of a moth-eye (PhC) structure on the sapphire surface can also increase the net EQE and WPE without reducing the LED lifetime. Although the flexible shaping of sapphire is difficult, (v) chamfering the sapphire of the die is considered possible and may be an effective measure in addition to encapsulation using a fluoropolymer. Based on our limited experimental attempts, an additional 1.2-fold improvement is conservatively expected by adapting (i)–(v). In Figure 13, the 1.5-fold WPEs at 100 mA are estimated to be 4.1%, 4.6%, 6.6%, and 6.5% at 266, 271, 283, and 298 nm, respectively, from the WPEs corresponding to red solid circles in Figure 1. In addition, when additional improvement of 1.2-fold is assumed, WPEs of 4.9%, 5.5%, 7.9% and 7.8% at 100 mA are expected. A single bare die in the market fabricated by our group demonstrated about 80 mW at 285 nm on AlN-sheet submount at 350 mA without using an encapsulation nor the techniques of (i)–(v). Only with the use of encapsulation to the current product, more than 100 mW per die is considered to be sufficiently feasible by increasing LEE.

High- or ultrahigh-pressure mercury lamps have broad spectra due to the pressure broadening effect. Thus, light is wasted due to the wavelengths outside the region of interest. For example, the application of UV curing is based on a photoinduced chemical reaction, and photons with energy lower than that of the wavelength to activate the polymerizing initiator scarcely contribute to the chemical reaction, limiting the utilization factor of the light from UV bulbs. Although the WPEs of UV bulbs are as high as 10–15% for the overall emission, the total efficiency is not always high compared with that of monochromatic DUV-LEDs. Thus, encapsulated DUV-LEDs with uneven MQWs are expected to have practical applications because their lifetimes are much longer than those of UV bulbs, and their total efficiency is considered to exceed those of conventional mercury lamps.

16. Frontiers of Current AlGaN-Based DUV-LEDs

In Figure 1, a difficulty of the DUV-LEDs in the wavelength region where λ is less than about 270 nm can be seen. The EQE rapidly decreases as the wavelength decreases from around 270 nm. A possible reason for the low EQE (λ < 270 nm) is the increased number of NRCs due to V_Al with increasing AlN content. Thus, lower IQE can be one of the reasons. The decrease in the CIE also limits the LED performance due to the insufficient electrical properties of EB layer. When we performed beryllium (Be) doping using MOCVD in an attempt to improve the EB layer and low CIE, Be was not detected in the AlGaN film and no significant result was obtained. In addition to the low CIE and IQE, the polarization of light emitted from AlGaN QWs changes from transverse electric (TE) (C⊥E) to transverse magnetic (TM) (C∥E) [140,141] at a high AlN content of around 60%. TM polarization is considered to be suitable for LDs [142,143,144] due to the edge emitting device structure, and the control of the polarization for DUV-LEDs has also been studied [145] to solve the lowered LEE. The use of a nanorod structure [146] to extract TM light has also been studied. Moreover, very thin QWs and quantum disks (QDs) for generating TE-polarized emission at wavelengths of λ < 240 nm have been reported [147,148,149].

LEDs with emitting wavelength range between 300 and 350 nm appear to have lower EQEs as shown in Figure 1. The EQEs of InGaN LEDs tend to decrease with increasing wavelength away from the blue-to-NUV regions [16,66] with increasing In content in InGaN. Similarly, the EQEs of AlGaN LEDs tend to decrease from 300 nm to 350 nm with increasing Ga in AlGaN. For an AlGaN-based LED with GaN wells, an EQE of 6.7% at 345 nm was obtained; for this LED, ELO technique was used to reduce the TDD of the n-AlGaN cladding layer [35,36]. Thus, reducing the TDD is considered to be among the key methods for improving 300–350 nm LEDs if the carrier localization effect is limited due to a high GaN content. This wavelength region is expected to be used in the application related to the protein from the industrial viewpoint.

AlGaN-based DUV-LEDs produced by several manufacturers are already on the market. Novel uneven MQWs are an example of the application of the unexpected features of nitride materials. The mechanism of the higher EQEs by virtue of the relatively high IQEs in uneven MQWs has not yet been clarified, although the enhanced carrier localization due to macrosteps has been suggested [13]. After InGaN-based LEDs were on the market, the mechanism of the carrier localization in InGaN QWs was clarified. The study of the detailed mechanism of AlGaN-based LEDs with uneven MQWs is also expected to accelerate the improvement of LEDs.

17. W/cm²-Class Irradiation Modules and Applications

Figure 19a illustrates the wavelengths of interest for various applications. The wavelengths used with sensors are widely spread between 200 nm and 365 nm, and two representative examples of light sources for urea sensors and high-performance liquid chromatography (HPLC) are shown. The urea sensor in a dialyzer was partially replaced by 285 nm DUV-LEDs and compact HPLC system is expected to be used to measure the water quality of the sewage. Among the sensor applications, these two examples are highly substantial. However, even niche semiconductor industries cannot be free from today’s production machines and subcontracting companies. Sensor applications do not need a high output power and considered to be accessible market at the beginning of laboratory production. However, the number of LEDs used in sensor application is not enough, even for the niche semiconductor industries. Accordingly, an irradiation application might be the key to increasing the quantity of production. The sterilization of air and water, UV curing and printing (photochemical applications), deodorizing, the excitation of photocatalyst, phototherapy, medical applications, and so forth, should be indispensable applications for the DUV-LED industry to stand by itself. As described, an output of 100 mW per chip and WPE of over 7% are in sight. This means that W/cm² irradiation modules corresponding to the performance of conventional mercury-based bulbs are within reach.

Although there are some examples of LED production where LEDs with a specific wavelength are produced on demand, the range of wavelengths tends to be limited. The semiconductor industry is geared to the production of very large quantity. The spectra of conventional mercury lamps are shown in Figure 20. The advantage of LEDs to UV bulbs is thought to be located at wavelength of around 270–300 nm. For UV printing (315 nm) and photocatalyst excitation (325 nm), light sources with a shorter wavelength (280–300 nm) can be used because they are related to excitation. The DUV light required for UV curing has an intensity of about 0.5 W/cm². Keeping a UV printing in mind, sub-W/cm² modules with a dense layout of dies have been demonstrated. Figure 21 shows photographs of various irradiation modules. For sterilization, DUV-LEDs must be cost-feasible and convenient in comparison with low-pressure mercury lamps. As shown in Figure 19, the absorption of DNA occurs around 265 nm (λ < 290 nm). DUV-LEDs with wavelengths of 270–280 nm are also expected to be useful because of their high-EQE region. Light flux of about 33 mW/cm² at 254 nm is sufficient to kill bacteria, although there is some variation depending on bacteria. The efficiency of sterilization at 280 nm is more than half of that at 254 nm according to Figure 19b. Light flux of 1 mW/cm² at 280 nm for 1 min can kill bacteria. DUV-LEDs with a wavelength of 280 nm and 100 mW output can potentiality be used for sterilization. Accordingly, the wavelength that should be focused on mass-production is around 280–300 nm, including sterilization or bacteriostatic applications. However, medical applications (310–315 nm) cannot employ shorter wavelengths owing to the need for weak absorption on the lower-energy side to avoid the destruction of genes. The advantage of using DUV-LEDs is considered to be the tunability of the wavelength and the shorter start-up time before reaching the constant output compared with discharge lamps.

Another advantage of DUV-LEDs over UV bulbs is their weak infrared irradiation. The application of UV curing is often limited by the strong heat flux due to infrared irradiation mixed with UV light. Monochromatic DUV-LEDs are expected to reduce the damage in the UV coating of paper, polymerfilms, cloth, and wood panels.

18. General Conclusions and Future Outlook

Owing to the insufficient crystallinity of the AlN template on a sapphire substrate, AlGaN-based DUV-LEDs had a low EL output due to the low EQE. The quality of the AlN template with a TDD of over 10⁹/cm² was insufficient. Since the carrier localization is expected for AlGaN-based LEDs as well as for InGaN-based LEDs, a simple method of producing an AlN template with a TDD between 10⁸ and 10⁹/cm² was desired. Through studies on the use of PSS, the growth of a thick layer of AlN, and the use of high-miscut sapphire, the use of high-miscut sapphire was considered to be most suitable for the mass production of AlGaN-based DUV-LEDs to obtain an AlN template with TDD on the order of 10⁸/cm². The reasons for using high-miscut sapphire are somewhat complicated. One reason is to reduce the growth temperature to less than 1300 °C. In fact, there is MOCVD equipment used to grow SiC that can be operated at 1400 °C. The difference between 1300 and 1400 °C for AlGaN growth is caused by fluctuation of radiant heat transfer mainly from the wafer tray. When growing SiC devices, the compositional difference between layers is small, such as impurity in SiC. However, during the growth of AlGaN-based LED layers, the target AlN content varies throughout the multilayer. This causes a change in the radiation rate due to the deposition inside the growth chamber, resulting in the fluctuation of the effective growth temperature even though the control temperature is fixed. Furthermore, the number of materials that can be used inside the growth chamber is limited when the growth temperature is more than 1300 °C. From an industrial viewpoint, stable production is necessary and a lower growth temperature will be beneficial. In the case of a lower growth temperature, the growth time for the LED wafers tends to be longer, which is not normally desirable. A suitable balance between growth time and stable production with moderately high AlN crystallinity was found to be obtained between the temperatures of 1200 and 1300 °C in the case of high-miscut sapphire. Furthermore, the utilization of this temperature range enabled the realization of single LED wafers with a larger effective area. Fortunately, the use of high miscut sapphire resulted in a high EQE without reducing the lifetime of LEDs. We consider that the edge of the macrostep functions as a domain for carrier localization and the detailed study on such carrier localization is in progress. However, it is suggested that the thickness and the compositional modulation on the macrosteps enhanced the carrier localization. This effect unexpectedly gave the merit of achieving LEDs with higher IQE.

The device layer of DUV-LEDs is unique compared with conventional LEDs having an EL wavelength greater than 365 nm. On the AlGaN-based EB layer, p-GaN is used, even though the incorporation of AlGaN QWs by many manufacturers and p-GaN layer seriously limit LEE. In addition, an AlGaN-based EB layer with a high AlN content limits the CIE for wavelengths shorter than 280 nm. These problems might not be solved in short-term research. Accordingly, the use of encapsulation in addition to a thick sapphire layer is considered to be a practical solution. Despite the disadvantages of using a p-GaN layer, the WPE reached a competitive level, meaning that our device can be used as an alternative to high- and ultrahigh-pressure mercury lamps, and then Sub-W/cm² irradiation modules for UV curing were demonstrated to be alternatives of high- and ultrahigh-pressure mercury lamps. Low-pressure mercury lamps have high efficiency and the market price is reasonable. The most important potential application of DUV-LEDs is the sterilization of air and water, which is currently performed by low-pressure mercury lamps. The performance of DUV-LEDs is not yet sufficient to be used an alternative to mercury lamps. However, a relatively short-term improvement in IQE at wavelengths of 265–280 nm is considered to be possible by reducing the point defect density of V_Al. For example, incorporating Si-doped QWs is effective to reduce the number of V_Al, although it is difficult to improve the CIE. From an industrial viewpoint, the authors consider that the cost-feasible production of the sterilization application is a priority; thus, the development of the larger growth apparatus and cost-feasible packaging should be tackled as priority tasks.
