Appl. Sci. 2018, 8(5), 816; doi:10.3390/app8050816

Article
Agreement Technologies for Coordination in Smart Cities
1
Centre for Intelligent Information Technologies (CETINIA), University Rey Juan Carlos, 28933 Madrid, Spain
2
IMT Lille Douai, 59508 Douai, France
*
Author to whom correspondence should be addressed.
Received: 16 March 2018 / Accepted: 14 May 2018 / Published: 18 May 2018

Abstract

:
Many challenges in today’s society can be tackled by distributed open systems. This is particularly true for domains that are commonly perceived under the umbrella of smart cities, such as intelligent transportation, smart energy grids, or participative governance. When designing computer applications for these domains, it is necessary to account for the fact that the elements of such systems, often called software agents, are usually made by different designers and act on behalf of particular stakeholders. Furthermore, it is unknown at design time when such agents will enter or leave the system, and what interests new agents will represent. To instil coordination in such systems is particularly demanding, as usually only part of them can be directly controlled at runtime. Agreement technologies refer to a sandbox of tools and mechanisms for the development of such open multiagent systems, which are based on the notion of agreement. In this paper, we argue that agreement technologies are a suitable means for achieving coordination in smart city domains, and back our claim through examples of several real-world applications.
Keywords:
agreement technologies; coordination models; multiagent systems; smart cities

1. Introduction

The transactions and interactions among people in modern societies are increasingly mediated by computers. From email, over social networks, to virtual worlds, the way people work and enjoy their free time is changing dramatically. The resulting networks are usually large in scale, involving huge numbers of interactions, and are open for the interacting entities to join or leave at will. People are often supported by software components of different complexity to which some of the corresponding tasks can be delegated. In practice, such systems cannot be built and managed based on rigid, centralised client-server architectures, but call for more flexible and decentralised means of interaction.
The field of agreement technologies (AT) [1] envisions next-generation open distributed systems, where interactions between software components are based on the concept of agreement, and which enact two key mechanisms: a means to specify the “space” of agreements that the agents can possibly reach, and an interaction model by means of which agreements can be effectively reached. Autonomy, interaction, mobility and openness are key characteristics that are tackled from a theoretical and practical perspective.
Coordination in distributed systems is often seen as governing the interaction among distributed processes, with the aim of “gluing together” their behaviour so that the resulting ensemble shows desired characteristics or functionalities [2]. This notion has also been applied to distributed systems made up of software agents. Initially, the main purpose of such multiagent systems was to efficiently perform problem-solving in a distributed manner: both the agents and their rules of interaction were designed together, often in a top-down manner and applying a divide-and-conquer strategy to solve the problem at hand [3]. However, many recent applications of multiagent systems refer to domains where agents, possibly built by different designers and representing different interests, may join and leave the system at a pace that is unknown at design time. It is apparent that coordination in such open multiagent systems requires a different, extended stance on coordination [3].
Application areas that fall under the umbrella of smart cities have recently gained momentum [4]. Intelligent transportation systems, smart energy grids, or participative governance are just some examples of domains where an improved efficiency of the use of shared urban resources (both physical and informational) can lead to a better quality of life for the citizens. It thus seems evident that new applications in the context of smart cities have the potential for achieving significant socioeconomic impact.
We believe that applying AT to the domain of smart cities may enable the development of novel applications, both with regard to functionality for stakeholders, as well as with respect to the level of sustainability of smart city services. In particular, in this article, we discuss how coordination can be achieved in practical applications of multiagent systems, with different levels of openness, by making use of techniques from the sandbox of AT. Section 2 briefly introduces the fields of AT, coordination models, and smart cities, and relates them to each other. Section 3 describes several real-world applications, related to the field of smart cities, that illustrate how coordination models can be tailored to each particular case and its degree of openness. Section 4 summarises the lessons learnt from this enterprise.

2. Background

In this section, we introduce the fields of agreement technologies and coordination models and relate them to each other. We then briefly characterise the field of smart cities and argue that agreement technologies are a promising candidate to instil coordination in smart city applications.

2.1. Agreement Technologies

Agreement technologies (AT) [1] address next-generation open distributed systems, where interactions between software processes are based on the concept of agreement. AT-based systems are endowed with means to specify the “space” of agreements that can be reached, as well as interaction models for reaching agreement and monitoring agreement execution. In the context of AT, the elements of open distributed systems are usually conceived as software agents. There is still no consensus where to draw the border between programs or objects on the one hand and software agents on the other, but the latter are usually characterised by four key characteristics, namely, autonomy, social ability, responsiveness and proactiveness [5]. The interactions of a software agent with its environment (and with other agents) are guided by a reasonably complex program, capable of rather sophisticated activities such as reasoning, learning, or planning. Two main ingredients are essential for such multiagent systems based on AT: firstly, a normative model that defines the “rules of the game” that software agents and their interactions must comply with; and secondly, an interaction model where agreements are first established and then enacted. AT can then be conceived as a sandbox of methods, platforms, and tools to define, specify, and verify such systems.
The basic elements of the AT sandbox are related to the challenges outlined by Sierra et al. for the domain of agreement computing [6], covering the fields of semantics, norms, organisations, argumentation and negotiation, as well as trust and reputation. Still, when dealing with open distributed systems made up of software agents, more sophisticated and computationally expensive models and mechanisms can be applied [7].
The key elements of the field of AT can be conceived of in a tower structure, where each level provides functionality to the levels above, as depicted in Figure 1.
Semantic technologies provide solutions to semantic mismatches through the alignment of ontologies, so agents can reach a common understanding on the elements of agreements. In this manner, a shared multifaceted “space” of agreements can be conceived, providing essential information to the remaining layers. The next level is concerned with the definition of norms determining constraints that the agreements, and the processes leading to them, should satisfy. Thus, norms can be conceived of as a means of “shaping” the space of valid agreements. Organisations further restrict the way agreements are reached by imposing organisational structures on the agents. They thus provide a way to efficiently design and evolve the space of valid agreements, possibly based on normative concepts. The argumentation and negotiation layer provides methods for reaching agreements that respect the constraints that norms and organisations impose over the agents. This can be seen as choosing certain points in the space of valid agreements. Finally, the trust and reputation layer keeps track of whether the agreements reached, and their executions, respect the constraints put forward by norms and organisations. So, it complements the other techniques that shape the “agreement space” by relying on social mechanisms that interpret the behaviour of agents.
Even though one can clearly see the main flow of information from the bottom towards the top layers, results of upper layers can also produce useful feedback that can be exploited at lower levels. For instance, as mentioned above, norms and trust can be conceived as a priori and a posteriori approaches, respectively, to security [6]. Therefore, in an open and dynamic world it will certainly make sense for the results of trust models to have a certain impact on the evolution of norms. Some techniques and tools are orthogonal to the AT tower structure. The topics of environments [8] and infrastructures [9], for instance, pervade all layers. In much the same way, coordination models and mechanisms are not just relevant to the third layer of Figure 1, but cross-cut the other parts of the AT tower as well [10]. We will elaborate on this matter in the next subsection.

2.2. Coordination Models

The notion of coordination is central to many disciplines. Sociologists observe the behaviour of groups of people, identify particular coordination mechanisms, and explain how and why they emerge. Economists are concerned with the structure and dynamics of the market as a particular coordination mechanism; they attempt to build coordination market models to predict its behaviour. Biologists observe societies of simple animals demonstrating coordination without central coordinators; coordination mechanisms inspired from biology have proven useful to various scientific disciplines. In organisational theory, the emphasis is on predicting future behaviour and performance of an organisation, assuming the validity of a certain coordination mechanism. From a computer science point of view, the challenge is to design mechanisms that “glue together” the activities of distributed actors in some efficient manner. However, beyond such high-level conceptions, within the computer science field, and even among researchers working on multiagent systems, there is no commonly agreed definition for the concept of coordination. An important reason for this is the different interests of the designers in coordination mechanisms (micro- and/or macro-level properties), as well as different levels of control that designers have over the elements of the distributed intelligent system (the degree of openness of the system), as we will argue in the following [3].
Early work on coordination in multiagent systems (MAS) focused essentially on (cooperative) distributed problem solving. In this field, it is assumed that a system is constructed (usually from the scratch) out of several intelligent components, and that there is a single designer with full control over these agents. In particular, this implies that agents are benevolent (as instrumental local goals can be designed into them) and, by consequence, that the designer is capable of imposing whatever interaction patterns are deemed necessary to achieve efficient coordination within the system. Efficiency in this context usually refers to a trade-off between the system’s resource consumption and the quality of the solution provided by the system: agents necessarily have only partial, and maybe even inconsistent views of the global state of the problem-solving process, so they need to exchange just enough information to be able to locally make good decisions (i.e., choices that are instrumental with respect to the overall system functionality). Resource consumption is not only measured in terms of computation but also of communication load.
From a qualitative perspective, coordination in distributed problem-solving systems can be conceived as a distributed constraint problem (see [11] for an example). Agents locally determine individual actions that comply with the constraints (dependencies) that affect them, so as to give rise to “good” global solutions. Alternatively, in quantitative approaches, the structure of the coordination problem is hidden in the shape of a shared global multi-attribute utility function. An agent has control over only some of the function’s attributes, and the global utility may increase/decrease in case there is a positive/negative dependency with an attribute governed by another agent, but these dependencies are hidden in the algorithm that computes the utility function and are thus not declaratively modelled. Quantitative approaches to coordination can be understood in terms a of a distributed optimisation problem.
More recent research in the field of MAS has been shifting the focus towards open systems, where the assumption of a central designer with full control over the system components no longer holds. This raises interoperability problems that need to be addressed. In addition, the benevolence assumption of distributed problem-solving agents needs to be dropped: coordination mechanisms now have to deal with autonomous, self-interested behaviour—an aspect that is usually out of the scope of models from the field of distributed computing. Approaching agent design in open systems from a micro-level perspective means designing an intelligent software entity capable of successful autonomous action in potentially hostile (multiagent) environments. In this context, coordination can be defined as “a way of adapting to the environment” [12]: adjusting one’s decisions and actions to the presence of other agents, assuming that they show some sort of rationality. If the scenario is modelled within a quantitative framework, we are still concerned with multi-attribute utility functions, where only some attributes are controlled by a particular agent, but now there are different utility functions for each agent. The most popular way of characterising a problem of these characteristics is through (nonconstant sum) games [13]. Coordination from a micro-level perspective boils down to agents applying some sort of “best response” strategy, and potentially leads to some notion of (Nash) equilibrium. From a macro-level perspective, coordination is about designing “rules of the game” such that, assuming that agents act rationally and comply with these rules, some desired properties or functionalities are instilled. In the field of game theory, this is termed mechanism design [13]. In practice, it implies designing potentially complex interaction protocols among the agents, which shape their “legal” action alternatives at each point in time, as well as institutions or infrastructures that make agents abide by the rules [9]. From this perspective, instilling coordination in an open multiagent system can be conceived as an act of governing interaction within the system.
If the environment is such that agents can credibly commit to mutually binding agreements, coordinating with others comes down to negotiating the terms of such commitments. This is where the link to AT becomes evident. Norms and organisations define and structure the interactions that may take place among agents. The shape of these interactions depends on the particular case, but often they can be conceived as negotiating an agreement for a particular outcome of coordination. In addition, depending on the agents’ interests, information and structured arguments can be provided to make agents converge on such an agreement. Norms and trust can be seen as a priori and a posteriori measures, respectively, that make agents comply with the constraints imposed by norms and organisations.

2.3. Smart Cities

There is a broad variety of domains where the potential of AT becomes apparent (see Part VII of [1]). In these domains, the choices and actions of a large number autonomous stakeholders need to be coordinated, and interactions can be regulated, by some sort of intelligent computing infrastructure [9], through some sort of institutions and institutional agents [14], or simply by strategically providing information in an environment with a significant level of uncertainty [15]. The advent of intelligent road infrastructures, with support for vehicle-to-vehicle and vehicle-to-infrastructure communications, make smart transportation a challenging field of application for AT, as it allows for a decentralised coordination of individually rational commuters. However, also the infrastructure of the electricity grid is evolving, allowing for bidirectional communication among energy producers and consumers. Therefore, in the near future, large numbers of households could coordinate and adapt their aggregate energy demand to the supply offered by utilities. AT can also be applied to the domain of smart energy in order to integrate large numbers of small-scale producers of renewable energy into the grid infrastructure. In much the same way, smart governance can make use of electronic institutions that support citizens, for instance, in the process of dispute resolution.
The above are only a few examples of applications and domains that are often referred to under the umbrella of smart cities. Even though many definitions of that term exist [3], there is still no commonly agreed conception of a smart city. Still, we believe that authors tend to concur that a key challenge of smart cities is to improve the efficiency of the use of shared urban resources (both physical and informational) through the use of Information and communications technology (ICT), so as to improve the quality of life of citizens (see, e.g., [16,17,18]). Most of the world’s urban areas have a limited space to expand, congestion and contamination seriously affect people’s well-being, and a constant and reliable supply of energy is essential for almost all aspects of urban life. Therefore, ICT-based solutions can help to adequately disseminate information and effectively coordinate the urban services and supplies so as to make urban life more comfortable and efficient.
While initially smart city research had a strong focus on ICT and “smartness”, more recently, impact indicators of environmental, economic, or social sustainability have also gained importance [19], so in present days the term smart sustainable city is commonly used [20]. This notion underlines that, on the tack to making our cities smarter, preserving the “needs of present and future generations with respect to economic, social and environmental aspects” is of foremost importance [21].
The Internet of Things (IoT) is often considered as crucial in the development of smart cities [22]. It is usually conceived as a global infrastructure, enabling advanced services by interconnecting (physical and virtual) devices based on ICT. Recently, it has been moving from interesting proofs of concept to systemic support for urban processes that generates efficiency at scale (see, e.g., [23]). With increasing connectivity between people, data, and things based on IoT, the challenge is how to manage and coordinate the decisions of a myriad of decision makers in real time, considering the scarcity of resources and stochasticity in demand.
We believe that there is a significant potential in applying AT outlined in Section 2.1, targeting methods and tools that support the formation and execution of agreements in large-scale open systems, in order to progress towards the vision of smart and sustainable cities mentioned above. In much the same way, it seems straightforward that the efficient discovery, orchestration, and maintenance of services, based largely on data from heterogeneous sensors and all sorts of embedded devices, calls for the application of both scalable and tailorable coordination models. In the following sections, we will focus on different types of assignment problems in the context of sustainable smart cities: we provide examples of how AT-based coordination services mediate the use of scarce resources to the benefit of citizens.

3. Applications

In this section, we show how the AT paradigm can be applied to achieve coordination in various real-world problems. Depending on the structure and characteristics of each domain, different technologies from the AT sandbox need to be selected and combined so as to meet the requirements for each case. Section 3.1 highlights the use of techniques related to norms and organisations (in particular, auction protocols and market-based control) in an open domain, where flows of autonomous vehicles, controlled by individually rational driver agents, are coordinated through a network of intelligent interactions. Section 3.2 is dedicated to the problem of evacuation guidance in smart buildings, where evacuees, suffering from significant levels of uncertainty concerning the state of an emergency, are provided with individualised route recommendations in a coordinated manner. In this context, issues related to situation-awareness and semantics play a major role. Section 3.3 addresses the coordination of fleets of ambulance vehicles. Even though this is a primarily closed scenario, we address it with techniques from the field of AT, applying an algorithm that simulates multiple concurrent computational auctions. Section 3.4 focuses on coordination of emergency medical services for angioplasty patients—a problem similar to the previous one, even though its internal structure (different types of agents, etc.) leads to a more complex coordination mechanism. Finally, Section 3.5 also addresses a coordination problem related to fleet management, but applied to the field of taxi services. Here, we again have a higher degree of openness, as taxis are conceived of as autonomous agents, so coordination needs to be induced by incentives, targeted at influencing the choices of drivers whose actions are not fully determined by organisational rules and protocols.

3.1. Coordination of Traffic Flows through Intelligent Intersections

Removing the human driver from the control loop through the use of autonomous vehicles integrated with an intelligent road infrastructure can be considered as the ultimate, long-term goal of the set of systems and technologies grouped under the name of “intelligent transportation systems” (ITS). Autonomous vehicles are already a reality. For instance, in the DARPA Grand Challenges (https://en.wikipedia.org/wiki/DARPA_Grand_Challenge), different teams competed to build the best autonomous vehicles, capable of driving in traffic and performing complex manoeuvres such as merging, passing, parking, and negotiating with intersections. The results have shown that autonomous vehicles can successfully interact with both manned and unmanned vehicular traffic in an urban environment. In line with this vision, the IEEE Connected Vehicles Initiative (http://sites.ieee.org/connected-vehicles/ieee-connected-vechicles/ieee-cv-initiative/) promotes technologies that link road vehicles to each other and to their physical surroundings (i.e., by vehicle-to-infrastructure and vehicle-to-vehicle wireless communications). The advantages of such an integration span from improved road safety to a more efficient operational use of the transportation network. For instance, vehicles can exchange critical safety information with the infrastructure so as to recognise high-risk situations in advance and therefore to alert drivers. Furthermore, traffic signal systems can communicate signal phase and timing information to vehicles to enhance the use of the transportation network.
In this regard, some authors have recently paid attention to the potential of a tighter integration of autonomous vehicles with the road infrastructure for future urban traffic management. In the reservation-based control system [24], an intersection is regulated by a software agent, called intersection manager agent, which assigns reservations of space and time to each autonomous vehicle intending to cross the intersection. Each vehicle is operated by another software agent, called driver agent. When a vehicle approaches an intersection, the driver requests that the intersection manager reserves the necessary space–time slots to safely cross the intersection. The intersection manager, provided with data such as vehicle ID, vehicle size, arrival time, arrival speed, type of turn, and other variables, simulates the vehicle’s trajectory inside the intersection and informs the driver whether its request is in conflict with the already confirmed reservations. If such a conflict does not exist, the driver stores the reservation details and tries to meet them; otherwise, it may try again at a later time. The authors show through simulations that in situations of balanced traffic, if all vehicles are autonomous, their delays at the intersection are drastically reduced compared to traditional traffic lights.
In this section, we report on our efforts to use different elements of the sandbox of AT to further improve the effectiveness and applicability of Dresner and Stone’s approach, assuming a future infrastructure where all vehicles are autonomous and capable of interacting with the regulating traffic infrastructure. We extend the reservation-based model for intersection control at two different levels.
  • Single Intersection: our objective is to elaborate a new policy for the allocation of reservations to vehicles that takes into account the drivers’ different attitudes regarding their travel times.
  • Network of Intersections: we built a computational market where drivers must acquire the right to pass through the intersections of the urban road network, implementing the intersection managers as competitive suppliers of reservations which selfishly adapt the prices to match the actual demand, and combine the competitive strategy for traffic assignment with the auction-based control policy at the intersection level into an adaptive, market-inspired mechanism for traffic management of reservation-based intersections.

3.1.1. Mechanism for Single Intersection

For a single reservation-based intersection, the problem that an intersection manager has to solve comes down to allocating reservations among a set of drivers in such a way that a specific objective is maximised. This objective can be, for instance, minimising the average delay caused by the presence of the regulated intersection. In this case, the simplest policy to adopt is allocating a reservation to the first agent that requests it, as occurs with the first-come first-served (FCFS) policy proposed by Dresner and Stone in their original work. Another work in line with this objective takes inspiration from adversarial queuing theory for the definition of several alternative control policies that aim at minimising the average delay [25]. However, these policies ignore the fact that in the real world, depending on people’s interests and the specific situation that they are in, the relevance of travel time may be judged differently: a business person on his or her way to a meeting, for instance, is likely to be more sensitive to delays than a student cruising for leisure. Since processing the incoming requests to grant the associated reservations can be considered as a process of assigning resources to agents that request them, one may be interested in an intersection manager that allocates the disputed resources to the agents that value them the most. In the sequel, we designed an auction-based policy for this purpose. In line with approaches from mechanism design, we assumed that the more a human driver is willing to pay for the desired set of space–time slots, the more they value the good. Therefore, our policy for the allocation of resources relies on auctions.

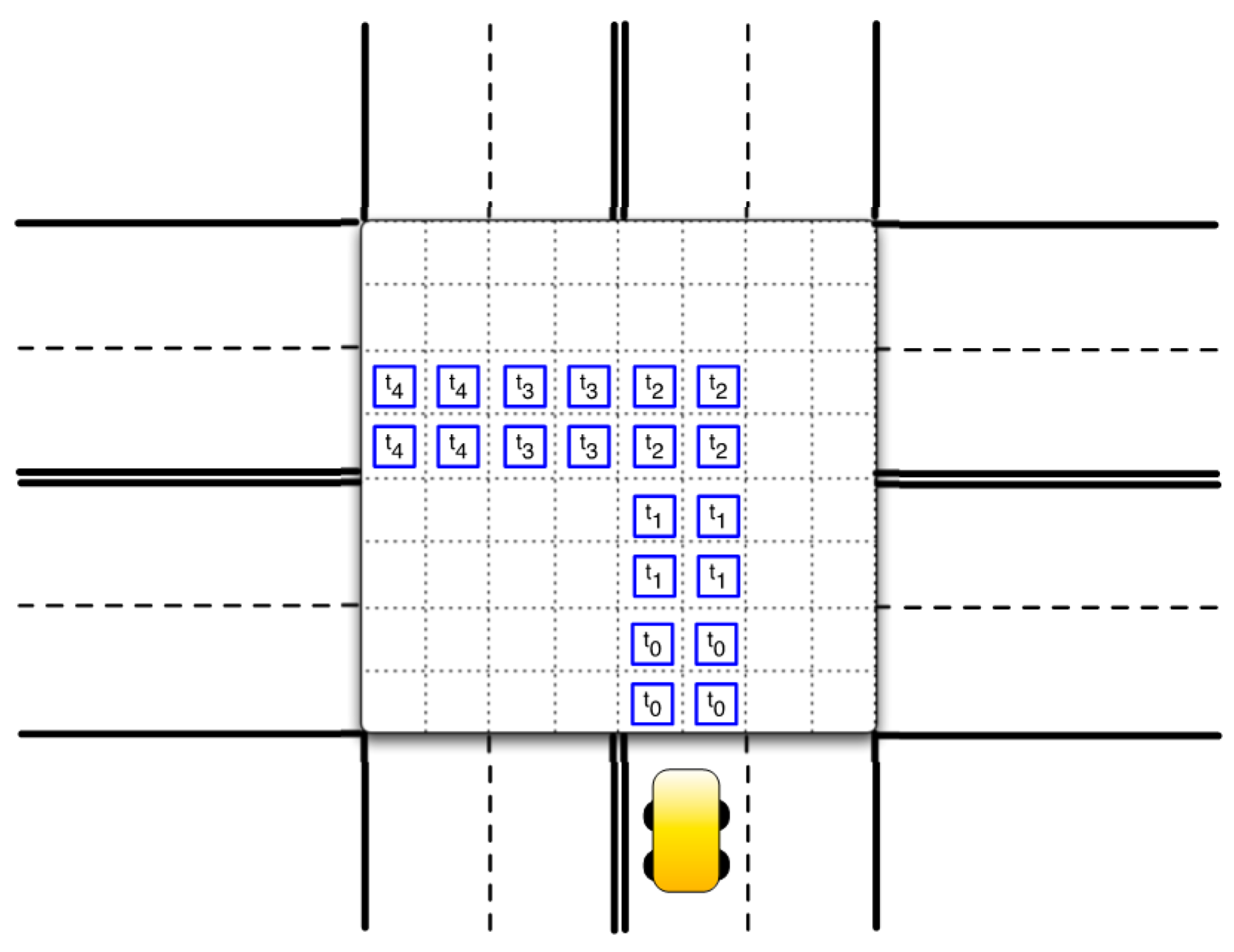

The first step is to define the resources (or items) to be allocated. In our scenario, the auctioned good is the use of the space inside the intersection at a given time. We modelled an intersection as a discrete matrix of space slots. Let S be the set of the intersection space slots, and T the set of future time-steps, then the set of items that a bidder can bid for is I = S × T. Therefore, differing from other auction-based approaches for intersection management (e.g., [26]), our model of the problem calls for a combinatorial auction, as a bidder is only interested in bundles of items over the set I. As Figure 2 illustrates, in the absence of acceleration in the intersection, a reservation request implicitly defines which space slots at which time the driver needs in order to pass through the intersection.
The bidding rules define the form of a valid bid accepted by the auctioneer. In our scenario, a bid over a bundle of items is implicitly defined by the reservation request. Given the parameters arrival time, arrival speed, lane, and type of turn, the auctioneer (i.e., the intersection manager) is able to determine which space slots are needed at which time. Thus, the additional parameter that a driver must include in its reservation request is the value of its bid, that is, the amount of money that it is willing to pay for the requested reservation. A bidder is allowed to withdraw its bid and to submit a new one. This may happen, for instance, when a driver that submitted a bid b, estimating to be at the intersection at time t, realises that, due to changing traffic conditions, it will more likely be at the intersection at time t’ > t, thus making the submitted bid b useless for the driver. The rational thing to do in this case, as the driver would not want to risk being involved in a car accident, is resubmit the bid with the updated arrival time. However, we require the new bid to be greater than or equal to the value of the previous one. This constraint avoids the situation whereby a bidder “blocks” one or several slots for itself, by acquiring them early and with overpriced bids.

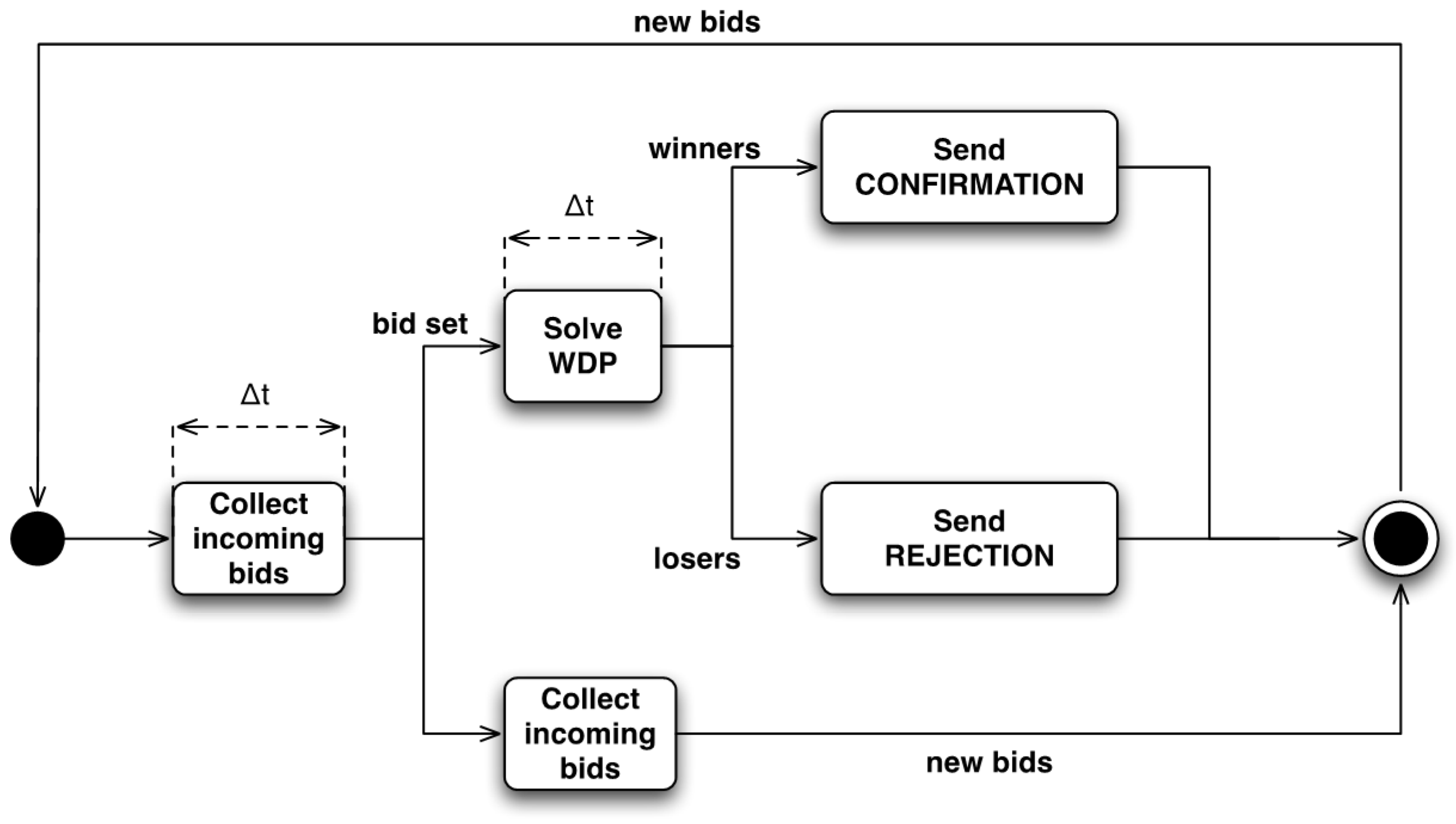

Figure 3 shows the interaction protocol used in our approach. It starts with the auctioneer waiting for bids for a certain amount of time. Once the new bids are collected, they constitute the bid set. Then, the auctioneer executes the algorithm for the winner determination problem (WDP), and the winner set is built, containing the bids whose reservation requests have been accepted. During the WDP algorithm execution, the auctioneer still accepts incoming bids, but they will only be included in the bid set of the next round. The auctioneer sends a CONFIRMATION message to all bidders that submitted the bids contained in the winner set, while a REJECTION message is sent to the bidders that submitted the remaining bids. Then, a new round begins, and the auctioneer collects new incoming bids for a certain amount of time.
Notice that the auction must be performed in real time, so both the bid collection and the winner determination phase must occur within a specific time window. This implies that optimal and complete algorithms for the WDP are not suitable. Therefore, we used an approximation algorithm with anytime properties (i.e., the longer the algorithm keeps executing, the better the solution it finds) [27].
We expect our policy based on combinatorial auction (CA) to enforce an inverse relation between the amounts spent by the bidders and their delay (the increase in travel time due to the presence of the intersection). That is, the more money a driver is willing to spend for crossing the intersection, the faster will be its transit through it. For this purpose, we designed a custom, microscopic, time-and-space-discrete simulator, with simple rules for acceleration and deceleration [27]. The origin O and destination D of each simulated vehicle are generated randomly. The destination implies the type of turn that the vehicle will perform at the intersection, as well as the lane it will use to travel. We created different traffic demands by varying the expected number of vehicles λ that, for every O–D pair, are spawned in an interval of 60 s, using a Poisson distribution. The bid that a driver is willing to submit is drawn from a normal distribution with mean 100 cents and variance 25 cents, so the agents are not homogeneous in the sense that the amount of money that they are offering differs from one to another.

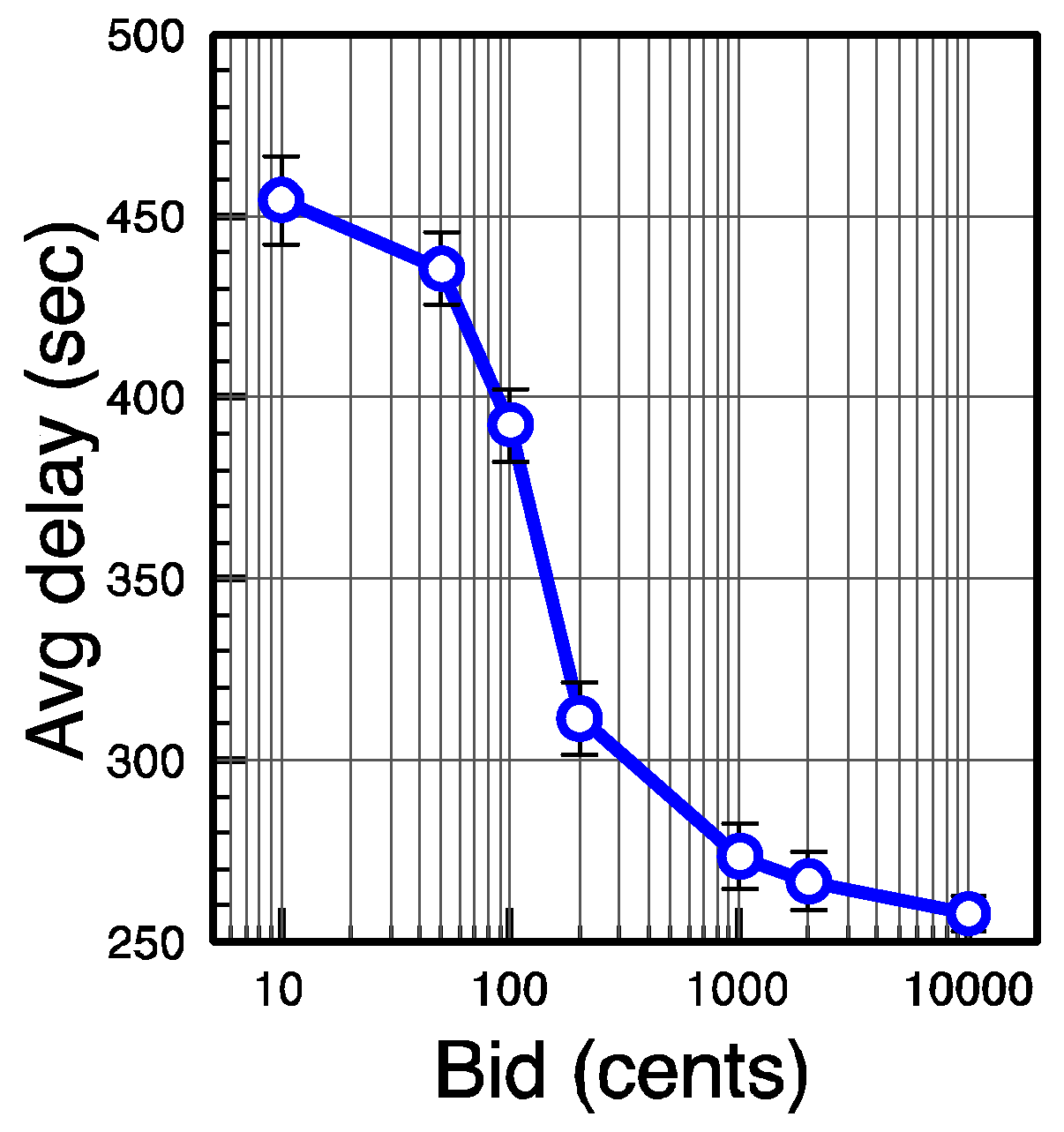

Figure 4 plots (in logarithmic scale) the relation between travel time and bid value for values of λ = 20, with error bars denoting 9% confidence intervals. It clearly shows a sensible decrease of the delay experienced by the drivers that bid from 100 to 150 cents. The delay reduction tends to settle for drivers that bid more than 1000 cents. Similar results are achieved with lower and higher densities [27]. Notice that even with a theoretically infinite amount of money, a driver cannot experience zero delay when approaching an intersection, as the travel time is influenced by slower potentially “poorer” vehicles in front of it. Extensions to our mechanism that address this problem are subject to future work.

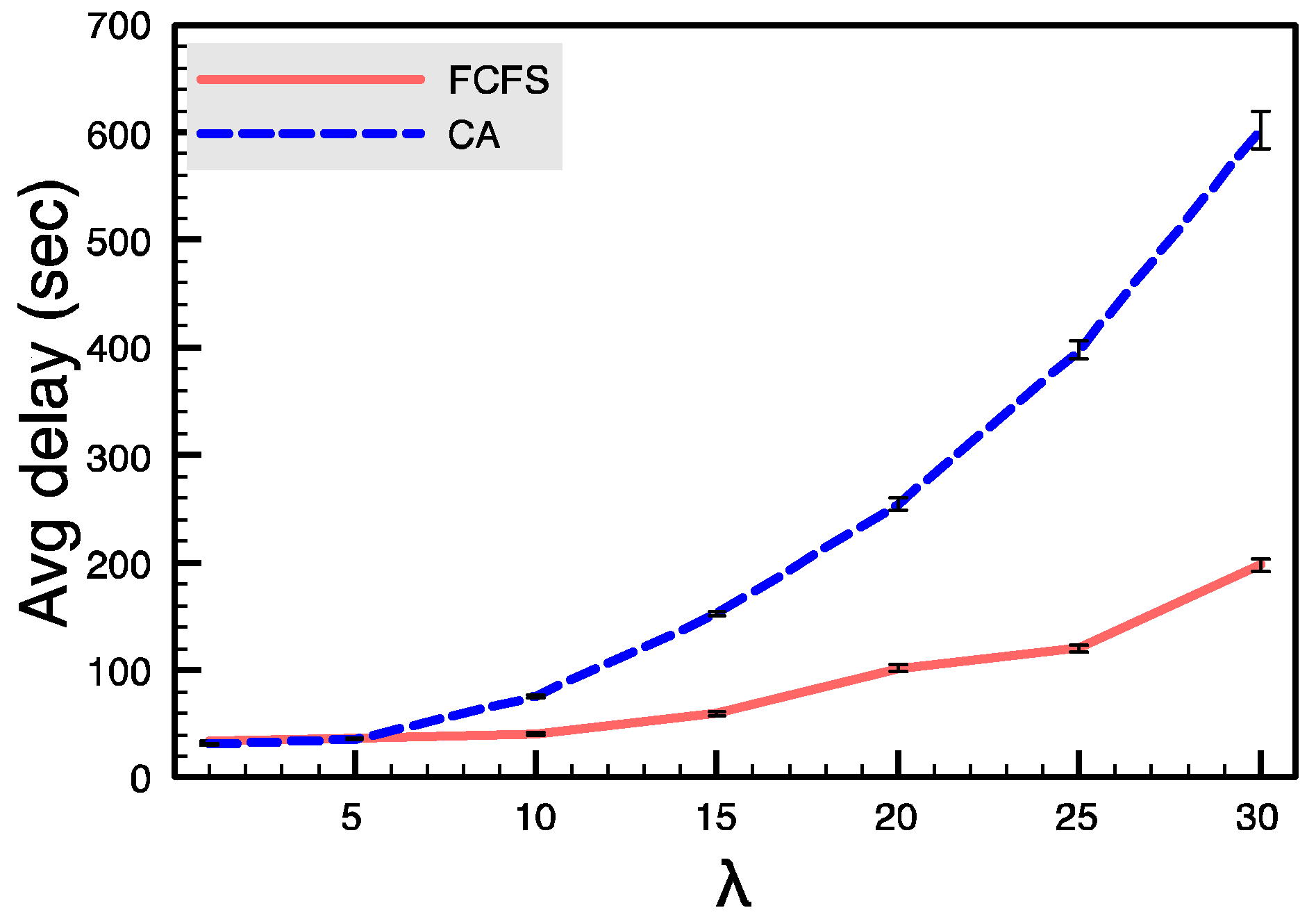

We also analysed the impact that such a policy has on the intersection’s average delay, comparing it to the FCFS strategy. Figure 5 shows that when traffic demand is low, the performance of the CA policy and the FCFS is approximately the same but, as demand grows, there is a noticeable increase of the average delay when the intersection manager applies CA. The reason is that the CA policy aims at granting a reservation to the driver that values it the most, rather than maximising the number of granted requests. Thus, a bid b whose value is greater than the sum of n bids that share some items with b is likely to be selected in the winner set. If so, only one vehicle will be allowed to transit, while n other vehicles will have to slow down and try again. When extending the CA mechanism to multiple intersections, we tried to reduce this “social cost” of giving preference to drivers with a high valuation of time.

3.1.2. Mechanisms for Multiple Intersections

In the previous section, we analysed the performance of an auction-based policy for the allocation of reservations in the single intersection scenario. A driver is modelled as a simple agent that selects the preferred value for the bid that will be submitted to the auctioneer. The decision space of a driver in an urban road network with multiple intersections is much broader: complex and mutually dependent decisions must be taken, such as route choice and departure time selection. Therefore, this scenario opens up new possibilities for intersection managers to affect the behaviour of drivers. For example, an intersection manager may be interested in influencing the collective route choice performed by the drivers, using variable message signs, information broadcast, or individual route guidance systems, so as to evenly distribute the traffic over the network. This problem is called traffic assignment. In the following, we first evaluate how market-inspired methods can be used within a traffic assignment strategy for networks of reservation-based intersections (competitive traffic assignment (CTA) strategy). Then, we combine this traffic assignment strategy with the auction-based control policy into an integrated mechanism for traffic management of urban road networks (CTA–CA strategy). Finally, the performance of the different approaches is evaluated.
The complexity of the problem puts limits to coordination approaches based on cooperative multiagent learning [28]. Therefore, our CTA models each intersection manager as a provider of the resources (in this case, the reservations of the intersection it manages). Each intersection manager is free to establish a price for the reservations it provides. On the other side of the market, each driver is modelled as a buyer of these resources. Provided with the current prices of the reservations, it chooses the route according to its personal preferences about travel times and monetary costs. Each intersection manager is modelled so as to compete with all others for the supply of the reservations that are traded. Therefore, our goal as market designers is making the intersection managers adapt their prices towards a price vector that accounts for an efficient allocation of the resources.
In CTA, for each incoming link l, an intersection manager defines the following variables:
  • Current price pt(l): the price applied by the intersection manager to the reservations sold to the drivers that come from the incoming link l.
  • Total demand dt(l): the total demand of reservations from the incoming link l that the intersection manager observes at time t, given the current price pt(l), i.e., the number of vehicles that intend to cross the intersection coming from link l at time t.
  • Supply s(l): the reservations supplied by the intersection manager for the incoming link l. It is a constant and represents the number of vehicles that cross the intersection coming from link l that the intersection manager is willing to serve.
  • Excess demand zt(l): the difference between total demand at time t and supply, i.e., dt(l) − s(l).
We define the price vector pt as a vector that comprises all prices at time t (i.e., the prices applied by all intersection manager to each of its controlled links). In particular, we say that a price vector pt maps the supply with the demand if the excess demand zt(l) is 0 for all links l of the network. This price vector, which corresponds to the market equilibrium price, can be computed through a Walrasian auction [29], where each buyer (i.e., driver) communicates to the suppliers (i.e., intersection managers) the route that it is willing to choose, given the current price vector pt. With this information, each intersection manager computes the demand dt(l), as well as the excess demand zt(l), for each of its controlled links. Then, each intersection manager adjusts the prices pt(l) for all the incoming links, lowering them if there is excess supply (zt(l) < 0) and raising them if there is excess demand (zt(l) > 0). The new price vector pt+1 is communicated to the drivers that iteratively choose their new desired route on this basis. Once the equilibrium price is computed, the trading transactions take place and each driver buys the required reservations at the intersections that lay on its route.
In order to adapt the Walrasian auction to the traffic domain, we implemented a pricing strategy that aims at reaching the equilibrium price but works on a continuous basis, with drivers that leave and join the market dynamically, and with transactions that take place continuously. To reach general equilibrium, each intersection manager applies the following price update rule: at time t, it independently computes the excess demand zt(l) and updates the price pt(l) as follows:
p t + 1 ( l ) = m a x [ δ , p t ( l ) + p t ( l ) z t ( l ) s ( l ) ]
where δ is the minimum price that the intersection manager charges for the reservations that it sells. As drivers that travel through road network links with low demand shall not incur any costs, for the CTA strategy, we choose δ = 0.
The integrated mechanism for traffic management (CA–CTA) combines the competitive traffic assignment strategy (CTA) with the auction-based policy (CA). Since the intersection manager is the supplier of the reservations that are allocated through the combinatorial auction, it may control the reserve price of the auctioned reservations, that is, the minimum price at which the intersection manager is willing to sell. At time t, for each link l, CTA–CA simply sets this reserve price to the price pt(l) computed by the price update rule of the CTA strategy.

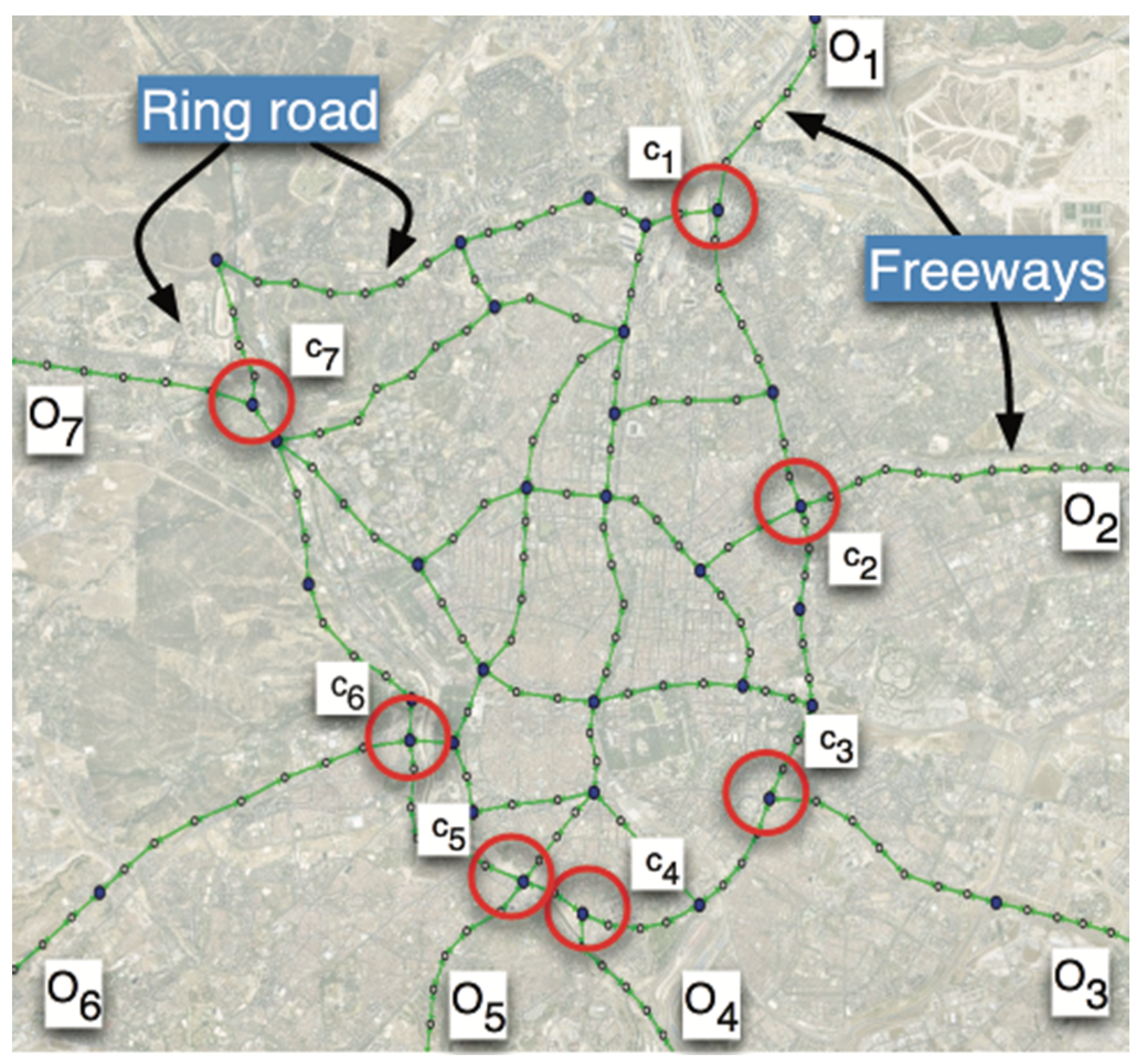

The experimental evaluation of the strategies was performed on a hybrid mesoscopic-microscopic simulator, where traffic flow on road segments was modelled at mesoscopic level, while traffic flow inside intersections was modelled at microscopic level. Although our work does not depend on the underlying road network, we chose a topology inspired by the urban road network of the city of Madrid for our empirical evaluation (see Figure 6). The network is characterised by several freeways that connect the city centre with the surroundings and a ring road. Each large dark vertex in Figure 6, if it connects three or more links, is modelled as a reservation-based intersection. In the experiments, we recreated a typical high-load situation (i.e., the central, worst part of a morning peak), with more than 11,000 vehicles departing within a time window of 50 min (see [27] for details).
We aimed at comparing the performance of FCFS, CTA, and CTA–CA. In FCFS, each intersection manager performs combinatorial auctions (without reserve price) in isolation. In this case, the drivers’ route choice model simply selects the route with minimum expected travel time at free flow, since there is no notion of price. For the other strategies, we assumed that drivers choose the most preferred route they can afford. Since the prices of links are changing dynamically, a driver continuously evaluates the utility of the route it is following and, in the case that a different route becomes more attractive, it may react and change on-the-fly how to reach its destination, selecting a route different from the original one.

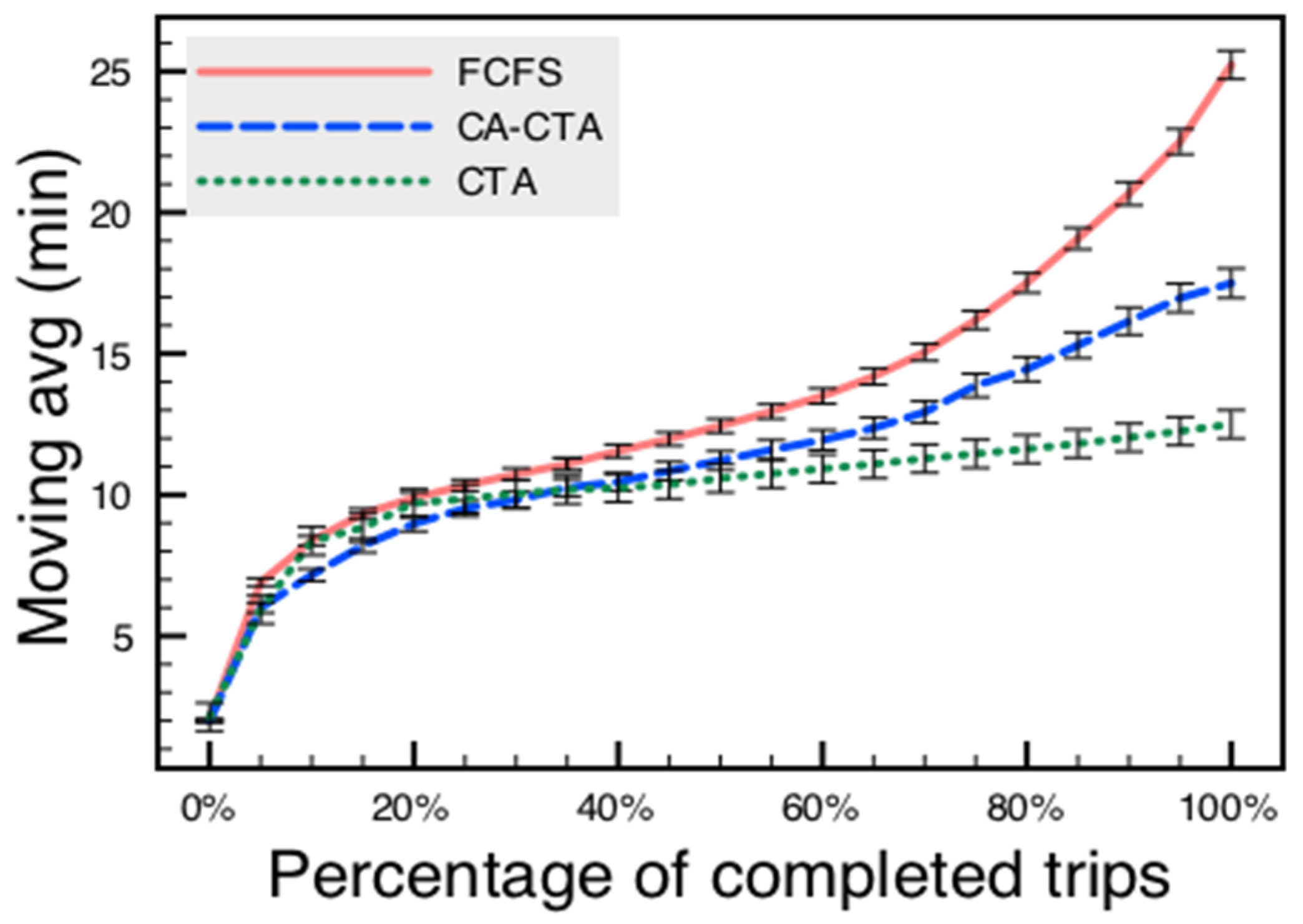

To assess the social cost incurred by CA–CTA at the global level, we measured the moving average of the travel time, that is, how the average travel time of the entire population of drivers, computed over all the O–D pairs, evolves during the simulation. The results, with 95% confidence interval error bars, are plotted in Figure 7. In the beginning, the average travel time is similar for all the scenarios, but as the number of drivers that populate the network (i.e., its load) increases, it grows significantly faster with FCFS than with the CA–CTA policy. In terms of average travel times, CTA is the best performing policy. CA–CTA has a slightly inferior performance, but it can be shown that it enforces an inverse relationship between bid value and delay, similar to the results presented in the previous section [27]. The fact that both CA–CTA and CTA outperform FCFS is an indication that, in general, a traffic assignment strategy (the “CTA” component of both policies) improves travel time. In fact, FCFS drivers always select the shortest route, which in some cases is not the best route choice. Furthermore, granting reservations through an auction (the “CA” component of the CA–CTA policy) ensures that bid value and delay reduction are correlated.

3.2. Evacuation Coordination in Smart Building

The objective of an evacuation is to relocate evacuees from hazardous to safe areas while providing them with safe routes. Present building evacuation approaches are mostly static and preassigned (e.g., [30]). Frequently, no coordination is available except for predefined evacuation maps. Still, due to the lack of overall evacuation network information, there might be casualties caused by too slow an evacuation on hazardous routes. Real-time route guidance systems, which dynamically determine evacuation routes in inner spaces based on the imminent or ongoing emergency, can help reduce those risks. Chen and Feng in [31] proposed two heuristic flow control algorithms for a real-time building evacuation with multiple narrow doors: with no limitation on the number of evacuation paths and k required evacuation paths, respectively. Filippoupolitis and Gelenbe in [32] proposed a distributed system for the computation of shortest evacuation routes in real time. The routes are computed by decision nodes and are communicated to the evacuees located in their vicinity. However, this approach considers only the physical distance and the hazard present in each link and does not take into consideration crowd congestion on the routes.
A dynamic, context-sensitive notion of route safety is a key factor for such recommendations, particularly because herding and stampeding behaviours may occur at potential bottlenecks, depending on (among other factors) the amount of people who intend to pass through them. Furthermore, smart devices allow guidance to be personalised, taking into account, for instance, the specific circumstance of the elderly, disabled persons, or families. In such settings, an adequate notion of fairness of evacuation route recommendations is of utmost importance to assure the trustworthiness of the system from the standpoint of its users [33]: the guidance should not only achieve good overall performance of the evacuation process but must also generate proposals for each of its users that each of them perceive as efficient. Finally, large groups of people may need to be evacuated, so scalability plays a key role.
Our proposal concentrates on real-time situation-aware evacuation guidance in smart buildings. The system aims at assigning efficient evacuation paths to individuals based on their mobility limitations, initial positions, respecting individual privacy, and other evacuation requirements. In our approach, a network of smart building agents calculates individual routes in a decentralised fashion. Complex event processing, semantic technologies, and distributed optimisation techniques are used to address this problem. In addition, we use the notion of agility to determine robust routes, in the sense that they are not only fast but also allow finding acceptable alternatives in case of upcoming contingencies.
We rely on the existence of a rather extensive set of possible evacuation routes, which may be determined by evacuation experts or through some automated online or offline process. The different evacuation routes are stored in an emergency ontology that, together with an ontology describing the topological structure of the building, specifies the a priori knowledge of our system. In addition, situational knowledge about the current situation in each moment of the building and of the evacuees is generated in real time through a network of sensors. This dynamic knowledge is merged with the static knowledge about the infrastructure. In an emergency situation, semantic inference is used to select the most appropriate agile evacuation route for each individual in the building. Furthermore, real-time monitoring allows the system to reroute evacuees in case of contingencies and, thus, to propose evacuation routes that are adaptive to unpredictable safety drops in the evacuation network.

3.2.1. Distributed Architecture

The objective of the evacuation route guidance architecture (ERGA) is to provide individualised route guidance to evacuees over an app on their smartphones based on the evacuation information received from connected smartphones within the building and the building sensor network. However, even if an evacuee does not have a smartphone available, she could still receive information on relevant evacuation directions, for example, through LED displays on the walls of a smart building.

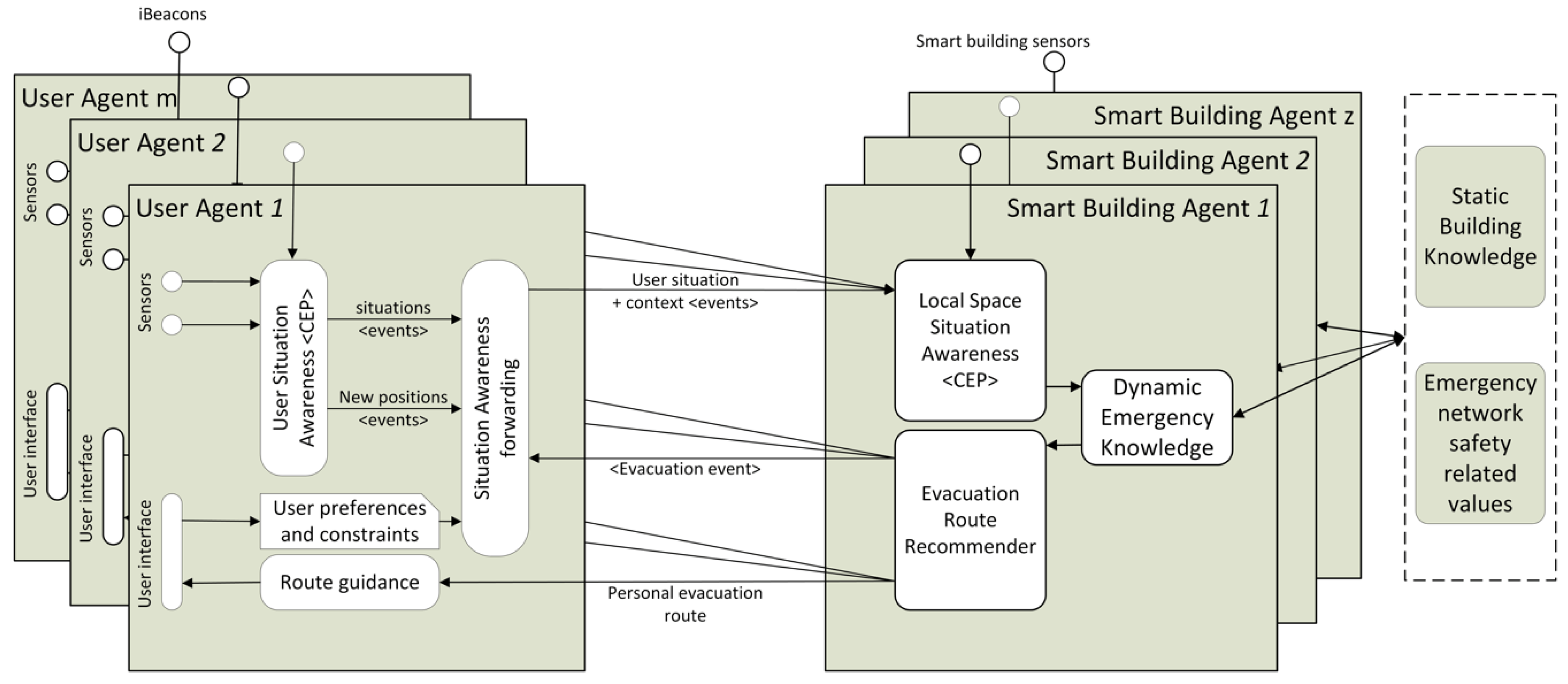

ERGA (Figure 8) consists of user agents (UAs) and a network of smart building (SB) agents.
User agents. The user agent is associated with the application on a smartphone of an evacuee. It manages and stores all the information that is related to a specific evacuee in the building. Here, we assume that people that enter the building own a smartphone with the evacuation app installed, or they have been provided with some smartphone-like device that runs the app when they start to evacuate. The user agent contains three modules: (i) user preferences and constraints, (ii) user situation awareness module, and (iii) route guidance module.
The user preferences and constraints module allows defining constraints such as disabilities (e.g., the use of wheelchair or vision impairment), as well as evacuation-related behavioural disorders (e.g., agoraphobia, social phobia, etc.), while the preferences include the affiliate ties with other users of the building. The user situation awareness module exploits sensor data (from the smartphone and building) and reasons about the behaviour and location of the user. The presence of an evacuee, together with the information derived from the situation awareness module and the individual preferences and constraints, are passed to the closest SB agent. In order to assure privacy, only certain basic data about the user’s situation should be forwarded to the SB agent (e.g., location, running events). In case of an emergency evacuation, the user interface provides the user with personalised navigation guidelines for evacuation.
Smart building agents. Situation awareness and decision making are distributed in the network of SB agents such that each agent is responsible for the semantic reasoning concerning the safety of its assigned physical space, as well as the evacuation route computation for the evacuees positioned in its physical space. We assumed that each SB agent has at its disposal the information regarding the evacuation network’s layout, topology, and safety.
A single SB agent controls only its own physical space. The number and location of SB agents is defined when the system is installed. Each SB agent has a corresponding region (Voronoi cell) consisting of all user agents closer to that SB agent than to any other SB agent. Each SB agent contains a local space situation awareness module that perceives the safety conditions of the physical space it controls through combining and analysing the events provided by the sensors and individual user agents located within the smart space it controls. Moreover, each SB agent communicates with its neighbouring SB agents and with the user agents present within its physical space.
The local space situation awareness module functions in cycles. At the first phase, the local building sensor data is fused with the data from the locally present user agents. Then, the safety value is deduced. This data is sent to a blackboard or similar globally shared data structure containing the overall network safety values and is visible to all agents. When an SB agent detects an emergency situation, it sends the updated safety value of its physical space to the shared blackboard. This allows, on the one hand, to monitor the real-time situation of the building and, on the other hand, to trigger an evacuation process and to execute control actions in such a process. SB agent’s evacuation route recommender module computes optimised evacuation routes for each locally present user agent by distributed computation and communication with the rest of the SB agents in a multi-hop fashion. In this process, the algorithm uses: (i) data regarding the building topology, (ii) general knowledge about emergency and evacuation scenarios (e.g., facts that people with strong affiliate ties should always be evacuated together, the appropriateness of certain routes for people with limited mobility, and the influence of certain events like fire and smoke on the security level), and (iii) the current physical space situation awareness of the SB agent itself, as well as regarding the evacuees that are currently in its space and evacuation network’s safety values.
During evacuation, the global safety situation of the building is dynamically updated in real time and each SB agent recalculates the evacuation routes if necessary.

3.2.2. Situation Awareness

We assumed the existence of data provided by a smart infrastructure, as well as by the users currently in the building. In particular, we required information for identifying the location of each user in the building.
There are various technological techniques to localise people in buildings. Measuring the strength of the signal of several Wi-Fi access points could be used to calculate a person’s location via trilateration. However, the signal strength is easily affected by the environment (obstacles, users, etc.) making it very difficult to obtain accurate positions. Another option is using Radio-frequency identification (RFID) technology, but a lot of expensive readers would need to be installed in the building, and there are also similar trilateration problems to those for Wi-Fi. In addition, it would require providing an RFID tag to each person in the building. We opted for using beacons, a recent technology to support indoor navigation. Beacons are cheap devices that emit Bluetooth signals, which can be read by beacon readers, in particular, smartphones. Beacons send, among other information, a unique ID that allows identifying the specific sensor the user is near to, thus providing accurate user location.
Besides user location, other infrastructure sensors provide different measures, such as temperature, smoke, fire, and so on. In addition, the users’ smartphones built-in sensors provide information that allows detecting their activity (e.g., if the person carrying the phone is running).
Sensor events (each piece of information forwarded by or read from a sensor) are processed using complex event processing (CEP), a software technology to extract the information value from event streams [34]. CEP analyses continuous streams of incoming events in order to identify the presence of complex sequences of events (event patterns). Event stream processing systems employ “sliding windows” and temporal operators to specify temporal relations between the events in the stream. The core part of CEP is a declarative event processing language (EPL) to express event processing rules. An event processing rule contains two parts: a condition part describing the requirements for firing the rule, and an action part that is performed if the condition matches. An event processing engine analyses the stream of incoming events and executes the matching rules.
UAs exploit sensor data and infer the location and behaviour of their user. For example, data read from beacons is introduced as events of type beaconEvent(beaconID). Then, the subsequent CEP rule creates enteringSection and leavingSection events, meaning that the user is entering and leaving a certain space, respectively. The rule describes the situation that a new beaconEvent b2 has been read in the phone, where the beacon ID has changed. The symbol “->“ indicates that event b1 occurs before event b2.
CONDITION:
 beaconEvent AS b1 -> beaconEvent AS b2 ∧
 b1.id <> b2.id
ACTION:
 CREATE enteringSection(userID, b2)
 CREATE leavingSection(userID, b1)
enteringSection and leavingSection events, as well as others, like runningEvent (generated by a CEP rule that checks if the average velocity of the user is higher than 5 km/h for the last 10 s) are forwarded to the SB agent monitoring the user’s location area.
SB agents receive processed events from the UA in their area. That information, as well as that obtained from smart building sensors, is incorporated into a stream of events. Again, the event stream is processed by the CEP engine generating more abstract and relevant situation awareness information. For instance, a panic event can be inferred if more than 40% of persons in a certain section of the building emit a running event.
Finally, situation awareness information, in the form of events, is then transformed into a semantic representation, namely RDF facts. Afterwards, the situation information is ready to be consumed by semantic inference engines. We used OWL ontologies to represent information semantically in our system (user preferences, building topology, emergency knowledge, building situation). Semantic representations provide the means to easily obtain inferred knowledge. For example, if we define a class DisabledPerson to represent people with at least one disability, then we can infer disabled people even though they have not been explicitly described as instances of that class. For more complex reasoning tasks, we use rules on top of our OWL ontologies, which typically add new inferred knowledge. In particular, we use rules to determine the accessibility of certain sections in the building, and to select possible evacuation routes.

3.2.3. Personalised Route Recommendation

Our aim is to safely evacuate all the evacuees (or at least as many as possible) within an allotted upper time limit. This limit is usually given by the authorities in charge of evacuation.
Initially, we rely on the existence of a set of predefined evacuation routes. This set is independent of user constraints. The set of routes is analysed with the objective of generating personalised efficient evacuation routes, that is, sets of alternative routes for each particular user, considering the current situation of the building and user constraints (e.g., wheelchair, blind, kids, etc.). This is carried out in two steps. First, those routes that are not time-efficient (e.g., their expected evacuation times are not within the time limit) are filtered out. Next, using a rule-based system, safe personalised plans for each user are created. These routes only include traversing sections that are accessible for that particular user (e.g., avoiding paths through staircases if the person uses a wheelchair). Semantic rules and OWL reasoning are used in this task. For example, the following Jena (http://jena.apache.org) rule identifies staircase sections that are not accessible for people in a wheelchair:
(?user:hasDisability:Wheelchair)
(?section rdf:type:Staircase)
->
(?section:notAccessibleFor?user)
The personalised efficient evacuation routes need to be ranked so as to select one route for each person in the building. We represent the evacuation network by a directed graph G = (N, A), where N is a set of n nodes representing sections, and A is the set of m arcs a = (i, j), i, jN and i ≠ j, representing walkways, doors, gateways, and passages connecting sections i and j. Let ON and DN be a set of all evacuees’ origins and safe exit destinations, respectively. We modelled the evacuation as a unified crowd flow, where each individual is seen as a unit element (particle) of that flow and the objective is to maximise the flow of demands (evacuation requests) with certain constraints. We considered travel time optimisation with path safety, envy-freeness (fairness), and agile paths.
Route safety. Our objective is to safely evacuate as many evacuees as possible from all origins o ∈ O over the safest and the most efficient evacuation paths to any of the safe exits d ∈ D. Let us assume that safety status Sa is given for each arc aA as a function of safety conditions that can be jeopardised by a hazard. Safety can be calculated from sensor data (e.g., temperature, smoke, etc.), and using space propagation models and aggregation functions to combine different influences and variables measured. A thorough description of this field can be found in, for example [35,36]. We normalised it to the range [0, 1], such that 1 represents perfect conditions while 0 represents conditions impossible for survival, with a critical level for survival 0 < Scr < 1 depending on the combination of the previously mentioned parameters.
If each constituent arc ak of a generic path k has safety SakScr, then path k is considered to be safe. On the contrary, a path is considered unsafe and its harmful effects may threaten the evacuees’ lives. The proposed evacuation paths should all satisfy safety conditions SkScr. However, when such a path is not available, a path with the maximal safety should be proposed where the travel time passed in the safety-jeopardised areas should be minimised. Since safety may vary throughout a path, here, we introduce a normalised path safety that balances the minimal and average arc safety values:
S k = a k S a | a k | ,   k P o ,   o O
where Po is the set of simple paths from origin oO to an exit.
Fair route recommendation. An adequate notion of fairness of evacuation route recommendations is important to assure the trustworthiness of the system from the evacuees’ viewpoint [33]: the guidance should not only achieve good overall performance of the evacuation process but must also generate evacuation routes for each of the evacuees that each of them perceives as efficient and fair. For example, if there are two close-by evacuees at some building location, they should be offered the same evacuation route or, if not possible, then routes with similar safety conditions and evacuation time.
We aim at proposing available safe simple paths with a maximised safety acceptable in terms of duration in free flow for each evacuation origin. By acceptable in terms of duration in free flow, we mean the paths whose traversal time in free flow is within an upper bound in respect to the minimum free flow duration among all the available evacuation paths for that origin.
The concept of envy-free paths was introduced in [37]. Basically, it defines a path allocation to be α-envy-free if there is no evacuee at origin o′ that envies any other evacuee at origin o for getting assigned the path with a lower duration than the αth power of the path duration assigned to the evacuee on o′.
Agile routes. When an unpredicted hazard occurs on a part of the evacuation route, it becomes unsafe and impassable. If, in the computation of an evacuation route, we did not consider this fact and the related possibility to reroute to other efficient evacuation routes on its intermediate nodes, then, in case of contingency, rerouting towards safe areas might be impossible, causing imminent fatalities of evacuees. A similar case may occur if, for example, a high flow of evacuees saturates an evacuation path and causes panic. Therefore, we prefer routes where each intermediate node has a sufficient number of dissimilar efficient evacuation paths towards safe exits, if possible, within the maximum time of evacuation given for a specific emergency case. In that respect, evacuation centrality is defined in [38] as follows.
Evacuation centrality Cε(i) of node i is a parameter that represents the importance of node i for evacuation. The value of the evacuation centrality of the node is the number of available, sufficiently dissimilar, time-efficient evacuation paths from that node i towards safe exits.
Once we find the evacuation centrality measure for each node of the graph, the objective is to find an evacuation path that maximises the overall value of the intermediate nodes’ centrality measures. We call every such path agile evacuation path: a path where an evacuee has higher chances to reroute in case of contingency in any of the intermediate nodes or arcs. Path agility Δ(k) is defined as:
Δ ( k ) = ( i , j ) k C ε ( j ) | ( i , j ) k |
Since we are not concerned about the number of arcs in the path, we take the |(i, j) ∈ k|th root of the Nash product in this formula. We recommend the evacuation paths with the highest agility to evacuees and recompute this value every time the safety and/or congestion conditions change along the recommended path.

3.3. Emergency Medical Service Coordination

The domain of medical assistance includes many tasks that require flexible on-demand negotiation, initiation, coordination, information exchange, and supervision among different involved entities (e.g., ambulances, emergency centres, hospitals, patients, physicians, etc.). In addition, in the case of medical urgencies, the need for fast assistance is evident. It is of crucial importance for obtaining efficient results, improving care, and reducing mortality, especially in the case of severe injuries. Out-of-hospital assistance in medical urgencies is usually provided by emergency medical assistance (EMA) services, using vehicles (typically ambulances) of different types to assist patients appearing at any location in a given area. In such services, the coordination of the available resources is a key factor in order to assist patients as fast as possible. The main goal here is to improve one of the key performance indicators: the response time (the time between a patient starting to call an EMA service centre and the moment medical staff, e.g., an ambulance, arrives at his location and the patient can receive medical assistance).
One way to reduce response times consists of reducing the part that depends on the logistic aspects of an EMA service through an effective coordination of the assistance vehicle fleet (for simplicity, here we assume a fleet of ambulances). In this regard, there are two principal problems EMA managers are faced with: the assignment or allocation of ambulances to patients and the location and redeployment of the ambulance fleet. The assignment or allocation problem consists of determining, at each moment, which ambulance should be sent to assist a given patient. Moreover, the location and redeployment consist of locating and possibly relocating available ambulances in the region of influence in a way that new patients can be assisted in the shortest time possible.
Most of recent works for coordinating ambulance fleets for EMA have been dedicated to the redeployment problem. A lot of work has concentrated on the dynamic location of ambulances, where methods are proposed to redeploy ambulances during the operation of a service in order to take into account the intrinsic dynamism of EMA services (e.g., [39,40,41]). Most proposals on dynamic redeployment of ambulances only consider the possibility to relocate ambulances among different, predefined sites (stations). This requirement is relaxed in the work proposed in [42], where a number of ambulances can be relocated to any place in the region. Regarding dispatching strategies (the patient allocation problem), most works use the “nearest available ambulance” rule for assigning ambulances to patients in a first-came first-served manner. Some works analyse priority dispatching strategies to account for severity level of patients [42,43].
In our previous work [44], we proposed a system that re-allocates ambulances to patients and redeploys available ambulances in a dynamic manner in order to reduce the average response times. Our redeployment approach differs from others in the sense that it does not try to maximise the zones that are covered in a region, with respect to some time limits. Instead, the approach is based on geometric optimisation that tends to optimise, in each moment, the positions of all ambulances that are still available such that the expected arrival time to potential new emergency patients is minimised. Here, with regard to the allocation of patients to ambulances, we propose a dynamic approach similar to [45] but, instead of optimising the global travel times of all ambulances, we concentrate only on the sum of the arrival times of ambulances to the pending emergency patients. This system is summarised in this section.
We use the following notation to describe the problem and to present our solution. The set of ambulances of an EMA service is denoted by A = {a1, …, an}, where n is the cardinality of A. Even though most EMA services employ different types of ambulances, for reasons of simplicity, we just consider a single type. Each ambulance has a position and an operational state which vary during time. p(ai) and s(ai) denote the current position and the current state of ambulance ai, respectively. The position refers to a geographical location, and the state can be one of the following:
  • assigned: An ambulance that has been assigned to a patient and is moving to the patient’s location.
  • occupied: An ambulance that is occupied, either attending a patient ‘‘in situ’’ or transferring him/her to a hospital.
  • idle: An ambulance that has no mission in this moment.
We denote the sets of available, occupied, and idle ambulances at a given moment by AA, AO, and AI.
Regarding the patients, P = {p1, …, pm} denotes the current set of unattended patients in a given moment (e.g., patients that are waiting for an ambulance), where m is the cardinality of P. Each patient pjP has a location (denoted by p(pj)). We assume that patients do not move while they are waiting for an ambulance, thus p(pj) is constant. Furthermore, once an ambulance has reached a patient’s location in order to provide assistance, this patient is removed from P.

3.3.1. Dynamic Reassignment

The ambulance allocation problem consists of finding an assignment of (available) ambulances to the emergency patients that have to be attended to. In current EMA services, mostly a priority dispatching strategy is used, where patients are assigned in a sequential order of appearance and patients with a higher severity level are assigned first. In each case, usually the nearest idle ambulance aiAI is assigned. This can be seen as a first-call first-served (FCFS) rule, where patients with the same security level that called first are also assigned first to an ambulance. After an ambulance has been assigned to a patient, this assignment is usually fixed.
The FCFS approach is not always optimal from a global perspective. First, if more than one patient has to be attended, it is not optimal in the sense that is does not minimise the response times to all patients. Furthermore, the dynamic nature of an EMA system implies that a given assignment of ambulances to patients at one point in time might not be optimal at a later point, for example, if new patients appear or if an ambulance that was occupied before is becoming available again.
In order to reduce the average arrival time in the dynamic environment of an EMA service, the assignments of ambulances to patients could be optimised globally and the assignments should be recalculated whenever relevant events take place and a better solution may exist. Based on this idea, we propose a dynamic assignment mechanism of ambulances to patients, which optimises the assignments at a given point in time and recalculates optimal assignments when the situation changes.
Given a set of patients to be attended P and a set of ambulances that are not occupied AAAI at a specific moment, the optimal assignment of ambulances to patients is a one-to-one relation between the sets AAAI and P, that is, a set of pairs AS = {<ak,pl>,<as,pq>, …} such that the ambulances and the patients are all distinct, and that fulfils the following conditions:
  • The maximum possible number of patients is assigned to ambulances, that is:
    pjP: ∃<ai,pj > ∈ AS if nm and ∀aiAAAI: ∃<ai,pj> ∈ AS if n < m
  • The total expected travel time of the ambulances to their assigned patients:
    < a i , p j > A S E T T ( p ( a i ) ,   p ( p j ) ) is minimised
ETT(x,y) denotes the expected travel time for the fastest route from one geographical location x to another location y.
Calculating such an optimal assignment is a well-known problem which can be solved in cubic time, such as with the Hungarian method [46] or with Bertsekas’ auction algorithm [47]. We propose to use the second approach because it has a naturally decentralised character and can be optimised in settings, as the one analysed here.
An optimal assignment AS at a moment t, due to the dynamic nature of an EMA service, might become suboptimal at a time t’ (t> t). The following cases need to be considered:
  • One or more new patients require assistance: in this case, the set of patients that have to be attended changes and the current assignment AS may not be optimal any more.
  • Some ambulances that have been occupied at time t have finished their mission and are idle at time t’. These ambulances could eventually improve the current assignment.
Based on this analysis, we propose a dynamic system based on an event-driven architecture that recalculates the global assignment whenever one of the following events occur: newPatient(pj) (a new patient has entered the set P) or ambFinishedEvent(ai) (an ambulance that was occupied before is becoming idle again). In the recalculation of an existing assignment, ambulances that have been already dispatched to a patient, but did not reach the patient yet, may be deassigned from their patients or might be reassigned to other patients. This approach assures that the assignment AS is optimal, with regard to the average travel time to the existing patients, at any point in time.

3.3.2. Dynamic Redeployment

The second part of the proposed coordination approach for emergency medical services (EMS) consists of locating and redeploying ambulances in an appropriate manner. Here, the objective is to place ambulances in such a way that the expected travel time to future emergency patients is minimised.
We addressed this problem by using Voronoi tessellations [48]. A Voronoi tessellation (or Voronoi diagram) is a partition of a space into a number of regions based on a set of generation points such that for each generation point there will be a corresponding region. Each region consists of the points in the space that are closer to the corresponding generation point than to any other. Formally, let ΩR2 denote a bounded, two-dimensional space and let S = {s1, …, sg} denote a set of generation points in Ω. For simplicity, let Ω be a discrete space. The Voronoi region Vi corresponding to point si is defined by:
Vi = {yΩ:|ysi| < |y − sj| for j = 1, …, k and ji}
where |·| denotes the Euclidean norm. The set V(S) = {V1, …, Vk} with i = 1 k V i = Ω is called a Voronoi tessellation of S in Ω. A particular type of tessellation is centroidal Voronoi tessellation (CVT). A centroidal Voronoi tessellation is one where each generation point si is located in the mass centroid of its Voronoi region with respect to some positive density function ρ on Ω. A CVT is a necessary condition for minimising the cost function and, thus, provides a local minimum for the following cost function:
F ( S ) = V i V ( S ) y V i ρ ( y ) | y s i | 2
A common approach to calculate CVTs and, thus, to minimise (1) is the algorithm proposed by Lloyd [49]. The algorithm is an iterative gradient descent method that finds a set of points S that minimises F(S) in each iteration and converges to a local optimum. Lloyd’s algorithm can be summarised in the following steps:
  • Select an initial set S of k sites in Ω.
  • Calculate the Voronoi regions Vi for all generation points siS.
  • Compute the mass centroid of each region Vi with respect to the density function q. These centroids compose the new set of points S.
  • If some termination criteria are fulfilled, finish; otherwise return to Step 2.
Lloyd’s algorithm is not assured to find a global minimum, but it finds solutions of reasonable quality very fast—after a few iterations. Therefore, we applied Lloyd’s algorithm to find suboptimal positions of ambulances. The application is straightforward: Ω represents the region of interest, and the set of generation points S represents the set of all idle ambulances and their positions. Each Voronoi region Vi corresponds to the area that is covered by ambulance si (e.g., the area for which si is the closest ambulance in case any patient requires help). Furthermore, as the density function ρ, we use an estimation of the probability distribution of the appearance of a patient in any point in the region of interest. In particular, to define ρ, we divide the region of interest in a set of equally sized cells C = {c1, …, cu}, where u is the cardinality of C. That means we discretise the region Ω into u points, each of which represents the centre of one of the cells ci. Then, we estimate, for each cell ci, the conditional probability pci that a new emergency patient will appear in this cell. With this setting, Lloyd’s algorithm finds a distribution of ambulances that minimises (1). In particular, in our case, this is a reasonable approximation for minimising the expected distance and, thus, the arrival time, to future emergency patients.
The probabilities pci can be obtained by tracking historical data on emergency cases. Furthermore, it is possible to model different situations (like seasons, day of the week, time interval, etc.) through different probability distributions.
In the application of Lloyd’s algorithm, at a given point in time, we used the positions of all idle ambulances as the set of initial generation points S. We applied a fixed number of iterations (in the experiments we used 50) and the resulting set S represents the “recommended” distribution of ambulances at this particular moment. The new positions are sent to the ambulances, and the ambulances are situated such that they can move towards that positions. Because of road and parking conditions, the obtained positions are considered as indications of an area. That is, once given such an area, the ambulance driver will decide which is the most appropriate waiting location in that area.
We used the Euclidean norm as a distance measure to generate the Voronoi regions for the ambulances. While in a real traffic scenario, as is our case, the Euclidean distance is a rather imprecise approximation of real distances on the road network, from a global perspective, and assuming a rather homogeneous connection between different points of the region of interest (as is usually the case in many urban areas), the Euclidean norm seems to work reasonably well for our purposes. Furthermore, using “road-network distances” when calculating the Voronoi regions is a rather complicated task that would increase the computation complexity considerably.
Similar to the ambulance assignment problem, the dynamic nature of an EMA service implies that the optimal positions of the idle ambulances will change when changes in the environment occur. In order to cope with such changes, the ambulance positions are recalculated dynamically whenever any of the following events occur:
  • An ambulance that was assigned to a patient has been deassigned.
  • An ambulance has finished a patient assistance mission and has changed its state from occupied to idle.
  • An ambulance that was idle has been requested to assist a patient. It changes its state from idle to assigned.
  • The situation that determines the underlying probability distribution changes (e.g., a distribution for a new time interval, day of the week, or season should be used).

3.3.3. Experimental Results

We tested the effectiveness of the dynamic reassignment and redeployment approaches in different experiments simulating the operation of SUMMA112, the EMA service provider organisation in the Autonomous Region of Madrid in Spain. We used a simulation tool that allows for a semi-realistic simulation of intervals of times of the normal operation of an EMA service. The tool reproduces the whole process of attending emergency patients, beginning with their appearance and communication with the emergency centre, the schedule of an ambulance, the “in situ” attendance, and, finally, the transfer of the patients to hospitals. The simulator operates in a synchronised manner based on a stepwise execution, with a step frequency of 5 s. That is, every 5 s, the activities of all agents are reproduced, leading to a new global state of the system. In the simulations, we are mainly interested in analysing the movements of ambulances and the subsequent arrival times to the patients. The movements are simulated using an external route service to reproduce semi-realistic movements on the actual road network with a velocity adapted to the type of road. External factors, like traffic conditions or others, are ignored. The duration of the phone call between a patient and the emergency centre and the attendance time “in situ” is set to 2 and 15 min, respectively. As the area of consideration, we used a rectangle of 125 × 133 km that covers the whole region of Madrid. For calculating the probability distribution of upcoming patients, we divided the region into cells of size 1300 × 1300 m. A different probability distribution is estimated for each day of the week and each hour from statistical data (patient data from the whole year of 2009). We used 29 hospitals (all located at their real positions) and 29 ambulances with advanced life support (as it was used by SUMMA112 in 2009) and we simulated the operation of the service for 10 different days (24 h periods) with patient data from 2009 (1609 patients in total). The days were chosen to have a representation of high, medium, and low workloads. We only accounted for so-called level 0 patients, (e.g., patients with a live threatening situation).
We compared two approaches:
  • SUMMA112: The classical approach (used by SUMMA112). Patients are assigned to the closest ambulances using a fixed FCFS strategy. Furthermore, ambulances are positioned on fixed stations (at the hospitals), waiting for missions. After finishing any mission, the ambulances return to their station.
  • DRARD: In this case, the dynamic reassignment and redeployment methods are employed. With regard to dynamic re-employment, idle ambulances only move to a new recommended position if it is further away than 500 m. This is to avoid short, continuous movements.
Table 1 presents the average arrival times (in minutes) obtained with the two models in simulations for the 10 selected days. As the results show, the use of the DRARD approach provides a considerable improvement (between around 10% and 20%). If we look at all 1609 patients, the average times are 11:45 and 9:54 min, respectively, which implies an improvement of 15.8%.

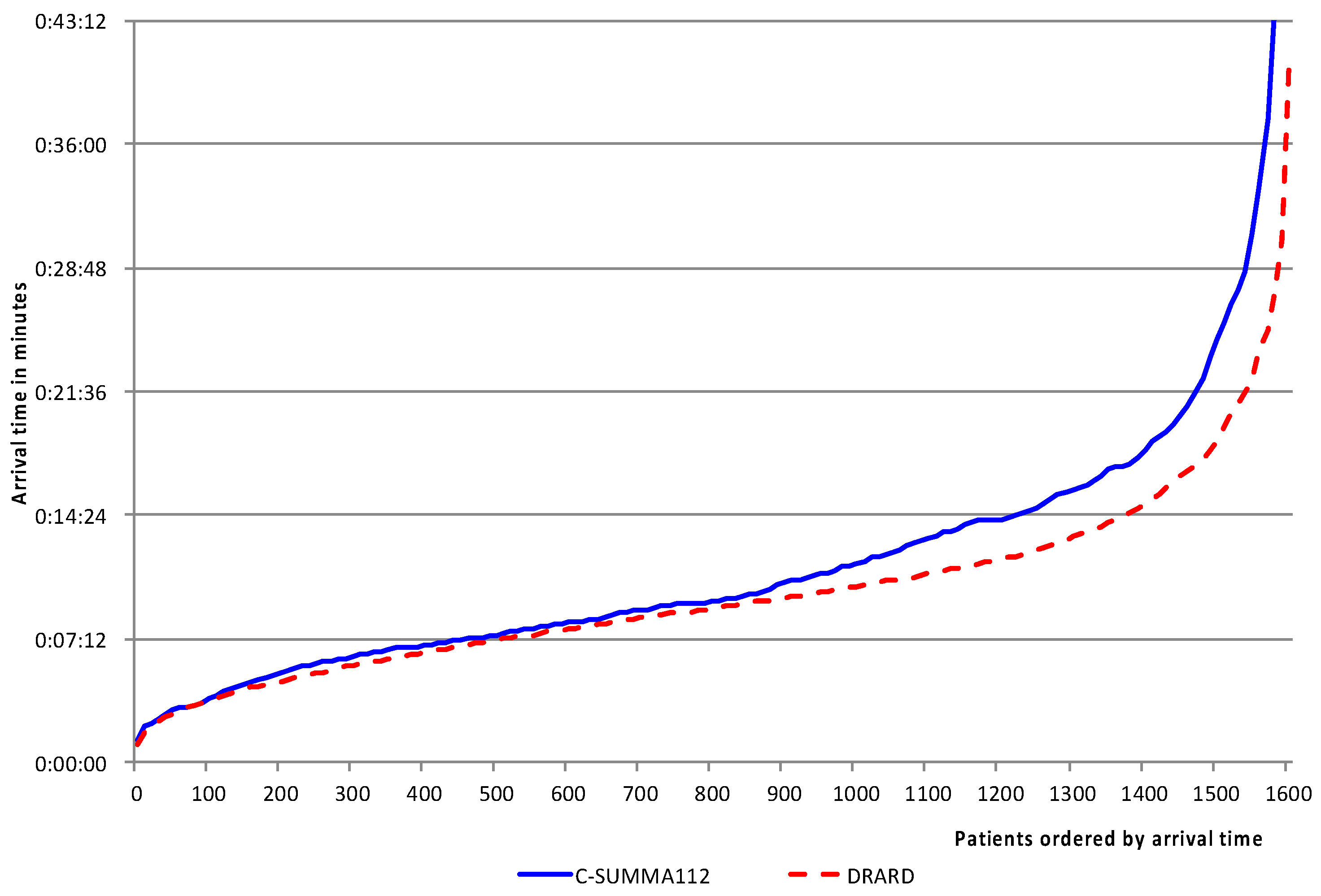

In Figure 9 we present the results of the distribution of arrival times for the different approaches for all 1609 patients of the 10 selected days. The patients in each curve are ordered by increasing arrival time. A clear difference can be observed between the DRARD method, with respect to the current operation model of SUMMA112. The results are clearly better for almost all arrival time ranges. Furthermore, the most important improvements can be observed in the range of higher times. This is a very positive effect because it assures that more patients can be attended to within given response time objectives. For example, out of the 1609 patients, 1163 (72.3%) are reached within 14 min with the SUMMA model, whereas this number increases to 1356 patients (84.3%) with DRARD.
As shown in the results, the proposed dynamic reassignment and redeployment methods clearly improve the efficiency of an EMA service in terms of reducing response time. However, the approaches, particularly dynamic redeployment, introduce an extra cost. Since the mechanism is based on an almost continuous repositioning of idle ambulances, the travel distances of the ambulances increase. Considering the 10 days, the average distance each ambulance has to cover each day in the SUMMA model is 95.48 km, whereas it is 299.97 km for the DRARD approach. That is, ambulances have to travel about three times the distance because of frequent location changes. It is a political decision whether this extra effort is acceptable in order to improve the quality of service. In any case, compared to augmenting the number of ambulances in order to reduce response times, the DRARD approach appears to be a less costly alternative. In this sense, we have executed the DRARD method. Further, fewer ambulances achieve roughly the same average arrival time as that obtained in the SUMMA model. That is, with 29 ambulances in the SUMMA model, the same average arrival time can be obtained with 21 ambulances in the DRARD approach.

3.4. Distributed Coordination of Emergency Medical Service for Angioplasty Patients

Based on the World Health Organization data, ischemic heart disease (IHD) is the single most frequent cause of death, killing 8.76 million people in 2015, and one of the leading causes of death globally in the last 15 years [50]. It is a disease characterised by ischaemia (reduced blood supply) of the heart muscle, usually due to coronary artery disease. At any stage of coronary artery disease, the acute rupture of an atheromatous plaque may lead to an acute myocardial infarction (AMI), also called a heart attack. AMI can be classified into acute myocardial infarction with ST-segment elevations (STEMI) and without ST elevation (NSTEMI). Effective and rapid coronary reperfusion is the most important goal in the treatment of patients with STEMI.
One of the reperfusion methods is angioplasty or primary percutaneous coronary intervention (PCI). It is the preferred treatment when feasible and when performed within 90 min after the first medical contact [51,52]. Due to insufficient EMS coordination and organisational issues, elevated patient delay time—defined as the period from the onset of STEMI symptoms to the provision of reperfusion therapy—remains a major reason why angioplasty has not become the definitive treatment in many hospitals.

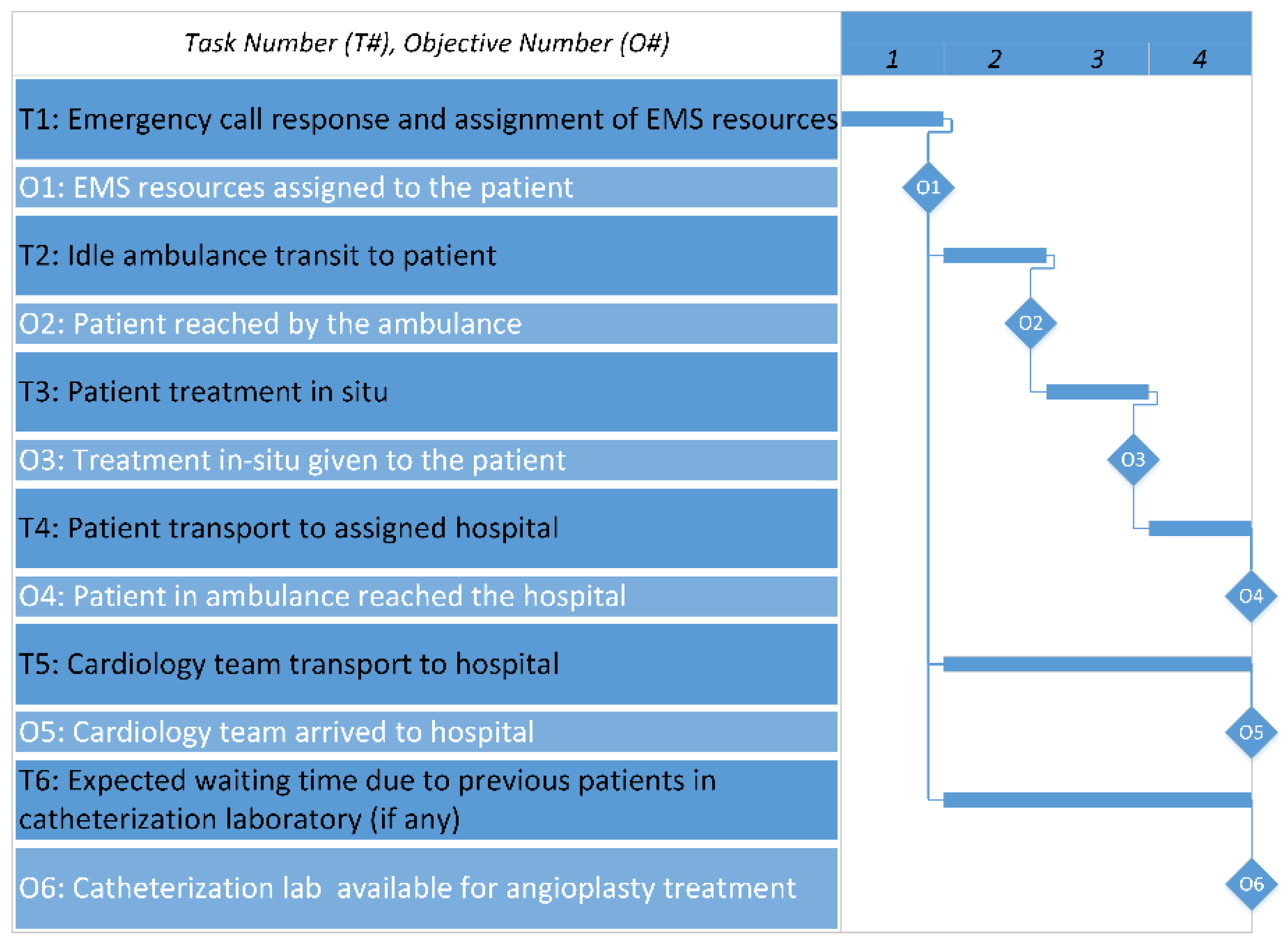

Conventional EMS procedure in assisting AMI emergencies is the following. Patients are diagnosed in the place where they suffer chest pain: at their momentary out-of-hospital location or at a health centre without angioplasty. In both cases, the emergency coordination centre (ECC) applies first-come first-served (FCFS) strategy and locates the nearest available (idle) ambulance with advanced life support (ALS) and dispatches it to pick up the patient. After the ambulance arrives to the scene and diagnoses AMI by an electrocardiogram, the ambulance confirms the diagnosis to the ECC, which has real-time information of the states of ambulances. The ECC applies FCFS strategy for hospital and cardiology team assignment by locating the nearest available hospital with a catheterisation laboratory and alerting the closest hospital cardiology team of the same hospital.
The improvements of the EMS coordination in the literature were achieved both by novel fleet real-time optimisation and communication methods, using new multiagent models (see, e.g., [44,52,53,54,55]). Despite an exhaustive quantity of work on the optimisation of EMA, to the best of our knowledge, there is little work on optimisation models for the coordination of EMS when the arrival of multiple EMS actors needs to be coordinated for the beginning of the patients’ treatment. This is the case with STEMI patients assigned for angioplasty treatment where, in the case of multiple angioplasty patients, the FCFS strategy discriminates the patients appearing later.
EMA coordination for STEMI patients includes the assignment of three groups of actors: assignment of idle ambulances to patients, assignment of catheterisation laboratories in available hospitals to patients receiving assistance in situ, and assignment of available cardiology teams to hospitals for the angioplasty procedure performance. All of the three assignments need to be combined in a region of interest such that the shortest arrival times are guaranteed to all patients awaiting angioplasty at the same time. In continuation, we present the solution approach from [52], which presents a coordination model for EMS participants for the assistance of angioplasty patients. The proposed approach is also applicable to emergency patients of any pathology needing prehospital acute medical care and urgent hospital treatment.
We concentrated on the minimisation of the patient delay, defined as the time passed from the moment the patient contacts the medical ECC to the moment the patient starts reperfusion therapy in the hospital. The patient delay defined in this way is made of the following parts, and is shown in Figure 10:
T1
Emergency call response and decision making for the assignment of EMS resources;
T2
Mobilisation of an idle ambulance and its transit from its current position to the patient;
T3
Patient assistance in situ by ambulance staff;
T4
Patient transport in the ambulance to assigned hospital;
T5
Cardiology team transport from its momentary out-of-hospital position to the hospital;
T6
Expected waiting time due to previous patients in the catheterisation laboratory (if any).
The optimal patient delay time for a single patient is the lowest among the highest values of the following three times for all available ambulances and angioplasty-enabled hospitals (Figure 10):
  • The expected patient delay time to hospital (the sum of times T2, T3, and T4, in continuation represented by parameters t(a,p), t(p), and t(p,h), respectively);
  • The expected minimal arrival time among cardiology teams to the same hospital (T5), represented by mincCavt(c,h);
  • The expected shortest waiting time until hospital h gets free for patient p, min ρh,p (T6).
For simplicity, we let tphp = maxhHav(t(p,h), min ρh,p) for all patients pP. Then, from the global point of view, considering all pending out-of-hospital patients, the problem transforms into:
m i n Δ t P = p P Δ t P = p P t ( a , p ) + p P t ( p ) + p P ( m a x h H a v ( t p h p , m i n c C a v t ( c , h ) ) )
subject to
Δ t p t p m a x , p P .
The overall patient delay time ΔtP in Figure 10 is an additive function. Since the minimum arrival times cannot always be guaranteed for all patients due to the limited number of EMS resources, a sum of the EMA tasks’ durations should be minimised for each patient individually and for the system globally considering individual constraints. This gives an underlying linear programming structure to the EMS coordination problem. Therefore, it is possible to guarantee optimal outcomes even when the optimisation is performed separately on individual sum components (i.e., when ambulance assignments are negotiated separately from the hospital and cardiology team assignment, e.g., [56,57]). This fact significantly facilitates the multiagent system’s distribution and enables a multilevel optimisation. Hence, we decomposed optimisation Problems (1)–(2) as follows. On the first level, we assign ambulances to patients such that the expected arrival time of ambulances to patients t(a,p) is minimised. Note that since t(p) in (1) is a constant for every patient p, depending only on the patient’s pathology and not on the assigned ambulance, we can exclude it from the optimisation.

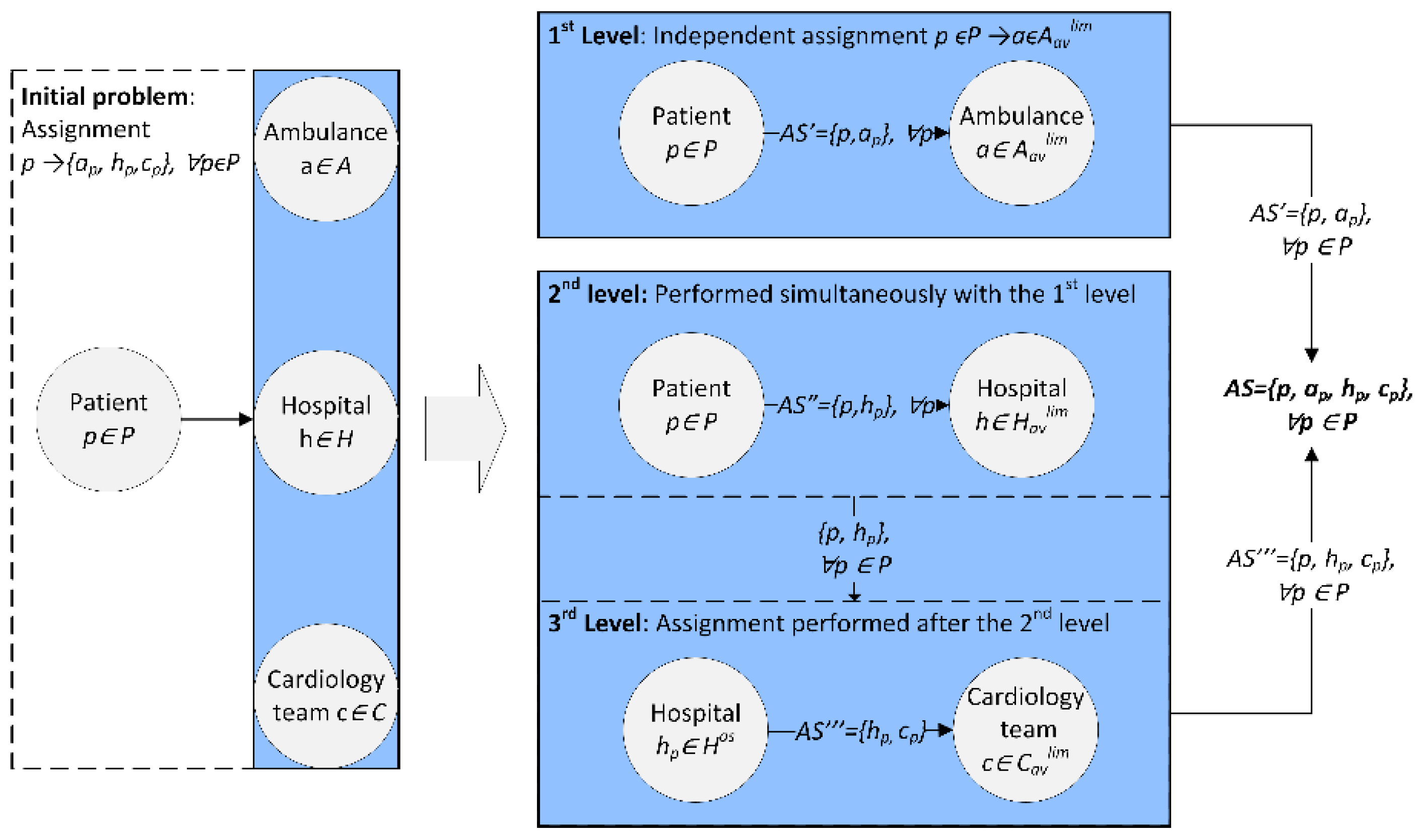

Then, on the second optimisation level, we approached the second part of (1) p P ( m a x h H a v ( t p h p , m i n c C a v t ( c , h ) ) ) , which is an NP-hard combinatorial problem. However, by approximating (1) with a sequence of problems where we first decide on the assignment of hospitals to pending patients and then assign cardiologists to patients already assigned to hospitals, we obtain two linear programs to which we can apply tractable optimal solution approaches, such as the auction algorithm [47]. By decomposing (1), as can be seen in Figure 11, and allowing for reassignment of resources based on the adaptation to contingencies in real time, we obtain a flexible EMS coordination solution.
In the following, we propose a change in the centralised hierarchy-oriented organisational structure to a patient-oriented distributed organisational structure of EMS that increases the flexibility, scalability, and the responsiveness of the EMS system. The proposed decision-support system is based on the integration and coordination of all the phases EMS participants go through in the process of emergency medical assistance (EMA). The model takes into consideration the positions of ambulances, patients, hospitals, and cardiology teams for real-time assignment of patients to the EMS resources.

3.4.1. EMA for Angioplasty Patients

The emergency medical system for the assistance of patients with STEMI is made of the following participants: patients, hospitals with angioplasty facilities, medical emergency coordination centre (ECC), ambulance staff, and cardiology teams, each one being a compound of a cardiologist and one or more nurses.
Usually, each hospital with angioplasty has assigned to it its own cardiology team(s) positioned at alert outside the hospital and obliged to come to the hospital in the case of emergency. This is because the cardiology teams’ costs make a large portion of the overall costs in surgical services [55].
The objective of the proposed system is the reduction of patient delay times by distributed real-time optimisation of decision-making processes. In more detail, we modelled patient delay time, and present a three-level problem decomposition for the minimisation of combined arrival times of multiple EMS actors necessary for angioplasty. For the three decomposition levels, we propose a distributed EMS coordination approach and modify the auction algorithm proposed by Bertsekas in [47] for the specific case. The latter is a distributed relaxation method that finds an optimal solution to the assignment problem.
On the first level, agents representing ambulances find, in a distributed way, the patient assignment that minimises arrival times of available ambulances to patients. After the treatment in situ, on the second optimisation level, ambulances carrying patients are assigned to available hospitals. On the third level, arrival times of cardiology teams to hospitals are coordinated with the arrival times of patients. The proposed approach is based on a global view, not concentrating only on minimising single patient delay time but obtaining the EMS system’s best solution with respect to the (temporal and spatial) distribution of patients in a region of interest.

3.4.2. Simulation Experiments

In this section, we describe settings, experiments, and results of the simulated emergency scenarios that demonstrate the efficiency of the coordination procedure and a significant reduction in the average patient delay. We tested the proposed approach for the coordination of EMS resources in angioplasty patients’ assistance, focusing on the average patient delay time in the case of multiple pending patients. We compared the performance of our approach with the FCFS method, since it is applied by most of the medical emergency-coordination centres worldwide.
To demonstrate the scalability of our solution and its potential application to small, medium, and large cities and regions, in the experiments, we varied the number of EMA ambulances from 5 to 100 (with increments of 5) and the number of angioplasty-capable hospitals from 2 to 50 (with increments of 2). The number of cardiology teams |C| in each experiment equals the number of hospitals |H|. Thus, the number of setup configurations used, combining different numbers of ambulances and hospitals with cardiology teams, sums up to 500.
For each configuration, we performed the simulation on three different instances of random EMS participants’ positions, since we wanted to simulate a sufficiently general setting applicable to any urban area that does not represent any region in particular. The EMS participants were distributed across the environment, whose dimensions are 50 × 50 km. In each instance, we modelled hospital positions and the initial positions of ambulances, out-of-hospital cardiology teams, and patients based on a continuous uniform distribution. Therefore, each configuration can be considered as a unique virtual city with its EMS system. Assuming that the EMS system is placed in a highly dense urban area, this kind of modelling of the positions of EMS participants represents a general enough real case, since the election of the hospital positions in urban areas is usually the result of a series of decisions developing over time with certain stochasticity, influenced by multiple political and demographical factors.
In the simulations, ambulances were initially assigned to the base stations in the hospitals of the region of interest. Additionally, we assumed that after transferring a patient to the hospital, an ambulance is redirected to the base station, where it waits for the next patient assignment. Furthermore, we assumed that the hospitals have at their disposal a sufficient number of catheterisation laboratories, so that the only optimisation factor from the hospital point of view is the number of available cardiology teams. If there were more patients with the same urgency already assigned and waiting for treatment in the same hospital, they were put in a queue.
The simulation of each instance was run over a temporal horizon, in which new patients are generated based on a certain appearance frequency. The EMS resources were dynamically coordinated from the appearance of a patient until the time s/he is assisted in hospital by a cardiology team. Each instance simulation was run over a total of 300 patients, whose appearance was distributed equally along the overall time horizon based on the following two predetermined frequency scenarios: low (1 new patient every 10 time periods) and high (1 new patient every 2 time periods).
The period between two consecutive executions of the EMS coordination algorithm is considered here as the minimum time interval in which the assignment decisions are made; usually, this ranges from 1 to 15 min. In each period, the actual state of EMS resources and pending patients is detected, and the EMS coordination is performed such that the EMS resources are (re)assigned for all patients. To achieve an efficient dynamic reassignment of ambulances, the execution of the EMS coordination algorithm is furthermore performed with every new significant event (i.e., any time there is a significant change in the system due to new patients) or with a significant change in travel time or state of any of the EMS participants.
In the experiments, we tested the performance of the proposed EMS coordination method with respect to the FCFS benchmark approach. The comparison is based on the relative performance function P = (tFCFStOR)/tFCFS × 100 (%), where tFCFS and tOR are average patient delay times of the benchmark FCFS approach and the proposed model, respectively.

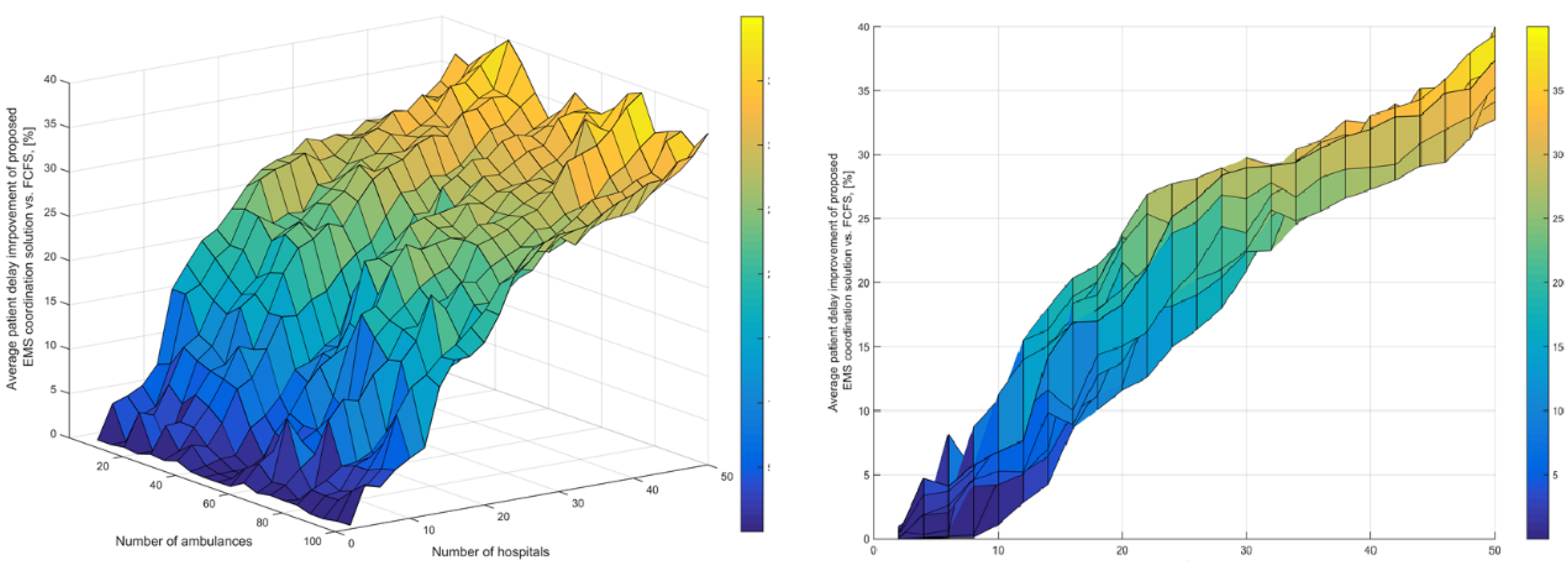

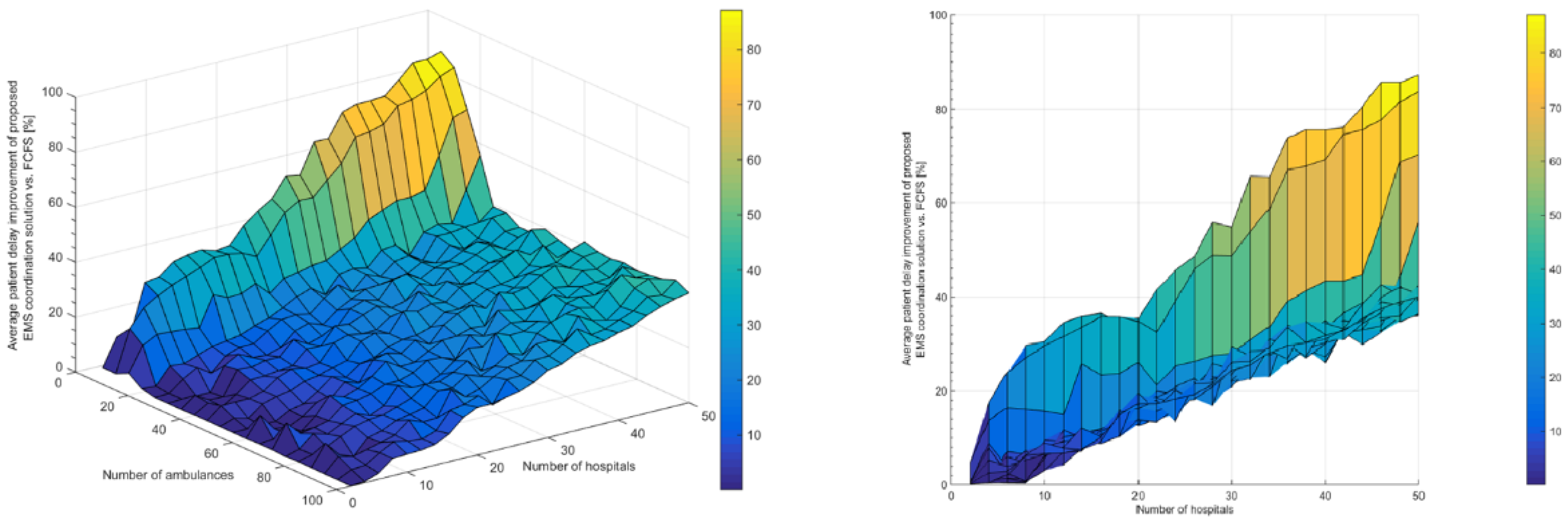

The simulation results of performance function P for the two simulated cases of patient frequency appearance of 1 and 5 new patients every 10 time periods are presented in the following. The performance of the proposed approach increases as the number of angioplasty-enabled hospitals increases from almost identical average patient delay in the configuration setup with 2 hospitals up to 87.14% with 50 hospitals, as can be seen in Figure 12. Observing the performance dynamics with respect to the varying number of hospitals, it is evident that the performance of the proposed EMS coordination method increases, on average, proportionally to the increase of the number of hospitals.
With a relatively low number of angioplasty-enabled hospitals (less than 15), our proposed EMS coordination approach performs, on average, better than FCFS by up to 15%. As the number of hospitals increases, the performance improves, on average, up to a maximum of 39.98% for the first case (Figure 13) and up to 87.14%, for the second case (Figure 12). However, mean patient delay improvement for the two cases is 35% and 45.5%, respectively.
The static assignment of the FCFS principle discriminates against patients appearing later. Since ambulances are not equally distributed in the area, the proposed EMS coordination method compensates for the lack of EMS resources and their unequal distribution by reassigning them dynamically to pending patients. Dynamically optimised reassignment of EMS resources in real time is the main key to the improvement of the system’s performance.
Thus, proportional to the increase of the number of hospitals, there is a constant improvement of performance. Even though the velocity of the EMS actors is not a relevant factor in the comparison of the performance of our proposed EMS coordination solution nor of the FCFS method, looking individually at the performance of each one of these methods, it is evident that the assignment cost accumulated through the time will be lower when the velocity of the EMS actors is higher.
Our simulation results show the efficiency of the proposed solution approach, resulting in significantly lower delay times for angioplasty, on average. Of course, the effectiveness of the proposed model depends on the initial classification of patients, and the related determination of the urgency of their cases, as well as on the timely availability of cardiology teams and hospitals. Still, as the current experience shows, good quality patient assessments and the EMS resource availabilities can be assured in practice.
To implement our approach in practice, a patient’s location needs to be known to the system. Ideally, patients should contact the ECC through a mobile phone with GPS for easier location. In addition, ambulances should have a GPS and a navigator for localising the patient and navigating the way to him/her, as well as a means of communication with the rest of the EMS participants, and a digitalised map showing ambulances, patients, and hospitals.
Moreover, hospitals should have a digitalised receptionist service to receive and process relevant data of a patient before his/her arrival. None of these requirements go significantly beyond the current state of affairs in major cities (such as Madrid). Moreover, there are intrinsic uncertainties present in the EMS coordination. In our experiments, we assumed that travel times can be accurately forecasted, which, of course, is an important factor for the performance of the proposed system. In reality, this may not always be the case, as real-world traffic conditions are notoriously hard to predict. However, there is abundant literature on traffic-aware vehicle route guidance systems tackling this problem, and we believe that such systems can be easily integrated into our approach. Still, an effective proof of this conjecture is left to future work.

3.5. Coordination of Transportation Fleets of Autonomous Drivers

A similar problem to the emergency medical service coordination consists of coordinating fleets for transportation in an urban area (e.g., messaging services or taxi fleets). However, in contrast to medical emergency services, here the objective is not only focused on response time, but also on cost efficiency. Furthermore, a primary characteristic of such systems, at least with the boom of collaborative economy, is that such types of fleets may be open [58] in the sense that private persons may participate in the fleet as autonomous workers, with their own vehicle and at different time intervals. With regard to the coordination of such fleets, the autonomy of the drivers is a crucial characteristic. It implies that the drivers get their income on a per-service basis instead of a monthly salary. This means that, besides accepting a set of basic rules, drivers are more concerned with the actual service they have been assigned from the system and may have more freedom to accept or decline assignment decisions.
Maciejewski et al. [59] presented a real-time dispatching strategy based on solving the optimal taxi assignment among idle taxis and pending requests at certain intervals or whenever new events (new customer/available taxi) take place. Zhu and Prabhakar [60] analysed how suboptimal individual decisions lead to global inefficiencies. While most existing approaches try to minimise the average waiting time of customers, other works have a different focus. BAMOTR [61] provided a mechanism for fair assignment of drivers, that is, to minimise the differences in income among the taxi drivers. For that, they minimised a combination of taxi income and extra waiting time. Gao et al. [62] proposed an optimal multi-taxi dispatching method with a utility function that combines the total net profits of taxis and waiting time of passengers. Meghjani, and Marczuk [63] proposed a hybrid path search for fast, efficient, and reliable assignment to minimise the total travel cost with a limited knowledge of the network. In contrast to the previous works, the main characteristic of our approach is the possibility of modifying the assignment when a taxi has been dispatched but has not yet picked up a customer. In this sense, we followed a similar approach to the emergency medical service coordination presented in Section 3.3. One of the few other works in this line is [64], which presented an adaptive scheduling, where reassignment is possible during a time interval until a pick-up order is sent to the taxi and customer. In our case, we do not restrict reassignment to a specific interval. Furthermore, we propose a method that economically compensates the negatively affected taxis in the new schedule such that they do not have a loss in their income.
We considered a system that uses some mediator in charge of matching the transportation requests with vehicles of the fleet. On one hand, customers contact the mediator via some telematic means, requesting a transportation service. On the other hand, drivers subscribe to the system, offering their services during specific time intervals where they are available.
We assumed a payment structure for transportation services where clients pay a fixed price plus a fare per distance, as described in the following:
  • From the client side, the price of a transportation service s is determined by the distance of the requested service plus a fixed cost:
    Price(s) = fcost + fare·d(s),
    where d(s) denotes the distance from the service origin to its destination, fcost is a fixed cost, fare is a rate a client has to pay per distance unit.
  • From the driver or vehicle side, for a driver v, the earnings depend on the price the client pays minus the cost of the vehicle for travelling the distance from the current position of v towards the position po(s) and later to the destination d(s):
    Earn(v,s) = Price(s) − vcost·(d(v,s) + d(s))
    where d(v,s) denotes the distance from the current position of the vehicle in the moment of assigning a service s to the origin point of that service, and vcost is the actual cost rate of moving the vehicle on a per distance basis. vcost will implicitly include petrol, maintenance, depreciation of the vehicle, etc.
For simplicity, here we assumed that fcost, fare, and vcost are the same for all services and vehicles, that is, in the price structure we do not distinguish between different vehicle costs nor between different requests. If the use of different cost factors is important, the proposed model could be adapted accordingly. Furthermore, part or all of the amount of fcost could be retained by the mediator service as income. In this case, the earnings of the driver would be reduced by this amount.
Like in the emergency medical case, a typical approach for assigning services to vehicles in such a system is the first-call/first-served (FCFS) rule, where each incoming request is assigned to the closest available driver in that moment and no reassignments are done. As shown in [59], if there are more unassigned requests than available vehicles, it is better to assign vehicles to service requests. We call this strategy nearest-vehicle/nearest-request (NVNR).
Dynamic assignment strategies can improve the overall efficiency of a fleet. We assumed that drivers, once they are available, are obliged to accept a transportation service assigned to them. However, in contrast to the emergency medical scenario presented in the previous section, drivers do not have to accept changes in the assignments. That means they are free to accept or to decline proposed reassignments from the system, considering their own objectives and benefit. So, the dynamic reassignment approach, as proposed in Section 3.3.1, cannot be applied directly, as a driver would not be willing to accept a reassignment that reduces his/her net income. In order to still take advantage of cost reduction through reassignment, we developed an incentive schema so as to convince drivers to accept reassignments that are economically efficient from the global perspective of the system. The approach is detailed in the next subsection.

3.5.1. Dynamic Reassignment with Compensations

The idea of coordinating the assignments of transportation tasks to (autonomous) drivers is similar to the one proposed in Section 3.3.1: we want to reduce globally the total travel distance (and proportionally time) towards the origin points of the requested services. However, due to the rules of the system, a driver will usually not accept a “worse” task than the one he is already assigned to. We assumed drivers to be economically rational, that is, they want to maximise their net income and minimise the time spent on their trips. In particular, we made the following assumptions:
  • A driver would always prefer a task with the same net income but that requires less time (e.g., less travel distance).
  • A driver would always accept extra distance d if he would get extra net earnings of d·(farevcost). This is actually the current rate a driver earns when accomplishing a service and, thus, he would always be willing to provide his service for this rate.
Let us consider that a driver v is currently assigned to a service sk and the mediator wants the driver to do other services sj instead of sk. Furthermore, let td(v,s) = d(sk) + d(v,sk) denote the total distance driver v has to accomplish in order to provide service s. In order to convince the driver, we define a compensation c that is applied if a driver accepts the reassignment. This compensation is calculated as follows:
Case 1: If td(v,sk) < td(v,sj): c = [Earn(v,sk) + (td(v,sj) − td(v,sk))·(farevcost)] − Earn(v,sj)
In this case, the effective income of the driver when accepting the reassignment and receiving the compensation c would be Earn(v,sk) + (td(v,sj) − td(v,sk))·(farevcost). That is, the driver receives the same income as before, plus the normal fare for the extra distance.
Case 2: If td(v,sk) ≥ td(v,sj): c = Earn(v,sk) − Earn(v,sj)
In this case, the effective new income of the driver with the compensation is Earn(v,sk). Thus, the driver would have the same earnings as before, but for less distance (and less time).
It is clear that, with the assumptions mentioned above, an economically rational driver would accept any reassignment with the defined compensations.
It should be noted that compensations may be positive or negative (e.g., a driver may get extra money for accepting a new service or s/he may have to pay some amount to the mediator). For instance, if a driver is offered a reassignment from a service sk to another service sj with d(sk) = d(sj) and d(v,sk) > d(v,sj) (Case 2), the situation is a priori positive for the driver. S/he would have less distance to the starting point of the transportation service request but would earn the same money for the service itself. Thus, his net income would be higher. In this case, the compensation would be negative, with the amount c = vcost(d(v,sj) − d(v,sk)). That is, the driver would have to pay the cost of the difference in distances towards sj with respect to the previous service sk.
The idea of the mediator is to dynamically find global reassignments with compensations, such that the overall outcome of the mediator is zero or positive, for example, there would be no extra mediation cost. Given an existing assignment Ac at a given time, the algorithm we propose for calculating a new assignment An with compensations is summarised as follows:
  • Assign all pending transportation requests to vehicles using the NVNS rule and add the assignments to Ac
  • Calculate an optimal assignment An between all vehicles and requests assigned in Ac
  • Calculate the overall compensation Co to be paid/received to/from drivers for the change from Ac to An
  • If mediatorEarningCo > 0 then
  •   mediatorEarning:= mediatorEarningCo
  •   return An
  •   else return Ac
The algorithm is executed by the mediator whenever either a new transportation request (service) is registered, or a driver becomes available (either after terminating a previous mission or because he starts working). In the first step, the system tries to assign pending requests in a rather standard fashion. Then, in Steps 2 and 3, a more efficient global assignment is searched for and the compensation cost of this new assignment is estimated. The new assignment is applied if the accumulated overall mediator earnings, together with the compensation cost, remains positive. This last part assures that the mediator has no extra mediation cost.
Regarding Step 2, we use Bertsekas’ auction algorithm [47] to calculate an optimal assignment. In particular, we calculate the assignment An that minimises D(An) + γ·Co, where D(An) is the sum of the distances of all vehicles in An to the corresponding original positions of the assigned service requests. This means we look for assignments that minimise the sum of the distances and also the potential cost of the compensations. γ is a factor for scaling monetary earnings into distance values (meters).

3.5.2. Evaluation

We tested the proposed approach in different experiments simulating the operation of a taxi fleet which basically has the characteristics of the type of fleets we want to address here. We used an operation area of about 9 × 9 km, an area that roughly corresponds to the city centre of Madrid, Spain. In the simulations, we randomly generated service requests (customers) who are assigned to available taxis, and we simulated the movement of taxis to pick up a customer, to drive him/her to his/her destination, and then waits for the assignment of a new customer. The simulations are not aimed at reproducing all relevant aspects of the real-world operation of a taxi fleet, but to analyse and compare the proposed coordination strategy (here called DYNRA) to the standard strategies FCFS and NVNR. Thus, we simplified the movements of taxis to straight-line movements with a constant velocity of 17 km/h. This velocity is within the range of the average velocity in the city centre of Madrid. Hence, we do not take into account either the real road network, nor the possibility of different traffic conditions.
The general parameters used in the simulation are as follows. We use 1000 taxis (initially distributed randomly in the area with a uniform distribution) and a simulation interval of 5 h. The taxis do not cruise, that is, they only move if they are assigned to a customer. We accomplish different simulation runs with different numbers of customers in order to represent different supply/demand ratios. We generate a fixed number of customers every 15 min (ranging from 250 to 1000 in steps of 125). For each customer, his/her origin (point of appearance) and destination location are randomly chosen such that each trip goes either from the outside of the area to the centre, or vice versa. The origin and destination points are generated using a normal distribution (for centre and outside points). When a taxi arrives at a customer’s location, a pick-up time of 30 s is used where the taxi does not move. In the same sense, the simulated drop-off time is 90 s. The system assignment process is accomplished every 5 s, and only if a new client appears or a taxi becomes available again after a previous trip.
The payment scheme we used in the experiments is the one that has been used in the city of Madrid in the last years. A taxi trip has a fixed cost fcost = 2.4 euros and fare = 1.05 euros/km. Furthermore, the cost factor is vcost = 0.2 euros/km. This factor roughly corresponds to the actual cost of a vehicle, including petrol, maintenance, as well as other fixed costs. Finally, we applied a factor of γ = 1/0.00085, which corresponds to the net benefit a taxi receives per metre when transporting a client in the used payment scheme.
Each experiment was repeated 10 times with a different random seed, in order to avoid biased results due to a particular distribution of clients. The presented results are averages over those 10 runs.

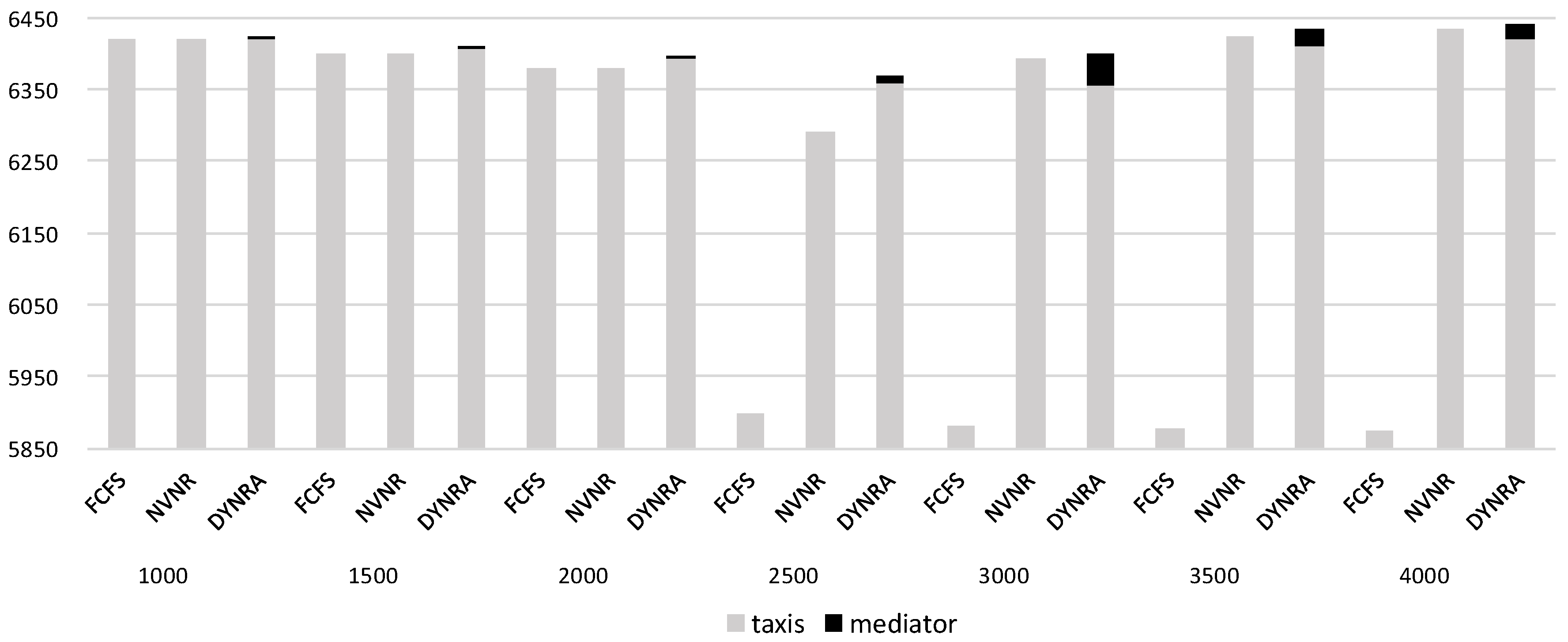

Table 2 presents the average waiting times of the customers for the three methods and the different numbers of generated customers per hour. As it can be observed, for between 2000 and 2500 customers per hour, the FCFS approach starts to be perform really badly. Basically, the system becomes saturated and the rate of serving customers is lower than the rate of appearance of new customers. The other two methods, NVNR and DYNRA, can deal much better with this situation and their saturation point is higher (between 2500 and 3000 customers per hour). There is a clear improvement in the waiting times of these two methods, with respect to FCFS, if there are more than 2000 customers per hour. The dynamic reassignment approach with compensations performs better than the other two methods in all cases. The improvement is rather low if there are fewer customers, but increases with the number of customers up to 101.4 and 2.4 min with respect to FCFS and NVNR, respectively, for 4000 customers a hour. In terms of relative improvement, the highest peak is reached at 2500 customers, with an improvement of 94.6% with respect to FCFS and 44.9% with respect to NVNR.
It should be noted that the DYNRA approach is based on the compensation scheme presented above, that is, reassignments include compensations and (economically rational) taxi drivers will accept such reassignments. In Figure 14, we analyse the net income of the system, composed of the income of the taxi drivers plus the income of the mediator, in the case of the DYNRA approach. The presented results are normalised to the income of 1000 drivers and 1000 customers. The overall system income is highest for the DYNRA approach for all numbers of customers. The difference to the FCFS approach is considerable, between 473 and 565 euros, when above 2500 customers per hour (where FCFS is saturated). The difference of DYNRA with respect to NTNR is highest at 2500 customers (79 euros) and about 6–7 euros above that point. The taxi drivers always earn more money with the DYNRA approach, up to 2500 customers per hour. However, their net income is slightly lower than in the NTNR approach for more customers. Nevertheless, it should be noted that the mediator could redistribute its income among all drivers and, thus, the drivers would have a higher income in all cases.
Summarising, the proposed dynamic reassignment strategy can improve the performance of a transportation fleet of autonomous, self-interested drivers in terms of higher income and fewer movements (thus, also more environmentally friendly). The improvements are, in general, rather small if there are few movements (few service requests) and higher if the demand of transportation services is increasing.
The approach relies on a mediator service that manages the assignments of transportation tasks to drivers and pays compensations if necessary. Besides this fact, as proposed here, the mediator does not incur extra costs. Instead, it may have some positive income itself. The overall travel times and distances may still be reduced if the compensation system allowed for a negative balance. This could be of interest if, for example, a municipality would be willing to invest money in order to reduce CO2 emissions.

4. Discussion

In this paper, we have argued that recent technological advances open up new possibilities for computers to support people’s interactions in a variety of domains with high socioeconomic potential. In these domains, the choices and actions of a large number autonomous stakeholders need to be coordinated, and interactions can be regulated, by some sort of intelligent computing infrastructure, through institutions and institutional agents, or simply by providing information in an environment with a significant level of uncertainty. Many problems related to the vision of smart cities fall under this umbrella.
While centrally designed systems may be a suitable choice to address certain challenges related to smart cities, others are unlikely to be dealt with satisfactorily, either because stakeholders are unwilling to implement system recommendations that they do not understand and that they may not trust, or because it is impossible to compute good global solutions based on the information provided by stakeholders, which can be insufficient or biased by their personal interests. While the former problem can be addressed by providing stakeholders with their own trusted software agent, which represents them and acts on their behalf, the latter requires coordination mechanisms that take into account the autonomy of the stakeholders (and their software agents). Still, designing and implementing such coordination mechanisms in open systems is challenging, especially if the systems are large in scale, as in the case of most smart city applications.
We argued that technologies from the AT sandbox are suitable for fostering coordination in such scenarios. To back this claim, we reported on a variety of real-world applications, ranging from truly open systems, where coordination among agents is achieved either though (economic) incentives or by offering relevant information, to more closed domains, where AT techniques are used to “simulate” interactions among autonomous agents, which may, for instance, take the shape of auctions or market equilibria. While in some of the applications the use of AT (market-based approaches, in particular) was a mere design choice, in other more open domains, their use enables the provision of new functionalities and services.
In fact, a key lesson learnt from our work is that market-based coordination schemes can be successfully applied to quite different problems and domains, even though their particular shape needs to be carefully tailored and adapted based on the degree of autonomy of the stakeholders. In the applications outlined in Section 3.3 and Section 3.4, the degree of autonomy of the different agents is low, as ambulance drivers, for instance, have to follow the assignments that they are given by the coordination mechanism. Evacuees in Section 3.2 do have a choice but, due to the specific characteristics of the emergency situation and the scarceness of adequate information, the suggestions of the system are likely to be followed. A similar “take it or leave it” situation is present in the taxi fleet coordination example of Section 3.5, but the stakeholders can make more informed decisions, so it is important that the incentives offered as part of the system proposal are such that taxi drivers can conclude that they are better off following the recommendations than not following them. Finally, within the case study related to networks of reservation-based intersections in Section 3.1, there are no explicit proposals for drivers to follow a particular route, but traffic assignment is achieved implicitly by coordinating the intersections’ reserve prices. In addition, the auction protocol used at each reservation-based intersection needs to be such that the mechanism is resilient to attempts of strategic manipulation.
A limitation of our approach is related to the level of scalability needed for a particular domain. The applications outlined in this article have been evaluated in simulations with hundreds or thousands of agents, but going beyond these numbers may require the use of different approximations algorithms (e.g., to determine winner determination in auctions). Also, it should be noticed that take-it-or-leave-it recommendations may not work well when users can try to go for “outside options”, that is, when competing service providers exist and users are allowed to use them. Finally, making mechanisms stable against strategic manipulation attempts often relies on assumption regarding the underlying communication infrastructure, which may hold in simulation experiments but are not achievable in all real-world situations.
We intend to continue developing applications for the aforementioned type of domains making use of the AT sandbox. We will particularly be looking into applications for which the semantic as well as the trust and reputation layers of the AT tower are of foremost importance. This will help us broaden the set of models and tools based on AT. In much the same way, we plan to extract further guidelines for designing these type of systems, based on descriptions of problem characteristics and requirements.

Author Contributions

All authors participated in the idea conception, organization and discussions. Each application presented in Section 3 had main contributors, namely: Intelligent intersections (S.O. and A.F.), smart building evacuation (A.F. and M.L.), emergency medical service (H.B. and M.L.), EMS for angioplasty patients (M.L. and H.B.), transportation fleets of autonomous drivers (H.B., A.F. and S.O).

Acknowledgments

This work has been partially supported by the Spanish Ministry of Economy and Competitiveness through grant TIN2015-65515-C4-X-R (“SURF”), by the Autonomous Region of Madrid through grant S2013/ICE-3019 (“MOSI-AGIL-CM”, co-funded by EU Structural Funds FSE and FEDER), and by URJC-Santander grant 30VCPIGI15. The authors would like to thank Matteo Vasirani for his contribution to the application for coordinating of traffic flows through intelligent intersections outlined in Section 3.1.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ossowski, S.; Andrighetto, G.; Polleres, A.; Argente, E.; Rodríguez-Aguilar, J.A.; Billhardt, H.; Sabater-Mir, J.; Botti, V.J.; Sierra, C.; Castelfranchi, C.; et al. Agreement Technologies; Law, Governance and Technology Series (LGTS) No. 8; Springer: Dordrecht, The Netherlands, 2013; ISBN 978-94-007-5582-6. [Google Scholar]
  2. Gelernter, D.; Carriero, N. Coordination Languages and their Significance. Commun. ACM 1992, 35, 96–107. [Google Scholar] [CrossRef]
  3. Ossowski, S.; Menezes, R. On coordination and its significance to distributed and multi-agent systems. Concurr. Comput. Pract. Exp. 2006, 18, 359–370. [Google Scholar] [CrossRef]
  4. Vito, A.; Berardi, U.; Dangelico, R. Smart cities: Definitions, dimensions, performance, and initiatives. J. Urban Technol. 2015, 22, 3–21. [Google Scholar]
  5. Wooldridge, M.; Jennings, N. Intelligent Agents—Theory and Practice. Knowl. Eng. Rev. 1995, 10, 115–152. [Google Scholar] [CrossRef]
  6. Sierra, C.; Botti, V.; Ossowski, S. Agreement Computing. Künstliche Intell. 2011, 25, 115–152. [Google Scholar] [CrossRef]
  7. Ossowski, S.; Sierra, C.; Botti, V. Agreement Technologies—A Computing perspective. Agreem. Technol. 2012, 8, 5–18. [Google Scholar]
  8. Schumacher, M.; Ossowski, S. The Governing Environment. In Environments for Multi-Agent Systems II (E4MAS); Springer: Basel, Switzerland, 2005; pp. 88–104. [Google Scholar]
  9. Omicini, A.; Ossowski, S.; Ricci, A. Coordination Infrastructures in the Engineering of Multiagent Systems. In Methodologies and Software Engineering for Agent Systems—The Agent-Oriented Software Engineering Handbook; Bergenti, F., Gleizes, M.P., Zambonelli, F., Eds.; Springer: New York, NY, USA, 2004; pp. 273–296. ISBN 1-4020-8057-3. [Google Scholar]
  10. Ossowski, S. Coordination in Multi-Agent Systems—Towards a Technology of Agreement. In Multiagent System Technologies (MATES-2008); LNCS 5244; Springer: Kaiserslautern, Germany, 2008; pp. 2–12. [Google Scholar]
  11. Ossowski, S. Constraint Based Coordination of Autonomous Agents. Electron. Notes Theor. Comput. Sci. 2001, 48, 211–226. [Google Scholar] [CrossRef]
  12. Von Martial, F. Co-Ordinating Plans of Autonomous Agents; LNAI 610; Springer: Berlin/Heidelberg, Germany, 1992. [Google Scholar]
  13. Shoham, Y.; Leyton-Brown, L. Multiagent Systems—Algorithmic, Game-Theoretic, and Logical Foundations; Cambridge University Press: Cambridge, UK, 2009. [Google Scholar]
  14. Fornara, N.; Lopes Cardoso, H.; Noriega, P.; Oliveira, E.; Tampitsikas, C. Modelling Agent Institutions. Agreem. Technol. 2012, 8, 277–308. [Google Scholar]
  15. Centeno, R.; Billhardt, H.; Hermoso, R.; Ossowski, S. Organising MAS—A formal model based on organisational mechanisms. In Proceedings of the 2009 ACM Symposium on Applied Computing (SAC), Honolulu, HI, USA, 8–12 March 2009; pp. 740–746. [Google Scholar]
  16. Nam, T.; Pardo, T.A. Conceptualizing smart city with dimensions of technology, people, and institutions. In Proceedings of the 12th Annual International Digital Government Research Conference: Digital Government Innovation in Challenging Times, College Park, MD, USA, 12–15 June 2011; ACM: New York, NY, USA, 2011; pp. 282–291. [Google Scholar]
  17. Giffinger, R.; Fertner, C.; Kramar, H.; Kalasek, R.; Pichler-Milanovic, N.; Meijers, E. Smart Cities-Ranking of European Medium-Sized Cities; Vienna University of Technology: Vienna, Austria, 2007. [Google Scholar]
  18. O’Grady, M.; O’Hare, G. How smart is your city? Science 2012, 335, 1581–1582. [Google Scholar] [CrossRef] [PubMed]
  19. Ahvenniemi, H.; Huovila, A.; Ointo-Seppä, I.; Airaksinen, M. What are the differences between sustainable and smart cities? Cities 2016, 60, 234–245. [Google Scholar] [CrossRef]
  20. Bibri, S.; Krogstie, J. Smart sustainable cities of the future: An extensive interdisciplinary literature review. Sustain. Cities Soc. 2017, 31, 183–212. [Google Scholar] [CrossRef]
  21. Kondepudi, S.N.; Ramanarayanan, V.; Jain, A.; Singh, G.N.; Nitin Agarwal, N.K.; Kumar, R.; Gemma, P. Smart Sustainable Cities: An Analysis of Definitions; The ITU-T Focus Group for Smart Sustainable Cities; International Telecommunication Union (ITU): Geneva, Switzerland, 2014. [Google Scholar]
  22. Mohanty, S.; Choppali, U.; Kougianos, E. Everything you wanted to know about smart cities: The internet of things is the backbone. IEEE Consum. Electron. Mag. 2016, 5, 60–70. [Google Scholar] [CrossRef]
  23. Petrolo, R.; Loscri, V.; Mitton, N. Towards a smart city based on cloud of things, a survey on the smart city vision and paradigms. Trans. Emerg. Telecommun. Technol. 2015, 28, e2931. [Google Scholar] [CrossRef]
  24. Dresner, K.; Stone, P. A Multiagent Approach to Autonomous Intersection Management. J. Artif. Intell. Res. 2008, 31, 591–656. [Google Scholar]
  25. Vasirani, M.; Ossowski, S. Evaluating Policies for Reservation-Based Intersection Control. In Proceedings of the 14th Portuguese Conference on Artificial Intelligence, Aveiro, Portugal, 12–15 October 2009; pp. 39–50. [Google Scholar]
  26. Schepperle, H.; Bohm, K. Agent-based traffic control using auctions. In Cooperative Information Agents XI (CIA-2007); LNCS 4676; Springer: Berlin/Heidelberg, Germany, 2007; pp. 119–133. [Google Scholar]
  27. Vasirani, M.; Ossowski, S. A market-inspired approach for intersection management in urban road traffic networks. J. Artif. Intell. Res. 2012, 43, 621–659. [Google Scholar]
  28. Vasirani, M.; Ossowski, S. Learning and Coordination for Autonomous Intersection Control. Appl. Artif. Intell. 2011, 25, 193–216. [Google Scholar] [CrossRef]
  29. Codenotti, B.; Pemmaraju, S.; Varadarajan, K. The computation of market equilibria. SIGACT News 2004, 35, 23–37. [Google Scholar] [CrossRef]
  30. Avery, W.H.; Soo, J. Emergency/Disaster Guidelines and Procedures for Employees; CCH Canadian Limited: Toronto, ON, Canada, 2003. [Google Scholar]
  31. Chen, P.H.; Feng, F. A fast flow control algorithm for real-time emergency evacuation in large indoor areas. Fire Saf. J. 2009, 44, 732–740. [Google Scholar] [CrossRef]
  32. Filippoupolitis, A.; Gelenbe, E. A distributed decision support system for building evacuation. In Proceedings of the 2nd IEEE Conference on Human System Interactions, Catania, Italy, 21–23 May 2009; pp. 323–330. [Google Scholar]
  33. Lujak, M.; Ossowski, S. Intelligent People Flow Coordination in Smart Spaces. In Multi-Agent Systems and Agreement Technologies; Rovatsos, M., Vouros, G., Julian, V., Eds.; EUMAS 2015, AT 2015; Lecture Notes in Computer Science, Volume 9571; Springer: Cham, Switzerland, 2016; pp. 34–49. [Google Scholar]
  34. Etzion, O.; Niblett, P. Event Processing in Action; Manning Publications: Shelter Island, NY, USA, 2010; ISBN 1935182218. [Google Scholar]
  35. Khaleghi, B.; Khamis, A.; Karray, F.O.; Razavi, S.N. Multi-sensor data fusion—A review of the state-of-the-art. Inf. Fusion 2013, 14, 28–44. [Google Scholar] [CrossRef]
  36. Zervas, E.; Mpimpoudis, A.; Anagnostopoulos, C.; Sekkas, O.; Hadjiefthymiades, S. Multi-sensor data fusion for fire detection. Inf. Fusion 2011, 12, 150–159. [Google Scholar] [CrossRef]
  37. Lujak, M.; Giordani, S.; Ossowski, S. Route guidance: Bridging system and user optimization in traffic assignment. Neurocomputing 2015, 151, 449–460. [Google Scholar] [CrossRef]
  38. Lujak, M.; Giordani, S. Centrality measures for evacuation: Finding agile evacuation routes. Future Gener. Comput. Syst. 2017, 83, 401–412. [Google Scholar] [CrossRef]
  39. Rajagopalan, H.K.; Saydam, C.; Xiao, J. A multiperiod set covering location model for dynamic redeployment of ambulances. Comput. Oper. Res. 2008, 35, 814–826. [Google Scholar] [CrossRef]
  40. Maxwell, M.S.; Restrepo, M.; Henderson, S.G.; Topaloglu, H. Approximate dynamic programming for ambulance redeployment. INFORMS J. Comput. 2010, 22, 266–281. [Google Scholar] [CrossRef]
  41. Naoum-Sawaya, J.; Elhedhli, S. A stochastic optimization model for real-time ambulance redeployment. Comput. Oper. Res. 2013, 40, 1972–1978. [Google Scholar] [CrossRef]
  42. Andersson, T.; Varbrand, P. Decision support tools for ambulance dispatch and relocation. J. Oper. Res. Soc. 2007, 58, 195–201. [Google Scholar] [CrossRef]
  43. Bandara, D.; Mayorga, M.E.; McLay, L.A. Priority dispatching strategies for EMS systems. J. Oper. Res. Soc. 2013, 65, 572–587. [Google Scholar] [CrossRef]
  44. Billhardt, H.; Lujak, M.; Sánchez-Brunete, V.; Fernández, A.; Ossowski, S. Dynamic coordination of ambulances for emergency medical assistance services. Knowl. Based Syst. 2014, 70, 268–280. [Google Scholar] [CrossRef]
  45. Haghani, A.; Hu, H.; Tian, Q. An optimization model for real-time emergency vehicle dispatching and routing. In Proceedings of the 82nd Annual Meeting of the Transportation Research Board, Washington, DC, USA, 12–16 January 2003. [Google Scholar]
  46. Munkres, J. Algorithms for the assignment and transportation problems. J. Soc. Ind. Appl. Math. 1957, 5, 32–38. [Google Scholar] [CrossRef]
  47. Bertsekas, D. The auction algorithm: A distributed relaxation method for the assignment problem. Ann. Oper. Res. 1988, 14, 105–123. [Google Scholar] [CrossRef]
  48. Du, Q.; Faber, V.; Gunzburger, M. Centroidal voronoi tessellations: Applications and algorithms. SIAM Rev. 1999, 41, 637–676. [Google Scholar] [CrossRef]
  49. Lloyd, S. Least squares quantization in PCM. IEEE Trans. Inf. Theory 1982, 28, 129–137. [Google Scholar] [CrossRef]
  50. World Health Organization. WHO Fact Sheet No. 310; World Health Organization: Geneva, Switzerland, 2015. [Google Scholar]
  51. Van De Werf, F.; Bax, J.; Betriu, A.; Blomstrom-Lundqvist, C.; Crea, F.; Falk, V.; Filippatos, G.; Fox, K.; Huber, K.; Kastrati, A.; et al. Management of acute myocardial infarction in patients presenting with persistent st-segment elevation. Eur. Heart J. 2008, 29, 2909–2945. [Google Scholar] [CrossRef] [PubMed]
  52. Wilde, E.T. Do emergency medical system response times matter for health Outcomes? Health Econ. 2013, 22, 790–806. [Google Scholar] [CrossRef] [PubMed]
  53. Lujak, M.; Billhardt, H.; Ossowski, S. Distributed Coordination of Emergency Medical Assistance for Angioplasty Patients. Ann. Math. Artif. Intell. 2016, 78, 73–100. [Google Scholar] [CrossRef]
  54. Lujak, M.; Billhardt, H. Coordinating Emergency Medical Assistance. Agreem. Technol. 2012, 8, 507–509. [Google Scholar]
  55. Guerriero, F.; Guido, R. Operational research in the management of the operating theatre: A survey. Health Care Manag. Sci. 2011, 14, 89–114. [Google Scholar] [CrossRef] [PubMed]
  56. Chevaleyre, Y.; Endriss, U.; Estivie, S.; Maudet, N. Multiagent resource allocation in k-additive domains: Preference representation and complexity. Ann. Oper. Res. 2008, 163, 49–62. [Google Scholar] [CrossRef]
  57. Endriss, U.; Maudet, N.; Sadri, F.; Toni, F. On optimal outcomes of negotiations over resources. In Proceedings of the Second International Joint Conference on Autonomous Agents and Multiagent Systems (AAMAS), Melbourne, Australia, 14–18 July 2003; pp. 177–184. [Google Scholar]
  58. Billhardt, H.; Fernández, A.; Lujak, M.; Ossowski, S.; Julián, V.; De Paz, J.F.; Hernandez, J.Z. Coordinating open fleets. A taxi assignment example. AI Commun. 2017, 30, 37–52. [Google Scholar] [CrossRef]
  59. Maciejewski, M.; Bischoff, J.; Nagel, K. An Assignment-Based Approach to Efficient Real-Time City-Scale Taxi Dispatching. IEEE Intell. Syst. 2016, 31, 68–77. [Google Scholar] [CrossRef]
  60. Zhu, C.; Prabhakar, B. Reducing Inefficiencies in Taxi Systems. In Proceedings of the IEEE 56th Annual Conference on Decision and Control (CDC), Melbourne, Australia, 12–15 December 2017. [Google Scholar]
  61. Dai, G.; Huang, J.; Wambura, S.M.; Sun, H.A. Balanced Assignment Mechanism for Online Taxi Recommendation. In Proceedings of the of the 18th IEEE International Conference on Mobile Data Management (MDM), Daejeon, Korea, 29 May–1 June 2017; pp. 102–111. [Google Scholar]
  62. Gao, G.; Xiao, M.; Zhao, Z. Optimal Multi-taxi Dispatch for Mobile Taxi-Hailing Systems. In Proceedings of the 45th International Conference on Parallel Processing (ICPP), Philadelphia, PA, USA, 16–19 August 2016; pp. 294–303. [Google Scholar]
  63. Meghjani, M.; Marczuk, K. A hybrid approach to matching taxis and customers. In Proceedings of the Region 10 Conference (TENCON), Singapore, 22–25 November 2016; pp. 167–169. [Google Scholar]
  64. Glaschenko, A.; Ivaschenko, A.; Rzevski, G.; Skobelev, P. Multi-Agent real time scheduling system for taxi companies. In Proceedings of the 8th International Conference on Autonomous Agents and Multiagent Systems (AAMAS), Budapest, Hungary, 10–15 May 2009; pp. 29–36. [Google Scholar]
Figure 1. Agreement technologies (AT) tower.
Figure 1. Agreement technologies (AT) tower.
Applsci 08 00816 g001
Figure 2. Bundle of items for a reservation request.
Figure 2. Bundle of items for a reservation request.
Applsci 08 00816 g002
Figure 3. Auction policy.
Figure 3. Auction policy.
Applsci 08 00816 g003
Figure 4. Bid-delay relation.
Figure 4. Bid-delay relation.
Applsci 08 00816 g004
Figure 5. Average delay.
Figure 5. Average delay.
Applsci 08 00816 g005
Figure 6. Urban road network.
Figure 6. Urban road network.
Applsci 08 00816 g006
Figure 7. Moving average of travel times.
Figure 7. Moving average of travel times.
Applsci 08 00816 g007
Figure 8. Situation-aware real-time distributed evacuation route guidance architecture (ERGA). User agents 1, 2, and m are located in the physical space of smart building (SB) Agent 1 so that they are given route recommendations by SB Agent 1.
Figure 8. Situation-aware real-time distributed evacuation route guidance architecture (ERGA). User agents 1, 2, and m are located in the physical space of smart building (SB) Agent 1 so that they are given route recommendations by SB Agent 1.
Applsci 08 00816 g008
Figure 9. Comparison of arrival times to patients. Here, the 1609 patients from the 10 analysed days are ordered with respect to the arrival time in each curve.
Figure 9. Comparison of arrival times to patients. Here, the 1609 patients from the 10 analysed days are ordered with respect to the arrival time in each curve.
Applsci 08 00816 g009
Figure 10. Gantt diagram of the coordination of emergency medical services (EMS) for angioplasty treatment.
Figure 10. Gantt diagram of the coordination of emergency medical services (EMS) for angioplasty treatment.
Applsci 08 00816 g010
Figure 11. Proposed three-level decomposition of the problem of EMS coordination for with ST-segment elevation acute myocardial infarction (STEMI) patients awaiting angioplasty.
Figure 11. Proposed three-level decomposition of the problem of EMS coordination for with ST-segment elevation acute myocardial infarction (STEMI) patients awaiting angioplasty.
Applsci 08 00816 g011
Figure 12. Average patient delay time of the proposed EMS coordination approach vs. the FCFS strategy (%) for the frequency of appearance of 1 patient each 2 time periods.
Figure 12. Average patient delay time of the proposed EMS coordination approach vs. the FCFS strategy (%) for the frequency of appearance of 1 patient each 2 time periods.
Applsci 08 00816 g012
Figure 13. Average patient delay time of the proposed EMS coordination approach vs. the first-come first-served (FCFS) strategy (%) for the frequency of appearance of 1 patient each 10 time periods.
Figure 13. Average patient delay time of the proposed EMS coordination approach vs. the first-come first-served (FCFS) strategy (%) for the frequency of appearance of 1 patient each 10 time periods.
Applsci 08 00816 g013
Figure 14. Average net income of taxi drivers and mediator in euros. The data are normalised to 1000 taxis serving 1000 customers.
Figure 14. Average net income of taxi drivers and mediator in euros. The data are normalised to 1000 taxis serving 1000 customers.
Applsci 08 00816 g014
Table 1. Average arrival times in minutes for 10 different days.
Table 1. Average arrival times in minutes for 10 different days.
Day/#Patients1/2212/1523/1994/1245/137
SUMMA11:4211:5211:0311:2311:50
DRARD9:469:509:299:3910:09
Improvement %16.615.712.89.314.0
Day/#Patients6/1757/968/1609/14410/201
SUMMA12:3012:5112:4210:1111:49
DRARD10.519:4810:059:0510:08
Improvement %13.123.720.710.814.3
Table 2. Average waiting times for customers (in minutes).
Table 2. Average waiting times for customers (in minutes).
Method# Customers per Hour
1000150020002500300035004000
FCFS1.21.561.9239.0275.29112.01148.01
NVNR1.21.561.923.838.2927.3849.01
DYNRA1.191.481.732.116.8325.2446.62

© 2018 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Appl. Sci. EISSN 2076-3417 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
