Boosting Second Harmonic Radiation from AlGaAs Nanoantennas with Epsilon-Near-Zero Materials

Abstract

Enhancing the second harmonic conversion efficiency at the nanoscale is a critical challenge in nonlinear optics. Here we propose the use of epsilon-near-zero materials to boost the nonlinear radiation in the far field. Here, a comparison of the second harmonic behavior of a cylindrical AlGaAs nanoantenna placed over different semi-infinite layers is presented. In particular, we observed that the second harmonic generation is strongly enhanced and redirected by the simultaneous presence of a resonance at the fundamental wavelength and a low-permittivity condition in the substrate at the harmonic wavelength. Our results pave the way for a novel approach to enhance optical nonlinearities at the nanoscale.

1. Introduction

Dielectric nanoantennas have recently gained increasing interest for many applications such as directional scattering and emission, nonlinear spectroscopy and microscopy [1,2,3,4]. Recently, a nanoscale system based on AlGaAs nanodisks placed over an AlO_x substrate pumped in the telecom range was theoretically proposed as an efficient system to enhance second-order nonlinear effects in nanoscale optics [5]. The conversion efficiencies reported were higher than 10⁻⁵ [6,7,8], which is more than four orders of magnitude greater than optimized centrosymmetric plasmonic nanoantennas pumped at similar intensities. Indeed, this dramatic enhancement is due the non-centrosymmetric nature of AlGaAs. Moreover, in contrast to plasmonics, resonances of high-index dielectric nanoparticles provide a mode volume that is not limited to interfaces and thus lead to greater nonlinear conversion efficiencies. Several strategies have been employed to enhance harmonic nonlinearities including dielectric nanopillars in a dimer configuration [9] and a metal-dielectric hybrid nanoantenna configuration [10,11] exploiting the anapole condition. Promising studies on enhanced second harmonic generation (SHG) at the nanoscale have also been performed on perovskite nanoparticles [12]. However, the generated nonlinear signal tends to remain more confined in the substrate since it typically has a greater refractive index than the surrounding air. Recently several authors have discussed some possible strategies to engineer the radiation pattern of nonlinear nano-antennas, using the properties of the fundamental frequency field (i.e., polarization state and propagation direction) as tuning parameters [13,14,15]. However, an unexplored possibility to optimize the nonlinear radiation pattern is the use of epsilon near zero (ENZ) substrates.

ENZ materials have attracted lots of attention because of their peculiar linear properties, such as their ability to realize perfect electromagnetic tunneling [16,17] and to re-direct antennas electromagnetic radiation [18,19]. In particular, it has already been demonstrated that when an antenna is placed on top of an extremely low-permittivity substrate, the air is the “denser” medium with higher relative permittivity and therefore the antenna pattern will be predominantly backscattered into the air [20,21]. Their ability to be good reflectors and, at the same time, provide high electric field values, makes them also good candidates for energy harvesting purposes [22] and photocatalysis [23]. ENZ conditions, which occur when the real part of the dielectric permittivity crosses the zero, may be found in natural (e.g., low loss noble metals, some semiconductors and some polar dielectrics) and artificial materials (metamaterials) alike, where the latter are more flexible both in terms of the zero-crossing wavelength and effective losses [24,25,26,27]. Another possible path to tune the ENZ wavelength is the use of oxide materials, such as Indium Tin Oxide (ITO), Aluminum Zinc Oxide (AZO) or Dysprosium-doped Cadmium Oxide (Dy:CdO) [28,29,30], whose doping determines the spectral position of the ENZ crossing point. ENZ materials have been also shown to be good platforms for nonlinear processes like harmonic generation, optical bistability and soliton excitation [31,32,33,34,35,36,37]. In this framework, ENZ substrates have been also shown to enhance harmonic generation processes when the ENZ mode is coupled with localized surface plasmon resonances [38]. Moreover, a new approach to engineer an optical medium with an unprecedentedly large intensity-dependent refractive index using nanoantennas coupled to a thin ENZ material has been reported [39].

Here we demonstrate how one can exploit the peculiar ability of ENZ substrates to re-direct the electromagnetic radiation to increase the efficiency of nonlinear processes generated in AlGaAs nanoantennas. More specifically, we will focus on Second Harmonic (SH) generation and show that the presence of the ENZ can improve the scattered SH signal up to three orders of magnitude with respect to a dielectric substrate and up to two orders of magnitude with respect to a metallic one. This dramatic enhancement benefits a novel approach to improve nonlinear processes at the nanoscale.

2. Results and Discussion

We considered a nanocylinder with a height of 400 nm made of Al_0.18Ga_0.82As placed over a semi-infinite substrate layer. The excitation is assumed to be a x-polarized plane wave (see Figure 1) at a fundamental wavelength (FW) of 1550 nm with incident amplitude E₀ corresponding to a pump intensity of 1.6 GW/cm². A sketch of the proposed structure is reported in Figure 1a. The considered nanoantenna height is compatible with other AlGaAs structures [6,9,13] already fabricated and optimized for the efficient generation of the second harmonic signal.

Al_xGa_1−xAs is a III–V semiconductor which is gaining more and more popularity for nonlinear photonics due to its non-centrosymmetric structure. Moreover, it has a large band gap enabling two photons absorption-free operation at 1.55 μm, a high non-resonant quadratic susceptibility (d₁₄ ≈ 100 pm/V for GaAs in the near infrared) [40], and a broad spectral window of transparency in the mid-infrared (up to 17 μm), which allows for the generation of intense second-order nonlinear optical effects [41,42]. For the dispersion of the refractive index of AlGaAs, we use the analytical model proposed in Reference [43]. At the FW it has a refractive index n_{Al0.18Ga0.82As} equal to 3.275 that is Re(ε) = 10.729, Im(ε) = 0, see

Table 1. Summary of the permittivities of the materials used in this work.

Material	Re(ε) + j Im(ε) FW	Re(ε) + j Im(ε) SH
ENZ	−16.48 + j 0.4217	0.0006 + j 0.05
Gold	−115.13 + j 11.259	−22.068 + j 1.3708
Dielectric	2.56 + j 0	2.56 + j 0
AlGaAs	10.729 + j 0	12.583 + j 0.086

.

In the following we considered three different substrates where the AlGaAs nanoantenna was placed on an ENZ, a dielectric and a gold substrate.

For the dispersion of the ENZ substrate we considered a material modelled with a single Lorentz oscillator:

$${\epsilon }_{ENZ}\left(\omega \right)={\epsilon }_{\infty }-\frac{{\omega }_p^2}{{\omega }_{}^2+i\omega \gamma },$$

(1)

with parameters ${\epsilon }_{\infty }$ = 5.5, ω_p = 5.7535 × 10¹⁵ rad/s and γ = 2.3327 × 10¹³ rad/s. The optimized substrate has the epsilon near zero condition around λ = 775 nm, where the dielectric permittivity assumes a value ε = 0.0006 + i0.05. The dielectric substrate had instead a refractive index n_s fixed to 1.6 that is Re(ε) = 2.56, Im(ε) = 0 as listed in Table 1. These values correspond to those of AlO_x [6]. They were chosen because of the realization that AlGaAs nanostructures on an AlO_x layer are easily obtained in modern manufacturing processes [6]. The optical properties of gold are obtained by the Johnson and Christy interpolation [44]. For completeness, Table 1 summarizes the permittivities of the materials used in this study both at the Fundamental Wavelength (FW) and at Second Harmonic (SH) wavelength.

The experimental realization of such kind of structure will probably face various problems. However, a novel procedure for fabricating nanodisks from III−V nanowires has been recently proposed in [42]. The main advantage of this new approach of slicing nanowires with Focused Ion Beam (FIB) milling is the possibility to create disk-based configurations on any substrate. In fact, the method of FIB nanowire slicing permits one to easily create nanoantenna chains of different designs without relying on the substrate material and to make them compatible with Complementary Metal-Oxide Semiconductor (CMOS) technologies. Moreover, the proposed ENZ substrate could be realized by using transparent conductive oxide, such as ITO, GzO, AZO or doped-CdO, where the plasma frequency can be tuned by varying the doping of these materials.

We performed our simulation by means of a commercial software based on the finite element method (COMSOL Multiphysics® v. 5.2.—www.comsol.com.—COMSOL AB, Stockholm, Sweden). The model geometry is shown in Figure 1b. The mesh was customized to be more detailed in the cylindrical nanoantenna and in the air-substrate interface close to the nanodisk. Doing so enabled us to focus on the key phenomena of the proposed structure. The minimum mesh element size was less than 1 nm. The domain was truncated by a perfectly matched layer (PML), and far-field calculations were done on the inner boundary of the PML domain. Surface A was used to calculate total scattered power. We evaluated three different scenarios. First, we considered the case of an ENZ substrate. We investigated the optical scattering of the AlGaAs nanodisk by changing its radius between 200 nm and 290 nm. The maximum scattered power was reached for a nanocylinder with a radius of r = 232 nm, as shown in Figure 1c.

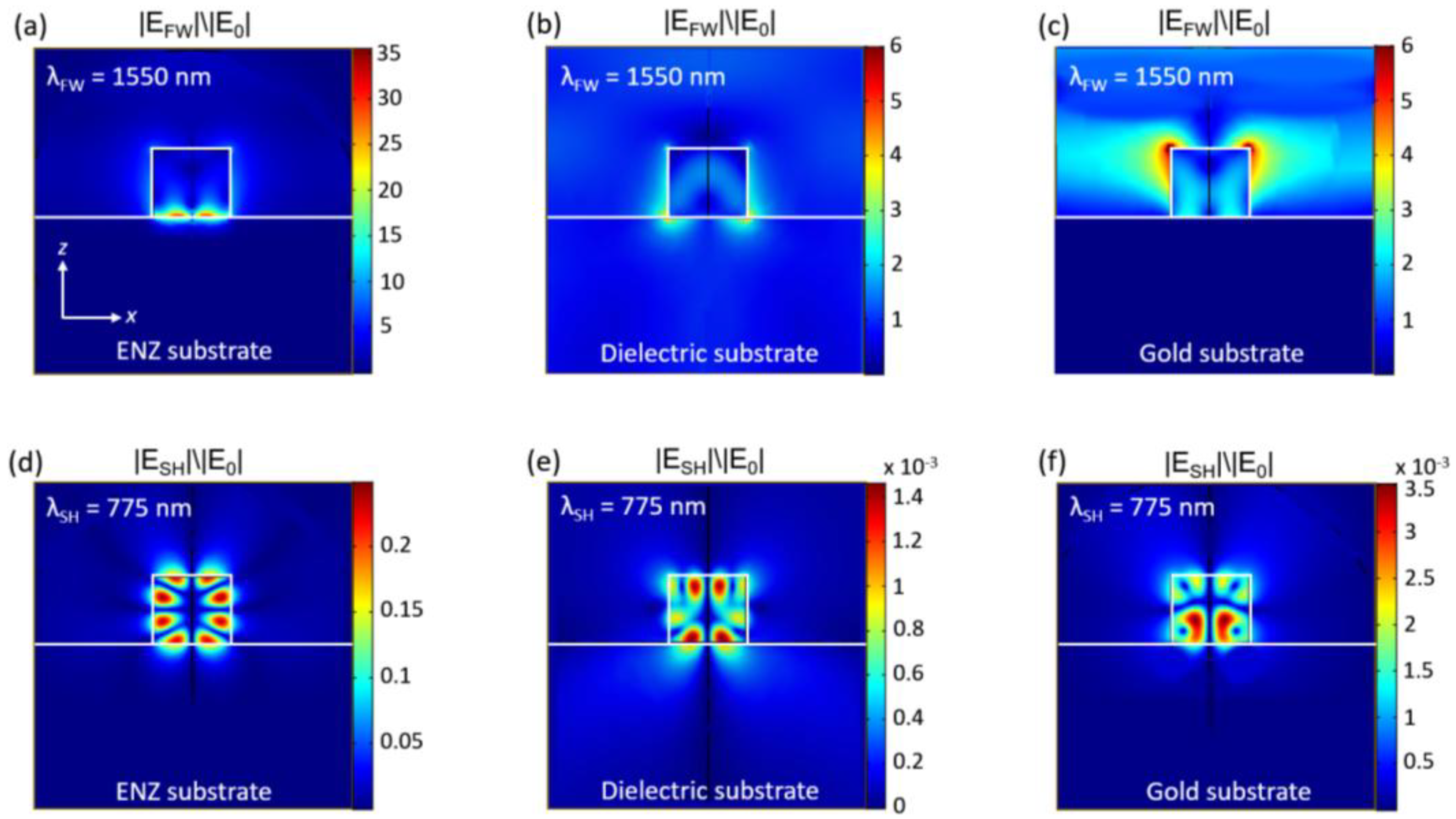

Figure 2a shows the electric field distribution in the case of r = 232 nm, when the substrate was the ENZ material. At 1550 nm, the ENZ material had a real part of the permittivity equal to −16.48 and an imaginary part equal to 0.4217 (see Table 1). It can be seen how the electric field inside the cylinder reached an enhancement factor |E|/|E₀| equal to 35. The high enhancement of the field at the interface between the substrate and the cylinder can be attributed to the excitation of surface plasmon polaritons of the underlying ENZ material by the dielectric nanoparticle on top [45].

Different is the case of the dielectric substrate. In the latter circumstance, the field circulated inside the disk (see Figure 2b) because a low refractive index (n_s ≈ 1.6), enabling sub-wavelength optical confinement in the nanocavity by total internal reflection. The multipole analysis deduced from the distributions of the induced electric current, density had been carried out [46]. For r = 232 nm the scattering behaviour was dominated by the electric and magnetic dipolar contributions as can be also concluded by looking at the field distribution. Finally, the case of gold substrate was considered. See Table 1 for the gold permittivity at the FW. The mode excited inside the nanoantenna resembled the one of the ENZ substrate but the field enhancement was more than 8 times lower. As the real part of the permittivity of the substrate became more negative, the electric field generated by the antenna was reduced because the substrate behaves as an electric conductor, cancelling the dipolar moment at the direct surface by an imaginary mirror dipole in the substrate. This is similar to the case of increasing the imaginary part of the permittivity [47]. We stress that, even though the radius of the cylinder was optimized for the ENZ substrate, no significant field enhancement was obtained for the other substrates using a different radius. We then simulated the second harmonic generation from the proposed structure. Since AlGaAs is a non-centrosymmetric material, we had a strong volume contribution which could enhance the SH signal.

We first note that, among the different resonant modes that were observed in the nanodisks in Figure 1c, the resonance at r = 232 nm in the case of ENZ substrate, showed the strongest scattering power and electric field enhancement inside the structure. This can potentially enhance the nonlinear optical response achievable from these nanoantennas. We recall that the second harmonic (SH) wavelength falls at the ENZ condition wavelength of the optimized substrate. The second-order nonlinear susceptibility tensor of (100)-grown AlGaAs is anisotropic and has only off-diagonal elements ${\chi }_{ijk}^{\left(2\right)}$ with i ≠ j ≠ k. In the calculations, we used χ⁽²⁾ = 100 pm/V as reported for Al_0.18Ga_0.82 as in [48]. We thus solved the problem of the SH wavelength using the calculated fields at the FW to define the second harmonic source as external current density. The i-th component of the external current density J_i is expressed as:

$$J_i=j{\omega }_{SH}{\epsilon }_0{\chi }^{\left(2\right)}{E}_{FF,j}{E}_{FF,k},$$

(2)

where ${\epsilon }_0$ is the vacuum permittivity and E_FF,i is the i-th component of the electric field at the FW. Note that here we are assuming that no SH signal is coming from the substrate.

Figure 2d–f shows the electric field distribution at the Second Harmonic wavelength SH. Figure 2a,d suggest that the use of the ENZ enlarged the mode-matching between the mode at FW and SH wavelengths. The overlap integral estimation [5] clarified that the maximum overlap (about 46%) was reached for the ENZ substrate whereas was only about 42% for the gold substrate and 39% for the dielectric substrate.

The geometrical conversion efficiency is defined as:

$${\eta }_{SHG}=\frac{{{\displaystyle \int }}_A^{}{\overrightarrow{S}}_{SH}·\widehat{n}da}{I_0\times \pi r^2}$$

(3)

where ${\overrightarrow{S}}_{SH}$ is the Poynting vector of the SH field,$\widehat{n}$ is the unit vector normal to a surface A enclosing the antenna, and I₀ is the incident field intensity.

We numerically found a SH conversion efficiency of up to 3 × 10⁻³ in the case of nanodisks placed over the ENZ substrate. We also evaluated how much SH power was redirected in the air region by defining Γ as the ratio between the SH power radiated in the air and the SH power radiated in the substrate region through surface A enclosing the nanodisk (see Figure 1b). For the ENZ substrate, Γ reached the maximum value of 1191. This means that in the proposed structure we were able to obtain a very high SH efficiency and at the same time, the second harmonic signal was redirected into the upper region where the air was present. On the other hand, in the case of the dielectric substrate, Γ is equal to 0.28 meaning that most of the SH signal was redirected into the substrate, as shown in Figure 3b, and the SHG efficiency was about 4 × 10⁻⁷. A good SH signal redirection was instead obtained in the case of a gold substrate, where Γ was equal to 836, see Figure 3c. However, the achieved efficiency did not exceed 8 × 10⁻⁷. In this case, the SH efficiency limiting factor was represented by the poor electric field enhancement inside the cylinder at the fundamental wavelength. The second harmonic fields in Figure 2d–f indicate that higher order modes were excited inside the structure at the SH wavelength. Such higher order multipoles were responsible for the obtained far field.

We stress that the analysis performed did not take surface SHG effects into account, but we only considered the quadratic bulk nonlinearity contribution since the latter term has been shown to be dominant in these kinds of dielectric structures [5,6,7,8,9]. A complete analysis and comparison between surface and volume nonlinear contributions was postponed to a future effort. We note that, although all the calculations have been performed for a cylinder optimized on the ENZ substrate, even if we consider the other substrates with the respective optimized cylinder radius, we obtained a maximum SH conversion efficiency of less than 10⁻⁶ for the AlO_x substrate (r = 205 nm) and 5.5 × 10⁻⁵ for the gold substrate (r = 260 nm).

Moreover, by using the eigenfrequency analysis in COMSOL Multiphysics, one can estimate the Q factor of the mode for the proposed structure in the different scenarios. The linear scattering power spectra for the different substrates are reported in Figure 4a, for a nanodisk with r = 232 nm and h = 400 nm. For the ENZ substrate, the scattering spectra showed a Fano-like behavior. A Fano resonance originates from the coupling between a broad “bright” mode resonator, that is accessible from free space, and a narrow “dark” mode resonator which is less-accessible, or inaccessible, from free-space. When the two resonances are brought in close proximity in both the spatial and frequency domains, a coupling is possible. This leads to a total resonance in the system, coming from the interference between the two pathways. We could attribuite this Fano resonance to the excitation of the broad magnetic dipolar resonance in the AlGaAs nanodisk that interfered with the SPP excited at the interface between the ENZ material and the dielectric resonator. The mode of the ENZ substrate (Figure 4b) has a Q factor of 25 for a pump wavelength of 1550 nm. If the cylinder is slightly moved upwards from the substrate one can find a field distribution as shown in Figure 4c with Q factor that decreases by increasing the distance of the cylinder from the substrate.

In the limit case of infinite distance, the dielectric antenna can be considered as completely surrounded by air. In this latter situation, the closest mode (which is a magnetic resonance) has a Q factor of 9 at the wavelength of about 1695 nm, as shown in Figure 4d. The analysis of the nanostructure placed at different heights from the substrate demonstrates that the high enhancement of the field at the interface was due to the excitation of surface plasmon polaritons of the underlying ENZ substrate by the AlGaAs nanodisk on top. The dielectric nanoparticle helps provides the appropriate momentum (k-vector) to couple light at the interface. As far as concerning the substrate with refractive index 1.6, the closest mode that one can excite is a magnetic resonance with a Q factor of 6 for a wavelength equal to 1710 nm (Figure 4e). This is in perfect agreement with the known effect of broadening and redshifting of the resonances that are obtained when a nanostructure is placed on a dielectric substrate with respect to the case of structure in homogenous media (usually assumed to be air). Finally, when the AlGaAs nanocylinder was placed over the gold substrate, the closest mode had a Q factor equal to 20 for a wavelength of 1460 nm, see Figure 4f.

Therefore, to conclude, the mode with the highest Q factor excitable at 1550 nm is the one obtained in the case of ENZ substrate. This high-quality mode is supported by the nanoantenna results in the enhanced near-field distribution, as represented in Figure 2a.

3. Conclusions

We performed a theoretical analysis to show how to enhance the collection of the second harmonic signal generated from AlGaAs resonators. The possibility of enhancing optical nonlinear effects by introducing an epsilon-near-zero substrate has been demonstrated. More precisely, in this work we have shown that it is possible to enhance the second harmonic efficiency and directivity by exploiting simultaneously the strong electric field enhancement induced inside the structure at the FW and the ENZ condition at the SH wavelength. By designing a cylindrical nanoantenna optimized over an ENZ substrate we obtained a second harmonic conversion efficiency on the order of 10⁻³ for a pump intensity of I₀ = 1.6 GW/cm². These results offer the opportunity to re-think the design of novel nonlinear photonic metadevices, with improved capabilities for on-chip communication, information processing and sensing.
