Infrared Spectroscopy as Molecular Probe of the Macroscopic Metal-Liquid Interface
Next Article in Special Issue
Enhancement of Chlorophyll a Production from Marine Spirulina maxima by an Optimized Ultrasonic Extraction Process
Previous Article in Journal
Evaluation and Optimization of a Hybrid Manufacturing Process Combining Wire Arc Additive Manufacturing with Milling for the Fabrication of Stiffened Panels
Article

Enhancement of Skin Anti-Inflammatory Activities of Eclipta prostrata L. from the Ultrasonic Extraction Process

Department of Food Science and Engineering, Seowon University, Cheongju 361-742, Korea
Appl. Sci. 2017, 7(12), 1227; https://doi.org/10.3390/app7121227
Received: 17 November 2017 / Accepted: 21 November 2017 / Published: 28 November 2017
(This article belongs to the Collection Ultrasound in Extraction Processing)

Abstract

This work first showed that the skin anti-inflammatory activities of Eclipta prostrata L. (E. prostrata L.)n be increased through an ultrasonic extraction process at a frequency of 120 kHz with 70% ethanol at 40 °C for 6 h. The extract from the ultrasound extraction (UE) contained 378.6 mg/100 g of wedelolactone (a major bioactive substance in E. prostrata L.), compared with the 172.9 mg/100 g from a conventional extraction process with 70% ethanol at 80 °C for 12 h (EE). The UE showed less than 10% of low cytotoxicity against normal fibroblast cells, and also exhibited much higher antioxidant activities than that from the EE when treating with 0.3 mg/mL of the extracts. It was proved that the high antioxidant activities of the UE were closely correlated with the enhancement of skin anti-inflammatory activities by effectively suppressing the production of tumor necrosis factor-alpha and interleukin-6 from macrophages. The production of prostaglandin E2 from human skin cells was also greatly reduced, compared with the EE for all ranges of the treatments. These results strongly indicate that the various biological activities of E. prostrata L. can be improved by a simple ultrasound extraction process because of the high elution of bioactive substances even at a low temperature.
Keywords: Eclipta prostrata L.; ultrasound extraction; antioxidant; skin anti-inflammatory activities Eclipta prostrata L.; ultrasound extraction; antioxidant; skin anti-inflammatory activities

1. Introduction

Eclipta prostrata L. is an annual plant belonging to the Asteraceae family, and it mainly grows in wetlands in the central and southern areas of Korea [1] at a height of 30–60 cm. E. prostrata L. is also called Pungjsang in oriental medicine, and is known to be highly effective for hemostasis, drainage, and white hair [2]. With regard to the other efficacies of E. prostrata L., research on its anti-inflammatory and antidiabetic efficacies, blood pressure-lowering effects, antimicrobial activity, anticancer activity, and antioxidant effects, among others, has been conducted [2,3,4,5,6].
Among these activities, the anti-inflammatory activities of E. prostrata L. have been reported, as much interest has been given to the importance of studying anti-inflammation because of severe environmental stress and unbalanced or overly nutritive foods, among others [7]. The inflammatory responses are involved in immunity. The response is initiated by the immune system and generated by a variety of stimuli occurring outside the body; it is the restoration of deformed or damaged tissues of the human body caused by relevant stimuli to their original states [8]. When stimulated externally, the macrophages present in the body secrete nitric oxide (NO), cytokines, and prostaglandinE2 (PGE2) to resist the relevant stimuli. PGE2 promotes the secretion of interleukin-6 (IL-6) and tumor necrosis factor-α (TNF-α)—known as inflammatory cytokines—to initiate the immune response to infection by external stimuli [9]. Although these actions protect the human body through inflammation, the excessive NO production occurring at this time becomes a dangerous factor that may cause mutation in the human body and induce toxicity [10]. Active oxygen has been known to be a main cause of the occurrence of excessive inflammation, and it has been found to cause inflammation through mediators such as proteins and lipids in the body [11].
An ultrasonic extraction process can be used to process plant resources because it can facilitate extraction and maximize the elution volume of the relevant active substance because of the high vibration energy generated during ultrasonic treatment [12]. The ultrasonication extraction process has been proven to efficiently destroy the hard cell walls of natural resources with high efficiency [13,14]. Moreover, ultrasound extraction could be an excellent alternative for avoiding high temperature during the processes, especially for extracting heat labile substances from natural resources, and it is also considered to be an excellent green process. However, there have not been many studies employing a simple ultrasonic extraction in processing the plant resources, compared to the cases of applying more complex approaches combining conventional extraction with ultrasonic processes [14]. Therefore, in this work, a more realistic extraction process that uses ethanol—an edible extraction solvent—will be introduced at a relatively low temperature by employing a simple ultrasonic extraction process alone (not in combination with other processes), which will minimally break down the structure and efficacy of wedelolactone, a major active substance of E. prostrata that has been known to have the anti-inflammatory activities [15]. The promotion of the elution of this component will be considered to be closely associated with the enhancement of anti-inflammatory efficacy. Then, the results of this work could be utilized to develop a new bioresource for cosmeceutical purposes through a simple ultrasonic extraction process.

2. Materials and Methods

2.1. Materials and Preparation of the Samples

The cells used in the experiments, CCD-986sk and RAW 264.7, were purchased from the Korean Cell Line Bank (KCLB, Seoul, Korea). These cells were cultured in a Dulbecco’s Modified Eagle Medium (DMEM) medium with added 10% fetal bovine serum (Gibco, Carlsbad, CA, USA) at 37 °C and 5% CO2. All the other reagents used were purchased from Sigma–Aldrich (St. Louis, Mo., USA). For the conventional ethanol extraction (EE), 100 g of dried E. prostrata L. (harvested in 2015, Heongsung, Korea) were extracted with 1 L of 70% ethanol at 8 °C for 12 h with a vertical reflux condenser. For the ultrasonic extraction (UE), 100 g of dried E. prostrata L. with 1 L of 70% ethanol was put into an ultrasonic extractor with a temperature controller by circulating cold or warm water as setting the temperature (AUG-R3-900, Asia Ultrasonic, Bucheon, Korea) and extracted at a frequency of 120 kHz with the input power of 300 W/cm2 for 6 h at 40 °C. Thereafter, each of the two extracts was filtered through a vacuum filter, concentrated by a rotary evaporator (EYELA N-1000, Tokyo Rikakikai Co., Tokyo, Japan), and lyophilized for 72 h in a lyophilizer (PVTFA 10AT, Ilshin BioBase, Dongducheon, Korea) before use in the experiments.

2.2. Measurement of Cell Cytotoxicity and Antioxidant Activities

The cell cytotoxicity of the extract against human skin fibroblasts (CCD-986sk) was evaluated by the 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT) method [16]: First, 6.0 × 105 cells/mL of human skin fibroblasts was inoculated into a 96-well plate and cultured for one day at 37 °C in a 5% CO2 incubator. Thereafter, the cultured cells were treated with various concentrations of the extracts and cultured again for one day under the same conditions described above. The supernatant of the treated sample was removed, and 1.0 mg/mL of MTT solution was added and cultured for 4 h at 37 °C while minimizing exposure to light. Then, the MTT solution was removed and 200 μL of Dimethyl Sulfoxide (DMSO) were added; the solution was left unattended for 30 min while light was blocked. The optical density was measured at a wavelength of 570 nm.
To observe the antioxidant activities of E. prostrata L. extracts, the α,α-diphenyl-β-picrylhydrazyl (DPPH) free radical scavenging activity was measured by the Dietz method [17]: after mixing 150 μL of 0.1 mM DPPH solution prepared with methanol as the solvent and 150 μL of the extract, the mixture was wrapped in foil and left unattended for 30 min at room temperature while light was blocked. Thereafter, the optical density was checked at a wavelength of 517 nm by a microplate reader (Thermo Fisher Scientific, Waltham, MA, USA). The relevant values were estimated as DPPH radical scavenging activity (%).

2.3. Determination of Wedelolactone Contents in the Extracts

To measure the contents of wedelolactone in the extracts from two different extraction processes, high performance liquid chromatography (HPLC, 1260 series, Agilent, Santa Clara, CA, USA) was used with a C18 column (250 mm × 4.6 mm, Jupiter 5u 3000A, Santa Clara, CA, USA) under the following isocratic conditions [18,19]: The mobile phase was water:acetic acid:methanol (4.5:0.5:95) at a flow rate of 0.8 mL/min measured at a wavelength of 352 nm with the injection of 10 μL of 1000 ppm of wedelolactone as the standard (Sigma-Aldrich, St. Louis, MO, USA).

2.4. Estimation of the Production of Interleukin-6(IL-6), Tumor Necrosis Factor-α(TNF-a), and ProstaglandinE2 (PGE2)

The amounts of two different cytokines, IL-6 and TNF-α, produced from a mouse macrophage (RAW 264.7m KCLB, Seoul, Korea) were measured with Quantikine ELISA Mouse IL-6 and TNF-α kits (R&D Systems, Minneapolis, MN, USA) as follows [20]: 5.0 × 105 cell/mL of RAW 264.7 cells were inoculated into a 96-well plate and cultured for one day at 37 °C with 5% CO2. Then, various concentrations of the extracts, 1 μM of vitamin D3 (cholecalciferol) dissolved in 0.1% ethanol and 1.5 μg/mL of wedelolactone as positive controls, respectively, were added with 25 μg/mL of lipopolysaccharide for one more day. Thereafter, according to the manuals of the ELISA kits, 50 μL of the assay diluent was put into the 96-well plate, which was appropriately shaken. The standard prepared in the kit and the sample that had been cultured thus far were then put into the 96-well plate, which was shaken for one week and left unattended for 2 h at room temperature while light was blocked. Thereafter, the plate was washed with a wash buffer, and 100 μL of the substrate solution was added into the plate for 30 min at room temperature while light was blocked. After blocking the reaction by a stop solution, the concentrations in the plate were measured at a wavelength of 450 nm by an ELISA reader (Thermo Fisher Scientific, Waltham, MA, USA).
The inhibition of the production of PGE2 from human skin fibroblasts (CCD-986sk, KCLB, Seoul, Korea) was measured by treating the extracts as follows [21]: 4.0 × 105 cell/mL of human skin fibroblasts was inoculated into a 96-well plate for one day at 37 °C, treated with 150 μL of each extract at various concentrations, 1 μM of vitamin D3 (cholecalciferol) dissolved in 0.1% ethanol and 1.5 μg/mL of wedelolactone as positive controls, respectively, and again cultured for one more day. Thereafter, 50 μL of the primary antibody solution was added into the plate, which was shaken at 100 rpm and left unattended for 1 h at room temperature. Then, the PGE2 conjugate was added into the plate and left for 2 h at room temperature. The plate was washed four times using a wash buffer, and 200 μL each of the substrate solutions was added to the plate for 30 min in a dark room. Thereafter, 100 μL of a stop solution was added into the plate, and the amounts of PGE2 were measured at a wavelength of 450 nm by comparing with the standard curve.

2.5. Statistical Analysis

All of the experimental data were repeated three times, and statistical significance was analyzed by one-way Analysis of Variance (ANOVA) and Student’s t test (SAS, Cary, NC, USA). The least difference of the significance levels was set to p < 0.05.

3. Results

3.1. Cell Cytotoxicity of the E. prostrata L. Extracts

The results of estimating the cytotoxicity of the extracts from two different extraction processes were shown in Figure 1 before conducting skin anti-inflammatory activities, as safety should be the first consideration in developing bioactive substances from natural resources. Generally, low cell toxicity was observed to be approximately 8.76% of cytotoxicity against human skin fibroblasts in the addition of a maximum concentration of 0.3 mg/mL of the extract from the UE process and approximately 6.34% in the addition of the same concentration of the extract from the 70% EE process. Compared with the results of the maximum 16% of cytotoxicity of other natural plants in treating the same concentrations in skin fibroblast cells [22], the extracts from both processes were considered safe for the cell experiments on anti-inflammatory activity.

3.2. Wedelolactone Contents and Antioxidant Activities of the Extracts

As shown in Figure 2, the wedelolactone amount of 378.6 mg/100 g in the UE was higher than that of 179.2 mg/100 g in the EE from the conventional extraction process. This amount was two times higher than that in ultrasonic process, as well as that in the other reported results in the range of 100–400 mg/100 g [23,24]. This result indicates that the UE may play an important role in improving the extraction yield of wedelolactone because of the minimal destruction of heat-labile wedelolactone caused by the low temperature extraction process, even at low temperature [25]. Therefore, the extract from the ultrasonic process is expected to have good antioxidant activities because wedelolactone is a family of coumarin known to have high antioxidant activity and anti-inflammatory efficacy [15,26].
Figure 3 compares the antioxidant activities of the extracts from two processes: The EE showed a scavenging activity level of 65.21% at a maximum concentration of 0.3 mg/mL while the UE exhibited an activity level of 70.35%. This result strongly implies that the DPPH free radical scavenging activity of the E. prostrata L. extract was increased through the ultrasonic extraction process. Moreover, the scavenging activity of the UE was a little lower than or even similar to that of ascorbic acid, a positive control in measuring antioxidant activities. Compared with 62.98% of the DPPH radical scavenging activity in the addition of 1.0 mg/mL of Agastache rugosa O. Kuntze extract that has similar biological activities, even though this plant did not contain the same bioactive substance, wedelolactone [27], the UE of the E. prostrata L. extract showed a higher scavenging activity of 70.35% at a concentration of 0.3 mg/mL.
In previous studies that identified the antioxidant effects of E. prostrata L. extract, active oxygen was indicated to induce inflammation through various media, such as internal lipids and proteins. Therefore, the antioxidant activity of the E. prostrata L. extracts is considered to be associated with anti-inflammatory efficacy [11]. Attempts have been made to prove its anti-inflammatory efficacy—specifically the effects on human skin anti-inflammation for cosmetic applications.

3.3. Suppressing the Production of Cytokines and PGE2 for Skin Anti-Inflammation

In general, the excessive expression of TNF-α induces a decrease in blood pressure, damage to the metabolic process, and a reduction in myocardial contractility, thus leading to many adverse effects on the body; therefore, IL-6 plays a major role in the TNF-α receptor release [28,29]. As shown in Figure 4A, the decrease in IL-6 production from macrophages was observed in the addition of both the UE and EE. However, only 43.3 pg/mL of IL-6 was produced in the addition of the UE compared with the 101.6 pg/mL measured in the EE. This finding clearly indicates that the E. prostrata L. extract from the ultrasound process improved its anti-inflammatory efficacy. Besides the comparison with two different extracts, in Figure 4A–C, the effects of vitamin D3 (cholecalciferol) on the production of cytokines and PGE2 were also examined as a positive control, since vitamin D3 (mainly existing in humans), has been known to have strong anti-inflammatory activities and even on the skin [30,31,32]. Overall, the efficacy of vitamin D3 in inhibiting the production of IL-6, TNF-alpha, and PGE2 seemed to be much better than those of the EE with the addition of the highest concentration of 0.3 (mg/mL), while it was somewhat higher or similar to those of the UE treatment at the same concentrations, which implies that the UE must have skin anti-inflammatory effects and is better than the EE. The results also indicate that its efficacy could be close to that of vitamin D in properly treating the concentrated extracts into the cells.
In addition to considering the effects of vitamin D as a positive control, the anti-inflammatory activities of wedelolactone should also be compared with those of two extracts, since there were several other components observed in the UE, as shown in Figure 2. To do so, 1.5 μg/mL of wedelolactone as another positive control—corresponding to the same amounts of wedelolactone existed in 0.3 mg/mL of the extracts—were treated as shown in Figure 4A–C, since ca. 400 mg/100 g of wedelolactone (actually 378.6 mg/100 g) in the UE were estimated by HPLC analysis as shown in Figure 2. However, in general, the effects of wedelolactone on the inhibition of producing two cytokines and PGE2 were definitely lower than those of the UE, but better than those of the EE at the highest treatment. This result clearly indicates that better skin anti-inflammation activities of the UE must be caused by synergistic effects of higher amounts of other components in the UE that did not exist in the EE along with the efficacy of wedelolactone. It can also imply that the crude extracts are often useful in enhancing biological activities rather than purifying a pure single component from the medicinal plants from the standpoint of economic feasibility.
Similarly, in Figure 4B, both extracts showed concentration-dependent decreases in TNF-α production. Moreover, 37.2 pg/mL vs. 129.5 pg/mL of TNF-α production was estimated in the addition of the maximum concentration of 0.3 mg/mL of the UE and EE, respectively. In general, the effects of vitamin D3 were better or similar to that of the UE, but much better than the EE, while the effects of wedelolactone were lower than that of the UE, but higher than the EE. These results can be compared with the experimental data on Aronia, which is also known to have similar biological activities [21], where 100 pg/mL of IL-6 and 120 pg/mL of TNF-α were produced in treating the same concentrations. Therefore, the UE can be considered to have good or even better anti-inflammatory activities than other natural resources.
To confirm whether the high anti-inflammatory activities of the E. prostrata L. extract could be attributed to skin anti-inflammatory effects, the inhibition of PGE2 production from human skin fibroblasts was also observed, as PGE2 plays a role in promoting the generation of inflammatory cytokine IL-6 and TNF-α and in affecting the skin [9,29,33]. As shown in Figure 4C, the EE generated approximately 183.3 pg/mL of PGE2 at a maximum concentration of 0.3 mg/mL, whereas the UE produced only 107.7 pg/mL, which is approximately 40% lower than the value from the EE. The efficacy of PGE2 seems to be similar to the anti-inflammatory effects of inhibiting the cytokine productions (as shown in Figure 4A,B), and the effects of vitamin D3 and wedelolactone also showed similar patterns. Study of the anti-inflammatory efficacy of Aronia extract at a concentration of 1.0 mg/mL showed a PGE2 yield corresponding to that of E. prostrata L. at 0.3 mg/mL [21].
According to the above results, the extract from the UE process had a higher anti-inflammatory activity than that from the 70% EE process, which is a conventional extraction process. This result could be attributed to the synergistic effects of wedelolactone and other components, which were increased through ultrasonication, and affected the anti-inflammatory activity so that the anti-inflammatory of E. prostrata L. increased. In addition, as previous studies identified that wedelolactone—a component of E. prostrata L.—is rapidly destroyed at temperatures higher than 60 °C, the low-temperature ultrasonic extraction process presented in this study could be an alternative process that minimizes the destruction of wedelolactone and enhances the extraction efficiency [25].

4. Discussion

Several reports have been conducted on the anti-inflammatory activities of the E. prostrata L. extract and wedelolactone (a family of coumarin), which is one of the major biologically active substances. Conversely, in this work, the skin anti-inflammatory activities of the E. prostrata L. extract were reported for the first time by comparing with the effects of wedelolactone and vitamin D as positive controls. The simple ultrasonic process at a relatively low temperature has been proved to be effective in extracting heat-labile natural bioresources by showing that the UE processed at 40 °C improved the extraction yield of wedelolactone from E. prostrata L. up to 60% more than that from conventional extraction with 70% ethanol at 80 °C. Similar results on the processing of many medicinal herbs were also reported elsewhere. However, interestingly enough, the extract from the UE process exhibited better efficacy for all the various skin anti-inflammatory experiments than those from other extraction processes, possibly because of the high elution of the intact form of wedelolactone and also other components under a low-temperature extraction condition. This result implies that high amounts of a strong antioxidant compound (wedelolactone) and other bioactive substances in the UE can synergistically enhance its antioxidant activities, and which eventually result in better skin anti-inflammatory activities than others—even better than the case of adding the same amount of wedelolactone existing in the extract. These activities were also found to be a little lower or even close to that of vitamin D3 as a positive control. Although a more detailed relationship between antioxidant activities and skin anti-inflammatory activities of the extract should be determined further as well as identifying other bioactive substances in the extract, these results indicate the possibility that E. prostrata L. and wedelolactone can be used for cosmeceutical applications.

5. Conclusions

This work clearly demonstrated that the ultrasonic extraction process can help to improve the extraction yield of biologically active substances from natural resources at relatively low temperature, which should be important in processing heat labile components. It was also proved that the increase of the extraction yield of an intact form of the target components in the plant could play an important role in enhancing its biological activities, especially the enhancement of the skin anti-inflammatory activities of E. prostrata L. by high elution of wedelolactone and also synergistic effects of other biologically active components in the extract. This work also provided the evidence that there must be a strong correlation between antioxidant activities and skin anti-inflammation activities. Therefore, we could conclude that the E. prostrata L. extract from a simple ultrasonic process at low temperature could be used as a new cosmeceutical resource with its good skin anti-inflammatory activities. From an economic standpoint, these results could recommend the use of the crude extracts to expect better biological activities in functional food and cosmeceutical applications, not a purified single component from medicinal herbs.

Conflicts of Interest

The author declares no conflict of interest.

References

  1. Chang, C.A. A study on the color resolution of hair by using the extract of hanryencho. J. Investig. Cosmetol. 2006, 2, 97–109. [Google Scholar]
  2. Moon, Y.H.; Woo, E.R.; Lee, D.H. Hypoglycemic effect of polysaccharide isolated from Eclipta alba L. Korean J. Pharm. 2003, 34, 246–249. [Google Scholar]
  3. Yun, J.S.; Chung, B.H.; Kim, N.Y.; Seong, N.S.; Lee, H.Y.; Lee, J.H.; Kim, J.D. Screening of 94 plant species showing ACE inhibitory activity. Korean J. Med. Crop Sci. 2003, 11, 246–251. [Google Scholar]
  4. Chon, S.U.; Kim, D.I.; Choi, Y.S. Assessment on insecticidal and fungicidal activities by aerial part extracts from several compositae plants. Korean J. Weed Sci. 2003, 23, 81–91. [Google Scholar]
  5. Jung, Y.D.; Lee, H.; Lee, B.R.; Yim, Y.K. The effect of anti-cancer and immune response improvement of ELP (Eclipta prostrata) herbal-acupuncture into chok-samni (St36). J. Korean Acupunct. Moxib. Soc. 2003, 20, 141–153. [Google Scholar]
  6. Majumdar, A.S.; Saraf, M.N.; Kamble, R.Y. Antioxidant activity of Eclipta alba L. in normal rat liver. Iran. J. Pharmacol. Ther. 2010, 9, 103–105. [Google Scholar]
  7. Arunachalam, G.; Subramanian, N.; Pazhani, G.P.; Ravichandran, V. Anti-inflammatory activity of methanolic extract of Eclipta prostrata L. (Astearaceae). Afr. J. Pharm. Pharmacol. 2009, 3, 97–100. [Google Scholar]
  8. Zamora, R.; Vodovotz, Y.; Billiar, T.R. Inducible nitric oxide synthase and inflammatory diseases. Mol. Med. 2000, 6, 347–373. [Google Scholar] [PubMed]
  9. Medaniel, M.L.; Kwon, G.; Hill, J.R.; Marshall, C.A.; Corbett, J.A. Cytokines and nitric oxide inislet inflammation and diabetes. Proc. Soc. Exp. Biol. Med. 1996, 211, 24–32. [Google Scholar] [CrossRef]
  10. Choi, I.Y.; Song, Y.J.; Lee, W.H. DPPH radical scavenging effect and antimicrobial activities of some herbal extracts. Korean J. Horticul. Sci. Technol. 2010, 28, 871–876. [Google Scholar]
  11. Takizawa, S. Free radical production in ischemic cerebrovascular disease. Nihon Ronen Igakkai Zasshi 2003, 40, 319–321. [Google Scholar] [CrossRef] [PubMed]
  12. Park, K.A.; Hong, I.K.; Kim, W.I.; Jeong, K.W. Ultrasonic energy effects on squalene extraction from amaranth seed. Appl. Chem. 2000, 4, 149–152. [Google Scholar]
  13. Yamada, T.; Sakaguchi, K. Comparative studies on Chlorella cell walls: Induction of protoplast formation. Arch. Microbiol. 1982, 132, 10–13. [Google Scholar] [CrossRef]
  14. Zheng, H.; Yin, J.; Gao, Z.; Huang, H.; Ji, X.; Dou, C. Disruption of Chlorella vulgaris cells for the release of biodiesel-producing lipids: A comparison of grinding, ultrasonication, bead milling, enzymatic lysis, and microwaves. Appl. Biochem. Biotechnol. 2011, 164, 1215–1224. [Google Scholar] [CrossRef] [PubMed]
  15. Deng, H.; Fang, Y. Anti-inflammatory gallic acid and wedelolactone are G protein-coupled receptor-35 agonists. Pharmacology 2012, 89, 211–219. [Google Scholar] [CrossRef] [PubMed]
  16. Mosmann, T. Rapid colorimetric assay for cellular growth and survival: Application to proliferation and cytotoxicity assays. J. Immunol. Methods 1983, 65, 55–63. [Google Scholar] [CrossRef]
  17. Dietz, B.M.; Kang, Y.H.; Liu, G.; Eggler, A.L.; Yao, P.; Chadwick, L.R.; Pauli, G.F.; Farnsworth, N.R.; Mesecar, A.D.; van Breeman, R.B.; et al. Xanthohumol isolated from Humulus lupulus inhibits menadione-induced DNA damage through induction of Quinone reductase. Chem. Res. Toxicol. 2005, 18, 1296–1305. [Google Scholar] [CrossRef] [PubMed]
  18. Patel, M.; Verma, R.; Srivastav, P. Antioxidant activity of Eclipta alba extract. J. Med. Plants Stud. 2016, 4, 92–98. [Google Scholar]
  19. Kumar, S.; Dhanani, T. Development and validation of a rapid high performance liquid chromatography—Photodiode array detection method for estimation of a bioactive compound wedelolactone in extracts of Eclipta alba. Braz. J. Pharm. Sci. 2013, 49, 57–64. [Google Scholar] [CrossRef]
  20. Kim, N.Y.; Lee, H.Y. Skin anti-inflammatory activity of nano-encapsulated Aronia melanocarapa extracts. Res. J. Biotechnol. 2015, 10, 62–74. [Google Scholar]
  21. Kim, N.Y.; Lee, Y.D.; Cho, S.C.; Shin, Y.C.; Lee, H.Y. Enhancement of anti-inflammation effect by fermentation process in Aronia melanocarpa (Mixchx.) Elliot extract. Korean J. Med. Crop Sci. 2014, 22, 475–482. [Google Scholar] [CrossRef]
  22. Seo, Y.C.; Kim, J.S.; Kim, Y.O.; Kim, J.C.; Lee, H.Y. Immune activity of Lithospermum erythrorhizon extracted by extreme low temperature extraction process. Korean J. Med. Crop Sci. 2013, 21, 105–111. [Google Scholar] [CrossRef]
  23. Gawde, A.J.; Paratkar, G.T. Production and enhancement of wedelolactone in shoot cultures of Eclipta alba. J. Herbs Spices Med. Plants 2006, 18, 203–209. [Google Scholar] [CrossRef]
  24. Zhao, Y.; Peng, L.; Lu, W.; Wang, Y.; Huang, X.; Gong, C.; He, L.; Hong, J.; Wu, S.; Jin, X. Effect of Eclipta prostrata on lipid metabolism in hyperlipidemic animals. Exp. Gerontol. 2015, 62, 37–44. [Google Scholar] [CrossRef] [PubMed]
  25. Patil, A.A.; Sachin, B.S.; Wakte, P.S.; Shinde, D.B. Optimization of supercritical fluid extraction and HPLC identification of wedelolactone from Wedelia calendulacea by orthogonal array design. J. Adv. Res. 2014, 5, 629–635. [Google Scholar] [CrossRef] [PubMed]
  26. Yuan, F.; Chen, J.; Sun, P.P.; Guan, S.; Xu, J. Wedelolactone inhibits LPS-induced pro-inflammation via NF-kappaB pathway in RAW 264.7 cells. J. Biomed. Sci. 2013, 20, 84–94. [Google Scholar] [CrossRef] [PubMed]
  27. Kim, N.Y.; Park, D.S.; Lee, H.Y. Effect of anti-skin wrinkle and antioxidant of Agastache rugosa Kentz through fermentation process of the lactic acid. Korean J. Med. Crop Sci. 2015, 23, 37–42. [Google Scholar] [CrossRef]
  28. Barton, B.E. IL-6: Insights into novel biological activities. Clin. Immunol. Immunopathol. 1997, 85, 16–20. [Google Scholar] [CrossRef] [PubMed]
  29. Tilg, H.; Trehu, E.; Atkins, M.B. Interleukin-6 as an anti-inflammatory cytokines: Induction of circulating IL-1 receptor antagonist and soluble tumor necrosis factor receptor p 55. Blood 1994, 83, 113–118. [Google Scholar] [PubMed]
  30. Bikle, D.D. Vitamin D and the skin: Physiology and pathophysiology. Rev. Endocr. Metab. Disord. 2012, 13, 3–19. [Google Scholar] [CrossRef] [PubMed]
  31. Liu, X.; Nelson, A.; Wang, X.; Farid, M.; Gunji, Y.; Ikari, J.; Iwasawa, S.; Basma, H.; Feghali-Bostwick, C.; Rennard, S. Vitamin D modulates prostaglandinE2 synthesis and degradation in human lung fibroblasts. Am. J. Respir. Cell Mol. Biol. 2014, 50, 40–50. [Google Scholar] [PubMed]
  32. Fletcher, J.M.; Basdeso, S.A.; Allen, A.C.; Dunne, P.J. Therapeutic use of vitamin D and its analogue in autoimmunity. Recent Pat. Inflamm. Allergy Drug Discov. 2012, 6, 22–34. [Google Scholar] [CrossRef] [PubMed]
  33. Jonuleit, H.; Kühn, U.; Müller, G.; Steinbrink, K.; Paragnik, L.; Schmitt, E.; Knop, J.; Enk, A.H. Pro-inflammatory cytokines and prostaglandins induce maturation of potent immunostimulatory dendritic cells under fetal calf serum-free conditions. Eur. J. Immunol. 1997, 27, 3135–3142. [Google Scholar] [CrossRef] [PubMed]

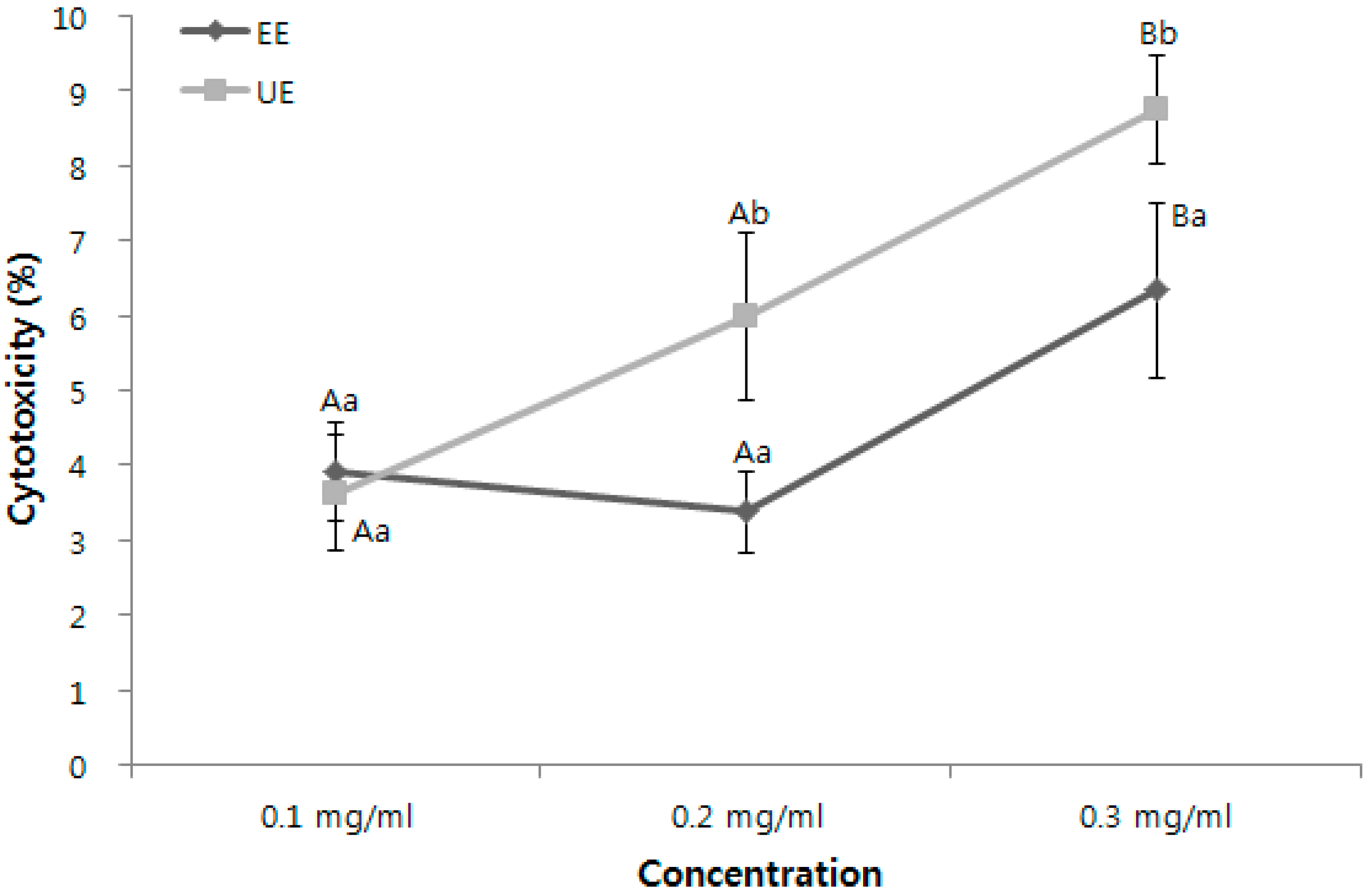

Figure 1. Cytotoxicity of the E. prostrata L. extracts against human skin fibroblasts (CCD-986sk). Mean values ± Standard Deviation (SD) from triplicate separated experiments are shown. Means with different letters (A–B) within the same sample are significantly different at p < 0.05 and means with different letters (a–b) within the same concentration are significantly different at p < 0.05. (1) EE: 70% ethanol extraction at 80 °C, (2) UE: ultrasonic extraction with 70% ethanol at 40 °C.
Figure 1. Cytotoxicity of the E. prostrata L. extracts against human skin fibroblasts (CCD-986sk). Mean values ± Standard Deviation (SD) from triplicate separated experiments are shown. Means with different letters (A–B) within the same sample are significantly different at p < 0.05 and means with different letters (a–b) within the same concentration are significantly different at p < 0.05. (1) EE: 70% ethanol extraction at 80 °C, (2) UE: ultrasonic extraction with 70% ethanol at 40 °C.
Applsci 07 01227 g001
Figure 2. Comparison of High Performance Liquid Chromatography (HPLC) chromatograms of E. prostrata L. extracts from two different extraction processes. (A): Wedelolactone, a standard, (B) EE: 70% ethanol extraction at 80 °C, (C) UE: ultrasonic extraction with 70% ethanol at 40 °C.
Figure 2. Comparison of High Performance Liquid Chromatography (HPLC) chromatograms of E. prostrata L. extracts from two different extraction processes. (A): Wedelolactone, a standard, (B) EE: 70% ethanol extraction at 80 °C, (C) UE: ultrasonic extraction with 70% ethanol at 40 °C.
Applsci 07 01227 g002

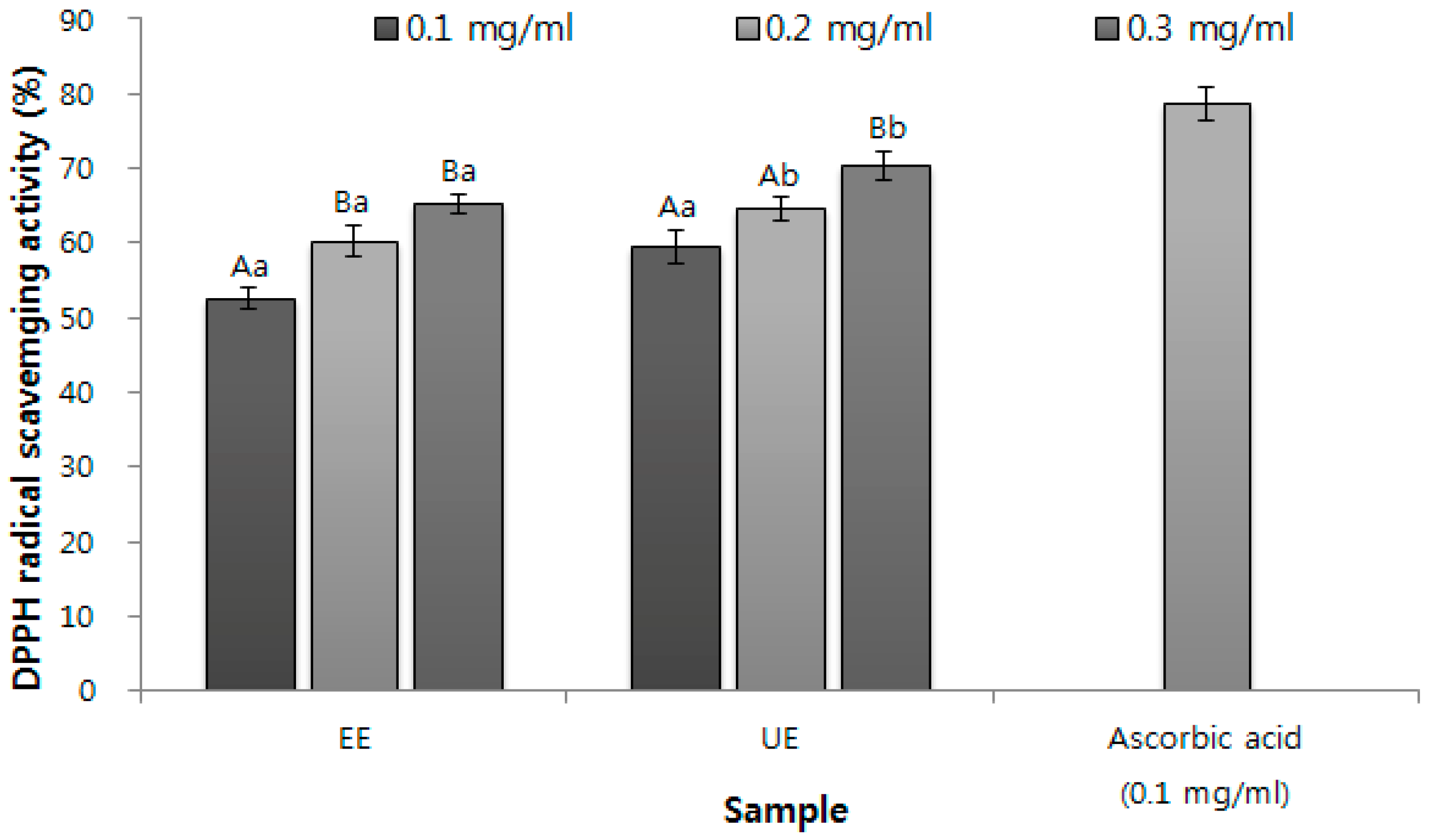

Figure 3. DPPH (α,α-diphenyl-β-picrylhydrazyl) radical scavenging activities of E. prostrata L. extracts according to two different extraction processes. Mean values ± SD from triplicate separated experiments are shown. Means with different letters (A–B) within the same sample are significantly different at p < 0.05, and means with different letters (a–b) within the same concentration are significantly different at p < 0.05. (1) EE: 70% ethanol extraction at 80 °C, (2) UE: ultrasonic extraction with 70% ethanol at 40 °C.
Figure 3. DPPH (α,α-diphenyl-β-picrylhydrazyl) radical scavenging activities of E. prostrata L. extracts according to two different extraction processes. Mean values ± SD from triplicate separated experiments are shown. Means with different letters (A–B) within the same sample are significantly different at p < 0.05, and means with different letters (a–b) within the same concentration are significantly different at p < 0.05. (1) EE: 70% ethanol extraction at 80 °C, (2) UE: ultrasonic extraction with 70% ethanol at 40 °C.
Applsci 07 01227 g003

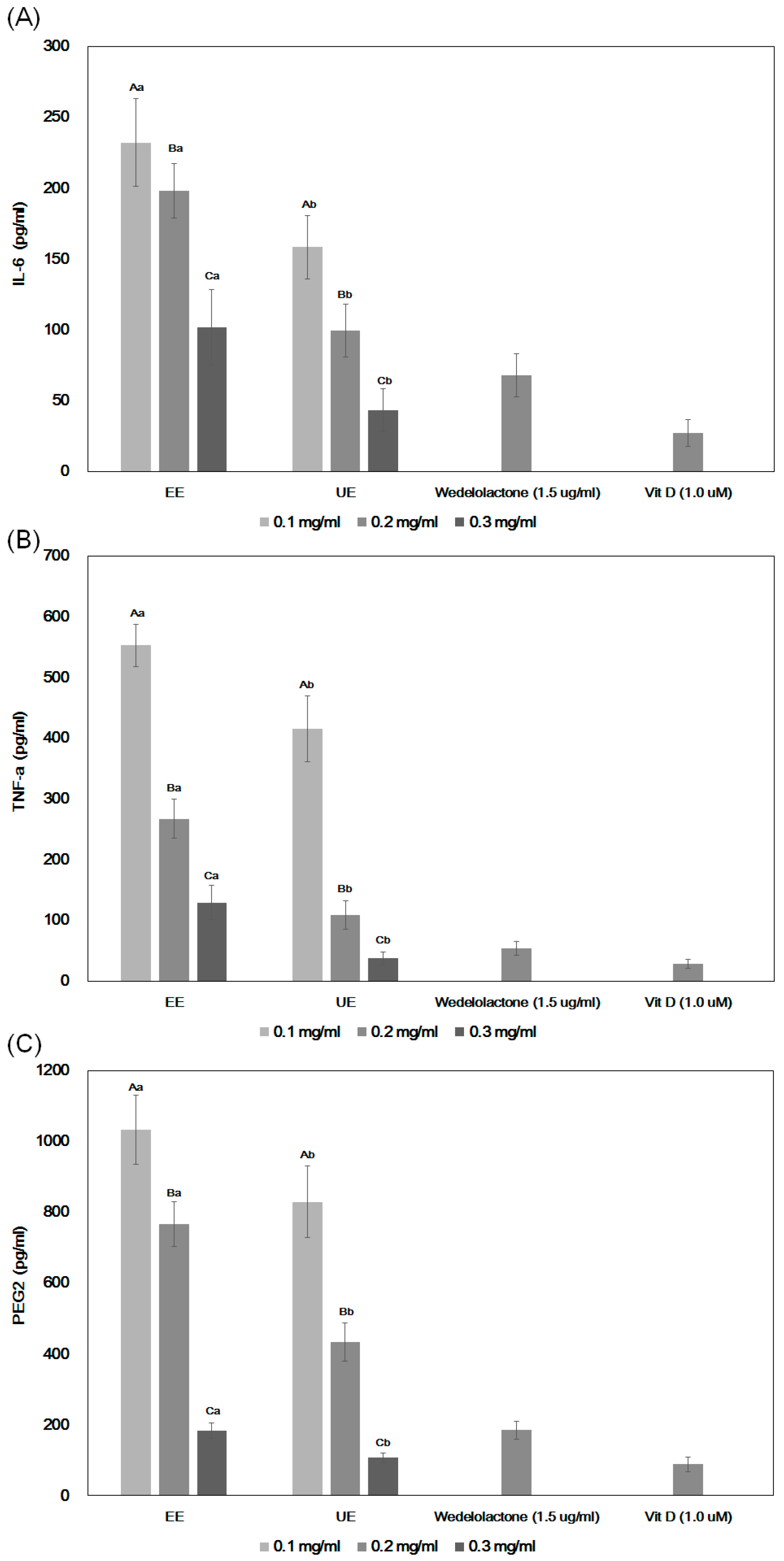

Figure 4. Comparison of (A) interleukin-6 (IL-6), (B) tumor necrosis factor-α (TNF-α), and (C) prostaglandin E2 (PGE2) production in treating three different concentrations of the E. prostrata L. extracts along with 1.0 μM of vitamin D3 and 1.5 μg/mL of wedelolactone as positive controls. Mean values ± SD from triplicate separated experiments are shown. Means with different letters (A–B) within the same sample are significantly different at p < 0.05, and means with different letters (a–b) within the same concentration are significantly different at p < 0.05. (1) EE: 70% ethanol extraction at 80 °C, (2) UE: ultrasonic extraction with 70% ethanol at 40 °C.
Figure 4. Comparison of (A) interleukin-6 (IL-6), (B) tumor necrosis factor-α (TNF-α), and (C) prostaglandin E2 (PGE2) production in treating three different concentrations of the E. prostrata L. extracts along with 1.0 μM of vitamin D3 and 1.5 μg/mL of wedelolactone as positive controls. Mean values ± SD from triplicate separated experiments are shown. Means with different letters (A–B) within the same sample are significantly different at p < 0.05, and means with different letters (a–b) within the same concentration are significantly different at p < 0.05. (1) EE: 70% ethanol extraction at 80 °C, (2) UE: ultrasonic extraction with 70% ethanol at 40 °C.
Applsci 07 01227 g004
