Next Article in Journal
Erratum: Further Investigation on Laminar Forced Convection of Nanofluid Flows in a Uniformly Heated Pipe Using Direct Numerical Simulations. Applied Sciences 2017, 6, 332
Next Article in Special Issue
Recent Advances on Surface Modification of Halloysite Nanotubes for Multifunctional Applications
Previous Article in Journal
A Static Displacement Monitoring System for VLBI Antenna Using Close-Range Photogrammetry
Previous Article in Special Issue
Improvement of Interfacial Adhesion of Incorporated Halloysite-Nanotubes in Fiber-Reinforced Epoxy-Based Composites
Article Menu
Issue 11 (November) cover image

Export Article

Open AccessArticle
Appl. Sci. 2017, 7(11), 1129;

Preparation of Robust Superhydrophobic Halloysite Clay Nanotubes via Mussel-Inspired Surface Modification

MOE Key Laboratory of Wooden Material Science and Application, College of Material Science and Technology, Beijing Forestry University, Beijing 100083, China
Authors to whom correspondence should be addressed.
Received: 20 September 2017 / Accepted: 25 October 2017 / Published: 2 November 2017
(This article belongs to the Special Issue Surface Modification of Halloysite Nanotubes)
PDF [6236 KB, uploaded 2 November 2017]

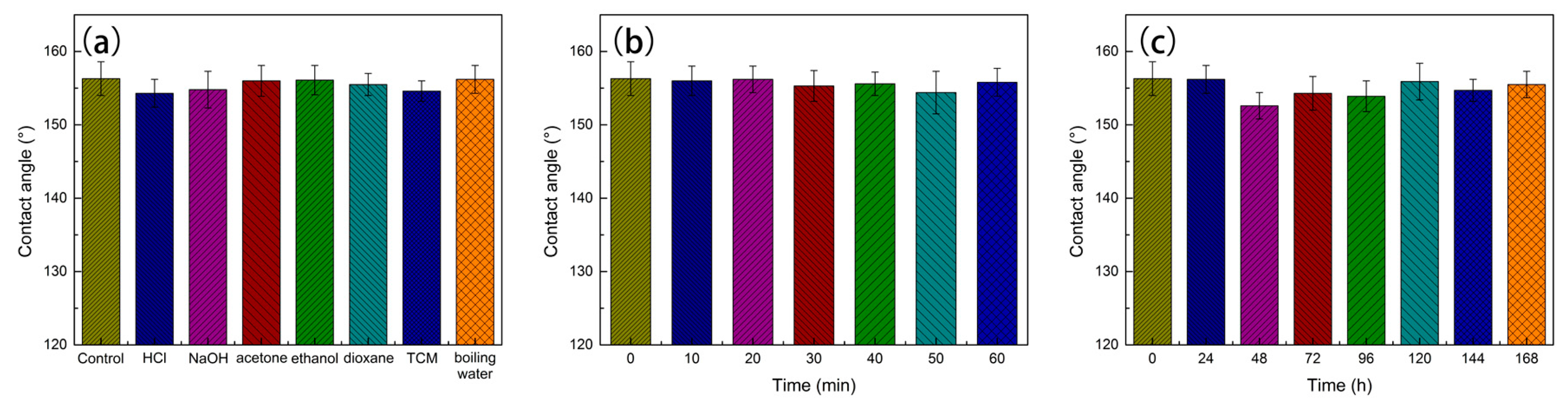

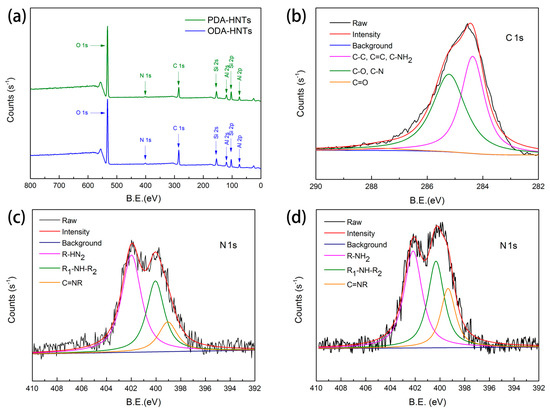

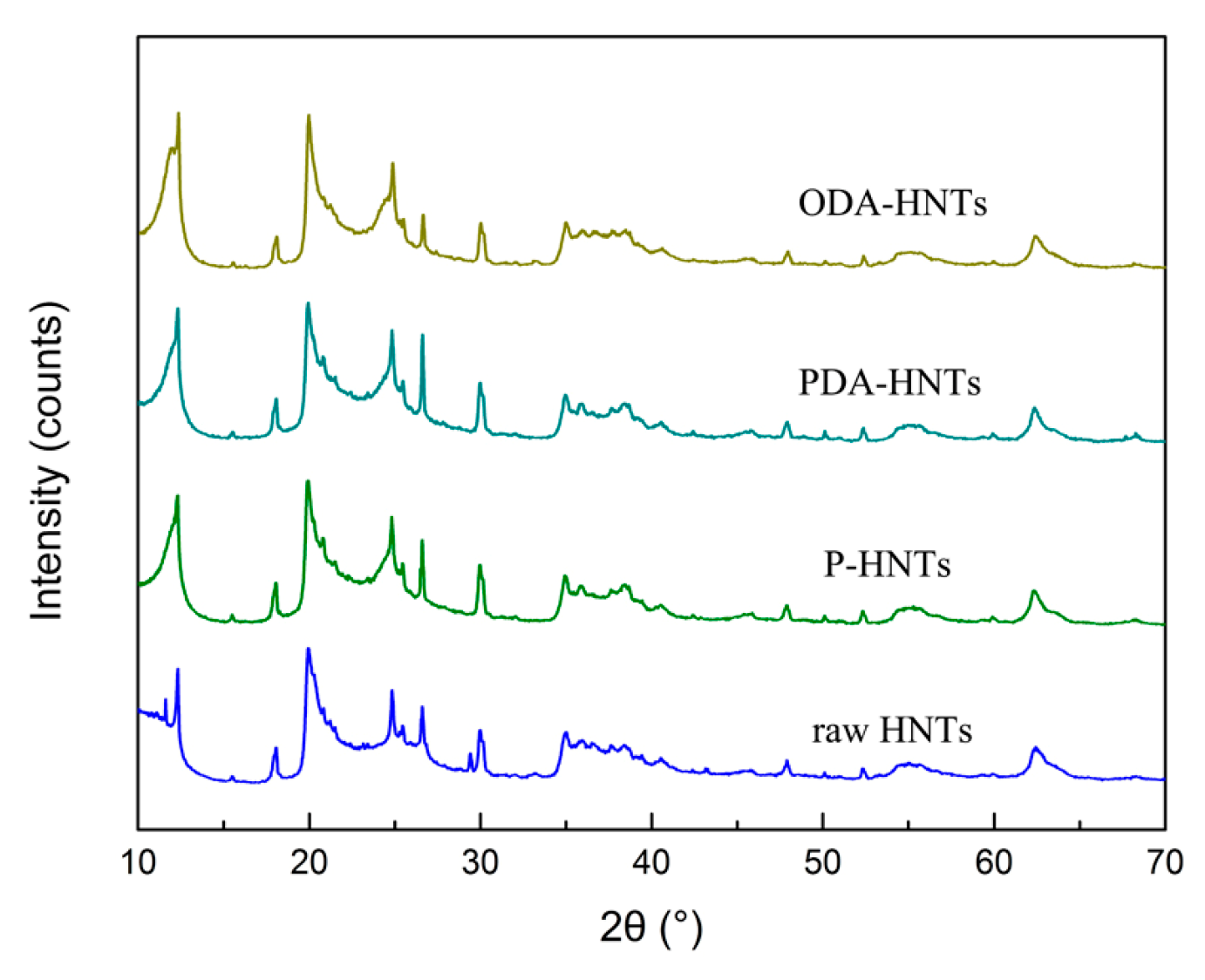

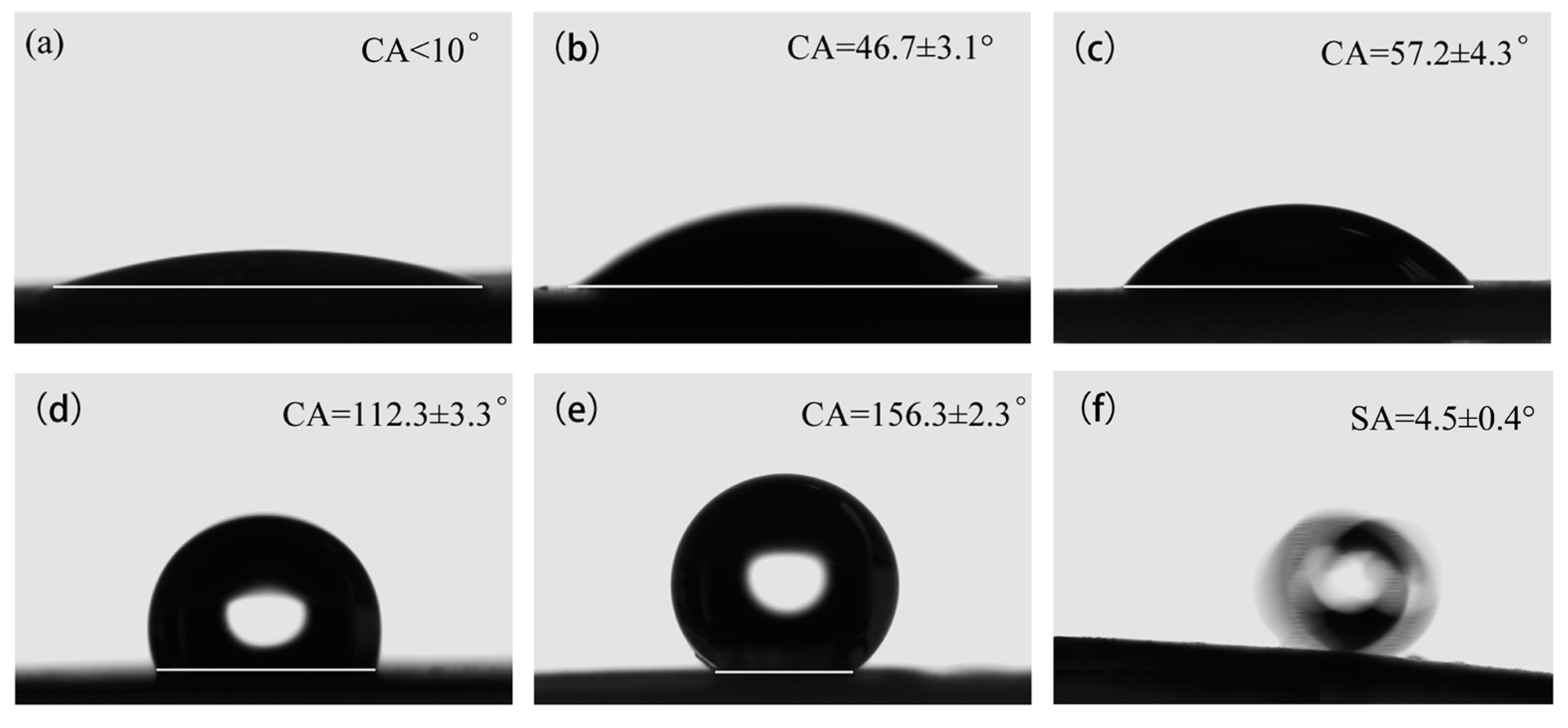

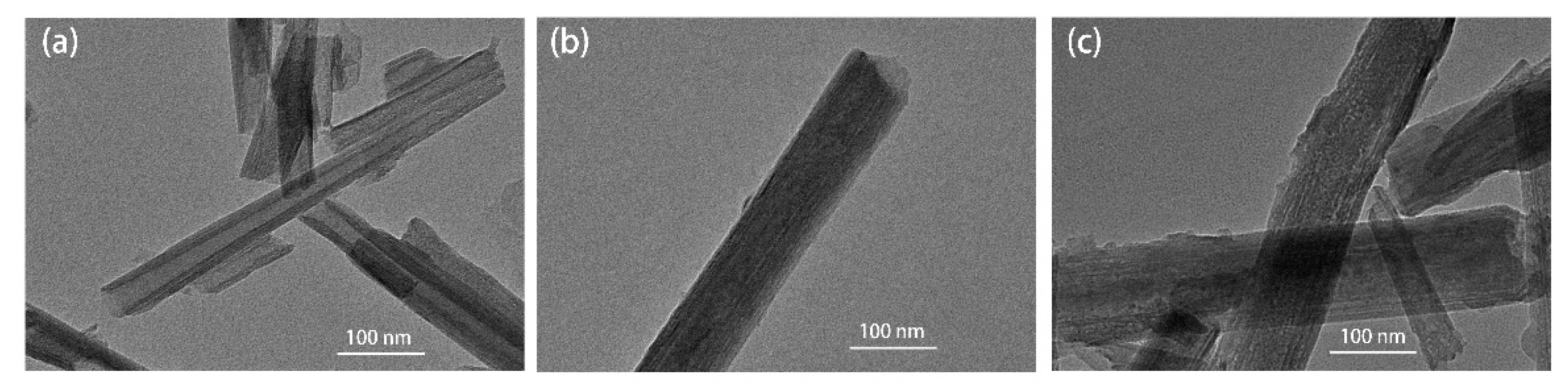

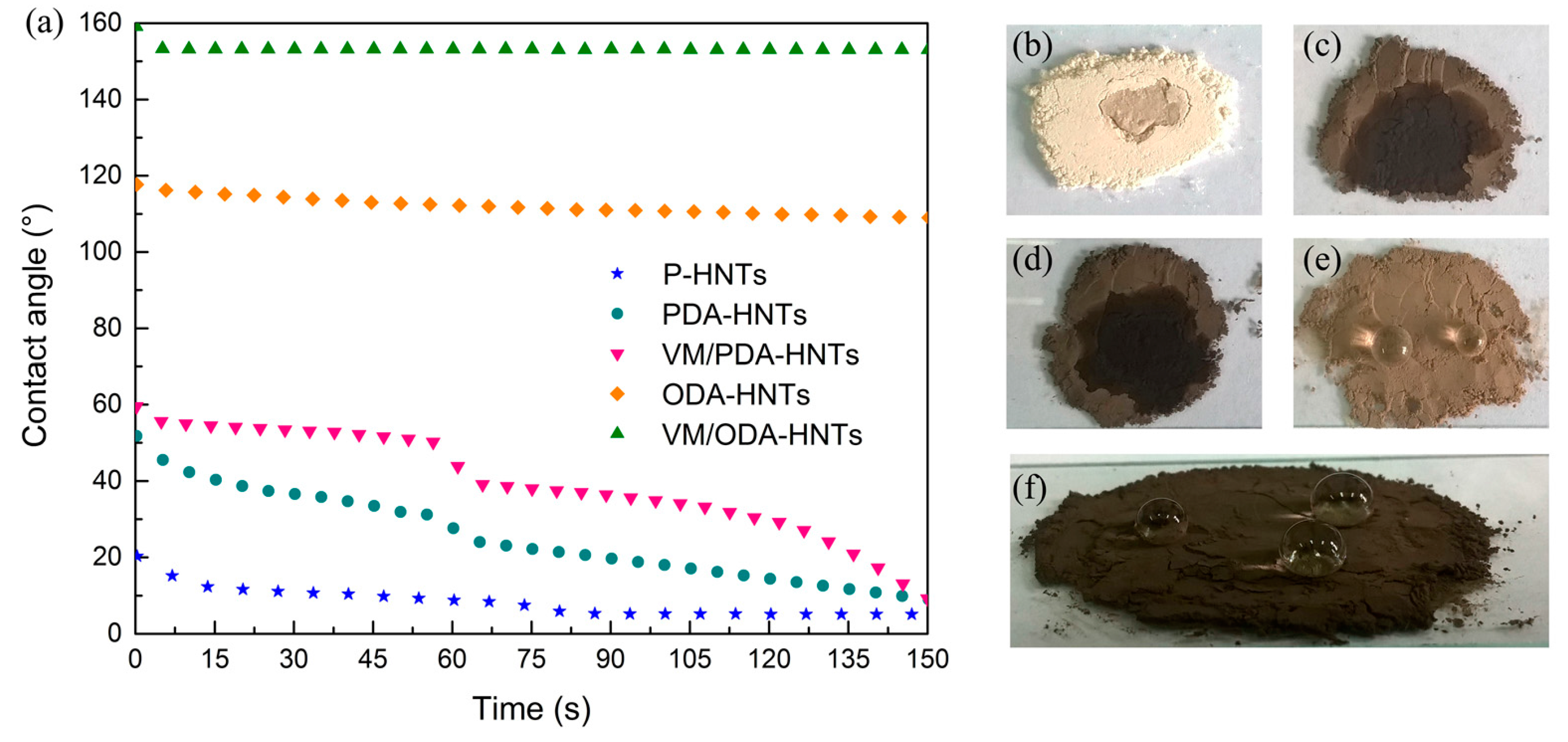

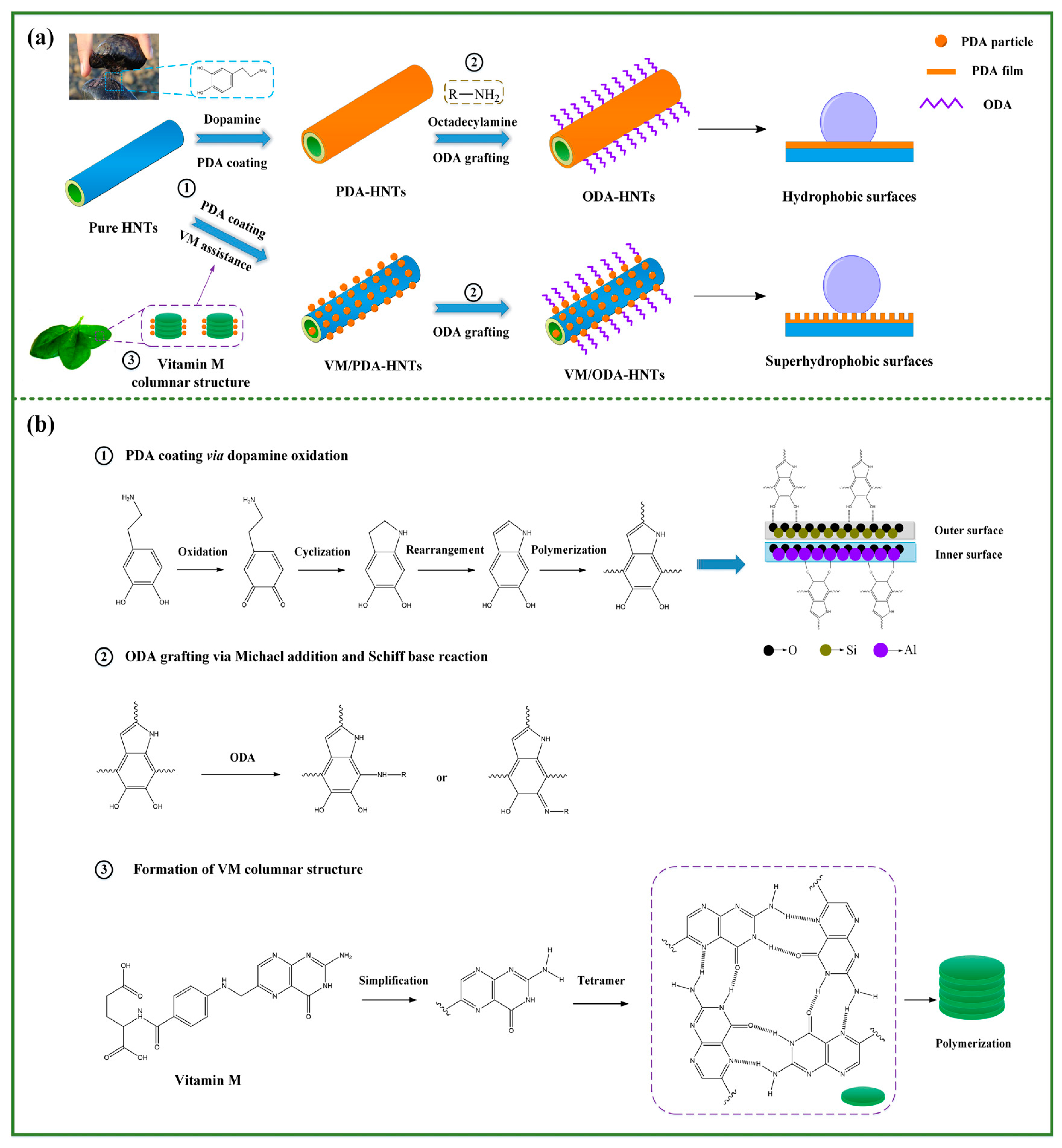

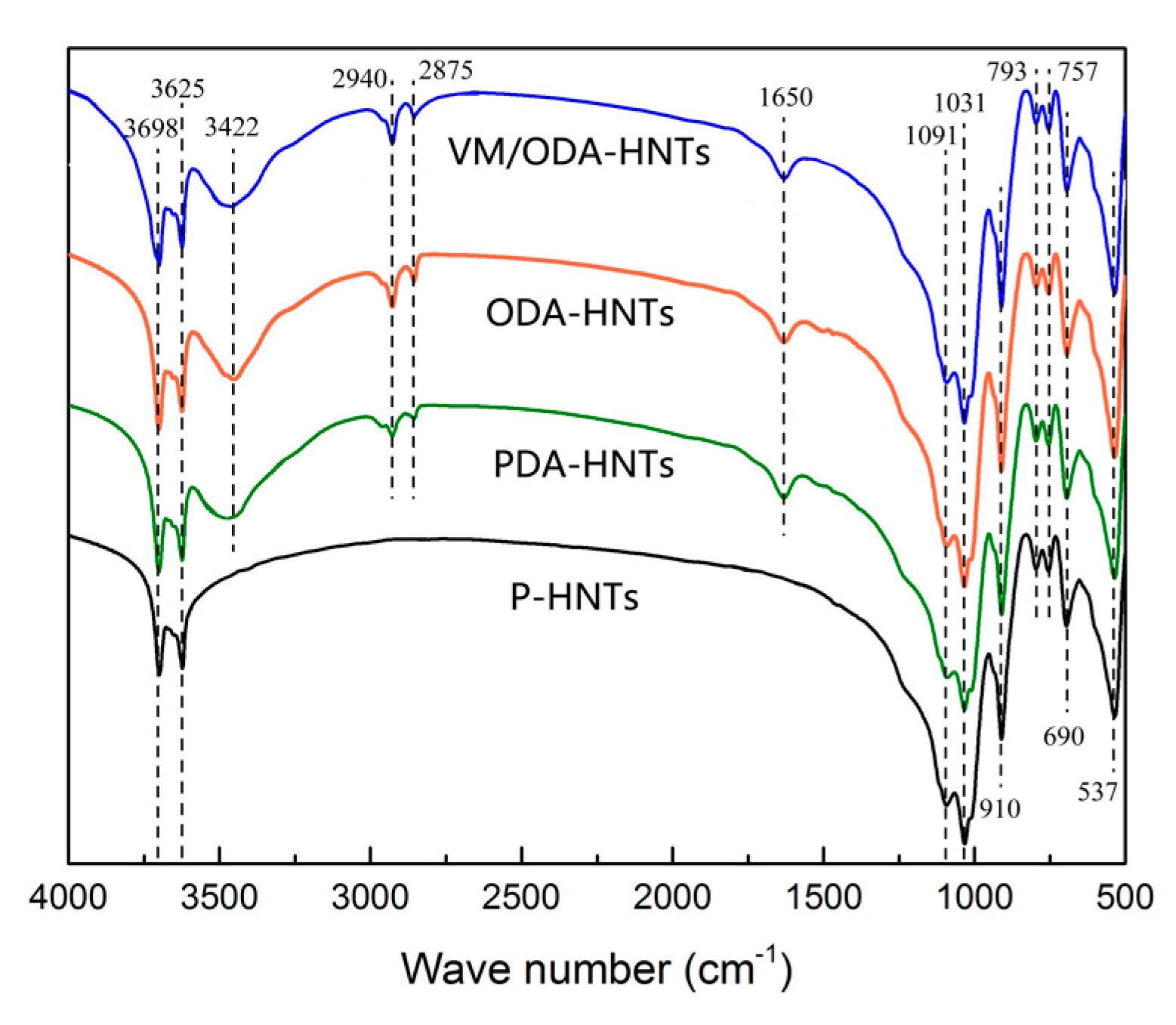

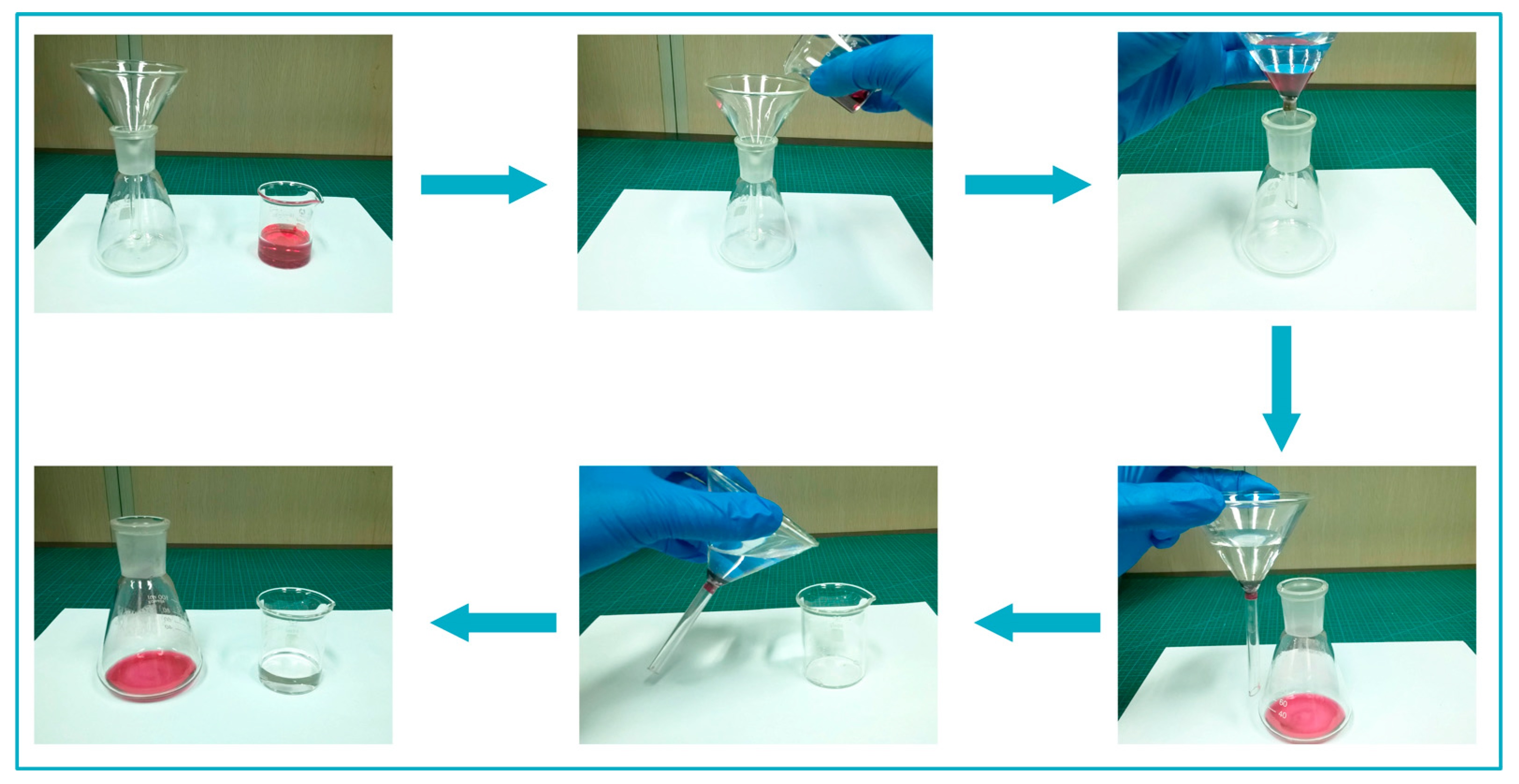

In this study, a novel and convenient bio-inspired modification strategy was used to create stable superhydrophobic structures on halloysite clay nanotubes (HNTs) surfaces. The polydopamine (PDA) nanoparticles can firmly adhere on HNTs surfaces in a mail environment of pH 8.5 via the oxidative self-polymerization of dopamine and synthesize a rough nano-layer assisted with vitamin M, which provides a catechol functional platform for the secondary reaction to graft hydrophobic long-chain alkylamine for preparation of hierarchical micro/nano structures with superhydrophobic properties. The micromorphology, crystal structure, and surface chemical composition of the resultant superhydrophobic HNTs were characterized by field emission scanning electron (FE-SEM), transmission electron microscopy (TEM), X-ray diffraction (XRD), Fourier transform infrared spectroscopy (FTIR), and X-ray photoelectron spectroscopy (XPS). The as-formed surfaces exhibited outstanding superhydrophobicity with a water contact angle (CA) of 156.3 ± 2.3°, while having little effect on the crystal structures of HNTs. Meanwhile, the resultant HNTs also showed robust stability that can conquer various harsh conditions including strong acidic/alkaline solutions, organic solvents, water boiling, ultrasonic cleaning, and outdoor solar radiation. In addition, the novel HNTs exhibited excellent packaged capabilities of phase change materials (PCMs) for practical application in thermal energy storage, which improved the mass fractions by 22.94% for stearic acid and showed good recyclability. These HNTs also exhibited good oil/water separation ability. Consequently, due to the superior merits of high efficiency, easy operation, and non-toxicity, this bionic surface modification approach may make HNTs have great potentials for extensive applications. View Full-Text
Keywords: halloysite; nanotubes; mussel-inspiration; polydopamine; superhydrophobic surface modification halloysite; nanotubes; mussel-inspiration; polydopamine; superhydrophobic surface modification

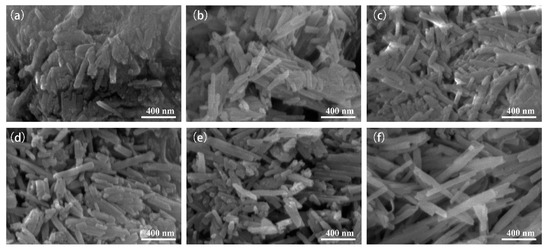

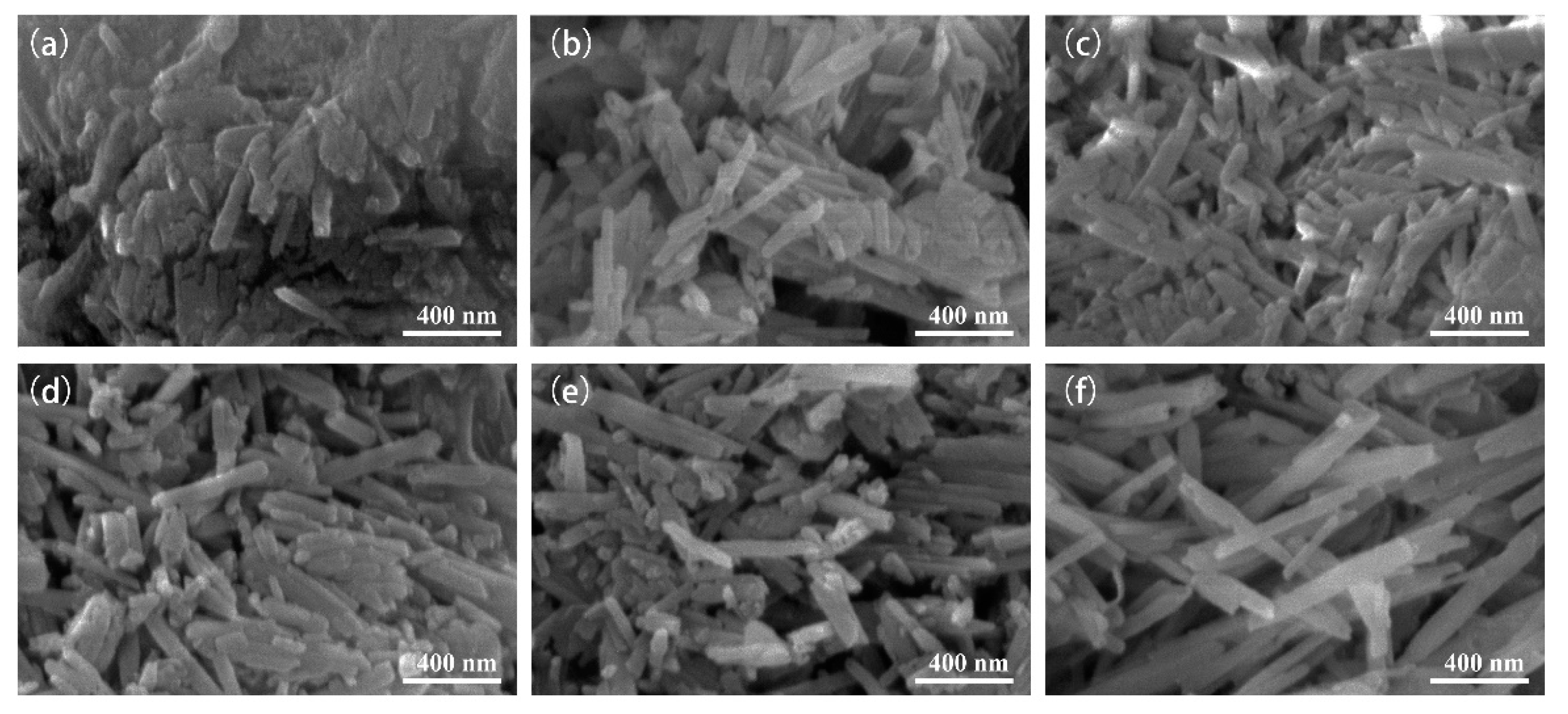

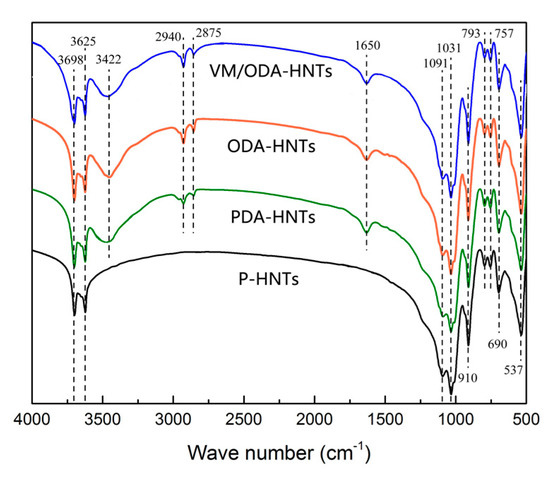

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Supplementary material


Share & Cite This Article

MDPI and ACS Style

Meng, Y.; Wang, M.; Tang, M.; Hong, G.; Gao, J.; Chen, Y. Preparation of Robust Superhydrophobic Halloysite Clay Nanotubes via Mussel-Inspired Surface Modification. Appl. Sci. 2017, 7, 1129.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Appl. Sci. EISSN 2076-3417 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
