Stable Variable Fixation for Accelerated Unit Commitment via Graph Neural Network and Linear Programming Hybrid Learning
Abstract
:1. Introduction
1.1. Acceleration via LP Relaxation
1.2. Acceleration via Machine Learning
1.3. Graph Neural Networks for MIP and UCP
1.4. Contributions
2. Preliminaries
2.1. Three-Binary UCP Formulations
- 1.
- Objective Function:The objective function represents the total cost of the power system, which is shown as
- 2.
- Startup cost:The startup cost can be expressed as an MIP formulation in a 3-bin formulation, with and . The cost is determined by comparing the time since the unit was last shut down to a threshold representing the cold-start duration. It is formulated as
- 3.
- Unit generation limits:
- 4.
- Power balance constraint:
- 5.
- System spinning reserve requirement:
- 6.
- Ramp rate limits:
- 7.
- Minimum up/downtime constraints:
- 8.
- Initial status of units:
- 9.
- State constraints:State constraints were introduced in the 3-bin formulation to link the startup, shutdown, and state variables:

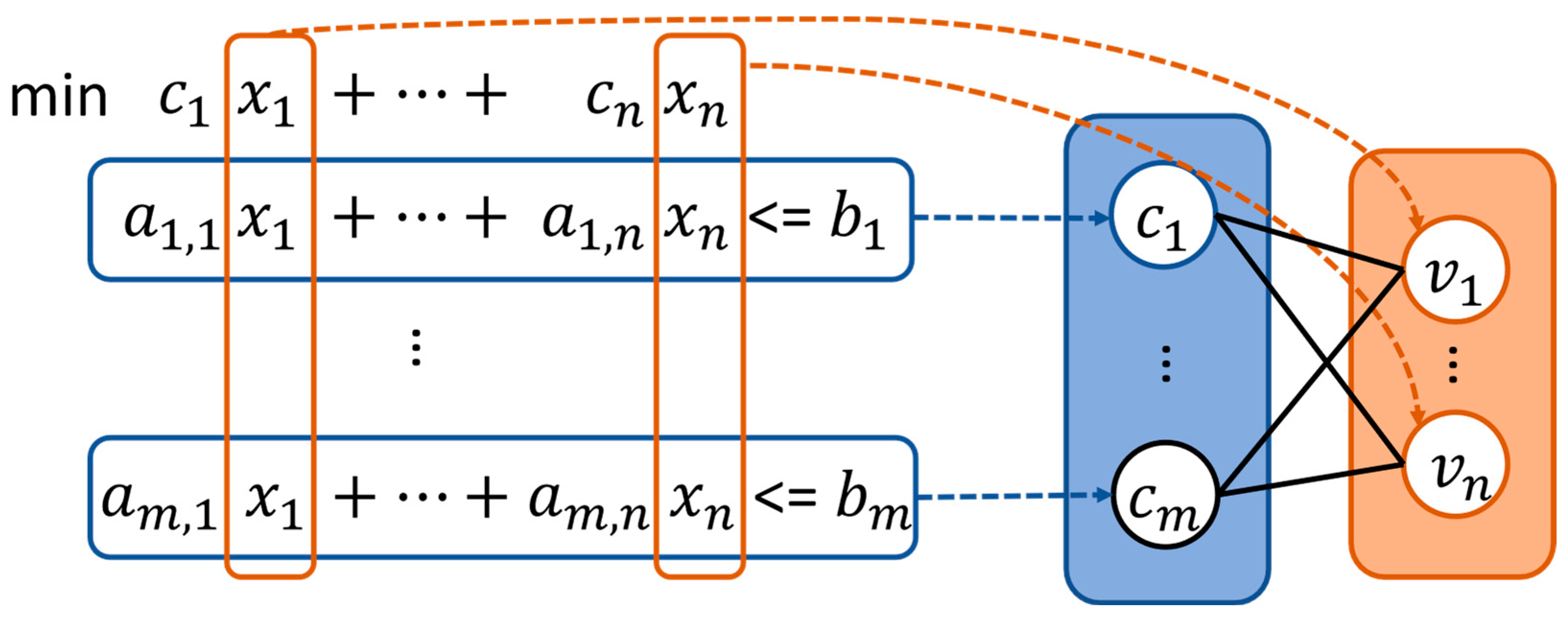

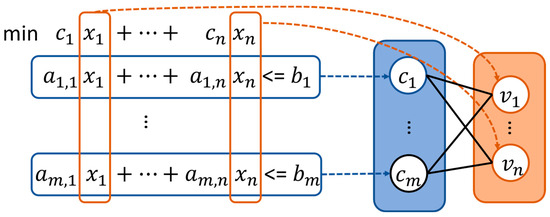

2.2. Bipartite Graph Representation for UCPs
- Variables: , where each variable embedding corresponds to a decision variable , partitioned as binary variables (e.g., commitment, startup, and shutdown variables) and continuous variables (e.g., power output and startup cost).
- Constraints: , where each constraint embedding corresponds to the -th constraint, e.g., operational rules formalized in Equations (2)–(12).
- Edges: , which encodes the relationship where variable appears in constraint with a nonzero coefficient and has an edge embedding .
2.3. Stable Binary Variables

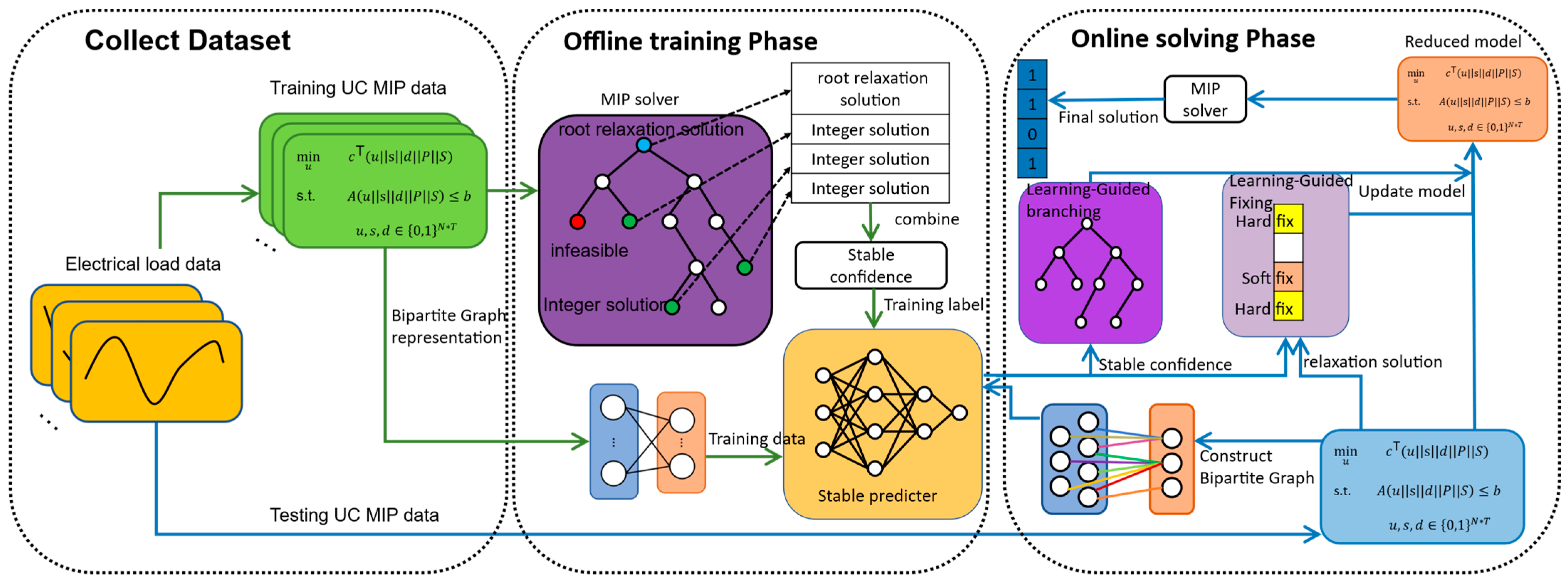

3. Framework

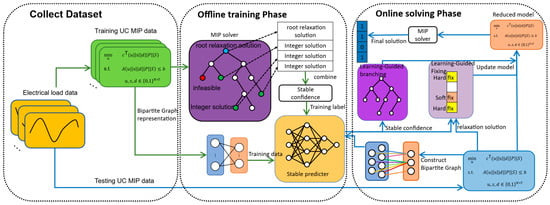

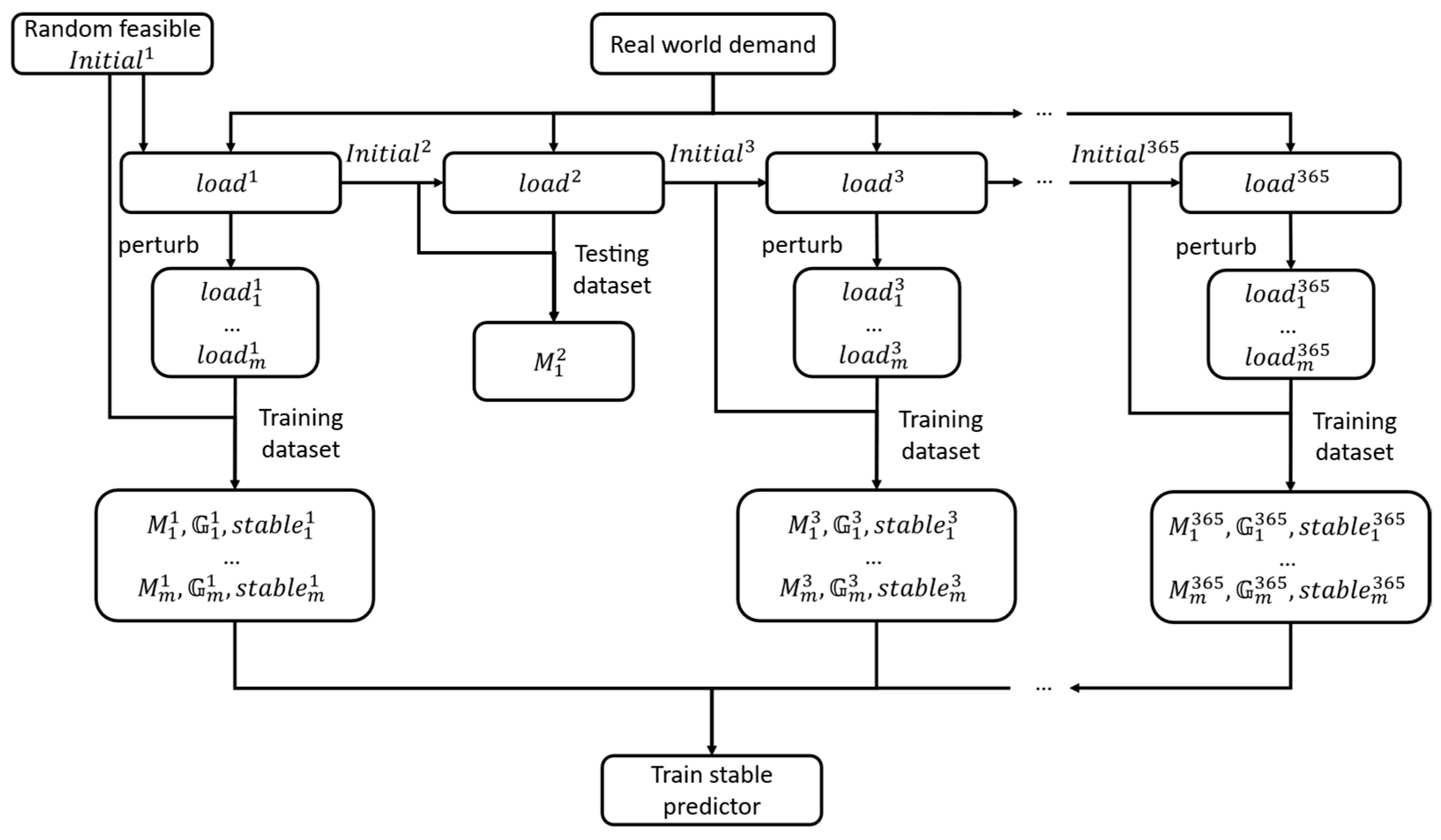

3.1. Dataset Collection

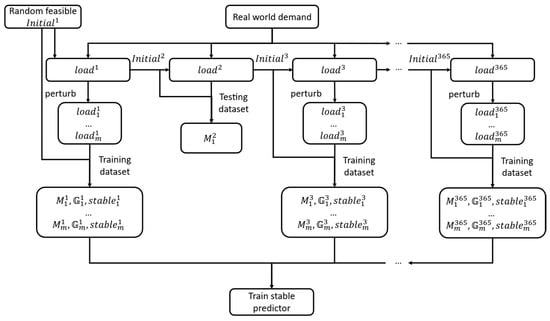

3.2. Offline Phase

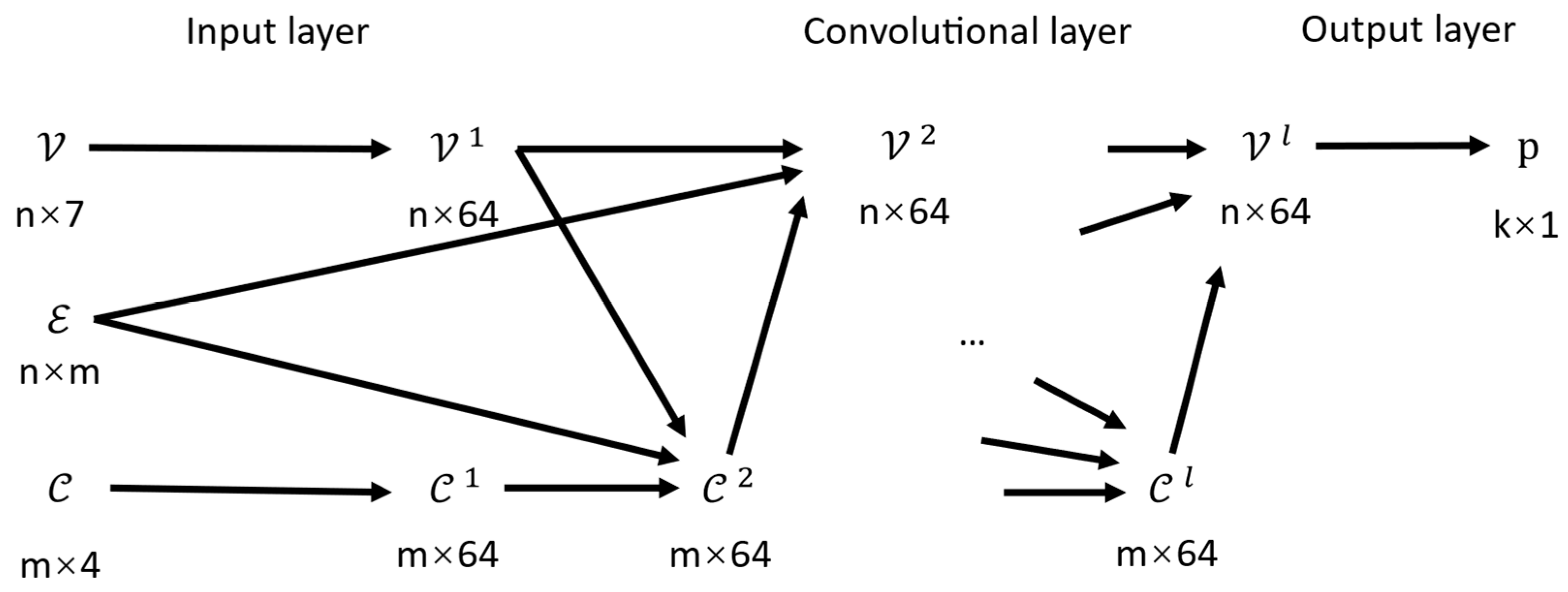

- Input layer: This layer, consisting of a regularization layer, fully connected layers, and activation functions, inputs the embedding , , where , will be embedded into a higher-dimensional latent vector , .
- Convolutional layer: The information of neighboring nodes and is transitioned after a multilayer convolutional layer and takes the following form:
- Output layer: This layer consists of fully connected layers and a sigmoid activation function, which maps the output to a scalar in the range [0, 1], representing the stability confidence of each variable and . Depending on the task setting, we can selectively retain the stability predictions of specific types of binary variables—for example, only the commitment variables, or all binary variables. The remaining variables are discarded from further consideration.
3.3. Online Phase
3.3.1. Learning-Guided Fixing
- , , and represent commitment variables, startup variables, and shutdown variables of unit in time ;
- and denote the set of units and time periods, respectively.
- represents the stable predictor output (stability confidence score) for the -th index and the variable type ;
- represents the LP relaxation value for the -th index and the variable type ;
- is the stability threshold, such that variables with are considered stable;
- is the integrality tolerance threshold, ensuring that is sufficiently close to a binary value.
- Hard fix: is denoted as the set of indices that are hard-fixed. These variables are forced into a fixed state, ensuring that the solution adheres to the rounded LP relaxation value for each time step. We define as follows:
- Soft fix: is denoted as the set of indices that are soft-fixed, . For variables , we initialize the variable to the rounded LP relaxation value but allow the solver to adjust the value during the optimization process.
3.3.2. Learning-Guided Branching
4. Numerical Experiments
4.1. Case Settings
- 1.
- 2.
- Demand setting: There are 365 loads from the first day of the year to the 365th day of the year, which are findings that come from [28]. In order to match the loads to the target systems, the loads for the 365 days, , are mapped to the capacity of the corresponding systems, . Specifically, for each system, the upper () and lower () bounds of the target load mapping interval are determined based on the system’s maximum generation capacity scaled by factors and :A simple rule is applied for dataset partitioning: days ending with the digit seven are assigned to the validation set, those ending with two are assigned to the testing set, and the remaining days are assigned to the training set. And each load will be perturbed to expand the dataset.
- 3.
- Benchmark setting: The latest Gurobi solver 11.0 was used with the following settings: threads set to 1 and MIPGap set to 1 × 10−6. All other settings were kept at their default values.

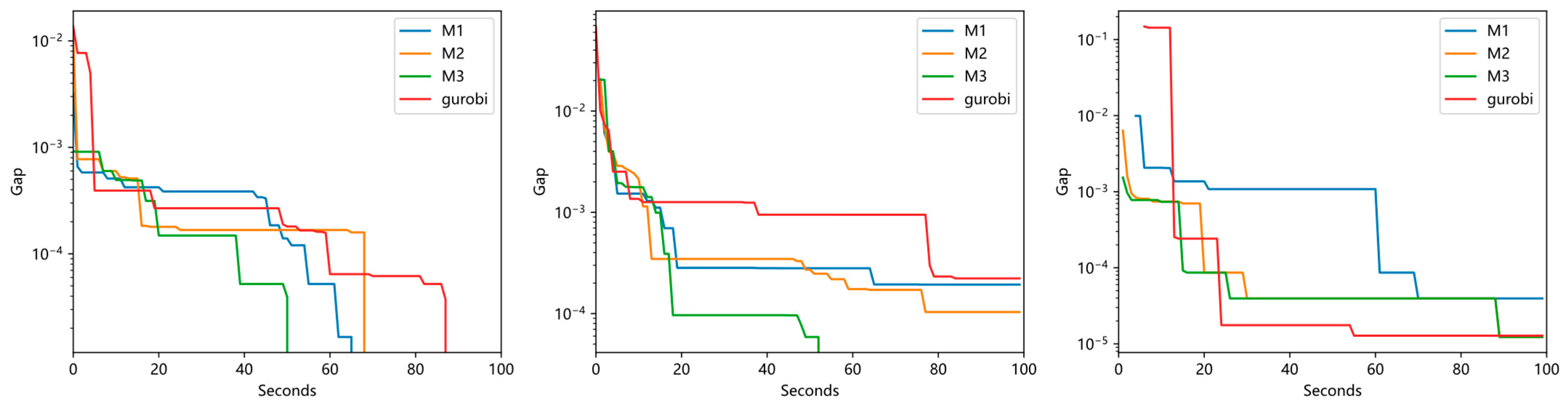

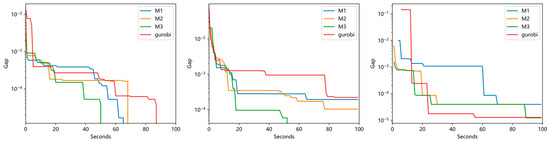

4.2. Accuracy Comparison for Different Binary Variables

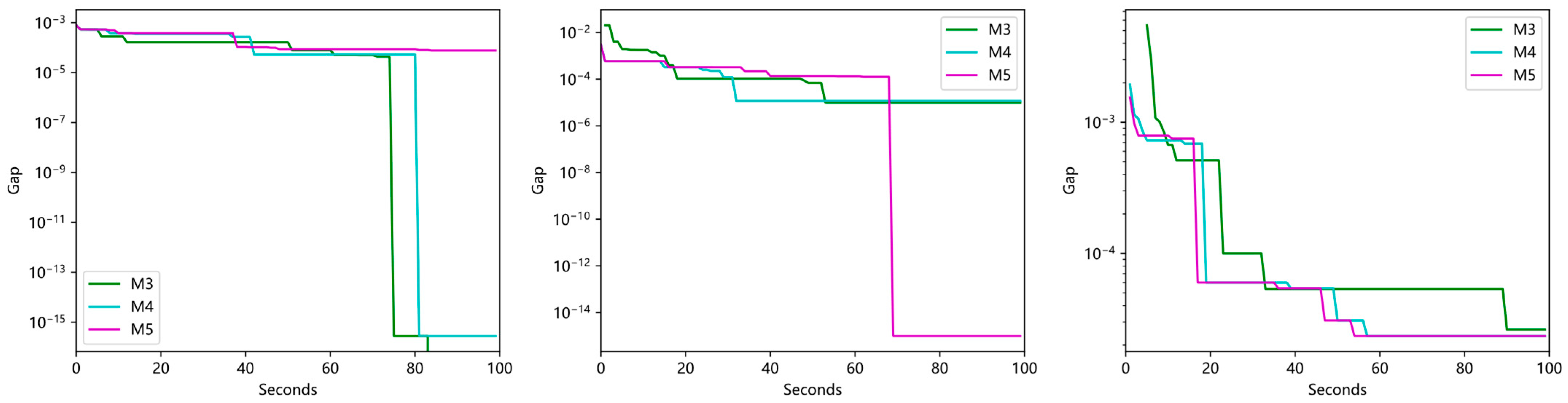

4.3. Ablation Study

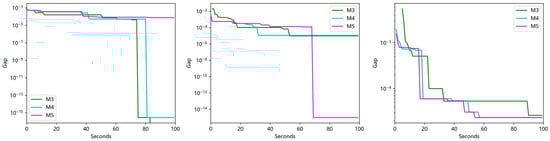

5. Conclusions
- 1.
- Variable Stability Classification: We design a variable fixation strategy that integrates GNN-predicted stability and LP root relaxation to guide the hard and soft fixation of binary variables. Stable variables are fixed to shrink the search space, while temporal flexibility is preserved for variables with uncertain stability. This layered fixation mechanism significantly reduces suboptimality, as confirmed by ablation studies across 50-, 100-, and 1080-unit systems.
- 2.
- Utilization of Multi-Type Binary Variables: Instead of focusing solely on commitment variables, we incorporate startup and shutdown variables into both the MIP formulation and learning framework. These auxiliary variables enhance the stability inference of commitment variables to enable safer and more accurate hard fixation, thereby reducing suboptimality and introducing additional stable candidates for soft fixation, which accelerates the solution process by further reducing the search space. Experiments show that this joint modeling approach consistently improves primal gaps and solving times over single-variable baselines, particularly in large-scale settings.
- 3.
- Stability-Aware Branching Prioritization: We leverage predicted variable stability to guide the branching process in branch-and-bound trajectories. By assigning a higher branching priority to unstable variables, the solver is able to explore critical decisions earlier, tighten bounds faster, and accelerate convergence. This strategy achieved faster gap reduction and earlier convergence.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
Nomenclature
Indices: | |
g | Index of unit |
t | Index of time period |
Sets: | |
Set of stable binary variables | |
Set of hard fix binary variables | |
Set of soft fix binary variables | |
Constants: | |
Total number of units | |
Total number of time periods | |
Coefficients of the linear production cost function of unit | |
Hot startup cost of units | |
Cold startup cost of units | |
Minimum uptime of units | |
Minimum downtime of units | |
Cold startup time of units | |
Maximum power output of units | |
Minimum power output of units | |
System load demand in period | |
Spinning reserve requirement in period | |
Ramp-up limit of unit | |
Ramp-down limit of unit | |
Startup ramp limit of unit | |
Shutdown ramp limit of unit | |
Initial commitment state of unit | |
Number of periods unit has been online(+) or offline(−) prior to the first period of the time span (end of period 0) | |
Binary variables: | |
Commitment status of unit in period , equal to 1 if unit is online in period and 0 otherwise | |
Startup status of unit in period , equal to 1 if unit starts up in period and 0 otherwise | |
Shutdown status of unit in period , equal to 1 if unit shuts down in period and 0 otherwise | |
Continuous variables: | |
Power output of unit in period | |
Startup cost of unit in period | |
Binary variable states: | |
LP relaxation solution of binary variables | |
Rounded LP relaxation solution of binary variables | |
Stable confidence of binary variables | |
GNN output of binary variables | |
All binary variables include commitment, startup, and shutdown status | |
Thresholds: | |
Stability threshold | |
Integrality threshold | |
Temporal flexibility threshold |
