Evaluation of Cloud Mask Performance of KOMPSAT-3 Top-of-Atmosphere Reflectance Incorporating Deeplabv3+ with Resnet 101 Model
Abstract
:1. Introduction
2. Material and Methods

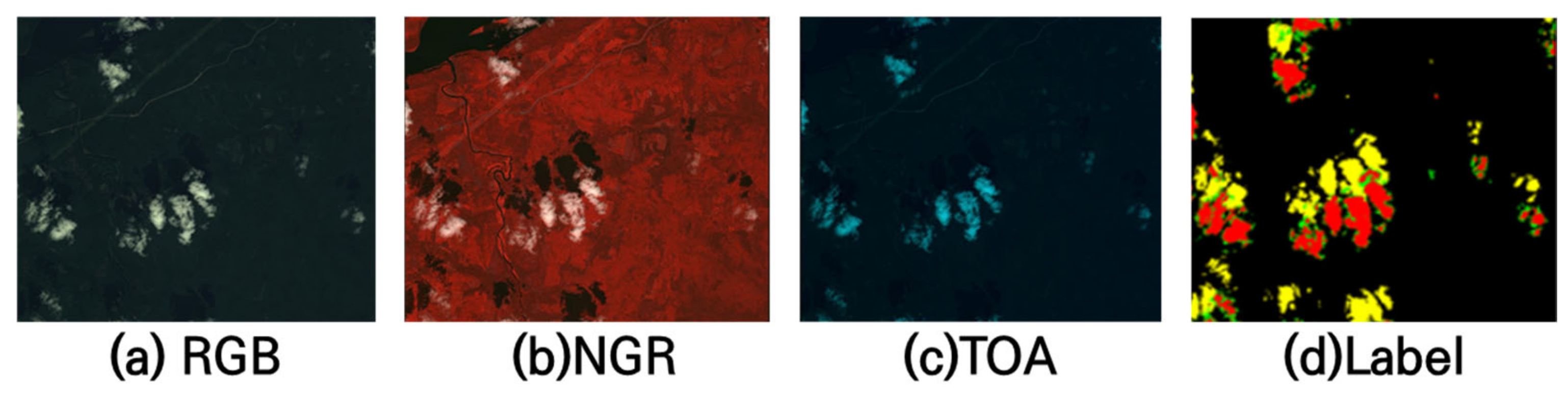

2.1. Overview of KOMPSAT-3 and KOMPSAT-3A Satellite Datasets

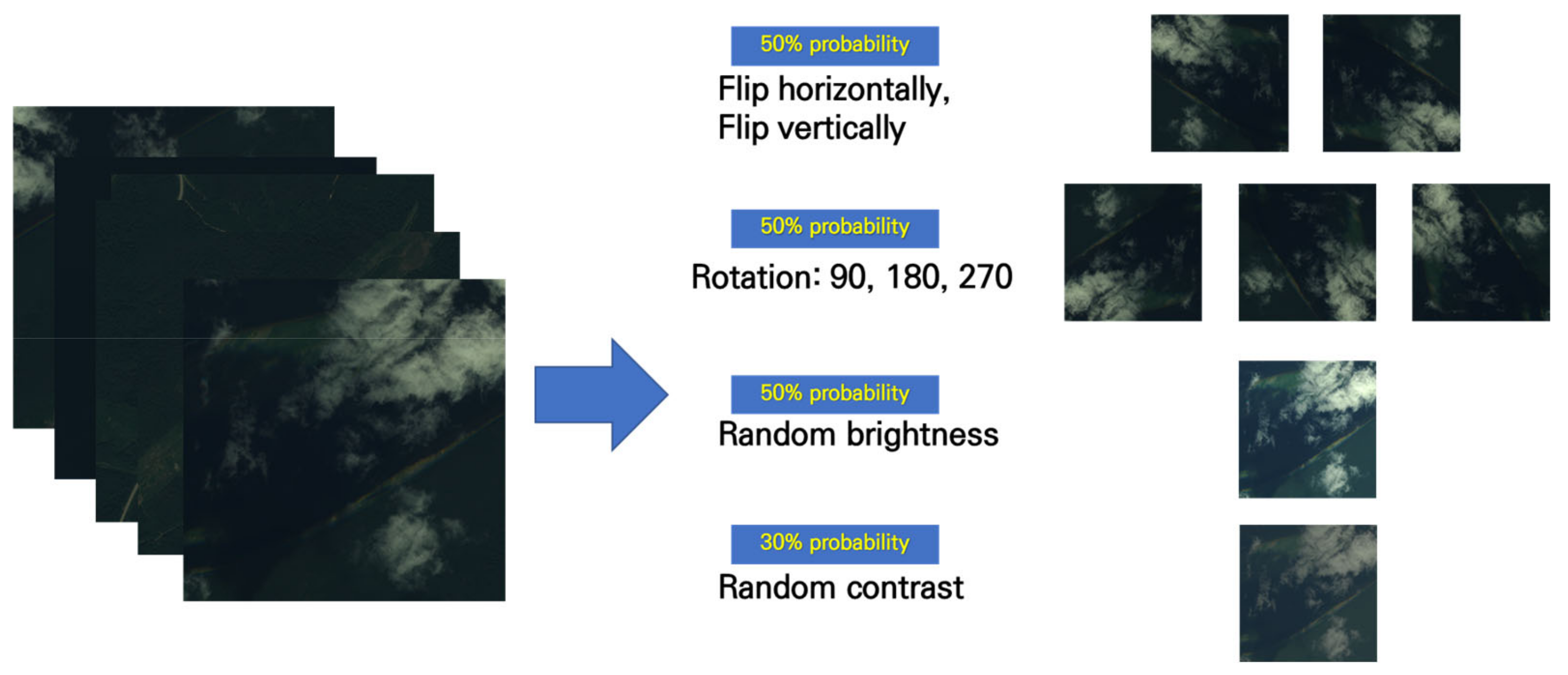

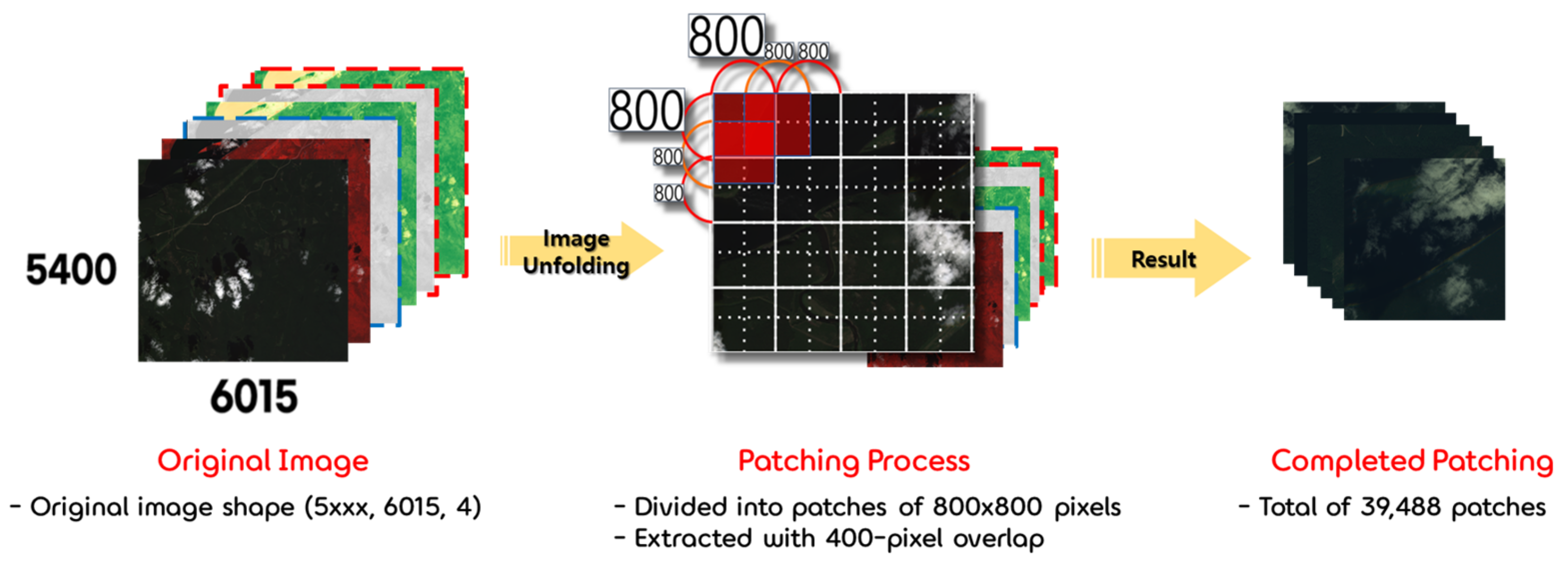

2.2. KOMPSAT-3 and KOMPSAT-3A Dataset Construction Process

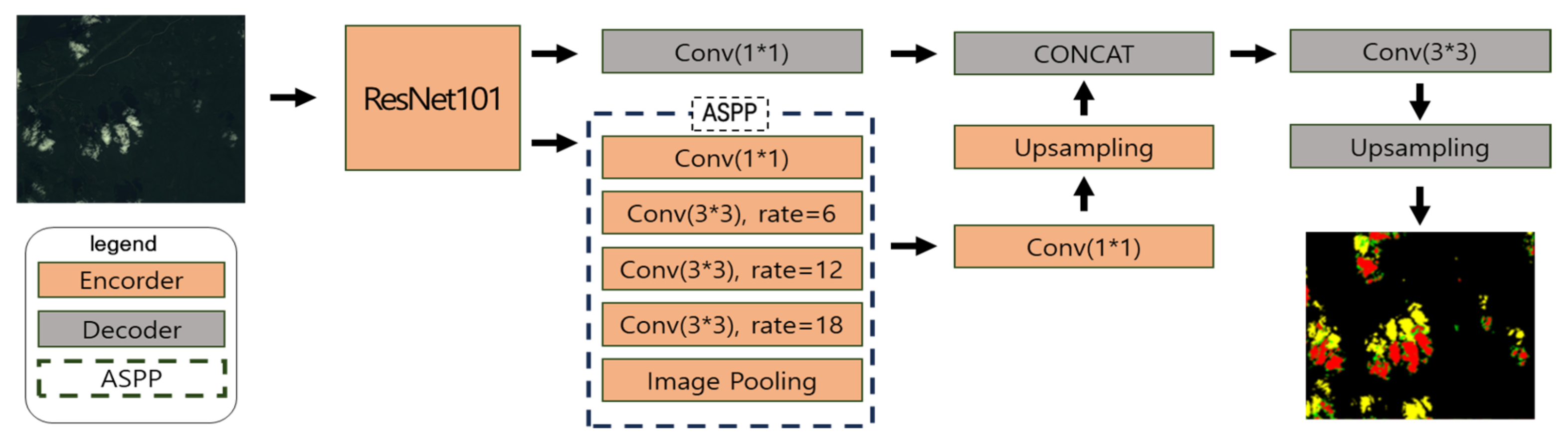

2.3. The Network Structure of the Deep Learning Model
- : the output value at coordinate after applying atrous convolution;
- : the pixel value in the input feature map, sampled at intervals defined by the atrous rate
- : the weights of the convolutional filter (kernel);
- : the atrous rate, which determines the spacing between the sampled pixels;
- : the indices of the kernel dimensions.
2.4. Specifications of Hyperparameters
- GT: ground truth from labeled image;
- Pred: predicted cloud detection image from model.
2.5. The Performance Metrics of Cloud Detection
3. Results

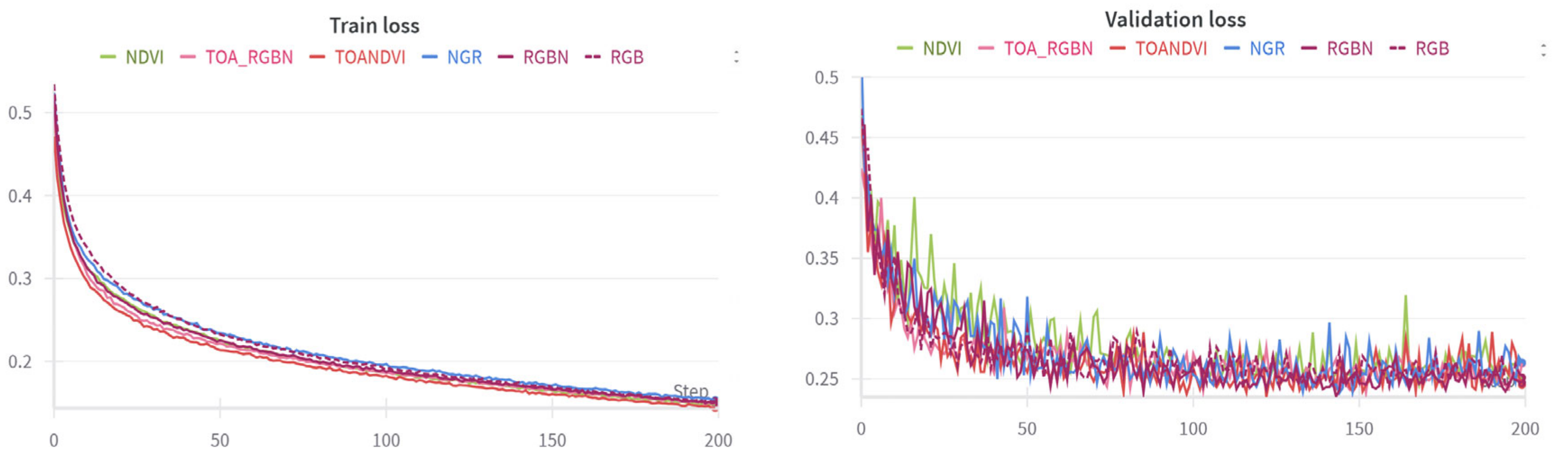

3.1. Training and Validation Loss Analysis for Epochs

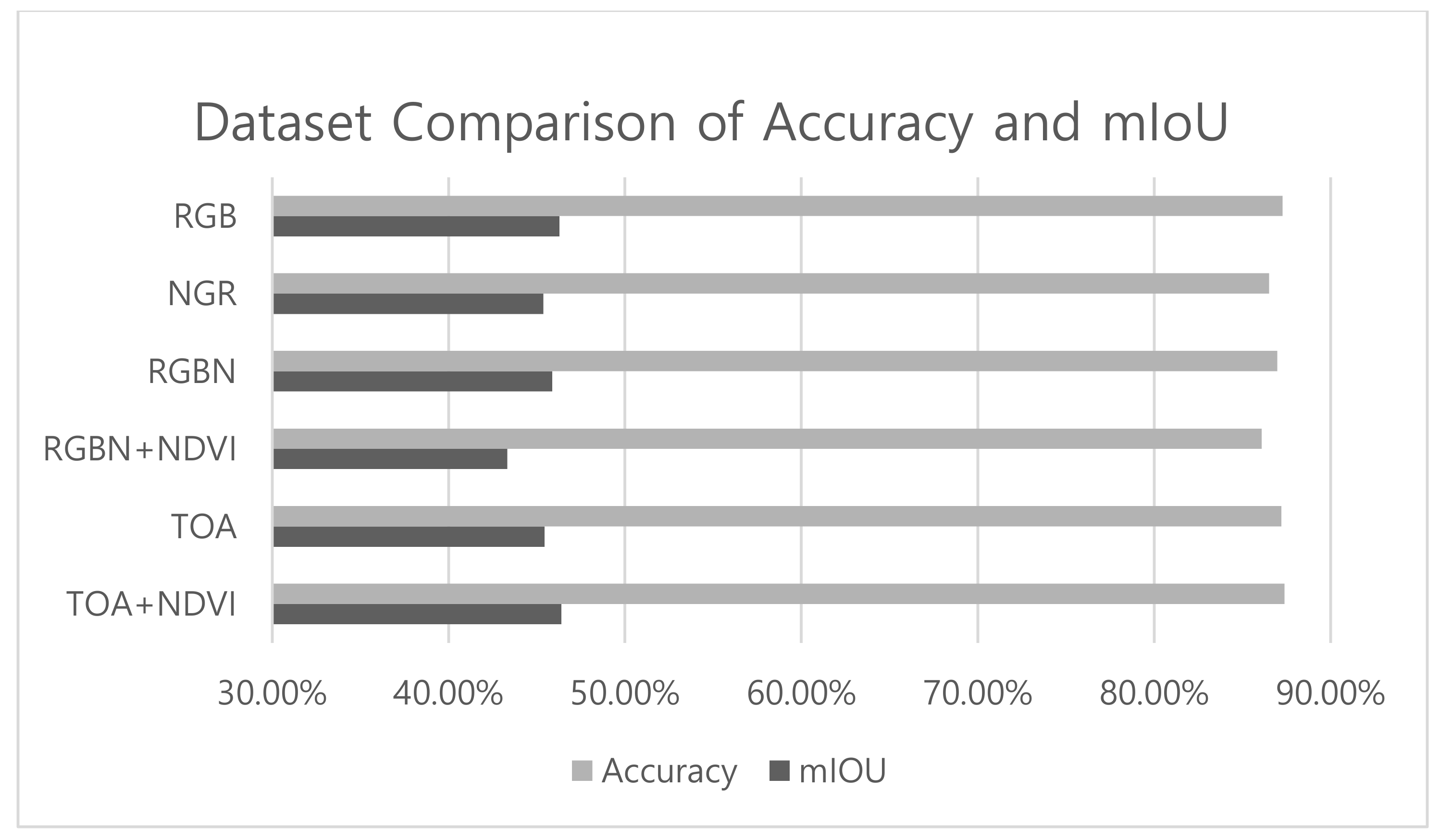

3.2. Evaluation and Analysis of the Generalization Performance of Datasets

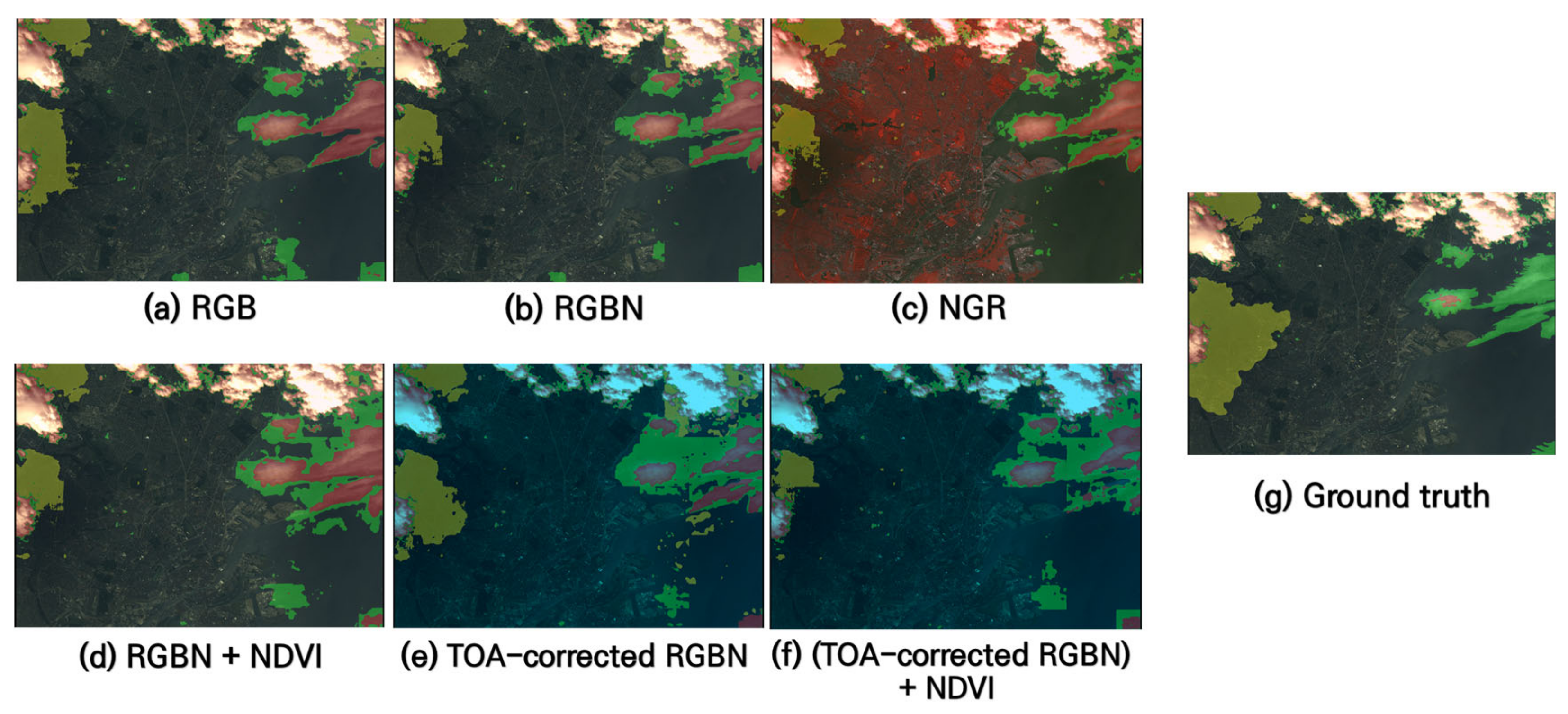

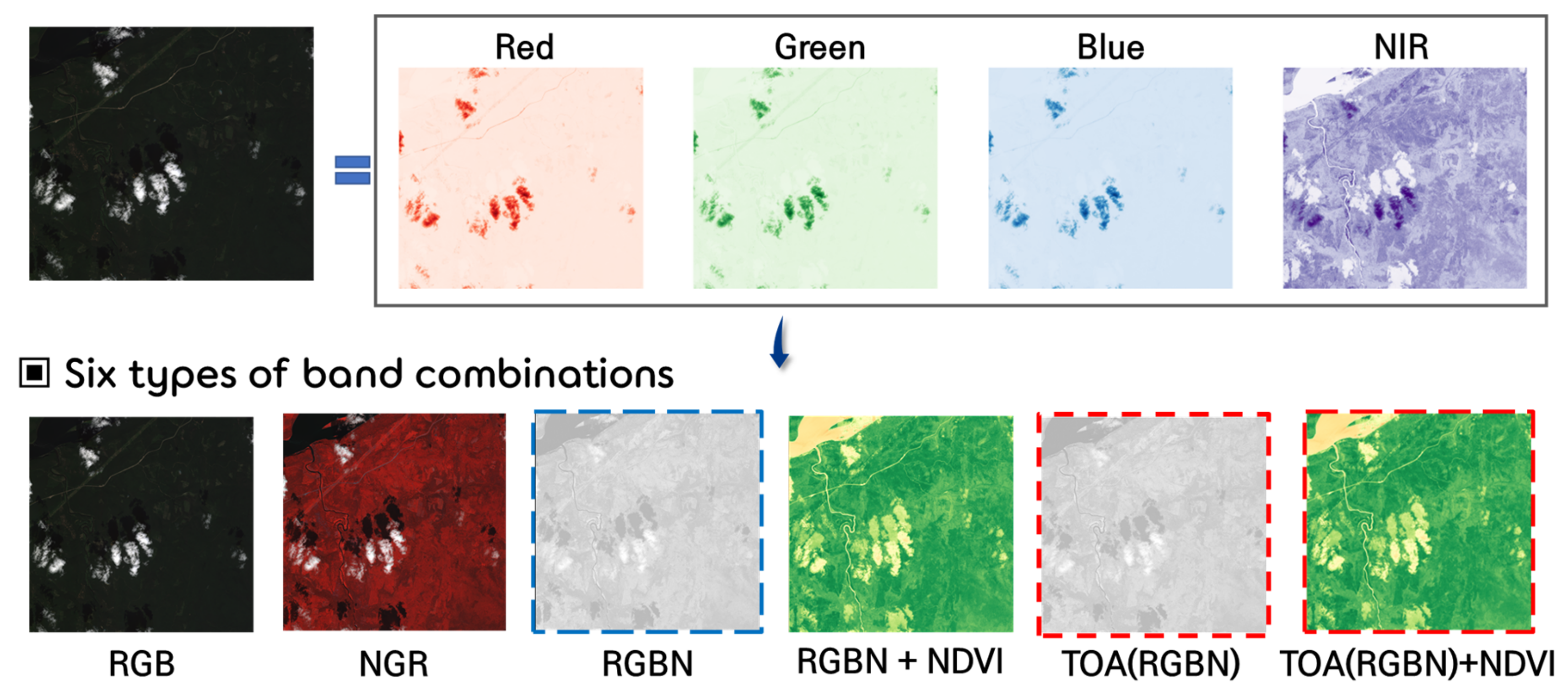

3.3. Evaluation by Channel Configuration
4. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Kim, H.; Yeom, J.M.; Shin, D.; Choi, S.; Han, K.S.; Roujean, J.L. An assessment of thin cloud detection by applying bidirectional reflectance distribution function model-based background surface reflectance using Geostationary Ocean Color Imager (GOCI): A case study for South Korea. J. Geophys. Res. Atmos. 2017, 122, 8153–8172. [Google Scholar] [CrossRef]
- Mei, L.L.; Vountas, M.; Gómez-Chova, L.; Rozanov, V.; Jäger, M.; Lotz, W.; Burrows, J.P.; Hollmann, R. A cloud masking algorithm for the XBAER aerosol retrieval using MERIS data. Remote Sens. Environ. 2017, 197, 141–160. [Google Scholar] [CrossRef]
- Greco, S.; Infusino, M.; De Donato, C.; Coluzzi, R.; Imbrenda, V.; Lanfredi, M.; Simoniello, T.; Scalercio, S. Late spring frost in Mediterranean beech forests: Extended crown dieback and short-term effects on moth communities. Forests 2018, 9, 388. [Google Scholar] [CrossRef]
- Song, X.; Yang, C.; Wu, M.; Zhao, C.; Yang, G.; Hoffmann, W.; Huang, W. Evaluation of Sentinel-2A satellite imagery for mapping cotton root rot. Remote Sens. 2017, 9, 906. [Google Scholar] [CrossRef]
- Dörnhöfer, K.; Göritz, A.; Gege, P.; Pflug, B.; Oppelt, N. Water constituents and water depth retrieval from Sentinel-2A—A first evaluation in an oligotrophic lake. Remote Sens. 2016, 8, 941. [Google Scholar] [CrossRef]
- Zhu, Z.; Woodcock, C.E. Object-based cloud and cloud shadow detection in Landsat imagery. Remote Sens. Environ. 2012, 118, 83–94. [Google Scholar] [CrossRef]
- Inman, R.H.; Pedro, H.T.C.; Coimbra, C.F.M. Solar forecasting methods for renewable energy integration. Prog. Energy Combust. Sci. 2013, 39, 535–576. [Google Scholar] [CrossRef]
- Perez, R.; Kivalov, S.; Schlemmer, J.; Hemker, K., Jr.; Hoff, T.E.; Renne, D. Validation of short and medium term operational solar radiation forecasts in the US. Solar Energy 2013, 84, 2161–2172. [Google Scholar] [CrossRef]
- Buttar, P.K.; Sachan, M.K. Semantic segmentation of clouds in satellite images based on U-Net++ architecture and attention mechanism. Expert Syst. Appl. 2022, 209, 118380. [Google Scholar] [CrossRef]
- Main-Knorn, M.; Pflug, B.; Louis, J.; Debaecker, V.; Müller-Wilm, U.; Gascon, F. Sen2Cor for Sentinel-2. In Image and Signal Processing for Remote Sensing XXIII; Presented at the Image and Signal Processing for Remote Sensing XXIII; SPIE: Warsaw, Poland, 2017; pp. 37–48. [Google Scholar] [CrossRef]
- Yeom, J.M.; Roujean, J.L.; Han, K.S.; Lee, K.S.; Kim, H.W. Thin cloud detection over land using background surface reflectance based on the BRDF model applied to Geostationary Ocean Color Imager (GOCI) satellite data sets. Remote Sens. Environ. 2020, 239, 111610. [Google Scholar] [CrossRef]
- Saunders, R.W.; Kriebel, K.T. An improved method for detecting clear sky and cloudy radiances from AVHRR data. Int. J. Remote Sens. 1988, 9, 123–150. [Google Scholar] [CrossRef]
- Zhu, Z.; Wang, S.; Woodcock, C.E. Improvement and expansion of the Fmask algorithm: Cloud, cloud shadow, and snow detection for Landsats 4–7, 8, and Sentinel-2 images. Remote Sens. Environ. 2015, 159, 269–277. [Google Scholar] [CrossRef]
- Qiu, S.; Zhu, Z.; He, B. Fmask 4.0: Improved cloud and cloud shadow detection in Landsats 4–8 and Sentinel-2 imagery. Remote Sens. Environ. 2019, 231, 111205. [Google Scholar] [CrossRef]
- Ge, K.; Liu, J.; Wang, F.; Chen, B.; Hu, Y. A Cloud Detection Method Based on Spectral and Gradient Features for SDGSAT-1 Multispectral Images. Remote Sens. 2023, 15, 24. [Google Scholar] [CrossRef]
- Wright, N.; Duncan, J.M.A.; Callow, J.N.; Thompson, S.E.; George, R.J. CloudS2Mask: A novel deep learning approach for improved cloud and cloud shadow masking in Sentinel-2 imagery. Remote Sens. Environ. 2024, 306, 114122. [Google Scholar] [CrossRef]
- Zupanc, A.; Improving Cloud Detection with Machine Learning. Sentin. Hub Blog. 2020. Available online: https://medium.com/sentinel-hub/improving-cloud-detection-with-machine-learning-c09dc5d7cf13 (accessed on 7 April 2025).
- Jeppesen, J.H.; Jacobsen, R.H.; Inceoglu, F.; Toftegaard, T.S. A cloud detection algorithm for satellite imagery based on deep learning. Remote Sens. Environ. 2019, 229, 247–259. [Google Scholar] [CrossRef]
- Hughes, H.J.; Hayes, D.J. Automated detection of cloud and cloud shadow in single-date Landsat imagery using neural networks and spatial post-processing. Remote Sens. 2014, 6, 4907–4926. [Google Scholar] [CrossRef]
- Weiland, M.; Li, Y.; Martinis, S. Multi-sensor cloud and cloud shadow segmentation with a convolutional neural network. Remote Sens. Environ. 2019, 230, 111203. [Google Scholar] [CrossRef]
- Kim, M.; Ko, Y. A study on the cloud detection technique of heterogeneous sensors using Modified DeepLabV3+. Korean J. Remote Sens. 2022, 38, 511–521. [Google Scholar]
- Hughes, M.J.; Kennedy, R. High-quality cloud masking of Landsat 8 imagery using convolutional neural networks. Remote Sens. 2019, 11, 2591. [Google Scholar] [CrossRef]
- Morales, G.; Ramirez, A.; Telles, J. End-to-end cloud segmentation in high-resolution multispectral satellite imagery using deep learning. In Proceedings of the 2019 IEEE XXVI International Conference on Electronics, Electrical Engineering and Computing (INTERCON), Lima, Peru, 29–31 August 2019. [Google Scholar] [CrossRef]
- Choi, H.; Bindschadler, R. Cloud detection in Landsat imagery of ice sheets using shadow matching technique and automatic normalized difference snow index threshold value decision. Remote Sens. Environ. 2004, 91, 237–242. [Google Scholar] [CrossRef]
- Li, Z.; Shen, H.; Li, H.; Xia, G.; Gamba, P.; Zhang, L. Multi-feature combined cloud and cloud shadow detection in GaoFen-1 wide field of view imagery. Remote Sens. Environ. 2017, 191, 342–358. [Google Scholar] [CrossRef]
- Kim, B.; Lee, K.; Park, S. Burned-area mapping using post-fire PlanetScope images and a convolutional neural network. Remote Sens. 2024, 16, 2629. [Google Scholar] [CrossRef]
- Pešek, O.; Segal-Rozenhaimer, M.; Karnieli, A. Using convolutional neural networks for cloud detection on VENμS images over multiple land-cover types. Remote Sens. 2022, 14, 5210. [Google Scholar] [CrossRef]
- Fabio, L.; Piga, D.; Umberto, M.; Safouane, E.G. BenchCloudVision: A benchmark analysis of deep learning approaches for cloud detection and segmentation in remote sensing imagery. arXiv 2024, arXiv:2402.13918. [Google Scholar]
- Mohajerani, S.; Saeedi, P. CPNet: A context preserver convolutional neural network for detecting shadows in single RGB images. In Proceedings of the 2018 IEEE 20th International Workshop on Multimedia Signal Processing (MMSP), Vancouver, BC, Canada, 29–31 August 2018; pp. 1–5. [Google Scholar]
- Chen, L.-C.; Zhu, Y.; Papandreou, G.; Schroff, F.; Adam, H. Encoder-decoder with atrous separable convolution for semantic image segmentation. arXiv 2018, arXiv:1802.02611. [Google Scholar]
- Mohajerani, S.; Saeedi, P. Cloud-Net: An end-to-end cloud detection algorithm for Landsat 8 imagery. arXiv 2019, arXiv:1901.10077. [Google Scholar] [CrossRef]
- Chen, L.-C.; Papandreou, G.; Schroff, F.; Adam, H. Rethinking atrous convolution for semantic image segmentation. arXiv 2017, arXiv:1706.05587. [Google Scholar]
- Milletari, F.; Navab, N.; Ahmadi, S.-A. V-Net: Fully convolutional neural networks for volumetric medical image segmentation. In Proceedings of the 2016 Fourth International Conference on 3D Vision (3DV), Stanford, CA, USA, 25–28 October 2016; pp. 565–571. [Google Scholar] [CrossRef]
- Oh, H.; Kim, B.; Kim, J. Deep learning-based cloud detection algorithm for KOMPSAT-3/3A imagery. In Proceedings of the KSAS 2020 Fall Conference, Jeju, Republic of Korea, 18–20 November 2020; The Korean Society for Aeronautical and Space Sciences: Daejeon, Republic of Korea, 2020; pp. 128–130. [Google Scholar]
Satellite | KOMPSAT 3 | KOMPSAT 3A |
---|---|---|
Blue-band wavelength (um) | 450–520 | 450–520 |
Green-band wavelength (um) | 520–600 | 520–600 |
Red-band wavelength (um) | 630–690 | 630–690 |
NIR-band wavelength (um) | 760–900 | 760–900 |
Resolution (m) | 2.8 | 2.2 |
Publicly opened cloud detection dataset | KOMPSAT-3 | KOMPSAT-3A |
Sensor | PAN, MSI | PAN, MSI |
Launch year | 2015 | 2017 |
Data acquisition period | 3 days | 3 days |
Parameters | Configuration |
---|---|
Learning rate for Adam | 0.0003 |
Learning rate factor for scheduling | 0.5 |
Momentum | 0.937 |
Weight decay | 0.0005 |
Channel | RGB | NGR | RGBN | RGBN+NDVI | TOA | TOA+NDVI |
---|---|---|---|---|---|---|
Parameters | 45,670,484 | 45,670,484 | 45,673,620 | 45,676,756 | 45,673,620 | 45,676,756 |
Experiment | Class | Precision | Recall | F1-Score | mIoU |
---|---|---|---|---|---|
RGB | Clear Sky | 90.75% | 97.26% | 93.89% | 88.49% |
Thick Cloud | 48.84% | 95.76% | 64.68% | 47.80% | |
Thin Cloud | 68.35% | 34.63% | 45.97% | 29.84% | |
Cloud Shadow | 56.18% | 22.28% | 31.91% | 18.98% | |
Overall | 66.03% | 62.48% | 59.11% | 46.28% | |
NGR | Clear Sky | 89.75% | 97.20% | 93.33% | 87.49% |
Thick Cloud | 48.33% | 90.75% | 63.07% | 46.06% | |
Thin Cloud | 64.88% | 27.60% | 38.73% | 24.02% | |
Cloud Shadow | 62.92% | 27.85% | 38.61% | 23.92% | |
Overall | 66.47% | 60.85% | 58.43% | 45.37% | |
RGBN | Clear Sky | 89.76% | 97.86% | 93.63% | 88.02% |
Thick Cloud | 49.92% | 92.76% | 64.91% | 48.05% | |
Thin Cloud | 70.76% | 26.79% | 38.87% | 24.12% | |
Cloud Shadow | 61.80% | 27.24% | 37.82% | 23.32% | |
Overall | 68.06% | 61.16% | 58.80% | 45.88% | |
RGBN+NDVI | Clear Sky | 89.87% | 96.84% | 93.22% | 87.31% |
Thick Cloud | 44.19% | 92.79% | 59.87% | 42.73% | |
Thin Cloud | 65.55% | 27.43% | 38.67% | 23.97% | |
Cloud Shadow | 50.87% | 23.76% | 32.39% | 19.33% | |
Overall | 62.62% | 60.20% | 56.04% | 43.33% | |
TOA | Clear Sky | 90.12% | 97.91% | 93.85% | 88.42% |
Thick Cloud | 48.27% | 88.40% | 62.44% | 45.39% | |
Thin Cloud | 71.75% | 29.99% | 42.30% | 26.82% | |
Cloud Shadow | 59.43% | 24.68% | 34.87% | 21.12% | |
Overall | 67.39% | 60.24% | 58.37% | 45.44% | |
TOA+NDVI | Clear Sky | 90.19% | 97.58% | 93.74% | 88.22% |
Thick Cloud | 51.89% | 86.88% | 64.97% | 48.12% | |
Thin Cloud | 69.18% | 35.16% | 46.62% | 30.40% | |
Cloud Shadow | 66.06% | 20.89% | 31.75% | 18.87% | |
Overall | 69.33% | 60.13% | 59.27% | 46.40% |
group1 | group2 | Clear Sky | Thick Cloud | Thin Cloud | Cloud Shadow | ||||
---|---|---|---|---|---|---|---|---|---|
MD | p-adj | MD | p-adj | MD | p-adj | MD | p-adj | ||
NGR | RGB | 0.002 | 0 | 0.0507 | 0 | 0.0723 | 0 | −0.0432 | 0 |
NGR | RGBN | 0.008 | 0 | −0.0024 | 0.0966 | −0.015 | 0 | −0.0011 | 0.9723 |
NGR | RGBNNDVI | 0 | 0 | 0.018 | 0 | −0.016 | 0 | −0.0204 | 0 |
NGR | TOA | 0.01 | 0 | −0.0305 | 0 | 0.014 | 0 | −0.022 | 0 |
NGR | TOANDVI | 0.005 | 0 | −0.0354 | 0 | 0.0741 | 0 | −0.058 | 0 |
RGB | RGBN | 0.007 | 0 | −0.0531 | 0 | −0.088 | 0 | 0.0422 | 0 |
RGB | RGBNNDVI | 0 | 0 | −0.0327 | 0 | −0.089 | 0 | 0.0228 | 0 |
RGB | TOA | 0.008 | 0 | −0.0812 | 0 | −0.058 | 0 | 0.0212 | 0 |
RGB | TOANDVI | 0.004 | 0 | −0.0861 | 0 | 0.0018 | 0.58 | −0.0148 | 0 |
RGBN | RGBNNDVI | −0.01 | 0 | 0.0204 | 0 | −0.001 | 0.9495 | −0.0194 | 0 |
RGBN | TOA | 0.001 | 0 | −0.0281 | 0 | 0.0294 | 0 | −0.0209 | 0 |
RGBN | TOANDVI | 0 | 0 | −0.033 | 0 | 0.0895 | 0 | −0.057 | 0 |
RGBNNDVI | TOA | 0.011 | 0 | −0.0485 | 0 | 0.0304 | 0 | −0.0016 | 0.858 |
RGBNNDVI | TOANDVI | 0.007 | 0 | −0.0534 | 0 | 0.0905 | 0 | −0.0376 | 0 |
TOA | TOANDVI | 0 | 0 | −0.0049 | 0 | 0.0601 | 0 | −0.036 | 0 |
