GPU-Driven Acceleration of Wavelet-Based Autofocus for Practical Applications in Digital Imaging

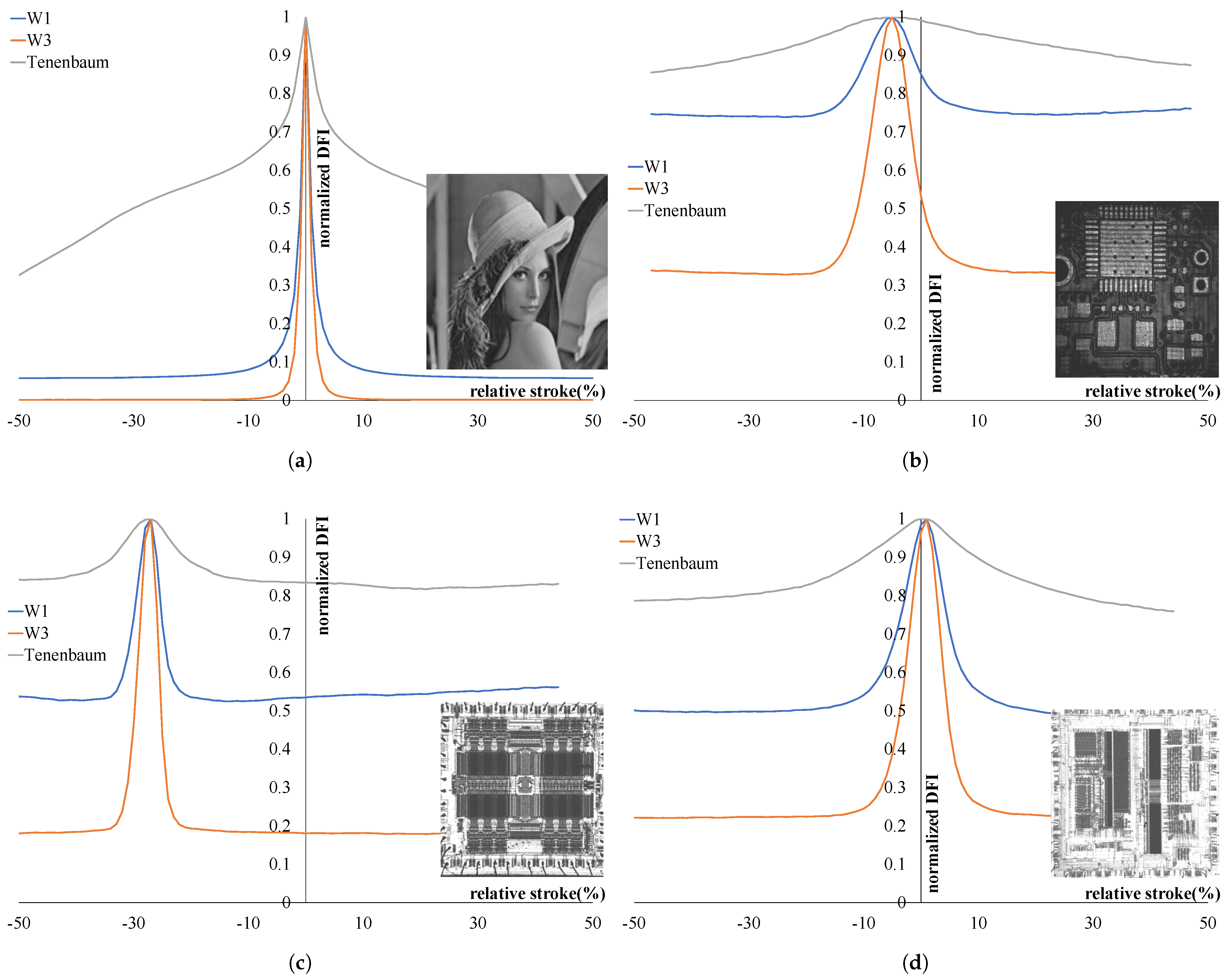

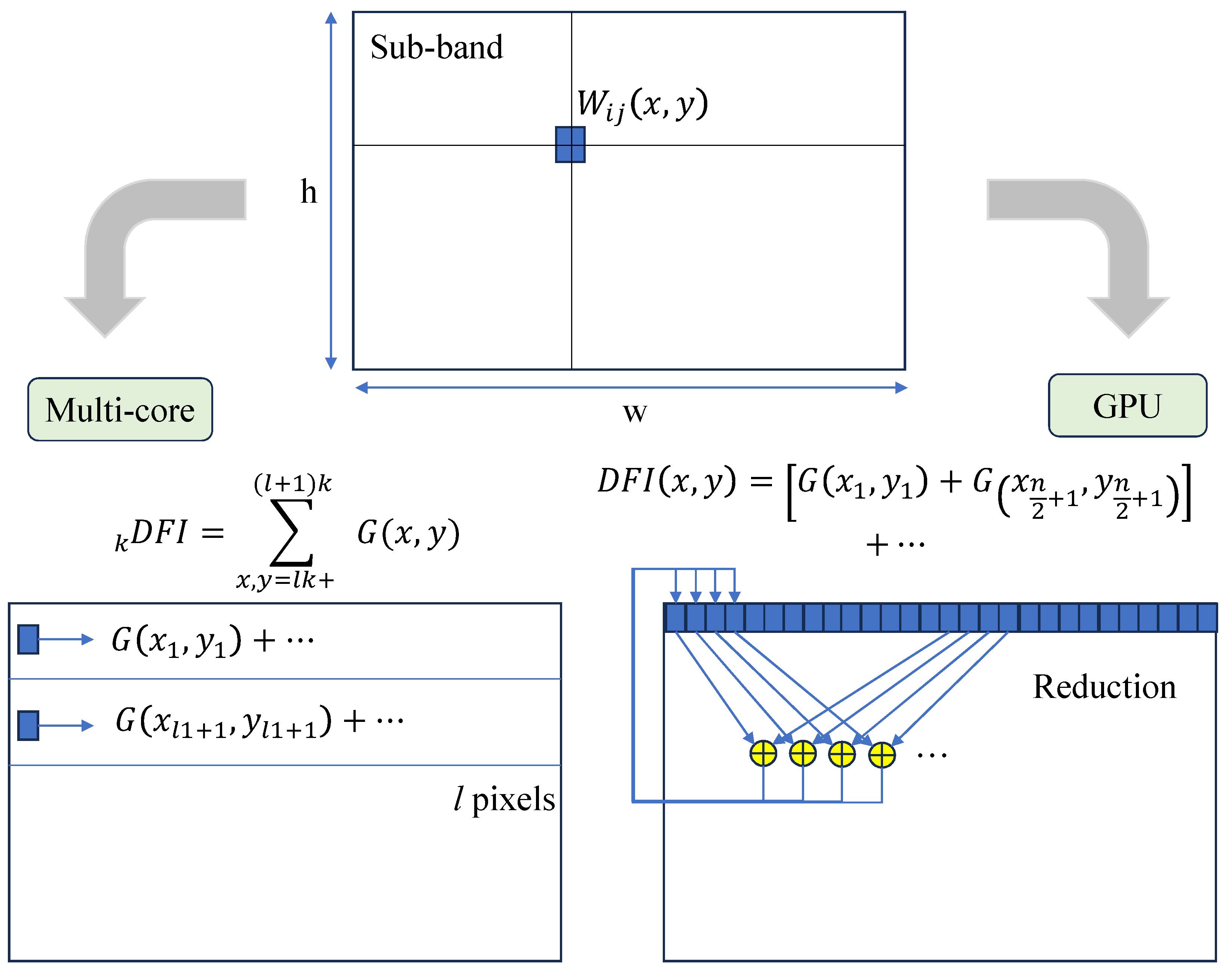

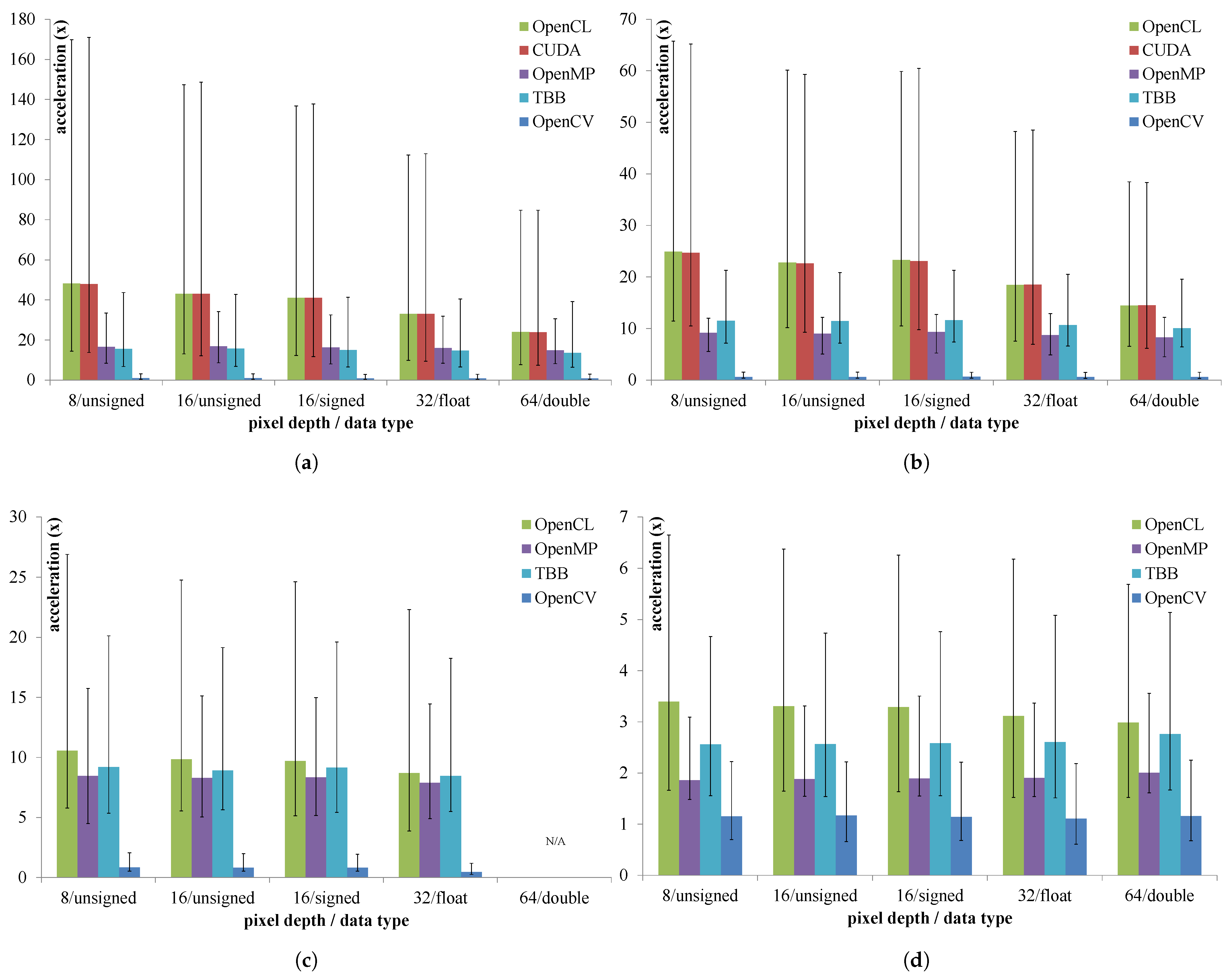

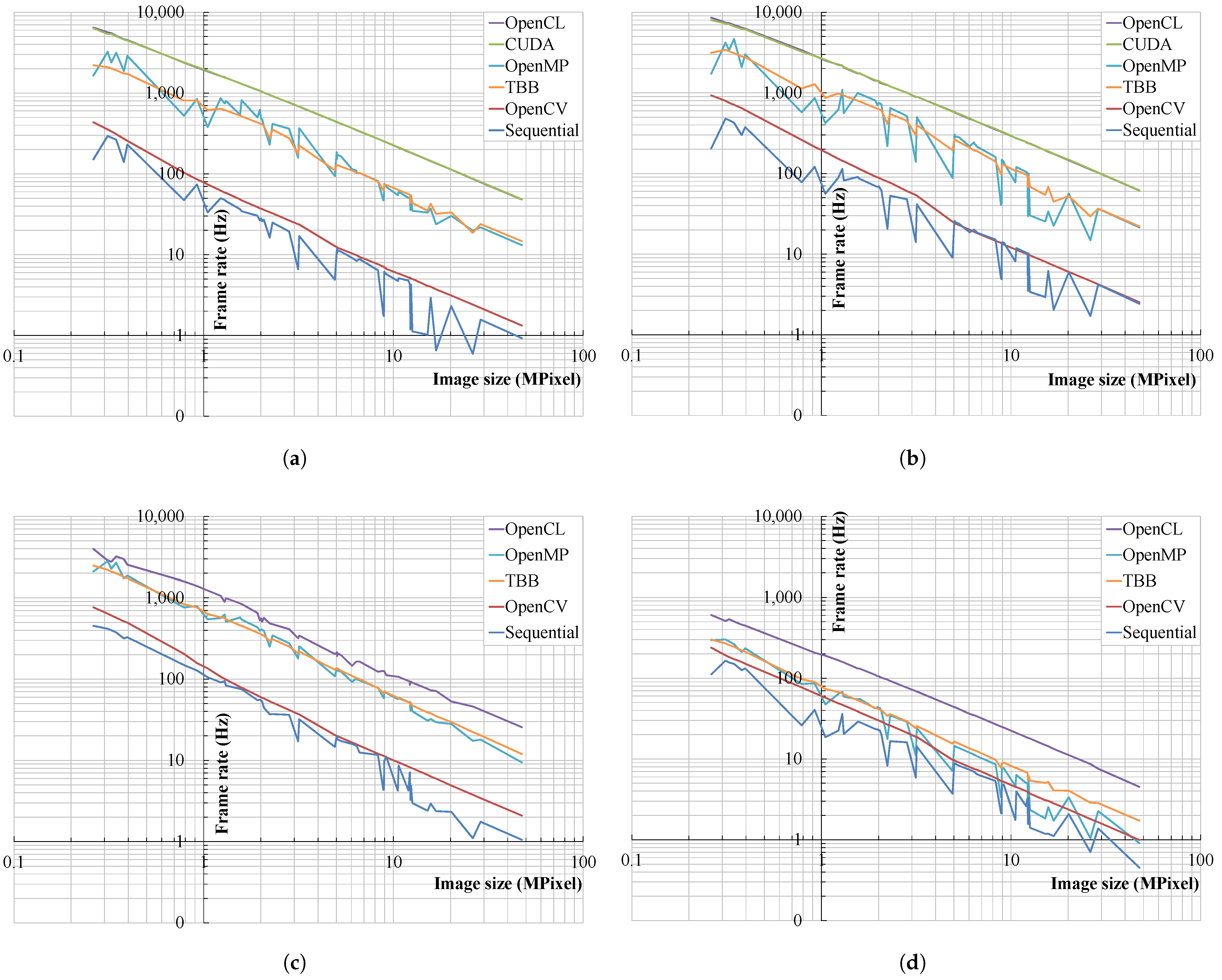

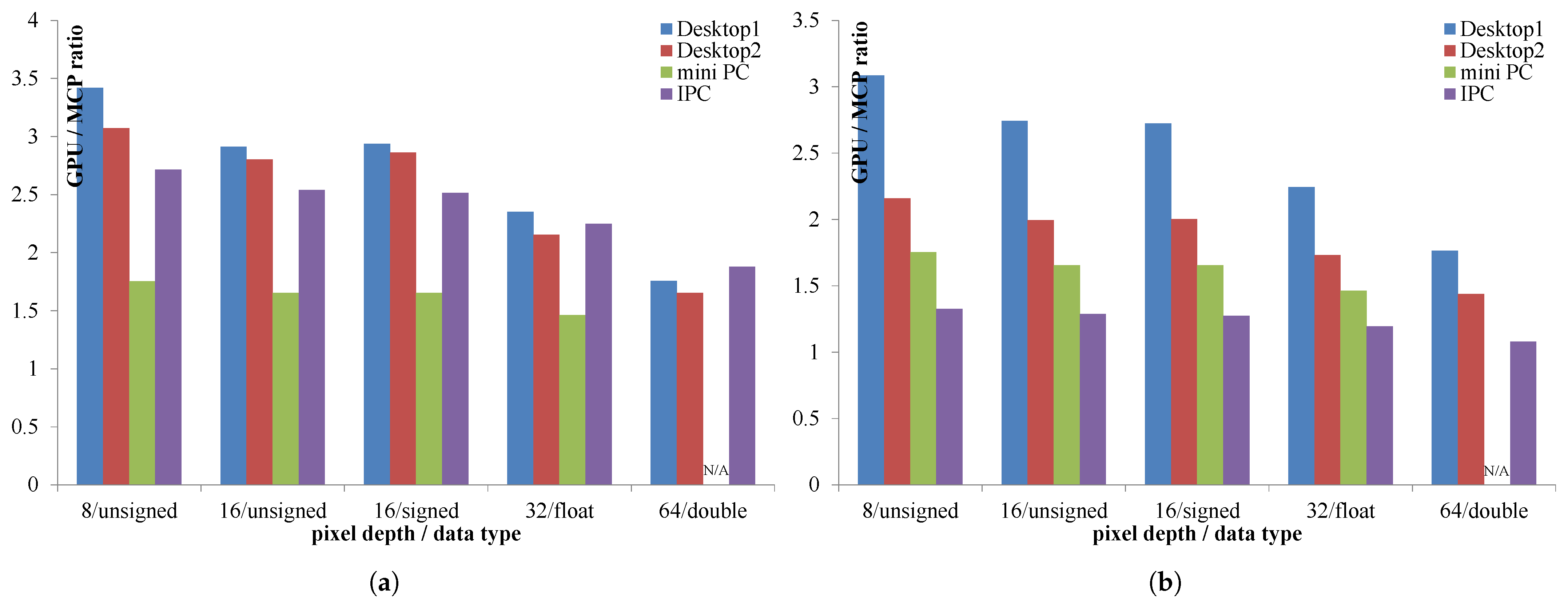

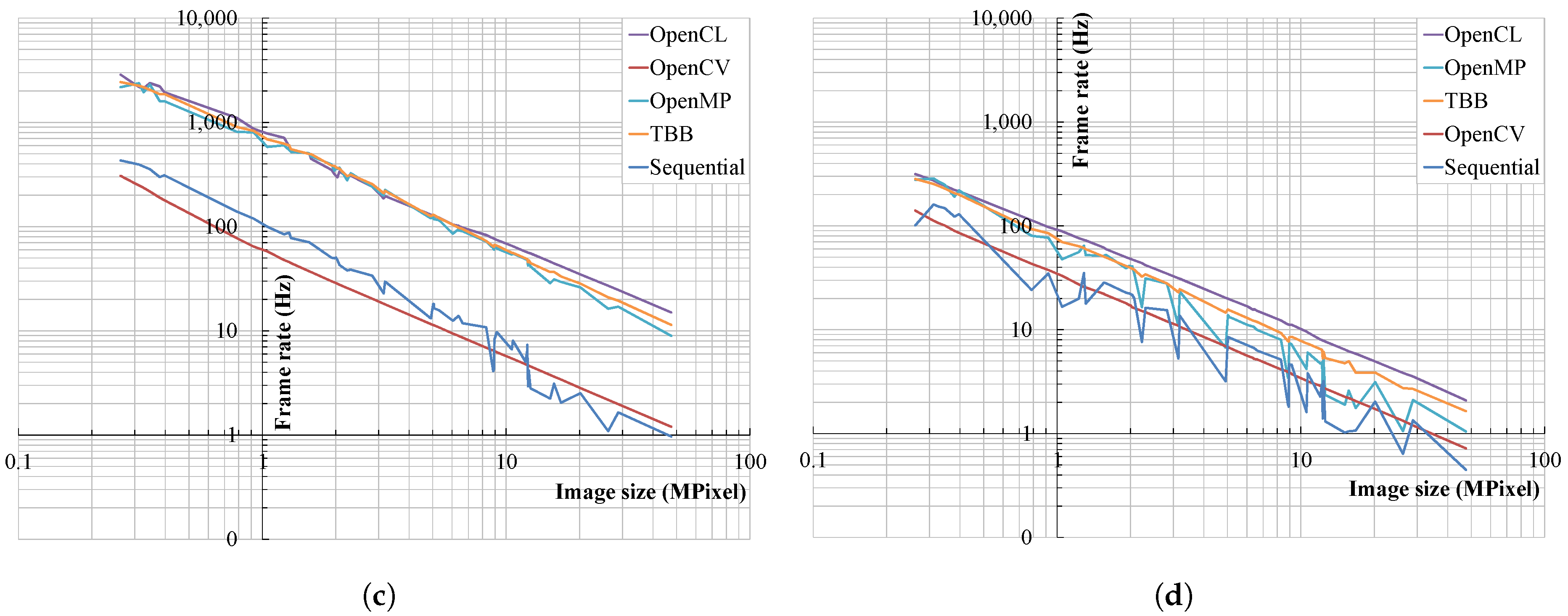

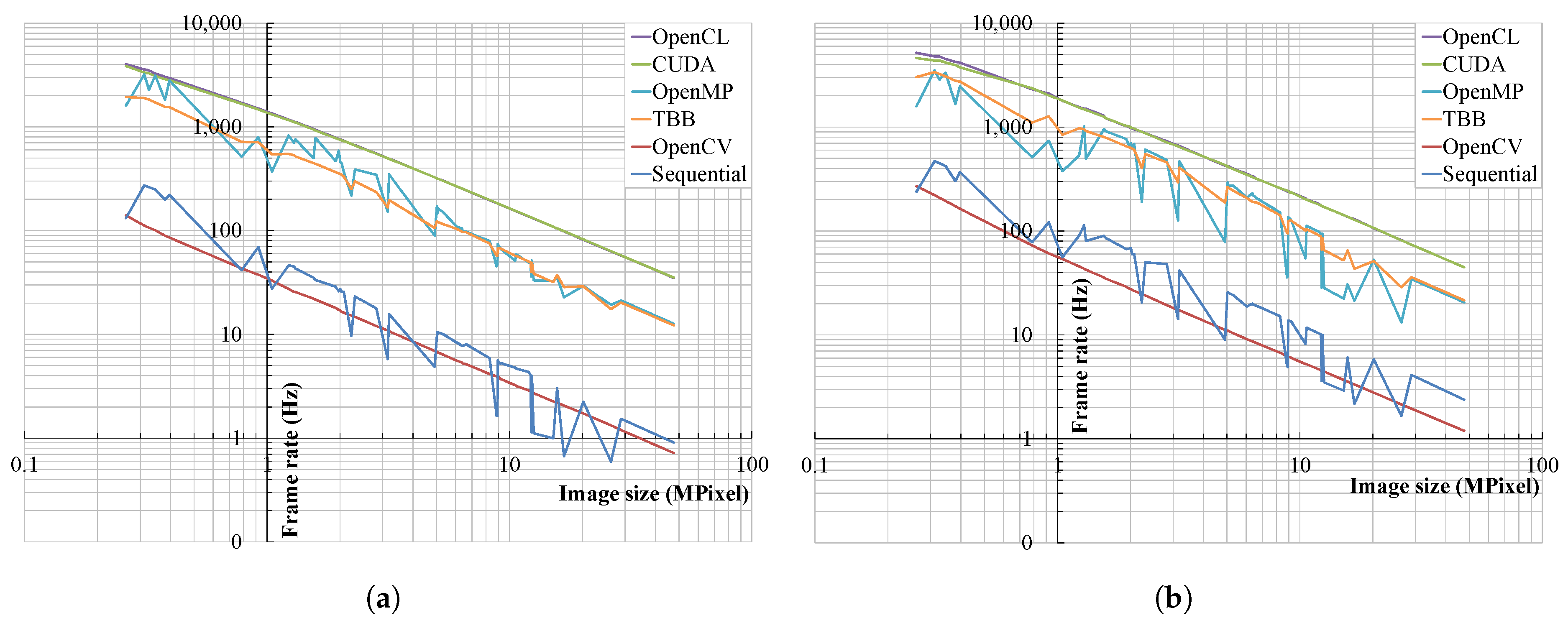

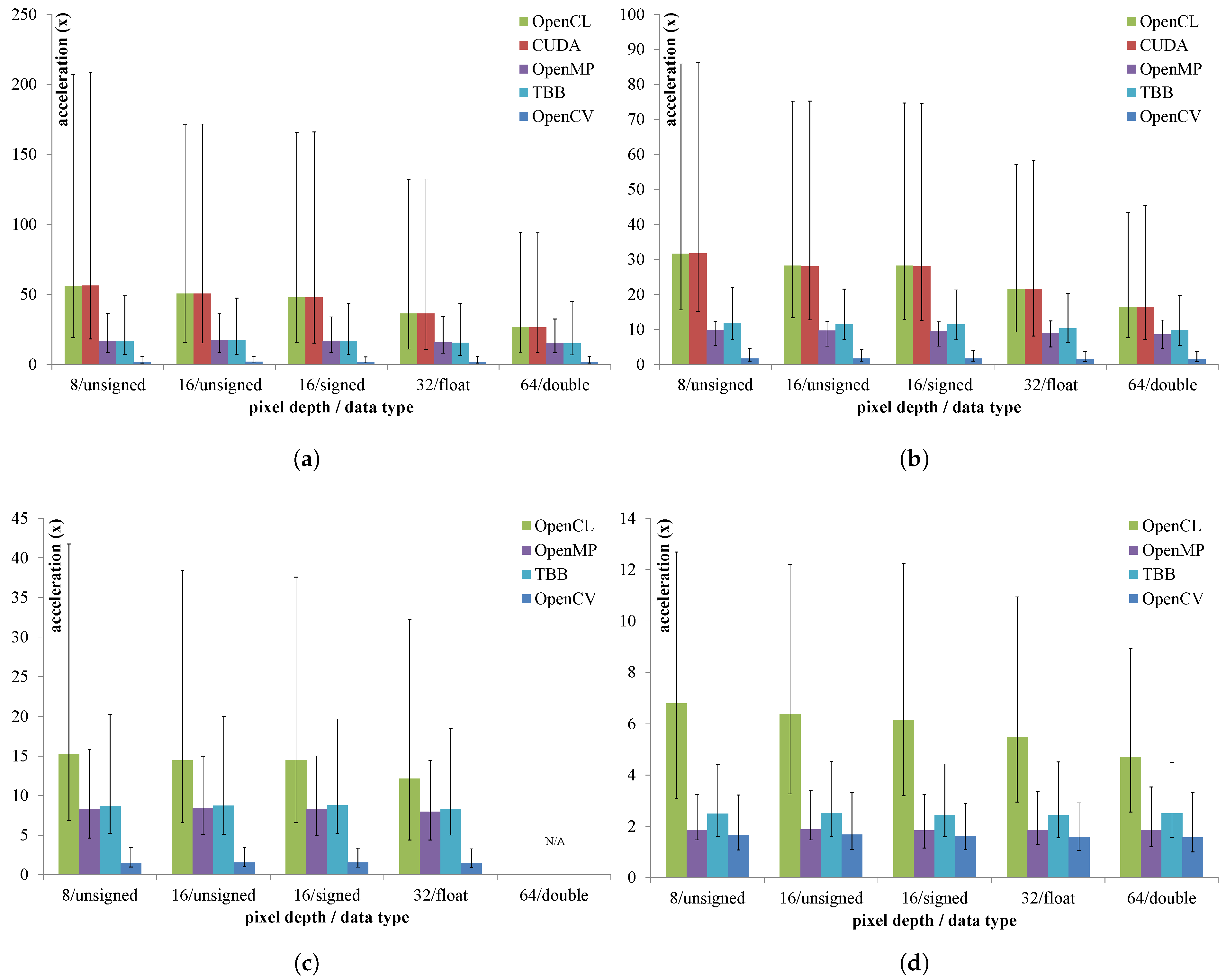

A parallel implementation of wavelet-based autofocus (WBA) was presented to accelerate recursive operations and reduce computational costs. WBA evaluates digital focus indices (DFIs) using first- or second-order moments of the wavelet coefficients in high-frequency subbands. WBA is generally accurate and reliable; however, its computational cost is high owing to biorthogonal decomposition. Thus, this study parallelized the Daubechies-6 wavelet and norms of the high-frequency subbands for the DFI. The kernels of the DFI computation were constructed using open sources for driving multicore processors (MCPs) and general processing units (GPUs). The standard C++, OpenCV, OpenMP, OpenCL, and CUDA open-source platforms were selected to construct the DFI kernels, considering hardware compatibility. The experiment was conducted using the MCP, peripheral GPUs, and CPU-resident GPUs on desktops for advanced users and compact devices for industrial applications. The results demonstrated that the GPUs provided sufficient performance to achieve WBA even when using budget GPUs, indicating that the GPUs are advantageous for practical applications of WBA. This study also implies that although budget GPUs are left unused, they can potentially be great resources for wavelet-based processing.
