Development of a Spatial Alignment System for Interacting with BIM Objects in Mixed Reality

Abstract

This study proposes a Two-points Spatial Alignment System (TSAS) for accurate positioning of Building Information Modeling (BIM) objects in Mixed Reality (MR) environments at construction sites. Conventional spatial alignment methods present limitations: marker-based approaches require precise marker installation and setup in predefined locations, while drag-based methods rely considerably on user manipulation skills. TSAS utilizes Y-axis rotation and vector-based scaling mechanisms to facilitate alignment processes. Through usability evaluation with 30 participants in MR environments, TSAS demonstrated a performance with a 50.3 mm alignment error, compared to marker-based (64.0 mm) and drag methods (199.7 mm). A one-way Analysis of Variance (ANOVA) confirmed that these differences in accuracy were statistically significant (p < 0.001). Notably, TSAS meets the Korean building regulation’s tolerance while maintaining consistent accuracy in indoor environments. Although the marker method showed better efficiency in operation time, this evaluation excluded initial installation time requirements. The usability evaluation suggests this approach could be beneficial for BIM visualization and review processes in construction settings. Future research will focus on validating the system’s performance in diverse construction environments, including larger buildings and complex sites.

1. Introduction

Building Information Modeling (BIM) is a 3D object-based design methodology that aims to cover the entire lifecycle of facilities, including design, construction, and maintenance. By integrating data generated during design, construction, and operation processes, BIM supports efficient decision-making among project stakeholders [1,2,3]. Traditional facility design primarily used 2D CAD drawings, which were limited by their two-dimensional nature. This limitation led to various views such as elevations and floor plans being perceived as separate rather than interconnected processes [4]. Such disconnection often resulted in design errors remaining undetected until final stages, leading to mistakes, information omission, schedule delays, increased costs, and quality deterioration [5]. The adoption of BIM 3D drawings enables more intuitive and three-dimensional verification, reducing the time required for design comprehension and information recognition [6].

Mixed Reality (MR) technology, which integrates real and virtual spaces through three-dimensional visualization, is emerging as a significant technology in the construction industry. According to Extremera et al. (2022), Reality-Virtuality Technologies (RVTs) including Virtual Reality (VR), Augmented Reality (AR), and MR are increasingly being adopted in engineering fields [7]. Research focusing on visualizing 3D BIM objects in MR environments has gained attention for its potential to enhance drawing comprehension and reduce construction and inspection errors [8]. The application of MR technology in initial design phases enables improved understanding of design information compared to traditional paper drawings and reduces the time required to detect design errors [9,10]. Additionally, three-dimensional visualization facilitates effective communication among various stakeholders in construction sites [11], thereby reducing errors caused by miscommunication. Recognizing these advantages, the Ministry of Land, Infrastructure and Transport has recommended using MR technology to review BIM drawings from a first-person perspective for design and constructability verification [12].

The effective integration of BIM and MR requires accurate positioning of virtual BIM objects in real space [13,14]. While terms such as ‘Placement’ and ‘Alignment’ are used for this positioning, no clear definition has been established [15]. Therefore, this study adopts the term ‘Spatial Alignment’ and proposes an enhanced methodology for this process. The current spatial alignment methods present limitations: marker-based approaches necessitate precise installation at predetermined locations, while drag-based methods rely extensively on user manipulation proficiency.

This research introduces the Two-points Spatial Alignment System (TSAS) utilizing dual reference points, aiming to overcome the limitations of existing methods. The proposed approach was developed and validated through comparison with traditional marker-based and drag-based methods. To evaluate the system’s effectiveness, Microsoft HoloLens2 (Microsoft, Redmond, WA, USA) was used as the MR hardware platform, with the application development conducted using Unity (Version 2020.3.25f1). The implementation process consisted of three primary stages: format conversion from BIM authoring programs, interface development for real-time manipulation and review of BIM models in MR environments, and execution on the MR hardware.

2. Literature Review

Spatial alignment in MR environments typically involves three fundamental processes: (1) Object tracking, (2) Mapping, and (3) Registration [9]. Object tracking, which determines the position of virtual objects within the MR system, can be categorized into two main approaches: sensor-based tracking and computer vision-based tracking [16].

Sensor-based tracking methods utilize various sensors such as GPS (Global Positioning System), IMU (Inertial Measurement Unit), and RFID (Radio-Frequency Identification) to track the location of virtual objects. These methods offer reliable positioning data but may exhibit several limitations in indoor environments or require additional hardware installation. Rehbein et al. (2022) utilized either HTC Vive Lighthouse and ARTTRACK5 optical tracking systems for 3D visualization of ultrasonic nondestructive testing (NDT) data, achieving real-time texture mapping on 3D models [17]. Computer vision-based tracking methods are further classified into marker-based and marker-less approaches. The marker-based method, which is widely adopted due to its simplicity and cost-effectiveness, functions by recognizing QR codes through the cameras to position virtual objects based on predefined coordinate information. Marker-less tracking, also known as feature-based tracking, utilizes natural features such as points, lines, edges, and textures to track objects. Many construction safety studies have used either sensor-based or vision-based technologies for their research [18].

Mapping involves the recognition of real-world spaces that serve as backgrounds for MR applications [19,20,21]. The Microsoft HoloLens2, utilized in this study, employs depth sensors for spatial mapping through Time of Flight (ToF) technology. ToF operates by measuring the time taken for emitted signals to reflect off objects and return to the sensor [22]. The depth sensor functions in two modes: Short throw and Long throw [23]. The Short throw mode enables hand tracking up to 1 m through AHAT (Articulated Hand Tracking) functionality. The Long throw mode generates 3D meshes by scanning real spaces, enabling the identification of major structural elements such as walls, floors, and ceilings.

Registration is the process of positioning virtual objects within the real space. After the system tracks object positions and maps the real space through the previous steps, registration enables precise placement of virtual objects in specific real-world locations. The marker-based method, while commonly used, presents several challenges. For accurate registration, markers must be placed precisely in their intended positions. However, achieving exact marker placement in practice often proves difficult [24]. Subsequent marker position adjustment is typically necessary, and without proper calibration, alignment accuracy may vary depending on viewing angle [25].

According to Al-Adhami et al. (2019), marker-based spatial alignment methods may be unsuitable for construction sites due to the potential for marker damage or displacement in environments with diverse workforce activities [26]. This challenge is particularly relevant in dynamic construction environments where multiple trades work simultaneously and physical markers can be easily disturbed or obscured by dust, debris, or equipment.

Current MR systems frequently employ simple drag-based interfaces [27,28]. This method allows users to directly manipulate virtual objects through finger gestures in MR environments, serving as a basic object manipulation approach. However, the drag-based method’s performance heavily depends on user operation, potentially leading to accuracy issues. The challenge of precise manual control in 3D space is compounded when users must simultaneously manage depth perception, object rotation, and position adjustment without physical reference points.

Through literature reviews, this study identified limitations in existing positioning methods. The marker-based method requires precise marker positioning in both BIM drawings and physical spaces, with potential errors arising from marker recognition angles. The drag-based method exhibits challenges in accurate object positioning due to its dependence on user manipulation skills [29]. The present study proposes a system that eliminates the need for marker installation while providing clearer alignment reference points compared to drag-based methods, aiming to enhance user convenience.

3. Methodology

3.1. System Design

This study develops an integrated BIM-MR system designed to visualize and align BIM objects in MR environments. The system architecture consists of three primary modules: MR-BIM data generation module, MR scenario development module, and system implementation module.

Table 1. System components.

Module	Software	Hardware
MR-BIM Data Creation	- Windows 10 - Visual studio 2019 - Autodesk Revit 2019	Desktop PC
Mixed Reality Scenario Development	- Windows 10 - Unity 2020.3.25f1 - Mixed Reality Toolkit Foundation v2.8.0	Desktop PC
System Implementation	- Microsoft HoloLens 2 application	HoloLens 2

presents the hardware and software components utilized in each module.

3.1.1. MR-BIM Data Creation Module

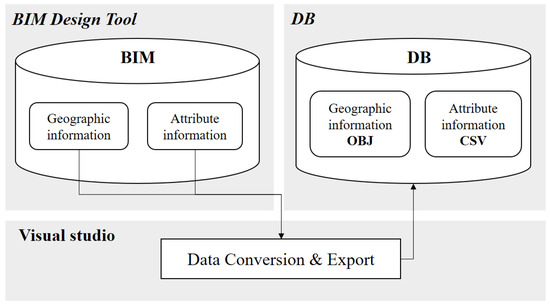

The MR-BIM data generation module serves as a core component for converting BIM drawings into formats compatible with MR environments. This module operates based on Autodesk Revit as the primary BIM design platform. Since Revit’s native RVT format is not directly compatible with Unity, this module performs necessary format conversions. The module converts BIM model geometry information to OBJ format and attribute information to CSV format (Figure 1). This conversion process is executed through a Revit Add-in developed using C# programming language in Visual Studio, utilizing Revit’s Application Programming Interface (API).

3.1.2. MR Scenario Development Module

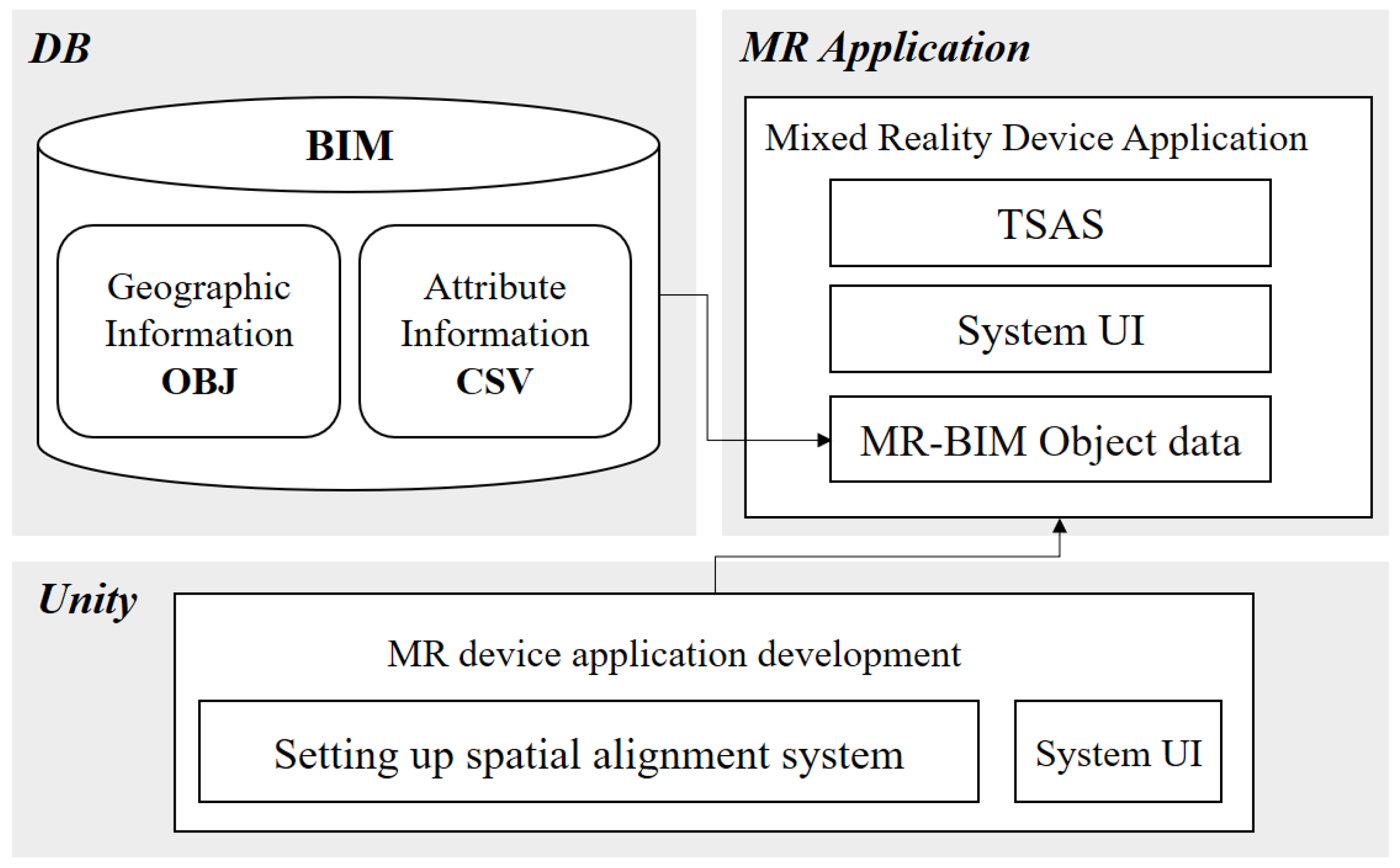

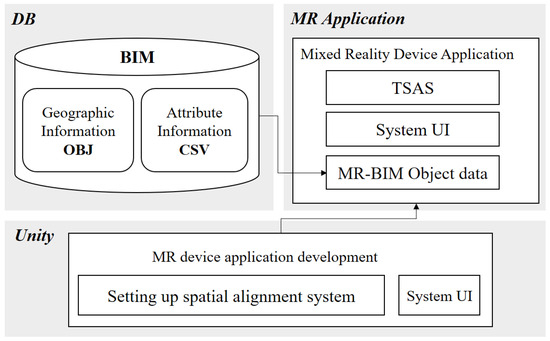

The MR scenario development module is built on the Unity3D game engine platform. This module processes the OBJ geometry files and CSV attribute data generated from the previous stage within the Unity3D environment. A key function of this module is the development of user interaction interfaces, allowing users to manipulate and review BIM models within the MR environment. The module includes the creation of interactive buttons and user interface elements designed for MR interaction. The completed development is then compiled into an executable application format compatible with the HoloLens2 platform (Figure 2).

3.1.3. System Implementation Module

The system implementation module represents the practical application phase of the MR scenario. This study enhances the haptic interface system developed by Cho et al. (2022) [30]. Through the HoloLens2 MR headset, users can visualize virtual BIM objects and employ the spatial alignment system to position them accurately within real space. This module integrates the visualization capabilities with precise spatial positioning functionality, enabling practical application in real-world environments.

3.2. System Implement

3.2.1. Spatial Alignment Principles

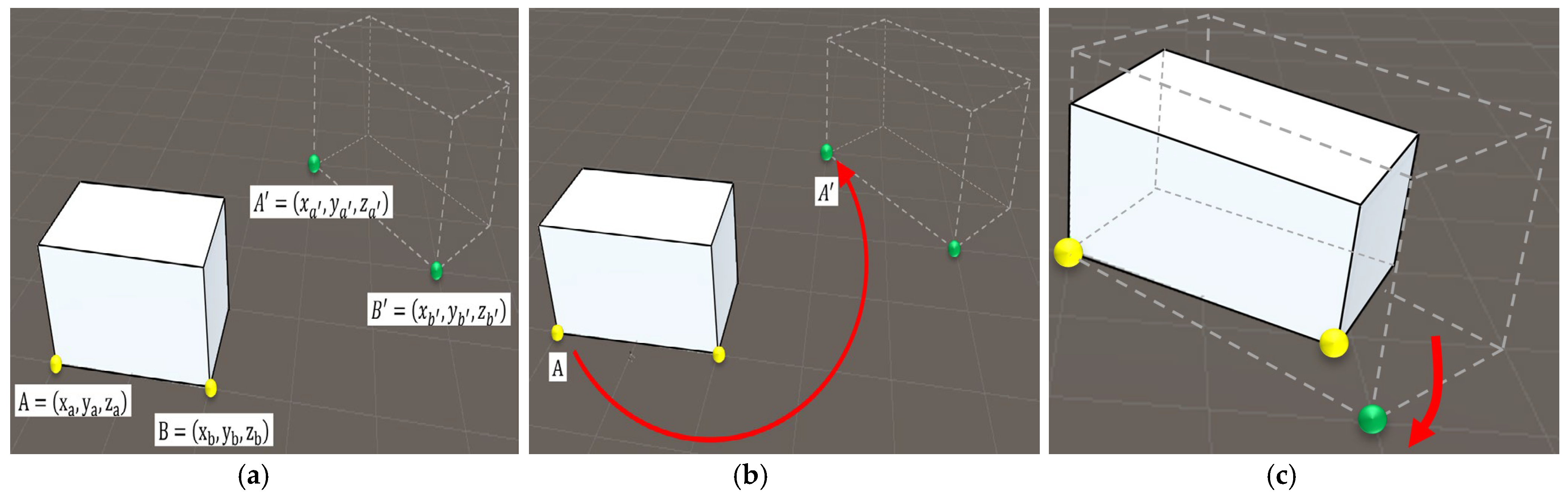

Figure 3 shows the step-by-step spatial alignment process of TSAS. The process begins with the user designating two reference points (A, B) on the virtual object and two corresponding target points (A′, B′) in the real space where the object is to be placed. Figure 3a represents the initial state, showing the positions of the designated reference and target points. In stage (b), point A transitions to point A′, followed by stages Figure 3c,d which demonstrate the rotation process around the Y-axis based on the calculated angle between vectors. The rotation angle is determined through Equations (1) and (2).

$$v_{AB}=\left({\displaystyle \frac{(x_b-x_a)}{\overline{AB}}}, {\displaystyle \frac{(y_b-y_a)}{\overline{AB}}}, {\displaystyle \frac{(z_b-z_a)}{\overline{AB}}}\right), v_{A^{\prime }{B}^{\prime }}=\left({\displaystyle \frac{(x_{b^{\prime }}-x_{a^{\prime }})}{\overline{A^{\prime }{B}^{\prime }}}}, {\displaystyle \frac{(y_{b^{\prime }}-y_{a^{\prime }})}{\overline{A^{\prime }{B}^{\prime }}}}, {\displaystyle \frac{(z_{b^{\prime }}-z_{a^{\prime }})}{\overline{A^{\prime }{B}^{\prime }}}}\right)$$

(1)

where $v_{AB}$ = unit vector of segment AB; $v_{A^{\prime }{B}^{\prime }}$ = unit vector of segment A′B′.

$${\theta }_r={\mathit{cos}}^{-1}\left({\displaystyle \frac{v_{AB} \cdot v_{A^{\prime }{B}^{\prime }}}{\left|\right|v_{AB}\left|\right| \left|\right|v_{A^{\prime }{B}^{\prime }}\left|\right|}}\right)$$

(2)

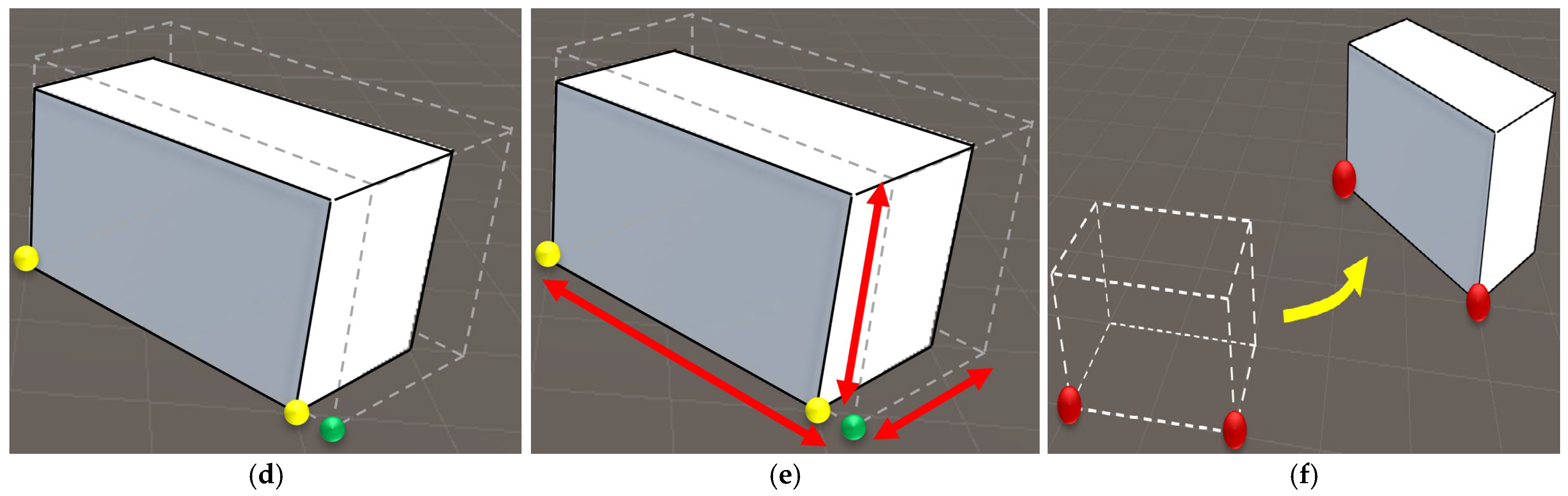

In Figure 3e, the object’s scale is adjusted according to the distance ratio between vectors (Equation (3)).

$$S.F.={\displaystyle \frac{\overline{A^{\prime }{B}^{\prime }}}{\overline{AB}}}$$

(3)

Finally, Figure 3f demonstrates the final state where the object is precisely positioned at the target location. The complete transformation is achieved through the sequential application of these operations, represented by the following transformation matrix:

$$M = T \times R_y\left({\theta }_r\right) \times S$$

(4)

where $M$ is the final 4 × 4 homogeneous transformation matrix, $T$ is the translation matrix derived from the displacement vector (A′ $-$ A), $R_y\left({\theta }_r\right)$ is the rotation matrix around the Y-axis with angle ${\theta }_r$, and $S$ is the uniform scaling matrix with diagonal elements equal to $S.F.$

3.2.2. System Improvement

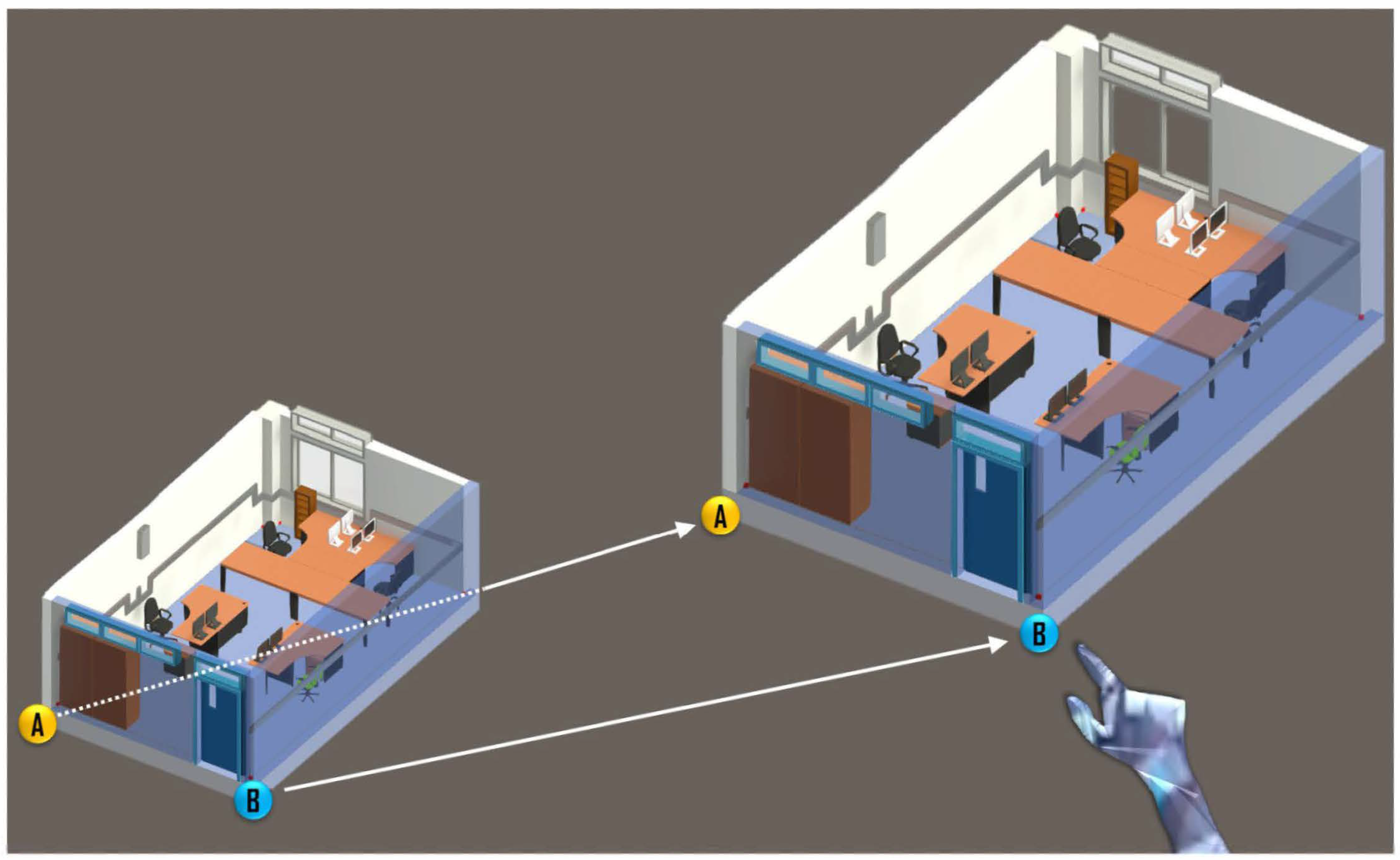

To address the limitations of the previous haptic interface in precise point designation, TSAS was enhanced to improve user interaction (Figure 4). While maintaining the system’s core principles, the current implementation increases operational efficiency by allowing users to directly drag existing reference points. To further facilitate precise positioning, the reference point spheres were enlarged and supplemented with a nested center point. This design resolves the fundamental trade-off between ease of selection and positional accuracy. Additionally, transparency gradients visually guide the user’s attention from the grabbable outer sphere to the precise inner point.

This improved interface design addresses previous usability challenges while maintaining the system’s core functionality. The combination of enlarged reference points and center point provides users with clearer visual feedback during the alignment process, contributing to more accurate spatial positioning.

3.3. Usability Evaluation

The evaluation was conducted to evaluate TSAS’ effectiveness. This evaluation approach follows the experimental design used in the work of Cho (2024) [31]. The test objective was to accurately position a laboratory BIM model within an actual laboratory space using three methods: marker-based, drag-based, and TSAS. The test environment was configured using a laboratory (approximately 5 m × 8 m room size) setting as the target space.

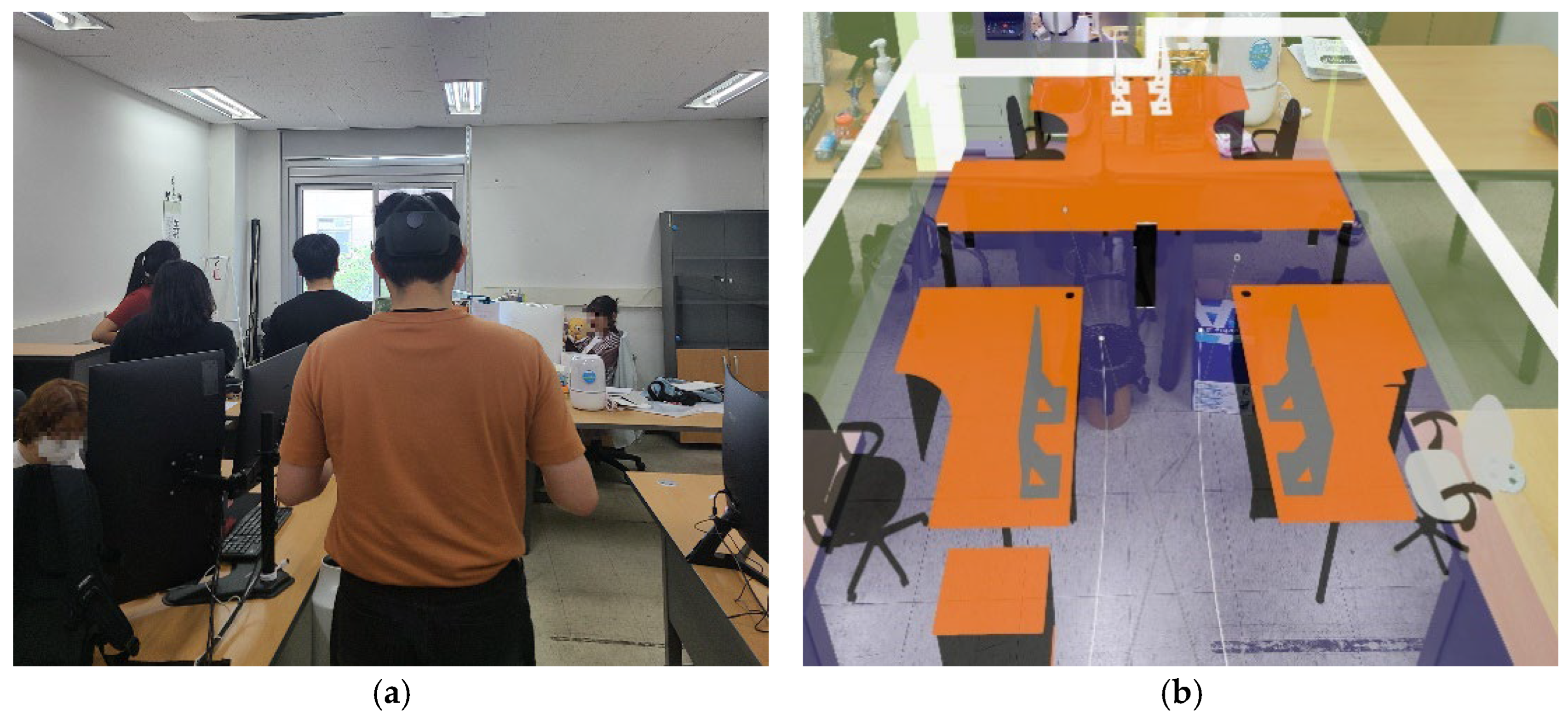

The test involved 30 participants (16 males, 14 females). Prior to testing, participants received comprehensive instruction through posted visual guides and monitoring display covering system operation and procedures. A monitoring system displayed real-time HoloLens view on an external screen, allowing participants to familiarize themselves with the interface before their turn. Following the briefing, participants utilized the HoloLens device and proceeded with the test and subsequent survey.

The evaluation criteria were established based on international usability standards [32], measuring accuracy, efficiency, and satisfaction. Accuracy was assessed by measuring positioning errors for each method, while efficiency was evaluated through time measurements for completing spatial alignment tasks. For the drag-based method and TSAS, both accuracy and time measurements were automatically recorded when users activated the completion button. For the marker-based method, the system measured the time required for marker recognition through the camera. Satisfaction was assessed through a survey using a 5-point Likert scale, and participants were also asked to indicate their preferred method.

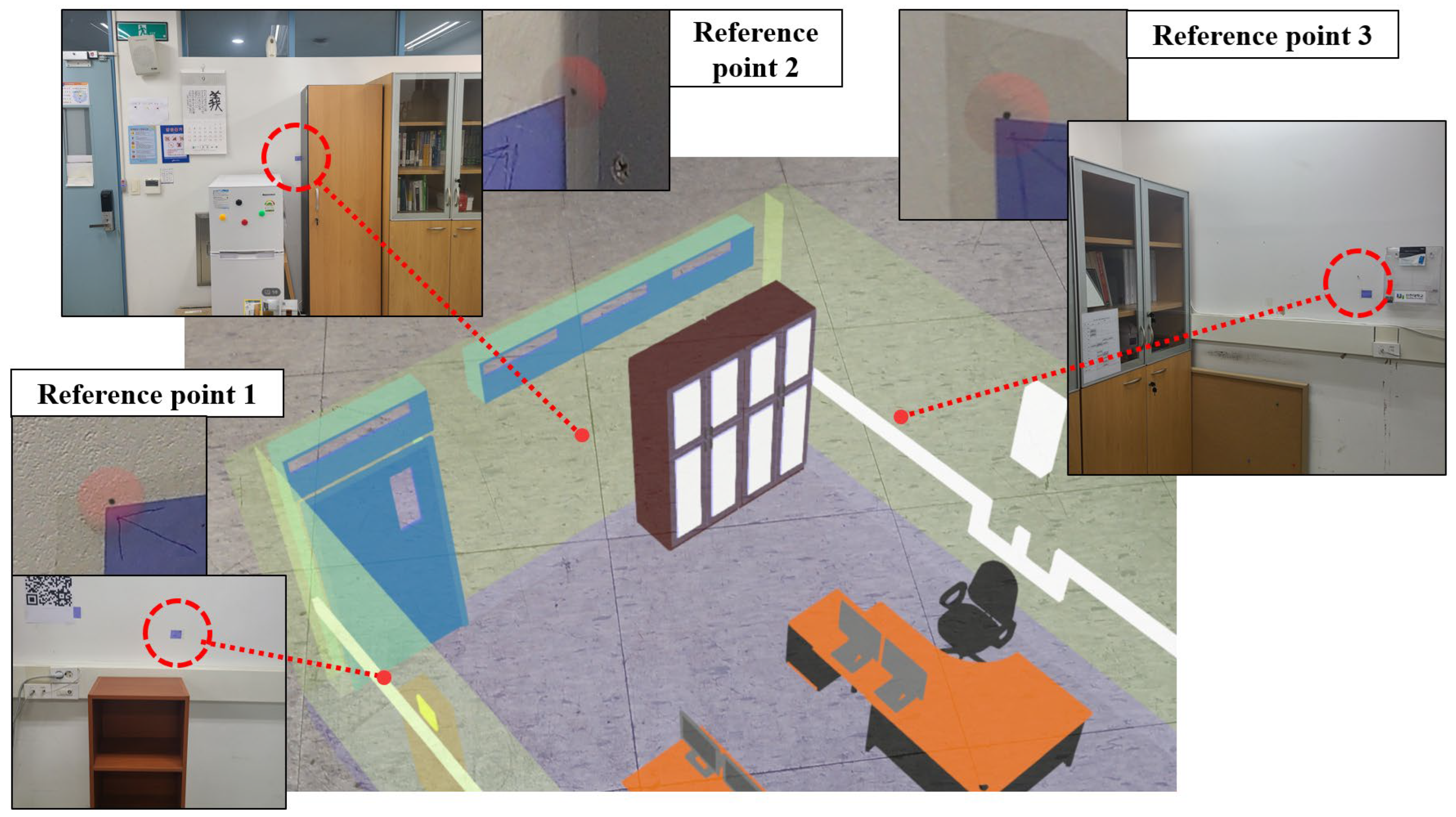

To measure alignment errors, reference points were manually repositioned for each participant due to HoloLens 2’s spatial coordinate system characteristics. The device resets its spatial origin upon restart, using the user’s initial head position as the coordinate origin. Additionally, while HoloLens 2 employs ToF sensors for spatial mapping [23], variability in wall and corner detection necessitated consistent manual reference point placement to ensure measurement reliability across all 30 participants. Figure 5 illustrates the reference points in the actual laboratory and reference points in the virtual BIM model. Alignment error was calculated by measuring the average distance between wall reference points and the corresponding reference objects in the BIM model. Figure 6a shows a user performing the spatial alignment task, and Figure 6b shows the MR visualization of BIM model in the laboratory space.

The test results were systematically analyzed across three evaluation criteria: accuracy, efficiency, and user satisfaction. This comprehensive evaluation provided an objective comparison of each method’s performance, offering insights into their potential for practical application in real-world scenarios.

4. Results

Usability evaluation results measuring accuracy, efficiency, satisfaction, and preference of each method are presented in

Table 2. Usability evaluation results.

Metrics	TSAS	Drag	Marker	F	p	Post Hoc (Games-Howell)
Accuracy (mm)	50.3 ± 25.7	199.7 ± 233.5	64.0 ± 29.1	10.953	<0.001	Drag > TSAS, Marker
Time (s)	370 ± 147.4	359 ± 101.3	9.8 ± 4.6	117.834	<0.001	Marker < TSAS, Drag
Satisfaction	4.30 ± 0.70	2.30 ± 1.20	4.13 ± 0.60	51.786	<0.001	Drag < TSAS, Marker
Preference	16 (53.33%)	2 (6.67%)	12 (40.00%)

.

The accuracy analysis revealed that TSAS achieved an average error of 50.3 mm, while the marker-based method showed 64.0 mm error, and the drag-based method demonstrated 199.7 mm error. Values are mean ± Standard Deviation (SD). A one-way Analysis of Variance (ANOVA) indicated that these differences were statically significant (p < 0.001). Given the significant differences in standard deviations across groups, which violates the assumption of homogeneity of variances, the Games-Howell post hoc test was utilized for pairwise comparisons. According to Article 20 of the Enforcement Rule of the Building Act [33], construction errors in room partitions must not exceed 100 mm. Both TSAS and marker-based method satisfied this regulatory requirement.

In terms of efficiency, TSAS required an average of 370 s, while the drag method required 359 s. The marker-based method recorded significantly shorter operation times, averaging 10 s. However, it should be noted that this measurement excluded the time required for marker installation due to practical testing constraints. Had the marker installation process been included, both accuracy and efficiency results might have shown different patterns.

Satisfaction ratings indicated that TSAS scored 4.30 out of 5, the drag method received 2.30, and the marker method achieved 4.13. In preference evaluation, 16 participants (53.33%) favored TSAS, while 12 participants (40.00%) preferred the marker method, and only 2 participants (6.67%) chose the drag method. Participants who preferred TSAS cited its ease of adjustment and minimal errors as key advantages. Those who favored the marker method appreciated its ease of use, while participants generally indicated difficulties with the drag method for spatial alignment.

5. Discussion

This study has proposed and evaluated TSAS for integrating BIM with MR technology in construction environments. The experimental results indicate that TSAS performs better than existing methods. With a mean alignment error of 50.3 mm, TSAS shows better accuracy compared to marker-based (64.0 mm) and drag-based methods (199.7 mm). This level of accuracy satisfies Article 20 of the Enforcement Rule of the Building Act (100 mm tolerance) [33]. The user satisfaction rating (4.3/5) and preference rate (53.33%) indicate the system’s usability.

The results revealed distinct characteristics of each alignment method. The marker-based method showed high efficiency in operation time but required additional setup procedures. However, it should be noted that this measurement excluded the time required for marker installation due to practical testing constraints. Had the marker installation process been included, both accuracy and efficiency results might have shown different patterns. This setup requirement could affect its practicality in dynamic construction environments where marker positions need frequent adjustments. The drag-based method provided interaction with objects but showed lower accuracy (199.7 mm) and user satisfaction (2.3/5), indicating the difficulty of precise manual control in MR environments. TSAS addressed these limitations by reference point-based positioning.

Previous studies have primarily evaluated spatial alignment performance based on accuracy, efficiency, and user experience. Wu et al. (2022) utilized MR and SLAM-based object detection to detect hazards in real-time and monitor worker locations at construction sites [18]. While their study employed SLAM technology for automatic alignment, it required an initial setup time and showed performance variations depending on environmental changes. Fenais et al. (2019) applied a GIS-based AR system for spatial alignment of underground utilities [34]. Although GIS and GPS-based alignment methods are effective in outdoor environments, they exhibit limitations in achieving precise alignment indoors. Tavares et al. (2019) combined Spatial Augmented Reality (SAR) with a laser scanner, achieving a projection error within 3 mm [35]. Their findings demonstrated high automation and precision; however, the method involved complex initial setup and a strong reliance on hardware.

User feedback from the experiments indicated specific factors affecting system usability. Participants who preferred TSAS noted the clear visual feedback and controlled adjustment capabilities as key advantages. Those who favored the marker method appreciated its ease of use, as it required only viewing through the camera with minimal interaction, while participants who chose the drag method appreciated its flexibility, as it allowed direct adjustments. However, this approach required a higher level of manual control for precise placement, making it less reliable overall compared to reference point-based methods. These preferences suggest the importance of balancing precision and operational simplicity in MR interfaces.

The current evaluation was conducted in a controlled laboratory environment (approximately 5 m × 8 m room size). While this allowed for establishing baseline performance metrics, future validation in actual construction sites with varying environmental conditions, larger scales, and dynamic obstacles is necessary. The system’s robustness in such environments is expected to be favorable compared to marker-based methods, as TSAS does not rely on maintaining visual markers that could be damaged or obscured during construction activities.

6. Conclusions

This research presents TSAS for BIM object alignment in MR environments. The experimental results demonstrate that TSAS achieved a 50.3 mm alignment error, satisfying the Building Act’s enforcement rule tolerance (100 mm), while maintaining high user satisfaction.

The study makes three primary contributions. First, it introduces a two-point reference system that improves alignment accuracy while maintaining usability. Second, it develops a feedback mechanism that supports accurate object positioning. Third, it implements an approach that eliminates complex setup procedures typical of existing marker-based methods.

The system has several technical limitations. The rotation mechanism is restricted to the Y-axis, as structures are typically positioned along vertical axes, reducing unnecessary calculations and enabling positioning with only two-point designations. While this simplification improves efficiency, Y-axis-only rotation may limit flexibility in certain scenarios requiring multi-axis adjustments. The current evaluation was conducted in a laboratory environment (approximately 5 m × 8 m room size), necessitating further validation in actual construction environments.

Future research should address these limitations in three directions. First, technical development should investigate additional rotation mechanisms for handling inclined structures or complex geometries, potentially incorporating X- and Z-axis rotations when necessary. Second, comprehensive field studies should test the system in larger construction sites with varying environmental conditions, dynamic obstacles, and different material types to verify its scalability and robustness. Third, research should examine how this alignment method can be effectively integrated into existing construction and BIM workflows.
