Establishment of a Novel Fragmentation Prediction Model Incorporating Rock’s Response Time to Blasting

1
Mining Engineering Department, Engineering Faculty, Istanbul University-Cerrahpasa, 34500 Istanbul, Türkiye
2
Tessan Mining Construction Industry Tourism and Trade Joint Stock Company, 34076 Istanbul, Türkiye
3
Erdemir Mining Industry and Trade Inc., 58300 Divrigi, Türkiye
*
Author to whom correspondence should be addressed.
Appl. Sci. 2025, 15(17), 9447; https://doi.org/10.3390/app15179447
Submission received: 11 August 2025 / Revised: 23 August 2025 / Accepted: 27 August 2025 / Published: 28 August 2025

Abstract

Rock’s response time to blasting (Tmin) refers to the critical time elapsed between the detonation of the explosive to the fragmentation and displacement of the rock, and it is a fundamental parameter that directly impacts blast-induced fragmentation. Although existing studies acknowledge the importance of this parameter, there are uncertainties regarding the factors determining Tmin. Furthermore, existing models use complex parameters, fail to demonstrate sufficient performance in different engineering scenarios, or are not suitable for use as a practical engineering tool. To address these uncertainties and to reveal the relationship between Tmin and fragmentation performance with an integrated model, a comprehensive dataset was obtained from 27 blasts conducted in 12 different quarries in Türkiye. The study followed a systematic methodology including geomechanical characterization, Tmin measurement via high-speed videography, and pre- and post-blast photogrammetric fragment size analysis. The findings enabled the development of a model that predicts Tmin with high accuracy (R2 = 0.789, MAPE: %16.56) using parameters easily measurable in practice. More importantly, this estimation of Tmin was used in an integrated model where the mean fragment size (P50) could be predicted directly and successfully (R2 = 0.837, MAPE: %8.37), providing a significant contribution to the literature. In light of these results, the primary engineering contribution of the study is that it has developed a practical and reliable tool applicable in the field, which treats Tmin as an optimizable design variable and provides a seamless prediction framework from blasting design to the rock fragmentation.

1. Introduction

Blasting is a fundamental method used for the fragmentation of hard rocks. The foundation of this technique is the controlled detonation of explosive materials inserted into holes drilled into the rock mass, followed by using the blasting energy released to fragment the rock to the required size.
The fragmentation mechanism that underlies this controlled fragmentation is a sequence of sequential reactions that starts with the initiation of the explosive charge. Upon the detonation of the explosive charge, the suddenly released gases at very high temperature and pressure strike the borehole walls, creating an intense pressure wave that propagates outwards through the rock. This stress wave from the blast exceeds the rock’s stress strength in a very short time, shattering and breaking the region immediately surrounding the hole and creating a zone that has been plastified and pulverized into dust. Outside this zone, plastic behavior transitions to elastic behavior, forming a fractured zone. The tangential (tensile) stresses generated here cause the formation of cracks that propagate in a radial direction. The radial cracks continue to propagate until the tangential tensile stress falls below the tensile strength of the rock. When the released radial pressure waves hit a free surface, they reflect and transform into tensile stress waves. These reflected tensile waves advance the fracturing initiated around the hole, triggering the formation of radial cracks extending to distances up to four times the borehole diameter. Subsequently, the high-pressure gases penetrate these radial cracks, pushing them like a wedge and propelling the cracks all the way to the free surface, thereby achieving the final fragmentation of the rock. In the final stage, the same gas pressure displaces the fragmented rock mass, completing the blasting cycle [1,2,3,4,5,6,7]. This entire duration, from the detonation of the explosive to the fragmentation and displacement of the rock, was defined by Chiappetta [8] as the rock’s response time to blasting (Tmin).
Since its discovery, rock fragmentation by blasting has attracted substantial research interest aimed at enhancing fragmentation performance. The primary challenge in achieving desired fragment size distribution lies in rock inhomogeneity and the complex interplay of stress wave propagation and gas penetration mechanisms. Consequently, determining site-specific blasting parameters tailored to each geological environment remains essential. While specific charge optimization through hole pattern and charge amount adjustments is commonly employed, numerous studies have demonstrated that delay timing constitutes an equally critical parameter for fragmentation control. Research shows optimal delay times range from 3 to 8 ms/m of burden [9,10,11,12,13] to 10 ms/m [14], with consistent findings indicating improved fragmentation at delays exceeding 3.3 ms/m and deterioration below 1 ms/m [15,16]. Some researchers propose spacing rather than burden as the key parameter [17,18], with detailed rock-specific recommendations available [17]. Empirical studies confirm that increased delay times up to 11–13 ms/m generally reduce mean fragment size and improve fragmentation efficiency [19,20,21], though excessively long delays may diminish effectiveness due to loss of stress wave interaction.
As mentioned above, various studies and suggestions have been put forward for the ideal delay interval to achieve good fragmentation. However, guidelines often require adaptation and may not be directly transferable to all field conditions, largely due to the unpredictable nature of blasting and the significant inhomogeneity inherent to rock units. Well aware of this complexity, Jimeno et al. [5], emphasized that delay timing should enable the total completion time of the sequence of events that comprise the rock fragmentation mechanism by blasting, rather than recommending definitive numerical values. This perspective—which refers to the duration of sequential reactions from explosive initiation to rock fragmentation and displacement, or the rock’s response time to blasting in Chiappetta [8] terms—has shed important light on the field by suggesting that such timing may play a critical role in achieving optimal fragmentation. Nevertheless, the number of scientific studies that have examined its impact on fragmentation performance is considerably limited.
The term “rock’s response time to blasting” was first defined by Chiappetta [8], and it depends on the burden/hole diameter ratio. For good results in rock fragmentation, the delay time between holes in a row should be less than or equal to Tmin, and the delay time between rows should be 1.5–3 times Tmin. Depending on the blasted material, Tmin varies from a few milliseconds to hundreds of milliseconds.
Onederra and Esen [22] developed an empirical complex model, introducing new parameters such as rock hardness (Kmass) and explosive–rock interaction (ERI) (Equation (1)).
T m i n = K m a s s   ×   E R I a   ×   B d × 1 K m a s s ×   E R I b
where Tmin is the minimum response time (ms); Kmass is the rock mass stiffness (GPa) which is a function of the rock mass dynamic Young’s modulus (Ed) and Poisson’s ratio (vd); B is the burden (m); d is the hole diameter (m) and ERI is an explosive rock interaction term. While Kmass is calculated by using Equation (2), the term ERI is determined by Bergmann [4] formula (Equation (3)).
K m a s s = E d ( 1 + v d )
E R I = 0.36 + ρ e ×   D 2 ( 1 + D 2 v p 2 D v P   ×   D D c j   ×   ρ e
where ERI is the explosive–rock interaction term; ρ e   is the density of the explosive (g/cm3); D is the actual (non-ideal) detonation velocity (km/s); vp is the P–wave velocity of the intact rock (km/s) and DCJ is the CJ detonation velocity (km/s).
Segarra et al. [23] and Sanchidrián et al. [24] proposed a contrasting perspective, suggesting that parameters such as rock type and bench height exhibit negligible influence on Tmin. Their model posits that Tmin demonstrates an inverse functional relationship solely with burden, representing a significant departure from other theoretical frameworks in the literature.
Onederra [25] continued the work performed by Onederra and Esen [22] and made empirical graphs that will help determine delay duration under different conditions.
Voulgarakis et al. [26] conducted a pioneering and, to our knowledge, the sole study that explicitly quantified the relationship between rock fragmentation and Tmin using dimensional analysis, introducing a definitive mathematical formulation for this relationship (Equation (4)).
T m i n = 0.077   ×   M 0   × B L 2 7.116 R R 50 × E r 1 / 2
where Tmin is the minimum response time, M0 is the mass of blasted rock, BL is the local burden, RR50 is the fragmentation ratio and Er is the released explosive energy.
As mentioned above, researchers widely acknowledge the critical importance of the Tmin for fragmentation quality and blasting efficiency. Experimental studies confirm the fragmentation mechanism involves sequential reactions, requiring precise timing. However, significant disagreement persists regarding the specific parameters determining this precise timing (Tmin) and its calculation, highlighting the subject’s complexity.
While a strong theoretical foundation exists, a clear need remains for translating these models into practical tools for engineers. The negative influence of burden is well-documented, but the combined effects of other parameters require refinement for better field accuracy. Furthermore, developing a verified, comprehensive calculation tool for direct on-site use is an area for advancement, necessitating a stronger experimental emphasis on the Tmin-fragmentation correlation.
The conflicting literature provides a strong rationale for this subject and study aims to address these gaps. The primary engineering objective is to develop a comprehensive and Tmin-integrated predictive model for fragmentation by blasting. Unlike existing approaches, this research was designed to extend beyond predicting Tmin by utilizing this parameter as a direct input to sequentially estimate rock-size reduction ratio (F, %) and ultimately the mean particle size (P50). Thus, this study is the first in the literature to establish a novel model that directly integrates the prediction of Tmin with the estimation of P50.
The study employed a sequential methodology (Figure 1): (1) Characterizing field geology and quantifying rock mechanical properties. (2) Pre-blast studies included meticulous measurement of blast design parameters, detonator timing verification, and photogrammetric quantification of in situ block size distribution on bench faces with Split Desktop v2.0 from Split Engineering, USA. (3) Blast monitoring used high-speed videography (1000 fps) Blaster’s Ranger II High Speed Camera from MREL, Canada to record detonator initiation (t0) and rock displacement onset (trm), enabling calculation of Tmin. (4) Post-blast studies quantified particle size distribution via photogrammetric assessment of muck piles with Split Desktop v2.0 from Split Engineering, USA, enabling evaluation of fragmentation efficiency against initial block size. (5) Statistical analysis of the data produced in the previous phases by using IBM SPSS Statistics 25 from the IBM Corporation, USA.

2. Study Fields

This study investigates 27 blasts across 12 quarries in Istanbul, Tekirdağ, and Kırklareli in Türkiye (Table 1). The lithological units and geology were systematically determined in the field using geotechnical information forms. The quarries covered by the study contain the four most common rock types encountered in quarrying: limestone, sandstone, marl, and claystone. This lithological diversity encompasses the rock types found in the majority of limestone quarries worldwide.
Subsequently, laboratory testing of representative rock samples was conducted to quantify UCS and ρ. In terms of rock strength, the study encompasses a wide range of samples, from moderate strong to very strong, where blasting is technically and economically necessary. Similar variability was also observed in discontinuity networks that regulated in situ block sizes.
Despite the geographical limitations, considering the lithological diversity, rock strength range, and industrial application criteria covered by the study, it can be said that the study fields are representative of quarries on a global scale. In addition, this diversity enables the development of generalized predictive models that can be applied in various geological contexts, thereby enhancing our understanding of the rocks’ response time to blasting.

2.1. Danismen Formation

The Danismen formation is of Late Oligocene—Early Miocene age. The formation consists of greenish gray shales, clay stones and coals which are interbedded with light gray to yellowish brown and cross-bedded, fine-grained sandstones and siltstones [27].

2.2. Islambeyli Formation

The Islambeyli Formation, with a thickness varying between 30 and 100 m, is overlain by the Kirklareli Limestone via both lateral and vertical transitions. The formation begins with a basal sediment of weakly compacted, poorly sorted, angular, blocky, pebble- to sand-sized volcaniclastic sandstone-conglomerate. This is overlain by a hard, tightly compacted succession of sandstone, claystone, marl, and limestone with yellow to off-white-gray carbonate cement. The unit also contains tuffs and tuffites exhibiting convolute structures, which are interbedded with locally gray and greenish marls [28,29].

2.3. Thrace Formation

The dominant units in the region are claystones and sandstones. Sediments generally show a stratified structure, and faults and compression zones are encountered in some places. For this reason, crushed, cracked, and folded structures are frequently encountered in the quarry [30].

2.4. Pinarhisar Formation

The Pınarhisar Formation, composed of sandstone, pebbly sandstone, conglomerate, and various oolitic and clayey limestones, is widely accepted to lie on the eastern shore of the Thrace Basin, though its age and correlations remain debated. It transitionally overlies the Kırklareli Limestone toward the basin center but rests unconformably upon the basin-equivalent Soğucak Formation along the northern margin due to active tectonism. The gray to dun-colored unit includes thin to medium beds of quartz and limestone pebbles, oolitic coatings, and layers rich in gastropod and lamellibranch shells, grading upward into manganese-bearing sandstones, angular conglomerates, and oolitic limestones containing fish teeth. It is broadly considered to be of Oligocene age [31,32].

2.5. Sogucak Formation

The age of the Sogucak formation varies from Late Lutetian to Early Oligocene along the basin [33]. The Sogucak formation overlies the Koyunbaba formation in the northern Thrace Basin with a gradual transition. The depositional environments of the Soğucak Formation can be defined as shallow marine to deep open marine environments [34].

2.6. Suloglu Formation

The Sogucak Formation consists of gray to beige, thin-bedded, slightly carbonaceous shales and siltstones with fish fossils at the base, transitioning upward into yellowish-gray sandstones and greenish-gray claystones. The sandstones are locally tight-bonded, thin- to medium-bedded, and medium- to coarse-grained, while the claystones are massive and greenish in appearance. The unit contains lignite bands, particularly in the west near the metamorphic basement, as well as vertically bedded manganese levels and sandstones toward its base. Its coal-bearing sandy upper sections are partially correlated with the Danismen Formation. The age of the unit is considered Middle to Late Oligocene [35].

3. Field Studies

3.1. Blasting Design Parameters

As part of the pre-blast studies, hole design for each shot were meticulously measured using calibrated tape measures, while detonator connections were inspected to ensure millisecond-level timings. Due to significant variability in field-measured parameters—including in situ block size, hole design, and charge distribution—a zone-based analytical framework was implemented to systematically manage variance, as shown in figure under the subheading ‘meticulous measurement of blast design parameters, detonator timings’ in Figure 1. By establishing predefined thresholds for critical blasting parameters, the 27 blasting events were segmented into 51 statistically robust datasets. This methodological refinement effectively mitigated high standard deviations and facilitated the identification of causative relationships between blasting parameters and fragmentation.
Since it is not possible to share all the values of blasting design parameters, pertinent charge specifications, and capsule details from the study, a representative part is presented in Table 2.

3.2. Rock Fragmentation by Blasting

This study quantified the in situ block size distribution on pre-blast bench faces and the particle size distribution of post-blast muck piles using photogrammetry. Representative sections of bench faces and fragmentation zones were systematically photographed under controlled conditions. Subsequent digital image processing characterized the pre-blast in situ block sizes (D20, D50, D80, D100) and post-blast particle size (quantified by P20, P50, P80, P100) by using Split Desktop v2.0.
While the complete dataset exceeds the scope of this study, a statistically representative subset of results (Table 3) validates the methodology’s application and robustness.
Critically, fragmentation efficiency was evaluated using the rock-size reduction ratio (F, %), defined as the ratio of the mean post-blast particle size (P50, mm) to the mean pre-blast in situ block size (D50, mm) (Equation (5)). Higher F values signify enhanced fragmentation performance.
F   % = 100   × 1 P 50 D 50
The study achieved high fragmentation efficiency across all blasts, with rates ranging from 83.02% to 96.47% and averaging 86.76%. These results demonstrate consistently effective size reduction, with some blasts approaching near-perfect fragmentation (96.47%).

3.3. Rock’s Response Time to Blasting

In this study, Blaster’s Ranger II High Speed Camera operating at 1000 frames per second (fps) were deployed to capture the dynamic response of rocks to blasting. This setup effectively slowed real-time events by a factor of 1000 for detailed analysis (1 ms of actual time = 1 s of footage). Footage from each shot was scrutinized frame-by-frame to record two critical timestamps per blast hole: the initiation of the surface capsules, identified when a distinct color change (e.g., brightening) of the capsule’s pixels as shown in picture (a) under the subheading ‘blast monitoring used high-speed videography’ in Figure 1, and the first observable rock displacement within the hole’s designated impact zone, determined using a pixel displacement threshold as shown in picture (b) under the subheading ‘blast monitoring used high-speed videography’ in Figure 1.
A critical finding from the analysis revealed consistent deviations in surface capsules delay times. Capsules from identical production lots exhibited variations of 4–12% (mean: 9%) across monitored blasts. However, high-speed camera data alone could not assess in-hole delay deviations, necessitating controlled laboratory tests. These tests confirmed that in-hole detonator deviations closely mirrored those of their paired surface counterparts. Consequently, surface and in-hole delay deviations were deemed equivalent, simplifying blast timing error modeling.
To calculate Tmin, the duration between the ignition of a surface capsule and the commencement of rock movement within the hole’s impact zone was calculated. By subtracting the delay times of the capsules and the time required for the explosive to detonate from this duration, the response time of the rock to blasting can be calculated (Equation (6)). A representative part of the results are shown in Table 4.
T m i n = t r m t o 1 k t s d + t i d + 1000 × h V o D
where Tmin is rock’s response time to blasting (ms), trm is the moment when the rock breaks away from the main mass and begins to move (ms), to is the moment when the surface capsule is ignited (ms), k is the deviation in the delay time, tsd is the surface delay time (ms), tid is the in-hole delay time (ms), h is the charge length (m) and VoD is velocity of detonation (m/s).

4. Statistical Analysis

Experimental data ranges are consistent with the established blasting guidelines, such as those proposed by Langefors and Kihlström [36], Olofsson [37], and Jimeno et al. [5]. Table 5 delineates the operational ranges of predictor variables, encompassing minimum, mean, and maximum values derived from comprehensive field measurements. These operational ranges represent a primary limitation of the study, as their predictive accuracy is constrained to these specific boundary conditions.
Quantitative relationships were established by conducting a comprehensive multivariate linear regression analysis on the experimental dataset by using IBM SPSS Statistics 25. Two predictive models were developed: the first model (Equation (6)) characterizes the rock’s response time to blasting (Tmin) as a function of six predictors: stemming length (ho), velocity of detonation (VoD), burden (B), charge concentration (Ib), and rock’s unit volume weight (ρ) and uniaxial compressive strength (UCS). The second model (Equation (7)) predicts the rock-size reduction ratio (F) using specific charge (q), rock’s uniaxial compressive strength (UCS) and response time to blasting (Tmin), and subdrilling length (U).

4.1. Rock’s Response Time to Blasting (Tmin) Model

For the Tmin model, regression diagnostics indicated substantial explanatory power (R2 = 0.789). Table 6 presents the model summary statistics, and Table 7 presents the analysis of variance (ANOVA), which shows statistical significance at the 95% confidence level (p < 0.001). The accompanying coefficients table contains information on the regression coefficients, including standardized beta weights and significance values.
The resultant regression equation for Tmin is expressed as:
T m i n = 1837.383 + 18.851 9.507 I b + 2495.127 ρ 21.917 h o 0.839 V o D 2.425 U C S
Analysis of the Tmin model yielded several critical insights. B demonstrated an inverse relationship with Tmin, consistent with its established role in blast mechanics. Increasing B makes it take more energy to move the rock, which extends the response duration. This discovery corresponds with previous investigations that have identified burden as a primary determinant. While Chiappetta [15], who first defined the term “rock’s response time to blasting”, suggested hole diameter influences Tmin, this study confirms its role is meaningfully contextualized by considering the explosive type. More significant results emerged when incorporating Ib—a parameter functionally dependent on hole diameter and explosive density—rather than hole diameter alone. Higher Ib values improve the efficiency of energy transmission and can be attained with denser explosives or larger borehole diameters. Furthermore, increased VoD decreases Tmin, confirming explosive properties as critical determinants. Previous research on the properties of rocks has shown mixed results regarding the impact of intrinsic material properties on Tmin. This study clarifies this ambiguity by establishing clear directional effects: ρ shows a positive relationship with Tmin, suggesting inertial resistance in denser m, while UCS shows a negative correlation with Tmin, suggesting faster response in competent rock. This finding aligns with Bergmann’s postulations [4]. Interestingly, ho showed up as a new predictor; longer stems were linked to lower Tmin. This indicates better energy confinement from a mechanistic standpoint, as gaseous products are directed toward rock fracturing instead of escaping to the atmosphere.
Equation (7) provides a practical engineering tool for optimizing delay timing based on site-specific geomechanical and explosive properties. Its incorporation of four controllable parameters (B, Ib, ho, and VoD) positions Tmin as a controllable variable rather than merely an observational outcome.

4.2. Rock-Size Reduction Ratio (F) Model

Given the critical influence of delay time on fragmentation outcomes, appropriate delay intervals are fundamentally dependent upon the Tmin. This dependence establishes a direct correlation between Tmin and fragmentation efficiency. To quantitatively characterize this relationship within the framework of temporally optimized blasting, the second regression model formalized F as the dependent variable. Based on a coefficient of determination (R2 = 0.803), the model was very good at making predictions. Comprehensive model summary statistics are detailed in Table 8. Analysis of variance (ANOVA) results, presented in Table 9, confirmed the model’s statistical significance at the 95% confidence level (p < 0.001). The accompanying coefficients table explicitly delineates the magnitude and directional contribution of each predictor variable.
The rock-size reduction ratio (F) equation is defined as:
F   = 87.389 + 8.011 q 0.035 U C S 0.022 T m i n + 1.442 U
To enhance practical utility, Equation (8) was reformulated to predict mean particle size (P50) based on mean in situ block size (D50):
P 50 = D 50 × 1 87.389 + 8.011 q 0.035 U C S 0.022 T m i n + 1.442 U 100
It can be said that the rock’s response time to blasting has an inverse effect on rock fragmentation by blasting. This result, indicating an inverse relationship between the rock’s response time and fragmentation, aligns with the findings of Voulgarakis et al. [26].

4.3. Validation

Model validation for Equation (9) utilized Tmin values predicted by Equation (6), rather than direct field measurements. This approach tested the integrated model’s reliability under known design conditions. Figure 2 illustrates a strong correlation (R2 = 0.837) between observed and predicted P50 values.
The fragmentation model elucidates key mechanistic relationships. F increased with q and U, consistent with theoretical expectations. Conversely, F decreased with higher UCS and longer Tmin values. Prolonged response time reducing fragmentation efficiency and increasing particle size. This positions Tmin as a critical temporal determinant in fragmentation optimization, complementing traditional energy-based parameters. Crucially, the inverse relationship between F and Tmin constitutes a novel empirical finding.
Model performance was further evaluated using multiple error metrics (Table 10). While high R2 values confirm strong linear correlations, absolute error analysis provides complementary insight into predictive reliability.
The developed models generally exhibit high reliability in predicting critical outcomes of blasting operations. The error rate for Equation (7) (Tmin estimation) is less than 20% in 43 out of 51 examples; however, deviations are particularly pronounced in a few cases, including Data No. 8 (46.9%), 32 (59.0%), and 35 (51.0%). While Equation (7) generally performed with acceptable accuracy, significant error rates were observed in 3 of the 51 datasets.
Similarly, Equation (8) (F estimation) exhibits largely low errors (0.0–5.9%), with only Data No. 41 (7.1%) and 42 (7.2%) exhibiting exceptionally high deviations. Equation (9) (P50 estimation) achieves consistent performance with errors below 20% for 48 data, except for Data 19 (34.1%), 49 (25.5%), and 50 (19.2%). These outliers are anticipated to be the result of boundary design conditions or excessively high actual P50 values (e.g., 832 mm). While not all models exhibit mean absolute percentage errors (Equation (7): 16.56%, Equation (8): 2.62%, Equation (9): 8.37%) that surpass the industrial acceptance threshold (20% MAPE).
Samples containing high errors may be due to inaccuracies in measurement procedures, accidental factors, sudden drops in explosive performance, or local geotechnical heterogeneities. These kinds of deviations do not invalidate the general validity of the models. However, it must be emphasized that the aforementioned reasons are currently only speculative, as they have not yet been confirmed by direct empirical findings or conclusive field data.

4.4. Testing

A field testing was conducted in Study Field 7 to assess the practical utility of Equations (7)–(9) derived from regression analysis. The blasting pattern of the test shot is presented in Figure 3, and the values of predictors are presented in Table 11.
Digital image processing was employed to determine the in situ block size and characterize the particle size distributions, as presented in Figure 4 and Figure 5. The results indicate D50 of 3064 mm and a P50 of 437 mm in the left zone, the middle zone yielded a D50 of 1931 mm and a P50 of 267 mm. Furthermore, F was calculated to be 85.74% in the left zone and 86.16% in the middle zone.
The high-speed camera recording showed that the time between the firing of the first surface capsule and the beginning of the rock movement in the middle zone was 717 milliseconds (Figure 6). In the left part, it took 691 milliseconds. In this shot, where Nonel capsules with 25 ms surface and 500 ms in-hole delays with a deviation of 16% were used, the response times of the rock to blasting were calculated as 79.96 ms for the left zone and 105.96 ms for the middle zone.
Table 12 demonstrates a strong agreement between the developed models (Equations (7)–(9)) and field measurements, with consistently low prediction errors of less than 10%.

5. Results and Discussion

The study’s results make a substantial contribution to the body of knowledge regarding the connection between fragmentation efficiency and Tmin.
The primary engineering contribution of this study lies in the development of a comprehensive and integrated model for predicting blast performance. In contrast to the existing literature, this research extends beyond predicting the response time of rocks to blasting (Tmin) (R2 = 0.789) by utilizing this predicted value as a direct input to sequentially estimate fragmentation performance (F, % − R2 = 0.803) and ultimately the mean fragment size (P50 − R2 = 0.837). This study is the first to directly integrate the prediction of Tmin with the estimation of P50, thereby establishing a continuous and holistic predictive model.
One of the original contributions of this study is its revelation of the effect of ho on Tmin. The finding that longer stemming is associated with shorter Tmin provides a significant contribution to understanding the mechanism of energy confinement. This can be explained by the fact that longer stemming confines a much larger portion of the high-temperature and high-pressure gases, which are crucial for rock fragmentation upon detonation, within the blast hole. This confinement facilitates easier and faster rock fragmentation, thereby resulting in a shorter Tmin. Furthermore, another important contribution is the expansion of Chiappetta’s [8] emphasis on hole diameter by incorporating Ib, which depends on both hole diameter and explosive density, thus offering a more comprehensive approach.
The study’s conclusions about the effects of the parameters on Tmin exhibit both notable parallels and divergences with previous research. First, all researchers on this topic agree that B and Tmin have an inverse relationship. Similarly, the critical role of explosive properties parallels the concept of Explosive–Rock Interaction (ERI) emphasized by Onederra and Esen [22]. Also, this study shows that increasing VoD greatly lowers Tmin. This supports the ideas put forward by Onederra and Esen [22].
This study clarifies the uncertainties in the literature regarding the effect of rock properties. A positive correlation was observed between Tmin and ρ. Furthermore, the negative correlation between UCS and Tmin provides experimental confirmation for Onederra and Esen’s [22] emphasis on rock hardness. However, this finding is not consistent with the assertion by Segarra et al. [23] that rock type has no effect. Overall, these results demonstrate that rock properties have a significant impact on Tmin.
To demonstrate the impact of Tmin on fragmentation, the developed model (Equation (9)) was applied to the whole range of response time values measured during the study (30–185 ms) while preserving the mean parameter values from the current dataset (q: 0.44 kg/m3, UCS: 98 MPa, U: 0.68 m, and D50: 3035 mm). The findings indicated that the P50 value was estimated at 370 mm (F = 87.80%) at the lower limit response time of 30 ms and at 474 mm (F = 84.39%) at the upper limit response time of 185 ms. These results demonstrate that P50 increased significantly by 28.1% when Tmin was increased by about six times (6.17×). This result validates that longer response has a significant negative impact on fragmentation efficiency, a finding that aligns with the core relationship between timing and fragmentation outcomes explored by Voulgarakis et al. [26].
This negative impact of the Tmin of fragmentation can be explained based on the theoretical framework concerning the fragmentation mechanism. The first and most important possibility is that the high-pressure and high-temperature gases formed as a result of the detonation may not maintain their pressure and drop before fragmentation is complete. According to theory, the ability of these high-energy gases to propagate through existing discontinuities within the rock is due to the high pressure they possess. An increase in the rock’s response time to blasting likely means this process will progress more slowly. According to the predicted scenario, this delay could allow the gases to escape early from the borehole, seep into pre-existing crack intervals, or expand, cool down, and lose their critical pressure levels. It can be proposed as a probable outcome that gases with reduced pressure cannot transfer sufficient energy to the crack tips, and crack propagation is halted prematurely. This situation is expected to result in insufficient fragmentation and larger blocks. A second possible explanation is the disruption of the timing and synchronization between the sequential stages assumed to be necessary for effective fragmentation. According to theoretical models, the timing between the shock wave creating micro-cracks in the rock and the gases expanding and extending these cracks should be near optimal. It is predicted that a long response time may cause a timing discrepancy by creating a disadvantage between these two critical stages. It is likely that by the time the gases reach the crack zones, the effect of the shock wave may have already diminished, or the crack tips may no longer be amenable to propagation.
Building upon this relationship between timing and fragmentation, a comparative analysis was conducted between the model developed in this study and the approach proposed by Voulgarakis et al. [26] (Figure 7), which also explicitly relates F to Tmin. However, a critical limitation of the model by Voulgarakis et al. [26] (Equation (4)) emerges as the fragmentation process becomes more efficient: when the mean in situ block size exceeds 7.116 times the mean particle size (corresponding to a fragmentation ratio, F, exceeding 85.95%), the predicted Tmin value approaches infinity. Since modern quarry operations target high fragmentation values (typically between 83.02% and 96.47%), the model developed in this study demonstrates superior and practical performance within this critical range. A comparison of 26 data points where both models are applicable (F < 85.95%) revealed that Equation (7) from this study achieved a Mean Absolute Percentage Error (MAPE) of 18.90, significantly lower than the MAPE of 54.26 for Equation (4) from Voulgarakis et al. [26]. These results underscore that the current study provides an alternative tool with high applicability in the high-efficiency fragmentation range demanded by industry.
While Onederra and Esen’s model [22] is theoretically valuable, its reliance on complex parameters (e.g., ERI, Kmass, Er) often makes it impractical for field measurements. In contrast, the models developed in this study utilize readily available parameters, making them significantly more user-friendly for engineering applications. This enhanced practicality provides engineers with a more viable and efficient tool for use in the field.
The proposal by Chiappetta [8], who introduced the concept of Tmin to the literature, has been re-evaluated in light of the dataset generated in this study. Chiappetta suggested that the inter-row delay time should be 1.5–3 times Tmin. However, the ratio was observed to vary between 0.5 and 5.9. Interestingly, although the number of data points falling within Chiappetta’s proposed range was relatively limited (16 data points), no statistically significant difference in fragmentation performance was observed across the different ratio intervals (0.5–1.5, 1.5–3, and 3–5.9). Nevertheless, the dataset’s exceptionally fine post-blast particle sizes and the notably high F imply that the specific charge values applied may have been significantly greater than the energy necessary to fragment the respective rock masses. The use of such high specific charge values may have masked the potential effects of Chiappetta’s proposed optimal delay interval, preventing its validation under these conditions. Thus, more research examining the viability of Chiappetta’s suggestion under more regulated blasting circumstances with an optimized specific charge is necessary and would be beneficial to the field.

6. Conclusions

This study presents a novel methodology for the estimation of Tmin, a critical parameter that directly affects fragmentation efficiency in blasting operations. Unlike the existing literature, this study not only estimated Tmin but also used this parameter as a direct input in an integrated model that sequentially predicts fragmentation performance (F, %) and mean fragment size (P50). The developed model offers a quantitative improvement compared to existing practical models, with high prediction accuracy (R2 = 0.789 for Tmin, R2 = 0.803 for F, R2 = 0.837 for P50) and low error rates (MAPE: 16.56% and 2.62%, respectively), constituting a more reliable and applicable alternative within the industry’s high-efficiency range (F > 83.02%).
The experimental results of the study clearly showed that Tmin is an optimizable variable through controllable parameters such as blasting design and proper explosive selection. Specifically, the determining effect of design parameters like burden and stemming length, as well as rock properties like velocity of detonation and rock’s unit volume weight and uniaxial compressive strength on Tmin, was modeled. One of the most important findings is the first-time demonstration that longer stemming reduces Tmin by increasing energy confinement. Furthermore, it was experimentally proven that a 6.17× increase in Tmin leads to a significant 28% increase in P50, quantitatively demonstrating the negative impact of long response times on fragmentation efficiency.
The primary engineering contribution of this study is that it presents an integrated prediction model that transforms theoretical complexity into practical applicability, using parameters that can be easily measured or controlled in field conditions. It provides engineers with a practical tool to achieve better fragmentation quality and operational cost advantages by optimizing the timing of the interaction between blasting energy and the rock mass.
A limitation of the study is that, although the experimental data range is consistent with the framework of established blasting guides recommended by authorities such as Langefors and Kihlström [36], Olofsson [37], and Jimeno et al. [5], the validation of the model needs to be tested in different geological environments and wider parameter ranges.
In conclusion, this research paves the way for more efficient, controlled, and optimized blasting practices by highlighting the critical role of Tmin on fragmentation performance. In light of these findings, the following directions are suggested for future research:
  • Advanced geological mapping in each rock mass should be carried out to identify rock mass anomalies (intense fracture/jointed zones, voids, etc.) that are difficult to detect with ordinary and classical methods. It will enable the development of new approaches that increase Tmin prediction accuracy. In this context, the goal is to investigate the direct effect of discontinuities on Tmin with increasing R2 and decreasing MAPE values.
  • Future research should focus on integrating the prediction equations for Tmin and F developed in this study into blasting simulation software and optimization algorithms. By inverting these models, the optimal blasting design parameters—such as burden, spacing, specific charge, and stemming length—could be predicted to achieve a targeted fragmentation distribution and post-blasting particle size. It is recommended that such tools be developed to bridge the gap between predictive modeling and operational design, allowing for the optimization of blast parameters and explosive selection based on specific rock mass behavior.
  • Unlike this study, it should be planned to quantify the relationship between inter-row delay time and Tmin for optimal fragmentation in scenarios where the specific charge is optimized for a larger but still acceptable particle size. This study will significantly contribute to understanding the practical validity of the range proposed by Chiappetta [8].

Author Contributions

M.C.O. (First Author) and A.K. (Corresponding Author) were integrally involved in all aspects of the research, including study conceptualization, methodological development, data acquisition and analysis, and manuscript preparation. U.K.S. and U.O. made significant contributions to the methodological framework and analytical approach. The field-based investigations—encompassing geological characterization, blast parameter quantification, and photogrammetric/videogrammetric assessments—were primarily conducted by H.E.M. and T.C.O., whereas U.K.S. performed the statistical analyses. All authors contributed substantially to data interpretation, participated actively in the drafting and critical revision of the manuscript, and approved the final version for publication. U.O. provided academic supervision and was responsible for funding acquisition. All authors have read and agreed to the published version of the manuscript.

Funding

This work was financially supported by the Scientific and Technological Research Council of Türkiye (Projects: “Evaluation of Blasting Excavation Works Carried Out In The Thrace Region in Terms of Efficiency” and “Investigation of Response Times and Behaviors of Rocks to Blasting, 120M421”).

Acknowledgments

The authors would like to thank the Scientific and Technological Research Council of Türkiye (Tübitak), Abdulkadir ARSLAN from Ento Mining Construction Industry & Trade LLC Co., Ünal GÜNDÜZ from NITRONET and Cevdet Burkay ZAIF from Nobel Explosives.

Conflicts of Interest

Author Hilal Erem Mutlu was employed by the company Tessan Mining Construction Industry Tourism and Trade Joint Stock Company. Author Taki Can Odabasi was employed by the company Erdemir Mining Industry and Trade Inc. The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

References

  1. Ash, R.L. The Design of Blasting Rounds, Surface Mining; Pfleider, E.P., Ed.; The American Institute of Mining, Metallurgical, and Petroleum Engineers: New York, NY, USA, 1968; pp. 373–397. [Google Scholar]
  2. Hagan, T.N.; Cameron, A.R. Selecting Explosives Systems and Monitoring Their Performance in Surface Mines. In Mine Planing and Equipment Selection; Pasamehmetoglu, A.G., Eskikaya, S., Karpuz, C., Hizal, T., Eds.; Balkema: Rotterdam, The Netherlands, 1994; pp. 635–641. [Google Scholar]
  3. Fourney, W.L. Mechanism of Rock Fragmentation by Blasting, Comprehensive Rock Engineering; Hudson, J.A., Ed.; Pergamon Press: Oxford, UK, 1993; Volume 4, pp. 39–69. [Google Scholar]
  4. Petrosyan, M.I. Rock Breakage by Blasting; A.A. Balkema: Rotterdam, The Netherlands, 1994; 141p. [Google Scholar]
  5. Jimeno, L.C.; Jimeno, E.L.; Carcade, F.J.A. Drilling and Blasting of Rock; A.A. Balkerna: Rotterdam, The Netherlands, 1995. [Google Scholar]
  6. Borovikov, V.A.; Vanyagin, I.F. Modelling the Effects of Blasting on Rock Breakage; A.A. Balkema: Rotterdam, The Netherlands, 1995; 238p. [Google Scholar]
  7. Djardjevic, N. A Two-Component Model of Blast Fragmentation. AusIMM Proc. 1999, 304, 9–13. [Google Scholar]
  8. Chiappetta, R.F. Blast Monitoring Instrumentation and Analysis Techniques, with an Emphasis on Field Applications. FRAGBLAST-Int. J. Blasting Fragm. 1998, 2, 79–122. [Google Scholar] [CrossRef]
  9. Bauer, A.; Calder, P.N. Open Pit and Blasting; Seminar Mining Engg. Dept. Publication; Queen’s University: Kingston, ON, USA, 1970; p. 3. [Google Scholar]
  10. Bergmann, O.R.; Wu, F.C.; Edl, J.W. Model rock blasting measures effects of delays and hole patterns on rock fragmentation. Engng. Min. J. 1974, 175, 124–127. [Google Scholar] [CrossRef]
  11. Winzer, S.R.; Anderson, D.A.; Ritter, A.P. Rock Fragmentation by Explosives. In Proceedings of the First International Symposium on Rock Fragmentation by Blasting, Lulea, Sweden, 23–26 August 1983; pp. 225–249. [Google Scholar]
  12. Bergmann, O.R. Effect of explosive properties, rock type and delays on fragmentation in large model blasts. In Proceedings of the First International Symposium on Rock Fragmentation by Blasting, Lulea, Sweden, 23–26 August 1983; pp. 71–78. [Google Scholar]
  13. Fadeev, A.B.; Glosman, L.M.; Kartuzov, M.I.; Safonov, L.V. Seismic control of mine and quarry blasting in the USSR. In Proceedings of the 6th Congress of the International Society for Rock Mechanics, Montreal, QC, Canada, 30 August–4 September 1987; International Society for Rock Mechanics: Montreal, QC, Canada, 1987; pp. 617–619. [Google Scholar]
  14. Andrews, A.B.S. Design criteria for sequential blasting. In Proceedings of the Seventh Conference on Explosives and Blasting Technique, Phoenix, AZ, USA, 12–23 January 1981; Society of Explosives Engineers: Warrensville Heights, OH, USA, 1981; pp. 173–192. [Google Scholar]
  15. Stagg, M.S.; Rholl, S.A. Effects of accurate delays on fragmentation for single-row blasting in a 6.7m (22ft) bench. In Proceedings of the Second International Symposium on Rock Fragmentation by Blasting, Keystone, CO, USA, 23–26 August 1987; pp. 210–230. [Google Scholar]
  16. Stagg, M.S.; Nutting, M.J. Influence of Blast Delay Time on Rock Fragmentation: One-Tenth-Scale Tests; US. Bureau of Mines IC 9135: Minneapolis, MN, USA, 1987; pp. 79–95. [Google Scholar]
  17. Konya, C.J.; Walter, E.J. Surface Blast Design Englewood Cliffs; Prentice Hall, Inc.: Englewood Cliffs, NJ, USA, 1990. [Google Scholar]
  18. McKinstry, R.; Bolles, T.; Rantapaa. Implementation of Electronic Detonators at Barrick Goldstike Mines. In Proceedings of the 30th ISEE Annual Conference on Explosives and Blasting Technique, New Orleans, LA, USA, 1–4 February 2004; Volume 1, pp. 349–361. [Google Scholar]
  19. Otterness, R.E.; Stagg, M.S.; Rholl, S.A.; Smith, N.S. Correlation of shot design parameters to fragmentation. In Proceedings of the 7th Annual Symposium on Explosives and Blasting Technology, Las Vegas, NV, USA, 6–7 February 1991; International Society of Explosives Engineers (ISEE): Cleveland, OH, USA, 1991; pp. 179–190. [Google Scholar]
  20. Chung, S.; Katsabanis, P.D. An Integrated Approach for Estimation of Fragmentation. In Proceedings of the 27th ISEE Annual Conference on Explosives and Blasting Technique, Orlando, FL, USA, 28–31 January 2001; Volume 1, pp. 247–256. [Google Scholar]
  21. Katsabanis, P.D.; Tawadrous, A.; Braun, C.; Kennedy, C. Timing effects on the fragmentation of small scale blocks of granodiorite. Fragblast 2006, 10, 83–93. [Google Scholar] [CrossRef]
  22. Onederra, I.; Esen, S. Selection of inter hole and inter row timing for surface blasting- an approach based on burden relief analysis. In Proceedings of the EFEE Second World Conference on Explosives and Blasting Technique, Prague, Czech Republic, 10–12 September 2003; Swets and Zeitlinger: Lisse, The Netherlands, 2003. [Google Scholar]
  23. Segarra, P.; Sanchidrián, J.A.; López, L.; Pascual, J.A.; Ortiz, R.; Gómez, A.; Smoech, B. Analysis of bench face movement in quarry blasting. In Proceedings of the Second World Conference on Explosives and Blasting Technique, Prague, Czech Republic, 10–12 September 2003; Holmberg, R., Ed.; Balkema: Rotterdam, The Netherlands, 2003; pp. 485–495. [Google Scholar]
  24. Sanchidrián, J.A.; Segarra, P.; López, L.M. On the relation of rock face response time and initial velocity with blasting parameters Brighton Conference Proceedings. In Proceedings of the 3rd EFEE World Conference on Explosives and Blasting, Brighton, UK, 14–16 September 2005; European Federation of Explosives Engineers: Kraków, Poland, 2005. ISBN 0-9550290-0-7. [Google Scholar]
  25. Onederra, I. Delay timing factor for empirical fragmentation models. Min. Technol. 2007, 116, 176–179. [Google Scholar] [CrossRef]
  26. Voulgarakis, A.G.; Michalakopoulos, T.N.; Panagiotou, G.N. The minimum response time in rock blasting: A dimensional analysis of full-scale experimental data. Min. Technol. 2016, 125, 242–248. [Google Scholar] [CrossRef]
  27. Sunnetcioglu, M.A. A Sequence Stratigraphic Approach to the Depositional History Analysis of the Upper Eocene Sedimentary Succession, Northwest of the Thrace Basin, Turkey. Ph.D. Thesis, Middle East Technical University, Ankara, Türkiye, 2008. [Google Scholar]
  28. Yurtsever, A. 1/ 200.000 Scale Exploratory Thrace Geological Map Promotion Report; MTA Arts & Design: Istanbul, Turkey, 1996; 52p. [Google Scholar]
  29. Guler, O.; İskan, B. Kırklareli Province–Vize District–Evrencik Village, TRAÇİM Çimento San. And Trade. Inc. Vize Cement Factory Geological and Hydrogeological Research of Mining License Areas (IR 64145, IR 20062296, IR 20062297, IR 20062298) and their Surroundings; Technical Report; Environmental Laboratory, Artek Engineering, Environmental Measurement and Consulting Services Trade Inc.: Vize, Turkey, 2021. (In Turkish) [Google Scholar]
  30. Uz, B. Study and Evaluation Report of the Geological/Structural, Mineralogical-Petrographical and Physico-Mechanical Properties of the Crushed Stone Quarry of Akdağlar Madencilik A.Ş; Ayazağa Village Cendere Locality, ITU Mining Faculty Geological Engineering Department, Mineralogy Pertography Department: Istanbul, Turkey, 2007. (In Turkish) [Google Scholar]
  31. Keskin, C. Geology of the Pınarhisar Area. Türkiye Jeol. Bülteni 1971, 14, 31–83. (In Turkish) [Google Scholar]
  32. Uçankuş, T.; Koyuncu, F.T.; Göveli, A.; Büyüktanir, S.A.; Taştan, F.; Dursun, K. Limak Batı Cement San. ve Tic. A.S. Limestone Quarry, License No 200901722, Final EIA Report; Ankatek Çevre Mad. Eng. Co.: Ankara, Turkey, 2014. (In Turkish) [Google Scholar]
  33. Atalık, E. Depositional Systems of the Osmancık Formation in the Thrace Basin: METU. Ph.D. Thesis, The Graduate School of Natural and Applied Sciences, Atasehir, Turkey, 1992; 366p. [Google Scholar]
  34. Atalık, E. Thrace Basin Soğucak Formation Sedimentary Environments and Microfacies Analysis: TPAO Exploration Group Archive; Unpublished Technical Report, no: 2305; 1987; 92p. [Google Scholar]
  35. Celikkurt, K.C. The Sedimentology of Coal and Uranium Bearing Sequences in the Saray and Vize Area. Master’s Thesis, Istanbul University-Cerrahpasa, Institute of Graduate Studies, Department of Geological Engineering, Istanbul, Türkiye, 2020. [Google Scholar]
  36. Langefors, U.; Kihlströn, B. The Modern Technique of Rock Blasting, 2nd ed.; John Wiley & Sons: Hoboken, NJ, USA, 1962; ISBN 10: 047151571X; ISBN 13: 9780471515715. [Google Scholar]
  37. Olofsson, S.O. Applied Explosives Technology for Construction and Mining, 2nd ed.; Applex: Arla, Sweden, 1988. [Google Scholar]

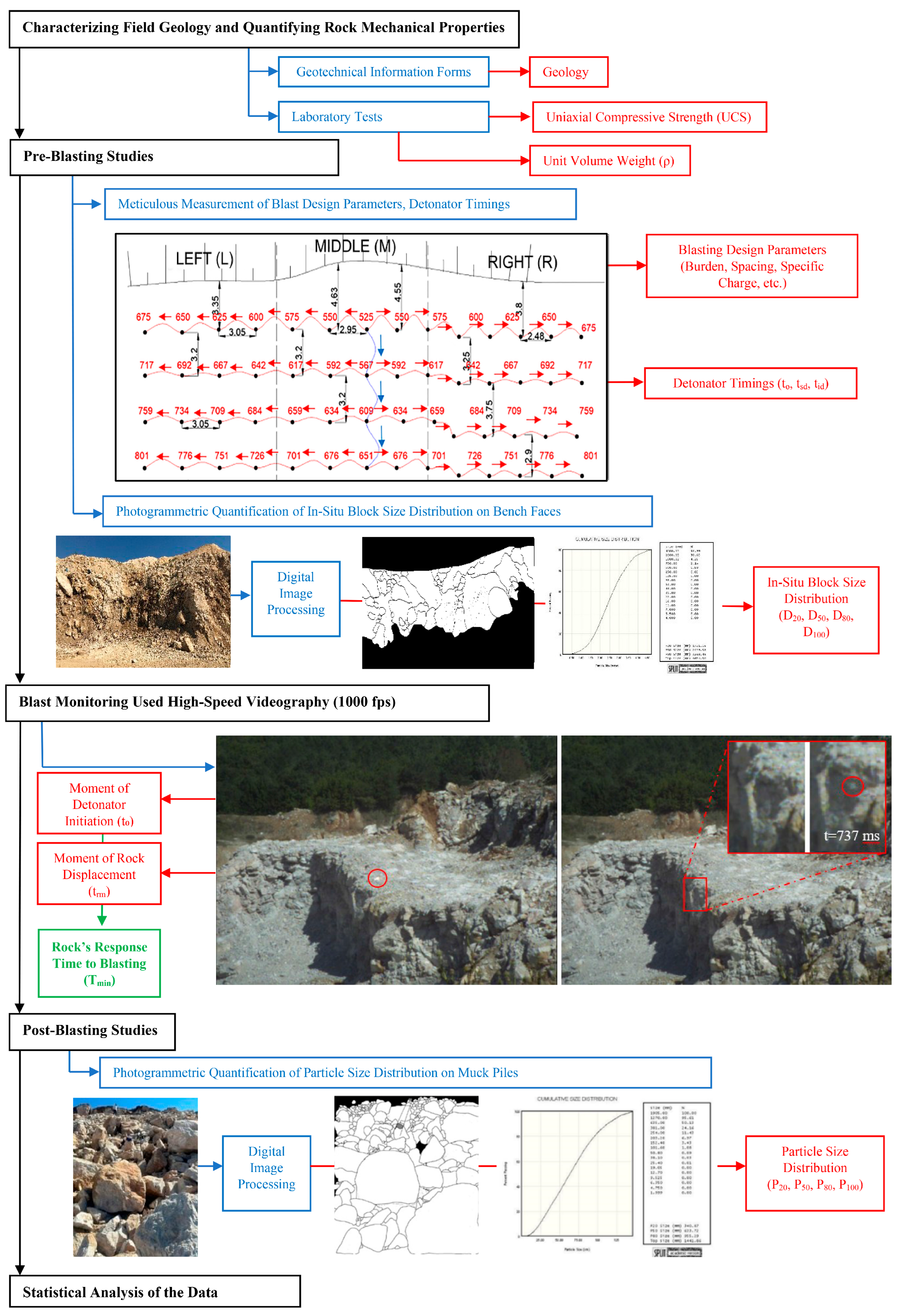

Figure 1. Schematic representation of the methodological approach used in the study.
Figure 1. Schematic representation of the methodological approach used in the study.
Applsci 15 09447 g001

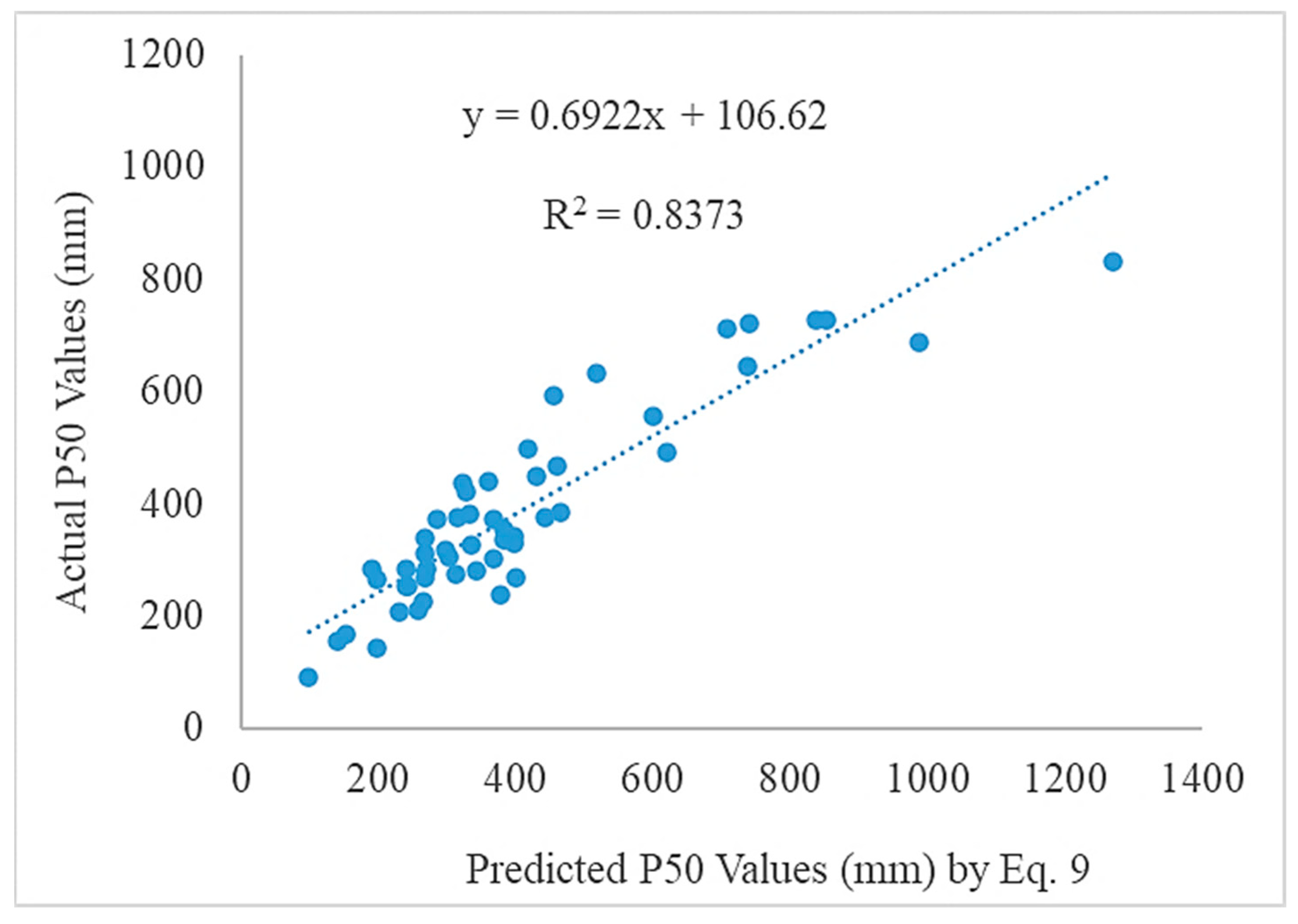

Figure 2. Correlation between actual P50 values and predicted P50 values by Equation (9).
Figure 2. Correlation between actual P50 values and predicted P50 values by Equation (9).
Applsci 15 09447 g002

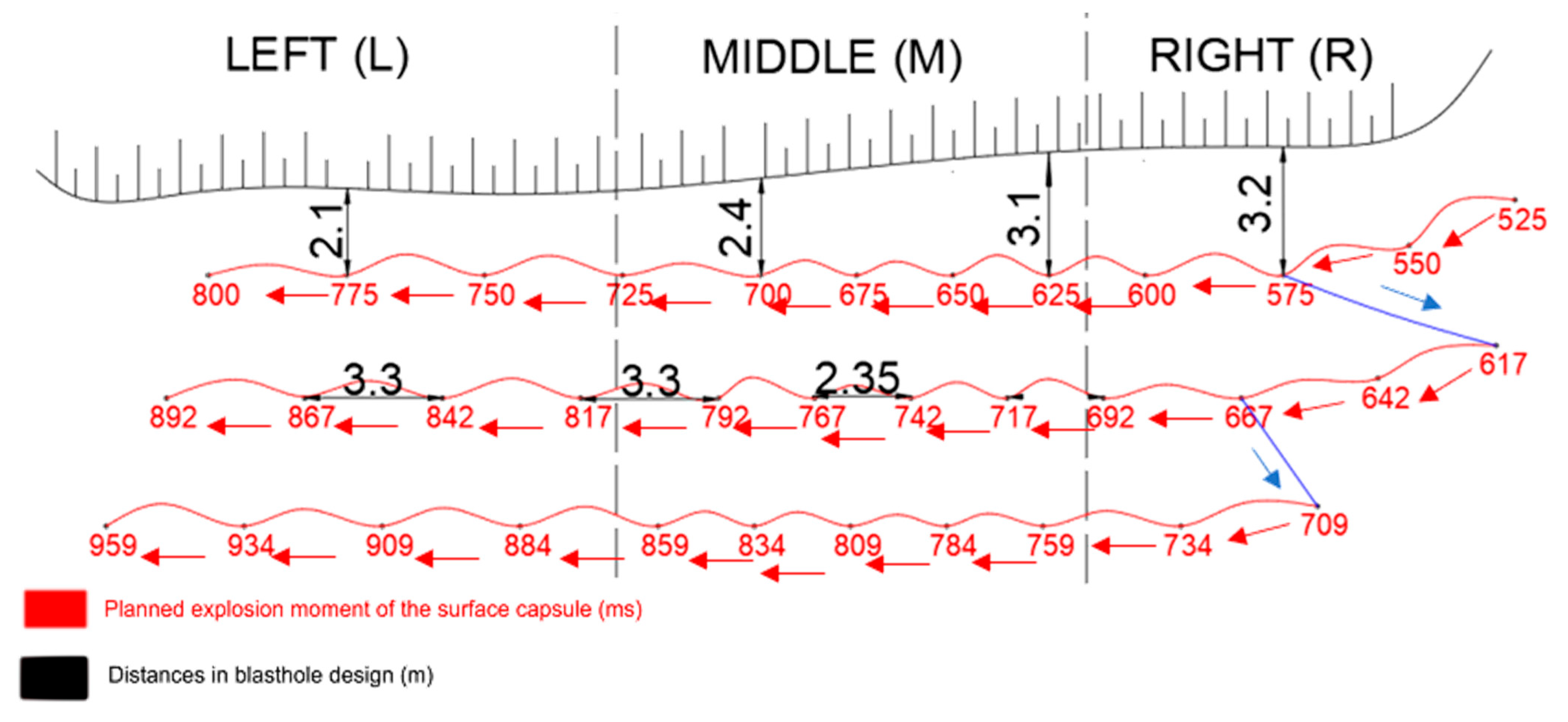

Figure 3. Blasting design parameters and timing details of the test shot.
Figure 3. Blasting design parameters and timing details of the test shot.
Applsci 15 09447 g003

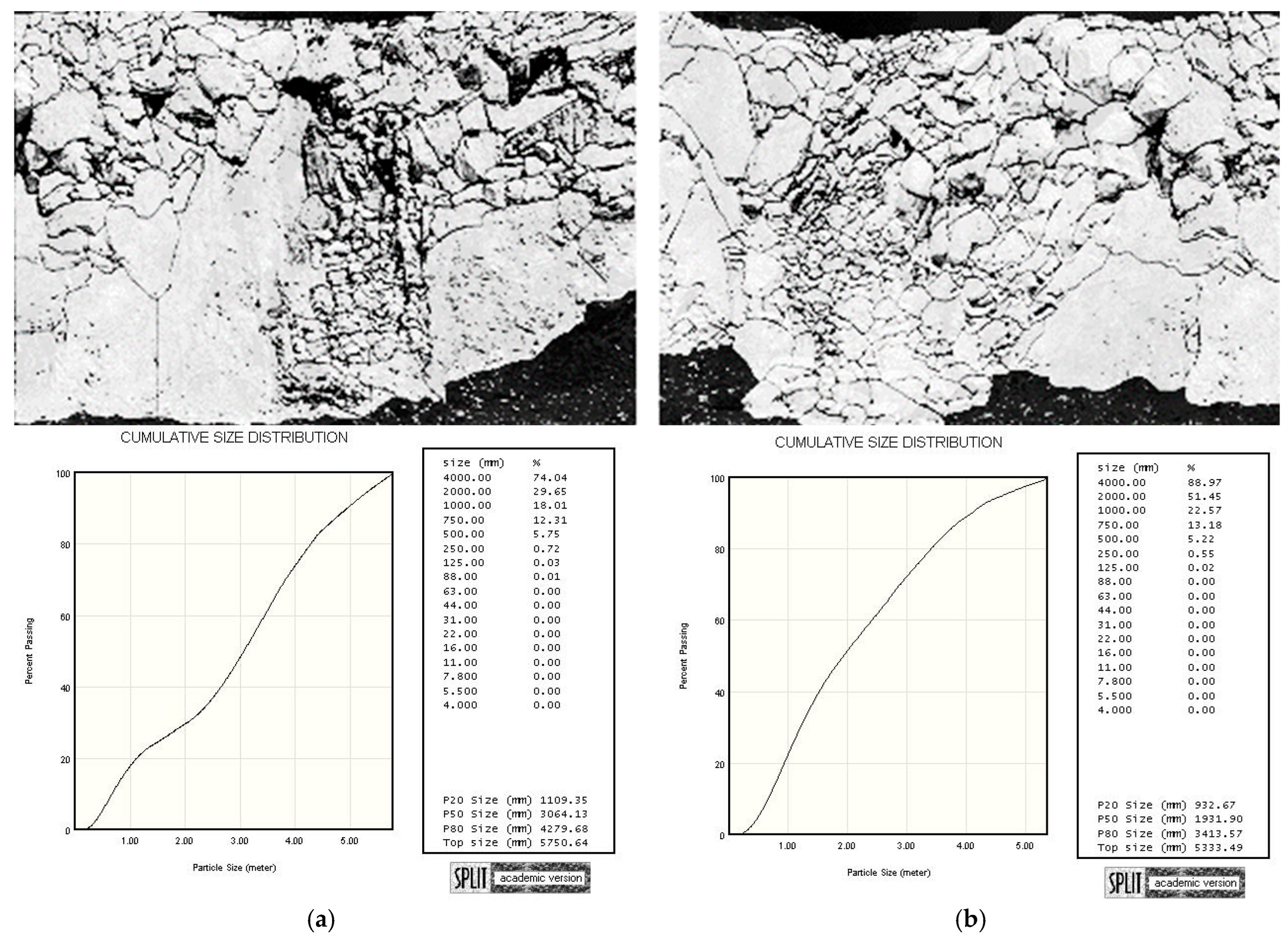

Figure 4. Digital image processing of (a) left (b) middle zone of bench face before test shot.
Figure 4. Digital image processing of (a) left (b) middle zone of bench face before test shot.
Applsci 15 09447 g004
Figure 5. Digital image processing of (a) left (b) middle zone of muck pile resulting from the test shot.
Figure 5. Digital image processing of (a) left (b) middle zone of muck pile resulting from the test shot.
Applsci 15 09447 g005
Figure 6. (a) The moment of the surface capsule fired, (b) The moment of rock movement began in the test shot.
Figure 6. (a) The moment of the surface capsule fired, (b) The moment of rock movement began in the test shot.
Applsci 15 09447 g006
Figure 7. Comparison of the actual Tmin values and predicted Tmin values by Equations (4) and (7).
Figure 7. Comparison of the actual Tmin values and predicted Tmin values by Equations (4) and (7).
Applsci 15 09447 g007
Table 1. Geological and mechanical characteristics of the study fields.
Table 1. Geological and mechanical characteristics of the study fields.
NoAdressFormationUnitUCS * (MPa)Rock
Classification **
ρ * (t/m3)D *** (Mm)
Min.Mean (D50)Max.
1KirklareliPinarhisarLimestone89Strong2.54103025155635
2KirklareliPinarhisarLimestone98Strong2.5293033557520
3KirklareliPinarhisarLimestone71Strong2.5275536654690
4KirklareliSulogluSandstone95Strong2.5536536001865
5KirklareliSogucakLimestone48Strong2.5052034302960
6KirklareliSogucakLimestone42Strong2.44158027054970
7KirklareliThraceLimestone76Strong2.5131019253395
8KirklareliSulogluSandstone55Strong2.5033016603200
9KirklareliIslambeyliMarn130Very Strong2.5531021704360
10IstanbulThraceSandstone126Very Strong2.5442021103930
11KirklareliSulogluLimestone186Very Strong2.60143019906135
12TekirdagDanismenClaystone37Moderate2.5086018205025
UCS: Uniaxial Compressive Strength, ρ: Unit Volume Weight of the Rock, D: In Situ Block Size, * Obtained from laboratory test performed on samples taken from blasted rock, ** Classification based on uniaxial compressive strength values, *** Determined through photogrammetric quantification of in situ block size distribution on bench faces.
Table 2. Representative values of blasting design parameters, pertinent charge specifications, and capsule details.
Table 2. Representative values of blasting design parameters, pertinent charge specifications, and capsule details.
Field
No
Shot
No
ZoneBmax
(m)
S
(m)
K
(m)
d
(mm)
ExplosiveIb
(kg/m)
nU
(m)
H
(m)
ho
(m)
VoD
(m/s)
Q
(kg)
q
(kg/m3)
Inter-Hole
Delay
(ms)
Inter-Row
Delay
(ms)
11-3.453989ANFO4.97132102.8490536.820.3125/50017
2Left43.2989ANFO4.97200.59.52490538.310.4225/50017
Middle3.253.05989ANFO4.97200.59.52490538.310.3925/50017
Right2.252.47989ANFO4.97200.59.52490538.310.4525/50017
59Left2.752.7889ANFO4.97432102.5490538.310.5225/50017
Right2.92.7889ANFO4.97402102.5490538.310.4725/50017
610Left3.92,5889Emulsion7.7725193545046.630.4617/50025
Right3.952,9889Emulsion7.7720193545046.630.4617/50025
812Left4.154.19102ANFO6.53351103490546.740.3825/50017
Middle4.253.69102ANFO6.53401103490546.740.425/50017
Right3.353.59102ANFO6.53401103490546.740.4625/50017
913Left3.153.310127ANFO10.13441113483082.030.3833/50042
Right2.83.710127ANFO10.13401113483082.030.3233/50042
16Left2.953.48127ANFO10.1336193483061.770.6233/50042
Right3.33.58127ANFO10.1336193483061.770.6133/50042
Bmax: Maximum Burden, S: Spacing, K: Bench Height, d: Blasthole Diameter, Ib: Charge Concentration, n: Number of Blastholes, U: Subdrilling Length, H: Blasthole Length, ho: Stemming Length, VoD: Velocity of Detonation, Q: Total Charge, q: Specific Charge.
Table 3. A representative part of fragmentation data.
Table 3. A representative part of fragmentation data.
Field
No
Shot
No
Zoneq
(kg/m3)
D20
(mm)
D50
(mm)
D80
(mm)
D100
(mm)
P20
(mm)
P50
(mm)
P80
(mm)
P100
(mm)
F
(%)
11-0.31134118432730368113926945977785.38
2Left0.4231705269901211,7613587291204180086.17
Middle0.392389387554768445341634955144283.65
Right0.4520143125534462952184501157162585.60
59Left0.52202532934935679015423733248292.80
Right0.47172124393268465411822735465890.69
610Left0.4623554043576485119014320933096.47
Right0.4630035143725711,05411821236764495.88
812Left0.38150924523681495220533954589286.19
Middle0.4192129714902638617932951484288.93
Right0.46210529504376621915030346466689.74
913Left0.381905323046346476206497748110784.61
Right0.32162025364158497818933869789086.69
16Left0.62294539176842836928546865592888.06
Right0.6133324799675710,793343556845134588.41
q: Specific charge, DN: The in situ block size of the bench face at which N percent of material, PN: The particle size of the rock fragments at which N percent of material, F: Rock-Size Reduction Ratio.
Table 4. A representative part of the data regarding Tmin.
Table 4. A representative part of the data regarding Tmin.
Field NoShot NoZoneh (m)VoD (m/sn) t s d (ms) t i d (ms)k t r m t o 1000 × h V O D Tmin (ms)
11-7.24905255000.127421.47152.53
2Left7.54905255000.127381.53148.47
Middle7.54905255000.127271.53137.47
Right7.54905255000.127241.53134.47
59Left7.54905255000.046401.5392.47
Right7.54905255000.046461.5398.47
610Left65450175000.167121.1026.46
Right65450175000.167111.1025.46
812Left74905255000.046361.4388.57
Middle74905255000.046361.4388.57
Right74905255000.046441.4396.57
913Left84830335000.106321.6644.04
Right84830335000.106211.6633.04
16Left64830335000.106271.2439.46
Right64830335000.106211.2433.46
Table 5. The limit values of the predictors within the scope of this study.
Table 5. The limit values of the predictors within the scope of this study.
Bmax (m)Ib (kg/m)ρ (t/m3)ho (m)VoD (m/s)UCS (MPa)U (m)D50 (mm)P50 (mm)q (kg/m3)Tmin
(ms)
F
(%)
Min.1.53.972.441.004750370624920.1832.8483.02
Mean3.106.592.532.584866980.6830383870.4493.3686.76
Max.4.8510.132.604.004905186268698320.76183.8996.47
Table 6. Model summary of Tmin estimation.
Table 6. Model summary of Tmin estimation.
ModelRR SquareAdjusted R SquareStd. Error
10.888 a0.7890.76020.34720
a. Predictors: (Constant) UCS, ho, VoD, B, Ib, ρ.
Table 7. Analysis of variance for Tmin estimation.
Table 7. Analysis of variance for Tmin estimation.
ModelSum of SquaresdfMean SquareFSig.
1Regression68,075.908611,345.98527.405<0.001 b
Residual18,216.37344414.008
Total86,292.28050
Coefficients  a
ModelUnstandardized CoefficientsStandardized CoefficientstSig.
BStd. ErrorBeta
1(Constant)−1837.383586.365 −3.1340.003
B (m)18.8514.2220.3394.4650.000
Ib (kg/m)−9.5071.750−0.524−5.4320.001
ρ (kg/m3)2495.127379.3891.6316.5770.002
ho (m)−21.9175.653−0.319−3.8770.001
VoD (m/ms)−0.8390.154−0.887−5.4670.003
UCS (MPa)−2.4250.342−1.971−7.0910.001
a Dependent Variable: Tmin (ms). b Predictors: UCS (MPa), ho (m), VoD (m/ms), b (m), Ib (kg/m), ρ (kg/m3).
Table 8. Model summary of rock-size reduction ratio (F) estimation.
Table 8. Model summary of rock-size reduction ratio (F) estimation.
ModelRR SquareAdjusted R SquareStd. Error of the Estimate
10.896 a0.8030.7861.24798
a. Predictors: (Constant), q, UCS, Tmin, U.
Table 9. Analysis of variance for rock-size reduction ratio (F) estimation.
Table 9. Analysis of variance for rock-size reduction ratio (F) estimation.
ModelSum of SquaresdfMean SquareFSig.
1Regression308.415477.10446.952<0.001 b
Residual75.540461.642
Total383.95550
Coefficients a
ModelUnstandardized CoefficientsStandardized CoefficientstSig.
BStd. ErrorBeta
1(Constant)87.3891.385 63.0940.000
q (kg/m3)8.0111.6590.3454.8280.000
UCS (MPa)−0.0350.007−0.416−4.6860.001
Tmin (ms)−0.0220.006−0.313−3.8400.005
U (m)1.4420.2280.4976.3170.000
a Dependent Variable: F (%). b Predictors: q (kg/m3), UCS (MPa), Tmin (ms), U (m).
Table 10. Accuracy assessment of the derived models.
Table 10. Accuracy assessment of the derived models.
EquationEquation (7)Equation (8)Equation (9) *
TargetTmin (s)F (%)P50 (mm)
Minimum Error (%)0.450.040.21
Maximum Error (%)59.027.2034.12
Mean Square Error (MSE)357.327.932397.63
Mean Absolute Percentage Error (MAPE)16.562.628.37
Root Mean Square Error (RMSE)18.902.8248.97
Correlation Coefficient (R2)0.7890.8030.837
* Rather than using the observed Tmin values, estimated Tmin values calculated by Equation (7) were used.
Table 11. Blasting design parameters, pertinent charge specifications, and capsule details of the test shot.
Table 11. Blasting design parameters, pertinent charge specifications, and capsule details of the test shot.
Field
No
ZoneBmax
(m)
S
(m)
K
(m)
d
(mm)
ExplosiveIb
(kg/m)
nU
(m)
H
(m)
ho
(m)
VoD
(m/s)
Q
(kg)
q
(kg/m3)
7Left2.23.31189ANFO4.97111122490550.740.39
Middle3.12.351189ANFO4.97141122490550.740.49
Table 12. Comparison of actual results and predicted values.
Table 12. Comparison of actual results and predicted values.
Field MeasuresPredictionsError (%)
RegionLeftMiddleLeftMiddleLeftMiddle
Tmin (ms)79.96105.9685.17102.136.53.6
F (%)85.7486.1688.9989.223.83.5
P50 (mm)4372673952449.68.7
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Ozyurt, M.C.; Karadogan, A.; Kalayci Sahinoglu, U.; Ozer, U.; Mutlu, H.E.; Odabasi, T.C. Establishment of a Novel Fragmentation Prediction Model Incorporating Rock’s Response Time to Blasting. Appl. Sci. 2025, 15, 9447. https://doi.org/10.3390/app15179447

AMA Style

Ozyurt MC, Karadogan A, Kalayci Sahinoglu U, Ozer U, Mutlu HE, Odabasi TC. Establishment of a Novel Fragmentation Prediction Model Incorporating Rock’s Response Time to Blasting. Applied Sciences. 2025; 15(17):9447. https://doi.org/10.3390/app15179447

Chicago/Turabian Style

Ozyurt, Meric Can, Abdulkadir Karadogan, Ulku Kalayci Sahinoglu, Umit Ozer, Hilal Erem Mutlu, and Taki Can Odabasi. 2025. "Establishment of a Novel Fragmentation Prediction Model Incorporating Rock’s Response Time to Blasting" Applied Sciences 15, no. 17: 9447. https://doi.org/10.3390/app15179447

APA Style

Ozyurt, M. C., Karadogan, A., Kalayci Sahinoglu, U., Ozer, U., Mutlu, H. E., & Odabasi, T. C. (2025). Establishment of a Novel Fragmentation Prediction Model Incorporating Rock’s Response Time to Blasting. Applied Sciences, 15(17), 9447. https://doi.org/10.3390/app15179447

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
