Systematic Review

Partial Discharge Source Classification in Power Transformers: A Systematic Literature Review

by
Lucas T. Thobejane
and
Bonginkosi A. Thango
*
Department of Electrical and Electronic Engineering Technology, University of Johannesburg, Johannesburg 2092, South Africa
*
Author to whom correspondence should be addressed.
Appl. Sci. 2024, 14(14), 6097; https://doi.org/10.3390/app14146097
Submission received: 18 June 2024 / Revised: 6 July 2024 / Accepted: 9 July 2024 / Published: 12 July 2024

Abstract

:

Featured Application

Development of intelligent and real-time monitoring systems for transformer health diagnostics and condition monitoring.

Abstract

Power transformers, like other High-Voltage (HV) electrical equipment, experience aging and insulation degradation due to chemical, mechanical and electrical forces during their operation. Partial discharges (PD) are among the most predominant insulation breakdown mechanisms. Monitoring partial discharges has proven to provide valuable information on the state of the insulation systems of power transformer, allowing transformer operators to make calculated decisions for maintenance, major interventions and plan for replacement. This systematic literature review aims to systematically examine the use of machine learning techniques in classifying PD in transformers to present a complete indicator of the available literature as well as potential literature gaps which will allow for future research in the field. The systematic review surveyed a total of 81 research literatures published from 2010 to 2023 that fulfilled a specific methodology which was developed as part of this study. The results revealed that supervised learning has been the most widely used Artificial Intelligence (AI) algorithm, primarily in the form of Support Vector Machine (SVM). The collected research indicated 20 countries represented in the publications, with China carrying out 32% of the research, followed by India with 10%. Regarding PD, the survey revealed that most researchers tend to investigate numerous types of PD and compare them to one another. Furthermore, the use of artificial PD defect models to simulate the occurrence of PD is widely used versus the use of actual power transformers. Most of the literature tends to not specify the physical characteristics of PD, such as the magnitude of PD, PD inception voltage and PD extinction voltage.

1. Introduction

Insulation systems play a pivotal role in the proper functioning and long-term operation of high-voltage electrical equipment such as transformers, cables, switchgear, motors and generators [1,2]. Insulation systems in transformers are divided into liquid and solid insulation [3]. Oil makes up the liquid insulation [3,4,5], while solid insulation in transformers includes kraft paper [6,7], Nomex [8,9] and pressboard [9]. PD develops within the insulation systems of HV electrical equipment. These are localized electric discharges that can degrade the dielectric capability and lead to premature failure of the transformer [10,11].
While PD is a phenomenon that impacts all HV electrical equipment, such as gas-insulated switchgear, cables, motors, generators, etc., this systematic literature review places focus on electrical transformers. Transformers make up an essential part of an electrical reticulation or network, as they allow for efficient long-range interconnection of transmission lines while also ensuring that the voltage is transformed to the levels required by end users. The failure of a transformer results in the loss of power supply to portions of the electrical network, with potential costly damage as well as a loss of production or income for customers. Losses may also lead to long downtime as the manufacturing process of a large transformer can take more than 24 months. Monitoring PD in electrical transformers forms a great basis for planning essential preventative maintenance, which can prevent costly failures before they occur and allow the transformer owner to plan adequately and execute the most ideal maintenance during planned outages.
The emergence of Artificial Intelligence (AI) has allowed scholars to research possible means of improving the condition monitoring of equipment. The use of AI has been shown to greatly improve the time taken to analyze and classify PD in the monitored equipment, while also improving the accuracy of detection compared to manually performed analysis. Studies in the use of Machine Learning (ML) techniques for PD classification in transformers have been around for some time; however, this Systematic Literature Review (SLR) will be limited to the literature published between the years 2010 and 2023. Further restrictions were applied by discounting the literature about any HV electrical equipment other than electrical transformers, as well as disregarding other faults occurring in transformers but considering only partial discharge faults. The SLR presented a series of Research Questions (RQ) with the aim of identifying possible literature gaps within the study of automatic transformer partial discharge classification using machine learning algorithms, as well as to offer context to be utilized by the reader to develop future studies. The RQ are as follows:
  • RQ1: Which resource publication sources have been predominantly utilized in the literature to study the use of machine learning in monitoring electrical transformer partial discharge?
  • RQ2: From which countries do the publications on transformer partial discharge monitoring with the use of machine learning originate?
  • RQ3: How has the research on the automatic classification of transformer partial discharge using machine learning evolved over the period under review?
  • RQ4: Which partial discharge types does the collected literature investigate?
  • RQ5: From which sources were the partial discharge data used in the literature collected?
  • RQ6: Which PD measuring methods are used in the sampled literature?
  • RQ7: Which measuring equipment is used in the measuring of PD in the literature?
  • RQ8: Which national and international standards are referenced in the literature?
  • RQ9: Which feature extraction methods are mostly utilized in the collected literature?
  • RQ10: Which machine learning algorithms are the most utilized for monitoring partial discharge in electric transformers?
  • RQ11: What are the challenges that are experienced when utilizing machine learning in classifying transformer partial discharge as documented in the literature?
  • RQ12: What are the possible future research opportunities highlighted in the literature?
Additionally, the techniques utilized in this paper provide awareness to the reader on the different forms of PD occurring in transformers and how these are predominantly studied to aid in their own research. It further highlights the machine learning concepts currently being studied in transformer PD monitoring to aid in further development in this field.

2. Conceptualization of Partial Discharge in Transformers

The IEC 60270 standard defines partial discharge as a localized breakdown of the transformer solid or liquid dielectric material, which moderately bridges the conductors and may or may not occur close to a conductor [11]. PD mainly occurs due to nearby voltage stresses within the insulation or even on the surface of solid insulation, which results in a slow deterioration of the insulation material and reduces the life of the insulation in the transformer, which may ultimately cause complete insulation breakdown and premature failure of a transformer. It emerges as current pulses lasting much shorter than 1 μs; this is due to electric fields that are larger than the limit of the insulation and thus induce a partial breakdown of the local dielectric material [12]. The characteristics of PD result in the production of light, heat, sound, electromagnetic and chemical reactions [13] which contribute to further deterioration of the insulation material, but also provide means for sensing and monitoring the source and level of PD within a transformer by methods such as acoustic emission, optical, ultra-high frequency and electrical.
Three essential definitions related to PD as defined in [14] are apparent charge, PD inception voltage and PD extinction voltage. Apparent charge ‘q’ of a PD pulse amounts to the charge which, if introduced between the connections of the test object within a short duration of time, would yield the same voltage measurement across the terminals as the PD pulse itself, and is expressed in pico-coulombs (pC). The PD inception voltage (PDIV) is the smallest voltage at which the magnitude of a partial discharge pulse value is equivalent to or greater than a given low value. The PD extinction value (PDEV) is the smallest voltage at which the magnitude of a chosen PD pulse value is equivalent to or lower than a given low value. Furthermore, an equivalent circuit representing the PD activity is formulated using the premise of PD inception in a void. The PD results in a spark occurring inside the void, thus initiation the flow of current in the conductor. This equivalent circuit is represented by a capacitor ‘C3’, which is parallel to two other capacitors, ‘C1’ and ‘C2’, as shown in Figure 1. ‘C1’ and’C2’ form a voltage divider, with ‘C1’ representing the capacitance of the void while ‘C2’ is the capacitance in series with the void. ‘C3’ is the capacitances within the insulation.

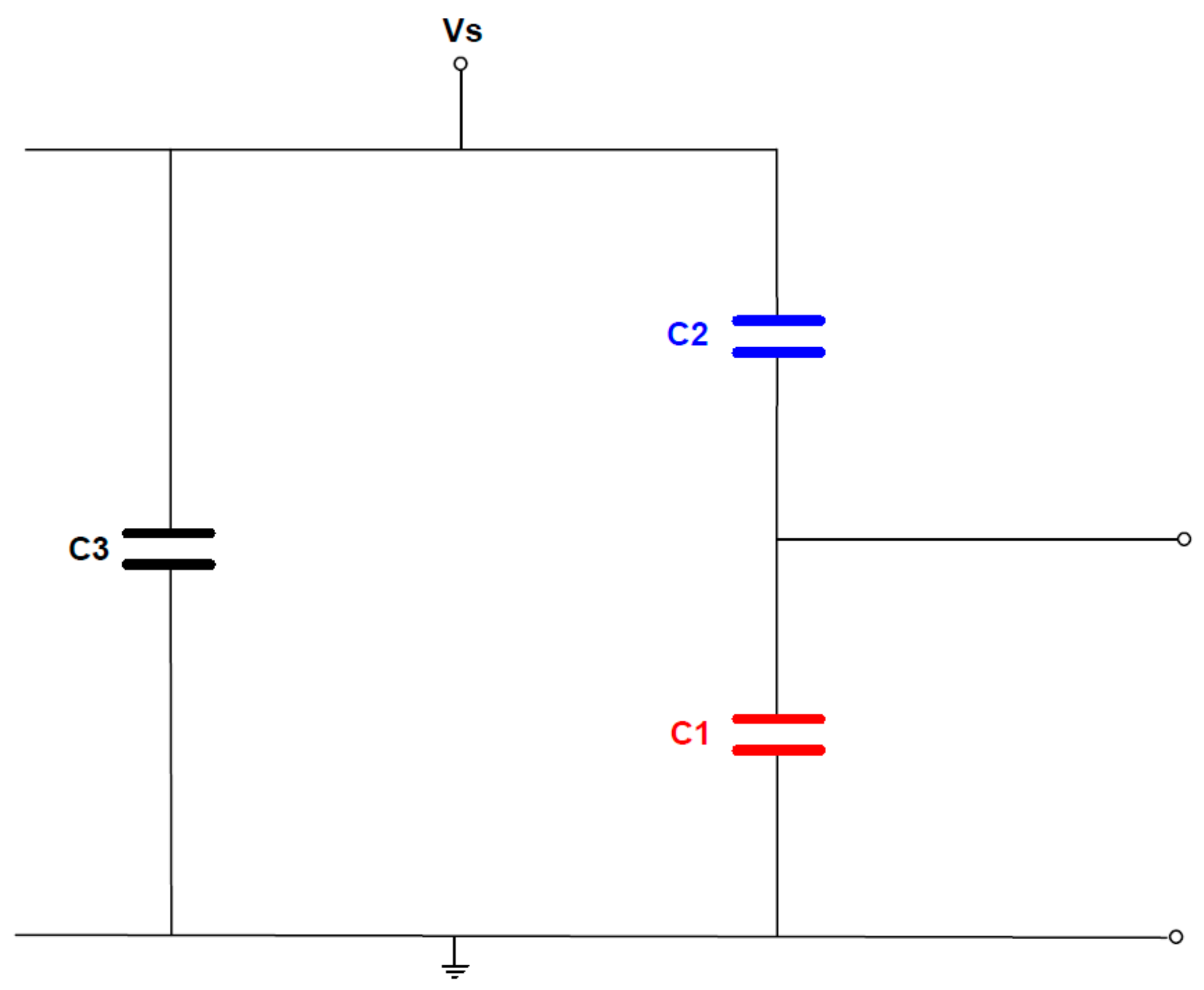

The nature and form of electric transformers is that they are made up of a variety of insulation materials. Internally the transformers are filled with insulating oil which makes up the liquid insulation material. Solid insulation materials inside a transformer come in the form of Kraft paper which is primarily wrapped around the conductors to provide electrical insulation strength. Pressboard is also extensively utilized as insulation between layers of conductor, as well as to provide both electrical insulation and mechanical support for the transformer internals. Externally transformers have bushings; some house busbars within ducts while others utilize spacing as a form of isolation between phases. This broad variety of dielectric materials mean that transformers are also exposed to many forms of PD. Ref. [15] classifies PD occurring in transformers into five types, namely corona, surface discharge, internal discharge, electrical treeing and barrier discharge. Corona discharge occurs due to sharp live points which ionize a fluid dielectric such as air or oil. This can occur inside or outside the transformer on bare conductors or terminations. Surface discharge occurs in close proximity to the dielectric material, which is a result of a difference in electric field strength between the insulation and the barrier of the insulation material. Surface discharges are further influenced and propagated by pollution or contamination on the insulation material such as dust or water on bushing insulators. Internal discharges are created due to voids or cavities inside solid insulation material. These voids are generally formed during the manufacturing process and are impossible to eliminate. Electrical treeing is a form of defect propagation which occurs within solid insulation. These generally originate as insulation defects such as voids and spread through the material under high electric fields. The degradation of transformer cellulose insulation under the chemical processes of pyrolysis, hydrolysis and oxidation further results in the breakdown of compounds which are trapped in the transformer oil and thus tend to fast track other failure modes due to tracking.
The mechanisms used for detecting and monitoring PD are premised on the properties and physical characteristics that PD exhibit. Various detection methods and sensors have been developed with the aim of identifying the sounds, electromagnetic waves, optical waves and electrical pulses that are generated by the onset of PD. Some of the PD detection methods which are widely used include acoustic emission, electrical, optical, electromagnetic and ultra-high frequency. Acoustic emission entails the conversion of pressure waves—which can or may not include sound and are created by the mechanical force at the location of the PD pulse [16]—into electrical signals which can be detected via a dedicated acquisition system. Benefits of the acoustic emission method are that it can be used for PD detection both inside and outside a transformer by means of multiple acoustic sensors placed at strategic locations. It is capable of detecting multiple PD sources, as well as detecting the location of the PD by the use of Time Delay of Arrival difference between the sensors. Electrical detection method is the most widely used method and involves the detection of the current pulse generated by the PD. This method employs either a direct probing or RF emission. Direct probing requires capacitive couplers to be connected to the phase terminals of the transformer, while RF uses antennas for the detection. Both these detection methods are highly susceptible to noise, and require careful setup and calibration in industrial use. The optical detection method relies on the presence of light created due to a spark. This method works well for detecting corona discharge but falls short when it comes to internal discharge. The method utilizes optical sensors, with advancement in these sensors allowing for PD detection both in air and oil [16].

3. Materials and Methods

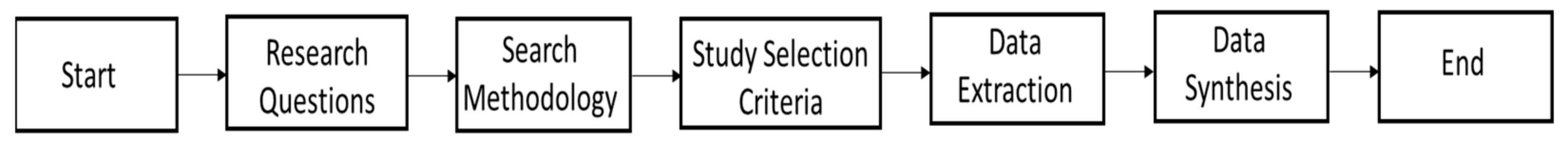

This systematic literature review (SLR) commences by defining the topic, then developing clear research questions with an emphasis on answering pertinent literature gaps. A search methodology to collect the literature which falls within the defined topic then ensues, which is followed by developing an inclusion and exclusion criterion which will be used to form a decision regarding the literature to be considered. The required data is collected from the literature. This data is utilized to assess the research development in the field at hand. The flow diagram shown in Figure 2 details the steps of the SLR as compliant to [17].

Proposed Inclusion and Exclusion Criteria

Table 1 sets out the criteria used to determine which of the literature from the publication sources would be included and which would be excluded from the review. This is to ensure that the literature utilized for the review aligns with the focus of this research.

4. Recent and Related Research Works

Employing machine learning techniques has proven to greatly improve the classification and recognition of different types of partial discharge mechanisms occurring in different parts of power transformers, both inside and outside, and in oil or air. Table 2 shows a collection of literature analyzing the use of machine learning algorithms to classify PD in power transformers.
Table 2 possesses a collection of the recent literature in the research of automatic transformer PD classification using machine learning algorithms. The table provides a background of each of the collected literatures together with a summary of the research contents and the primary focus placed by the researchers. However, the literature of Table 2 provided much more knowledge, data and findings into available gaps in the literature from the research, employing different classes of machine learning algorithms. While great strides have been made regarding the use of ANNs for PD classification, ref. [18] expresses the lack of research on the utilization of ANNs for discerning the source positioning of PD. This introduces a literature gap, as the characteristics of PD sources may vary based on their position and whether it is a single- or multiple-source PD [18]. Most of the investigated literature utilizes PD data from experimental setups performed over a limited amout of time. This results in a lack of generality as PD patterns change over time. This therefore provides an opportunity for researchers to classify and compare the development of PD over much longer periods of time. Further to this, there is a greater need for use of onsite PD data taken under normal conditions in the presence of noise and electromagnetic disturbances in order to further upgrade the developed models. A common shortcoming of deep neural networks is that they are time-consuming due to their dependence on the back propogation algorithm. There is a necessity for improved and easier approaches to be developed which will result in reduced training times [18,20].
The literature indicates research to further improve the performance of traditional machine learning algorithms. These include combining multiple ML algorithms as indicated by [83], where kNN is combined with SVM to input missing values. Ref. [50] constructs a convolutional neural network and a long–short memory hybrid method which is tested on UHF PD signals, while [32] combines local binary pattern and histogram of oriented gradient to extract features form PD images. These are proving to be promising methods, for which the literature proposes further research.

4.1. Literature Sources and Search Techniques

The literature to be reviewed was collected from reputable online research repositories. An extensive search was conducted on scholarly works published on the following online repositories: Google Scholar, IEEE Explore, Science Direct, Springer Link, Wiley Online Library, Academia, Research Gate and Multidisciplinary Digital Publishing Institute (MDPI). A set of keywords relating to the SLR research topic was utilized to maximize the relevant results while also reducing the return of unnecessary or unrelated literature. Table 3 presents the list of keywords employed in searching for the literature.
Bearing in mind that the search keywords produce the basis for obtaining the applicable literature, the appropriate selection of keywords is crucial for the collection of literature in the SLR. A custom range is applied to the search to limit the results to the period between 2010 and 2023. This search brought forward a total of 21,812 scholarly works across the seven online repositories. Of these, 21,668 research papers were automatically eliminated on initial screening; therefore, 144 research papers were downloaded as part of the survey. Applying the inclusion and exclusion criterion shown in Table 1 to the 144 research papers resulted in the elimination of 63 papers and a total of 81 scholarly works qualified to be used in this survey. Table 4 shows the list of online repositories that were utilized as well as the total number of results achieved before the initial screening.

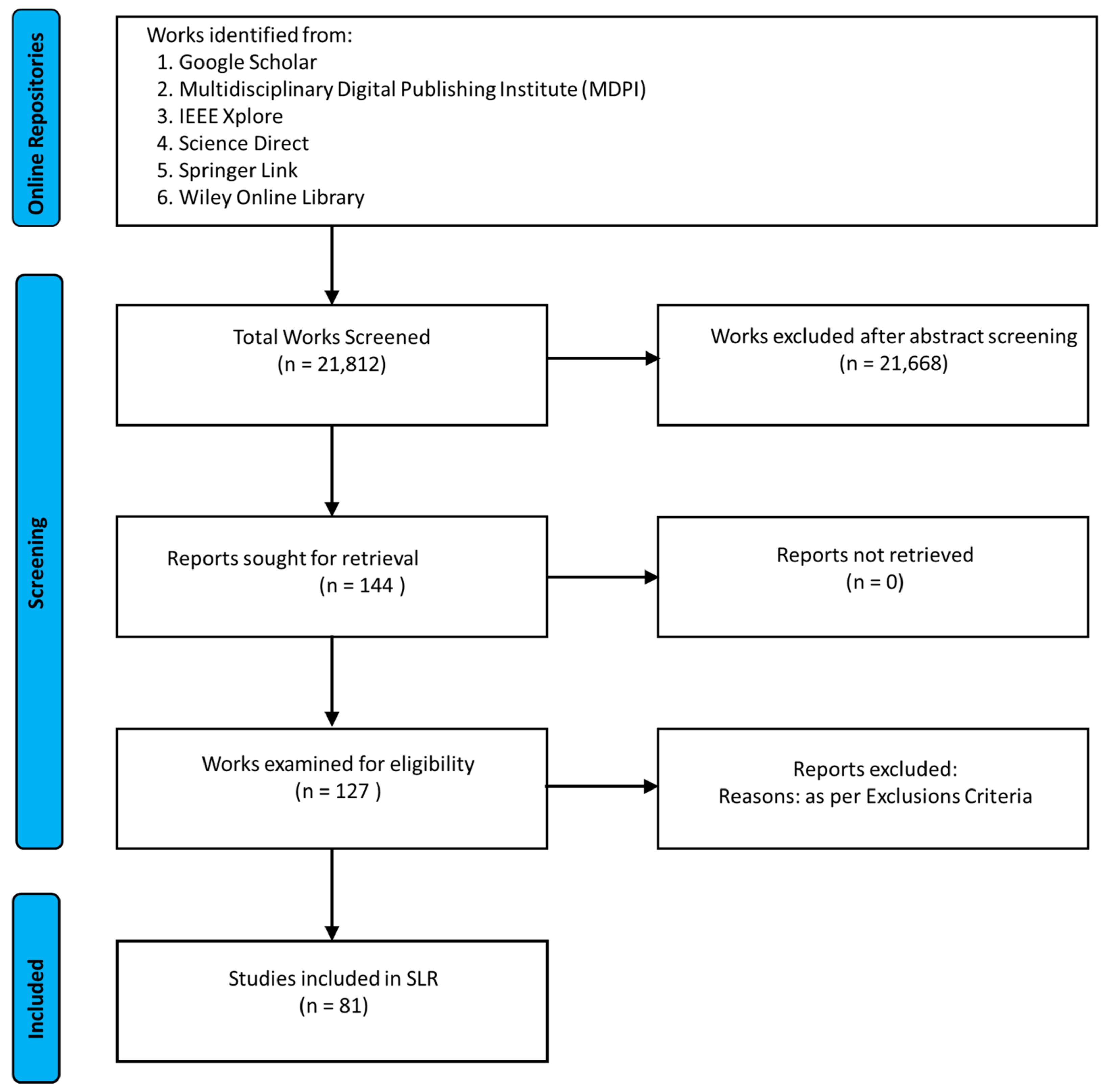

The process used for performing this SLR is a Preferred Reporting Items for Systematic Review and Meta-Analysis (PRISMA) flowchart, shown in Figure 3.

4.2. Quality Assessment

The collected literature was subsequently evaluated on criteria based on a set of five quality assessment (QA) checks as listed below:
  • QA1: Is the aim of the research explicitly stated?
  • QA2: Does the research clearly specify the data collection methods?
  • QA3: Is the PD classification process clearly stipulated?
  • QA4: Is there a clear research methodology utilized in the research?
  • QA5: Do the research findings contribute to improvement of the literature?
The responses to the QAs are rated on a scale between zero (0) and one (1), with a ‘No’ response assigned ‘0’ points, a score of ‘0.5’ given where the criteria is ’Partially’ met and ‘1’ point assigned to a ‘Yes’. All five QAs are scored using this criterion. Each of the literature under review can receive a between 0 and 5 points. The results of the QA for the collected literature are tabulated in Table 5 below.

5. Results

The literature collected after the PRISMA flowchart is used to formulate the responses to the twelve research questions developed in Section 1 concerning transformer partial discharge classification using machine learning algorithms.
RQ1: Which resource publication sources have been predominantly utilized in the literature to study the use of machine learning in monitoring partial discharge in electrical transformers?

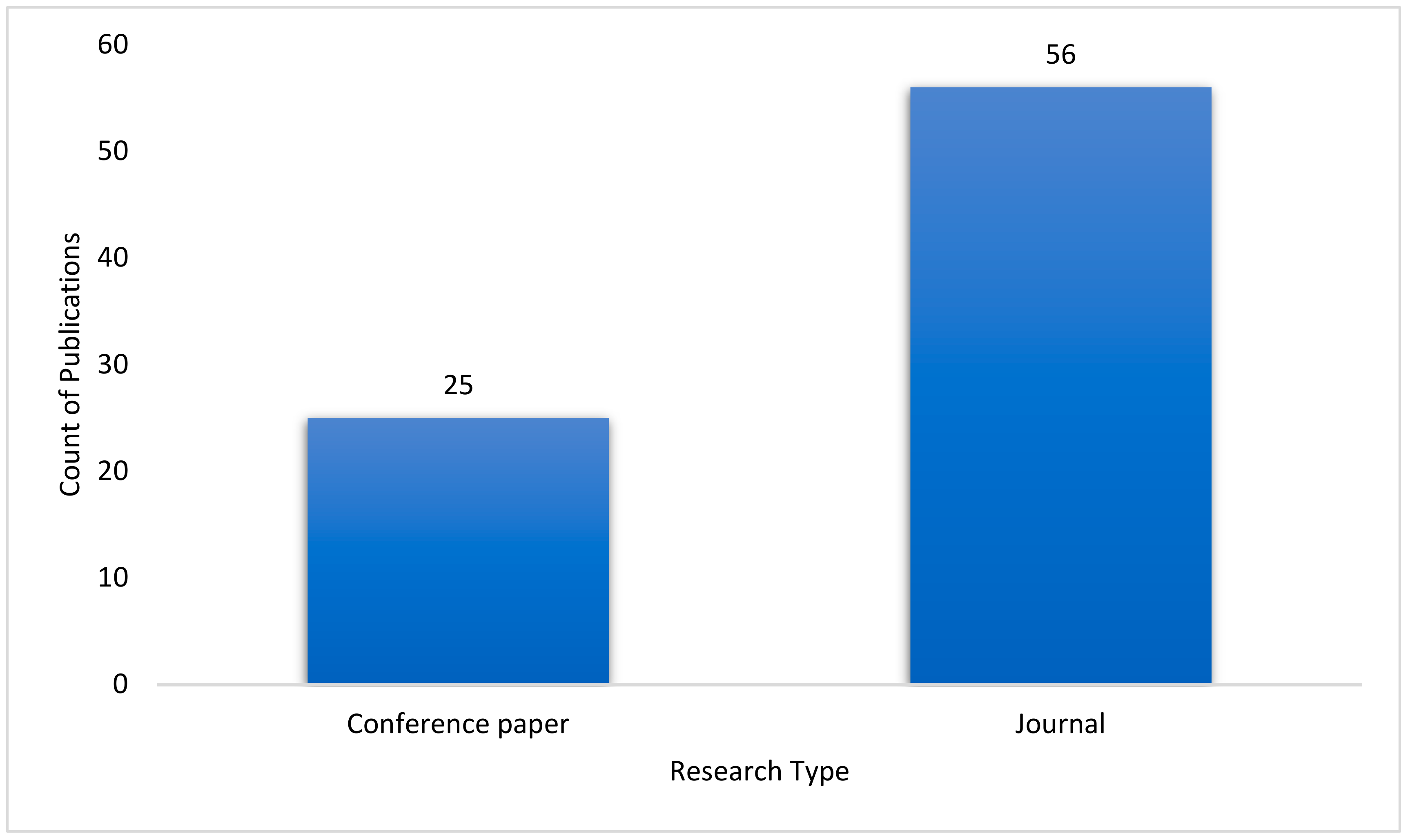

Figure 4 shows the literature published in journals to greatly dominate the publications of scholarly works on using machine learning algorithms for the classification of partial discharge in electric transformers. From analysis of the collected literature, 56 of the 81 literatures under review were journal papers; this makes up more than double the number of conference papers, which account for only 25 publications in the period under review. This indicates a vast preference for scholars to publish their works in journals.
RQ2: From which countries do the publications on transformer partial discharge monitoring with the use of machine learning originate?

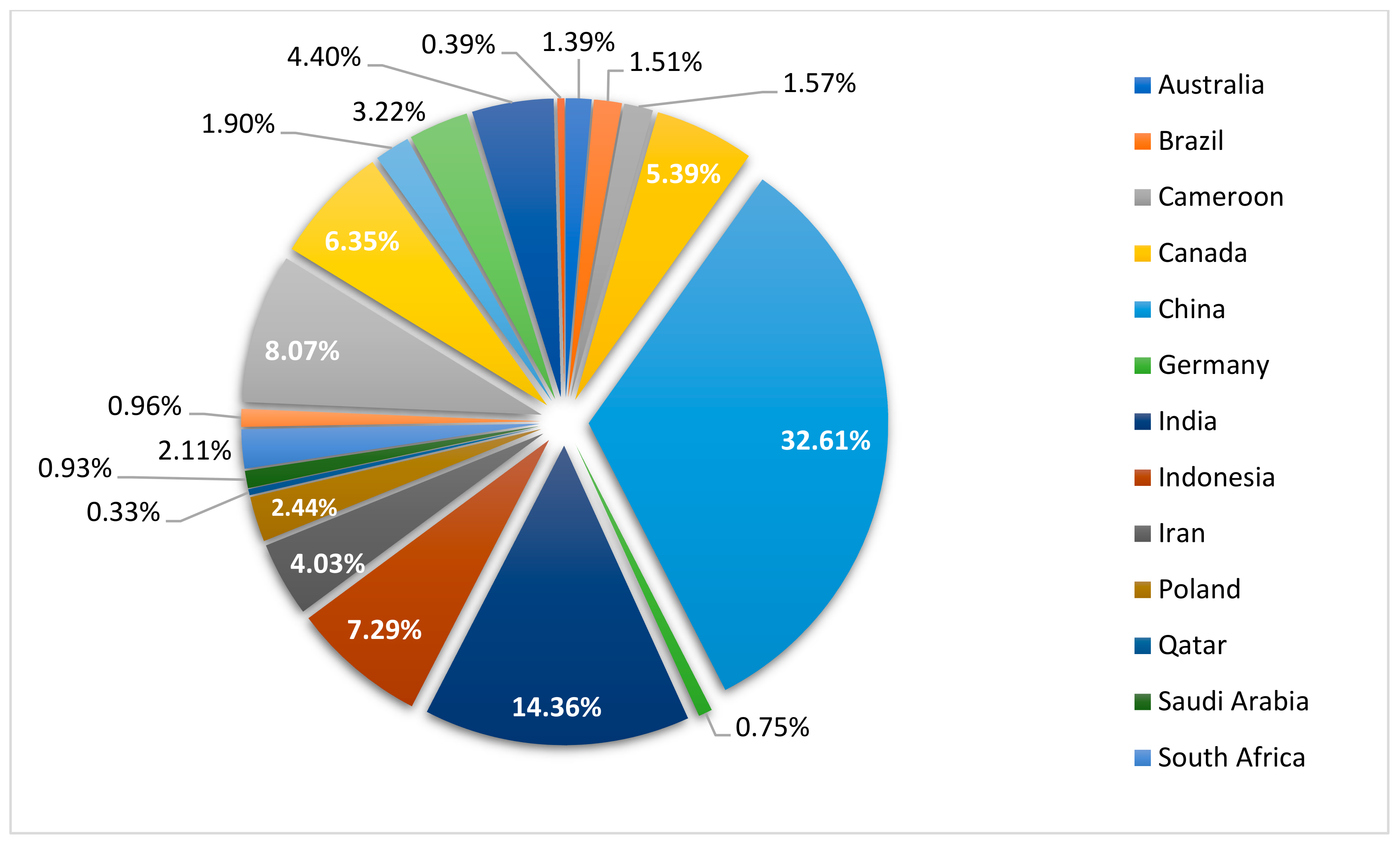

The representation of countries in the study of using machine learning techniques for classification of partial discharge in transformers was found to be wide, with 20 countries being represented in the collected literature published between 2010 and 2023. This indicates that this is a field of study that has gained interest worldwide, but also indicates the importance that scholars and users have placed on monitoring and understanding the health of their transformers. The motivation for these countries to invest in research can be related to the need to reduce costly transformer failures, extend the life of their assets, improve condition monitoring, adequately improve planned maintenance and eliminate grid failures which can have massive economic impacts.
From the 20 countries represented in the literature, it can be seen in Figure 5 that China has contributed most of the literature at 32%. The superiority of China in this research indicates a continued sign of China’s active investment and contribution to the advancement of technology in the field of artificial intelligence. When it comes to the field of power transformers and partial discharge, it can be attributed to the large landscape of China, the economy which has been one of the fastest growing in recent years and the economy’s reliance on a reliable electrical grid. China is currently the largest producer of electricity with 8534 TerraWatt-hours of electricity produced in 2021 according to [94]. This made up 30% of the entire world’s electricity production in 2021. The research places India in second position with 10% of the publications, Spain in third with 7% and closely followed by Indonesia with 6%. Although India only produced 6% of the total electricity in 2021, the electricity production grew by 10% in that year, which was equal to China’s growth.
RQ3: How has the research on the automatic classification of transformer partial discharge using machine learning evolved over the period under review?

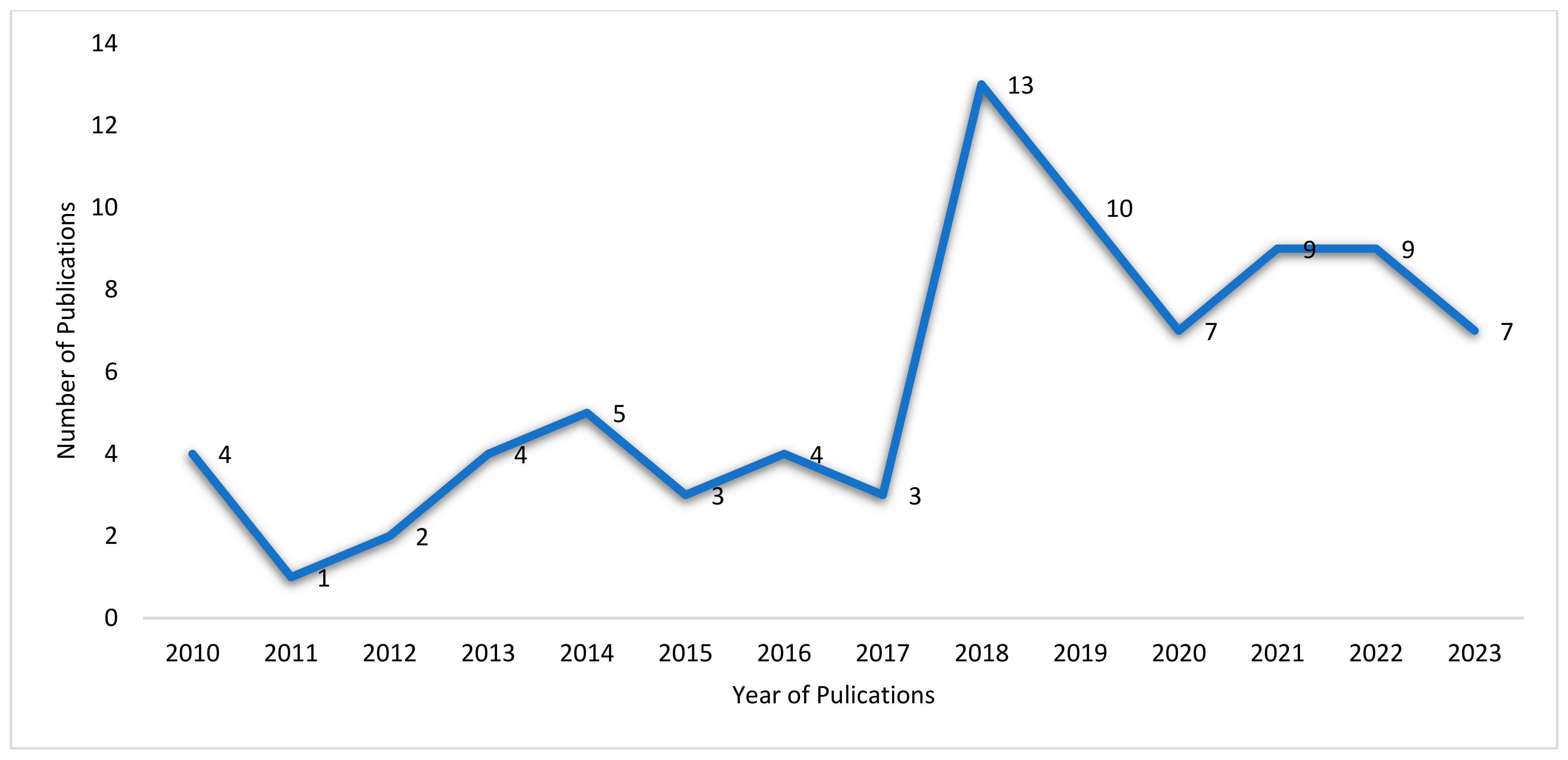

Publications of partial discharge source classification using machine learning algorithms have shown very steady and consistent growth over the period from 2010 to 2023, as shown in Figure 6. While four papers were published in the year 2010, the following year saw a decline to the lowest publications in the period under review, with only one documented paper published in 2011. The years from 2012 to 2017 consisted of publications of three or five papers per year. The greatest documented studies came in the year 2018, which peaked at 13 publications in that year. The interest in this study has remained post-2018, with publications remaining consistently higher than the preceding years.
The number of documented papers in the years up to 2017 indicates persistent interest in developing the knowledge base and research in the field. The huge increase in 2018 can be related to an increased understanding attained in the field from the research of the years thus far. The results of years post-2018 can be attributed to further development and building on the successes and research attained thus far.
RQ4: Which partial discharge types does the collected literature investigate?

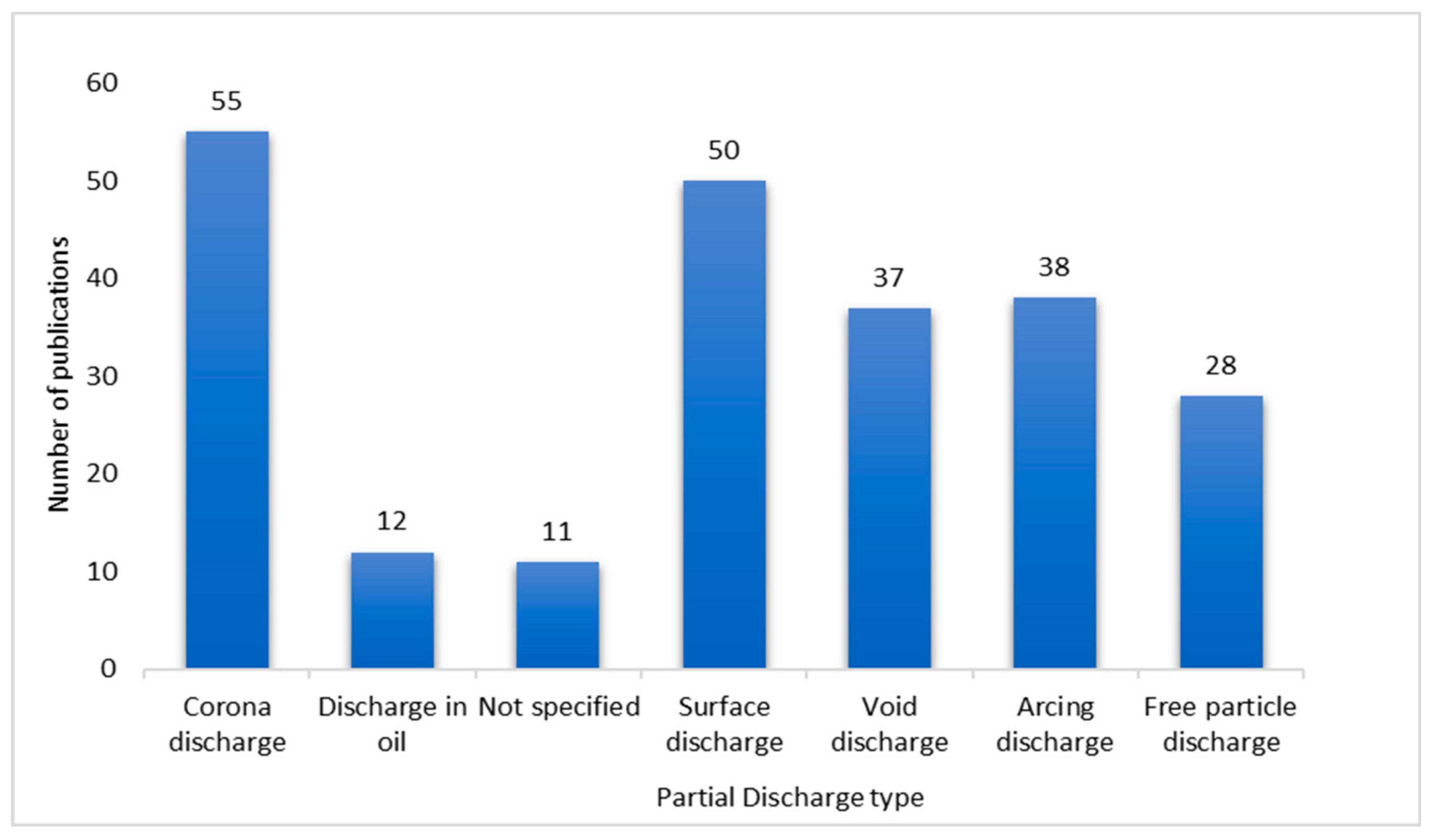

A total of 231 partial discharges were analyzed in the 81 publications under review, as can be seen in Figure 7. Corona and surface discharge are the two predominantly tested types of PD in the research in transformer partial discharge classification using machine learning algorithms. Corona discharge was investigated in 55 research papers, while surface discharge was investigated in 50 of the research papers and 75.3% of the research papers under review investigated multiple partial discharge types in one publication. The benefit for researchers to investigate multiple PD types is that transformers are constructed with solid and liquid insulation systems. These insulation systems are susceptible to a variety of degradation mechanisms due to their chemical compositions. Investigating multiple PD allows the researchers to develop classification models for different types of PD while also comparing the accuracy of the model for each PD type.
Corona discharge is the most common type of discharge occurring in HV electrical equipment, while surface discharge is considered to be the most destructive type of PD [95]; therefore, their prevalence in the literature indicates the investment provided to understand and possibly mitigate or reduce their long-term effect. The rather low number of publications relating to discharges in oil brings forth some prominent observations. It indicates a research gap in the literature, considering the various developments in transformer insulating oils which include mineral oil, vegetable oil and synthetic oil. The development of PD in various insulating oils and their propagation introduce an available opportunity for further research and development of automatic classification models as well as providing input to enhancing the compositions of the oils. Secondly, the low publications are possibly a result of reliance on transformer dissolved gas analysis, which has proven to be a very effective tool for detecting degradation of solid insulation via the gases trapped in the transformer oil.
RQ5: From which sources was the partial discharge data used in the literature collected?

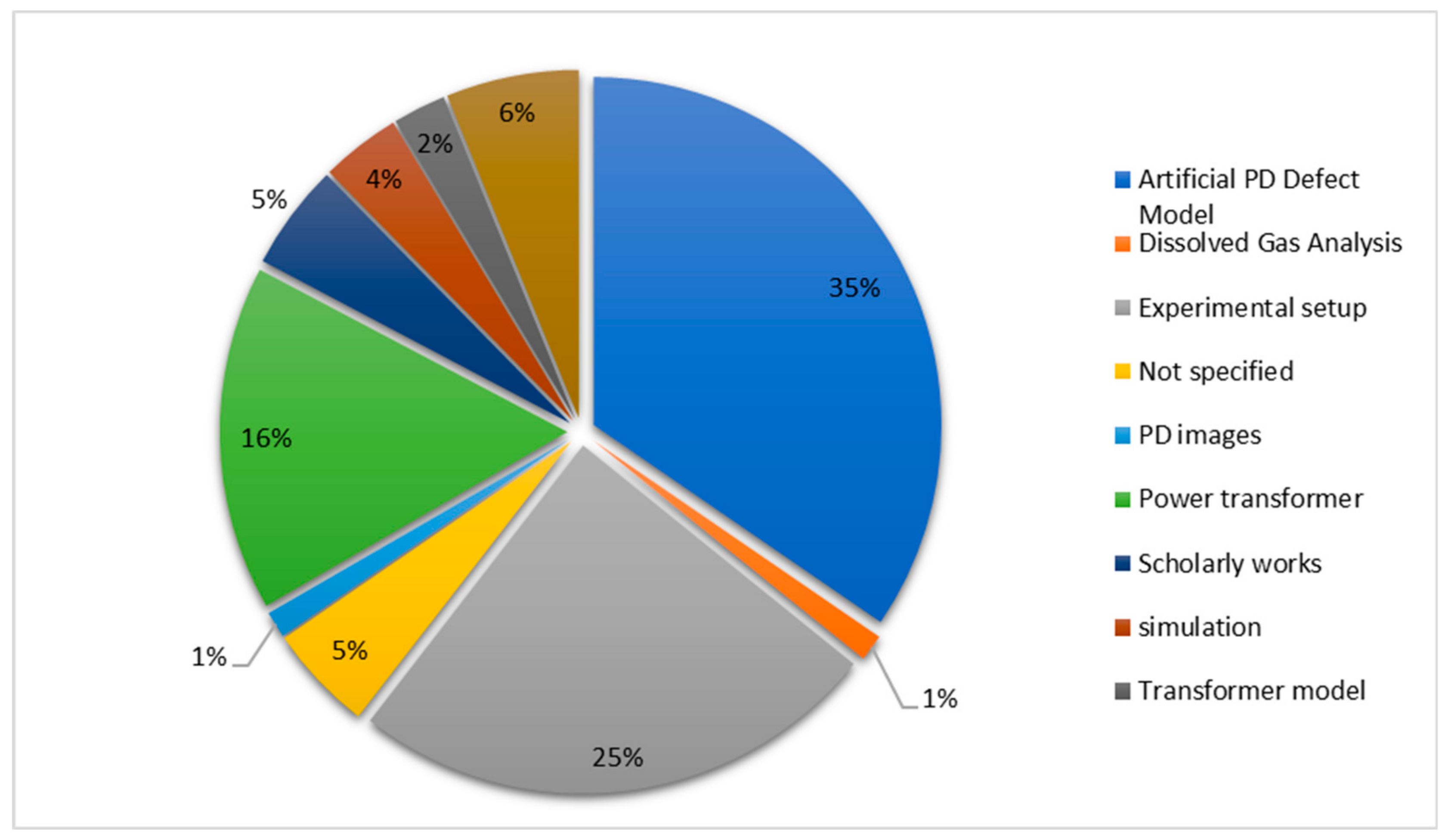

The study of the sources used to collect partial discharge data to be used in the context of transformer partial discharge classification using machine learning techniques opens some notable information. The leading source of PD data is collected from artificial PD defect models. This makes up 35% of the results from the literature reviewed. Artificial defect models are laboratory-constructed models of different designs and sizes. These models are specifically set up to simulate a particular PD defect type. Figure 8 illustrates an example of four PD defect models used in the classification of multiple PD defects using machine learning algorithms. In Figure 8, defect model (a) is an air gap defect model, (b) is a floating defect, (c) is a surface defect and (d) is a tip defect model.

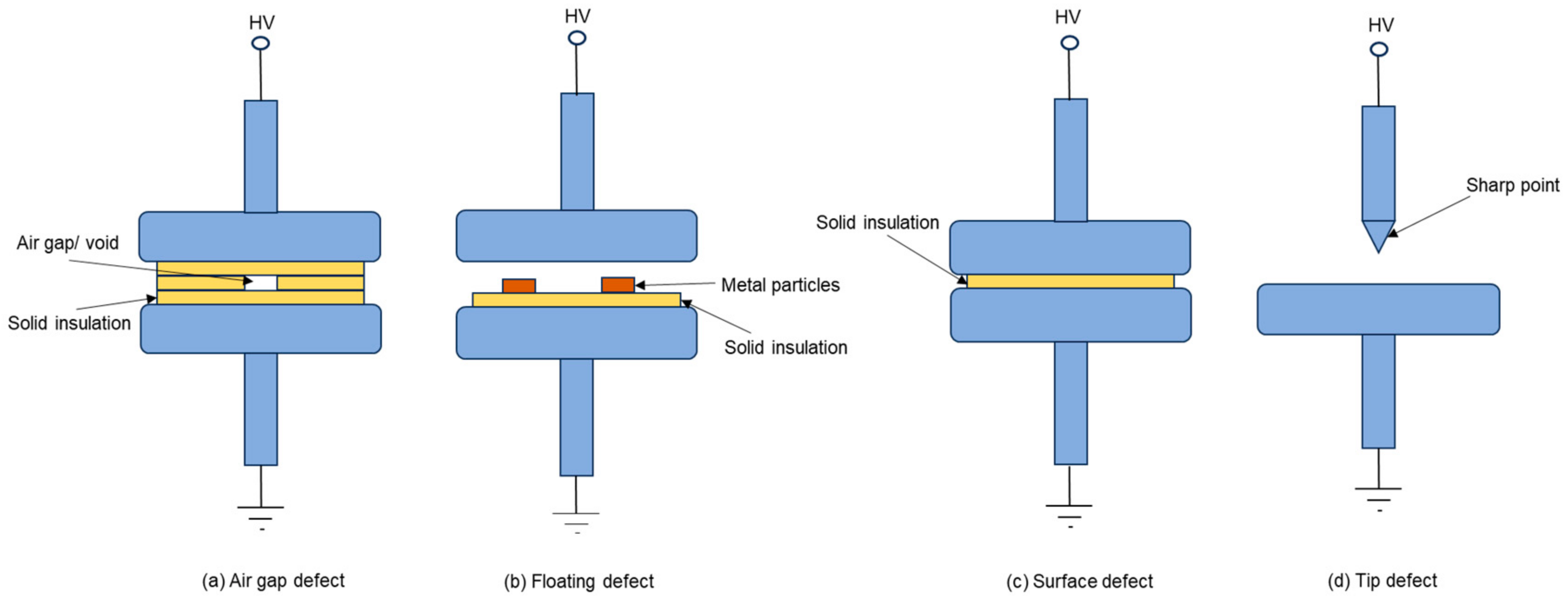

Artificial defect models are preferred by researchers as they can model the specific PD defect that they are looking for. In a machine learning algorithm, this data allows for better training of the algorithm and permits fewer outliers as the data collection is specific to the defect. The testing phase of the algorithm is also improved, as the algorithm is trained with specific data and can deal better with outlying data points.
PD experimental setups came second with 25% of the publications as can be seen in Figure 9, while data collected from actual transformers came third with 16% of the publications in the period between 2010 and 2023.
RQ6: Which PD measuring methods are used in the sampled literature?

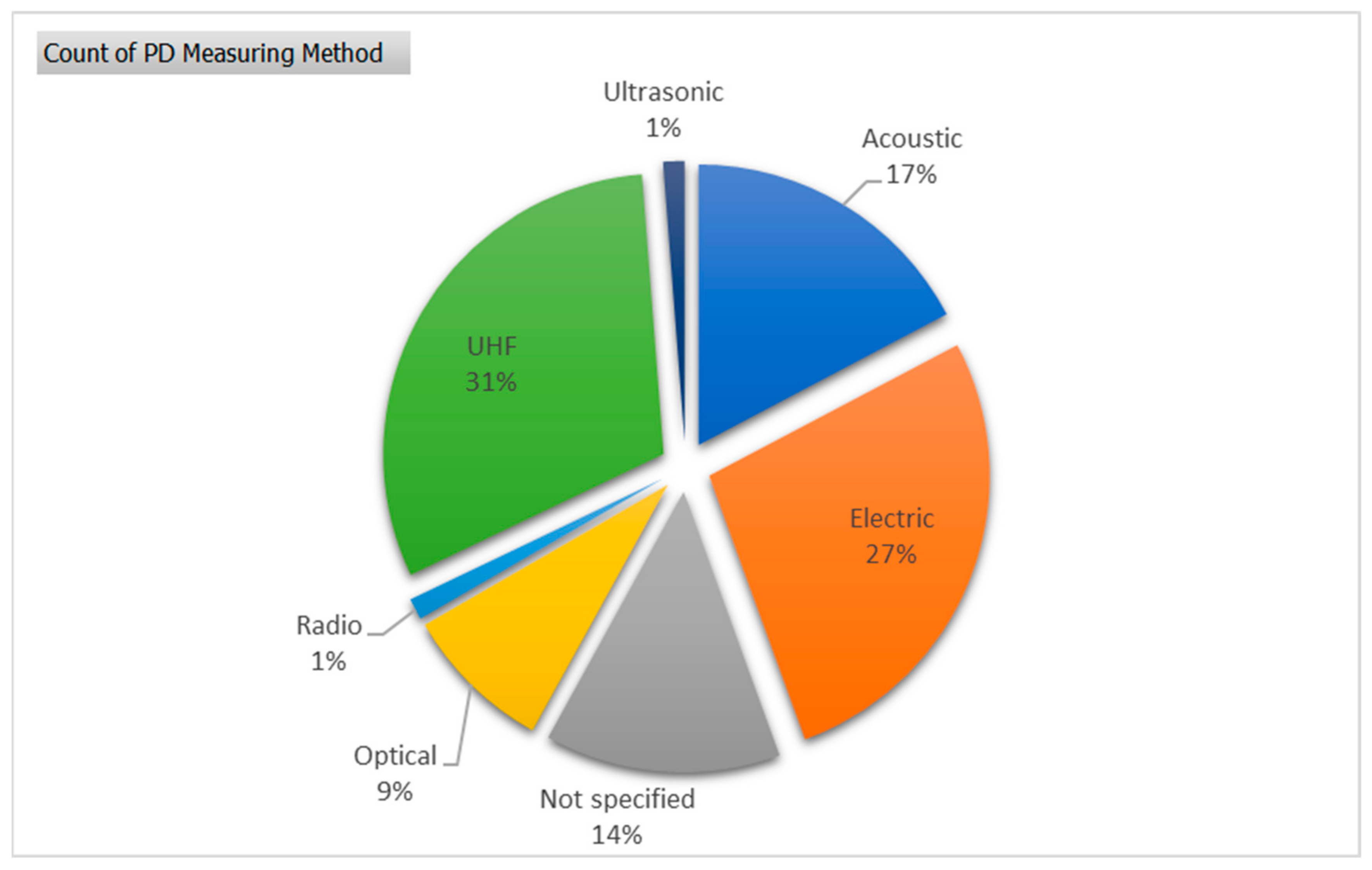

Partial discharge is a complex physical process with random distribution properties [10]. The discharges produce phenomena such as sound, light and electromagnetic waves and release electric charges. These phenomena are used in the detection and measurement of PD within a transformer. Within the literature reviewed for transformer partial discharge classification using machine learning algorithms in the period between 2010 and 2023, the most used detection methods were Ultra-High Frequency (UHF) and Electric with 30% and 27%, respectively as shown in Figure 10. The UHF method is mostly preferred due to its high resistance to external Disturbances such as electromagnetic interference, which can be expected in industrial areas where PD testing takes place [96]. It further has a high signal-to-noise ratio as well as good signal detection sensitivity [97]. The electrical method also has its advantages, which include excellent PD signal recording in laboratory environments, high sensitivity, low noise levels, low signal attenuation and high precision measurements [98].
Acoustic emission came third with 17% of the publications, while optical emission had 9%. Acoustic emission benefits from noise resistance, which makes it an asset for online measurements, and since sensors can be placed at different locations of the test device, it provides better discharge position information [99]. In 15% of the reviewed literature, the researchers did not specify the technique they utilized to measure the PD. This is a gap in the literature on which researchers can further improve.
The PD measuring techniques noted in Figure 10 are not without their drawbacks. While the UHF method has exceptional sensitivity, it cannot be calibrated. The electrical method is mainly used in laboratory environments and is not for onsite or online use. It is also highly sensitive to electromagnetic interference. Acoustic emission has low sensitivity, adds complexity to data handling and processing and requires additional costs due to the requirement of multiple sensors [98].
RQ7: Which measuring equipment is used in the measuring of PD in the literature?

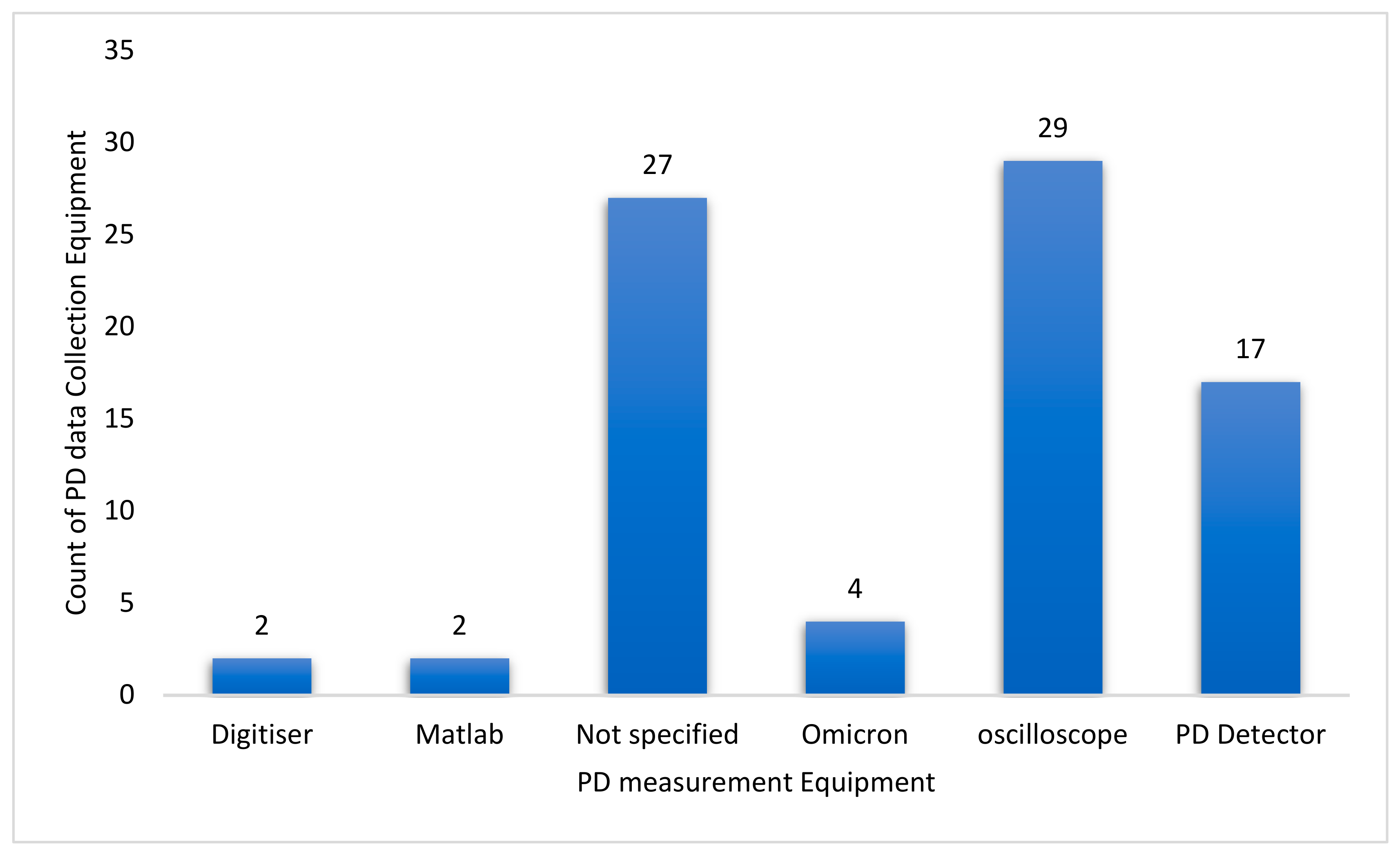

The analysis of measuring equipment used in the collection of PD activity for the research into transformer partial discharge classification using machine learning techniques indicates a lack of variety. Figure 11 indicates the oscilloscope as the preferred measurement device with 29 research papers citing its use. This high preference for using the oscilloscope can be attributed to its availability in research laboratories. This is also the case with the data received in Figure 9 of RQ5 where it was determined that 60% of the sources of PD data in this literature were collected from artificial PD defect models and experimental setups. Since most of the research has been done in laboratories, it is more cost-effective to utilize the available equipment where it can achieve the results. Of the 81 scholarly works reviewed, 27 publications did not specify the equipment used to measure the data which was utilized. This is because the primary focus of this research is developing machine algorithms which can classify transformer partial discharge at a very high accuracy. The works on experimental setups and data collection are already well-developed and the literature is well-publicized. The use of various types of PD detectors was the third most utilized means of measuring PD in this collected literature. The PD detectors were cited in 17 publications in the period between 2010 and 2023. The PD detectors are generally used by companies who specialize in performing PD tests on actual power transformers and on tests which occur outside the laboratories.
RQ8: Which national and international standards are referenced in the literature?

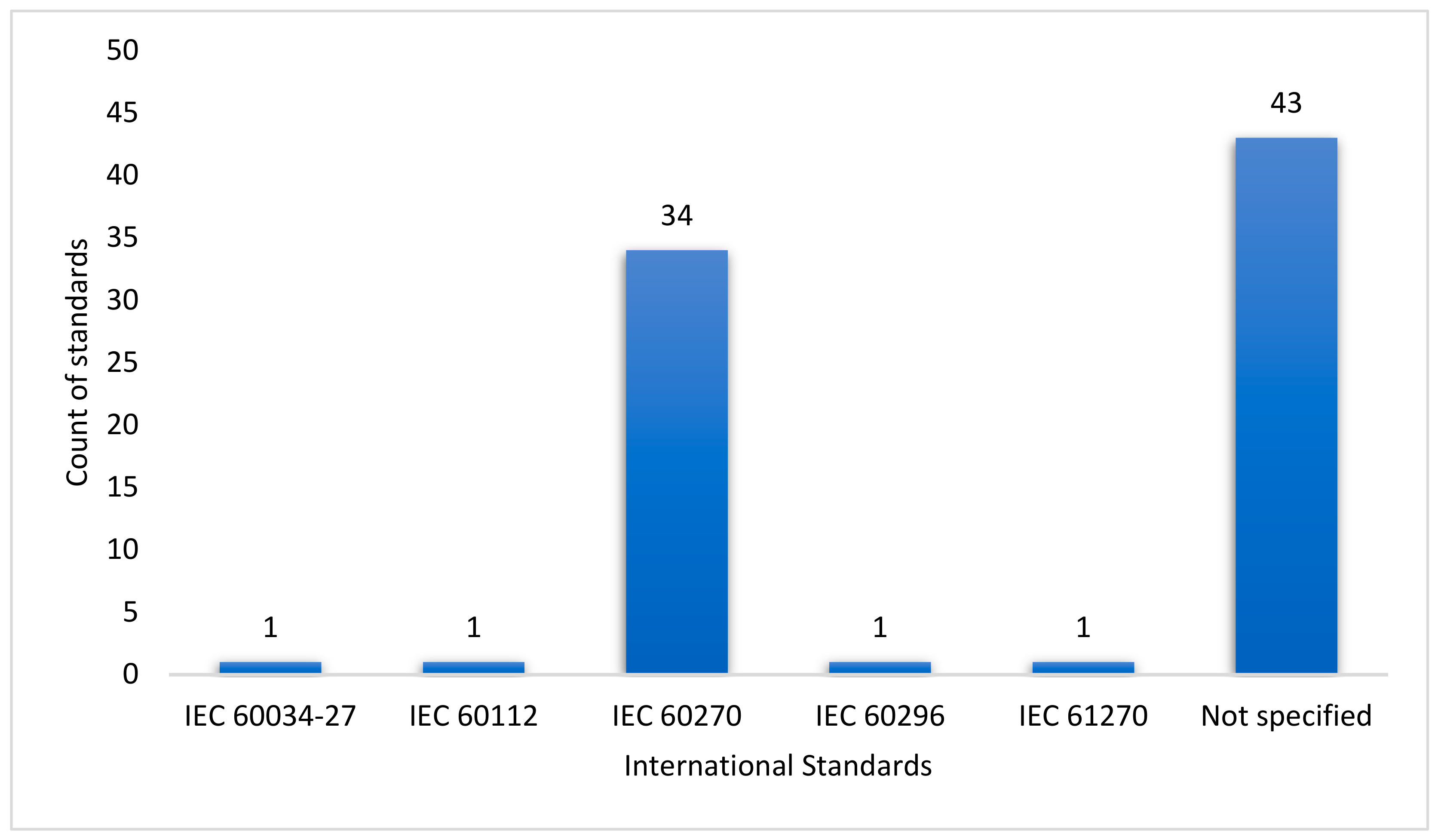

The analysis of the international standards used in the research on transformer partial discharge classification using a machine learning algorithm is as expected, with the IEC 60270 dominating the literature with 35 publications citing this standard as seen in Figure 12. The IEC 60270 is the high-voltage test technique for partial discharge measurements. It defines the requirements for PD measurements, the measuring systems, measurement techniques, types of tests, circuits, etc. Therefore, it is expected that researchers will utilize this standard for guidance. Other international standards that feature in the literature include IEC 60076.3 [100], IEC 60034-27 [101], IEC 60112 [102], IEC 60296 [103], IEC 62478 [104] and IEC 60060-1 [105].
IEC 60076.3 concerns power transformers (insulation levels, dielectric tests and external clearances in air), IEC 60034-27 concerns rotating electric machines (measurement of insulation resistance and polarization index of winding insulation of rotating electric machines), IEC 60112 concerns the method for the determination of the proof and the comparative tracking indices of solid insulating materials, IEC 60296 concerns the fluids for electrotechnical applications (unused mineral insulating oils for transformers and switchgear) and IEC 60060-1 concerns high-voltage test techniques (general definitions and test requirements). As can be seen, the above standards all refer to high-voltage electrical tests or insulation tests. These standards are all valid for the research on transformer partial discharge as PD is a high-voltage discharge that occurs in the insulation systems of transformers.
RQ9: Which feature extraction methods are mostly utilized in the collected literature?

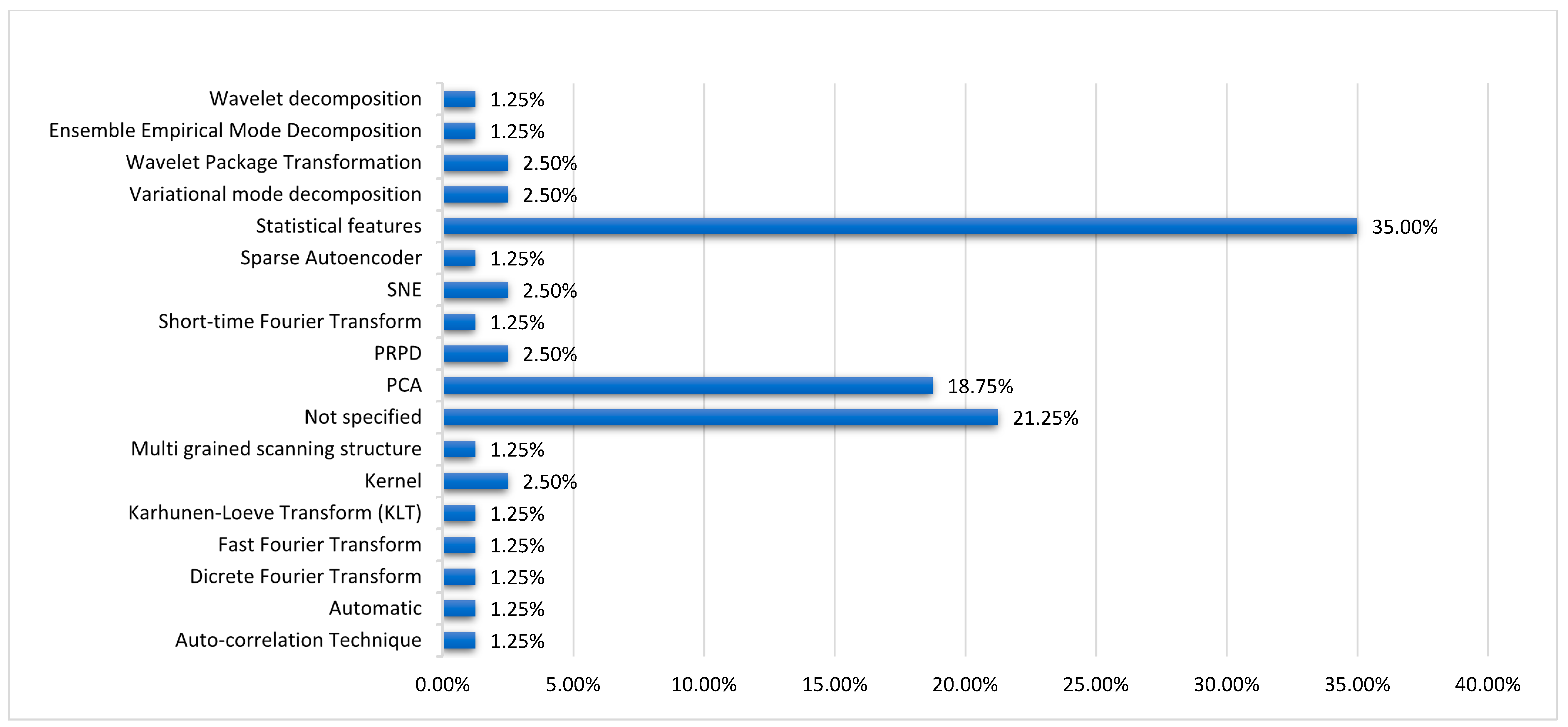

Feature extraction is a process of extracting relevant features from the raw data used in machine learning. It reduces the amount of data without losing vital information required for developing the algorithm. Feature extraction therefore reduces the memory required, reduces computation time and improves the efficiency and the accuracy of the developed model. The analysis of the feature extraction techniques used in the literature for transformer partial discharge classification using machine learning algorithms indicates that researchers are open to utilizing a large variety of techniques; however, most of the scholarly works published between 2010 and 2023 indicated a preference for utilizing statistical features. These far outweighed the rest of the techniques, with 35% of publications indicating their use. Figure 13 shows the breakdown of the feature extraction techniques in the collected literature.
Principal Component Analysis (PCA) came in second with only 19% of the publications. PCA is a linear technique with the advantage of reducing dimensionality and identifying key variables; this makes its use very attractive to researchers. A total of 18 feature extraction techniques were found in this study, which indicates a wide variety of choices and willingness for scholars; however, 21% of publications did not specify the technique utilized. The possible reasons for not specifying are that for that data the researchers did not use a feature extraction technique, or that the authors chose to place a major focus on the primary objective of the research. This indicates a likely gap in documenting from the perspective of those research papers.
RQ10: Which machine learning algorithms are the most utilized for monitoring partial discharge in electric transformers?

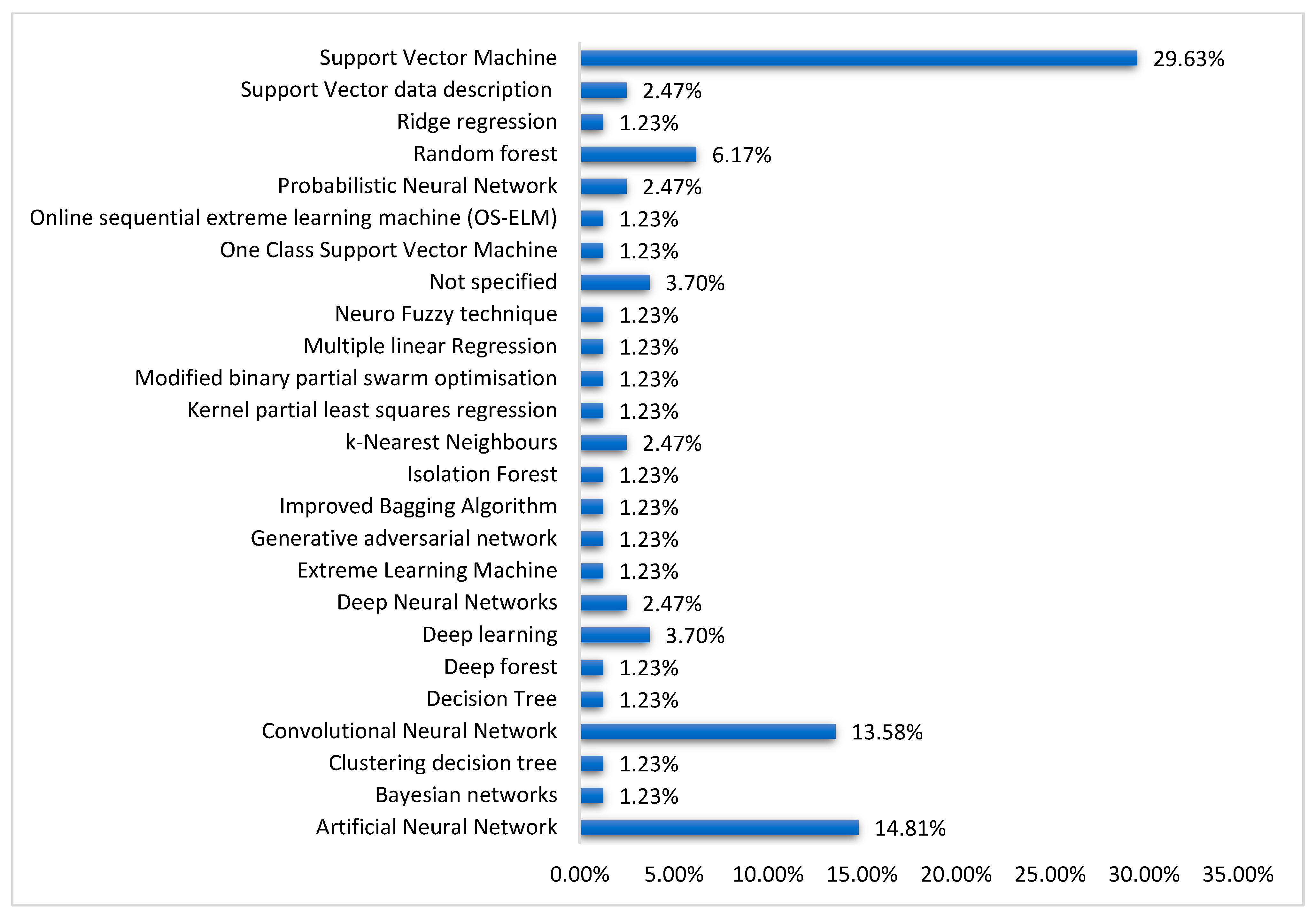

A remarkably noticeable variety of artificial intelligence (AI) algorithms can be identified in the literature for transformer partial discharge classification using machine learning algorithms (Figure 14). Support vector machine (SVM) stands out as the most abundantly utilized algorithm with 26% of researchers in the literature opting for it. SVM is a powerful and very popular supervised learning algorithm that is highly effective for use in a two-dimensional space as it determines an ideal hyperplane for classifying data. The preference of researchers to use SVM indicates the likelihood of mostly linear data being prevalent in transformer PD samples. Another rationale is on the basis of most researchers opting for data collected from artificial defect models as elaborated in RQ5, resulting in data that is clearly defined and has clear separation. Linear SVM is limited by the data size as well as the presence of noise. This limitation is generally overcome with the use of kernels.
Artificial neural networks (ANN) and convolutional neural networks (CNN) came in second and third place, with 12% and 11% of the publications, respectively. ANN and CNN are neural networks which lean towards deep learning algorithms. Neural networks have gained increased interest in the field of artificial intelligence as a viable alternative to traditional machine learning. They are capable of performing automatic feature learning, thus eliminating the step of manual feature extraction; they can also handle much larger datasets compared to traditional algorithms. These benefits make neural networks very pleasing for researching a variety of different PD types occurring in transformers.
RQ11: What are the challenges that are experienced when utilizing machine learning in classifying transformer partial discharge as documented in the literature?
Some challenges and constraints on transformer partial discharge classification with machine learning algorithms which have been recorded in the reviewed literature are as follows:
  • PD mechanisms of multiple defects have not yet been fully understood; the development of machine learning techniques has.
  • Determining the effect of frequency on degradation induced by PD.
  • The effect of nanostructured insulators on PD resistance and how coarse a surface is.
  • PD mechanisms in the presence of space charge resulting from cavity discharge.
  • The correlation between PD breakdown under DC voltage.
RQ12: What are the possible future research opportunities highlighted in the literature?
The possible future research opportunities that have been highlighted in the literature include the following:
  • Understanding of the propagation of PD signals inside transformers. Current machine learning models and the research has primarily placed focus on detecting the present state of PD, as well as improving the accuracy, speed and reducing memory. Developing models which will allow for understanding the propagation of PD within a transformer can provide further insight to grow the knowledge base within the research space.
  • The optimization of the design of PD sensors. The use of optical and acoustic sensors for multiple PD source detection and localization is currently limited by the cost of multiple sensors required. Optimizing on the design of these can reduce cost and size, therefore allowing for further research and use in a variety of locations.
  • Proper calibration techniques for PD charge. The current PD detection techniques and application thereof in multiple locations are limited as some techniques cannot be calibrated as prescribed in IEC 60270. The development of accredited calibratable sensors and calibration techniques can aid in the uptake of newer techniques.
  • Research into surface tracking and flashover due to static electrification in the interface of oil and pressboard. The research into surface discharge and tracking occurring on pressboard and oil together with the degradation mechanisms and the results thereof can be highly beneficial in understanding the long-term effect of PD on transformer insulation systems.
  • Further research into the interpretation of automated classification of PD formed under the presence of conducting particles, moisture, temperature, etc.
  • The collection and automatic classification of PD over a much longer period. The study indicated that PD data has primarily been collected from artificial defect models in a laboratory. The literature could benefit from long-term PD collection from on site transformers to test the effectiveness and efficiency of the developed models.
  • Utilizing a combination of machine learning algorithms to overcome the shortfalls and improve the ultimate classification performance of the model. This concept has been initiated; however, it still requires further refinement to test and improve its effectiveness.

6. Limitations of the Study

The systematic literature review was performed within the confines of the aim of the study, which was further bounded by the determination of an inclusion and exclusion criteria. This method ensures that the research methodology is clear; however, it may also introduce some limitations to the study. Some of the limitations include that the literature was collected only from well-known, reputable publications. This methodology guarantees that the research works used are of an acceptable standard and have been peer-reviewed for correctness. Therefore, there may be other works contributing to the subject matter which may not have made it into the set criteria. Another limitation is that the subject matter placed a boundary on only PD. The effect of heat, mechanical forces, transformer loading and chemical forces that contribute to the deterioration of insulation, which may further exacerbate PD, have not been taken into account. Lastly, it would benefit

7. Contribution of the Study

The significance of this SLR is in contributing to the advancement of the technology area relating to the automated classification of partial discharge in power transformers. Its contribution is in providing an extensive and discerning review of the research and development undertaken in this field in the last decade. The SLR analyses the literature in question and studies in detail the landscape of the literature, revealing the most preferred publication sources for scholars and researchers, the countries engaged in the research and the evolution of the research over the period under consideration. The SLR further analyses the role of PD in transformers by divulging the types of PD that have been researched, indicating improvement in the field where single-source PD analysis has largely been replaced by multisource analysis and classification. The source of PD data collection indicates the preference for collecting data from artificial PD models and the SLR also unveils the types of PD measuring methods that are preferred as well as the PD measuring equipment that have been used. Moreover, it delves into the use of artificial intelligence in classifying PD in transformers by analyzing the feature extraction techniques used by researchers and the most favored machine learning algorithms. Lastly, the SLR identifies the challenges experienced by researchers and scholars in the field of transformer PD classification using machine learning algorithms and further establishes possible opportunities or research gaps that can further improve the advancement of this research area. Therefore, this SLR offers a platform to indicate the present state of the research on transformer PD classification using machine learning algorithms, and thus provides a basis for further development and growth.

8. Conclusions

This paper provides an in-depth analysis and review of the existing research and literature in the field of transformer partial discharge classification with the use of machine learning algorithms. The foundation of this paper introduces the electrical transformer, with particular emphasis on the solid and liquid insulation systems. This is then accompanied by a focus on the explanation of partial discharge, its development within transformer dielectric and its effects on the transformer, as well as how it can be used to monitor the health of the transformers. The use of artificial intelligence in monitoring and classifying PD activity is then introduced, together with the advantages it provides.
This systematic review included a robust methodology developed using the Preferred Reporting Items for Systematic Review and Meta-Analysis (PRISMA) flowchart. Using the PRISMA flowchart as well as a well-developed inclusion and exclusion criteria, a total of 81 research papers published on reputable research repositories between 2010 and 2023 were examined as part of this review. The study develops a series of pertinent research questions which need to be answered to provide insight into the critical elements surrounding the development in the field of utilizing AI to classify PD in electric transformers.
The review commences with the identification of the prevalent publication sources in the collected literature, indicating a substantial inclination towards journals over conference papers and research articles. After that, it studies which countries have contributed to the literature in this field. This revealed a significant range of involvement with 20 countries from diverse continents participating in this field showing worldwide interest in the development. However, China dominated the number of publications in the period under review, which is indicative of their continued investment in technology and the field of artificial intelligence as well as its practical use on electric transformers.
The paper further reviewed PD’s existence in transformers in detail, starting with examining the types of PD that have been most widely researched. This highlighted the propensity for scholars to investigate multiple types of PD, training their algorithm on each type and comparing the accuracy. This reveals that researchers are moving more towards multisource PD classification algorithms rather than single-source ones which were more prevalent in the past. Secondly, it identified the types of sources used to generate the PD data, artificial defect models surpassed transformer models and actual transformers, respectively, in the top three, thus indicating that most PD data used in the literature has been collected in laboratory environments; furthermore, it indicates that this may be the most reliable form of data for training of the machine learning algorithms. The third PD assessment was that of the methods used to measure the PD activity, Ultra-high frequency, Electric and Acoustic emissions were among the most utilized methods. This assessment further indicated a wide variety of testing methods which are disposable for researchers, scholars and PD testing companies, and which can be utilized in laboratory settings, onsite, offline and online. Oscilloscopes were identified as the preferred equipment for recording PD activity. This further expounds on most of the research occurring in laboratory environments, as oscilloscopes are readily available in most electrical Engineering laboratories.
The SLR concluded by identifying the AI aspect of this research, finding that statistical features were predominant in the feature extraction space. However, a large portion of the literature did not specify the feature extraction methods used, thus leaving a sizeable gap in this space. Support Vector Machine dominated the machine learning algorithms in the literature, due to its simple nature for classifying linear data. However, the wide variety of machine learning algorithms recorded in the data indicates great future development in this space.

Author Contributions

L.T.T. and B.A.T. were responsible for conceptualization, methodology, validation, formal analysis, investigation, resources, writing—original draft preparation, writing—review editing and visualization. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The original contributions presented in the study are included in the article, further inquiries can be directed to the corresponding author.

Conflicts of Interest

The authors declare no conflicts of interest.
