# Intelligent Gangue Sorting System Based on Dual-Energy X-ray and Improved YOLOv5 Algorithm

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

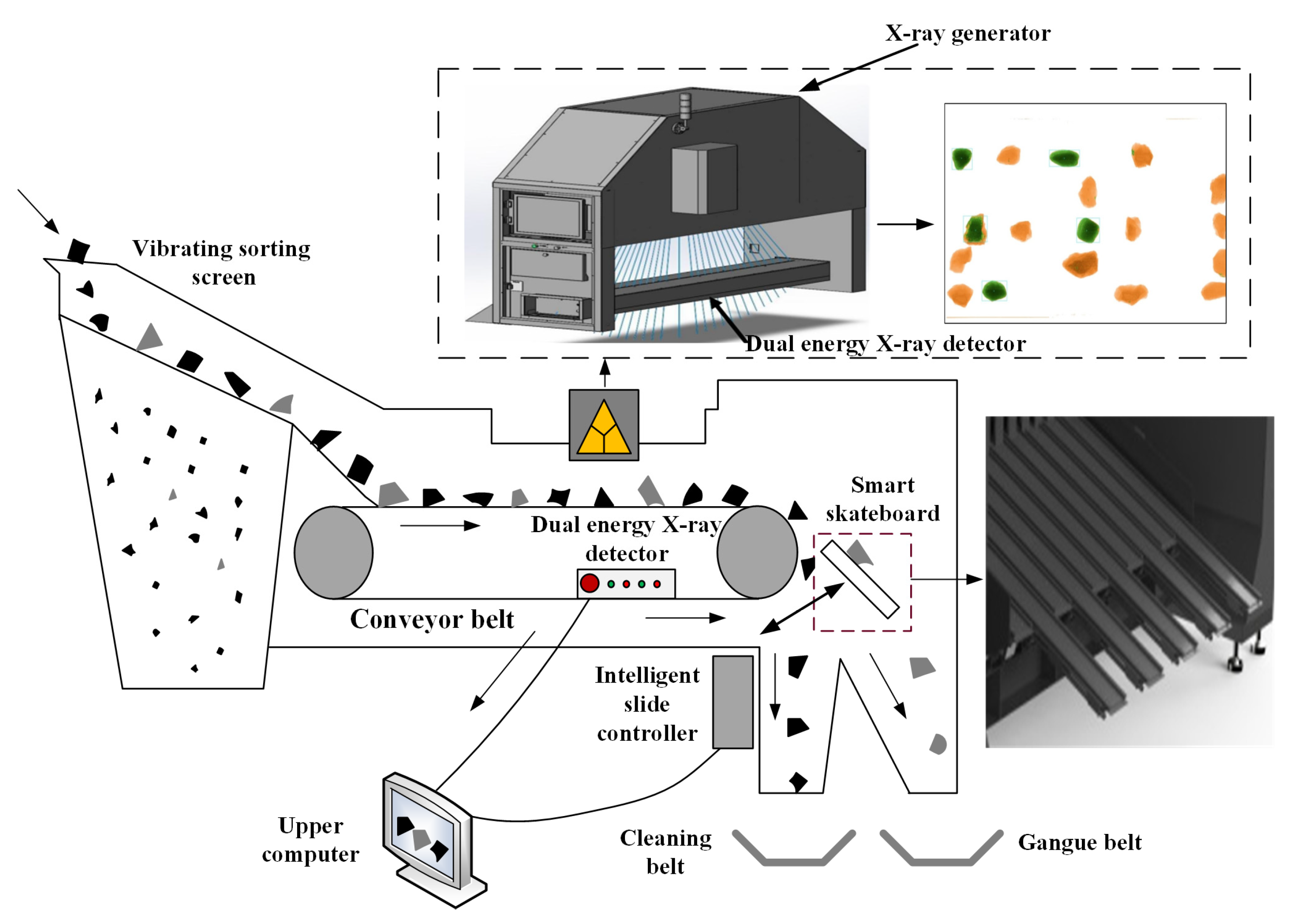

## 2. Coal Gangue Separation System Based on the DX-YOLOv5 Recognition Model

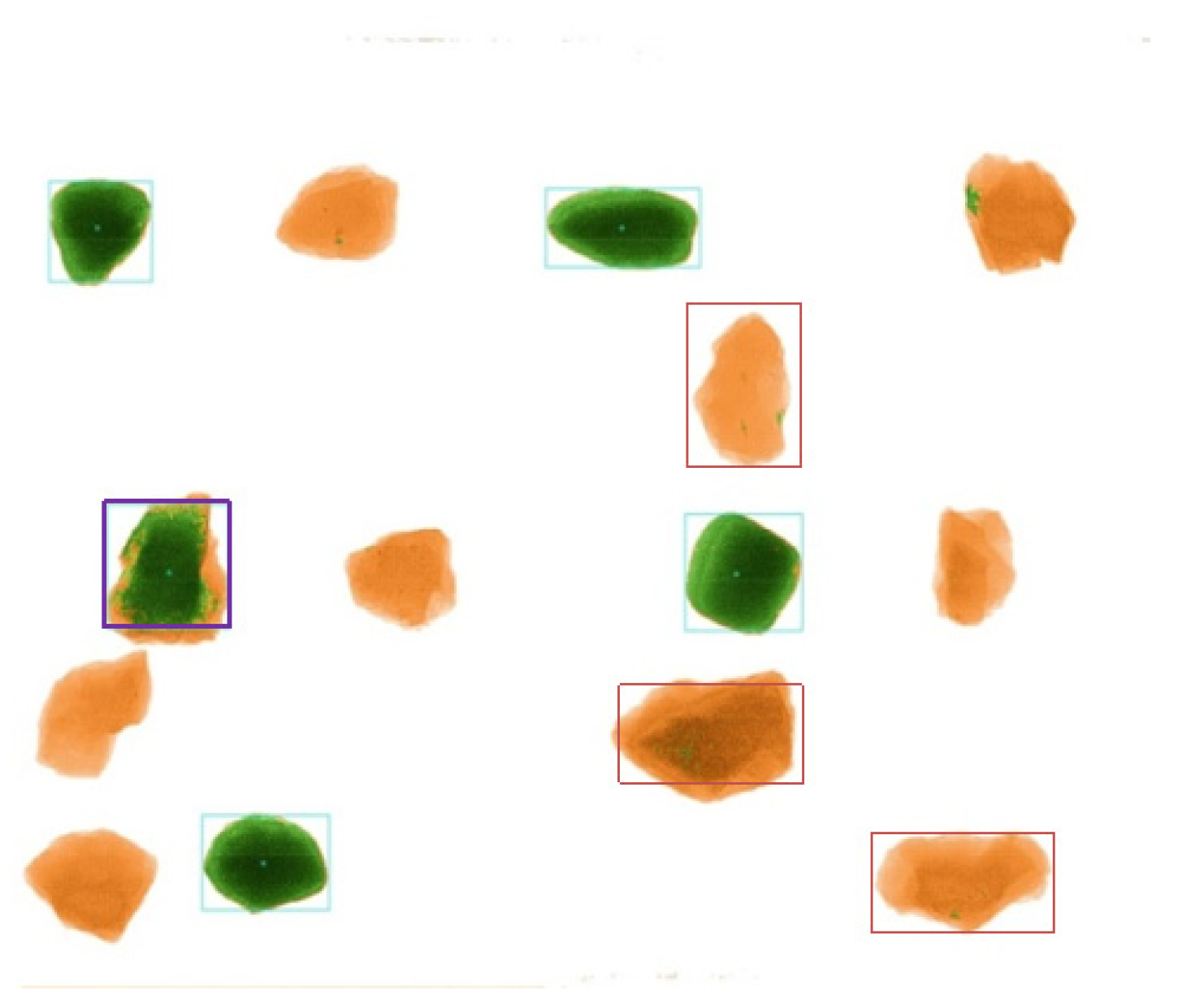

#### 2.1. Principle of Dual-Energy X-ray Recognition

#### 2.2. Data Collection

## 3. Improved Gangue Recognition Model Based on YOLOv5

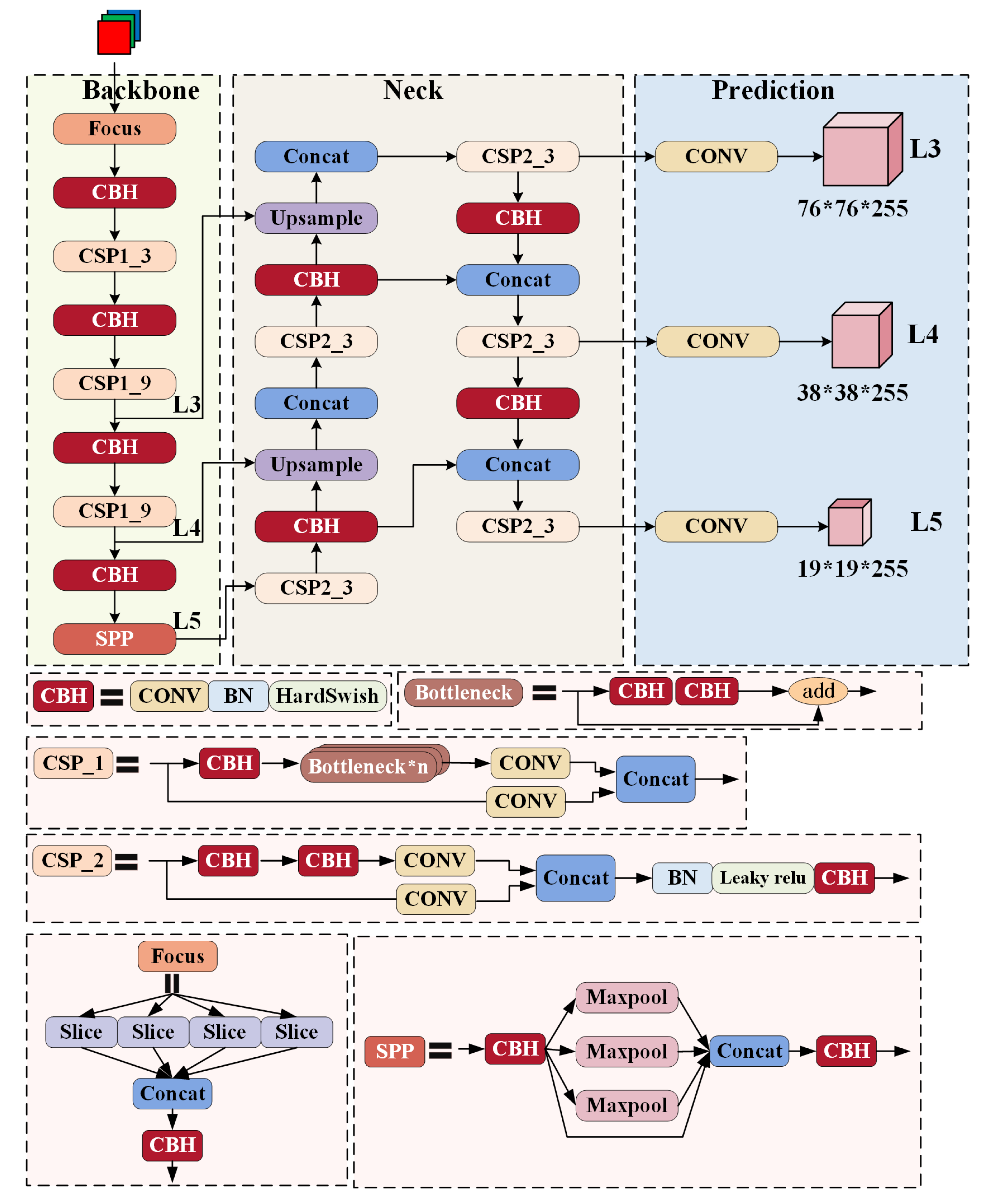

#### 3.1. YOLOv5 Model

#### 3.2. Improvement of YOLOv5 Algorithm

#### 3.2.1. Lightweighting of the Backbone Network

#### 3.2.2. Enhancement of Feature Fusion Capabilities

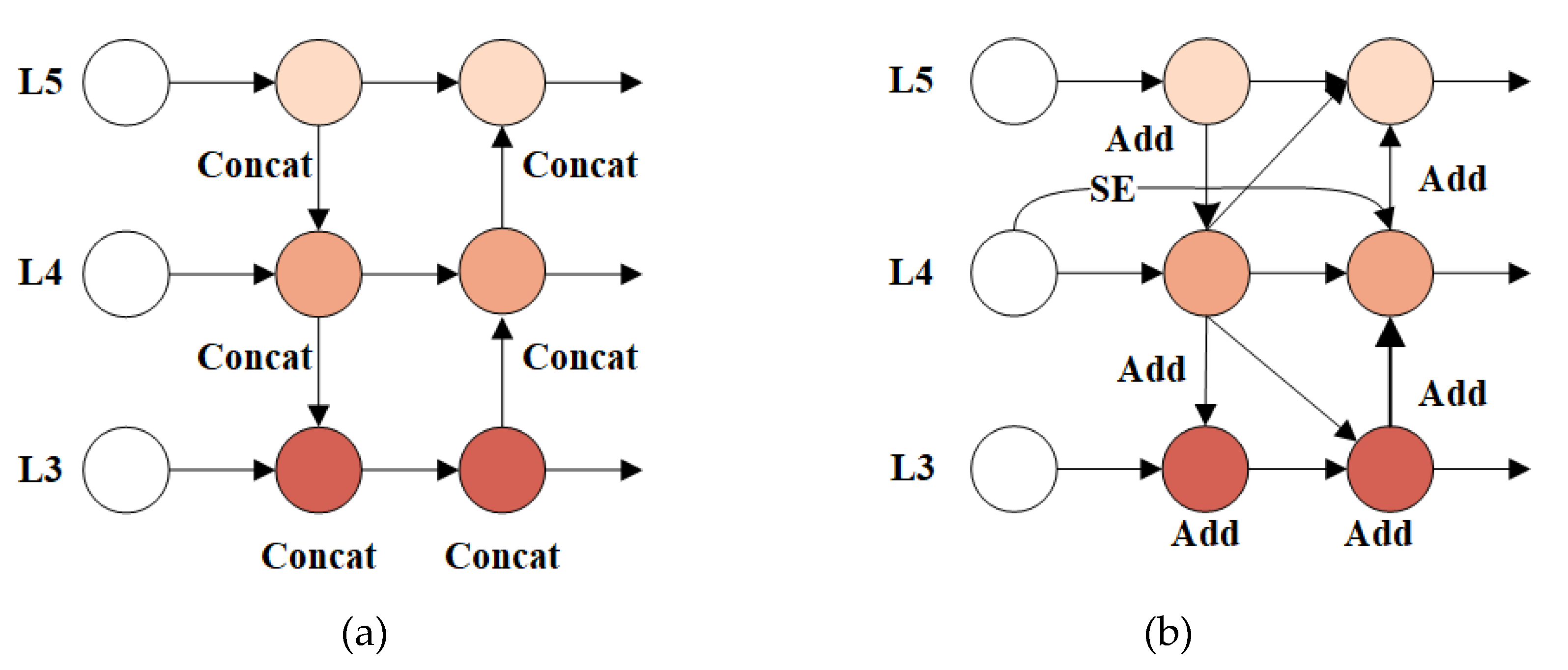

- Design of LPAN modules

- 2.

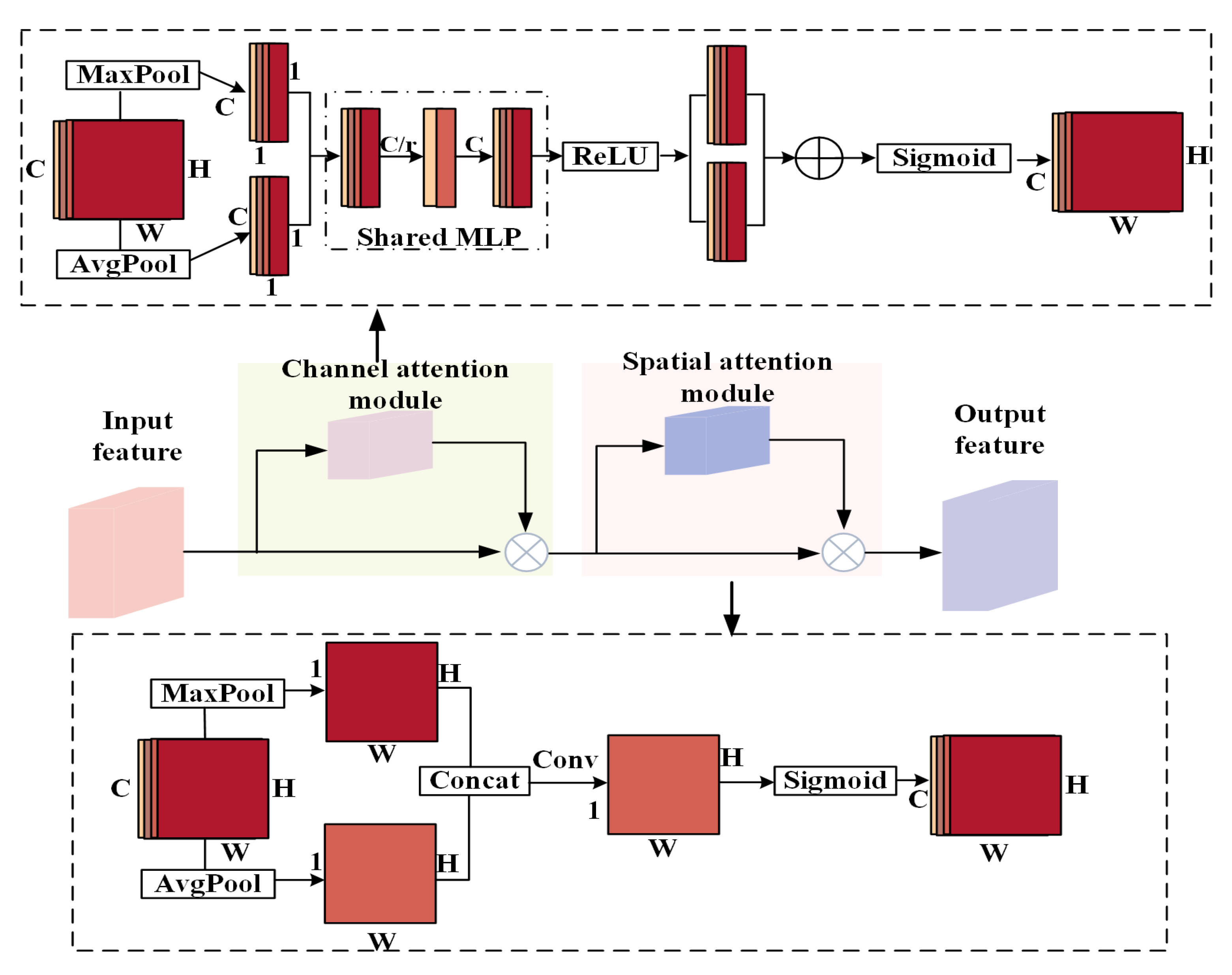

- Introduction of the CBAM block

#### 3.2.3. Optimization of the Detection Head

#### 3.2.4. Modification of the Loss Function

#### 3.3. Enhanced Overall Network Architecture

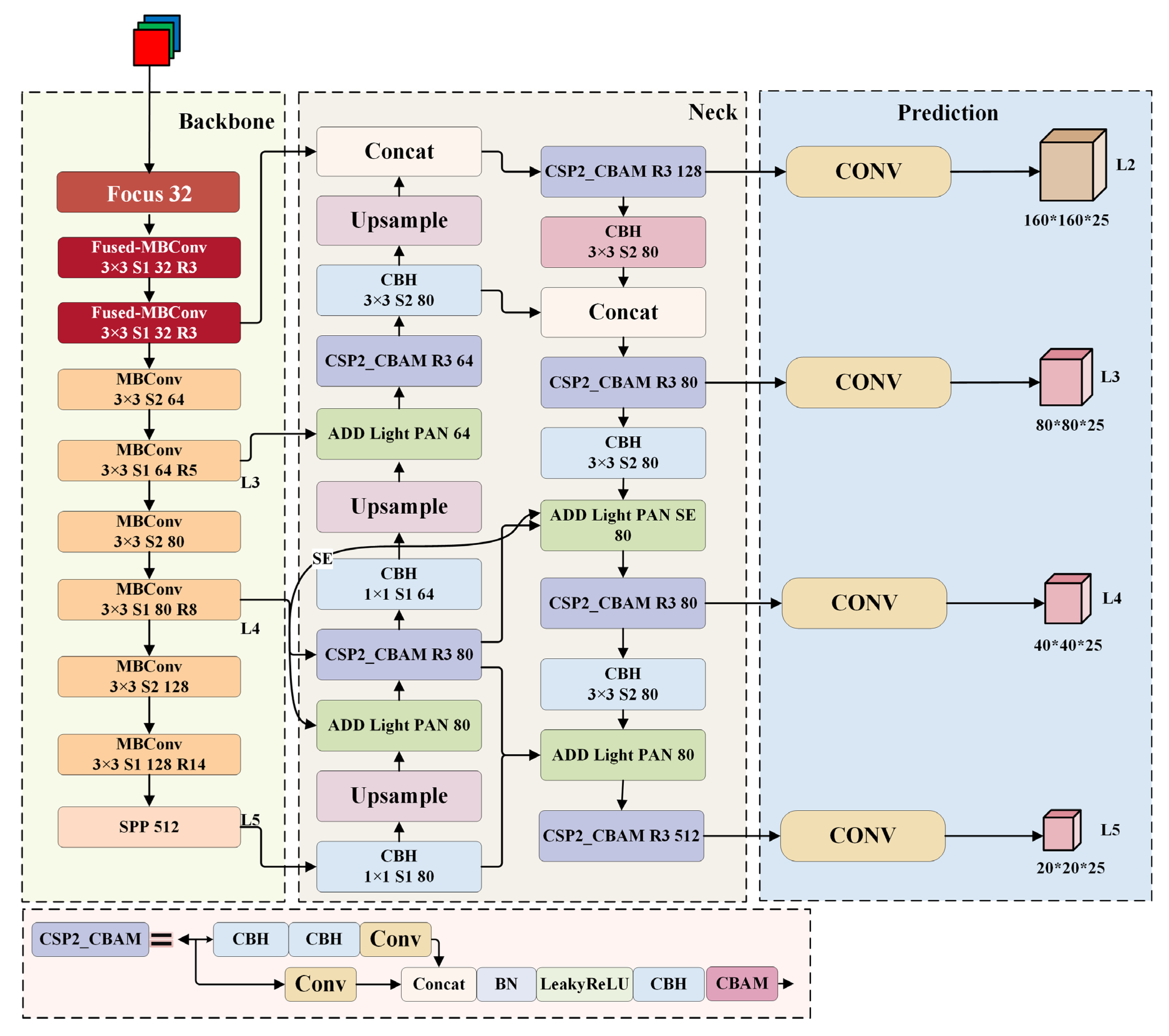

**Figure 8.**Diagram of the improved overall network architecture. (The * sign in the figure indicates the multiplication sign).

## 4. Experiments and Discussions

#### 4.1. Experimental Configuration Framework

#### 4.2. Performance Evaluation

#### 4.3. Ablation Experiment

#### 4.4. Analysis of the Results

#### 4.5. Comparison with Other SOTA Models

## 5. Conclusions

## Author Contributions

## Funding

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Gao, H.; Huang, Y.; Li, W.; Li, J.; Ouyang, S.; Song, T.; Lv, F.; Zhai, W.; Ma, K. Explanation of heavy metal pollution in coal mines of China from the perspective of coal gangue geochemical characteristics. Environ. Sci. Pollut. Res. Int.
**2021**, 28, 65363–65373. [Google Scholar] - Zhang, M.; Shi, H.; Zhang, Y.; Yu, Y.; Zhou, M. Deep learning-based damage detection of mining conveyor belt. Measurement
**2021**, 175, 109130. [Google Scholar] - Wang, Z.; Xie, S.; Chen, G.; Chi, W.; Ding, Z.; Wang, P. An Online Flexible Sorting Model for Coal and Gangue Based on Multi-Information Fusion. IEEE Access
**2021**, 9, 90816–90827. [Google Scholar] - Dou, D.; Wu, W.; Yang, J.; Zhang, Y. Classification of coal and gangue under multiple surface conditions via machine vision and relief-SVM. Powder Technol.
**2019**, 356, 1024–1028. [Google Scholar] - Wang, G.; Su, T.; Liu, W.; Qian, Z.; Li, J. Design of intelligent coal and gangue sorting system based on EAIDK. Ind. Mine Autom.
**2020**, 46, 105–108. [Google Scholar] - Ding, Z.; Chen, G.; Wang, Z.; Fan, Y. A Real-Time Multilevel Fusion Recognition System for Coal and Gangue Based on Near-Infrared Sensing. IEEE Access
**2020**, 8, 178722–178732. [Google Scholar] - Sun, Z.; Li, D.; Huang, L.; Liu, B.; Jia, R. Construction of intelligent visual coal and gangue separation system based on CoppeliaSim. In Proceedings of the 2020 5th International Conference on Automation, Control and Robotics Engineering (CACRE), Dalian, China, 19–20 September 2020; pp. 560–564. [Google Scholar]
- Feng, C.; Nie, G.; Naveed, Q.N.; Potrich, E.; Sankaran, K.S.; Kaur, A.; Sammy, F. Optimization of Sorting Robot Control System Based on Deep Learning and Machine Vision. Math. Probl. Eng.
**2022**, 2022, 1–7. [Google Scholar] - Hu, F.; Bian, K. Accurate Identification Strategy of Coal and Gangue Using Infrared Imaging Technology Combined with Convolutional Neural Network. IEEE Access
**2022**, 10, 8758–8766. [Google Scholar] - Li, D.; Zhang, Z.; Xu, Z.; Xu, L.; Meng, G.; Li, Z.; Chen, S. An Image-Based Hierarchical Deep Learning Framework for Coal and Gangue Detection. IEEE Access
**2019**, 7, 184686–184699. [Google Scholar] - Su, L.; Cao, X.; Ma, H.; Li, Y. Research on Coal Gangue Identification by Using Convolutional Neural Network. In Proceedings of the 2018 2nd IEEE Advanced Information Management, Communicates, Electronic and Automation Control Conference (IMCEC), Xi’an, China, 25 May 2018; pp. 810–814. [Google Scholar]
- Pu, Y.; Apel, D.B.; Szmigiel, A.; Chen, J. Image Recognition of Coal and Coal Gangue Using a Convolutional Neural Network and Transfer Learning. Energies
**2019**, 12, 1735. [Google Scholar] - Pan, H.; Shi, Y.; Lei, X.; Wang, Z.; Xin, F. Fast identification model for coal and gangue based on the improved tiny YOLO v3. J. Real-Time Image Process.
**2022**, 19, 687–701. [Google Scholar] - Zhang, M.; Jiang, K.; Cao, Y.; Li, M.; Wang, Q.; Li, D.; Zhang, Y. A new paradigm for intelligent status detection of belt conveyors based on deep learning. Measurement
**2023**, 213, 112735. [Google Scholar] - Zhang, M.; Jiang, K.; Cao, Y.; Li, M.; Hao, N.; Zhang, Y. A deep learning-based method for deviation status detection in intelligent conveyor belt system. J. Clean. Prod.
**2022**, 363, 132575. [Google Scholar] - Yan, P.; Sun, Q.; Yin, N.; Hua, L.; Shang, S.; Zhang, C. Detection of coal and gangue based on improved YOLOv5.1 which embedded scSE module*. Measurement
**2021**, 188, 110530. [Google Scholar] - Sun, Z.; Huang, L.; Jia, R. Coal and Gangue Separating Robot System Based on Computer Vision. Sensors
**2021**, 21, 1349. [Google Scholar] - Luo, B.; Kou, Z.; Han, C.; Wu, J.; Liu, S. A Faster and Lighter Detection Method for Foreign Objects in Coal Mine Belt Conveyors. Sensors
**2023**, 23, 6276. [Google Scholar] - Xu, D.; Wu, Y. Improved YOLO-V3 with DenseNet for Multi-Scale Remote Sensing Target Detection. Sensors
**2020**, 20, 4276. [Google Scholar] [CrossRef] - Mao, Q.; Li, S.; Hu, X.; Xue, X.; Yao, L. Foreign object recognition of coal mine belt conveyors based on improved YOLOv7. Ind. Min. Autom.
**2022**, 48, 26–32. [Google Scholar] - Zhang, N.; Liu, C. Radiation characteristics of natural gamma-ray from coal and gangue for recognition in top coal caving. Sci. Rep.
**2018**, 8, 190. [Google Scholar] - Zhou, J.; Guo, Y.; Wang, S.; Chen, W.; Cheng, G. Identification of coal and gangue based on R value method for dual-energy X-ray of Geant4 simulation. Environ. Res.
**2023**, 226, 115650. [Google Scholar] - Abbasi, S.; Mohammadzadeh, M.; Zamzamian, M. A novel dual high-energy X-ray imaging method for materials discrimination. Nucl. Instrum. Methods Phys. Res.
**2019**, 930, 82–86. [Google Scholar] - Wang, W.; Huang, J.; Wang, X.; Shi, Y.; Wu, G. X-ray transmission intelligent coal-gangue recognition method. J. Mine Autom.
**2022**, 48, 27–32. [Google Scholar] - Li, D.; Huang, X.; Ni, H.; Tang, W. Research on coal gangue separation method based on dual energy X-ray image technology. In Proceedings of the Proc. SPIE 12167, Third International Conference on Electronics and Communication, Network and Computer Technology (ECNCT 2021), Harbin, China, 3–5 December 2021. [Google Scholar]
- Tan, M.; Le, Q.V. EfficientNetV2: Smaller Models and Faster Training. In Proceedings of the 38th International Conference on Machine Learning, Online, 18–24 July 2021. [Google Scholar]
- Woo, S.; Park, J.; Lee, J.Y.; Kweon, I.S. CBAM: Convolutional Block Attention Module. In Computer Vision—ECCV 2018. ECCV 2018; Ferrari, V., Hebert, M., Sminchisescu, C., Weiss, Y., Eds.; Lecture Notes in Computer Science; Springer: Cham, Switzerland, 2018; Volume 11211. [Google Scholar]
- Zheng, Z.; Wang, P.; Liu, W.; Li, J.; Ye, R.; Ren, D. Distance-IoU Loss: Faster and Better Learning for Bounding Box Regression. In Proceedings of the AAAI Conference on Artificial Intelligence, Honolulu, HI, USA, 27 January–1 February 2019. [Google Scholar]
- Zhang, Y.F.; Ren, W.; Zhang, Z.; Jia, Z.; Wang, L.; Tan, T. Focal and Efficient IOU Loss for Accurate Bounding Box Regression. Neurocomputing
**2022**, 506, 146–157. [Google Scholar]

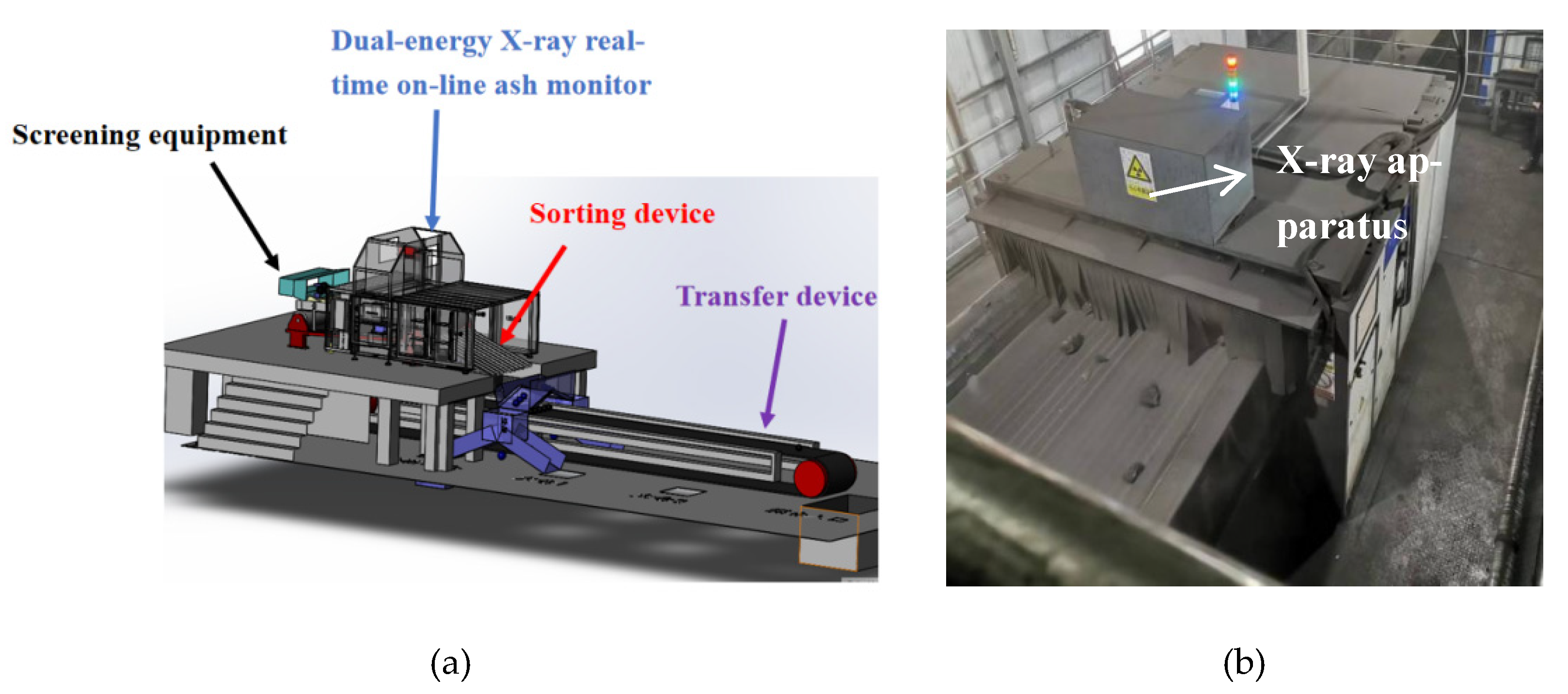

**Figure 3.**Experimental environment: (

**a**) 3-D model of dual-energy X-ray coal separation system; (

**b**) experimental equipment diagram.

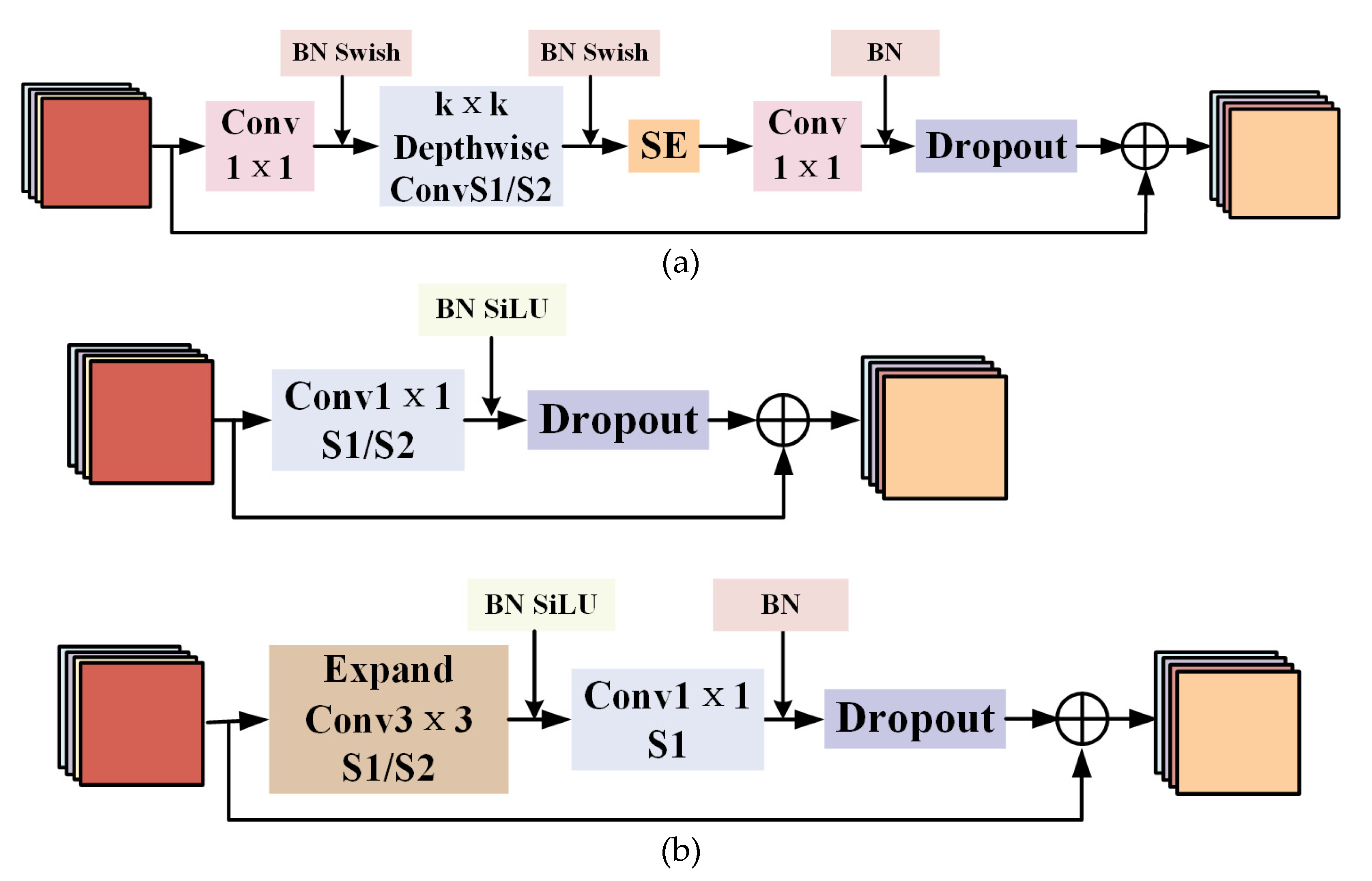

**Figure 5.**Comparison of MBConvh and Fused-MBConv modules: (

**a**) MBConv module; (

**b**) fused-MBConv module.

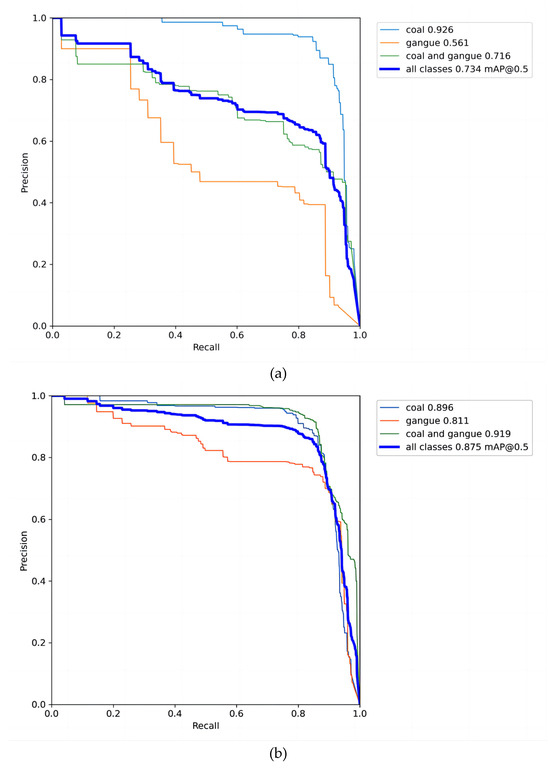

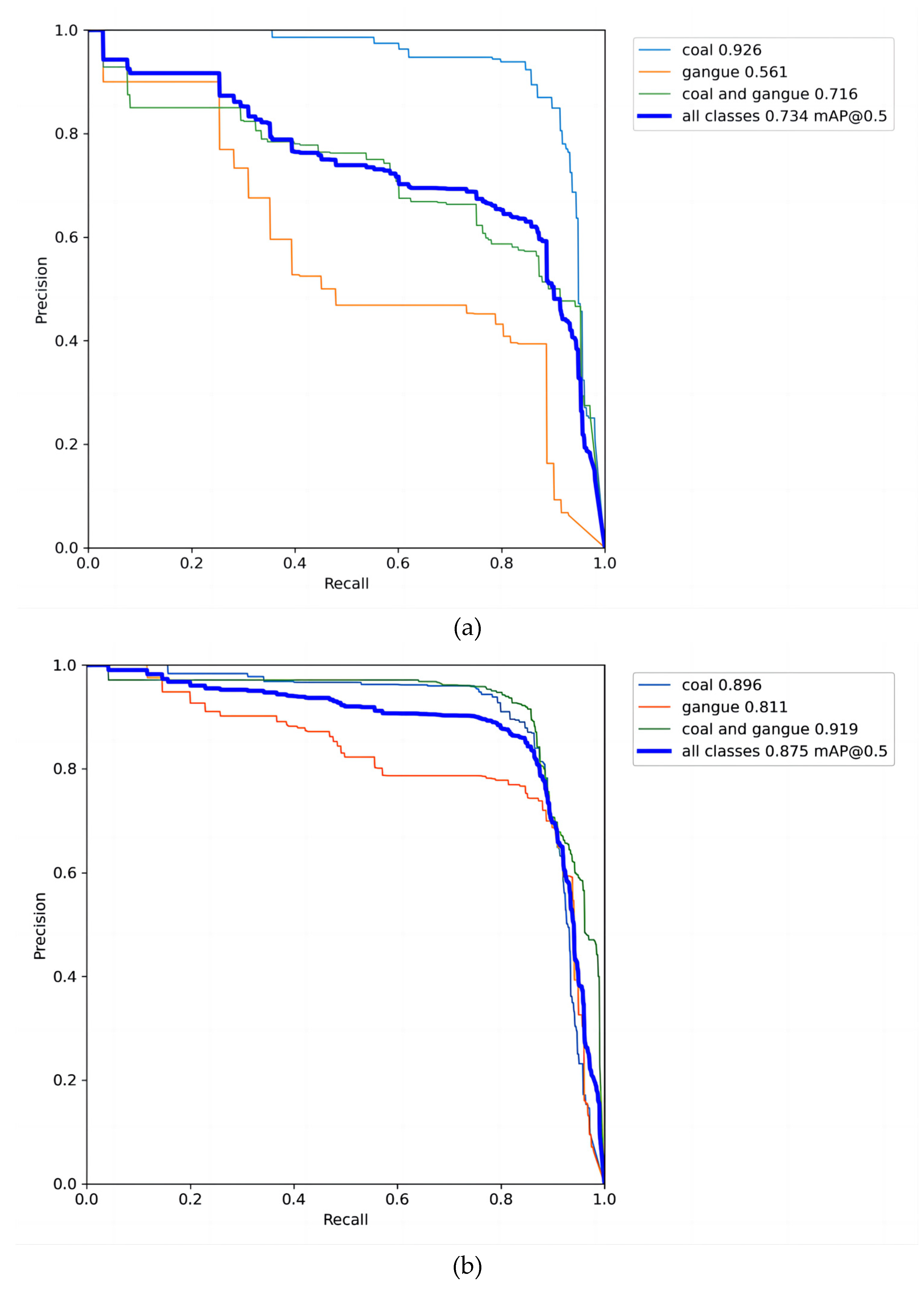

**Figure 9.**YOLOv5-S and improved YOLOv5-S average precision and recall rate comparison charts: (

**a**) YOLOv5-S; (

**b**) improved YOLOv5-S.

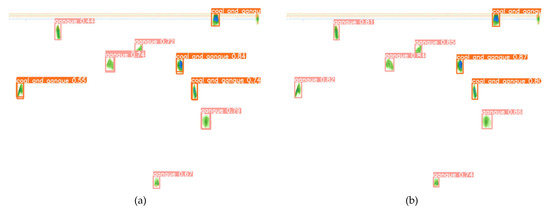

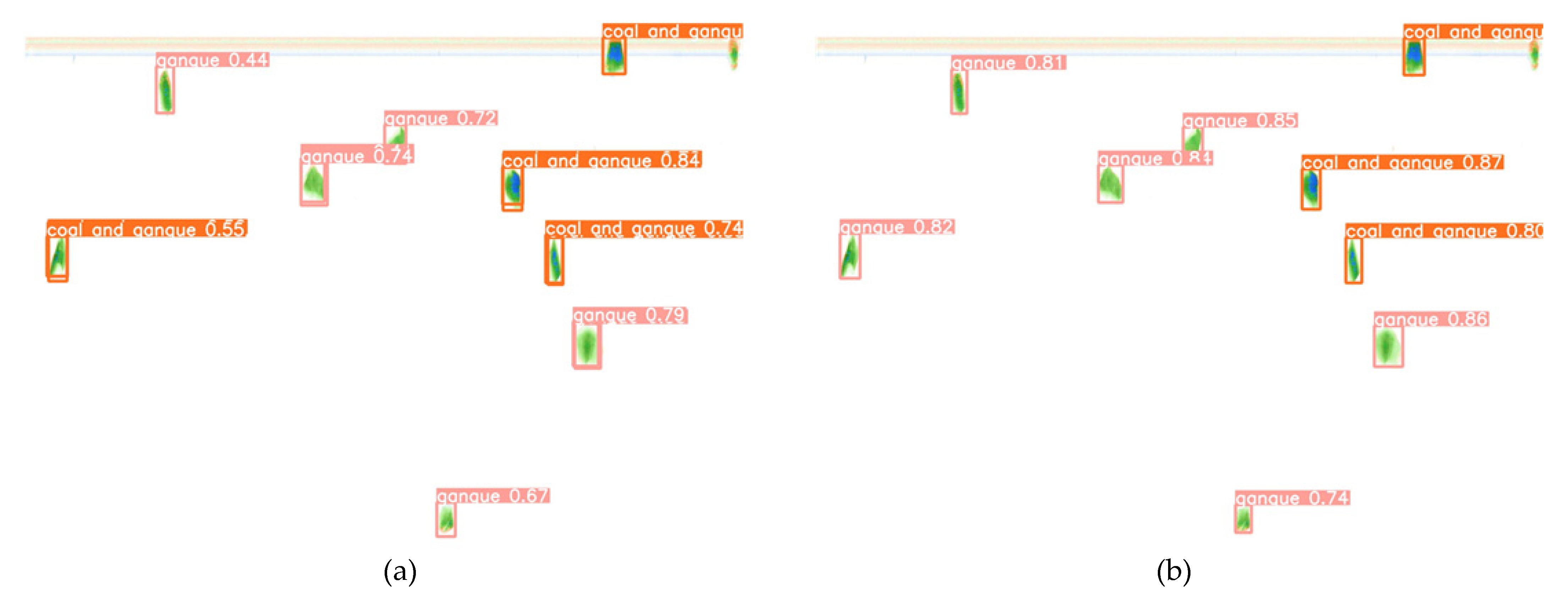

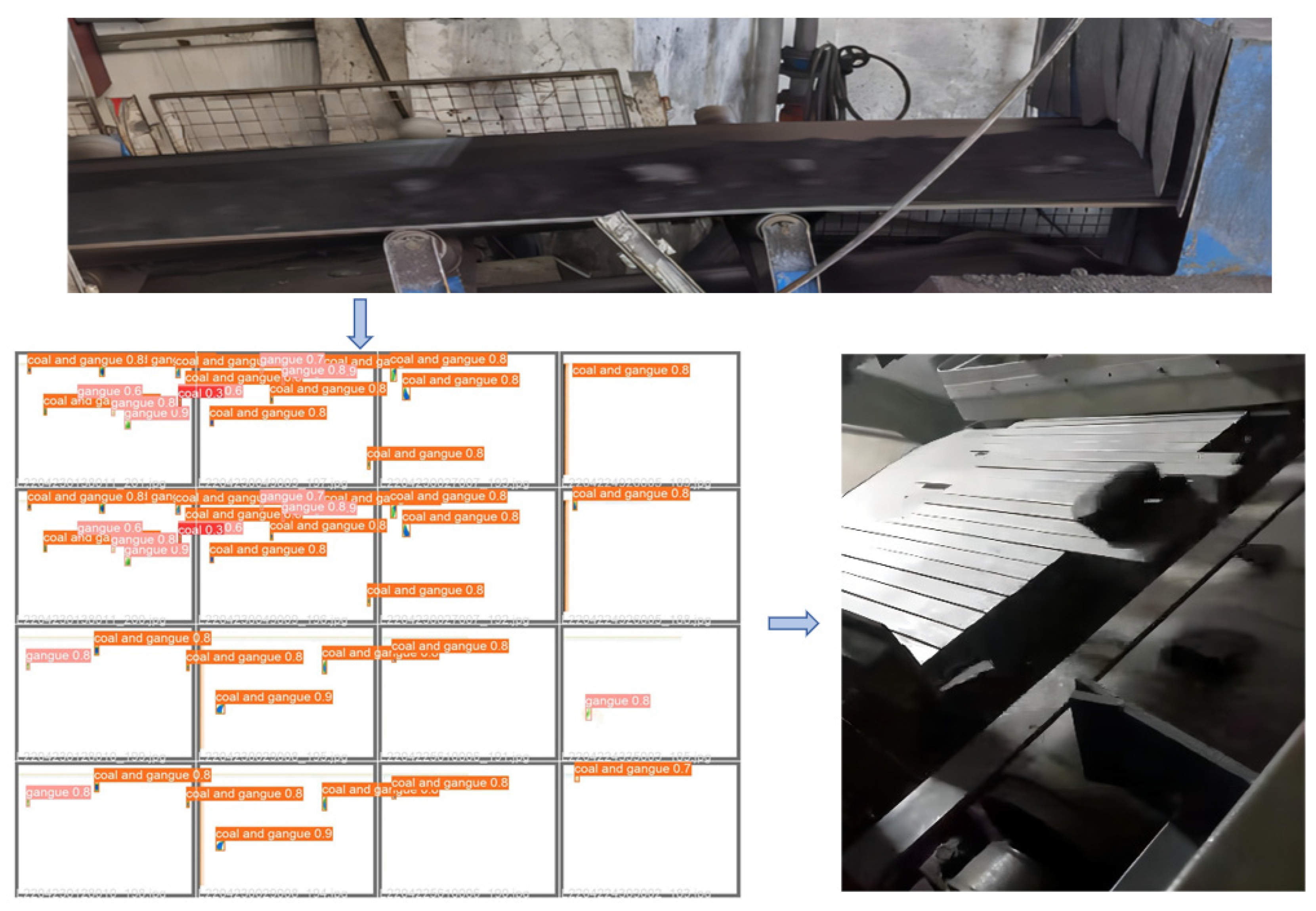

**Figure 10.**YOLOv5-S and improved YOLOv5-S coal gangue detection effect comparison chart: (

**a**) YOLOv5-S; (

**b**) improved YOLOv5-S.

**Table 1.**Coal gangue intelligent sorting system performance parameters (t/h indicates tonnes per hour).

Parameters | Numerical Value |
---|---|

Belt width | 1400 mm |

Belt speed | 2 m/s |

Sorting grain size | 50–600 mm |

Sorting volume | 120 t/h |

Ratio of coal in gangue | <1% |

Gangue sorting rate | >90% |

Size | 5000 mm × 2600 mm × 2600 mm |

System power | 100 kW (50 kW)@ 380 V |

**Table 2.**Comparison of experimental results between this method and baseline ablation (data in parentheses are the relative rate of change of each parameter relative to the baseline).

EfficientNetV2 | LPAN | CBAM | L2 | EIOU_Loss | [email protected] (%) | [email protected]:.95 (%) | Params (M) | FLOPs (G) |
---|---|---|---|---|---|---|---|---|

73.4 | 37.9 | 7.26 | 16.92 | |||||

√ | 78.9 (+7.5%) | 42.2 (+11.3%) | 5.49 (−24.4%) | 13.83(−18.3%) | ||||

√ | 79.6 (+8.4%) | 43.1 (+13.7%) | 7.26 (0) | 16.93 (+0.06%) | ||||

√ | 80.8 (+10%) | 44.0 (+16%) | 6.28 (−13.5%) | 14.82 (−12.4%) | ||||

√ | 81.4 (+10.9%) | 44.9 (+18.5%) | 7.66 (+5.5%) | 25.41 (+50.2%) | ||||

√ | 76.2 (+3.8%) | 40.7 (+7.3%) | 7.26 (0) | 16.92 (0) | ||||

√ | √ | √ | √ | √ | 87.5(+19.2%) | 50.2(+32.4%) | 3.52 (−51.5%) | 14.43 (−14.7%) |

**Table 3.**Comparing the property of dissimilar excellent algorithms on self-constructed gangue dataset.

Model | Params (M) | FLOPs (G) | [email protected] (%) | [email protected]:.95 (%) | Latency/MS | Model Size (MB) |
---|---|---|---|---|---|---|

NanoDet-Plus | 1.17 | 3.72 | 62.18 | 25.38 | 21.30 | 2.24 |

YOLOv5-N | 1.85 | 4.55 | 66.51 | 29.93 | 22.80 | 3.83 |

YOLOv5-S | 7.26 | 16.92 | 73.40 | 37.90 | 27.40 | 14.20 |

YOLOv5-M | 21.56 | 51.82 | 84.82 | 46.79 | 31.60 | 43.20 |

Improved YOLOv5-S | 3.52 | 14.43 | 87.50 | 50.20 | 25.30 | 7.10 |

YOLOv7 | 37.62 | 106.47 | 84.53 | 46.95 | 48.20 | 76.58 |
