A Deep Learning Framework for Day Ahead Wind Power Short-Term Prediction
Abstract
:1. Introduction
- (a)
- According to the characteristics of wind power forecasting, a deep learning framework DWT_AE_BiLSTM is first proposed.
- (b)
- Through the discrete wavelet transform technology, the nonstationary original data is decomposed into several subsequences, and the original data is filtered and denoised.
- (c)
- An autoencoder is employed to extract highly nonlinear feature data, and then the extracted hidden feature data is input into the BiLSTM framework to predict power generation.
2. Preliminaries

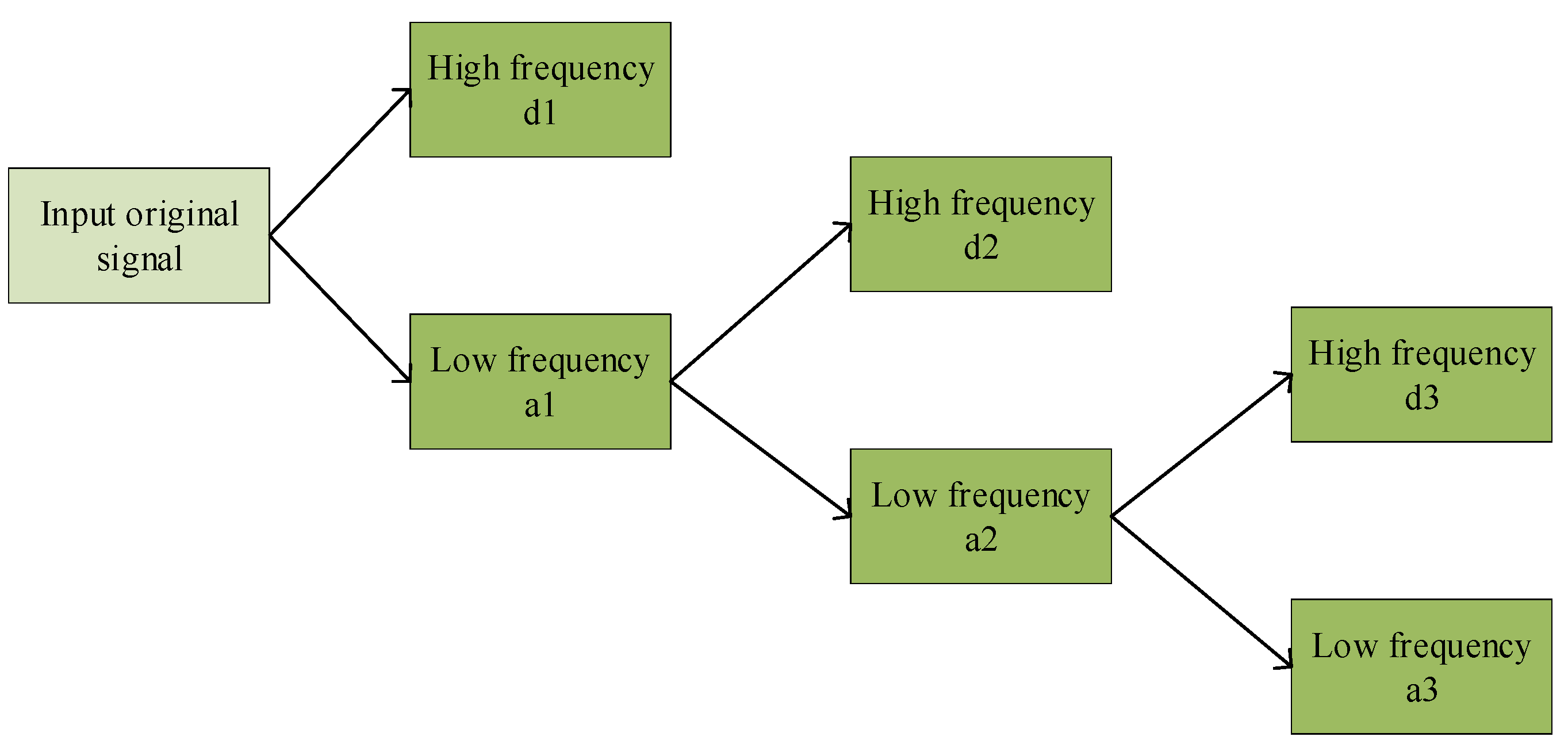

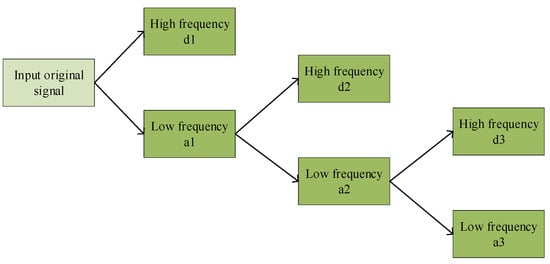

2.1. Discrete Wavelet Transform
2.2. Autoencoder
2.3. Bidirectional LSTM

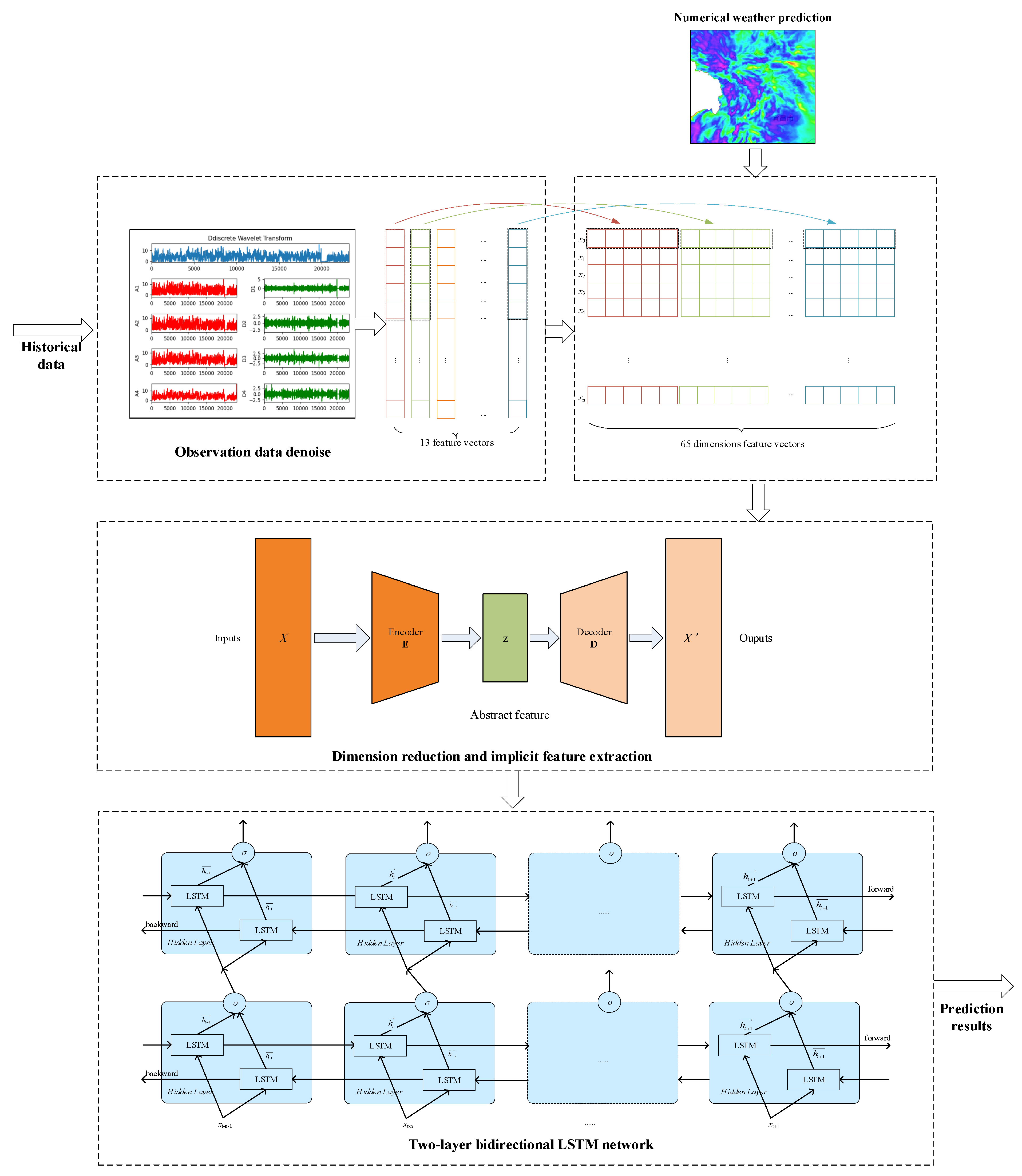

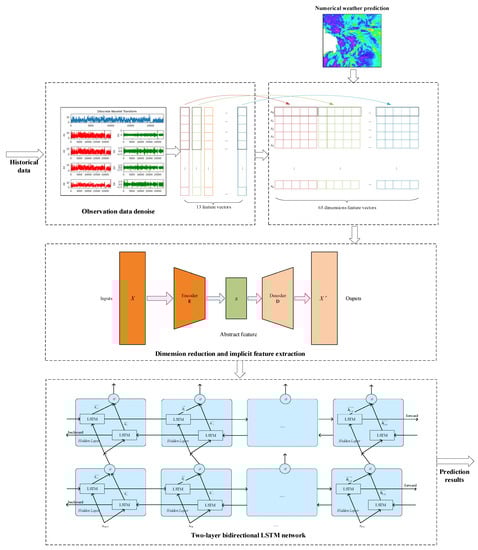

3. Algorithm Framework
- (a)
- Data processing and denoising module: Firstly, the missing data on a wind farm is interpolated and corrected. Then, the discrete wavelet transform technology is used to decompose the nonstationary wind power time series data into low-frequency component and high-frequency component. These components exhibit a greater degree of stationarity and may be forecasted more easily. Input data mainly includes wind tower observation data, wind farm total active power and numerical weather prediction (NWP) data. Wind tower observation data and NWP data include 12 meteorological elements, i.e., wind speed and direction at heights of 10 m, 30 m, 50 m and 70 m, and turbine hub, temperature, humidity and pressure. All of the data time resolutions are 15 min.
- (b)
- Feature extract module: Based on step (a), in addition to the actual power of the power station, there are 13 elements in total. Each element takes five elements in chronological order to form a 65-dimensional vector, which is input into the autoencoder. The features are compressed into a 30-dimensional vector through the training of the autoencoder.
- (c)
- Forecast module: The compressed features in step (b) are input into the bidirectional LSTM to predict the short-term power generation of the wind farm combined with NWP. Bidirectional, two-layer stacked LSTMs are used. We apply the Adam optimization method for training. The grid search method is used to determine the hyper-parameters, and the optimal configuration of model parameters is obtained from the validation set. The final optimal parameters learn rate = 1 × 10−3 and batch size = 128. The dataset utilized in this study comprises data from the calendar year 2018, which has been divided into training and validation sets consisting of 70% and 30% of the data, respectively. In order to evaluate the predictive performance of the model, data from four representative months of the year 2019 were handpicked for comparison against the forecasted outcomes. The results are illustrated in Figure 3, which displays the respective losses of the training and validation sets for Wind Farm #1.
4. Experimental Design
4.1. Data Description
4.2. Performance Evaluation Metrics
4.3. Results and Analysis
5. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- GWEC. Global Wind Report 2021; Global Wind Energy Council: Brussels, Belgium, 2021. [Google Scholar]
- Yuan, X.H.; Chen, C.; Yuan, Y.B.; Huang, Y.H.; Tan, Q.X. Short-term wind power prediction based on LSSVMGSA model. Energy Convers. Manag. 2015, 101, 393–401. [Google Scholar] [CrossRef]
- Kim, H.; Powell, W. Optimal energy commitments with storage and inter-mittent supply. Oper. Res. 2011, 59, 1347–1360. [Google Scholar] [CrossRef] [Green Version]
- Munoz, C.; Marquez, F.; Lev, B.; Arcos, A. New pipe notch detection and location method for short distances employing ultrasonic guided waves. Acta Acust. United Acust. 2017, 103, 772–781. [Google Scholar] [CrossRef] [Green Version]
- Giebel, G.; Brownsword, R.; Kariniotakis, G.; Denhard, M.; Draxl, C. The State-of-the-Art in Short-Term Prediction of Wind Power: A Literature Overview. 2011. Available online: https://academic.microsoft.com/paper/2593375484 (accessed on 16 January 2023).
- Carpinone, A.; Giorgio, M.; Langella, R.; Testa, A. Markov chain modeling for very-short-term wind power forecasting. Electr. Power Syst. Res. 2015, 122, 152–158. [Google Scholar] [CrossRef] [Green Version]
- Monforti, F.; Gonzalez-Aparicio, I. Comparing the impact of uncertainties on technical and meteorological parameters in wind power time series modelling in the european union. Appl. Energy 2017, 206, 439–450. [Google Scholar] [CrossRef]
- Wang, K.; Qi, X.; Liu, H.; Song, J. Deep belief network based k-means cluster approach for short-term wind power forecasting. Energy 2018, 165, 840–852. [Google Scholar] [CrossRef]
- Lange, M.; Focken, U. Physical Approach to Short-Term Wind Power Prediction; Springer: Berlin/Heidelberg, Germany, 2006. [Google Scholar]
- Liu, Y.; Shi, J.; Yang, Y.; Han, S. Piecewise support vector machine model for short-term wind-power prediction. Int. J. Green Energy 2009, 6, 479–489. [Google Scholar] [CrossRef]
- Min, D.; Hao, Z.; Hua, X.; Min, W.; Kang-ZLiuc Yosuke, N. A time series model based on hybrid-kernel least-squares support vector machine for short-term wind power forecasting. ISA Trans. 2021, 108, 58–68. [Google Scholar]
- Yang, L.; He, M.; Zhang, J.; Vittal, V. Support-vector-machine-enhanced markov model for short-term wind power forecast. IEEE Trans. Sustain. Energy 2015, 6, 791–799. [Google Scholar] [CrossRef]
- Lahouar, A.; Slama, J.B.H. Hour-ahead wind power forecast based on random forests. Renew. Energy 2017, 109, 529–541. [Google Scholar] [CrossRef]
- Wan, J.; Liu, J.; Ren, G.; Guo, Y.; Yu, D.; Hu, Q. Day-ahead prediction of wind speed with deep feature learning. Int. J. Pattern. Recogn. Artif. Intellig. 2016, 30, 1650011. [Google Scholar] [CrossRef]
- Wang, H.; Wang, G.; Li, G.; Peng, J.; Liu, Y. Deep belief network based deterministic and probabilistic wind speed forecasting approach. Appl. Energy 2016, 182, 80–93. [Google Scholar] [CrossRef]
- Yu, W.; Mechefske, C.; Kim, Y. Time Series Reconstruction Using a Bidirectional Recurrent Neural Network based Encoder-Decoder Scheme. In AIAC18: 18th Australian International Aerospace Congress (2019): HUMS—11th Defence Science and Technology (DST) International Conference on Health and Usage Monitoring (HUMS 2019): ISSFD—27th International Symposium on Space Flight Dynamics (ISSFD); Engineers Australia, Royal Aeronautical Society: Melbourne, Australia, 2019; pp. 876–884. Available online: https://search.informit.com.au/documentSummary;dn=324293936594299;res=IELENG (accessed on 15 February 2023).
- Liu, X.; Zhou, J.; Qian, H. Short-term wind power forecasting by stacked recurrent neural networks with parametric sine activation function. Electr. Power Syst. Res. 2021, 192, 107011. [Google Scholar] [CrossRef]
- Higashiyama, K.; Fujimoto, Y.; Hayashi, Y. Feature extraction of nwp data for wind power forecasting using 3d-convolutional neural networks. Energy Procedia 2018, 155, 350–358. [Google Scholar] [CrossRef]
- Qu, X.; Kang, X.; Zhang, C.; Jiang, S.; Ma, X. Short-term prediction of wind power based on deep long short-term memory. In Proceedings of the 2016 IEEE PES Asia-Pacific Power and Energy Engineering Conference (APPEEC), Xi’an, China, 25–28 October 2016; pp. 1148–1152. [Google Scholar]
- Liu, Y.; Liu, L. Wind power prediction based on LSTM-CNN optimization. Sci. J. Intell. Syst. Res. 2021, 277, 285. [Google Scholar]
- Yin, H.; Ou, Z.; Chen, D.; Meng, A. Ultra-short-term wind power prediction based on quadratic mode decomposition and cascaded deep learning. Power Syst. Technol. 2020, 44, 445–453. [Google Scholar]
- Lawal, A.; Rehman, S.; Alhems, L.M.; Alam, M.M. Wind speed prediction using hybrid 1d-CNN and BLSTM network. IEEE Access 2021, 9, 156672–156679. [Google Scholar] [CrossRef]
- Wang, C.; Zhang, H.; Ma, P. Wind power forecasting based on singular spectrum analysis and a new hybrid laguerre neural network. Appl. Energy 2020, 259, 114139. [Google Scholar] [CrossRef]
- Viet, D.; Phuong, V.; Duong, M.; Tran, Q. Models for short-term wind power forecasting based on improved artificial neural network using particle swarm optimization and genetic algorithms. Energies 2020, 13, 2873. [Google Scholar] [CrossRef]
- Shi, Z.; Liang, H.; Dinavahi, V. Direct interval forecast of uncertain wind power based on recurrent neural networks. IEEE Trans. Sustain. Energy 2018, 9, 1177–1187. [Google Scholar] [CrossRef]
- Dautov, Ç.P.; Özerdem, M.S. Introduction to Wavelets and their applications in signal denoising. Bitlis Eren Univ. J. Sci. Technol. 2018, 8, 1–10. [Google Scholar] [CrossRef] [Green Version]
- Daubechies, I. Ten Lectures on Wavelets; SIAM: Philadelphia, PA, USA, 1992. [Google Scholar]
- Montanari, L.; Basu, B.; Spagnoli, A.; Broderick, B. A padding method to reduce edge effects for enhanced damage identification using wavelet analysis. Mech. Syst. Signal Process. 2015, 52–53, 264–277. [Google Scholar] [CrossRef]
- Hu, J.M.; Wang, J.Z. Short-term wind speed prediction using empirical wavelet transform and Gaussian process regression. Energy 2015, 93, 1456–1466. [Google Scholar] [CrossRef]
- Gong, Z.Q.; Zou, M.W.; Gao, X.Q.; Dong, W.J. On the difference between empirical mode decomposition and wavelet decomposition in the nonlinear time series. Acta Phys. Sin. 2005, 54, 3947–3957. [Google Scholar] [CrossRef]
- Li, S.; He, H.; Li, J. Big data driven lithium-ion battery modeling method based on SDAE-ELM algorithm and data pre-processing technology. Appl. Energy 2019, 242, 1259–1273. [Google Scholar] [CrossRef]
- Chen, Y.; Lin, Z.; Zhao, X.; Wang, G.; Gu, Y. Deep learning-based classification of hyperspectral data. IEEE J. Sel. Top. Appl. Earth Observ. Remote Sens. 2014, 7, 2094–2107. [Google Scholar] [CrossRef]
- Gensler, A.; Henze, J.; Sick, B.; Raabe, N. Deep learning for solar power forecasting—An approach using AutoEncoder and LSTM Neural Networks. In Proceedings of the 2016 IEEE International Conference on Systems, Man, and Cybernetics (SMC), Budapest, Hungary, 9–12 October 2016; pp. 2858–2865. [Google Scholar]
- Cheng, F.; He, Q.; Zhao, J. A novel process monitoring approach based on variational recurrent autoencoder. Comput. Chem. Eng. 2019, 129, 106515. [Google Scholar] [CrossRef]
- Klampanos, I.; Davvetas, A.; Andronopoulos, S.; Pappas, C.; Ikonomopoulos, A.; Karkaletsis, V. Autoencoder-driven weather clustering for source estimation during nuclear events. Environ. Model. Software 2018, 102, 84–93. [Google Scholar] [CrossRef] [Green Version]
- Hochreiter, S.; Schmidhuber, J. Long short-term memory. Neural Comput. 1997, 9, 1735–1780. [Google Scholar] [CrossRef]
- Goodfellow, I.; Bengio, Y.; Courville, A. Deep Learning; The MIT Press: Cambridge, MA, USA, 2016; p. 800. ISBN 978-0-262-03561-3. Available online: http://www.deeplearningbook.org (accessed on 15 February 2023).
- Mesnil, G.; He, X.; Deng, L.; Bengio, Y. Investigation of recurrent-neural-network architectures and learning methods for spoken language understanding. In Proceedings of the 14th Annual Conference of the International Speech Communication Association, Lyon, France, 25–29 August 2013; pp. 1–5. [Google Scholar]
- Pascanu, R.; Gulcehre, C.; Cho, K.; Bengio, Y. How to construct deep recurrent neural networks. arXiv 2013, arXiv:1312.6026. [Google Scholar]
- Zhang, J.; Yan, J.; Infield, D.; Liu, Y.; Lien, F.-S. Short-term forecasting and uncertainty analysis of wind turbine power based on long short-term memory network and gaussian mixture model. Appl. Energy 2019, 241, 229–244. [Google Scholar] [CrossRef] [Green Version]
- Graves, A.; Schmidhuber, J. Framewise phoneme classification with bidirectional Lstm and other neural network architectures. Neural Netw. 2005, 18, 602–610. [Google Scholar] [CrossRef] [PubMed]
- Schuster, M.; Paliwal, K.K. Bidirectional recurrent neural networks. IEEE Trans. Signal Process. 1997, 45, 2673–2681. [Google Scholar] [CrossRef] [Green Version]
- Wang, J.; Niu, T.; Lu, H.; Yang, W.; Du, P. A Novel Framework of Reservoir Computing for Deterministic and Probabilistic Wind Power Forecasting. IEEE Trans. Sustain. Energy 2019, 11, 337–349. [Google Scholar] [CrossRef]
- Lin, Y.; Yang, M.; Wan, C.; Wang, J.; Song, Y. A multi-model combination approach for probabilistic wind power forecasting. IEEE Trans. Sustain. Energy 2019, 10, 226–237. [Google Scholar] [CrossRef] [Green Version]
- Zhao, Y.; Ye, L.; Pinson, P.; Tang, Y.; Lu, P. Correlation-constrained and sparsity-controlled vector autoregressive model for spatio-temporal wind power forecasting. IEEE Trans. Power Syst. 2018, 33, 5029–5040. [Google Scholar] [CrossRef] [Green Version]
Month | Algorithms | PA (%) | MAE (MW) | MAPE (%) |
---|---|---|---|---|
1 | DWT_AE_BiLSTM | 84.69 | 12.03 | 10.94 |
AE_BiLSTM | 83.40 | 13.10 | 11.91 | |
LSTM | 82.08 | 14.25 | 12.95 | |
BP | 78.24 | 17.48 | 15.89 | |
4 | DWT_AE_BiLSTM | 82.36 | 13.58 | 12.35 |
AE_BiLSTM | 81.33 | 15.73 | 14.30 | |
LSTM | 79.04 | 16.33 | 14.85 | |
BP | 78.77 | 16.93 | 15.39 | |
7 | DWT_AE_BiLSTM | 83.63 | 11.65 | 12.41 |
AE_BiLSTM | 82.68 | 12.39 | 11.26 | |
LSTM | 82.10 | 12.57 | 11.43 | |
BP | 81.93 | 12.60 | 11.45 | |
10 | DWT_AE_BiLSTM | 90.69 | 6.34 | 5.76 |
AE_BiLSTM | 89.76 | 7.14 | 6.49 | |
LSTM | 88.30 | 9.05 | 8.23 | |
BP | 86.99 | 10.02 | 9.11 |
Month | Algorithms | PA(%) | MAE(MW) | MAPE(%) |
---|---|---|---|---|
1 | DWT_AE_BiLSTM | 84.75 | 29.27 | 13.30 |
AE_BiLSTM | 81.42 | 30.41 | 13.82 | |
LSTM | 80.30 | 31.51 | 14.32 | |
BP | 79.45 | 33.19 | 15.09 | |
4 | DWT_AE_BiLSTM | 82.65 | 30.31 | 13.78 |
AE_BiLSTM | 81.71 | 33.94 | 15.43 | |
LSTM | 80.45 | 34.23 | 15.56 | |
BP | 80.35 | 34.47 | 15.67 | |
7 | DWT_AE_BiLSTM | 84.11 | 28.17 | 12.80 |
AE_BiLSTM | 83.65 | 29.36 | 13.35 | |
LSTM | 83.23 | 30.38 | 13.81 | |
BP | 82.95 | 32.42 | 14.74 | |
10 | DWT_AE_BiLSTM | 84.35 | 28.18 | 12.81 |
AE_BiLSTM | 81.57 | 29.49 | 13.40 | |
LSTM | 81.31 | 32.07 | 14.58 | |
BP | 80.25 | 34.94 | 15.88 |
Month | Algorithms | PA(%) | MAE(MW) | MAPE(%) |
---|---|---|---|---|
1 | DWT_AE_BiLSTM | 82.23 | 15.17 | 12.01 |
AE_BiLSTM | 81.47 | 15.53 | 12.30 | |
LSTM | 81.02 | 18.81 | 14.89 | |
BP | 79.65 | 19.58 | 15.50 | |
4 | DWT_AE_BiLSTM | 82.12 | 16.86 | 13.35 |
AE_BiLSTM | 81.59 | 17.10 | 13.54 | |
LSTM | 81.10 | 19.38 | 15.34 | |
BP | 79.42 | 20.65 | 16.35 | |
7 | DWT_AE_BiLSTM | 82.00 | 16.37 | 12.96 |
AE_BiLSTM | 81.48 | 17.30 | 13.70 | |
LSTM | 79.47 | 18.91 | 14.97 | |
BP | 78.45 | 21.25 | 16.83 | |
10 | DWT_AE_BiLSTM | 88.66 | 8.27 | 6.55 |
AE_BiLSTM | 87.65 | 10.07 | 7.97 | |
LSTM | 84.12 | 14.03 | 11.11 | |
BP | 83.73 | 14.89 | 11.79 |
