The Application of Transition Metal Sulfide Nanomaterials and Their Composite Nanomaterials in the Electrocatalytic Reduction of CO₂: A Review

Abstract

Electrocatalysis has become an important topic in various areas of research, including chemical catalysis, environmental research, and chemical engineering. There have been a multitude of different catalysts used in the electrocatalytic reduction of CO₂, which include large classes of materials such as transition metal oxide nanoparticles (TMO), transition metal nanoparticles (TMNp), carbon-based nanomaterials, and transition metal sulfides (TMS), as well as porphyrins and phthalocyanine molecules. This review is focused on the CO₂ reduction reaction (CO₂RR) and the main products produced using TMS nanomaterials. The main reaction products of the CO₂RR include carbon monoxide (CO), formate/formic acid (HCOO⁻/HCOOH), methanol (CH₃OH), ethanol (CH₃CH₂OH), methane (CH₄), and ethene (C₂H₄). The products of the CO₂RR have been linked to the type of transition metal–sulfide catalyst used in the reaction. The TMS has been shown to control the intermediate products and thus the reaction pathway. Both experimental and computational methods have been utilized to determine the CO₂ binding and chemically reduced intermediates, which drive the reaction pathways for the CO₂RR and are discussed in this review.

1. Introduction

Electrocatalysis can be defined as the use of electricity to perform chemical reactions at an electrode surface where the catalyst reduces the overall potential of the reaction, or the catalyst lowers the energy of the transition state for the reaction. In recent years, electrocatalysis has gained much interest in different fields such as catalysis [1], photocatalysis [1], energy storage [2,3], environmental remediation [4,5,6,7,8], material synthesis [9,10,11], gas sensing [12], and electrochemistry [13]. The application of nanomaterials in the aera of electrocatalysis has become more significant due to higher reactivity rates than that of the respective bulk materials [14,15]. The increased reaction rates are typically due to the high surface area to volume ratio of nanomaterials. Areas such as photocatalytic hydrogen evolution have been advanced in recent years due to the use of composite nanomaterials [16]. The mechanisms or reactions and predictability of catalysts whether used in traditional or electrocatalytic systems remain the same. The Sabatier principle for catalytic activity and the choice of a desired catalyst are still applicable in electrocatalysis. The optimal catalytic activity occurs when the interactions of the catalyst and reaction substrate are of intermediate strength [17,18,19].

The most extensively studied reactions in the last two decades were the hydrogen evolution reaction (HER), hydrogen oxidation reaction (HOR), the oxygen evolution reaction (OER), the water splitting reaction, oxygen reduction reaction (ORR), CO₂ reduction reaction (CO₂RR), methanol oxidation reaction (MOR), and nitrate reduction/ammonia production reactions [20,21,22,23,24,25]. These reactions are essential for fuel production, electricity generation in fuel cells, as well as environmental remediation. These reactions are similar to those observed in photocatalysis, where reactive oxygen species are generated at a catalytic surface which in turn oxidize the organic pollutant. In aqueous-based systems, the HER and OER are extremely important for environmental remediation.

The reaction in electrocatalysis can be initially based on an adsorption mechanism [26,27]. The adsorption is controlled by the attraction forces generated typically by an electrostatic interaction. The adsorption mechanism is followed by either oxidation or a reduction reaction (electron transfer reactions) followed by the desorption of the product molecule from the surface [28,29,30]. These steps are interdependent upon each other and sometimes the release of the bound molecule from the surface is slow and can inhibit the reaction progression. Furthermore, electrocatalytic reactions occur at the interface between the charged electrode surface and the electrolyte supplying a counter charge in solution. The surface charge is dependent on the electrode material, the potential applied to the electrode, the electrolyte, and the entire cell [31].

The electrocatalytic reduction mechanism of CO₂ involves multiple electron transfer steps as well as adsorption processes [32]. There has been much interest in the conversion of CO₂ into value-added products, which include formaldehyde, formic acid, and methanol, among other products [33,34,35]. Research has led to the production of ethanol, ethylene, methane, and syngas [34]. These types of products have been achieved using different catalysts; for example, InO_x, β-Bi₂O₃, Cu nanoparticles (NPs), Ag/Cu (NPs), Cu-Ce(OH)_x, Cu/nanodiamonds, CuO, Pd/B/C, Pd nanosheets, Pd/Mg nanospheres, Pd/Ag alloys, and AuPd-MOFs [35,36,37,38,39,40,41,42,43,44,45,46,47]. Oher examples of nanomaterials used in CO₂ reduction include monometallic nanoparticles, Au, Ag, Zn, Fe, Ni, Pt, Sn, In, and Pb [48,49,50,51,52,53,54,55,56]. Bimetallic nanomaterials have been also shown to be effective in the reduction of CO₂, including AuCu, PdPt, and CuI [57,58,59], while non-metallic catalysts including MoS₂, C-nanofibers, C₃N₄, N-doped nanodiamond, and B-doped diamonds [60] have been also used as catalysts for CO₂ reduction.

The most common reactions in the CO₂ reduction are shown below [60,61,62]:

CO₂+ 2H⁺ + 2e⁻ → CO + H₂O E⁰ = −0.53 V

(1)

CO₂ +2H⁺ +2e⁻ → HCOOH E⁰ = −0.61 V

(2)

CO₂ + 4H⁺ + 4e⁻ → HCOH + H₂O E⁰ = −0.48 V

(3)

CO₂ + 6H⁺ + 6e⁻ → CH₃OH + H₂O E⁰ = −0.38 V

(4)

CO₂ + 8H⁺ 8e⁻ → CH₄ + 2H₂O E⁰ = −0.24 V

(5)

2CO₂ +12H⁺ + 12e⁻ → C₂H₄ + 4H₂O E⁰ = −0.34 V

(6)

These reactions are typically performed in a series of steps, with single electron transfers occurring. Typically, the reaction starts with the binding of the CO₂ molecule and the formation of radical species, which control the reaction pathway. For example, via the formation of the HCOO^* radical, which forces the reaction to produce formate/formic acid. However, the formation of COOH^* radical species typically forces the reaction to go through the pathway for the formation of CO as the final product [63]. The formation of methanol requires the formation of the CO^* radical species followed by the formation of the CHO^* and the HCHO^* radicals. Subsequently, further hydrogenation can occur to form methanol (CH₃OH) [64]. Ethanol synthesis from CO₂ requires the hydrogenation of CO₂ to CH₃^* radicals (which may come from methanol degradation) followed by the coupling of a CO₂^* with the CH₃^*, hence forming the CH₃COO^* intermediate, which loses water and forms CH₃CH₂OH [65]. The formation of CH₄ typically occurs through the formation of the CO^* radical, which is hydrogenated to form the HCO^* radical species followed by subsequent hydrogen addition reactions to give CH₄ [66]. The formation of C₂H₄ usually originates from the formation of the ^*CO–CHO radical via coupling non-adsorbed CO with ^*CHO. The coupling reaction is followed by subsequent hydrogenation reactions [67]. These different reaction pathways have been shown to depend on the type of TMS used in the electrocatalytic reduction of CO₂.

This review will focus on the types of sulfide nanomaterials that have been investigated primarily in the CO₂ reduction reactions. There are many reviews on the applications of nanomaterials in electrocatalytic systems. However, most of the work that has been performed in the field does not focus on the specific application of TMS and their composite nanomaterials in the CO₂RR. The present review focuses on the application of TMS and their composite nanomaterials in the CO₂RR. The theory behind the catalytic activity of TMS is out of the scope of this review. The present review is organized as follows: (1) Introduction, (2) Structure and function of electrocatalysis, Layered rim–edge–plane activities, (3) Overview on the synthesis of TMS, (4) Layered Transition metal sulfide nanomaterials and composite nanomaterials applied to CO₂ reduction reactions, (5) Non-layered First row TMS nanomaterials and composite nanomaterials applied to CO₂ reduction reactions, (6) Non-layered first row TMS nanomaterials and their composites applied to CO₂ reduction reactions, (7) Conclusions/Future Perspectives.

2. Structure/Function in Electrocatalysis

Low dimension materials have shown much promise in catalysis and electrocatalysis. The low dimensional TMS have been shown to be catalytically active and have been considered as supports to enhance the reactions. Transition metal sulfides have been widely used as catalysts in various reduction reactions, including hydrogenation reactions [68,69,70,71,72,73,74,75]. MoS₂ nanoflowers have been used in the hydrogenation of nitrobenzene [68] and phenanthrene [69]. One of the more classical reactions of TMS, specifically with Co, Ni, MoS₂, WS₂, and their composites has been the hydrodesulfurization (HDS) reaction [70,71,72,73,74,75]. In the case of HDS reaction, the catalysts are known to have specific active sites that enhance reactivity by making combinations of Mo with Co or Ni, as well as W with Co and Ni, hence promoting the catalyst activity.

Layered Rim–Edge–Plane Activities

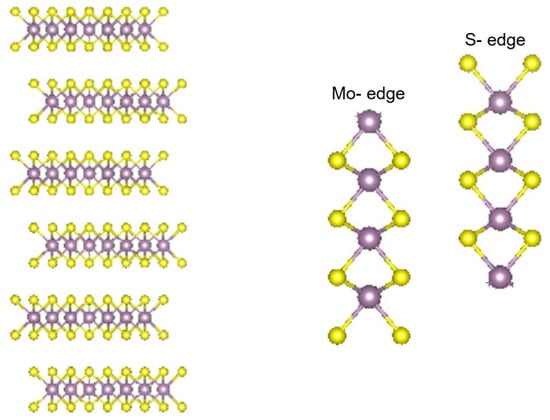

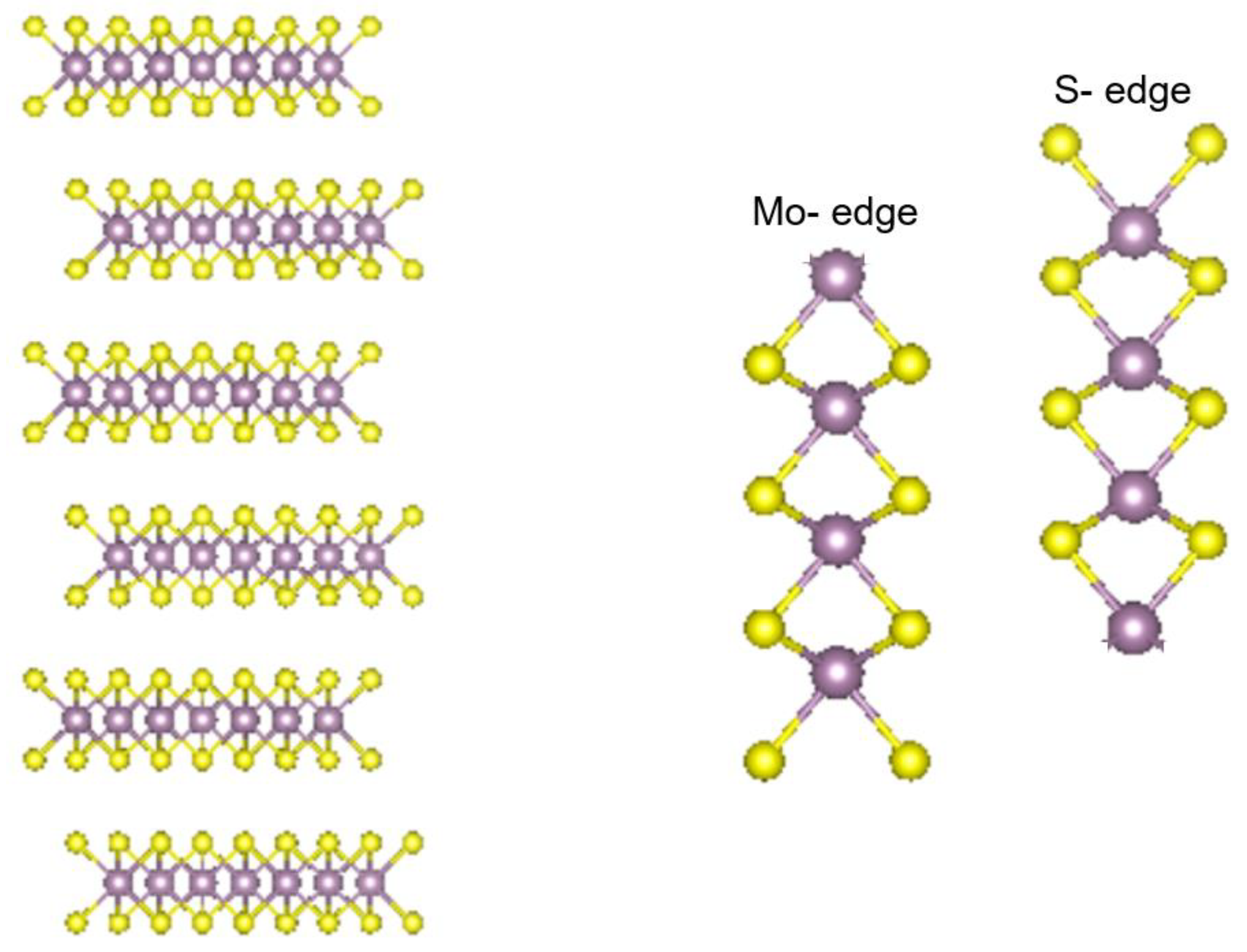

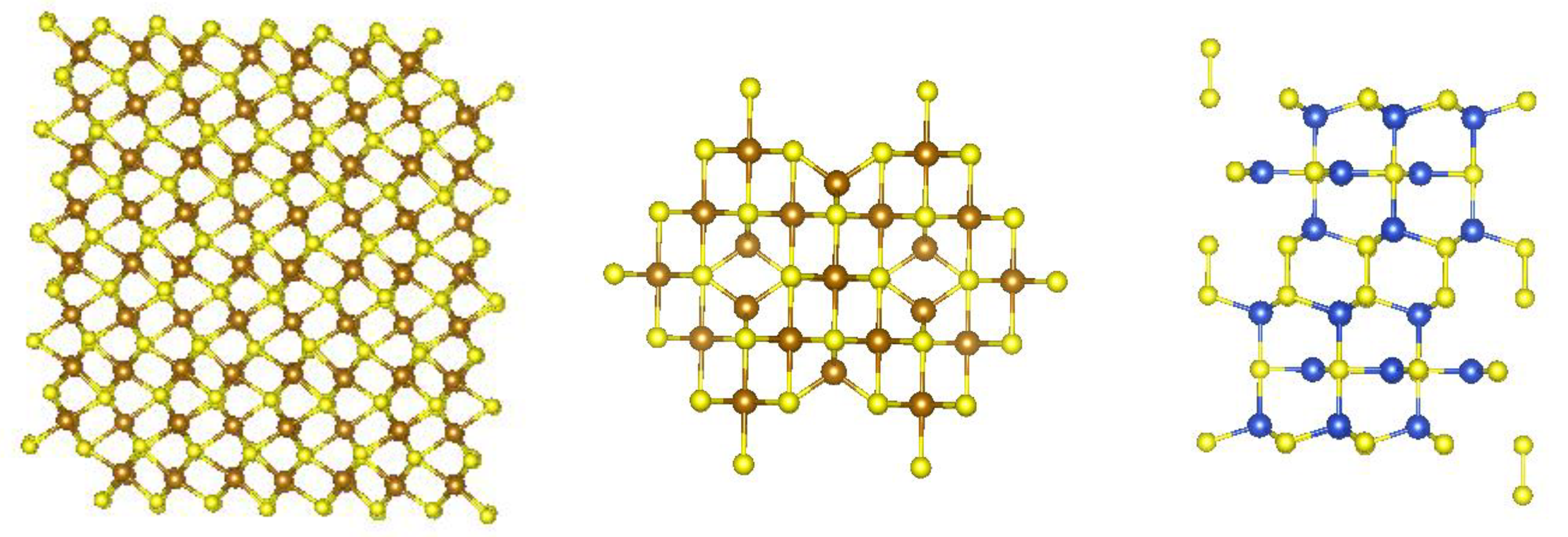

The predominant theory behind the reactivity of MoS₂, TiS₂, and WS₂ has been the rim–edge model, in which the basal planes of the material are inactive. The activity of the edge/rim sites of the catalyst has been well studied [76,77,78,79]. The Metal and sulfur atoms on the rim or edge are the only species to participate in the reactivity of the catalyst [76,77,78,79]. A representation of layered TMS (showing the MoS₂ lattice) and the metal- and sulfur-rich edges is shown in Figure 1 [80].

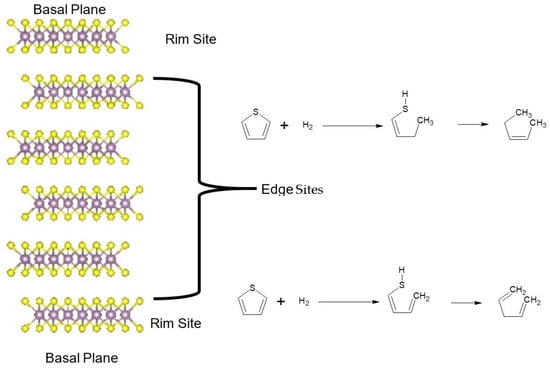

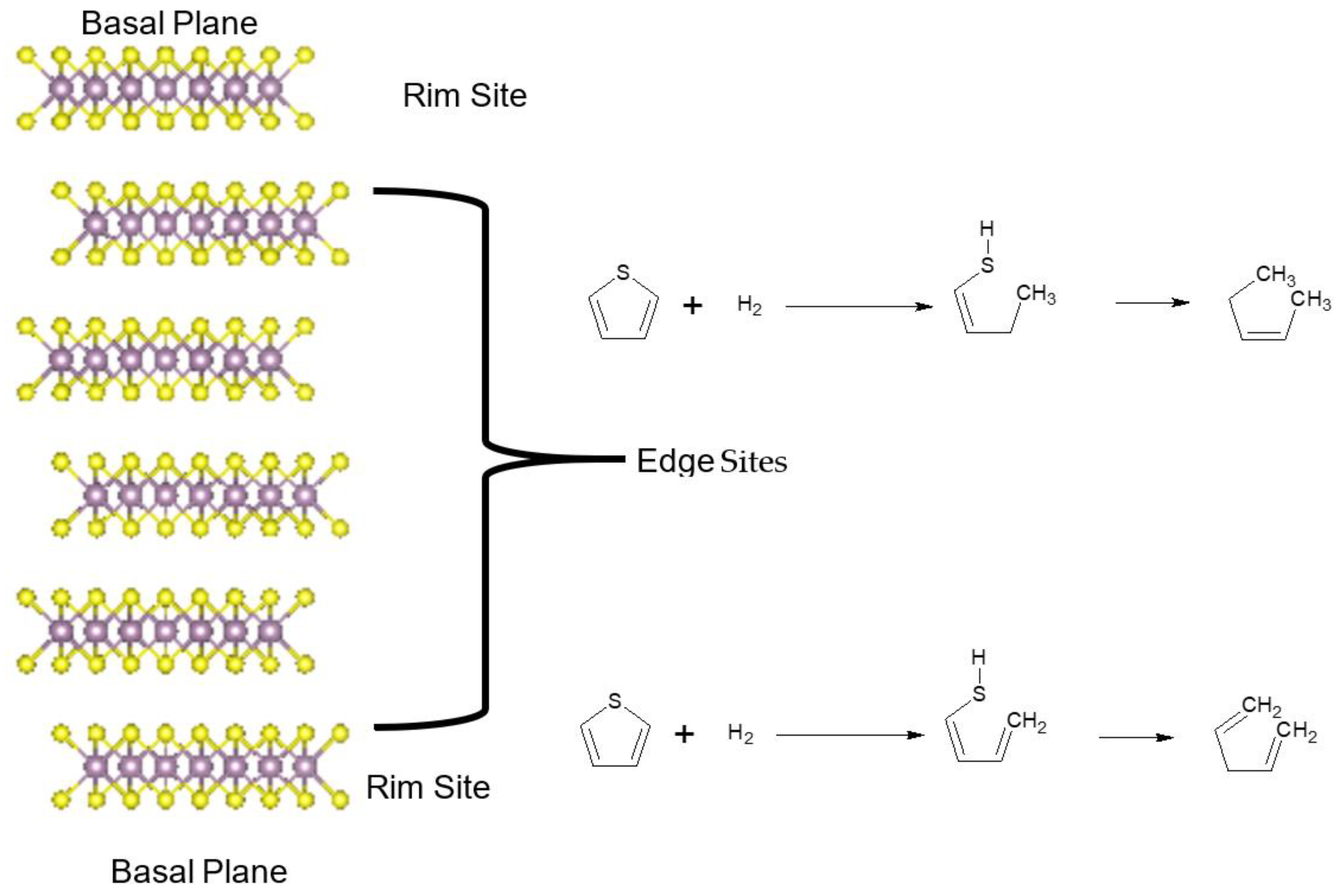

The rim and edge model for the activity indicates that the basal plane of the TMS is non-active or has very low activity [76,77,78,79]. From hydrogenation of C–S bonds in the HDS reactions, it has been shown that stacks of 4–5 layers of MoS₂ planes show activity. However, the basal plane is inactive towards the reaction where the reactivity occurs at the edge or rim of the MoS₂ stack. At the rim sites the active hydrogenation of the C–S bonds occurs, whereas on the edge site the C–S-bond breaking occurs [76,77,78,79]. This edge–rim activity observed in HDS reactions is preserved in electrocatalytic reduction reactions of CO₂ where the basal plane is inactive and the reactivity is observed only on the rim/edge of the stacked planes. Figure 2 shows the different sites for in the MoS₂ rim and edge models and the respective reactions.

The activities on the rim and edges sites translate to the layered TMS, which in turn translate into the CO₂ reduction reactions. For the MoS₂-, TiS₂-, and WS₂-based electrocatalysts, the edge sites are far more reactive than the basal planes. However, there has been recent research which has shown creating sulfur deficiencies on the surfaces/basal planes produces reactivity [81,82,83]. The non-layered TMS typically have the metal located on the surfaces of the crystalline phase and not blocked by the other atoms [84,85,86]. Figure 3 shows examples of Fe₃S₄, Fe₇S₈, and CuS crystal structures, which illustrate the availability of the metal ions for reaction [87,88,89].

3. Synthesis of Transition-Metal-Sulfide-Based Nanomaterials

The basis of the synthesis of TMS nanomaterials are generally performed using one of the following techniques: low temperature aqueous, hydrothermal, solvothermal, thermal decomposition, or thermal conversion of precursor sulfide compounds [90,91,92,93,94,95]. Recently, electrochemical synthesis of TMS has become increasingly more popular [96,97,98]. In addition to the typical solution-based chemical synthesis techniques, solid state reactions have been used in the synthesis of TMS nanomaterials. These techniques include chemical vapor deposition (CVD), physical vapor deposition (PVD), and plasma-based techniques, among others [99,100,101]. For layered sulfide-based materials, the formation of nanosheets from layered TMS has been achieved through intercalation followed by exfoliation [102,103,104]. Ball milling has also been used for the synthesis of TMS nanomaterials. The development of supported catalysis, including those used in HDS reactions have been prepared using the insipient wetness technique followed by sulfidation using H₂S in H₂ [105]. All these synthesis techniques have applications in electrochemical processes such as batteries, electrodes, electrochemical catalysis, and supercapacitors [106,107,108].

3.1. Low-Temperature Aqueous Reactions

A multitude of TMS has been synthesized using aqueous solutions containing a soluble sulfur source, such as CuS, FeS, and CdS. Typically, this synthesis method leads to the formation of simple sulfide nanomaterials, i.e., single metal ion–sulfide materials. These reactions may be as simple as the addition of Na₂S to a solution followed by the addition of a TM salt. For example, the chemical equation below shows the reaction of copper ions with sodium sulfide in an aqueous solution:

S²⁻_(aq) + Cu²⁺_(aq) → CuS_(s).

(7)

This synthesis method has been successful for the generation TMS with simple structures. Due to the low temperature used in the synthesis, the resultant materials from this reaction method are highly amorphous and not well characterized. Silver sulfide nanoparticles have been synthesized using this technique with precipitates sized from 40–50 nm [109]. Lewis has reviewed the precipitation of TMS from aqueous solutions which showed that the precipitation and formation of the TMS nanoparticles depended on several factors, specifically the pH and eH of the solutions [110]. The pH was observed to control the solution speciation of both the sulfur and the metal ions. Moreover, the low temperature aqueous phase reactions became the precursor for other synthesis techniques such as hydrothermal synthesis, which can have more control over phase and generate different phases. Luther et al. used copper sulfide as a model to investigate the low-temperature aqueous solution sulfide precipitates [111]. The results from EPR and NMR showed a reduction of the Cu²⁺ to Cu⁺ by the S²⁻, as well as the formation of Cu–S clustered rings in Cu₃S₃ solution, which are the basic building blocks for CuS precipitation.

3.2. Hydrothermal Synthesis

Similar to the low-temperature aqueous TMS nanomaterial synthesis, a reaction for TM formation is performed using a water-soluble sulfide source, such as Na₂S, (NH₄)₂S, or NaHS in aqueous solution. The mixture is then transferred to an autoclave and heated to a specific temperature. In these reactions, there is control over the synthesized nanomaterials. Different TMS and TMS-composite nanomaterials have been synthesized using hydrothermal techniques [112,113,114,115,116,117]. During the hydrothermal synthesis, the crystallite size, structure, and morphology are controlled by both the temperature and the starting materials, as well as the ratios of the materials in the solution mixture.

Li et al. synthesized MoS₂ nanowires using MoO₂ and Na₂S as the starting materials in an aqueous solution of HCl at 260 °C [112]. Chaudhary et al. have used hydrothermal synthesis techniques to produce MoS₂ nanosheets [113]. The authors used a combination of NaMoO₄ with thioacetamide and a small amount of sillicontungstic acid (2.8 mM). The mixture was held at a constant 220 °C for 24 h. The results also showed that amorphous nanospheres and nanoflowers were formed at temperatures between 120–150 °C. Zhen et al. synthesized MoS₂ using hydrothermal synthesis to generate different morphologies [114]. The results of the study showed that depending on the sulfur and Mo sources and a reductant (either citric acid or ascorbic acid), the morphology and crystallinity of the MoS₂ could be controlled while the electrochemical properties could be altered.

Li et al. used hydrothermal synthesis at a temperature of 200 °C for 24 h to generate PbS, CdS, ZnS, CoS, and Cu₂S nanoparticles using 1-butyl-3-methlyimidazole thiocyanate as the sulfur source [115]. The authors used the chloride of the respective metals as the metal ion source for the sulfide. The results showed the formation of dendrites by PbS and CdS while the other metals formed spherical particles. Chen and Fan used hydrothermal synthesis to make NiS₂, CoS₂, FeS₂, NiSe2, MoS₂ and MoSe₂ at the nanoscale size [116]. The authors used Na₂S₂O₃ with the chloride salts of Ni²⁺, Co²⁺, and Fe²⁺ metal ions over a temperature range between 140 and 150 °C for 12 h, which resulted in the pyrite type structure [116]. NiSe₂ was synthesized using NiCl₂ and Na₂SeSO₃, which resulted in the formation of NiSe₂ nanocrystals. The synthesis of MoS₂ and MoSe₂ was successful with Na₂MoO₄ and Na₂S₂O₃ or Na₂SeSO₃ which resulted in the formation of a hexagonal layered structure after annealing in an inert atmosphere at 350 °C. Alzaid et al. synthesized NiMnS at different ratios using hydrothermal synthesis for use as electrodes in energy storage applications [117]. The authors used metal chlorides in the presence of sodium sulfide at a reaction temperature of 170 °C for 1 day which resulted in the formation of mixed metal TMS with high specific capacity and rate performance. The carbon hybrid delivered an energy density of 46 Wh/kg.

3.3. Thermal Decomposition of a Sulfur Source

One of the more traditional methods for the synthesis of MoS₂ nanoparticles and TMS–MoS₂ composite nanomaterials is through the thermal decomposition of ammonium tetrathiolmolybdate (ATM). This method is commonly applied to the synthesis of ammonium tetrathriotungstate (ATT) [118,119]. ATM can be formed in a basic aqueous solution by the reaction of (NH₄)₂S or H₂S with ammonium molybdate as shown below:

4S²⁻ + MoO₄²⁻ → MoS₄²⁻.

(8)

The ATM can be crystallized or further reacted with TM depending on the desired product such as the generation of CoMoS₂, NiMoS₂, or MoS₂ [120,121,122]. For MoS₂ nanomaterials, the synthesized ATM is crystallized and placed into a tube furnace with an inner atmosphere containing H₂ gas [122]. The furnace is then heated to the desired temperature, typically 350 °C or above, which can be used to control the crystallinity of the nanomaterial. In fact, higher temperatures result in much more stacking in the TMS. The heated sample goes through the chemical reaction shown below:

MoS₄²⁻ + H2(g) → MoS_2(s) + H₂S_(g).

(9)

An alternative synthesis method reported recently showed that elemental sulfur can be used to synthesize CoMoS₂ [72], while MoS₂ was synthesized by precipitating CoMoO4 on top of elemental sulfur through a reflux synthesis. The CoMoO₄/S material was converted thermally using Ar/H₂ (90:10) at 350 °C. The final material synthesized through this method was the Co₉S₈–MoS₂ HDS catalytic material.

Han and Gao synthesized Fe₇S₈ and Fe₃S₄ nanosheets using single source precursors [123]. The authors prepared Fe(diethyldithiocarbamate)₂(1,10-phenanthroline) and Fe(diethyldithiocarbamate)₃ using solvothermal synthesis in oleylamine. The Fe(diethyldithiocarbamate)₂(1,10-phenanthroline)-based precursors were decomposed at temperatures between 240 and 320 °C, which showed that at 260 °C, the product was identified as monoclinic Fe₇S₈. At 320 °C, the product exhibited diffraction features of hexagonal troilite FeS. When the Fe(diethyldithiocarbamate)₃ complex was decomposed, the sample showed the presence of Fe₃S₄. Allonso et al. decomposed ammonium thio salts for the synthesis of MoS₂ and WS₂ catalysis [69]. The authors prepared ATT and ATM materials and pressed each at 350 and 700 MPa while decomposing the catalysts at 400 °C, in a H₂S/H₂ atmosphere. The higher pressures resulted in a catalyst with higher surface area.

3.4. Solvothermal Processes

Solvothermal processes are typically used in two distinct cases, when the starting materials are reactive in water or very oxyphilic, such as titanium or vanadium chlorides or other high oxidation state transition metals; these materials can be used as the starting TM in the solvothermal process, which can react to give the metal oxide or hydroxide. Alternatively, when the synthesis temperature cannot be achieved using water, due to pressure constraints or temperature constraints of the reaction vessels, then alternative methods should be used to form the product. Large organic molecules give the advantage of high boiling points with low vapor pressure. An example of the limitation of water as a solvent at temperature is that, when heated to 300 °C it has a vapor pressure of 85 atm, and after heating to 360 °C water has a vapor pressure of approximately 184 atm. The vapor pressure of water becomes a limiting factor and alterative solvents are to be explored for high temperature syntheses. In addition, the solvothermal process allows for the control of the phase, particle size, and morphology [124,125,126,127,128,129,130,131,132,133,134,135].

Titanium sulfide nanomaterials have been synthesized using solvothermal processes using titanium tetrachloride with elemental sulfur in 1-octadecene at 300 °C in one hour of reaction [124]. Nickel sulfides in the pyrite phase, NiS₂ and NiS, were successfully synthesized using the solvothermal process using ethanol and ethylenediamine as solvents, respectively [125,126].

Many of the iron sulfides have been synthesized using solvothermal processes, for example, Kar and Chaudhuri synthesized iron sulfide nanowires using ethylenediamine as the solvent at 180 °C for 12 h [127]. Cantu et al. used a mixture of ethylene glycol and water to synthesize an Fe₇S₈ nanomaterial at 180 °C in 1 h [128]. Xufeng et al. used solvothermal processes for the controlled synthesis of pyrite in ethylenediamine at 130 °C [129]. Zhang and Chen et al. showed the successful synthesis of Fe₃S₄ using ethylene glycol with iron(III) chloride and thiourea at 180 °C [130]. Copper sulfides and MnS₂ were successfully synthesized using solvothermal processes with ethanol as the solvent and thioacetamide as the sulfiding agent [131]. Goria et al. have used ethylenediamine as the solvent at a temperature 130 °C for 12 h and phase-pure Cu₂S was synthesized, which showed a dendritic-type structure [132]. While the rection at 130 °C for 4–8 h showed a similar type of morphology. The study showed that heating the reaction mixture for 8 h at 130 °C resulted in Cu₃₁S₁₆. Coa et al. used a solvothermal process which resulted in 1T-2H MoS₂ nanoflowers with defects [133]. The authors used ammonium thiocyanate as the sulfur source and ammonium molybdate with a mixture of ethane/water/glycerin as the solvent. Xu et al. performed solvothermal syntheses using ethylenediamine and dodecanthiol to form CdS nanowires [134]. The authors successfully synthesized CdS nanowires at 180 °C, with diameters of 25 nm and lengths into the μm ranges, which showed controlled synthesis of CdS nanomaterials. Valdes et al. on the other hand, synthesized nanosized CoMoS₂ doped with La ions for the desulfurization of fuels [135]. The authors prepared a CoMoS₄ precursor which was doped with different amounts of La ions to replace Co atoms from 5 to 25%. The precursor was converted to the sulfide in decalin at 350 °C in a sealed autoclave reactor. The catalysts showed high activity and some resistance to carbonization.

3.5. Electrochemical Synthesis

Recently, the electrochemical production of different catalyses, such as the TMS have become increasingly popular as the modification of the TMS surfaces to generate sulfur deficiencies in the surfaces was applied to generate catalytically active materials [96,97,98,136,137,138]. Typically, an electrochemical synthesis is performed in a solution using cyclic voltammetry between specific voltages. Fotouhi et al. successfully synthesized Cu₂S nanoparticles from aqueous solutions of Na₂S, PVP (added as a stabilizer), and a KNO₃ electrolyte solution; a sacrificial Cu anode was converted to Cu₂S [96]. The results showed that the median distribution of the nanoparticles was between 12 and 17 nm and the material was in the Cu₂S phase. Shamsipur et al. reported results on the electrochemical synthesis of CuS nanoparticles [97]. The authors used a two-electrode system with platinum and sacrificial copper electrodes. The results showed that as the voltage in the solution was increased, the production of CuS was decreased. In addition, the size and shape of the nanoparticles were dependent on the concentration of sulfide in solution. Frazli et al. synthesized NiS nanoparticles using electrochemical synthesis techniques [98]. The study showed that NiS nanoparticles with spherical shapes with sizes ranging from 17 to 27 nm could be synthesized. The authors used voltages from 5 to 15 V with a sacrificial Ni electrode in a solution containing sodium sulfide and as the electrolyte. Zhang et al. synthesized a NiCoS nanomaterial for supercapacitors using electrochemical processes [136]. The authors prepared a Ni–graphite foam from which the Ni was dissolved to give a graphite foam. The graphite foam had the Ni–CoS deposited electrochemically from solution using cyclic voltammetry cycling from −1.2 to 0.2 V. The preparation was formed using a solution of thiourea and both NiCl₂ and CoCl₂; the pH was adjusted using ammonium solution. Shankar et al. showed a one-step electrochemical synthesis process to generate various TMS, including Fe, Ni, and Cu supported on a bare Ni foam [137]. The authors performed five cycles of applied voltages from 1.63 V to −0.16 V to an electrolyte solution with thiourea as the sulfur source. The results showed average grain sizes of ∼326 nm for FeS, ∼254 nm for CuS (with a spherical morphology), and ~326 nm for the NiS and CoS nanoparticles. The FeS showed the highest current densities even higher than RuO₂. Golpalakrishnan et al. synthesized MoS₂ quantum dots using electrochemical techniques [138]. The authors performed an electrochemical etching of bulk MoS₂ to generate nanoparticles ranging in size from 2.5 to 6 nm, which had photoluminescence properties. The results showed that in an aqueous ionic liquid solution of 1-butyl-3-methylimidazolium chloride and lithium bis-trifluoromethylsulphonylimide with 5 V applied across the MoS₂ quantum dots could be grown.

3.6. Chemical Vapor Deposition (CVD)/Physical Vapor Deposition (PVD)/Plasma Synthesis

CVD and PVD techniques as well as plasma techniques were utilized for the synthesis of TMS for multiple purposes. PVD consists of vaporizing a solid for deposition under vacuum, which showed to have great control in synthesis. While CVD is a vapor deposition technique from a thin film, the two techniques are very similar, however, the major difference is the deposition material in PVD is a solid and in CVD, it is a gaseous molecule. Additionally, the temperatures used in CVD are typically higher than PVD. Plasma deposition is generally a process defined as the deposition of a material from the action of a plasma.

Farwa et al. synthesized a bimetallic Ni₃S₂/MnS₂ composite nanomaterial using PVD [99]. The authors used metal nitrates in conjunction with CS₂, in a two-step synthesis process. A thiocarbamate precursor was synthesized and decomposed in a tube furnace in an inert atmosphere and Ni₃S₂/MnS₂ nanoparticles were synthesized. Ge et al. utilized atmospheric pressure CVD to synthesize CdS, ZnS, Cu_7.2S₄, NiS, CoS, Fe₇S₈, MnS, Cr₂S₃, and WS₂ nanowires [100]. The nanoparticles synthesized through the CVD process averaged between 20 and 30 nm on the low end to 100–150 nm on the high end and ranged in length from 1 to 40 μm. Wang et al. used CVD to deposit 2-D TMS nanoparticles on carbon paper for electrocatalytic hydrogen evolution [139]. The authors grew MoS₂, NbS₂, and WS₂ nanosheets, where WS₂ showed the highest HER activity with an average size between 100 and 200 nm. The MoS₂ had an average size of 500 nm while the NbS₂ had an average size of 500 nm. Royki and Hirotatsu used CVD to synthesize NiS nanoplates, the authors used diethyl amine and CS₂ which synthesized a Ni–dithiocarbamate complex. The compound was decomposed in an inert atmosphere at 400 °C to generate NiS [140]. Zhai et al. used a CVD technique to synthesize CdS nanorods [141]. The authors used a Cd dithiocarbonate which was decomposed in a tube furnace at 450 °C in nitrogen. The CdS nanoparticles had a tetrapodal geometry with an average size between 4 and 5 nm. Khan et al. synthesized phase-pure CuS nanostructures using a CVD technique [142]. The authors used a single precursor Bis(O-isobutyldithiocarbonato)copper(II) complex [Cu(SCSOCH₂CH(CH₃)₂)₂] and decomposed the material at temperatures from 250 to 350 °C. The CuS formed at 250 °C was spherical in morphology, at 300 °C, the nanoparticles had plate-like morphology, and at 350 °C the authors noted a flower morphology.

Zheng et al. used non-thermal plasma deposition for the synthesis of a MoO₃@MoS₂-CuS composite nanomaterial for light harvesting [101]. The authors used sodium molybdate in conjunction with MoO₃ nanorods and ultrasonic treatment. The authors added MoO₃ and Cu(NO₃)₂ and dried and placed them in a plasma to be sulfided using H₂S/Ar at 100 W for 40 min. The results showed the formation of nanomaterials with an average grain size of 50 nm for the MoS₂ and micron sized MoO₃ particles. The CuS size was not discussed. Zhao et al. used cold plasma (non-thermal plasma) to synthesize Cr-doped ZnS catalysts for H₂S decomposition [143]. The authors prepared an impregnated Al₂O₃ support with Zn and Cr in an aqueous solution to prepare the precursor, which was calcined at 450 °C in air. The calcined sample was then sulfurized in a cold plasma (400 °C) using a mixture of (Ar:H₂S 90%:10%) resulting in 8 nm nanoparticles. Basuvalingam et al. used low-temperature plasma for the synthesis of 2D TMS, TiS₂, and TiS₃ nanolayers [144]. The plasma system allowed for the atomic layer by layer deposition of TiS₂ and TiS₃ nanolayers. The authors used a H₂S-based plasma between 150 and 200 °C. The TiS₂ and TiS₃ materials showed electrical transport properties and photoluminescence properties, respectively.

4. Layered Transition Metal Sulfide Nanomaterials and Composite Nanomaterials Applied to CO₂ Reduction Reactions

4.1. MoS₂

As mentioned earlier, MoS₂ is a well-known catalyst in different fields including electrocatalysis. Siahrostami et al. reported that the edge sites of MoS₂ have the catalytic capability for CO₂ reduction to form CO [145]. The authors demonstrated that the bridging S atom at the edges of MoS₂ could selectively bind the intermediate COOH^* over the CO product, which gave rise to the transition-metal scaling relationship of intermediates in CO₂ reduction processes and therefore remarkably enhanced CO₂ reduction activities on transition-metal catalysts. Francis et al. investigated the conversion of CO₂ to 1-propanol at MoS₂ electrodes [146]. The results showed that at a potential of −0.59 V (compared to a standard hydrogen electrode (SHE)) for large MoS₂ crystals, an efficiency of approximately 3.5% was observed, and with thin films it showed approximately 1%. However, the bulk crystals showed degradation by loss of S as H₂S but the formation of H₂S was not observed in the thin film studies.

Lv et al. investigated the electroreduction of CO₂ to CO using MoS₂ and N-doped C dots [147]. In that work, the MoS₂-N-doped carbon dot hybrid was prepared using a solvothermal process, with the formation of the C dots on the MoS₂ nanosheet surfaces in dimethyl formamide (DMF). The composite catalysts showed a faradaic efficiency of 90% with an overpotential of 0.130 V. The authors also performed density functional theory (DFT) calculations which indicated that N-doping of the MoS₂ could decrease the energy barrier of the ^*COOH intermediate and generate more electrons on the Mo edge of the MoS₂ and thus enhance the catalytic activity. Lv et al. investigated the effects of decorating E-MoS₂ nanosheets with flurosilane (FAS) for the reduction of CO₂ to CO [148]. The authors exfoliated MoS₂ sheets from the bulk using ball milling and subsequently decorated the surface with FAS. The FAS-modified MoS₂ sheets showed the ability to be tuned for syngas production from CO₂ and H₂O mixtures. Additionally, the FAS-modified MoS₂ sheets showed a faradaic efficiency for CO production of 81% at a current density of 61 mA and an over-potential of −1.1 V. DFT calculations indicated that the FAS modified the electrochemistry of the edge Mo sites which facilitated the desorption of the CO and thus enhanced reaction over non-modified MoS₂ sheets.

Qi et al. investigated the layering of TiO₂ over MoS₂ nanosheet arrays for the electrocatalytic reduction of CO₂ to ethanol [149]. The TiO₂–MoS₂ composites were formed through atomic layer deposition. The composite material showed a 50% faradaic efficiency at −0.6 V. The authors also performed DFT computation studies of the electrocatalysis, which indicated the formation of a Mo–Ti active site at the interface between the TiO₂ and MoS₂. Yu et al. investigated the electrocatalytic reduction of CO₂ to CO using TiO₂-modified MoS₂ [150]. The optimized composite in KHCO₃ solution showed an onset over-potential of 100 mV and a maximum faradaic efficiency of 82% at -0.7 V with a current density of 68 mA/cm². The authors also performed DFT calculations which indicated that the Ti–S bonds formed between the TiO₂ and MoS₂ composite changed the electric properties of the MoS₂ and adsorption on the Mo sites. Li et al. investigated MoS₂ rods supported on TiO₂ NPs for the electrocatalytic and photo-enhanced electrocatalytic reduction of CO₂ to methanol [151]. The electrocatalytic reduction showed a faradaic efficiency of 42% percent; however, the addition of light showed a faradaic efficiency of 112%. The authors concluded that the mechanism for the photo-enhancement was from the photo-oxidation of water at both the anode and cathode surfaces.

Peng et al. performed Co doping of MoS₂ nanoparticles, which were applied to the electrocatalytic reduction of CO₂ to form methanol [152]. The authors synthesized a material with an average size of 30 nm, which gave a 35 mmol/L of methanol after 350 min of reaction. In addition, the over-potential for the CO₂ reduction was observed to be −0.64 V. Hussain et al. synthesized Cu on graphitic g–C₃N₄/MoS₂ composites for the reduction of CO₂ to alcohols [153]. The Cu–g–C₃N₄/MoS₂ composite showed faradaic efficiencies of 19.7 and 4.8% for the formation of methanol and ethanol, respectively. The faradaic efficiency was better than that observed for Cu–gC₃N₄ and CuMoS₂ alone. The material also showed good stability to hold a constant current density over 30 h of reaction. Abbasi et al. investigated the effect of the edge structure of MoS₂ in electrocatalytic reduction of CO₂ [154]. The authors used an ionic liquid and showed that a 5% dopant of NbS₂ showed a 10× enhancement of the reduction of CO₂ over pristine MoS₂. The results showed the over-potential working range was between 0.05 and 0.150 V in 1-ethyl-3-methylimidazolium tetrafluoroborate as the ionic liquid with CO as the product of the reaction.

Hussain et al. investigated a CuO–ZnO–MoS₂ composites material for CO₂ reduction to make alcohols [155]. The MoS₂ was used as a support for the CuO–ZnO materials and provided a synergistic effect on the electrocatalytic properties of the CuO–ZnO system. The composite showed excellent performance in the reduction of CO₂ into methanol, which showed approximately 25% conversion, with a current density of 17.3 mA/cm² at a potential of −1.3 V (compared to Ag/AgCl). Shi et al. studied Cu nanoparticles inter-dispersed with MoS₂ nanoflowers for the electrocatalytic reduction of CO₂ [156]. In that study a microwave-assisted synthesis was used to produce the nanoparticles, which had an average size between 5 and 20 nm [156]. The composite material was successful in producing CO, CH₄, and C₂H₄. The MoS₂ nanoflowers in the absence of copper nanoparticles were still active but at a strongly reduced rate of approximately 1/7 time.

The results discussed above show great progress for the application of MoS₂ and MoS₂-based composite nanomaterials in CO₂ reduction reactions. However, the applications that show the most promise of providing valued-added materials appear for the most part to utilize MoS₂ as a base support for a secondary material. In the following section, we review existing modeling (simulation) results reported on the use of MoS₂ and MoS₂-based composite nanomaterials for CO₂RR

4.2. Computational Studies Using MoS₂

The results from simulations have also been reported on for the reduction of CO₂ using different metal sulfides with the aim to provide more insights into its mechanisms, efficacy, and efficiency. Xie et al. studied the mechanism of reduction of CO₂ to CO using MoS₂ monolayers as catalysts [157]. The simulation results were performed using DFT calculations. The results indicated that the Mo exposed on the edges of the MoS₂ were the adsorption sites for the CO₂ and the O=C=O bonds which were reconfigured during the adsorption process between two Mo centers. In addition, the first H⁺ reduction reaction occurred through a different pathway which pushed product selectivity towards the formation of CO. Mao et al. on the other hand, investigated the effect of modification of the MoS₂ edge structure by the addition of transition metals on electrocatalytic CO₂ reduced to CO using DFT calculations [158]. The focus of the study was on the insertion of V, HF, and Zr into edge sites of the MoS₂. The simulation or (modeling) results indicated that the activity did not depend on dopant concentration. However, locating the dopant close to the Mo active site was extremely important for desorption. Similarly, Datar et al., using DFT calculations, investigated the reduction reaction of CO₂ on MoS₂ monolayers [159]. In that work, the authors investigated the formation of 2H, 1T, and 1T′ phases in MoS₂ supported on Ag, Au, and Cu. The results indicated that the MoS₂ basal planes were relatively unaffected by the supports, but the Mo active sites were poisoned by the support. Additionally, the support effects were important and needed to be considered.

Yu et al. used computational methods to investigate single-atom catalysts based on first-row transition elements on MoS₂ for the electrocatalytic reduction of CO₂ to methanol [160]. The results showed that the Ni–MoS₂ combination was the most stable catalyst of the series using electronic structure studies. Ren et al. used DFT computational methods to investigate single-atom-supported catalysts on MoS₂ for the electrocatalytic reduction of CO₂ [161]. The authors investigated Pd, Co, No, and Pt metals supported on MoS₂, which were shown to be efficient in the electrocatalytic reduction of CO₂. The Fe, Co, Ni, and Pt on MoS₂ produced primarily CH₄ and had a low limiting potential. In addition, the formation of HCOO^* was determined to be one of the key reactive descriptors for the reaction. The authors also noted that the MoS₂, Ws₂, and WSe₂ systems with single-atom catalysts showed promise. Li et al. on the other hand used DFT calculations to explore the effects of edge-exposed MoS₂ hybridized with N-doped carbon [162]. The results in that study showed that a high number of exposed edge sites on the MoS₂ provided a high number of active sites, which resulted in lowering the onset potential. In addition, the results showed a 93% faradaic efficiency at an over-potential of 0.59 V. CO was the major product formed in the reaction [162].

The modeling results discussed above are of great interest, as a new mechanism for CO₂ reduction was explored, which is difficult to be studied experimentally. These computational studies really supplemented and helped explain the reaction mechanisms. However, more work needs to be done on other layered TMS. For example, TiS₂ has been also used for CO₂ reduction and more importantly, both modeling and experimental results were reported on its effect on the electrocatalysis reduction of CO₂.

4.3. Experimental Studies on CO₂RR Using TiS₂

Another layered transition metal dichalcogenide investigated in for the conversion of CO₂ has been TiS₂. Aljabour, investigated the reduction of CO₂ to CO using TiS₂, which showed a faradaic yield of 64% at a potential of 0.4 V and current density of 0.5 mA/cm² [163]. The driving mechanism of the CO₂ reduction was determined to be the CO₂ binding to the active disulfide planes. In a similar study, Aljabour et al. investigated the active sulfur sites in semi-metallic TiS₂ which enabled the electroreduction of CO₂ [164]. The experiments were performed using in situ FTIR where the results showed that the CO₂ was bound to sulfur to form monothiocarbonate species. The monothiocarbonate species can steer the reduction reaction towards the formation of CO [164]. The results reported in that work showed cathodic efficiencies of up to 54% at a current density of 5 mA/cm².

4.4. W-Based Materials

WS₂ is a great catalytic material but there is not much work reported in the literature on the use of WS₂ in the electrocatalytic reduction of CO₂. However, Asadi et al. found that WSe₂ was an effective catalyst in the reduction of CO₂ in ion liquid media [165]. The results showed that CO₂ could be reduced to CO with a faradic efficiency of 24% with a TOF of 0.28 s⁻¹. In addition, the reaction occurred at a low over-potential of 54 mV in 50 vol% EMIM–BF4 in water.

4.5. WS₂ Computational Studies

Tong et al. studied the effects of engineering the edge layers of WS₂ on the electrocatalytic reduction of CO₂ using DFT calculations [166]. The aim of the modeling work was to investigate the doping of the WS₂ structure with Zn, Fe, Co, and Ni, which showed a change in the bond strength between the W and S atoms and increased electrical conductivity [166]. In addition, the catalytic activities of the composite materials could be increased, and an optimum catalyst was observed in the calculations using Zn as the dopant with an over-potential of −0.51 V. Fonseca et al. on the other hand, used DFT calculations to study the effect of Fe doping on WS₂ [167]. The results showed that the Fe has a preferential binding to two sulfur atoms on the edge site and showed breaking of the W–S bonds at the edges of the nanomaterial. The results also showed that CO₂ was activated on the WS₂ with bond angles of 129°, and the binding occurred though physisorption. These computational studies performed on WS₂ do provide some mechanistic insight into the CO₂RR using WS₂-based nanomaterials. These insights and mechanisms observed with WS₂ are very similar to those in MoS₂-based materials. These insights include modeling the rim–edge and distortions of the O=C=O bond angles after adsorption, and the importance of the metal sites in the reaction mechanism.

Table 1. Summary of products in the CO₂RR using the various TMS-layered nanomaterials and their associated composite nanomaterials.

CO2RR Product	Material	Reference
CO, CH3CH2CH2OH	MoS2	[145,146]
CO	MoS2–C3N4	[147]
CO	MoS2 exfoliated–flurosilane capped	[148]
CH3CH2OH, CH3OH, CO	TiO2–MoS2	[149,150,151]
CH3OH	Co–MOS2	[152]
CH3CH2OH, CH3OH	Cu–C3N4–MoS2	[153]
CO	NbS2–MoS2/ionic liquid	[154]
CH3OH	CuO–ZnO–MoS2	[155]
CO, CH4, C2H4	Cu–MoS2	[156]
CO	TiS2	[163,164]
CO	WSe2	[165]

shows a summary of the different products generated using layered MoS₂, TiS₂, WSe₂ and their respective nanocomposites. As can be illustrated in the table, these nanomaterials are very versatile for their applications in the CO₂RR. The majority of the common small molecule products (CO, CH₃, CH₃OH, CH₃CH₂OH, and C₂H₄) observed in the CO₂RR were formed using MoS₂, TiS₂, WSe₂ and their respective nanocomposites. However, formate was not shown as a reaction product but was a postulated product using computation.

5. Non-Layered First Row TMS Nanomaterials and Composite Nanomaterials Applied to CO₂ Reduction Reactions

5.1. CuS_x-Based Nanomaterials

Lim et al. investigated the application of CuS_x in the electrochemical reduction of CO₂ to formate [168]. The authors used industrial CO₂, which contained H₂S and performed an in situ formation of CuS_x from a Cu foil. The study showed that the average size of the CuS_x nanoparticles was 133.2 nm and the nanoparticles had a faradaic efficiency of up to 72% at −6 V and showed stability for up to 72 h of operation. Philips et al. investigated the deposition of CuS on Cu foils for the electrocatalytic reduction of CO₂ to formate [169]. In that study, CuS was deposited on Cu foil using electrodeposition to prepare a nanowire of the CuS. The products of the reduction included hydrogen at low potential, then CO and formic acid at intermediate over-potentials, and CH₄ at a high over-potential. The faradaic efficiency of the CuS on Cu foils was higher than of the foil alone. Chen et al. reported results on the investigation of copper sulfide compound properties in the electrochemical reduction of CO₂ [170]. The material was synthesized through electrochemical deposition of CuS. The results of the study showed that, as particle size increased, better faradaic efficiencies were observed, up to approximately 70%. The results showed low production of CO, with formic acid formation preferred at intermediate current densities of between −1 and −10 mA/cm². Oversteeg et al. investigated Cu₂S nanoparticles on carbon for the electrochemical reduction of CO₂ and the formation of formate [171]. The authors prepared the CuS and Cu₂S nanoparticles through liquid phase sulfidation of CuO on a carbon substrate. The results showed that with less than 4% of the carbon substrate covered, the reaction was selective towards the formation of formate at low current densities [171]. In general, the Cu₂S showed higher faradaic efficiencies over the CuS and the CuO nanoparticles at current densities of −1.5, −3, and −4.5 mA/cm².

Hu et al. used FTIR to investigate the formation of formate by the deposition of copper sulfide on nitride graphene [172]. The synthesized CuS on nitride graphene (C₃N₄) showed high faradaic efficiencies of 82% at an over-potential of 57 mV for the formate formation. The FTIR results showed that one of the oxygen atoms in the CO₂ was bound to the Cu₂S/C₃N₄ to form OCHO^* species. The authors also used DFT calculations which showed that the sulfur promoted the activation of the interfacial water formation H species. He et al. investigated the use of CoS₂ as a template for the generation of Cu₂S as a CO₂ reduction catalyst for the generation of formate [173]. The authors used electrochemically driven cation exchange to replace the Co to generate the Cu₂S while maintaining the morphology of the CoS₂ nanoparticles. The copper-based catalysts showed a faradaic efficiency of 87% for the generation of formate.

Deng et al. studied the selective electrochemical reduction of CO₂ to formate on CuS_x catalysts [174]. The authors prepared electrochemically deposited CuS_x catalysts that could reduce CO₂ to produce formate. The faradaic efficiency of the nanomaterial was 75% with a current density of −9.0 mA/cm² at an over-potential of −0.9 V. The formation of other products was suppressed to a faradaic efficiency of 4%. Based on Raman spectroscopy experimental results, the authors determined that the HCOO^* radical was the major intermediate. The authors also concluded that the selectivity of the catalyst towards formate was due to the S doping in the Cu matrix which caused the formation of the HCOO^* and not the COOH^* intermediate species. Zhao et al. investigated the electrocatalytic reduction of CO₂ to CH₄ on CuS nanosheet arrays [175]. The authors synthesized CuS nanosheets supported on Ni foam. The study showed excellent faradaic efficiency of 73% for the formation of CH₄, with stability for up to 60 h of reaction time. The formate was formed during the reaction; however, it was a minor product, as was the formation of CO, while H₂ was formed at higher over-potentials between −1.3 and 1.25 V. At over-potentials of −1.2 to −0.8 V, CH₄ was the preferred product of the reaction and above −0.8 V, H₂ became the major product [175]. Shinagawa et al. conducted experiments to investigate the sulfur modification of Cu catalysts for the electrocatalytic reduction of CO₂ to form formate [176]. The CuS was synthesized through modification of Cu electrocatalysts with sulfur forming CuS nanoparticles. The study showed a positive correlation between particle size and selectivity towards the formation of formate, as the nanoparticle size increased so did the amount of formate that was formed. The results in that study showed a maximum faradaic efficiency of 80% at an over-potential of −0.8 V [176]. Other products in the reaction mixture were also observed, including CO, CH₄, C₂H₄, CO, and H₂, but formate was the major product [176].

The results reported on the use of CuS as an electrocatalyst showed great diversity in the products resulting from the CO₂RR. Within the CuS/Cu_xS nanomaterials, a higher diversity of products is observed compared to the MoS₂, WS₂, TiS₂, and the Bi₂S₃ materials. The higher diversity of products indicates that the CuS/Cu_xS materials provide more pathways for the CO₂RR.

5.2. NiS_x-Based Nanomaterials

Han et al. investigated the electrochemical reduction of CO₂ to CO on NiS nanoparticles [177]. XAS experiments were used to investigate the behavior of the catalysts during the process, where a structural change in the NiS was observed [177]. The authors noted that the change in the Ni–S structure was similar to the that of single-atom-N-coordinated Ni. In addition, the results showed that the O–S bond formation was modulated at a current density of 0.3 mA/cm² [177]. However, the catalyst showed low stability due to the loss of S atoms. The faradic efficiency observed for the NiS was approximately 85%.

Zhao et al. used FeS₂ on NiS to reduce CO₂ to methanol which was synthesized through a hydrothermal process [178]. The study showed that the reaction was initiated at an over-potential of 0.280 V; however, a faradic efficiency of 64% at a potential of −0.6 V (reversible hydrogen electrode) was observed [178]. The catalyst showed stability for up to 4 h which was attributed to the ladder structure of the nanocomposite. In addition, the results indicated that the active sites were located between the interface of the FeS₂ and NiS. Yamaguchi et al. investigated the reduction of CO₂ on nickel containing iron sulfides as a model for hydrothermal vents where CO₂ reduction was observed [179]. The authors synthesized FeNi₂S₄ using hydrothermal synthesis as violarite in its mineral form. The results showed that the pristine greigite was ineffective at reducing CO₂; however, that of Ni-substituted greigite was improved by approximately 85%. In addition, methane was the preferred product with the Fe/Ni nanoparticles, while hydrogen was the preferred product with pure greigite. Zhang et al. studied the synthesis of Ni–S–C nanoparticles from S-doped Ni–triazolate starting material for the CO₂ reduction to CO [180]. The authors synthesized a pure Ni(II)–triazolate complex as a starting material followed by pyrolysis at three temperatures, 800, 900, and 1000 °C, which resulted in a Ni₃S₂ material with carbon. The highest faradic efficiencies were observed at −1.5 V (vs. Ag/AgCl). The results showed faradic efficiencies of approximately 67%, 45%, and 40% at −1.5 V for the 800, 900, and 1000 °C synthesized products, respectively. The results reported on the use of nickel-sulfide-based nanomaterials in the CO₂RR are of great interest. The hybrid nanomaterials appear to show higher activities than the individual Ni_yS_x materials. The Fe doping of the Ni_yS_x and the Ni doping of the Fe_yS_x nanomaterials do enhance the reactivity of the Ni_yS_x. There appears to be some type of synergistic effect from the Ni–Fe redox coupling within nanomaterials for the CO₂RR. However, the Ni-sulfide-based nanomaterials appear less stable than other TMS in the CO₂RR and thus show lower efficiencies.

5.3. FeS_x

Zakaria et al. studied the use of FeS surfaces for the electrochemical hydrogen evolution and CO₂ reduction reactions [181]. The authors investigated a greigite (Fe₃S₄)-modified electrode, which was oxidized in an HER reaction to form a 60/40% mixture of greigite and goethite (FeOOH). The results in that study showed that the HER reaction was slowed dramatically in saturated CO₂ solution under reducing conditions. In addition, the binding indicated that the HCO₃⁻ was surface-bound to the FeS [181]. Roldan et al. investigated the application of bio-inspired CO₂ conversion using FeS catalysts [182]. The study was focused on the application of Fe₃S₄ (greigite). In that work, the reduction of CO₂ was performed in a saturated solution at pHs of 4.5, 6.5, and 10.5, which showed that the formic acid was the major product at all pHs studied, with methanol, acetic acid, and pyruvic acid as the minor products. The authors used DFT calculations to study the CO₂ reduction, which indicated that the predominance of the formation of formic acid was due to the solution species of either CO₂ (neutral molecule), HCO₃⁻ at intermediate pHs, or CO₃²⁻ at high pHs. The molecule interacted with either the 001 or the 111 surface of the Fe₃S₄ particles [182]. Vladimirov et al. investigated the reduction of CO₂ on pyrite as a mechanism of abiogenic formation of organic molecules [183]. The authors used pyrite as a rotating disc electrode to form formate at high pressure (50 atm). As the potential applied to the electrode increased, the concentration of formate formed in solution increased, while a maximum current efficiency of 0.12% was observed at −1 V. The authors proposed that the reaction occurred at deep ocean vents (black smokers) on the ocean floors.

Simon et al. developed a fast microwave process to synthesize Ni-substituted Fe₃S₄ nanosheets for CO₂ reduction to CO [184]. The authors showed a faradaic efficiency for the NiFe₃S₄ nanomaterial of 6% at a potential of −0.7 V. However, at lower potentials, below −0.8 V, the HER reaction became predominate. Pellumbi et al. studied the effect of S/Se exchange on Fe/Ni pendalite for the electrocatalytic reduction of CO₂ to form CO [185]. The results in that study showed that the introduction of higher amounts of Se increased the formation of CO. Using galvanostatic conditions in acetonitrile, Fe_4.5Ni_4.5S₄Se₄ faradic efficiencies of approximately 100% were achieved at current densities of 50 mA/cm² and 100 mA/cm². Senthamaraikannan and Lim investigated the reduction of CO₂ to C₁ and C₂ products over sulfur deficient mackinawite (FeS) using DFT calculations [186]. The results showed that the adsorption energy for CO₂ onto pristine FeS was −0.17 eV, and on sulfur deficient surfaces −1.62 eV, which showed preferential binding and reduction of S-deficient surfaces. The favored product was methane in potential-limiting ^*HCO → CH₂O (ΔG = 1.27 eV) and OHCH₂O^* → CH₂O (ΔG = 0.78 eV) reverse water–gas shift and formate pathways, respectively. For the formation of the C₂ species, a high concentration of CO^* on the surface was required to yield ethane.

The preliminary studies reported on the use Fe_yS_x nanomaterials in CO₂RR have been used in an attempt to explain the origin of early life on earth. However, the application of Fe_yS_x nanomaterials in electrocatalysis has shown great promise in developing value-added products from the CO₂RR. Fe_yS_X and corresponding composite nanomaterials have been shown to produce large organic molecules, up to pyruvic acid (C₃ compound), not observed with any other TMS. However, formate/formic acid was the major product observed using Fe-based nanomaterials in CO₂RR.

5.4. CoS

Although CoS is a well-known catalyst for hydrogenation reaction, there was very limited information in the literature for the use of CoS in the electrocatalytic reduction of CO₂. Yan et al. investigated Co₃S₄–Co₃O₄ core–shell octahedron nanomaterials for carbon reduction reactions as well as other applications [187]. The composite nanomaterial showed a high faradaic efficiency of 85.3% for the generation of formate at a potential of 0.64 V. The Co₃S₄ nano-needles showed a 60% faradic efficiency at −0.6 while Co₃O₄ showed approximately 35% faradaic efficiency at −0.7 V. Compared to other materials, the Co–S showed a relatively low faradaic efficiency for the CO₂RR.

As can be illustrated in

Table 2. Summary of products in the CO₂RR using the various TMS from the first-row transition element nanomaterials and respective associated nanocomposites.

CO2RR Product	Material	Reference
CHCOO−	CuSX	[168]
	CuS	[169]
CHOOH	CuS	[170]
CHOOH	Cu2S/CuS	[171]
	CuS–C3N4	[172]
	Cu2S	[173]
	CuSX	[174]
CH4	CuS-nanosheet	[175]
CO, CH4, C2H4, CHOO−	CuS	[176]
CO	NiS	[177]
CH3OH	FeS2/NiS	[178]
CH4	NiS/FeS2	[179]
CO	NiS–C	[180]
CH3OH, CH3CHOOH, CH3COCOOH	Fe3S4	[182]
CHOO−	FeS2	[183]
CO	Fe3S4	[184]
CO	Fe4.5Ni4.5S4Se4	[185]
CHCOO−	Co3S4–Co3O4	[187]

first-row transition metal sulfide nanomaterials and their associated nanocomposites have shown great diversity in the application to the CO₂RR. All the common products observed in the CO₂RR are observed in the CO₂RR using the first-row transition elements, which include CO, CH₃OH, CH₄, CHCOO/CHCOO-, CH₃COOH, C₂H₄, CH₃CH₂OH, and a higher carbon compound CH₃COCOOH. The results showed the diversity of the catalytic capability of the first-row transition elements in the CO₂RR.

6. Non-Layered Later Transition/Metal Sulfide Nanomaterials and Their Associated Nanocomposites Applied to CO₂ Reduction Reactions

6.1. Bi_xS_y- and Bi-Based

Su et al. investigated the reduction of CO₂ over Bi₂S₃ nanosheets of carbon paper [188]. The authors synthesized nanosheets with an average size of 10 nm for the reduction of CO₂ in aqueous solutions. The results indicated that the nanosheets had a better performance than the bulk material, as well as showed high selectivity towards the formation of formate and high stability over 5 h of electrolysis. Hu et al. investigated a layered Bi₂O₃/Bi₂S₃ with a thickness of approximately 10 nm for the reduction of CO₂ to form formate [189]. The composite material had a faradaic efficiency of 85.5% for formate production with a current density of 14.1 mA/cm² at a voltage of −1.0 V. In that work, the experiments were performed using FTIR and showed that the rate-determining step in the formation of formate from CO₂ was the formation of the HCOO^* intermediate. Yang et al. studied the sulfurization of bismuth oxide (Bi₂O₃) to generate a Bi₂S₃–Bi₂O₃ hybrid material for the generation of formic acid from CO₂ [190]. The hybrid material was synthesized using a partial precipitation method to generate interfaces between the Bi₂S₃ and Bi₂O₃ nanomaterials. The results showed that the production of formic acid was preferential over the formation of CO. The nanomaterial showed a faradaic efficiency of greater than 90% with an over-potential of 0.7 V with a current density of 6.14 mA/cm². Furthermore, the catalyst showed excellent stability/durability over 24 h of reaction. The BiS_x nanomaterials and BiS_x/Bi₂O₃ composite have been shown to be effective at multiple CO₂ reduction reactions. However, the most common reaction observed was the formation of formate/formic acid. The composite/hybrid oxide/sulfide nanomaterials also appear to favor the formation of formate/formic acid.

Zhan et al. investigated the use of Bi₂S₃ as an electrochemical reduction catalyst for the formation of formate from CO₂ [191]. The authors synthesized Bi₂S₃ nanorods which achieved a faradic efficiency of greater than 90% for the formation of formate. The authors used a potential range of −0.9 to −1.2 V while the catalyst showed prolonged stability for 12–20 h with a current density of 40 mA/cm². Ren et al. used a Bi₂S₃/ZiIF-8 (a zeolite) for the electrocatalytic reduction of CO₂ to form formate [192]. The results showed a faradaic efficiency of 74.2% at an over-potential of −0.7 V (compared to the reversible hydrogen electrode (RHE)) and current density of 16.1 mA/cm². The experiments were performed using UV diffuse reflectance spectroscopy, which indicated that the high reactivity and selectivity were a photo-electrochemical reduction.

Shao and Lui prepared a Bi/Bi₂S₃ catalysts for the reduction of CO₂ to form CO, formate, and performed the HER [193]. The generation of formate showed a maximum faradaic efficiency of 85% at an over-potential of −1.0 V (RHE) with current density of 17 mA/cm². The catalyst showed a good stability over 12 h of reaction. The authors concluded that the presence of Bi(0) in the sample increased the conductivity of Bi₂S₃ while the selectivity towards formate was due to the sulfur and the synergistic effect between Bi₂S₃ and the Bi(0).

6.2. CdS

Li et al. investigated CO₂ reduction on nanorod CdS particles [194]. The study showed that the CdS nanorods were stable in the production of CO for over 40 h of reaction with a faradaic efficiency of 95% in aqueous solutions. The authors noted that a current density of 10 mA/cm² at an over-potential of −0.55 V was effective for CO₂ reduction. Additionally, a high selectivity of the CdS nanorods was reported, which was due to the 0002 face with sulfur vacancies [194]. The doping of CdS nanorods with Ag+ ions was investigated by Dong et al. for the electrochemical reduction of CO₂ to CO [195]. The results indicated that the doping of the CdS nanorods with the Ag⁺ ions created S vacancies in the nanorods. The CdS–Ag⁺ nanorods showed a faradaic efficiency of approximately 87% and a current density of 53.7 mA/cm². The Ag-doped CdS nanorods showed approximately double the faradaic efficiency of the CdS nanorods alone and approximately 1.5 times the faradic efficiency of CdS nanorods with S vacancies. Although CdS is a catalytic and photoactive material, there are insufficient data reported on the use of CdS in CO₂RR. Perhaps this is due to the toxicity of the Cd ion.

6.3. SnS_x

Bai et al. studied SnS_x supported on carbon cloth for the electrocatalytic reduction of CO₂ [196]. The authors used chalcogel as a precursor for the synthesis of SnS_0.09 and SnS_0.55 supported on carbon cloth. The SnS_0.55 showed a 93% faradaic efficiency to produce formate at a potential of −1.1 V, with a current density of 28.4 mA/cm². Li et al. studied the formation of formate from CO₂ using Sn/S derived from SnS₂ nanosheets [197]. The authors synthesized SnS₂ nanosheets supported on graphene oxide, which were capable of forming formate at over-potentials of 0.23 V. However, the optimum formation of formate occurred at a current density of 13.5 mA/cm², faradaic efficiency of 85% and over-potential of 0.68 V. The examination of the catalysis showed the presence of reduced Sn in the catalyst, which was formed from the cathodic reduction, but the enhanced performance was attributed to the presence of SnS₂. Liu et al. investigated methods to reduce sulfur dissolution and enhance the electrocatalytic reduction of CO₂ to formate on SnS [198]. The authors investigated In doping of the SnS structure which reduced the dissolution of the SnS. The In–SnS on carbon catalysis showed a faradaic efficiency of 97% for formate production at an over-potential of −0.6 V and a current density of 37 mV/cm².

Zhang et al. investigated InO–SnS₂ nanosheets for the electrochemical reduction of CO₂ to formate [199]. The authors performed the synthesis using an InSn(OH)₆ precursor which was functionalized into the In–O–SnS₂ nanosheets. The catalysts showed a faradaic efficiency to produce formate of 89% at a current density of 22.7 mA/cm² and an over-potential of 1.0 V. The unmodified SnS₂ nanosheets showed a current density of 9.4 mA/cm² and a faradaic efficiency for formate production of 18%. The DFT calculations indicated a synergistic effect of the In–O interacting with the SnS₂ creating oxidized Sn sites next to In sites, which reduced the activation energies and speeded up the reaction [199].

Li et al. prepared a Cu–SnS catalyst for the formation of formate from CO₂ [200]. The authors made a precatalyst consisting of a Cu₂SnS₃. The as-prepared catalyst showed a faradaic efficiency of 96% at a current density of −241 mA/cm². The authors also performed DFT calculations which showed preferred formation of formate by the HCOO^* intermediate on the CuSnS_x catalyst. The pristine SnS_x and SnS_x composite materials showed a preference for the formation of formate in CO₂RR. This indicates that these materials have a preference to form the HCOO^* radical species over the other radical species. The studies indicate that SnS is not a great material for use in the CO₂RR; however, doping SnS with a secondary compound or ion can increase the faradaic efficiency tremendously, which shows great promise in controlled CO₂RR.

6.4. AgS

Lui et al. investigated the reduction of CO₂ in an ionic liquid using AgS [201]. The study utilized a cell with a Nafion membrane with aqueous solution voltages ranging from −0.144 to approximately −1.156 V (RHE), and in the ionic liquid the potential ranged from −0.136 to −1.164 V with a scan rate of 50 mV s⁻¹. The authors noted that the formation of CO, H₂, and CH₄ were the only reactions with a combined faradaic efficiency of 100%. However, the CO formation had a maximum efficiency of 92% around −0.864 V. In the presence of KHCO₃ the efficiency was lower. Ye et al. investigated the interaction of CO₂ with Ag₂S/Ag for the electrocatalytic formation of CO [202]. The study showed that the hybrid Ag₂S/Ag heterogenous catalyst achieved a large current density of approximately 422 mA/cm² at an over-potential of −0.70 V. However, a steady current density of 244 mA/cm² was achieved at an over-potential of −0.49 V, which gave a 99% faradaic efficiency. Chen et al. on the other hand investigated Ag₂S on Au as an heterogenous catalyst for CO₂ reduction to CO [203]. The authors observed a faradaic efficiency of 94.5% at an over-potential of −0.8 V. In addition, the catalyst showed a current density of 9.2 mA/cm² with stability over 30 h. The authors performed DFT calculations, which indicated that the surface was favorable to the formation of COOH^* radical species.

Shen et al. generated Ag₂S electrocatalysts for the reduction of CO₂ in organic media [204]. The authors synthesized the Ag₂S through the electro-oxidation of Ag in an aqueous solution on a Ag foil. In that work, the Ag₂S/Ag catalyst was considered as an effective electrocatalyst in propylene carbonate/tetrabutylammonium perchlorate [204]. The reaction showed a faradaic efficiency of 92% over 4 h of reaction at a current density of 9.85 mA/cm² and an over-potential of −2.3 V (compared to Fe/Fe+). Yang et al. investigated the in situ growth of Ag/AgS₂ nanowire clusters in a H₂S plasma for the formation of CO from CO₂ [205]. The authors used a H₂S plasma to treat a Ag foil, which generated Ag/Ag₂S nanowire clusters. The nanocluster wires showed faradaic efficiencies of 83% at an over-potential of −0.4 V and a current density of 3 mA/cm². The highest faradaic efficiencies were observed with larger nanowires with diameters of 100 nm and lengths of microns. Zeng et al. investigated Ag₂S on reduced graphene oxides for the electrocatalytic reduction of CO₂ to CO [206]. The authors used a hydrothermal method to produce the Ag₂S on S/N-doped rGO. The Ag₂S on S/N-doped rGO showed a selectivity of 87.4% towards producing CO from CO₂. In addition, the catalyst showed stability over 40 h at a current density of 70 uA/cm².

Cheng et al. investigated the electroreduction of CO₂ using Ag₂S on CdS nanorods [207]. The authors studied the formation of CO, which was very low on CdS. However, the application of Ag₂S nanodots promoted the formation of CO at 5 wt% loading at a current density of 10.6 mA/cm² where 95% faradaic efficiency was achieved, which was approximately 93% enhancement over the pristine CdS.

The use of silver sulfide as a CO₂RR catalyst has typically shown the production of CO in the reaction. The generation of CO seems independent of the doping material or the support used for the Ag₂S. This is a very interesting result as it shows controlled electrocatalysis in the CO₂RR reaction towards a single product.

6.5. In Sulfides

Cai et al. designed ultrathin ZnIn₂S₄ nanomaterials grown on N-doped carbon cloth for the electrocatalytic reduction of CO₂ and the formation of ethanol [208]. The catalyst showed a 42% faradaic efficiency towards the formation of ethanol at a potential of −0.7 V in a CO₂-saturated solution of 0.5 M KHCO₃. The authors also performed DFT calculations which showed that the N-doped carbon cloth promoted the CO–CO coupling process leading to the formation of ethanol. Chi et al. investigated the stabilization of indium sulfide with Zn for the electrocatalytic reduction of CO₂ to from formate [209]. The ZnIn₂S₄ nanomaterial could produce formate with a 99% faradaic efficiency. The catalyst operated at a current density of 300 mA/cm² for over 60 h without decay. In addition, the authors performed computational studies which showed that the Zn increased the covalency of the In–S bonds, which formed a catalytic site to activate both H₂O and CO₂ and gave the HCOO^* intermediate, and thus formate was the product of the reaction.

There are only a few studies reported on the use of InS as an electrocatalyst in CO₂RR, which have shown a variety of products such as formate/formic acid and ethanol. Zn doping appears to push the reaction towards formate, as well as a being a high-stability catalytic material. In fact, supporting the ZnIn₂S₄ on carbon can push the reaction towards ethanol production, which may indicate that there is a contribution in the reaction from the carbon support.

The sulfides of the later transition elements as well as the metal (non-transition) elements associated with rows 2 and 3 of the periodic table show a promise for application in the CO₂RR. As can be seen in

Table 3. Summary of products in the CO₂RR using various sulfides from the later transition/metal elements nanomaterials and their associated composite nanomaterials.

CO2RR Product	Material	Reference
CHOO−/CHOOH	Bi2S3	[188]
	Bi2O3/Bi2S3	[189]
	Bi2S3–Bi2O3	[190]
	Bi2S3-nanorods	[191]
	Bi2S3–ZiIF-8	[192]
	Bi/Bi2S3	[193]
CO	CdS	[194]
	CdS–Ag	[195]
CHOO−	SnSx	[196]
	SnS2	[197]
	SnS	[198]
	InO–SnS2	[199]
	Cu–SnS	[200]
CO, CH4	AgS	[201]
	Ag2S/Ag	[202]
	Ag2S/Au	[203]
	Ag/AgS2	[205]
	Ag2S	[206]
	Ag2S/CdS	[207]
CH3CH2OH	ZnIn2S4–C3N4	[208]
CHOO−	ZnIn2S4	[209]

, the majority of the common products observed in the CO₂RR are the sulfides and their composites, which include CO, CH₄, CHCOO/CHCOO⁻, C₂H₄, and CH₃CH₂OH. The results showed the catalytic capability and the ability to specifically react with the C/O to break C–O bonds and form C–H bond to give specific products.

7. Conclusions/Future Perspectives

The TMS are very capable of reducing CO₂ to form value-added products such as CO, HCOO⁻/HCOOH, CH₃OH, CH₃CH₂OH, CH₄, and C₂H₄. There are a few studies that showed even larger molecule formation. However, the TMS-composite materials showed much more promise in the development of value-added products from CO₂. For example, the doping of individual TMS with various materials showed much higher faradaic efficiencies than the pristine materials, such as was observed with MoS₂, CdS, In₂S₄, Ag₂S, SnS, CuS, and among the other sulfides presented in the review. The doping of materials changes the ability to attract CO₂ and the binding strength of the reduction products to the surface and allows for higher efficiencies.

The Future of the electrocatalytic reduction of CO₂ will be dependent on the development of nanomaterials that are not only TMS but composites of two or more systems. In addition, very favorable results have been observed especially in the substitution of Ni into Fe_yS_x and Fe into the Ni_yS_x. The substitution appears to create a redox couple within the material and the CO₂RR appears to be enhanced. The addition of carbon and N-doped carbon appears to have a large effect on the catalytic activity of the material. The synergistic effect of catalytic supports as well as the development of hybrid materials will be a major push forward in the use of TMS in CO₂RR. In addition, the movement of the reactions away from acidic pHs will increase the use of sulfides in electrocatalysis while the movement away from acidic pHs will improve the stability of the TMS in the reaction media. Furthermore, a movement away from aqueous media will also increase the stability of TMS and thus the longevity of both the reaction and the TMS’ materials. By controlling the structure of the catalytic material and the support, very controlled catalytic reactions can be achieved. Through the development of new composite materials, catalytic reactivities will be increased, which was observed in the HDS reaction catalysis. The synthesis of Co/Ni on MoS₂ and WS₂ catalysts resulted in synergistic activities and higher reaction rates for the catalysts. As more composite materials are used, the field and application of TMS in the CO₂RR will grow, while the application of TMS in electrocatalysis is in its infancy as can be observed by the lower number of papers reported on using TMS in CO₂RR compared to other types of materials.

The most effective catalysts will be those which can do both the CO₂RR but also perform the HER reaction simultaneously. As it was discussed in this review, the hydrogenation of the reduced CO₂ species is a key parameter in controlling the reaction pathways, and ultimately the final reaction products.
