Multi-Objective Optimization of Micro-Milling Parameters—The Trade-Offs between Machining Quality, Efficiency, and Sustainability in the Fabrication of Thin-Walled Microstructures
Abstract
:1. Introduction
2. Materials and Methods

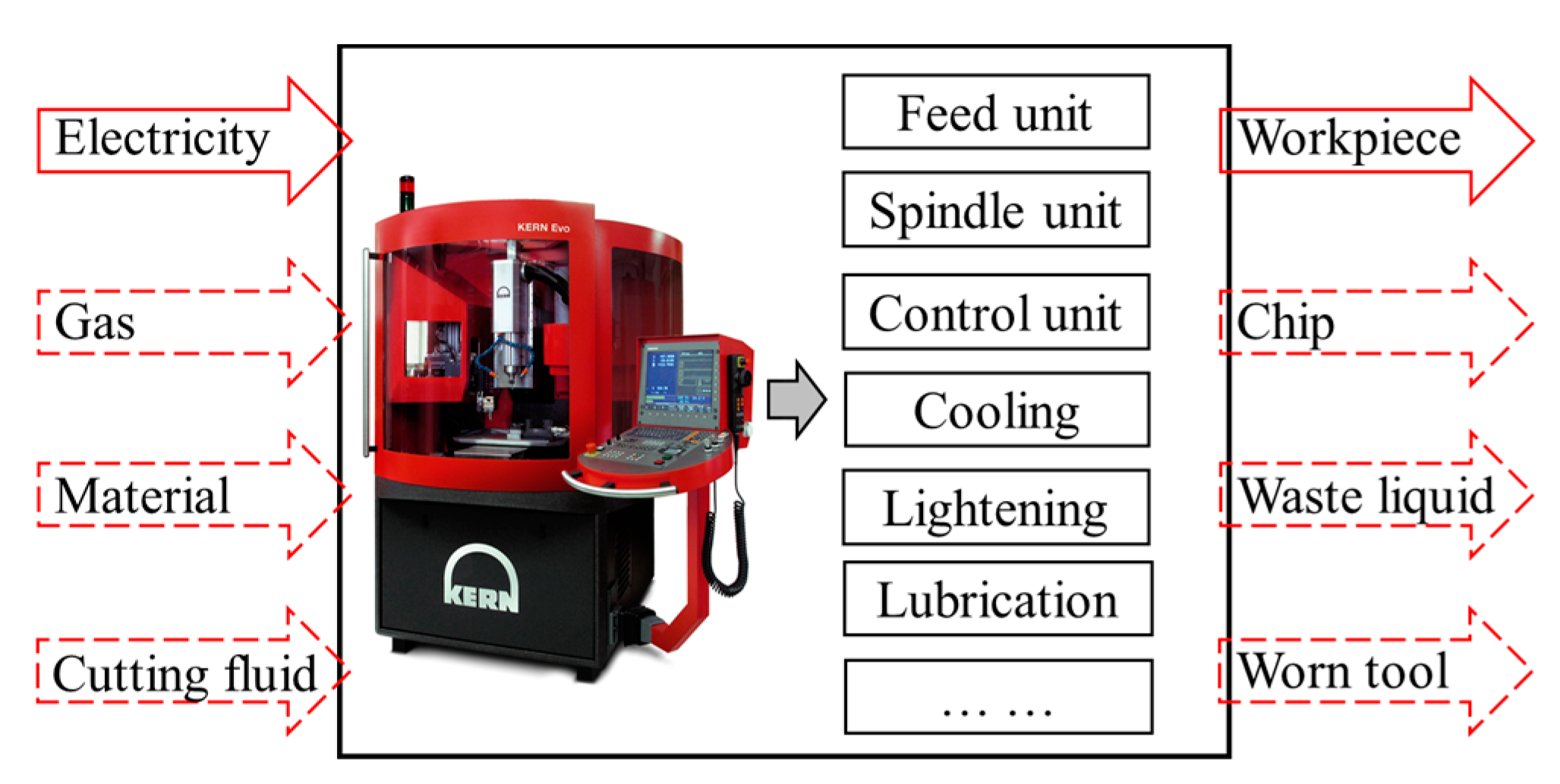

2.1. Power Consumption Modeling

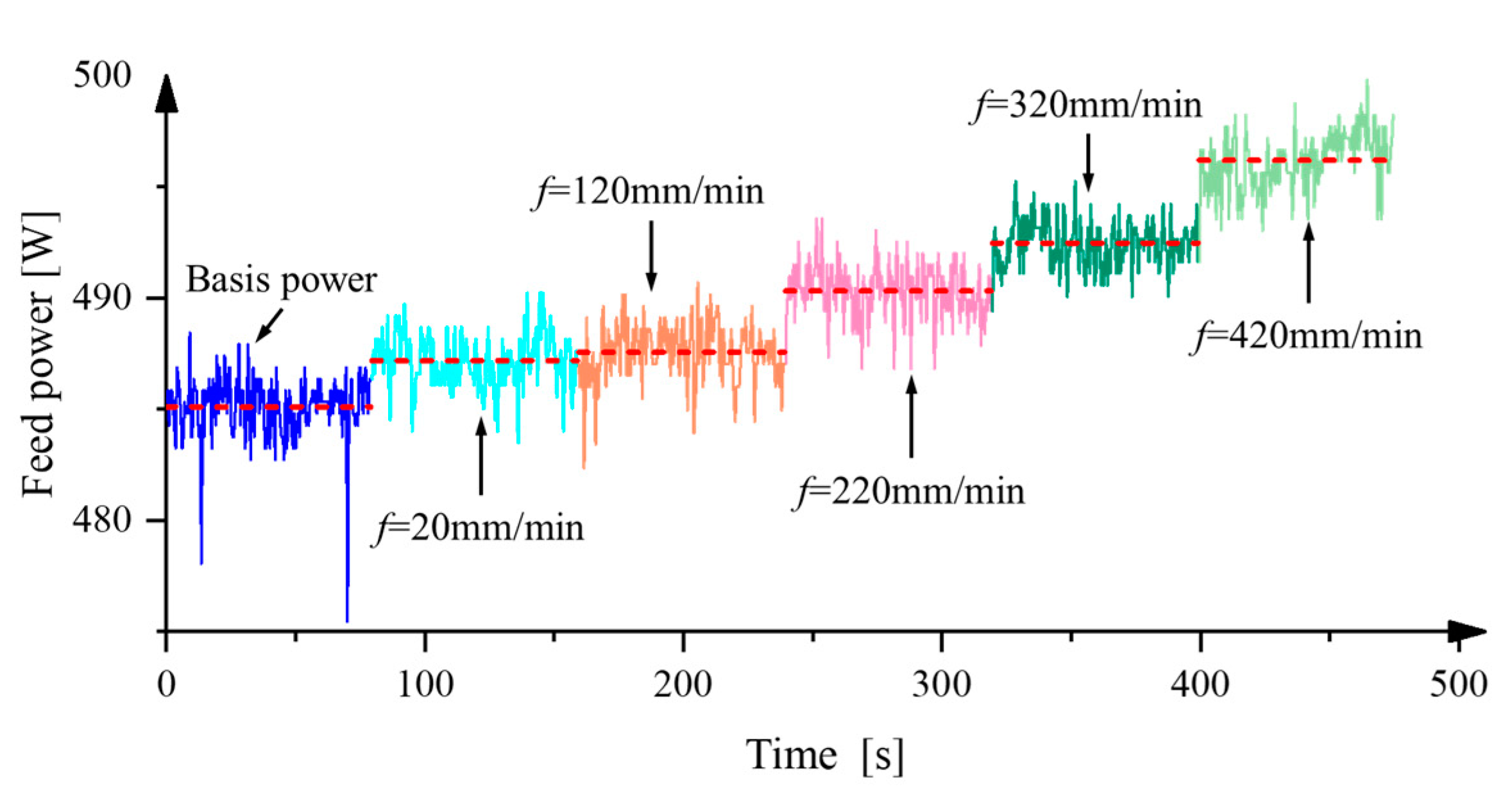

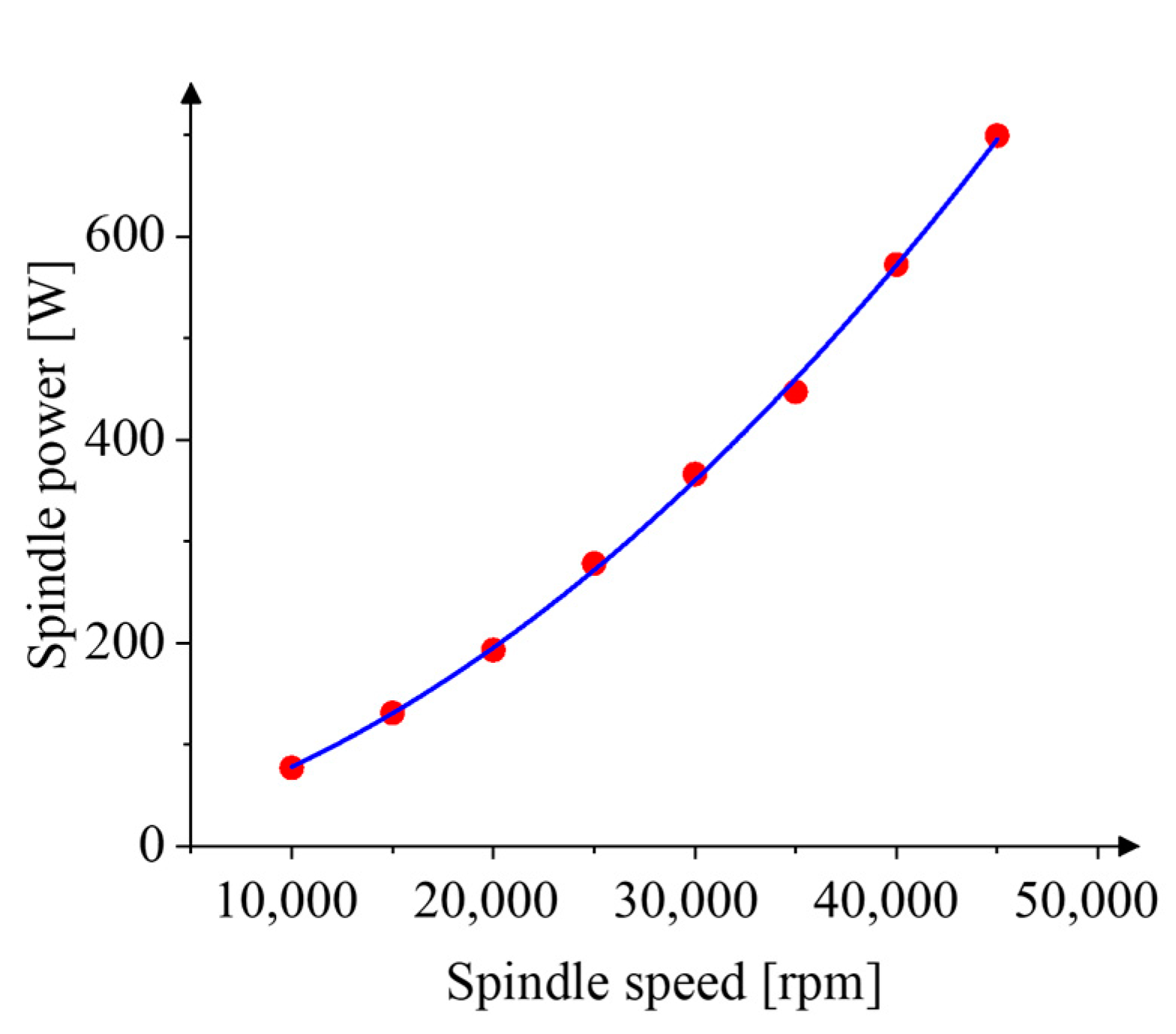

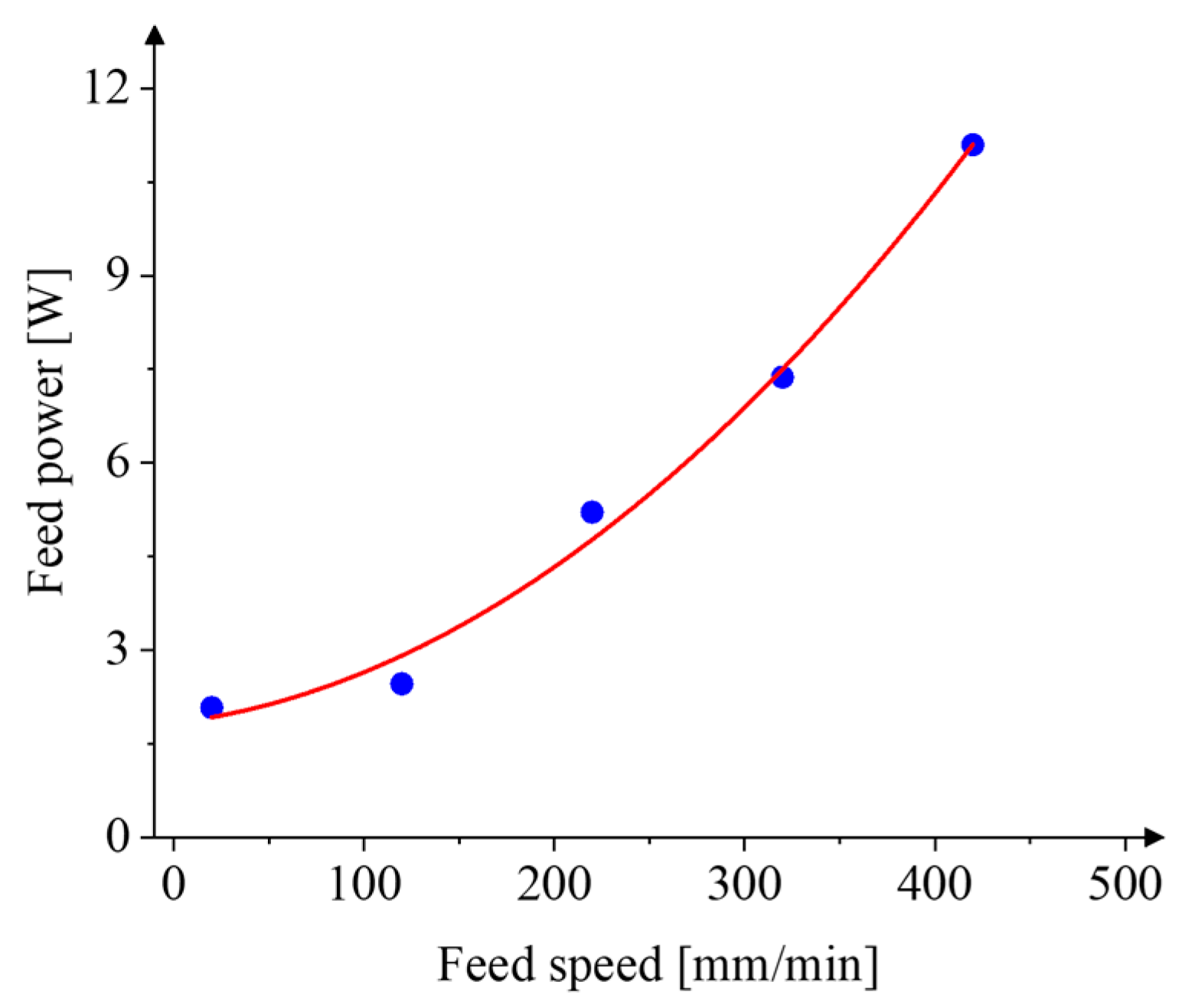

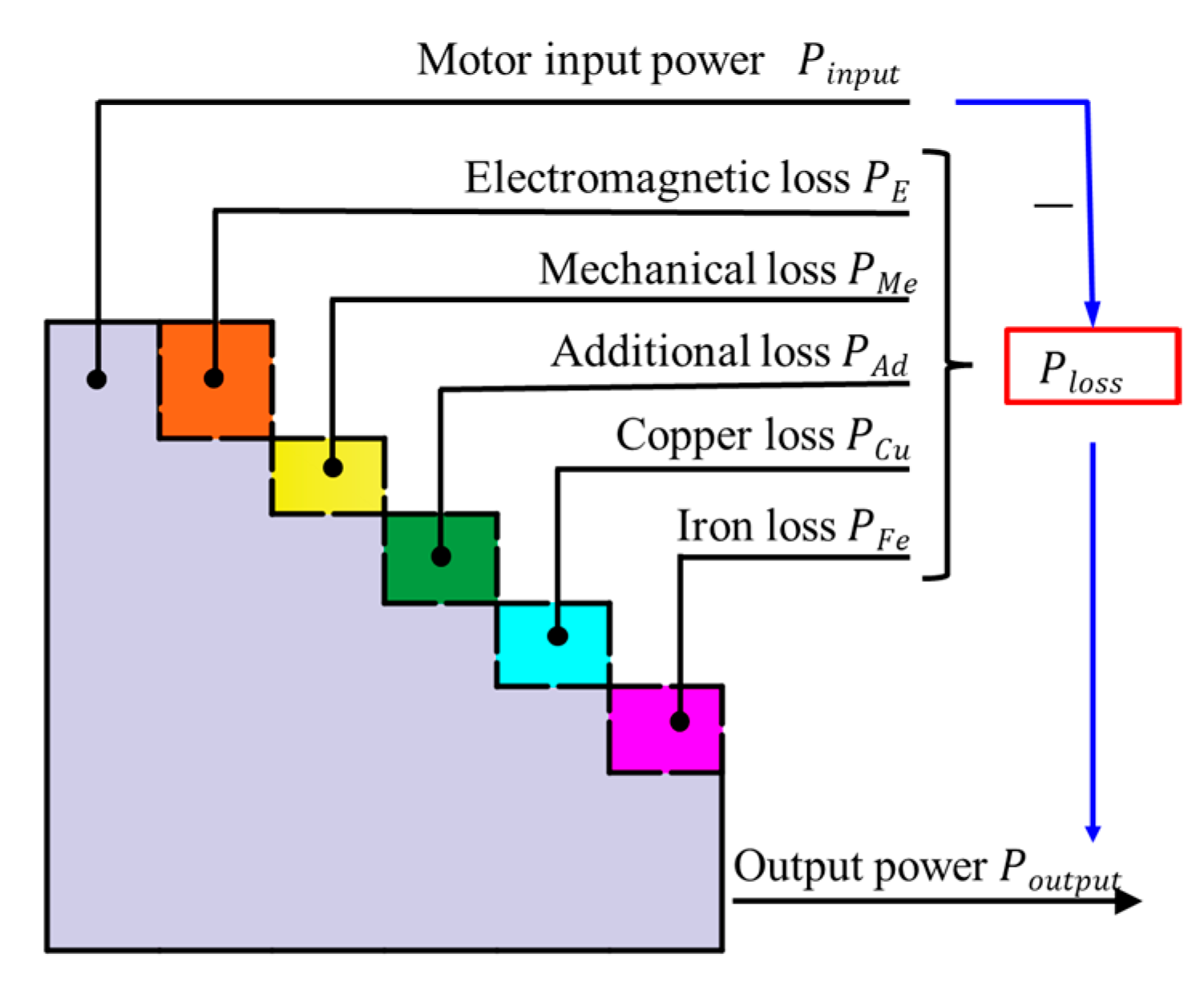

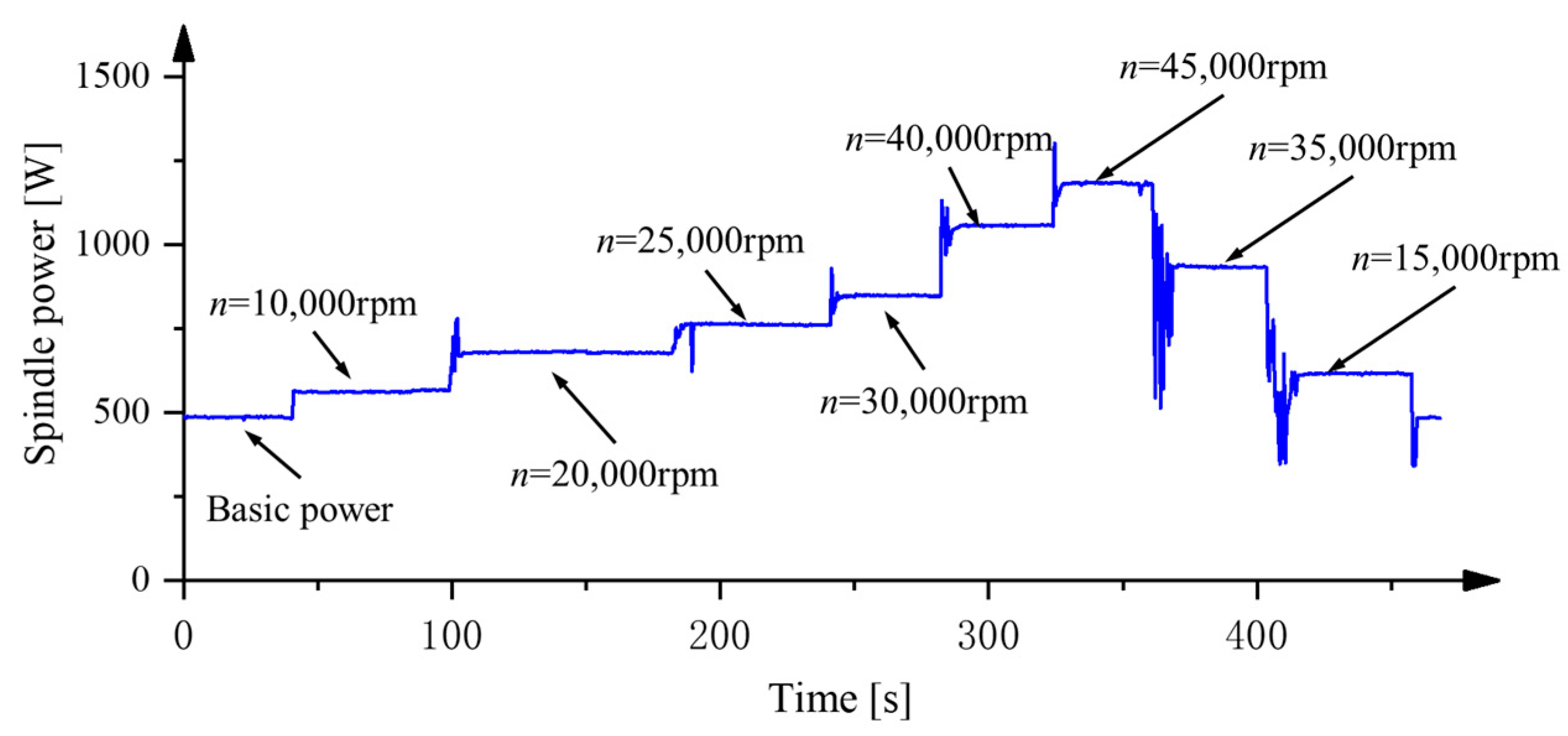

2.1.1. Power Consumption Modeling in Feed and Spindle Subsystems
2.1.2. Material Removal Power Modeling

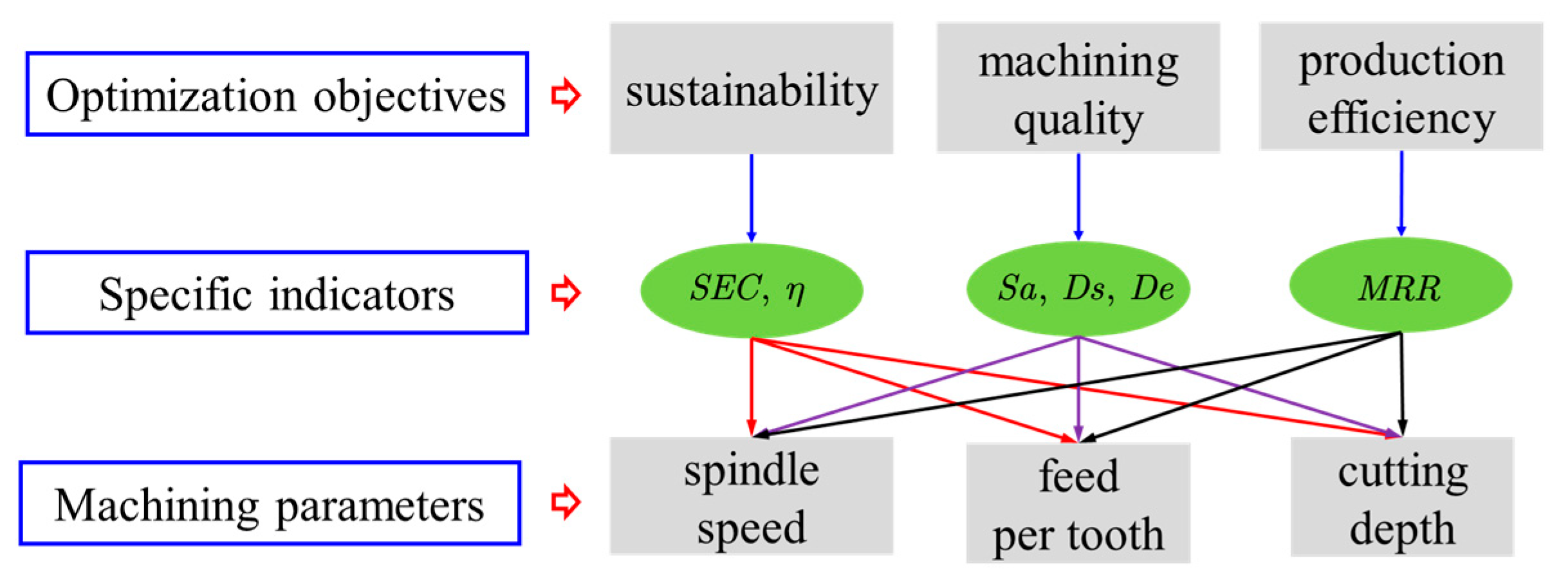

2.2. Description of the Multi-Objective Optimization Problem

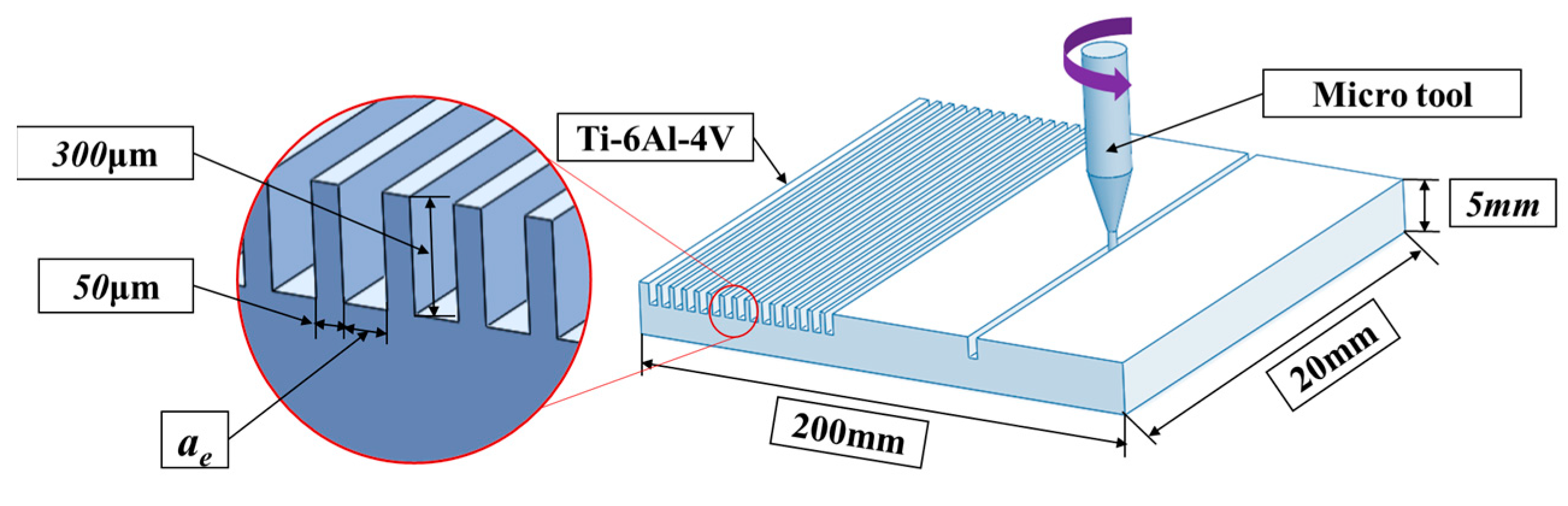

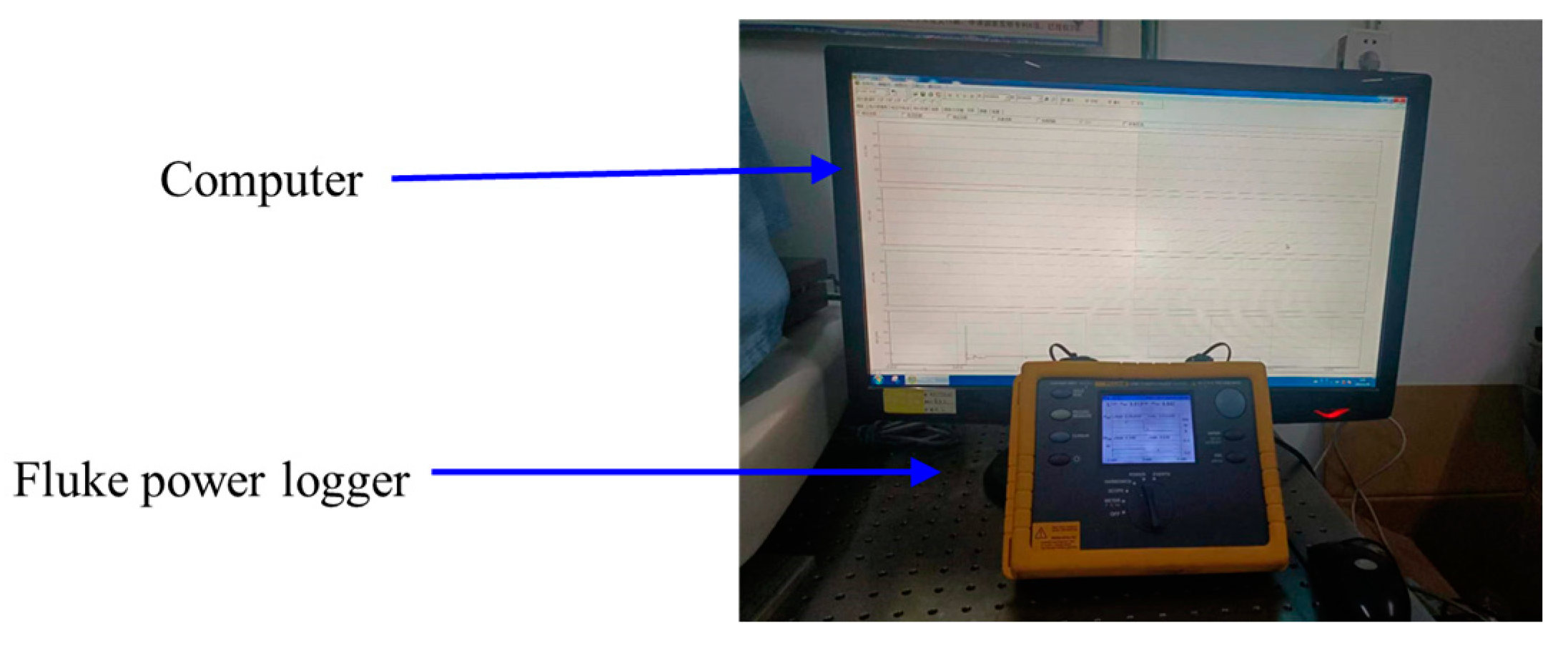

2.3. Experimental Design

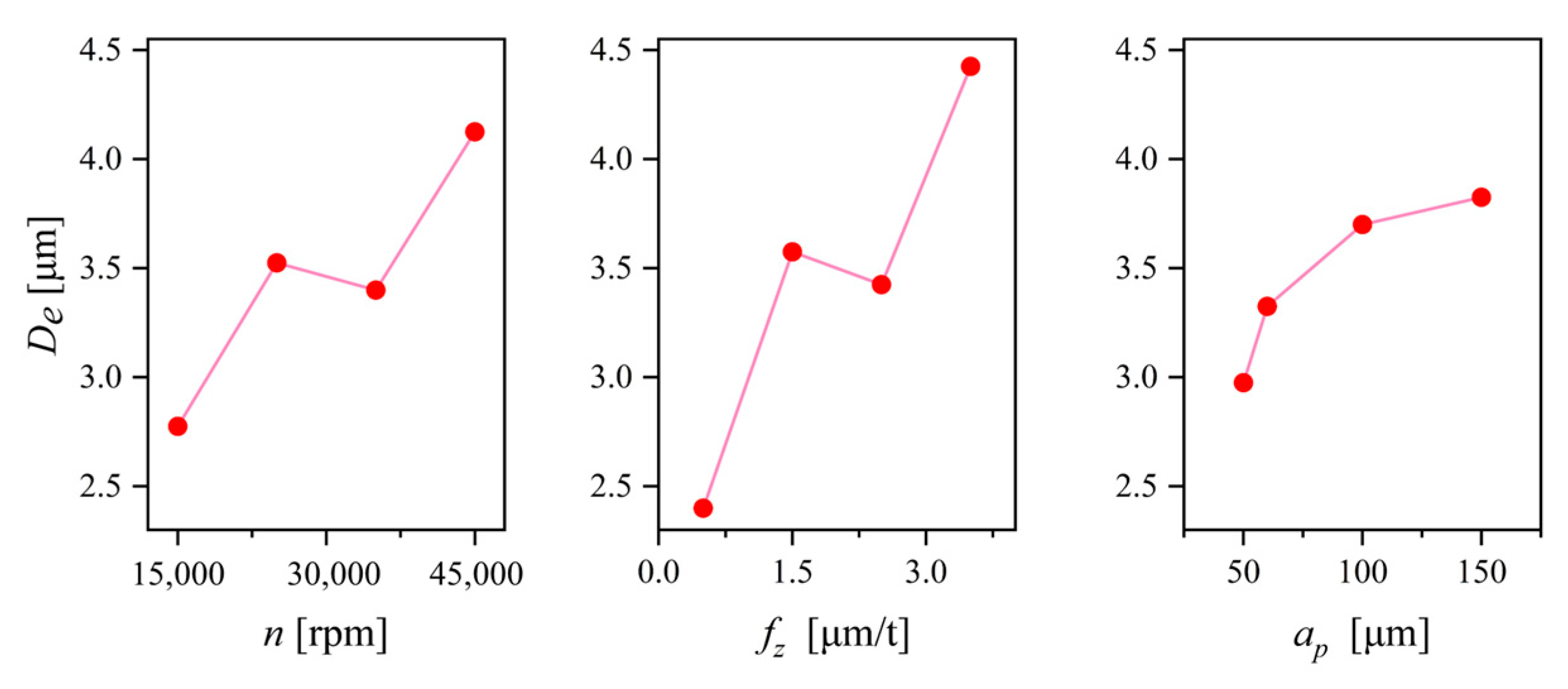

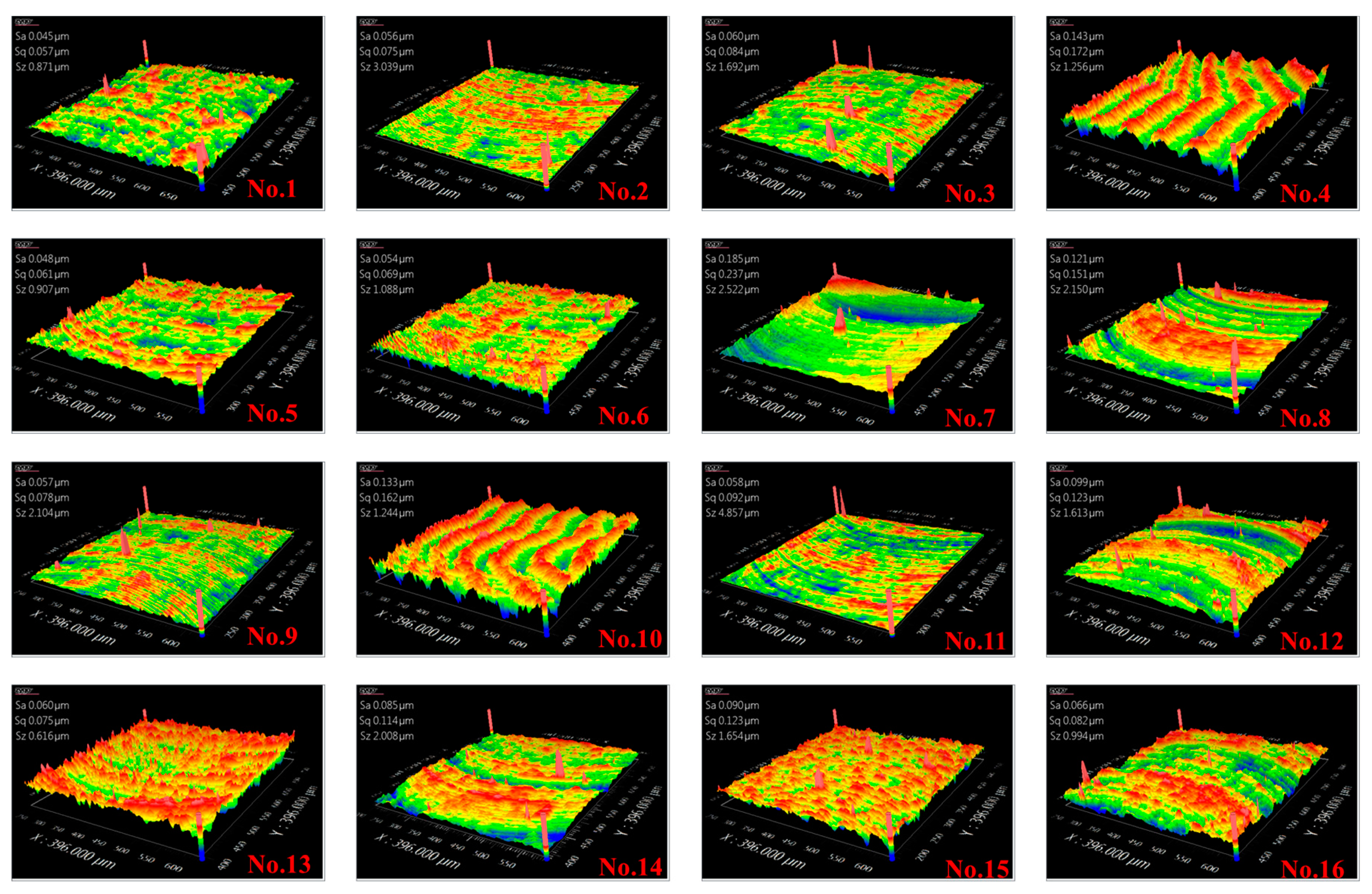

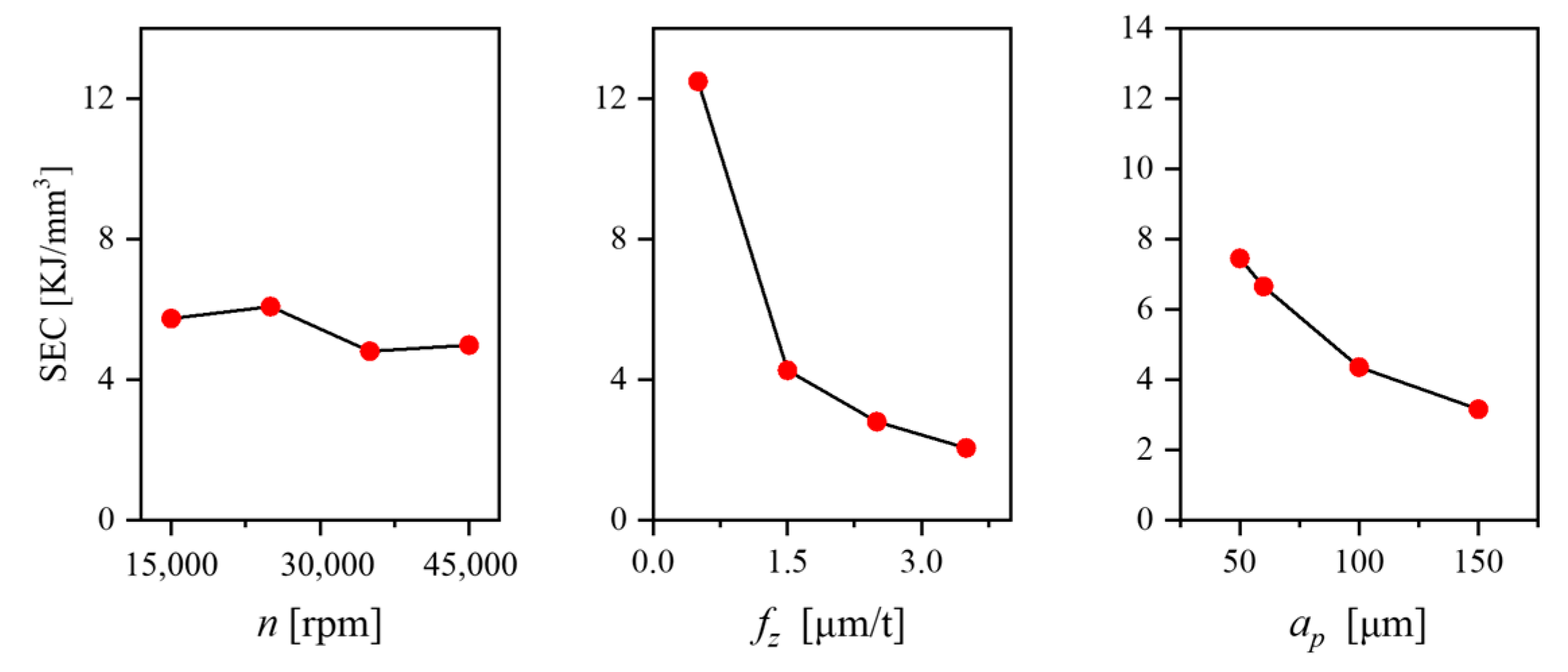

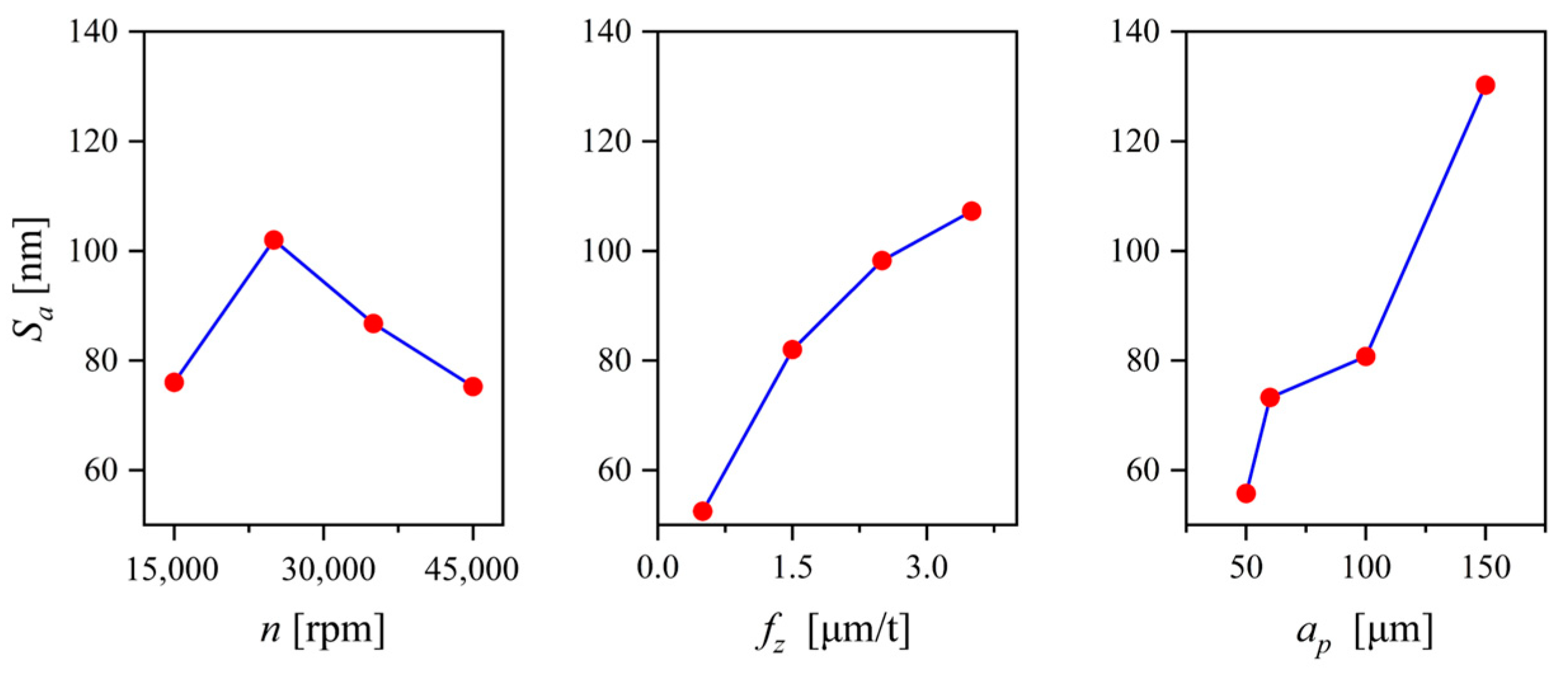

3. Results and Discussions
4. Conclusions
- (1)

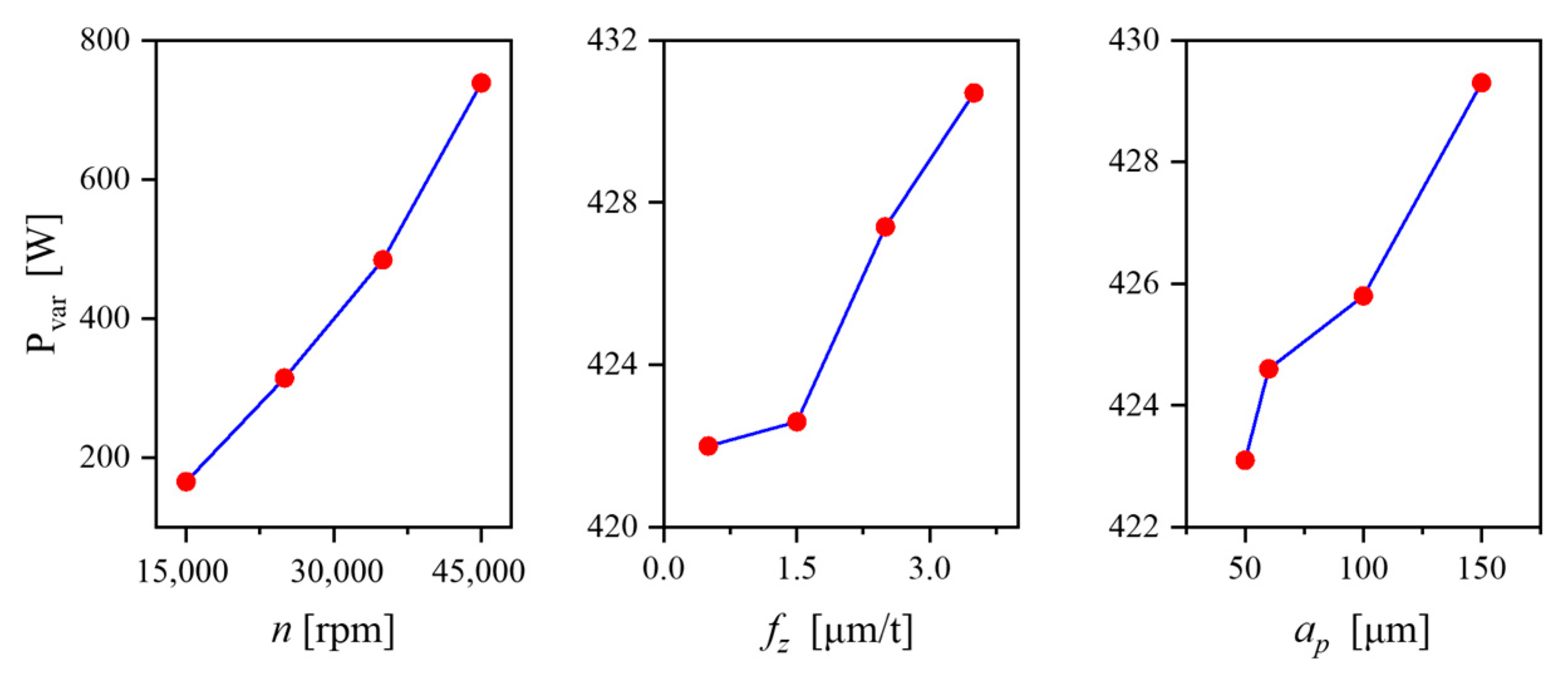

- The power consumption characteristics of the micro-milling process were analyzed, and a process-parameter-based power consumption model was established. The analysis revealed that the power consumption of non-machining feed motion exhibits a quadratic relationship with the feed rate, while the non-machining spindle power consumption shows a quadratic relationship with the spindle speed. The spindle speed exerts the greatest influence on the variable power consumption.
- (2)

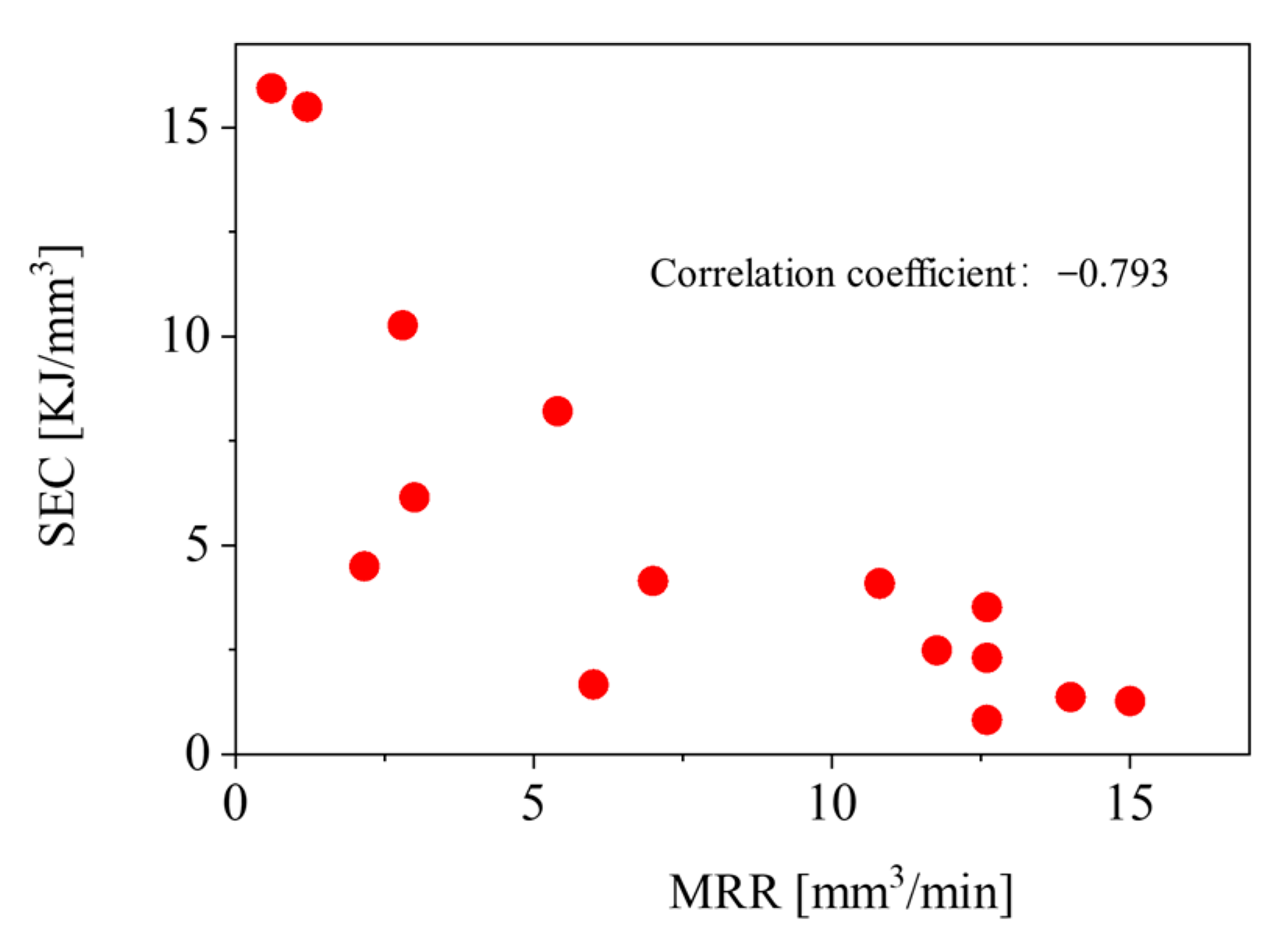

- The coefficient between SCE and MRR was −0.793, which indicates that enhancing machining efficiency can simultaneously improve machining sustainability.
- (3)

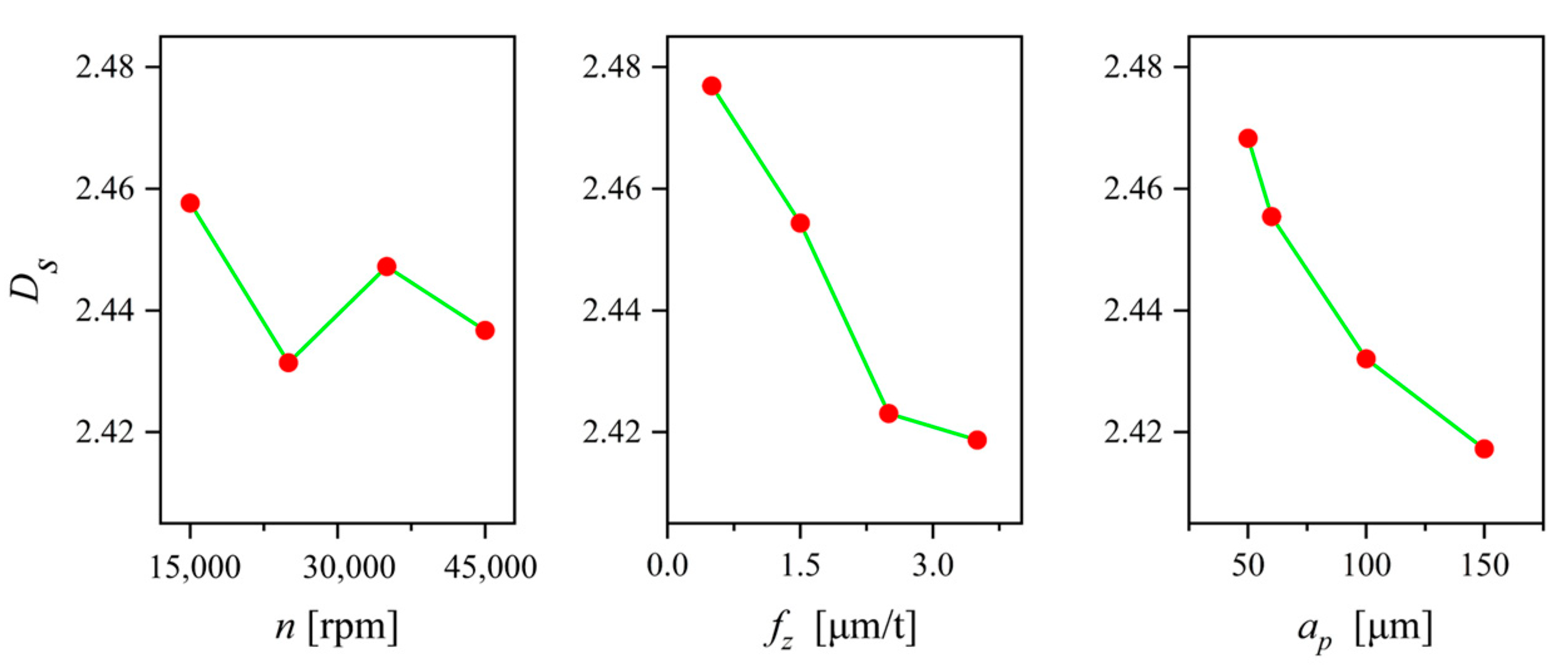

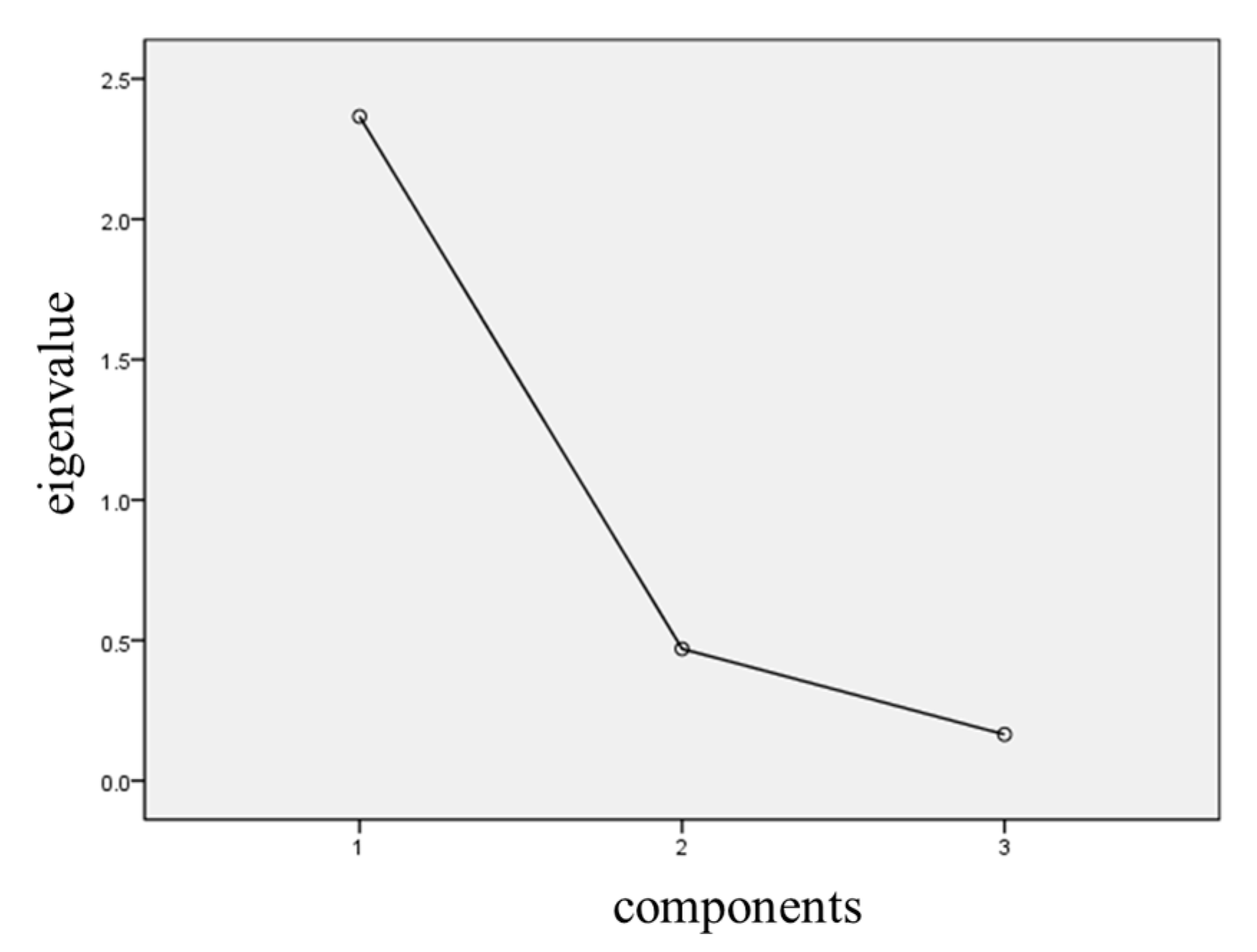

- Among the three indicators characterizing machining quality, surface roughness and surface fractal dimension exhibited a significant negative correlation (with a correlation coefficient of −0.832). However, their correlations with dimensional error were relatively small, being 0.57 and −0.628, respectively. After performing PCA, the variance extraction percentages for Sa, Ds, and De all exceeded 50%, indicating a good level of information condensation.
- (4)

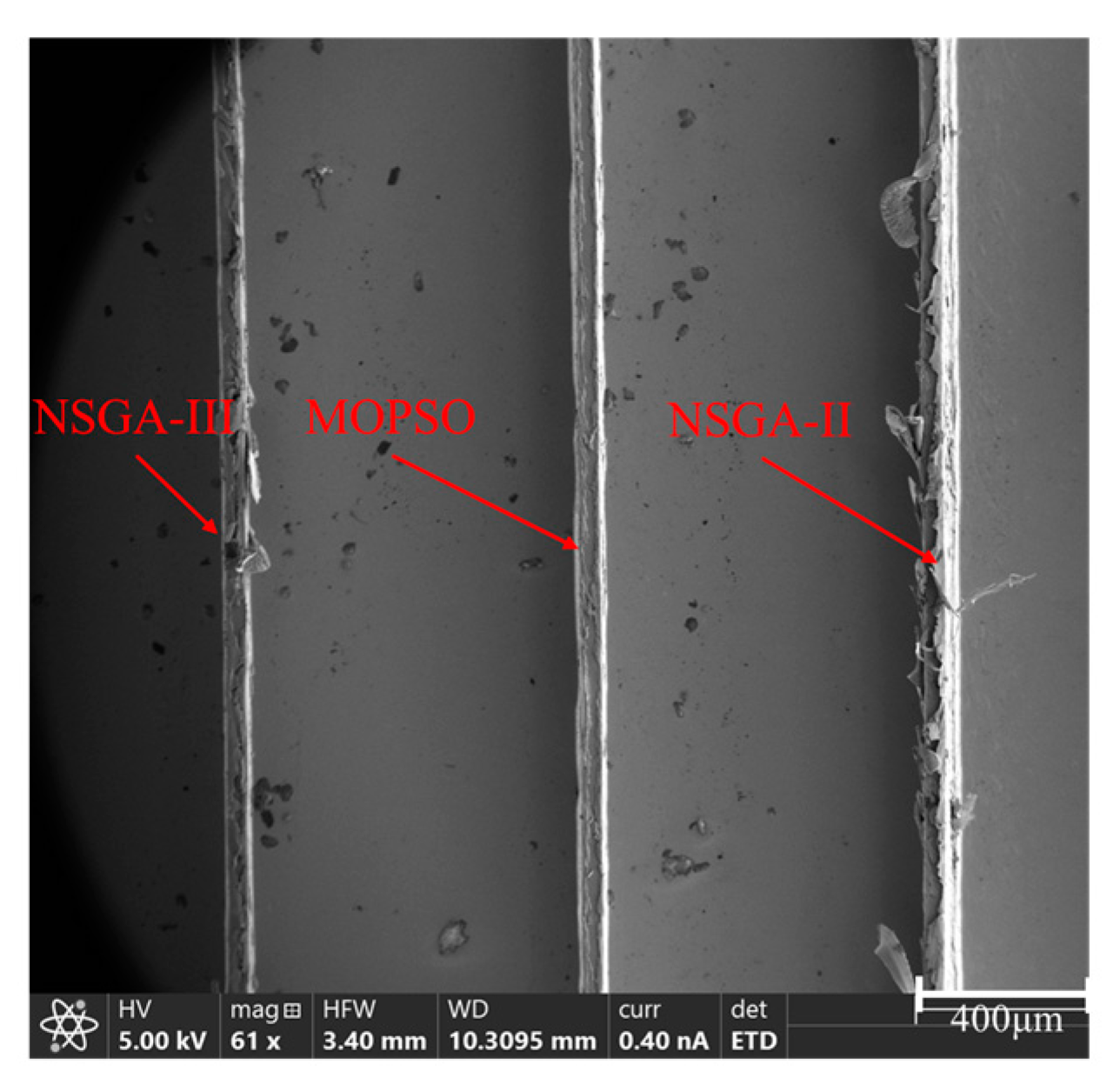

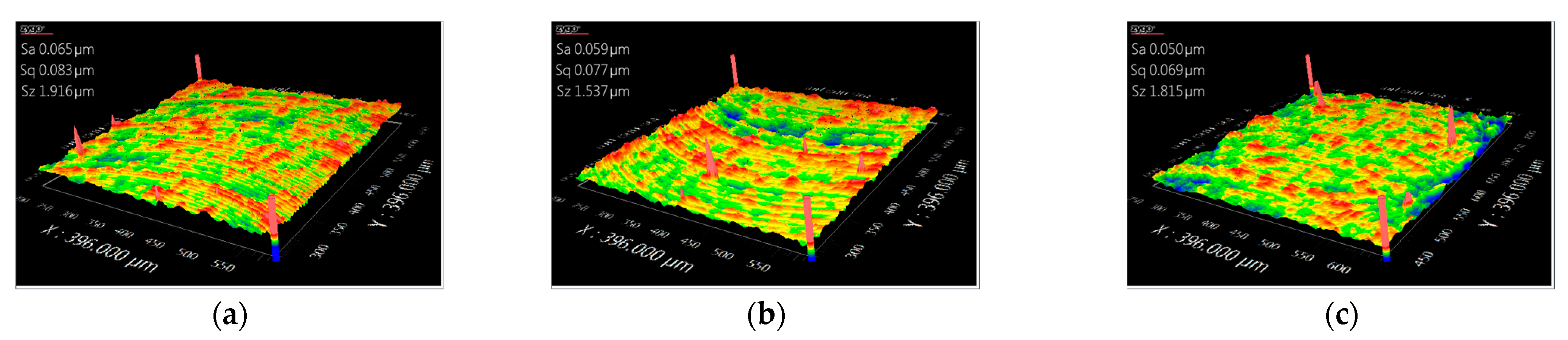

- The optimization results of the process parameters demonstrate that the NSGA-III-based optimization method yields a better trade-off between machinability and sustainability, indicating that NSGA-III exhibits superior performance in handling multi-objective optimization problems and can obtain globally optimal parameters. The optimal combination of micro-milling parameters was n = 28,800 rpm, fz = 2.6 μm/t, and ap = 62 μm.
