A Solution Procedure to Improve 3D Solid Finite Element Analysis with an Enrichment Scheme
Abstract
:1. Introduction

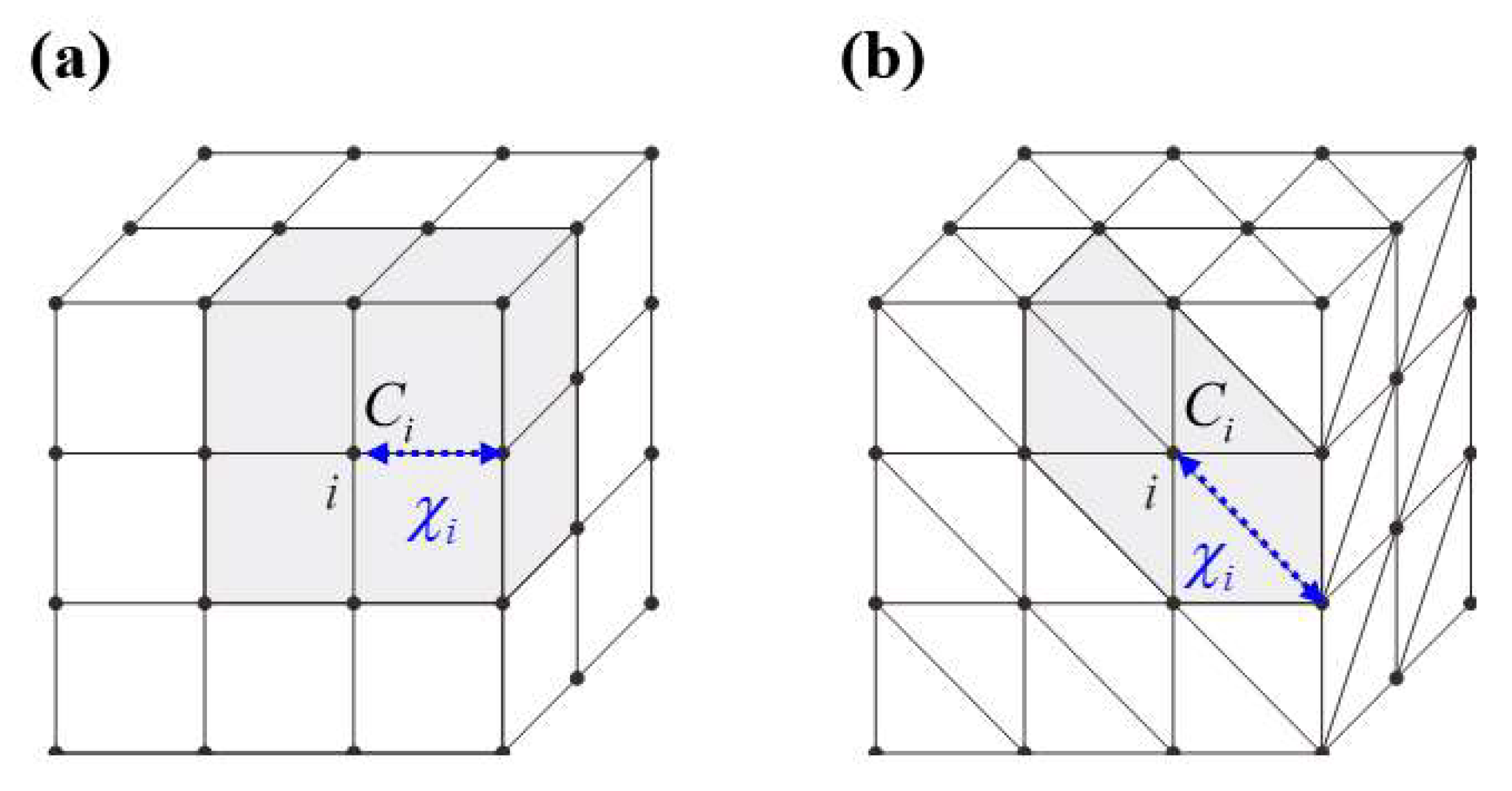

2. Finite Element Formulation Enriched by Cover Functions
3. Improving 3D Solid FE Solutions

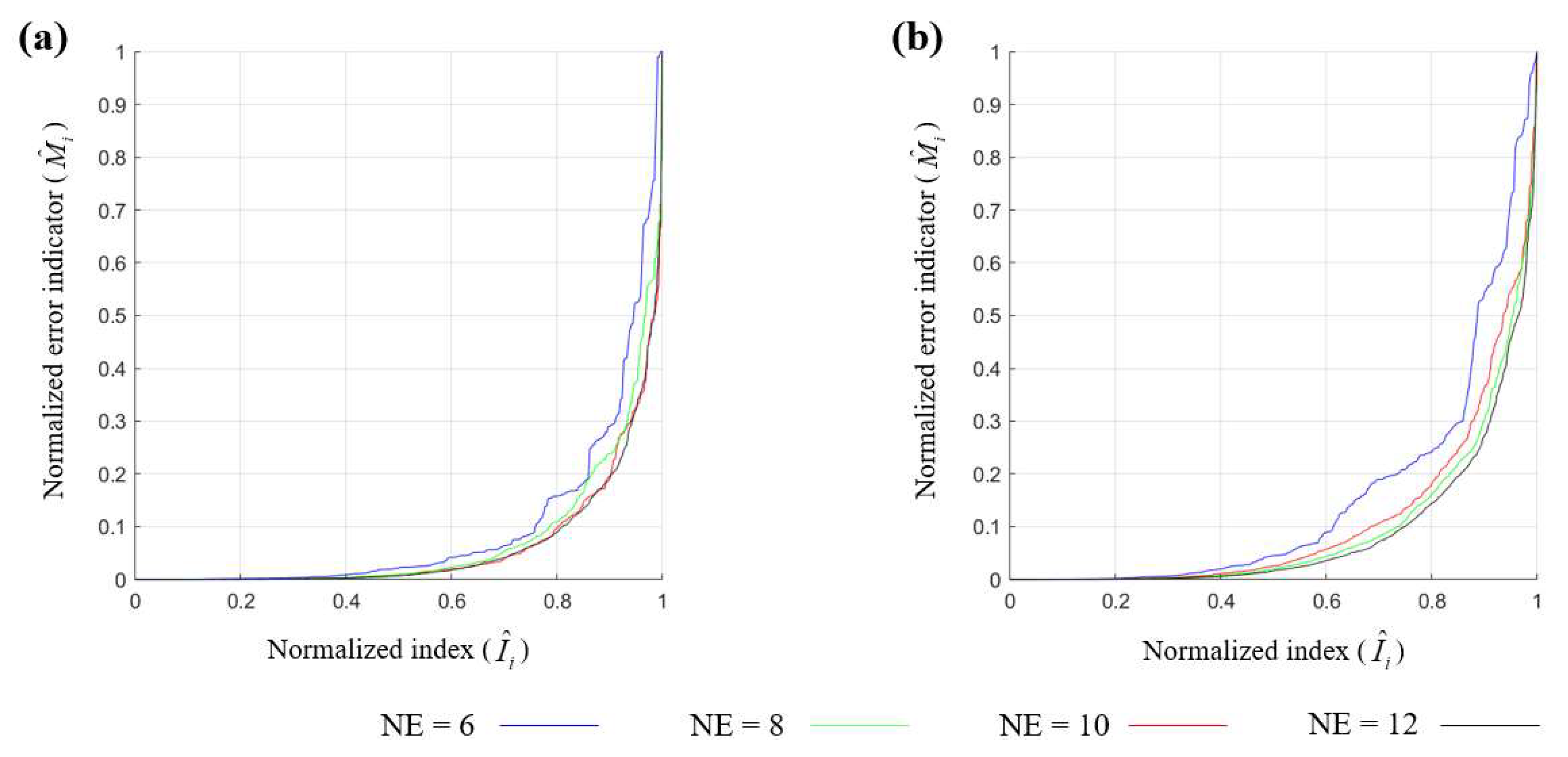

3.1. Error Indicator and Cover Function Selection Scheme

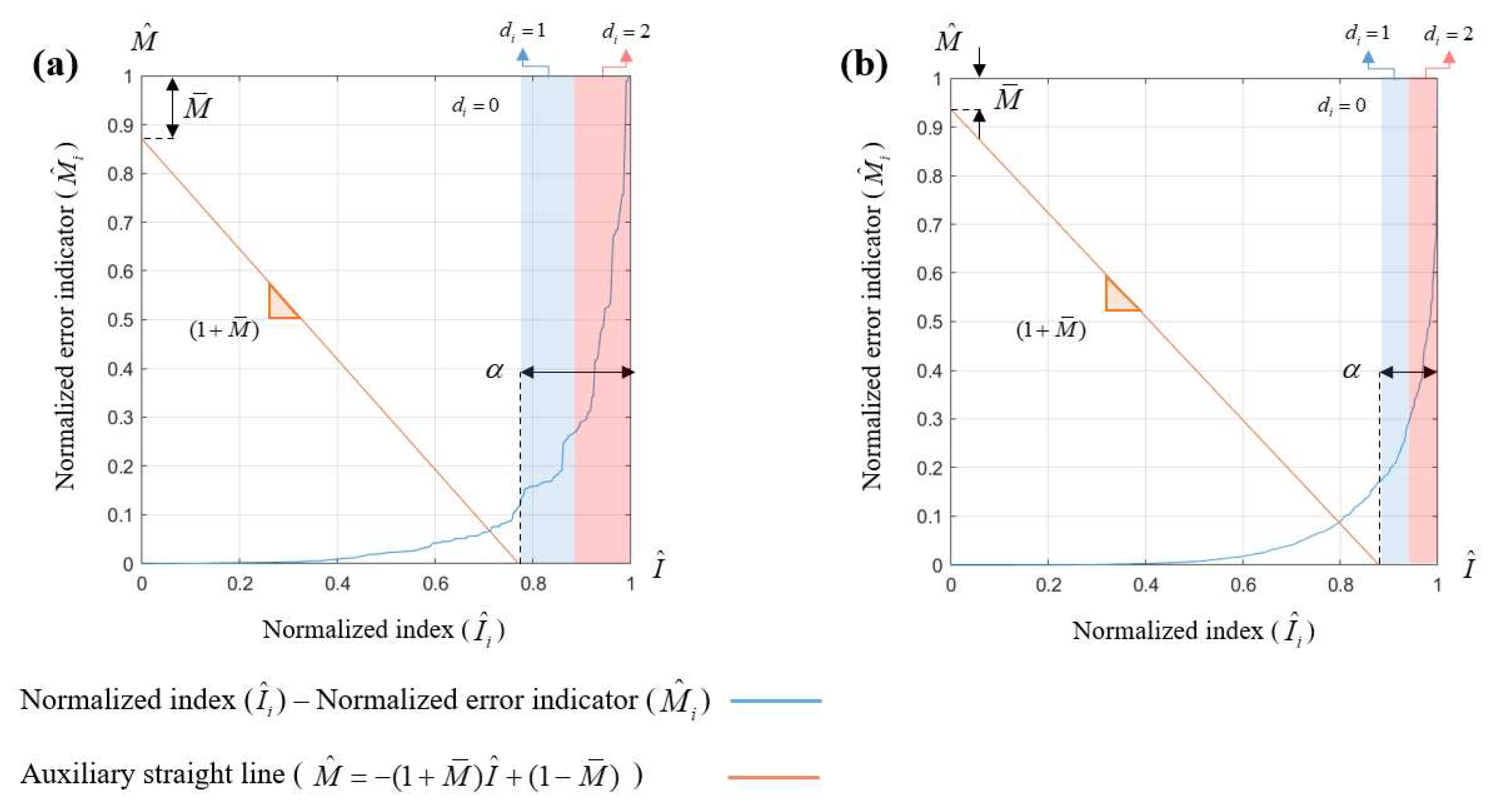

3.2. Cover Function Selection Scheme
4. Numerical Examples
- HEX8: standard 8-node hexahedral element
- PRI6: standard 6-node prismatic element
- PYR5: standard 5-node pyramidal element
- TET4: standard 4-node tetrahedral element

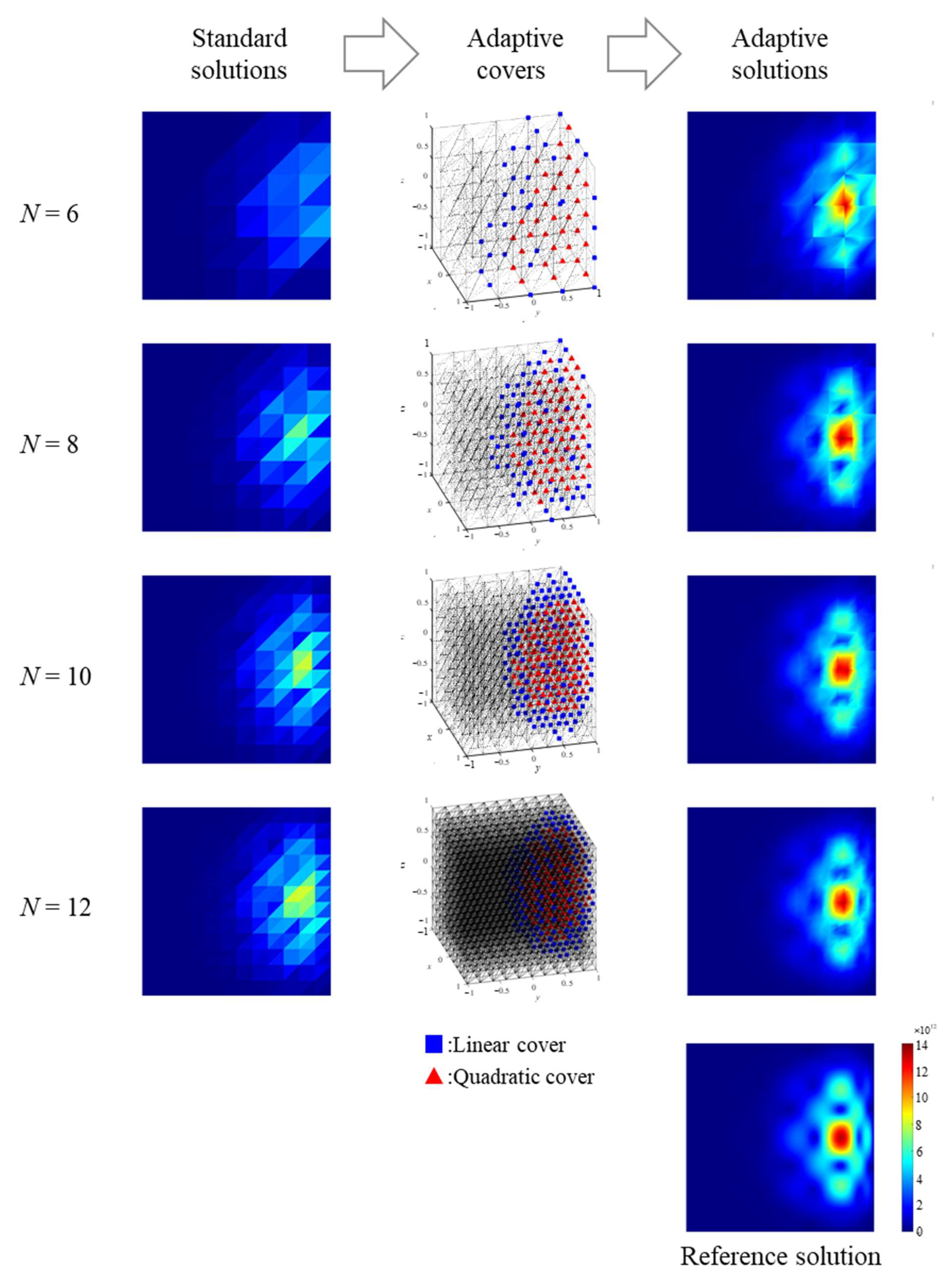

4.1. Ad Hoc Problem

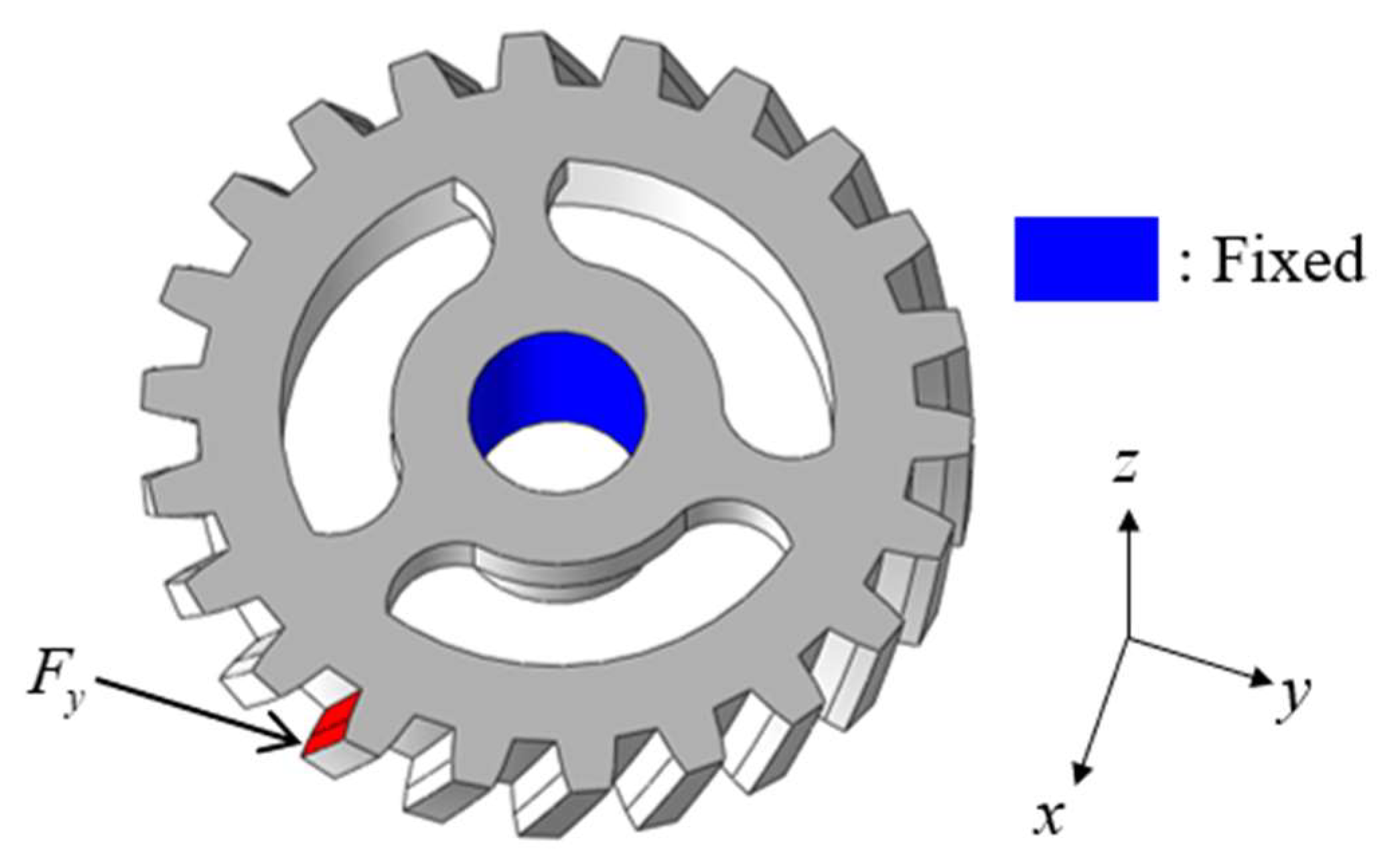

4.2. Gear Problem

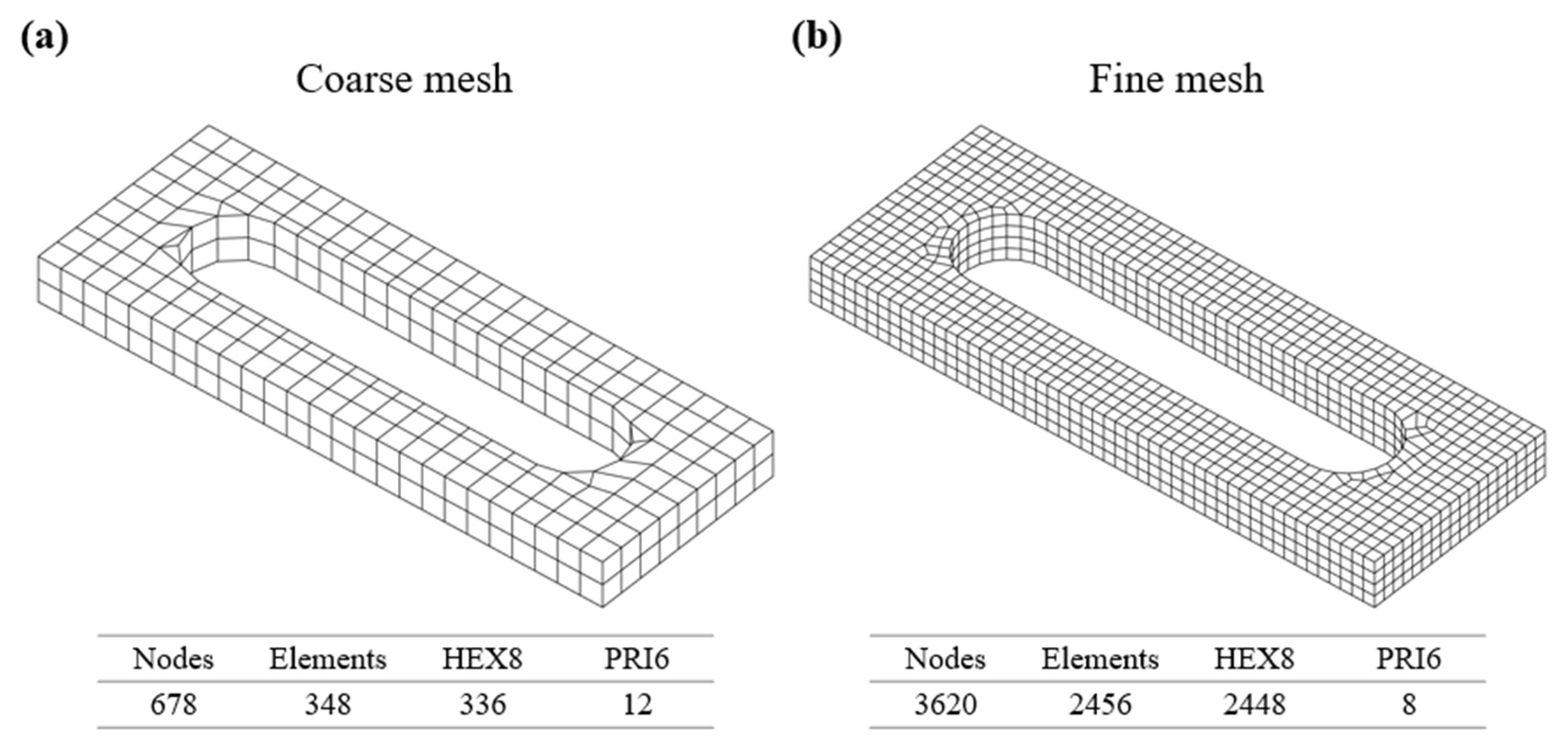

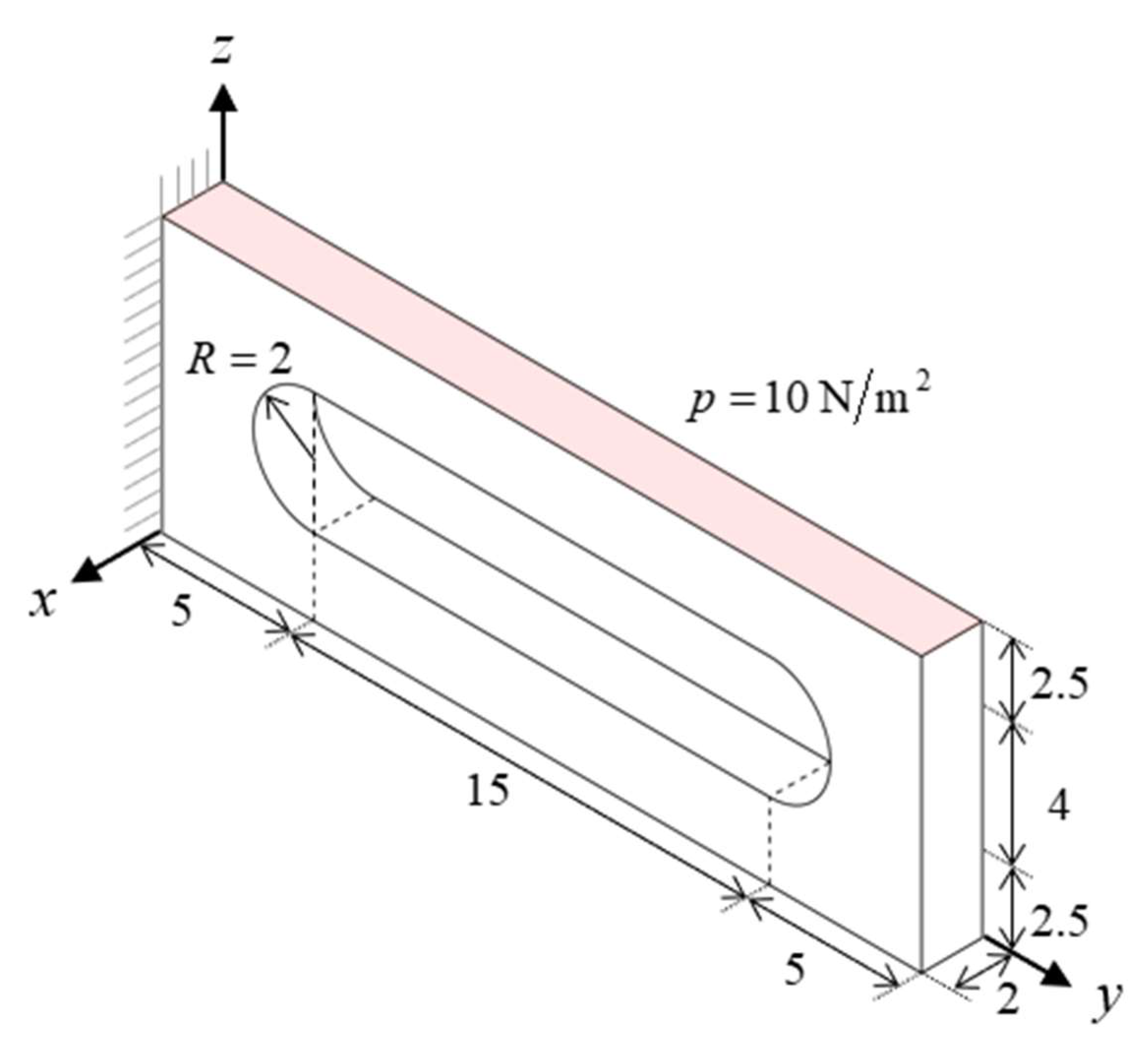

4.3. Tool Jig Problem
4.4. Connecting Rod Problem

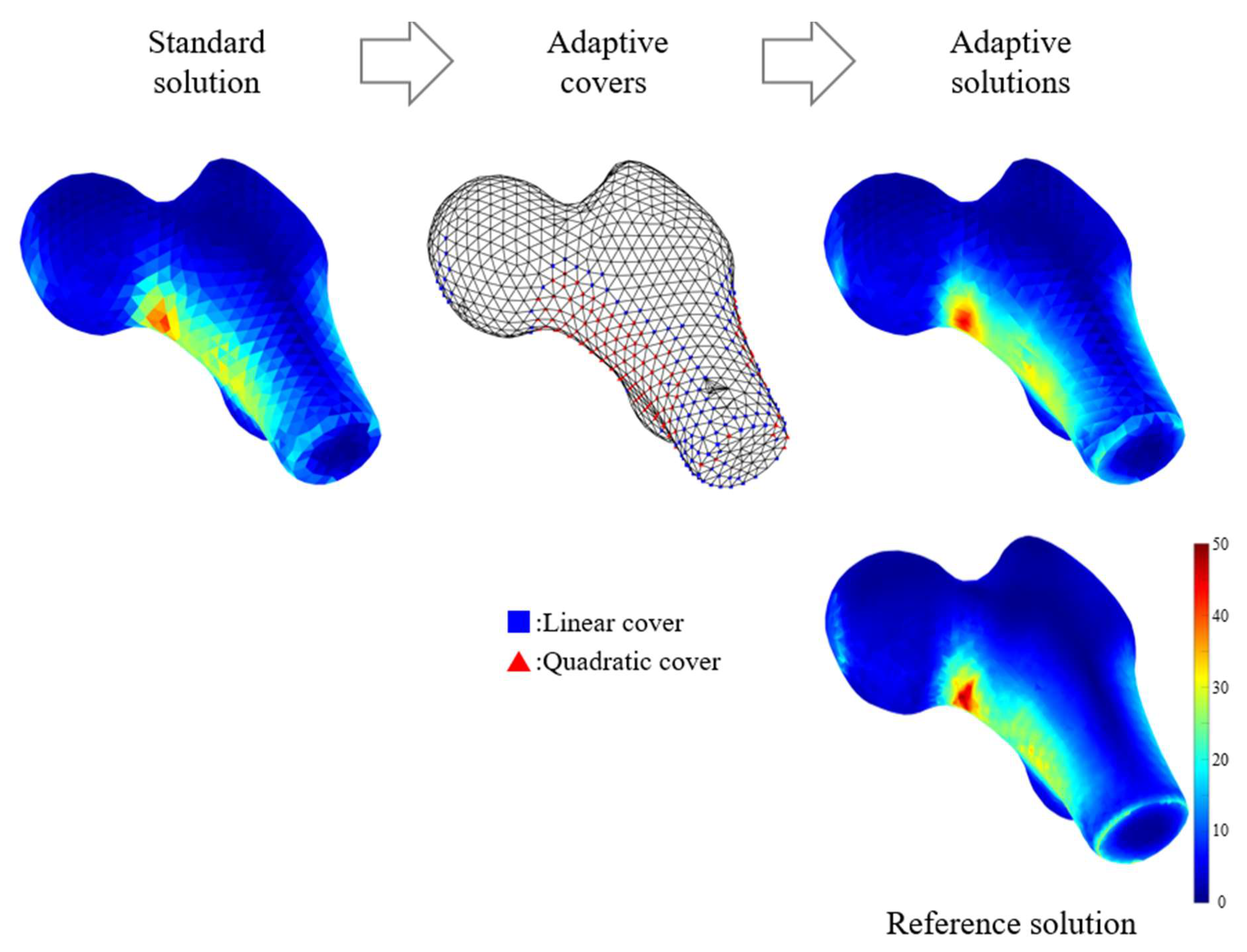

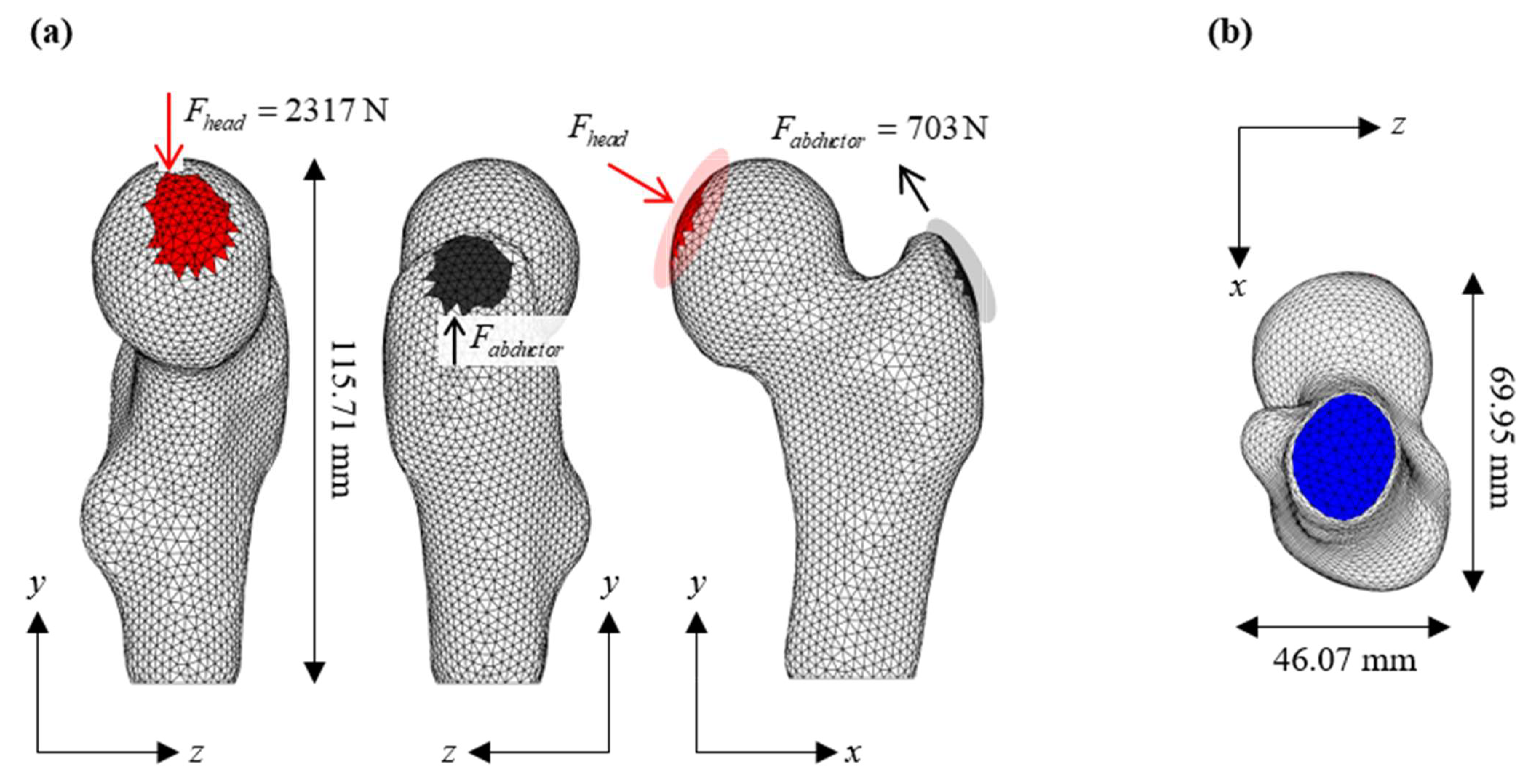

4.5. Proximal Femur Problem
5. Discussion
