Article

Simplified Model Predicts Binder Behavior in Sand Mold Printing

by
Yen-Ting Li
1,*,
Yih-Lin Cheng
1 and
Kea-Tiong Tang
2
1
Department of Mechanical Engineering, National Taiwan University of Science and Technology, Taipei 106335, Taiwan
2
Department of Electrical Engineering, National Tsing Hua University, Hsinchu 300044, Taiwan
*
Author to whom correspondence should be addressed.
Appl. Sci. 2023, 13(12), 6985; https://doi.org/10.3390/app13126985
Submission received: 19 May 2023 / Revised: 7 June 2023 / Accepted: 8 June 2023 / Published: 9 June 2023
(This article belongs to the Section Additive Manufacturing Technologies)
Browse Figures
Versions Notes

Abstract

:
Binder jetting is a crucial process in additive manufacturing (AM) and is widely used in sand mold casting. This study explores the challenges of simulating binder droplets in ANSYS Fluent, including complexity and computational time. To overcome these challenges, we propose a geometric approach that models the binder droplet as a circular shape instead of an actual droplet. Additionally, the dynamic mesh feature is employed to transform the initial boundary condition into a wall condition at a specified time interval (Δt). This simplified approach eliminates the need to simulate actual droplets, leading to significant computational resource and time savings. By adopting this geometric approach, we can accurately predict the diffusion and penetration behavior of binder droplets with varying materials and volumes in porous media with different porosities. Through data analysis, it was found that the main variables affecting the diffusion diameter and penetration depth are binder volume and porosity. The successful implementation of this simplified model enables researchers and engineers to expedite the simulation of binder behavior, facilitating process optimization and enhancing the understanding of binder jetting technology in the field of additive manufacturing.

1. Introduction

Binder jetting is one of the essential processes of additive manufacturing (AM), the most widely used technology in sand mold casting [1,2,3,4]. The technology was first demonstrated by E. Sachs et al. in 1990 [5]. Because binder jetting is now used in the production of multiple different materials, such as TEG-DMA [6], ceramics [7], alumina [8], and silica sand [9], it has become a frequent subject of scientific research. One issue with binder jetting is that the flow of the binder in the powder bed affects diffusion diameter (Deff) and penetration depth (Pinf [infiltrate]). Due to gravity and the capillary action of the sand particles, the binder tends to permeate down to the bottom of the sand mold during printing, which affects the dimensional error of the sand mold in the vertical direction [9,10,11,12]. In one study of this phenomenon, H. Miyanaji et al. proposed a mathematical model that used capillary pressure to explore (horizontal) diffusion and (vertical) penetration with Ti-6Al-4V and 420 stainless steel powder. They then created a phase diagram based on the ratios of binder liquid viscosity, air, and capillary number to explain the compact front versus the finger-like pattern of the permeation volume [13,14]. Løvoll et al. explored the influence of viscous force, capillary force, and gravity on vertical penetration. They used Bond and Capillary numbers to predict penetration and confirm the correlation between saturation, binder Pinf, and capillary pressure [15]. The results showed that binder volume is the direct cause of dimensional error in sand molds in both the horizontal and vertical directions and that using a mix of particle sizes has the effect of reducing Deff and Pinf [16].
ANSYS Fluent is a leading computational fluid dynamics (CFD) software that simulates fluid flow and heat transfer in various engineering applications, including automotive, aerospace, energy [17,18,19], chemical [20], and process engineering [21,22]. Many researchers have turned to using Computational Fluid Dynamics (CFD) to simulate the behavior of 3D printing [23,24]. Yiwei Han’s team has investigated the penetration and diffusion behavior of droplets impacting the surface of a powder bed using Finite Element Analysis (FEA) and predicted their mechanisms [25]. Raj R, Krishna S.V.V’s team has explored the shear patterns and viscosity relationship of materials extruded from a 3D printing nozzle using Computational Fluid Dynamics (CFD) [26]. López Martínez J.A’s team has also investigated the penetration and diffusion mechanisms of binder in paper-based 3D printing using ANSYS Fluent [27]. In additive manufacturing, CFD is primarily used in Laser Powder Bed Fusion (L-OBF) and Fused Deposition Modeling (FDM) at present [28,29,30,31]. Both methods heat the binder jetting mold, so temperature variables must be considered in the simulation process. Thus, CFD obtains more accurate simulation results. Sadeghi et al. determined the CFD parameters used in binder jetting and researched the influence of the Reynolds number, the Weber number, porosity, and contact angle on permeation kinetics [32]. M. Nazari proposed the influence of the hydrophilicity or hydrophobicity of a porous surface on permeation using a 2D model, established the hydrophobic parameters for the porous medium, and attempted to predict the permeation mechanism of the binder fluid in the porous medium [33]. Hongxin Deng et al. designed cylinders of different sizes to investigate the effect of different porosities on the permeation mechanism [34]. Xiangyu Gao conducted similar research by distributing cylinders of different sizes. However, his results differed from the previous simulation analysis, which utilized a single layer. Gao’s multi-layer simulation analysis corresponded more closely to actual printing conditions [35]. The difference in materials and amount used affects the final experimental result.
Due to the small size of the binder droplets and the porous material, it is often necessary to cut the mesh very finely for calculation. This situation causes difficulties for researchers using CFD, which requires more core calculations to save time on simulation analysis. Therefore, researchers often simplify the simulation process using a two-dimensional rather than a three-dimensional structure [36]. This geometric simplification of the porous media must be compared with actual printing to ensure the accuracy of the simulation [37,38]. This study investigates the diffusion and penetration of a single binder droplet in porous media.

Simplified Model

The simulation of binder droplets in ANSYS Fluent presents challenges in complexity and computational time. To address these challenges, we propose a geometric approach where the binder droplet is modeled as a circular shape rather than an actual droplet, and the dynamic mesh feature is utilized to transform the initial boundary condition into a wall at a specified time Δt. This method eliminates the need to simulate actual droplets, resulting in significant savings in computational resources and time. By adopting this simplified approach, we can efficiently predict the diffusion and penetration behavior of binder droplets with different materials and volumes in porous media of varying porosities. The successful implementation of this simplified model empowers researchers and engineers to expedite the simulation of binder behavior, thereby facilitating process optimization and advancing the understanding of binder jetting technology in the additive manufacturing field.

2. Materials and Methods

Figure 1 represents a schematic diagram of this study. We used a micropipette to inject different volumes of binder into the powder bed to carry out the penetration experiments and used the simplified model of ANSYS Fluent for simulation analysis. Afterward, the experimental results and analysis results were compared and verified.

2.1. Materials

The materials we used will be introduced in this study. The material properties must be provided for simulation software analysis and are also key elements for judging the permeability mechanism. The binder (as shown in Table 1) used in this study is a furan resin. This resin, with a density of 2.34 g/cm3, can be used at room temperature. We found that the viscosity of the furan resin was 14.55 cp (measured every 30 s at room temperature, using a total of six measurements to obtain the average). The contact angle measuring instrument was used to measure the average surface tension of the five sets of sand powders, with a result of 40.23 mN/m. We tested three different sand materials commonly used in additive manufacturing, namely SiO2, Al2O3, and ZrO2. Furthermore, we repeated the experiment six times to obtain the average density and divided the silica sand into three groups of samples (A-1, A-2, A-3) according to particle size, which were tested with a Bruker Micro CT skyscan 1272 to obtain the average particle size and porosity. Bettersize’s Bettersizer 2600 (wet) was used for particle size analysis to analyze effective particle sizes D10, D50, and D90. Finally, we used an OSA60 produced by NBSI, Ltd. for contact angle measurement (please refer to Table 2 for particle descriptions).

2.2. Solution and Solver in Simulation

ANSYS Fluent is software used for the numerical analysis of fluid mechanics using the Finite Volume Method (FVM) to solve differential equations. We used two-phase VOF modeling to calculate the liquid/gas interface. The diffusion and penetration of the binder in the powder bed needed to be solved with a transient solution. Since the binder volume was tiny, the mesh and initial time also had to be very small (please refer to Table 3 for parameters).

2.2.1. Geometry and Mesh

This study obtained the particle size and porosity of the powders used in the experiment via CT scanning, then set the geometry in the model to 10 mm (w) × 10 mm (l) × 5 mm (h), as shown in Figure 2a for grid processing. Doing so saves analysis and simulation time and prevents the mesh from breaking or failing to simulate the actual situation smoothly. Since the binder volume was between 0.1–2.5 µL, we set grid smoothing to medium, limited minimum size and maximum size to between 5.0−8 and 4.096−4 m, and used the tetrahedron method (most suitable for fluid dynamics simulation) to process the grid, as shown in Figure 2b. The final mesh metrics were below 0.9 (average and stable mesh quality). We then input the parameters needed for the simulation, material properties such as liquid and powder density, viscosity, contact angle, and surface tension, as shown in Table 1 and Table 2.

2.2.2. Setup

This simulation used VOF for two-phase flow (liquid/gas) analysis, set interface modeling to sharp, and selected Implicit Body Force. The material used was a furan resin with a density of 2.34 g/cm3, viscosity of 14.55 cp, and surface tension of 40.23 mN/m, as shown in Table 1. The other phase was set as air. For the parameters of the solid materials, such as Cell Zone Conditions, we set porosity (shown in Table 2). Inlet velocity was 1 m/s and treated as a liquid-gas mixture. Except for the bottom wall, which was set to Stationary Wall and No Slip Shear Condition, the interfaces were all set to allow fluid to flow in and out (as shown in Figure 2c) because the binder penetrates to the bottom and diffuses in other directions after entering the powder bed. The sand surfaces allow liquids and gases to pass through. To convert the binder volume shown in Figure 1a, we checked the Dynamic Mesh option in the software interface section to generate an event. At Δt 1.0−4 s, we reset the boundary conditions to Wall to control the binder volume flowing into the powder bed to equal a single spherical droplet (as in Figure 1b).
The binder drops deposited from the micropipette in Figure 1a can be regarded as spheres driven by the waveform and voltage of the piezoelectric nozzle [39]. We converted their volumes into cylinders with different radii, as shown in Figure 1b. The binder volume radii are shown in Table 4. The radius can be used to obtain the corresponding height of the cylinder under the condition of a fixed flow rate.

2.2.3. Solution Method

Finally, since the porous medium is composed of particles of different sizes and shapes, the differences in the particles caused the mesh to have a larger inclination angle, so we selected the Pressure-Implicit with Splitting of Operators (PISO) algorithm to obtain the solution. This is a velocity-pressure algorithm based on the extension of SIMPLE because it does not return to the initial momentum equation after each calculation of the velocity field but rather directly updates the internal operation matrix. The pressure field obtained at each step is more accurate and converges faster, so the overall calculation process is decreased, and the operating speed is faster. This method is suitable for calculating transient incompressible fluids. For the Gradient setting, we selected green-gauss node-based. As the name suggests, this method is based on Node-Based calculations. This algorithm consumes more computer resources but can obtain higher accuracy. It is suitable for small volumes and uses Calculation of Fluid Mechanics with Triangular Mesh.
We selected PRESTO! for pressure, which is more suitable for the significant pressure changes found in VOF modeling in porous media, and is also the default option in ANSYS Fluent. For the momentum equation, we chose Second Order Upwind, appropriate for use with smaller triangular meshes. Finally, we ran 2000 Number of Time Steps with a time step size of 1.0−12 s to obtain the solution (Table 3).
In this study, SiO2 (A-1, A-2, A-3), Al2O3, and ZrO2 sand powders, as shown in Figure 2d, commonly used in 3D printing, were used to simulate and analyze binder volumes of 0.1, 0.5, 1.0, 1.5, 2.0, and 2.5 µL. The silica sand was divided into three different particle sizes. Five sets of simulations and experimental comparisons were carried out.

2.3. Experiment

As shown in Figure 1a, for the binder printing we placed the carrier on the dropper holder and pushed the microdroplet through the air pressure device so that the binder droplet was ejected at the same speed as the simulated speed (1 m/s). The distance from the dropper to the sand surface was 6 mm. However, in the experiments in this study, the distance from the sand surface had little effect on the Deff. Then we used the Dino-Lite Premier AM4113T5X microscope with Media Cybernetics Image-Pro 10 software to observe and obtain the average Deff of the six groups of samples through image analysis. Since penetration depth Pinf cannot be observed with the microscope and image processing, we did CT scans of the six groups of samples with a Bruker Micro CT skyscan 1272 and calculated the Pinf of the six groups of samples. To do so, we put the powder into a container and made a preliminary scan. Afterward, we dropped the binder into the powder bed (the powder in the container) and waited for 30 min, then performed a second scan and compared the relative positions of the powders between the two to calculate the penetration depth.

3. Results

Given the large number of samples and experimental items, it was not feasible to provide all of them. Thus, we presented the selected simulation and experimental results in Figure 3 and Figure 4. In Figure 3, we used the conversion method to drop binder volumes of 0.1–2.5 µL into porosities of 7.6, 16.6, and 36.6%, which cover the various powder parameters used. In Figure 4, we dropped a binder volume of 1.0 μL into porosities of 7.6, 16.6, 36.3, and 40.7%. Using CT scans, we obtained the penetration depth and diffusion diameter and obtained several insightful results depicted in Figure 4. Ultimately, all the simulation and experimental data were organized into graphs for clear representation in Figure 5.

3.1. Diffusion Comparison in the Simulation and Experiment

At first, the simulation results were very close to the experimental results regarding Deff. The most significant difference was that the geometry of the actual printing results was messier, as in Figure 3a,b, rather than a perfect circle. The simulation resulted in an entirely perfect circle, as in (Figure 3a). This result is typical because the simulation does not simulate every particle but uses the overall porosity method. In actual conditions, the particle size of the powder is not fixed, which leads to differences in the flow of the binder between the particles, which in turn affects the geometry of the Deff. This becomes more significant when there is greater porosity or larger particle size. If the particle size and porosity are small, the Deff correlates closely with the simulation result and presents a perfect circle, as in Figure 3b. When particle size and porosity decrease, Deff is closer to a circle.
In our simulation analysis, we used the porous media setting in ANSYS Fluent to define the porosity. This allows us to add resistance in the geometry to simulate the pressure drop experienced by the fluid in a porous medium. This idealized scenario provides a convenient and easily understandable simulation result. However, in the experimental process, the powder bed consists of numerous randomly distributed particles, resulting in varying porosity within each unit volume. Additionally, the particle sizes are not completely uniform, adding to the unknown factors in the powder bed (such as the adsorption capacity of the binder by the powder). Moreover, during binder falling, the velocity may not be strictly vertical due to operator manipulation or external influences. This can introduce inertial effects and lead to different diffusion geometries once the binder enters the powder bed.
Figure 3b indicates that the geometric shape becomes more perfect as the binder volume decreases. Image analysis software was utilized to analyze the diffusion diameter in the experiment, which is shown in the partially enlarged view in Figure 3b. Figure 5b compares the Deff data in the simulation analysis and experiment. When the porosity is low, for example, 7.6–16.6%, the measured Deff is relatively consistent. However, once porosity reaches 36.3%, the sample points gradually disperse; when porosity reaches 38.2 and 40.7%, the sample points tend to be slightly concentrated. As shown in Figure 5b, Deff gradually increases as the binder volume increases, and the result presented is a quadratic curve. There is no significant difference in the diffusion diameter obtained after the binder volume reaches 2.0 and 2.5 µL with a porosity of 36.3%. The above phenomenon is attributed to the excellent absorption of binder by dry sand. When the porosity is low, the dry sand has a higher surface area ratio and has the largest absorption capacity for binders. Therefore, the rate of increase is relatively high at 16.6%. However, at 7.6%, despite having better absorption force, the limited space between particles to accommodate the binder affects the absorption speed of the binder. Conversely, porosity greater than 36.3% has a high binder capacity but poor absorption. The diffusion of the binder is affected by the inertial effect caused by the velocity at the initial absorption. This phenomenon also occurs in the infiltration phenomenon, but the gravity and the inertial effect of the binder ejection affect the infiltration phenomenon.
Furthermore, our lab determines the penetration depth and diffusion diameter by comparing CT scans taken before and after binder deposition. By analyzing the positional changes in the powder bed caused by the displacement resulting from binder infiltration, we can determine the achieved penetration depth and diffusion diameter. The accuracy of this method depends on the CT scan resolution and filtering mechanisms we employed. If the positional change in a particle between pre- and post-deposition scans exceeds 30% of its diameter, we consider it as having experienced displacement (to save processing time and filter out errors caused by the CT scan process). This approach is effective for both small and large particles in assessing penetration depth and diffusion diameter. Therefore, it is possible to have particles that have come into contact with the binder but have not experienced any displacement. We believe that if the binder only adheres to the powder without significant bonding strength between the particles, it may not withstand the impacts and loads during the casting process. Hence, we applied empirical formulas such as the Washburn equation and soil water retention curve to exclude non-conforming areas. Based on our lab’s experience, we determined that the effective area accounts for approximately 75% of the overall area. The data distribution presented in Figure 5 is the result after being adjusted.

3.2. Penetration Comparison in the Simulation and Experiment

We found that the penetration depth increased with decreasing porosity, as shown in the curves in Figure 3c and Figure 4. In addition, the diffusion diameter also increased with increasing porosity, as observed in Figure 5b. More specifically, when porosity was low, the diffusion diameter values were relatively consistent; when porosity increased beyond 36.3%, the diffusion diameter values gradually became more dispersed. Moreover, we observed that the relationship between the diffusion diameter and binder volume followed a quadratic curve, as depicted in Figure 5b. Overall, these findings suggest that binder volume and porosity play critical roles in determining penetration depth and diffusion diameter, which can help enhance our understanding of the infiltration phenomenon.
We determined the penetration of the binder in the powder bed using CT scans and compared the results with the simulation results. It can be seen that Pinf is related to porosity and particle size. As the binder volume increases, Pinf becomes more significant. However, if the porosity is too great, the binder will continue to infiltrate downward until resistance with the particle surfaces balances the force of penetration. Conversely, if the particle size range and porosity are small, the binder is more likely to be retained between the particles [40,41,42], decreasing the Pinf of the binder. When the porosity exceeds a certain value, the permeation shape gradually becomes cylindrical, which is most obvious when porosity exceeds 36.3%, according to the simulation results in this paper. Figure 4 shows that the affected particles were displaced after being combined with the binder. Moreover, it presents a somewhat spherical penetration range.
Moreover, at a porosity of 40.7%, the cross-sectional geometry is not clearly visible due to the difficulty in capturing displacement changes between particles under CT scans at higher porosities. As a result, the difference is not easily discernible from a side view. However, as depicted in Figure 4b,f, at lower porosities, the side view shows that the permeation geometry is between semicircular and cylindrical. The larger the porosity, the less resistance the particles exhibit to the binder. Gravity and inertia also have a more significant influence on the binder, resulting in a deeper penetration depth and vice versa. This trend aligns with the simulation result presented in Figure 3c and can be confirmed by the Washburn equation [43]. Ultimately, we present the penetration depth data results in Figure 5.

4. Discussion

Figure 5 shows all samples and analysis results in a statistical chart of Pinf and Deff data for six different binder volumes in order of increasing porosity. The red line segments and sample points represent the simulation results, and the black line segments and sample points represent the experimental results. When porosity is low, the Pinf presents a quadratic curve distribution and generally ranges between 500–1500 µm. However, as porosity increases, the overall diffusion depth increases significantly, and the trend line tends to close to a straight line. The result is that the binder cannot be retained between the particles. It infiltrates downwards, driven by inertia and gravity [37,38]. If porosity is low, the surface force between the particles increases, which increases the resistance of the particles to infiltration, resulting in a decrease in Pinf (but with little effect on Deff), thereby increasing the precision of the mold after molding. The results obtained by the simplified model proposed in this experiment are the same as the quadratic curve trend resulting from the experiments. If binder volume and porosity are used as the main variables, the Pinf and Deff results are almost identical at lower porosities. However, when the porosity exceeds 35%, the Pinf prediction results of the simplified model produce significant errors. The reason for this is that there are still many uncertainties in permeability processes under conditions of high porosity [40]. As binder jetting technology improves, studies and equipment are moving toward smaller particle sizes, which means that low porosity is becoming a trend in high-precision, high-strength binder jetting. Therefore, the simplified model proposed in this study still has a high reference value.
Regarding penetration depth, the curves of 2.0 and 2.5 µL demonstrate a gentle slope because of the extremely high initial absorption force in the dry sand state, which results in rapid penetration. However, as the dry sand is transformed into wet sand, the contact angle differs in the dry and wet states, as depicted in Table 5. Consequently, the capillary force and surface tension are influenced, leading to a slower penetration rate, and the binder and hardening agent begin to react, increasing the binder’s viscosity. As a result, the penetration depths at 2.0 and 2.5 µL did not differ significantly. By observing the samples under the microscope, we found that while the penetration depth was not significantly different, more binder remained between the powders at 2.5 µL than at 2.0 µL [38]. The penetration rate of the binder in dry and wet sand is influenced by the contact angle. A larger contact angle results in stronger adhesion and faster binder penetration into the powder. Conversely, a smaller contact angle leads to slower penetration. Therefore, we can understand that when the sand is in a dry state, at the moment we introduce the binder, the powder bed begins to transition from dry to wet, causing the contact angle to decrease. Additionally, the internal voids between particles are gradually filled with the binder, resulting in minimal differences between the results of 2.0 and 2.5 µL binder volumes. Furthermore, this phenomenon can be discussed using the Washburn equation for capillary infiltration [43]. The infiltration velocity decreases exponentially as the state of the sand changes from dry to wet, implying that the penetration rate of the binder into the powder slows down. Subsequent binders cannot push out or push down the initially introduced binder, resulting in differences in the final penetration depth and diffusion diameter. However, our simplified model does not consider the variation in contact angle (transition between dry and wet sand) and assumes the powder bed remains in a dry state throughout the process. This is also why the simulation results in Figure 5 are consistently higher than the experimental results.
To verify that this simplified model applies to current binder jetting technology, we conducted a series of tests, as shown in Figure 6. Figure 6a,b shows powders mixed with A-1 and A-2 at a ratio of 30:70 wt %, and the porosity becomes 7.2%. We obtained Deff and Pinf with binder volumes of 0.1, 1.0, and 2.0 µL. The model results correlated with the experimental results. We then decreased the size of the droplets to replicate the piezoelectric nozzles used in existing machines. We measured the Deff and Pinf of binder droplets printed by a piezoelectric nozzle (Fujifilm SG1024, Fujifilm, Valhalla, NY, USA). As the droplets were extremely small and difficult to measure and photograph, we only adjusted the binder volume to three separate volumes (16.2, 26.2, and 35.8 nL) by controlling the waveform [44] of the piezoelectric nozzle to verify the simplified model. (Figure 6c,d) shows A-1 samples with a porosity of 7.6% printed with these three binder volumes. Figure 6e,f shows A-2 samples with a porosity of 36.3%. The results indicate that although the simplified ANSYS Fluent model still correlates with the experimental results, the range of Deff and Pinf obtained was still large due to the large porosity. More experimental verification is needed. However, compared with the simulation results, smaller binder volumes result in more accurate prediction by the model, and the trend is still consistent. This shows that when using small binder volumes, if porosity and binder volume are used for simulation, the permeability mechanism can be easily deduced, as shown in Figure 6.

5. Conclusions

This study proposes a simplified model that converts the binder from droplet-shaped to cylindrical-shaped through unit volume transformation. Using transient simulation analysis in ANSYS Fluent, we convert the velocity at the boundary into a wall boundary condition through Δ t settings to achieve volume transformation. This method effectively saves simulation analysis time and reduces the difficulty of setup. We applied this research to predict the penetration depth and diffusion diameter through experimental design. Different volumes of binders (0.1, 0.5, 1.0, 1.5, 2.0, and 2.5 µL) were deposited onto the powder bed using a micropipette, and CT scans were conducted to determine the penetration depth and diffusion diameter. We found that the porosity is related to the penetration depth and diffusion diameter. In the volume range of 0.1–2.0 µL, as the binder volume increases, both the penetration depth and diffusion diameter increase. However, the difference between the 2.0 and 2.5 µL volumes is small, indicating that the penetration behavior is not linearly distributed. Conversely, the diffusion diameter shows a linear distribution. Additionally, as the porosity increases, both the penetration depth and diffusion diameter increase due to larger gaps between particles, allowing more binder to flow toward the bottom under inertia and gravity. Conversely, if the porosity decreases, the penetration depth and diffusion diameter also decrease. Through the proposed simplified model in this study, we observed that the experimental results exhibit the same trend as the simulation results.
Based on the experience and results obtained in this study, the porosity also affects the overall absorb force between the powder and binder. This absorb force leads to different penetration depths and diffusion diameters, with smaller porosity resulting in greater adhesive force. However, if the porosity is too small, the space between particles becomes insufficient, which also affects the flow of the binder between particles. More binder is bonded between particles, resulting in higher strength of the printed product.
We further applied the model to actual printing using a physical machine. When using a piezoelectric printhead in the machine, the volume of a single binder is smaller than when using a micro pump. It is difficult to measure the penetration of these tiny binders in real-time through microscopy or high-speed cameras. Therefore, we predicted the penetration depth and diffusion diameter using the simplified model. The results still matched the printing outcomes of the machine, with even smaller errors compared to using the micro-pump with higher binder volumes. This indicates that in the future, with the pursuit of high precision in binder jetting, using less binder and lower porosity sand will become a trend. The proposed simplified model in this study is better suited to meet future needs.
The simplified model proposed in this study is intended to quickly predict the penetration depth and diffusion diameter, providing users with a basic understanding of the dimensional accuracy of the final product. Therefore, it omits many complex model constructions and theoretical calculations. The theoretical foundation of penetration behavior lies in porous media, particle behavior, and fluid mechanics. In the increasingly popular field of binder jetting, a further understanding of penetration behavior is essential. We have summarized it in the following six points:
  • The study proposes a simplified model that converts the binder from droplet-shaped to cylindrical-shaped through unit volume transformation, saving simulation analysis time and reducing setup difficulty;
  • Experimental design and CT scans were conducted to predict the penetration depth and diffusion diameter of binders with different volumes deposited onto the powder bed;
  • The porosity of the powder bed affects the penetration depth and diffusion diameter, with higher binder volumes leading to increased values;
  • The proposed simplified model aligns with the experimental results and exhibits the same trends;
  • The model was applied to actual printing using a physical machine, and the results matched the printing outcomes with small errors;
  • Using less binder and lower porosity sand will be a future trend for achieving higher precision in binder jetting.

Author Contributions

Conceptualization, Y.-T.L. and Y.-L.C.; Validation, Software, Formal analysis, Methodology, Writing—Original Draft, Review & Editing, Y.-T.L.; Supervision, K.-T.T. and Y.-L.C.; Resources, K.-T.T. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors have no conflict of interest.

References

  1. Upadhyay, M.; Sivarupan, T.; El Mansori, M. 3D printing for rapid sand casting—A review. J. Manuf. Process. 2017, 29, 211–220. [Google Scholar] [CrossRef] [Green Version]
  2. Hawaldar, N.; Zhang, J. A comparative study of fabrication of sand casting mould using additive manufacturing and conventional process. Int. J. Adv. Manuf. Technol. 2018, 97, 1037–1045. [Google Scholar] [CrossRef] [Green Version]
  3. Bourell, D.; Kruth, J.P.; Leu, M.; Levy, G.; Rosen, D.; Beese, A.M.; Clare, A. Materials for additive manufacturing. Ann. CIRP 2017, 66, 659–681. [Google Scholar] [CrossRef]
  4. Sivarupan, T.; Balasubramani, N.; Saxena, P. A review on the progress and challenges of binder jet 3D printing of sand mould for advanced casting. J. Addit. Manuf. 2021, 40, 101889. [Google Scholar] [CrossRef]
  5. Sachs, E.; Cima, M.; Cornie, J. Three-dimensional printing: Rapid tooling and prototypes directly from a CAD model. Ann. ClRP 1990, 39, 201–204. [Google Scholar] [CrossRef]
  6. Gilmer, D.; Han, L.; Hong, E.; Siddel, D.; Kisliuk, A.; Cheng, S.; Brunermer, D.; Elliott, A.; Saito, T. An in-situ crosslinking binder for binder jet additive manufacturing. Addit. Manuf. 2020, 35, 101341. [Google Scholar] [CrossRef]
  7. Du, W.; Ren, X.; Pei, Z.; Ma, C. Ceramic binder jetting additive manufacturing: A literature review on density. J. Manuf. Sci. Eng. 2020, 142, 040801. [Google Scholar] [CrossRef]
  8. Barui, S.; Ding, H.; Wang, Z.; Zhao, H.; Marathe, S.; Mirihanage, W.; Basu, B.; Derby, B. Probing ink–powder interactions during 3D binder jet printing using time-resolved X-ray imaging. ACS Appl. Mater. Interfaces 2020, 12, 34254–34264. [Google Scholar] [CrossRef]
  9. Bala, Y.; Rajendran, D.K.; Rajagopal, V. A review on binder jetting fabrication: Materials, characterizations and challenges. Adv. Addit. Manuf. Process. 2021, 6, 121–140. [Google Scholar]
  10. Bai, Y.; Wall, C.; Pham, H.; Esker, A.; Williams, C.B. Characterizing binder–powder interaction in binder jetting additive manufacturing via sessile drop goniometry. J. Manuf. Sci. Eng. 2019, 141, 011005. [Google Scholar] [CrossRef]
  11. Lu, K.; Reynolds, W.T. 3DP process for fine mesh structure printing. Powder Technol. 2008, 187, 11–18. [Google Scholar] [CrossRef]
  12. Sivarupan, T.; El Mansori, M.; Coniglio, N.; Dargusch, M. Effect of process parameters on flexure strength and gas permeability of 3D printed sand molds. J. Manuf. Process. 2020, 54, 420–437. [Google Scholar] [CrossRef]
  13. Miyanaji, H.; Momenzadeh, N.; Yang, L. Effect of printing speed on quality of printed parts in binder jetting process. Addit. Manuf. 2018, 20, 1–10. [Google Scholar] [CrossRef]
  14. Tang, Y.; Huang, Z.; Yang, J.; Xie, Y. Enhancing the capillary force of binder-jetting printing Ti6Al4V and mechanical properties under high temperature sintering by mixing fine powder. Metals 2020, 10, 1354. [Google Scholar] [CrossRef]
  15. Løvoll, G.; Méheust, Y.; Måløy, K.J.; Aker, E.; Schmittbuhl, J. Competition of gravity, capillary and viscous forces during drainage in a two-dimensional porous medium, a pore scale study. Energy 2005, 30, 861–872. [Google Scholar] [CrossRef]
  16. Nguyen, T.; Shen, W.; Hapgood, K. Drop penetration time in heterogeneous powder beds. Chem. Eng. Sci. 2009, 64, 5210–5221. [Google Scholar] [CrossRef]
  17. Adin, H.; Ergün, R.K.; Adin, M.Ş. Computer aided numerical damage analysis of the axle shaft. Eur. Mech. Sci. 2022, 6, 201–206. [Google Scholar] [CrossRef]
  18. Adin, M.Ş.; Adin, H.; Ergün, R.K. Finite Element Analysis of Safety Pin in Snowplow Equipment. Eur. J. Tech. 2022, 12, 89–92. [Google Scholar] [CrossRef]
  19. Rybdylova, O.; Al Qubeissi, M.; Braun, M.; Crua, C.; Manin, J.; Pickett, L.; de Sercey, G.; Sazhina, E.; Sazhin, S.; Heikal, M. A model for droplet heating and its implementation into ANSYS Fluent. Int. Commun. Heat Mass Transf. 2016, 76, 265–270. [Google Scholar] [CrossRef] [Green Version]
  20. Hosseini, S.A.; Tafreshi, H.V. Modeling particle-loaded single fiber efficiency and fiber drag using ANSYS–Fluent CFD code. Comput. Fluids 2012, 66, 157–166. [Google Scholar] [CrossRef]
  21. López, A.; Nicholls, W.; Stickland, M.T.; Dempster, W.M. CFD study of Jet Impingement Test erosion using ANSYS Fluent® and OpenFOAM®. Comput. Phys. Commun. 2015, 197, 88–95. [Google Scholar] [CrossRef] [Green Version]
  22. Yue, C.; Guo, S.; Li, M. ANSYS FLUENT-based modeling and hydrodynamic analysis for a spherical underwater robot. In Proceedings of the IEEE International Conference on Mechatronics and Automation, Takamatsu, Japan, 4–7 August 2013; pp. 1577–1581. [Google Scholar] [CrossRef]
  23. Wang, Y.; Li, S.; Qin, T.; Yu, Y.; Xiao, J. Concrete 3D Printing: System Development, Process Planning and Experimental Results. In Proceedings of the DC 2020: Second RILEM International Conference on Concrete and Digital Fabrication, Online, 6–9 July 2020; Volume 28, pp. 998–1010. [Google Scholar] [CrossRef]
  24. Gootjes, D. Applying Feedback Control to Improve 3D Printing Quality. Master’s Thesis, Delft University of Technology, Delft, The Netherlands, 2017. Available online: http://resolver.tudelft.nl/uuid:49a31f6e-5b28-48ce-b5f4-4e71fbf4009b (accessed on 7 June 2023).
  25. Han, Y.; Wei, C.; Dong, J. Droplet formation and settlement of phase-change ink in high resolution electrohydrodynamic (EHD) 3D printing. J. Manuf. Process. 2015, 20, 485–491. [Google Scholar] [CrossRef] [Green Version]
  26. Raj, R.; Krishna, S.V.V.; Desai, A.; Sachin, C.; Dixit, A.R. Print fidelity evaluation of PVA hydrogel using computational fluid dynamics for extrusion dependent 3D printing. Conf. Ser. Mater. Sci. Eng. 2022, 1225, 012009. [Google Scholar] [CrossRef]
  27. López Martínez, J.A.; Fernández, P.; Mehrdel, P.; Casals Terré, J. 3D-printing and computational fluid dynamics “meet” paperbased microfluidics for enhanced flow control in difusive sensors. In Proceedings of the µTAS 2020—The 24th International Conference on Miniaturized Systems for Chemistry and Life Science, Online, 4–9 October 2020; pp. 172–173. Available online: http://hdl.handle.net/2117/330613 (accessed on 7 June 2023).
  28. Bayat, M.; Dong, W.; Thorborg, J.; To, A.C.; Hattel, J.H. A review of multi-scale and multi-physics simulations of metal additive manufacturing processes with focus on modeling strategies. Addit. Manuf. 2021, 47, 102278. [Google Scholar] [CrossRef]
  29. Kattinger, J.; Ebinger, T.; Kurz, R.; Bonten, C. Numerical simulation of the complex flow during material extrusion in fused filament fabrication. Addit. Manuf. 2022, 49, 102476. [Google Scholar] [CrossRef]
  30. Charles, A.; Bayat, M.; Elkaseer, A.; Thijs, L.; Hattel, J.H.; Scholz, S. Elucidation of dross formation in laser powder bed fusion at down-facing surfaces: Phenomenon-oriented multiphysics simulation and experimental validation. Addit. Manuf. 2022, 50, 102551. [Google Scholar] [CrossRef]
  31. Harris, M.; Mohsin, H.; Potgieter, J.; Arif, K.M.; Anwar, S.; AlFaify, A.; Farooq, M.U. Hybrid deposition additive manufacturing: Novel volume distribution, thermo-mechanical characterization, and image analysis. J. Braz. Soc. Mech. Sci. Eng. 2022, 44, 432. [Google Scholar] [CrossRef]
  32. Sadeghi, R.; Shadloo, M.; Hopp-Hirschler, M.; Hadjadj, A.; Nieken, U. Three-dimensional lattice Boltzmann simulations of high density ratio two-phase flows in porous media. Comput. Math. Appl. 2018, 75, 2445–2465. [Google Scholar] [CrossRef]
  33. Nazari, M.; Salehabadi, H.; Kayhani, M.H.; Daghighi, Y. Predicting the penetration and navigating the motion of a liquid drop in a layered porous medium: Viscous Fingering vs. capillary fingering. Braz. J. Chem. Eng. 2018, 35, 731–744. [Google Scholar] [CrossRef] [Green Version]
  34. Deng, H.; Huang, Y.; Wu, S.; Yang, Y. Binder jetting additive manufacturing: Three-dimensional simulation of micro-meter droplet impact and penetration into powder bed. J. Manuf. Process. 2022, 74, 365–373. [Google Scholar] [CrossRef]
  35. Gao, X.; Yang, W.; Xian, H.; Tu, X.; Wang, Y. Numerical simulation of multi-layer penetration process of binder droplet in 3DP technique. Comput. Model. Eng. Sci. 2020, 124, 227–241. [Google Scholar] [CrossRef]
  36. Miyanaji, H.; Orth, M.; Akbar, J.M.; Yang, L. Process development for green part printing using binder jetting additive manufacturing. Front. Mech. Eng. 2018, 13, 504–512. [Google Scholar] [CrossRef]
  37. Teunou, E.; Fitzpatrick, J.J.; Synnott, E.C. Characterisation of food powder flowability. J. Food Eng. 1999, 39, 31–37. [Google Scholar] [CrossRef]
  38. Balakrishnan, A.; Pizette, P.; Martin, C.L. Effect of particle size in aggregated and agglomerated ceramic powders. Acta Mater. 2010, 58, 802–812. [Google Scholar] [CrossRef]
  39. Cheng, Y.-L.; Tseng, T.-W. Study on driving waveform design process for multi-nozzle piezoelectric printhead in material-jetting 3D printing. Rapid Prototype J. 2021, 27, 1172–1180. [Google Scholar] [CrossRef]
  40. Karapatis, N.P.; Egger, G.; Gygax, P.E.; Glardon, R. Optimization of Powder Layer Density in Selective Laser Sintering; Mechanical Engineering Dept, University Texas Austin: Austin, TX, USA, 1999; pp. 255–263. [Google Scholar]
  41. Marmur, A. Penetration of a small drop into a capillary. J. Colloid Interface Sci. 1988, 122, 209–219. [Google Scholar] [CrossRef]
  42. Marmur, A. Drop penetration into a thin porous medium. J. Colloid Interface Sci. 1987, 123, 161–169. [Google Scholar] [CrossRef]
  43. Washburn, E.W. The Dynamics of Capillary Flow. Phys. Rev. 1921, 17, 273–283. [Google Scholar] [CrossRef] [Green Version]
  44. Cheng, Y.-L.; Li, Y.-T. Greyscale printing and characterization of the binder migration pattern during 3D sand mold printing. Addit. Manuf. 2022, 56, 102929. [Google Scholar] [CrossRef]
Applsci 13 06985 g001 550

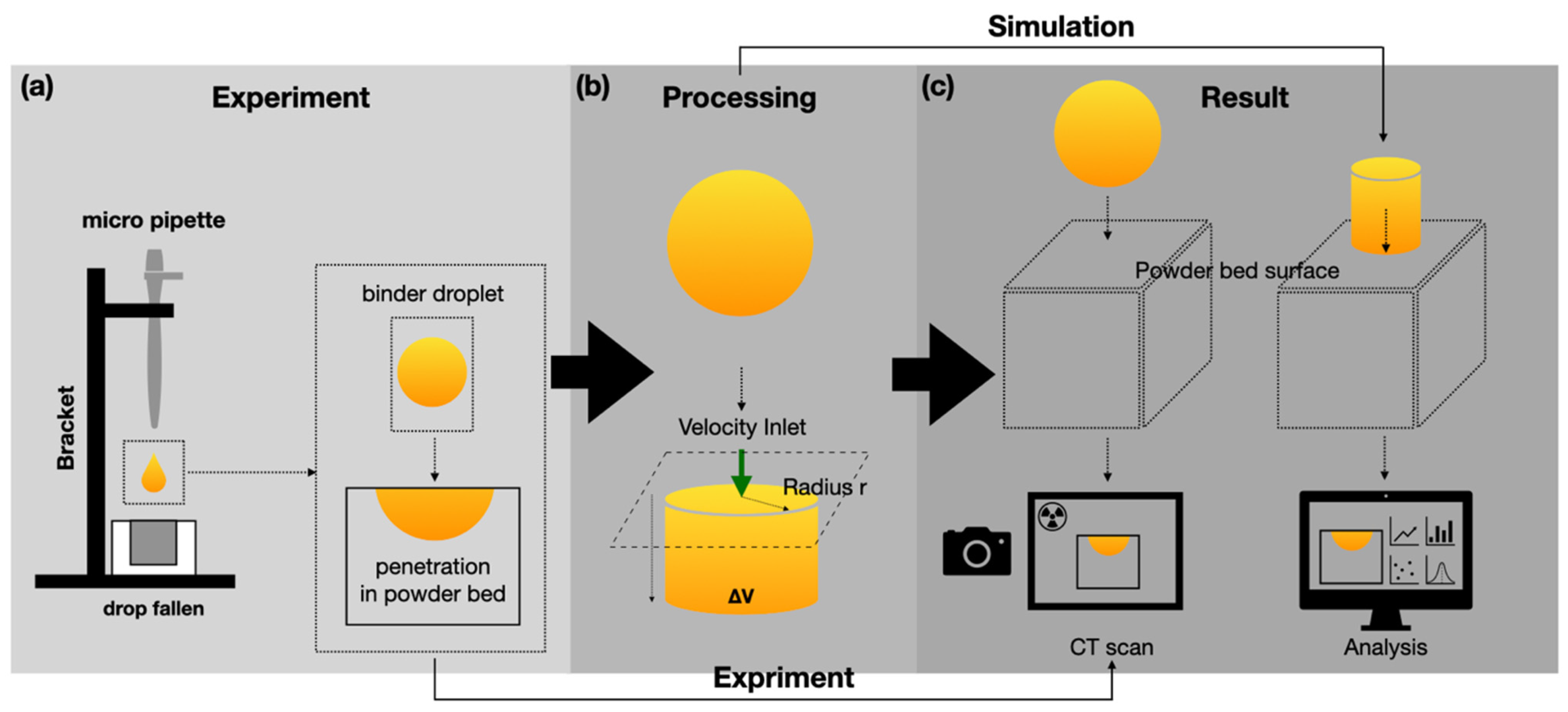

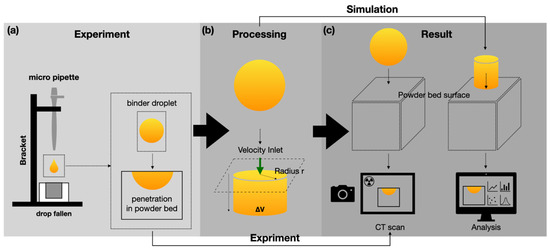

Figure 1. The simulations and experimental figures in this study.
Figure 1. The simulations and experimental figures in this study.
Applsci 13 06985 g001
Applsci 13 06985 g002 550

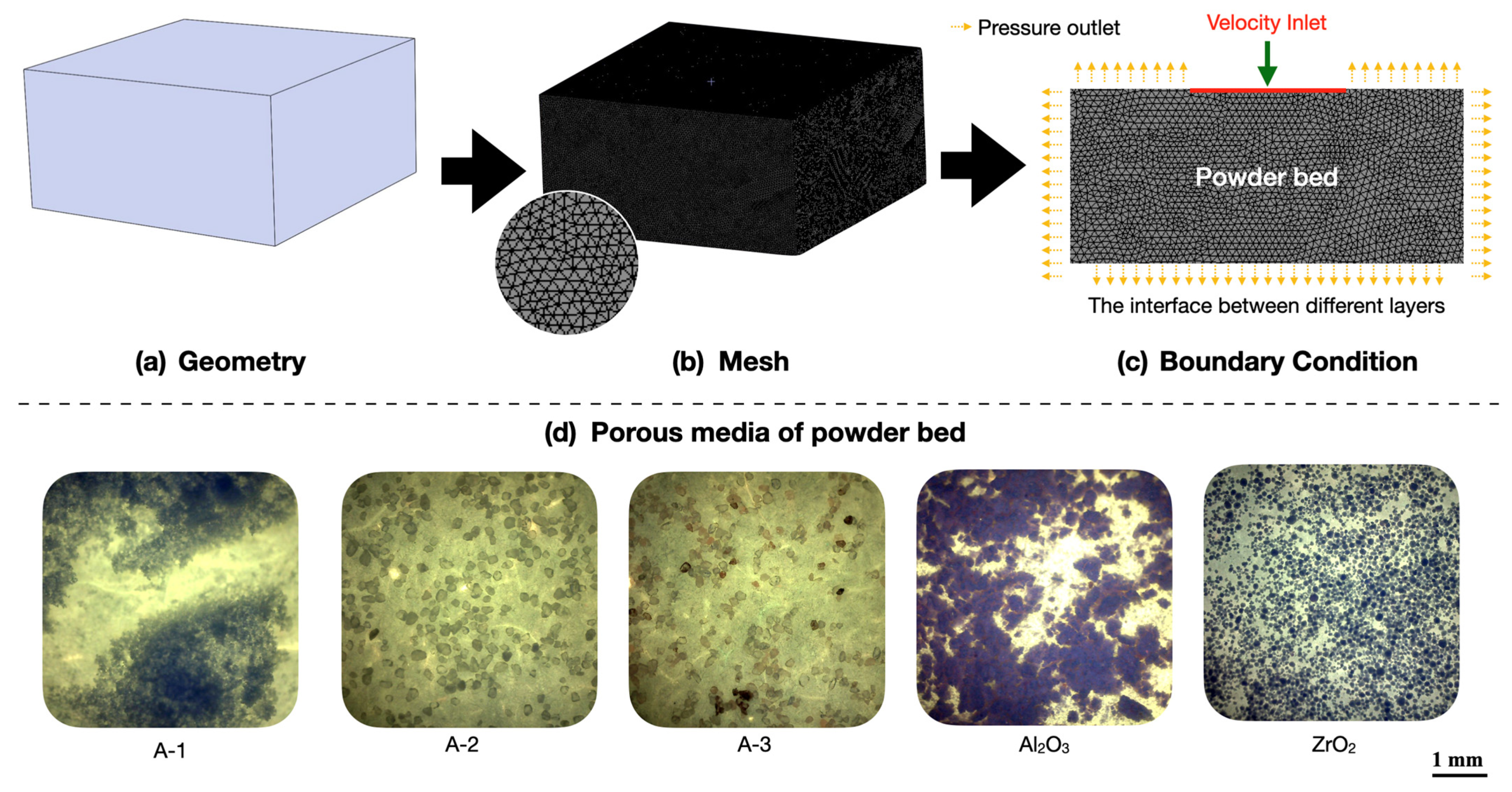

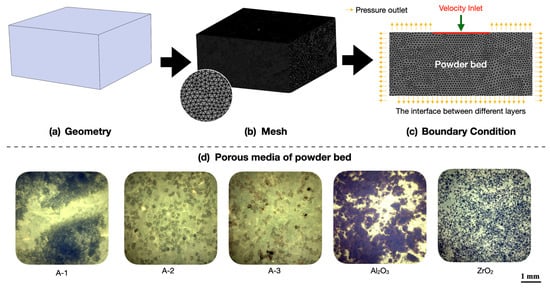

Figure 2. Geometry, mesh, boundary condition, and geometry of the powders.
Figure 2. Geometry, mesh, boundary condition, and geometry of the powders.
Applsci 13 06985 g002
Applsci 13 06985 g003 550

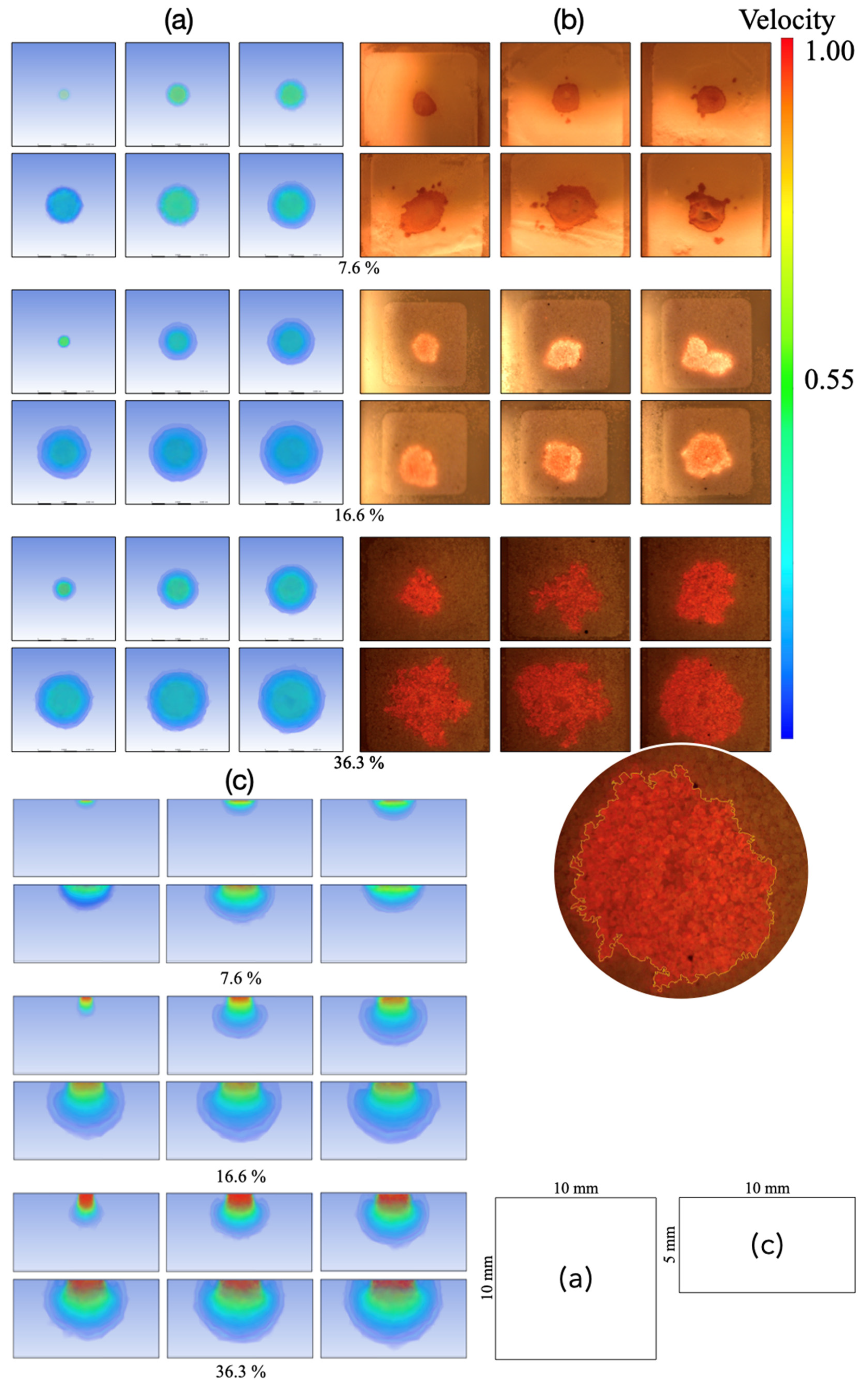

Figure 3. Simulation results for (a) diffusion diameter (Deff) and (c) penetration depth (Pinf) with 0.1–2.5 µL of binder volume and porosity of 7.6, 16.6, and 36.3 %. (b) Represents a top view of the experimental deposition into the powder bed.
Figure 3. Simulation results for (a) diffusion diameter (Deff) and (c) penetration depth (Pinf) with 0.1–2.5 µL of binder volume and porosity of 7.6, 16.6, and 36.3 %. (b) Represents a top view of the experimental deposition into the powder bed.
Applsci 13 06985 g003
Applsci 13 06985 g004 550

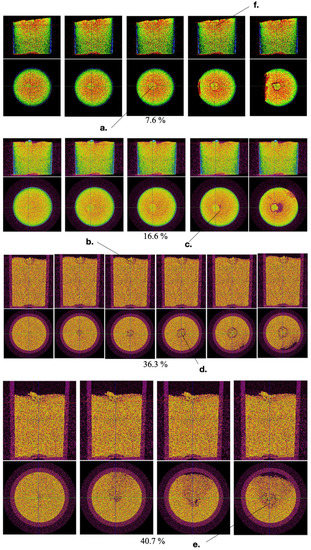

Figure 4. Experimental results for penetration and diffusion using 1.0 µL binder volume at different porosities. (a,c–e) depict the cross-sectional views of the binder in the powder bed, while (b,f) provide a side view.
Figure 4. Experimental results for penetration and diffusion using 1.0 µL binder volume at different porosities. (a,c–e) depict the cross-sectional views of the binder in the powder bed, while (b,f) provide a side view.
Applsci 13 06985 g004
Applsci 13 06985 g005 550

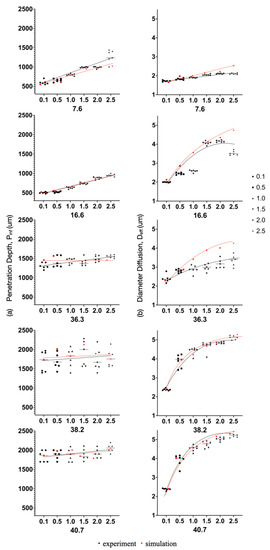

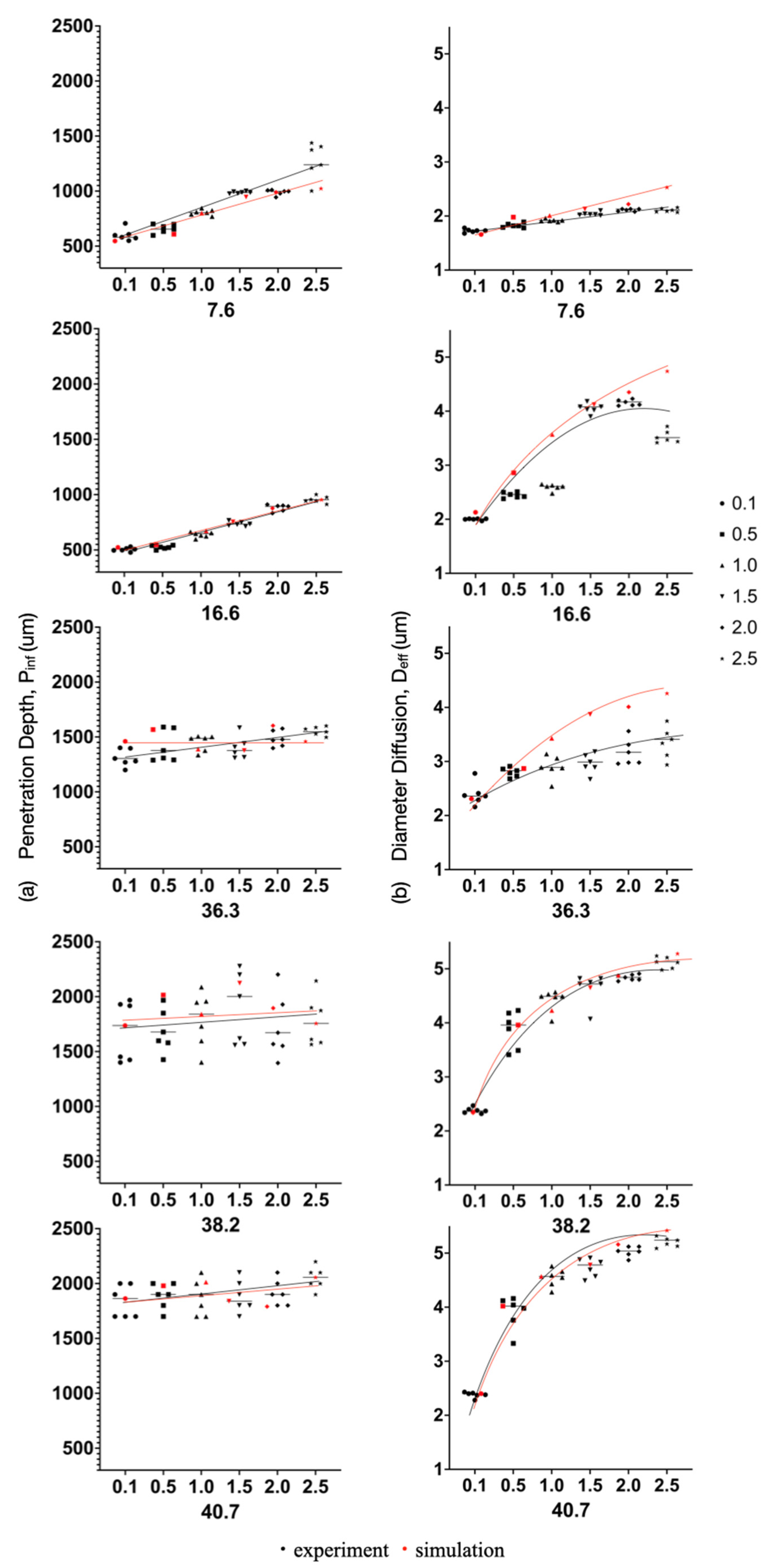

Figure 5. Binder volume vs. porosity vs. penetration depth vs. diffusion diameter.
Figure 5. Binder volume vs. porosity vs. penetration depth vs. diffusion diameter.
Applsci 13 06985 g005
Applsci 13 06985 g006 550

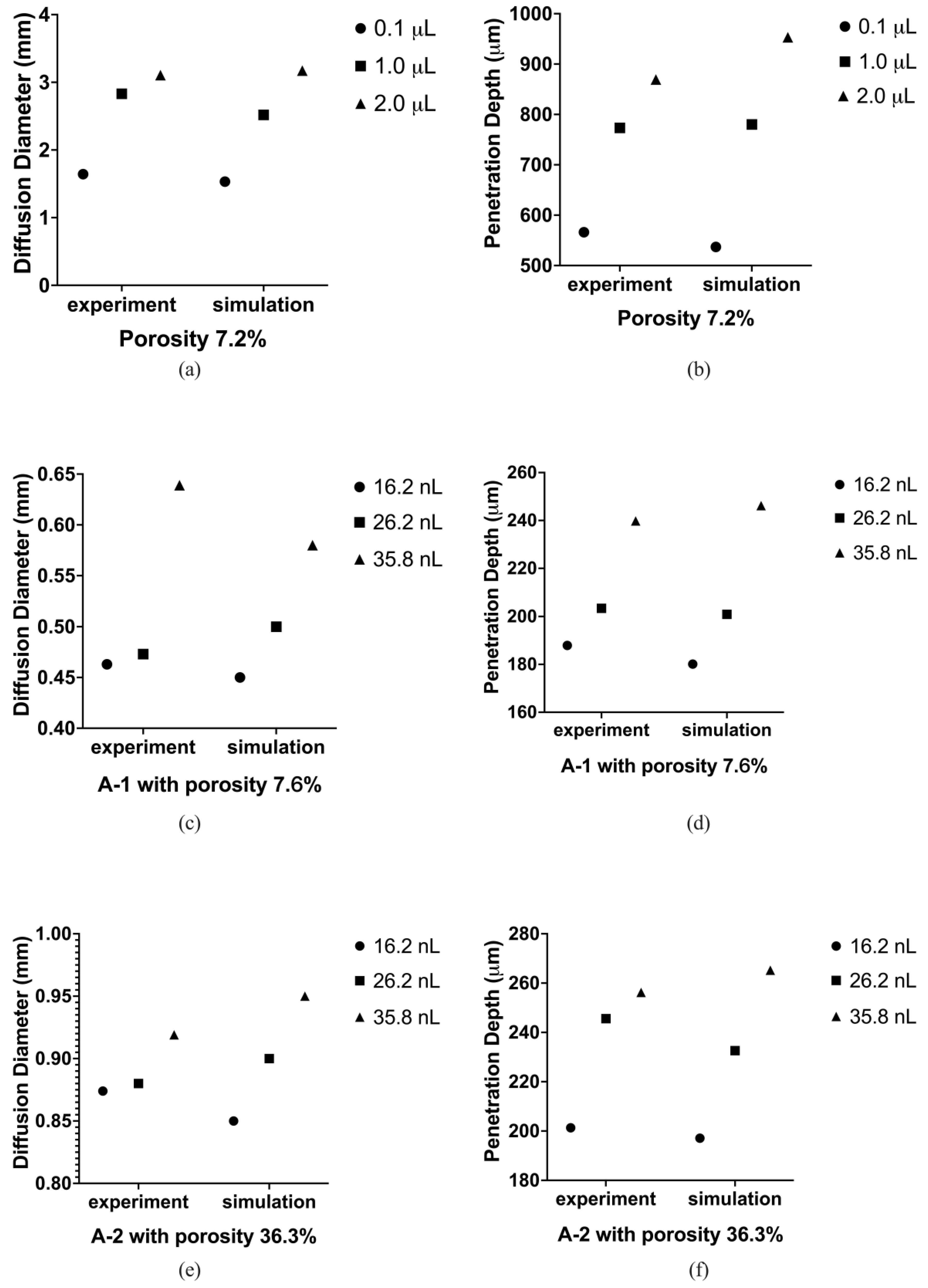

Figure 6. Experimental and simulation results of binder volume using a piezoelectric nozzle and mixing particles.
