Cross-Industry Principles for Digital Representations of Complex Technical Systems in the Context of the MBSE Approach: A Review
Abstract
:1. Introduction
- A review of publications related to the description of the digital representation of complex technical systems in various industries.
- Identification of common features of the descriptions of complex technical systems in the formation of their digital representation and formulation of the identified features in the form of principles.
- An analysis of the applications of the identified principles for digital representations of systems and formation of appropriate recommendations for application of these principles for creation of a digital representation of the representation of complex technical systems.
2. Literature Review
2.1. Industry 4.0 and the Increased Complexity of Systems
2.2. Digital Solutions and Digital Representation of Systems

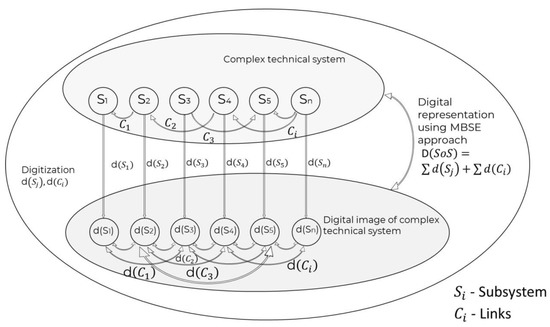

2.3. The MBSE Approach as a Tool for Creating a Digital Representation of a System
2.4. Digital Representation as a Stage of Creating a Digital Twin

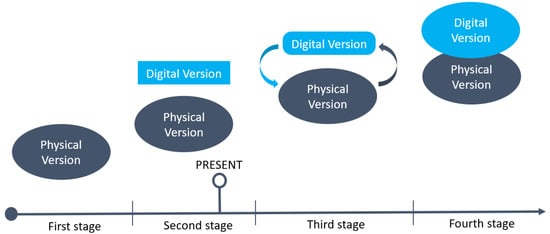

- The first stage implies that there is only a real object or process.
- In the second stage, “mirroring” occurs, where a digital version of the real object or process is created, describing the real counterpart with varying degrees of accuracy.
- The third stage begins when a connection is established between a real object or process and their digital version.
- In the fourth stage, there is a convergence and even an intersection of a real object or process with their digital versions.
2.5. Cross-Industry Principles for Digital Representation

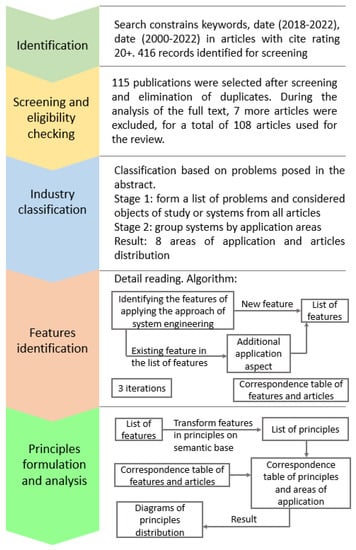

3. Materials and Methods
- Business processes;
- Production;
- Mechanical engineering;
- IT sector;
- Energy;
- Civil engineering;
- Military sector;
- Aerospace industry.
- The MBSE method should be used semantically, with each concept assigned values within the system and the created digital representation of the real system.
- MBSE should comply with metamodeling criteria, including general rules for building models, such as object types, object parameters, and how to establish relationships between objects.
- Modeling should be carried out ontologically, with certain rules for describing the creation of models, including the types of objects, parameters of objects, and rules for relations between objects.
- The object of modeling should be a certain system and the subject of modeling can be various participants related to this system.

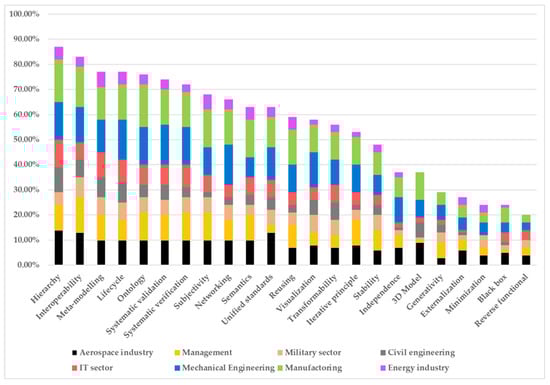

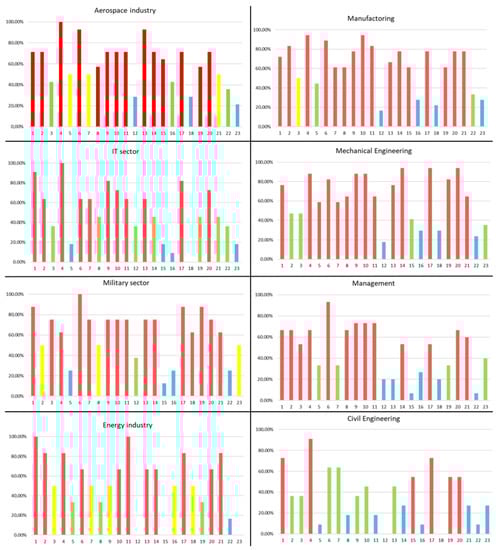

4. Results
5. Discussion
5.1. Additional Recommendations for Applying the Principles Formulated above to Develop a Digital Representation of Complex Technical Systems
5.2. Commonality in Digital Transformation
5.3. Problems in Applying the MBSE Approach
6. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
