Grid-Connected Solar Photovoltaic System for Nile Tilapia Farms in Southern Mexico: Techno-Economic and Environmental Evaluation
Abstract
:1. Introduction
2. Literature Review

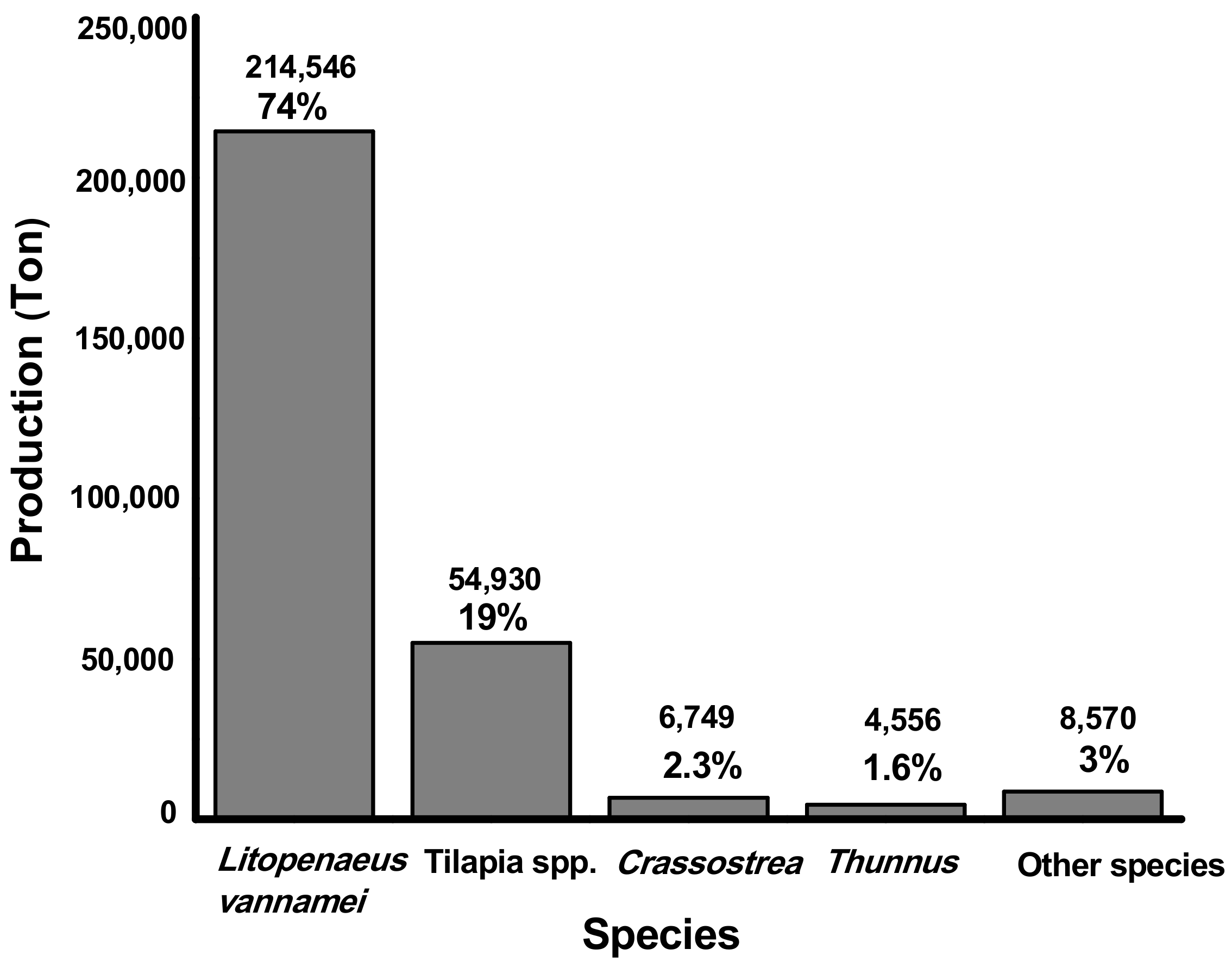

2.1. Importance of Aquaculture and Tilapia Production in Mexico

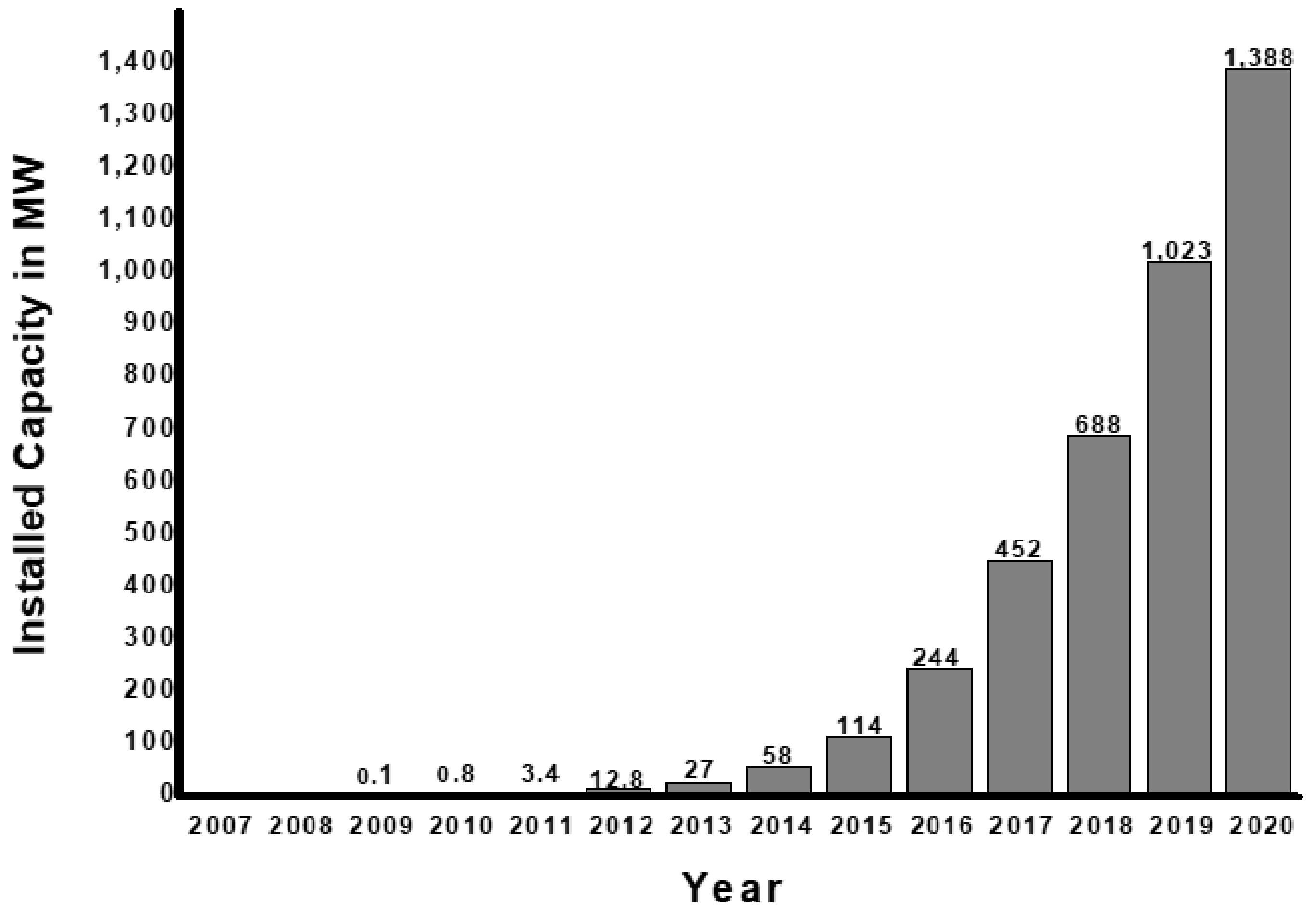

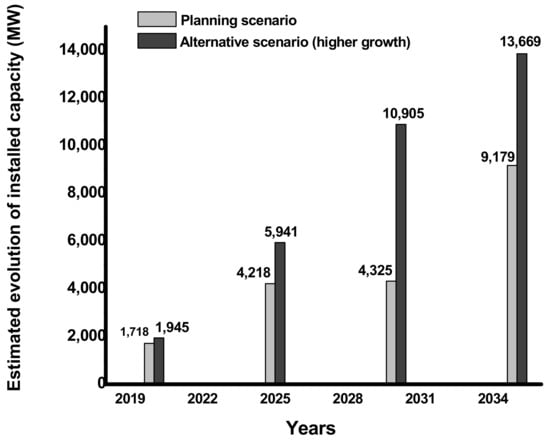

2.2. Global Trends in Renewable Energy Production

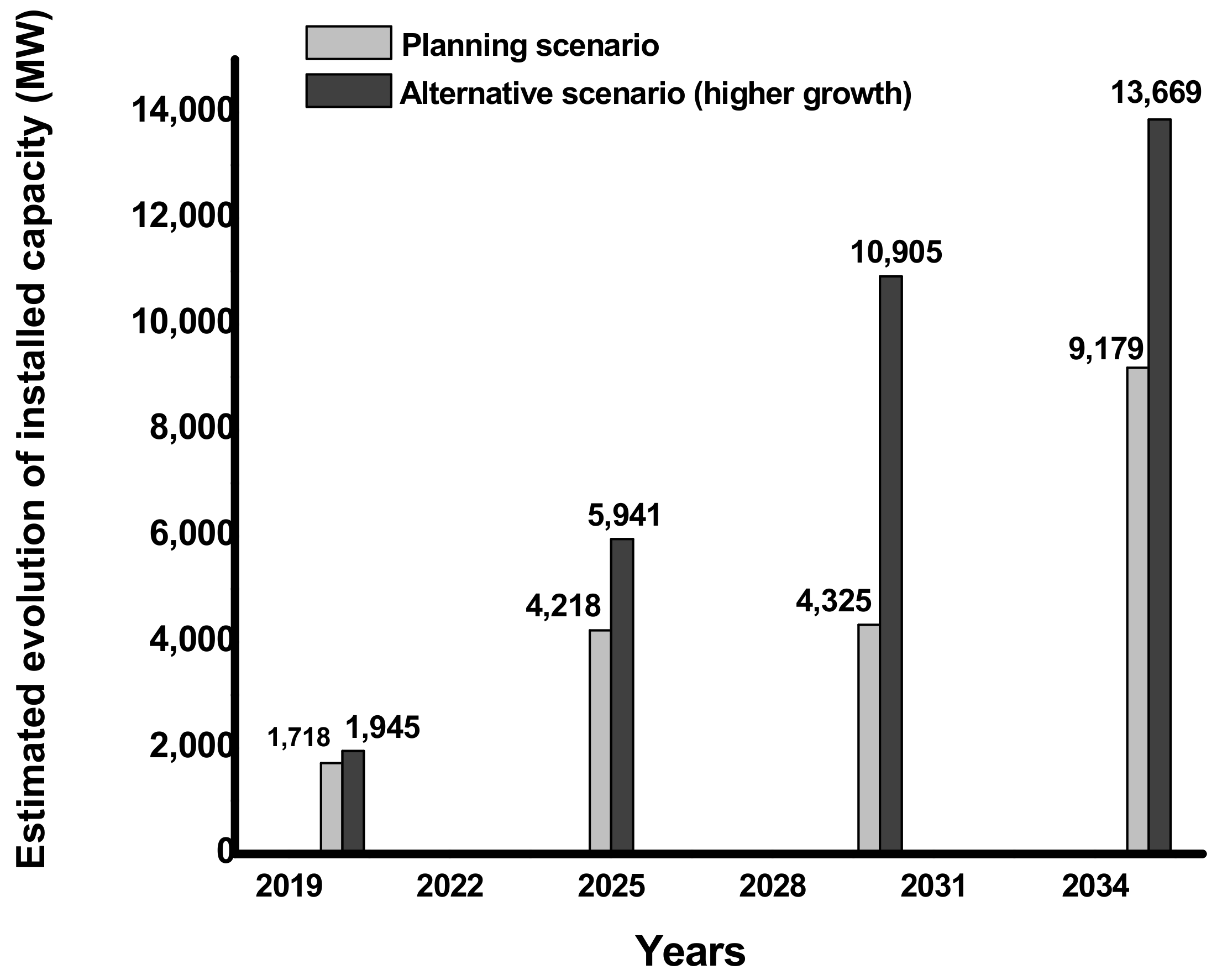

2.3. Solar Energy Potential, Regulations, Solar Resource and Costs in Mexico

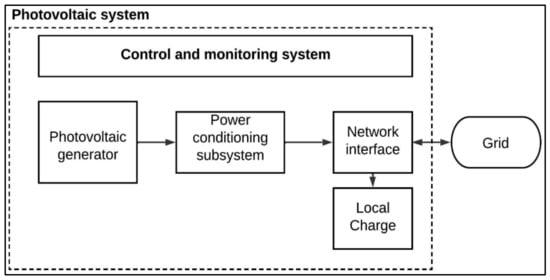

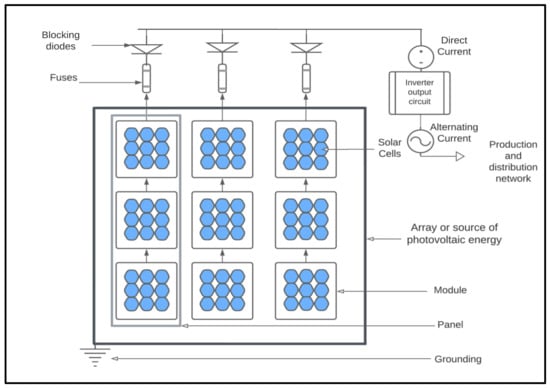

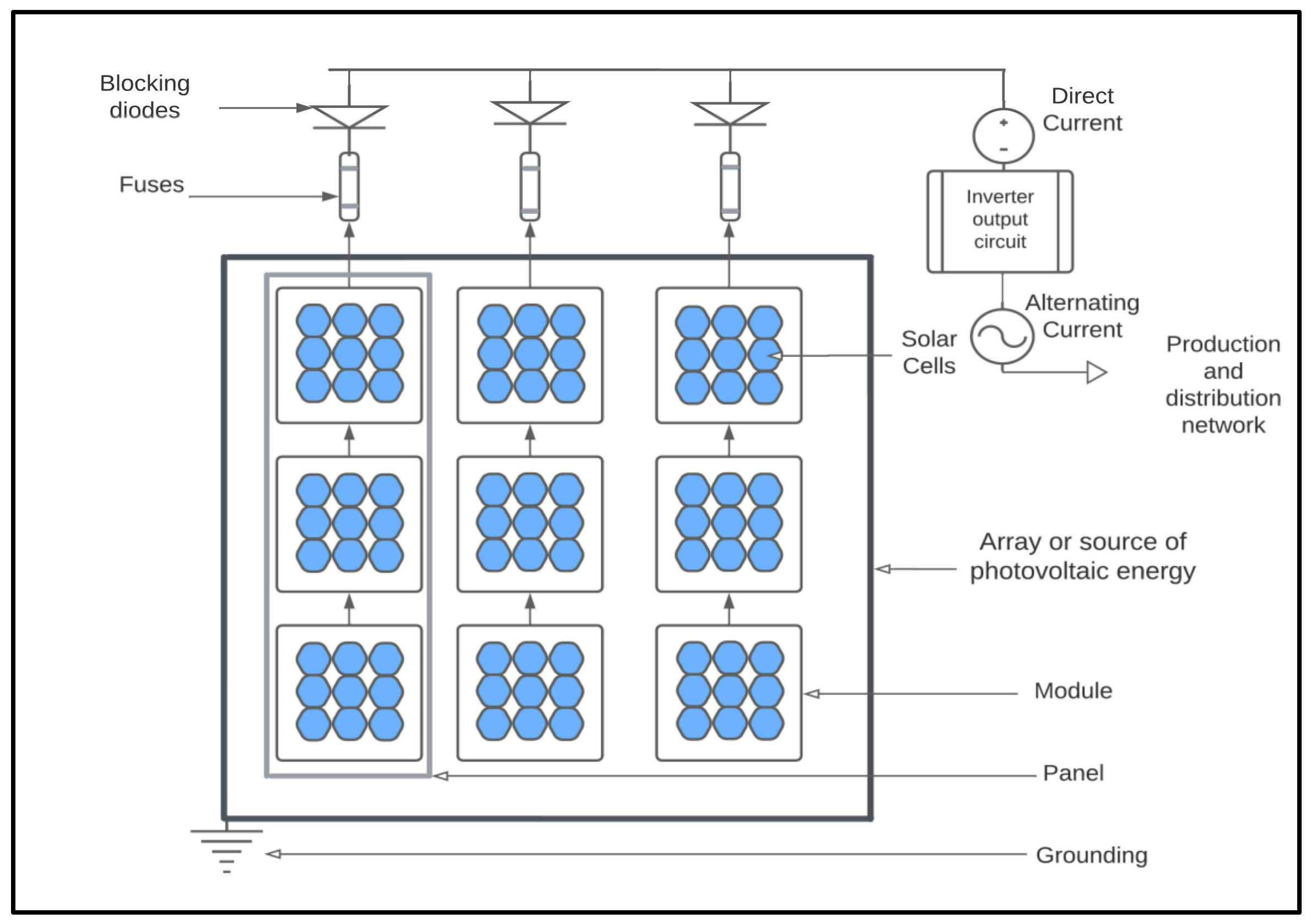

2.4. Constitution of Photovoltaic Systems
2.5. Photovoltaic Systems in the Agricultural Sector in Mexico
2.6. Photovoltaic Systems in the Aquaculture
2.7. Research Limitations
2.8. Contributions

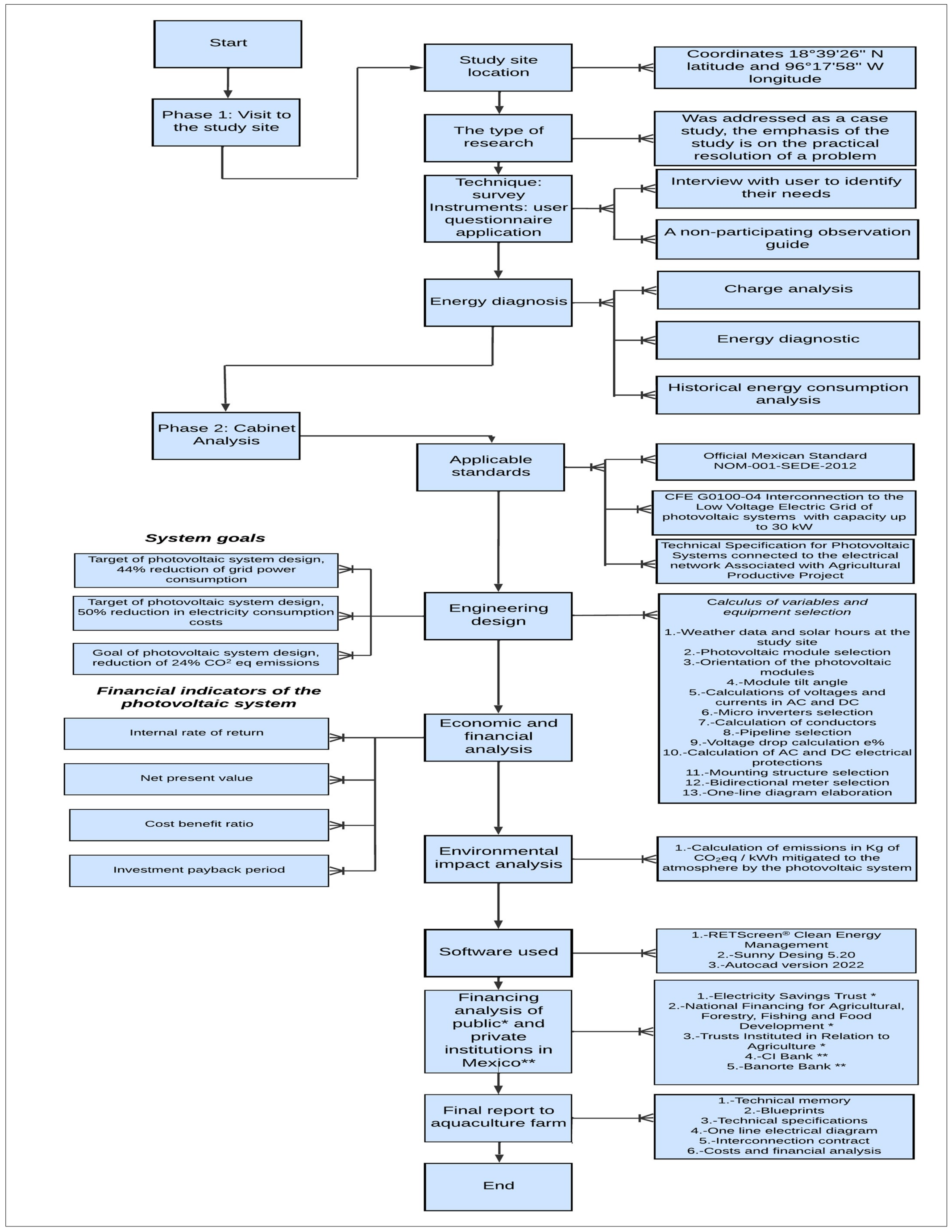

3. Materials and Methods

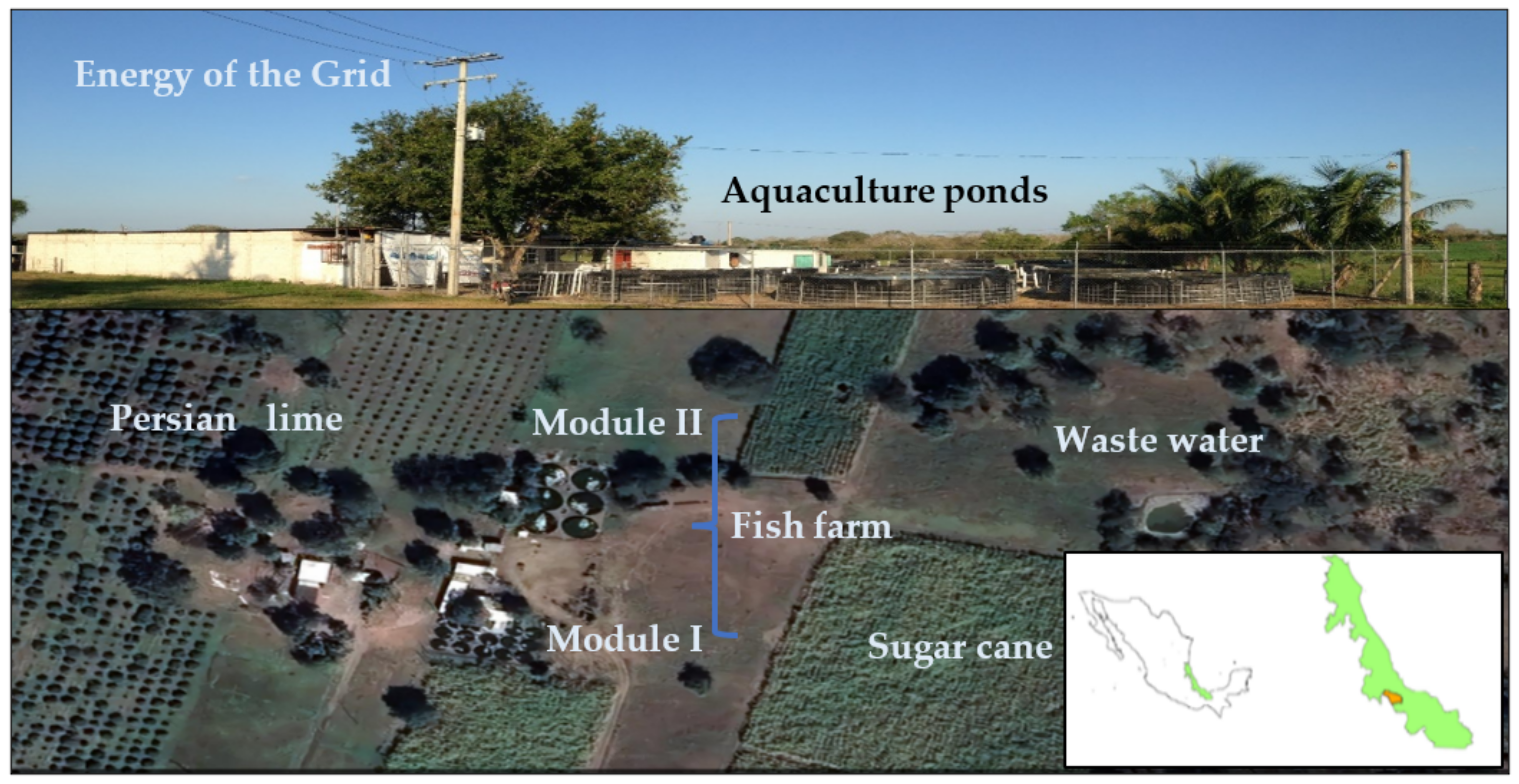

3.1. Location of the Study and Unit of Analysis
3.2. Design and Regulatory Criteria
- Connection of photovoltaic systems to the low voltage electrical grid, with capacity up to 30 kw according to CFE specification G0100-04 [34].
- The Mexican Official Standard NOM-001-SEDE-2012, related to electrical installations (use), especially article 690 related to photovoltaic solar systems of the same standard [39].
- Technical Specification for grid-connected Photovoltaic Systems associated with productive agricultural and livestock projects [71], which establishes the minimum technical specifications to be met by photovoltaic systems interconnected to the grid, for use in productive agricultural or agribusiness projects promoted by the SADER (Secretary of Agriculture and Rural Development).
- Manual for the technical–economic evaluation of “Photovoltaic Systems Interconnected to the Electric Grid supported through the Shared Risk Trust Program” [72,73], in which the technical and financial criteria are established to ensure the feasibility and quality of photovoltaic projects in the agricultural sector and ensure the efficient allocation of economic resources for projects in the country.
3.3. Software Used and Data Analysis
3.4. Solar Power Calculation and Equipment and Sources of Information
4. Results and Discussion
4.1. Meteorological Data and Solar Hours

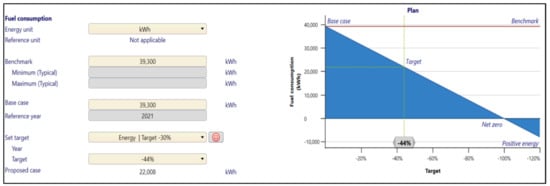

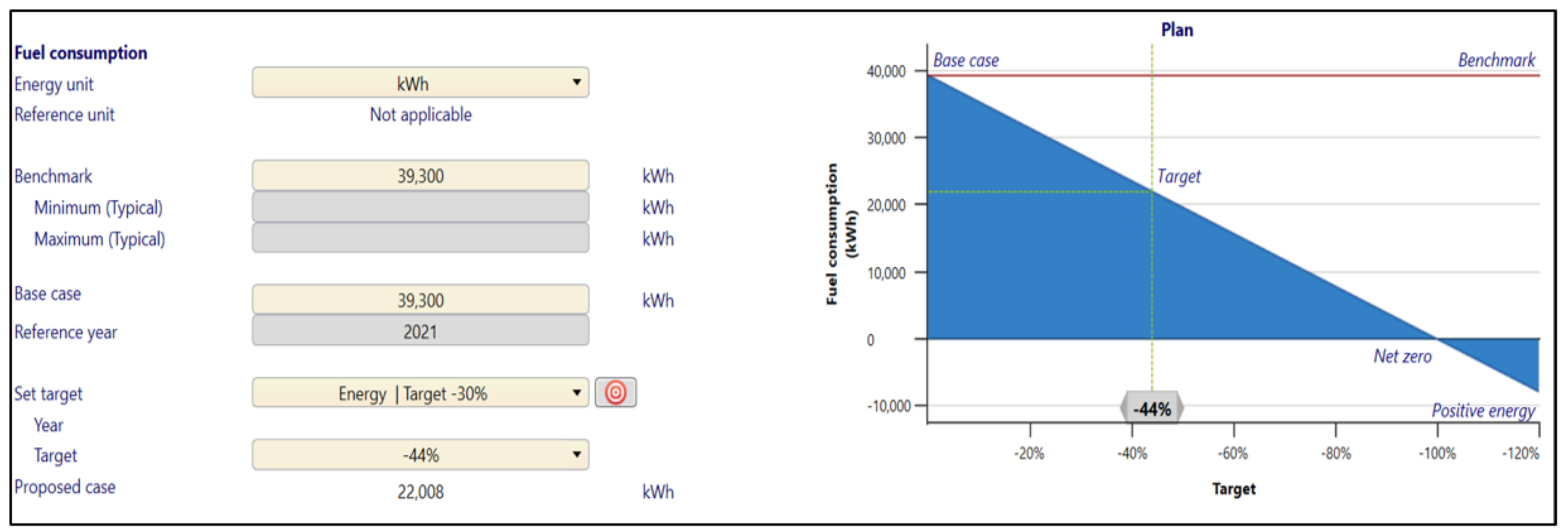

4.2. Energy Consumption of the Fish Farm

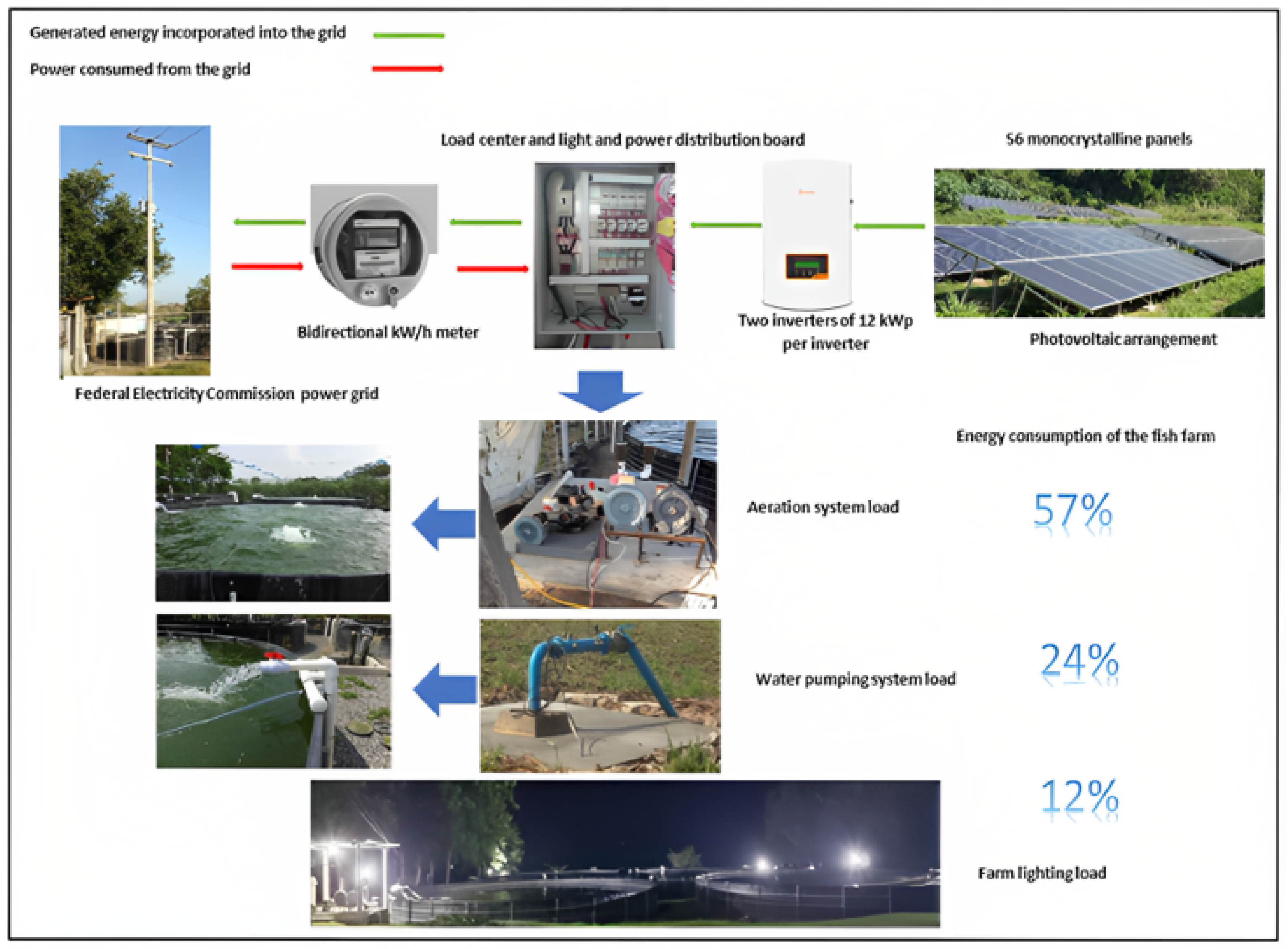

4.3. The Grid-Connected Photovoltaic Systems (On Grid-PV) Design
4.3.1. Selection of Solar Panels
4.3.2. Maximum Current (I max), Where (Isc) Is the Short-Circuit Current of the Panel
4.3.3. Conductor Results
4.3.4. For Voltage Drop (VD) in Direct Current
4.3.5. Operating Voltage of The String System
- (a)
- RMPPV (Rated Maximum Power Point Voltage)
- (b)
- The Maximum System Voltage is calculated by multiplying the value of Voc, and then multiplying that value by the number of modules in a series string.
4.3.6. Inverter Sizing and MPPT (Maximum Power Point Tracking)
4.3.7. Grounding
4.3.8. Overcurrent Protection
4.3.9. Piping
4.3.10. AC Current Results
4.3.11. Protection against Overcurrents
4.3.12. Tubing for AC Conductor

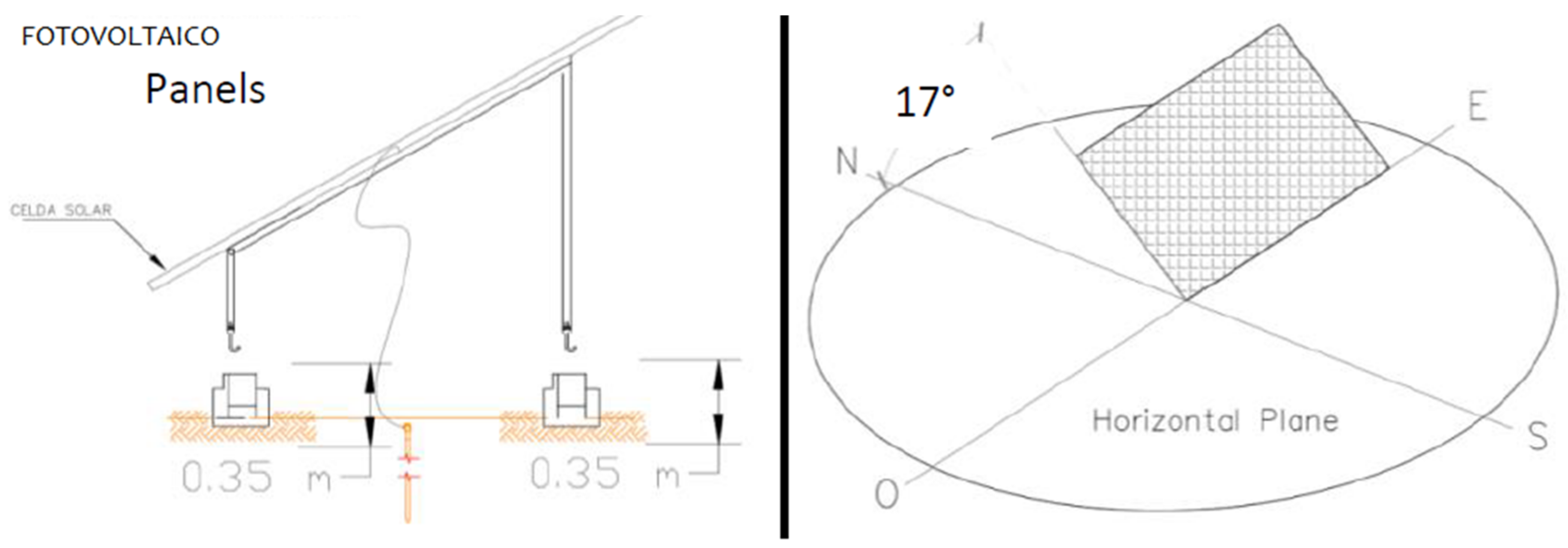

4.3.13. Photovoltaic Array Structures and Inclination
4.3.14. Estimated Energy Generation with the System
4.4. Costs of Grid-Connected Photovoltaic Systems (On Grid-PV)
4.5. Objectives of the Aquaculture Farm with Grid-Connected Photovoltaic Systems

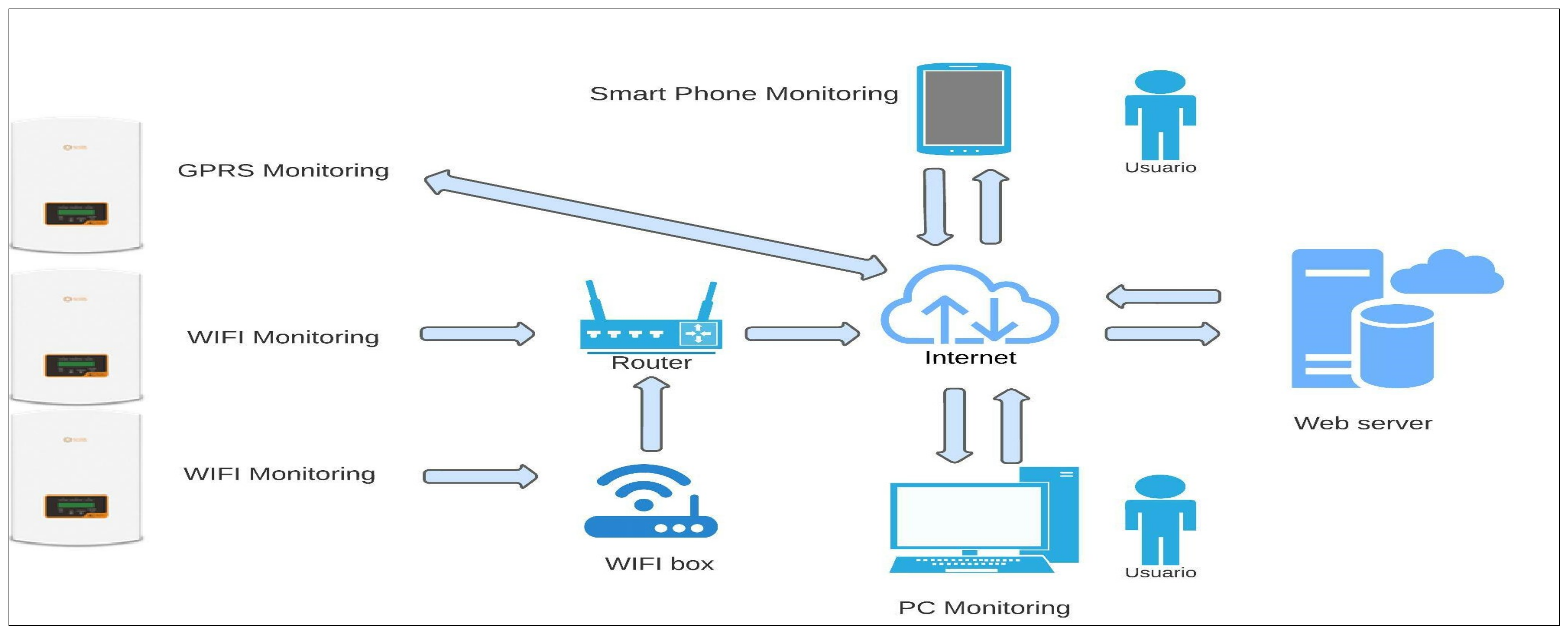

4.6. Characteristics of the Grid-Connected Photovoltaic System (On Grid-PV)

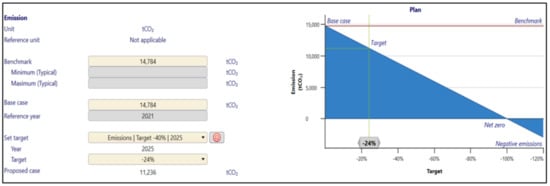

4.7. Environmental Aspects: CO2 Emissions to the Environment

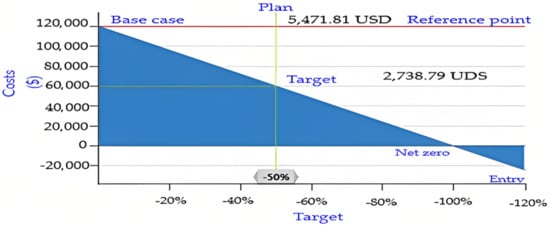

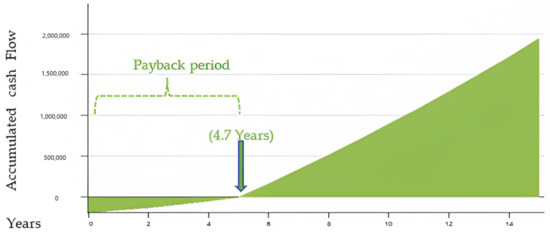

4.8. Financial Analysis Grid-Connected Photovoltaic Systems (On Grid-PV)

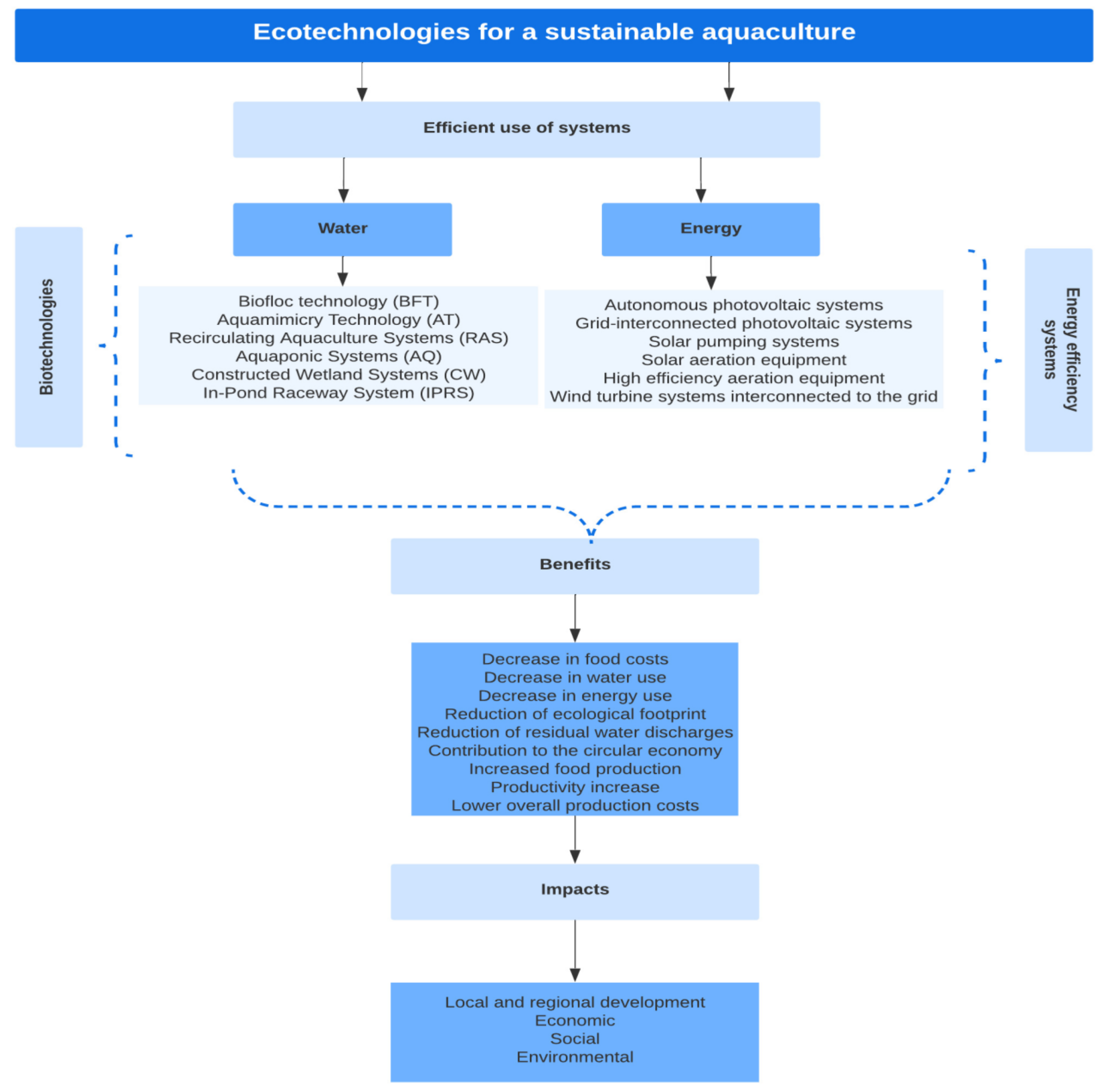

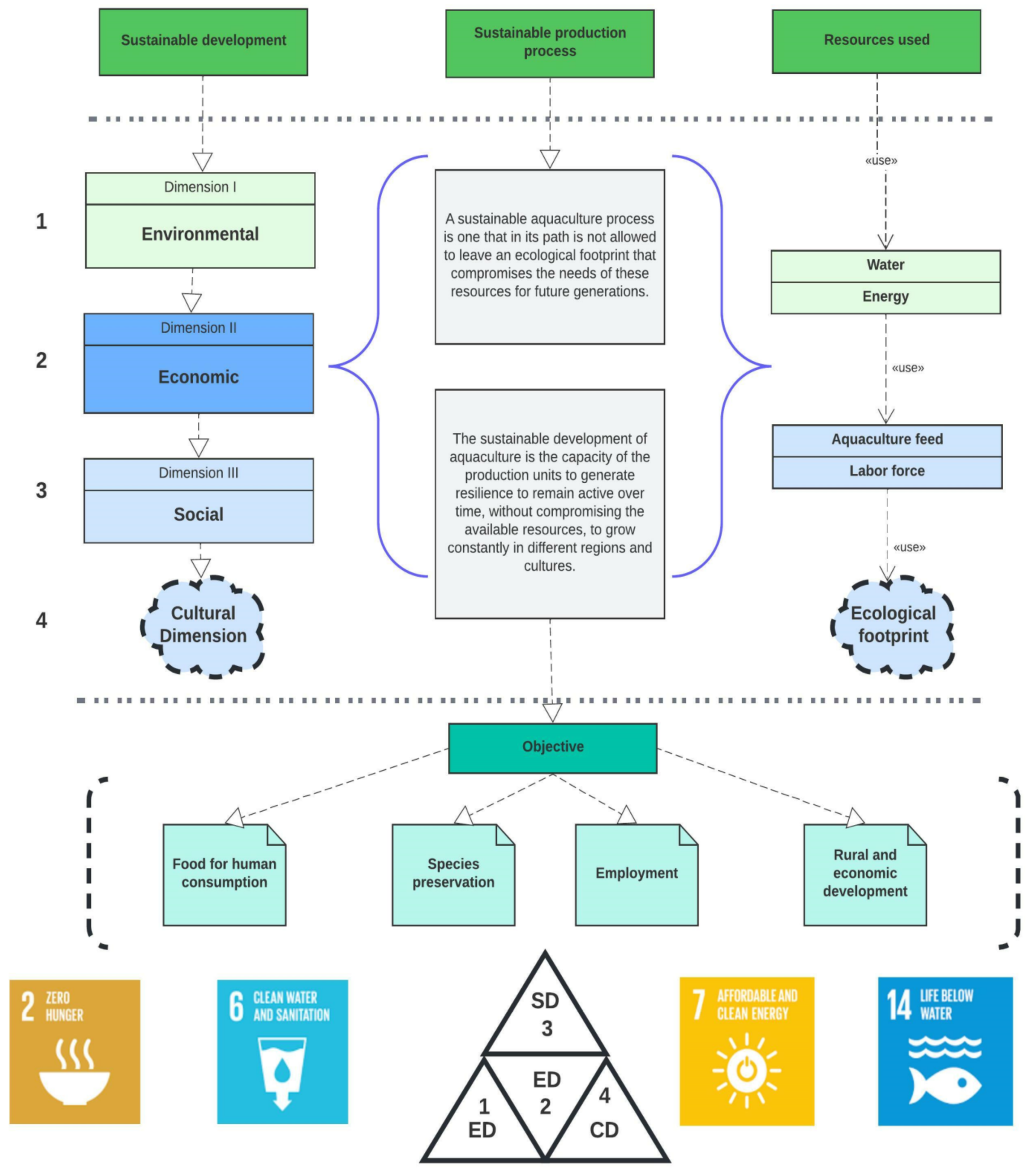

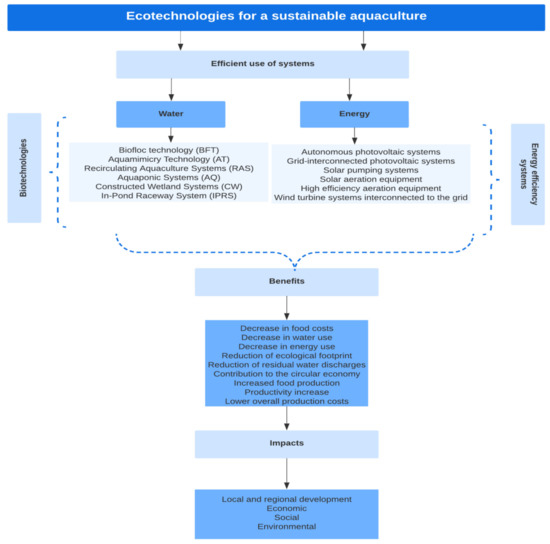

4.9. Sustainability in Aquaculture
4.10. Policies Aimed Particularly at Development
4.11. Application Conditions
4.12. Financing for Aquaculture Farms for Photovoltaic Systems
- Distributed Generation Support Program, operated by the Electric Energy Saving Trust (FIDE) [95].
- Business Eco-credit, provided by the (FIDE) Trust for Electric Energy Saving [96].
- Solar financing offered by (NAFIN) National Financing entity [97].
- Support Program for Sustainable Projects executed by the (FIRA) Agricultural Trust Funds [98].
- Fixed asset loans operated by (FND) National Financing for Agricultural, Rural, Forestry, and Fisheries Development [99].

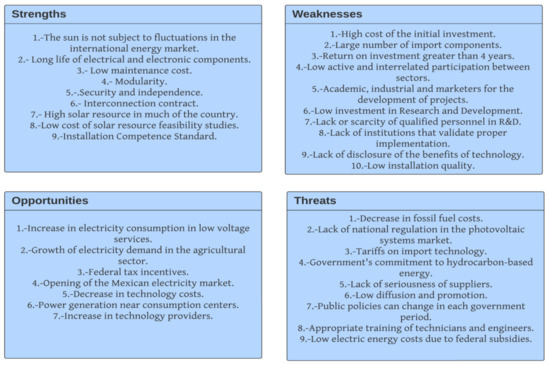

4.13. Limitations for Its Implementation
5. Conclusions
Future Lines of Research
