Typhoon-Induced Fragility Analysis of Transmission Tower in Ningbo Area Considering the Effect of Long-Term Corrosion

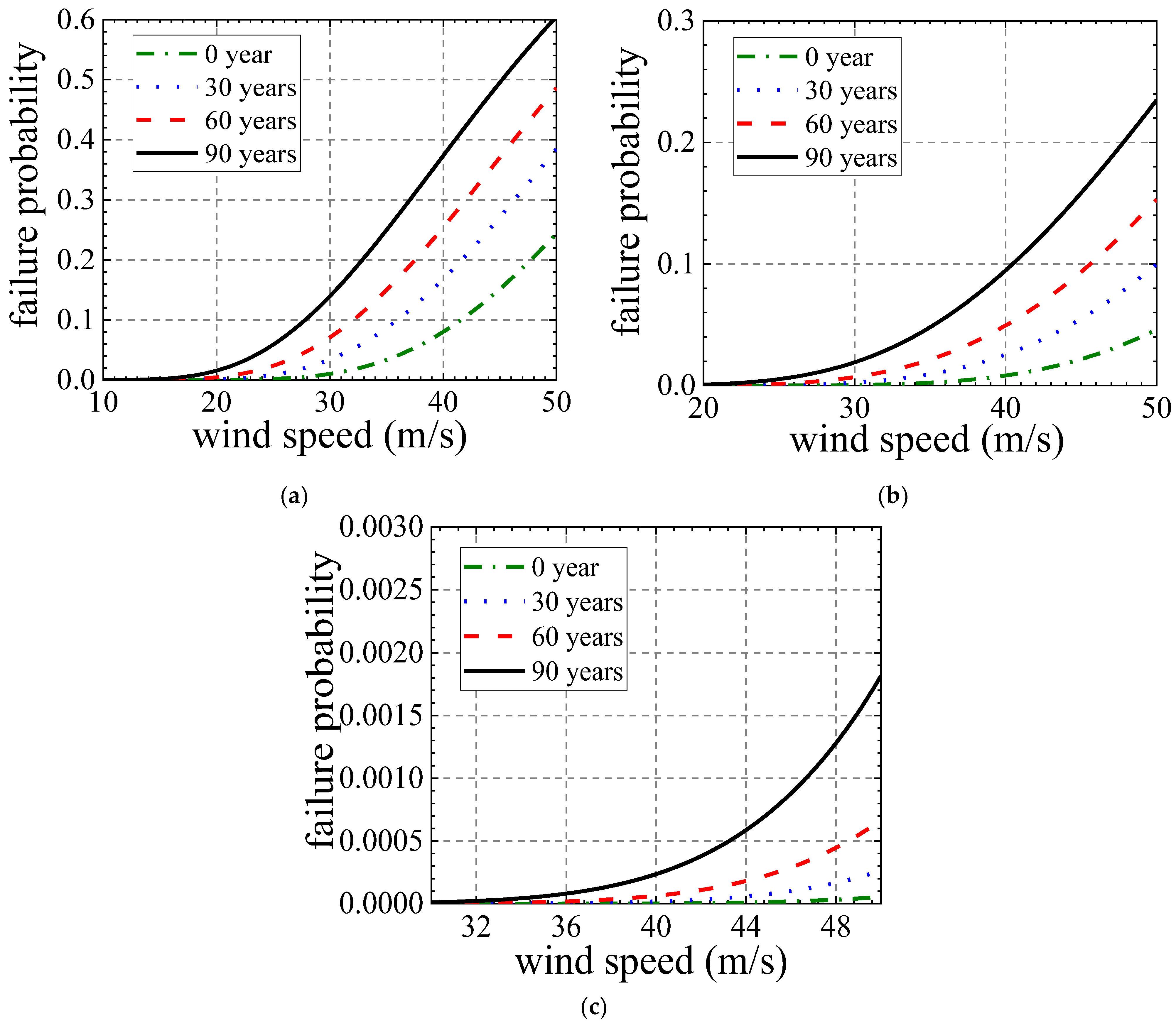

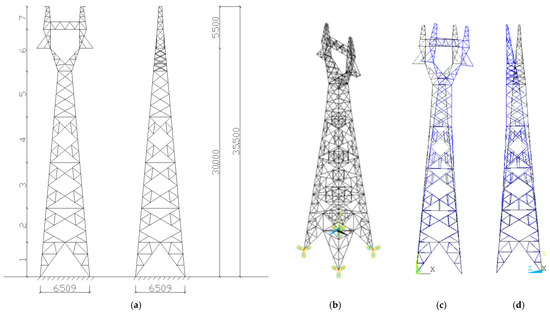

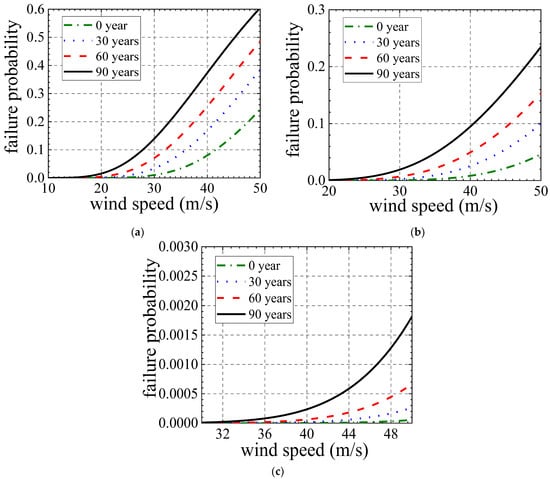

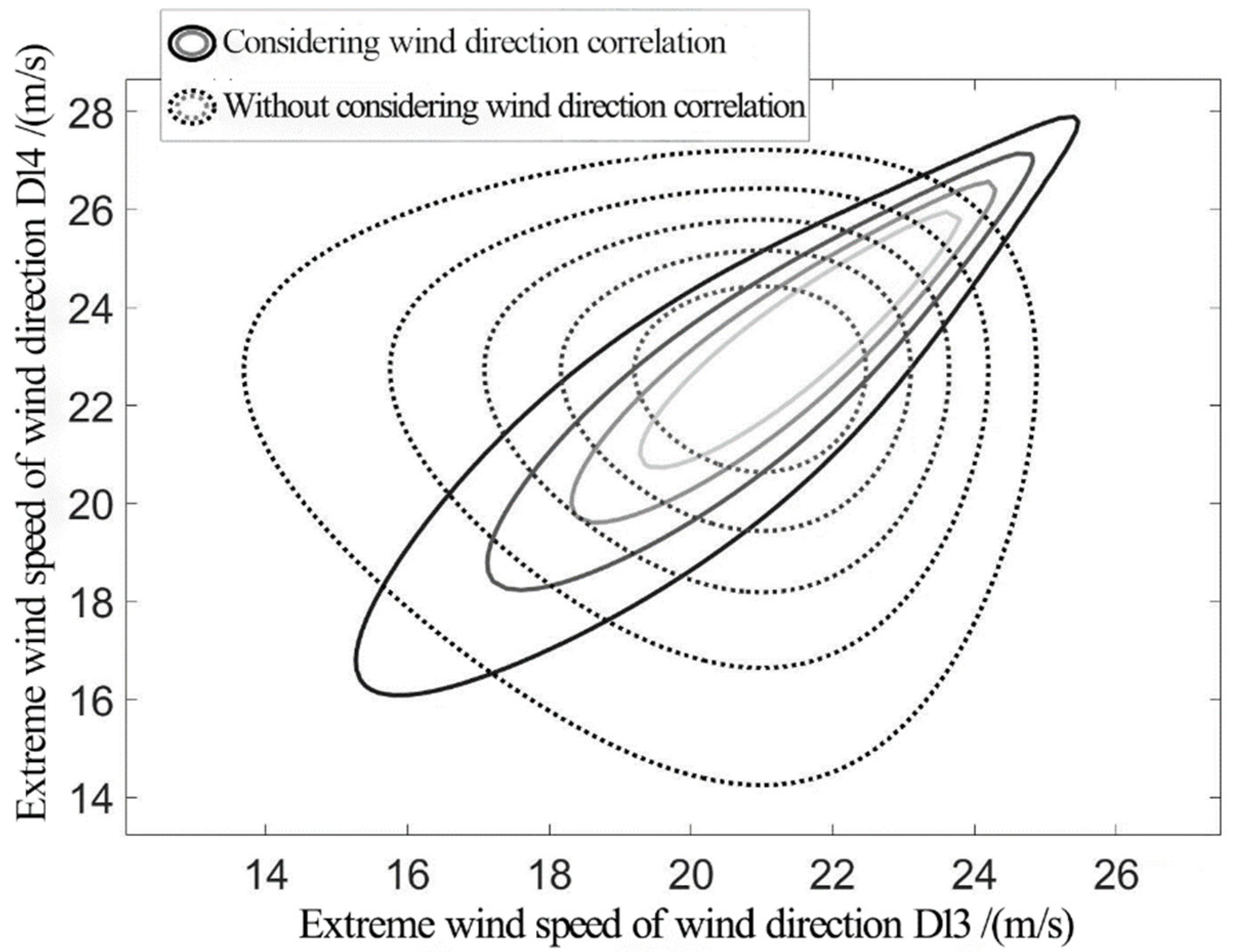

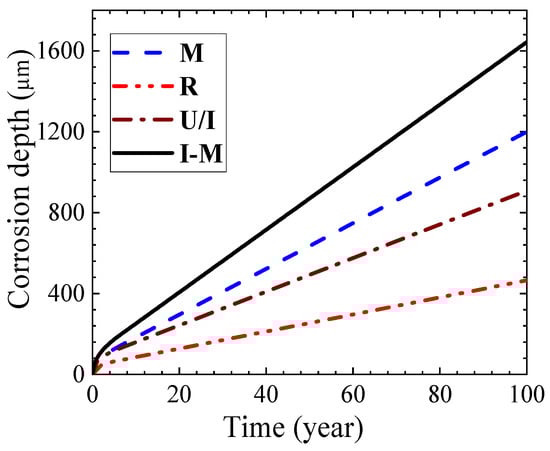

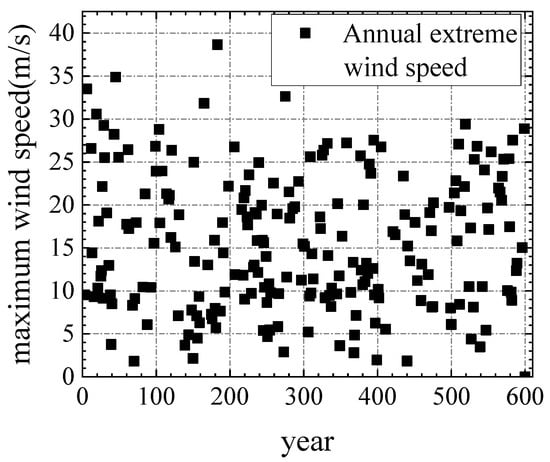

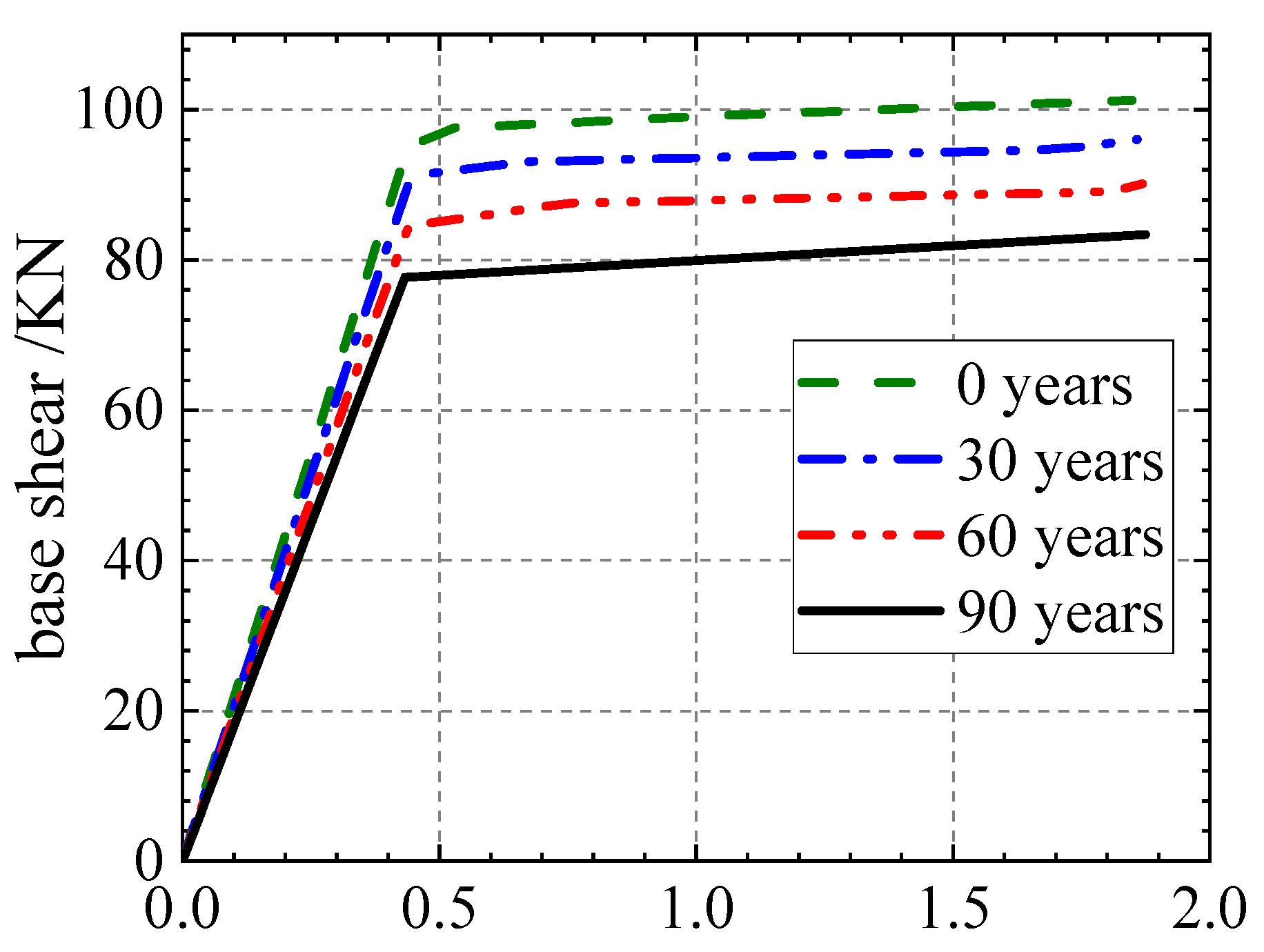

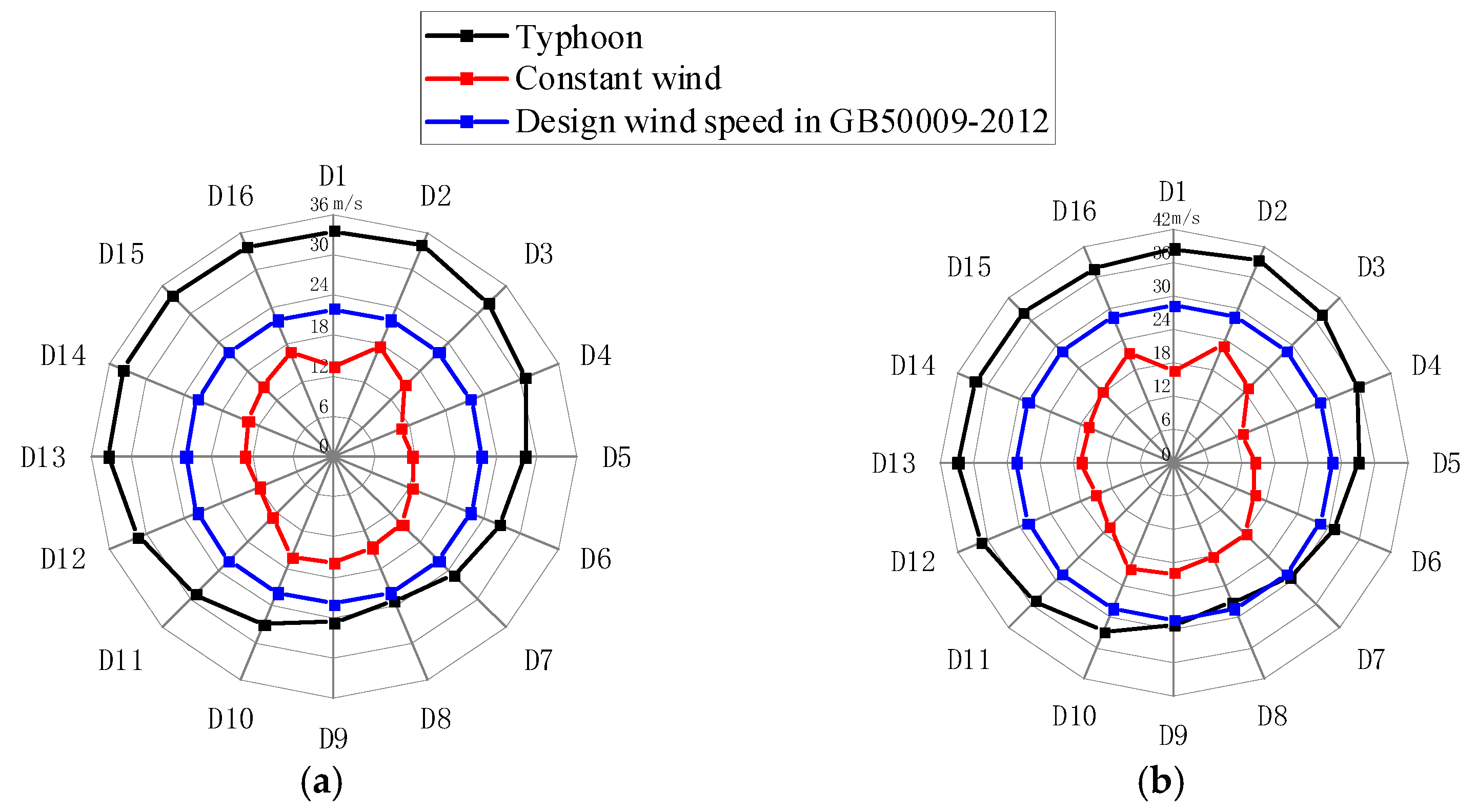

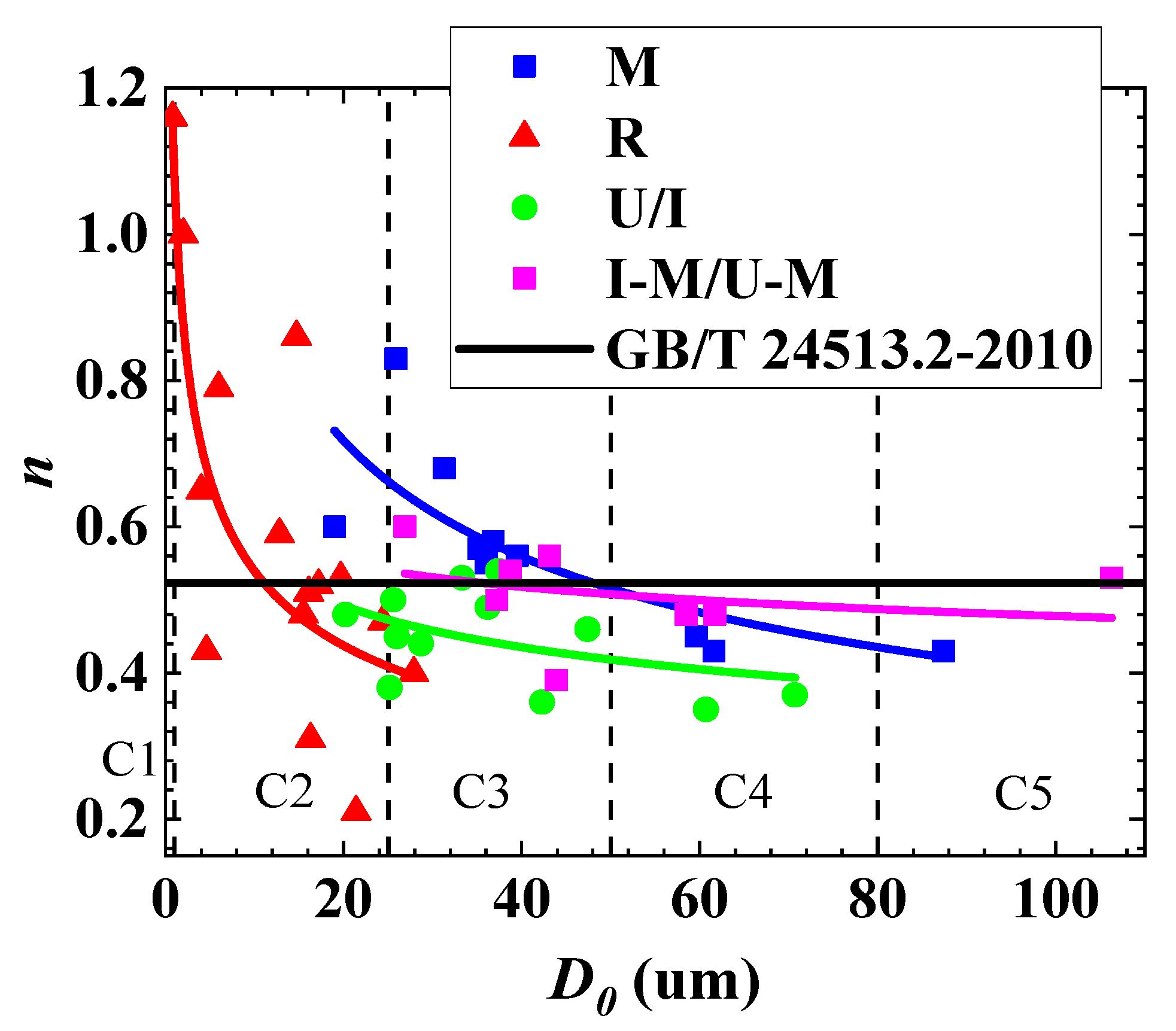

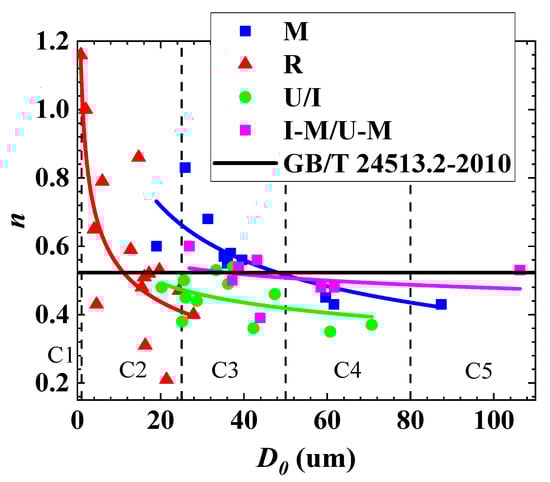

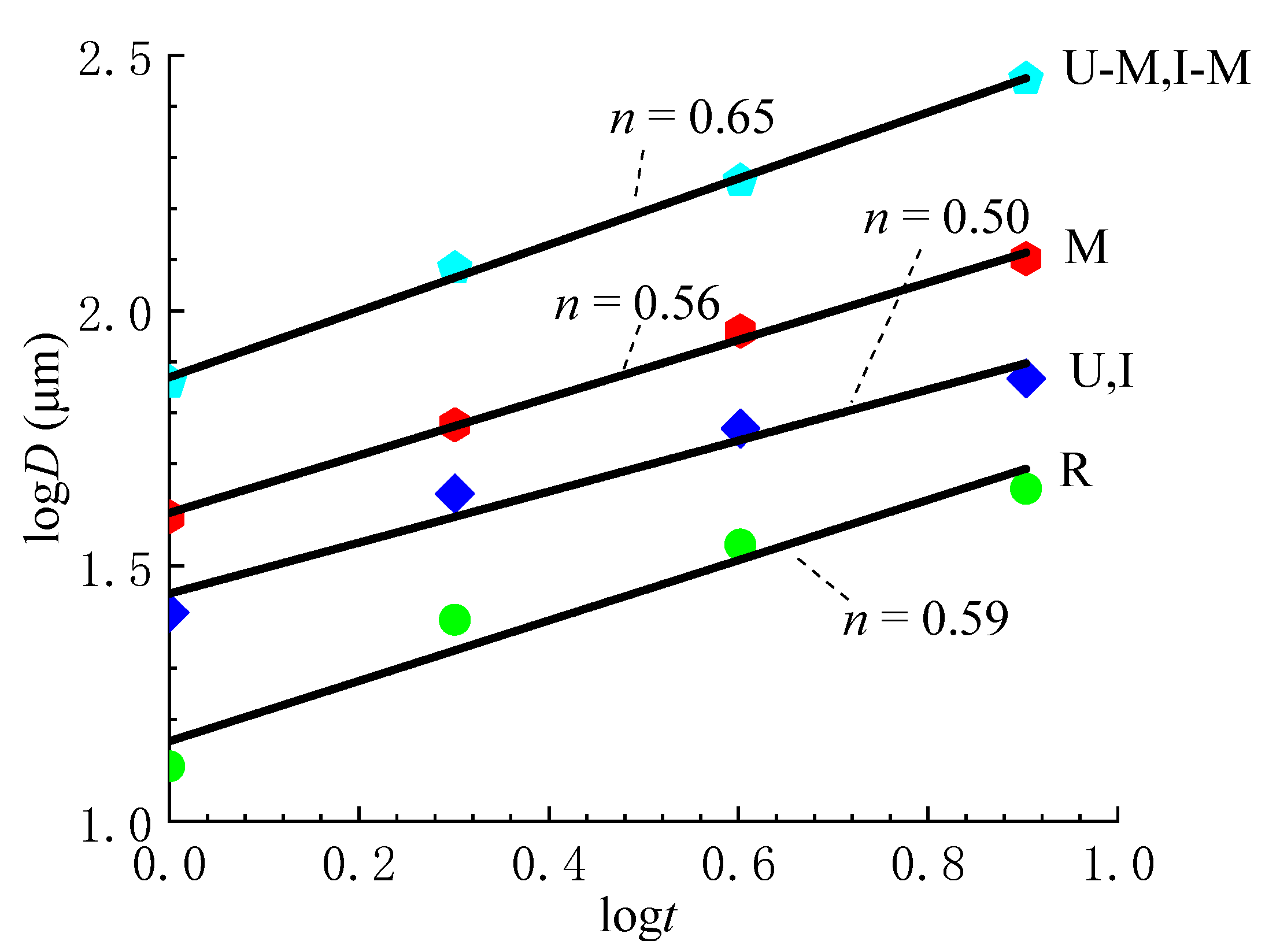

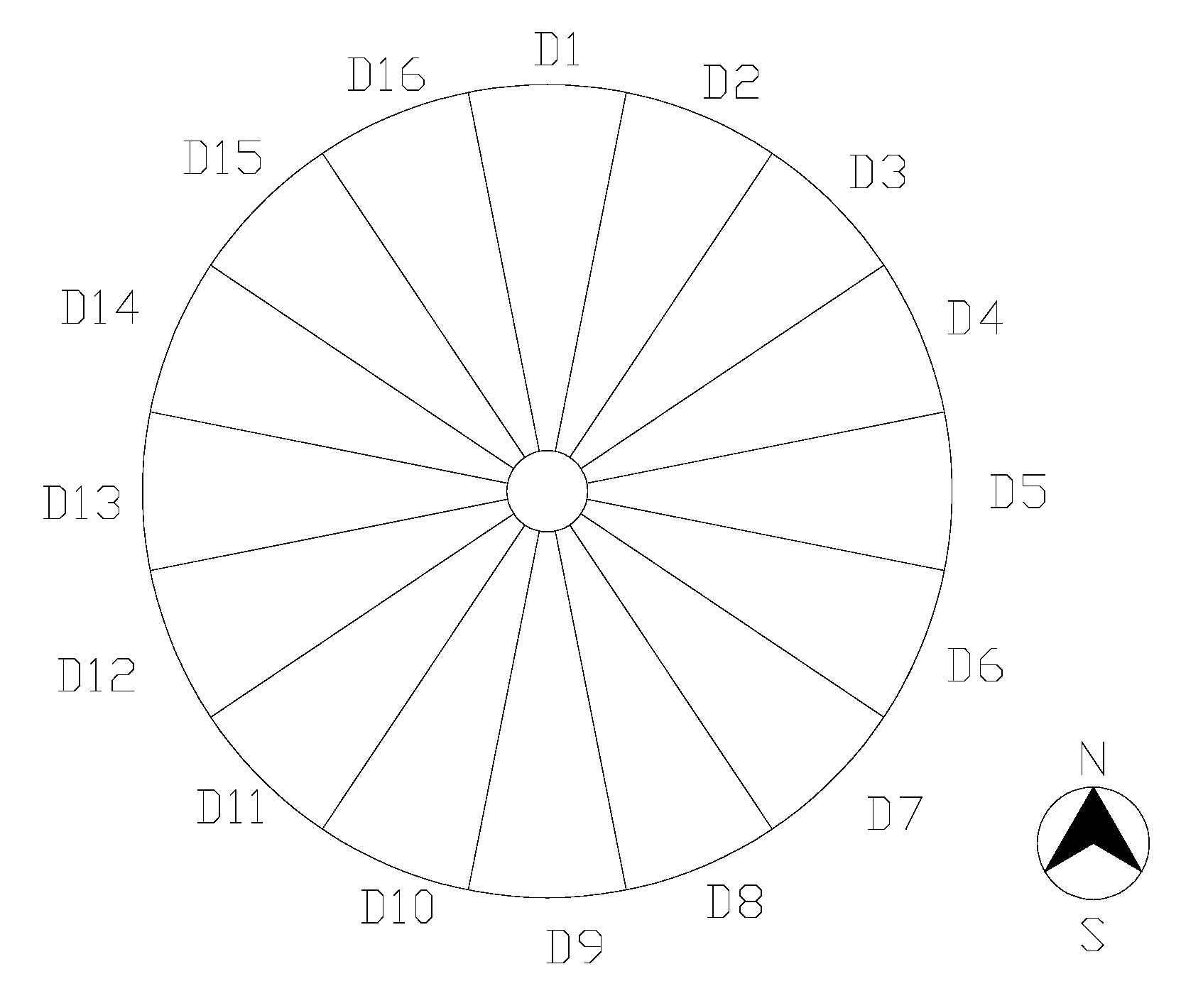

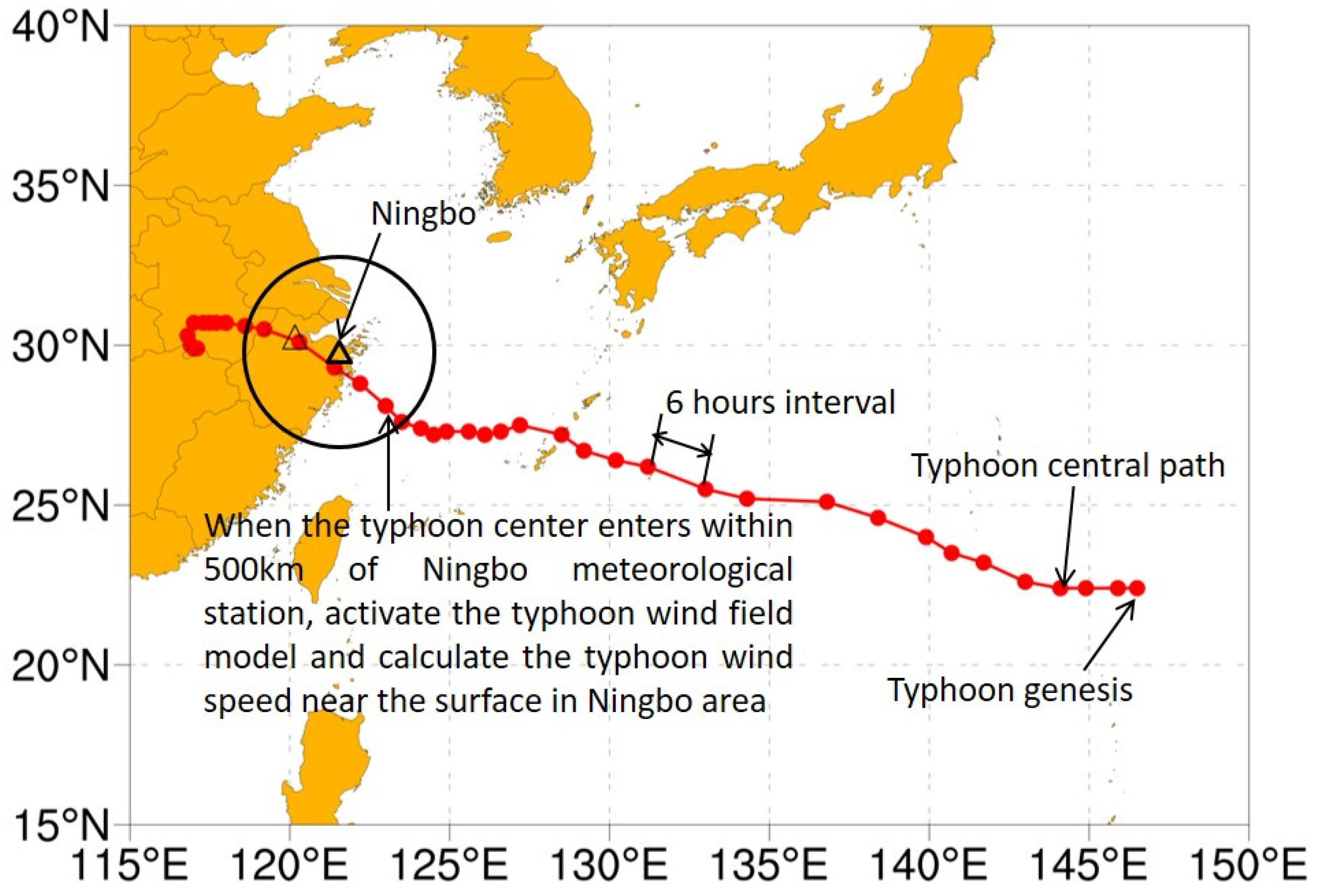

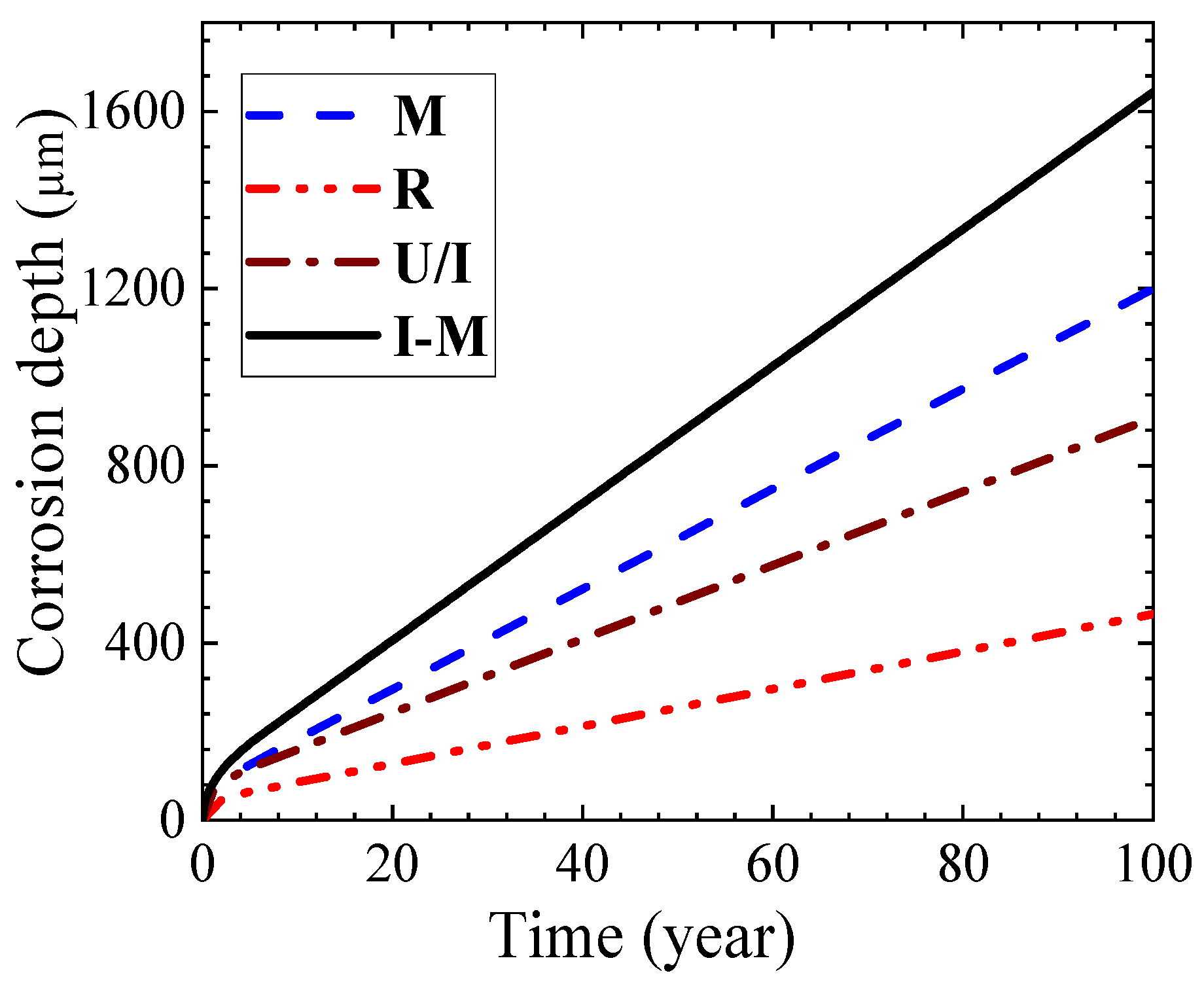

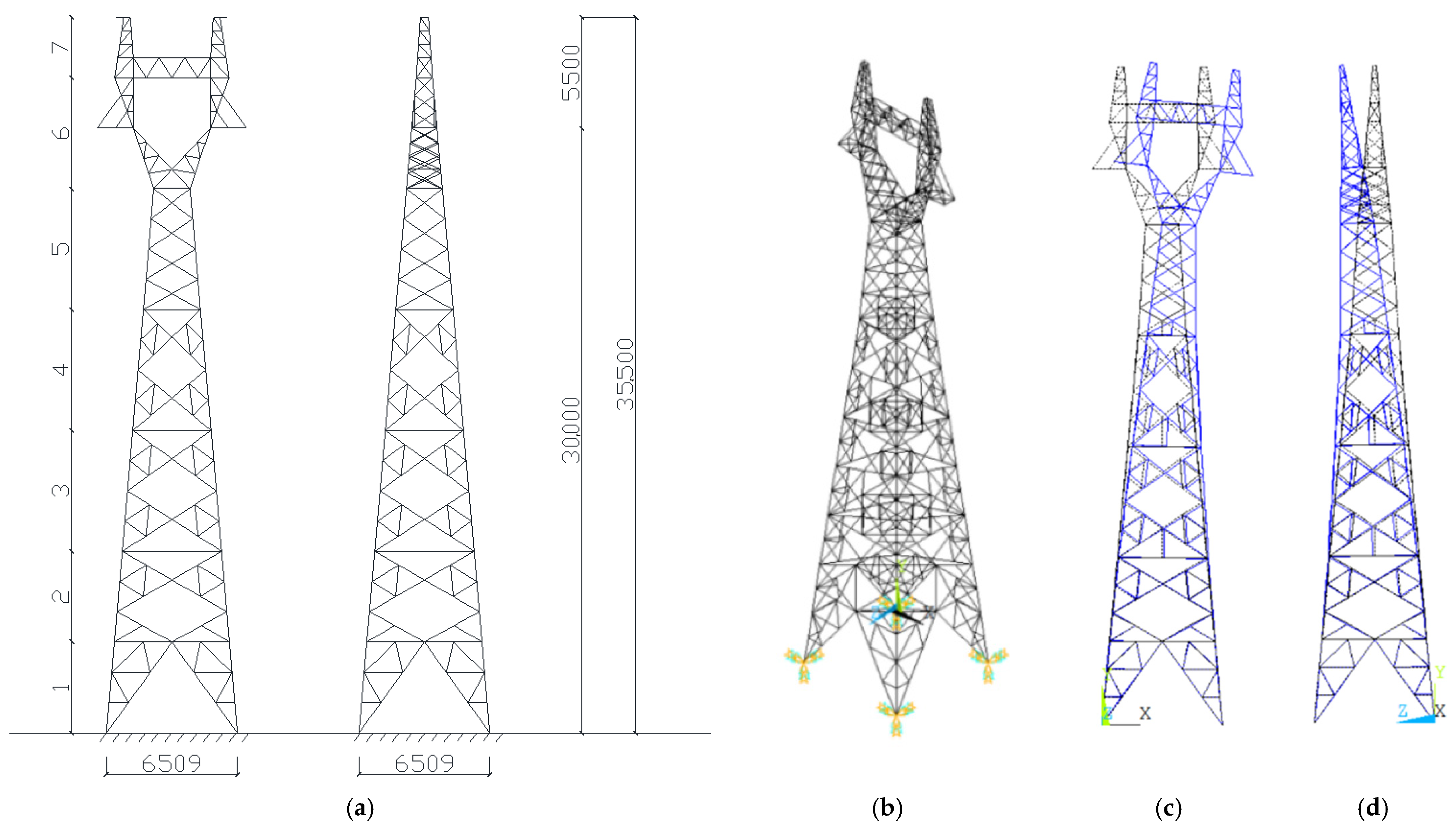

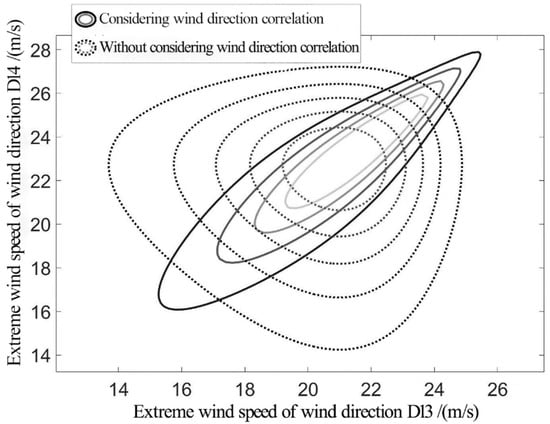

The purpose of this paper was to investigate the influence of long-term corrosion on the deterioration of wind resistance of a steel transmission tower during its service life. An analytical model for predicting the long-term corrosion depth of carbon steel was established, and the corrosion depth of carbon steel in the Ningbo area was predicted based on the local atmospheric environment data. With the help of typhoon full-track simulation and wind field simulation technology, a joint probability distribution model of multidirectional extreme wind speeds was constructed using the t-Copula function to determine the typhoon climate of the transmission tower site. Finite element models of the ZM4 cathead transmission tower under 30/60/90 corrosion years were then established, respectively, according to the predicted corrosion depth of carbon steel in Ningbo. Three damage modes, i.e., minor damage, moderate damage and severe damage, corresponding to the transmission tower under wind loads, were defined, and pushover analyses were used to determine the limit values of each damage mode so as to obtain the typhoon-induced fragility curves of the transmission tower within 30/60/90 corrosion years. The results show that the increase in corrosion age leads to a deterioration in the nominal mechanical properties of the transmission tower components, making the damage probability to the transmission tower increase. Under the typhoon wind loads of a 50-year return period in the most unfavorable wind direction in Ningbo, the probability of moderate damage of the tower is within 10% and the probability of minor damage is controlled between 10% and 40%.
