# Semi-Automatic Method of Extracting Road Networks from High-Resolution Remote-Sensing Images

^{1}

^{2}

^{3}

^{4}

^{*}

## Abstract

**:**

## 1. Introduction

- A complete road network extraction framework with high accuracy and availability is proposed. With only a few seed points, the whole road can be obtained quickly. First, the width and seed points of a road are set interactively, and the skeleton of the road is extracted by using regional growth and morphological algorithms. Then, a single-road vector is obtained after vector tracking, vector simplification, endpoint modification, and road connection. Finally, the road network is generated by using intersection connection and buffer algorithms.
- To further improve the effectiveness of the proposed method, we adopt the road segment modification and road network construction strategy using the combination of grid image level and vector level. At the raster level, morphological algorithms are used to acquire the initial road segment, and at the vector level, further corrections and connections are completed based on road geometric features. For example, considering the ‘T’, ‘Y’, and ‘+’ shape of the intersection, an intersection connection algorithm is proposed.
- The strategy proposed in this paper can be successfully applied to the extraction of rural areas, suburbs, and urban areas. At the same time, it also has a certain degree of correction effect on occlusion and shadow problems. The algorithm for extracting a single road can extract roads with a length of more than 4000 pixels at a time, which is fast and convenient, and has great potential for the application of labeling images for deep learning.

## 2. Materials and Methods

#### 2.1. Experimental Data

#### 2.2. Methodology

#### 2.2.1. Interactive Single-Road Extraction

#### Image Road Skeleton Extraction

#### Road Skeleton Vectorization and Optimization

- (1)
- Road vectorization to generate road segments

Algorithm 1: Road Vectorization | |

Input: image Input Image neighbor Neighborhood Search Order dt Length ThresholdOutput: Lines Segments | |

1: | function FindLines(image, Lines, neighbor, dt) |

2: | BEGIN |

3: | while (findFirstPoint(image, firstPt)) |

4: | BEGIN |

5: | line.push_back(firstPt); |

6: | currPt = firstPt; |

7: | while (findNextPoint(neighbor, image, currPt, nextPt)) |

8: | BEGIN |

9: | line.push_back(nextPt); |

10: | currPt = nextPt; |

11: | END |

12: | currPt = firstPt; |

13: | while (findNextPoint(neighbor, image, currPt, nextPt)) |

14: | BEGIN |

15: | line.push_front(nextPt); |

16: | currPt = nextPt; |

17: | END |

18: | if (line.length() > dt) |

19: | BEGIN |

20: | line.simplify(T); |

21: | Lines.push_back(line); |

22: | END |

23: | END |

24: | END |

- (2)
- Road segment optimization and connection

Algorithm 2: Road Connection | |

Input: Lines Segments after Tracking AlgorithmOutput: Lines Roads after Connection Algorithm | |

1: | function LinkLines(&Lines) |

2: | BEGIN |

3: | Ver = FindVertex(Lines); |

4: | Ver_theta = FindVertexAzimuth(Lines); |

5: | for i ← 0 to Ver.size() |

6: | BEGIN |

7: | min = 9999.0; |

8: | if (isinConnectedPt(i, ConnectedPt)) continue; |

9: | for j ← (i + 1) to Ver.size() |

10: | BEGIN |

11: | if (isinSameLine(Ver(i), Ver(j))) continue; |

12: | temp_distance = cal_Distance(Ver(i),Ver(j)); |

13: | if (temp_distance < min) |

14: | BEGIN |

15: | min = temp_distance; |

16: | flag = j; |

17: | END |

18: | END |

19: | if ((abs(Ver_theta(i)-Ver_theta(flag)) > 90) AND (min < dt)) |

20: | BEGIN |

21: | Temp_line.pushback(Ver(i)); |

22: | Temp_line.pushback(Ver(flag)); |

23: | L1 = findLinefromVer(Ver(i)); |

24: | L2 = findLinefromVer(Ver(flag)); |

25: | JudgeConnectOrder(L1,L2,&Line1,Temp_line,&Line2); |

26: | Line1 = Line1.combine(Temp_line); |

27: | Line1 = Line1.combine(Line2); |

28: | ChangeLine(L1,Line1, &Lines); |

29: | deleteLine(L2,&Lines); |

30: | ConnectedPt.pushback(flag); |

31: | END |

32: | END |

33: | END |

#### 2.2.2. Road Network Generation

Algorithm 3: Intersection Connection | |

Input: Lines RoadsOutput: addLines Newly added connection roads | |

1: | function addJunctionLines(Lines, addLines) |

2: | BEGIN |

3: | Ver = FindVertex(Lines); |

4: | Ver_theta = FindVertexAzimuth(Lines); |

5: | for i ← 0 to Ver.size() |

6: | BEGIN |

7: | extendline.push_back(Ver(i)); |

8: | extendpoint = cal_coordinate(Ver(i), Ver_theta(i), dt); |

9: | extendline.push_back(extendpoint); |

10: | for j ← 0 to Lines.size() |

11: | BEGIN |

12: | if (intersects(Lines(j), extendline)) |

13: | BEGIN |

14: | intersect_geo = intersection(Lines(j), extendline); |

15: | intersect = intersect_geo- > asPoint(); |

16: | if (Ver(i)≠intersect) |

17: | BEGIN |

18: | temp_polyline.push_back(Ver(i)); |

19: | temp_polyline.push_back(intersect); |

20: | addLines.pushback(temp_polyline); |

21: | END |

22: | END |

23: | END |

24: | END |

25: | END |

#### 2.2.3. Evaluation of the Extraction Results

## 3. Results

#### 3.1. Parameter Settings

#### 3.2. Road Extraction Results for the Four Datasets

#### 3.3. Comparison with Other Existing Methods

## 4. Discussion

## 5. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Zhu, Q.; Zhang, Y.; Wang, L.; Zhong, Y.; Guan, Q.; Lu, X.; Zhang, L.; Li, D. A global context-aware and batch-independent network for road extraction from VHR satellite imagery. ISPRS J. Photogramm. Remote Sens.
**2021**, 175, 353–365. [Google Scholar] [CrossRef] - Gao, L.; Song, W.; Dai, J.; Chen, Y. Road extraction from high-resolution remote sensing imagery using refined deep residual convolutional neural network. Remote Sens.
**2019**, 11, 552. [Google Scholar] [CrossRef] [Green Version] - Yang, X.; Li, X.; Ye, Y.; Lau, R.Y.K.; Zhang, X.; Huang, X. Road detection and centerline extraction via deep recurrent convolutional neural network U-Net. IEEE Trans. Geosci. Remote Sens.
**2019**, 57, 7209–7220. [Google Scholar] [CrossRef] - Wang, C.; Zourlidou, S.; Golze, J.; Sester, M. Trajectory analysis at intersections for traffic rule identification. Geo-Spat. Inf. Sci.
**2020**, 24, 75–84. [Google Scholar] [CrossRef] - Gurung, P. Challenging infrastructural orthodoxies: Political and economic geographies of a Himalayan road. Geoforum
**2021**, 120, 103–112. [Google Scholar] [CrossRef] - Alamgir, M.; Campbell, M.J.; Sloan, S.; Goosem, M.; Clements, G.R.; Mahmoud, M.I.; Laurance, W.F. Economic, socio-political and environmental risks of road development in the tropics. Curr. Biol.
**2017**, 27, 1130–1140. [Google Scholar] [CrossRef] [Green Version] - Qi, Y.; Chodron Drolma, S.; Zhang, X.; Liang, J.; Jiang, H.; Xu, J.; Ni, T. An investigation of the visual features of urban street vitality using a convolutional neural network. Geo-Spat. Inf. Sci.
**2020**, 23, 341–351. [Google Scholar] [CrossRef] - Metz, D. Economic benefits of road widening: Discrepancy between outturn and forecast. Transp. Res. Part A Policy Pract.
**2021**, 147, 312–319. [Google Scholar] [CrossRef] - Chaudhuri, D.; Kushwaha, N.K.; Samal, A. Semi-Automated road detection from high resolution satellite images by directional morphological enhancement and segmentation techniques. IEEE J. Sel. Top. Appl. Earth Obs. Remote Sens.
**2012**, 5, 1538–1544. [Google Scholar] [CrossRef] - Wang, J.; Qin, Q.; Gao, Z.; Zhao, J.; Ye, X. A new approach to urban road extraction using high-resolution aerial image. ISPRS Int. J. Geo-Inf.
**2016**, 5, 114. [Google Scholar] [CrossRef] [Green Version] - Wang, T.; Du, L.; Yi, W.; Hong, J.; Zhang, L.; Zheng, J.; Li, C.; Ma, X.; Zhang, D.; Fang, W.; et al. An adaptive atmospheric correction algorithm for the effective adjacency effect correction of submeter-scale spatial resolution optical satellite images: Application to a WorldView-3 panchromatic image. Remote Sens. Environ.
**2021**, 259, 112412. [Google Scholar] [CrossRef] - Máttyus, G.; Luo, W.; Urtasun, R. DeepRoadMapper: Extracting Road Topology from Aerial Images. In Proceedings of the 2017 IEEE International Conference on Computer Vision (ICCV), Venice, Italy, 22–29 October 2017; pp. 3458–3466. [Google Scholar] [CrossRef]
- Zhao, J.Q.; Yang, J.; Li, P.X.; Lu, J.M. Semi-automatic Road Extraction from SAR Images Using EKF and PF. Int. Arch. Photogramm. Remote Sens. Spat. Inf. Sci.
**2015**, XL-7/W4, 227–230. [Google Scholar] [CrossRef] [Green Version] - Guan, H.; Lei, X.; Yu, Y.; Zhao, H.; Peng, D.; Marcato Junior, J.; Li, J. Road marking extraction in UAV imagery using attentive capsule feature pyramid network. Int. J. Appl. Earth Obs.
**2022**, 107, 102677. [Google Scholar] [CrossRef] - Ekim, B.; Sertel, E.; Kabadayı, M.E. Automatic road extraction from historical maps using deep learning techniques: A regional case study of turkey in a German World War II Map. ISPRS Int. J. Geo-Inf.
**2021**, 10, 492. [Google Scholar] [CrossRef] - Kuo, C.-L.; Tsai, M.-H. Road characteristics detection based on joint convolutional neural networks with adaptive squares. ISPRS Int. J. Geo-Inf.
**2021**, 10, 377. [Google Scholar] [CrossRef] - Yang, M.; Yuan, Y.; Liu, G. SDUNet: Road extraction via spatial enhanced and densely connected UNet. Pattern Recognit.
**2022**, 126, 108549. [Google Scholar] [CrossRef] - Zhang, X.; Ma, W.; Li, C.; Wu, J.; Tang, X.; Jiao, L. Fully Convolutional Network-Based Ensemble Method for Road Extraction from Aerial Images. IEEE Geosci. Remote Sens. Lett.
**2020**, 17, 1777–1781. [Google Scholar] [CrossRef] - Heipke, C.; Rottensteiner, F. Deep learning for geometric and semantic tasks in photogrammetry and remote sensing. Geo-Spat. Inf. Sci.
**2020**, 23, 10–19. [Google Scholar] [CrossRef] - Wu, S.; Du, C.; Chen, H.; Xu, Y.; Guo, N.; Jing, N. Road extraction from very high resolution images using weakly labeled openstreetmap centerline. ISPRS Int. J. Geo-Inf.
**2019**, 8, 478. [Google Scholar] [CrossRef] [Green Version] - Bakhtiari, H.R.R.; Abdollahi, A.; Rezaeian, H. Semi automatic road extraction from digital images. Egypt. J. Remote Sens. Space Sci.
**2017**, 20, 117–123. [Google Scholar] [CrossRef] - Miao, Z.; Wang, B.; Shi, W.; Zhang, H. A semi-automatic method for road centerline extraction from VHR images. IEEE Geosci. Remote Sens. Lett.
**2014**, 11, 1856–1860. [Google Scholar] [CrossRef] - Nunes, D.M.; Medeiros, N.D.G.; Santos, A.D.P.D. Semi-automatic road network extraction from digital images using object-based classification and morphological operators. Bol. Ciênc. Geod.
**2018**, 24, 485–502. [Google Scholar] [CrossRef] - Chen, L.; Rottensteiner, F.; Heipke, C. Feature detection and description for image matching: From hand-crafted design to deep learning. Geo-Spat. Inf. Sci.
**2020**, 24, 58–74. [Google Scholar] [CrossRef] - Yuan, X.; Shi, J.; Gu, L. A review of deep learning methods for semantic segmentation of remote sensing imagery. Expert Syst. Appl.
**2021**, 169, 114417. [Google Scholar] [CrossRef] - Arya, D.; Maeda, H.; Ghosh, S.K.; Toshniwal, D.; Sekimoto, Y. RDD2020: An annotated image dataset for automatic road damage detection using deep learning. Data Brief
**2021**, 36, 107133. [Google Scholar] [CrossRef] - Li, P.; He, X.; Qiao, M.; Miao, D.; Cheng, X.; Song, D.; Chen, M.; Li, J.; Zhou, T.; Guo, X.; et al. Exploring multiple crowdsourced data to learn deep convolutional neural networks for road extraction. Int. J. Appl. Earth Obs.
**2021**, 104, 102544. [Google Scholar] [CrossRef] - Yu, J.; Yu, F.; Zhang, J.; Liu, Z. High resolution remote sensing image road extraction combining region growing and road-unit. Geomat. Inf. Sci. Wuhan Univ.
**2013**, 38, 761–764. [Google Scholar] [CrossRef] - Li, J.; Wen, Z.Q.; Hu, Y.X.; Liu, Z.D. Road Extraction from Remote Sensing Images Based on Improved Regional Growth. Comput. Eng. Appl.
**2016**, 209–213, 238. [Google Scholar] [CrossRef] - Wang, Z.; Yang, L.; Sheng, Y.; Shen, M. Pole-like Objects Segmentation and Multiscale Classification-Based Fusion from Mobile Point Clouds in Road Scenes. Remote Sens.
**2021**, 13, 4382. [Google Scholar] [CrossRef] - Cao, F.; Xu, Y.; Zhu, B.; Li, R. Semi-automatic road centerline extraction from high-resolution remote sensing by image utilizing dynamic programming. J. Geomat. Sci. Technol.
**2015**, 32, 615–618. [Google Scholar] [CrossRef] - Gruen, A.; Li, H. Road extraction from aerial and satellite images by dynamic programming. ISPRS J. Photogramm. Remote Sens.
**1995**, 50, 11–20. [Google Scholar] [CrossRef] - Lian, R.; Wang, W.; Mustafa, N.; Huang, L. Road Extraction Methods in High-Resolution Remote Sensing Images: A Comprehensive Review. IEEE J. Sel. Top. Appl. Earth Obs. Remote Sens.
**2020**, 13, 5489–5507. [Google Scholar] [CrossRef] - Ghandorh, H.; Boulila, W.; Masood, S.; Koubaa, A.; Ahmed, F.; Ahmad, J. Semantic Segmentation and Edge Detection—Approach to Road Detection in Very High Resolution Satellite Images. Remote Sens.
**2022**, 14, 613. [Google Scholar] [CrossRef] - Hormese, J.; Saravanan, C. Automated road extraction from high resolution satellite images. Procedia Technol.
**2016**, 24, 1460–1467. [Google Scholar] [CrossRef] [Green Version] - Xiao, Y.; Tan, T.S.; Tay, S.C. Utilizing Edge to Extract Roads in High-Resolution Satellite Imagery. In Proceedings of the IEEE International Conference on Image Processing, Genova, Italy, 14 September 2005; Volume 1, p. I-637. [Google Scholar] [CrossRef]
- Chen, G.; Sui, H.; Tu, J.; Song, Z. Semi-automatic road extraction method from high resolution remote sensing images based on P-N learning. Geomat. Inf. Sci. Wuhan Univ.
**2017**, 42, 775–781. [Google Scholar] [CrossRef] - Tan, H.; Shen, Z.; Dai, J. Semi-automatic extraction of rural roads under the constraint of combined geometric and texture features. ISPRS Int. J. Geo-Inf.
**2021**, 10, 754. [Google Scholar] [CrossRef] - Wang, F.; Wang, W.; Xue, B.; Cao, T.; Gao, T. Road extraction from high-spatial-resolution remote sensing image by combining GVF snake with salient features. Acta Geod. Cartogr. Sin.
**2017**, 46, 1978–1985. [Google Scholar] [CrossRef] - Abdelfattah, R.; Chokmani, K. A Semi Automatic off-roads and Trails Extraction Method from Sentinel-1 Data. In Proceedings of the 2017 IEEE International Geoscience and Remote Sensing Symposium (IGARSS), Fort Worth, TX, USA, 23–28 July 2017; pp. 3728–3731. [Google Scholar] [CrossRef]
- Gu, D.; Wang, X. Road extraction in remote sensing images based on region growing and GVF-Snake. Comput. Eng. Appl.
**2010**, 46, 202–205. [Google Scholar] [CrossRef] - Wei, Y.; Wang, Z.; Xu, M. Road structure refined CNN for road extraction in aerial image. IEEE Geosci. Remote. Sens. Lett.
**2017**, 14, 709–713. [Google Scholar] [CrossRef] - Wang, W.; Yang, N.; Zhang, Y.; Wang, F.; Cao, T.; Eklund, P. A review of road extraction from remote sensing images. J. Traffic Transp. Eng.
**2016**, 3, 271–282. [Google Scholar] [CrossRef] [Green Version] - Wan, Y.; Wang, D.; Xiao, J.; Lai, X.; Xu, J. Automatic determination of seamlines for aerial image mosaicking based on vector roads alone. ISPRS J. Photogramm. Remote Sens.
**2013**, 76, 1–10. [Google Scholar] [CrossRef] - Mnih, V. Machine Learning for Aerial Image Labeling. Ph.D. Thesis, University of Toronto, Toronto, ON, Canda, 2013. [Google Scholar]
- Demir, I.; Koperski, K.; Lindenbaum, D.; Pang, G.; Huang, J.; Basu, S.; Hughes, F.; Tuia, D.; Raskar, R. DeepGlobe 2018: A Challenge to Parse the Earth through Satellite Images. In Proceedings of the 2018 IEEE/CVF Conference on Computer Vision and Pattern Recognition Workshops (CVPRW), Salt Lake City, UT, USA, 18–22 June 2018; pp. 172–181. [Google Scholar]
- Zhang, T.Y.; Suen, C.Y. A fast parallel algorithm for thinning digital patterns. Commun. ACM
**1984**, 27, 236–239. [Google Scholar] [CrossRef] - Cao, X.; Liu, D.; Ren, X. Detection method for auto guide vehicle’s walking deviation based on image thinning and Hough transform. Meas. Control
**2019**, 52, 252–261. [Google Scholar] [CrossRef] - Saalfeld, A. Topologically consistent line simplification with the Douglas-Peucker algorithm. Cartogr. Geogr. Inf. Sci.
**1999**, 26, 7–18. [Google Scholar] [CrossRef] - Henry, C.; Azimi, S.M.; Merkle, N. Road segmentation in SAR satellite images with deep fully convolutional neural networks. IEEE Geosci. Remote Sens. Lett.
**2018**, 15, 1867–1871. [Google Scholar] [CrossRef] [Green Version] - Abdollahi, A.; Pradhan, B.; Alamri, A. SC-RoadDeepNet: A New Shape and Connectivity-Preserving Road Extraction Deep Learning-Based Network from Remote Sensing Data. IEEE Trans. Geosci. Remote Sens.
**2022**, 60, 5617815. [Google Scholar] [CrossRef]

**Figure 1.**Experimental data: (

**a**) Data 1 in a rural area, with a size of 5000 pixels × 5000 pixels and a spatial resolution of 0.2 m; (

**b**) Data 2 in a suburban area, with a size of 5000 pixels × 5000 pixels and a spatial resolution of 1.0 m; (

**c**) Data 3 in an urban area with a size of 630 pixels × 600 pixels and also a spatial resolution of 1 m; (

**d**) Data 4 in a rural residential area with a size of 1024 pixels × 1024 pixels and a spatial resolution of 0.5 m.

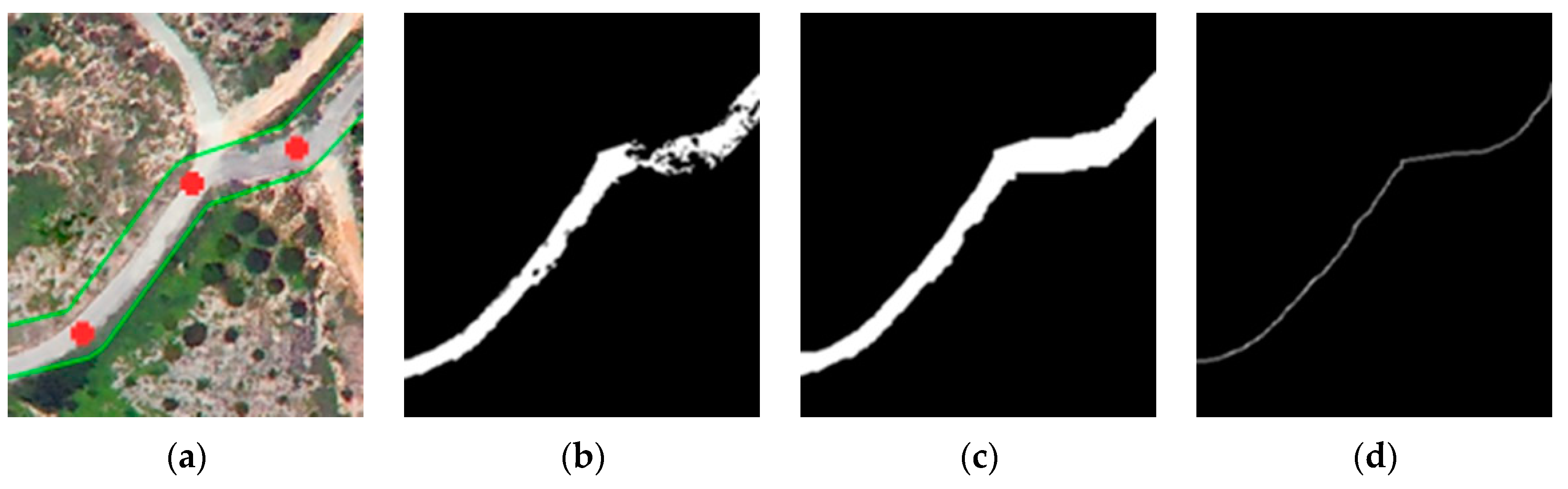

**Figure 3.**Road skeleton extraction: (

**a**) test image, where seed points are shown in red; (

**b**) regional growth result; (

**c**) closing operation result; (

**d**) thinning result.

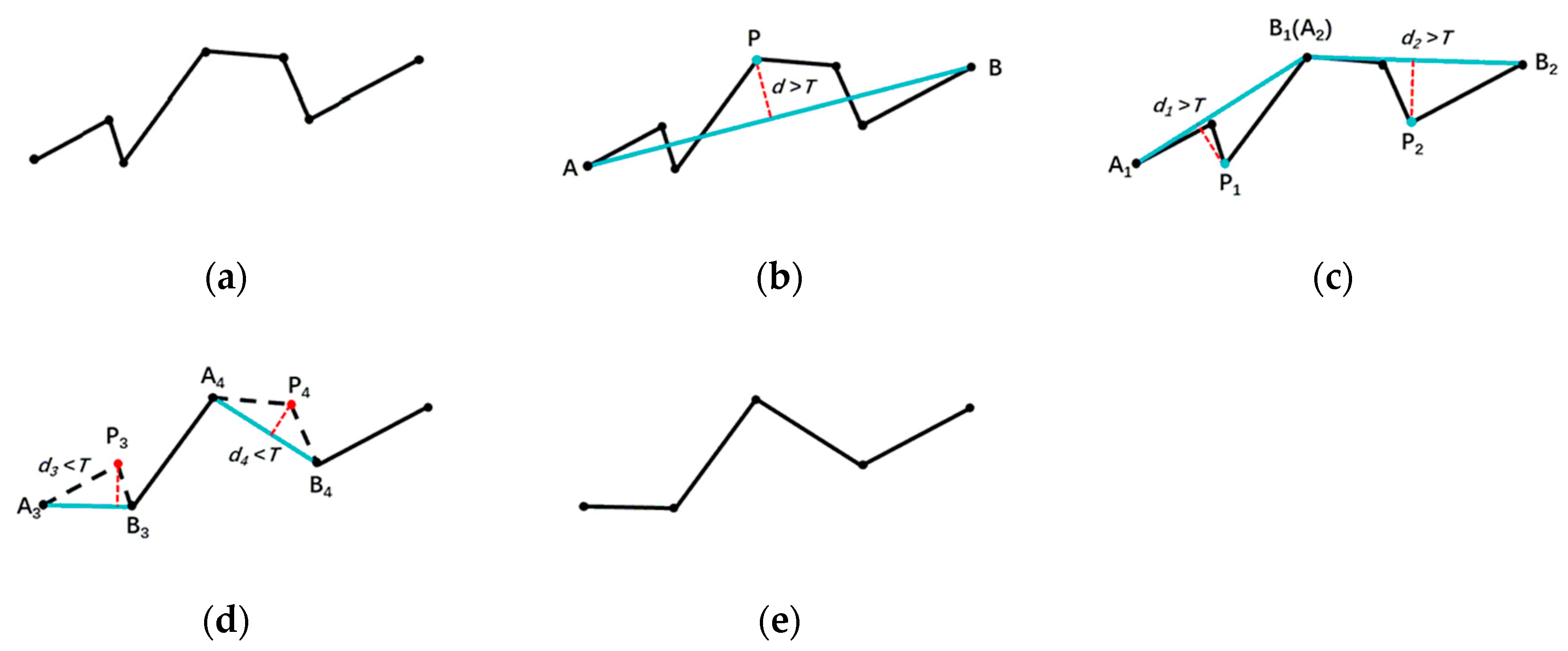

**Figure 6.**Principle of the Douglas–Peucker algorithm: (

**a**) initial polyline; (

**b**–

**d**) judgment and processing step by step; (

**e**) simplifed result.

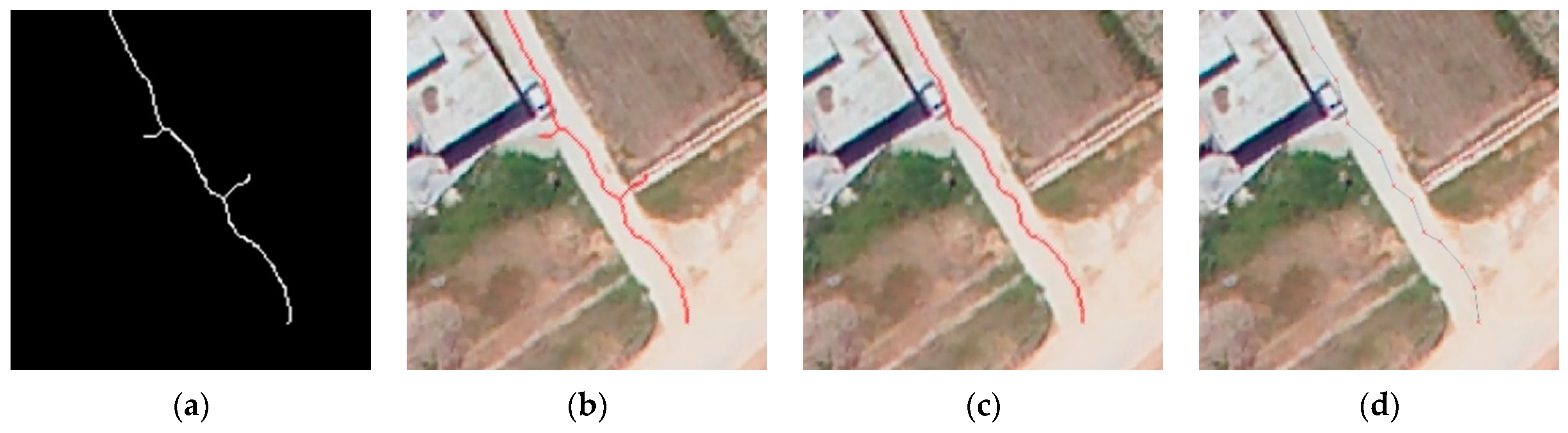

**Figure 7.**Vectorization to obtain segments: (

**a**) result after thinning; (

**b**) result after applying the tracking algorithm; (

**c**) result after deleting overly short segments; (

**d**) result after simplification.

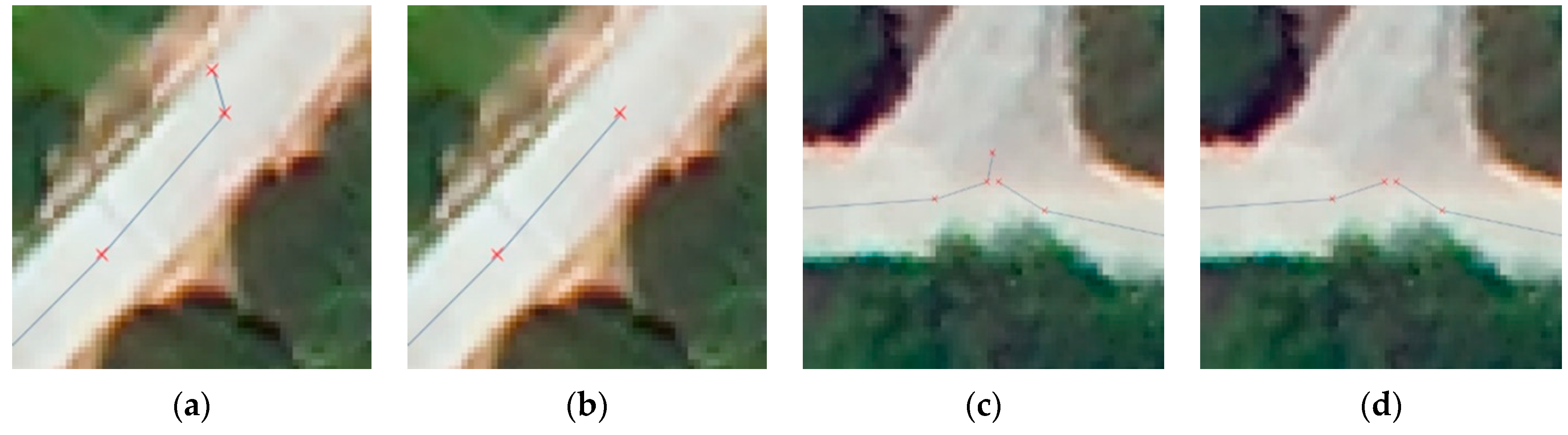

**Figure 8.**Optimizing segments: (

**a**,

**c**) show vectors with offset problems; (

**b**,

**d**) are the respective results of endpoint modification.

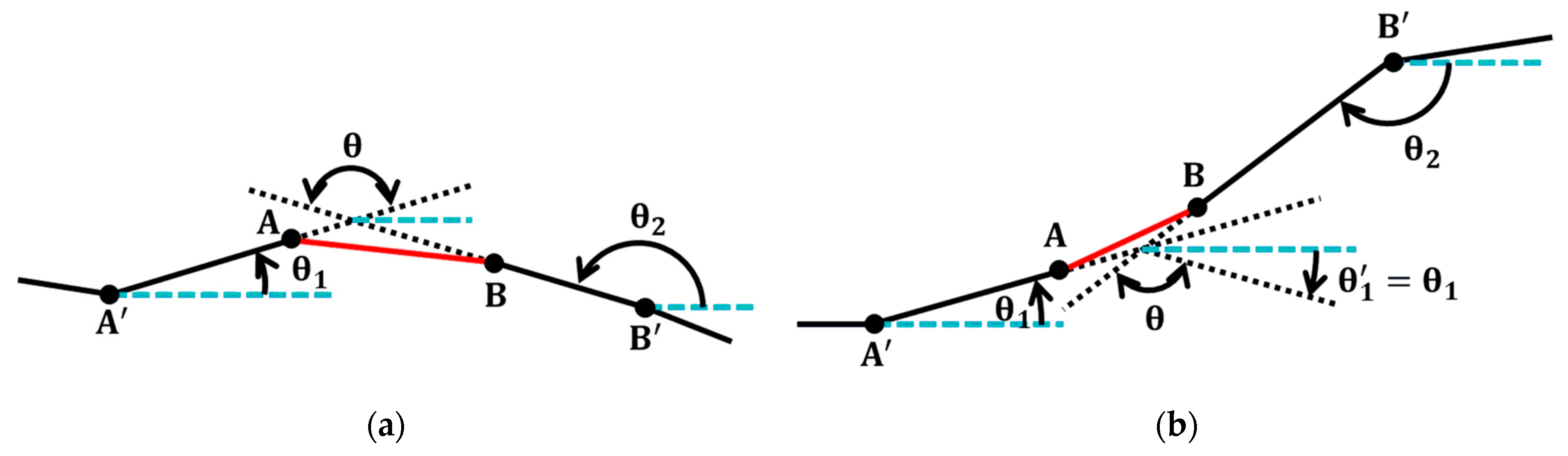

**Figure 10.**Angle rule between vectors: (

**a**) the two vectors are on the same side of the horizontal line; (

**b**) the two vectors are on opposite sides of the horizontal line.

**Figure 11.**The road connection results: (

**a**,

**c**) depict the roads to be connected; (

**b**,

**d**) are the respective road connection results.

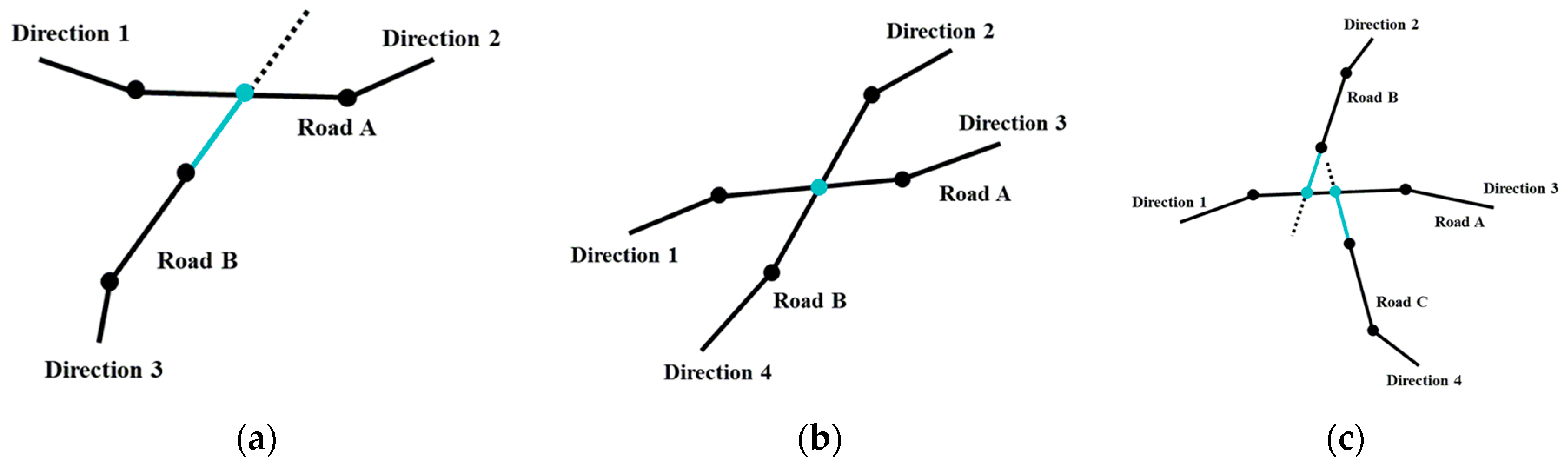

**Figure 12.**Description of road intersections: (

**a**) ‘T’- or ‘Y’-shaped intersection; (

**b**) simple situation of ‘+’-shaped intersection; (

**c**) multiple situations of ‘+’-shaped intersections.

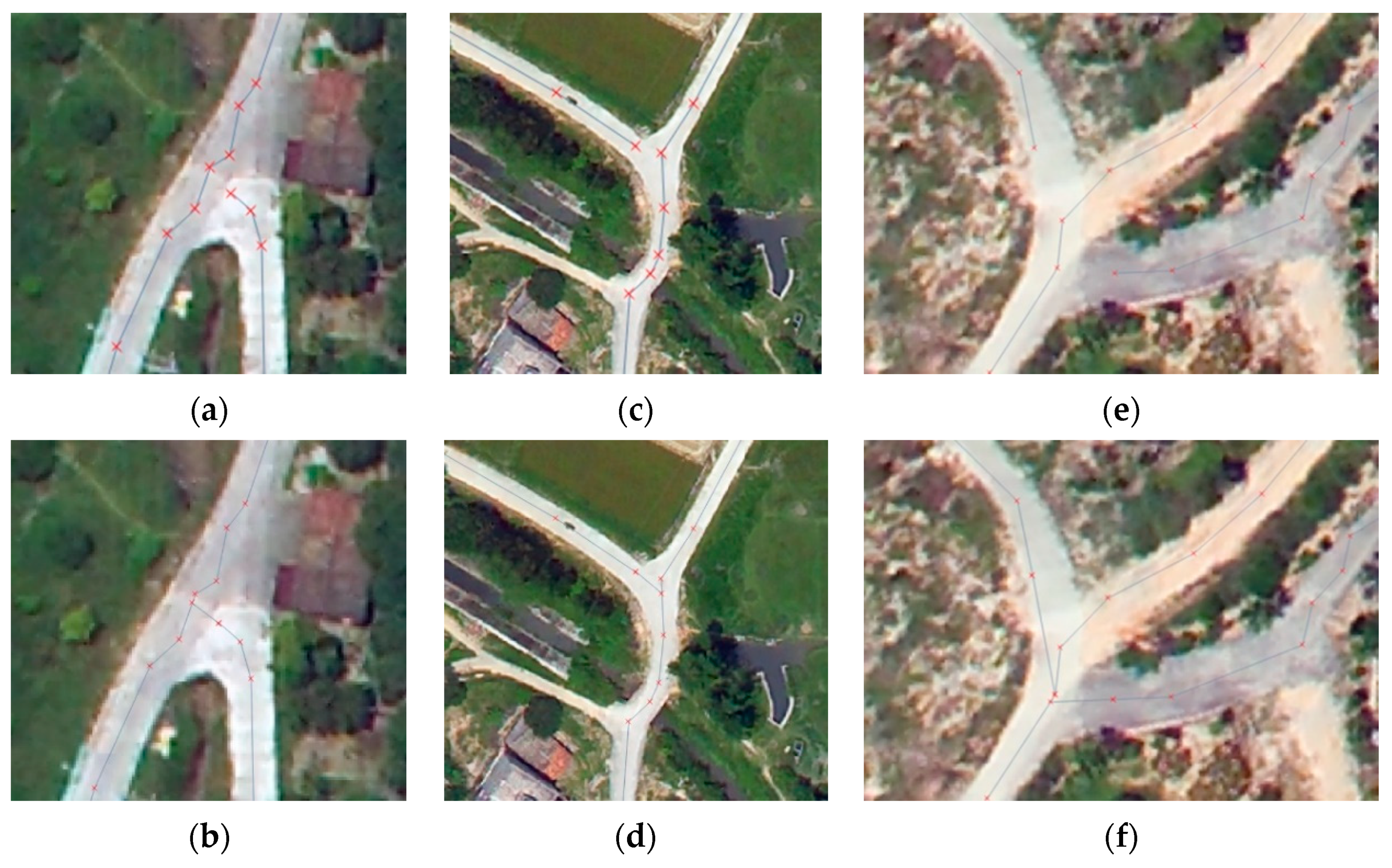

**Figure 13.**Intersection connection results: (

**a**,

**c**,

**e**) depict the road intersections before the connection is performed and (

**b**,

**d**,

**f**) are the results of the intersection connection algorithm.

**Figure 15.**Results of different simplifying thresholds: (

**a**) tracking result; (

**b**) result when k = 1; (

**c**) result when k = 3; (

**d**) result when k = 5.

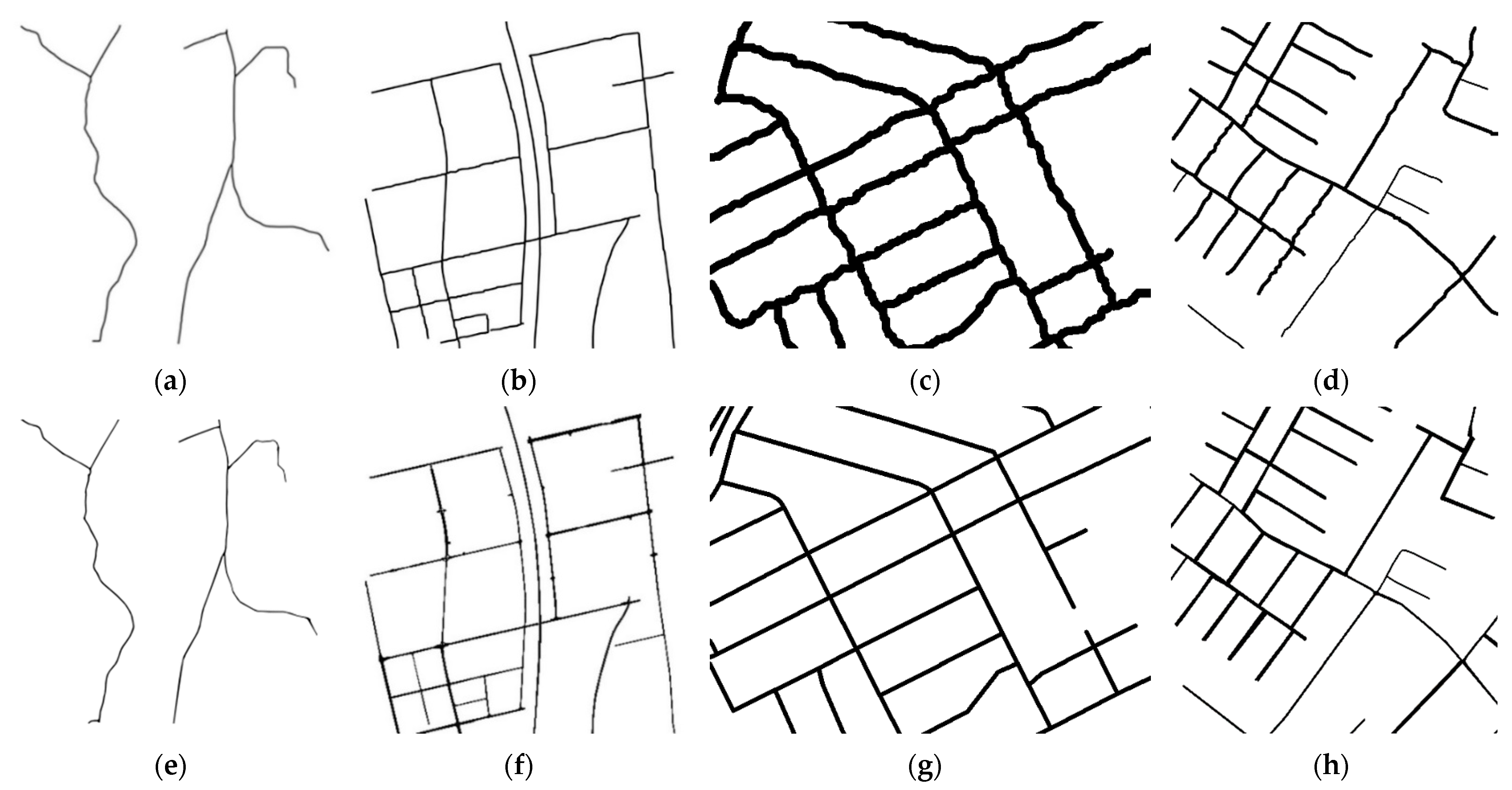

**Figure 16.**Comparison between the road extraction results and the ground truth: (

**a**–

**d**) are the road extraction results and (

**e**–

**h**) are the ground truth.

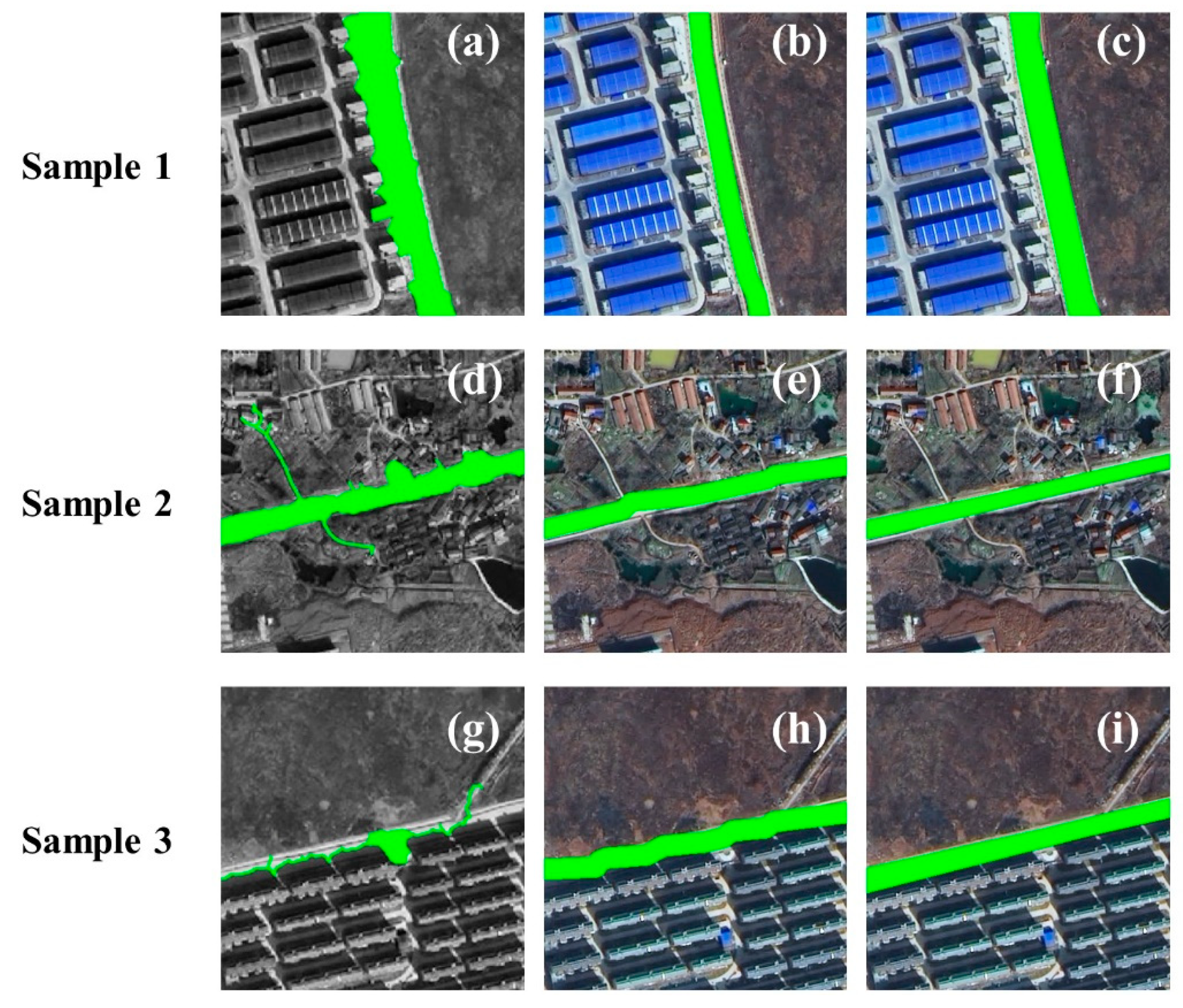

**Figure 17.**Comparison with Gu’s method: (

**a**,

**d**,

**g**) are the results of Gu’s method; (

**b**,

**e**,

**h**) are the results of the proposed method; (

**c**,

**f**,

**i**) are the ground truth.

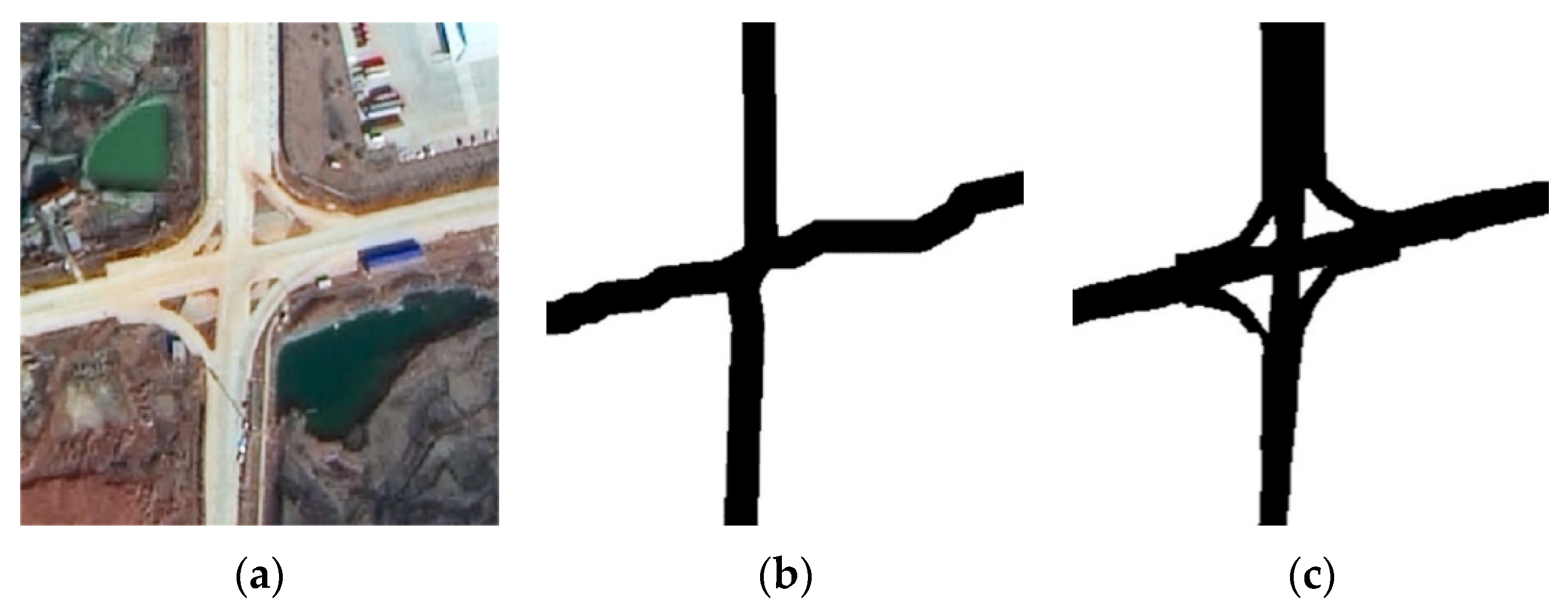

**Figure 18.**Comparison of intersections with auxiliary roads: (

**a**) original image; (

**b**) extraction result; (

**c**) ground truth.

Data | Precision | Accuracy | Recall | IoU |
---|---|---|---|---|

Data 1 | 88.54% | 99.70% | 88.97% | 0.80 |

Data 2 | 87.08% | 98.13% | 77.06% | 0.69 |

Data 3 | 98.10% | 88.31% | 88.68% | 0.87 |

Data 4 | 80.70% | 96.80% | 81.56% | 0.68 |

No. | Road Length (pixel) | Time (s) | Time per 1000 pixels (s) |
---|---|---|---|

1 | 2040 | 4.125 | 2.02 |

2 | 2126 | 4.739 | 2.23 |

3 | 2378 | 4.64 | 1.95 |

4 | 2415 | 5.688 | 2.36 |

5 | 2770 | 6.776 | 2.45 |

6 | 4056 | 4.536 | 1.12 |

7 | 4064 | 6.43 | 1.58 |

8 | 4115 | 5.83 | 1.42 |

9 | 4121 | 6.095 | 1.48 |

10 | 4188 | 6.486 | 1.55 |

Mean | - | - | 1.81 |

Sample 1 | Sample 2 | Sample 3 | ||||
---|---|---|---|---|---|---|

Gu’s Method | Proposed Method | Gu’s Method | Proposed Method | Gu’s Method | Proposed Method | |

Precision | 0.64 | 0.96 | 0.57 | 0.79 | 0.76 | 0.84 |

Accuracy | 0.94 | 0.97 | 0.96 | 0.98 | 0.94 | 0.98 |

Recall | 0.88 | 0.70 | 0.99 | 0.94 | 0.25 | 0.86 |

IoU | 0.59 | 0.67 | 0.57 | 0.75 | 0.23 | 0.73 |

Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |

© 2022 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Yang, K.; Cui, W.; Shi, S.; Liu, Y.; Li, Y.; Ge, M.
Semi-Automatic Method of Extracting Road Networks from High-Resolution Remote-Sensing Images. *Appl. Sci.* **2022**, *12*, 4705.
https://doi.org/10.3390/app12094705

**AMA Style**

Yang K, Cui W, Shi S, Liu Y, Li Y, Ge M.
Semi-Automatic Method of Extracting Road Networks from High-Resolution Remote-Sensing Images. *Applied Sciences*. 2022; 12(9):4705.
https://doi.org/10.3390/app12094705

**Chicago/Turabian Style**

Yang, Kaili, Weihong Cui, Shu Shi, Yu Liu, Yuanjin Li, and Mengyu Ge.
2022. "Semi-Automatic Method of Extracting Road Networks from High-Resolution Remote-Sensing Images" *Applied Sciences* 12, no. 9: 4705.
https://doi.org/10.3390/app12094705
