Article

Bone Modifications Induced by Rapid Maxillary Expander: A Three-Dimensional Cephalometric Pilot Study Comparing Two Different Cephalometric Software Programs

by
Maria Francesca Sfondrini
,
Maurizio Pascadopoli
*,
Serena Dicorato
,
Claudia Todaro
,
Maria Gloria Nardi
,
Simone Gallo
*,
Paola Gandini
and
Andrea Scribante
*
Unit of Orthodontics and Pediatric Dentistry, Section of Dentistry, Department of Clinical, Surgical, Diagnostic and Pediatric Sciences, University of Pavia, 27100 Pavia, Italy
*
Authors to whom correspondence should be addressed.
Appl. Sci. 2022, 12(9), 4313; https://doi.org/10.3390/app12094313
Submission received: 3 March 2022 / Revised: 13 April 2022 / Accepted: 24 April 2022 / Published: 24 April 2022
(This article belongs to the Special Issue Oral Medicine, Theory, Methods and Applications)
Browse Figures
Versions Notes

Abstract

Cone-beam computed tomography (CBCT) allows for more accurate 3D study of the craniofacial region and the development of a very precise treatment plan. The present pilot study aims to evaluate the skeletal outcomes of the rapid maxillary expander (RME) on the sagittal, transverse and vertical planes in growing patients subjected to CBCT at T0 and T1, and to compare the results from two different programs. The effects of the RME are monitored in 11 patients who were subjected to CBCT at T0, before the expansion, and at T1, 6 months after the end of the RME therapy. The results obtained are evaluated using two programs: Simplant and Delta-Dent. All of the analyses were performed by the same operator. Both programs reported statistically significant differences between the pre- and post-expansion values of the parameters on the transverse plane. On the vertical plane, only posterior facial height showed a statistically relevant variation. Both programs underlined a discrepancy between the pre- and post-expansion infraorbital and mental foramina distance values; however, this difference was considered statistically significant by Delta-Dent, and not by Simplant. CBCT is a reliable and effective tool for orthodontic diagnosis and treatment planning. Both of the evaluated programs are efficient in tridimensional cephalometric analysis.

1. Introduction

Cone-beam computed tomography (CBCT) represents important technological progress in the fields of tomographic acquisition and volumetric reconstruction [1]. The approach involves a significantly reduced radiant dose compared with traditional computed tomography (CT) and provides all of the radiological information required for a complete study of an orthodontic case [2,3]. CBCT has been increasingly performed in orthodontics to study 3D craniofacial anatomy in order to improve diagnosis and treatment planning, and to assess treatment outcomes [4]. This imaging technique can be useful to examine many pathological conditions, such as impacted and supernumerary teeth, cleft lip and palate, asymmetries, root resorption, obstructive sleep apnea (OSA), TMJ disorders and maxillary transverse deficiency [5].
A rapid maxillary expander (RME) is indicated in growing patients with maxillary width deficiency [6], as it applies orthopedic forces resulting in the widening and gradual opening of the midpalatal suture, compression of the periodontal ligament, bending of the alveolar processes and dental tipping [7]. As a result, the maxillary bones widen on the transverse plane, with the frontonasal suture as the approximate center of rotation [8]. Although the midpalatal suture is subjected to the majority of the effects of the RME, the surrounding frontomaxillary, zygomaticomaxillary, zygomaticotemporal and pterygopalatine sutures also experience some changes [9]. Sometimes, the RME can improve nasal breathing by widening the nasal cavities [10]. Different studies in the literature evaluated the craniofacial outcomes of RME therapy [11,12]. In the past, these effects were evaluated using lateral and posteroanterior cephalograms; however, CBCT now provides the opportunity to conduct a 3D analysis [11]. Radiography guidelines in the USA and Europe promote the “As Low As Reasonably Achievable” (ALARA) principle, especially when dealing with orthodontic patients who are mostly children, because of their attributable lifetime radiation risk [13,14]. If it is necessary to perform a CBCT, it must be executed using the smallest possible field of view [4]. According to systematic reviews [15,16], CBCT, and even 2D radiographs, which are generally taken routinely, should only be performed when they could offer more information useful for diagnosis or treatment planning or for evaluating progress or complications during the therapy. Two-dimensional cephalometric measurements are often inaccurate due to mistakes concerning landmark identification and projections [17], whereas 3D techniques allow these issues to be overcome thanks to the ability of dedicated programs to three-dimensionally rotate the image [18].
The rapid development of CBCT technology led to the introduction of various programs for orthodontists, with subsequent comparisons being made among them, as far as reliability and accuracy are concerned [19,20]. According to Farronato et al. [21], the 3D analysis provided by dedicated programs helps to avoid human error, reduces inter- and intra-individual variation and increases the reliability and repeatability of diagnoses. Burkhard and his colleagues [22] also reported the significant reliability of 3D cephalometric analysis performed by dedicated programs compared with the traditional manual technique. Many studies in the literature demonstrate how 3D software can provide a more reliable cephalometric analysis compared to the manual approach, obtaining more precise information that can improve diagnosis and treatment planning [23].
The programs available on the market are able to perform cephalometric analysis such as growth forecasts and treatment simulations. Some of these are capable of superimposing multiple cephalometric traces with pictures of the patient, also allowing the simulation of the effects of treatment on the soft tissues [24,25]. Three-dimensional software allows the orthodontist to perform virtual setups, treatment simulations and superimpositions of dental models with high reliability [26].
Many authors have recently investigated the numerous effects of RMEs with CBCT and various dedicated 3D software; for example, Bruder et al. evaluated the effects of RMEs, such as modifications of the depth of the palate and cross-sections of the maxilla, using CBCT and a related 3D software program [27].
Almuzian et al. were able to perform an accurate analysis of RMEs’ outcomes on the upper airways thanks to CBCT and a specific 3D software program [28].
Fastuca et al. used CBCT and a specific 3D program to investigate a possible change to the condylar position after RME treatment [29].
In the literature, the use of CBCT and 3D software is also described as being utilized to assess root resorption as a consequence of RME treatment [30].
Therefore, the aim of the present pilot study is to compare 3D cephalometric analyses performed by two different programs, which evaluate the skeletal outcomes on the sagittal, transverse and vertical planes in growing patients subjected to a CBCT examination before orthopedic treatment with an RME (T0) and 6 months after the last RME activation (T1).

2. Materials and Methods

This pilot study was approved by the Unit Internal Review Board (2020-0205). Patients attending the Unit of Orthodontics and Pediatric Dentistry of the University of Pavia for orthodontic treatment were enrolled in the study, with written consent for performing CBCT being obtained from their parents [31]. The inclusion criteria were: patients with mono- or bilateral crossbite, need for Hyrax RME or Haas treatment, and indication for CBCT to evaluate the upper arch (maxillary displaced canines, presence of artifacts in the preliminary orthopantomography or other conditions that require CBCT for a complete diagnosis). The sample size calculation (alpha = 0.05; power = 95%) was performed considering “maxillary intermolar distance”. The sample size calculation (alpha = 0.05; power = 80%) was performed considering “ANB angle” as a primary outcome. An expected mean of 4.16 with a standard deviation of 1.4 was hypothesized, with an expected difference between the means of 1.65 [25]; therefore, 11 cephalometric tracings per group were required for the study [32]. Eleven patients were enrolled: eight females (age 6.4 ± SD years) and three males (age: 12.4 ± SD years). Considering the tooth eruption stage for each patient, Hyrax RMEs were used on 10 patients. The RMEs were cemented onto the second primary molars on six patients, to the first permanent molars on three patients, and to the first permanent molars and premolars in one patient. One patient was treated with a Haas RME. A CBCT scan was performed before treatment (T0) and was repeated 6 months after the end of orthopedic therapy (T1). As CBCT is becoming more commonly used to quantitatively assess the effects of RME to overcome the limitations of 2D radiographs [33], it was necessary to repeat the CBCT 6 months after the end of the therapy to accurately assess the effects of the RME, especially on the transverse plane, such as the amount of disjunction of the alveolar bone and the dento-alveolar tipping of the first upper molars [34]. According to the protocol, two activations per day were required [35,36]. The duration of the active therapy was, on average, 3 weeks, and at the end of the activation time, the expanders were blocked with resin, metal or brass ligatures. It was necessary to wait at least 6 months after the removal of the expander to perform a new CBCT in order to prevent any image distortion during the scan. CBCTs at T0 and T1 were performed on each patient by the same operator using the same i-CAT machine (Imaging Science International, Hatfield, PA, USA), with a radiation dose of 2.5 mSv [37]. The following X-ray machine parameters were set: Tension: 120 kVP, Intensity: 3–7 mA, Focal spot: 0.5 mm, Voxel: 0.4 mm, Pixel: 0.4 mm, Grayscale: 14 bits, Scan time: 20 s, Detector material: amorphous silicon flat. Two programs were used in this study: Simplant OMS (version 2.1.3, Materialise NV, Leuven, Belgium) (Figure 1) and Delta-Dent (version 2.3, Outside Format, Pandino, Italy) (Figure 2). Both programs create radiological images in DICOM format that grant the capability to evaluate anatomical structures with more precision and without artifacts [38]. The operator can rely on visual and auditory support to optimize landmark positioning [1,3]. The section for the reconstruction of the DICOM images was set to start from 0.5 mm. The operator traced 25 landmarks, of which 19 were skeletal and 6 dental, enabling the programs to perform cephalometric measurements for the sagittal, vertical and transverse analysis [39,40]. The landmarks that were considered for analysis in the scans are presented in Table 1.
Regarding transverse plane analysis, two parameters were measured: firstly, the distance between the interproximal contact point on the mesial surface of the first right molar and the interproximal contact point on the mesial surface of the first left molar (6RIM-LIM) (Figure 3A), and secondly, the distance between the mesial surface of the first left molar and the mesial surface of the first right molar at the alveolar bone level (6RABM-6LABM) (Figure 3B).
In patients with mixed dentition, the second primary molar was set as the starting point. Concerning the vertical plane analysis, only linear parameters were considered: S-Go (posterior facial height), N-Me (anterior facial height), S-Go/N-Me, N-Ans (upper anterior facial height), Ans-Me (lower anterior facial height), N-Ans+Ans-Me (total anterior facial height), N-Ans/upper anterior facial height, Ans-Me/lower anterior facial height, LIf-LMf RIf-RMf. For the sagittal plane analysis, one linear and three angular parameters were evaluated: SNA, SNB, ANB, and A0B0 or Wits’ index.
The data were submitted for statistical analysis. The mean and standard deviation were calculated as descriptive statistics for angular and linear measures. The normality of the distributions was assessed using the Kolmogorov–Smirnov test. Subsequently, an analysis of variance was accomplished with an ANOVA test followed by post hoc analysis with a Tukey test. The significance level was predetermined at p < 0.05.

3. Results

The data are shown in Table 2. Comparing the data before and after the maxillary expansion, both programs showed the following statistically significant differences (p < 0.05): 6RIM-6LIM and 6RABM-6LABM regarding the transversal analysis, N-Ans, S-Go and N-Ans+Ans-Me concerning the vertical analysis, while the skeletal class remained unaltered during the entire observation period. The posterior facial height values varied from T0 to T1.
Delta-Dent reported relevant discrepancies of pre- and post-expansion linear distances RIf-RMf and LIf-LMf, although these differences were not considered statistically significant by Simplant (p > 0.05). Delta-Dent provided higher values of standard deviation compared to Simplant, which can be considered more accurate because of its lower standard deviation. None of the other parameters showed significant differences between the two programs (p > 0.05).

4. Discussion

As far as the RMEs’ effects are concerned, in the literature, statistically significant changes were reported, not only on the transverse plane, but also on the vertical plane. The lowering of the bispinal plane increases the upper (N-Ans) and total anterior facial heights (N-Ans+Ans-Me) and creates a molar rotational hub, resulting in a mandibular post-rotation and in the growth of the anterior facial height [41]. The lowering of the palatal cusps determines the buccal tipping of the teeth with subsequent occlusal pre-contacts that lead to mandibular post-rotation, which temporarily increases the divergence [42]. Some authors reported significant differences on the sagittal plane: Baratieri et al. [41] showed a forward movement of the jaw, with an increase of SNB and a reduction of ANB that led to a spontaneous improvement of dental II classes in 75% of the sample. In the present pilot study, three patients with skeletal II class due to lower maxilla retraction showed a 2° decrease of ANB—six patients did not show any changes, and two patients showed a minimal increase. Recently, many studies in the literature observed significant improvements in skeletal II classes after RME therapy [41,43].
In the present pilot study, the only significant difference among the analyses performed by the two programs concerns the distance between the infraorbital and the mental foramina. According to both programs, the hemi-facial heights on the left and on the right side were increased from T0 and T1 in most of the patients; with Delta-Dent, this difference was found to be significant, whereas with Simplant, it was not. It is difficult to determine which values are more precise; however, it can be confirmed that some slight differences were reported between the two software programs. To the best of our knowledge, only one article in the literature compared two programs [20], and this study also concluded that is not possible to assess whether the discrepancies between the values measured are related to the limited size of the sample or to the different accuracy rate of each program. Furthermore, the sample is not homogeneous as far as the type of device and anchorage of the teeth are concerned. Ten patients were treated with the Hyrax RME, which is characterized by two acrylic pads connected by a stainless steel frame that distributes its forces on the palate, periodontal ligament and buccal bone; this device was cemented onto the second primary molars in six patients, to the first permanent molars in three patients, and to the first permanent molars and premolars in one patient. One patient was treated with a Haas RME, which is a stainless steel rigid structure that exerts its forces on the periodontium [8]. In the literature, some studies discuss how the type of expander may influence the outcomes of RME treatment. Weissheimer et al. evaluated the effects of RME treatment in patients treated with the same two expanders using CBCT, and observed that the Hyrax expander had major orthopedic effects and caused less tipping in the upper first molars [44]. However, Oliveira et al. three-dimensionally evaluated the outcomes of the Hyrax RME and Haas RME, and reported that the Haas expander induced more orthopedic movement, while the Hyrax expander promoted a major dentoalveolar expansion [45]. Other authors carried out similar comparative studies using 3D software and found no significant differences between the effects of the two expanders [46]. Some studies were carried out to determine whether there were any relevant differences as far as anchorage is concerned. Cerruto et al. compared the dental arch changes induced by RME treatment related to different types of anchorage and demonstrated how an RME anchored to the second primary molars is associated with an increased expansion in the anterior area and to a more relevant disto-rotation of the first maxillary molars compared to an RME anchored to the first permanent molars [47]. Another study published by Ugolini and his colleagues described how an expander anchored to the first permanent molars caused increased upper intermolar distance and the angulation of the upper maxillary molars compared to an expander anchored to the second primary molars, even though the latter resulted in an increased upper intercanine distance [48]. In addition, dental and skeletal outcomes may also be influenced by the activation protocol adopted. In the present pilot study, two activations per day were performed, but other protocols are described in the literature [49,50,51]. Baldini and his colleagues demonstrated how the activation protocol can affect the upper dental arch; according to their comparative study, a faster activation protocol could increase the midpalatal suture’s anterior disjunction and promote major expansion in the molar area [52]. Furthermore, a faster activation protocol also resulted in an increased overjet, especially in subjects with lower skeletal maturation [53].
In the literature, other authors followed the same protocol as this study in which the timing of post-RME CBCT is not standardized. Most studies executed CBCT 6 months after RME treatment [31,54,55], but the timing varies between 3 and 12 months after treatment [33,56,57]. The present study has some limitations: RMEs’ effects on the upper airways were not evaluated, and it would have been interesting to compare the results of the 3D analysis with those of a 2D analysis to evaluate the differences as far as the accuracy of the two methods is concerned. Furthermore, only two software programs were involved in the present study, and it is possible that different digital X ray machines could provide different results. In addition, further studies should evaluate the interface with optical impressions.
The digital cephalometric analysis of CBCT scans may become part of a completely digital workflow in the future; currently, orthodontics relies more and more frequently on computer-aided design and manufacturing (CAD-CAM) processes. Firstly, this process involves intra-oral scanners, which allow the acquisition of digital data. Subsequently, digital tridimensional design is performed and then the study models/appliances are produced using one of the currently available 3D printing techniques [58]. Digital workflow in orthodontics provides many advantages: it overcomes conventional impressions and gypsum casting and decreases laboratory working time [59].
The 3D cephalometric analysis provided by modern software may enable the avoidance of traditional cephalometry by offering all of the information required for an accurate diagnosis and appropriate treatment planning, both for orthodontics and orthognathic surgery [60].
Future studies will assess and compare the reliability of emerging software, as technology constantly develops, in order to perform an accurate tridimensional cephalometric analysis evaluating sagittal, transversal and vertical discrepancies and the outcomes of orthodontic treatment.

5. Conclusions

The most statistically significant differences between the two software programs related to the variables associated with the transverse plane, where the rapid maxillary expander is most effective. Both programs highlighted variations in the posterior and anterior facial heights on the vertical plane, while no differences were identified on the sagittal plane. The most challenging landmarks to locate were the infraorbital foramen and the mental foramen, which led to significant differences among the two programs. None of the other variables were shown to have statistically significant discrepancies between Simplant and Delta-Dent. According to the results obtained in this pilot study, both programs are reliable and efficient in the three-dimensional analysis of CBCT scans.

Author Contributions

Conceptualization, A.S. and M.F.S.; methodology, M.F.S.; software, A.S.; validation, M.F.S., A.S. and P.G.; formal analysis, A.S.; investigation, S.D.; resources, P.G.; data curation, M.G.N., M.P., S.D. and C.T.; writing—original draft preparation, M.G.N., M.P., S.D. and C.T.; writing—review and editing, A.S., S.G. and M.P.; visualization, A.S. and M.F.S.; supervision, P.G.; project administration, P.G. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

The study was conducted according to the guidelines of the Declaration of Helsinki and approved by the Unit Internal Review Board (2020-0205).

Informed Consent Statement

Informed consent was obtained from all parents/guardians of the subjects involved in the study.

Data Availability Statement

Data are available upon reasonable request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Yitschaky, O.; Redlich, M.; Abed, Y.; Faerman, M.; Casap, N.; Hiller, N. Comparison of common hard tissue cephalometric measurements between computed tomography 3D reconstruction and conventional 2D cephalometric images. Angle Orthod. 2011, 81, 11–16. [Google Scholar] [CrossRef] [PubMed]
  2. Feragalli, B.; Rampado, O.; Abate, C.; Macrì, M.; Festa, F.; Stromei, F.; Caputi, S.; Guglielmi, G. Cone beam computed tomography for dental and maxillofacial imaging: Technique improvement and low-dose protocols. Radiol. Med. 2017, 122, 581–588. [Google Scholar] [CrossRef] [PubMed]
  3. Scarfe, W.C.; Azevedo, B.; Toghyani, S.; Farman, A.G. Cone Beam Computed Tomographic imaging in orthodontics. Aust Dent. J. 2017, 62 (Suppl. 1), 33–50. [Google Scholar] [CrossRef] [PubMed]
  4. Kapila, S. Contemporary concepts on cone-beam computed tomography in orthodontics. In Cone Beam Computed Tomography in Orthodontics: Indications, Insights and Innovations; Kapila, S., Ed.; Wiley-Blackwell: Hoboken, NJ, USA, 2014; pp. 5–42. [Google Scholar]
  5. Kapila, S.D.; Nervina, J.M. CBCT in orthodontics: Assessment of treatment outcomes and indications for its use. Dentomaxillofac. Radiol. 2015, 44, 20140282. [Google Scholar] [CrossRef]
  6. Salagnac, J.M. Proposition d’un indice définissant les indications médicales d’une disjonction intermaxillaire chez un sujet en période de croissance [Proposal for a clinical diagnosis index in rapid palatal expansion (RPE) in childhood]. Orthod. Fr. 2019, 90, 127–135. [Google Scholar] [CrossRef]
  7. Ghoneima, A.; Abdel-Fattah, E.; Hartsfield, J.; El-Bedwehi, A.; Kamel, A.; Kula, K. Effects of rapid maxillary expansion on the cranial and circummaxillary sutures. Am. J. Orthod. Dentofac. Orthop. 2011, 140, 510–519. [Google Scholar] [CrossRef]
  8. Haas, A.J. Rapid expansion of the maxillary dental arch and nasal cavity by opening the mid palatal suture. Angle Orthod. 1961, 31, 73–89. [Google Scholar]
  9. Starnbach, H.; Bayne, D.; Cleall, J.; Subtelny, J.D. Facioskeletal and dental changes resulting from rapid maxillary expansion. Angle Orthod. 1966, 36, 152–164. [Google Scholar]
  10. Babacan, H.; Sokucu, O.; Doruk, C.; Ay, S. Rapid maxillary expansion and surgically assisted rapid maxillary expansion effects on nasal volume. Angle Orthod. 2006, 76, 66–71. [Google Scholar]
  11. Christie, K.F.; Boucher, N.; Chung, C.H. Effects of bonded rapid palatal expansion on the transverse dimensions of the maxilla: A cone-beam computed tomography study. Am. J. Orthod. Dentofac. Orthop. 2010, 137 (Suppl. 4), S79–S85. [Google Scholar] [CrossRef]
  12. Pereira, J.D.S.; Jacob, H.B.; Locks, A.; Brunetto, M.; Ribeiro, G.L.U. Evaluation of the rapid and slow maxillary expansion using cone-beam computed tomography: A randomized clinical trial. Dent. Press J. Orthod. 2017, 22, 61–68. [Google Scholar] [CrossRef] [PubMed]
  13. International Commission on Radiological Protection. 1990 recommendations of the International Commission on Radiological Protection. ICRP publication 60. Ann. ICRP 1991, 21, 1–201. [Google Scholar]
  14. International Commission on Radiological Protection. The 2007 recommendations of the International Commission on Radiological Protection. ICRP publication 103. Ann. ICRP 2008, 37, 1–332. [Google Scholar]
  15. Durao, A.R.; Pittayapat, P.; Rockenbach, M.I.; Olszewski, R.; Ng, S.; Ferreira, A.P.; Jacobs, R. Validity of 2D lateral cephalometry in orthodontics: A systematic review. Prog. Orthod. 2013, 14, 31. [Google Scholar] [CrossRef]
  16. Rischen, R.J.; Breuning, K.H.; Bronkhorst, E.M.; Kuijpers-Jagtman, A.M. Records needed for orthodontic diagnosis and treatment planning: A systematic review. PLoS ONE 2013, 8, e74186. [Google Scholar] [CrossRef]
  17. Oz, U.; Orhan, K.; Abe, N. Comparison of linear and angular measurements using two-dimensional conventional methods and three-dimensional cone beam CT images reconstructed from a volumetric rendering program in vivo. Dentomaxillofac. Radiol. 2011, 40, 492–500. [Google Scholar] [CrossRef]
  18. Kumar, V.; Ludlow, J.; Soares Cevidanes, L.H.; Mol, A. In vivo comparison of conventional and cone beam CT synthesized cephalograms. Angle Orthod. 2008, 78, 873–879. [Google Scholar] [CrossRef]
  19. Park, J.H.; Hwang, C.J.; Choi, Y.J.; Houschyar, K.S.; Yu, J.H.; Bae, S.Y.; Cha, J.Y. Registration of digital dental models and cone-beam computed tomography images using 3-dimensional planning software: Comparison of the accuracy according to scanning methods and software. Am. J. Orthod. Dentofac. Orthop. 2020, 157, 843–851. [Google Scholar] [CrossRef]
  20. Sawchuk, D.; Alhadlaq, A.; Alkhadra, T.; Carlyle, T.D.; Kusnoto, B.; El-Bialy, T. Comparison of two three-dimensional cephalometric analysis computer software. J. Orthod. Sci. 2014, 3, 111–117. [Google Scholar]
  21. Farronato, G.; Garagiola, U.; Dominici, A.; Periti, G.; de Nardi, S.; Carletti, V.; Farronato, D. “Ten-point” 3D cephalometric analysis using low-dosage cone beam computed tomography. Prog. Orthod. 2010, 11, 2–12. [Google Scholar] [CrossRef]
  22. Burkhard, J.P.; Dietrich, A.D.; Jacobsen, C.; Roos, M.; Lübbers, H.T.; Obwegeser, J.A. Cephalometric and three-dimensional assessment of the posterior airway space and imaging software reliability analysis before and after orthognathic surgery. J. Craniomaxillofac. Surg. 2014, 42, 1428–1436. [Google Scholar] [CrossRef] [PubMed]
  23. Koretsi, V.; Tingelhoff, L.; Proff, P.; Kirschneck, C. Intra-observer reliability and agreement of manual and digital orthodontic model analysis. Eur. J. Orthod. 2018, 40, 52–57. [Google Scholar] [CrossRef] [PubMed]
  24. Joda, T.; Brägger, U. Digital vs. conventional implant prosthetic workflows: A cost/time analysis. Clin. Oral. Implant. Res. 2015, 26, 1430–1435. [Google Scholar] [CrossRef] [PubMed]
  25. Coachman, C.; Calamita, M.A.; Coachman, F.G.; Coachman, R.G.; Sesma, N. Facially generated and cephalometric guided 3D digital design for complete mouth implant rehabilitation: A clinical report. J. Prosthet. Dent. 2017, 117, 577–586. [Google Scholar] [CrossRef] [PubMed]
  26. Baan, F.; de Waard, O.; Bruggink, R.; Xi, T.; Ongkosuwito, E.M.; Maal, T.J.J. Virtual setup in orthodontics: Planning and evaluation. Clin. Oral. Investig. 2020, 24, 2385–2393. [Google Scholar] [CrossRef] [PubMed]
  27. Bruder, C.; Ortolani, C.L.F.; Lima, T.A.; Artese, F.; Faltin Junior, K. Evaluation of palate area before and after rapid maxillary expansion, using cone-beam computed tomography. Dent. Press J. Orthod. 2019, 24, 40–45. [Google Scholar] [CrossRef]
  28. Almuzian, M.; Ju, X.; Almukhtar, A.; Ayoub, A.; Al-Muzian, L.; McDonald, J.P. Does rapid maxillary expansion affect nasopharyngeal airway? A prospective Cone Beam Computerised Tomography (CBCT) based study. Surgeon 2018, 16, 1–11. [Google Scholar] [CrossRef]
  29. Fastuca, R.; Turiaco, H.; Assandri, F.; Zecca, P.A.; Levrini, L.; Caprioglio, A. Condylar Changes in Children with Posterior Crossbite after Maxillary Expansion: Tridimensional Evaluation. Children 2021, 8, 38. [Google Scholar] [CrossRef]
  30. Dindaroğlu, F.; Doğan, S. Evaluation and comparison of root resorption between tooth-borne and tooth-tissue borne rapid maxillary expansion appliances: A CBCT study. Angle Orthod. 2016, 86, 46–52. [Google Scholar] [CrossRef]
  31. Pangrazio-Kulbersh, V.; Jezdimir, B.; de Deus Haughey, M.; Kulbersh, R.; Wine, P.; Kaczynski, R. CBCT assessment of alveolar buccal bone level after RME. Angle Orthod. 2013, 83, 110–116. [Google Scholar] [CrossRef]
  32. Park, C.S.; Park, J.K.; Kim, H.; Han, S.S.; Jeong, H.G.; Park, H. Comparison of conventional lateral cephalograms with corresponding CBCT radiographs. Imaging Sci. Dent. 2012, 42, 201–205. [Google Scholar] [CrossRef] [PubMed]
  33. Luebbert, J.; Ghoneima, A.; Lagravère, M.O. Skeletal and dental effects of rapid maxillary expansion assessed through three-dimensional imaging: A multicenter study. Int. Orthod. 2016, 14, 15–31. [Google Scholar] [CrossRef] [PubMed]
  34. Sygouros, A.; Motro, M.; Ugurlu, F.; Acar, A. Surgically assisted rapid maxillary expansion: Cone-beam computed tomography evaluation of different surgical techniques and their effects on the maxillary dentoskeletal complex. Am. J. Orthod. Dentofac. Orthop. 2014, 146, 748–757. [Google Scholar] [CrossRef] [PubMed]
  35. Mummolo, S.; Marchetti, E.; Albani, F.; Campanella, V.; Pugliese, F.; Di Martino, S.; Tecco, S.; Marzo, G. Comparison between rapid and slow palatal expansion: Evaluation of selected periodontal indices. Head Face Med. 2014, 10, 30. [Google Scholar] [CrossRef] [PubMed]
  36. Ugolini, A.; Doldo, T.; Ghislanzoni, L.T.; Mapelli, A.; Giorgetti, R.; Sforza, C. Rapid palatal expansion effects on mandibular transverse dimensions in unilateral posterior crossbite patients: A three-dimensional digital imaging study. Prog. Orthod. 2016, 17, 1. [Google Scholar] [CrossRef]
  37. Lagravère, M.O.; Major, P.W. Proposed reference point for 3-dimensional cephalometric analysis with cone-beam computerized tomography. Am. J. Orthod. Dentofac. Orthop. 2005, 128, 657–660. [Google Scholar] [CrossRef]
  38. Zhang, K.; Xu, S.; Hu, C.; Zhang, H. Automatic classification of CT images of cerebral hemorrhage in dicom format based on BP neural network. J. Phys.Conf. Ser. 2020, 1629, 012009. [Google Scholar] [CrossRef]
  39. Lagravère, M.O.; Carey, J.; Heo, G.; Toogood, R.W.; Major, P.W. Transverse, vertical, and anteroposterior changes from bone-anchored maxillary expansion vs. traditional rapid maxillary expansion: A randomized clinical trial. Am. J. Orthod. Dentofac. Orthop. 2010, 137, 304.e1-12; discussion 304–305. [Google Scholar] [CrossRef]
  40. van Vlijmen, O.J.; Maal, T.; Bergé, S.J.; Bronkhorst, E.M.; Katsaros, C.; Kuijpers-Jagtman, A.M. A comparison between 2D and 3D cephalometry on CBCT scans of human skulls. Int. J. Oral. Maxillofac. Surg. 2010, 39, 156–160. [Google Scholar] [CrossRef]
  41. Baratieri, C.; Alves, M., Jr.; Bolognese, A.M.; Nojima, M.C.; Nojima, L.I. Changes in skeletal and dental relationship in Class II Division I malocclusion after rapid maxillary expansion: A prospective study. Dent. Press J. Orthod. 2014, 19, 75–81. [Google Scholar] [CrossRef]
  42. Chung, C.H.; Font, B. Skeletal and dental changes in the sagittal, vertical, and transverse dimensions after rapid palatal expansion. Am. J. Orthod. Dentofac. Orthop. 2004, 126, 569–575. [Google Scholar] [CrossRef] [PubMed]
  43. Habeeb, M.; Boucher, N.; Chung, C.H. Effects of rapid palatal expansion on the sagittal and vertical dimensions of the maxilla: A study on cephalograms derived from cone-beam computed tomography. Am. J. Orthod. Dentofac. Orthop. 2013, 144, 398–403. [Google Scholar] [CrossRef]
  44. Weissheimer, A.; de Menezes, L.M.; Mezomo, M.; Dias, D.M.; de Lima, E.M.; Rizzatto, S.M. Immediate effects of rapid maxillary expansion with Haas-type and hyrax-type expanders: A randomized clinical trial. Am. J. Orthod. Dentofac. Orthop. 2011, 140, 366–376. [Google Scholar] [CrossRef] [PubMed]
  45. Oliveira, N.L.; Da Silveira, A.C.; Kusnoto, B.; Viana, G. Three-dimensional assessment of morphologic changes of the maxilla: A comparison of 2 kinds of palatal expanders. Am. J. Orthod. Dentofac. Orthop. 2004, 126, 354–362. [Google Scholar] [CrossRef] [PubMed]
  46. Façanha, A.J.; Lara, T.S.; Garib, D.G.; da Silva Filho, O.G. Transverse effect of Haas and Hyrax appliances on the upper dental arch in patients with unilateral complete cleft lip and palate: A comparative study. Dental Press J. Orthod. 2014, 19, 39–45. [Google Scholar] [CrossRef]
  47. Cerruto, C.; Ugolini, A.; Di Vece, L.; Doldo, T.; Caprioglio, A.; Silvestrini-Biavati, A. Cephalometric and dental arch changes to Haas-type rapid maxillary expander anchored to deciduous vs permanent molars: A multicenter, randomized controlled trial. J. Orofac. Orthop. 2017, 78, 385–393. [Google Scholar] [CrossRef]
  48. Ugolini, A.; Cerruto, C.; Di Vece, L.; Ghislanzoni, L.H.; Sforza, C.; Doldo, T.; Silvestrini-Biavati, A.; Caprioglio, A. Dental arch response to Haas-type rapid maxillary expansion anchored to deciduous vs permanent molars: A multicentric randomized controlled trial. Angle Orthod. 2015, 85, 570–576. [Google Scholar] [CrossRef]
  49. Zimring, J.F.; Isaacson, R.J. Forces Produced by Rapid Maxillary Expansion. 3. FORCES Present during Retention. Angle Orthod. 1965, 35, 178–186. [Google Scholar]
  50. Geran, R.G.; McNamara, J.A.; Baccetti, T.; Franchi, L.; Shapiro, L.M. A prospective long-term study on the effects of rapid maxillary expansion in the early mixed dentition. Am. J. Orthod. Dentofac. Orthop. 2006, 129, 631–640. [Google Scholar] [CrossRef]
  51. Perillo, L.; De Rosa, A.; Iaselli, F.; D’Apuzzo, F.; Grassia, V.; Cappabianca, S. Comparison between rapid and mixed maxillary expansion through an assessment of dento-skeletal effects on posteroanterior cephalometry. Prog. Orthod. 2014, 15, 46. [Google Scholar] [CrossRef][Green Version]
  52. Baldini, A.; Nota, A.; Santariello, C.; Assi, V.; Ballanti, F.; Cozza, P. A comparative as-sessment of changes in dental arches associated with different activation protocols of rapid maxillary expansion. Eur. J. Paediatr. Dent. 2018, 19, 35–39. [Google Scholar] [PubMed]
  53. Baldini, A.; Nota, A.; Santariello, C.; Caruso, S.; Assi, V.; Ballanti, F.; Gatto, R.; Cozza, P. Sagittal dentoskeletal modifications associated with different activation protocols of rapid maxillary expansion. Eur. J. Paediatr. Dent. 2018, 19, 151–155. [Google Scholar] [PubMed]
  54. Lagravère, M.O.; Ling, C.P.; Woo, J.; Harzer, W.; Major, P.W.; Carey, J.P. Transverse, vertical, and anterior-posterior changes between tooth-anchored versus Dresden bone-anchored rapid maxillary expansion 6 months post-expansion: A CBCT randomized controlled clinical trial. Int. Orthod. 2020, 18, 308–316. [Google Scholar] [CrossRef] [PubMed]
  55. Gürler, G.; Akar, N.K.; Delilbaşı, Ç.; Kaçar, İ. Skeletal changes following surgically assisted rapid maxillary expansion (SARME). Eur. Oral. Res. 2018, 52, 94–98. [Google Scholar]
  56. Dakhno, L.; Vyshemyrska, T.; Flis, P.; Burlakov, P. Comparative Transversal Evaluation of Upper Jaw following Rapid Maxillary Expansion in the Mixed Dentition Period. Cbct Analysis. Georgian Med. News. 2021, 316–317, 96–102. [Google Scholar]
  57. Bazargani, F.; Lund, H.; Magnuson, A.; Ludwig, B. Skeletal and dentoalveolar effects using tooth-borne and tooth-bone-borne RME appliances: A randomized controlled trial with 1-year follow-up. Eur. J. Orthod. 2021, 43, 245–253. [Google Scholar] [CrossRef]
  58. Scribante, A.; Gallo, S.; Pascadopoli, M.; Canzi, P.; Marconi, S.; Montasser, M.A.; Bressani, D.; Gandini, P.; Sfondrini, M.F. Properties of CAD/CAM 3D Printing Dental Materials and Their Clinical Applications in Orthodontics: Where Are We Now? Appl. Sci. 2022, 12, 551. [Google Scholar] [CrossRef]
  59. Cunha, T.M.A.D.; Barbosa, I.D.S.; Palma, K.K. Orthodontic digital workflow: Devices and clinical applications. Dent. Press J. Orthod. 2021, 26, e21spe6. [Google Scholar] [CrossRef]
  60. Elnagar, M.H.; Aronovich, S.; Kusnoto, B. Digital Workflow for Combined Orthodontics and Orthognathic Surgery. Oral Maxillofac. Surg. Clin. N. Am. 2020, 32, 1–14. [Google Scholar] [CrossRef]
Applsci 12 04313 g001

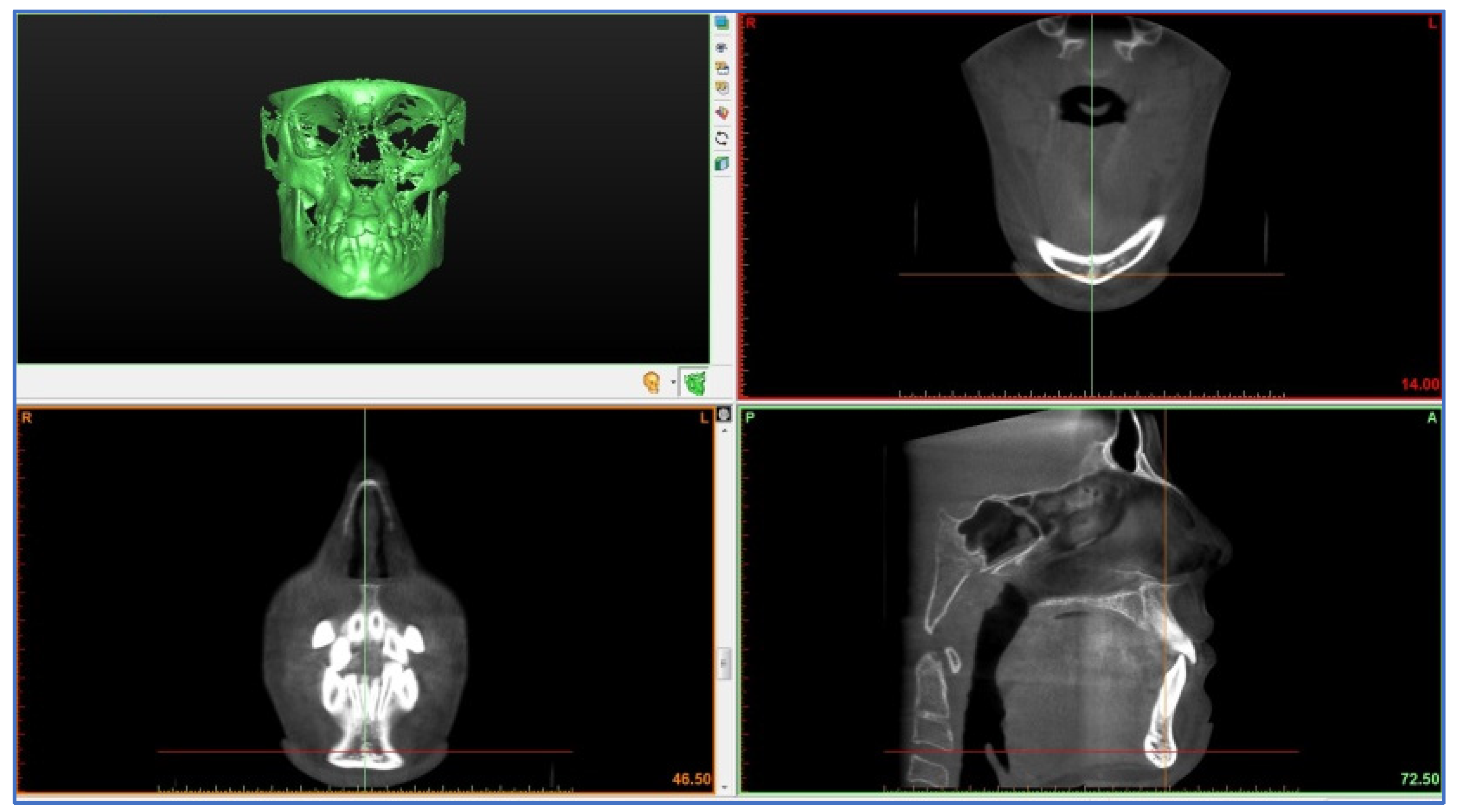

Figure 1. 3D rendering and vertical, transverse and sagittal projections provided by Simplant software.
Figure 1. 3D rendering and vertical, transverse and sagittal projections provided by Simplant software.
Applsci 12 04313 g001
Applsci 12 04313 g002

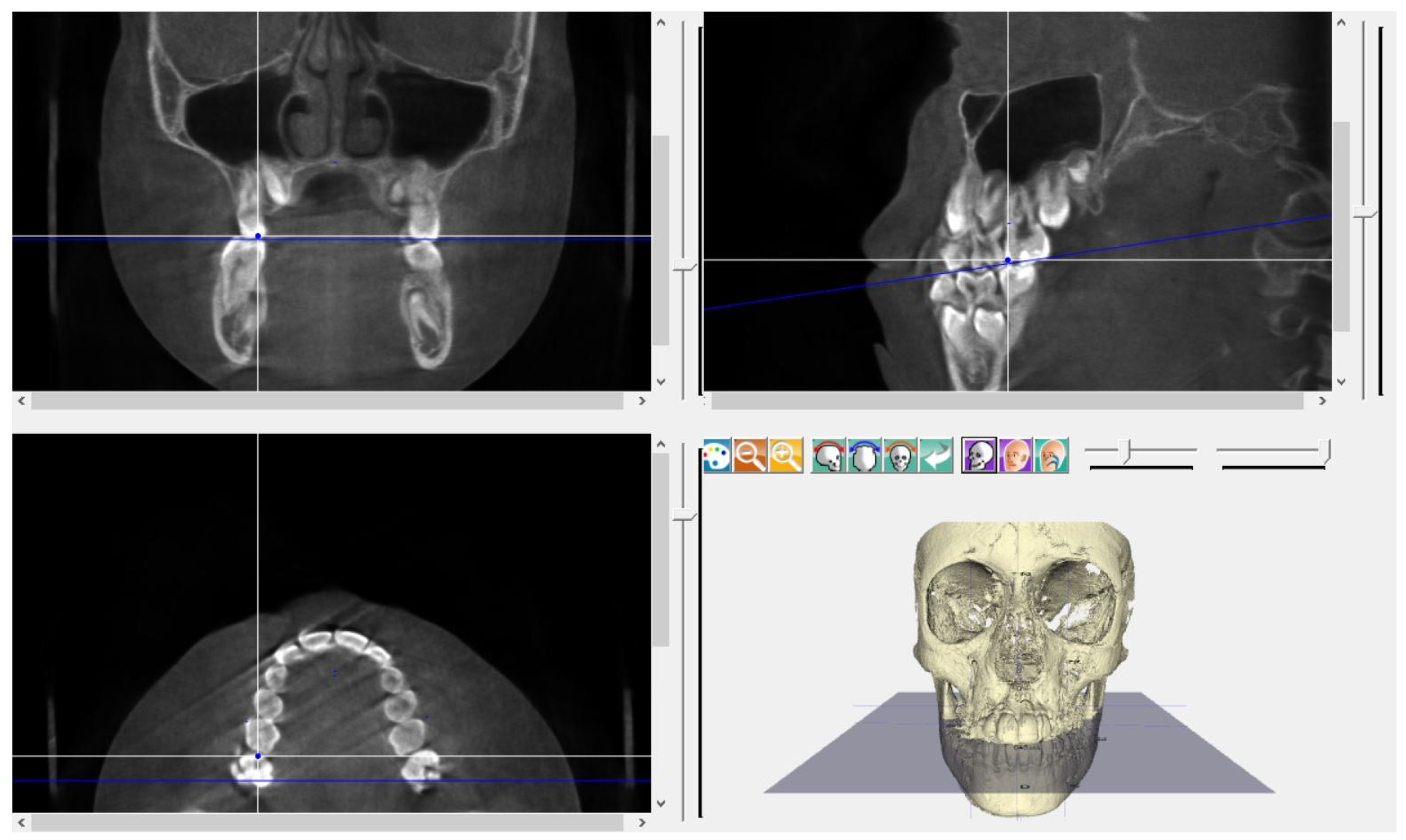

Figure 2. 3D rendering and vertical, transverse and sagittal projections provided by Delta-Dent software.
Figure 2. 3D rendering and vertical, transverse and sagittal projections provided by Delta-Dent software.
Applsci 12 04313 g002
Applsci 12 04313 g003

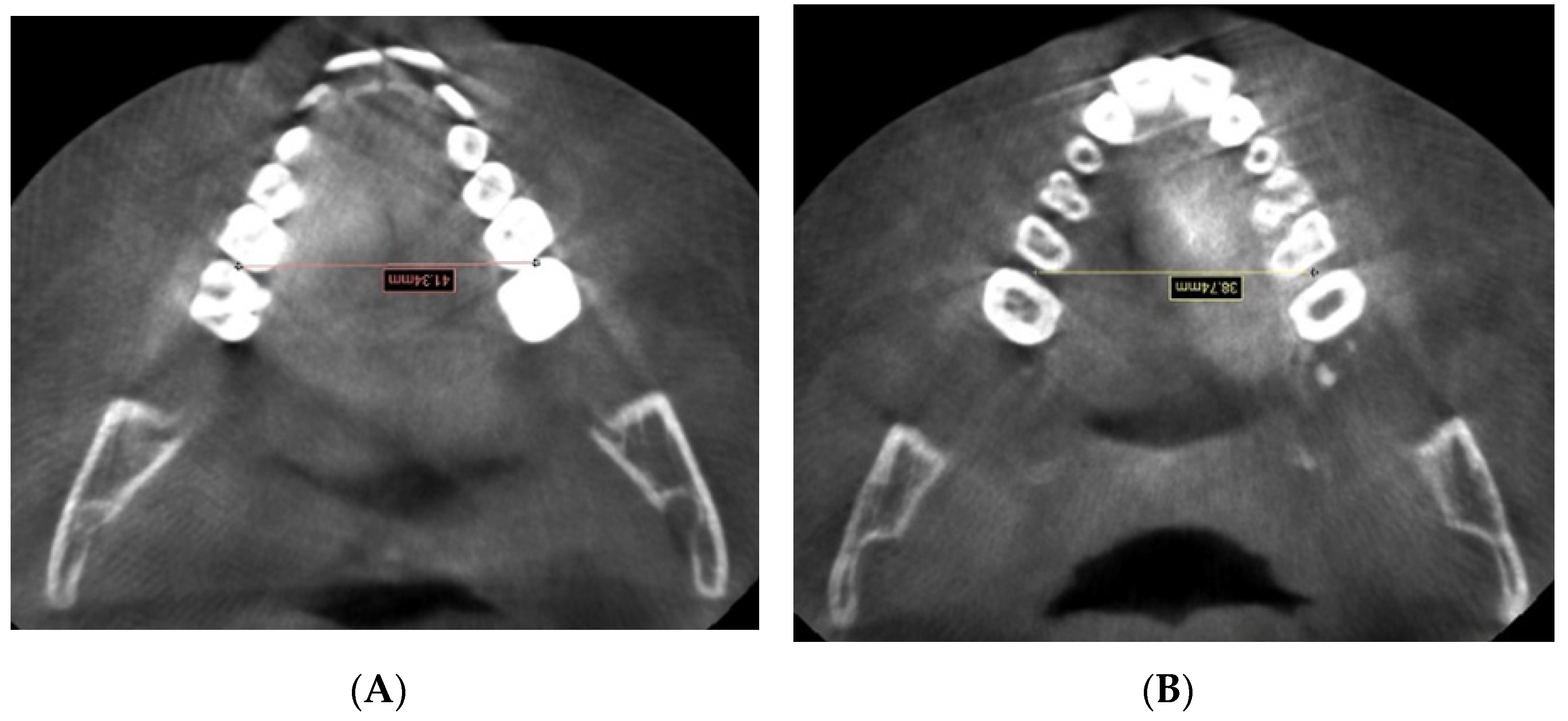

Figure 3. (A) 6RIM-6LIM measure; (B) 6RABM-6LABM.
Figure 3. (A) 6RIM-6LIM measure; (B) 6RABM-6LABM.
Applsci 12 04313 g003
Table 1. Skeletal and dental landmarks for cephalometric analysis.
Table 1. Skeletal and dental landmarks for cephalometric analysis.
Skeletal Landmarks
Point (Abbr.)AcronymExplanation
ANSAnterior Nasal Spine Anterior point on maxillary bone
PNSPosterior Nasal SpinePosterior limit of bony palate or maxilla
SSella TurcicaMidpoint of sella turcica
NNasionMost anterior point on frontonasal suture
Point ASubspinaleMost concave point on anterior maxilla
Point BSupramentaleMost concave point on mandibular symphysis
MeMentonLowest point on mandibular symphysis
GoGonionMost posterior inferior point on angle of mandible
It can also be constructed by bisecting the angle formed by
intersection of mandibular plane and ramus of mandible
MGoMid-GonionMiddle point between right gonion and left gonion
IfInfraorbital ForamenRIf (right); LIf (left)
MfMental ForamenRMf (right); LMf (left)
S-GoSella–GonionPosterior facial height
N-MeNasion–MentonAnterior facial height
N-AnsNasion–AnteriorUpper anterior facial height
Nasal Spine
Ans-MeAnterior Nasal Spine–Lower anterior facial height
Menton
N-Ans+Ans-MeNasion–Anterior NasalTotal anterior facial height
Spine+Anterior Nasal
Spine–Menton
SNAAngle between Sella/Antero-position of maxilla relative to
Nasion plane and upper cranial structures
Nasion/A plane
SNBAngle between Sella/Antero-position of mandible relative
Nasion plane and to upper cranial structures
Nasion/B plane
ANBSNA—SNBAnteroposterior relationship of the
mandible to the maxilla
Dental landmarks
6RIM-6LIM Distance between the interproximal contact point on the
mesial surface of the first right molar and the interproximal
contact point on the mesial surface of the first left molar
6RABM-6LABM Distance between the mesial surface of the first right molar
and the mesial surface of the first left molar at the
alveolar bone level
A0B0 Orthogonal projections on the occlusal plane of points
A and B
AOcl Anterior occlusal point: middle point of the line that links
upper and lower incisal points
MAOcl Mid-anterior occlusal point: middle point between right
AOcl and left AOcl
POcl Posterior occlusal point: middle point of the occlusal surface of first permanent molars
Table 2. Mean values (standard deviation) of the 3D cephalometric analysis from the two programs.
Table 2. Mean values (standard deviation) of the 3D cephalometric analysis from the two programs.
VariablesSimplant‡Deltadent‡¥
Pre-ExpPost-Exp Pre-ExpPost-Exp
6RABM-6LABM36.18 (2.88) a40.85 (2.59) bp < 0.000136.47 (2.77) a41.25 (2.74) bp < 0.0001NS
6RIM-6LIM37.40 (2.79) a41.71 (2.85) bp < 0.000139.49 (6.58) a43.97 (6.71) bp < 0.0001NS
RIf-RMf54.63 (4.48) a56.24 (4.93) aNS52.83 (5.29) a56.54 (4.84) bp = 0.0211 NS
LIf-LMf54.10 (4.63) a57.17 (4.96) aNS52.73 (5.39) a56.28 (4.23) bp = 0.0039 NS
N-Ans+Ans-Me104.42 (11.09) a107.00 (10.29) bp = 0.0436103.94 (10.05) a107.50 (9.84) bp = 0.0078NS
N-Ans46.39 (5.69) a48.62 (5.62) bp = 0.012646.28 (5.83) a48.50 (5.94) bp = 0.0015NS
Ans-Me58.03 (6.75) a58.38 (6.14) aNS57.68 (5.84) a59.00 (5.54) aNSNS
Sup/inf facial H80.09 (9.85) a83.27 (8.78) aNS80.36 (9.55) a81.64 (10.48) aNSNS
S-Go63.90 (6.16) a66.62 (6.31) bp = 0.002462.72 (5.42) a65.05 (6.02) bp = 0.0279NS
N-Me100.58 (10.35) a103.47 (9.92) aNS101.07 (9.45) a104.64 (9.50) aNSNS
S-Go/N-Me (%)63.82 (4.98) a64.64 (5.30) aNS62.28 (3.58) a62.36 (3.72) aNSNS
SNA83.12 (1.88) a83.02 (1.83) aNS83.27 (1.64) a82.75 (1.73) aNSNS
SNB78.48 (2.93) a78.44 (1.91) aNS78.53 (2.71) a78.08 (1.71) aNSNS
ANB4.71 (2.16) a4.67 (1.79) aNS4.72 (2.22) a4.73 (1.75) aNSNS
WITS2.27 (0.85) a2.83 (1.28) aNS3.21 (1.49) a2.53 (1.35) aNSNS
Legend: means with the same superscript letters do not show statistically significant differences; ‡, intragroup differences; ¥, intergroup differences; NS, not significant.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Sfondrini, M.F.; Pascadopoli, M.; Dicorato, S.; Todaro, C.; Nardi, M.G.; Gallo, S.; Gandini, P.; Scribante, A. Bone Modifications Induced by Rapid Maxillary Expander: A Three-Dimensional Cephalometric Pilot Study Comparing Two Different Cephalometric Software Programs. Appl. Sci. 2022, 12, 4313. https://doi.org/10.3390/app12094313

AMA Style

Sfondrini MF, Pascadopoli M, Dicorato S, Todaro C, Nardi MG, Gallo S, Gandini P, Scribante A. Bone Modifications Induced by Rapid Maxillary Expander: A Three-Dimensional Cephalometric Pilot Study Comparing Two Different Cephalometric Software Programs. Applied Sciences. 2022; 12(9):4313. https://doi.org/10.3390/app12094313

Chicago/Turabian Style

Sfondrini, Maria Francesca, Maurizio Pascadopoli, Serena Dicorato, Claudia Todaro, Maria Gloria Nardi, Simone Gallo, Paola Gandini, and Andrea Scribante. 2022. "Bone Modifications Induced by Rapid Maxillary Expander: A Three-Dimensional Cephalometric Pilot Study Comparing Two Different Cephalometric Software Programs" Applied Sciences 12, no. 9: 4313. https://doi.org/10.3390/app12094313

APA Style

Sfondrini, M. F., Pascadopoli, M., Dicorato, S., Todaro, C., Nardi, M. G., Gallo, S., Gandini, P., & Scribante, A. (2022). Bone Modifications Induced by Rapid Maxillary Expander: A Three-Dimensional Cephalometric Pilot Study Comparing Two Different Cephalometric Software Programs. Applied Sciences, 12(9), 4313. https://doi.org/10.3390/app12094313

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
