Performance-Driven Yield Optimization of High-Frequency Structures by Kriging Surrogates

Abstract

Uncertainty quantification is an important aspect of engineering design, as manufacturing tolerances may affect the characteristics of the structure. Therefore, the quantification of these effects is indispensable for an adequate assessment of design quality. Toward this end, statistical analysis is performed, for reliability reasons, using full-wave electromagnetic (EM) simulations. Still, the computational expenditures associated with EM-driven statistical analysis often turn out to be unendurable. Recently, a performance-driven modeling technique has been proposed that may be employed for uncertainty quantification purposes and can enable circumventing the aforementioned difficulties. Capitalizing on this idea, this paper discusses a procedure for fast and simple surrogate-based yield optimization of high-frequency structures. The main concept of the approach is a tailored definition of the surrogate domain, which is based on a couple of pre-optimized designs that reflect the directions featuring maximum variability of the circuit responses with respect to its dimensions. A compact size of such a domain allows for the construction of an accurate metamodel therein using moderate numbers of training samples, and subsequently, it is employyed to enhance the yield. The implementation details are dedicated to a particular type of device. Results obtained for a ring-slot antenna and a miniaturized rat-race coupler imply that the cost of yield optimization process can be reduced to few dozens of EM analyses.

1. Introduction

High-frequency systems are normally designed in the nominal sense, with possible deviations of geometry and material parameters (e.g., due to fabrication inaccuracies) being generally neglected. Yet, uncertainties may have detrimental effects on the performance. As a consequence, it is important to develop procedures for their evaluation. Among possible types of uncertainties, those pertinent to imperfect manufacturing [1,2] play the most important role in practice. They are stochastic, which makes statistical analysis imperative for their evaluation [3,4,5]. Diminishing the impact of parameter deviations requires a maximization of appropriately defined figures of merit such as response variance or the yield [6,7,8]. In the case of high-frequency systems, yield seems to be more suitable because performance specifications are often expressed in a minimax form, particularly for lower/upper acceptance thresholds for S-parameters, etc. [9,10,11,12].

As mentioned earlier, the evaluation of the effects of parameter tolerances involves statistical analysis [13,14]. For reliability, it is normally carried out using full-wave electromagnetic (EM) analysis, which is associated with significant computational costs. Nevertheless, it is mandatory whenever simpler models (e.g., equivalent circuits) fail insufficiently to account for cross-coupling and similar effects [15,16,17,18]. Improving the computational efficiency of statistical analysis can be achieved using simplistic yet inaccurate methods (e.g., worst-case analysis [19,20,21]) or surrogate-assisted techniques [22,23], where repetitive EM simulations are replaced by an evaluation of a fast replacement model, usually prepared beforehand. Popular modeling methods include polynomial approximation [24], neural networks (NNs) [25,26], or polynomial chaos expansion (PCE) [27,28,29,30,31,32,33]. Despite their advantages, surrogate-based methods are affected by the curse of dimensionality, resulting in excessive costs of model rendition for more complex systems. The alleviation of these difficulties is partially possible by the employment of hybrid techniques (e.g., PC kriging [6,34,35]), dimensionality reduction [36], multi-resolution methods (space mapping [37,38,39,40] and co-kriging [41,42]), or model order reduction [43].

Reducing the effects of manufacturing tolerances is even more essential than their evaluation. The relevant procedures are often referred to as robust design (also yield-driven design, tolerance-aware optimization, etc.) [1,44,45,46,47]. In practical terms, this can be accomplished by improving the statistical merit functions of choice, such as the yield. Unfortunately, yield maximization is a CPU-heavy task to the extent of being prohibitive when directly executed at the level of EM simulation models. Surrogate-assisted procedures offer viable workarounds [6,24,25,26,27,28]. Some of the most popular modeling methods utilized in this context are polynomial approximations [24], space mapping [48], NNs [49], and PCE [50]. As for statistical analysis, the bottleneck is a potentially high cost of the surrogate model setup, related to the dimensionality of the parameter space and parameter ranges. A partial mitigation has been offered by sequential approximation optimization (SAO) [51], where the metamodel is rendered along the optimization path, within the limited-volume domains centered at the current design produced by the robust design procedure. Another option is to employ response-feature technology [52]. This method capitalizes on the reduced nonlinearity of the relationship between the appropriately selected characteristic points of the system’s responses and geometry parameters of the structure under design. The latter enables the construction of accurate metamodels using small training datasets [53].

In this work, we discuss a method for reduced-expense yield maximization of antenna and microwave components. Our approach involves the recently introduced performance-driven (or constrained) modeling [54,55,56], which addresses the surrogate construction task from the perspective of the model domain. More specifically, the model is only rendered in the vicinity of the region containing high-quality designs, which prevents wasting computational resources in parameter space regions containing uninteresting designs. This approach enables the construction of reliable metamodels over broad ranges of parameters and operating conditions using limited numbers of training data points [57,58,59]. Here, this paradigm is employed to construct surrogate models for robust design purposes. In particular, the domain of such a surrogate is extended along the directions possessing a major impact on the system’s yield (the directions are found using a separate optimization sub-problems) and restricted along the remaining directions. Low domain volumes allow us to construct reliable surrogates, which are sufficient for conducting the yield maximization process without the necessity to rebuild the model. Our methodology is demonstrated using a ring-slot antenna and a microstrip coupler. In both cases, the robust design process is accomplished at a cost corresponding to less than a hundred of EM simulations. Reliability is corroborated by using EM-driven Monte Carlo analysis.

2. Yield Optimization Problem and Benchmark Algorithms

This section recalls the yield optimization problem statement, illustrated using two specific cases, multi-band antennas, and equal power split coupler. Subsequently, two basic state-of-the-art surrogate-assisted yield optimization algorithms are described. These will be used as benchmark methods in Section 4.

2.1. Yield Optimization Problem

In antenna and microwave designs, performance requirements are frequently formulated in a minimax form, i.e., by setting upper/lower acceptance levels on the electrical characteristics of the device at hand. These may include maximum in-band reflection (antennas) or maximum power split error within the operating band (couplers) [9]. As a consequence, a commonly utilized figure of merit is the yield [4], i.e., the percentage of designs for which the target specifications are met given the assumed deviations of the parameters. Figure 1 and Figure 2 show two examples of the design optimization tasks of high-frequency devices: a multi-band antenna and a microwave coupler. The figures provide the design specifications, as well as the formulations of the respective objective functions. For the antenna, the nominal design has to ensure the best possible matching within the operating bands of interest, whereas in the case of the coupler, the aim is to ensure equal power split and to improve the bandwidth. Typically, the nominal designs serve as a starting point for yield optimization.

The deviations dx (e.g., manufacturing tolerances) are characterized by the specified probability distributions (e.g., uniform of maximum deviation δ_max or joint Gaussian N(0,σ)). The deviations may be correlated [60], yet we assume here that they are statistically independent. Yield Y(x) at a certain the design x may be assessed by using Monte Carlo analysis.

$$Y(x)=\frac{1}{p}{\displaystyle \sum _{k=1}^{p}H(x^{(k)})}$$

(1)

In (1), x^(k) = x + dx^(k), k = 1, …, p, denote the observables, dx^(k) are the random deviations, and H(x) is given by the following.

$$H(x)=\left\{\begin{array}{l}1\hspace{0.33em}\hspace{0.33em}\hspace{0.33em}\mathrm{if}\hspace{0.33em}\mathrm{design} \mathrm{specifications} \mathrm{are} \mathrm{satisfied}\\ 0\hspace{0.33em}\hspace{0.33em}\hspace{0.33em}\mathrm{otherwise}\end{array}\right.$$

(2)

We employ the following formulation of the yield optimization task.

$$x^{*}=\arg \underset{x}{\min }\{-Y(x)\}$$

(3)

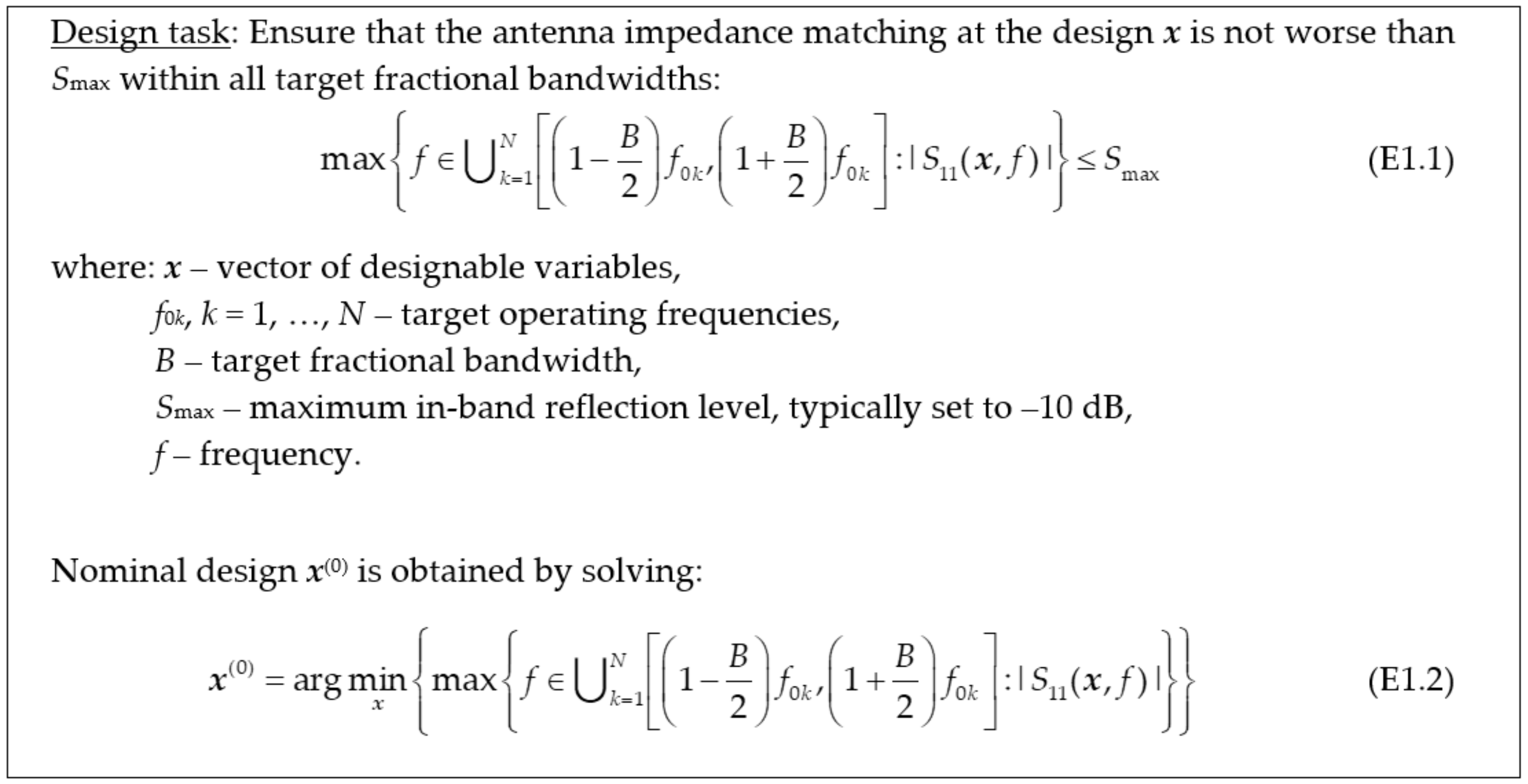

Commonly, nominal design x⁽⁰⁾ is used as a starting point for solving (3), which, in turn, is rendered by solving, e.g., problem (E1.2) (for the example of the multi-band antenna) or (E2.2) (for the example of the microwave coupler).

2.2. Yield Optimization. Benchmark Surrogate-Assisted Algorithms

This section delineates the benchmark surrogate-assisted techniques: one-shot approach (Algorithm 1) and sequential approximate optimization SAO (Algorithm 2), the main features of which are juxtaposed in

Table 1. Surrogate-assisted yield optimization: one-shot approach and sequential approximate optimization.

Algorithm	Algorithm 1	Algorithm 2
Method	One-shot approach	Sequential approximate optimization
Solving optimization task	Solve a single task x* = argmin{x ∈ XS: –Y(x)} within the surrogate domain XS	Render series x(i), i = 0, 1, …, of approximations to x* by solving x(i+1) = argmin{x ∈ XS.i: –Ys(i)(x)}
Yield estimation	Y(x) evaluated once using single surrogate	In each iteration, Ys(i) is evaluated using the ith surrogate
Surrogate domain	XS = [x(0) – δ, x(0) + δ], δ = [δ1 … δn]T, δk = 10δmax#, k = 1, …, n	XS.i = [x(i) – δ, x(i) + δ], δ = [δ1 … δn]T, δk = 3δmax#, k = 1, …, n
Pros	Simple to apply	Reduced cost of setting up the surrogate (smaller domain)
Cons	Expected high cost of surrogate construction in a larger domain	Iterative process involving domain relocation and constructing several surrogates

^#δ_max—maximum deviation for uniform distribution (or 3σ for Gaussian distribution of variance σ).

. Algorithms 1 and 2 exploit kriging data-driven surrogates [61], yet the actual choice of metamodeling technique is of secondary importance (other possibilities are, e.g., RBF [62] or PCE [29]).

The overall idea of Algorithm 1 is to build a single surrogate for which its domain is spread over an ample neighborhood of the nominal design solution, within which the yield may be estimated in a reliable manner. This method is unsophisticated; however, the training data acquisition cost may be sizeable (proportional to the domain size). On the other hand, in Algorithm 2, yield estimation is replaced by an iterative process. Here, the aim is to set up the metamodel over a domain of a lower size, and then reposition it from iteration to iteration. Consequently, the CPU cost of the surrogate setup is reduced (as compared to Algorithm 1); however, the optimization process typically takes several iterations to converge.

3. Surrogate-Based Yield Optimization with Domain Confinement

This section discusses the main components of the considered optimization framework that preserves the simplicity of the one-shot approach (Algorithm 1), while keeping the surrogate setup cost at a reasonable level. This is achieved by exploiting the performance-driven modeling paradigm [54,55]. The employed procedure for locating the directions that span the metamodel domain is introduced in the context of multi-band antenna designs (Section 3.1) and microwave coupler designs (Section 3.2), along with the respective domain definitions. These two methods share the same underlying idea, yet they are tailored to the particular sets of performance specifications, as delineated in Section 2.1.

3.1. Yield Optimization of Multi-Band Antennas

The directions that affect the antenna characteristics to the highest degree are selected by pre-optimizing two supplementary designs: (i) the design that maximizes the antenna symmetrical fractional bandwidths, and (ii) the design that minimizes the antenna reflection at f_0.k, k = 1, …, N, (i.e., the resonant frequencies). These designs are rendered by solving the following [63].

$$x^{(1)}=\arg \underset{x}{\min }\left\{-\min \left\{B_1(x),\dots ,B_N(x)\right\}\right\}$$

(4)

$$x^{(2)}=\arg \underset{x}{\min }\left\{\max \left\{\hspace{0.33em}|S_{11}(x,f_{01})|,\dots ,|S_{11}(x,f_{0N})|\right\}\right\}$$

(5)

In (4), B_k(x) = 2min{f_0k – f_1k(x), f_2k(x) – f_0k}, k = 1, …, N, (symmetric portion of the bandwidth), whereas f_1k and f_2k denote the frequencies for which |S₁₁| assumes –10 dB level (the lower and higher frequencies around the kth resonance). The trust-region gradient algorithm [64] is employed to solve problems (4) and (5), and the antenna response sensitivities are updated by applying the Broyden formula [65]. Consequently, the optimization cost equals approximately 1.5n EM analyses (n being the number of designable parameters).

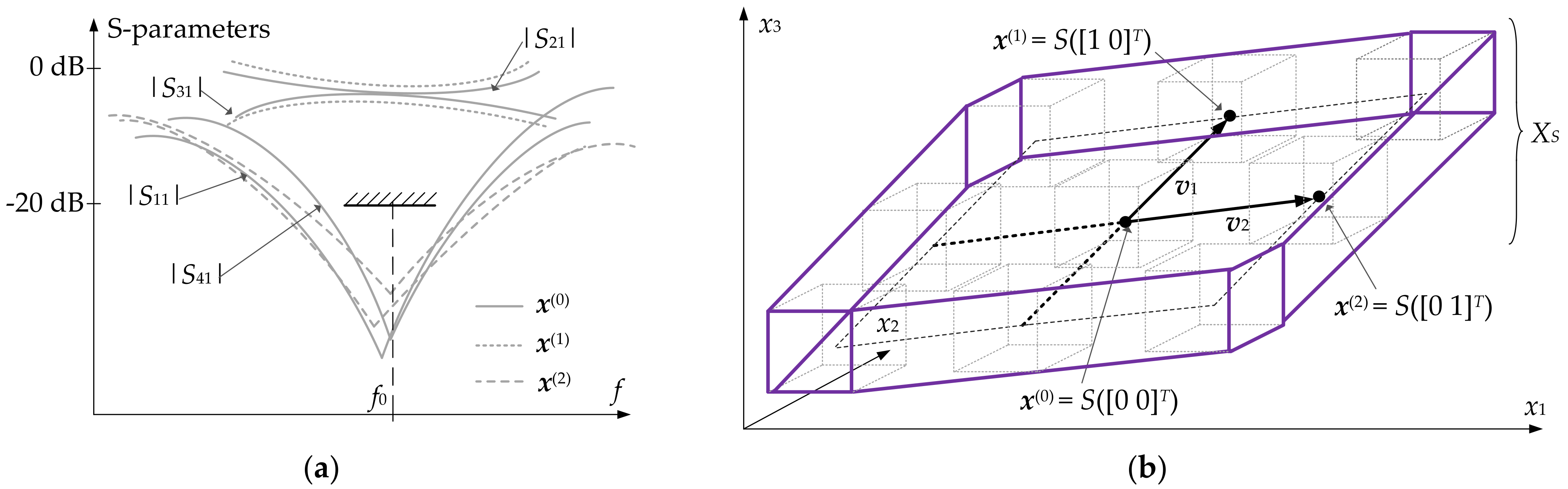

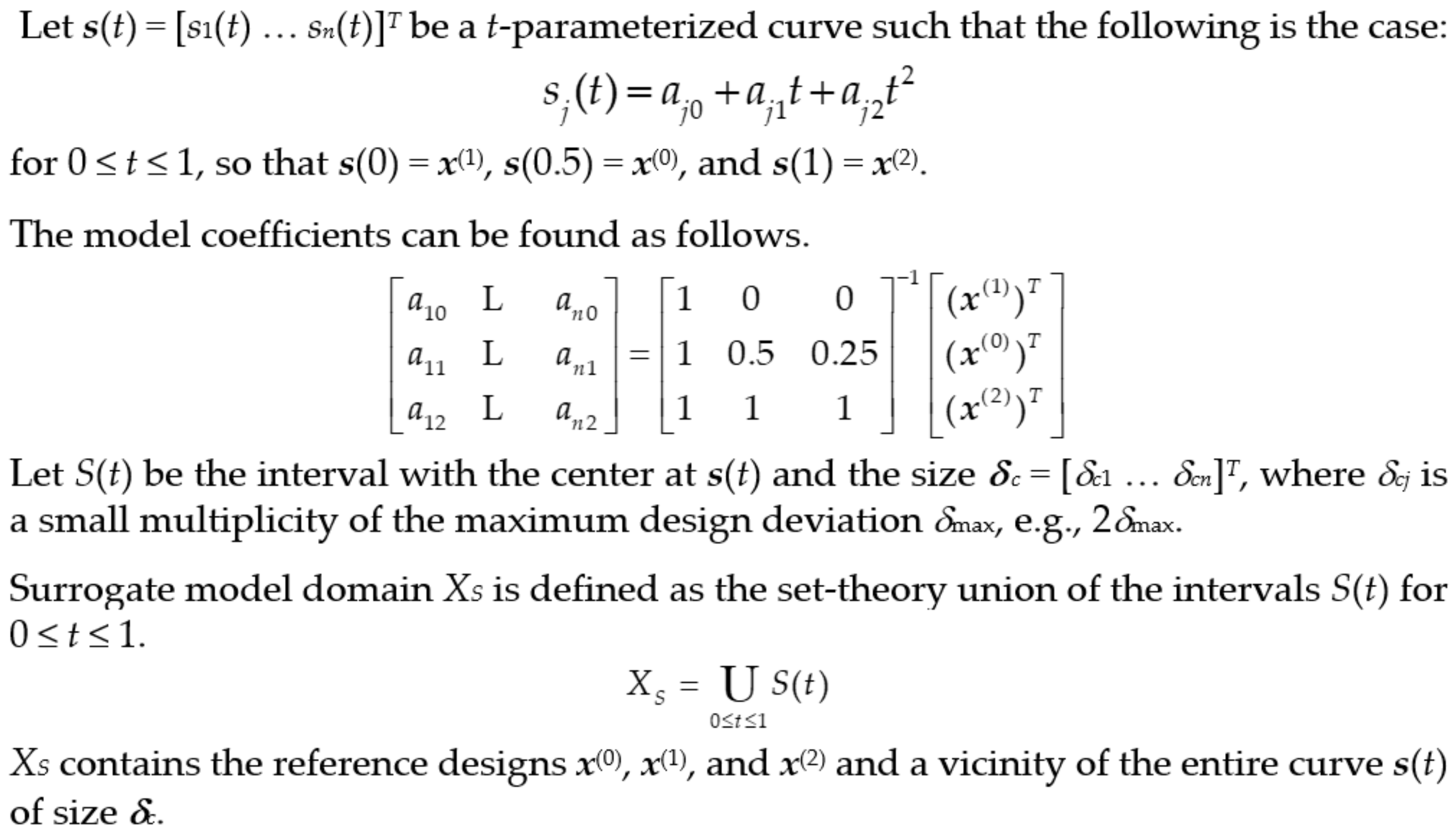

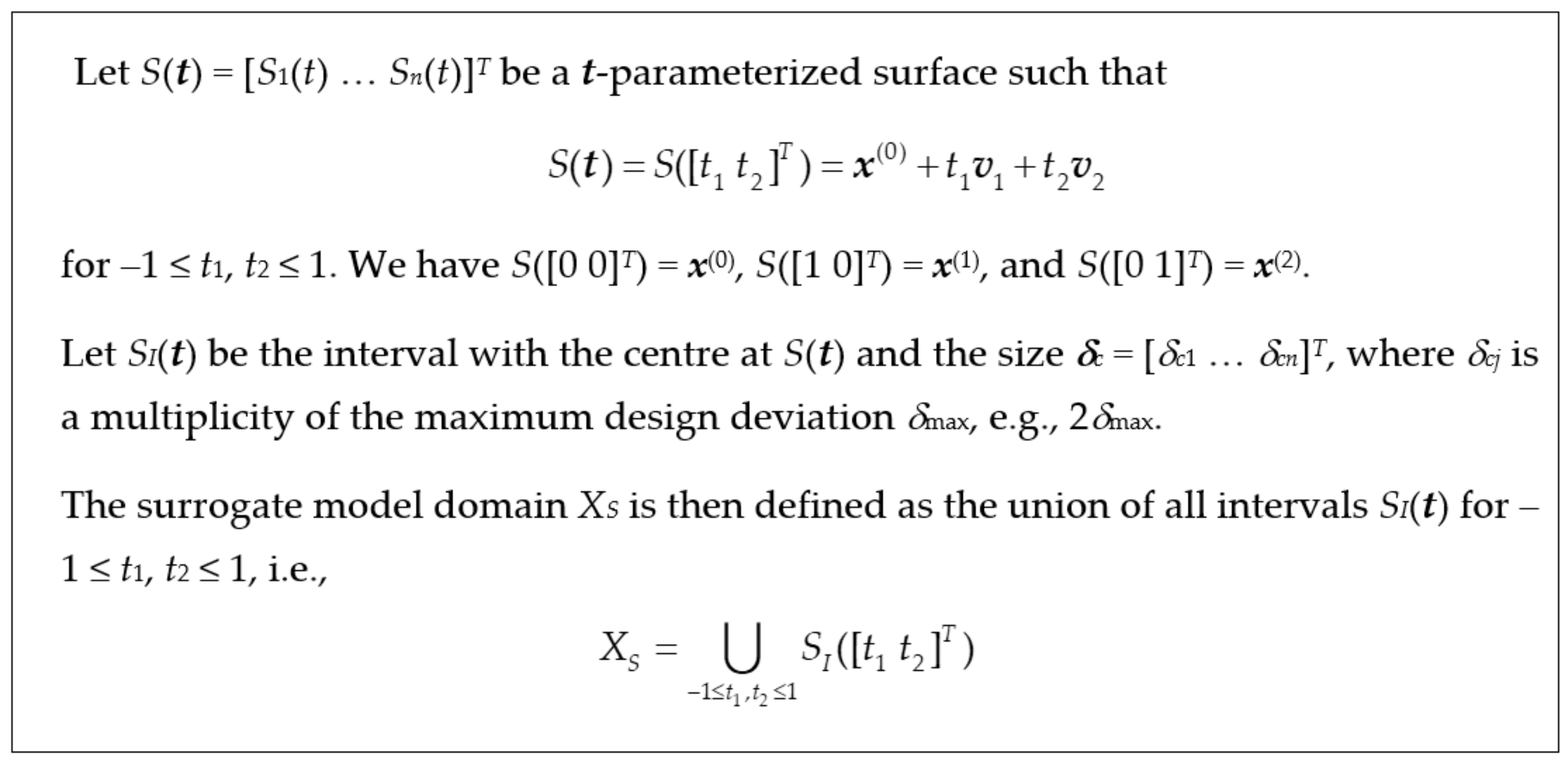

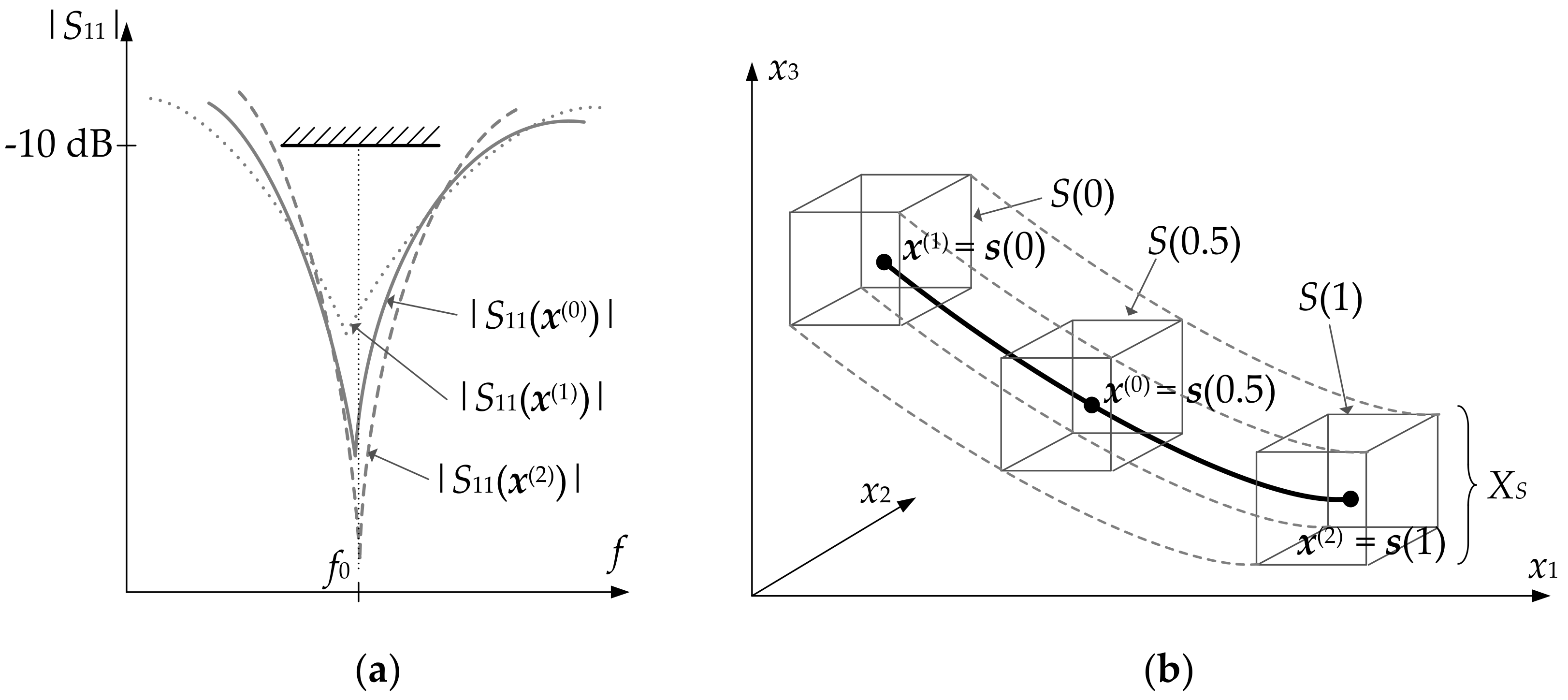

Figure 3 describes surrogate domain X_S and its establishment with the use of the reference designs, whereas Figure 4 illustrates this process graphically. The surrogate domain X_S is small; still, it encompasses the most consequential directions of antenna response variations that directly affect the yield, thereby allowing for significant cost reductions. The yield is optimized directly by solving (3) (i.e., the surrogate is used instead of EM simulations), similarly as in Algorithm 1.

3.2. Yield Optimization of Microwave Couplers

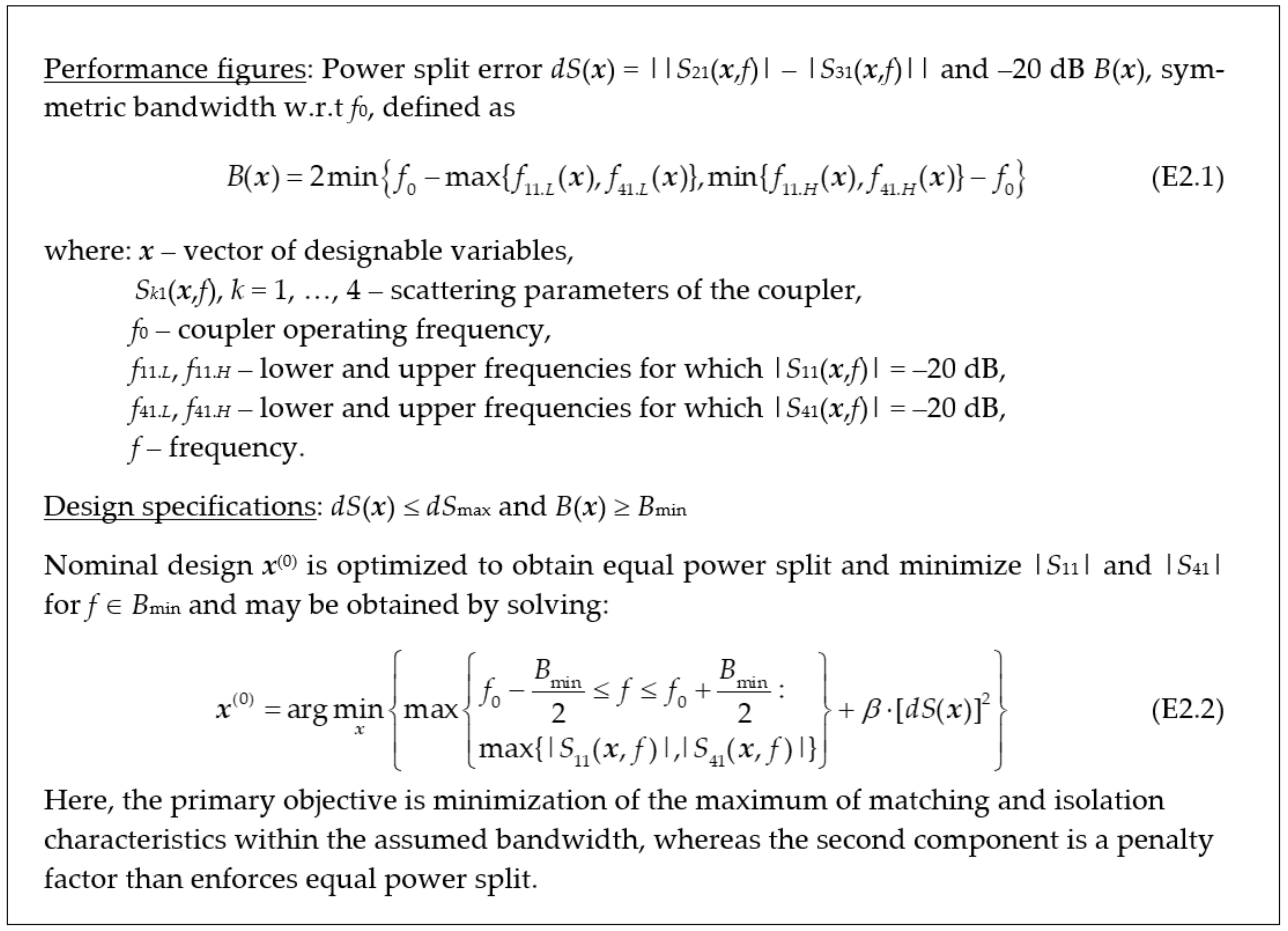

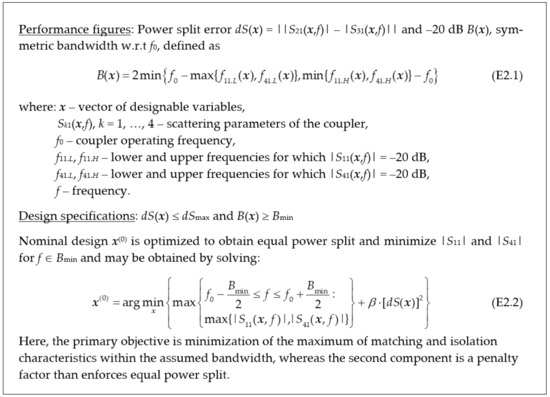

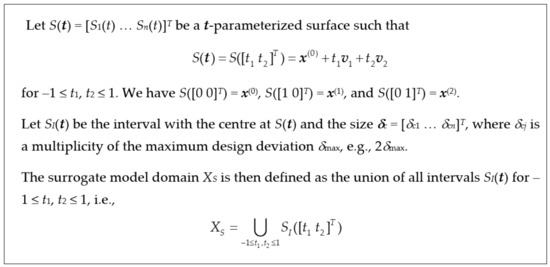

In this case, the design requirements include the power split error and the bandwidth. We define f_11.L(x), f_11.H(x), f_41.L(x), and f_41.H(x) (the frequencies that are bandwidth boundaries) and also l₁(x) = |S₂₁(x,f₀)| and l₂(x) = |S₃₁(x,f₀)| (the levels of the respective coupler responses at its operating frequency). These, in turn, are gathered in the vector F(x) = [f_11.L(x), f_11.H(x), f_41.L(x), f_41.H(x) l₁(x) l₁(x)]^T, for which Jacobian J_F can be derived from the Jacobian J_S of the circuit response (evaluated through finite differentiation). The linear expansion model of F at the nominal design x⁽⁰⁾ is as follows [66].

$$L_F(x)={\left[L_1(x)\hspace{0.33em}\hspace{0.33em}{L}_2(x)\hspace{0.33em}\hspace{0.33em}\dots \hspace{0.33em}\hspace{0.33em}{L}_6(x)\hspace{0.33em}\right]}^T=F(x^{(0)})+J_F(x^{(0)})\cdot (x-x^{(0)})$$

(6)

As before, we also have two supplementary designs x⁽¹⁾ and x⁽²⁾ yielded by solving the following.

$$x^{(1)}=\arg \underset{x}{\min }\left\{L_5(x)-L_6(x)+{\beta }_2{‖\left[\begin{array}{c}{L}_1(x)\\ ⋮\\ L_4(x)\end{array}\right]-\left[\begin{array}{c}{L}_1(x^{(0)})\\ ⋮\\ L_4(x^{(0)})\end{array}\right]‖}^2\right\}$$

(7)

$$x^{(2)}=\arg \underset{x}{\min }\left\{\begin{array}{c}-2\min \left\{f_0-\max \{L_1(x),L_3(x)\},\min \{L_2(x),L_4(x)\}-f_0\right\}\\ +{\beta }_1\cdot {[L_5(x)-L_6(x)]}^2\end{array}\right\}$$

(8)

Both (7) and (8) are subject to ||x – x⁽⁰⁾|| ≤ D (D being selected by the user; here, we set D = 0.5 mm). Solving (7) and (8) requires merely n EM analyses of the coupler (it is the cost of estimating J_F in (6)). These designs serve to find the directions corresponding to the maximal variations of the coupler power split and bandwidth, respectively. Figure 5 provides a brief description of the surrogate domain definition using these reference designs, whereas a graphical illustration of these procedure is provided in Figure 6.

Surrogate domain X_S is small volume-wise, yet it is ample enough to encompass the directions of essential changes of the coupler responses affecting its yield. As in the previous case (Section 3.1), a small volume of the domain allows a significant reduction in the cost of setting up the surrogate, and also—due to the mentioned coverage of important directions—there is no need to iterate the entire process (as in Algorithm 2). The yield optimization process is conducted by solving (3), i.e., similarly as in the algorithm of Section 3.1.

4. Demonstration Case Studies

This section provides the results obtained using the algorithms of Section 3.1 and Section 3.2 using a ring-slot antenna, and a miniaturized rat-race coupler as verification structures. The procedure is benchmarked against the surrogate-assisted approaches of Section 2. In order to verify the reliability of the considered methodology, a Monte Carlo analysis has been executed at the nominal design and the yield maximizing design.

4.1. Case I: Ring-Slot Antenna

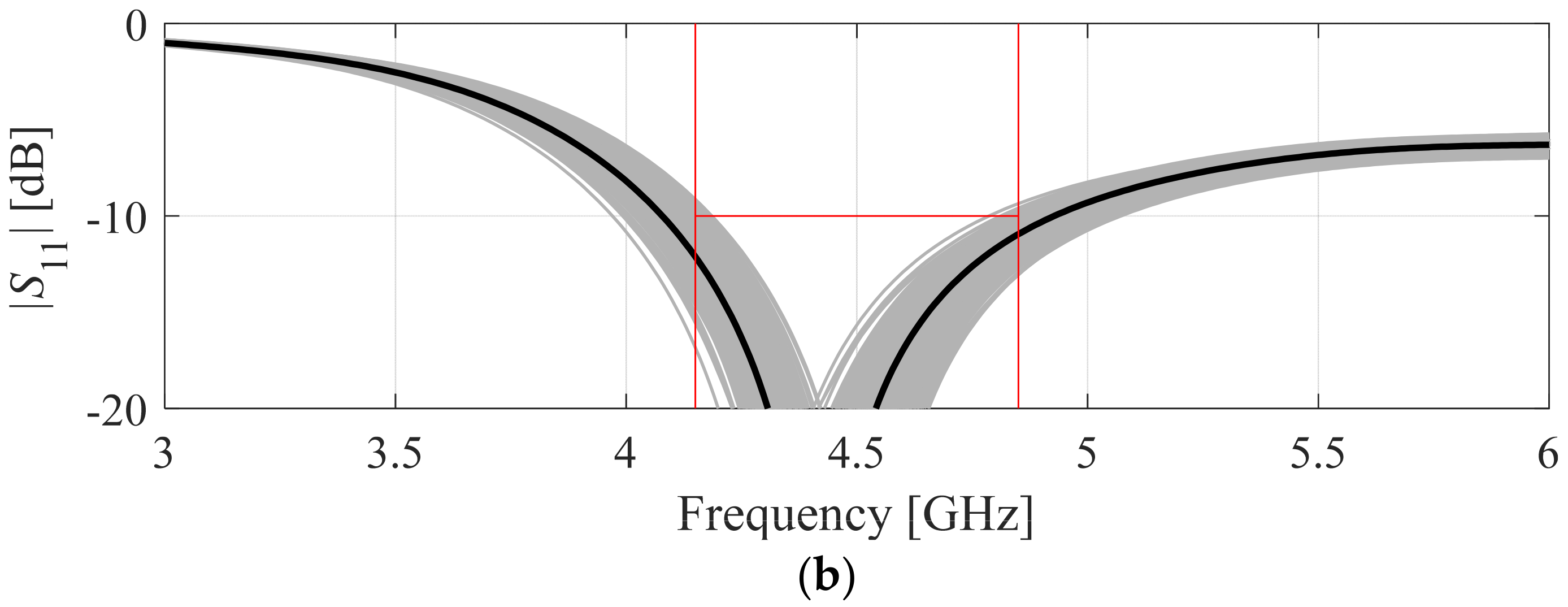

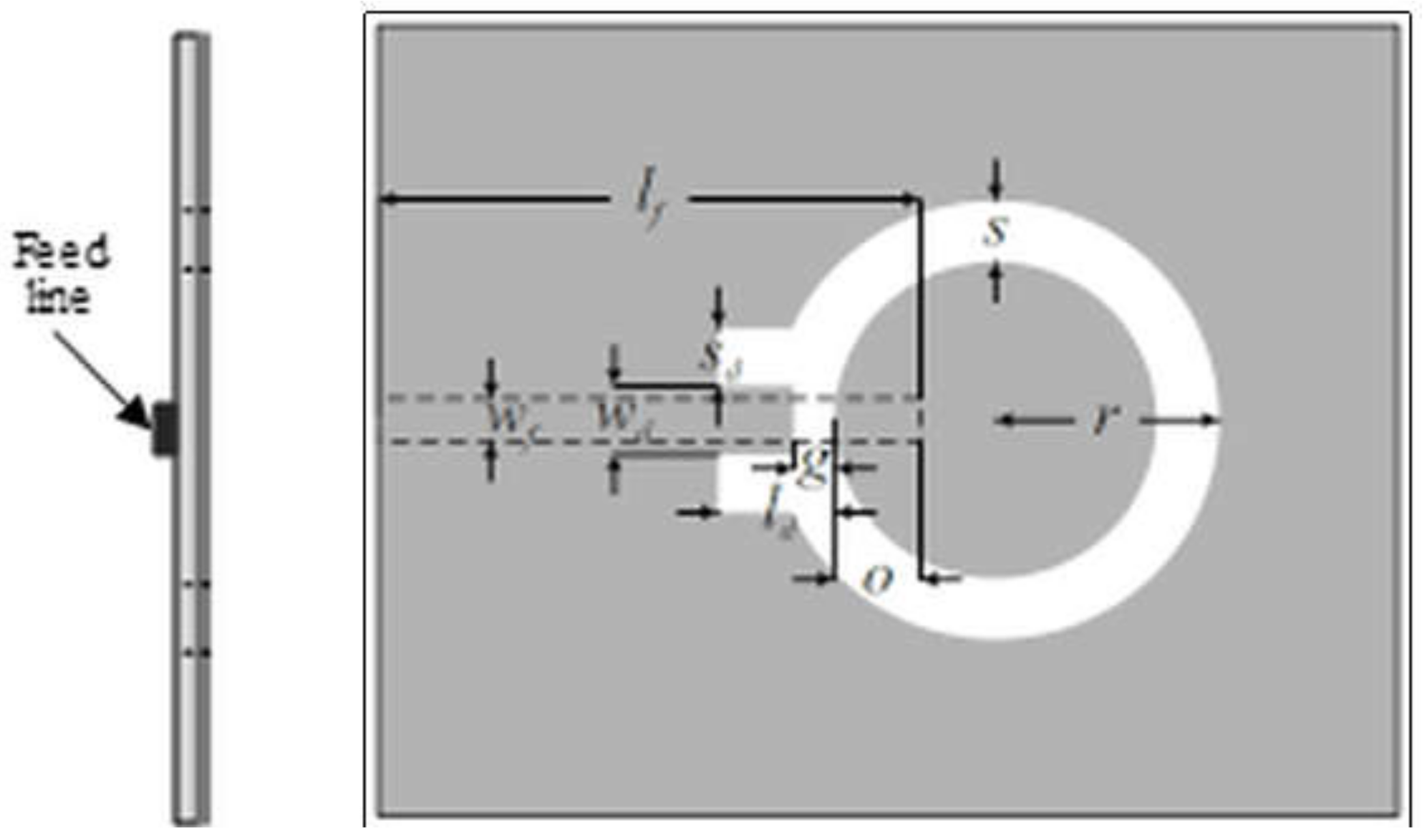

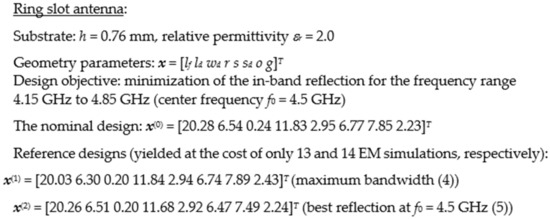

Figure 7 shows our first verification structure: a ring slot antenna, for which its circular ground plane featuring a slot with defected ground structure is excited through a microstrip line [67], whereas all the pertinent details are provided in Figure 8. We assumed independent uniformly distributed parameter deviations with maximum deviation δ_max = 0.05 mm. The yield optimization results are provided in

Table 2. Yield optimization of the ring-slot antenna of Figure 7.

Optimization Algorithm	Initial Yield		Optimized Yield		CPU Cost $
	Estimated by Metamodel	EM-Based	Estimated by Metamodel	EM-Based
Algorithm 1	81%	81%	92%	93%	400
Algorithm 2	81%	81%	91%	91%	150 #
Algorithm of Section 3.1	81%	81%	91%	91%	62 &

^$ Optimization cost in number of EM analyses of the antenna structure. ^# The algorithm convergence after four iterations (surrogate setup cost 100 training samples per iteration). ^& The cost includes training data acquisition (35 EM analyzes) and the generation of reference designs x⁽¹⁾ and x⁽²⁾ (27 EM simulations in total).

for the algorithm of Section 3.1 and the benchmark surrogate-assisted procedures of Table 1. For the discussed approach, the size of the metamodel domain was set to δ_c.k = 2δ_max (see Figure 3); the training data set for constructing the surrogate contained 35 samples; and its relative RMS error equals 0.5%.

The details pertaining to the benchmark procedures are as follows. For Algorithm 1, the metamodel of relative RMS error 0.7% was constructed using 400 samples within the domain of size 10δ_max. For Algorithm 2, the surrogate models were built using 50 training data samples over the domain of size 3d_max. Here, the first metamodel (of the domain focused around x⁽⁰⁾) featured a relative RMS error of 0.4%. In both cases, the aim was to render the metamodels of similar accuracy to less than one percent to ensure the reliability of the yield estimation. The following yield maximizing design w rendered x^* = [20.18 6.43 0.21 11.85 2.95 6.78 7.90 2.31]^T. Figure 9 visualizes the results of Monte Carlo analysis at x⁽⁰⁾ and at x^* (carried out with the use of 500 samples).

The results of Table 2 may be summarized as follows. The metamodel domain confinement according to the methodology described in Section 3.1. results in dramatic cost savings, which is mainly due to the decreased volume size. Still, as the domain is spanned over the significant directions of the design space (those representing the maximum variations of the antenna response), the yield optimization process may successfully be concluded in one stage.

4.2. Case IV: Compact Microstrip Rat-Race Coupler

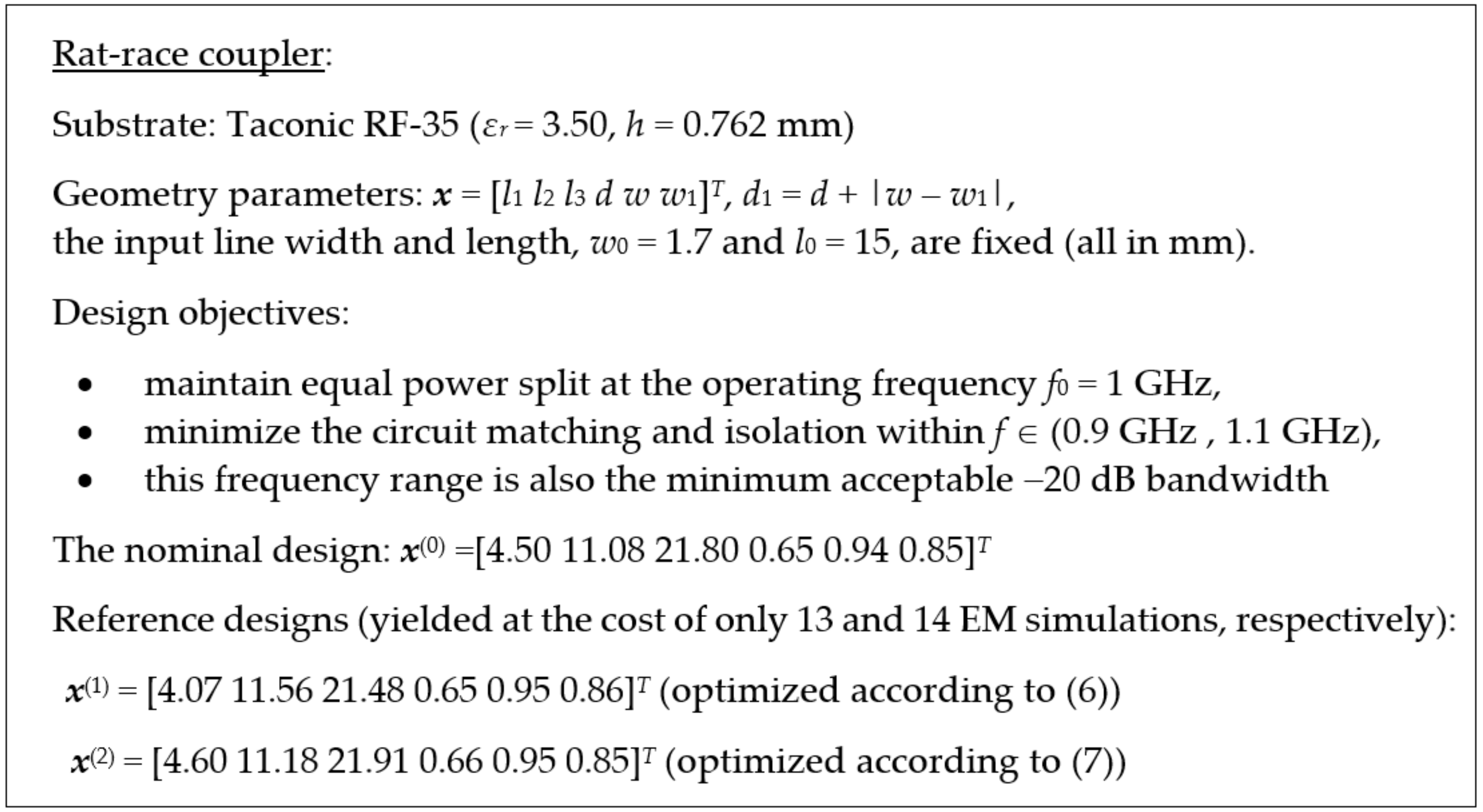

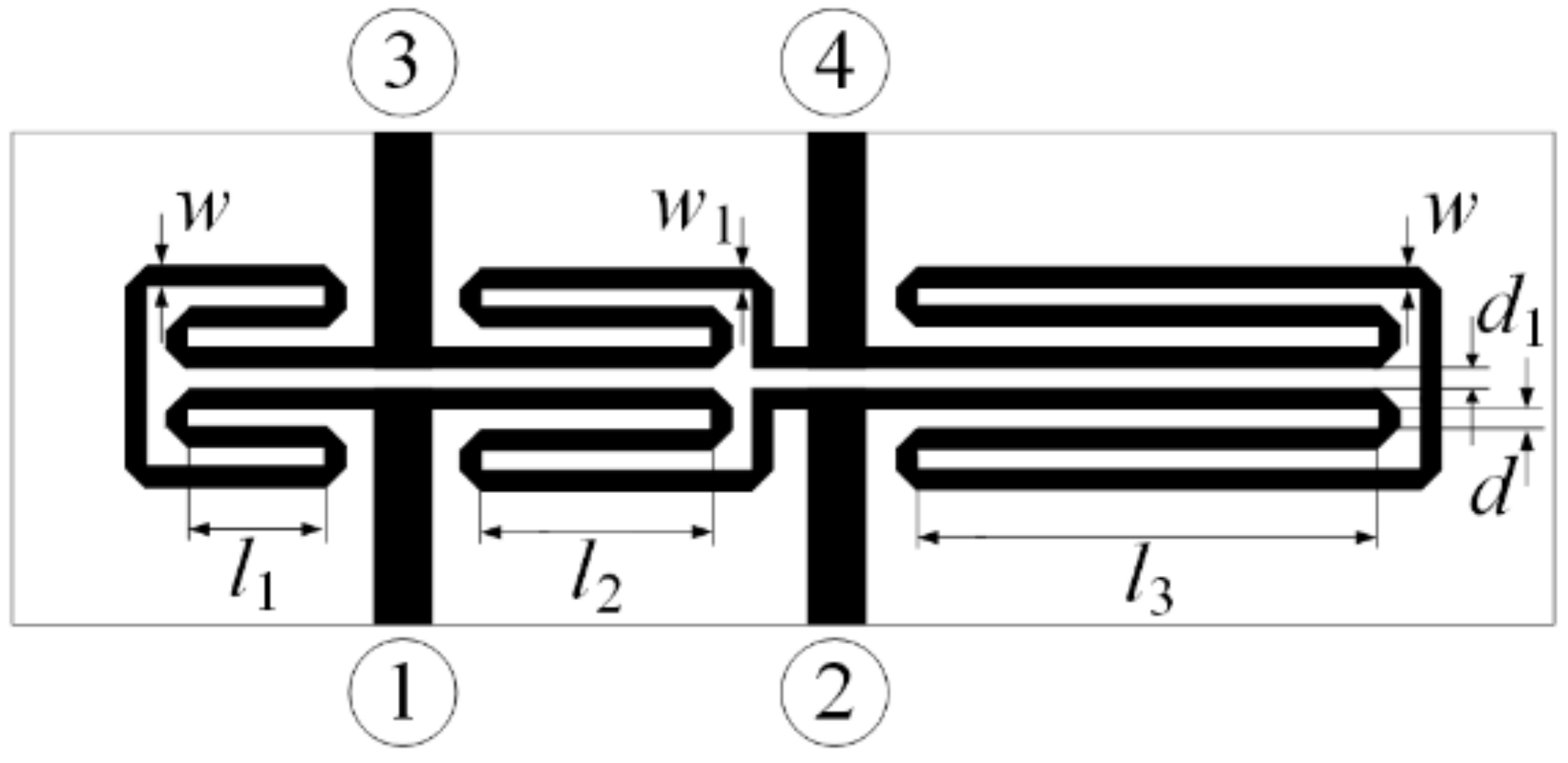

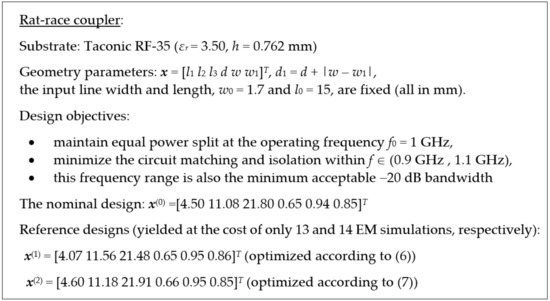

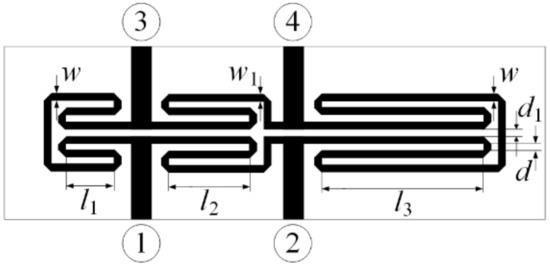

The second verification structure is a miniaturized microstrip rat-race coupler (RRC) presented in Figure 10 and described in Figure 11 [68]. The compact size of the circuit is a result of folding of the transmission lines that constitute ts interior.

Parameter deviations are assumed to be independently and uniformly distributed with the maximum deviation of δ_max = 0.05 mm. For the discussed algorithm, the metamodel of the relative RMS error of 2.3% was set up within a domain of size δ_c.k = 2δ_max, and the training data set comprised 72 training samples. In the case of Algorithm 1, the surrogate was constructed with 400 samples allocated over the domain of size 10δ_max, and the relative RMS error was equal to 3.4%. For Algorithm 2, the first metamodel set up with 50 samples within the domain encompassing x⁽⁰⁾ featured a relative RMS error of 2.2% (the size-defining parameter has been set to 3δ_max).

Table 3. Yield optimization of the compact coupler of Figure 10.

Optimization Algorithm	Initial Yield		Optimized Yield		CPU Cost $
	Estimated by Metamodel	EM-Based	Estimated by Metamodel	EM-Based
Algorithm 1	67%	62%	90%	83%	400
Algorithm 2	66%	62%	86%	83%	200 #
Algorithm of Section 3.1	63%	62%	84%	82%	72

^$ Optimization cost in number of EM analyses of the antenna structure. ^# Algorithm convergence after four iterations (surrogate setup cost 100 training samples per iteration).

provides the relevant results for the discussed and benchmark algorithms. The following optimal design was yielded: x * = [4.65 11.10 21.87 0.71 0.95 0.81]^T.

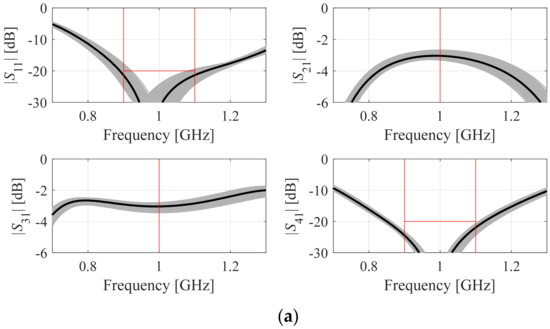

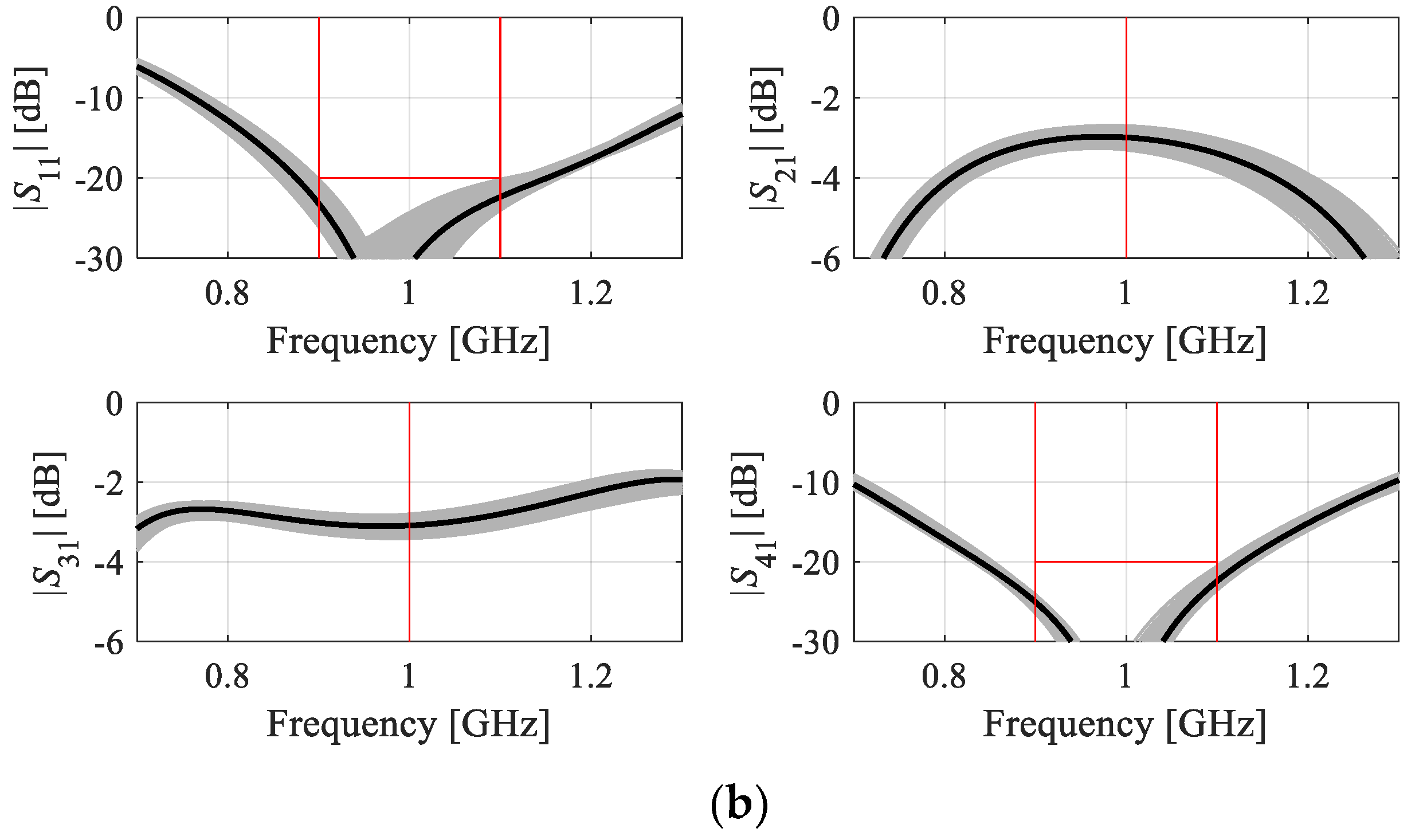

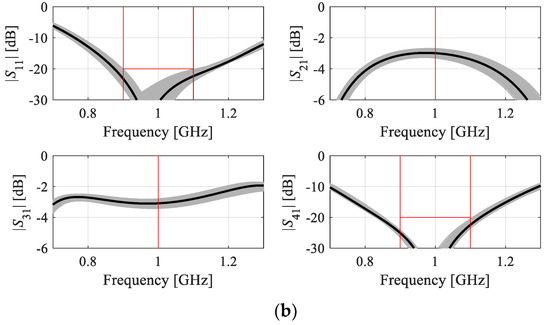

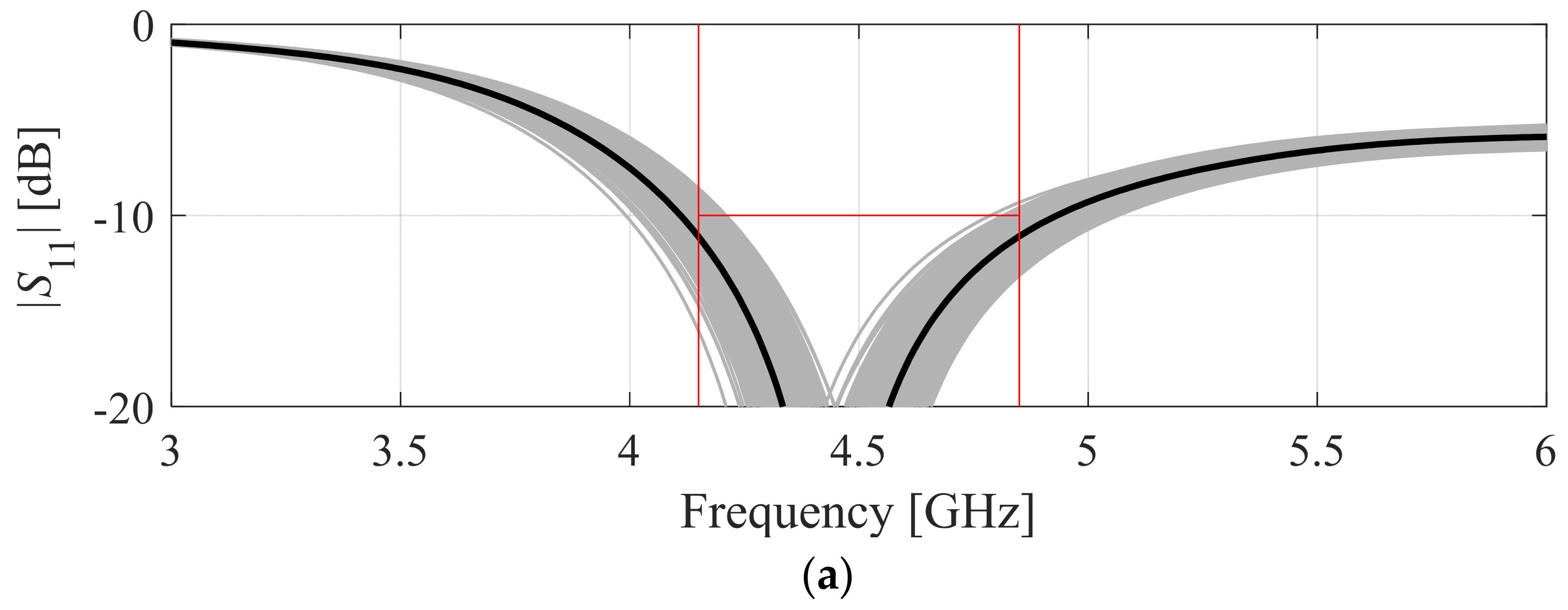

The results of Monte Carlo analysis at the initial and optimal designs are shown in Figure 12 (500 uniformly distributed samples were used with δ_max = 0.05 mm). In this case, the discussed approach and Algorithm 2 were able to estimate the yield in a reliable manner. As for Algorithm 1, the values of the yield predicted using the surrogate and EM simulations differed considerably. This is because the surrogate rendered across a domain of a larger size featured worse predictive power.

As in the previous case, it has been verified that the yield optimization within a confined domain enables the obtainment of the benefits of both benchmark procedures. Thus, the entire process may be concluded in one stage due to spanning the domain along the most consequential directions (as opposed to the iterative Algorithm 2). Moreover, as the domain is of reduced size, it was possible to construct the surrogate at a remarkably low cost. The computational savings reached up to 82 and 64 percent (the discussed procedure versus Algorithms 1 and 2, respectively). At the same time, high design quality was maintained in all cases, and the value of the optimized yield is similar for all compared algorithms. Furthermore, the obtained results agree with those of EM-based Monte Carlo analysis.

5. Conclusions

This work discussed the recent techniques for surrogate-based yield maximization of high-frequency components. The main ingredients of the optimization framework are domain-confined metamodels constructed by keeping in mind the parameter-space directions that are the most influential in terms of affecting the system’s performance. By maintaining the low overall volume of the domain, it is possible to construct reliable surrogates using a limited number of training data samples, and it is possible to carry out the yield optimization process without the need to rebuild the model. As demonstrated using two microstrip structures (an antenna and a rat-race coupler), the robust design process can be accomplished at remarkably low costs of a few dozens of EM simulations. Thorough benchmarking indicates significant savings, with >80 percent over reference surrogate-based approach and >60 percent over the SAO algorithm. At the same time, reliability has been corroborated using EM-driven Monte Carlo simulations. The optimization techniques considered in the paper offer improved computational efficiency over the state-of-the-art methods without compromising reliability. They are applicable to a variety of antenna and microwave components, and they may be viewed as potential replacements of conventional (also surrogate-assisted) procedures, especially for more complex, e.g., higher-dimensional design scenarios. Since in the considered approach, the surrogate domain is spanned by the directions that influence yield values in the most significant manner, the generalization of the technique would require properly defining these directions so that they reflect the respective design requirements.

In general, the two specific approaches for constructing the domain of the surrogate model (extension along the one-dimensional curve for the antenna example, and along two vectors corresponding to the maximum changes of the considered performance figures for the coupler example) could be applied to either of the case studies. However, maintaining the domain extension’s dimensionality as equal to the number of considered performance figures is recommended, which is to provide sufficient room for yield improvement within the domain.
