Electrical Conductivity and Compressive Strength of Cement Paste with Multiwalled Carbon Nanotubes and Graphene Nanoplatelets

Abstract

Many studies have been conducted using carbon-based nanomaterials (CBNs) for improving the electrical conductivity and mechanical properties of cementitious composites, but their practical use is yet to be achieved. Several methods have been attempted to secure the dispersibility in the cementitious composite matrix of CBNs, such as multiwalled carbon nanotubes (MWCNTs) and graphene nanoplatelets (GNPs). In this study, MWCNTs and GNPs were noncovalently functionalized using melamine, a low-cost chemical, and ball milling, a simple process commonly used in industrial fields. Additionally, MWCNTs and GNPs having one- and two-dimensional shapes were mixed with the cement paste to examine their effect on electrical conductivity and compressive strength. Following the experiment, it was shown that the electrical conductivity was improved via the noncovalent functionalization of MWCNT and GNP. The compressive strength increased up to approximately 0.30–0.60% of the CBNs content; however, for CBN content higher than 0.60%, the compressive strength decreased. The hybrid MWCNT and GNP mixture had a negligible effect on the electrical conductivity and compressive strength.

1. Introduction

General concrete is limited in its use as a load-bearing construction material. However, in recent years, as the demand for smart construction technology continues to grow, there have been continuous attempts to give concrete various functions in addition to basic structural performance [1]. One such attempt involves using various carbon-based nanomaterials (CBNs) to improve the strength, thermal properties, and electrical conductivity of cementitious composites [2]. Carbon nanotubes (CNTs) are among the most interesting of these materials. After the first multiwalled carbon nanotube (MWCNT) was discovered by Iijima [3] during the observation of a carbon byproduct that was generated using an arc between two carbon electrodes, CNTs have been objects of interest for many researchers. CNTs can be classified into single-walled CNTs or MWCNTs depending on the number of graphene layers. MWCNTs are most commonly used in cementitious composites owing to their high elasticity modulus, tensile strength, and excellent thermal and electrical conductivities [4]. There have been many studies on the effect of MWCNTs on the properties of concrete, mortar, paste, polymers, and other composites [5,6]. On the other hand, for graphene nanoplatelets (GNPs) comprising several layers of graphene sheets, owing to its two-dimensional (2D) structure having a relatively large specific surface area and a large surface–volume ratio compared with other CBNs, researchers have great interest in its use as a nano-reinforcing material for cementitious composites [7].

Several studies showed that the incorporation of MWCNTs improves mechanical properties, such as the compressive, tensile, and flexural strengths of cement, mortar, or paste [8,9,10,11,12,13,14,15]. In most cases, the strength increases as the content of MWCNT increases but decreases above a certain content ratio. However, the optimal incorporation and strength-increasing rates were reported with different results by various researchers [8,9,10,11,12,13,14,15]. Conversely, several studies indicated its negative effects on mechanical performance [16,17,18,19,20]. However, finding a clear correlation between the incorporation rate of MWCNTs and decreasing strength was difficult. Many studies used GNPs to improve the mechanical properties of cementitious composites [21,22,23,24,25,26], whereas other studies found that the use of GNPs had little to no effect on strength [27,28,29].

It is a well-known fact that through the incorporation of CBNs, e.g., MWCNTs and GNPs, electrical conductivity can be imparted to cementitious composites. However, while the optimal mixture ratio and electrical conductivity were reported differently, there is uniform agreement that dispersing mixed CBNs evenly in the cement matrix is an important factor for improving electrical conductivity. CBNs tend to agglomerate owing to van der Waals forces; therefore, researchers have experienced difficulty dispersing them uniformly in a cement matrix. To date, no established standard exists for the dispersing method of CBNs; these include noncovalent approaches, such as surfactant and ultrasonication, and covalent approaches, such as acid etching. Many researchers concluded that CBNs, such as MWCNTs or GNPs, should be functionalized for the best performance when mixed into cementitious composites [5].

Kim et al. [30] proposed a method for the noncovalent functionalization of GNPs using a ball-milling process with melamine to improve their interfacial adhesion and dispersion in an epoxy matrix. In this study, the method suggested by Kim et al. was used to homogeneously disperse the MWCNT or GNP in a cement paste matrix and compared this approach with ultrasonication, which is the most common dispersing method [30]. Most of the existing studies investigated the properties of cementitious composites by individually incorporating MWCNTs or GNPs. As only a few studies exist on hybrid cementitious composites in which two CBNs are simultaneously mixed, the compressive strength and the electrical conductivity of the hybrid cement pastes mixed with MWCNTs and GNPs were investigated in this study [31,32].

2. Experimental Design

2.1. Mix Proportions

In this study, a cement paste was mixed without fine and coarse aggregates. Type I ordinary Portland cement was used, and the water–cement ratio was fixed at 42%. The CBNs used in the mixture were MWCNTs and GNPs, the properties of which are shown in

Table 1. Properties of multiwalled carbon nanotubes (MWCNTs).

Specific Surface Area (m2/g)	Bulk Density (g/cm3)	Purity (%)	Outer Diameter (nm)	Length (μm)
150–250	0.04–0.08	>90	5–20	10–30

and

Table 2. Properties of graphene nanoplatelets (GNPs).

Specific Surface Area (m2/g)	Bulk Density (g/cm3)	Purity (%)	Diameter (μm)
30–60	0.03–0.1	>95	7–25

. One of the main experimental variables was the content of CBNs, which was determined based on previous studies [5,8,9,10,11,12,13,14,15,21,22,23,24,25,26] so that the percolation zone for mechanical properties and electrical conductivity could be observed; the MWCNTs and GNPs were incorporated at 0.06%, 0.12%, 0.30%, 0.60%, and 1.20% of the cement weight, respectively. Additionally, the hybrid mixture of MWCNTs and GNPs was also set as an experimental variable. GNPs have a plane-shaped molecular structure, whereas MWCNTs have a cylindrical molecular shape resembling rolled-up graphene. The simultaneous mixture of two differently shaped CBNs is expected to be effective at forming a conductive network owing to the mutually complementary interaction. To confirm this synergistic effect, MWCNTs and GNPs were hybrid mixed in a 1:1 ratio to reach a combined weight of 0.12%, 0.60%, and 1.20% of the cement weight. The experimental variables are shown in

Table 3. Experimental variables.

Mix ID.	Dispersion	MWCNTs (wt%)	GNPs (wt%)
MWCNT	Ultrasonication	0.06	-
		0.12	-
		0.30	-
		0.60	-
		1.20	-
GNP		-	0.06
		-	0.12
		-	0.30
		-	0.60
		-	1.20
Hybrid		0.06	0.06
		0.30	0.30
		0.60	0.60
f-MWCNT	Noncovalent functionalization + ultrasonication	0.06	-
		0.12	-
		0.30	-
		0.60	-
		1.20	-
f-GNP		-	0.06
		-	0.12
		-	0.30
		-	0.60
		-	1.20
f-Hybrid		0.06	0.06
		0.30	0.30
		0.60	0.60

.

2.2. Dispersion of MWCNTs and GNPs

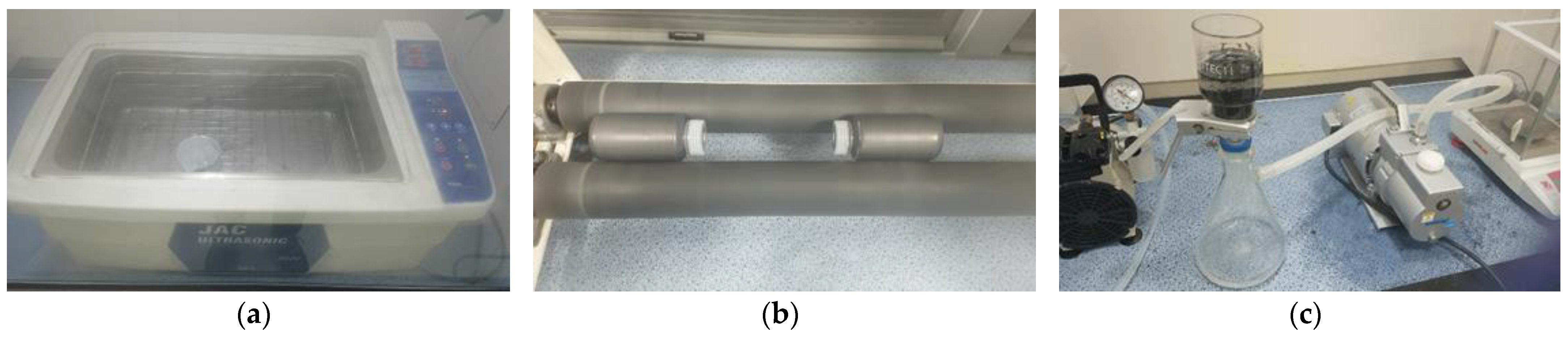

An additional experimental variable is whether MWCNTs and GNPs were functionalized. Owing to their hydrophobic properties, CBNs have difficulty securing dispersibility, even when mixed in water. The cohesion between the carbon particles of MWCNTs and GNPs by the strong van der Waals force results in the agglomeration of CBNs, leading to the formation of clusters and bundles when dispersed in a solution. To avoid such aggregation and uniformly disperse CBNs without breakage, a combination of chemical and physical methods must be implemented [33]. That is, a physical method of separating CBNs individually by applying ultrasonic energy and a chemical treatment method that involves modifying and functionalizing the surface of CBNs to prevent re-agglomeration following ultrasonication should be performed simultaneously. This study investigated the effect of securing dispersibility through functionalization on conductivity. The MWCNTs and GNPs were noncovalent functionalized using the process proposed by Kim et al. [30]. The functionalization process performed in this study is shown in Figure 1. First, CBNs were mixed with melamine in a 1:1 ratio and ultrasonicated in dimethylformamide (DMF, a polar solvent) for 1 h to produce the mixture (Figure 1a). The ultrasonication-treated mixed solution was poured into a polypropylene bottle containing stainless steel balls, and ball milling was performed for 24 h (Figure 1b). After the synthesis of CBNs and melamine via ball milling, the DMF was washed through filtration using ethanol and distilled water (Figure 1c). It was then dried in a vacuum oven for 24 h to produce functionalized MWCNTs and GNPs. To produce the specimens, functionalized MWCNTs or GNPs were added to the mixed water, underwent ultrasonication for 30 min, and was then mixed with the cement for 10 min at 300 rpm using a mortar mixer. The control group did not go through the functionalization and underwent ultrasonication for 30 min and mortar mixing for only 10 min.

2.3. Electrical Resistivity and Compressive Strength Test

Electrical conductivity and compressive strength were measured for various mixes, as shown in Table 2. Three 50 mm cubic specimens were used for each test. All specimens were cured under a constant temperature (20 ± 2 °C) and relative humidity (50 ± 4%) for 28 days. The compressive strength was measured according to the Korean Industrial Standards L 5105 [34]. Electrical resistance was measured using the commonly used 2-point uniaxial method. The voltage difference was applied to both sides of the specimen, to which the copper plate was attached using conductive epoxy. Electrical resistivity was obtained by substituting the amount of current into Equation (1) according to Ohm’s law. When the electrical conduction path of the specimen is not uniform, a polarization effect can occur, i.e., the electrical resistance of the specimen may increase during the measurement [35]. Therefore, an electrical resistance measurement was performed within 1 s to minimize this effect.

$$\rho =R\frac{A}{L}$$

(1)

where ρ, R, A, and L are the electrical resistivity (Ω m), measured resistance (Ω), electrode area (m²), and electrode interval (m), respectively.

3. Test Results and Discussion

3.1. Electrical Resistivity

The electrical conductivity test results are shown in Figure 2, Figure 3 and Figure 4. The experimental results were expressed as the average value measured from three specimens, and the standard deviation is indicated on the bar graph.

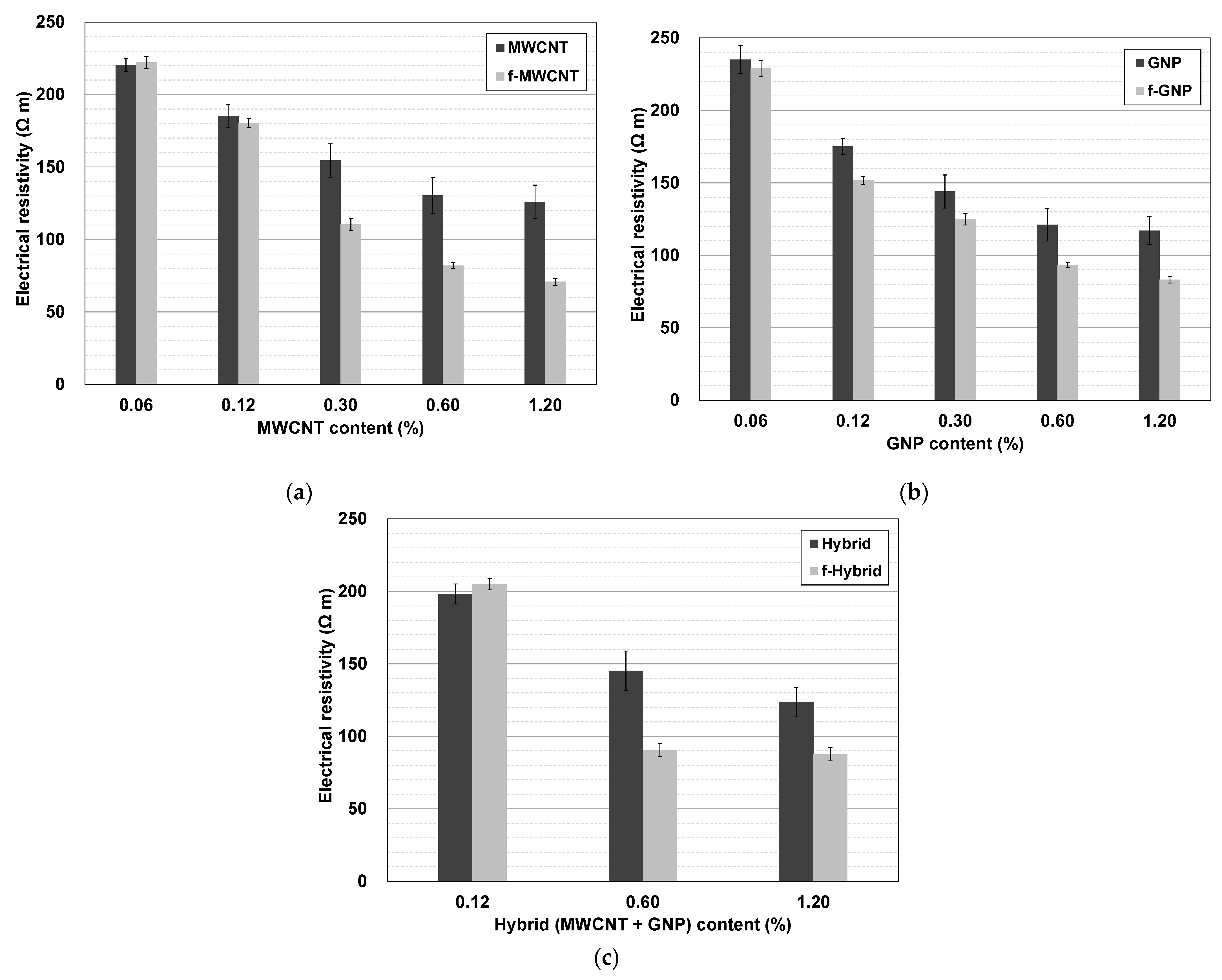

The effect of the functionalized MWCNTs and GNPs on the electrical resistance is shown in Figure 2. Except for the specimens with the MWCNT mixture ratio of 0.06% and the hybrid mixture ratio of 0.12%, the functionalized specimens showed lower electrical resistance in all cases. The difference in electrical resistance between the functionalized and nonfunctionalized specimens became larger as the mixture rate was increased to ≥0.30%. Improved electrical conductivity, along with the functionalization of MWCNTs, was observed more frequently compared with the GNPs. The electrical resistance of MWCNTs was reduced by an average of 36% in functionalized specimens with a mixture ratio of ≥0.30% and by an average of 22% for GNPs. The standard deviation for the electrical resistance of the functionalized specimens was smaller than for the nonfunctionalized specimens in all cases. These experimental results showed that the functionalization of MWCNTs and GNPs improved their dispersion in the cement matrix.

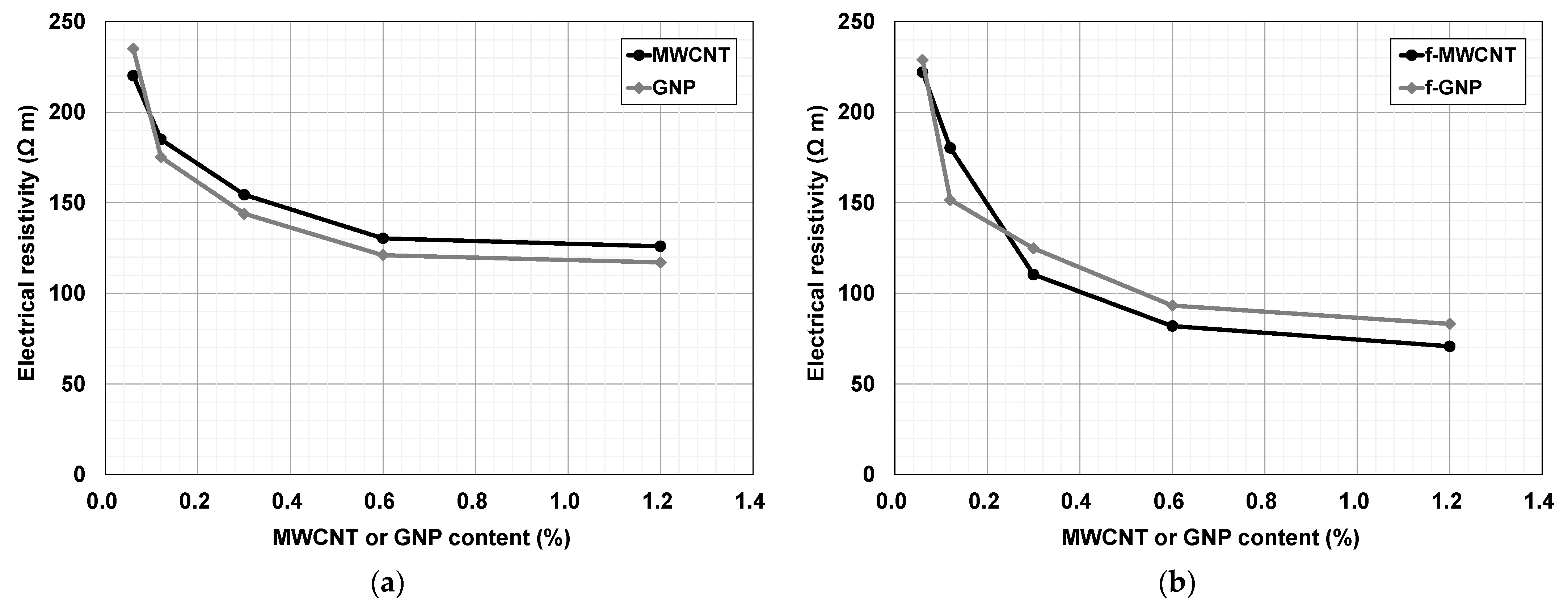

Figure 3 shows the electrical resistance changes with respect to the content of MWCNTs and GNPs. The decrease in electrical resistance was generally large up to a content of 0.30% but slowed thereafter. In nonfunctionalized specimens, the electrical resistance changes were insignificant at ≥0.60%. However, although small, the electrical resistance notably continued to decrease in the functionalized specimen. In nonfunctionalized specimens, the GNP was 9.6 Ω m smaller than MWCNT on average, except for the 0.06% content. However, in functionalized specimens, the MWCNT was an average of 12.7 Ω m smaller than the GNP at the content of ≥0.30%. At a relatively high content, the dispersion effect of the MWCNT appeared to be larger compared with the GNP as a result of functionalization.

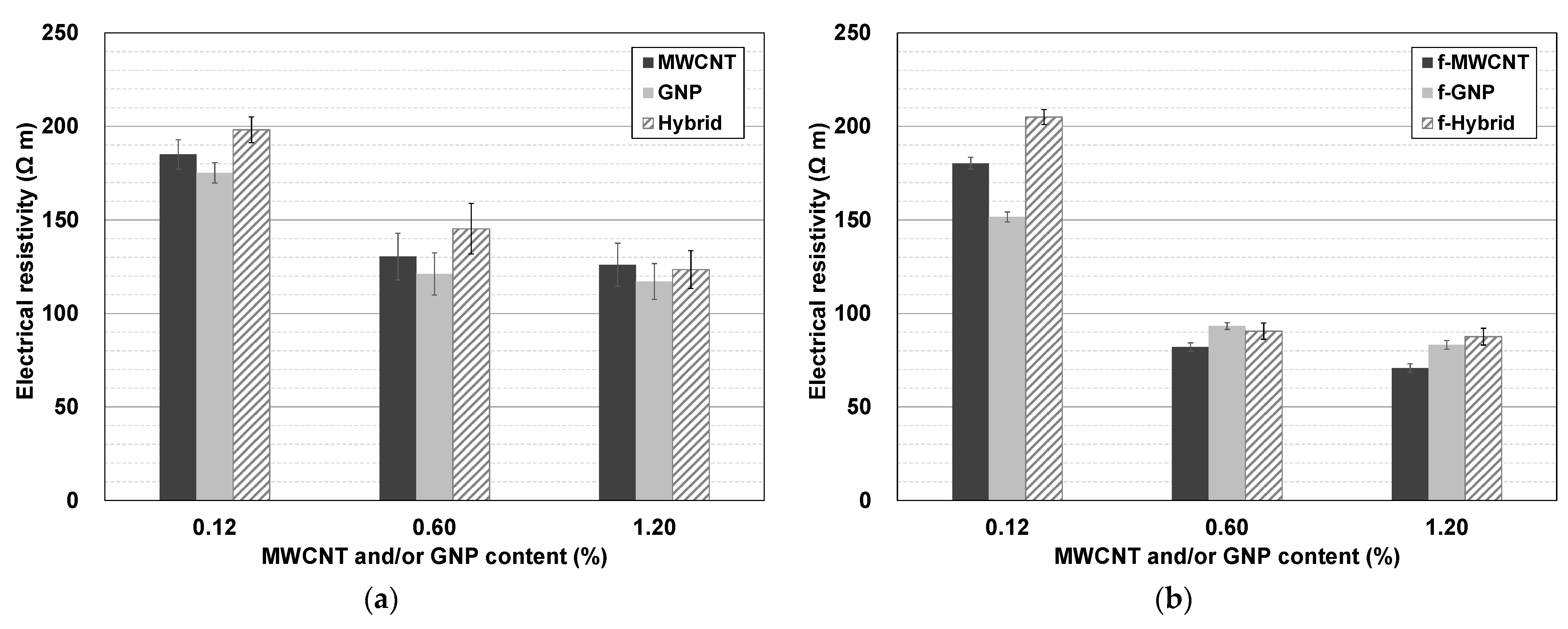

Figure 4 shows the hybrid effect on the electrical resistance of the MWCNTs and GNPs. In the case of hybrid mixing of one-dimensional MWCNTs and 2D GNPs, the electrical resistance was higher than or similar to that of individual mixing, regardless of the functionalization. This result was contrary to the expected effect that hybrid incorporation would provide an advantage in forming conductive networks. Therefore, it was concluded that differently shaped nanomaterials interfered with one another upon dispersion within the cement matrix.

3.2. Compressive Strength

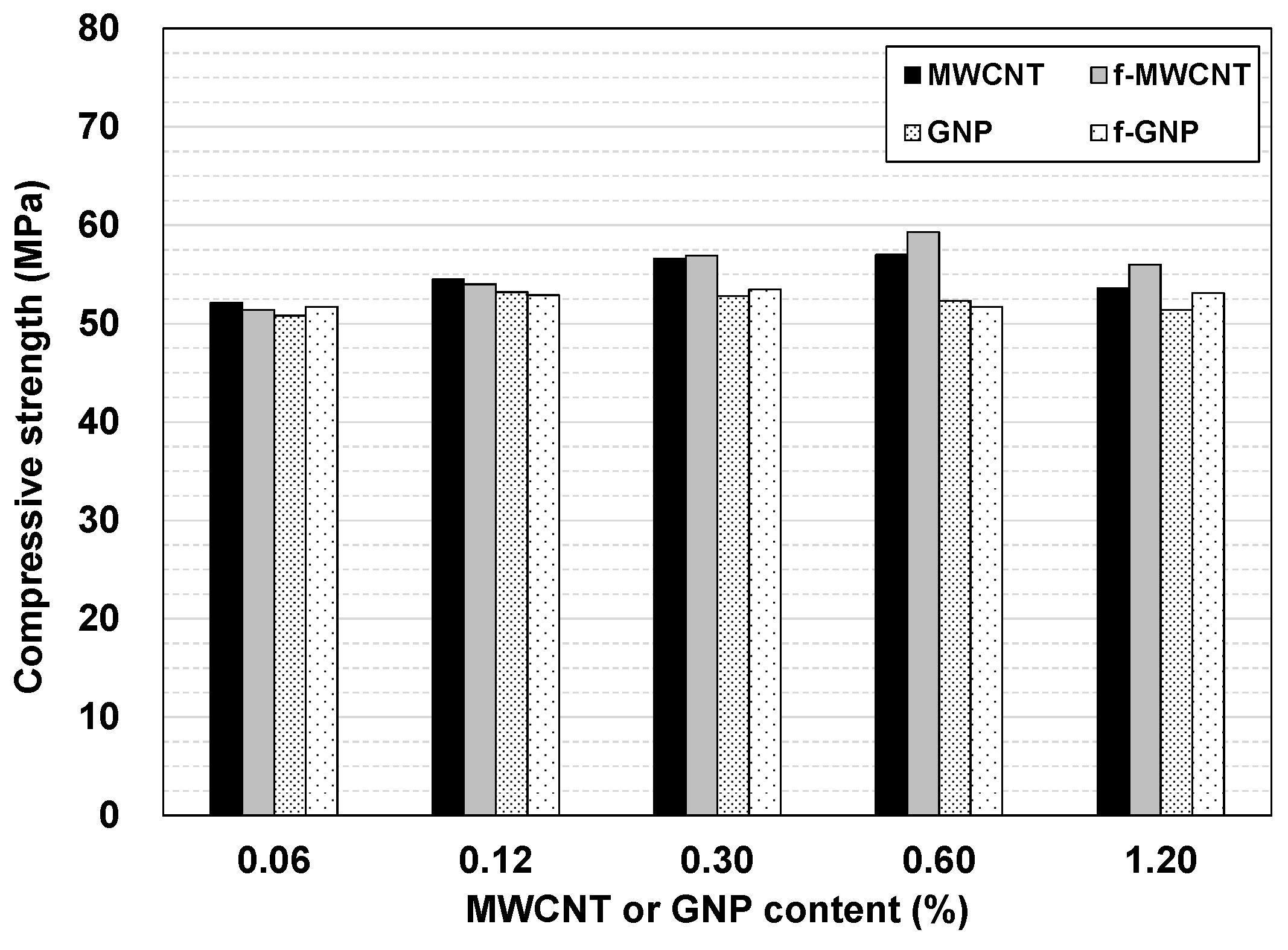

Figure 5 shows the effect of the MWCNT and GNP content and functionalization on the compressive strength. Overall, the compressive strength tended to increase as the content of CBNs increased up to the level of 0.30% to 0.60%, whereas at contents higher than 0.60%, the strength decreased. However, the amount of change in compressive strength in all specimens was within 6%, and its level did not appear to be substantial. When compared with the MWCNT or GNP mixed specimens, the MWCNT showed an overall higher strength than the GNP, regardless of functionalization. Therefore, the shape of the MWCNTs more effectively bridged cracks than the GNPs [31]. The compressive strength of the nonfunctionalized and functionalized specimens was at a similar level, and no apparent tendency was observed for the effect on compressive strength through functionalization. Although some studies showed that excessive functionalization treatment adversely affected the strength of cementitious composites by causing physical damage to the surface of the CBNs, no such defects were found in this study [36]. This may have been because the MWCNTs and GNPs were noncovalently functionalized through the aromatic ring in melamine via π–π interactions that did not change the surfaces, unlike covalent functionalization [30].

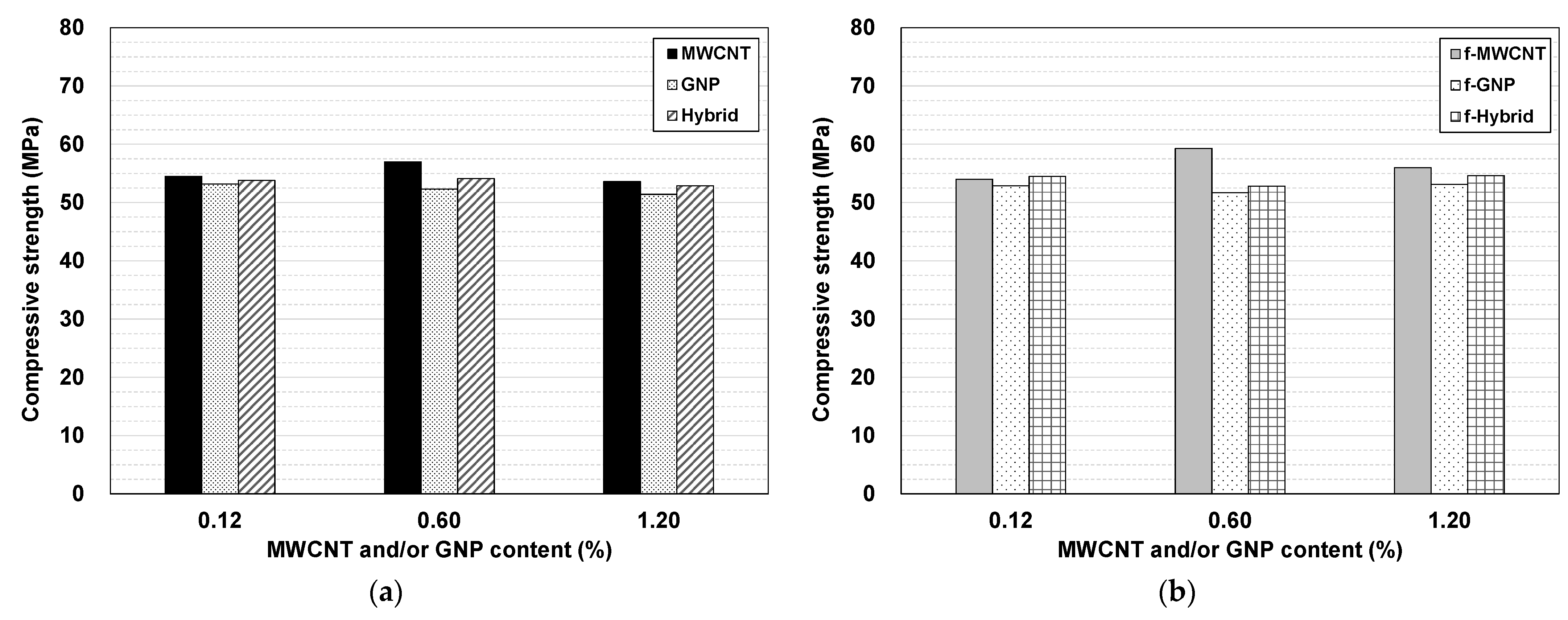

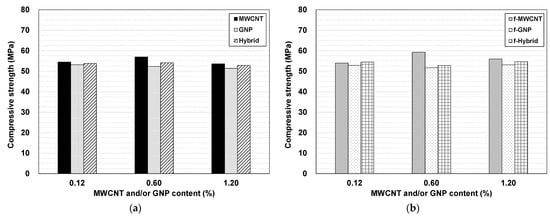

Figure 6 shows the effect of the hybridizations of MWCNTs and GNPs on the compressive strength. The hybrid did not improve the compressive strength, and no substantial change was observed in the compressive strength with an increase in the hybrid content. However, some studies reported that the hybrid incorporation of CBNs improves mechanical properties, including the compressive strength of cementitious composites [37,38,39,40]. Further studies on the effect of hybrid incorporation of CBNs on electrical conductivity and mechanical properties are necessary.

4. Conclusions

(1) As a result of comparing the cement paste specimen containing MWCNTs and GNPs that were noncovalently functionalized with melamine using the ball-milling process with the specimen containing MWCNTs and GNPs that were only ultrasonication-treated, the electrical conductivity and dispersibility of the CBNs were improved within the cement matrix using noncovalent functionalization; in particular, the decrease in electrical resistance was larger with a high content of CBNs.

(2) As the MWCNT and GNP content increased, the electrical resistance decreased. However, at an incorporation ratio ≥ 0.3%, the range of decrease in the electrical resistance was small, and there was almost no change at ratios ≥ 0.6%. The compressive strength increased up to approximately 0.30–0.60% of the CBNs content; however, for CBN content higher than 0.60%, the compressive strength decreased. Nonetheless, the variation in compressive strength was not large.

(3) The electrical resistance of the hybrid mixture involving the differently shaped MWCNTs and GNPs was actually larger or similar to that of independently mixed specimens. The effect on the compressive strength of the MWCNT and GNP hybrid was also difficult to determine. The results of the hybrid CBNs on the electrical and mechanical properties of cementitious composites are considered to be different according to the type and content of CBNs; therefore, further research is necessary.
