Review

Recent Progress in On-Chip Erbium-Based Light Sources

by
Bo Wang
1,
Peiqi Zhou
2 and
Xingjun Wang
1,3,4,5,*
1
State Key Laboratory of Advanced Optical Communication Systems and Networks, School of Electronics, Peking University, Beijing 100871, China
2
National Information Optoelectronics Innovation Center, Wuhan 430074, China
3
Frontier Science Center for Nano-Optoelectronics, Peking University, Beijing 100871, China
4
Peking University Yangtze Delta Institute of Optoelectronics, Nantong 226010, China
5
Peng Cheng Laboratory, Shenzhen 518055, China
*
Author to whom correspondence should be addressed.
Appl. Sci. 2022, 12(22), 11712; https://doi.org/10.3390/app122211712
Submission received: 18 October 2022 / Revised: 4 November 2022 / Accepted: 8 November 2022 / Published: 18 November 2022
(This article belongs to the Special Issue Laser and Silicon Photonics: Technology, Preparation and Application)
Browse Figures
Versions Notes

Abstract

:

Featured Application

Silicon photonics.

Abstract

In recent years, silicon photonics has achieved great success in optical communication area. More and more on-chip optoelectronic devices have been realized and commercialized on silicon photonics platform, such as silicon-based modulators, filters and detectors. However, on-chip light sources are still not achieved because that silicon is an indirect bandgap material. To solve this problem, the rare earth element erbium (Er) is considered, which emits light covering 1.5 μm to 1.6 μm and has been widely used in fiber amplifiers. Compared to Er-doped fiber amplifiers (EDFA), the Er ion concentration needs to be more than two orders higher for on-chip Er-based light sources due to the compact size integration requirements. Therefore, the choice of the host material is crucially important. In this paper, we review the recent progress in on-chip Er-based light sources and the advantages and disadvantages of different host materials are compared and analyzed. Finally, the existing challenges and development directions of the on-chip Er-based light sources are discussed.

1. Introduction

With the rapid development of the silicon-based microelectronics technology in accordance with the Moore’s Law, the feature size of the devices is reduced to less than ten nanometers [1]. Nevertheless, the power consumption and the heat dissipation of the devices have become a non-negligible problem, which restricts the development of microelectronics technology. In addition, it is hard to further reduce the size of the microelectronic devices, increase the integration of the chips, and improve the performance of the devices [2]. Therefore, the microelectronics technology is currently difficult to meet the increasingly high requirements of the information society.
In recent years, silicon photonics has attracted great attention and research effort due to its potential for low-cost integration of complementary metal–oxide–semiconductor (CMOS) technology and the small size of silicon-based photonic devices. It combines photonics technology and microelectronics technology to achieve larger transmission bandwidth and higher communication speed, which has been widely used in on-chip optical communication. In recent years, the possible experimental implementation and on photonic bandgap have provided a reliable way to transmit entanglement over long distance and high-performance computing, which indicates silicon photonic technologies also have potential application in frontier domains, such as quantum technology and neural networks [3,4,5,6,7,8]. Some key devices in silicon photonics, such as modulators, detectors, wavelength division multiplexers, filters and other functional devices have been realized and gradually industrialized [9,10,11,12,13]. However, the only thing that has not been completely solved at present is the silicon-based light sources because of the indirect band properties of silicon [14]. To solve this problem, there are mainly three methods: epitaxial III-V light sources, heterogeneous III-V light sources and Er-based light sources.

1.1. Epitaxial III-V Light Sources

III-V compound semiconductor lasers have developed rapidly in recent decades and are gradually commercialized. Silicon-based epitaxial growth of III-V compound semiconductor light sources have been pursued for many decades for the potential to integrate with other silicon-based optoelectronic devices. However, compared with Si, III-V compound materials have large lattice mismatches and thermal expansion coefficient mismatches, which results in a threading or misfit dislocation density of 108–1010 cm−2 when grown on the Si substrate [15]. Numerous approaches have been used to solve these problems, such as special surface treatment [16], strained superlattices [17,18], low-temperature buffers [19] and growth on patterned substrates [20].
The first quantum dot (QD) laser monolithically grown on Si was reported in 1999 with its peak emission at 1.013 μm [21]. In 2011, Liu et al., achieved the first electrically pumped 1.3 μm InAs QD laser grow directly on Si substrate [22]. Since then, numerous approaches have been investigated to improve device performance. In 2017, Kryzhanovskaya et al., succeeded in demonstrating the first Si-based micro-disk lasers with minima Jth of 600 A/cm and emission covering 1320–1350 nm [23]. In 2018, an electronically pumped distributed feedback (DFB) laser array on Si substrate was realized, which could lase at room temperature with threshold current as low as 12 mA [24]. In 2019, Bowers et al., achieved the first tunable QD single-wavelength laser with 16 nm tuning range directly grown on Si under continue wave (CW) electrical injection at room temperature [25].
Although a lot of progress has been made in the epitaxial III-V light sources, much effort is needed to make this technology affordable for high volume, high-performance photonic integrated circuits (PICs), such as fewer defects, lower thresholds, higher temperature stability and uniformity. Additionally, low-loss active–passive coupling schemes need to be developed to integrate with other silicon-based components [26].

1.2. Heterogeneous III-V Light Sources

Heterogeneous integration is the process which combines III-V devices with silicon-based optoelectronic devices via wafer-bonding, including direct bonding, molecular bonding, metal bonding and polymer bonding [27,28]. Compared with direct epitaxial growth, heterogeneous integration is more versatile and flexible to integrate different materials from the perspective of the materials system, size, and processing simplicity.
In 2005, Bowers et al., demonstrated the first optically pumped heterogeneous laser on Si [29]. One year later, the research group realized the first electrically pumped heterogeneous laser [30]. Since then, the performance of heterogeneously integrated III-V on silicon components has continuously improved over the past decade. In 2015, Santis et al., realized a heterogeneous InP laser with sub-kHz quantum noise-limited linewidth [31]. In 2020, Thiessen et al., achieved a heterogeneously integrated InP DFB laser with threshold currents as low as 32 mA [32]. Heterogeneous integrated light sources have been used in commercial products by Intel since 2016. In 2020, a 400 Gbps PAM-4 fully integrated DR4 silicon photonics transmitter with four heterogeneously integrated DFB lasers has been demonstrated for data center applications [33].
Heterogeneous III-V light source has since developed rapidly in recent years due to the improved fabrication processes. However, it is limited by the complicated fabrication procedures, smaller yields, and incompatibility with traditional CMOS production line. For wider application in the future, the processing technology still needs to be further improved, and the processing cost needs to be reduced.

1.3. Er-Based Light Sources

Compared with the III-V light sources, rare earth element based light sources have better CMOS technology compatibility, which may have more potentials in monolithic integration application. Among them, the spontaneous emission of erbium ions (Er3+) covers 1524–1574 nm, thulium ions (Tm3+) covers 1680–2020 nm, holmium ions (Ho3+) covers 1930–2130 nm [34,35,36]. For the on-chip optical communication at C band (1525–1565 nm), Er3+ is more suitable, with the advantages of long luminescence lifetime, small noise, and low process manufacturing cost. Consequently, Er-based materials have inspired significant research to silicon-based on-chip light sources, especially since the erbium-doped waveguide amplifier (EDWA) was first realized in 1985 [37]. For the compact size integration requirements, the Er3+ concentration of on-chip Er-based light sources need to be more than two orders higher than EDFA [38]. Therefore, it is crucial to choose the proper host materials.
In 2017, Ning et al., achieved giant optical gain in a single-crystal Er chloride silicate nanowire with Er concentration up to 1.62 × 1022 cm−3 [39]. A net material gain over 100 dB·cm−1 at wavelengths at approximately 1530 nm is possible due to the nanowire’s single-crystalline material quality and its high Er concentration. In 2019, Sun et al. realized an Al2O3:Er slot waveguide amplifier by atomic layer deposition (ALD) [40]. By combining low-loss silicon nitride waveguides with high-quality Al2O3:Er films, up to 20 dB/cm net modal gain was achieved. In 2022, Kippenberg et al. demonstrated over 145 mW on-chip output power and >30 dB of small-signal gain based on Si3N4:Er, which greatly expands the application prospects of the Si3N4 platform [41].
With the broadening of the selection of host materials and the progress of fabrication technology, Er-based light sources have developed rapidly in recent years. Based on the advantages above, the application prospects of on-chip Er-based light sources are broader and more conducive to the future development of the silicon photonics industry.
In this paper, the recent progress and the state of the art in on-chip Er-based light sources are reviewed. We begin with comprehensive theoretical analysis of Er3+ luminescence model, followed by recent advances in on-chip Er-based light sources of different host materials. The advantages and disadvantages of different host materials are compared and analyzed. Finally, the future directions and existing challenges towards higher-level integration are discussed.

2. Electronic Energy Level Structure and Amplification in Er-Based Medium

The neutral form of the rare earth element Er is [Xe]4f126s2, which has a similar electronic structure to xenon (Xe). The 6s2 electrons and the 4f electron, which are in a weakly bound state, are usually removed when bound into the host materials and becomes Er3+. On this account, the partially filled 4f electron shell is shielded by the larger-radius 5s and 5p orbitals and forms a localized electronic environment. Therefore, the luminescence properties of Er3+ are almost unaffected by the host materials.
The energy-level model of Er3+ and the corresponding electronic transitions are shown in Figure 1, which contains ground state absorption (GSA), excited state absorption (ESA), spontaneous emission, stimulated emission, energy-transfer-upconversion (ETU) process and cross-relaxation (CR) process [38]. For Er-based amplifiers and lasers operating around C-band, the transition process is mainly based on 4I13/2-4I15/2 stimulated emission, which can be pumped by 980 nm or 1480 nm lasers. Meanwhile, the spontaneous emission based on the 4I13/2-4I15/2 transition would radiate non-coherent photons in a broad spectrum around the signal wavelength, which is known as amplified spontaneous emission (ASE) noise.
For Er-based optical amplifier, the expression for the gain coefficient g can be simplified as follows:
g(hυ) = σem(hυ)N2 − σabs(hυ)N1,
where h is Planck constant, υ is the optical frequency, σem is the emission cross section, σabs is the absorption cross section, N2 and N1 are the concentration of Er3+ in the excited (4I13/2) and ground (4I15/2) energy levels, respectively. σem and σabs are usually on the same order of magnitude. Therefore, to achieve optical net gain, N2 need to be much higher than N1, which can be achieved by pump absorption. The concentration of Er3+ in each energy level can be derived by rate equations [42].
When signal light propagates in the gain medium, the internal signal-optical gain G can be expressed as:
G = exp[(Γg-α)L],
where Γ is the optical mode confinement factor, α is the propagation loss and L is propagation length.
Small size and high gain are important performance parameters of silicon-based on-chip erbium-based light sources. From the above equations, it can be seen that in order to improve the signal gain (G) of the amplifier at a compact size, it is necessary to increase the Er3+ concentration (N) in the gain material, improve the optical mode confinement factor (Γ), and reduce the propagation loss (α). For on-chip Er-based light sources, the enhancement of Er3+ concentration is the most crucial, which is determined by the host material.

3. Gain Medium Based on Different Host Materials

3.1. Er-Doped Al2O3

Among the host materials, Al2O3 is of particular interest due to its numerous advantages. The transmission loss of Al2O3 is low over a wide wavelength range (1–6 μm). In addition, the binding sites of Al2O3 and Er3+ are well matched, which can increase the solubility of Er3+ and reduce the possibility of clustering. Therefore, the doping concentration of Er3+ in Al2O3 is approximately 2~3 orders of magnitude higher than that in EDFA, which is beneficial to achieve high gain in a compact device size. In 1993, Hoven et al. demonstrated the first successful incorporation of optically active Er in A12O3 films by ion implantation [43]. Since then, several approaches have been taken to improve photoluminescence performance of Al2O3:Er [44].
In 2014, Watts’ research group deposited Al2O3:Er layers by co-sputtering in an oxygen-rich environment [45]. The background loss and dopant concentration in the Al2O3:Er film were <0.1 dB/cm and 0.9 × 1020 cm−3, respectively. Based on this gain medium, a DFB hybrid waveguide laser was designed. The Si3N4 film was patterned to form DFB grating structure for the reason that Al2O3 is hard to etch. The confinement factor in the gain medium is 83% and the pump–signal overlap factor is 90%. Therefore, the pump and signal light can be well confined in the gain medium, which is beneficial to improve the conversion efficiency of the on-chip waveguide amplifier. A maximum output power of 75 mW was experimentally demonstrated without any thermal damage. Since then, the research group designed several on-chip waveguide lasers with different structures and an improvement of 1.8 times in the lasing efficiency was achieved by optimizing the waveguide laser structure [46,47,48].
In order to further improve the luminescence properties of the Al2O3:Er thin film and reduce the propagation loss, Sun’s research group prepared Al2O3:Er thin films by ALD process in 2019 [40]. Si3N4 was etched to form the slot waveguide structure so that the optical field can be better confined in the intermediate gain medium, as shown in Figure 2a. Al2O3:Er thin films were deposited through layer-by-layer sequence and repeated multiple times on Si3N4 slot waveguides, as shown in Figure 2b. The optical mode of TE and TM in the slot waveguide are shown in Figure 2c,d, respectively, which illustrates that the optical modes are well confined in the gain medium inside the slot waveguide. Finally, up to ~20.1 ± 7.31 dB/cm net modal gain and at least ~52.4 ± 13.8 dB/cm net material gain was experimentally observed in the sub-mm long hybrid Al2O3:Er–Si3N4 slot waveguides.
Although the hybrid Al2O3:Er–Si3N4 waveguide structures have made great progress and achieve high on-chip optical gain, it is hard to couple and integrate with other on-chip optoelectronic devices. In order to solve this problem and further confine the optical mode in the gain medium, Mu et al. achieved high-gain on-chip waveguide amplifiers via double-layer monolithic integration technology [49]. The Al2O3:Er and the Si3N4 waveguides are located in two individual layers which are separated by a thin SiO2 film. Thus, the structure parameters of the Al2O3:Er and the Si3N4 waveguides can be optimized, respectively, and the pump and signal light can be better confined in the gain medium, which is conductive to improve the conversion efficiency of pump light. Meanwhile, the mode transfer between the two layers is achieved by a vertically tapered adiabatic coupler and the optical mode is efficiently coupled from the Si3N4 waveguide to the Al2O3:Er waveguide. Finally, up to 18.1 ± 0.9 dB net gain was achieved at 1532 nm with an over 70 nm broadband gain covering S, C, and L bands.

3.2. Er Silicate

For Er-doped gain mediums, the maximum material gains are limited by the solubility of Er3+ in the host materials. In contrast, Er3+ exists as compound cation in Er silicate. For this reason, the concentration of Er3+ is not limited by the solid solubility and can reach up to 1022 cm−3, which is two orders higher than other Er doped gain mediums [50]. Moreover, by introducing yttrium (Y) or ytterbium (Yb) into Er silicate, the concentration quenching effect caused by high Er3+ concentration can be effectively suppressed and the absorption efficiency of pump light can be improved, thus the optical gain of Er silicate can be future improved [51,52,53,54,55]. In 2004, Isshiki et al., first fabricated Er silicate compounds (Er2SiO5) by a wet chemical method using ErCl3 deposited on Si substrates and the photoluminescence (PL) was observed at approximately 1.53 μm at room temperature [56]. Then, Priolo’s group fabricated Er silicate by radio frequency magnetron sputtering and oxygen annealing is proved to remove defects efficiently and the PL intensity can be strongly enhanced [57,58]. Wang’s research group demonstrated that the introduction of bismuth can effectively reduce the annealing temperature required for Er silicate crystallization [59].
In 2017, Ning et al., demonstrated a giant net material gain of waveguide amplifier, which is benefits from the high material quality and high Er3+ concentration of the single-crystal Er chloride silicate nanowire [39]. The experimental measurement is shown in Figure 3a. The backward pumping scheme was adopted, which can improve the utilization of the pump light and enhance the signal gain. The silicate nanowire was end-butt coupled to the taper fibers, as shown in Figure 3b,c and the coupling efficiency is on the order of 10–15%. Finally, a net material gain over 100 dB·cm−1 at 1530 nm was achieved.
Although over 100 dB·cm−1 material gain has been realized, the fabrication of Er chloride silicate nanowire is complicated, the cross-section is small and coupling efficiency is low, thus it is hard to integrate with other on-chip devices. To solve this problem, Wang’s research group have done a lot of work to achieve on-chip waveguide amplifiers and lasers based on Er silicate gain medium [59,60,61,62,63,64,65]. For the reason that Er silicate is hard to etch, some hybrid waveguide structures combining different materials are adopted to avoid etch Er silicate and the performance of the devices are optimized.
For strip-loaded waveguide amplifier, as shown in Figure 4a, the SiO2 film was deposited on the Er/Yb silicate film and etched into strip waveguide structure [60]. The optical mode of the signal light is shown in the inset and it can be well confined in the gain medium. Although the propagation loss is large, a 5.5 dB signal enhancement was observed when the pump power is 372 mW.
For hybrid waveguide amplifier, as shown in Figure 4b, the Si3N4 was etched into strip waveguide structure and then Er/Yb silicate was deposited on it [61]. Although the confinement factor of the signal light in the gain medium is small, the propagation loss could be greatly reduced due to the high quality of the Si3N4 waveguide. Finally, up to 5.5 dB/cm and 10.1 dB/cm signal enhancement was achieved when the annealing temperature was 750 °C and 1000 °C, respectively, which proved that the PL characters of Er silicate films is higher when the annealing temperature is higher.
For slot waveguide structure, as shown in Figure 4c, the Er/Yb silicate film was deposited on the Si film and after that, poly-Si was deposited and etched into strip waveguide [62]. The TM mode of the optical filed could be well confined in the gain medium in the slot due to the continuity of normal electric displacement at the interface. Therefore, the overlap factor of pump and signal light in the gain medium was high, which is beneficial to improve the conversion efficiency of the pump light and the optical gain of the waveguide amplifier. Finally, a 1.7 dB signal enhancement was observed at 1.53 μm.
Based on the above gain medium, the research group designed a silicon-based on-chip waveguide laser of sub-kHz narrow linewidth and high output power, as shown in Figure 5a [63]. The resonant cavity of the waveguide laser consists DFB cavity, pump-resonant external distributed Bragg reflector (DBR) cavity, signal-resonant external DFB cavity. The DFB cavity is used to obtain lasing at 1535 nm, the pump-resonant external DBR cavity is used to improve pump absorption efficiency and the signal-resonant external DFB cavity is used to provide additional optical feedback. Based on the above structure, the output power and efficiency of the laser can be improved, and the threshold and linewidth of the laser can be reduced. In addition, the Si3N4 films are added to reduce the propagation loss of the waveguide laser, as shown in Figure 5b. Over 90 mW saturated output power is achieved at 1535 nm with a maximum power conversion efficiency of 66%. The threshold of the waveguide laser is 22 mW and the linewidth is approximately 755 Hz.

3.3. Other Er-Doped Host Material

Lithium niobate on insulator (LNOI) is a promising material platform for the photonic integrated circuit, due to its broad optical transparency window, high refractive index, high nonlinear coefficient, and large electro-optical effect [66,67]. So far, numerous LNOI-based devices have been achieved and commercialized, such as electro-optic modulators and nonlinear optical devices [68,69,70,71,72,73]. Recently, LNOI:Er has attracted great attention due to the high Er doping concentration and low propagation loss [74].
In 2021, Wu et al., achieved a single-frequency laser based on LNOI:Er by introducing mode-dependent loss and gain competition, as shown in Figure 6a [75]. The radius of the microring is 105 μm, which corresponds to the free spectrum range (FSR) of 192 GHz. The gap between the microring and the bus waveguide is 700 nm, as shown in Figure 6b and the cross section of the waveguide is shown in Figure 6c. There are four modes supported in this structure, containing TE00, TE10, TM00, and TM10, as shown in Figure 6d. The overlap of TE10, TM00, and TM10 with the rough sidewall is lager than that of TE00, thus the scattering loss is higher. Considering the gain competition of the microring laser, only the TE00 mode could exit and lase. Finally, an output power of 2.1 μW was achieved, with a side-mode suppression of 35.5 dB, and a linewidth of 0.9 MHz. One year later, the research group demonstrated a LNOI:Er thin film waveguide amplifier [76]. The 600 nm-thick LNOI:Er thin film is transferred to the substrate and etched off 410 nm to form the ridge waveguide structure with chromium (Cr) as hard mask. The PL lifetime at 1530 nm is 2.3 ms. Up to 27.94 dB signal enhancement, 16.0 dB internal net gain (6.20 dB/cm), 8.84 dBm saturation power, 4.59 dB/mW power conversion efficiency has been achieved with 4.49 dB noise figure when the waveguide amplifier is 2.58-cm long.
Compared to other host materials, Si3N4 has several advantages including a wider transparency window [77], ultra-low two-photon absorption effect at telecom wavelengths, and low propagation losses of <3 dB/m [78]. These properties have made Si3N4 a widely used platform in silicon integrated photonic applications [79,80]. In 2022, Kippenberg et al. demonstrated an ultra-high gain Er-doped Si3N4 amplifier, as shown in Figure 7a [41]. The main fabrication processes are shown in Figure 7b,c, containing photonic damascene process and ion implantation. The length of the waveguide amplifier is 0.5 m and the propagation loss is less than 5 dB/m, as shown in Figure 7d. The waveguide amplifier was butt-end coupled and green luminescence from cooperative upconversion was observed, as shown in Figure 7e. The calculated Er concentration, calculated optical mode intensity and measured concentration by Rutherford backscattering spectrometry (RBS) are shown in Figure 7f. The propagation loss of the waveguide increased sharply after ion implantation and decreased after annealing at 1000 °C in oxygen for 1 h, as shown in Figure 7g. Over 145 mW on-chip output power and over 30 dB of small-signal gain have been observed, which achieved giant progress in the field of silicon-based on-chip light sources.

4. Discussion

Table 1 summarized the experimental results of representative on-chip Er-based waveguide amplifiers. The propagation loss of Al2O3:Er is relatively low and the gain performance is affected by the preparation method. Prepared by magnetron sputtering, the process is simple and the uniformity is good, but the optical gain is relatively low. On the contrary, the optical gain is much higher when prepared by ALD, but the process is complicated and the growth rate is low; Benefit from the single-crystalline structure and the high Er concentration, a net material gain over 100 dB·cm−1 have been achieved by Er chloride silicate nanowire. However, it is too hard to fabricate and integrate with other on-chip devices; As a new host material, LN has the characteristics of high nonlinear coefficient and high refractive index, and has been widely used in on-chip modulators. The optical gain of LNOI:Er is high, but currently Er3+ are difficult to dope and the propagation loss is still large; Si3N4:Er has ultra-low propagation loss, hence a 0.5 m long on-chip waveguide amplifier could be fabricated and over 145 mW on-chip output power was realized, which achieved giant progress in the field of silicon-based on-chip light sources.
In summary, the key issues for achieving the on-chip Er-based light sources are compact size, high gain and low loss. In order to meet the above requirements and satisfy the application requirements of on-chip integration, the following aspects can be considered, including the choice of gain mediums, the optimization of waveguide amplifier structures, and the design for resonator structures of the waveguide laser.
The choice of gain medium is crucial. The selection of host materials determines the upper limit of the erbium ion concentration in the gain medium, as well as the maximum material gain that can be achieved. Although too high erbium ion concentration will lead to concentration quenching effect, it can be optimized by introducing Yb and Y [53]. The preparation method of gain medium is also important. The film transfer method is difficult to achieve large-scale integration with other on-chip optoelectronic devices. ALD process can achieve high-quality gain mediums, but the steps are complicated and the growth rate is slow, so that the cost is too high to meet the needs for large-scale integration. Magnetron sputtering can achieve low-cost, large-scale fabrication, but the propagation loss in the gain medium is large. How to further improve the quality of the gain medium prepared by magnetron sputtering and reduce the transmission loss is an important direction for the future development. Chemical vapor deposition (CVD) seems a compromise method, combing the advantages of low preparation cost and high film quality, which is widely used in various aspects.
The structure of the on-chip waveguide amplifier should be optimized. For the waveguide amplifiers with strip or ridge waveguide structures, the propagation loss is mainly determined by the sidewall roughness, which can be effectively reduced by adopting wide waveguide structures and improving the etching process. For the hybrid waveguide structures which combine with other materials, such Si3N4, the etching of the gain medium can be avoided and the transmission loss can be effectively reduced. However, the confinement factor in the gain medium is relatively low, which would reduce the gain of the waveguide amplifier. In addition, the coupler structure of the waveguide amplifier with the traditional Si waveguide needs to be considered and optimized. In addition, the optimal length of waveguide amplifier is associated with the Er3+ concentration and the maximum input on-chip pump power [42]. The signal gain would be attenuated if the pump power cannot achieve Er3+ population inversion over the entire length of the waveguide amplifier. Bi-directional pumping can also be considered to improve the net gain of the waveguide amplifier [76].
The resonant cavity structure of the on-chip waveguide laser should be improved. The pumping threshold of the waveguide amplifier can be reduced and the output power can be increased by adopting appropriate resonant cavity structures. At present, the microring resonator, DBR resonator and DFB resonator are the mainly used resonant cavity structures. However, most of the reported microring waveguide lasers operate under the condition of multi-longitudinal modes. Although some methods have been adopted, the side mode suppression effect is still not good enough. Furthermore, limited by the compact size of the microring waveguide laser, the output power is relatively low, which is hard to meet the requirements for on-chip integrated waveguide lasers. On the other hand, combined with Bragg gratings, the DBR and DFB resonant cavity structures provide a good technical solution for realizing on-chip small-sized, high-gain waveguide lasers. Compared to DBR waveguide lasers, DFB waveguide lasers have better single-mode stability so that they are more widely adopted. In addition, the resonant cavity structures of the DFB waveguide lasers can be future optimized to improve the output power and the linewidth characteristics [63,64,65].

5. Conclusions

In consideration of the rapid development of silicon-based photonics technology and the increasing degree of on-chip integration, there is an urgent need for high-efficiency silicon-based on-chip light sources to solve the increasingly serious signal emitting and transmission problems. As an effective solution for on-chip light sources, Er-based light sources have the advantages of CMOS compatibility, ease of integration and lower cost. Therefore, the application prospects of on-chip Er-based light sources are broader and more conducive to the future development of the silicon photonics industry. The recent progress of on-chip Er-based light sources with different host materials is reviewed in this paper. With the continuous efforts of researchers from all over the world, these Er-based host materials have the great prospects for applications in scale-integrated on chip light sources, which can be widely used in silicon photonics platform.

Author Contributions

Conceptualization, B.W. and X.W.; investigation, B.W. and P.Z.; resources, X.W.; writing—original draft preparation, B.W., P.Z. and X.W.; writing—review and editing, B.W., P.Z. and X.W.; visualization, B.W., P.Z. and X.W.; supervision, X.W.; project administration, X.W.; funding acquisition, X.W. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by National Key Research and Development Program of China (2021YFB2800400); National Natural Science Foundation of China under Grant (62235002 and 62001010); Beijing Municipal Natural Science Foundation (Z210004).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Moore, G.E. Cramming more components onto integrated circuits. Electronics 1965, 38, 114–117. [Google Scholar] [CrossRef]
  2. Waldrop, M.M. More than Moore. Nature 2016, 530, 145–147. [Google Scholar]
  3. Soref, R.A. Silicon-based optoelectronics. Proc. IEEE 1993, 81, 1687–1706. [Google Scholar] [CrossRef]
  4. Margalit, N.; Xiang, C.; Bowers, S.M.; Bjorlin, A.; Blum, R.; Bowers, J.E. Perspective on the future of silicon photonics and electronics. Appl. Phys. Lett. 2021, 118, 220501. [Google Scholar] [CrossRef]
  5. Bogaerts, W.; Perez, D.; Capmany, J.; Miller, D.; Poon, J.; Englund, D.; Morichetti, F.; Melloni, A. Programmable photonic circuits. Nature 2020, 586, 207–216. [Google Scholar] [CrossRef] [PubMed]
  6. Bai, B.; Shu, H.; Wang, X.; Zou, W. Towards silicon photonic neural networks for artificial intelligence Sci. China Inform. Sci. 2020, 63, 160403. [Google Scholar] [CrossRef]
  7. Teklu, B.; Bina, M.; Paris, M.G.A. Noisy propagation of Gaussian states in optical media with finite bandwidth. Sci. Rep. 2022, 12, 11646. [Google Scholar] [CrossRef]
  8. Teklu, B. Continuous-variable entanglement dynamics in Lorentzian environment. Phys. Lett. A 2022, 432, 128022. [Google Scholar] [CrossRef]
  9. Shen, B.; Shu, H.; Zhou, L.; Wang, X. A design method for high fabrication tolerance integrated optical mode multiplexer. Sci. China Inform. Sci. 2020, 63, 160409. [Google Scholar] [CrossRef]
  10. Reed, G.T.; Mashanovich, G.; Gardes, F.Y.; Thomson, D.J. Silicon optical modulators. Nat. Photonics 2010, 4, 518–526. [Google Scholar] [CrossRef] [Green Version]
  11. Michel, J.; Liu, J.L.; Kimerling, L.C. High-performance Ge-on-Si photodetectors. Nat. Photonics 2010, 4, 527–534. [Google Scholar] [CrossRef]
  12. Shu, H.; Chang, L.; Tao, Y.; Shen, B.; Xie, W.; Jin, M.; Netherton, A.; Tao, Z.; Zhang, X.; Chen, R.; et al. Microcomb-driven silicon photonic systems. Nature 2022, 605, 457–463. [Google Scholar] [CrossRef] [PubMed]
  13. Morichetti, F.; Milanizadeh, M.; Petrini, M.; Zanetto, F.; Ferrari, G.; Aguiar, D.O.; Guglielmi, E.; Sampietro, M.; Meiioni, A. Polarization-transparent silicon photonic add-drop multiplexer with wideband hitless tuneability. Nat. Commun. 2021, 12, 4324. [Google Scholar] [CrossRef] [PubMed]
  14. Liang, D.; Bowers, J.E. Recent progress in lasers on silicon. Nat. Photonics 2010, 4, 511–517. [Google Scholar] [CrossRef]
  15. Kawanami, H. Heteroepitaxial technologies of III–V on Si. Sol. Energy Mater. Sol. C 2001, 66, 479–486. [Google Scholar] [CrossRef]
  16. Xie, Y.H.; Wang, K.L.; Kao, Y.C. An investigation on surface conditions for Si molecular beam epitaxial (MBE) growth. J. Vac. Sci. Technol. A 1985, 3, 1035. [Google Scholar] [CrossRef]
  17. Samonji, K.; Yonezu, H.; Takagi, Y.; Iwaki, K.; Ohshima, N.; Shin, J.K.; Pak, K. Reduction of threading dislocation density in InP-on-Si heteroepitaxy with strained short-period superlattices. Appl. Phys. Lett. 1996, 69, 100–102. [Google Scholar] [CrossRef]
  18. Yamaguchi, M.; Sugo, M.; Itoh, Y. Misfit stress dependence of dislocation density reduction in GaAs films on Si substrates grown by strained-layer superlattices. Appl. Phys. Lett. 1989, 54, 2568–2570. [Google Scholar] [CrossRef]
  19. Nozawa, K.; Horikoshi, Y. Low threading dislocation density GaAs on Si(100) with InGaAs/GaAs strained-layer superlattice grown by migration-enhanced epitaxy. Jpn. J. Appl. Phys. 1991, 30, 668–671. [Google Scholar] [CrossRef]
  20. Yamaichi, E.; Ueda, T.; Gao, Q.; Yamagishi, C.; Akiyama, M. Method to obtain low-dislocation-density regions by patterning with SiO2 on GaAs/Si followed by annealing. Jpn. J. Appl. Phys. 1994, 33, 1442–1444. [Google Scholar] [CrossRef]
  21. Linder, K.K.; Phillips, J.; Qasaimeh, O.; Liu, X.F.; Krishna, S.; Bhattacharya, P. Self-organized In0.4Ga0.6As quantum-dot lasers grown on Si substrates. Appl. Phys. Lett. 1999, 74, 1355. [Google Scholar] [CrossRef]
  22. Wang, T.; Liu, H.; Lee, A.; Pozzi, F.; Seeds, A. 1.3-μm InAs/GaAs quantum-dot lasers monolithically grown on Si substrates. Opt. Express 2011, 19, 11381–11386. [Google Scholar] [CrossRef] [PubMed]
  23. Kryzhanovskaya, N.; Moiseev, E.; Polubavkina, Y.; Maximov, M.; Kulagina, M.; Troshkov, S.; Zadiranov, Y.; Guseva, Y.; Lipovskii, A.; Tang, M.; et al. Heat-sink free CW operation of injection microdisk lasers grown on Si substrate with emission wavelength beyond 1.3 μm. Opt. Lett. 2017, 42, 3319–3322. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Wang, Y.; Chen, S.; Yu, Y.; Zhou, L.; Liu, L.; Yang, C.; Liao, M.; Tang, M.; Liu, Z.; Wu, J.; et al. Monolithic quantum-dot distributed feedback laser array on silicon. Optica 2018, 5, 528–533. [Google Scholar] [CrossRef]
  25. Wan, Y.; Zhang, S.; Norman, J.C.; Kennedy, M.J.; He, W.; Liu, S.; Xiang, C.; Shang, C.; He, J.J.; Gossard, A.C.; et al. Tunable quantum dot lasers grown directly on silicon. Optica 2019, 6, 1394–1400. [Google Scholar] [CrossRef]
  26. Wang, Y.; Norman, J.; Liu, S.; Liu, A.; Bowers, J.E. Quantum dot lasers and amplifiers on silicon: Recent advances and future developments. IEEE Nanotechnol. Mag. 2021, 15, 8–22. [Google Scholar]
  27. Liang, D.; Bowers, J.E. Recent progress in heterogeneous III-V-on-silicon photonic integration. Light Adv. Manuf. 2021, 2, 5. [Google Scholar] [CrossRef]
  28. Bao, S.; Wang, Y.; Lina, K.; Zhang, L.; Wang, B.; Sasangka, W.A.; Lee, K.E.K.; Chua, S.J.; Michel, J.; Fitzgerald, E.; et al. A review of silicon-based wafer bonding processes, an approach to realize the monolithic integration of Si-CMOS and III–V-on-Si wafers. J. Semicond. 2021, 42, 023106. [Google Scholar] [CrossRef]
  29. Park, H.; Fang, A.W.; Kodama, S.; Bowers, J.E. Hybrid silicon evanescent laser fabricated with a silicon waveguide and III-V offset quantum wells. Opt. Express 2005, 13, 9460–9464. [Google Scholar] [CrossRef] [Green Version]
  30. Fang, A.W.; Park, H.; Cohen, O.; Jones, R.; Paniccia, M.J.; Bowers, J.E. Electrically pumped hybrid AlGaInAs-silicon evanescent laser. Opt. Express 2006, 14, 9203–9210. [Google Scholar] [CrossRef]
  31. Santis, C.T.; Vilenchik, Y.; Yariv, A.; Satyan, N.; Rakulijic, G. Sub-kHz quantum linewidth semiconductor laser on silicon chip. In Proceedings of the 2015 Conference on Lasers and Electro-Optics (CLEO), San Jose, CA, USA, 10–15 May 2015; pp. 1–2. [Google Scholar]
  32. Thiessen, T.; Mak, J.C.C.; Fonseca, J.D.; Ribaud, K.; Jany, C.; Poon, J.K.S.; Menezo, S. Back-side-on-BOX heterogeneously integrated III-V-on-silicon O-band distributed feedback lasers. J. Lightwave Technol. 2020, 38, 3000–3006. [Google Scholar] [CrossRef]
  33. Yu, H.; Doussiere, P.; Patel, D.; Lin, W.; Hemyari, K.; Park, J.; Jan, C.; Herrick, R.; Hoshino, I.; Busselle, L.; et al. 400Gbps Fully Integrated DR4 Silicon Photonics Transmitter for Data Center Applications. In Proceedings of the 2020 Optical Fiber Communications Conference and Exhibition (OFC), San Diego, CA, USA, 8–12 March 2020. paper T3H.6. [Google Scholar]
  34. Li, N.; Su, Z.; Magden, E.S.; Callahan, P.T.; Shtyrkova, K.; Xin, M.; Ruocco, A.; Baiocco, C.; Ippen, E.P.; Kartner, F.X.; et al. High-power thulium lasers on a silicon photonics platform. Opt. Lett. 2017, 42, 1181–1184. [Google Scholar] [CrossRef] [PubMed]
  35. Li, N.; Magden, E.S.; Su, Z.; Singh, N.; Ruocco, A.; Xin, M.; Byrd, M.; Callahan, P.T.; Bradley, J.D.B.; Baiocco, C.; et al. Broadband 2-μm emission on silicon chips: Monolithically integrated Holmium lasers. Opt. Express 2018, 26, 2220–2230. [Google Scholar] [CrossRef] [PubMed]
  36. Li, N.; Vermeulen, D.; Su, Z.; Magden, E.S.; Xin, M.; Singh, N.; Ruocco, A.; Notaros, J.; Poulton, C.V.; Timurdogan, E.; et al. Monolithically integrated Er-doped tunable laser on a CMOS-compatible silicon photonics platform. Opt. Express 2018, 26, 16200–16211. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Poole, S.B.; Payne, D.N.; Fermann, M.E. Fabrication of low-loss optical fibers containing rare-earth ions. Electron. Lett. 1985, 21, 737–738. [Google Scholar] [CrossRef] [Green Version]
  38. Bradley, J.D.B.; Pollnau, M. Erbium-doped integrated waveguide amplifiers and lasers. Laser Photonics Rev. 2011, 5, 368–403. [Google Scholar] [CrossRef]
  39. Sun, H.; Yin, L.; Liu, Z.; Zheng, Y.; Fan, F.; Zhao, S.; Feng, X.; Li, Y.; Ning, N.Z. Giant optical gain in a single-crystal erbium chloride silicate nanowire. Nat. Photonics 2017, 11, 589–593. [Google Scholar] [CrossRef]
  40. Ronn, J.; Zhang, W.; Autere, A.; Leroux, X.; Pakarinen, L.; Alonso-Ramos, C.; Saynatjoki, A.; Lipsanen, H.; Vivien, L.; Cassan, E.; et al. Ultra-high on-chip optical gain in erbium-based hybrid slot waveguides. Nat. Commun. 2019, 10, 432. [Google Scholar] [CrossRef] [Green Version]
  41. Liu, Y.; Qiu, Z.; Ji, X.; Lukashchuk, A.; He, J.; Riemensberger, J.; Hafermann, M.; Wang, R.N.; Liu, J.; Ronning, C.; et al. A photonic integrated circuit–based erbium-doped amplifier. Sciences 2022, 376, 1309–1313. [Google Scholar] [CrossRef]
  42. Wang, X.; Zhou, P.; He, Y.; Zhou, Z. Erbium silicate compound optical waveguide amplifier and laser. Opt. Mater. Express 2018, 8, 2970–2990. [Google Scholar] [CrossRef]
  43. Hoven, G.N.; Snoeks, E.; Polman, A.; Uffelen, J.W.M.; Oei, Y.S.; Smit, M.K. Photoluminescence characterization of Er-implanted Al2O3 films. Appl. Phys. Lett. 1993, 62, 3065. [Google Scholar] [CrossRef] [Green Version]
  44. Bradley, J.D.B.; Agazzi, L.; Geskus, D.; Worhoff, A.K.; Pollnau, M. Gain bandwidth of 80 nm and 2 dB/cm peak gain in Al2O3:Er3+ optical amplifiers on silicon. J. Opt. Soc. Am. B 2010, 27, 187–196. [Google Scholar] [CrossRef]
  45. Hosseini, E.S.; Bradley, J.D.B.; Sun, J.; Leake, G.; Adam, T.N.; Coolbaugh, D.D.; Watts, M.R. CMOS-compatible 75 mW Er-doped distributed feedback laser. Opt. Lett. 2014, 39, 3106–3109. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Sun, J.; Hosseini, E.S.; Bradley, J.D.B.; Adam, T.N.; Leake, G.; Coolbaugh, D.; Watts, M.R. Uniformly spaced λ/4-shifted Bragg grating array with wafer-scale CMOS-compatible process. Opt. Lett. 2013, 38, 4002–4004. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Bradley, J.D.B.; Hosseini, E.S.; Su, Z.; Adam, T.N.; Leake, G.; Coolbaugh, D.; Watts, M.R. Monolithic erbium- and ytterbium-doped microring lasers on silicon chips. Opt. Express 2014, 22, 12226–12237. [Google Scholar] [CrossRef] [Green Version]
  48. Singh, G.; Bradley, J.D.B.; Li, N.; Magden, E.S.; Moresco, M.; Adam, T.N.; Leake, G.; Coolbaugh, D.; Watts, M.R. Resonant pumped Er-doped waveguide lasers using distributed Bragg reflector cavities. Opt. Lett. 2016, 41, 1189–1192. [Google Scholar] [CrossRef]
  49. Mu, J.; Dijkstra, M.; Korterik, J.; Offerhaus, H.; Garcia-Blaco, S.M. High-gain waveguide amplifiers in Si3N4 technology via double-layer monolithic integration. Photonics Res. 2020, 8, 1634–1641. [Google Scholar] [CrossRef]
  50. Wang, X.J.; Nakajima, T.; Isshiki, H.; Kimura, T. Fabrication and characterization of Er silicates on SiO2/Si substrates. Appl. Phys. Lett. 2009, 95, 041906. [Google Scholar] [CrossRef]
  51. Wang, X.J.; Wang, B.; Wang, L.; Guo, R.M.; Isshiki, H.; Kimura, T.; Zhou, Z. Extraordinary infrared photoluminescence efficiency of Er0.1Yb1.9SiO5 films on SiO2/Si substrates. Appl. Phys. Lett. 2011, 98, 071903. [Google Scholar] [CrossRef] [Green Version]
  52. Wang, X.J.; Yuan, G.; Isshiki, H.; Kimura, T.; Zhou, Z. Photoluminescence enhancement and high gain amplification of ErxY2-xSiO5 waveguide. Appl. Phys. Lett. 2010, 108, 013506. [Google Scholar] [CrossRef]
  53. Cardile, P.; Miritello, M.; Priolo, F. Energy transfer mechanisms in Er-Yb-Y disilicate thin films. Appl. Phys. Lett. 2012, 100, 251913. [Google Scholar] [CrossRef]
  54. Wang, B.; Guo, R.; Wang, X.; Wang, L.; Yin, B.; Zhou, Z. Large electroluminescence excitation cross section and strong potential gain of Er in ErYb silicate. J. Appl. Phys. 2013, 113, 103108. [Google Scholar] [CrossRef]
  55. Zhou, P.; Wang, X.; He, Y.; Wu, Z.; Du, J.; Fu, E. Effect of deposition mechanisms on the infrared photoluminescence of erbium-ytterbium silicate films under different sputtering methods. J. Appl. Phys. 2019, 125, 175114. [Google Scholar] [CrossRef]
  56. Isshiki, H.; Dood, M.J.A.; Polman, A.; Kimura, T. Self-assembled infrared-luminescent Er-Si-O crystallites on silicon. Appl. Phys. Lett. 2004, 85, 4343. [Google Scholar] [CrossRef] [Green Version]
  57. Savio, R.L.; Miritello, M.; Cardile, P.; Priolo, F. Concentration dependence of the Er3+ visible and infrared luminescence in Y2−xErxO3 thin films on Si. J. Appl. Phys. 2009, 106, 043510. [Google Scholar] [CrossRef]
  58. Savio, R.L.; Miritello, M.; Iacona, F.; Piro, A.M.; Grimaldi, M.G.; Priolo, F. Thermal evolution of Er silicate thin films grown by rf magnetron sputtering. J. Phys. Condens. Matter 2008, 20, 454218. [Google Scholar] [CrossRef]
  59. Wang, B.; Zhou, P.Q.; Wang, X.J.; He, Y.D. A low-fabrication-temperature, high-gain chip-scale waveguide amplifier. Sci. China Inform. Sci. 2022, 65, 162405. [Google Scholar] [CrossRef]
  60. Guo, R.; Wang, X.; Zang, K.; Wang, B.; Wang, L.; Gao, L.; Zhou, Z. Optical amplification in Er/Yb silicate strip loaded waveguide. Appl. Phys. Lett. 2011, 99, 161115. [Google Scholar] [CrossRef] [Green Version]
  61. Wang, L.; Guo, R.; Wang, B.; Wang, X.; Zhou, Z. Hybrid Si3N4-Er/Yb Silicate Waveguides for Amplifier Application. IEEE Photonic Tech. L. 2011, 24, 900–902. [Google Scholar] [CrossRef]
  62. Guo, R.; Wang, B.; Wang, X.; Wang, L.; Jiang, L.; Zhou, Z. Optical amplification in Er/Yb silicate slot waveguide. Opt. Lett. 2012, 37, 1427–1429. [Google Scholar] [CrossRef] [Green Version]
  63. Zhou, P.; Wang, X.; He, Y. A sub-kHz narrow-linewidth, and hundred-mW high-output-power silicon-based Er silicate laser with hybrid pump and signal co-resonant cavity. IEEE Photonics J. 2020, 12, 1500212. [Google Scholar] [CrossRef]
  64. Zhou, P.; Wang, X.; He, Y.; Zou, W. A high-power, high-efficiency hybrid silicon-based Er silicate-silicon nitride waveguide laser. IEEE J. Quantum Elect. 2020, 56, 110111. [Google Scholar] [CrossRef]
  65. Zhou, P.; Wang, B.; Wang, X.; Wang, B.; He, Y.; Bowers, J.E. Design of an on-chip electrically driven, position-adapted, fully integrated Er-based waveguide amplifier for silicon photonics. OSA Continuum 2021, 4, 790–814. [Google Scholar] [CrossRef]
  66. Boes, A.; Corcoran, B.; Chang, L.; Bowers, J.E.; Mitchell, A. Status and potential of lithium niobate on insulator (LNOI) for photonic integrated circuits. Laser Photonics Rev. 2018, 12, 1700256. [Google Scholar] [CrossRef]
  67. Qi, Y.F.; Li, Y. Integrated lithium niobate photonics. Nanophotonics 2020, 9, 1287–1320. [Google Scholar] [CrossRef]
  68. Wang, C.; Zhang, M.; Chen, X.; Bertrand, M.; Shams-Ansari, A.; Chandrasekhar, S.; Winzer, P.; Loncar, M. Integrated lithium niobate electro-optic modulators operating at CMOS-compatible voltages. Nature 2018, 562, 101–104. [Google Scholar] [CrossRef] [PubMed]
  69. He, M.; Xu, M.; Ren, Y.; Jian, J.; Ruan, Z.; Xu, Y.; Gao, S.; Sun, S.; Wen, X.; Zhou, L.; et al. High-performance hybrid silicon and lithium niobate Mach–Zehnder modulators for 100 Gbit s−1 and beyond. Nat. Photonics 2019, 13, 359–364. [Google Scholar] [CrossRef] [Green Version]
  70. Lu, J.; Surya, J.B.; Liu, X.; Bruch, A.W.; Gong, Z.; Xu, Y.; Tang, H.X. Periodically poled thin-film lithium niobate microring resonators with a second-harmonic generation efficiency of 250,000%/W. Optica 2019, 6, 1455–1460. [Google Scholar] [CrossRef] [Green Version]
  71. He, Y.; Yang, Q.F.; Ling, J.; Luo, R.; Liang, H.; Li, M.; Shen, B.; Wang, H.; Vahala, K.; Lin, Q. Self-starting bi-chromatic LiNbO3 soliton microcomb. Optica 2019, 6, 1138–1144. [Google Scholar] [CrossRef] [Green Version]
  72. Jin, H.; Liu, F.M.; Xu, P.; Xia, J.L.; Zhong, M.L.; Yuan, Y.; Zhou, J.W.; Gong, Y.X.; Wang, W.; Zhu, S.N. On-Chip Generation and Manipulation of Entangled Photons Based on Reconfigurable Lithium-Niobate Waveguide Circuits. Phys. Rev. Lett. 2014, 113, 103601. [Google Scholar] [CrossRef] [Green Version]
  73. Luo, R.; Jiang, H.; Rogers, S.; Liang, H.; He, Y.; Lin, Q. On-chip second-harmonic generation and broadband parametric down-conversion in a lithium niobate microresonator. Opt. Express 2017, 25, 24531–24539. [Google Scholar] [CrossRef] [PubMed]
  74. Liang, Y.; Zhou, J.; Liu, Z.; Zhang, H.; Fang, Z.; Zhou, Y.; Yin, D.; Lin, J.; Yu, J.; Wu, R.; et al. A high-gain cladded waveguide amplifier on erbium doped thin-film lithium niobate fabricated using photolithography assisted chemo-mechanical etching. Nanophotonics 2022, 11, 1033–1040. [Google Scholar] [CrossRef]
  75. Li, T.; Wu, K.; Cai, M.; Xiao, Z.; Zhang, H.; Li, C.; Xiang, J.; Huang, Y.; Chen, J. A single-frequency single-resonator laser on Er-doped lithium niobate on insulator. APL Photonics 2021, 6, 101301. [Google Scholar] [CrossRef]
  76. Cai, M.; Wu, K.; Xiang, J.; Xiao, Z.; Li, T.; Li, C.; Chen, J. Er-doped lithium niobate thin film waveguide amplifier with 16 dB internal net gain. IEEE J. Sel. Top. Quant. 2022, 28, 8200608. [Google Scholar] [CrossRef]
  77. Moss, D.J.; Morandotti, R.; Gaeta, A.L.; Lipson, M. New CMOS-compatible platforms based on silicon nitride and Hydex for nonlinear optics. Nat. Photonics 2013, 7, 597–607. [Google Scholar] [CrossRef] [Green Version]
  78. Liu, J.; Huang, G.; Wang, R.N.; He, J.; Raja, A.S.; Liu, T.; Engelsen, N.J.; Kippenberg, T.J. High-yield, wafer-scale fabrication of ultralow-loss, dispersion-engineered silicon nitride photonic circuits. Nat. Commun. 2021, 12, 2236. [Google Scholar] [CrossRef]
  79. Romero-Garcia, S.; Merget, F.; Zhong, F.; Finkelstein, H.; Witzens, J. Silicon nitride CMOS-compatible platform for integrated photonics applications at visible wavelengths. Opt. Express 2013, 21, 14036–14046. [Google Scholar] [CrossRef]
  80. Munoz, P.; Mico, G.; Bru, L.A.; Pastor, D.; Perez, D.; Domenech, J.D.; Fernandez, J.; Banos, R.; Gargallo, B.; Alemany, R.; et al. Silicon nitride photonic integration platforms for visible, near-infrared and mid-infrared applications. Sensors 2017, 17, 2088. [Google Scholar] [CrossRef]
Applsci 12 11712 g001 550
Figure 1. The energy-level model of Er3+.
Figure 1. The energy-level model of Er3+.
Applsci 12 11712 g001
Applsci 12 11712 g002 550

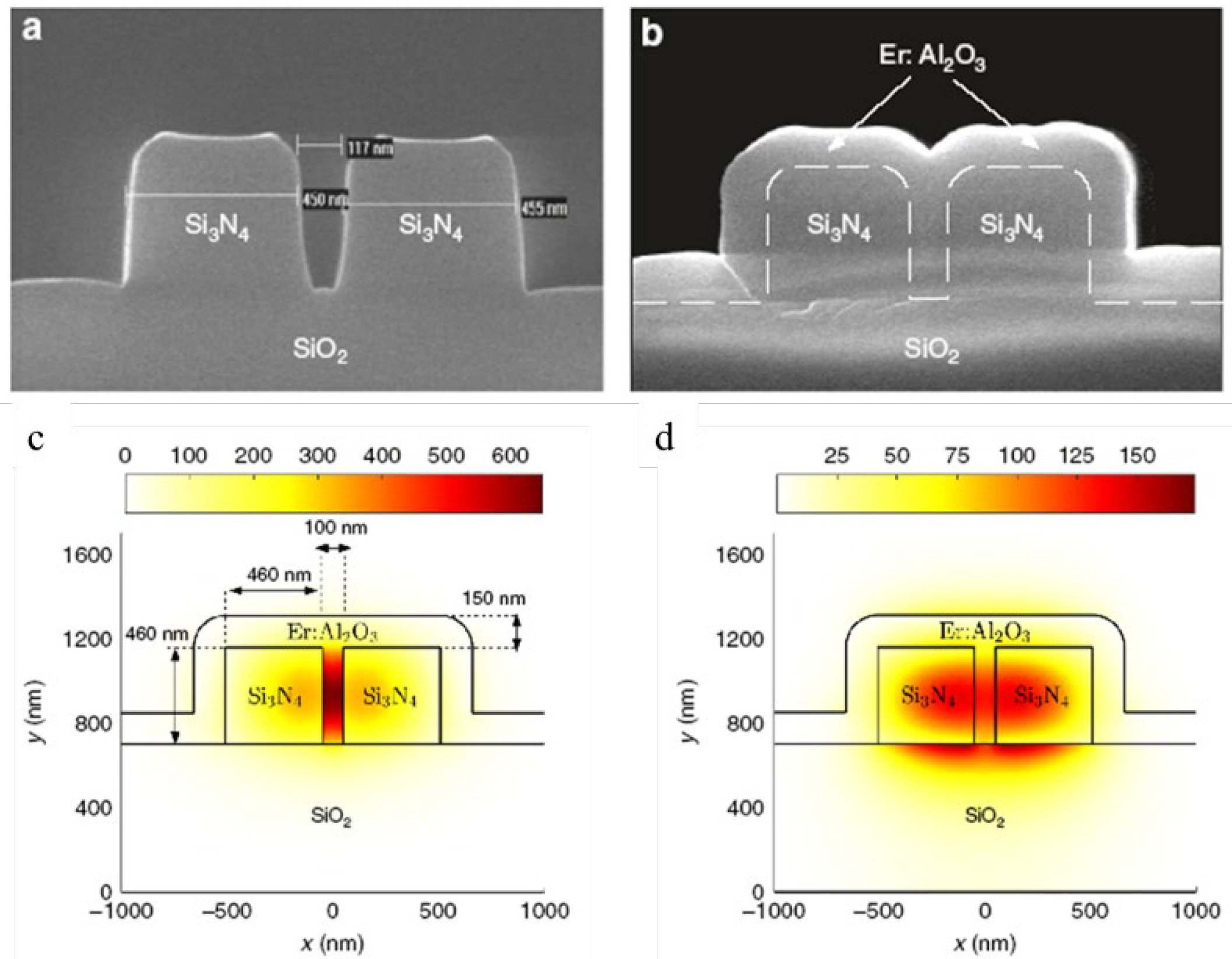

Figure 2. (a) The cross-section of the fabricated Si3N4 slot waveguide. (b) The cross-section of the Al2O3:Er–Si3N4 hybrid slot waveguide. (c) The TE and (d) TM optical mode distribution at 1533 nm in the hybrid slot waveguides [40].
Figure 2. (a) The cross-section of the fabricated Si3N4 slot waveguide. (b) The cross-section of the Al2O3:Er–Si3N4 hybrid slot waveguide. (c) The TE and (d) TM optical mode distribution at 1533 nm in the hybrid slot waveguides [40].
Applsci 12 11712 g002
Applsci 12 11712 g003 550
Figure 3. Experimental layout of the signal enhancement measurement. (a) Schematic of the pump-probe measurement. (b) Side view of the coupling configuration. The tapered fibers are placed in direct contact with the two end-facets of the nanowire at a small angle. (c) Top-view microscope image of the coupling system [39].
Figure 3. Experimental layout of the signal enhancement measurement. (a) Schematic of the pump-probe measurement. (b) Side view of the coupling configuration. The tapered fibers are placed in direct contact with the two end-facets of the nanowire at a small angle. (c) Top-view microscope image of the coupling system [39].
Applsci 12 11712 g003
Applsci 12 11712 g004 550

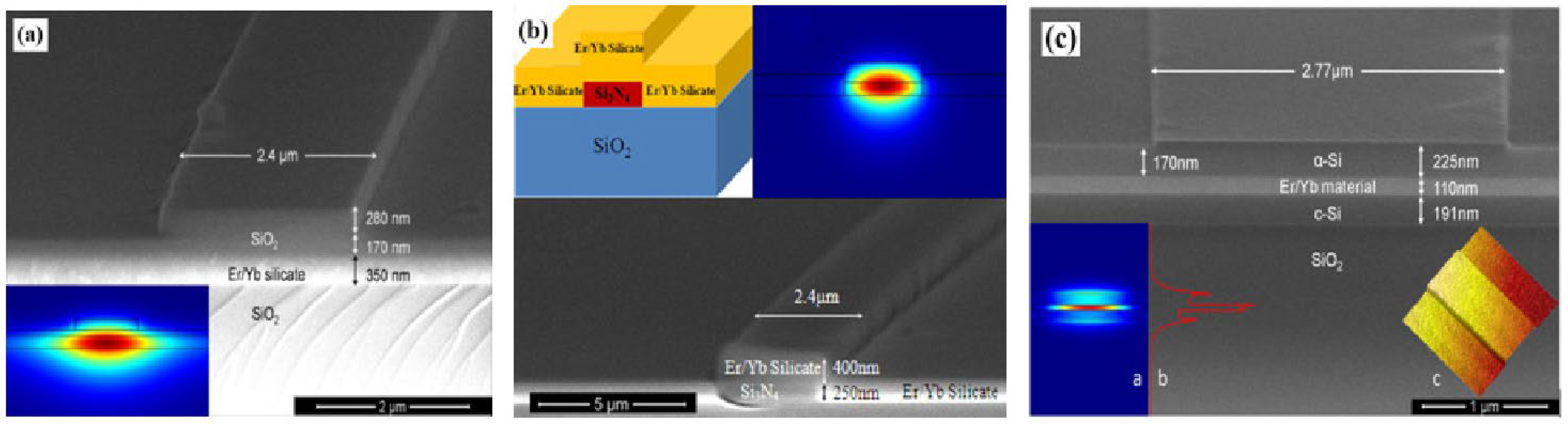

Figure 4. Scanning electron microscope (SEM) of (a) strip loaded waveguide amplifier, (b) hybrid waveguide amplifier, (c) slot waveguide amplifier [42].
Figure 4. Scanning electron microscope (SEM) of (a) strip loaded waveguide amplifier, (b) hybrid waveguide amplifier, (c) slot waveguide amplifier [42].
Applsci 12 11712 g004
Applsci 12 11712 g005 550

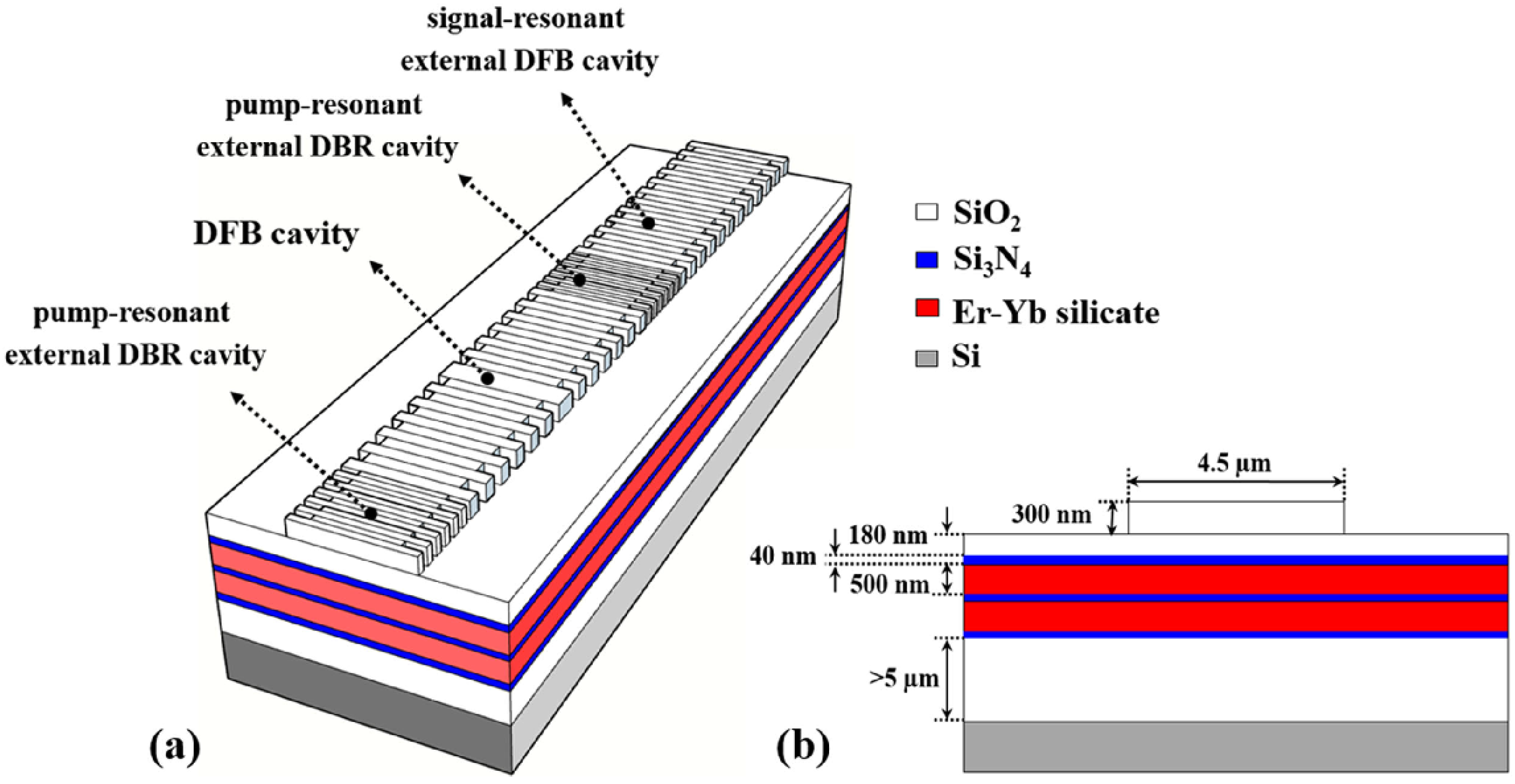

Figure 5. The 3D scheme diagram (a) and the cross section (b) of the silicon-based on-chip waveguide laser [63].
Figure 5. The 3D scheme diagram (a) and the cross section (b) of the silicon-based on-chip waveguide laser [63].
Applsci 12 11712 g005
Applsci 12 11712 g006 550

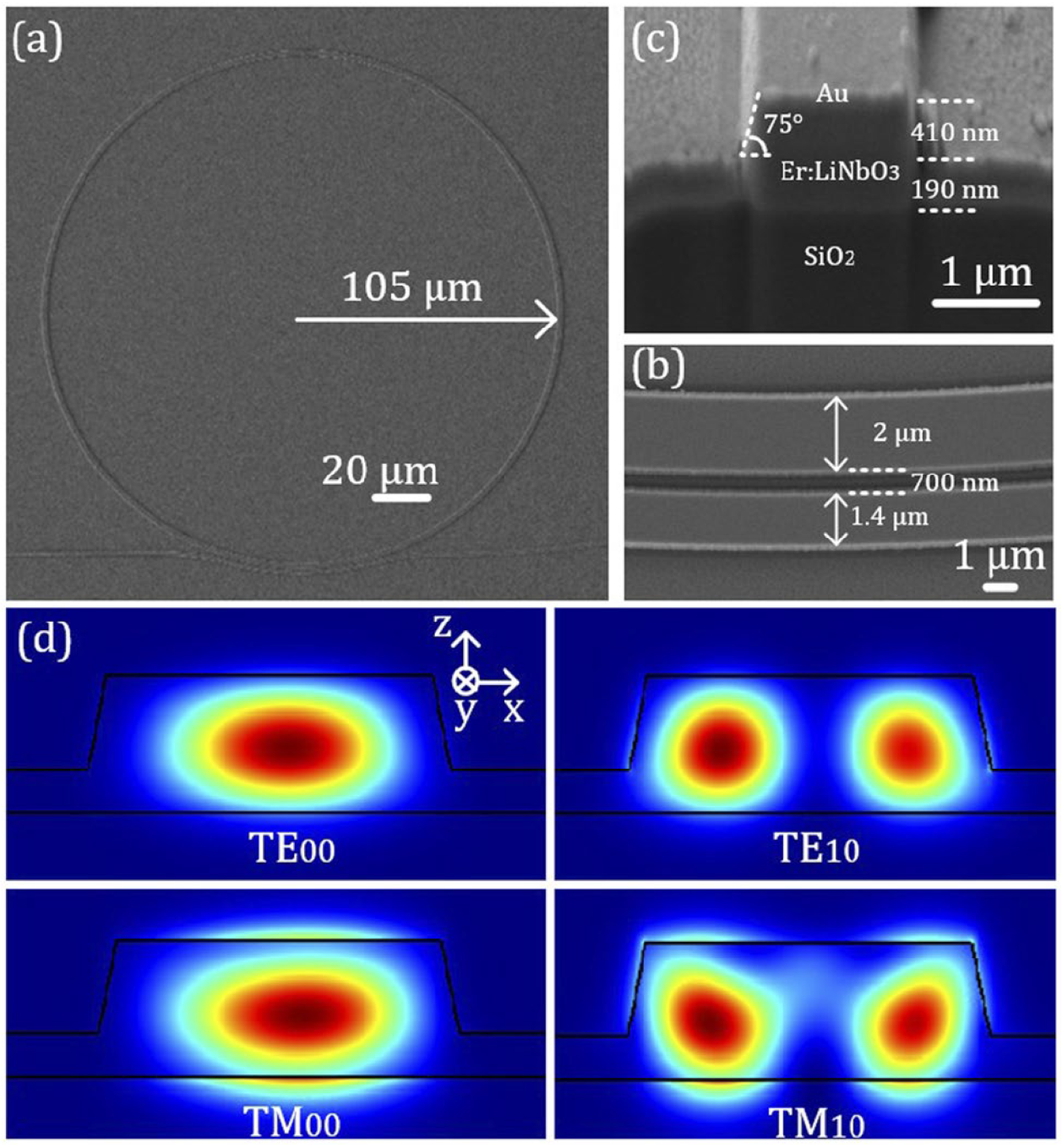

Figure 6. The SEM image of (a) the microring, (b) the pulley coupling region and (c) the end facet. (d) The four modes supported in the microring waveguide [75].
Figure 6. The SEM image of (a) the microring, (b) the pulley coupling region and (c) the end facet. (d) The four modes supported in the microring waveguide [75].
Applsci 12 11712 g006
Applsci 12 11712 g007 550
Figure 7. (a) The structure of the Si3N4:Er waveguide amplifier. (b) The damascene process and the optical mode in the waveguide. (c) The ion implantation process. (d) The optical image of the 0.5 m long waveguide. (e) The waveguide amplifier butt-end coupled with fibers (f) The calculated Er concentration (green), simulated optical mode (red) and measured concentration (blue) by RBS. (g) Measured propagation losses before ion implantation, as-implanted, and after annealing [41]. Reprinted/adapted with permission from Ref. [41]. 2022, The American Association for the Advancement of Science.
Figure 7. (a) The structure of the Si3N4:Er waveguide amplifier. (b) The damascene process and the optical mode in the waveguide. (c) The ion implantation process. (d) The optical image of the 0.5 m long waveguide. (e) The waveguide amplifier butt-end coupled with fibers (f) The calculated Er concentration (green), simulated optical mode (red) and measured concentration (blue) by RBS. (g) Measured propagation losses before ion implantation, as-implanted, and after annealing [41]. Reprinted/adapted with permission from Ref. [41]. 2022, The American Association for the Advancement of Science.
Applsci 12 11712 g007
Table
Table 1. Comparison for representative on-chip Er-based waveguide amplifiers.
Table 1. Comparison for representative on-chip Er-based waveguide amplifiers.
Host MaterialSignal
Wavelength		Pump WavelengthWaveguide LengthInternal Net GainPropagation LossRefs.
Al2O31533 nm977 nm5.4 cm2 dB/cm0.3 dB/cm[44]
Al2O31533 nm1470 nm250 μm20.1 dB/cm0.62 dB/cm[40]
Al2O31532 nm980 nm10 cm1.81 dB/cm0.64 dB/cm[49]
Silicate1532 nm980 nm56.2 μm122 dB/cm~[39]
LN1532 nm980 nm10 cm2 dB/cm0.72 dB/cm[74]
LN1531.6 nm1484 nm2.58 cm6.2 dB/cm2.5 dB/cm[76]
Si3N41562 nm1480 nm0.5 m0.6 dB/cm0.05 dB/cm[41]
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Wang, B.; Zhou, P.; Wang, X. Recent Progress in On-Chip Erbium-Based Light Sources. Appl. Sci. 2022, 12, 11712. https://doi.org/10.3390/app122211712

AMA Style

Wang B, Zhou P, Wang X. Recent Progress in On-Chip Erbium-Based Light Sources. Applied Sciences. 2022; 12(22):11712. https://doi.org/10.3390/app122211712

Chicago/Turabian Style

Wang, Bo, Peiqi Zhou, and Xingjun Wang. 2022. "Recent Progress in On-Chip Erbium-Based Light Sources" Applied Sciences 12, no. 22: 11712. https://doi.org/10.3390/app122211712

APA Style

Wang, B., Zhou, P., & Wang, X. (2022). Recent Progress in On-Chip Erbium-Based Light Sources. Applied Sciences, 12(22), 11712. https://doi.org/10.3390/app122211712

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
