GC- and UHPLC-MS Profiles as a Tool to Valorize the Red Alga Asparagopsis armata ^†

Abstract

Asparagopsis armata Harvey is a red alga native from the southern hemisphere and then introduced in the Mediterranean Sea and the Atlantic Ocean, including the Azores Archipelago, where it is considered an invasive alga. Some studies show that the extracts exhibit antimicrobial and antifouling activities, and it is incorporated in some commercialized cosmetic products. (e.g., Ysaline^®). However, knowledge of this species chemical composition is scarce. The GC-MS and UHPLC-MS profiles of both the nonpolar and polar extracts were established to contribute to this problem solution. According to the results, A. armata is rich in a great structural variety of halogenated lipophilic and aromatic compounds, some of them identified here for the first time. In the lipophilic extract, 25 compounds are identified, being the halogenated compounds and fatty acids, the two major compound families, corresponding to 54.8% and 35.7% of identified compounds (224 and 147 mg/100 g of dry algae, respectively). The 1,4-dibromobuten-1-ol and the palmitic acid are the two most abundant identified compounds (155 and 83.4 mg/100 g of dry algae, respectively). The polar extract demonstrated the richness of this species in brominated phenolics, from which the cinnamic acid derivatives are predominant. The results obtained herein open new perspectives for valuing the A. armata as a source of halogenated compounds and fatty acids, consequently improving its biotechnological and economic potential. Promoting this seaweed and the consequent increase in its demand will contribute to biodiversity conservation and ecosystem sustainability.

1. Introduction

Marine organisms live in complex habitats and are often at the mercy of too variable environmental conditions. To protect themselves from predators, competitors, and many other threats, sea creatures were forced to develop protective mechanisms that include producing a vast number of bioactive compounds, many of which are unique in chemical structure and biological function [1,2]. Seaweeds are among the most explored marine organisms due to their richness in bioactive compounds [3]. However, there are still several species for which the chemical profile is unknown, and Asparagopsis armata is one example.

Asparagopsis species belong to the phylum Rhodophyta (red seaweeds), order Bonnemaisoniales, genus Asparagopsis with three taxonomically accepted species: A. armata Harvey, A. svedelii Taylor, and A. taxiformis Trevisan [4]. Asparagopsis taxiformis has been used as food by Hawaiians [5] while A. armata is commercially farmed in northern Europe to extract bioactive molecules [6]. Asparagopsis armata is native to Australia and is now widely distributed from the North Atlantic to the coast of Senegal and in the Mediterranean basin [7]. This seaweed seems to exhibit an ecological advantage due to its toxic metabolites that affect the competing algae fixation, forming monospecific coverages, reducing the habitat’s species richness, and causing an indirect economic impact by negatively affecting fishing and aquaculture [8]. Despite its negative impact, A. armata is commercially farmed in northern Europe to extract bioactive molecules such as sulphated polysaccharides with iodine and bromine groups [6], that are applied as a natural preservative in cosmetics and products to anti-acne treatment (e.g., Invincity^®). In Azores, this invasive seaweed presents an enormous rate of biomass production for which there is no use. Uses such as food or technological application that increase their commercial value and thus create a dynamic that mitigates the negative effects mentioned above are essential.

Although several studies have been published on the biological activity of A. armata extracts showing their potential as a source of natural compounds with antiviral, antimicrobial, and antifouling activity [9,10,11], there are few published works dedicated to the characterization of secondary metabolites existing in the extracts of this species, apart from sterols and volatile halogenated compounds [12,13,14]. Herein we present and discuss the composition of the polar and lipophilic extracts of A. armata, obtained by greener and more efficient methodologies and using GC-MS and UHPLC-MS as tools for separation and identification of the metabolites present.

2. Materials and Methods

2.1. Chemicals

The following chemicals are used as standards for UHPLC-MS analysis: 2-bromopropionic acid, 2-bromo-5-methoxybenzoic acid and methyl 2-bromo-5-methoxybenzoate were purchased from Alfa Aesar (Kandel, Germany). 2-Bromobenzaldehyde and 3-bromobenzaldehyde were purchased from Sigma-Aldrich GmbH (Darmstadt, Germany). 2′-Bromoacetophenone was obtained from TCI (Oxford, UK). Caffeic, p-coumaric, and chlorogenic acids were supplied by Acros Organics (Geel, Belgium).

UHPLC mobile phase eluents: formic acid and acetonitrile HPLC-grade solvents were purchased from Panreac (Barcelona, Spain), and ultrapure water was obtained by a Direct-Q^® water purification system (Merck Life Science, Darmstadt, Germany). All other chemicals were of analytical grade.

Solvents used for GC–MS analysis were purchased from Panreac and Acros Organics and were of analytical grade. Chemicals such as N,O-bis(trimethylsilyl)trifluoroacetamide (BSTFA) (99%) and trimethylsilyl chloride (TMSCl) (99%), purchased from Sigma-Aldrich, were used as derivatization agents. Octadecane (99%), eicosane (99%), palmitic acid (99%), stearic acid (>97%), (Z,Z) 9,12-octadecadienoic acid (99%), 1-bromononane (98%), 1,8-dibromooctane (98%), (3β) cholest-5-en-3-ol (99%), 1-octadecanol (99%), and 1-mono palmitin (99%) were purchased from Sigma-Aldrich and used as standards to qualitative and quantitative GC-MS analysis.

2.2. Plant Material and Extracts Preparation

Asparagopsis armata Harvey (on gamethophyte phase) was collected in June 2017, in the intertidal zone of S. Miguel Island coast, in Ponta Delgada, Azores. Prof. Ana Isabel Neto, expert on seaweeds from University of Azores, was responsible for the taxonomic identification of the harvested alga. A voucher specimen (SMG-2017-06) was deposited in Ruy Telles Palhinha Herbarium (AZB).

Asparagopsis armata sample was cleaned from salt and epiphytes, drained between sheets of absorbent paper, and cut into pieces approximately 1 cm long. Fresh algae after draining contains 92.9% (±0.97%) of water.

Dried A. armata (231.06 g) were obtained from fresh material by air drying, protected from light, and then dried in an oven with forced ventilation at 40 °C, until constant weight.

The lipophilic extract (extract A) was prepared from 229.2 g of dried seaweed by maceration (1:10 algae:dichloromethane) at room temperature, under stirring and in the dark, for 3 cycles of 3 days each, with solvent renewal at the end of each cycle. The solvent from the combined extraction steps was first evaporated with a rotary vacuum evaporator at 40 °C and then dryed under vacuum at room temperature (yield 1.25%).

From fresh A. armata, collected from the same place and date, several polar extracts were prepared, using different polar solvents (ethanol, ethanol:water (50%), and water) and different methods of extraction (maceration, ultrasounds, and microwave) in order to optimize the extraction procedure according to the

Table 1. Experimental conditions used in the preparation of the A. armata polar extracts.

Polar Extracts	Extraction Method	Time/Temperature	Solvent
1	Maceration	1 h/boiling	H2O 1
2	Maceration	24 h/room temp.	H2O 1
3	Maceration	24 h/room temp.	Ethanol 1
4	Maceration	24 h/room temp.	Ethanol/H2O (1:1) 1
5	Microwave	10 min/50 °C	Ethanol/H2O (1:1) 2
6	Ultrasounds	10 min/room temp.	Ethanol/H2O (1:1) 2
7	Microwave	10 min/50 °C	Ethanol 2
8	Ultrasounds	10 min/room temp.	Ethanol 2

¹ The proportion algae:solvent was 1 g:4 mL. ² The proportion algae:solvent was 1 g:10 mL.

.

The dried polar extracts were obtained after evaporation and/or lyophilization. The yields obtained are shown in the

Table 2. Extraction yield of the polar A. armata extracts prepared.

Polar Extracts Prepared	Extraction Yield (g Extract/100 g Fresh Alga)
1	1.7 ± 0.1
2	1.7 ± 0.2
3	1.8 ± 0.1
4	1.6 ± 0.1
5	1.6 ± 0.4
6	1.3 ± 0.1
7	1.9 ± 0.3
8	2.0 ± 0.2

.

2.3. Biologic Activities

The following paragraphs present the main experimental details of each of the bioactivity assays such as range of concentrations tested, and the positive controls used. A more detailed description of each of the methods employed can be found in Zárate et al. [15].

2.3.1. DPPH Scavenging Activity

Antioxidant activity was assayed by the DPPH (1,1-diphenyl-2-picryl-hydrazyl) radical scavenging assay [16]. The extracts were tested at concentrations ranging between 0.244 μg/mL and 250 μg/mL in methanol. Trolox, at concentrations ranging from 0.100 to 100 μg/mL, was used as the positive control.

2.3.2. ABTS Scavenging Activity

A microplate adaptation of the method by Re et al. [17] was adopted to perform the ABTS radical scavenging assay. The extracts were tested in a range of concentrations of 0.244 to 250 μg/mL, and the positive control was Trolox (0.100–100 μg/mL).

2.3.3. Ferric Chelating Activity

The Fe²⁺ chelating ability of the extracts was assayed by the ferrous iron-ferrozine complex method [18]. The positive control used was EDTA (0.195–100 μg/mL). Samples were assayed at serial concentrations between 0.244 and 250 μg/mL.

2.3.4. Anticholinesterasic Activity

A modification of the method described by Ellman et al. [19] and Arruda et al. [20] was used for measuring the extracts’ ability to inhibit the activity of acetylcholinesterase (AChE) and butyrylcholinesterase (BuChE). The algal extracts were tested at concentrations ranging from 0.293 to 150 μg/mL and compared to the positive control donepezil (0.010–5.0 μg/mL).

2.3.5. Inhibition of Tyrosinase Activity

The extracts were assayed by adapting the tyrosinase inhibition method described by Shimizu et al. [21] and modified by Manosroi et al. [22]. Serial concentrations of the extracts (0.488 μg/mL to 250 μg/mL dissolved in 100 mM phosphate buffer, pH 6.8 were tested. Kojic acid at 0.293–150 μg/mL was used as positive control.

2.3.6. Inhibition of Collagenase Activity

The anti-collagenase activity was assayed through an adaptation of the method of Mandl et al. [23]. The extracts and the reference compound EDTA were tested with concentrations ranging between 15.6–250 μg/mL.

2.3.7. Inhibition of Elastase Activity

A modified version of the described by Ndlovu et al. [24] was used to measure the inhibition of elastase activity by the extracts. The concentration of extract used in the assay ranged from 0.488 μg/mL to 250 μg/mL. N-Methoxysuccinyl-Ala-Ala-Pro-chloromethyl ketone at 0.019–20 μg/mL was used as a positive control.

2.4. UHPLC-DAD-ESI-MS/MSⁿ Characterization of A. armata Aqueous Extract

A methanolic solution of A. armata aqueous extract (prepared under the experimental conditions described in Table 1 for extract 2 and then lyophilized) was analyzed using an UHPLC-ESI-DAD/MS apparatus. The column used was a thermo scientific hypersil gold column (1000 mm × 20 mm) with a part. size of 1.9 μm at 30 °C. The mobile phase was composed of (A) 0.1% formic acid aqueous solution (v/v) and (B) acetonitrile, and the flow rate was 0.2 mL/min. The solvent gradient started with 5% of solvent A over 14 min followed by 40% of solvent A for 2 min, 100% over 7 min and finally 5% over 10 min. The injection volume was 2 μL, and the chromatographic profiles were documented at 280 nm. The mass spectrometer used was an LTQ XL linear ion trap 2D equipped with an orthogonal electrospray ion source (ESI). The equipment was operated in negative-ion mode with electrospray ionization source of 5.00 kV and ESI capillarity temperature of 275 °C. The full scan covered a mass range of 50–2000 m/z. The identification of individual phenolic compounds by UHPLC-MS was achieved by comparing with data available on the literature and interpretation of the MS fragmentation.

2.5. GC-MS Analysis of A. armata Dichloromethan Extract

Before GC-MS analysis, four replicates of dried dichloromethane extract of A. armata (extract A, nearly 20 mg each), was dissolved in 1 mL of dichloromethane, added the internal standard (octadecane) and was silylated using 250 μL of pyridine, 250 μL of BSTFA, and 50 μL of TMSCl in a screw glass tube at 70 °C during 30 min. This derivatization procedure is well known [25,26] and allows the hydroxyl groups that may exist in the extract constituents to be transformed into silyloxyl groups. Thus, compounds with -OH substituents will be detected by GC-MS analysis as silylated derivatives which are more volatile, stable, and less polar [25,26].

Each replicate was analyzed by GC–MS twice using a QP2010 Ultra Shimadzu apparatus with Xcalibur software, equipped with a DB-5- J &W capillary column (30 m × 0.25 mm i.d. and a film thickness of 0.25 μm). The injection was in split mode. The temperature of the column was 70 °C during 2 min, at 3.5°/min until 120 °C, at 9°/min until 170 °C, 170 °C during 10 min, at 9°/min until 300 °C, which was maintained for 6 min. Injector temperature was at 320 °C, and the transfer-line temperature was at 200 °C. The mass spectrometer was operated in the EI mode with energy of 70 eV, and data were collected at a rate of 1 scan s⁻¹ over a range of m/z 50–1000. The carrier gas was helium (purity of 99.995%) at 1.2 mL/min.

The compounds were identified, from total ion chromatogram, by comparing the retention times and by comparing their mass spectra with (i) those existing in the MS databases of Wiley229, NIST14, and Shimadzu Pesticide Library; (ii) those published in the literature and by analyzing the fragmentation pattern; (iii) those obtained in the same experimental conditions to standard compounds.

Quantitative analysis was carried out using internal standard method (octadecane, 28.68 min), by intrapolation on the calibration curves obtained with at least 4 distinct but known concentrations of representative standards of each family of organic compounds identified in the dichloromethane extract (namely, palmitic acid, stearic acid, (Z,Z) 9,12-octadecadienoic acid, 1-octadecanol, monopalmitin, cholesterol, sitosterol, phenyl acetic acid, 1,8-dibromooctane, 1-bromononane) relative to octadecane. The correlation coefficient (r²) of each calibration curve was greater than 0.99. All standards with hydroxyl substituents were subjected to the silylation procedure described above.

3. Results and Discussion

3.1. Asparagopsis armata Polar Extracts Yield and Chemical Diversity

Extracts from fresh A. armata were prepared using polar solvents (water, ethanol) and different energy sources according to the data present in Table 1. The yields of extractions are presented in Table 2. Preparing polar extracts from fresh instead of dry seaweed has the additional advantage of circumventing the difficulties of drying seaweed and grinding after drying. The alga has a high-water content (92.9%), and the drying process is prolonged. However, no signs of chemical degradation were evident (no changes in color or observed microorganism development). After drying, the seaweed becomes extremely hard, requiring very robust equipment for its grinding.

The different methods and solvents tested reveal identical performance in terms of extraction yield.

Considering the yields obtained and the more sustainable experimental conditions (economically and environmentally “greener”), the profiles of the most interesting extracts were qualitatively analyzed by UHPLC-MS, with the most relevant results shown in Figure 1.

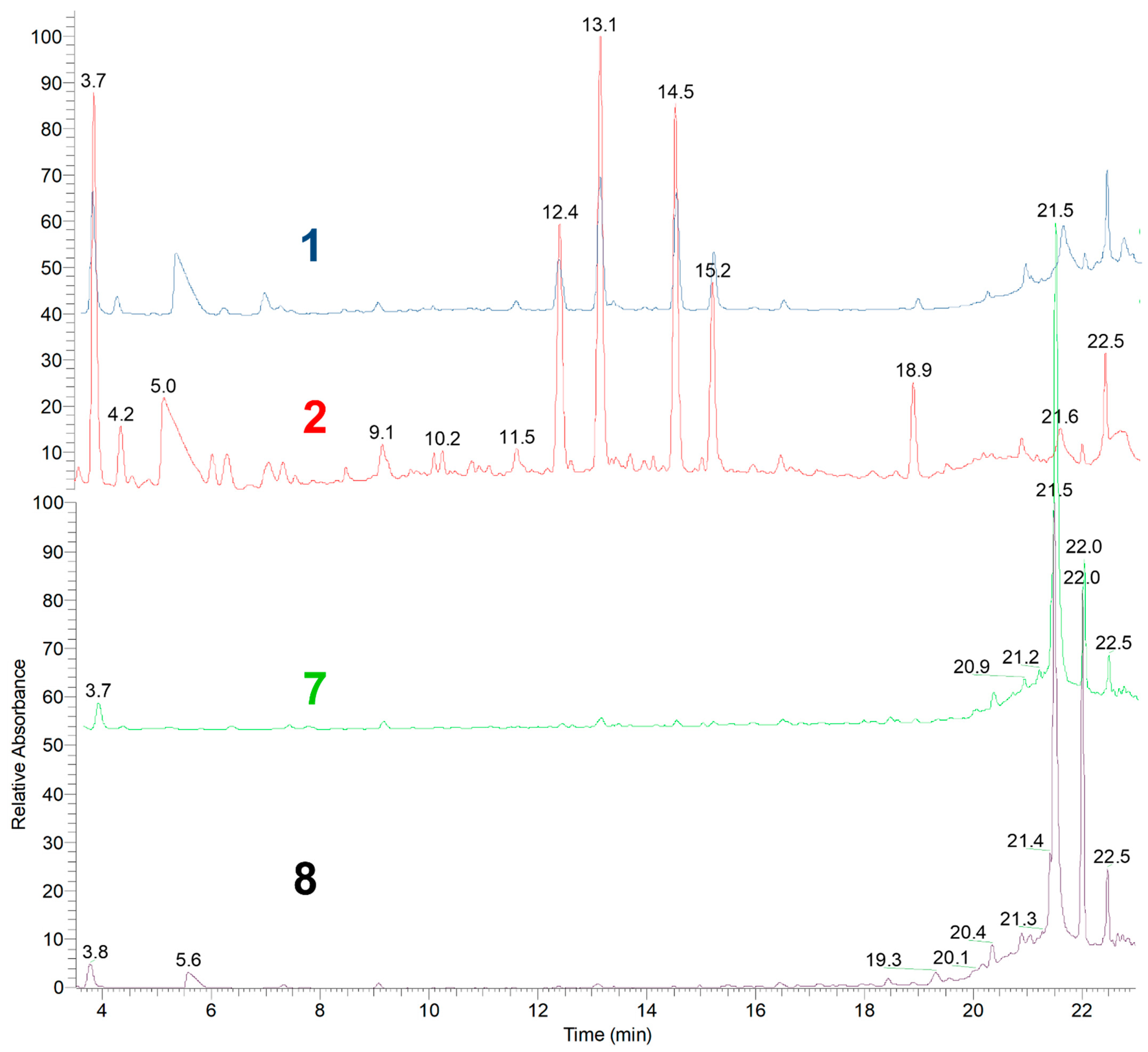

The chemical profiles of the ethanol extracts (extracts 7 and 8) are very similar, being both ultrasound and microwave the most selective extraction method. The use of ethanol under microwave energy extracted almost exclusively one compound. Although it was not our aim to identify this compound, its isotopic pattern and m/z in the mass spectra suggests that it is a 2,3-diphenylpropanoic acid derivative, having two hydroxyl groups and four bromine atoms distributed in the aromatic rings ([M-H]⁻ m/z 568/570/572/574/576). Due to the fragment with m/z 319/321/323, we suggest that each aromatic ring possesses one hydroxyl group and two bromine atoms.

The chemical profile of the water extracts (extracts 1 and 2) showed greater chemical diversity. Thus, the extraction method must be chosen according to the intended application to the extracted compounds that are different according to the method used. If the extraction time is the most relevant, it should choose ultrasound extraction since it is cheaper than microwave extraction, which requires a more expensive apparatus. Using water extraction by maceration at room temperature will be cheaper and allow chemically richer extracts.

As this work intends to study the chemical profile of the polar extract of A. armata, the characterization of the chemical composition of the aqueous extract obtained by maceration at room temperature (extract 2) constitutes a significant scientific contribution to knowledge about new polar secondary metabolites in this alga.

3.2. Biological Activities of Asparagopsis armata Extracts

Considering the potential application of A. armata extracts in the cosmetic industry, the dichloromethane extract (extract A) and the aqueous extract (extract 2), which are in our perspective the most interesting ones, were evaluated for their potential as anti-aging agents. In fact, if we consider some green chemistry aspects, such as extraction yields and energy consumption, these extracts are the best option. Moreover, their chemical profile characterization was achieved.

In this regard, the antioxidant, antiacetylcholinesterase, and antibutyrylcolinesterase activities of extract A were evaluated. Regarding the antioxidant activity, this extract demonstrated an interesting ability to scavenge both the DPPH and ABTS radicals (23.6 ± 2.6% and 31.4 ± 2.8%, respectively), if we compare with the positive control values (Trolox-inhibition of DPPH 89.7 ± 0.5% and inhibition of ABTS 92.4 ± 0.2%). However, these values were obtained at concentrations of 250 μg/mL, and it was not possible to calculate EC₅₀ value for extract A. Concerning the cholinesterases inhibition, the extract A showed, at a concentration of 150 μg/mL, inhibition values of 17.1 ± 2.3% and 18.9 ± 2.0%, respectively for acetylcholinesterase and butyrylcholinesterase. Again, it is imperative to highlight that it was impossible to obtain the EC₅₀ and the positive control value for donepezil at a concentration of 2 μg/mL was 95.2 ± 0.4%.

Regarding the extract 2 biological assays, we evaluated the ferric chelating ability, the antioxidant, anticollagenase, and antielastase activities. All the activities were evaluated using 250 μg/mL extract concentration, and the EC₅₀ could not be obtained. The extract ability to scavenge the DPPH radical and to chelate iron(III) can be considered low and moderate, with percentage inhibition values of 1.47 ± 0.42% and 7.75 ± 0.44%, respectively for DPPH (trolox 89.71 ± 0.50%, concentration of 250 μg/mL) and ferric chelating (EDTA 93.73 ± 0.24%, concentration of 100 μg/mL) assays. In the case of anticollagenase, the same extract showed an inhibition percentage of 7.42 ± 1.79%, which was much lower than the value for positive control EDTA (96.31 ± 1.20%). Finally, the extract inhibited elastase by 43.20 ± 2.58% at a 250 μg/mL concentration, an interesting value, although not comparable to the positive control, N-methoxy succinil-Ala-Ala-Pro-Val-chloromethyl ketone which at a 20 μg/mL inhibited the enzyme by 95.51 ± 3.96%.

Although the results of the bioassays were not exceptional, it is possible to conclude that A. armata produce bioactive metabolites, and we can infer that their isolation will improve the activity.

3.3. UHPLC-MS Characterization of A. armata Aqueous Extract

Given the above discussed, the aqueous extract obtained at room temperature (extract 2) was analyzed by UHPLC-MS in the negative mode and showed the presence of several phenolic compounds (Figure 2 and

Table 3. Tentatively identified compounds on A. armata aqueous extract by UHPLC-MS.

Rt (min)	UV-Vis (nm)	[M-H]− (m/z)	MS2 (m/z)	Possible Compound
1.43	201, 324	333/335 a,b	302/304, 254, 195, 125	Methyl 3-(2-bromo-3,4,5-trihydroxyphenyl)acrylate
1.74	193, 262, 324	353	191, 179	Caffeic acid derivative
1.86	192, 249, 327	341	179, 135	Caffeic acid derivative
3.69	195, 232, 285	524/526/528 c,e	473/475/477, 429/431/433, 286/288, 270/272, 255/257, 218/220, 139, 123	Methyl 3-(5-bromo-3-(2-bromo-3,4,5-trihydroxyphenoxy)-2,4-dihydroxyphenyl)acrylate
5.08	193, 214	586/588/590/592/594 d	572/574/576/578/580, 556/558/560/562/564, 322/324/326, 306/308/310, 280/282/284, 264/266/268	Methyl 2,3-dibromo-5-(2,5-dibromo-3,4-dihydroxyphenoxy)-4-hydroxybenzoate
12.34	195, 232	454/456/458/460/462 d	272/274/276, 227/228/230	Unknown
13.10	243, 274sh	320/322 a,e	274/276, 241, 136	3-(3-Bromo-4,5-dimethoxyphenyl)acrylic acid
14.51	243, 274sh	550/552/554 c,e	505/507/509, 470/472/474, 320/322, 274/276, 242, 191, 150, 136	2-(2-Bromo-3,4-dimethoxy-5-methylphenyl)-3-(3-bromo-4,5-dimethoxyphenyl)propanoic acid
15.20	257, 282sh	369	163	p-Coumaric acid derivative
18.97	249, 286sh	323	163	p-Coumaric acid derivative

Rt = retention time, [M-H]⁻ = pseudomolecular and MS² = fragment ions, ^a ion cluster for one bromine, ^b adduct with formic acid, ^c ion cluster for two bromine, ^d ion cluster for four bromine, ^e adduct with chloride.

).

The most noticeable aspect of the UHPLC-MS profile is the richness in compounds having bromine atoms (Table 3 and Figure 3), aspect that it is not completely new in view of the publications concerning A. armata [11,27] and other red algae [28,29,30].

Among the identified compounds are four cinnamic acid derivatives, specifically from caffeic and p-coumaric acids (Table 3), prevalent compounds produced by natural resources, including seaweeds and other marine organisms [31,32]. The fragments observed in MS², m/z 179, and m/z 163 are an essential clue to establish that the compounds are respectively caffeic and p-coumaric acid derivatives (Table 3).

The other metabolites present in the extract are brominated derivatives, and the compound with a retention time of 12.34 min could not be identified, but the isotopic pattern suggests that it has four bromine atoms (Table 3). A structure was proposed for the remaining five metabolites (Figure 3) based on the pseudomolecular ion, isotopic pattern, and fragment ions observed. However, we should highlight that we did not establish the aromatic rings substitution pattern, and in the proposed structures, the substituents order was made considering the most common ones described in the literature [28,30].

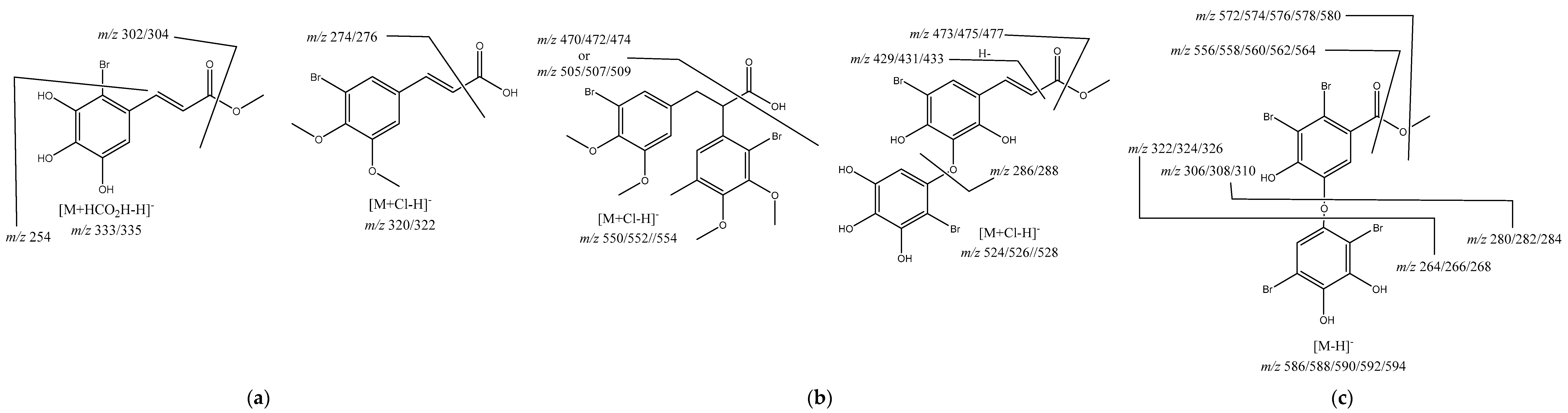

Compounds eluted at 1.43 min and 13.10 min were identified as cinnamic acid derivatives bearing one bromine atom (Figure 3a) due to their pseudomolecular ion isotopic pattern (Table 3). Moreover, brominated polyphenols and polymethoxybenzenes are commonly found in seaweeds [30]. The main fragments ions suggest that the compound eluted at 1.43 min is the methyl 3-(2-bromo-3,4,5-trihydroxyphenyl)acrylate or one isomer, being the fragment ion m/z 254 obtained through the loss of the bromine atom and the fragment ion m/z 195 obtained through an extra loss of CO₂CH₃. In the case of compound eluted at 13.10 min 3-(3-bromo-4,5-dimethoxyphenyl)acrylic acid, it can be observed the typical loss of CO₂ and also the loss of the bromine atom to give the fragment ion m/z 241 (Figure 3a).

Next, we identified two compounds, methyl 3-(5-bromo-3-(2-bromo-3,4,5-trihydroxyphenoxy)-2,4-dihydroxyphenyl)acrylate eluted at 3.69 min and 2-(2-bromo-3,4-dimethoxy-5-methylphenyl)-3-(3-bromo-4,5-dimethoxyphenyl)propanoic acid eluted at 14.51 min, both having an ion cluster for two bromine atoms. The main fragment ions confirm the proposed structures (Figure 3b); however, we should again stress that the bromine atoms’ position in the aromatic rings was not demonstrated. The fragments just suggest that they are one in each ring.

Finally, we have methyl 2,3-dibromo-5-(2,5-dibromo-3,4-dihydroxyphenoxy)-4-hydroxybenzoate (Figure 3c), eluted at 5.08 min, showing an ion cluster for four bromine atoms (Table 3) and presenting fragment ions consistent with the proposed structure. Once more, it is important to highlight that some fragment ions establish that the bromine atoms are equally distributed in the aromatic rings, but their position can be interchanged.

3.4. GC-MS of Lipophilic Extract

To prepare the lipophilic extract, in a preliminary study, hexane and dichloromethane solvents were used, and the results (unpublished results) showed that dichloromethane extraction yield was superior to that obtained with hexane under the same experimental conditions. Furthermore, dichloromethane is a widely used non-polar and unspecific solvent capable of dissolving a wide variety of less polar metabolites. Thus, to obtain broader knowledge, the dichloromethane extract (extract A) was selected for analysis by GC-MS to determine the chemical composition of the less polar fraction of A. armata. The results of qualitative and quantitative analysis are summarized in

Table 4. Tentative identified compounds on dichloromethane extract (extract A) from dried A. armata by GC-MS.

Rt (min)	Compound Identified *	Medium Content (SD)
		mg/100 mg Extract	mg/100 g Dried Alga	mg/kg Fresh Alga
Fatty Acids
24.1	Lauric acid (C12:0) b	0.489 (0.024)	6.11 (0.30)	4.33 (0.21)
30.6	Myristic acid (C14:0) b	1.88 (0.07)	23.5 (0.9)	16.6 (0.6)
34.6	Pentadecanoic acid (C15:0) b	0.404 (0.012)	5.05 (0.14)	3.58 (0.10)
36.5	Palmitoleic acid (C16:1) b	0.767 (0.066)	9.59 (0.82)	6.80 (0.58)
36.8	Palmitic acid (C16:0) a	6.67 (0.29)	83.4 (3.6)	59.2 (2.6)
39.5	Oleic acid (C18:1) a	1.15 (0.13)	14.4 (1.6)	10.2 (1.1)
39.8	Stearic acid (C18:0) a	0.381 (0.017)	4.76 (0.21)	3.37 (0.15)
	Total	11.7	147	104
Halogenated Compounds
4.2	Chloro acetic acid b	0.497 (0.049)	6.21 (0.61)	4.40 (0.43)
6.1	Clorobutenol c	0.502 (0.012)	6.27 (0.15)	4.45 (0.11)
8.5	3-Bromoprop-2-enoic acid c	1.40 (0.20)	17.5 (2.51)	12.4 (1.78)
10.1	Bromopyruvic acid c	0.612 (0.061)	7.65 (0.77)	5.43 (0.54)
15.5	1,4-Dibromobuten-1-ol c	12.4 (1.0)	155 (12)	110 (9)
19.1	Bromotridecenol c	0.842 (0.048)	10.5 (0.6)	7.47 (0.42)
19.3	Isomer of bromotridecenol (19.1 min) c	0.807 (0.061)	10.1 (0.8)	7.16 (0.54)
23.7	Isomer of 1,4-dibromobuten-1-ol (15.5 min) c	0.940 (0.019)	11.7 (0.2)	8.33 (0.17)
	Total	18.0	224	159
Glycerol and derivatives
15.2	Glycerol a,b	0.151 (0.020)	1.96 (0.20)	1.39 (0.14)
40.4	Glyceryl-glycoside b	0.163 (0.031)	2.04 (0.39)	1.44 (0.27)
41.5	1-Monomyristin b,c	0.356 (0.046)	4.44 (0.57)	3.15 (0.40)
43.3	1-Monopalmitin a	0.353 (0.013)	4.41 (0.16)	3.13 (0.11)
	Total	1.02	12.9	9.11
Sterols
48.4	Cholesterol a	0.617 (0.076)	7.71 (0.95)	5.47 (0.68)
Aromatic compounds
16.1	Phenyl acetic acid a	0.683 (0.049)	8.54 (0.61)	6.06 (0.43)
18.6	4-Hydroxybenzaldehyde b	0.158 (0.009)	1.97 (0.11)	1.40 (0.08)
	Total	0.841	10.5	7.46
Other compounds
4.7	Ethyl amine b	0.058 (0.004)	0.727 (0.054)	0.516 (0.038)
8.1	Glycolic acid b	0.267 (0.037)	3.33 (0.47)	2.37 (0.33)
25.4	Heptadecane b	0.900 (0.043)	11.2 (0.5)	7.97 (0.38)
	Total	1.23	15.3	10.9

Rt—Retention time. SD—Standard deviation. * All the compounds possessing hydroxyl groups are identified as the corresponding TMS derivatives. Compounds were identified by: ^a comparison with pure standards; ^b comparison with the GC-MS spectral libraries with similarity index higher than 94% and confirmation of the peaks at m/z values corresponding to the characteristic fragmentation pattern of the family in question; ^c interpretation of pattern fragmentation of MS spectrum according to published literature.

.

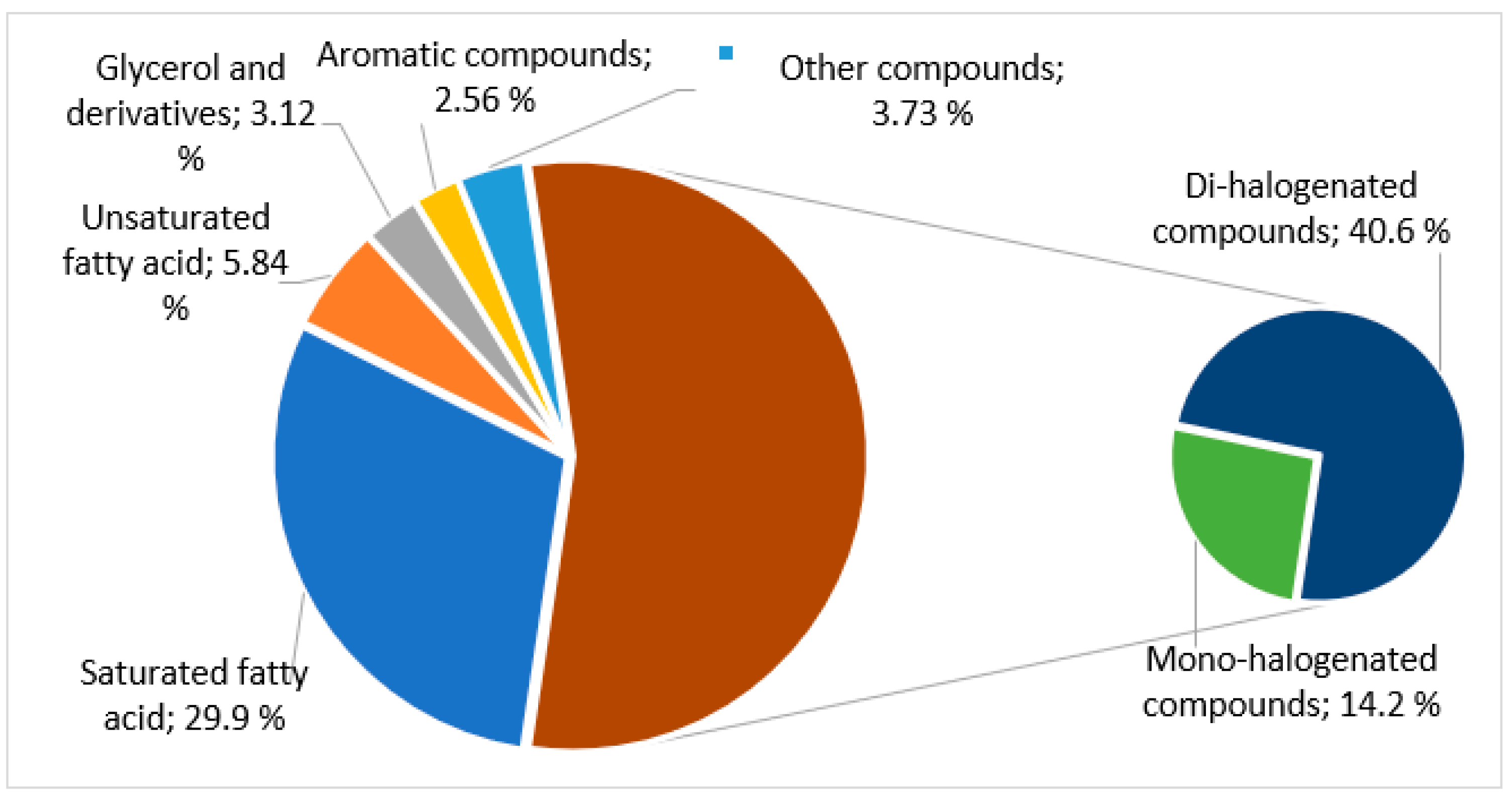

The results in Table 4, graphically summarized in Figure 4, clearly show the predominance, in this lipophilic extract, of halogenated compounds (54.8%), being 40.6% dibromine mono-unsaturated alcohols and 14.2% mono-bromine and mono-chloride compounds.

The most abundant compound in the extract (1,4-dibromobutenol, Rt 15.5 min) belongs to this class (68.8% of the total halogenated compounds and 37.8% of the total identified compounds). The presence of one or more halogen atoms, chlorine, or bromine, in the chemical structure of several of the identified compounds is assumed, with a high degree of certainty, from the characteristic isotopic pattern of each chemical element. The bromine exists as two isotopes in approximately equal amounts of atomic mass 79 and 81, while chlorine has 2 isotopes of atomic mass 35 and 37 in a ratio of approximately 3:1.

In the case of the most abundant compound, at Rt 15.5 min, the presence of 2 bromine atoms is deduced from the peak corresponding to molecular ion [M]^+• at m/z 300/302/304 (a very weak signal) in the ratio of 1:2:1. The mass spectrum of this compound also shows the base peak at m/z 75, corresponding to [HOSi(CH₃)₂]⁺, and the second most intense peak at m/z 285/287/289 (also in a 1:2:1 ratio), corresponding to [M-15]⁺ (loss of a methyl group from the TMS ether moiety). These signals support the hypothesis that the compound at Rt 15.5 min is a silylated primary alcohol [33], with two bromine atoms as substituents. Thus, it can be deduced that the compound in the extract will have a molecular mass of 230 corresponding to the chemical formula C₄H₆OBr₂, suggesting the presence of a double bond in the basic structure of dibromo butanol. The greatest diagnostic value is the fragments with m/z at 131/133 and 137/139. The presence of these peaks, with identical intensity in each pair, shows that the fragmentation of the molecule gives rise to fragments containing one bromine atom each, being a strong indication of bromine atoms on different carbons. The peak at m/z 131/133 will correspond to the fragment [C₄H₄Br]⁺, resulting from loss of HBr by the molecular ion, following a δ-chain loss, indicating that the bromine atoms are found in the carbons 1 and 4. The peak at m/z 137/139 could result from loss of a methyl from the silyloxyl group, followed by bonding of the resulting siliconium ion to the terminal bromine atom, and a final rearrangement [33] to originate the fragment [BrSi(CH₃)₂]⁺.

Comparing the mass spectrum of 1,4-dibromobuten-1-ol (15.5 min) with that exhibited by the compound at 23.7 min, it is concluded that both are dibrominated mono-unsaturated alcohols with molecular formula C₄H₆OBr_2, which mean they are isomers. They have a very similar fragmentation pattern [M-CH₃]⁺ at m/z 285/287/289, [BrSi(CH₃)₂]⁺ at m/z 137/139, and the base peak at m/z 73 ([Si(CH₃)₃]⁺, being the last one ubiquitous to the spectra of TMS derivatives. The most significant differences are the absence of signals at m/z 131/133 and the presence of the peak at m/z 197/199/201 corresponding to the fragment [C₃H₃Br₂]⁺, resulting from an α-cleavage with retention of the 2 bromine atoms and the double bond on the cation. These fragments suggest that the difference between the compounds at 15.5 and 23.7 min is the position of the bromo substituents. These two compounds are the only di-halogenated compounds identified in the extract and correspond to 166.2 mg/100 g of dry algae (40.6% of identified compounds).

The peaks at 19.1 and 19.3 min also correspond to two unsaturated alcohols silylated, but in this case mono-brominated, as deduced from the isotopic pattern analysis of fragments [M-15]⁺ at m/z 333/335 (1:1); [C₂H₆SiBr]⁺ at m/z 137/139 (1:1). The peak at m/z 179 on the mass spectra of both isomers, corresponding to the non-brominated fragment [C₁₃H₂₃]⁺ ([M-90-Br]⁺), suggests the same bromine substitution pattern on both isomers. The molecular formula of the two compounds on the extract is C₁₃H₂₅BrO, named bromotridecenol. The difference between them should be the position of the double bond, difficult to determine by MS.

The second most abundant halogenated compound (7.8%) corresponds to the peak at 8.5 min, identified as 3-bromoprop-2-enoic acid TMS derivative. The mass spectrum shows the signals at m/z 207/209 (~1:1), corresponding to the fragment C₅H₈BrO₂Si⁺ ([M-15]⁺) and 137/139 (~1:1) corresponding to [(CH₃)₂SiBr]⁺, both mono-bromine silylated fragments typical from halocarboxylic acids pattern fragmentation [33]. The m/z value of these two fragments differs by 2 units from those observed for 3-bromopropanoic acid, evidencing the existence of a double bond at C2-C3. Moreover, the three signals observed in the spectrum of 3-bromoprop-2-enoic acid TMS derivative at m/z 143 [M-Br]⁺, 75 (base peak, [HOSi(CH₃)₂]⁺) and 53 (loss of trimethylsilanol and HBr resulting the fragments [C₃H₃O]⁺), all corresponding to non-brominate fragments, confirm the proposed identification of compound at 8.5 min. This compound was previously identified on the A. armata as ethyl ester [14].

The presence of halogenated alcohols and carboxylic acids in Asparagopsis species was already reported in the literature [11,14,34]. The results of several studies show that these are toxic metabolites that, in addition to exhibiting antimicrobial activity, confer a competitive advantage over predators and other species [35,36]. Moreover, to our best knowledge, this is the first time that 1,4-dibromobuten-1-ol and its isomer have been reported and quantified in the Asparagopsis genus.

The second most abundant family of compounds was the fatty acids (35.8%), being the content of saturated acids 5.1 times higher than the content of unsaturated acids (Figure 4). This can be an asset since saturated fatty acids seem to have a beneficial effect on the modulation of the immune system on food-borne bacterial infection [37].

The results of Table 4 show that the second most abundant compound is palmitic acid (20.3%), being the most plentiful fatty acid (57.0%). In comparison, the second most abundant fatty acid is myristic acid (16.1%). These results are in line with those published by Pereira et al. [38] for the same species, where palmitic and myristic acids are, by far, the most abundant fatty acids. Interestingly, in line with this result, the monoacylglycerols of these two acids, monomyristin and monopalmitin, were identified and quantified in the extract (Table 4; Rt = 41.5 and Rt = 43.3 min, respectively), representing about 2.1% of the compounds detected.

As far as unsaturated fatty acids are concerned (Figure 4), the most abundant is oleic acid ((9Z) 9-octadecenoic acid). It is the third most abundant fatty acid (9.83%), representing only 3.50% of the identified compounds.

From the point of view of beneficial effects on health, the presence of oleic acid can be considered an asset, while the high content of palmitic acid can be seen as an obstacle to seaweed consumption. However, we draw readers’ attention to the fact that data in the literature suggest that the potential adverse effect of saturated acids is controversial and should be reviewed [39,40]. Moreover, the results show that A. armata can be valued as a source of palmitic acid. In fact, this compound is described as modulating the immune response [37] and it is an interesting antifouling agent due to its action against the first bacterial colonies on submerged surfaces [41].

Neither polyunsaturated acid nor unsaturated acids with trans configuration were detected, contrary to what is reported by Pereira et al. [38], where trans-oleic acid is detected in greater amounts than cis-oleic acid, and small amounts of arachidonic and eicosapentaenoic (EPA) acids are also noticed. These discrepancies may be related to geographical, seasonal, and/or environmental factors, but above all, due to the significant differences between sample preparation procedures before GC-MS analysis.

Only one compound from the hydrocarbon family has been identified, the heptadecane (Table 4, Rt = 25.4 min, [M]^+• at m/z 240;). This alkane represents 2.7% of the total content of compounds, being the seventh most abundant. Although some hydrocarbons have been identified in the genus Asparagopsis [42], they have a chain of up to 5 carbons, while in this work, a long-chain alkane (17 carbons) is identified for the first time.

Cholesterol was the only sterol detected in the dichloromethane extract of A. armata, corresponding to 7.71 mg/100 g of dry seaweed (1.8% of identified compounds). This result aligns with the literature [12,13] that describes cholesterol as the most abundant sterol in this species. Lopes et al. [13] indicate a total cholesterol content of 28.92 mg/100 g of dry material, a value higher than the one reported here. This difference is justified because cholesterol exists mainly in non-free form as a constituent of the cell membrane, being released during the alkaline hydrolysis to which the sample was submitted in work by Lopes et al. [13]. It should be noted that the sterol content of Asparagopsis species is variable and depends on several factors (e.g., geographic, environmental, and seasonal) but mainly dependent on the life cycle phase [12]. Despite its “bad reputation” as a constituent of food products, cholesterol is a valuable natural product due to its chemical skeleton being easily transformable into new derivatives with diverse applications, such as drug delivery, production of liquid crystals and gelling agents, hormone precursor, and bioactive compounds [43].

4. Conclusions

The initial study on applying different methodologies to obtain polar extracts of A. armata showed that the choice of the extraction method would have to consider which compounds are intended to be extracted and the intended application for the obtained extract. The chemical profile of the water extract obtained by maceration (extract 2) has greater chemical diversity and is economically cheaper.

Herein, for the first time, the aqueous and lipophilic A. armata extracts were tested as anti-aging agents with antioxidant and/or enzymatic inhibitors action. The polar extract was the most active, exhibiting the ability to inhibit 43.20 ± 2.58% of elastase activity at a 250 µg/mL concentration. On the other hand, although the lipophilic extract is a weak cholinesterase inhibitor, it is a dual inhibitor (it inhibits acetyl and butyryl-cholinesterase identically), which constitutes an advantage concerning its potential as an agent against Alzheimer’s Disease.

Qualitative analysis by UHPLC-MS demonstrates that A. armata water extract is rich in phenolic compounds bearing bromine atoms; furthermore, the cinnamic acid scaffold is a prominent nucleus. The secondary metabolites herein described may explain the seaweed persistence and absence of predators. Furthermore, the anti- elastase activity mentioned above may be related to these phenolic compounds present in the water extract; nevertheless, more studies are essential.

The analysis of the most lipophilic fraction of A. armata (dichloromethane extract) by GC-MS allowed to identify and quantify 25 compounds, seven of them for the 1st time in this species, such as two dibrominated unsaturated alcohols, the 1,4-dibromobuten-1-ol and its isomer with the bromine atoms in different positions (a total of 166.2 mg/100 g of dry algae, 40.6% of identified compounds); two monobromine unsaturated alcohols, the bromotridecenol and its isomer with double bond on different position (a total of 20.6 mg/100 g of dry algae, 5.0% of identified compounds); one alkane, the heptadecane (a total of 11.2 mg/100 g of dry algae, 2.7% of identified compounds); and two monoacylglycerols, the monopalmitin and the monomyristin (a total of 8.85 mg/100 g of dry algae, 2.1% of identified compounds).

The halogenated compounds and fatty acids are the two major compound families in the extract, being the 1,4-dibromobuten-1-ol and the palmitic acid the two most abundant identified compounds (155 and 83.4 mg/100 g of dry algae, respectively) and the myristic acid the third most abundant compound (23.5 mg/100 g of dry algae). The unsaturated fatty acids family, mainly 9Z-octadecenoic acid (14.4 mg/100 g of dry algae), corresponds to nearly 6% of the identified compounds.

As it is already known that no completely satisfactory method allows the analysis of the entire range of halogenated compounds of the Asparagopsis species, as they have a wide range of solubilities and boiling points [44], the work presented here is innovative as it allows the identification of a variety of lipophilic and halogenated aromatic compounds structurally distinct from those identified so far in A. armata.

Considering what is already known about the ecotoxicological effect of several halogenated compounds identified in Asparagopsis species [11,45], which give them a competitive advantage, and the commercial value of several scaffold phytochemicals identified in this species, the results obtained herein open new perspectives for valuing the A. armata as a source of halogenated compounds and fatty acids with high biotechnological and economic potential.

Valuing invasive species as a source of value-added natural products is an approach that promotes biodiversity conservation and ecosystem sustainability. It increases the algae harvest, allowing the assisted recolonization of free space by native species, because it increases the demand for existing and available biomass.
