Article

The Role of Brownmillerite in Preparation of High-Belite Sulfoaluminate Cement Clinker

1
State Key Laboratory of Environment-Friendly Energy Materials, School of Material Science and Engineering, Southwest University of Science and Technology, Mianyang 621010, China
2
Jiahua Special Cement Co., Ltd., No. 2 Ma’anshan Jiufeng Rd, Shizhong District, Leshan 614003, China
3
Shijiazhuang Chang’An Yucai Building Materials Co., Ltd., No. 11 Fucheng Rd., Shijiazhuang 051430, China
*
Authors to whom correspondence should be addressed.
Appl. Sci. 2022, 12(10), 4980; https://doi.org/10.3390/app12104980
Received: 30 March 2022 / Revised: 27 April 2022 / Accepted: 12 May 2022 / Published: 14 May 2022
(This article belongs to the Section Materials Science and Engineering)

Abstract

High-belite sulfoaluminate cement (HBSC) clinker containing brownmillerite was prepared using the industrial raw materials limestone, aluminum tailings, aluminum ore waste rock, and anhydrite. The effect of brownmillerite on clinker sintering and clinker minerals and the mechanical performance of HBSC was investigated using thermal analysis, petrographic analysis, and quantitative X-ray diffraction (QXRD). Results indicated that brownmillerite promoted the formation of clinker minerals and stabilized calcium sulfoaluminate (C4A3$) through the substitution of Fe3+ for Al3+ in C4A3$, which increased the actual C4A3$ content and decreased the brownmillerite content compared to that of the designed theoretical mineral composition. However, the early compressive strength of HBSC pastes decreased with the increase in brownmillerite content due to the decrease in the total amount of early-strength clinker minerals. Brownmillerite also influenced belite (C2S) structures and increased the γ-C2S content with poor hydration activity, thus inhibiting the strength development of HBSC pastes. The proper amount of brownmillerite in HBSC clinker can ensure the early strength and strength development of HBSC pastes.
Keywords: brownmillerite; high-belite sulfoaluminate cement clinker; mineral composition; compressive strength brownmillerite; high-belite sulfoaluminate cement clinker; mineral composition; compressive strength

1. Introduction

The production of Portland cement clinker generates huge carbon emissions due to the combustion of fossil fuel and decomposition of limestone. It is not easy to further reduce carbon emissions through energy conservation and emission reduction technologies for traditional Portland cement production. Developing new cement clinkers with a lower sintering temperature and CaO content seems to be one of the most important directions for carbon emission reduction in the cement industry [1,2,3,4].
The main minerals in Portland cement are alite (C3S), belite (C2S), tricalcium aluminate (C3A), and ferrite solid solution (brownmillerite). Among these, the formation of C2S minerals requires lower energy and limestone consumption. In particular, the hydration rate and heat release of C2S are obviously lower than other clinker minerals. Therefore, clinker with C2S as the dominant mineral has been considered an ideal green low-carbon cementitious material due to its low content of CaO, ultralow hydration heat, high later mechanical performance, and high corrosion resistance [5]. However, the low early hydration rate of C2S leads to the lower early mechanical performance of cement, which significantly decreases the construction speed. Researchers have tried to activate or stabilize higher hydration activity C2S through sintering parameter adjustment or mineral/ion doping, but few results have been satisfactory. In fact, a third series of cement, named sulfoaluminate cement, was invented in the 1970s. Anhydrous calcium sulfoaluminate (C4A3$) is the main mineral in sulfoaluminate cement clinker. Sulfoaluminate cement clinker also has low calcination temperature and CaO content, which effectively reduces the use of fossil fuel and limestone [6]. At present, sulfoaluminate cement has been successfully used in emergency repair and construction projects, anti-seepage and plugging applications, construction in winter, GRC products, and other construction projects [7,8], because of its fast setting, high mechanical performance, low alkalinity, microexpansion and corrosion resistance. However, a high-quality bauxite requirement, high expansibility and unstable strength growth have limited the sulfoaluminate cement production and application. Based on the characteristics of C2S and C4A3$ minerals, the combination of C2S and C4A3$ minerals in a high-belite sulfoaluminate cement (HBSC) system has been proposed to overcome the respective shortcomings of belite cement and sulfoaluminate cement [9,10,11,12,13,14]. It is well known that an appropriate amount of brownmillerite can promote the sintering reaction and reduce the calcination temperature. In industrial-scale production, the aluminum material quality for HBSC is lower than that for sulfoaluminate cement, and higher Fe2O3 usually exists in aluminum materials. Therefore, in this study, a large number of brownmillerite phases will be introduced in the firing process of HBSC. At the present time, the effects of tetracalcium ferrite (C4AF) and brownmillerite on the sintering and properties of Portland cement clinker, high belite cement clinker and sulfoaluminate cement clinker have already been researched [15,16,17,18,19]. Some researchers pointed out that brownmillerite mainly influenced the later strength, while others believed that the role of brownmillerite in various types of cement should be correctly evaluated and understood. A poor cementitious property of brownmillerite was observed in high-alkalinity Portland cement paste, but its strength contribution was greater in low-alkalinity cement paste [20]. However, the role of brownmillerite in the preparation of HBSC clinker has not been made clear until now.
This study aims to prepare a kind of green and low-carbon HBSC. Currently, the related research on high-belite sulfoaluminate cement is still in the laboratory stage, and it cannot be fully applied in production. The main reason is that the differing grades of industrial raw materials, especially changes in iron content, greatly influence its production and performance. In this study, low-grade aluminum material with high iron content was selected to investigate its influence on HBSC because it can improve the material selection and adaptation range for HBSC production. It can also promote this technology application to fill the gap between scientific research and application.
In this study, HBSC clinkers containing different contents of brownmillerite were prepared. The role of brownmillerite in preparing HBSC clinker was investigated to provide references for the industrial production of HBSC clinker with high brownmillerite content.

2. Experimental Section

2.1. Materials

Industrial raw materials, including limestone (LS), aluminum tailings (AT) which were the residual material of aluminum ore for sintering ceramics, waste rocks of aluminum mine (AM) that were the waste rock of bauxite, and anhydrite (AH), were all provided by Qianghua Special Cement Engineering Co., Ltd., Sichuan Province, China. The main chemical compositions and trace elements of raw materials are shown in Table 1 and Table 2, respectively.
It can be seen from Table 1 that the content of SiO2 in AT is higher than that of bauxite (SiO2 < 15.0 wt%) used for sulfoaluminate cement, and the content of Al2O3 is much lower than that of bauxite (Al2O3 > 55.0 wt%) used for sulfoaluminate cement. Similarly, the content of SiO2 in AM is higher and the content of Al2O3 is lower. At the same time, its content of Fe2O3 is higher (Fe2O3 > 20%) than that of conventional bauxite (Fe2O3 < 10%) used for sulfoaluminate. Both materials are inferior and unsuitable in Portland cement and sulfoaluminate cement. However, they are just suitable for preparing HBSC. At the same time, they contain some trace elements conducive to sintering, such as Cuo, ZnO, SrO, Bao, etc., and harmful elements (Cl, Cr2O3, MnO etc.) are very low, as shown in Table 2.

2.2. Preparation

2.2.1. Mineral Design of Clinker

Compared to sulfoaluminate cement clinker, whose mineral content is mainly anhydrous calcium sulfoaluminate (above 55 wt%) and a small content of brownmillerite (below 5 wt%), the mineral composition of high-belite-sulfoaluminate cement (HBSC) clinker containing brownmillerite, as used in this study, is different. Its mineral content is mainly C2S (above 45 wt%) and the content of brownmillerite is more than 10 wt%. So, the traditional proportioning rate range and calculation formula cannot be applied, and thus, the mineral composition of HBSC clinker was directly designed, taking into account the increased content of brownmillerite. The chemical composition was calculated by optimizing the Bogue formula [21]. Detailed principles are assumed as follows: (1) all Fe2O3 forms brownmillerite phase 4CaO·Al2O3·Fe2O3 (C4AF); (2) all Al2O3 forms 4CaO·3Al2O3·SO3 (C4A3$) except for the brownmillerite phase; (3) remaining CaSO4 exists in the form of free CaSO4 (f-CS); (4) all SiO2 forms 2CaO·SiO2 (C2S, belite); (5) residual CaO exists in the form of free CaO (f-CaO). Based on the above assumptions, the mineral composition of clinker was calculated according to Equations (1)–(4):
w(C4AF) = 3.04 * w(Fe2O3)
w(C4A3$) = 1.995 * [w(Al2O3) − 0.641 * w(Fe2O3)]
w(f-CS) = 1.70 * [w(SO3) − 0.26 * w(Al2O3) + 0.17 * w(Fe2O3)]
w(C2S) = 2.87 * w(SiO2)
In order to study the influence of brownmillerite upon HBSC, the content of C2S and free gypsum in HBSC clinker shall be controlled to be consistent according to the characteristics of the raw materials, and the brownmillerite shall be adjusted to increase by 5.0%. According to the calculation of batching formula, the increase in brownmillerite content will be accompanied by a decrease in anhydrous calcium sulfoaluminate. In order to maintain physical properties, the content of anhydrous calcium sulfoaluminate should not be too low (>10.0 wt%). The mix design of the HBSC raw materials and the theoretical mineral composition of the designed HBSC clinker are shown in Table 3.

2.2.2. Clinker Preparation

Raw materials, including LS, AT, AM, and AH, were dried and separately ground by a φ500 × 500 mm test ball, according to the reference standard GB/T 26567-2011 test method for the grindability of cement raw materials-bond method. The 80 μm sieve residue was less than 10% for all raw material powders, according to the reference standard GB/T 26566-2011 test method for the burnability of cement raw meal. Powders of raw materials were weighted according to the proportioning design in Table 1 and evenly mixed. Then, 10 wt% water of solids was added and mixed with powders, and the wet powders were then pressed into a φ120 mm × 10 mm waveform cake. Cakes dried in an oven at 105 ± 5 °C to a constant weight were then placed on a platinum sheet and sintered in a high-temperature electric furnace at the set temperature for 30 min. After sintering, the cakes were taken out quickly and cooled to room temperature to obtain the cement clinker.

2.2.3. Cement Preparation

The prepared clinkers were mixed with 8 wt% anhydrite, then ground into powders with a specific surface area of 350 ± 10 m2/kg by a vibration mill to obtain HBSC. HBSC pastes were prepared by using a water-to-binder ratio of 0.40. Pastes were molded in 20 × 20 × 20 mm steel molds, then cured in a curing box at 20 °C and 95% RH for designated periods.

2.3. Characterization

X-ray diffraction (XRD) patterns were collected on a Germany Bruker D8 ADVANCE diffractometer with Cu Ka radiation (λ = 1.5406 Å) generated at room temperature at 60 kV and 80 mA. Powders were step-scanned from 5° to 70° with a step size and time per step of 0.02° and 0.5 s, respectively. Identification of clinker minerals was implemented by analysis of EVA software. Rietveld refinement quantitative phase analysis was performed by using TOPAS software. The refined overall parameters included emission profile, background, instrument factors, and zero error. The Rwp value of the profile refinement was used to evaluate the quality of the fits in the Rietveld refinement process. Generally, the result was considered reliable if the Rwp value was less than 10% [22]. The ICSD codes of the main minerals in BBSC clinker in this study are shown in Table 4 [22,23].
Thermal analysis of the sample was conducted using thermogravimetry and differential scanning calorimetry (TG-DSC, STA449F3Jupiter) produced by Netzsch Group of Germany, at a temperature ranging from 30 °C to 1400 °C in a nitrogen atmosphere with the rate of temperature increase standing at 10 °C/min.
In order to better observe the internal and representative mineral structure of the clinker, it was necessary to break the clinker test cake into samples with a particle size of less than 5mm. After the clinkers were crushed, we put the representative sample into the molten but unburned sulfur for soaking, and then poured them into the specific mold to complete the inlaying of clinker samples and prepare the lithofacies light sheet. Then, the lithofacies light sheet was ground by the grinding and polishing machine until the surface was as bright as a mirror without scratches. In addition, 1% ammonium chloride solution was used to erode the clinker, and mineral morphology was observed after erosion [24]. The mineral morphology of clinkers was analyzed using the research-grade upright digital material microscope (Axio Scope.A 1) produced by CARL ZEISS of Germany.

3. Results and Discussion

3.1. Thermal Evolution of HBSC Raw Materials

TG/DTA curves of HBSC raw materials (set out in Table 1) are shown in Figure 1; the corresponding data of characteristic peaks in the DTA and TG curves are listed in Table 5 and Table 6, respectively. There is an endothermic peak (Figure 1a) and slight weight loss (Figure 1b) between 100 °C and 130 °C, which was attributed to physical water evaporation. The second endothermic peak (Figure 1a) associated with an obvious weight loss (Figure 1b) located at 400–600 °C was attributed to the decomposition of boehmite (γ-AlOOH) in aluminous materials. The highest endothermic peak (Figure 1a), associated with the maximum weight loss (Figure 1b) located at 700–900 °C, is observed, which corresponded to the decomposition of LS. From 950 °C to 1280 °C, many of the endothermic peaks in Figure 1a appeared without weight losses in Figure 1b. From 1280 °C to 1330 °C, an exothermic peak appeared without weight losses, which was the clinker mineral formation stage accompanied by complex solid-phase reaction processes, including the formation of anhydrous C4A3$, C2S, and brownmillerite C4AF. It was noted that the endothermic temperature would be slightly decreased with the increase in designed brownmillerite content, as shown in Table 5. It can be seen from the DTA curve that the reaction peak at temperatures from 1280 °C to 1330 °C becomes evident with the increase in brownmillerite content. When the temperature increased above 1330 °C, another endothermic peak associated with weight loss should indicate the decomposition of some clinker minerals, especially the sulfoaluminate phases. As shown in Table 6, weight loss in this stage except for GF-1 decreased with the increase in designed brownmillerite content, and the weight loss was lower than that of the sample with brownmillerite content of less than 20% (GF-1), which preliminarily showed that the brownmillerite content could stabilize the anhydrous calcium sulfoaluminate and reduce its decomposition. According to the above analysis, the sintering temperature of HBSC clinker was mainly between 1200 °C and 1400 °C.

3.2. Sintering of HBSC Clinker Containing Brownmillerite

3.2.1. Burnability

The observed physical appearance of HBSC clinker is summarized in Table 7. According to the TG-DTA results, sintering of HBSC clinker containing brownmillerite at 1300 °C, 1320 °C, 1330 °C and 1350 °C for 30 min was proposed, which was also used to evaluate the burnability of HBSC raw materials. The sintering temperature of clinker with proper appearance quality decreased with the increase in designed brownmillerite content. Normal and dense clinker was obtained at 1300 °C when the designed brownmillerite content in HBSC clinker exceeded 20%. Under these conditions, the clinker was hard and fully calcined. Higher sintering temperatures above 1300 °C led to over-burnt or molten HBSC clinker with higher designed brownmillerite content, causing the clinker to stick to the platinum sheet. According to the appearance of HBSC clinkers sintering at different temperatures, the shrinkage of clinkers GF-1, GF-2 and GF-3 was normal and dense at 1330 °C, while clinkers GF-4 and GF-5 were slightly over-calcined, leading to slight sticking, which could be removed from the platinum sheet. Most clinkers were seriously over-calcined and molten and adhered to the platinum sheet and proved hard to remove when the sintering temperature exceeded 1330 °C. In additiona sintering temperature below 1330 °C led to the under-burning of HBSC clinker. It can be seen from Figure 2 that the color of the clinker gradually changed from dark brown to light black with the increase in designed brownmillerite content, and the clinker became denser and glossier in this case. HBSC clinkers also became easier to melt with the increase in designed brownmillerite content.
f-CaO of HBSC clinker containing brownmillerite sintering at different temperatures was detected. The results are shown in Table 8. f-CaO of the HBSC clinker sintering at 1300 °C was lower than 1.0% due to the formation of a large number of clinker minerals. The content of f-CaO in HBSC clinker decreased gradually with the increase in sintering temperature. Less than 0.30% of f-CaO was detected when the sintering temperature was elevated to 1330 °C, which indicated that the clinker had been completely sintered. As observed in Figure 1b, sulfoaluminate phases would decompose above 1300 °C, which increased the f-CaO in the HBSC clinker. However, f-CaO in HBSC clinker sintering at 1350 °C, except for GF-1 and GF-2, was further decreased compared with HBSC clinker sintering at 1330 °C. This finding demonstrated that brownmillerite had a particular stabilizing effect on anhydrous calcium sulfoaluminate when the designed brownmillerite content in HBSC clinker was greater than 20%. Based on the above, we concluded that HBSC raw materials designed in this study had better burnability, especially the samples sintering at 1330 °C.

3.2.2. Mineral Morphology

Petrographic images of HBSC clinker sintering at 1330 °C for 30 min are shown in Figure 3. These show mainly small, tree leaf-like and round, grain-like mineral particles in HBSC clinkers. Most mineral particles were blue, though some were brown. Some minerals had parallel crystal lines under the erosion of ammonium chloride solution. Tree leaf-like minerals with smooth edges and sizes in the length of 10–60 μm were identified as C2S based on morphological analysis [25,26,27]. Relatively uniform round particles with sizes of 2–5 μm could also be identified as C2S. The content of C2S increased with the increase in designed brownmillerite content. White round minerals that appeared in the clinker with sizes of 5–10 μm could be identified as brownmillerite, which increased with the increase in designed brownmillerite content (Figure 3d,e). Gray minerals with regular tetragonal and hexagonal shapes or fragmented particles could be identified as anhydrous C4A3$. Petrographic analysis showed that the high content of brownmillerite had an obvious impact on the morphology of HBSC clinker minerals. C2S was found mainly as tree leaf-like and round particles, and the leaf-like C2S increased with the increase in designed brownmillerite content. When the designed brownmillerite content exceeded 25%, there was an apparent white round brownmillerite mineral in the clinker, which also increased with the increase in designed brownmillerite content, and the mineral nest appeared in this case.

3.2.3. Mineral Composition

The mineral composition of HBSC clinker containing brownmillerite sintering at 1330 °C for 30 min was analyzed by qualitative XRD (QXRD). QXRD patterns are shown in Figure 4. The corresponding mineral compositions calculated through QXRD are listed in Table 9. The main minerals in HBSC clinker containing brownmillerite were C4A3$, C2S, brownmillerite, gehlenite (C2AS), perovskite and C3A. As shown in Table 9, C4A3$ and brownmillerite were slightly higher and much lower, respectively, than the theoretical mineral compositions shown in Table 2. It has been reported that either Fe3+ or Al3+ could occupy al3+ position in C4A3$ structures to form a C4A3-xFx$ solid solution. The replacement amount of Fe3+ could range from 2% to 10% or even higher [15,16,17,18,26,27,28,29]. Substitution of Fe3+ for Al3+ in C4A3$ led to a lower content of actually generated brownmillerite than the theoretical calculation value. Meanwhile, some Al3+ existed in the form of C3A (Table 9). Overall, the C4A3$ increased to more than the theoretical mineral composition with the increase in the designed brownmillerite content in HBSC clinker; that is, brownmillerite promoted the formation of C4A3$, and also had a specific stabilizing effect for C4A3$. The content of C2S differed little from the theoretical content, as shown in Table 2 and Table 9. However, β-C2S content tended to decrease with the increase in designed brownmillerite content, while γ-C2S content showed an increasing trend. Fe2O3 can interact with β-C2S to form an unstable solid solution, further reduced to FeO in a reductive atmosphere to form CaO·FeO·SiO2 (CFS), thus destroying β-C2S lattices [30,31]. As is well known, γ-C2S has poor hydration activity, and the increase in γ-C2S with the increase in designed brownmillerite content indicated that brownmillerite destroyed the β-C2S lattice and might affect the hydration of HBSC.

3.3. Mechanical Performance of HBSC Containing Brownmillerite

Figure 5 shows the compressive strength of HBSC pastes after curing for different time periods. After 1 day, 3 days and 7 days, the compressive strengths decreased with the increase in brownmillerite content, which was attributed to the decrease in the total amount of early-strength clinker minerals (C4A3$ and C4AF, in Table 8) [32,33]. After longer periods (21 days and 28 days), the compressive strength of HBSC pastes increased when designed brownmillerite in HBSC clinker was below 25%, but decreased when designed brownmillerite in HBSC clinker was above 25%. Relatively higher content of β-C2S promotes the strength development of HBSC containing brownmillerite. However, β-C2S would be destroyed and γ-C2S would be increased with the increase in designed brownmillerite, which significantly decreased the later compressive strength of HBSC pastes. A proper amount of C4AF can ensure the early strength and the strength development of HBSC.

4. Conclusions

The effect of brownmillerite phase content on the sintering of HBSC clinker prepared with industrial raw materials is complex. The high brownmillerite phase promoted the formation of clinker minerals and stabilized the C4A3$ through the substitution of Fe3+ for Al3+ in C4A3$, which increased the actual C4A3$ content and decreased the C4AF content compared to that of designed theoretical mineral composition. At the same time, it changed the crystal form and morphology of C2S minerals, and its existing forms and morphologies also changed significantly. The early compressive strength of HBSC pastes decreased with the increase in brownmillerite content due to the decrease in the total amount of early-strength clinker minerals. A proper amount of brownmillerite in the HBSC clinker ensured the early strength and the strength development of HBSC pastes.

Author Contributions

Conceptualization, X.C., J.L. and Z.L. (Zhongyuan Lu); methodology, X.C., J.L. and Z.L. (Zhongyuan Lu); software, X.C. and J.J.; validation, X.C. and J.L.; formal analysis, Z.L. (Zhongyuan Lu) and Y.X.; investigation, X.C.; resources, X.C.; data curation, X.C.; writing—original draft preparation, X.C.; writing—review and editing, X.C., J.L., S.N. and Z.L. (Zhenyu Lai); visualization, X.C., Y.N. and H.L.; supervision, Z.L. (Zhongyuan Lu) and Y.X.; project administration, X.C. and J.L.; funding acquisition, Z.L. (Zhongyuan Lu) and Y.X. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by Sichuan Science and Technology Program (No. 2019ZDZX0024), the National Natural Science Foundation of China (No. 51402246), Natural Science Foundation by Southwest University of Science and Technology (No. 19zx7126).

Institutional Review Board Statement

The study did not require ethical approval.

Informed Consent Statement

The study did not involve humans.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Gartner, E.; Hirao, H. A review of alternative approaches to the reduction of CO2 emissions associated with the manufacture of the binder phase in concrete. Cem. Concr. Res. 2015, 78, 126–142. [Google Scholar] [CrossRef]
  2. Cuberos, A.J.M.; de la Torre, Á.G.; Álvarez-Pinazo, G.; Martín-Sedeño, M.C.; Schollbach, K.; Pöllmann, H.; Aranda, M.A.G. Active iron-rich belite sulfoaluminate cements: Clinkering and hydration. Environ. Sci. Technol. 2010, 44, 6855–6862. [Google Scholar] [CrossRef] [PubMed]
  3. Baltakys, K.; Dambrauskas, T.; Rubinaite, D.; Siauciunas, R.; Grineviciene, A. Formation and hydration of eco-friendly cement using industrial wastes as raw materials. Sci. Rep. 2021, 11, 14742. [Google Scholar] [CrossRef] [PubMed]
  4. Han, S.; Zhong, J.; Yu, Q.; Yan, L.; Ou, J. Sulfate resistance of eco-friendly and sulfate-resistant concrete using seawater sea-sand and high-ferrite Portland cement. Constr. Build. Mater. 2021, 305, 753–760. [Google Scholar] [CrossRef]
  5. Popescu, C.; Muntean, M.; Sharp, J. Industrial trial production of low energy belite cement. Cem. Concr. Compos. 2003, 25, 689–693. [Google Scholar] [CrossRef]
  6. Gartner, E.; Sui, T. Alternative cement clinkers. Cem. Concr. Res. 2018, 114, 27–39. [Google Scholar] [CrossRef]
  7. El Khessaimi, Y.; El Hafiane, Y.; Smith, A.; Trauchessec, R.; Diliberto, C.; Lecomte, A. Solid-state synthesis of pure ye’elimite. J. Eur. Ceram. Soc. 2018, 38, 3401–3411. [Google Scholar] [CrossRef]
  8. Gao, Y.; Li, Z.; Zhang, J.; Zhang, Q.; Wang, Y. Synergistic use of industrial solid wastes to prepare belite-rich sulphoaluminate cement and its feasibility use in repairing materials. Constr. Build. Mater. 2020, 264, 201–213. [Google Scholar] [CrossRef]
  9. Isteri, V.; Ohenoja, K.; Hanein, T.; Kinoshita, H.; Tanskanen, P.; Illikainen, M.; Fabritius, T. Production and properties of ferrite-rich CSAB cement from metallurgical industry residues. Sci. Total Environ. 2020, 712, 208–219. [Google Scholar] [CrossRef]
  10. Chang, J.; Zhang, X.; Gu, Y.Y.; Zhang, Y.Y. Effects of pozzolanic reaction on carbonation degree and strength of steel slag compacts containing zeolite. Constr. Build. Mater. 2021, 277, 334–343. [Google Scholar] [CrossRef]
  11. Kiventerä, J.; Piekkari, K.; Isteri, V.; Ohenoja, K.; Tanskanen, P.; Illikainen, M. Solidifification/stabilization of gold mine tailings using calcium sulfoaluminate-belite cement. J. Clean. Prod. 2019, 239, 008–015. [Google Scholar] [CrossRef]
  12. Zhang, G.; Ren, Q.; He, J.; Jiang, S.; Cheng, X.; Yu, Y.; Huang, S.; Zhang, S.; Zhou, M. New understanding of early hydration of C4AF under surface vitrifification. Powder Technol. 2021, 377, 372–378. [Google Scholar] [CrossRef]
  13. Hertel, T.; Van den Bulck, A.; Onisei, S.; Sivakumar, P.P.; Pontikes, Y. Boosting the use of bauxite residue (red mud) in cement—Production of an Fe-rich calciumsulfoaluminate-ferrite clinker and characterisation of the hydration. Cem. Con.Res. 2021, 145, 463–480. [Google Scholar]
  14. Tao, Y.; Wan, D.; Zhang, W.; Wang, F.; Hu, S. Intrinsic reactivity and dissolution characteristics of tetracalcium aluminoferrite. Cem. Con.Res. 2021, 146, 485–493. [Google Scholar] [CrossRef]
  15. Yao, X.; Yang, S.; Huang, Y.; Wu, S.; Yao, Y.; Wang, W. Effect of CaSO4 batching in raw material on the iron-bearing mineral transition of ferric-rich sulfoaluminate cement. Constr. Build. Mater. 2020, 250, 783–792. [Google Scholar] [CrossRef]
  16. Hertel, T.; Van den Bulck, A.; Onisei, S.; Sivakumar, P.P.; Pontikes, Y. Synthesis Mechanism and Material Characterization of C4AF Obtained by the Self-propagating Combustion Reaction Method. J. Wuhan Univ. Technol. Mater. 2018, 3, 1099–1107. [Google Scholar]
  17. Martín-Sedeño, M.C.; Cuberos, A.J.; Ángeles, G.; Álvarez-Pinazo, G.; Ordónez, L.M.; Gateshki, M.; Aranda, M.A. Aluminum-rich belite sulfoaluminate cements: Clinkering and early age hydration. Cem. Concr. Rese 2019, 40, 359–369. [Google Scholar] [CrossRef]
  18. Benarchid, M.Y.; Rogez, J. The effect of Cr2O3 and P2O5 additions on the phase transformations during the formation of calcium sulfoaluminate C4A3S. Cem. Concr. Res. 2005, 35, 2074–2080. [Google Scholar] [CrossRef]
  19. Touzo, B.; Scrivener, K.L.; Glasser, F.P. Phase compositions and equilibria in the CaO-Al2O3-Fe2O3-SO3 system, for assemblages containing ye’elimite and ferrite Ca2(Al, Fe)O5. Cem. Concr. Res. 2013, 54, 77–86. [Google Scholar] [CrossRef]
  20. Idrissi, M.; Diouri, A.; Damidot, D.; Greneche, J.M.; Talbi, M.A.; Taibi, M. Characterisation of brownmillerite inclusion during the formation of calcium sulfoaluminate phase. Cem. Concr. Res. 2010, 40, 1314–1319. [Google Scholar] [CrossRef]
  21. Bullerjahn, F.; Schmitt, D.; Haha, M.B. Effect of raw mix design and of clinkering process on the formation and mineralogical composition of (ternesite) belite calcium sulphoaluminate ferrite clinker. Cem. Concr. Res. 2014, 59, 87–95. [Google Scholar] [CrossRef]
  22. Jadhav, R.; Debnath, N.C. Computation of X-ray powder diffractograms of cement components. Bull. Mater. Sci. 2021, 34, 1137–1150. [Google Scholar] [CrossRef]
  23. Álvarez-Pinazo, G.; Cuesta, A.; García-Maté, M.; Santacruz, I.; Losilla, E.R.; De la Torre, A.G.; León-Reinab, L.; Arandaa, M.A.G. Rietveld quantitative phase analysis of Yeelimite-containing cements. Cem. Concr. Res. 2012, 42, 960–971. [Google Scholar] [CrossRef]
  24. Irico, S.; Gastaldi, D.; Canonico, F.; Magnacca, G. Investigation of the microstructural evolution of calcium sulfoaluminate cements by thermoporometry. Cem. Concr. Res. 2013, 53, 239–247. [Google Scholar] [CrossRef]
  25. Morsli, K.; Angeles, G.; Zahir, M.; Aranda, M.A. Mineralogical phase analysis of alkali and sulfate bearing belite rich laboratory clinkers. Cem. Concr. Res. 2007, 37, 639–646. [Google Scholar] [CrossRef]
  26. Abir, F.; Mesnaoui, M.; Abouliatim, Y.; Nibou, L.; Labbilta, T.; El Hafiane, Y.; Smith, A. Effect of the addition of iron oxide on the microstructure of ye’elimite. Cem. Conr. Res. 2022, 151, 625–641. [Google Scholar] [CrossRef]
  27. Ndzila, J.S.; Liu, S.; Jing, G.; Wang, S.; Ye, Z. The effect of Fe3+ ion substitution on the crystal structure of ye’elimite. Ceram. Silik. 2020, 64, 18–28. [Google Scholar] [CrossRef]
  28. Cuesta, A.; De la Torre, G.; Losilla, E.R.; Santacruz, I.; Aranda, M.A.G. Pseudocubic crystal structure and phase transition in doped ye’elimite. Cryst. Growth Des. 2014, 14, 5158–5163. [Google Scholar] [CrossRef]
  29. Rungchet, A.; Poon, C.S.; Chindaprasirt, P.; Pimraksa, K. Synthesis of low temperature calcium sulfoaluminate-belite cements from industrial wastes and their hydration: Comparative studies between lignite fly ash and bottom ash. Cem. Concr. Compos. 2017, 83, 10–19. [Google Scholar] [CrossRef]
  30. De la Torre, A.G.; Cuberos, A.J.M.; Álvarez-Pinazo, G.; Cuesta, A.; Aranda, M.A.G. In situ powder diffraction study of belite sulfoaluminate clinkering. J. Synchrotron Radiat. 2011, 18, 506–514. [Google Scholar] [CrossRef]
  31. da Costa, E.B.; Rodríguez, E.D.; A Bernal, S.; Provis, J.; Gobbo, L.A.; Kirchheim, A.P. Production and hydration of calcium sulfoaluminate-belite cements derived from aluminium anodising sludge. Constr. Build. Mater. 2016, 122, 373–383. [Google Scholar] [CrossRef]
  32. Le Saoût, G.; Lothenbach, B.; Taquet, P.; Fryda, H.; Winnefeld, F. Hydration of calcium aluminate cement blended with anhydrite. Adv. Cem. Res. Thomas Telford 2018, 30, 24–36. [Google Scholar] [CrossRef]
  33. Huang, X.; Wang, F.; Hu, S.; Lu, Y.; Rao, M.; Mu, Y. Brownmillerite hydration in the presence of gypsum: The effect of Al/Fe ratio and sulfate ions. J. Am. Ceram. Soc. 2019, 102, 5545–5554. [Google Scholar] [CrossRef]

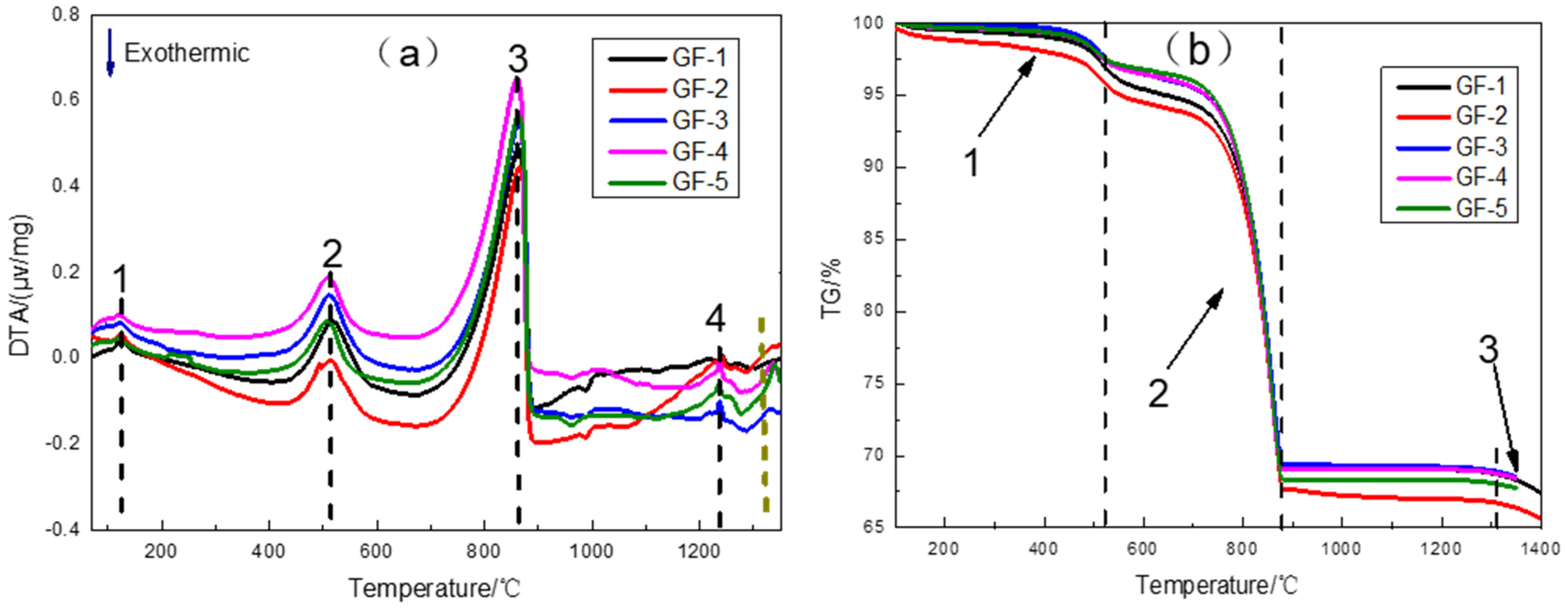

Figure 1. (a) DTA (1-Peak 1, 2-Peak2, 3-Peak3, 4-Peak4) and (b) TG (1-Stage I, 2-Stage II, 3-Stage III) curves of HBSC raw materials.
Figure 1. (a) DTA (1-Peak 1, 2-Peak2, 3-Peak3, 4-Peak4) and (b) TG (1-Stage I, 2-Stage II, 3-Stage III) curves of HBSC raw materials.
Applsci 12 04980 g001

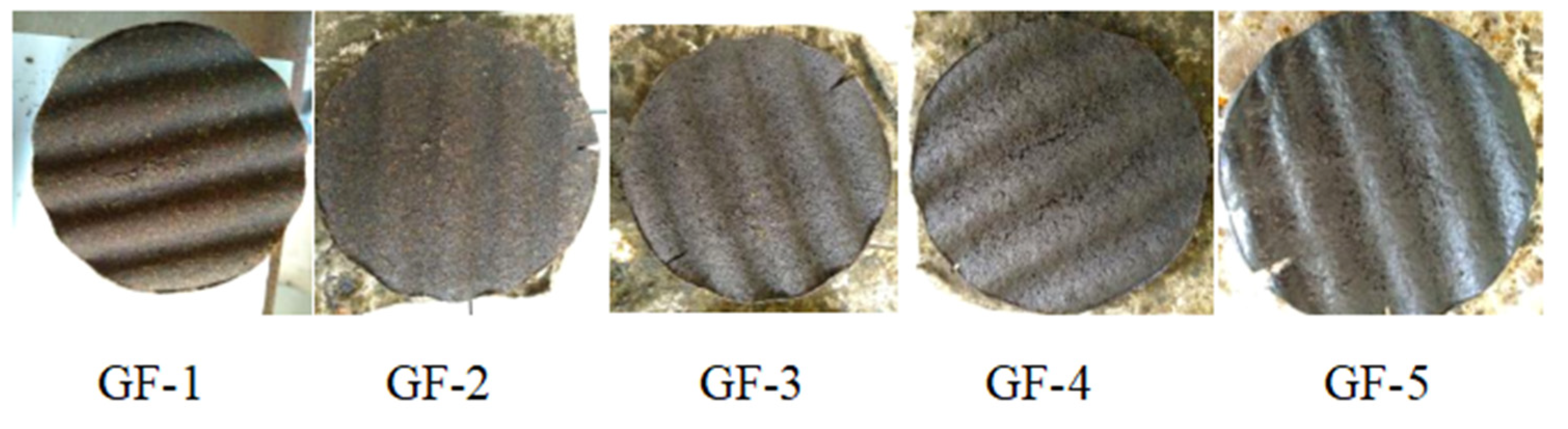

Figure 2. Photos of HBSC clinker appearance sintering at 1330 °C.
Figure 2. Photos of HBSC clinker appearance sintering at 1330 °C.
Applsci 12 04980 g002

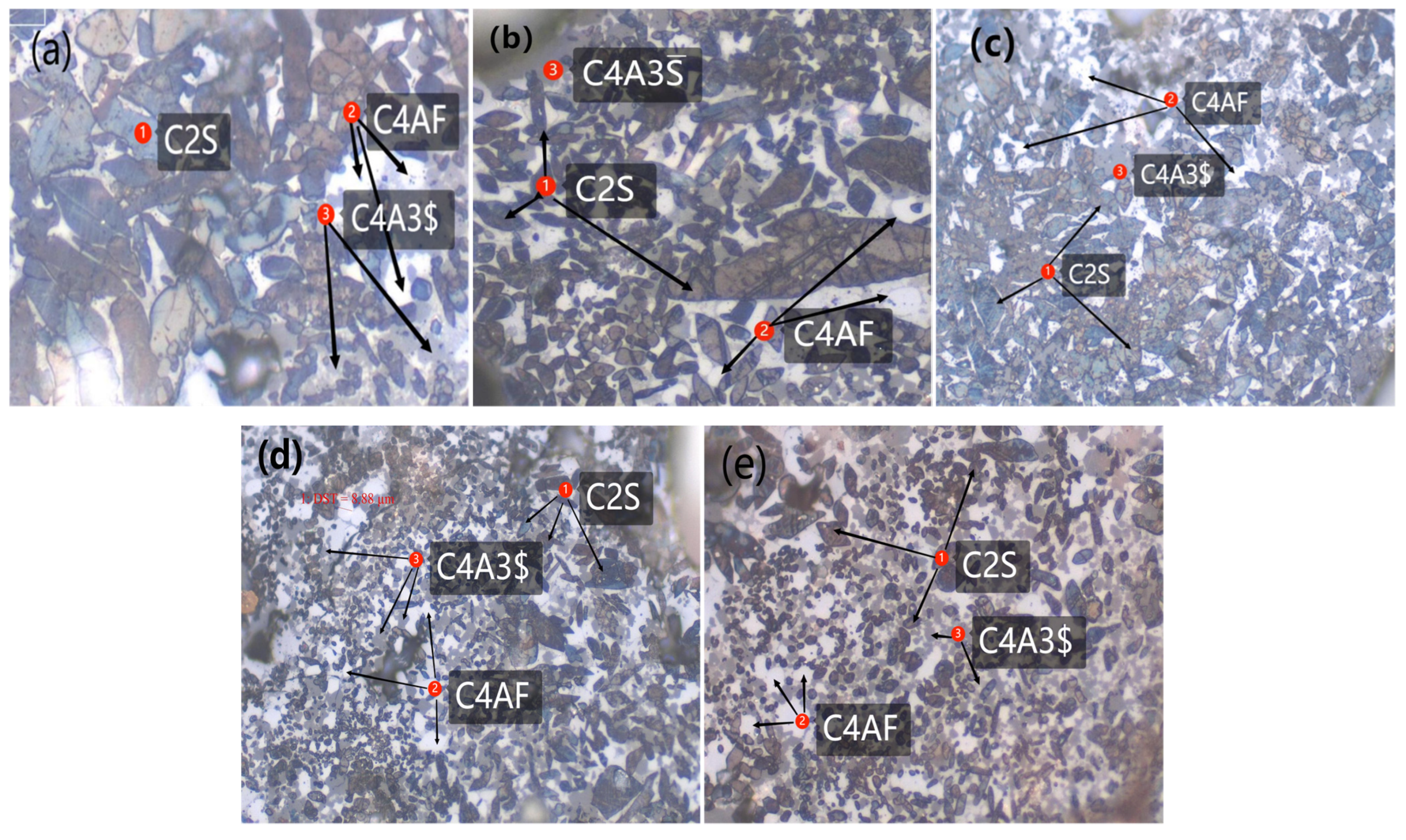

Figure 3. Petrographic images of HBSC clinker (a) GF-1 × 400, (b) GF-2 × 400, (c) GF-3 × 400, (d) GF-4 × 400, and (e) GF-5 × 400.
Figure 3. Petrographic images of HBSC clinker (a) GF-1 × 400, (b) GF-2 × 400, (c) GF-3 × 400, (d) GF-4 × 400, and (e) GF-5 × 400.
Applsci 12 04980 g003

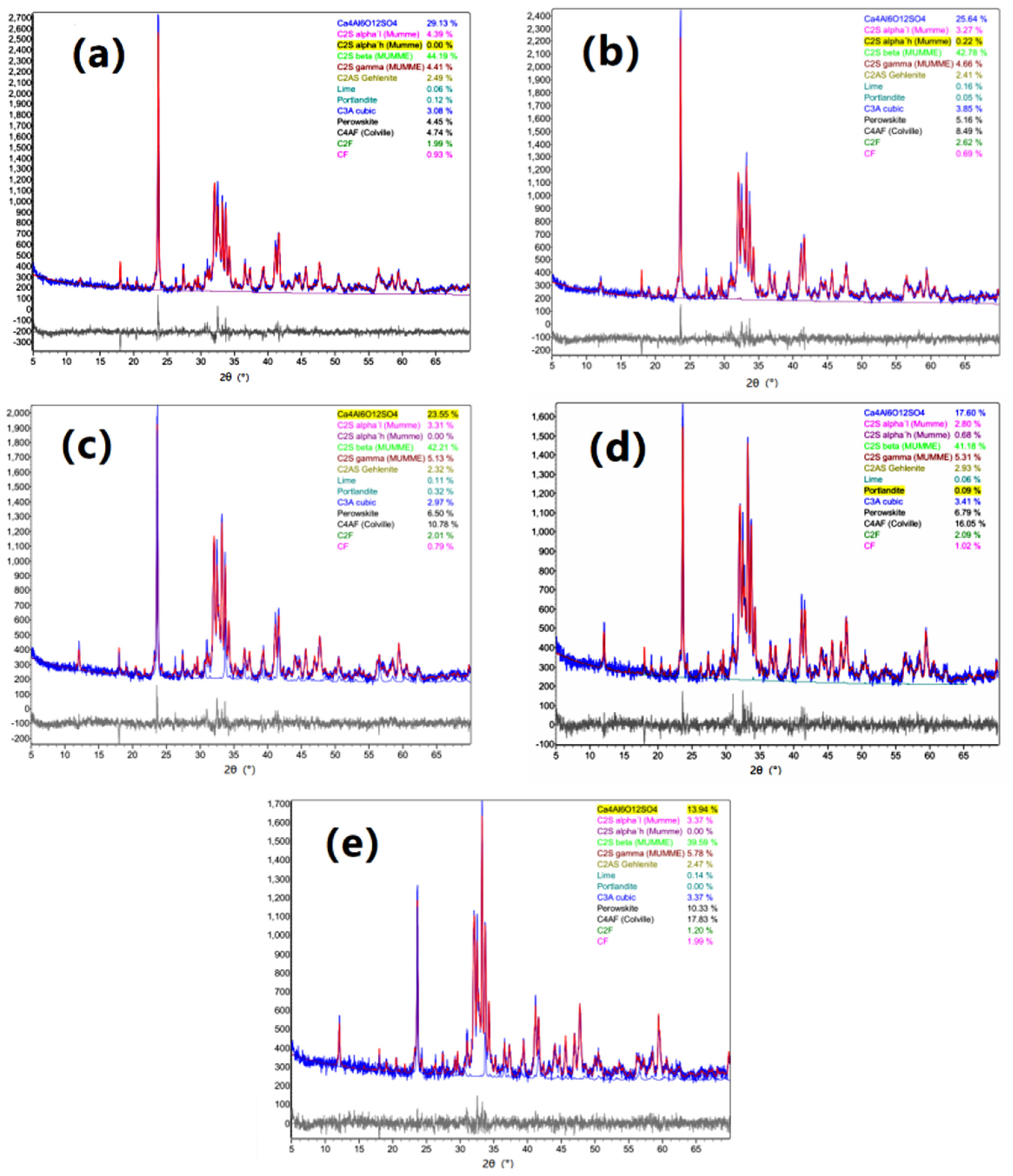

Figure 4. QXRD patterns of HBSC clinker containing brownmillerite (a) GF-1, Rwp = 5.80%, (b) GF-2, Rwp = 5.88%, (c) GF-3, Rwp = 5.90%, (d) GF-4, Rwp = 6.07%, and (e) GF-5, Rwp = 6.22%.
Figure 4. QXRD patterns of HBSC clinker containing brownmillerite (a) GF-1, Rwp = 5.80%, (b) GF-2, Rwp = 5.88%, (c) GF-3, Rwp = 5.90%, (d) GF-4, Rwp = 6.07%, and (e) GF-5, Rwp = 6.22%.
Applsci 12 04980 g004

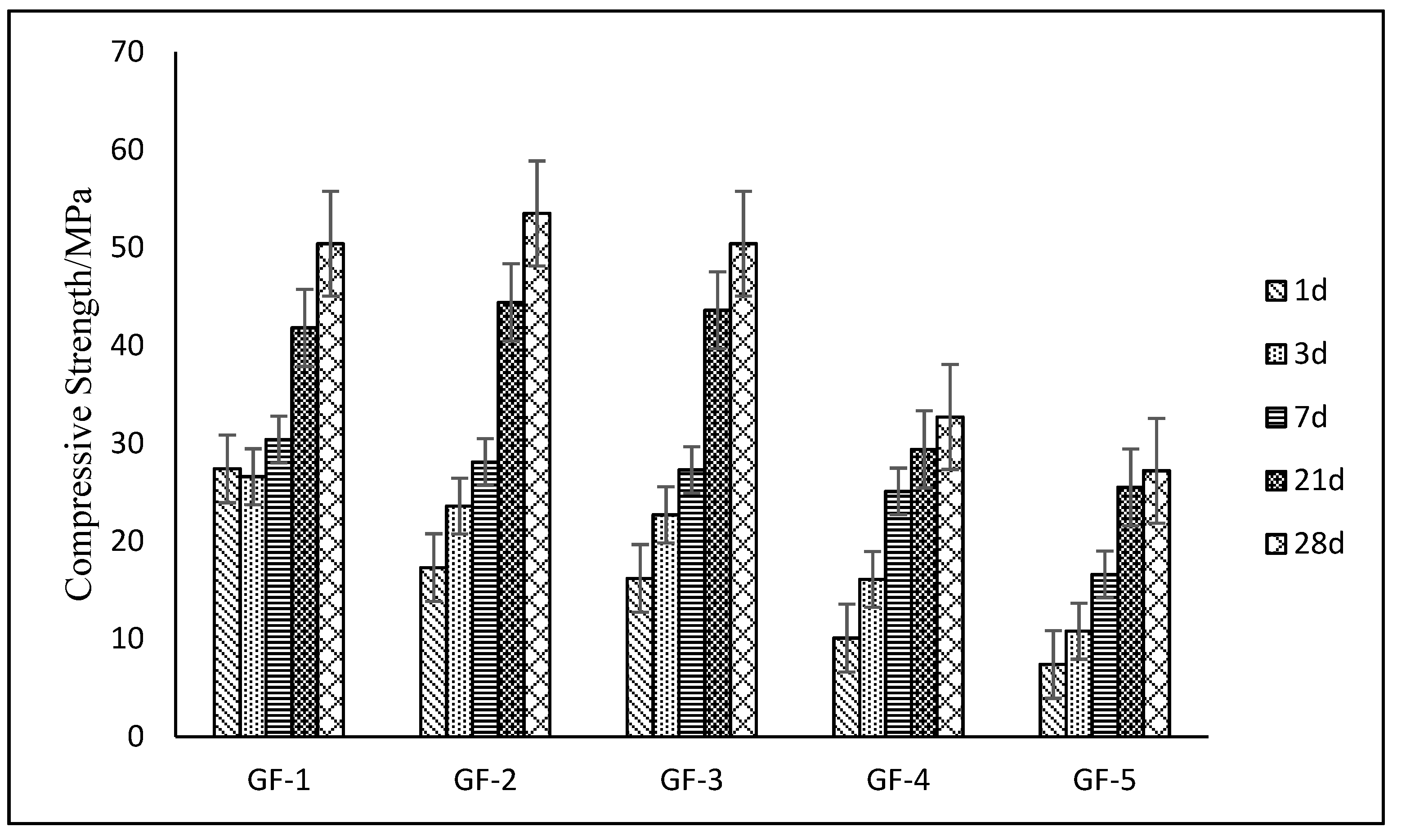

Figure 5. Compressive strength of HBSC pastes.
Figure 5. Compressive strength of HBSC pastes.
Applsci 12 04980 g005
Table 1. Main chemical compositions of raw materials.
Table 1. Main chemical compositions of raw materials.
MaterialsLossSiO2Fe2O3Al2O3CaOMgOTiO2SO3
LS43.371.030.160.2654.130.44--99.39
AT14.0637.201.8843.150.570.41-0.0597.32
AM9.7039.1824.4619.741.690.603.87-99.24
AH8.474.051.020.4133.855.12-46.6099.52
Table 2. Trace elements of raw materials.
Table 2. Trace elements of raw materials.
MaterialsClCr2O3MnONiOCuOZnOSrOZrO2BaO
LS0.0040.0100.0820.0150.0280.0220.0190.1430.065
AT0.0020.0140.0680.0200.0070.0200.0280.0650.062
AM0.0100.0090.0590.0100.0210.0150.0360.2370.057
AH0.0060.0030.0000.0040.0050.0030.4080.0000.020
Table 3. Mix design of raw materials and theoretical mineral composition of HBSC clinker.
Table 3. Mix design of raw materials and theoretical mineral composition of HBSC clinker.
SampleMix Design of Raw Materials (wt%)Minerals Composition (wt%)
LSAMAHATC4A3$C2SC4AFf-CS
GF-160.612.47.020.028.7951.5015.181.70
GF-261.217.86.015.024.2651.0020.241.56
GF-362.023.05.010.019.6950.2925.141.44
GF-462.828.24.05.015.0949.5730.071.31
GF-563.133.93.00.010.5749.3935.451.16
Table 4. ICSD of the main minerals in BBSC clinker and its hydration products in this study.
Table 4. ICSD of the main minerals in BBSC clinker and its hydration products in this study.
Mineralogical PhaseICSD
α-C2S81097
β-C2S81096
γ-C2S81095
C4A3$9560
C4AF9197
Perovskite62149
C2AS87144
Anhydrite16382
C2F27808
CF16695
Table 5. Key temperature point of exothermic or endothermic peaks in DTA curves (°C).
Table 5. Key temperature point of exothermic or endothermic peaks in DTA curves (°C).
SamplePeak 1 Peak 2Peak 3Peak 4
GF-1125.4516.5863.11241.9
GF-2121.9512.2864.51239.3
GF-3121.8512.3864.21238.1
GF-4120.7510.5860.41237.3
GF-5118.0507.5863.61235.8
Table 6. Weight loss of HBSC raw materials in TG curves (%).
Table 6. Weight loss of HBSC raw materials in TG curves (%).
SampleStage IStage IIStage III
GF-14.6525.630.89
GF-24.5126.631.08
GF-33.7026.840.89
GF-43.2627.300.65
GF-52.8728.480.58
Table 7. Physical appearance observations of HBSC clinker.
Table 7. Physical appearance observations of HBSC clinker.
Sample1350 °C1330 °C1320 °C1300 °C
GF-1Reddish brown, highly denseReddish brown, denseReddish brown, looseReddish brown, loose
GF-2Brown, stickyBrown, denseBrown, denseBrown, loose
GF-3Gray, highly stickyGray, denseGray, denseGray, dense
GF-4Dark gray, highly stickyDark gray, slightly stickyDark gray, denseDark gray, dense
GF-5Light black, highly stickyLight black, stickyLight black, denseLight black, very dense
Table 8. Content of f-CaO in HBSC clinker sintering at different temperatures (%).
Table 8. Content of f-CaO in HBSC clinker sintering at different temperatures (%).
Sample1300 °C1320 °C1330 °C1350 °C
GF-10.920.410.290.32
GF-20.670.570.000.29
GF-30.930.530.230.15
GF-40.930.730.260.22
GF-50.640.700.260.13
Table 9. Main mineral composition of HBSC clinker through QXRD patterns (wt%).
Table 9. Main mineral composition of HBSC clinker through QXRD patterns (wt%).
No.C4A3$C2SC2ASC3ABrownmillerite
αβγC4AFC2FCF
GF-129.134.3944.194.4152.992.493.084.741.990.937.66
GF-225.643.4942.784.6650.932.413.858.492.620.6911.80
GF-323.553.3142.215.1350.652.322.9710.782.010.7913.58
GF-417.603.4841.185.3149.972.933.4116.052.091.0219.16
GF-513.943.3739.595.7848.742.473.3717.831.201.9921.02
