Abstract

:
With the rise in the demand for electric vehicles, the need for a reliable charging infrastructure increases to accommodate the rapid public adoption of this type of transportation. Simultaneously, local electricity grids are being under pressure and require support from naturally abundant and inexpensive alternative energy sources such as wind and solar. This is why the world has recently witnessed the emergence of renewable energy-based charging stations that have received great acclaim. In this paper, we review studies related to this type of alternative energy charging infrastructure. We provide comprehensive research covering essential aspects in this field, including resources, potentiality, planning, control, and pricing. The study also includes studying and clarifying challenges facing this type of electric charging station and proposing suitable solutions for those challenges. The paper aims to provide the reader with an overview of charging electric vehicles through renewable energy and establishing the ground for further research in this vital field.

1. Introduction

The remarkable increase in the use of electric vehicles (EVs) has resulted in a massive rise in demand for electric energy across the globe. The global electric vehicle market has grown significantly. The number of EVs on the road in 2010 was a few hundred; this number rose to approximately three million in 2017 and approximately six million in early 2019 [1]. Electric vehicles are exciting alternatives to conventional vehicles (CVs). With zero carbon emissions during operation, the EV has the ability to reduce total climate effect and pollutant emissions significantly. As fossil fuels are phased out to a greater degree, the need for biofuels would also be reduced. Electric motors have an efficiency of 80–95% [2], making them a more appealing choice than CVs, which have an efficiency of less than 20% [3]. EVs are also a critical element of modern transportation, because they incorporate a variety of new industrial technologies (e.g., an electric motor, a battery, and a charging facility). However, the adoption of electric vehicles is not going as well as predicted. The limited range and slow charging time of EVs are widely regarded as the most serious barriers to promotion [4,5]. Although electric vehicles have a high purchase price, they have low maintenance costs and use substantially less energy than conventional vehicles.
According to the rapid increase of EV demand and EV charging, many research centers, and energy supplying companies began thinking seriously about reducing the pressure on local electricity networks because of the increasing number of electric vehicle charging points. Renewable energy sources such as wind and solar are some of the most effective solutions to bridge this deficit faced by local electricity networks, potentially supporting the EV charging infrastructure [6].
After the announcement of the rapid development of the EV at the turn of the millennium, renewable energy-based charging infrastructure (RCI) research began with the effort of wind and solar charging infrastructure [7,8,9,10,11,12]. It envisioned a charging facility that could match EV demand with renewables and direct current (DC) to improve shortcomings of conventional charging infrastructure. The traditional charging stations affect the grid’s stability with issues such as harmonics, fluctuations, and voltage outages [8,9,12]. By contrast, the RCI has several advantages, such as high efficiency [13], low system cost [14], and simple arrangement [15,16]. Besides, it requires less power conversion levels than those in alternating current (AC)-based facilities [17,18]. The RCI can contribute significantly to reducing carbon emissions and expanding the energy domain’s penetration of renewable energy sources. Moreover, RCI has the potential to lower the cost of EV charging [19]. However, uncertainties of the renewable sources (e.g., seasonal variations in wind speed and sun irradiance and daily randomness in cloud coverage for solar panels) and load characteristics of EVs (e.g., battery capacity, number and types of EVs, stop time, charging start time, and the initial state of charge) are serious challenges in implementing the RCI [20].
Currently, there is an ongoing considerable research work on the aforementioned topics. At the same time, other researchers are working on various aspects of implementation and operation of RCI, such as optimal planning, controlling and sizing, pricing approaches, and examination of the key factors influencing the linking of EV load directly with the RCI. For instance, few studies reviewed EV charging infrastructure research; however, they considered general technical aspects and did not concentrate on renewable energy sources (e.g., [1,21]). Another study reviewed the RCI studies but with the focus on the consumer preferences and interactions with EVs [22]. To our knowledge, no study has reviewed RCI studies extensively by discussing all related research areas.
This study examines recent advances in RCI technology and the latest research progress in this critical field. The paper discusses the concept of RCI from different perspectives, including appropriate renewable energy sources for RCI, siting, optimal planning, optimal sizing, control and energy management, and renewable energy-based charging pricing programs and challenges of RCI.

2. Technological Infrastructure

In many countries of the world, electric vehicles are becoming progressively more popular. However, the absence of charging stations limits the widespread acceptance of EVs by users worldwide. As EV usage grows, EV charging stations are installed in more public spaces [23,24]. By contrast, if the EVs are charged through an existing fossil-fuel-powered system, they will negatively affect the distribution system and the environment [25]. With solar energy from photovoltaic (PV) panels and wind sources having great potential to produce electricity, charging would be an immense solution. It would also represent a sustainable advancement towards a clean environment [23]. Depending on the sources of energy available (e.g., solar radiation and wind speed), the electricity output of the charging facility can be either inferior (less than the needed power) or very high (over the power consumption). Most of the literature indicated that the installation of PV solar systems and wind energy conversion systems with the power grid is advanced and technically viable [26].
However, the promising approach for balancing the generation of electricity from renewable energy sources can be achieved using configurable dispatch loads or energy storage systems, as it can provide electricity in low power generation [27]. The energy storage system’s utilization to stabilize the power grid is no longer a new technology. Other energy sources, such as concentrated solar energy, flywheel, dedicated battery, and hydro-pumped storage systems, are some of the technologies that have been utilized. Smart meters, wireless sensors, advanced communication, and power converters are some of emerging technologies in the industry [28,29,30,31,32].

2.1. Energy Storage and Fast Charging Systems

It was reported in [33] that unregulated charging would contribute to the overloading allocation of transformers and feeders and, eventually, the power supply. Hence, most of the literature has suggested stationary energy storage and fast charging systems to overcome this challenging problem [33]. Energy storage limits the charging infrastructure and runs costs by serving electric vehicles during the system’s uttermost load intervals [34,35]. Energy storage can also improve electric vehicles’ stability by supplying necessary and sufficient energy to reach charging stations in the case of emergencies. Many studies were carried out on the benefits of stationary energy storage with fast charging systems [34,36,37]. However, to obtain such benefits, an optimum size of the energy storage system is required, taking into account the energy tariffs, expected degree of penetration, and load profiles of EVs [33].

2.2. Storage Battery and Controller

Solar-powered batteries can fulfill unreliable grid electricity demands, which are strong charge, discharge, and intermittent full-charging periods. A range of battery types fulfills these specific criteria. The major battery storage subgroups reviewed for solar energy include a lead-acid battery, lithium-ion battery, and flow battery [38,39].

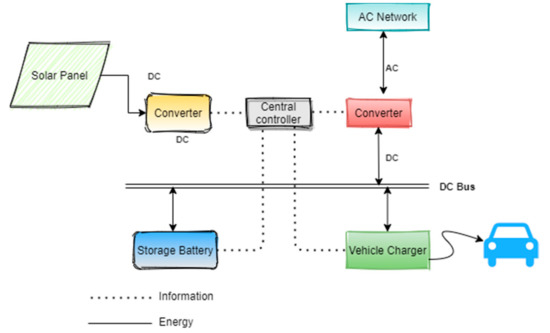

To save the additional energy produced by photovoltaics, a central controller is required to redirect the generated power to the battery, as illustrated in Figure 1. Many scholars have investigated the sequence of controllers that are used in photovoltaics. They highlighted that it is essential to improve the productivity of solar energy generation through a maximum power point tracker (MPPT) and pulse width modulated (PWM) technologies [40].

2.3. Converters

When it comes to a solar converter, the PV arrays are connected to a DC/DC converter that allows for full power point tracking control. The AC/DC converter is in charge of converting DC/AC power in a bidirectional fashion. The power used from the grid is primarily AC. It must be converted into DC to charge the electric vehicles. The conversion of power occurs before the charging begins or relays the power from the grid to electricity networks.
Therefore, the converters have unique roles in photovoltaic systems based on balanced energy conversion [41]. Different forms and requirements have been examined in detail, for example, string inverters, in which panels are installed in combination with a micro-inverter, and central inverters, where panels are installed with separate inverters and micro-inverter power optimizers that require further monitoring. These power optimizers are used to track photovoltaic panel arrays’ overall performance to constantly alter and change the attached load that keeps the system at maximum operational capability [42].

3. Appropriate Renewable Energy Sources

Wind and solar energies are considered to be reliable substitution sources of conventional energy sources because of their economic and environmental benefits [11,43,44,45]. However, one of the disadvantages of these renewable sources is their inconsistency in offering energy. They do not generate power all the time, and they are intermittent. However, a few suggestions for solar-based charging facilities are discussed in [35,36,46]. The researchers proposed charging infrastructure dedicated to the range of low to medium EVs. In [47], the researchers suggested charging EVs from solar energy using the DC link voltage sensing. The aim is to lower the burden on the distribution transformer. However, solar energy limitation to charge wide-range EVs will lower the chances of implementing more solar-based charging stations.
Research work on the control and optimization of wind turbines (WT) has demonstrated that wind energy is an appropriate choice for EV charging infrastructure. In [44], the researchers discussed the advantages of implementing charging stations based on large-scale turbines and found that EVs could be a critical factor for enabling the high penetration of wind energy. Considering the challenges of traditional scheduling and dispatching mechanisms, researchers in [48] developed a model of utilizing the flexibility of charging EVs to optimally compensate for wind energy fluctuations. They found that shifting EVs’ charging to times with high wind availability achieved cost savings. In another study [49], the possibility of using wind energy as a direct source for power EV charging stations were investigated. The researchers implemented an interval-based method corresponding to the time slot taken for EV charging for wind energy conversion and evaluated using various constraints and parameters, including the averaging time interval for wind speed, different turbine manufacturers, and regular high-resolution wind speed datasets. The analysis indicated that the use of direct wind to EV provides enough constant power for large-scale charging stations.
The researchers in [50] developed optimal charging infrastructure using wind turbines for different charging modes concerning the optimal charging power. The infrastructure is connected to the grid and has an energy storage system. The rated power was optimized on 52, 84, and 116 kW for slow, intermediate, and quick-speed charging, respectively. On the other hand, the study [50] developed a power management model to enhance wind energy reliability.
However, we can conclude that solar and wind energies are appropriate sources for EV charging infrastructure. A charging facility can be either hybrid (solar and wind) or non-hybrid with the use of suitable storage capacity to support the charging process during the fluctuation of sources. The power generator’s sizing depends mainly on the type of charging (fast, medium, or slow). Nonetheless, the use of battery storage has a negative impact on the environment. The study results of [51] indicate that global electronic mobility demand will boost the production of batteries by 2030 to around 1725 GWh, and nickel will be the dominant raw material in the lithium-ion battery. Currently, batteries’ demand represents 4% of the annual global nickel production, and the gradual scenario is that nickel demand would rise to 34% of present mining production in 2030. Even if nickel is an important component for plants, like every metal and chemical, the quality of the environment for flora and fauna may be negatively affected by its excessive amounts. As a result, nickel is strictly controlled and subjected to rigorous evaluations under a variety of legislative frameworks [52].

4. Siting

4.1. Home Charging

Home charging involves private and public charging points in residential areas. Few survey studies have found that the EV’s drivers consider home charging as a motivational factor for buying EV where it is easy to access [22,53,54]. The implementation of more home charging (HC) infrastructure could increase EVs’ adoption rate, especially in cities [55,56]. The HC infrastructure is dominant over the other kinds of infrastructure. The report on energy efficiency and renewable energy in the USA indicates that approximately 80% of the installed charging infrastructure is for HC, and most of the charging sessions for EVs happened in residential areas [57,58]. This indicates the reliance on EVs’ on-grid electricity, where most charging takes place in residential areas. Deploying more solar-based charging infrastructure in residential areas could, therefore, lower reliance on the grid, encourage EV adoption rate, and extend the use of clean energy sources. As a result, that could lower greenhouse gas emissions and air pollution.

4.2. Workplace Charging

Companies are starting to implement an electric infrastructure for their employees, or workplace charging (WC), to demonstrate their commitment to the green environment concept. Because of the extended parking period, the workplace is considered as the second location for employees with a higher opportunity to charge EVs outside homes, where 15–25% of charging events occur at the workplace [22]. Few companies provide renewable energy charging in the workplace, offering to charge at a shallow or sometimes free rate (e.g., Google and DirectTV). Provision of the WC infrastructure can increase the daily driving distance that leads to raising EVs’ adoption rate and usability. On the other hand, the parked vehicles can be considered to be a distributed resource that can provide electricity to the grid, known as the vehicle to grid (V2G). This integration can make efficient utilization of renewable energy. Meanwhile, renewable energy can be connected to the grid or to a microgrid nearby to solve renewable energy sources’ fluctuations.

4.3. Public Charging

The public charging (PC) infrastructure is charging stations that EVs’ drivers can easily access when needed. They are more suitable for implementing renewables’ facilities than residential areas. Deployment of renewables’ facilities in residential areas has several problems such as parking availability, building limitations (e.g., not enough space for solar panels), and governance issues (e.g., wind farms are, as a rule, sparse out of cities) [59]. The public charging stations include the following:

4.3.1. Opportunity Charging Stations

Opportunity charging stations (OCSs) present EV drivers’ opportunity to recharge during the parking time at public locations. They are locations like shopping malls, airports, supermarkets, schools, parks, and restaurants. Drivers are expected to park for half an hour and more [60]. The network charging agreement can incorporate OCS to set an encouraging cost model, where EVs drivers can pay a fixed amount monthly as a subscription, pay-as-you-go plans, or, in some scenarios, for free.

4.3.2. Fast Charging Stations

Fast charging stations (FCSs) can solve the charging time issue, which is a crucial element in adopting and deploying EVs. The fast charging works on recharging the EVs quickly, similarly to the conventional vehicles at gasoline stations. Fast-charging plays a vital role in increasing EVs’ traveling distance by having FCS along the way. The off-board fast charging module is the key to fast-charging stations whose output is 35 kW and higher. The corresponding current and voltage ratings are 20–200 A and 45–450 V, respectively. As they are both so high, such infrastructures have to be deployed in supervised centers or stations.

4.3.3. Battery Exchange Station

A battery exchange station (BES) is a system that EV drivers can replace their discharged battery with a fully charged battery at BES. The implementation of BES can provide several benefits, such as its very fast exchanging time. For example, Tesla, a well-known electric vehicle maker, swap EV batteries in 90 s [61]. One more critical issue about BES benefits is avoiding charging during peak demand [62]. Other benefits of BES are minimal cost management, long battery lives, and low consumption [63]. However, there are few drawbacks of the BES, such as the cost of investment, which is very high. BES construction requires ample space, and the battery management system cannot ensure battery safety [64].

5. Optimal Planning

The EVs’ charging requirement is complicated; therefore, it is not easy to accurately estimate or precisely obtain it. As presented in Table 1, the literature consists of research papers related to the charging scheduling issue. Some of these studies describe the integration of renewable sources with V2G technology during the charging station’s planning [65,66,67,68,69]. The other set of these research papers are focused on the BES [70,71].
Charging station planning is a challenging task. It includes considering the availability of renewable sources, uncertainties in traffic demands, the complex nature of location design, and other factors affecting hourly power management such as renewable source, grid peak hours, and V2G. Thus, in a charging station, there is a need to link long-term planning decisions (e.g., location, size, and operation hours) with short-term operation decisions (e.g., grid power usage, the number of batteries charged/discharged, energy storage, V2G, and renewables) to form a planning framework. Besides, the availability of the data allows designers of fast-charging stations to have access to the EVs’ data over transportation networks, including historical data and real-time charging demand. The collected data encourage an innovative data-driven pattern. Table 2 describes some studies that applied a data-driven approach.
Moreover, in the built environment applications, the energy system planning models should have data standardization, interpretability, scalability, flexibility/adaptability, and reconfigurability [72]. These features can serve as the foundation for future modeling research to develop and deploy models in IoT-based systems as digital twins of real-time processes. Digital twins will be developed in a hierarchical and interconnected fashion, rather than being designed for individual and separate applications.
Concerning the design of RCI, it was noticed that its reliability and cost are the standards considered the most in the charging stations. However, environmental objectives and social factors should be given more attention, mainly when the charging station includes a conventional source. The social factors influence optimal planning methods as they are affected by energy savings and the total cost of integrating renewables sources. Thus, consideration of such factors in optimal planning methods is recommended.

6. Optimal Sizing

In recent years, the transportation sector has witnessed a rapid penetration of electric vehicles (EVs). The aim is to enable the sustainability of the system. It was driven by modern innovations in battery technology and in the electric drivetrain. However, as electric vehicles’ penetration spreads, the EVs’ demand increases, thus introducing additional load to the power systems. There is a need to upgrade and increase the capacities of the electricity distribution systems to contain the overloading challenge and integrate renewable energy sources (RESs) into the charging station. In addition, meeting the ever-increasing EV demands through optimum sizing and operation of the EV charging stations is the most challenging task. Several studies have been reported with regard to addressing the aforementioned challenges and are presented as follows.
In [78], an EV charging station was designed with solar–wind hybrid power sources. The Hybrid Optimization Model for Electric Renewables (HOMER) software was employed for sizing the renewable energy source and for power-sharing to the loads. With one 200 kW capacity WT unit and PV panels, a total power of 250 kW, a total annual energy generation of 843,150 kWh was realized. The charging station has the capacity of charging 5 EVs in 1 h. Likewise, in [79], the MATLAB environment was used to develop a mathematical model of optimal sizing and capacity allocation using the differential evolution (DE) algorithm for a wind energy system that is integrated with an EV battery exchange station.
A 200 kW wind generator and 10 kW charge and discharge machine were used to provide energy to both EVs for traveling demand and the entire system’s energy balance. The analysis based on the condition of the components regarding power change at different periods reveals that the optimum solution is logical, and through the hybrid system concept, the EVs’ energy demand can be achieved. In the same vein, a multi-objective optimization problem based on the DE algorithm was developed by [80] to obtain optimal sizing of EV charging stations and renewable energy sources. The performance of the proposed method is evaluated in MATLAB for different microgrids. The simulation results provided the optimal size of charging stations for the number of EVs based on the optimal load factor, power loss, and voltage profile. Similarly, a hybrid improved optimization algorithm based on Genetic Algorithm-Particle Swarm Optimization (GA-PSO) was used by [81] for the optimal sizing of renewable energy sources (RES) and EVs’ charging demand.
In a slightly different perspective, [82] presented the optimal design and comparative studies for an isolated EV charging station (EVCS) and a grid-connected EVCS as a smart energy hub configuration. This study’s various supply options are diesel-based, solar PV with battery energy storage system (BESS)-based, and diesel–solar PV-BESS mix. The studies were carried out using HOMER software, which considered different dispatch strategies that yield the minimum project cost for each EVCS configuration.
To adequately cater to the increased demand for EV charging resulting from the ever-rising EVs users, it becomes inevitable to provide fast and easily accessible charging infrastructures. Concerning the fast-charging concept, Santiago et al. [83] analyzed the technical and economic viability of an off-grid photovoltaic–battery energy storage system (PV-BESS) for fast-charging EVs. The whole system’s optimum sizing was performed with HOMER software using the meteorological data and then enhanced the result using the principle of load shifting. With 281.52 kW PV modules, a total of 12 EVs’ complete recharges of 35 k Wh for the period of 13.5 h per day were achieved using a 50 kW DC fast-charging device. Similarly, [84] proposed a strategy for BESS’s sizing within a fast-charging station (FCS). The charging station’s load has been estimated by the stochastic load profile of individual EVs registered with the FCS. The mathematical model result revealed that the FCS demand depends on the FCS charging level, the number of EVs in the FCS, the residual energy level of EVs, and the battery size of EVs registered with the FCS. Likewise, [85] developed a probabilistic planning model for optimal sizing and allocation of EVs’ fast-charging stations. The load level of the EVs’ charging demand was modeled based on queuing theory (QT). The exponential distribution function was employed to determine each charging device’s service time while the EVs’ charging demand was estimated using the poisoning process.

7. Control and Energy Management

Connecting the renewable energy-based stations to the grid leads to several challenges. Besides the grid integration and fluctuation issues, the charging operation presents a critical shortage due to the inharmonious charging process concerning power quality and demand [86], specifically for fast-charging stations [87]. Hence, it is crucial to control the charging behavior to reduce these issues’ impacts. For example, an analysis of electricity production conducted by [88] to calculate relevant performance indicators of the electricity supplied by the grid indicated significant variability of the CO2 emissions. It highlights the need for accurate knowledge of operational parameters to support future smart grid management. Therefore, the management of the EV charging behavior would moderate the fluctuation of renewable energy, optimize the grid’s peak demand, and make efficient load characteristics of the grid [89]. The literature comprises several studies on impacts of charging loads on the grid. For example, Green et al. [90] studied impacts of EVs on the distribution network, and Amini et al. [91] discussed effects of large-scale charging infrastructure on the system’s total loss. In [92], a probabilistic model is used to investigate incremental impacts of EV charging on the distribution network.
Management of the charging process in a controlled mode increases the capacity of charging a large number of EVs. Using the maximum renewable energy generated and smart coordination with the grid can decrease the power load of the charging equipment on the grid and ensure cleaner energy. By contrast, integrating the energy storage with the charging station enables disengaging EV load from the grid, moving the charging time to off-peak, and controlling renewable energy’s uncertainty and fluctuation [87].
Moreover, most EVs’ parking time is up to 95% per day in the charging area; thus, the V2G concept was raised [93]. EVs can be charged at low pricing hours and discharge at high pricing hours, making EVs a distributed energy facility. This mechanism offers EV drivers the chance to lower the charging cost through the price difference [94]. The excellent interaction among the grid and large-scale or high-distance range EVs leads to the smart charging and discharging strategy [95].
The literature has many studies concerning energy management for EVs associated with renewable energy sources. For example, Wi et al. [96] proposed a charging control algorithm to schedule EV charging associated with PV in smart buildings. The proposed strategy is based on predicted PV energy generation and baseload power demand. However, uncertainties of EV charging demand were not considered. Similarly, another scheduling algorithm was proposed by [97] for smart buildings that can efficiently reduce CO2 emissions. However, the study did not consider the flexibility of EV charging demand.
Several studies consider appropriate strategies for controlling EV charging. For instance, Razo et al. [98] proposed a vehicle-originating-signals strategy for controlling EV charging by reducing communication overhead with minor effects on performance. Liao et al. [99] proposed a scheme for EV charging control that considers the energy storage system and renewable energy power. In [100], an optimal scheduling method was introduced for charging infrastructure associated with a microgrid. Kumar et al. [101] evaluated various combinations of different priority control criteria on EVs’ ability to charge and charging fairness. Table 3 summarizes the other recent studies concerning energy management of renewable energy-based charging infrastructure. It is noticeable that the dominant criterion is focused mainly on the energy management associated with a PV system that is connected to the grid; consequently, the wind energy and the energy storage system are not sufficiently considered.

8. Pricing Programs

To date, there is a small number of utility programs that provide EV charging based on renewable sources. Even though a limited number of programs have offered EVs’ renewable charging, the existing programs in Austin (USA) [115] and Saint Paul (France) [116] indicate that the third EV drivers choose renewable energy. An annual billing of renewable energy can be used for EV electricity demand. However, programs that use the charging times can request suitable and renewable energy supplies, thus providing significant advantages to customers and utilities. Customers can charge at a beneficial rate, and utilities can manage system peaks [117].
Giant utilities can provide network solutions for charging electric vehicles with renewable sources for retail, employee, and commercial customers. The network solutions are outcomes of promising programs that make EV drivers depend more on renewable sources [115]. Another program works on encouraging EV drivers to charge during preferred times of the day by offering financial incentives, for instance, linking the charging times with renewables’ availability [118,119]. Renewables’ pricing and time of charge are factors influencing participant interest. In other programs, the green pricing has been paired with time of use (TOU) rates to attract small commercial and residential customers to charge EVs with renewables; this leads to cost savings of charging at periods of excess renewable generation or during off-peak periods [117]. A comparison of the existing charging programs is depicted in Table 4.

9. Challenges of Renewable Energy-Based Charging Infrastructure

Power quality: It was noticed that generating renewable power could introduce power quality problems. According to the changing nature of wind and solar, generating renewable power is intermittent, with high fluctuations, and non-dispatchable [120]. The RCI features mainly in charge of power quality challenges include the modularity of renewable generators. Power quality seems to be one of the most critical aspects that could affect the reliability and stability of RCI.
Stability: It refers to the recovery of the power system after blackouts and control of the voltage and frequency. Stability challenges are mostly caused by the excess of power from renewable energy, and battery storage that can cause significant damage to RCI [121]. Controlling the stability can ensure the power system is performing correctly and not approaching instability.
Power balance: The power unbalancing occurs in RCI because of the renewable sources’ uncertainty and variability. This challenge relates to the long-term balance of active supply and load in the power system. This includes the system-wide coordination of ramp rate capacities and minimum generation levels of a power system [122].
Charging prices: The vast implementation of renewables alters the structure of costing to be capital intensive. To ensure that implementation is profitable, the pertinent planning firms need to consider long-term energy prices [123]. Notably, the number of utility programs that offer renewable energy-based EV charging is limited and only concerned about residential customers. There is a need for various approaches to serve heavy-duty vehicles, employee workplace charging, and retail customers at the public charging loads.
Locations: The literature demonstrates several attempts to evaluate medium- and large-scale wind farms to secure energy demand required by the EV charging infrastructure. It was noticed that urban areas are not suitable for installing the turbines as the wind energy-based system requires broad premises. The large buildings are the major obstacles in wind directions. However, some city authorities do not allow heavy-duty vehicles to enter cities at specific times. Thus, installing charging infrastructure in suburban or rural areas can serve medium- and heavy-duty vehicles.
By contrast, the installation of RCI in urban areas could face some problems. For instance, in multi-unit residential buildings, the study [59] stated several problems: parking availability, building limitations, and governance issues. Hence, optimal planning of location and optimal scheduling for charging are critical factors that must be considered in implementing RCIs.

10. Conclusions

The integration of renewable energy and EVs draws the future mode of transportation. The more penetration of EVs and RCIs means more reduction of carbon emissions and fossil fuel consumption. However, there are some challenges for the deployment of renewable energy-based infrastructures due to their natural fluctuation. For wind turbines, the location and environmental factors are critical issues for installation. Urban areas have been found to be unsuitable because of their noise and requirement for spacious premises. For solar systems, the focus of electricity production is only on the daytime; this limits its supply in meeting the significant typical electricity demand.
Wind and solar energy are considered to be good sources for EV charging infrastructure. However, their integration with EVs, V2G charging facilities, and ESS can form RCI with a microgrid plan for network charging. In optimal planning, it was noticed that active research concerns the charging scheduling issue. Some of them consider the integration of renewable sources with V2G during the planning phase. RCI planning is challenging because of the availability of renewable sources, uncertainties in traffic demands, the complex nature of location design, and other factors affecting the hourly power management such as renewable source, grid peak hours, and V2G. The literature demonstrates the lack of studies in renewables’ charging infrastructure in adopting real data to improve control strategies, sizing, and real-time control. In control and management, the excellent interaction among the infrastructure and high-distance range EVs leads to the smart charging and discharging strategy. Charging pricing approaches indicate a limited number of utility programs that support renewable charging, and they are only focused on residential customers. New charging programs must be introduced for heavy-duty vehicles and retail customers at public charging loads.
