Review

Six-Gear Roadmap towards the Smart Factory

1
Faculty of Engineering and Technology, Liverpool John Moores University, Liverpool L3 3AF, UK
2
Beverston Engineering Ltd., Prescot L34 9AB, UK
*
Author to whom correspondence should be addressed.
Appl. Sci. 2021, 11(8), 3568; https://doi.org/10.3390/app11083568
Received: 11 March 2021 / Revised: 9 April 2021 / Accepted: 10 April 2021 / Published: 15 April 2021
(This article belongs to the Special Issue AI for Sustainability and Innovation)

Abstract

:

Featured Application

This work is beneficial to bridge the gap between advanced technologies and their applications in the manufacturing industry, especially for SMEs.

Abstract

The fourth industrial revolution is the transformation of industrial manufacturing into smart manufacturing. The advancement of digital technologies that make the trend Industry 4.0 are considered as the transforming force that will enable this transformation. However, Industry 4.0 digital technologies need to be connected, integrated and used effectively to create value and to provide insightful information for data driven manufacturing. Smart manufacturing is a journey and requires a roadmap to guide manufacturing organizations for its adoption. The objective of this paper is to review different methodologies and strategies for smart manufacturing implementation to propose a simple and a holistic roadmap that will support the transition into smart factories and achieve resilience, flexibility and sustainability. A comprehensive review of academic and industrial literature was preformed based on multiple stage approach and chosen criteria to establish existing knowledge in the field and to evaluate latest trends and ideas of Industry 4.0 and smart manufacturing technologies, techniques and applications in the manufacturing industry. These criteria are sub-grouped to fit within various stages of the proposed roadmap and attempts to bridge the gap between academia and industry and contributes to a new knowledge in the literature. This paper presents a conceptual approach based on six stages. In each stage, key enabling technologies and strategies are introduced, the common challenges, implementation tips and case studies of industrial applications are discussed to potentially assist in a successful adoption. The significance of the proposed roadmap serve as a strategic practical tool for rapid adoption of Industry 4.0 technologies for smart manufacturing and to bridge the gap between the advanced technologies and their application in manufacturing industry, especially for SMEs.

1. Introduction

The fourth industrial revolution is an era of digital transformation in the manufacturing industry. This change is seen as an evolution of previous industrial revolution and is often considered disruptive [1]. To better understand this phenomenon, its causes, effects and impacts, one needs to go back in history to review previous industrial revolutions, to understand the cause of their evolution, the context behind them, their key drivers and continuous expansion.
Prior to the industrial revolution, societies were agriculturalists. Agricultural stability has been reached through continuous development of the irrigation engineering techniques. Civilizations through history harnessed the power of water, animals and gearing mechanism to increase the amount of work done mainly for irrigation. These engineering techniques enormously advanced partially due to the progress made in mathematics in the 9th century and the introduction of the crank shaft systems in the late 12th century, translating rotary motion into linear motion. This gave birth to the concept of automatic machines subsequently enabling the development of self-driven water raising machines, water pumps and automatic clocks [2]. Mechanical machines further advanced over time to work with steam power, a key technological drive for the first industrial revolution in the late 18th century. It enabled mechanical production allowing societies to move into city living and working in purpose-built factories.
The second industrial revolution in the late 19th century was another great leap forward in technological advancement. Mainly driven by electricity, gas and oil to power combustion engines. This led to advances in manufacturing methods and processes such as the introduction of productions assembly lines by Henry Ford allowing mass production especially for automobiles and airplanes. Theis second wave in industrial advancements revolutionized public transport and considerably reduced the cost of industrial products.
The third industrial revolution appeared at the second half of the 20th century with the rise of electronics, computers and information technology that penetrated the manufacturing industry leading to automation in manufacturing. The use of Programmable Logic Controllers (PLCs) and robotics allowed more flexibility, this enabled the production of sophisticated products at even lower costs.
The fourth industrial revolution is now underway which builds upon the third industrial revolution digitalization and automation capabilities. Its further driven by the advancement of the internet and communication, the power of advanced computing and data science [3]. It enables new levels of connectivity and integration that produces insightful information that can solve problems once considered unsolvable by finding patterns that have not been seen before [4]. It enables changes in the manufacturing industry by connecting the digital and the physical world together to build a new virtual world from which the physical world can be steered [5,6]. This is acting as a gateway into smart manufacturing and smarter factories [3]. In computing context, the application of cyber physical systems (CPS) within industrial production systems defines the fourth industrial revolution [7].
The smart factory is a concept consisting of a flexible production system with connected processes and operations—via CPS and advanced digital technologies—that can self-optimize performance, adapt to and learn from new conditions in real-time that can autonomously run production processes [8]. Smart manufacturing on the other hand is a term used to define the area of digital manufacturing [9]. It is a set of manufacturing practices using a combination of data and digital technologies to manage and control manufacturing operations [10]. It represents the implementation of advanced industrial digital technologies to empower people with information for better visibility into manufacturing processes and operations. This new level of information drive improvements and enhance the manufacturing processes, diagnose issues, and overcome challenges in relatively short time, turning the data into actionable insights [11]. This is recognized as a new way of lean manufacturing, empowering people with insightful data to drive improvements and provide opportunities to increase productivity and flexibility [12,13].
It is argued that the fourth industrial revolution offer opportunities for the manufacturing industry to improve its processes, asset performance, customer experience and workforce engagements [3,5,6,7,8,9]. This subsequently could result in improved productivity and increased efficiencies, the two of which reduce cost and facilitate revenue growth. It brings more resilience and flexibility to the manufacturing industry to meet the challenges of this decade associated with sustainability, remaining competitive and making employment experience more attractive comparable to other industries [8].
The term Industry 4.0 is often used to refer to the fourth industrial revolution. The term was coined by the German Government’s national strategic initiative “High Tech 2020” to drive digital manufacturing forward by increasing digitalization and enhancing competitiveness in the manufacturing industry [14,15]. Since then, it has been institutionalized with the platform Industry 4.0 and the Reference Architectural Model Industry 4.0 (RAMI 4.0) [1]. It now serves as a central point of contact for policy makers demonstrating how to approach Industry 4.0 in a structured manner and working towards national and international standardization. The huge potential of value creation by Industry 4.0 for the German manufacturing market is estimated to be between 70 and 140 billion Euros in the next five to ten years [5,15].
Although Germany was the first to tap into this new way of pursuing digitalization in the manufacturing industry it has become a global trend and the race to adapt Industry 4.0 is already happening in Europe, USA and Asia. Initiatives such as the UK “Made Smarter” strategy 2030 [16] sets out how the UK manufacturing can be transformed through the adoption of industrial digital technologies to become a global leader in industrial digitalization with the potential to create enormous opportunities for the manufacturing industry by increasing growth, creating new jobs, reducing CO2 emission and improving industrial productivity. Other global strategies and initiatives are also in place to support the digital transformation and competitiveness in manufacturing. For example, the “Made in China 2025” initiative [17] aims to move manufacturing up the value chain in China. The USA “America Makes” [18] supports additive manufacturing and 3D printing. South Korea “Manufacturing Innovation 3.0” [19] supports the adoption and transformation into the smart factory. Japan’s “Robot Strategy” aims to establish Japan as a robotics superpower to address the challenges of demographics and labor in an aging and declining population [20].
Manufacturing leaders are already taking a lead in their Industry 4.0 journeys as they have the sufficient infrastructure and resources to continue improvements [9]. However, the majority of small and medium enterprises (SMEs) in manufacturing sector who represent the backbone of the manufacturing industry have less mature journeys [21,22,23] Several industrial reports and research papers suggest that the lack of clear strategy and vison available to SMEs are amongst the top challenges for Industry 4.0 adoption [6,15,16,21,22,23,24,25,26]. The lack of clear strategy subsequently highlights (i) lack of awareness of industrial digital technologies associated with Industry 4.0 [16,27] (ii) lack of real-world applications demonstrating the benefits and the potential of the available opportunities [15,28] (iii) the complexity of Industry 4.0 technologies and various terminologies used to describe it making it difficult to understand [29] (iv) lack of trusted advice and the know-how of integration [17,21] and (v) lack of prioritized knowledge of where to start and how to apply it to align with the business strategy [9,24].
This paper is an extended version of the paper published in conference proceedings of Developments in eSystems Engineering Robotics, Sensors and Industry 4.0 DeSE 2019 [30]. The purpose of the paper is to review different methodologies and strategies for the implementation of smart manufacturing and to introduce a novel conceptual roadmap that can serve as a simple strategic guide for manufacturing SMEs with their Industry 4.0 journeys. It aims to bridge the gap between the advanced technologies and their application in industry and to trigger SMEs to capitalize on the possible opportunities to increase resilience, flexibility, sustainability, competitiveness and growth. The roadmap is a strategic implementation focused on reducing the complexity and barriers of Industry 4.0 adoption and on the value creation that aligns with the business strategy. Section 2 of the paper describes the careful, organized and evidence-based approach taken to prepare the model. Section 3 reviews academic and industrial literature on similar concepts and models to further support the systematic model creation process. Before diving into the detail of the components of the proposed roadmap/model, Section 4 highlights key enabling Industry 4.0 technologies relevant to smart manufacturing. Section 5 describes the stages of the roadmap in details. The key enabling technologies and strategies are introduced, the main challenges and implementation tips inspired from industry are discussed and general insights and case studies of industrial applications are highlighted. Section 6 outlines common challenges associated with digital transformation in manufacturing SMEs and practical tips on how to address them. Section 7 discusses the necessary efforts by academia, knowledge base hubs and industry to realize this roadmap. Section 8 finally draws conclusions.

2. Conceptual Modeling Methodology

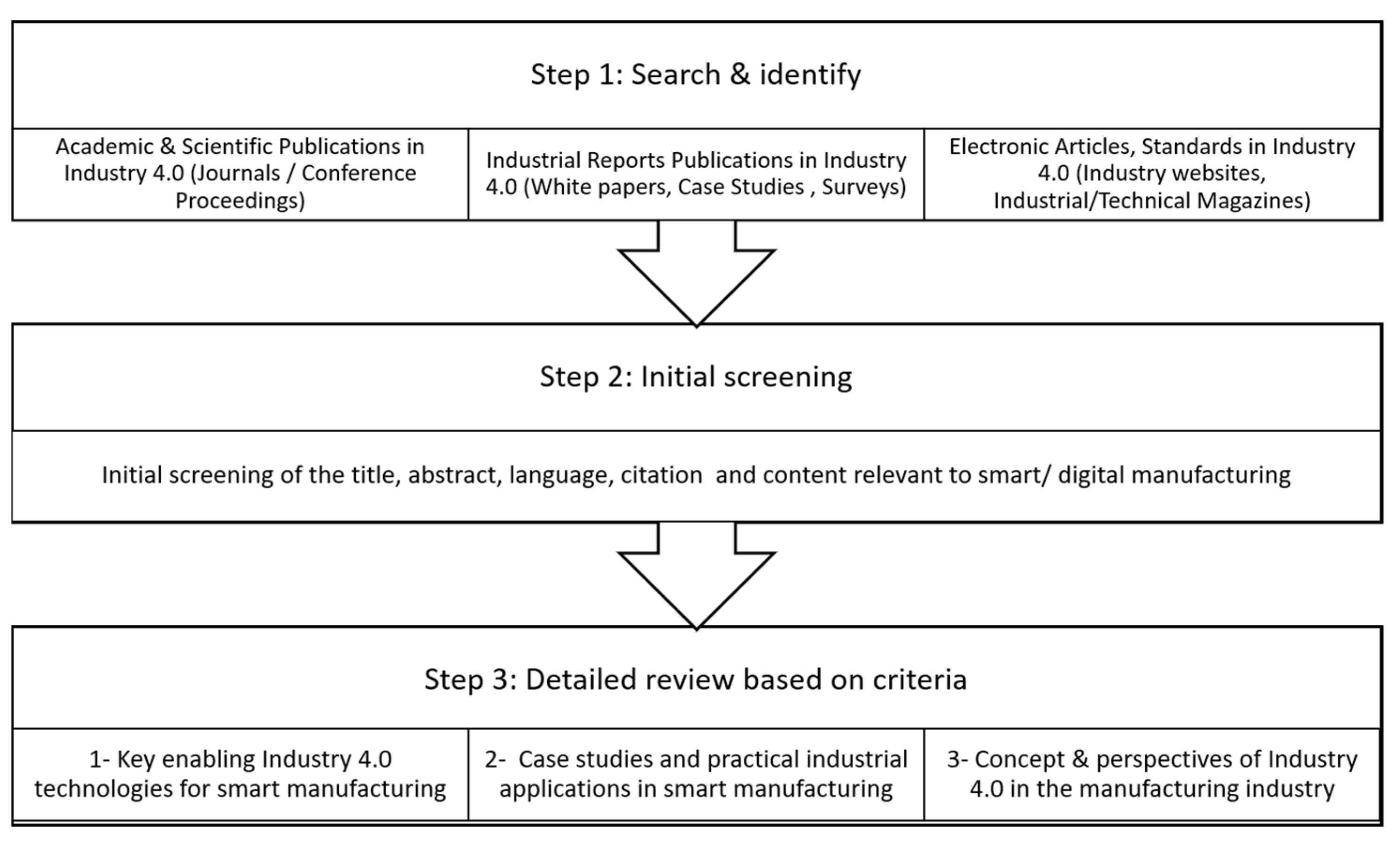

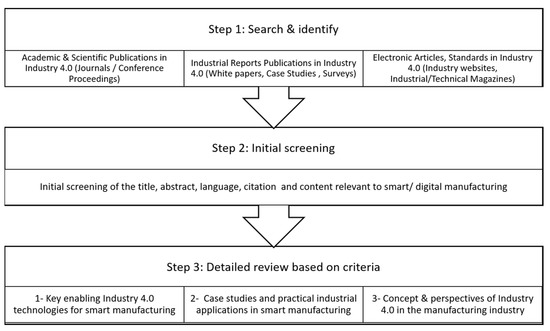

To achieve the objectives, a comprehensive literature review was performed on the techniques, applications and adoption patterns of Industry 4.0 and smart manufacturing. Figure 1 shows a schematic diagram of the research methodology used in this paper based on a multiple stage approach described by Webster and Watson [31]. Step 1 was to search and identify relevant literature on Industry 4.0 from scientific and academic journals, conference proceeding, industrial reports, books and industrial/technical articles in the field using online databases (e.g. Web of Science, ProQuest, Springer, ScienceDirect, IEEE Xplore, SCOPUS, Elsevier, SAGE, Emerald, Taylor and Francis, Google Scholar and Google search engine). Step 2 was to perform initial screening of the title, abstract, language, citation and content that was relevant to smart manufacturing. This identified a substantial 168 written pieces (46 journal articles and conference proceedings, 5 books, 79 industrial reports, 38 online electronic articles and published standards), which indicates that Industry 4.0 techniques and applications in the manufacturing industry are evolving and are strongly driven by industry. Step 3 was to thoughtfully review all the materials found from initial screening to be chosen based on three criteria/factors that focused on (i) Key enabling industry 4.0 technologies relevant for smart manufacturing (e.g., IIoT, Big Data, AI, VR/AR etc.) (ii) Practical industrial applications and case studies using such technologies in smart manufacturing (e.g., real-time monitoring of assets performance and processes [32], quality control for inspection [33], data analytics and AI for predictive maintenance [29,34], etc.) and (iii) The concept and perspective of Industry 4.0 in the manufacturing industry (e.g., productivity gains, impacts, patterns, etc. [9,24,25,27,35,36]). The chosen criteria were focused more on applications from the aerospace industry—as it was recognized as one of the sectors with great potential to gain from industry 4.0 adoption—especially in productivity gains, cost savings and building new business models [16,37]. These criteria/factors are sub-grouped to fit within various stages of the roadmap. This approach is found to be suitable to establish existing knowledge in the field and to evaluate latest trends and ideas of Industry 4.0 and its applications in smart manufacturing. The approach attempts to bridge the gap between academia and industry and contributes to a new knowledge in the literature.

3. Review of Similar Concepts and Models

There have been considerable efforts by academia and industry to produce papers, frameworks and conceptual models to assist with understanding advanced digital technologies and the trends that fabricate Industry 4.0 in the manufacturing sector. Table A1 in the Appendix A summaries some of the key academic and industrial documents produced in the context of Industry 4.0 and smart manufacturing. It highlights their general features and the technology trends. These contributions are divided into academic and industrial contributions and are discussed in more details in this section.

3.1. Academic Contributions

Ahuett-Garza and Kurfess [11] discussed trends in some of the defining technologies of Industry 4.0 that are relevant for the developments of smart manufacturing (e.g., IoT, Big Data, CPS, robotics, machine learning and additive manufacturing). Mittal et al. [10] defined eleven technologies (IoT, Cloud computing, intelligent control, energy savings, additive manufacturing, cyber security, smart products, data analytics, production management IT systems, cyber physical systems, virtual technologies) five characteristics (Context awareness, modularity, heterogeneity, interoperability, compositionality) and three enabling factors (Law and Regulations, Innovation Education and Training, Data Sharing Systems) relevant for smart manufacturing. Lu, Y. [38] reviewed key technologies of Industry 4.0 (Cloud computing, Big Data, IoT, mobile computing, cyber physical systems, ICT), discusses issues and challenges of Industry 4.0 interoperability and propose a general interoperability framework that are based upon five principles (accessibility, multilingualism, security, open-source, multilateral), three relevant applications (smart manufacturing, smart city, smart products) and four levels of architecture (operational, systematical, technical, semantic). Roblek et al. [39] reviewed and evaluated theoretical contributions and practices of Industry 4.0 and internet-connected devices that focus on the impact and the value of IoT to manufacturing businesses. Stock and Seliger [40] reviewed theoretical research and industrial Industry 4.0 practices and developments for sustainable manufacturing. A micro and a macro conceptual perspective and opportunities are presented for Industry 4.0 integration that are based upon horizontal, vertical and an end-to-end integration within the smart factory, across the product life cycle and the entire value chain.
Frank et. al. [35] proposed a conceptual model for the implementation of Industry 4.0 technologies in manufacturing that was based on patterns adopted by manufacturing firms at their mid maturity level of their digital transformation journey. The model consisted of three sequential implementation stages: (i) vertical integration of the manufacturing operation layers and systems, energy management (monitoring and improvement) and traceability of final products and raw materials; (ii) advanced automation (Machine to machine communication and industrial robotics) and virtualization (virtual commissioning and the application of AI for maintenance and production; and (iii) flexibilization (flexible lines and additive manufacturing). The model is based upon front-end and base-end technology layers. The front-end technology layers (smart manufacturing, smart products, smart supply chain, smart working) are considered as the transformation of the manufacturing activities while the base-end technology layers (IoT, Cloud, Big Data, analytics) provide the connectivity, integration and intelligence for the front-end layer. The model provided insights to organizations allowing them to focus on the front-end technologies with the base technologies that supports it. However, the model only considered specific industrial and traditional manufacturing sectors mainly in agriculture and it is not considered as general pattern for Industry 4.0 technologies since more empirical evidence are needed to validate the possible extension to other industries. Secondly, the model is purely theoretical and does not consider the impact of its performance and implementation on industrial level especially for SMEs.
Lee et al. [7] presented a five-level architecture (5C’s) as a guide for implementing CPS for manufacturing applications. The model is presented as a sequential workflow starting with the data acquisition from the ground level (smart connection), to analytics levels (conversion and cyber), where data is converted to information and analyzed to the final level (cognition and configure), where decisions and feedback control takes place for the value to be created in smart manufacturing. The model also outlined analytical tools and methods such as condition-based monitoring and prognostics as well as health management to manage and analyse the data for the purpose of enabling the application of CPS in smart manufacturing. A recent case study of the application of the 5C’s model in CPS has been briefly described by Lee et al. [41] for the development of an intelligent spindle system of a CNC machine spindle tool based on artificial intelligence. Although the model is designed to specifically address the know-how of the implementation of CPS, it lacks a strategy and a process for the manufacturing sector’s SME’s to practically implement CPS in their factory.
Ghobakhloo [6] proposed a conceptual and holistic roadmap to guide manufacturing organizations through the digitalization process and transition towards Industry 4.0. The roadmap presented detailed steps of six management principles (strategy, marketing, human resources, IT resources, manufacturing technology and supply chain). The model was based upon clustering 12 design principles (smart factory, smart products, interoperability, modularity, decentralization, virtualization, real-time capability, vertical and horizontal integration, product personalization, cooperate social responsibility, service orientation) and 14 technology trends (IoT, Internet of Service, Internet of People, Internet of Data, Cloud computing, Big Data analytics, Blockchain, cybersecurity, augmented reality, automation and industrial robotics, additive manufacturing, simulation and modeling, cyber-physical systems, semantic technologies) associated with Industry 4.0. However, this conceptual roadmap is not generalized to different manufacturing settings and it is limited to contemporary manufacturers who know and have started their Industry 4.0 journey.
Lu et al. [42] reviewed and analyzed the technology domain and market trends in Industry 4.0 and proposed a smart manufacturing key technology architecture consisted of four layers (Sensory, Integration, Intelligent and Response) to categorize the technologies that play a key role in smart manufacturing. However, the proposed initiative was based on the Taiwan productivity initiative data published in 2015 that focused on conditions in Taiwan. Hence, further research is needed to consider a broad range of rapidly emerging Industry 4.0 technologies and to be more generalized to broader national context.

3.2. Industial Contributions

Rüßmann et al. [5] described nine technology pillars of Industry 4.0 (autonomous robotics, simulation, horizontal/vertical integration, IIoT, cybersecurity, Cloud, additive manufacturing, augmented reality, Big Data and analytics) and discussed their role in transforming the future of industrial production. Kampe [43] provided a collective research work on comprehensive eight technology sectors of Industry 4.0 (IoT, Big Data, robotics, artificial intelligence, additive manufacturing, modeling/simulation/visualization, Cloud computing, cybersecurity), highlighted their implications for industry and outlined case studies to guide manufacturers for Industry 4.0 adoption. Burke, R. et. al. [8] defined and discussed smart factory characteristics (connected, optimized, transparent, proactive, agile), associated benefits (asset efficiency, quality, lower cost, safety and sustainability), their impact on the manufacturing processes (manufacturing operations, warehouse operations, inventory tracking, quality, maintenance, environmental, health and safety), highlighted key areas to consider for the smart factory implementation (data and algorithms, technology, process and governance, people and cybersecurity) and finally suggested practical steps for making the transition.
Hughes [9] reviewed the state of manufacturing industry, its history of technology adoption of manufacturing systems and future potential implementation and benefits of smart manufacturing to the organization and supply chain. A digital transformation framework was also outlined that constitutes of five steps (Strategic objective, Operational excellence, Operational architecture, Business case development, Solution selection) together with recommended actions to help industrial organisations in setting up a digital transformation initiative with respect to peoples, processes and technologies. Hughes [44] also described an operational architecture framework that focused on applying data and analytics within the digital transformation framework. It consisted of four layers namely, Industrial operations, Compute and storage, Big data model, Industrial analytics and Apps. The framework was based upon cloud and edge analytical software and applications that can run within the organization’s architecture and IIoT platforms.
FESTO [29] presented a guide on building a strategy for implementing digital projects associated with Industry 4.0. The guide consisted of ten practical tips (Getting the definitions right, Not taking on too much at once, Focusing on goals, Getting the buy-in, Equipment for change, Having a business model, Technical and maturity readiness, Collaboration, Data strategy, Future skills). ABIresearch [45] presented a guide to master a digital transformation journey that consist of five steps (appointing a chief digital officer, training cross functional teams, deciding on business goals, fostering collaboration, scaling applications). The report highlighted key challenges in digital transformation (cultural change, confusing ecosystem, skills gap, outdated infrastructure) and discussed key technologies (e.g., IIoT, AR, Robotics, PLM) that make people their central beneficiaries.
Minturn et al [46] presented a three-step approach for implementing Industry 4.0 (the implementation of sensors and controls, enhancing the capabilities of sensors, full implementation and rolling out at a plant level). The approach focused on building a solid foundation, infrastructure and skills to facilitate the move towards the smart factory. However, it only emphasized on the connectivity aspects of Industry 4.0 and IIoT technology. Sensor city [28] presented a guide for the manufacturing industry consisting of five parts that address the foundation and the challenges for successful IoT adoption. These parts include the role of leadership, accessibility and awareness of IoT, investing in the right skills, integration and Infrastructure and cybersecurity. The guide also highlighted case studies relevant to the manufacturing industry that demonstrate how manufacturers can work towards successful IoT adoption. Wright [47] presented a guide to address the IT Infrastructure foundations that underpin key Industry 4.0 technologies (Big Data, Automation, IoT, AI, Digital Twins, Augmented Reality). A five steps approach was proposed (choose the right infrastructure, implement secure connectivity, Always secure everything, ensure robust connectivity, consider outsourcing support) in order to lay stable foundation to facilitate the transition to an Industry 4.0 ready cloud environment.
Schuh et al [15] described a model called “Industry 4.0 maturity Index” to help manufacturing companies with digital transformation. The model was a result of academic studies that was published by a German National Academy of Science and Engineering. It consisted of six consecutive stages: computerization, connectivity, visibility, transparency, predictive capacity and adaptability. The first two of which provided the basis of digitalization while the latter provided the implementation process of Industry 4.0. The model is also combined with the company’s four structural areas (resources, information systems, culture, organization structure) and five functional areas of development (production, logistics, service, marketing, sales). The Aerospace Technology Institute (ATI) [37] identified a framework for the aerospace manufacturing industry to engage in digital transformation. The framework consisted of four steps (address digital capability, leverage the digital ecosystem, stretch collaboration and create space and safety for experiments) which will be used to evaluate the digital capabilities and recommend opportunities for the aerospace industry.
Academic work in the field is mainly theoretical. It focuses on conceptual models and frameworks that provides the knowhow and the design principles required to embark on Industry 4.0 and the integration of digital technologies across the value stream in manufacturing. It also addresses the aspects of data analysis and processing that provides insights and the tools to drive change towards smart manufacturing. Industrial efforts are application focused on technology trends, adoption challenges and practical guidelines for successful Industry 4.0 adoption and digital transformation in the manufacturing industry. This paper systematically brings together the theoretical conceptual processes of Industry 4.0 and smart manufacturing implementations, the technology trends of Industry 4.0 and the industrial guide and advices for successful Industry 4.0 adoption, specifically in manufacturing, in one holistic roadmap that is divided into six stages. The proposed roadmap makes a good digital manufacturing strategy that shares common features of similar models, frameworks and digital transformation strategies and initiatives. The six-gears roadmap towards the smart factory is strategic, macro-level concept designed to serve as a general yet practical guide for manufacturing SMEs with their Industry 4.0 adoption and digital manufacturing journey. In each stage of the roadmap the key technologies are introduced, the main challenges are addressed, the adoption strategies and implementation guides inspired from industry are discussed. General insights and case studies of industrial application from the aerospace manufacturing industry are also highlighted. It is a dynamic, cross-functional, continuous and scalable process model that takes into account the needs and aspirations of manufacturing SMEs based on their competencies, motivations and goals.

4. Technology Jigsaw Map

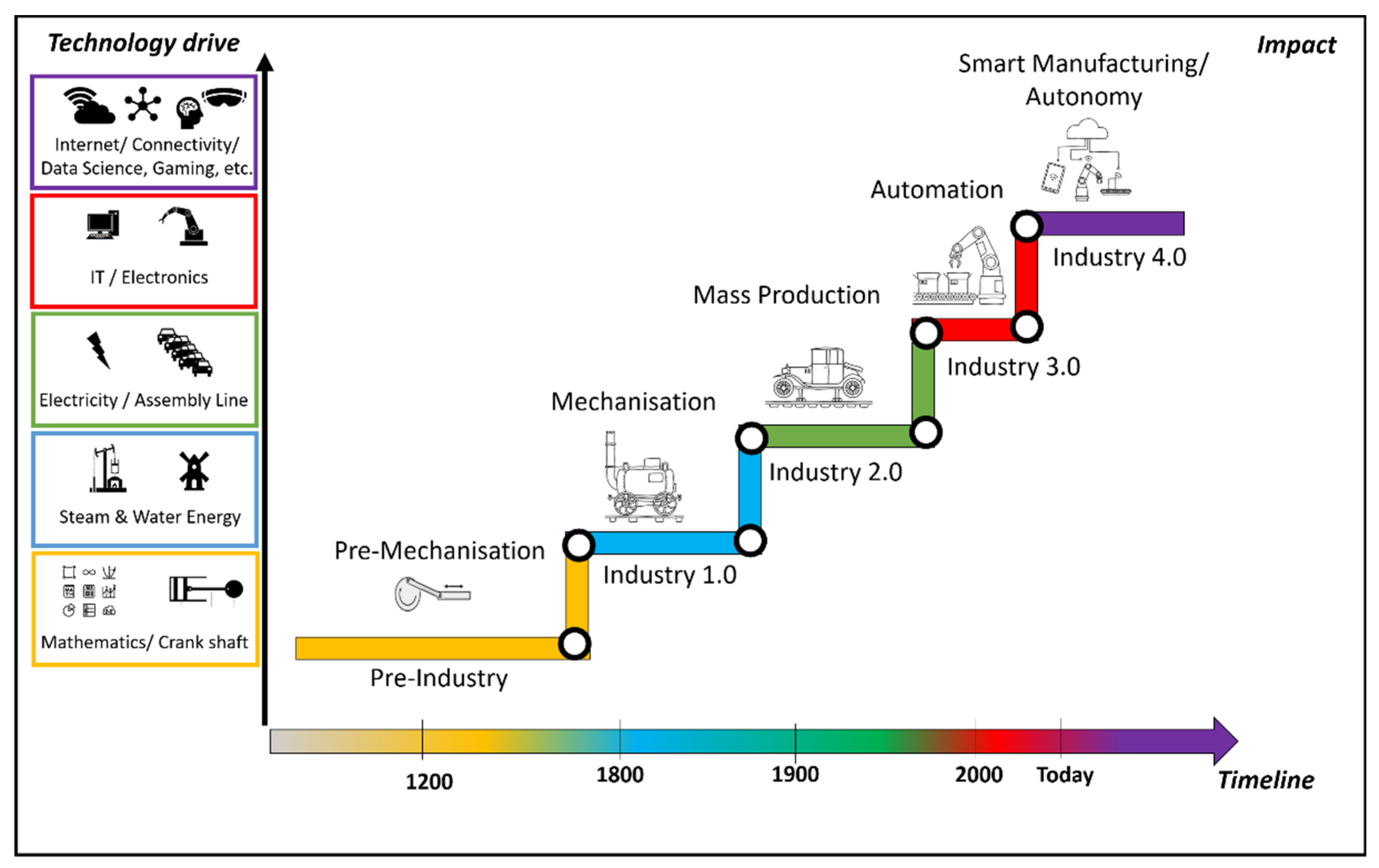

Figure 2 shows a graphical three-dimensional map that summarizes the key technological drives behind the industrial revolutions together with the timeline they have evolved around and the impact they made to the manufacturing industry.
Technology has advanced enormously in the past decades and is continuing to do so. The advanced digital technologies that make the trend Industry 4.0 are considered as the transforming force that will arguably modify the production infrastructure, the development of products and services and will potentially bring about improvements to the business-customer relationships [48]. Smart manufacturing is the outcome of a successful connectivity, integration and co-ordination of the capabilities of Industry 4.0 technologies, which subsequently results in people, IT systems, physical assets (e.g., machines/products) and data connected along the entire manufacturing process [5,8]. Real-time access of data from multiple sources in the factory is valuable because it allows manufacturers to utilize and respond to the actionable information derived from the data. It allows manufacturers to differentiate themselves from others by making better decisions regarding the manufacturing process, hence, the term ‘Data Driven Manufacturing’ is revolutionary for the manufacturing industry [49,50].
Figure 3a shows relationship circles connecting people with three entities: (i) digital represented by IT systems; (ii) physical represented by machines/products; and (iii) virtual represented by modeling systems. This relationship enabled by Industry 4.0 digital technologies can transform all aspects of a manufacturing business. Data is abundantly available in manufacturing and getting real-time access to this data and information exchange between the three entities allows greater insights for a rapid decision-making process [6,7,8,9,10,11,35,39,42].
This results in an increased labor and resources productivity, increased asset utilization due to reduced machine downtime and reduced costs of maintenance, quality inspection, inventory and time to market [1,5,8,9,15,16,37,48].

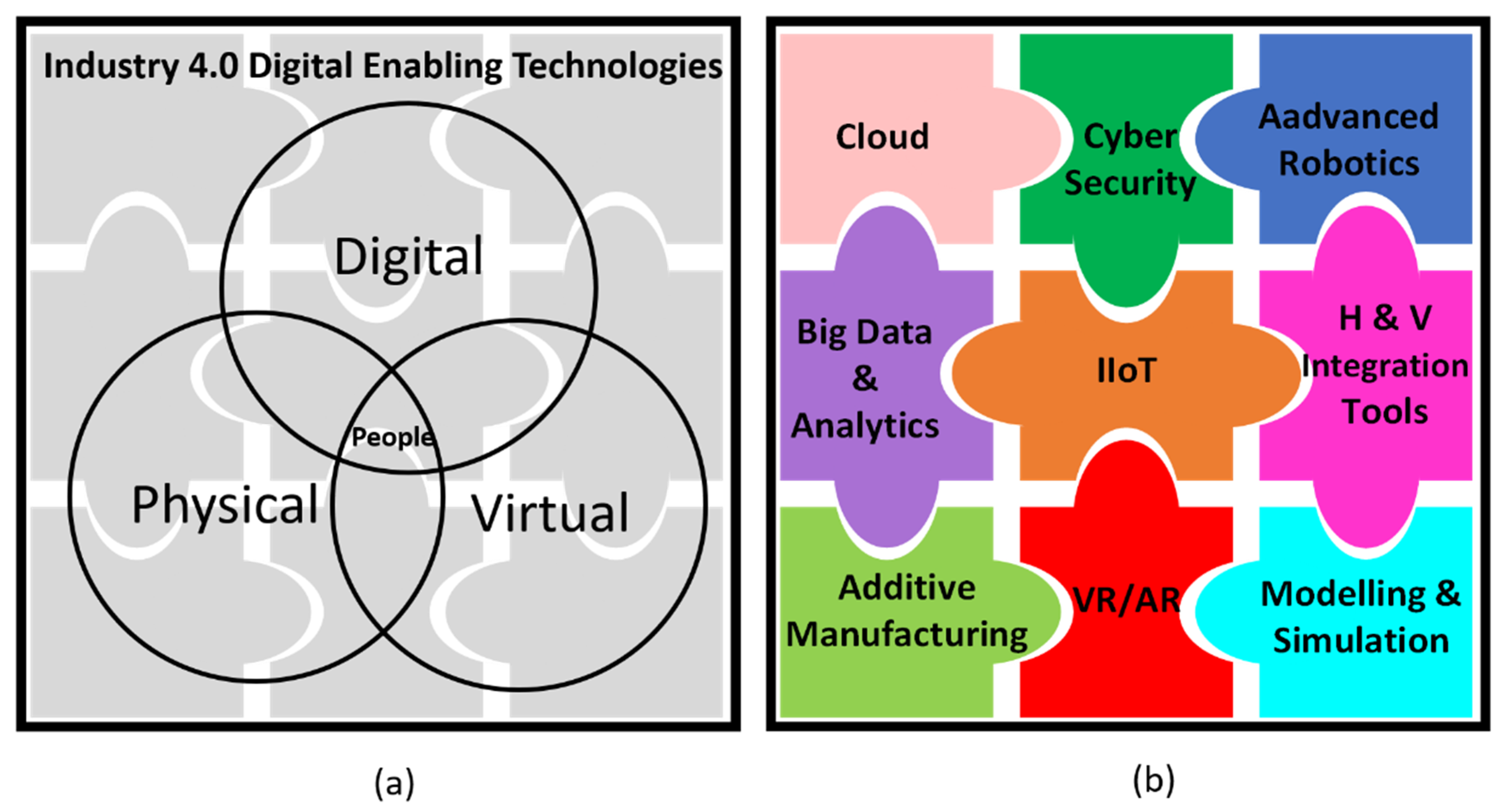

Figure 3b shows nine key Industry 4.0 technological elements [5,16] presented inside a technology jigsaw map. These technologies can be seen as a rich collection of available tools to use; therefore it is important to know when and how to use these tools and where would they create value to the business [46].

5. The Six-Gear Roadmap

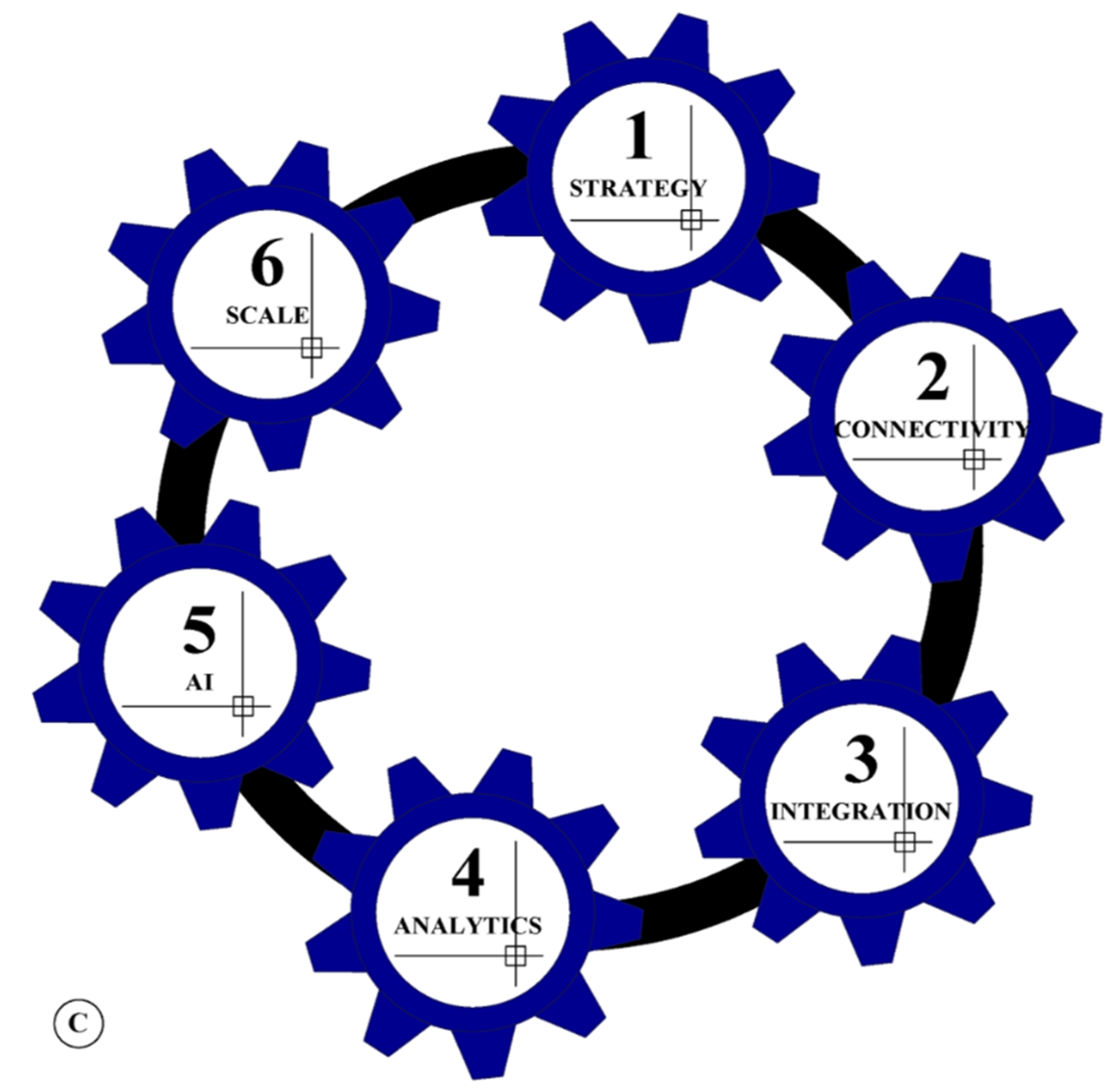

The transition into a smart factory is a journey and the best way to implement it is through a gradual process, building on initial digitized capabilities and following continuous improvements. Figure 4 shows the Six-Gear Roadmap towards the Smart Factory. The gears represent different stages of the journey which have been inspired from the motoring industry. The roadmap serves as a holistic strategic vision towards a successful Industry 4.0 adoption and transformation into smart manufacturing. It is divided into six stages, within each stage there are sub-stages highlighting key areas to be considered. A technology jigsaw is presented alongside the roadmap stages to show the building blocks of key enabling Industry 4.0 technologies.

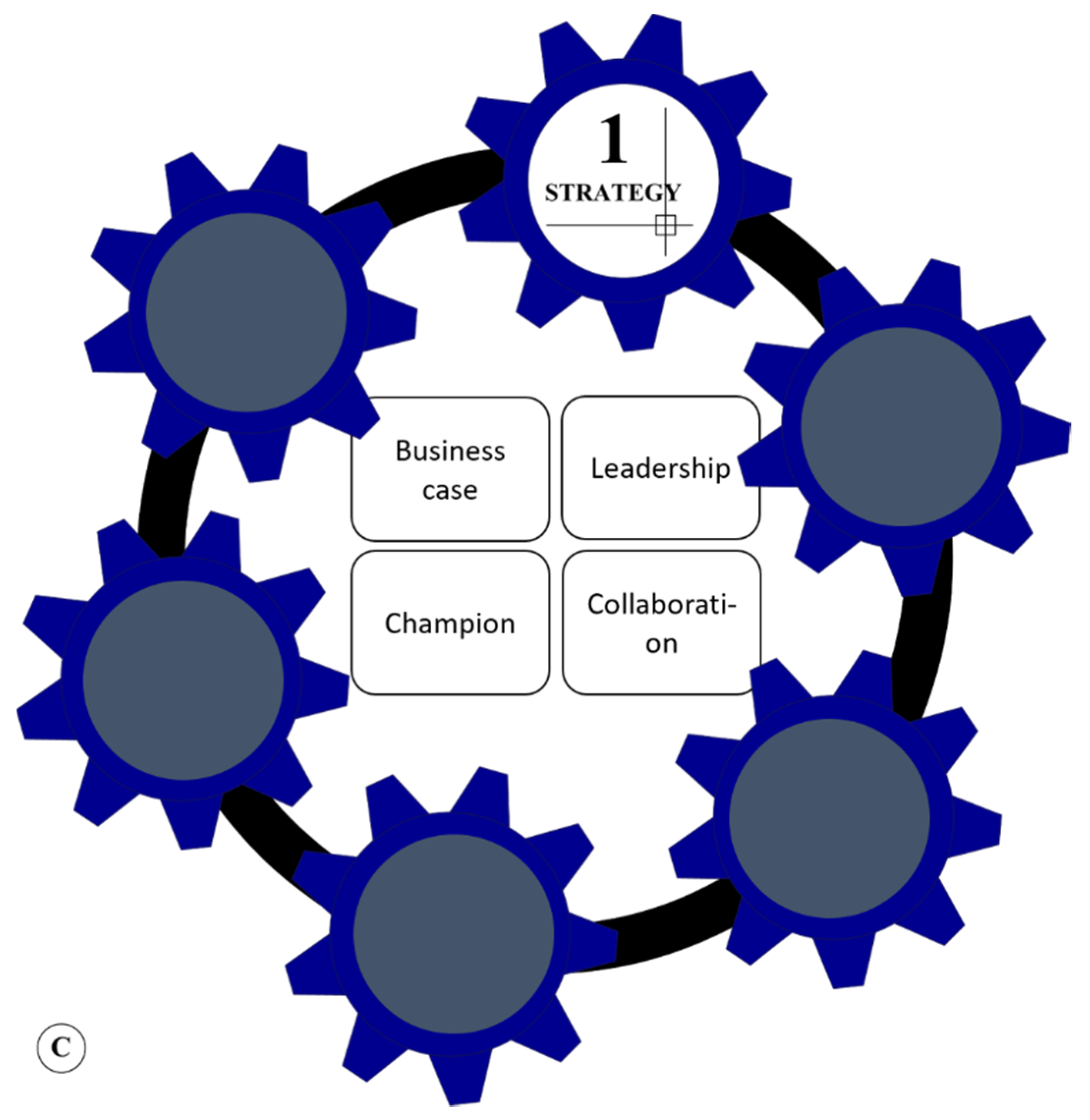

The first gear of the roadmap is the strategy stage which discusses the strategy to build for the adoption journey. The second gear is the connectivity stage which identifies ways to build the foundations for the connectivity infrastructure. The third gear is the integration stage which discusses system integration strategies between information and operation technologies. The fourth and fifth gears are the Analytics and AI stages that highlights the analytical tools and methods that can be used to capitalize on the data turning it into actionable information. The last gear is the Scale stage which outlines different possible approaches that can be adopted to scale, optimize and continue the development of the different stages of the roadmap throughout the Industry 4.0 journey.

5.1. Gear 1: Strategy

Manufacturing organizations have started to appreciate and embrace Industry 4.0 realizing the potential it can offer in terms of improving efficiencies, cost savings and responsiveness to the market demands [17]. However, it can be confusing on how it can be achieved in practice especially with limited case studies available and the journey could vary from one organization to another [6,21,28]. To achieve the goal towards smart manufacturing, the proposed models suggest building a strategy to assist manufacturing SMEs throughout their journey. Figure 5 shows four main areas that should be considered in this stage.
Firstly, a business case should be in place with clear vision, goals and objectives of what is to be achieve that best suits the organization’s business model. This can be done by prioritizing the areas in which it will offer the most benefit and long-term Return-On Investment (ROI) [9]. Recent surveys from the aerospace industry suggest that the majority expect Industry 4.0 investments to payback within two years [25,37]. Early and fast adoption via launch and lean approach could also be significant for competitive advantage and cultural change over late adopters [25]. Manufacturing organizations within the same industry might share similar drives and goals, for example, the aerospace industry common drives are to increase productivity as demand grow, reduce the cost of manufacturing for competitiveness and to add value to the products and services they offer [8,37]. Every manufacturing company can have a different starting point, and a bespoke digital transformation journey. It’s important to identify a specific starting point, understand where the value to be created and begin the journey [51].
Secondly, a key to a successful journey is the role of leadership. The challenge in the manufacturing industry is that leadership is not at the required level to deliver an optimum strategy for faster technology adoption [28] because of lack of available examples or case studies from which leaders can inspired and take lead from. To overcome the leadership challenges, digital transition should be a strategic investment—Possibly written in company’s annual strategic document-to ensure an informed investment to get the confidence on the ROI. Leaders should also consider the wider technical infrastructure and skills needed to manage and accommodate the technologies in-house and what is needed to source them. Managing cultural change and getting the buy-in should be driven from the top with clear communication strategy on where the organization is heading and why they are doing it in order to bring the whole organization onboard throughout the journey [8,28,29].
Thirdly, is to appoint a champion. Due to the nature of an Industry 4.0 project, i.e., being complex, requires multi-disciplinary skills and cross communication between different departments that often operate independently (e.g., IT and operations), a champion with the right leadership and technical skill set is needed that can act as a digital officer and a project manager whose responsibilities include: (i) overseeing the strategy; (ii) facilitating activities between various departments; (iii) managing the project implementation and technology adoption; (iv) constantly updating and communicating the ROI as well as success metrices to leadership; and (v) establish vison of future potential projects and applications to scale along the journey [45].
Finally, foster collaboration and plan them while developing the strategy. Industry 4.0 projects are complex as they touch on many inter-disciplinary areas (e.g., integration of sensors, IT, analytics, etc.). The level of technical readiness, maturity and skills of the company workforce should be assessed to identify the relevant support needed. Collaboration and partnership with academia, technology hubs and technology providers at different stages of the roadmap should be considered. Specialist skills and development support enable quick wins and faster adoption, de-risking failures and investments [28,45,47].

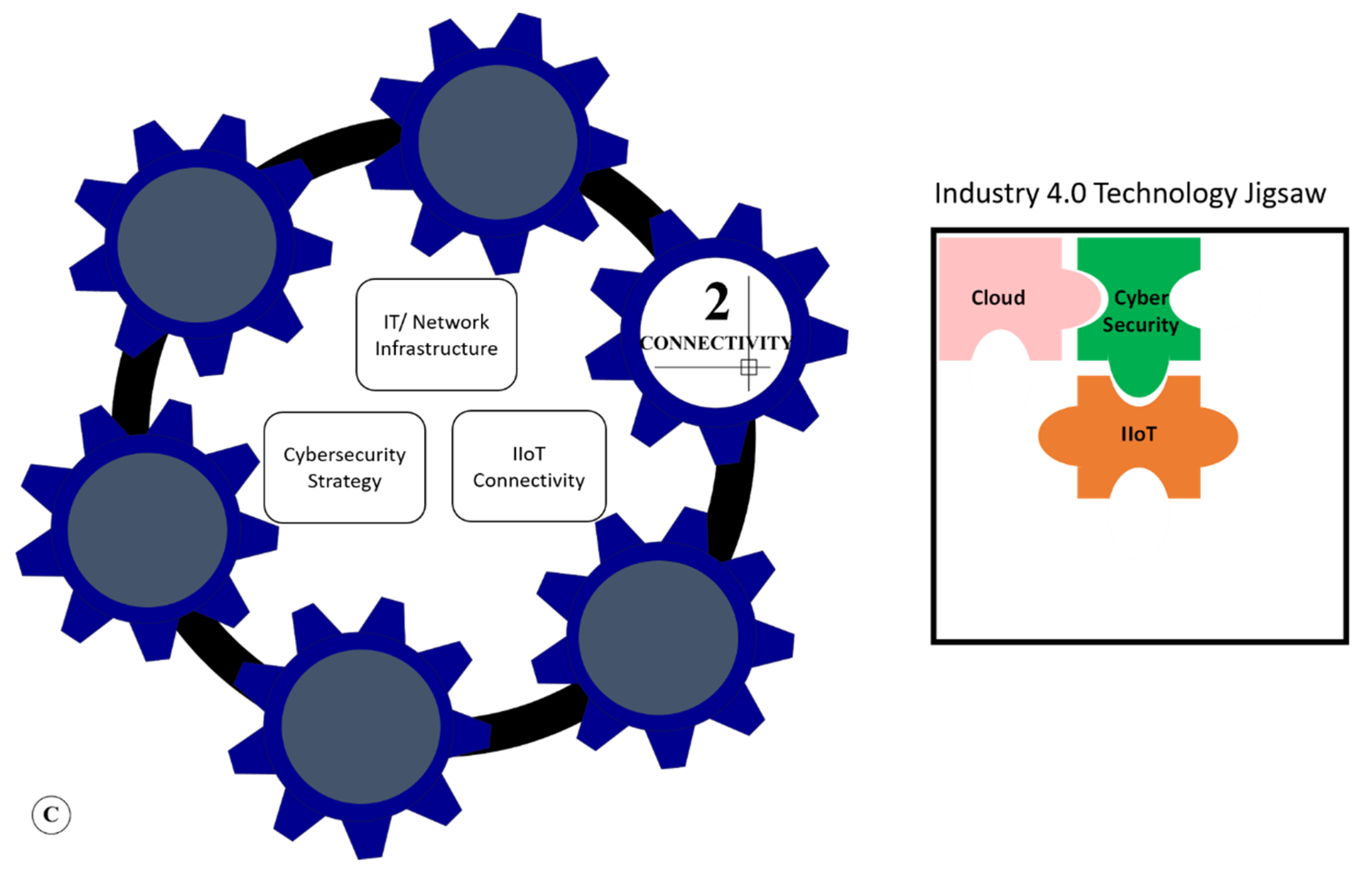

5.2. Gear 2: Connectivity

The connectivity stage of the roadmap is the most essential stage because it serves as the foundation for other stages to build upon. Figure 6 shows the three sub-categories that should be considered and the three key enabling technologies associated in this stage.

5.2.1. IT/Network Infrastructure

To establish a stable foundation for smart manufacturing, a resilient and secure IT/network systems are relied upon and must be sought to move forward [47,52]. Existing IT and network infrastructure capabilities in the factory can be the starting point. It is proposed that building upon the existing infrastructure should depend upon the volume of the potential data generation, its flow/communication through the network and data processing capabilities needed as a result, a dedicated server. Having a dedicated IT infrastructure in place for Industry 4.0 projects should be considered, for example a local on premises data center, a dedicated cloud infrastructure or a hybrid solution. There are advantages and limitation of each in terms cost, maintenance, scalability, reliability, flexibility and security. All these should be considered to best suit the organization capabilities and workloads now and in the future. Wright, J [47] outlines fives steps for manufacturing organizations to lay stable IT foundation and considers cloud hosting (private, public or hybrid cloud solutions) as a viable option to take in preparation for the Industry 4.0 journey.

5.2.2. Industrial Internet of Things (IIoT) Connectivity

The currency of the online world today is data as it drives business and services [53]. Data is in abundance in the manufacturing sector. To access this data, physical assets and operations in the factory floor needs to be connected. Connectivity technologies have become more accessible and affordable due to the considerable drop in the cost of sensors and computing in the last few decades, further enabled by the advancement of the internet [28]. An IIoT system is a collection of an ecosystem of combined technology elements that collect, store and harness data [54] in order to provide information, trigger events and recommended actions to be taken.
There has been several initiatives and close collaboration between research and industry to standardize the reference architectures for IIoT connectivity in industrial applications. These reference architectures all serve as a general guide and aim to facilitate interoperability, simplicity and ease of development [55]. Reference architectures like the Industrial Internet Reference Architecture (IIRA) and the Industrial Internet Connectivity Framework (IICF) by the Industrial Internet Consortium (IIC) facilitate broader industry applications to help evaluate connectivity of IIoT solution [56]. The Internet of Things-Architecture (IoT-A) provides detailed overview of the IoT information technology aspects [57]. RAMI 4.0 provides a three-dimensional map for smart factories covering manufacturing and logistics applications [58]. The International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC) provides six domain model frameworks for the (IoT) Reference Architecture focusing on resilience, safety and security [59].

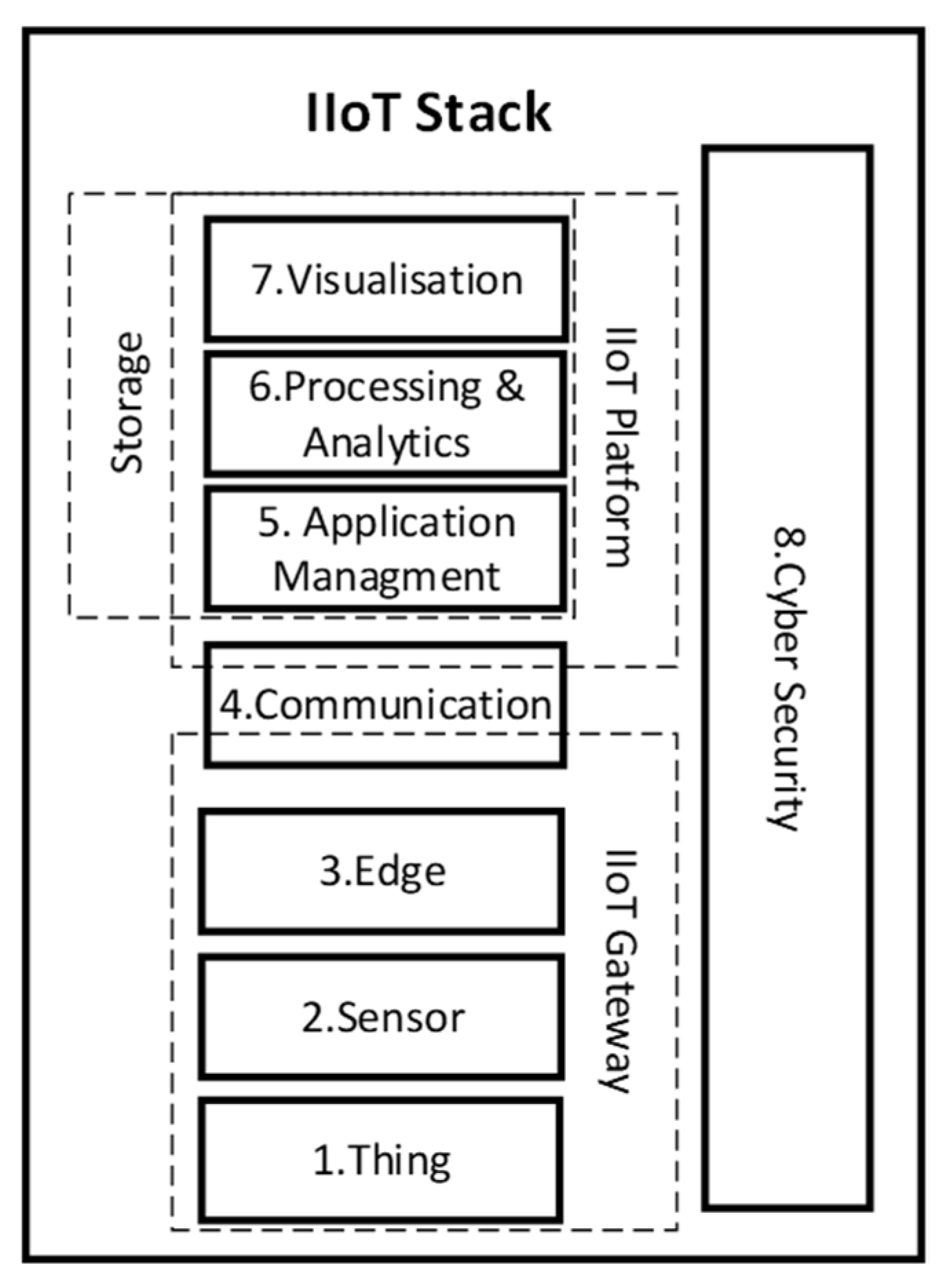

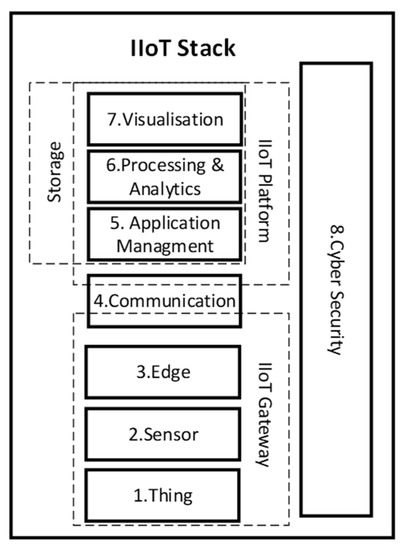

An illustration on an IIoT stacks system is shown on Figure 7. IIoT systems contains different layers that communicate and integrate in coherence with one another without interfering with existing automation logic of the physically connected entities. There are multiple options to consider when building the IIoT stack, this can depend upon existing capability and the application needs.
The ‘Thing’ layer represents the core hardware of the physical entity where the raw data normally exists.
The ‘Sensor’ layer is where the embedded sensors are used to detect and measure the parameter(s) of interest.
The ‘Edge’ layer normally consists of embedded computing hardware and/or software that operates and controls the functionality of the sensors and performs onboard processing of the data. For example, CNC machines/robots used in manufacturing normally consists of the first three layers. They have embedded sensors wired to the PLC unit, interfaced and controlled via a supervisory control and data acquisition (SCADA) system built within for management and control acting as the edge layer. However, that’s not the case with legacy machines as further additional sensors and edge devices are needed to access and communicate data to upper layers of the stack.
The ‘Communication’ layer consists of multiple communication standards and protocols that enable communication and data transportation. Key networking technologies for transporting the data can be wired or wireless (e.g., Ethernet, Wi-Fi, Bluetooth, Cellular 4G/5G, LoRa, Sigfox, NB-IoT, etc.). The amount of information generated may increase exponentially and there is a need for fast communication network for acquiring such information in real-time [60]. Although Industrial Ethernet has been the de-facto backbone of many plant floor connectivity, it is worth to mention that the emergence of 5G technologies are a key enabler of the next generation communication technologies operating at much higher frequencies and larger bandwidth [61]. Key communication protocols for data representation that are widely used in industrial environment are OPC-UA, DPWS, UPnP, MT-Connect, DDS and other key messaging transfer protocols includes MQTT, JSON, XML, HTML, HTTP, CoAP, REST [62].
The ‘Application and Management’ layer consists of software components to communicate and manage the ‘Thing’ connected as well as creating the environment for the IIoT applications.
The ‘Processing and Analytics’ layer is associated with the processing and analysis of data and subsequently converting it into meaningful information. Further insights to the data can be achieved by applying data science techniques for deeper insights or even correlating and contextualizing it with the data obtained from other IT systems connected via the communication layer.
The ‘Visualization’ layer is where the meaningful information and insights are presented in visual format in the form of metrics dashboards for ease of interpretation by non-specialists.
The ‘Cybersecurity’ layer encapsulates all the different layers of the stack as secure by design approach of the IIoT architecture.
The stack layers ‘Sensor’, ‘Edge’ and ‘Communication’ can sometimes be combined in one device often referred to as an ‘IIoT Gateway’ combing both the hardware and software with internet-enabled components enabling communication and data transfer to a digital platform or infrastructure. In the aerospace industry, regular audits, inspections and quality checks are performed during manufacturing and assembly as it is less dependent on the use of robotics and automation because of the tight regulations regarding aircraft construction, therefore, IIoT enabled gateway devices and tools are key to enable workers to increase productivity [48].
The ‘Storage’ layer is where the IIoT platform will be hosted in the chosen IT infrastructure to operate, store, organize and manage the data flow. IIoT platforms are excellent examples of software applications that can facilitate, organize and manage communication, data flow, storage, device management and the functionality of applications addressing the layers of the IIoT stack (Figure 7). This further enables integration with Information Technology (IT) and Operation Technology (OT) that will be discussed in detail in the next stage.

5.2.3. Cybersecurity Strategy

Cybersecurity (CS) is one of the main challenges to connectivity in smart manufacturing [52] and one of the biggest barriers to Industry 4.0 adoption [16]. As soon as any device is connected to the internet, if not handled correctly, makes the whole network less secure and resilient, therefore, CS becomes critical because of the risks associated with it. An example of such risks can be hacking the machines and causing the production process to stop or even cause danger to the operator if the machines are externally manipulated. Also, as the network grow, so does the attack surface and to protect critical manufacturing assets, a CS defense strategy must be in place to address the threats.
To get started on building a CS strategy, risks must be identified because security measures can be defined based on the risk profiles of the connected devices [63]. In manufacturing most likely the risks will be the machines, tools and the data they handle, its functions within the network operation and the potential impact to the network when it is breached. Once the risks have been identified, security strategies can be implemented where applicable ranging from designing a secure connectivity architecture at every layer of the IIoT stack, secure configuration of connected devices and systems on the network during system installation as well as continuous maintenance of the IT/Network infrastructure.
There are regulations and code of practices available to identify suitable procedures and measures ensuring privacy and security of connected devices over the internet [63,64,65,66,67]. However, in the manufacturing industry, the confidentiality or privacy of the data collected from the plant floor is not crucial because no personal data is collected, therefore, security measures to protect such data that complies with the General Data Protection Regulations (GDPR) [64] might not be required. However, the integrity of the data collected is fundamental to the operation of the service and that has to comply with the NIS Directive [65] as IIoT connected devices provide data collection service to the manufacturing industry.
When designing the connectivity architecture of the smart factory, it is important to get the IT department on board from the start to assist on building upon existing IT, network and security policies to address the inclusion of connected devices and their interoperability [68]. A recent survey by Cisco suggests that only 26% of companies that began IoT initiatives succeeded [69] mainly due to best practice approach taken in terms of collaboration with IT and IIoT experts.
A case study presented an example of an industrial collaboration to address factory level network connectivity and cybersecurity of an IIoT system; known as the iSMART factory concept [32,52]. This collaboration was between global machine equipment manufacturers “Yamazaki Mazak” and the IT giants “Cisco” teaming up together to connect machines securely via MT-Connect protocols and Industrial IT switches embedded with network security to help prevent any issues with unauthorized access to or from the machines and equipment within the network.

5.3. Gear 3: Integration

This stage is associated with the integration of IT and OT systems in manufacturing that often operate independently, the former manages business applications from the front office and the latter keeps the plant operations run smoothly. Integration of IT and OT are the backbone of the smart manufacturing architecture which have been addressed by various Industry 4.0 smart manufacturing frameworks, standards and reports [1,5,6,8,9,10,15,35,40].

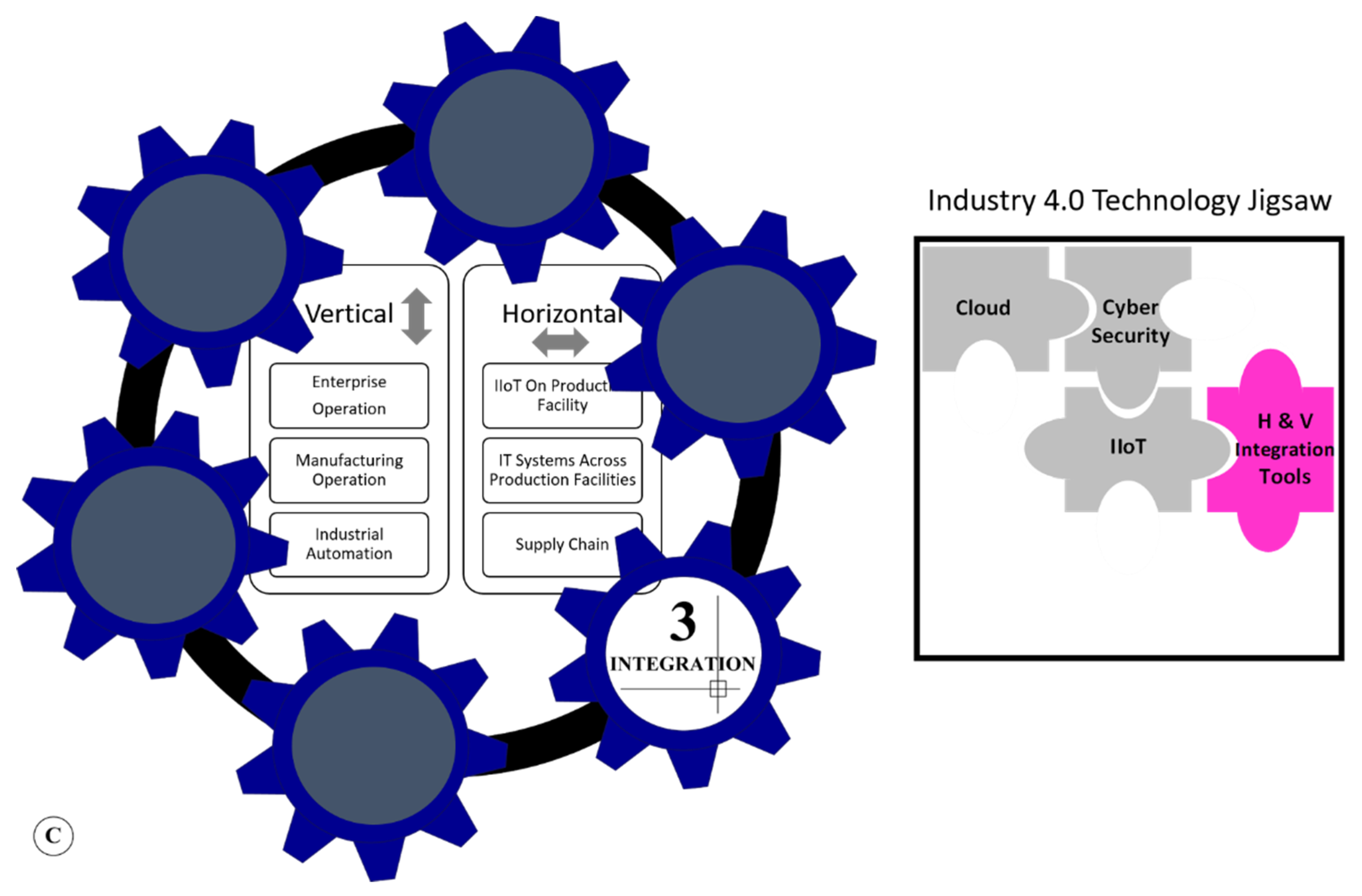

Figure 8 highlights vertical and horizontal integration requirements from an operational perspective that should be considered in this stage. Vertical integration aims to tight together all the operation layers within the manufacturing organization keeping as much of the value chain in-house as possible. The horizontal integration on the other hand aims to connect networks of cyber-physical and enterprise systems presents within the production facilities and the entire supply chain to establish partnerships building an end-to-end value chain [70]. In this stage, vertical integration is discussed in detail as its considered essential for systems and data integration between IT and OT, in order to provide agility in finding patterns for finer control of the manufacturing process [4]. Horizontal integration is discussed briefly in stage 6 when scalability adds additional value to the connectivity and integration architecture of the smart factory.

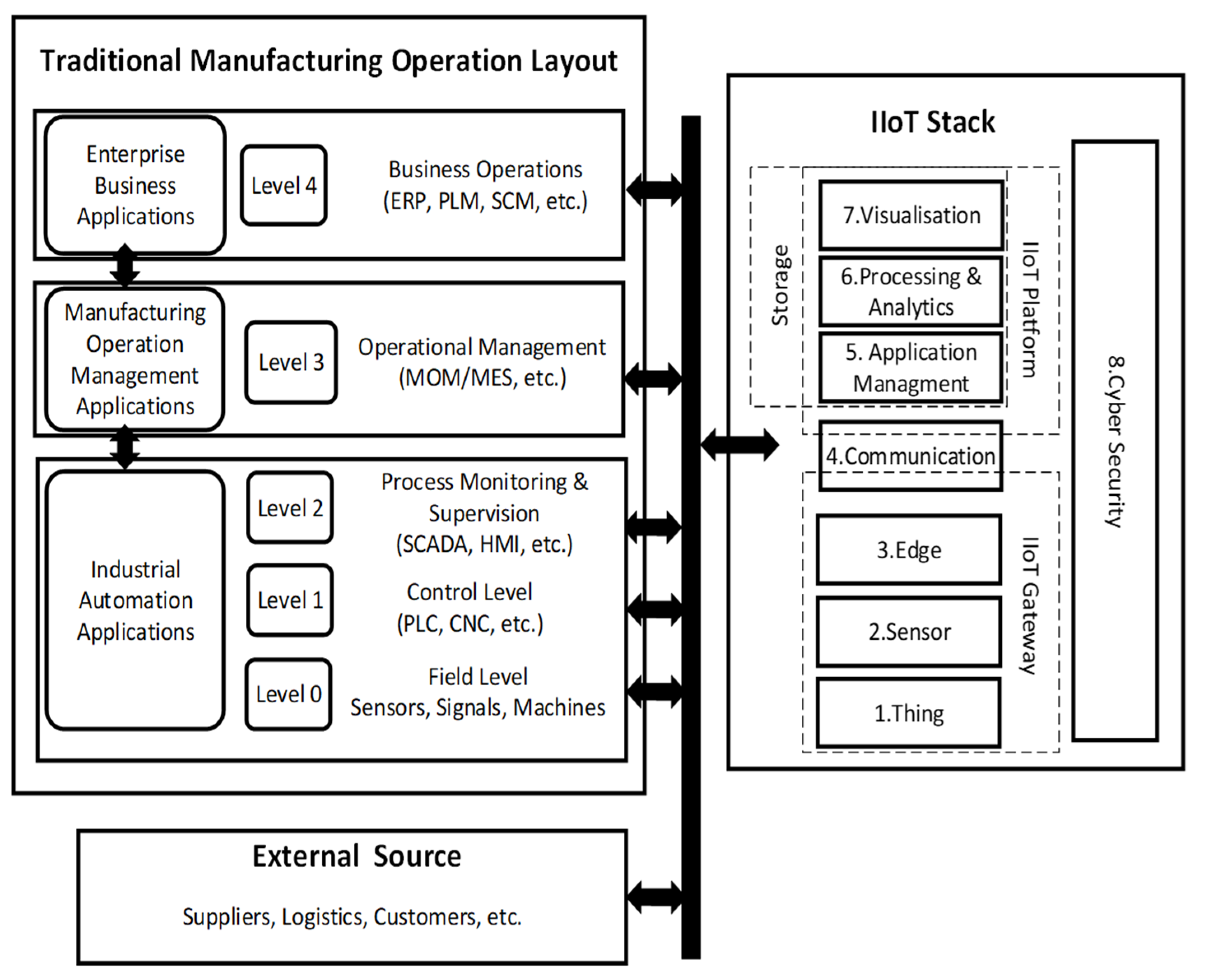

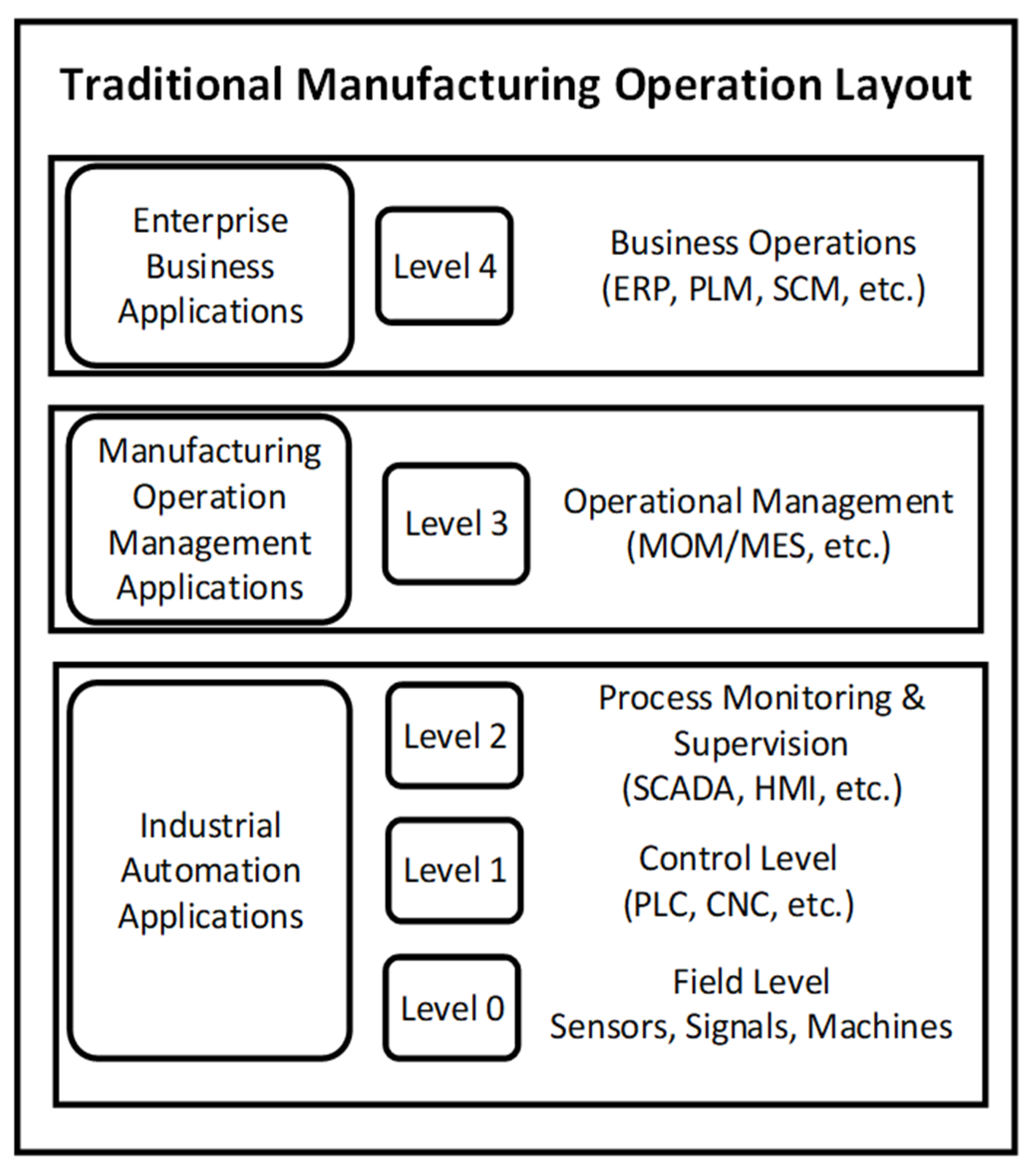

Figure 9 presents an example of the international standard ANSI/ISA-95 traditional manufacturing operation layout [71]. It encompasses five traditional operational levels (0–4) where manufacturing information exists side-by-side together with some examples of manufacturing software applications used in each level. It is widely developed and applied in the manufacturing industry to provide the terminology for clarifying application functionality and the way information is used.
IT systems in the manufacturing industry have been traditionally developed to collect data and manage work processes within manufacturing, to meet specific functional areas within each operational level [72]. These systems have been purposely built to resolve specific set of issues and often operate independently. They have difficulty obtaining data across operational levels and they can’t scale or sustain with the increasing complexity of manufacturers needs [72]. For example, enterprise resource planning (ERP) systems used in the business operation level play a major role in connecting day-to-day activities across the manufacturing facility, providing essential insights into operations and the manufacturing process integrated into one database [73]. In the operational management level, manufacturing operation management (MOM) systems and manufacturing execution systems (MES) operates to bridge the gap between the enterprise business level and the automation levels but there are limitations and complexities associated with connectivity and vertical integration of real-time production data [35,74]. They are still heavily dependent operators’ inputs and lack data processing analytics capabilities.
Connectivity, vertical integration and synchronization between the manufacturing operations levels are essential for greater insight into the production process for rapid decisions making, corrective actions to be taken and to enable optimization. This can have a significant improvement in business and financial performance making it one of the challenging applications and cornerstones of Industry 4.0 vision for smart manufacturing [36,75]. Recent reports have shown that only few digitally capable advanced manufacturing companies have fully integrated and correlated plant data with enterprise applications since a more advanced connectivity and integration tools are needed [36,74].
There are number of key challenges associated with the integration stage. They include: (i) interoperability (breaking down the silos in the factory floor machines and equipment’s that speak different languages depending on the communication protocols set by the vendors); (ii) data security (privacy issues with external sources and third parties in the horizontal integration as it requires data to be kept secured and accessed on a need to know basis); (iii) scalability (easily scaling the IT infrastructure by shifting IT systems operation to the cloud when data volume and velocity significantly increase with time); and (iv) adopting cost-effective IT applications (with strong orchestration capability to handle the integration complexity as well as providing end-to-end visibility with robust tools for data analytics to be performed) [38,70,76].
The IT technology market is already providing solutions to overcome the complexities of IT and OT integration to solve the challenges of interoperability (using open and multiple standards and protocols for communication), data security (using best practice CS standards and protocols) and scalability (via cloud ready solution) [54,62,74,75,76]. Table A2 in the Appendix A shows a list of leading Industry 4.0 ready IT platforms used in the manufacturing industry that use best practices connectivity and integration architecture that combine elements of IIoT and MOM/MES. These platforms do not completely replace or rebuild long established systems but acts as a new layer to the infrastructure orchestrating the new way of Industry 4.0 in smart manufacturing. This involves sourcing data from anywhere with minimal connectivity and integration costs together with having analytical capabilities to deliver insights via digital dashboards that can be accessed from anywhere including mobile devices, augmented and virtual reality displays.
Manufacturing companies should carefully consider when implementing an IIoT system whether to buy off-the-shelf solutions or build an in-house solution taking into account the skills needed to build the technology stack, the scalable capability of solution, the availability of resources, technical skills and time [4,77]. Industrial research reports find that most successful IIoT projects use off-the-shelf solution as the basis of their operation can get a quick ROI on the technology implementation [4,74,77].
A strategy should be in place for choosing an IIoT solution to suite the company’s appetite. Some of the considerations include the additional capability of the platform, the additional IT infrastructure and hardware needed, the cost of using the platform, the customization flexibility, the technical skills required to use and manage the platform and the ability to scale in the future.
IIoT platforms with built-in MOM/MES applications are a viable option. They are capable to seamlessly integrate with enterprise and industrial automation applications [73] and are accompanied with the elements of the IIoT stack (e.g., analytics tools, IIoT gateways connectivity, cloud scalability) [8]. Case studies in [78,79] shows examples of manufacturers implementation of such option. Other option combines industrial code-less IT systems with built-in software bridges, modules and communication protocols that are capable of connecting and integrating data across the manufacturing operation layers [62]. Examples of such IT systems are OPC Router [80] and Kepserver [81]. Another option is to adopt a full-fledged IIoT platform to seamlessly connect and integrate all layers of the manufacturing operation, enhanced with additional manufacturing operation apps [68]. Case studies in [82,83] shows manufacturers implementation of such option. Embracing an ecosystem of solutions that work in harmony enable a successful system level integration [74]. All three strategies have the potential to combine data from different manufacturing operation levels enabling capabilities to move to the next stages of the roadmap.
Figure 10 shows an illustration of a smart manufacturing integration architecture that combines elements of the manufacturing operational levels applications with elements of the communication layer of the IIoT stack bridging the gap between IT and OT resulting in a connected and integrated smart factory.

5.4. Gear 4: Analytics

This stage is associated with analyzing data collected from different sources of the manufacturing operation layers. Big Data refers to the vast amount of data generated due to the volume, variety, velocity, variability and value [84]. Big Data is categorized as smart data when collected in a structured manner, condensed, processed and particularly analyzed in a way that turns it into an actionable information. Data analytics create value in manufacturing by providing a diagnostic approach to enable root-cause problem solving and guidance to reduce deviations that occur during manufacturing. Big Data is categorized in three ways: (i) structured data (data that comes from traditional database and equipment); (ii) time series data (continuously changing and event-based data); and (iii) unstructured data (other kind of data and information not typically used in manufacturing, e.g., weather, videos, etc.) [27,44].
The challenges of dealing with the vast amount of data include data handling complexity, data volume, speed of the network and bandwidth to process such large amount of data. To reduce the handling complexity and network bandwidth issues/limitations, data should be initially extracted, handled, cleansed, time stamped and processed at the edge (e.g., in the IIoT gateway/machine control level). This is to produce relevant information before transferring it to the fog (IIoT platforms/operation management level applications) for further processing and detailed analysis [85].
The traditional view of the analytics framework, that drives improvements of industrial operations, is divided into four types: descriptive, diagnostics, predictive and perspective [9,44]. Descriptive analytics are a set of metrics that describe the event (what happened). They are referred to as key performance indicators (KPIs). These KPIs are represented by mathematical calculations to provide insights into the performance of manufacturing operations [86]. Diagnostics, predictive and perspective are analytics that uncover questions such as, why things happened, what would happen as a result and what action to take in such instances. Descriptive, diagnostic and predictive analytics are widely used as analytical tools in the manufacturing industry to drive operational improvements [44]. Manufacturers, largely SMEs, still rely on common KPIs to gauge the health of their business [27].

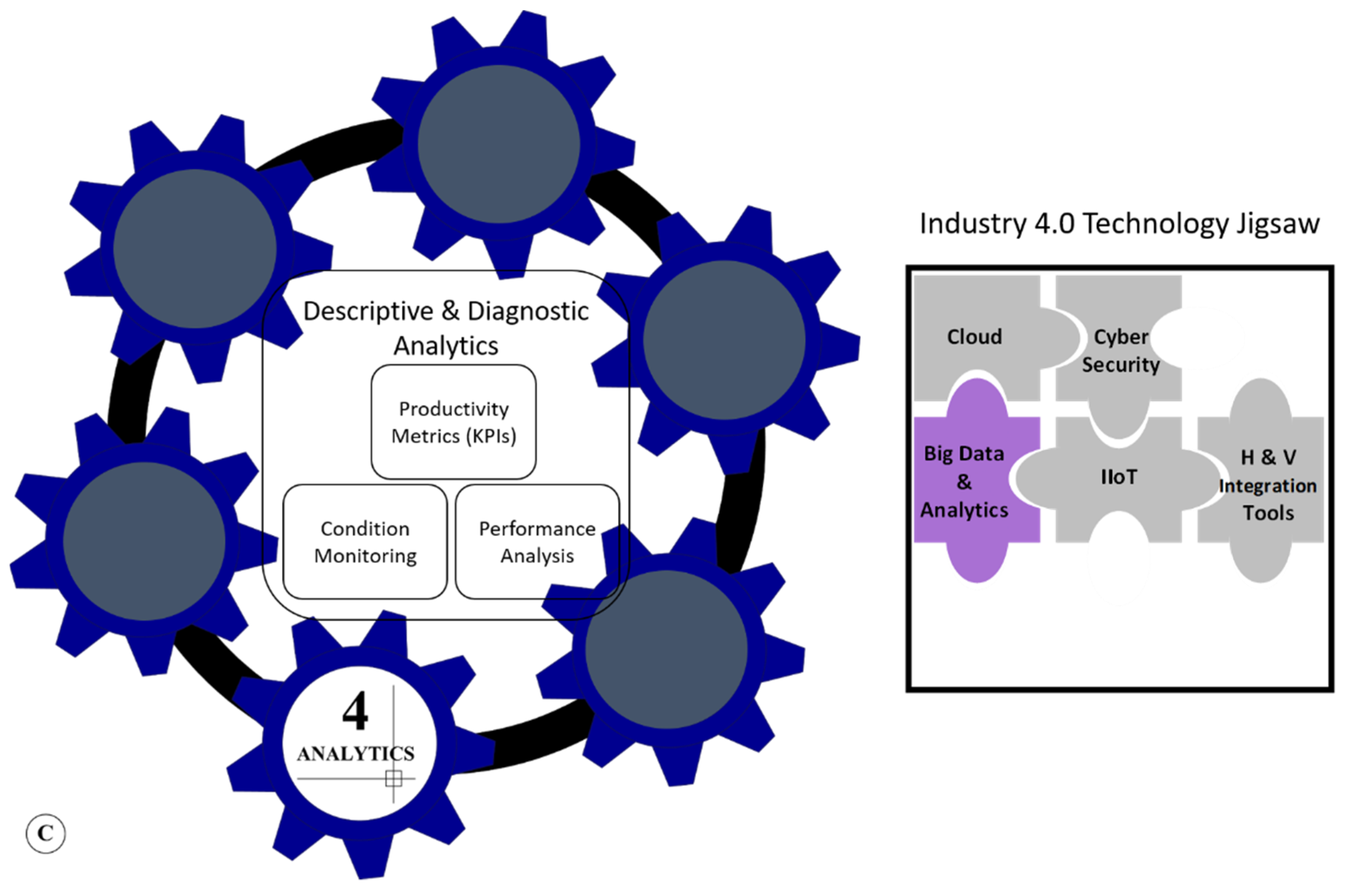

Figure 11 shows common descriptive and diagnostics analytical applications (e.g., Productivity KPI metrices, condition monitoring, performance analysis) for this stage along with the technology jigsaw map showing Big Data and analytics tools to be the fundamental technologies in this stage. Predictive and perspective analytics and their applications are described in the next stage.
Amongst the most common and popular productivity KPIs that the manufacturing organizations rely on (for managing operations) are mainly focused on financial business performance (e.g., manufacturing cost per unit), efficiency focused metrices (e.g., factory efficiency, overall equipment effectiveness (OEE)) and quality related metrics (e.g., scrap rate, yield) [87]. However, more from the acquired data can be achieved by implementing a range of KPIs that allow for the assessment and tracking of the manufacturing process as well as success evaluation in relation to the goals and objectives. Reporting of KPIs can also be improved using real-time digital visualization dashboards built within MOM applications, IIoT platforms or business intelligence (BI) tools.
Asset condition monitoring is a snapshot of the health conditions of the assets in the factory (e.g., manufacturing machine). Tracking changes of the status, performance, utilization, etc. of manufacturing machines enable significant change to be easily spotted once occurred. Historical records of the snapshots collected over time from various machines in the production line enable comparison and performance analysis to be performed [7]. For example, machines utilization history, maintenance history, failures modes etc. can be captured and compared with its peers to identify trends and behaviors related to the manufacturing process. This is valuable for diagnostic analytics to enable manufactures understand why things happened.
Industrial research reports in [27,44] recommend manufacturing SMEs to consider reviewing KPIs already being used with industry standards to ensure most important metrics are captured that drive operational performance. They also recommend KPIs tracking, their transformation into a continuous development program for operational excellence and preparation for the move into predictive and perspective analytics.

5.5. Gear 5: AI (Artificial Intelligence)

This stage is associated with the advanced data analytics and tools used to provide new answers to questions raised from the data analysis stage to add real and unexpected value to the manufacturing industry. It is based on using Big Data, predictive and perspective-based analytics and artificial intelligence-based analytics.
AI is the ability of the computer to think and learn itself. Big data, intelligent algorithm and computer systems drive the AI process to enhance machines and people through digital capabilities such as perception, reasoning, learning and autonomous decision-making [88]. In the manufacturing industry, AI is seen as the brain of the Industry 4.0 transformation while other digital technologies provide the muscles to drive the transition from automation to autonomy.
Key driving factors to implement AI in manufacturing includes: (i) to improve cost savings; (ii) to transform operations; (iii) to provide better customer service; and (iv) to create better workplace environment [34,89,90]. AI also has a potential impact on the economy leading to a stronger and improved economical prospect as a result of a more efficient, sustainable and competitive manufacturing [3].
Applications of AI and the use cases vary in manufacturing. Predictive maintenance of machines and tools is one of the key values created, which has the potential to reduce repairing costs by 12% [90]. AI-based learning algorithms spot trends in the data for early warnings and indications of possible failures and breakdown. This allows maintenance to be scheduled and intervened rather than being dependent on periodic checks, enabling a proactive behavior instead of a reactive behavior, which leads to a more reliable and sustainable production line.
An example of an AI predictive maintenance application in the aerospace industry is used by the British engine manufacturers Rolls Royce. The IoT capabilities and advanced analytical tools of Rolls Royce engines in the aircrafts are capable of predicting wear and tear in the engine so that an intervened repair and maintenance awaits as the airplane lands in order to maximize the aircraft availability [91]. Another application of AI in the aircraft industry is the Airbus Skywise platform [92] empowered by machine learning algorithms to enable insights into the data, collected from various sources of the aircraft for maintenance and repair operations. They also provide insights into operational efficiencies optimize the parts usage, reduce aircraft downtime and cut down service costs.
A manufacturing application of predictive maintenance is presented in the case study by Lee et al. in [41] where an intelligent spindle monitoring system was developed to monitor and predict the performance of the tool spindle of a CNC machine minimizing maintenance costs and optimizing product quality. AI application in manufacturing also plays crucial role in empowering workforce with a baseline knowledge to improve process efficiency and productivity. AI based algorithms can provide workforce with real-time recommendation(s) to act upon especially for young inexperienced workforce. They can also autonomously act to address raised issues making machines to adjust themselves in order to optimize quality or energy efficiency during production operations [93]. Other use cases of AI in manufacturing include but are not limited to: (i) improvements in quality inspection using images processing and recognition techniques for process optimization and scrap reduction [34,90]; (ii) in safety monitoring and control using AI-based self-learning models embedded within manufacturing automation systems (e.g., robots). These systems learn from prior experience and human interventions and react to unforeseen situations, resulting in taking pressure off people, reducing human error and improving workplace health and safety [34]; (iii) production scheduling using AI, combined with mathematical optimization tools to plan, schedule and optimize capacity planning [94].
Although, many manufacturing companies are making significant steps in AI adoption, there are still challenges that form barriers to AI uptake. A recent global survey reported by plutoshift [95] indicates that only 17% of manufacturing organizations are in full implementation stages of AI. These challenges are normally associated with the lack of strategy. The nature of an AI-based system is that it needs to be continuously trained, monitored and evaluated while guarding against bias, privacy violations and safety concerns; therefore, an AI strategy should be in place. The Microsoft AI Maturity Model [34] is a good example that highlight AI development. It consists of four stages namely Foundation, Approach, Aspiration, Maturity and is based upon organization’s assessment and maturity level to guide adoption of the right kind of AI tool(s) at the right place and time.

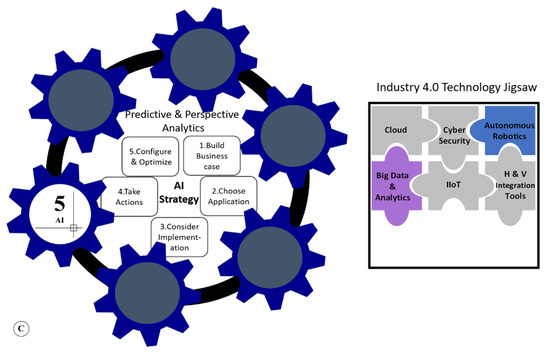

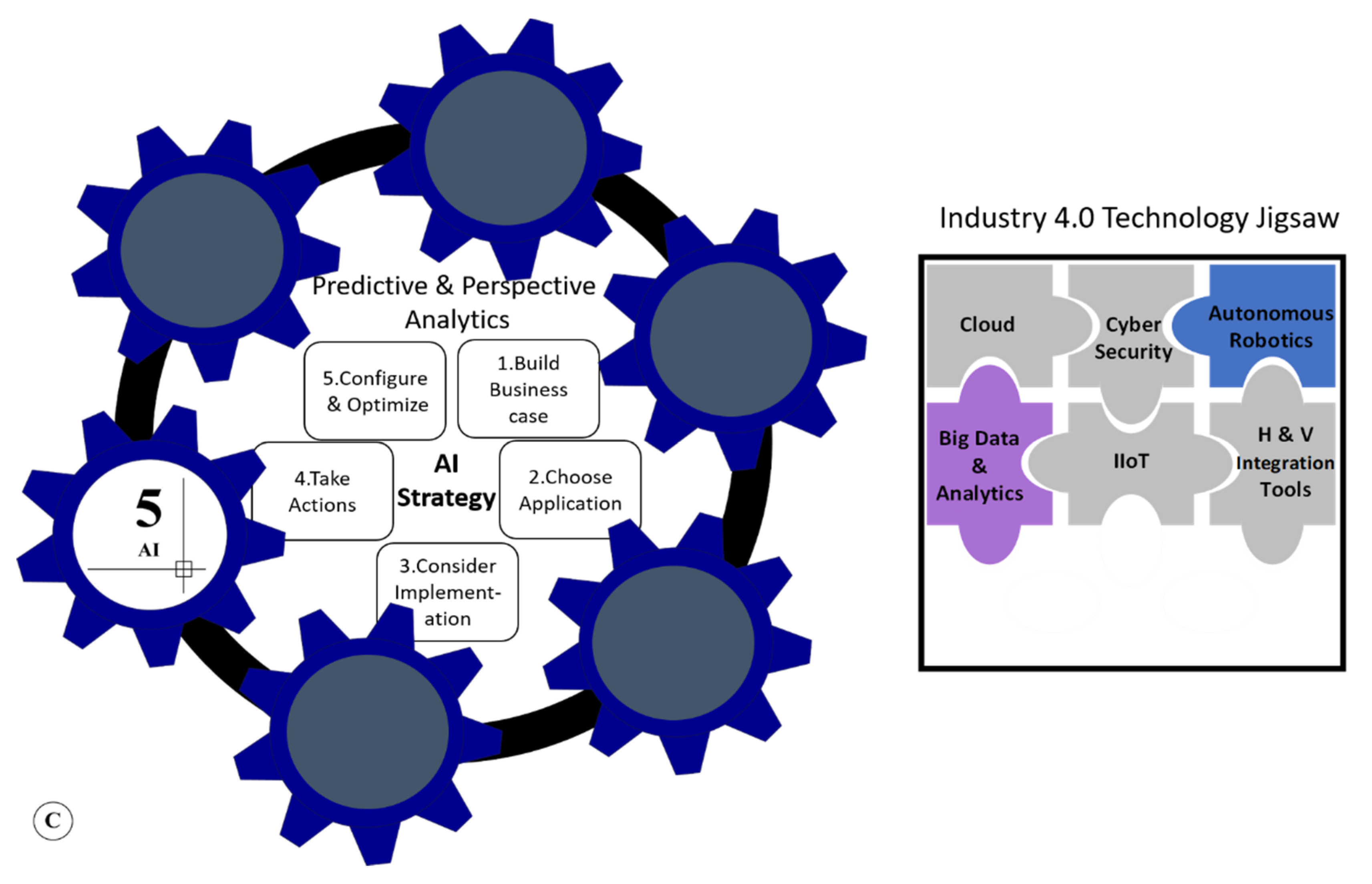

Figure 12 shows a simple process for manufacturing companies to use as a guide to deploy an AI strategy. The aim is to enable predictive and perspective analytics that can be practically achieved. It consists of five steps and utilizes six Industry 4.0 technologies. The first step is to identify a business case that is aligned with the business strategy (e.g., to maintain a reliable and sustainable production line in order to improve customer service). The second step is to choose a suitable analytical application to meet the business case objective (e.g., predictive maintenance of machines in the production line). The third step is to consider how to best build and implement the application. Examples include (i) the type of analytical tools needed to build the application (e.g., Software service/IIoT platform) (ii) the type of Big Data needed (e.g., structured, unstructured, time series data) (iii) the location of storage and the computing power needed (e.g., local, cloud), (iv) the analysis methods to use for the identified application (e.g., machine learning, deep learning techniques) (v) the skills needed to build the application and (vi) the cost of implementation (In-house development or outsourcing). All these should be considered while taking into account the culture and capabilities that match the maturity of the company. The fourth step is to have an adequate alerting, visualization and reporting mechanism in place to enable people to make decisions and take actions based upon the information produced. Machines and robots can also be further enabled to execute actions themselves. The process can allow them to self-adapt to the control commands based on the information provided by the AI application. This subsequently enables autonomy and the application of CPS in manufacturing. The fifth step is to have a continuous feedback and configuration control to optimize the AI application, the preventative actions and the decisions being taken.
Main challenge in this stage is associated with data. Data availability, data quality, adequate connectivity and data infrastructure are needed to embrace analytics and fully utilize AI applications [95]. These challenges can be addressed by using robust IIoT platforms/analytics applications that are capable of data mining from anywhere, perform necessary computing and providing adequate visualization of information that translate data into actionable information [34,36].
Other challenges of adopting AI are associated with cultural change and new technology adoption. These include perceived fears of workforce around technology being too difficult to use, lack of trust, or often the fear that it will take jobs away. However, according to HPE survey in [89], it is predicted that AI-created jobs will balance or outweigh those made redundant. Therefore, leadership from the top should have continuous communication strategy in place to overcome such issues. There is also a lack of data science knowledge and AI skills in the manufacturing industry [34,89,90], therefore, professional development of the internal staff, hiring of technically skilled people or collaboration with external expertise in the field could possibly overcome these issues.

5.6. Gear 6: Scale

The proposed “Six-Gears Roadmap” is anticipated and envisioned to be dynamic and continuous. The sixth stage in the process is thus related to the scalability stage. It is designed to increase the scale and scope of the application within each stage in the roadmap by capitalizing upon the capacity of the Industry 4.0 digital technologies.

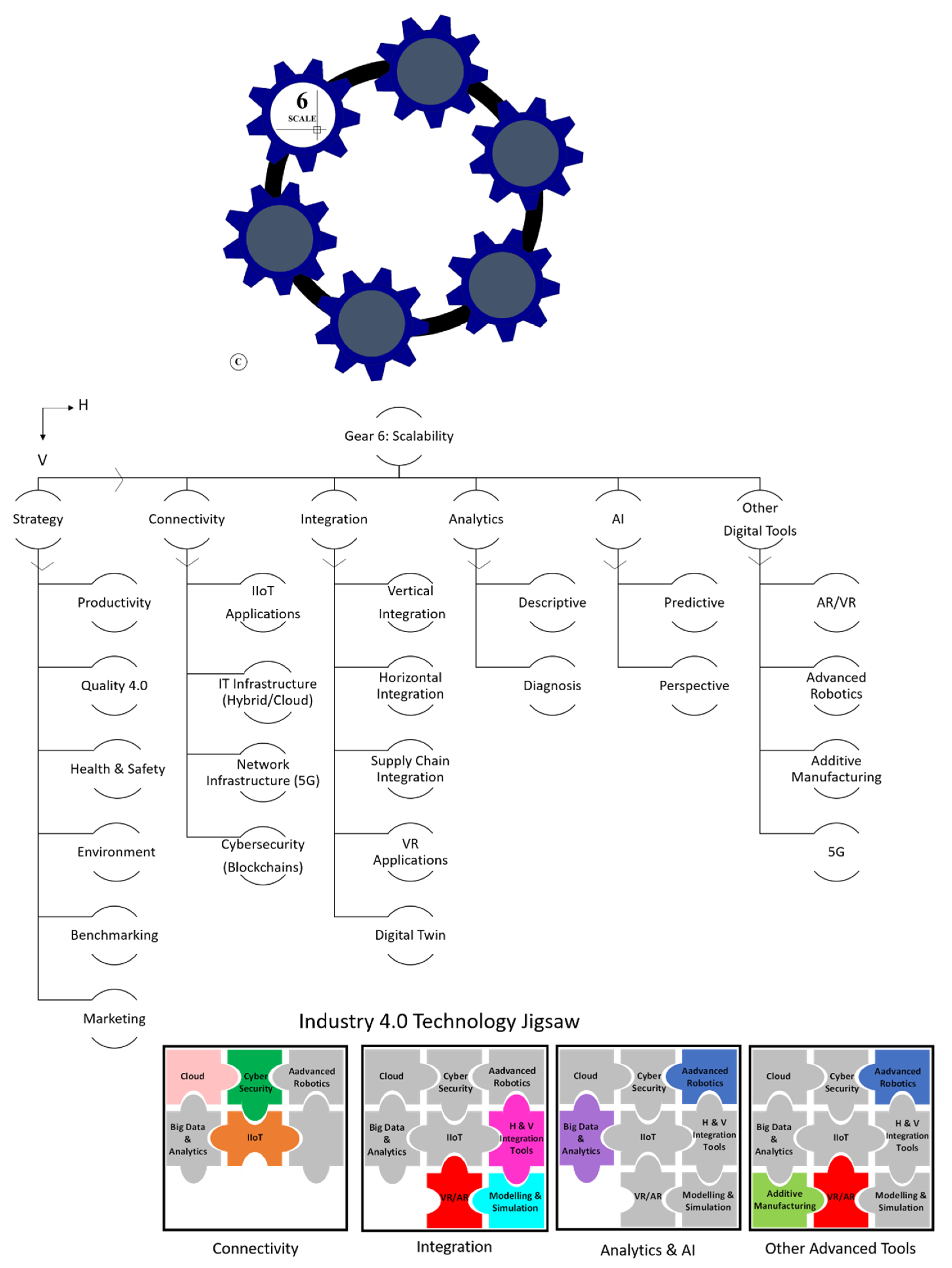

Figure 13 shows an overview of different options available to scale the stages of the roadmap together with showcasing key building blocks of the technologies associated with each stage. The roadmap can be scaled horizontally and/or vertically to show the different opportunities available for manufacturing SMEs to capitalize upon. The horizontal path represents the options to scale any stage of the roadmap together with an additional option that represents other key Industry 4.0 technologies that have potential in smart manufacturing. The vertical path on the other hand represents the option with further deep dive into each stage of the roadmap.

5.6.1. Scaling the Roadmap Gears

Strategy phase scaling can be achieved by adding new business cases and initiating projects within the company related to processors and procedures optimization within manufacturing. Quality 4.0 is an example of a strategic theme associated with digitalization and automation of the quality management activities to align with the Industry 4.0 strategy and the company’s business case. Quality 4.0 builds upon traditional quality methods and is further enabled by Industry 4.0 technologies [33]. For example, connecting measurement equipment and gauging tools with IIoT enabled gateways provide measurement data that can be logged in real-time. The quality management team can utilize such data to monitor and inspect critical measurement features during production. Analytical predictive techniques such as statistical process control (SPC) can also be applied to the measurement data to provide alerts for immediate intervention to reduce potential scrap. Environmental monitoring is another example of scaling the use of IIoT connected devices in the plant to better understand effects of the environmental conditions on productivity and performances of the factory. Data could possibly suggest ways on how to best optimize operations to increase efficiencies, productivity and reduce carbon emissions. Health and Safety strategy can focus on the wellbeing of the workforce by improving safety and control methods by the application of AI- enabled systems in the factory [34]. Benchmarking activities against similar industries on the Industry 4.0 journey, and, digital marketing applications using Industry 4.0 technologies (e.g., virtual reality applications, digital twins, etc.) are other possible strategies and business cases that can be adopted along the journey.
Connectivity stage scaling can be achieved by adding IIoT connected devices and applications across the factory and linking it up with the smart factory architecture, to gain more insights into the manufacturing processes and operations that are aligned with business strategy and objectives. IT infrastructure can be scaled by enhancing the in-house datacenter or considering a full cloud/hybrid migration to cope with the growing amount of data and the computing requirements for the Industry 4.0 applications [47]. Network infrastructure scaling can be achieved by enhancing the factory floor communication, network capability and performance by using emerging wireless communication technologies such as 5G for rapid and reliable communication, Wi-Fi, LTE, ZigBee, LoRa and LoRaWAN for cost effective and rapid deployment. Wireless Sensor Networks (WSNs) systems that deploy wireless communication technologies and IoT connectivity architecture have been widely applied in various applications such as in smart cities [96], in agriculture and environment monitoring [97,98,99], in transportation [100] and in food manufacturing [101]. These applications can be transferred and widely adapted in manufacturing to enable further data-driven smart manufacturing applications.
Cybersecurity can be scaled by incorporating blockchain technologies for increased security and enhanced traceability. Blockchain is a collection of a record keeping database technologies that stores information in a chain using cybersecurity algorithms and digital threads to digitally authenticate data for electronic exchange and processing [102]. Blockchain save time, cost and reduce the risk of human errors to prevent issues of fraud and counterfeiting, which are used mainly in financial transactions [102]. An example of the application of blockchain technology in smart manufacturing is to allow digitized manufacturing instructions to be authenticated and safely transmitted during the product lifecycle without the risk of manipulation, and, to prevent cyberattacks during supply chain collaboration [102,103]. This enables trust and make the supply chain more secure and transparent. Other applications may include the use of blockchain technologies in conjunction with blockchain-based platforms and Industry 4.0 technologies (e.g., Big Data and AI) that can be used to develop marketing strategies, determine future trends and customer demands, utilizing both data and social media platforms to enable data driven marketing [104].
Integration stage can be scaled by integrating o IT and OT systems within and across the organization. Such integration includes further vertical integration within the manufacturing operation layers, as well as, horizontal integration with other IT systems (e.g., modeling and simulation applications) across the production facility and external systems such as IT systems in the supply chain. Supply chain systems integration (upstream and downstream) can provide information insights into every part of the customer/supply chain, thus enabling awareness, visibility, responsiveness, and resilience. This provides manufacturing companies with enormous opportunities to capitalize upon in order to remain competitive, and to meet customer demands of tighter deadlines and ever-increasing cost pressures [105].
An example of integrating modeling and simulation tools into smart manufacturing include the application of virtual reality (VR) technologies to support real-time human interaction with computer generated or simulated 3D environments. VR is a suite of technologies that simulates communication and collaboration across the product life cycle by incorporating visual environments and auditory/sensory feedback to represent an imaginary world (i.e., digital footprint) that corresponds to the real world.
A virtual digital twin of a plant, factory, process, or a product is used to bridge the gap between the physical and digital worlds. A digital twin system is a cyber digital model of a physical component, product, or a system created to simulate their behaviours in real-word environments and is capable to provide a comprehensive physical and functional description in a mirrored digital environment. This paves the path for cyber physical integration in smart manufacturing [106]. It consists of three components, the physical entity, the virtual model and the data that connects the two together [107]. Digital twins can be created and applied in three stages. Firstly, in the system design stage by enabling efficient virtual validation of system’s performance of a current manufacturing process. It predefines different scenarios, give early discovery of performance and deficiencies and provide an opportunity for rapid design optimizations until satisfactory planning is confirmed before the physical processes are developed [107]. Secondly, in the system configuration stage by enabling virtual models to update and reconfigure themselves based on the real-time data from the actual manufacturing operations and AI based self-learning models. This allows to achieve system flexibility and rapid optimization of the manufacturing performance. Thirdly, in the system operation stage by enabling feedback on adjustments instructions from the digital model to the physical systems, controlling the physical output through CPS-for interactive and parallel control [108]. Examples of the application of digital twins in the aerospace manufacturing industry includes improvements in lean-management methods such as value stream mapping. This constitutes the use of factory simulation to design a physical factory layout to improve material/products flow. Other areas may include a zero defects strategy achievement and ‘right-first-time’ in manufacturing, which reduce waste and quality issues associated with new product development. This subsequently results in the demand for high quality standards and increase in market agility [108].
Scaling the Analytics and the AI stages involve utilization of big data available (structured, unstructured and time series data), the appropriate analytical methods (descriptive, diagnostics, predictive and prescriptive) and machine learning/deep learning tools for deeper and wider applications that aligns with the business strategy and adds value to the SMEs manufacturing process.

5.6.2. Other Advanced Technologies for Smart Manufacturing

Augmented Reality (AR) is an interactive experience with the real world that enables the user to incorporate things (visual, haptic, auditory, etc.) that reside in the digital world into the real world to enhance its overall experience. It is deployed based upon a collection of technologies enriched by computer-generated text, 2D/3D virtual digital content. AR applications in manufacturing are used to improve methods to guide workers in maintenance and training applications [109,110]. AR technology enables workers to get relevant visual information around the process or the physical thing in real-time by overlaying text, image, video, etc. onto a view of the physical world through camera enabled devices (e.g., smartphone, tablet, AR/VR headset). AR applications can be more powerful when integrated with other Industry 4.0 technologies such as IIoT and digital twin applications to enable real-time monitoring and efficient planning of the operation and process [44]. Current AR applications focus on sharing simple statistical data of machine/product operation, but in the future, it is expected to be extended to combine advanced analytics and AI- based modules to share additional insights about various products and recommended services [109].
Robotics with advanced AI-based intelligence and automation control enable CPS applications in manufacturing. Collaborative Robots (Cobots) are a new generation of advanced robots that are being rapidly embraced in manufacturing. Cobots are integrated with AI, connectivity and automation control features that allows collaboration with humans in a safe, autonomous and reliable environment. Cobots enable new capabilities in smart manufacturing that improves quality, maximize productivity and reduces operational costs [111].
Additive Manufacturing is a technology that builds digital objects into physical objects using a layer-by-layer building process with the aid of 3D printer machines and advanced materials. It is a flexible production model that bridges the gap between the digital and the physical world without the need of specialized tools. Additive manufacturing is currently used in high end and high value manufacturing when quickly prototyping affordable parts and in the production of tooling such as making jigs and fixtures to reduce the tooling costs and to allow for more flexibility, especially in the aerospace industry [112].
5G is a fifth-generation wireless communication technology that supports reliable, high speed and high coverage communication. It is a technology that enables advanced connectivity and increased data availability that can be used in industrial environments to further enable and support current and future data-driven smart manufacturing applications. It supports and enhances the adoption of IIoT, CPS, digital twins, edge computing and the implementation of AI and AR in Industry 4.0 applications to achieve their full potential [61]. A use case of 5G in aerospace manufacturing is the collection of high-speed data for real-time monitoring in different operational conditions to update digital twin systems to subsequently improve the jet engine manufacturing process [113].

6. Other Challenges of Digital Transformation for Manufacturing SMEs

6.1. Finance

The cost of implementing an Industry 4.0 project remains one of the top adoption barriers for manufacturing SMEs [114]. This is because of the lack of clear mechanisms and awareness of funding schemes [24,114], limited access to funding to support investments [16] and limited data available to demonstrate the ROI [49]. Government funded schemes are key to support and encourage SMEs to adopt Industry 4.0. The UK Made Smarter program [115] is an example of a leading scheme in the UK designed to boost manufacturing productivity and growth with dedicated programs and co-funding opportunities to assist the adoption of industrial digital technologies and digital transformation. In addition, because of the nature of Industry 4.0 projects that often require custom implementations based upon readiness level, integration needs and application requirements, research and development activities and system design activities are crucial prior to implementation. SMEs can capitalize on the RandD tax credits relief from the government since such projects encourage economic growth.

6.2. Managing Change

Digital transformation is associated with change, therefore, resistance is expected because people do often resist procedures outside the norm. Understanding and accepting change and effectively managing it within the organization is key to the successful transition into a smart factory [114]. Manufacturing SMEs need to get the buy-in from the whole organization, have stakeholders on board, build communication lines, address any raised concern (e.g., fear of unknown, no personal reward, job security, untrustworthiness in the technology, etc.) and establish cross functional teams to help achieve and equip themselves for the change [8,28,29,45].

6.3. Skills

Increasing digitalization, automation and Industry 4.0 technologies are forcing workforce in production facilities to change how they work on ordinary tasks and to allow them to spend more time on high-value activities dealing with what if scenarios such as monitoring datasets for preventative maintenance [16,34]. The main skill gaps are associated with digital skills, using the technology and managing it especially for an aging workforce. Manufacturing companies must be prepared to support this development making sure that their existing workforce has the required level of digital skills together with other soft skills such as problem solving, creativity and critical thinking in order to help existing employees get up-to-speed with new technologies in addition to recruiting people who already have the digital and technical skills [16,43,109]. Access to technical skills when introducing Industry 4.0 technologies to the company is essential for faster adoption. This can be achieved by outsourcing specialist skills in the field, collaborating with technology providers or creating partnership with external organizations such as academic institutes, digital catapults and innovation hubs for access to knowledge transfer, route for acquiring skills and talent recruitment [28].

7. Discussion

There has been considerable efforts by academia, research centers and high-tech industrial organizations to simplify the technological building blocks and digital transformation roadmaps for Industry 4.0 adoption. These efforts are transferred to the manufacturing industry through publications and programs often driven by governments led initiatives and delivered through knowledge base institutions and innovation centers. These initiatives help manufacturing SMEs to convert ideas into reality to close the gaps between them and large manufacturing companies that have more time, resources and skills to invest in digital innovation.
In the UK, the Made Smarter government program [115] provides digital transformation workshops designed to develop a digital manufacturing strategy and a technology roadmap for manufacturing SMEs to assist with their digital transformation. It is achieved by benchmarking the digital readiness level and by providing advice on the technologies that are most effective to overcome the company’s operational challenges. LCR4.0 start [116] is an initiative by LCR4.0 (a group of partners in the Liverpool City Region), funded by ERDF, designed to support manufacturing companies to develop a digital strategy to drive a transformation project and pinpoint digital technologies that can best fit SMEs requirements in their respective areas of manufacturing. The Digital Manufacturing Accelerator (DMA) program by the Manufacturing Technology Centre (MTC) [117] is another potential collaborative initiative. It is designed to bring leading research, industry and technology experts together by building a platform with appropriate infrastructure - to explore, design and support the potential solution beforehand in order to accelerate the implementation of innovative digital manufacturing technologies into UK’s manufacturing and supply chain. These initiatives provide manufacturing SMEs with appropriate support and de-risk the financial commitment in their Industry 4.0 journeys.
Other academic research led programs such as the ‘Digital Manufacturing on a Shoestring Project’ by Cambridge University [118] aims to define a conceptual model for digital transformation of SMEs by developing a reference architecture for the gradual technical implementation of low cost and accessible digital manufacturing solutions. However, methods to implement digital manufacturing solutions is still under investigation in multiple pilot projects. In Europe, the European Factories of the Future Research Association (EFFRA) is a leading organization that aims to support the implementation of factories of the future by providing an ecosystem of support and programs that promote research and innovative activities related to Industry 4.0 and smart manufacturing [119]. In Germany, a government led program “Platform Industry 4.0” helps SMEs get started with Industry 4.0 by providing an online map to search for non-commercial advisory services in their region as well as access to programs that assist in developing their own digital strategies along with access to funding [1]. The European Technology Chamber is another example of an initiative that provides an ecosystem of academic and non-academic support to manufacturing SMEs in Europe with their digital transformation and the use of advanced digital technologies to improve their products and manufacturing processes [120].
To further realize the proposed roadmap and its effectiveness, it is anticipated that it can be used as a support tool by digital accelerator programs in developing bespoke Industry 4.0 technology adoption strategies for rapid adoption amongst SMEs for their transition into smart factories.
Covid-19 pandemic has substantially affected the manufacturing industry. It has caused disruption to production, operations and supply chain within the industry. This subsequently has resulted in business uncertainty and new challenges to the post-pandemic future associated with uncertainty around potential recession, workforce safety, financial and market risks [121,122]. Digitalization of the manufacturing industry is seen to be focal to adapt new norms for building back resilience in manufacturing [121,123]. Manufacturers are already responding to such challenges by taking proactive approach to digital transformation and leveraging on digital technologies to become more resilient, flexible and agile [124]. However, recent survey by Industry Week of global manufacturers [24] suggests that the top challenge to a post pandemic alignment for digital transformation is the lack of clear roadmap that leverages technologies for transformation outcome. SMEs are flexible and agile to change but require leadership, access to knowledge and skills to drive change.
The proposed roadmap can be used by manufacturing SMEs as a rapid tool to develop their individual strategic vision of smart manufacturing, to stimulate leadership and to assist with rapid implementation and adoption of Industry 4.0 technologies. Its six gears/stages can also be used as a measuring index and a benchmarking tool for the adoption journey against other manufacturing companies. Case studies around practical applications ofg the first two stages of the proposed roadmap with a manufacturing SME, in their Industry 4.0 journey, have shown a rapid and successful implementation of Industry 4.0 technologies [125,126]. It has been achieved through a collaborative Knowledge Transfer Partnership (KTP) project between a knowledge base partner (Liverpool John Moores University) and a manufacturing SME (Beverston Engineering—a precision engineering manufacturer). Application of the other stages of the roadmap is currently under progression, which would be the focus of the future case studies and publications.
This roadmap can also be used by academia to promote further research and to develop a comprehensive strategic roadmap of Industry 4.0 technologies adoption for other industrial sectors. The different stages of the roadmap can also be used to drive research in developing innovative smart manufacturing applications in a structured manner such as new IIoT and 5G connectivity applications in the connectivity stage, new horizontal/vertical integration techniques and communication protocols in the integration stage, machine learning and deep learning applications in the AI stage, VR/AR applications in the scale up stage, etc.

8. Conclusions

The fourth industrial revolution is an era of digital transformation in the manufacturing industry. It offers potential and opportunities for more resilience, flexibility, suitability and potential growth. Industrial digital technological advancement that fabricates Industry 4.0 enable smart manufacturing to be achieved. This can be achieved by connecting physical and digital worlds along the entire manufacturing process to provide better visibility for decision making. Advanced digital technologies need to be connected, integrated and used effectively to provide insightful information regarding the manufacturing process. Smart manufacturing is a journey and requires a roadmap to guide through its adoption.
This paper reviewed an extensive amount of academic and industrial literature and systematically brought together—The theoretical conceptual processes for Industry 4.0 and smart manufacturing implementations, the technology trends of Industry 4.0 and the industrial tips and advices—For successful Industry 4.0 adoption in one holistic roadmap that is divided into six stages. The proposed roadmap provides a practically applicable manufacturing strategy that shares common features of similar models, frameworks and transformation strategies and initiatives.
The proposed roadmap is divided into six stages known as gears, namely: (i) strategy; (ii) connectivity; (iii) integration; (iv) analytics; (v) AI; and (vi) scale. In each stage of the roadmap, key enabling Industry 4.0 digital technologies are outlined and presented as building blocks of a jigsaw map to simplify the main technologies for smart manufacturing. Within each stage of the roadmap, sub-stages are presented as relevant categories that advices on the successful implementations of the roadmap. The main adoption challenges/barriers and ways to overcome them are discussed to assist manufacturing SMEs to overcome them. Industrial applications and case studies are highlighted to showcase the opportunities available and the potential that could be gained from smart manufacturing.
The paper outlines other advance Industry 4.0 technologies that further enable smart manufacturing. It also highlights common challenges associated with digital transformation in manufacturing SMEs and practical suggestions on how they can be addressed.
The proposed roadmap serves as a simple, holistic and strategic guide for manufacturing SMEs with their Industry 4.0 adoption and digital transformation journey. This work is beneficial to bridge the gap between the advance technologies available and their application within the industry, especially within SMEs context. It aims to trigger SMEs to seize the opportunity to rapidly embark upon Industry 4.0 in order to improve all areas of manufacturing process to achieve competitiveness and to assist in navigating the impact of Covid-19.
The efforts by academia, industry and government initiatives to assist manufacturing SMEs in Industry 4.0 adoption are briefly summarized and finally the necessary efforts needed to further realize this roadmap are discussed.

Author Contributions

A.T.S., conceptualization, methodology, investigation, data curation, writing—original draft preparation, writing—review and editing; B.M.A., writing—review and editing, supervision, project administration, funding acquisition; M.A., writing—review and editing, supervision, project administration, funding acquisition; R.W., supervision, project administration, funding acquisition; D.C., supervision, project administration, funding acquisition. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by Innovate UK under grant no. 11153.

Acknowledgments

The support and guidance by Beverston Engineering Ltd. and the Knowledge Transfer Network (KTN) during the project is appreciated.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

Table A1. A summary of key academic and industrial documents in the context of smart manufacturing and Industry 4.0.
Table A1. A summary of key academic and industrial documents in the context of smart manufacturing and Industry 4.0.
ReferenceTypeGeneral FeaturesIndustry 4.0 Technology Trends
[11]Technology review Industry 4.0 technologies and trends relevant to the developments of smart manufacturing.IoT, BD, CPS, ML, AD, R
[10]Technology reviewCharacteristics: Context awareness, modularity, heterogeneity, interoperability, compositionality. IC, IoT, CC, AD, ES, CS, SP, DA, PM, CPS, VT
Enabling factors: law and regulations, innovation education and training, data sharing systems.
[38]Technology review, issues, challenges, and conceptual framework of interoperability5 principles: Accessibility, Multilingualism, Security, Open-source, MultilateralCC, BD, IoT, MC, CPS, ICT
3 applications: Smart Factory/Manufacturing, Smart City, Smart Products.
4 architecture levels: Operational, Systematical, Technical, Semantic.
[39]Technology review of internet connected devices in manufacturingImpact and value of Industry 4.0 and internet connected technologies that enable IoT
new products, services and business models.
[40]Technology review of Industry 4.0 developments and practices for sustainable manufacturingConceptual perspective of Industry 4.0 integration.CPS
Micro and Macro integration perspective: Horizontal, Vertical, and End-to-end integration within the smart factory and across the entire product life cycle and value chain.
Micro and Macro opportunities for sustainable manufacturing.
[35]Conceptual model for implementing Industry 4.0 technologies in smart manufacturing3 stage implementations: Vertical Integration, Advanced Automation, Flexibilization.IoT, CC, BD, DA
2 technology layers:
Front- end Technology: Smart Manufacturing, Smart Products, Smart Supply Chain, Smart Working.
Base- end Technology: IoT, Cloud, BD Analytics.
[7]Conceptual model for implementing CPS’s for manufacturing applications 5 level architecture (5C): Smart Connection, Conversion and Cyber, Cognition and Configure. CPS, DA
[6]Technology review and conceptual roadmap for digitalisation of the manufacturing industry 6 management principles: Strategy, Marketing, Human Resources, IT Resources, Manufacturing Technology and Supply Chain.IoT, CC, BD, B, CS, AR, R, AD, CPS, VT
12 design principles.
14 technology trends.
[42]Literature review, framework architecture for smart manufacturing technologies 4-layer architecture: sensory, integration, intelligent and responseIoT, BD, IC, CPS, MES,
[5]Industrial technology report (BCG)9 technology pillars for transforming industrial production.IoT, R, BD, CS, VT, HVI, CC, AD
[43]Industrial technology review report (Automation Alley)Emerging technology trends, implications, action plans, case studies. IoT, R, BD, CS, AI, AD, VT, CC
[8]Industrial report on smart factory transition (Deloitte)5 Features of smart factory.CS, IoT, AI, AD, AR, R, DA
5 Benefits of a smart factory.
6 Impact on manufacturing processes.
5 Areas of consideration.
4 Practical steps towards the smart factory.
[9]Industrial Research, Digital Transformation Framework (LNS Research)History and future potential of manufacturing systems technologies.BD, HVI, CC, DA, AI, ML,
5 layers: Strategic objectives, Operational excellence, Operational architecture, Business case development, Solution selection.
4 recommended actions for digital transformation and smart manufacturing.
[44]Industrial Research, Operational Architecture Framework on applying data analytics. (LNS Research)Operational architecture framework that focuses on applying data and analytics within the Digital Transformation FrameworkBD, AI, CC, IoT
4 layers: Industrial operations, Compute and storage, Big data model, Industrial Analytics and Apps
[29]Industrial white paper (Festo)10 practical tips guide for implementing an Industry 4.0 project. -
[45]Industrial white paper (ABI research)5-steps guide to master a digital transition journey. IoT, R, AR, PLM
4 challenges in digital transformation and
4 Industry 4.0 technologies that make human the central beneficiaries.
[46]Industrial white paper (Bosch-Rexroth)3 steps approach for implementing connectivity aspects of Industry 4.0. IoT
[28]Knowledge base hub white paper (Sensor City) 5-part guide that addresses challenges and presents advice on IoT Adoption. IoT
Case studies on how manufacturers can work towards successful IoT adoption.
[47]Industrial white paper (Six Degrees)5 steps approach to lay stable IT foundations for the transition to Industry 4.0 ready cloud environment.IoT, BD, AI, DT, AR, R
[15]Industrial white paper Maturity index for digital transformation (Acatech)6 Maturity stages: Computerization, Connectivity, Visibility, Transparency, Predictive capacity, Adaptability.BD, ML, HVI, CPS
4 Structural areas: Resources, information systems, Culture, Organizational Structure.
5 Functional areas: Production, Logistics, Services, Marketing, Sales.
[37]ATI framework for digital transformation4 steps: Address digital capability, Leverage digital ecosystem, Stretch collaboration, Create space and safety.IoT, AR, VR,
CC: Cloud Computing; R: Robotics and Automation; ML: Machine Learning: AD: Additive Manufacturing; BD: Big Data; IC: Intelligent Control; IoT: Internet of Things; CPS: Cyber Physical Systems: CS: Cyber Security; SP: Smart Products; DA: Data Analytics; PM: Production Management IT systems; ES: Energy Savings; VT: Virtual Technology; MC: Mobile Computing; ICT: Information and Communication Technology; B-Blockchains; HVI: Horizontal/Vertical Integration.
Table A2. List of leading Industry 4.0 ready platforms.
Table A2. List of leading Industry 4.0 ready platforms.
Platform NameCompanyGeneral Features
ThingWorxPTCIIoT-C, DA, AI, MOM, AR, DT
MindSpherSiemensIIoT-C, DA, AI, MOM, CB, DT
Tulip Manufacturing AppsTulipIIoT-C, DA, MOM, CB
Watson IoTIBMIIoT-C, DA, AI
Nexceed (PPM)BOSCHIIoT-C, DA
KineticCiscoIIoT-C, DA
WISE-PasSAdvantechIIoT-C, DA, AI, CB
Cumulocity IoTSoftware AGIIoT-C, DA, CB
AWS IoTAmazon Web ServicesIIoT-C, DA, AI, CB
PredixGE DigitalIIoT-C, DA, AI, CB, DT
Azure IoTMicrosoftIIoT-C, DA, AI, CB
SMas DatahoneIIoT-C, DA, MOM, MES, CB
FactoryWizFactoryWizIIoT-C, DA, MOM, MES
machinemetricsMachineMetricsIIoT-C, DA, MOM, MES, AI, CB
ForcamForceFORCAMIIoT-C, DA, MOM
keyprodKeyprodIIoT-C, DA, MOM, MES
Smooth Monitor AXYamazaki MazakIIoT-C, DA
Panorama E2CODRAIIoT-C, DA
LumadaHitachiIIoT-C, DA, AI, CB
KepServerPTCIIoT-C, Software Bridge
OPCrouterInray industrie software IIoT-C, Software Bridge
(IIoT-C: IIoT Connectivity; DA: Data Analytics; AI: Artificial Intelligence; MOM: Manufacturing Operation Management application, MES: Manufacturing Execution System application; CB: Cloud Based only, AR: Augmented Reality application, DT: Digital Twin Application.

References

  1. PlatformIndustrie4.0. Digitization of Industrie Platform Industrie 4.0; Federal Ministry for Economic Affairs and Energy (BMWi): Berlin, Germany, 2016. [Google Scholar]
  2. Al-Hassani, S.T.S. 1001 Inventions Muslim Heritage in Our World, 2nd ed.; The Foundation for Science, Technology and Civilization (FSTC): Manchester, UK, 2006; ISBN 978-0-9552426-1-8. [Google Scholar]
  3. Schroeder, W. Germany’s Industry 4.0 Strategy, Rhine Capitalism in the Age of Digitisation; Friedrich-Ebert-Stiftung (FES): London, UK, 2016. [Google Scholar]
  4. Bassett, R. The Dangers of DIY Connectivity. In How An Integrated IIoT Suite Supports Digital Transformation, Automation.com; International Society of Automation: Research Triangle Park, NC, USA, 2020. [Google Scholar]
  5. Rüßmann, M.; Lorenz, M.; Gerbert, P.; Waldner, M.; Justus, J.; Engel, P.; Harnisch, M. Industry 4.0: The Future of Productivity and Growth in Manufacturing Industries; The Boston Consulting Group (BCG): Boston, MA, USA, 2015. [Google Scholar]
  6. Ghobakhloo, M. The future of manufacturing industry: A strategic roadmap toward Industry 4.0. J. Manuf. Technol. Manag. 2018, 29, 910–936. [Google Scholar] [CrossRef][Green Version]
  7. Lee, J.; Bagheri, B.; Kao, H.-A.A. Cyber-Physical Systems architecture for Industry 4.0-based manufacturing systems. Manuf. Lett. 2015, 3, 18–23. [Google Scholar] [CrossRef]
  8. Burke, R.; Mussomeli, A.; Laaper, S.; Hartigan, M.; Sniderman, B. The Smart Factory-Responsive, Adaptive, Connected Manufacturing; Deloitte University Press: New York, NY, USA, 2017. [Google Scholar]
  9. Hughes, A. Smart Manufacturing-Smart Companies Have Made Smart Manufacturing the Center of the Enterprise; LNS Research: Cambridge, MA, USA, 2017. [Google Scholar]
  10. Mittal, S.; Khan, M.A.; Romero, D.; Wuest, T. Smart manufacturing: Characteristics, technologies and enabling factors. J. Eng. Manuf. 2019, 233, 1342–1361. [Google Scholar] [CrossRef]
  11. Ahuett-Garza, H.; Kurfess, T. A brief discussion on the trends of habilitating technologies for Industry 4.0 and Smart manufacturing. Manuf. Lett. 2018, 15, 60–63. [Google Scholar] [CrossRef]
  12. Buer, S.V.; Strandhagen, J.O.; Chan, F.T.S. The link between Industry 4.0 and lean manufacturing: Mapping current research and establishing a research agenda. Int. J. Prod. Res. 2018, 56, 2924–2940. [Google Scholar] [CrossRef][Green Version]
  13. Angel, M. How Industry 4.0 is Transforming Lean Manufacturing. 2015. Available online: https://tulip.co/blog/lean-manufacturing/how-industry-4-0-is-transforming-lean-manufacturing (accessed on 10 March 2020).
  14. Klitou, D.; Conrads, J.; Rasmussen, M.; CARSA.; Probst, L.; Pedersen, B.; PwC. Germany Industrie 4.0; European Commission Directorate Digital Transformation Monitor, European Commission: Brussels, Belgium, 2017. [Google Scholar]
  15. Schuh, G.; Anderl, R.; Dumitrescu, R.; Krüger, A.; Hompel, M.T. Industrie 4.0 Maturity Index-Managing the Digital Transformation of Companies; Acatech STUDY: Munich, Germany, 2020. [Google Scholar]
  16. Made Smarter Review. In HM UK Government: Industrial Strategy Green Paper, 2017; Department for Business, Energy & Industrial Strategy: London, UK, 2017.
  17. Kennedy, S. Made in China 2025; Centre For Strategic & International Studies (CSIS): Washington, DC, USA, 2015; Available online: https://www.csis.org/analysis/made-china-2025 (accessed on 22 May 2019).
  18. America Makes. Available online: https://www.americamakes.us/about/ (accessed on 22 May 2019).
  19. Eun-Ha, J. Smart Industry Korea. Netherlands Enterprise Agency, 2015. Available online: https://www.rvo.nl/sites/default/files/2015/10/Smart%20Industry%20in%20Korea.pdf (accessed on 22 May 2019).
  20. Schröder, C. The Challenges of Industry 4.0 for Small and Medium-Sized Enterprises; Friedrich-Ebert-Stiftung (FES): London, UK, 2017. [Google Scholar]
  21. Walters, R. Robotics Answers: Japan Out to Lead The next Industrial Revolution. ACCJ J. 2015. Available online: https://journal.accj.or.jp/robotics-answers-japan-out-to-lead-the-next-industrial-revolution/#:~:text=Japans%20Robot%20Strategy%E2%80%93Vision%2C%20Strategy,Japan%20as%20a%20robotics%20superpower.&text=The%20strategy%20also%20has%20a,the%20clock%2C%20non%2Dstop (accessed on 28 September 2020).
  22. Schönfuß, B.; McFarlane, D.; Athanassopoulou, N.; Salter, L.; de Silva, L.; Ratchev, S. Prioritising Low Cost Digital Solutions Required by Manufacturing SMEs: A Shoestring Approach. In Proceedings of the Service Oriented, Holonic and Multiagent Manufacturing Systems for Industry of the Future, SOHOMA 2019, Valencia, Spain, 3–4 October 2019; Springer: Cham, Switzerland, 2020; pp. 290–300. [Google Scholar]
  23. CBI. From Ostrich to Magpie-Increasing Business Take-Up of Proven Ideas and Technologies; CBI: New Delhi, India, November 2017; Available online: https://www.cbi.org.uk/media/1165/cbi-from-ostrich-to-magpie.pdf (accessed on 10 March 2020).
  24. IndustryWeek. Manufacturing Operations-Getting Ready for the Next Normal. Industry Insight, September 2020. Available online: https://app.assetsmanu.endeavorb2b.com/e/es.aspx?s=893956921&e=982659&elq=05ff343ba8e140139e47a115e2ad56e9 (accessed on 10 March 2020).
  25. Pwc. Industry 4.0: Building the Digital Enterprise Aerospace, Defence and Security Key Findings; Global Industry 4.0 Survey—Industry Key Findings. Pwc, 2016. Available online: https://www.pwc.co.uk/who-we-are/regions/west/industry-4-0-aerospace-key-findings.pdf (accessed on 10 March 2020).
  26. BDO. Industry 4.0 Report. BDO, June 2016. Available online: https://www.bdo.co.uk/en-gb/insights/industries/manufacturing/industry-4-0-report (accessed on 10 March 2020).
  27. Fettrman, P. Manufacturing Metrices: Driving Operational Performance; LNS Research: Cambridge, MA, USA, 2018. [Google Scholar]
  28. Sensorcity. 2020 Guide to IoT Adoption. Sensor City, 2020; Available online: https://sensorcity.lpages.co/iot_whitepaper.html (accessed on 12 January 2020).
  29. FESTO. Practical Tips for Industry 4.0 Implementation; FESTO, 2019; Available online: https://www.festo.com/cms/en-gb_gb/65731.htm (accessed on 3 March 2019).
  30. Sufian, A.T.; Abdullah, B.M.; Ateeq, M.; Wah, R.; Clements, D. A Roadmap Towards the Smart Factory. In Proceedings of the 12th International Conference on Developments in eSystems Engineering (DeSE), Kazan, Russia, 7–10 October 2019; pp. 978–983. [Google Scholar]
  31. Webster, J.; Watson, R.T. Analyzing the Past to Prepare for the Future: Writing a Literature Review. MIS Q. 2002, 26, xiii–xxiii. [Google Scholar]
  32. Barnes, B. Cisco Partners with Mazak and MEMEX to Connect Machines; Cisco, 2015; Available online: https://blogs.cisco.com/manufacturing/cisco-partners-with-mazak-and-memex-to-connect-machines (accessed on 31 May 2019).
  33. Jacob, D. Quality 4.0 Impact and Strategy Handbook: Getting Digitally Connected to Transform. Quality Management; LNS Research: Cambridge, MA, USA, 2017. [Google Scholar]
  34. Shaw, G. The Future Computed: AI & Manufacturing; Microsoft Corporation: Redmond, WA USA, 2019. [Google Scholar]
  35. Frank, A.G.; Dalenogare, L.S.; Ayala, N.F. Industry 4.0 technologies: Implementation patterns in manufacturing companies. Int. J. Prod. Econ. 2019, 210, 15–26. [Google Scholar] [CrossRef]
  36. Rathmann, C. Industrial Internet of Things (IOT) and Digital Transformation–IoT, Digital Transformation and the Role of Enterprise Software; IFS World: Linköping, Sweden, 2017; Available online: https://www.ifsworld.com/us/sitecore/media-library/assets/2017/09/14/industrial-iot-and-digital-transformation (accessed on 20 October 2020).
  37. ATI. Digital Transformation: Aerospace Technology Institute (ATI). February 2017. Available online: https://www.ati.org.uk/media/f41fb3nc/ati-insight-01-digital-transformation.pdf (accessed on 20 October 2020).
  38. Lu, Y. Industry 4.0: A survey on technologies, applications and open research issues. J. Ind. Inf. Integr. 2017, 6, 1–10. [Google Scholar] [CrossRef]
  39. Roblek, V.; Meško, M.; Krapež, A. A Complex View of Industry 4.0. SAGE Open 2016, 6. [Google Scholar] [CrossRef][Green Version]
  40. Stock, T.; Seliger, G. Opportunities of Sustainable Manufacturing in Industry 4.0. Procedia CIRP 2016, 40, 536–541. [Google Scholar] [CrossRef][Green Version]
  41. Lee, J.; Davari, H.; Singh, J.; Pandhare, V. Industrial Artificial Intelligence for industry 4.0-based manufacturing systems. Manuf. Lett. 2018, 18, 20–23. [Google Scholar] [CrossRef]
  42. Lu, H.-P.; Weng, C.-I. Smart manufacturing technology, market maturity analysis and technology roadmap in the computer and electronic product manufacturing industry. Technol. Forecast. Sco. Chang. 2018, 133, 85–94. [Google Scholar] [CrossRef]
  43. Kampe, N. Technology in Industry Report. Automation Alley, 2018. Available online: https://automationalley.com/techreport (accessed on 21 October 2020).
  44. Hughes, A. Analytics Really Do Matter-Driving Digital Transformation and the Smart Manufacturing Enterprise; LNS Research: Cambridge, MA, USA, 2018; Available online: https://blog.lnsresearch.com/atmebook-thankyou-0?submissionGuid=842936d3-e00b-477a-a523-ed7cb47199d7 (accessed on 21 October 2020).
  45. ABIresearch. Five Steps to Master Digital Transformation; ABI Research: New York, NY, USA, 2018; Available online: https://resources.ptc.com/c/abi-digital-transformation (accessed on 10 March 2020).
  46. Minturn, A.; Lomax, M.; Streatfield, P. A practical roadmap for the implantation of Industry 4.0. Bosch Rexroth Group, 2018. Available online: https://www.boschrexroth.com/en/gb/trends-and-topics/industry-4-0/industry-4-0-white-paper/industry-4-0-white-paper-1 (accessed on 10 March 2019).
  47. Wright, J. Roadmap to Industry 4.0 Laying Stable Foundations. Six Degrees: The Manufacturer. 2020. Available online: https://info.themanufacturer.com/roadmap-to-industry-40 (accessed on 10 March 2020).
  48. Bonneau, V.; Copigneaux, B.; IDATE; Probst, L.; Pedersen, B.; Lonkeu, O.-K. European Commission Directorate: Digital Transformation Monitor. 2017. Available online: https://ec.europa.eu/growth/tools-databases/dem/monitor/content/industry-40-aeronautics-iot-applications (accessed on 31 May 2019).
  49. Wójcicki, J. Industry 4.0: The Future of Smart Manufacturing. Industry 4.0 Magazine, 16 February 2018; p. 13. Available online: https://www.industry40summit.com/latest-news/magazine (accessed on 1 January 2019).
  50. Albert, M. Plain Talk about Data-Driven Manufacturing. Modern Machine Shop, August 2016. Available online: https://www.mmsonline.com/blog/post/plain-talk-about-data-driven-manufacturing (accessed on 31 May 2019).
  51. Savani, S. Industry Focus- Aerospace- How Organisations in the Sector can Capitalise on Industry 4.0. Industry 4.0 Magazine, 16 August 2018. Available online: https://www.industry40summit.com/latest-news/magazine(accessed on 1 January 2019).
  52. Cisco. The Ultimate Guide to Smart Manufacturing; Cisco, 2018; Available online: https://www.cisco.com/c/dam/m/digital/elq-cmcglobal/OCA/Assets/manufacturing/Cisco_Ultimate_Guide_to_Manufacturing.pdf?dtid=oemzzz000233&ccid=cc000101&ecid=2718&oid=ebkxa008584 (accessed on 3 March 2019).
  53. Schaeffer, E. Industry X. 0: Realizing Digital Value in Industrial Sectors, 1st ed.; Kogan Page: London, UK, 2017; ISBN 978­3­86881­654­9. [Google Scholar]
  54. Perry, M.J. Evaluation and Choosing an IoT Platform, 1st ed.; O’Reilly: Sebastopol, CA, USA, 2016; ISBN 978-1-491-95203-0. [Google Scholar]
  55. Pittman, K. The IIoT in a Nutshell. In Advanced Manufacturing, Engineering. 2017. Available online: https://www.engineering.com/AdvancedManufacturing/ArticleID/15282/The-IIoT-in-a-Nutshell.aspx (accessed on 1 May 2019).
  56. (IIC PUB:G1:V1.80:20170131). The Industrial Internet of Things Volume G1: Reference Architecture. 2017.
  57. Weyrich, M.; Ebert, C. Reference Architectures for the Internet of Things. IEEE Softw. 2016, 33, 112–116. [Google Scholar] [CrossRef]
  58. BMWI. Reference Architectural Model Industrie 4.0 (RAMI4.0) In A Reference Framework For. Digitalisation Platform Industrie 4.0 Berlin, Germany. 9 August 2018.
  59. (ISO/IEC 30141:2018). Internet of Things (IoT)–Reference Architecture. 2018.
  60. Papakostas, N.; O’Connor, J.; Byrne, G. Internet of Things in Manufacturing-Applications Areas, Challenges and Outlook. In Proceedings of the International Conference on Information Society (i-Society), Dublin, Ireland, 10–13 October 2016; pp. 126–131. [Google Scholar]
  61. Sabella, R.; Thuelig, A.; Carrozza, M.C.; Ippolito, M. Industrial Automation enabled by Robotics, Machine Intelligence and 5G.; ERICSSON Technology Review. ERICSSON, February 2018. Available online: https://www.ericsson.com/assets/local/publications/ericsson-technology-review/docs/2018/etr_2018-02_robotics_web-feb18.pdf (accessed on 10 March 2020).
  62. Hawkridge, G.; Hernandez, M.P.; Silva, L.d.; Terrazas, G.; Tlegenov, Y.; McFarlane, D.; Thorne, A. Trying Together Solutions for Digital Manufacturing: Assessment of Connectivity Technologies & Approaches. In Proceedings of the 4th IEEE International Conference on Emerging Technologies and Factory Automation (ETFA), Zaragoza, Spain, 10 September 2019; pp. 1383–1387. [Google Scholar]
  63. Gulliford, S. We Need to Talk about this IoT. Genserv, 2018. Available online: https://www.gemserv.com/we-need-to-talk-about-this-iot-thing (accessed on 5 May 2019).
  64. (EU 2016/679). General Data Protection Regulation (GDPR); EU: Brussels, Belgium, 2016.
  65. Network & Information Systems (NIS) Guidance. 2018. Available online: https://www.gov.uk/government/collections/nis-directive-and-nis-regulations-2018 (accessed on 3 March 2019).
  66. Department for Digital, Culture Media & Sport. Secure by Design: Improving the Cyber Security of Consumer Internet of Things Report; Department for Digital, Culture Media & Sport: London, UK, 2017. [Google Scholar]
  67. (IIC PUB:G4:V1.0:PB:20160926). The Industrial Internet of Things Volume G4: Security Framework. 2016.
  68. Gurela, T. Industry 4.0 and the Factory Network. I4.0 Today (1) February 2018. Available online: http://i40today.com/magazines/ (accessed on 1 May 2019).
  69. Cisco. The Journey to IoT Value (Challenges, Breakthroughs, and Best Practices); Connected Futures-Executive Insights. 2017. Available online: https://www.slideshare.net/CiscoBusinessInsights/journey-to-iot-value-76163389 (accessed on 1 May 2019).
  70. Schuldenfrei, M. Horizontal and Vertical Integration in Industry 4.0. Manufacturing Business Technology: Business Intelligence. 2019. Available online: https://www.mbtmag.com/business-intelligence/article/13251083/horizontal-and-vertical-integration-in-industry-40 (accessed on 10 April 2020).
  71. (ANSI/ISA-95). The International Society of Automation (ISA), 2010.
  72. Davidson, M.; Goodwin, G. The Evolution of Manufacturing Software Platforms: Past, Present, and Future; LNS Research: Cambridge, MA, USA, 2013; Available online: https://www.lnsresearch.com/research-library/research-articles/the-evolution-of-manufacturing-software-platforms-past-present-and-future (accessed on 5 May 2020).
  73. Radovilsky, Z. Enterprise Resource Planning (ERP). In The Internet Encyclopedia; Hossein, B., Ed.; John Wiley & Sons: Hoboken, NJ, USA, 2004; Volume 1, p. 707. ISBN 9780471222026. [Google Scholar]
  74. Fetterman, P. Plant Data and Connectivity-Strategic Building Blocks for Industrial Transformation; LNS Research, ptc. August 2019. Available online: https://www.ptc.com/en/resources/iiot/white-paper/lns-plant-data-and-connectivity (accessed on 5 May 2020).
  75. Lav, Y. Industry 4.0: Harnessing the Power of ERP and MES Integration. Industry Week, 2017. Available online: https://www.industryweek.com/supply-chain-technology/industry-40-harnessing-power-erp-and-mes-integration (accessed on 1 August 2019).
  76. Cline, G. The Challenges and Opportunities of OT & IT Integration. Aberdeen, October 2017. Available online: https://www.aberdeen.com/opspro-essentials/challenges-opportunities-ot-integration/ (accessed on 1 August 2019).
  77. Relayr. Build vs Buy. Relayr, 2019. Available online: https://relayr.io/buildorbuy/ (accessed on 2 May 2020).
  78. Immerman, G. Optimizing Equipment Utilization-A case study Interview with Wiscon Products. Machinnemetrics, 2019. Available online: https://www.machinemetrics.com/wiscon-products-case-study (accessed on 2 May 2020).
  79. Forcam. GKN Aerospace 20% Reduction In Operation Time. Forcam GmnH, 2020. Available online: https://forcam.com/en/media-category/success-stories-en/ (accessed on 2 May 2020).
  80. Inray_Industriessoftware. OPC Router-The communication Middleware. Available online: https://www.opc-router.com/ (accessed on 15 April 2020).
  81. MAC-Solutions. KEPServerEX by Kepware: The World’s Best-Selling OPC Server. Available online: https://www.mac-solutions.net/en/products/industrial-data-comms/opc-communications-suite (accessed on 15 April 2020).
  82. PTC. Woodward’s Digital Transformation, PTC: Thingworks case studies. 2018. Available online: https://www.ptc.com/en/case-studies/woodward (accessed on 5 June 2020).
  83. InVima. Coflax. Available online: https://invma.co.uk/case-studies/Colfax (accessed on 15 April 2020).
  84. Marr, B. Big Data: The 5 vs Everyone Must Know. Linkedin, 2014. Available online: https://www.linkedin.com/pulse/20140306073407-64875646-big-data-the-5-vs-everyone-must-know/ (accessed on 14 April 2020).
  85. Cisco. Kinetic Edge & Fog Processing Module White Paper. Cisco, 2018. Available online: https://www.cisco.com/c/dam/en/us/solutions/collateral/internet-of-things/cisco-kinetic-efm-whitepaper.pdf (accessed on 5 June 2019).
  86. Angel, M. Manufacturing KPIs: 34 Key Production Metrics You Should Know; In Manufacturing, Tulip. 2018. Available online: https://tulip.co/blog/manufacturing/how-to-calculate-34-manufacturing-kpis/#:~:text=The%20goal%20of%20this%20post%20is%20to%20explain,the%20result%20by%20100%20to%20calculate%20asset%20utilization (accessed on 1 October 2020).
  87. Hughes, A. Manufacturing Metrics In An IoT World-Measuring The Progress of The Industrial Internet of Things; MESA International and LNS Research. GE Digital, 2016. Available online: https://www.ge.com/digital/sites/default/files/download_assets/LNS_Research-Manufacturing-Metrics-the-Matter-2016-GE-Digital.pdf (accessed on 1 August 2019).
  88. Hahn, T. Industrial AI applications. In Proceedings of the Industrie 4.0 Forum, HANNOVER MESSE: Big Data Value Association (BDV). April 2019. Available online: http://www.bdva.eu/sites/default/files/BDVA_SMI_Discussion_Paper_Web_Version.pdf (accessed on 30 April 2019).
  89. Bregulla, V. Industrial Companies See the Massive Value of AI in the Coming Decade. Hewlett Packard (HP), 2019. Available online: https://www.hpe.com/us/en/newsroom/blog-post/2018/09/industrial-companies-see-the-massive-value-of-ai-in-the-coming-decade.html (accessed on 5 May 2019).
  90. Accenture. Manufacturing the Future: Artificial Intelligence Will Fuel the Next Wave of Growth for Industrial Equipment Company. Accenture, 2019. Available online: https://www.accenture.com/t20180327T080053Z__w__/us-en/_acnmedia/PDF-74/Accenture-Pov-Manufacturing-Digital-Final.pdf#zoom=50 (accessed on 12 March 2020).
  91. Rolls-Royce. Predictive Maintenance. 2020. Available online: https://www.rolls-royce.com/country-sites/india/discover/2018/data-insight-action-latest/module-navigation/leveraging-robust-data-and-actionable-insights/predictive-maintenance.aspx (accessed on 12 March 2020).
  92. Seifert, R.W.; Markoff, R. How Industry 4.0 is Transforming the Aircraft Industry. International Institute for Management Development (IMD), 2019. Available online: https://www.imd.org/contentassets/42912243085149818f87ba1945858dfa/tc073-19-print.pdf (accessed on 12 March 2020).
  93. InVima. Unleashing the Smart Factory. InVMA Limited, 2019. Available online: https://www.invma.co.uk/unleashing-the-smart-factory (accessed on 5 May 2019).
  94. Kopanias, G. Production Planning & Scheduling powered by Artificial Intelligence. In Proceedings of the Internet of Manufacturing, Farnborough, UK, 15 May 2019; Flexciton: London, UK, 2019. [Google Scholar]
  95. Plutoshift. Breaking Ground on Implementing AI: Instituting Strategic AI Programs-Moving from Promise to Productivity. Plutoshift, 2019. Available online: https://plutoshift.com/resources/whitepapers/ (accessed on 2 February 2020).
  96. Khalifeh, A.; Darabkh, K.A.; Khasawneh, A.M.; Alqaisieh, I.; Salameh, M.; AlAbdala, A.; Alrubaye, S.; Alassaf, A.; Al-HajAli, S.; Al-Wardat, R.; et al. Wireless Sensor Networks for Smart Cities: Network Design, Implementation and Performance Evaluation. Electronics 2021, 10, 218. [Google Scholar] [CrossRef]
  97. Froiz-Míguez, I.; Lopez-Iturri, P.; Fraga-Lamas, P.; Celaya-Echarri, M.; Blanco-Novoa, Ó.; Azpilicueta, L.; Falcone, F.; Fernández-Caramés, T.M. Design, Implementation, and Empirical Validation of an IoT Smart Irrigation System for Fog Computing Applications Based on LoRa and LoRaWAN Sensor Nodes. Sensors 2020, 20, 6865. [Google Scholar] [CrossRef]
  98. Rosero-Montalvo, P.D.; Erazo-Chamorro, V.C.; López-Batista, V.F.; Moreno-García, M.N.; Peluffo-Ordóñez, D.H. Environment Monitoring of Rose Crops Greenhouse Based on Autonomous Vehicles with a WSN and Data Analysis. Sensors 2020, 20, 5905. [Google Scholar] [CrossRef]
  99. García, L.; Parra, L.; Jimenez, J.M.; Parra, M.; Lloret, J.; Mauri, P.V.; Lorenz, P. Deployment Strategies of Soil Monitoring WSN for Precision Agriculture Irrigation Scheduling in Rural Areas. Sensors 2021, 21, 1693. [Google Scholar] [CrossRef]
  100. Baire, M.; Melis, A.; Lodi, M.B.; Dachena, C.; Fanti, A.; Farris, S.; Pisanu, T.; Mazzarella, G. WSN Hardware for Automotive Applications: Preliminary Results for the Case of Public Transportation. Electronics 2019, 8, 1483. [Google Scholar] [CrossRef][Green Version]
  101. Baire, M.; Melis, A.; Lodi, M.B.; Tuveri, P.; Dachena, C.; Simone, M.; Fanti, A.; Fumera, G.; Pisanu, T.; Mazzarella, G. A Wireless Sensors Network for Monitoring the Carasau Bread Manufacturing Process. Electronics 2019, 8, 1541. [Google Scholar] [CrossRef][Green Version]
  102. Krima, S.; Hedberg, T.; Feeney, A.B. Securing the Digital Threat for Smart Manufacturing: A Reference Model. for Blockchain-Based Product Data Traceability; National Institute of Standards and Technology (NIST), U.S. Department of Commerce: Washington, DC, USA, 2019. [Google Scholar]
  103. Bellamy, S. What Is Blockchain Technology and How Is It Changing the Manufacturing Industry? The Manufacturer, 2019. Available online: https://www.themanufacturer.com/articles/blockchain-technology-changing-manufacturing-industry/ (accessed on 2 July 2020).
  104. Dutta, T. Build an Integrated 360-Degree View of the Customer. IBM, 2014. Available online: https://www.ibmbigdatahub.com/blog/build-integrated-360-degree-view-customer (accessed on 14 April 2020).
  105. Riley, S. Fundamentals of the digital supply chain. SoftwareAG, June 2018. Available online: https://info.softwareag.com/Fundamentals-of-Supply-Chain-Management.html (accessed on 2 May 2019).
  106. Tao, F.; Qi, Q.; Wang, L.; Nee, A.Y.C. Digital Twins and Cyber–Physical Systems toward Smart Manufacturing and Industry 4.0; Correlation and Comparison. Engineering 2019, 5, 653–661. [Google Scholar] [CrossRef]
  107. Qi, Q.; Tao, F. Digital Twin and Big Data Towards Smart Manufacturing and Industry 4.0: 360 Degree Comparison. IEEE Access 2018, 6, 3585–3593. [Google Scholar] [CrossRef]
  108. GE. The Digital Twin–Compressing Time-to-Value for Digital Industrial Companies; General Electric. GE Digital, 2018. Available online: https://www.ge.com/digital/lp/digital-twin-compressing-time-value-digital-industrial-companies (accessed on 6 April 2020).
  109. ABIresearch. The Power of IoT Platforms for Building AR Applications. ABI Research, 2017. Available online: https://invma.co.uk/application/files/9715/6690/2754/WP_ABI-Research_The-Power-of-IoT-Platforms-for-Building-AR-Applications_EN.pdf (accessed on 6 April 2020).
  110. Hunter, L. Augmented Reality for the Industrial Enterprise; O’Reilly: Sebastopol, CA USA, 2017. [Google Scholar]
  111. Pistrui, D. Robotics: Technology in Industry Report; Kampe, N., Ed.; Automation Alley: Troy, MI, USA, 2018; Available online: https://automationalley.com/techreport (accessed on 18 October 2020).
  112. Sala, A.L. Additive Manufacturing & Advanced Materials: Technology in Industry Report; Kampe, N., Ed.; Automation Alley: Troy, MI, USA, 2018; Available online: https://automationalley.com/techreport (accessed on 18 October 2020).
  113. Tyrrell, M. 5G networked aerospace production. In Features, Aerospace Manufacturing. 2019. Available online: https://www.aero-mag.com/5g-networked-aerospace-production/ (accessed on 20 October 2020).
  114. Make UK. Bouncing Back Smarter-Innovation Monitor 2020. Make UK, October 2020. Available online: https://www.makeuk.org/insights/reports/innovation-monitor-2020 (accessed on 18 October 2020).
  115. The Growth Company. Made Smarter. Available online: https://www.madesmarter.uk/ (accessed on 4 January 2020).
  116. LCR4.0. LCR4.0 START Strategies for Digital Adoption. Available online: https://lcr4.uk/project/lcr4-0-start/ (accessed on 18 October 2020).
  117. MTC. Digital Manufacturing Accelerator (DMA). Available online: http://www.the-mtc.org/event-items/digital-manufacturing-accelerator (accessed on 18 October 2020).
  118. McFarlane, D.; Ratchev, S.; Thorne, A.; Parlikad, A.K.; de Silva, L.; Schönfuß, B.; Hawkridge, G.; Terrazas, G.; Tlegenov, Y. Digital Manufacturing on a Shoestring: Low Cost Digital Solutions for SMEs. In Proceedings of the Service Oriented, Holonic and Multi-agent Manufacturing Systems for Industry of the Future, SOHOMA 2019, Valencia, Spain, 3–4 October 2019; Springer: Cham, Switzerland, 2020; pp. 40–51. [Google Scholar]
  119. European Factories of The Future Research Association (EFFRA). Factories of The Future Roadmap. Available online: https://www.effra.eu/factories-future-roadmap (accessed on 2 February 2021).
  120. European Technology Chamber. Advanced Manufacturing Council. Available online: https://eutec.org/tec-councils/advanced-manufacturing/ (accessed on 2 February 2021).
  121. Barriball, E.; George, K.; Marcos, I.; Radtke, P. Jump-Starting Resilient and Reimagined Operations; McKinsey & Company: New York, NY, USA, 2020; Available online: https://www.mckinsey.com/business-functions/operations/our-insights/jump-starting-resilient-and-reimagined-operations (accessed on 18 October 2020).
  122. Pwc. COVID-19: What it Means for Industrial Manufacturing. Pwc, 2020. Available online: https://www.pwc.com/us/en/library/covid-19/coronavirus-impacts-industrial-manufacturing.html (accessed on 18 October 2020).
  123. Countryman, T.; Rasmus, R.; McKinney, J.; Diaz, M.F.; COVID-19: Adapting manufacturing operations to new normal. In Insights- Covid-19- Supply Chain & Operations: Accenture. 2020. Available online: https://www.accenture.com/gb-en/insights/consulting/coronavirus-supply-chain-manufacturing-operations (accessed on 18 October 2020).
  124. Rao, S. The Three Rs for the Next Normal; Manufacturing Leadership Council & National Association of Manufacturers: Manufacturing Leadership Journal; September 2020; Available online: https://www.manufacturingleadershipcouncil.com/2020/09/30/the-three-rs-for-the-next-normal/ (accessed on 18 October 2020).
  125. KTN. KTP Helps Embed Industry 4.0 Techniques to Transform Business Visibility and Efficiency; Case Study: KTN; June 2020; Available online: https://www.ktp-uk.org/case-study/ktp-helps-embed-industry-4-0-techniques-to-transform-business-visibility-and-efficiency-for-beverston-engineering/ (accessed on 1 June 2020).
  126. Made Smarter. Beverston Engineering Building A Brighter Future Case Study. Made Smarter, 2021. Available online: https://www.madesmarter.uk/resources/case-study-beverston-engineering (accessed on 15 January 2021).
Figure 1. Schematic diagram for the conceptual modeling methodology.
Figure 1. Schematic diagram for the conceptual modeling methodology.
Applsci 11 03568 g001
Figure 2. Three-dimensional map of industrial revolutions (Y-axis: Technology drive, X-axis: Timeline of evolution, Z-axis: Impact to the manufacturing industry). (Author’s creation).
Figure 2. Three-dimensional map of industrial revolutions (Y-axis: Technology drive, X-axis: Timeline of evolution, Z-axis: Impact to the manufacturing industry). (Author’s creation).
Applsci 11 03568 g002
Figure 3. Connectivity relationship circles and Industry 4.0 digital technology Jigsaw map. (a) Connectivity relationship circles of the three entities (digital, physical and virtual); (b) technology jigsaw map. (IIoT: Industrial Internet of Things, AI: artificial intelligence, VR: virtual reality, AR: argumentative reality, H&V Integration tools: horizontal and vertical integration tools, 5G: fifth generation communication technology). (Author’s creation).
Figure 3. Connectivity relationship circles and Industry 4.0 digital technology Jigsaw map. (a) Connectivity relationship circles of the three entities (digital, physical and virtual); (b) technology jigsaw map. (IIoT: Industrial Internet of Things, AI: artificial intelligence, VR: virtual reality, AR: argumentative reality, H&V Integration tools: horizontal and vertical integration tools, 5G: fifth generation communication technology). (Author’s creation).
Applsci 11 03568 g003
Figure 4. The six gear roadmap towards the smart factory.
Figure 4. The six gear roadmap towards the smart factory.
Applsci 11 03568 g004
Figure 5. Gear 1—strategy stage.
Figure 5. Gear 1—strategy stage.
Applsci 11 03568 g005
Figure 6. Gear 2—connectivity stage and Industry 4.0 technology jigsaw.
Figure 6. Gear 2—connectivity stage and Industry 4.0 technology jigsaw.
Applsci 11 03568 g006
Figure 7. IIoT connectivity stack. (Author’s creation).
Figure 7. IIoT connectivity stack. (Author’s creation).
Applsci 11 03568 g007
Figure 8. Gear 3—integration stage and Industry 4.0 technology jigsaw. (Primary technologies represented in color, secondary technologies represented in grey).
Figure 8. Gear 3—integration stage and Industry 4.0 technology jigsaw. (Primary technologies represented in color, secondary technologies represented in grey).
Applsci 11 03568 g008
Figure 9. Traditional manufacturing operation systems layout. (Author’s creation).
Figure 9. Traditional manufacturing operation systems layout. (Author’s creation).
Applsci 11 03568 g009
Figure 10. Manufacturing operation levels and IIoT integration architecture. (Author’s creation).
Figure 10. Manufacturing operation levels and IIoT integration architecture. (Author’s creation).
Applsci 11 03568 g010
Figure 11. Gear 4—analytics stage and Industry 4.0 technology jigsaw (Primary technologies represented in color, secondary technologies represented in grey).
Figure 11. Gear 4—analytics stage and Industry 4.0 technology jigsaw (Primary technologies represented in color, secondary technologies represented in grey).
Applsci 11 03568 g011
Figure 12. Gear 5—AI stage and Industry 4.0 technology jigsaw (primary technologies represented in color, secondary technologies represented in grey).
Figure 12. Gear 5—AI stage and Industry 4.0 technology jigsaw (primary technologies represented in color, secondary technologies represented in grey).
Applsci 11 03568 g012
Figure 13. Gear 6—scalability stage and Industry 4.0 technology jigsaws (primary technologies represented in color, secondary technologies represented in grey).
Figure 13. Gear 6—scalability stage and Industry 4.0 technology jigsaws (primary technologies represented in color, secondary technologies represented in grey).
Applsci 11 03568 g013
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Sufian, A.T.; Abdullah, B.M.; Ateeq, M.; Wah, R.; Clements, D. Six-Gear Roadmap towards the Smart Factory. Appl. Sci. 2021, 11, 3568. https://doi.org/10.3390/app11083568

AMA Style

Sufian AT, Abdullah BM, Ateeq M, Wah R, Clements D. Six-Gear Roadmap towards the Smart Factory. Applied Sciences. 2021; 11(8):3568. https://doi.org/10.3390/app11083568

Chicago/Turabian Style

Sufian, Amr T., Badr M. Abdullah, Muhammad Ateeq, Roderick Wah, and David Clements. 2021. "Six-Gear Roadmap towards the Smart Factory" Applied Sciences 11, no. 8: 3568. https://doi.org/10.3390/app11083568

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
