Broadband Metallic Carbon Nanotube Saturable Absorber for Ultrashort Pulse Generation in the 1500–2100 nm Spectral Range

Abstract

Herein, we report on the possibility of ultrashort laser pulse generation in the broadband spectral range using a saturable absorber based on free-standing metallic carbon nanotube thin film. Erbium, thulium, and holmium-doped all-fiber lasers were mode-locked with a single saturable absorber containing a 300 nm thick material layer. Subpicosecond pulses were generated at 1559, 1938, and 2082 nm. Our work validates the broadband operation of metallic carbon nanotube-based saturable absorbers and highlights the suitable performance of nanomatematerial for ultrafast photonic applications.

1. Introduction

Carbon nanotubes, the one-dimensional form of graphite, maintain substantial popularity among the scientific community. Since their “re-invention” in 1991 [1], their unique electrical, mechanical, and optical properties have been extensively investigated and applied to a diverse range of devices, including transistors [2], photodetectors [3], optical switches [4], and gas sensors [5]. A report on the presence of saturable absorption in single-walled carbon nanotubes [6] led to the first demonstration of a nanomaterial-based ultrafast erbium-doped fiber laser in 2003 [7]. Since then, the family of nanomaterials exhibiting nonlinear optical absorption with ultrashort recovery times has expanded quickly. A pioneering two-dimensional material, graphene [8,9], was soon joined by graphene oxide [10], black phosphorus [11,12], transition metal monochalcogenides [13], transition metal dichalcogenides such as molybdenum disulfide [14,15] or tungsten disulfide [16,17], and topological insulators including bismuth telluride [18] and antimony telluride [19]. More recently, MXenes [20], bismuthene [21], and antimonene [22] were also found to show the desired nonlinear optical properties.

Despite the rapid growth in the field of nanomaterial-based saturable absorbers [23], carbon nanotubes maintain their established position due to their versatility, low cost, and ease of fabrication, as complex epitaxial processes are not required. Notably, free-standing films offer increased reliability and long-lasting performance in comparison to polymer-based composites [24]. A large number of diverse ultrafast laser setups based on carbon nanotube saturable absorbers present the material as a nearly universal mode locker. To date, they have been applied to fiber lasers operating in a broad range of wavelengths: From visible [25], through the entire near-infrared [26,27,28], to ∼3 µm generated from ZBLAN fiber lasers [29,30]. Their broad transmission bandwidth allows to design lasers tunable over a 200 nm span [31], and the high damage threshold supports high energy (up to 34 nJ) picosecond pulse generation at ∼1.5 µm [32]. The outstanding performance of the material enables the operation of more demanding ultrafast systems, such as stretched-pulse lasers [33,34] or resonators operating at gigahertz repetition rates [35]. Reports on mode-locking solid-state lasers that include sub-200 fs pulse generation at 1 µm [36] and 2 µm [37] present carbon nanotube-based saturable absorbers as a potential alternative to semiconductor saturable absorber mirrors (SESAMs).

The great majority of carbon nanotube-based ultrafast lasers demonstrated so far utilize either a naturally occurring mixture of metallic and semiconducting nanotubes, or purely semiconducting nanotubes. In the past, we have shown that a purely metallic single-walled carbon nanotube (m-SWCNT) thin film with interband transition M${}_{11}$ at a maximum around 700 nm also exhibits effective saturable absorption in the ∼2 µm band [34]. In this work, we extend our previous findings by demonstrating that the saturable absorption outside the M${}_{11}$ transition is broadband and supports ultrashort laser pulse generation in a >500 nm wide spectral range. For this purpose, a fully fiberized saturable absorber based on m-SWCNT thin film was fabricated. Erbium, thulium, and holmium-doped fiber lasers were mode-locked with a single saturable absorber with a 300 nm thick m-SWCNT layer, yielding sub-800 fs pulse generation in three wavelength regions: 1.5, 1.9, and 2.1 µm, respectively.

2. Saturable Absorber Fabrication and Characterization

2.1. Metallic-SWCNT Film Fabrication

Purely metallic carbon nanotube thin films were fabricated using the vacuum filtration method [38,39]. In the first step, a suspension of carbon nanotubes in a water and surfactant solution was prepared. Surfactant particles tend to adsorbate on the nanotube walls and prevent the aggregation of nanotubes in a liquid. Dry nanotubes from NanoIntegris (99% purity with tube diameters from 1.2 to 1.7 nm and lengths in the range of 0.1–4 µm) were added to a 1% water solution of sodium dodecyl sulfate to achieve a 0.004 mg/mL nanotube concentration. Later, such dispersion was sonicated using horn sonication, where it was placed in ice water for 1 h with 5 min breaks after each 10 min of sonication to prevent heating of the mixture. Next, the suspension was centrifuged at 12,000 rpm for 10 min to remove the unseparated nanotubes. An appropriate amount of as-prepared dispersion was filtered by the mixed cellulose membrane (MCE filter, 25 nm pore size, 25 mm diameter from Millipore) using a vacuum filtration setup that allowed to achieve a specified thickness of the m-SWCNT film, 150 and 300 nm. The thickness can be controlled by the volume of dispersion used for filtration, and was measured with a Bruker Icon atomic force microscope. Residual surfactant was washed away from the metallic carbon nanotube film by a large amount of deionized water and isopropyl alcohol. The m-SWCNT film on the membrane was gently dried and cut into 5 × 5 mm pieces, and then immersed in an acetone bath to dissolve the cellulose membrane. We note that the acetone was changed several times to complete the removal of the residual MCE. Then acetone was replaced by the 50% solution of isopropyl alcohol in water and each metallic carbon nanotube film was transferred to a fiber connector or a flat substrate (silicon covered by silicon dioxide or soda–lime glass) and dried under a nitrogen stream.

2.2. Metallic-SWCNT Film Characterization

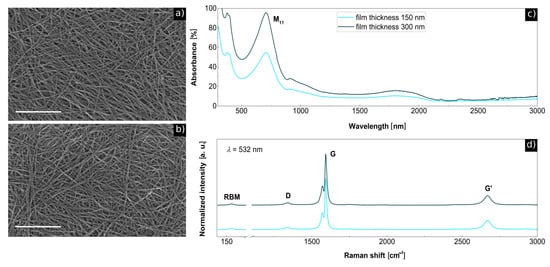

To initially characterize the samples, the metallic carbon nanotube films were transferred onto flat substrates (SiO${}_2$/Si for SEM and Raman measurements or soda–lime glass for optical absorption investigation). A scanning electron microscope (SEM) was used to analyze the topography and homogeneity of the film surface. Images for both film thicknesses are shown in Figure 1a,b, respectively (obtained with a Raith E-Line Plus microscope), demonstrating that the films have similar nanotube random composition independent of the film thickness. The nanotubes inside the films were tightly arranged, pure, without residual contamination. To confirm the type of nanotubes used, the optical absorption spectra of the samples were obtained (Figure 1c), measured in a 300–3000 nm span using a Cary 5000 UV-Vis-NIR spectrometer. For both samples with different thicknesses, a typical interband transition M${}_{11}$ for metallic single-walled carbon nanotubes with the maximum around 710 nm was observed. This result clearly confirms that the nanotubes exhibited a metallic type of conductivity. The Raman measurements were performed using an inVia Qontor Renishaw spectrometer with a 532 nm laser excitation line in a backscattering configuration. The results are shown in Figure 1d. The spectra present two main modes G and G’ (2D), typical for all carbon nanotubes, and a less intense RBM mode, which is characteristic for single-walled carbon nanotubes only. The relatively low intensity of the D mode indicates that the carbon nanotubes were clean without contamination and surfactant residues and contained slight defects, probably appearing as an effect of the nanotubes being closely packed inside the films.

2.3. Absorption in Metallic-SWCNT

In general, the carbon nanotubes showed quite strong structured optical spectra owing to singularities in the electronic density of states and the transition between them, giving a strong enhancement of absorption peaks for certain energies. These absorption peaks were strongly related to the conductivity of the tubes due to the electronic band-to-band transition energies that were different for metallic and semiconducting films. Such an absorption peak for metallic tubes (shown in Figure 1c) is related to the first electronic transition M${}_{11}$, which was the most intense. A second but much less intense absorption peak (however, not related to the electronic transition) was seen in the near IR range (∼1800 nm). The broadening of both peaks stemmed from tube–tube interaction and plasmon excitations [40].

2.4. Nonlinear Transmission of the m-SWCNT Saturable Absorber

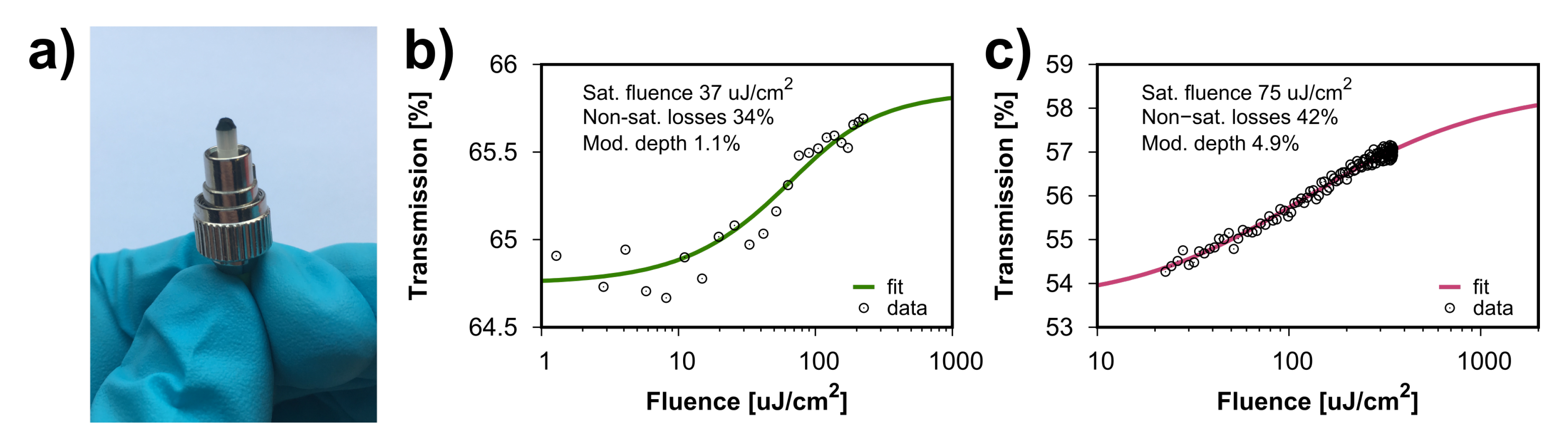

The free-standing m-SWCNT films were transferred to fiber connector tips, as shown in Figure 2a. To fabricate a fiberized saturable absorber, two fiber connectors with a 150 nm m-SWCNT thin film on each (a total of 300 nm thick material layer) were connected with a fiber adapter. Nonlinear optical transmission of the absorber was characterized in a fiber Z-scan style setup, incorporating an electronically controlled variable optical attenuator [41]. The measurement was conducted at 1560 nm (Figure 2b) and 1950 nm (Figure 2c). The data were well fitted using a fast saturable absorber model [42] with the saturable absorption parameters indicated on corresponding graphs.

3. All-Fiber Lasers Mode-Locked with m-SWCNT Saturable Absorber

A single m-SWCNT saturable absorber containing 300 nm of the nanomaterial was integrated in three all-fiber lasers to experimentally verify its wideband nonlinear transmission. Erbium, thulium, and holmium-doped active fibers were used as a gain medium. The details of the investigated laser cavities are listed in

Table 1. Active fiber specification, output coupling ratio, and pump wavelength for the three investigated fiber lasers.

Dopant	Er${}^{3+}$	Tm${}^{3+}$	Ho${}^{3+}$
Fiber type	OFS	Nufern	iXblue
	EDF80	SM-TSF-5/125	IXF-HDF-8-125
Fiber length	30 cm	17 cm	194 cm
Output coupling ratio	10%	10%	30%
Pump wavelength	980 nm	1565 nm	1940 nm

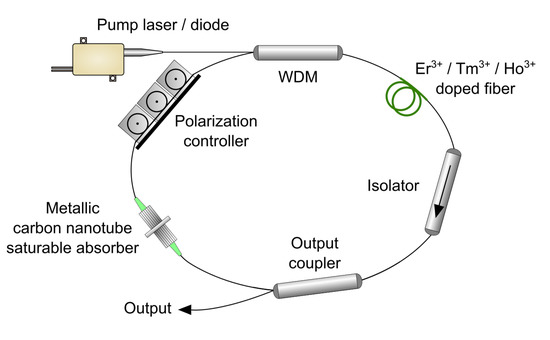

. The lasers were operating in an all-anomalous (solitonic) dispersion regime. All three laser cavities employed a similar ring design incorporating a suitable wavelength division multiplexer, an isolator, and an output coupler (Figure 3). Polarization controllers were used to optimize the laser performance, as non-polarization maintaining fibers and components were used.

3.1. Erbium-Doped Fiber Laser

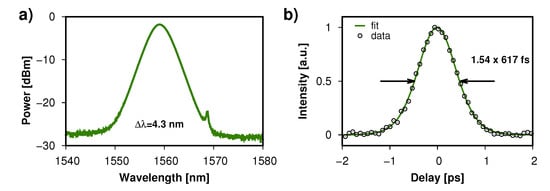

The all-fiber erbium-doped laser cavity was directly pumped with a 980 nm semiconducting laser diode. Due to the relatively low modulation depth of the m-SWCNT at ∼1560 nm, mode-locked operation was supported only in a narrow pump power range of 10–12 mW. A maximum average output power of 0.3 mW was observed. The generated optical spectrum centered at 1559 nm was 4.35 nm wide (Figure 4a). The autocorrelation trace presented in Figure 4b was fitted with a sech${}^2$ curve, yielding a 617 fs pulse duration. The time bandwidth product of the emitted pulses was 0.33, indicating slight chirping of the solitons.

3.2. Thulium-Doped Fiber Laser

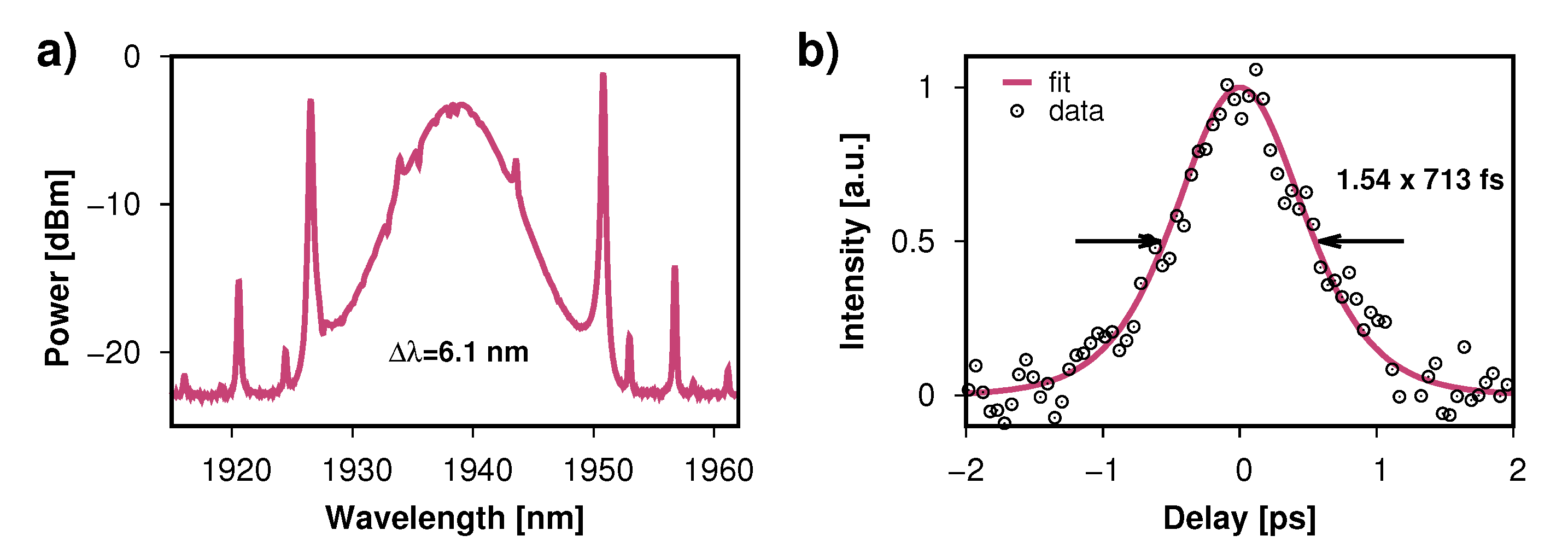

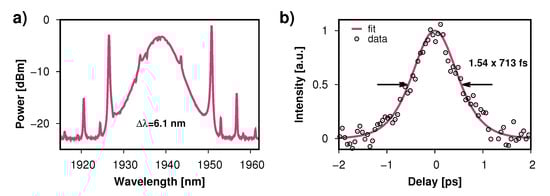

A thulium-doped fiber laser operating at 1938.7 nm was pumped by an erbium-doped fiber laser. At an average output power of 2.5 mW (pump power of 960 mW), a stable mode-locked operation was observed. The 6.1 nm wide optical spectrum exhibited some “dips” that were a result of strong water absorption lines present in the 1.9 µm region (Figure 5a). Pulse duration was of 713 fs, as shown in the autocorrelation trace presented in Figure 5b. The time bandwidth product of the pulses was equal to 0.36.

3.3. Holmium-Doped Fiber Laser

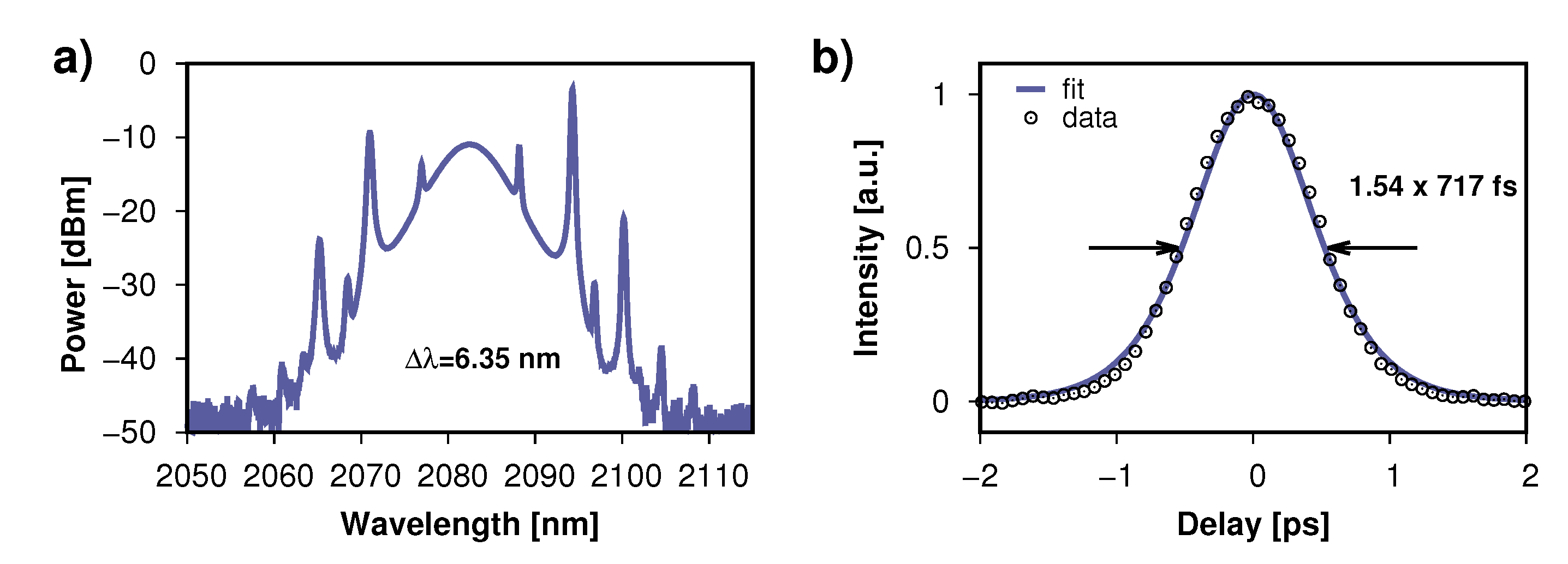

Lastly, a holmium-doped ring laser cavity was constructed. The resonator was pumped with an in-house-made linear thulium-doped fiber laser emitting a 1940 nm continuous wave radiation. The laser produced 717 fs pulses at a wavelength of 2082.4 nm (Figure 6a,b). The spectral width of the solitons was 6.35 nm, which corresponds to the time bandwidth product of 0.315, showing that the pulses were transform-limited. Up to 19.8 mW of the average output power was generated for a pump power of 1.1 W.

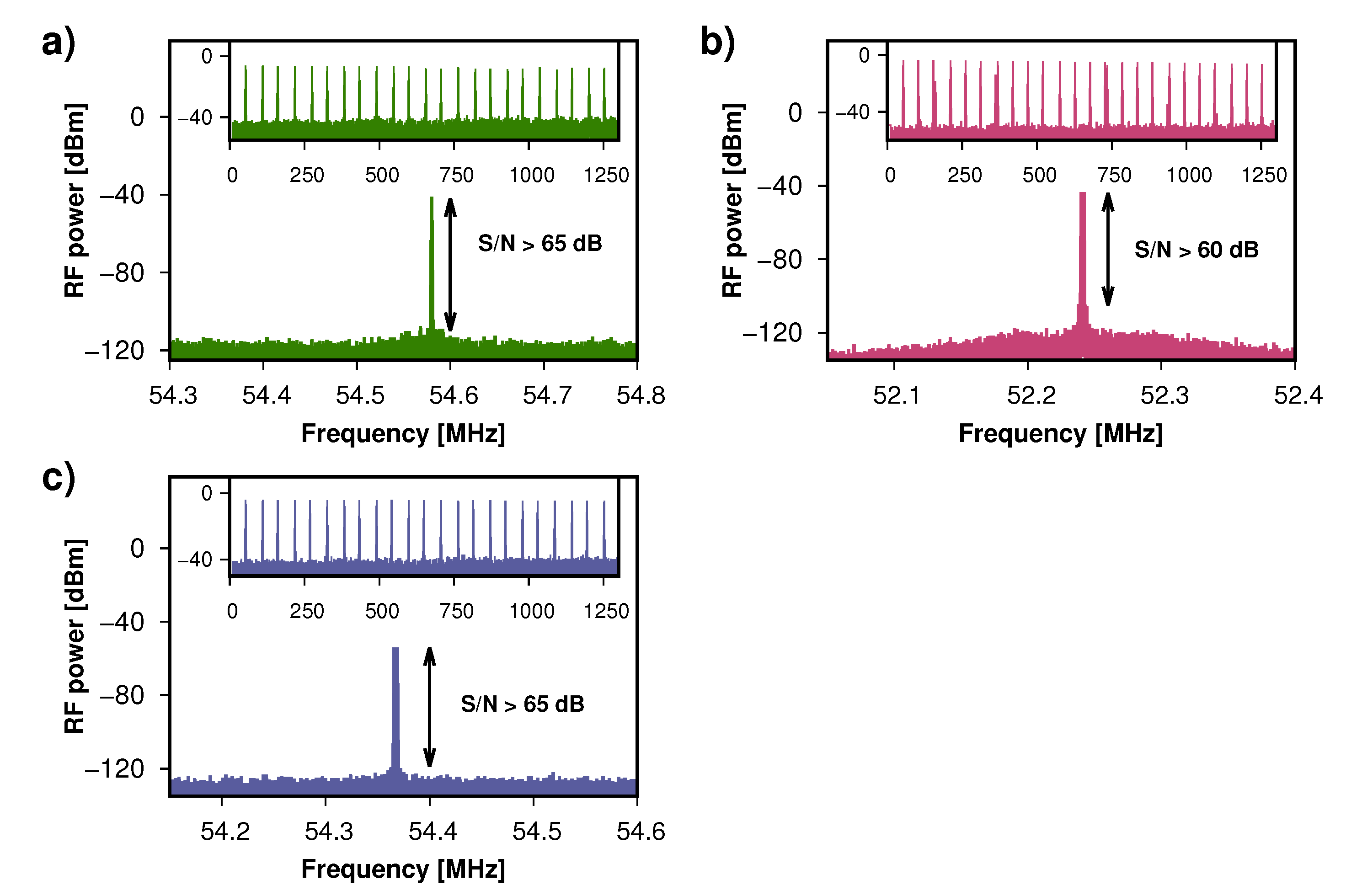

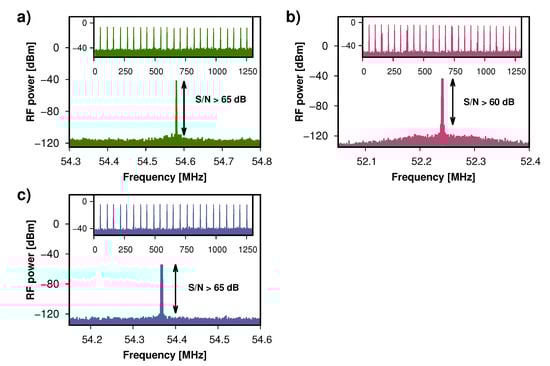

The all-fiber cavities were designed to keep a comparable length of 3.8–4 m, which corresponds to repetition frequencies of 54.5, 52.2, and 54.3 MHz for the erbium, thulium, and holmium-doped fiber lasers, respectively. The radio frequency spectra of the fundamental repetition frequency, along with the spectra measured in a 1.25 GHz span (insets), are presented in Figure 7a–c. The high signal-to-noise ratios indicate the stable operation of the investigated mode-locked lasers. No pre- and postpulsing was observed in any of the cases.

Performance of the mode-locked lasers was characterized with the use of the following equipment: APE Pulsecheck autocorrelator (erbium laser), Femtochrome FR-103XL autocorrelator (thulium and holmium lasers), Yokogawa AQ6375 optical spectrum analyzer, Keysight EXA N9010A RF spectrum analyzer, and Discovery Semiconductors DSC2-50S 16 GHz photodiode.

4. Conclusions

In summary, we used a vacuum filtration method to fabricate a metallic single-walled carbon nanotube-based (m-SWCNT) saturable absorber. Nonlinear characterization of the 300 nm thin film yielded a modulation depth of 4.9%, while the linear transmission measurement presented the material as usable in a 1–3 µm wavelength span. We experimentally showed that a single m-SWCNT saturable absorber is capable of initiating mode-locking in fiber lasers operating at 1559, 1938, and 2082 nm. All three investigated lasers generated stable pulses with sub-800 fs durations. We highlighted that the same m-SWCNT saturable absorber was used without failure in all three wavelength regions. Our results complement the current research on versatile and wideband saturable absorption in carbon nanotubes.
