Compilation of Load Spectrum for 5MN Metal Extruder Based on Long Short-Term Memory Network
Abstract
:1. Introduction
2. Methodology
2.1. Rain Flow Counting Method
- (1)

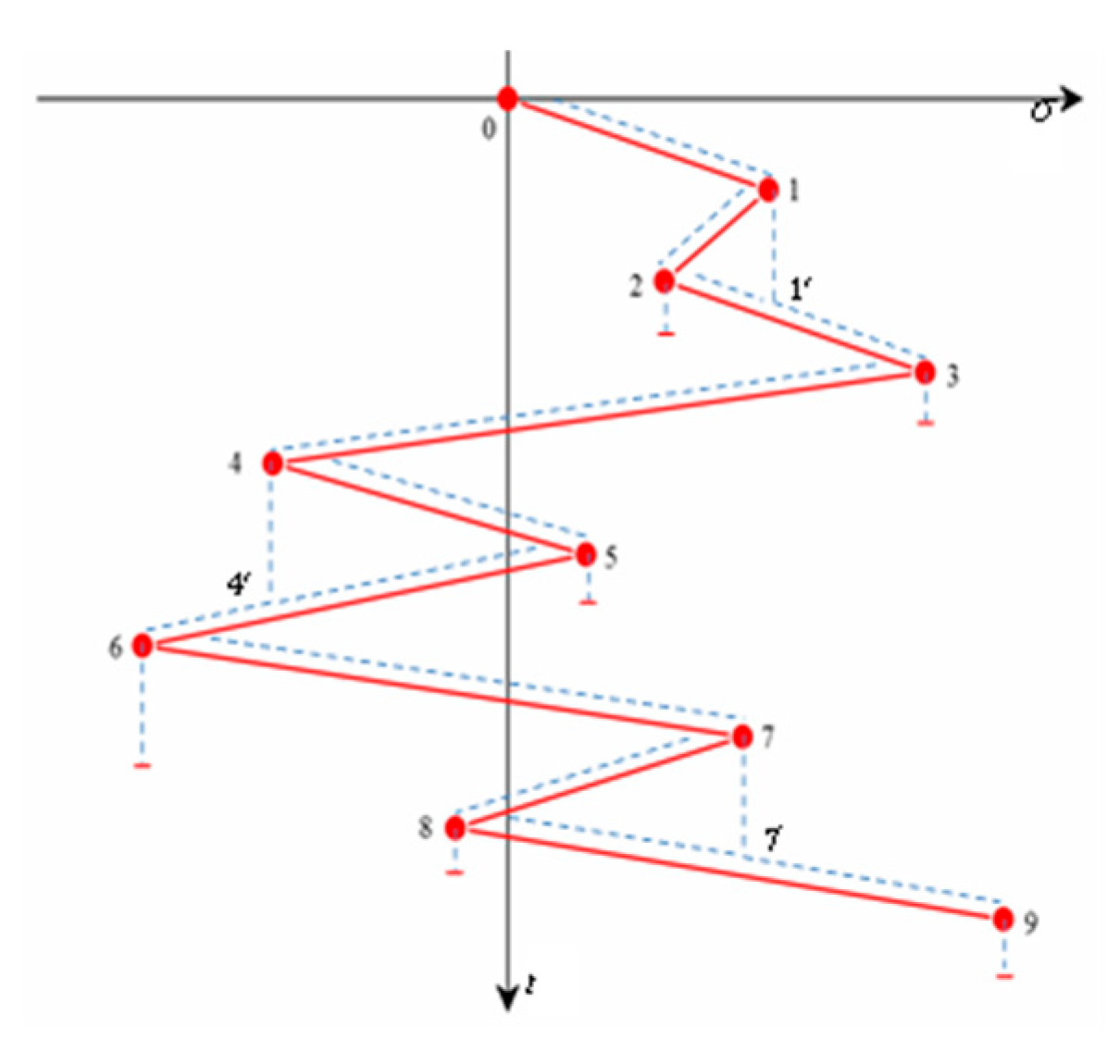

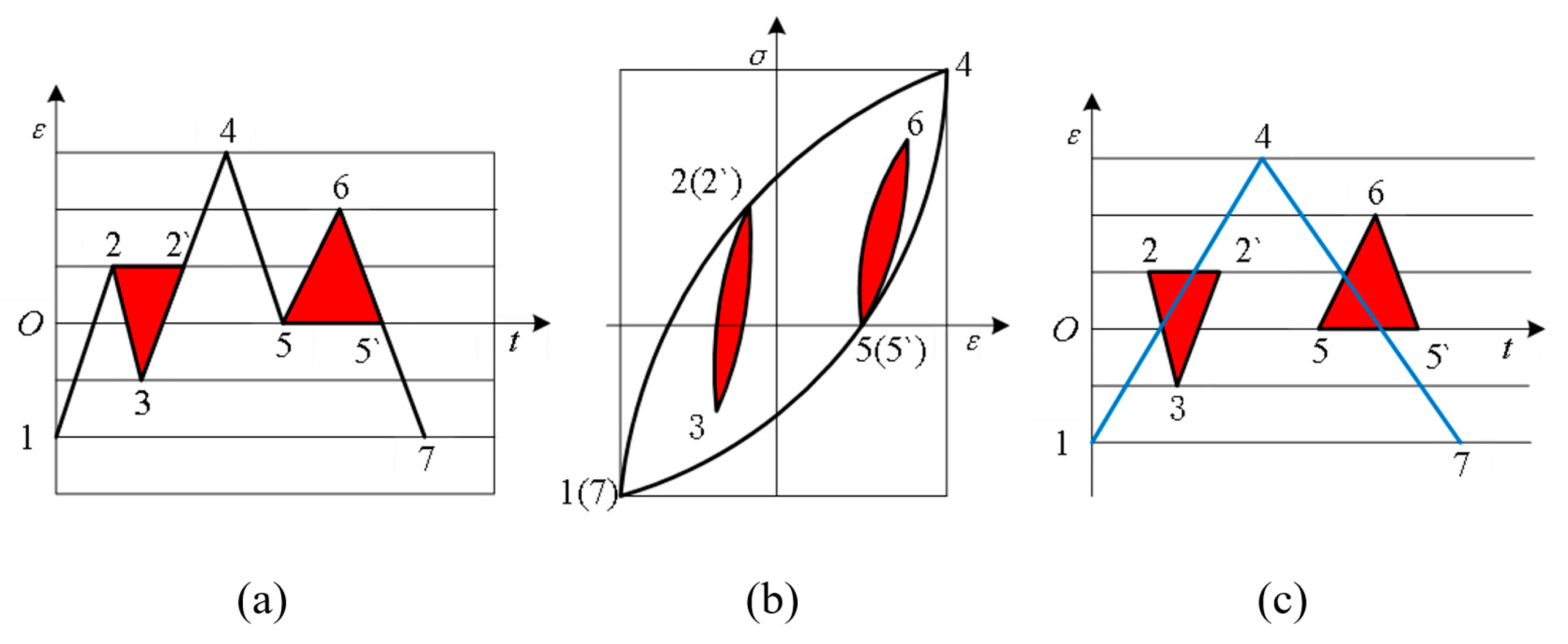

- In the process of raindrops flowing down the roof, if there is no roof blocking, the raindrops will continue to flow down until it stops;
- (2)
- Raindrops that start at the peak load point will end when they encounter a peak load point higher than it;
- (3)
- Raindrops that start at the load valley will also end when they encounter a load valley lower than it;
- (4)
- When raindrops flow, they stop when they encounter the rain stream from the roof above.

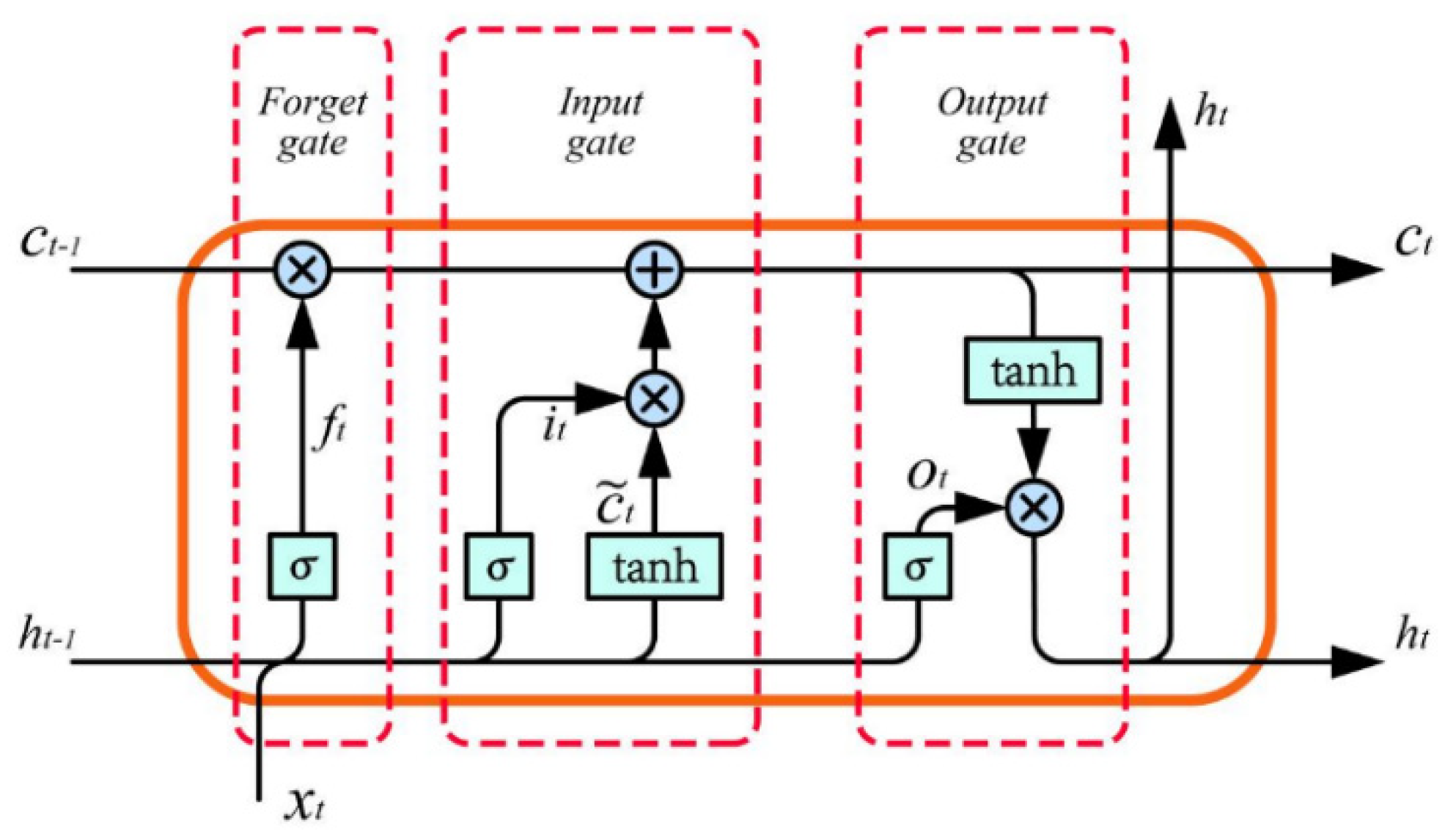

2.2. LSTM
3. Experiment

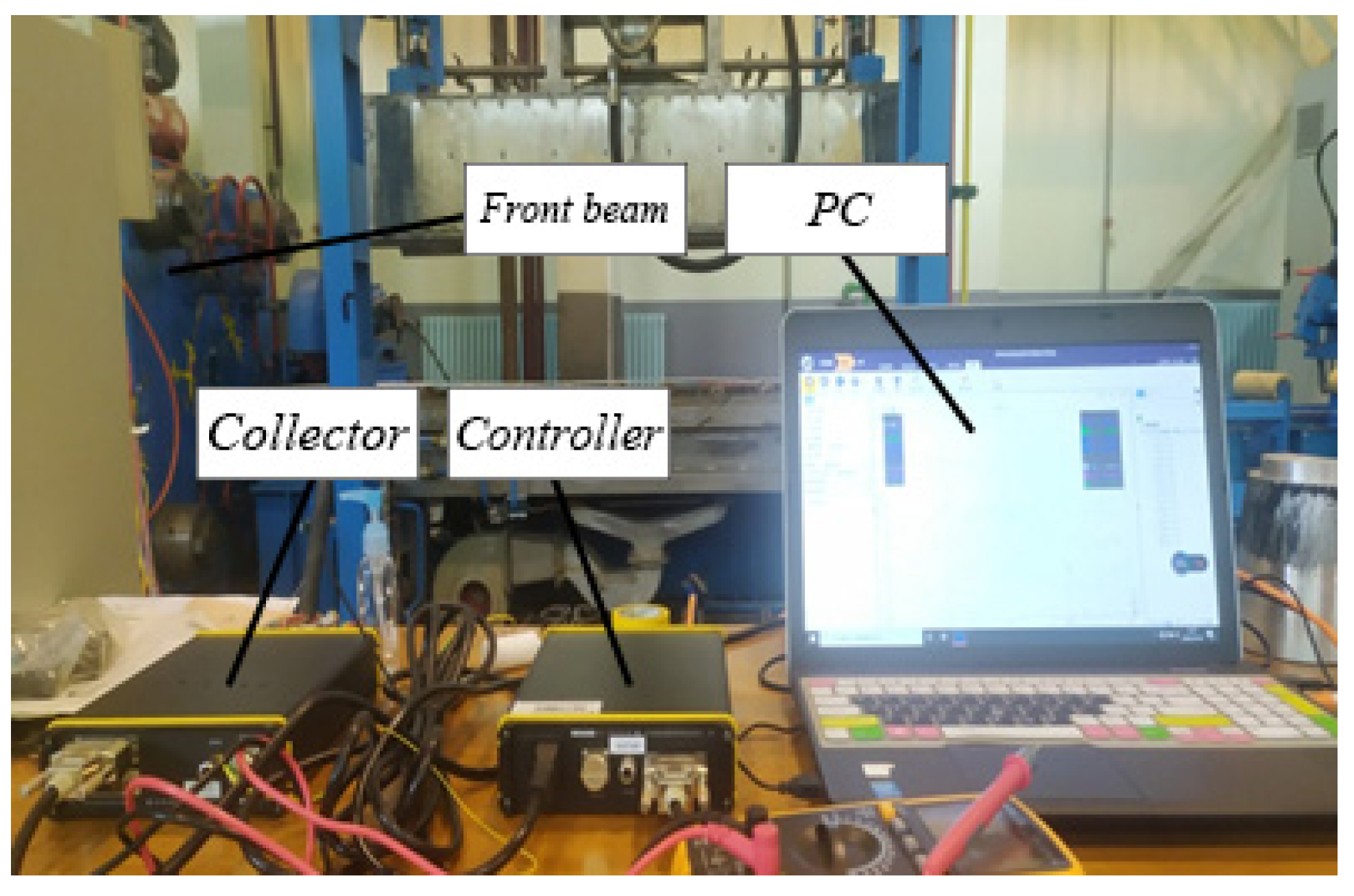

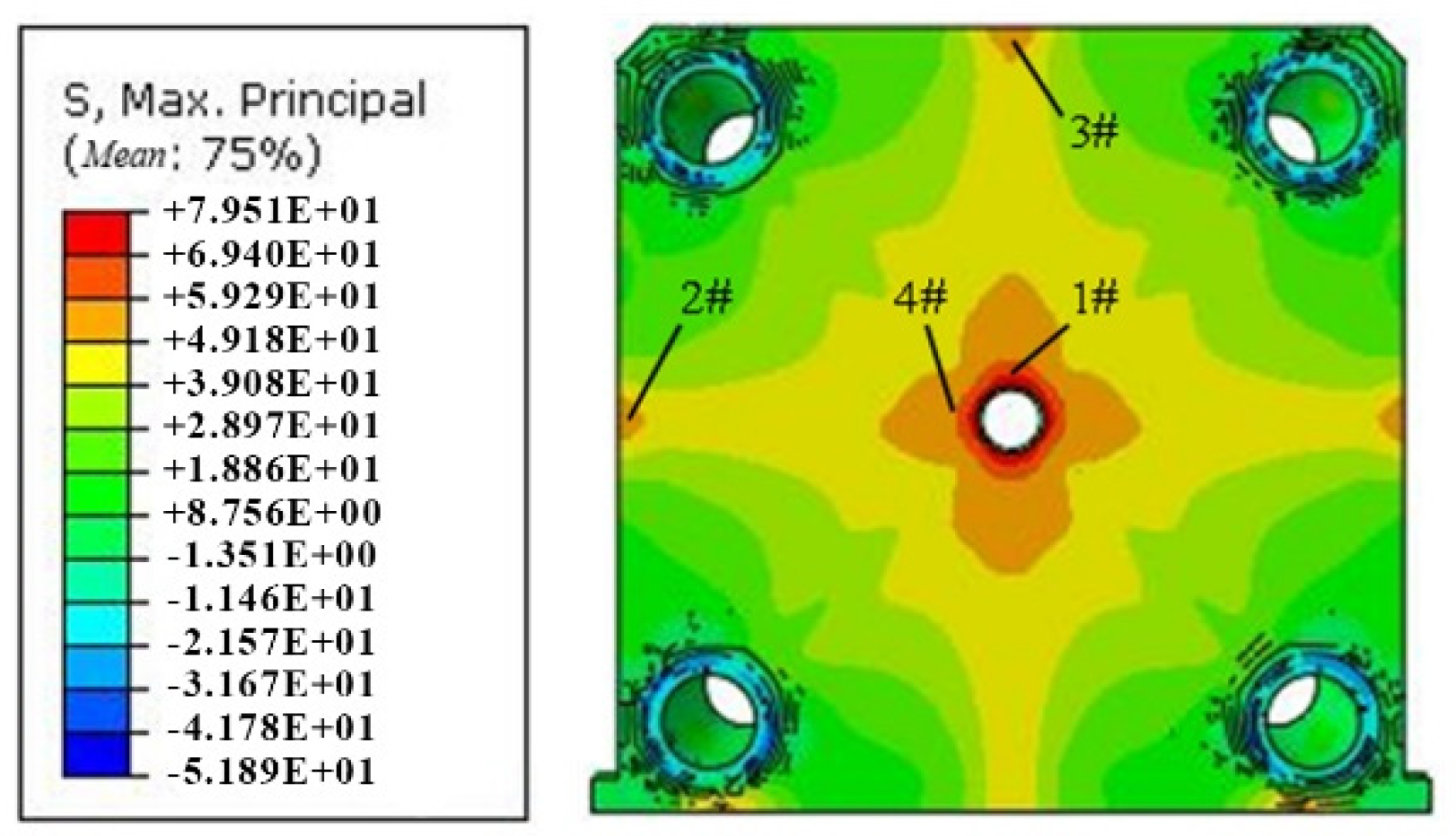

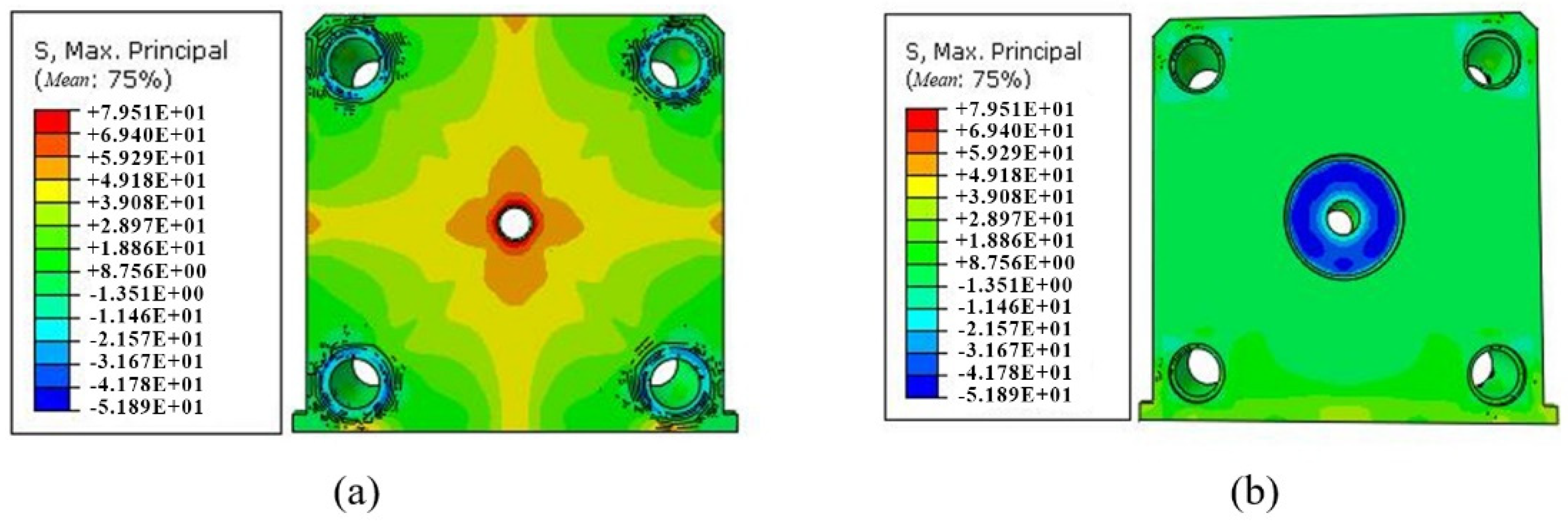

3.1. Selection of Measuring Point

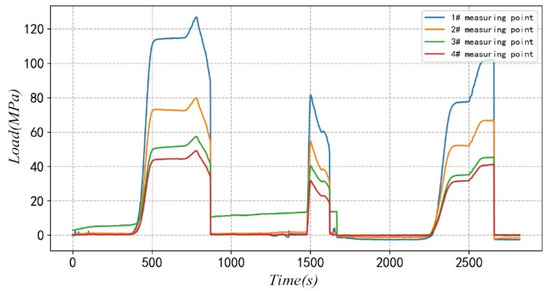

3.2. Data Description
3.3. Evaluation for Forecast Result

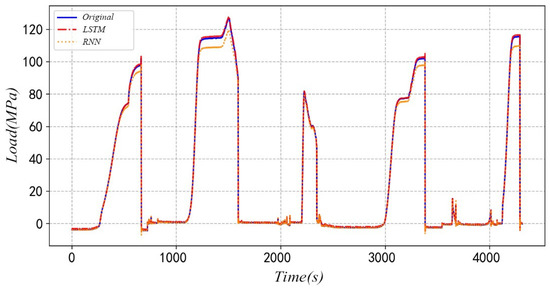

3.4. Experiment Result
4. Comparison of Load Spectrum

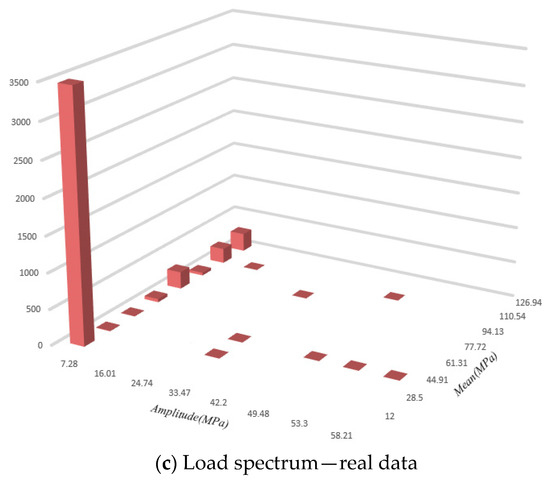

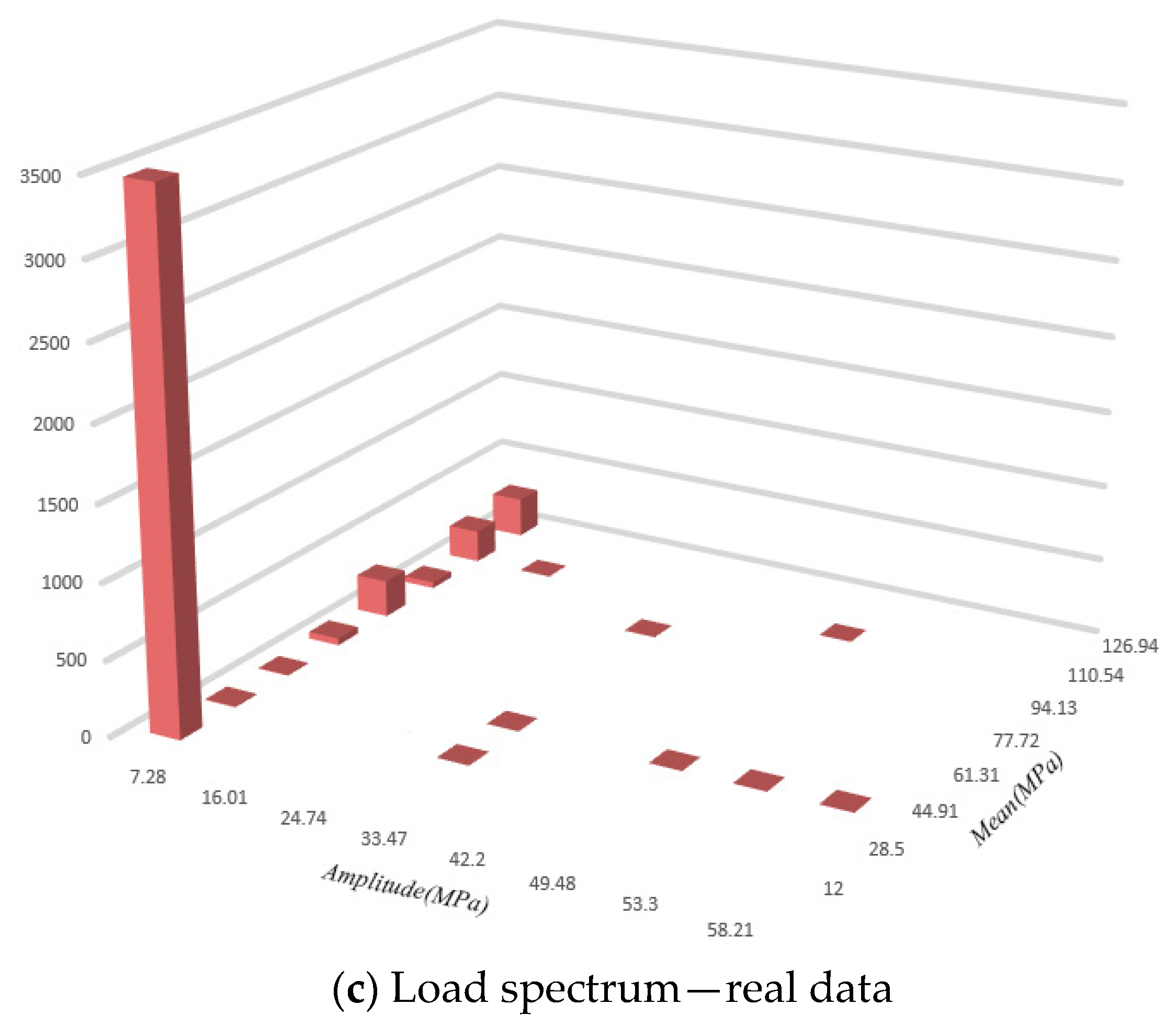

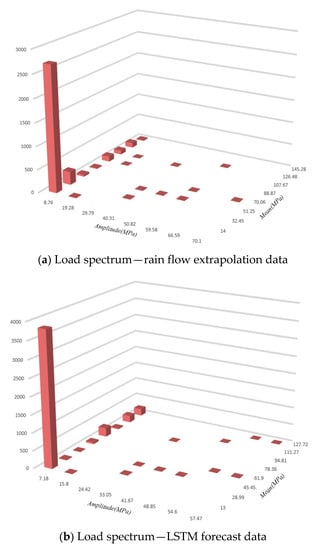

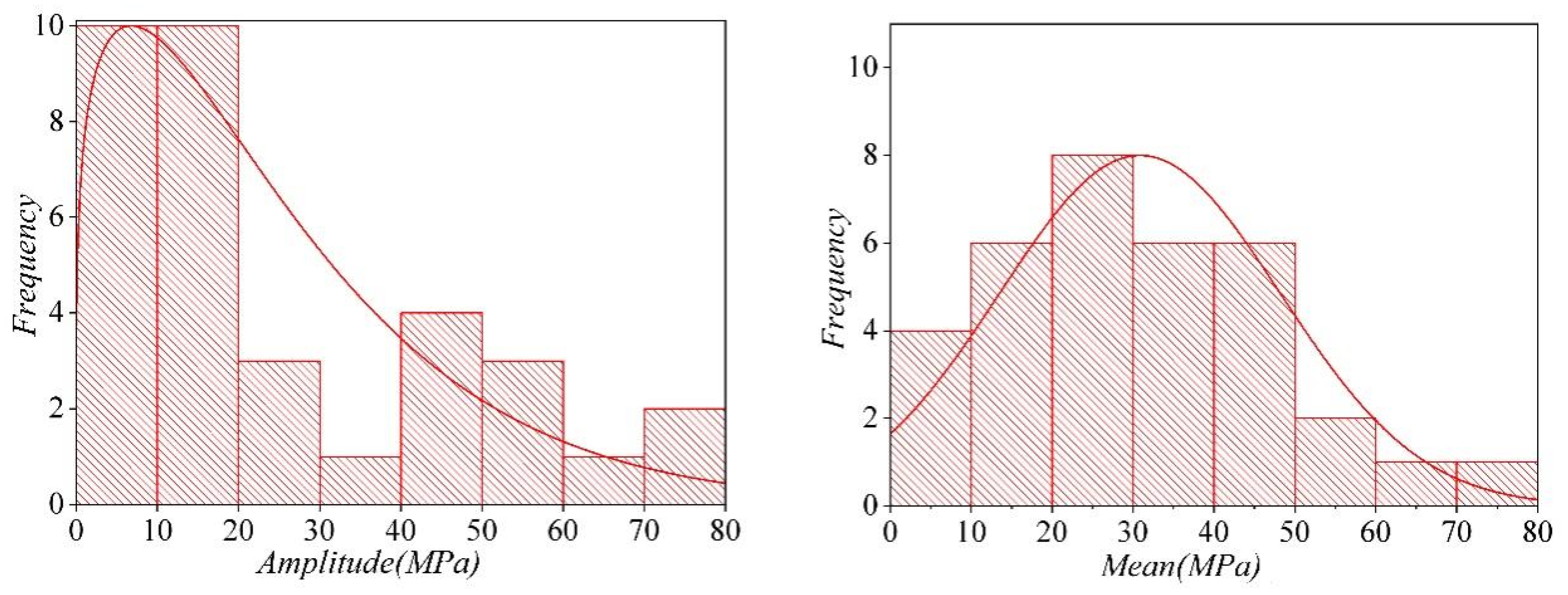

4.1. Classification of Load Spectrum
4.2. Comparison of Methods
5. Conclusions and Discussion
