1. Introduction
Pulsed electromagnetic fields (PEMFs) have been widely employed since the 1970s to treat fractures that do not heal well through the normal bone healing process; PEMF is a safe, non-invasive, and efficacious method for the treatment of diseases associated with fractures and was first approved by the United States Food and Drug Administration (FDA) in 1979 [
1,
2]. PEMF has also been suggested as an alternative treatment for osteoarthritis in the clinic [
3]. Numerous studies have reported a therapeutic effect on fractures or other diseases in actual clinical use; it is known that PEMF therapy has no significant side effects [
4,
5].
Bone growth in children depends on growth plates situated near the end of all long bones in the body. The growth plate (physis) is a thin plate-shaped (narrow disc of cartilage) cartilage that is responsible for longitudinal bone growth and is the result of chondrocyte proliferation and differentiation [
6,
7]. These plates consist of cartilage cells and chondrocytes, which form a scaffold that supports the formation of new bone tissue and are generated from stem cells called chondroprogenitors [
8]. Various biological signals, including growth hormone, directly or indirectly divide and thicken the chondrocytes in the hypertrophic zone, and the cartilage on the side of the bone body is replaced with new bone, resulting in bone elongation [
9]. However, it is still not clear how this process is maintained throughout childhood. Recently, a study conducted by a European collaborative research team, including the Karolinska Institute in Sweden, identified the mechanism of origin and differentiation of stem cells, which are the main factors in growth plate activity, using a fluorescent staining method that can differentiate each cell in mice [
10].
The postnatal growth plate chondrocytes are divided into three layers that contribute to the longitudinal growth of long bones [
11]. The resting zone is located at the top of the growth plate and maintains the integrity of the growth plate structure. Below these are “proliferating zone chondrocytes”, which are flat and, as the name suggests, divide and proliferate in the longitudinal direction. They resemble a pillar made of bricks. At the bottom are “hypertrophic chondrocytes”, which are enlarged cells. These cells do not divide and eventually die, and bone cells fill the empty spots to lengthen the bone body [
11]. The resting chondrocytes serve as progenitor cells or stem-like cells to provide a renewable source to populate the whole growth plate. These chondrocytes within the resting zone divide and form proliferating chondrocytes, and the lower proliferating chondrocytes are converted into hypertrophic chondrocytes by terminal differentiation [
12].
Thus, the length of growth of the bone body is determined by the extent to which the stem cells in the growth plate undergo symmetric cell division and how smooth the signal exchange is between the three types of chondrocytes.
If the chondrocytes stimulate and activate signal exchange and differentiation, growth plate growth is promoted. Accordingly, studies on pulsed magnetic field stimulation for the proliferation of various chondrocytes are being conducted.
De Mattei M. et al. [
13] analyzed the proliferation pattern of human articular chondrocytes after applying PEMFs of 75 Hz, 2.3 mT to them for a long time, and observed that the proliferation of chondrocytes was induced. In addition, the effect of electromagnetic fields (EMFs) at 75 Hz and 2.3 mT on bovine articular cartilage cultured in vitro for 24 h was investigated; it was reported that EMFs exert a cartilage protection effect on the in vitro cultured articular cartilage due to the anabolic activity of EMFs and promote the synthesis of proteoglycans in the in vitro culture of small joint cartilage. The continuous application of 75 Hz, 2.3 mT of PEMF in human nasal and knee joint cartilage cells for 6–30 h resulted in increased cell proliferation in both knee articular (joint) cartilage and nasal cartilage cells [
14].
In another study, human chondrocytes were subjected to a static magnetic field (SMF) of 0.6 T and PEMF (21.2 MHz cycle per 15 ms, continuous signal duration per 2 ms, amplification of 250 W, 3 dBm (0.1 V), and maximum output) for 72 h. When cultured with continuous application, cells treated with SMF showed a significantly higher rate of increased viability compared to control cells, whereas the increase in viability between cells treated with PEMF and non-treated control cells was not significant. This could be due to frequency-dependent effects on human cells [
15].
In another study, a human chondrocyte cell culture exposed to PEMF showed a significantly higher rate of mitosis (almost two-fold) compared to chondrocytes in untreated cultures [
16]. When PEMF of 10–15 Gauss and 10–30 Hz was applied to human chondrocytes and the cells were cultured for 5 days, in the case of control group cells without PEMF treatment, the rate of increase in cell numbers through mitosis reached 130%. In the case of the cells treated with PEMF, the rate of increase in the number of cells through mitosis was significantly increased to 192%. In addition, after 9 days, the control group showed a 207% increase in cell number, but in the PEMF group, the cell number increased significantly to 393%.
Thus, this study aimed to evaluate the effects of PEMF treatment on the growth rate of growth plates in an animal model. Using a device with a frequency of 28 Hz and a magnetic field strength of 20 Gauss, a PEMF was applied to the knee tibia of rats to evaluate changes in the size of the growth plate and the level of growth hormone. In addition, to determine the side effects of exposure to pulsed magnetic field, changes in weight and dietary efficiency, kidney and liver function levels, and lactate dehydrogenase (LDH) levels were evaluated.
2. Materials and Methods
2.1. PEMF Product
The electric circuit device that generates the PEMF was manufactured in a cage shape so that the magnetic field was focused on the leg joints of the rats. When 220 V AC power was applied, AC was converted into 48 V DC power through a switching mode power supply (SMPS), and energy in the form of pulses was transferred to the PEMF-generating coil (
Figure 1). The pulse was output at 28 Hz (28 times per second), and a driving pulse in the form of a square wave was generated using a microprocessor (ATtiny2313A, Microchip, Chandler, AZ, USA) with a duty ratio of 50%, which is the on-time to off-time ratio. A 3 V driving pulse was generated, and current amplification was required owing to insufficient current energy for driving the coil. Thus, a solid-state relay (SSR) for the direct current was used. The SSR plays a key role in transferring energy to the magnetic field coil by amplifying the 3 V pulse signal generated by the microprocessor to 48 V.
The pulsed magnetic field coil uses an enameled copper wire (with a diameter of 0.3 mm) with an insulating coating, and has a cube shape of 350 (width) mm × 300 (length) mm × 30 (height) mm. The total number of turns is 100. Finally, the driving current is adjusted so that the intensity of the output magnetic field becomes approximately 20 G at the center of the coil. The pulse field measuring device is a Hall element-type Gauss meter (Model 3251, Yokogawa, Tokyo, Japan), and an oscilloscope (XDS3062A, Tektronix, San Jose, CA, USA) is used to set the pulse frequency.
The fabricated PEMF device was finished in a cage shape to conduct the experiment in the general breeding environment of the rats (
Figure 2A). At the lower end of the cage, a box case with a built-in pulse magnetic field controller was placed, and the cage body made of transparent acrylic was located at the upper end of the pulse magnetic field controller. Sawdust was laid inside the pulsed magnetic field coil so that the rats could conduct normal activities, and a feeding or water container was mounted on the upper part of the cage. The conditions were the same as the general breeding environment of the rats.
Eight cages with a built-in pulse magnetic field device were manufactured, and four cages each were employed for the normal and experimental groups.
2.2. Animals
Female Sprague-Dawley rats (25 days old) were purchased from Central Lab Animal Inc. (Seoul, Korea). The study was performed according to the guidelines of the Institutional Animal Care and Use Committee of Daejeon University (Approval No. DJUARB2020-038). All animals were housed in an air-conditioned animal room at a temperature of 21 ± 2 °C and humidity of 50 ± 5% under a 12:12 h light/dark cycle and had ad libitum access to food and water for 1 week.
2.3. Experiment
After 10-day acclimatization, eight animals in the normal group and the experimental group (2 rats/cage) were selected randomly. The pulsed magnetic field was inactive for the normal group, whereas the experimental group was exposed to the pulsed magnetic field for 10 h a day from 9:00 a.m. to 7:00 p.m. The animals were kept under the same conditions, except for the presence or absence of the pulsed magnetic field operation (
Figure 2B).
During the 10-day experiment, weight and dietary food intake were measured every day, and after 10 days, the following procedure was performed to measure the growth rate of the tibial growth plate.
2.4. Measurement of Growth Rate of the Tibia Growth Plate
Tetracycline hydrochloride (Sigma-Aldrich, Saint Louis, MO, USA) (20 mg/kg) was injected intraperitoneally before sacrifice, as previously described [
17]. The tibia was removed and fixed with 4% paraformaldehyde, decalcified in 50 mM EDTA solution (Sigma-Aldrich), and dehydrated in 30% sucrose solution overnight. The dehydrated tibia was cut along the sagittal plane to a thickness of 40 µm using a cryostat (CM3050S, Leica Microsystems, Wetzlar, Germany). After installation of a cryostat, the distance between the cartilage and bone junction in the growth plate and the proximal endpoint of the tetracycline label was measured, and the distance was divided into three parts to evaluate the growth rate of the longitudinal bone growth plate (
Figure 3). The tetracycline label was examined using a fluorescence microscope (BX50, Olympus, Tokyo, Japan), and the distance was measured in a blinded manner by three other researchers using Image J software (NIH, Bethesda, MD, USA).
2.5. Measurement of Levels of Insulin-Like Growth Factor-1 and Nitric Oxide
After the end of the experiment, blood from the animals was collected by cardiac puncture, and serum was separated by centrifugation. Serum IGF-1 and cortisol levels were measured using an enzyme-linked immunosorbent assay (ELISA) kit according to the manufacturer’s protocol (R&D Systems, Minneapolis, MN, USA). Nitric oxide (NO) levels were measured using an NO assay kit (Abcam, Cambridge, MA, USA).
2.6. Blood Biochemical Analysis

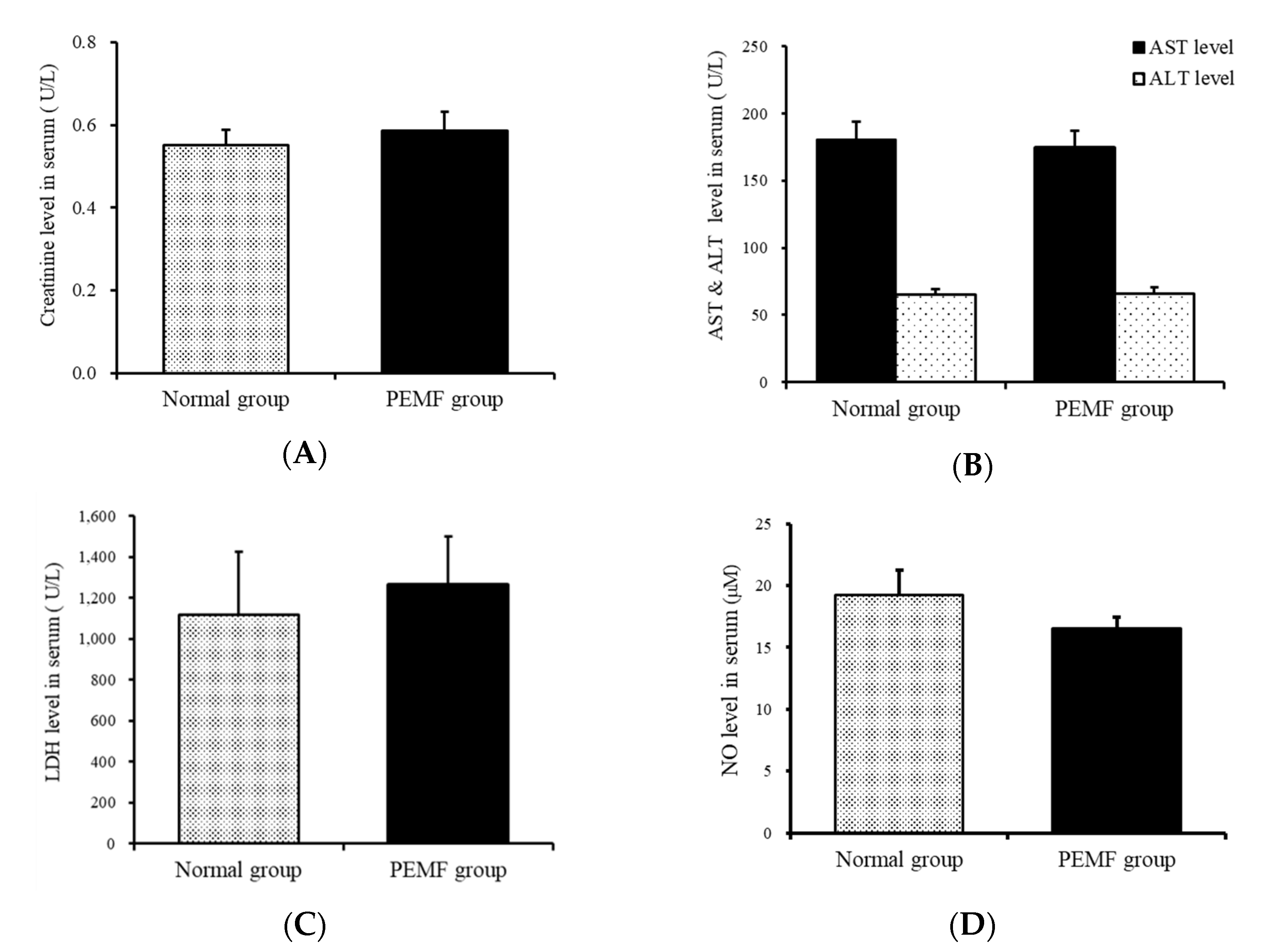

To investigate kidney and liver function, serum creatinine, aspartate aminotransferase (AST), and alanine aminotransferase (ALT) levels in the serum were measured using an automated chemistry analyzer. Serum LDH levels were also measured as a marker of common tissue injuries.
2.7. Statistical Analysis
Statistical analysis was performed using one-way ANOVA and Dunnett’s multiple comparison test. Data are expressed as the mean ± standard deviation (SD). Statistical significance was set at p < 0.05.
4. Discussion
We investigated the effect of PEMF treatment on growth of the tibial growth plate through anatomical observations and blood tests after raising eight rats in the experimental group exposed to a pulsed magnetic field of 28 Hz and 20 Gauss for 10 h for 10 days, in comparison to the normal group.
As for the size of the growth plate, the experimental group exposed to the pulsed magnetic field showed a higher growth rate with a highly significant difference, and the circulating IGF-1 hormone levels also showed a higher serum concentration in the experimental group exposed to a pulsed magnetic field.
Bone elongation is a complex process driven by multiple intrinsic (hormones, growth factors) and extrinsic (nutrition, environment) variables [
18]. Because the growth of biological tissues, including bones and growth plates, is closely associated with nutrient supply, it is necessary to determine whether the growth of the growth plate is due to the pulsed magnetic field or the amount of food consumed, if the experimental group is given more food than the normal group. However, as a result of daily tracking of dietary amount and weight, the experimental group had a lower dietary intake than the normal group. Thus, the difference in the growth rate of the growth plate can be inferred as an effect of the pulsed magnetic field. Dietary efficiency was 2% higher in the experimental group, which showed a lower food intake and body weight than the normal group. Considering that the difference between the growth plates between the two groups was 25.6%, it is difficult to say that dietary efficiency also contributed to the difference in the growth rate of the growth plate.
Because growth during childhood is closely regulated by various systemic factors, such as insulin, growth hormone, and IGF-1 [
19], the correlation between growth plate growth rate and IGF-1 is also an important basis for judgment. IGF-1, a 70-amino acid peptide biosynthesized mainly in the liver as an endocrine hormone, is both the main mediator of growth hormone action and a growth hormone-independent growth factor that stimulates cell proliferation and differentiation and protects cells from apoptosis [
19]. IGF-1 is also expressed in growth plates, where it works in a paracrine/autocrine manner to contribute to longitudinal bone growth [
20,
21]. Thus, in this study, we evaluated whether PEMFs stimulate circulatory IGF-1, which plays a major role in stimulating bone growth. From the growth plate size comparison result, the serum IGF-1 levels in the PEMF-stimulated experimental group were higher than those in the normal group; thus, it can be inferred that PEMF contributed to growth plate size by promoting the secretion of IGF-1, and a correlation was confirmed. IGF-1 levels increased after stimulation with PEMF despite no dietary changes, enabling growth of the growth plate.
Even if the growth plate, by PEMF stimulation, shows a significant difference and the growth rate is higher, if the pulsed magnetic field damages the living tissue of the rat or causes side effects that cause toxicity, it cannot be concluded that there is a direct effect. Blood analysis revealed that there were no toxic side effects due to PEMF, with creatinine, AST, and ALT values within the normal range. In addition, no side effects from inflammatory reactions, such as cell damage and destruction, by pulsed magnetic fields were observed.
NO is a free radical involved in the regulation of many physiological processes, such as vascular relaxation, platelet aggregation, immune response, and bone cell function [
22]. NO has been shown to be a potent stimulator of chondrocyte apoptosis and contributes to cartilage damage in inflammatory diseases such as rheumatoid arthritis [
23]. High levels of NO inhibit bone resorption and formation and may act to suppress bone turnover in severe inflammation. In chondrocytes of articular and growth plate cartilage, NO inhibits collagen and proteoglycan synthesis, increases susceptibility to cell damage by reactive oxygen species, and induces the apoptotic cascade [
24]. Another study reported that the effects of PEMF on osteoblast proliferation and differentiation were mediated by an increase in NO synthesis [
25]. Thus, we measured NO levels in the serum and did not show a significant difference between the normal and PEMF groups.
In addition, cortisol levels in the serum were measured, and these levels did not change after stimulation with PEMF. Because cortisol is a major rhythm marker of the circadian system, it can be useful to examine the effects of PEMF on cortisol [
26]. Exposure to weak high-frequency PEMF (900 MHz and 217 Hz) in healthy humans induced a slight elevation in cortisol production, but this increase was not significant [
27].
