In-Band Pumped Thulium-Doped Tellurite Glass Microsphere Laser

Abstract

Microresonator-based lasers in the two-micron range are interesting for extensive applications. Tm³⁺ ions provide high gain; therefore, they are promising for laser generation in the two-micron range in various matrices. We developed a simple theoretical model to describe Tm-doped glass microlasers generating in the 1.9–2 μm range with in-band pump at 1.55 μm. Using this model, we calculated threshold pump powers, laser generation wavelengths and slope efficiencies for different parameters of Tm-doped tellurite glass microspheres such as diameters, Q-factors, and thulium ion concentration. In addition, we produced a 320-μm tellurite glass microsphere doped with thulium ions with a concentration of 5·10¹⁹ cm⁻³. We attained lasing at 1.9 μm experimentally in the produced sample with a Q-factor of 10⁶ pumped by a C-band narrow line laser.

1. Introduction

Whispering gallery mode (WGM) resonators with high Q-factors and a small mode volume providing efficient light-matter interaction are very attractive photonic elements for obtaining optical frequency combs for different applications [1,2,3,4,5,6,7,8,9], creating optical filters, switches, microlasers, sensors, and other miniature optoelectronic devices [10,11,12,13,14,15,16]. Microlasers in the two-micron range are potentially interesting for extensive application in remote chemical sensing, biomedicine, and atmosphere monitoring. Lasing in the two-micron range is easily achieved in microspheres doped with Tm³⁺ and/or Ho³⁺ ions (sometimes with the addition of other co-dopants) [17,18,19,20,21,22,23,24,25,26]. Due to high gain of Tm³⁺ ions, lasing is easily achieved in various glass matrices such as silica [17], tellurite [18,19,20], fluorotellurite [21], fluoride [22], and even chalcogenide [23].

Tellurite glasses are of great interest for the development of microlasers in the two-micron range [18]. Current technologies allow producing low-loss tellurite glasses characterized by substantial solubility of rare-earth ions [27], which is beneficial in fabricating such photonic devices. Additionally, a high linear refractive index n~2 for tellurite glasses leads to an emission cross section higher than for silica glass with refractive index n~1.4 [27], since the cross section is proportional to (n² + 2)²/9n.

Despite a large number of experimental studies on laser generation in thulium-doped microresonators made of different glasses, insufficient attention has been paid to theoretical models and numerical investigations. There are only a few theoretical studies of Tm-doped microlasers. A rather complex theoretical model for lasing at ~2 μm in a Tm-doped tellurite microsphere coupled with an undoped microsphere was proposed and studied in the recent work by M. Saffari et al. [28]. Recently, we investigated theoretically the possibility of single-color and multi-color cascade lasing at wavelengths of about 1.9, 1.5, and 2.3 μm in Tm-doped tellurite microspheres pumped at 792 nm [29]. Diagrams of various regimes were plotted depending on the parameters of the system (such as Q-factors and pump powers) [29]. After that, P. Wang et al. demonstrated experimentally dual-wavelength lasing at 1.9 and 2.3 μm for the first time in a Tm-doped fluorotellurite microsphere [21], thus confirming the performance of our theoretical model [29]. Here, we concentrate on studying laser generation in the 1.9–2 μm range at the ³F₄ → ³H₆ transition of Tm³⁺ ions with in-band pump in the range of about 1.55 μm, which is highly attractive for many practical applications. Currently, there are plenty of commercially available laser sources at 1.55 μm demanded in telecom applications; therefore, their use for pumping thulium microlasers is a fairly straightforward solution. The simple theoretical model presented here can be used to describe Tm-doped microlasers based on various glass matrices, including tellurite (which is also analyzed in detail in this work), silica, fluorotellurite, fluoride, and others.

Microlasers based on different active rare-earth ions can be described by a system of ordinary differential equations of the first order in time [30,31]. The most common way to analyze such microlasers is numerical solution of a dynamical system (commonly by the Runge–Kutta method). A steady state solution that is of the greatest interest can be found by simulating the laser dynamics over a long time sufficient for relaxation oscillations to decay [31]. However, with a large number of WGMs falling into the gain band of an active ion, the dynamical system contains a very large number of coupled equations, which can take a lot of time to solve, especially for many realizations with varied parameters. When considering continuous wave (CW) generation under CW pump, a solution can be found by solving a system of many nonlinear algebraic equations (of the order of the number of modes) obtained by taking d/dt = 0. However, we have proposed another semi-analytical approach allowing us to solve only a single nonlinear algebraic equation using exhaustive search for each mode (or a combination of modes) and to find stable CW generation regimes [29]. Here, to describe CW lasing in the 1.9–2 μm range in a Tm-doped microsphere, we use the same approach which becomes very simple for in-band pump.

2. Theoretical Model

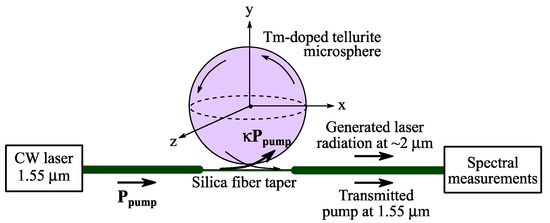

The general scheme of the analyzed system is shown in Figure 1. It consists of a thulium-doped tellurite glass microsphere and a silica fiber taper for both, coupling the CW pump wave and extracting the generated laser wave.

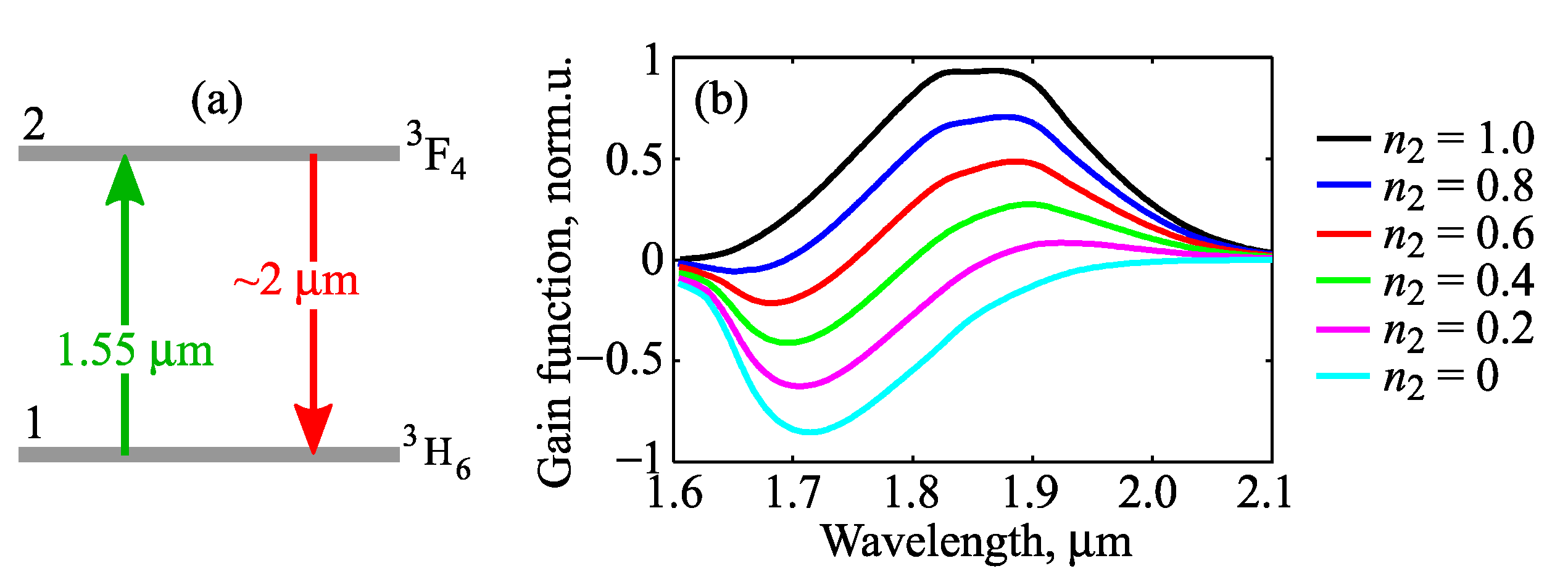

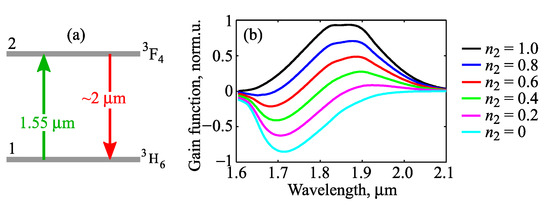

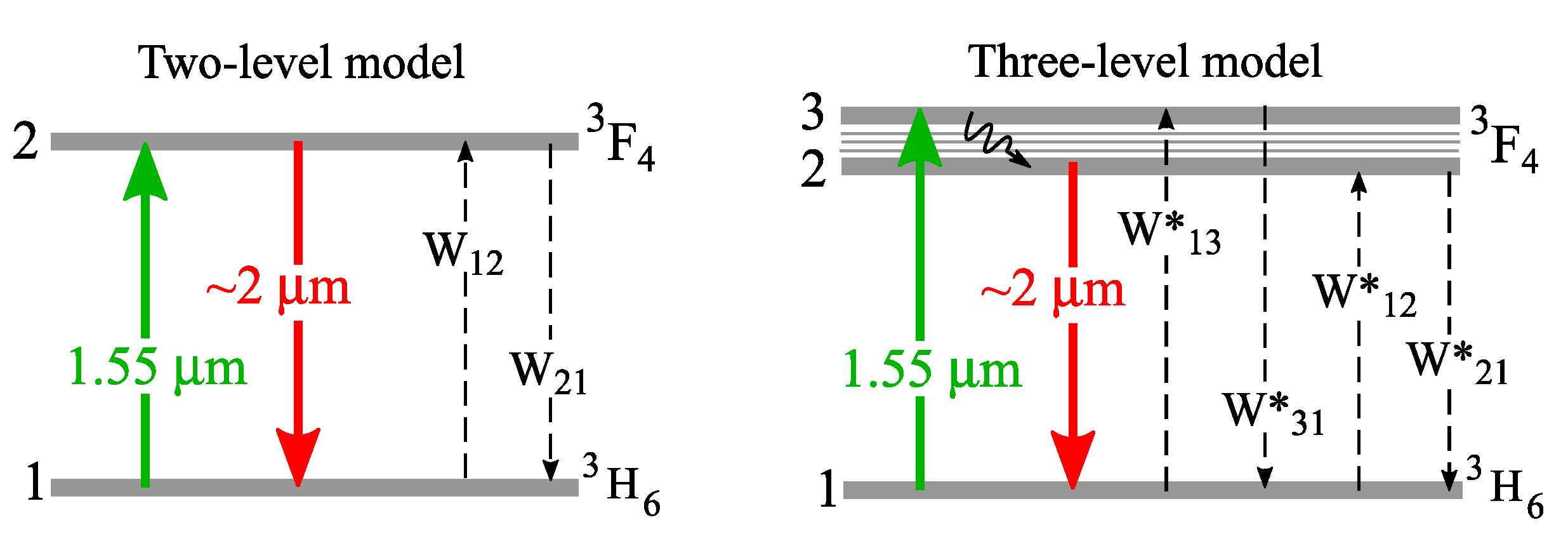

We consider in-band CW pump (³H₆ → ³F₄) at a wavelength of 1.55 μm and lasing in the 2 μm range (³F₄ → ³H₆) as shown in Figure 2a. The cross-relaxation process, which can play an important role for a pump at ~0.79 μm [32], is neglected here, because levels above ³F₄ are almost unpopulated under in-band pump. Here, we used the two-level approximation, which is equivalent to the quasi three-level model because the transition from the pump level to the upper laser level (both belong to the ³F₄ manifold) is very rapid at a room temperature, so the population of the pump level is almost zero (please see Appendix A for details). Let us define the population densities of the ³H₆ and ³F₄ levels as n₁ and n₂. They are normalized to the concentration of Tm³⁺ ions N_Tm and satisfy the expression

$$n_1+n_2=1.$$

(1)

An important characteristic is a gain function proportional to (σ_emn₂ − σ_absn₁), where σ_em and σ_abs are the emission and absorption cross sections, respectively. The calculated normalized gain function depending on wavelength is given in Figure 2b. The wavelength corresponding to the maximum of the function depends on n₂ and determines the generated wavelength. Note that the emission cross-section at the pump wavelength λ_p = 1.55 μm is almost zero σ_em(λ_p) ≈ 0 for similar tellurite glasses [33,34].

The rate equation for the ground state population is [32,34,35]:

$$\frac{d{n}_1}{dt}=-W_{12}{n}_1+\left(W_{21}+\frac{1}{{\tau }_{21}}\right)n_2.$$

(2)

where τ₂₁ = 3 ms [32] is the lifetime of the ³F₄ level and W_12,21 are the stimulated absorption and emission rates (assuming σ_em(λ_p) ≈ 0)

$$W_{12}=\frac{\Gamma {\lambda }_p{\sigma }_{abs}({\lambda }_p)}{hc{S}_{eff}}{|A_p|}^2+\frac{\Gamma }{hc{S}_{eff}}{\displaystyle \sum _l{\lambda }_{s,l}{\sigma }_{abs}({\lambda }_{s,l}){|A_{s,l}|}^2},$$

(3)

$$W_{21}=\frac{\Gamma }{hc{S}_{eff}}{\displaystyle \sum _l{\lambda }_{s,l}{\sigma }_{em}({\lambda }_{s,l})}|A_{s,l}{|}^2.$$

(4)

Here, λ_s,l is the laser wavelength with the mode order l (we consider here only the family of fundamental modes with angular mode order l), h is Planck’s constant, c is the speed of light in vacuum, S_eff is the effective mode field area, Γ = 0.95 is the overlap factor (defined in [28]), A_p is the intracavity field amplitude at the pump wavelength, and A_s,l is the intracavity field amplitude at laser wavelength. For the fundamental mode family, the overlap factor is almost independent on the laser wavelength in the 1.9–2 μm range. We calculated previously that for the fundamental mode family, S_eff is almost a linear function of the tellurite microsphere radius changing from S_eff ≈ 6 μm² up to S_eff ≈ 20 μm² when the radius increases from 50 μm to 200 μm [36].

The temporal evolution of the intracavity field amplitudes inside the microsphere can be described by the system of ordinary differential Equations [29,30,31,35]:

$$\frac{d{A}_p}{dt}=-\frac{1}{2}\left(\frac{1}{T_{eff}}-g_p-i\Delta \omega \right)A_p+i\sqrt{\frac{1}{T_{ext}{T}_{RT}}}{E}_{pump}$$

(5)

$$\frac{d{A}_{s,l}}{dt}=-\frac{1}{2}\left(\frac{1}{T_{eff}}-g_{s,l}\right)A_{s,l}$$

(6)

$$g_p=-\frac{c\Gamma N_{Tm}}{\sqrt{\epsilon }}{\sigma }_{abs}({\lambda }_p)n_1$$

(7)

$$g_{s,l}=\frac{c\Gamma N_{Tm}}{\sqrt{\epsilon }}\left({\sigma }_{em}({\lambda }_{s,l})n_2-{\sigma }_{abs}({\lambda }_{s,l})n_1\right),$$

(8)

where Δω is detuning of the pump with amplitude E_pump from the nearest WGM (further we take Δω = 0); T_eff is the effective lifetime 1/T_eff = 1/T₀ + 1/T_ext; T₀ is the intrinsic lifetime (without allowance for ground state absorption); T_ext is the coupling lifetime; T_RT is the round trip time (circulating time inside the microsphere); ε is the permittivity (the square of the refractive index). We neglect the difference between these lifetimes for different wavelengths and WGMs inside the gain band.

The intracavity laser power is P_s,l = |A_s,l|² and the output laser power is

$$P_{s,l}^{out}={\left|\sqrt{\frac{T_{RT}}{T_{ext}}}{A}_{s,l}\right|}^2=\kappa P_{s,l}$$

(9)

where the coupling coefficient κ is

$$\kappa =\frac{T_{RT}}{T_{ext}}.$$

(10)

For a steady-state solution, the time derivatives in Equations (2), (5) and (6) are equal to zeros

$$\frac{d{n}_1}{dt}=0,$$

(11)

$$\frac{d{A}_p}{dt}=0,$$

(12)

$$\frac{d{A}_{s,l}}{dt}=0.$$

(13)

Therefore, the system of Equations (2), (5) and (6) with (1), (3), (4), (7) and (8) taken into account becomes algebraic, and the number of equations originating from (6) is determined by the number of the considered WGMs in the gain band. However, the solution of a nonlinear system containing a lot of algebraic equations is not a trivial task. Therefore, we use the following semi-analytical approach. First of all, we assume that lasing is single-mode (which is certainly valid near the threshold). We use an exhaustive search for each l in Equation (6) and after that choose only stable physically meaningful solutions (with 0 <n₁ <1 and P_s,l > 0). Stability of the solutions is analyzed as follows. If a lasing WGM has the order l*, then for all other WGMs with orders l ≠ l* the zero solution A_s,l = 0 must be stable, that is the increment in Equation (6) must be <0:

$$-\frac{1}{2}\left(\frac{1}{T_{eff}}-g_{s,l\ne l*}\right)<0.$$

(14)

Therefore, for the WGM with number l, Equation (6) with allowance for Equation (8) takes the form

$$\frac{1}{T_{eff}}-\frac{c\Gamma N_{Tm}}{\sqrt{\epsilon }}\left({\sigma }_{em}({\lambda }_{s,l})n_2-{\sigma }_{abs}({\lambda }_{s,l})n_1\right)=0.$$

(15)

Using Equation (1), we find n₁ and n₂ from Equation (15):

$$n_1=\frac{{\sigma }_{em}({\lambda }_{s,l})}{{\sigma }_{em}({\lambda }_{s,l})+{\sigma }_{abs}({\lambda }_{s,l})}-\frac{1}{T_{eff}}\frac{\sqrt{\epsilon }}{c\Gamma N_{Tm}}\frac{1}{\left({\sigma }_{em}({\lambda }_{s,l})+{\sigma }_{abs}({\lambda }_{s,l})\right)},$$

(16)

$$n_2=\frac{{\sigma }_{abs}({\lambda }_{s,l})}{{\sigma }_{em}({\lambda }_{s,l})+{\sigma }_{abs}({\lambda }_{s,l})}+\frac{1}{T_{eff}}\frac{\sqrt{\epsilon }}{c\Gamma N_{Tm}}\frac{1}{\left({\sigma }_{em}({\lambda }_{s,l})+{\sigma }_{abs}({\lambda }_{s,l})\right)},$$

(17)

$${|A_p|}^2=\frac{(4/T_{RT}^2)\cdot \kappa P_{pump}}{{\left(\frac{1}{T_{eff}}+\frac{c\Gamma N_{Tm}}{\sqrt{\epsilon }}{\sigma }_{abs}({\lambda }_p)n_1\right)}^2}.$$

(18)

After that, from Equation (2) with Equation (1) and the expressions (3), (4) taken into account, we determine the intracavity power at the laser wavelength

$${|A_{s,l}|}^2=\frac{{|A_p|}^2{\lambda }_p{\sigma }_{abs}({\lambda }_p)n_1-\frac{n_{2}hc{S}_{eff}}{{\tau }_{21}\Gamma }}{{\lambda }_{s,l}\left({\sigma }_{em}({\lambda }_{s,l})n_2-{\sigma }_{abs}({\lambda }_{s,l})n_1\right)}.$$

(19)

Therefore, we have obtained the analytical expression (19) for |A_s,l|² for each WGM with number l from the gain band, where n₁, n₂, and |A_p|² are given by the expressions (16), (17) and (18), respectively. Further, we execute exhaustive search for all l, select only physically meaningful solutions and for them examine the stability using the expression (14). We verified that for any set of parameters, there is only one stable solution resulting in laser generation at a fixed wavelength (or no lasing under the threshold).

3. Theoretical Results and Discussion

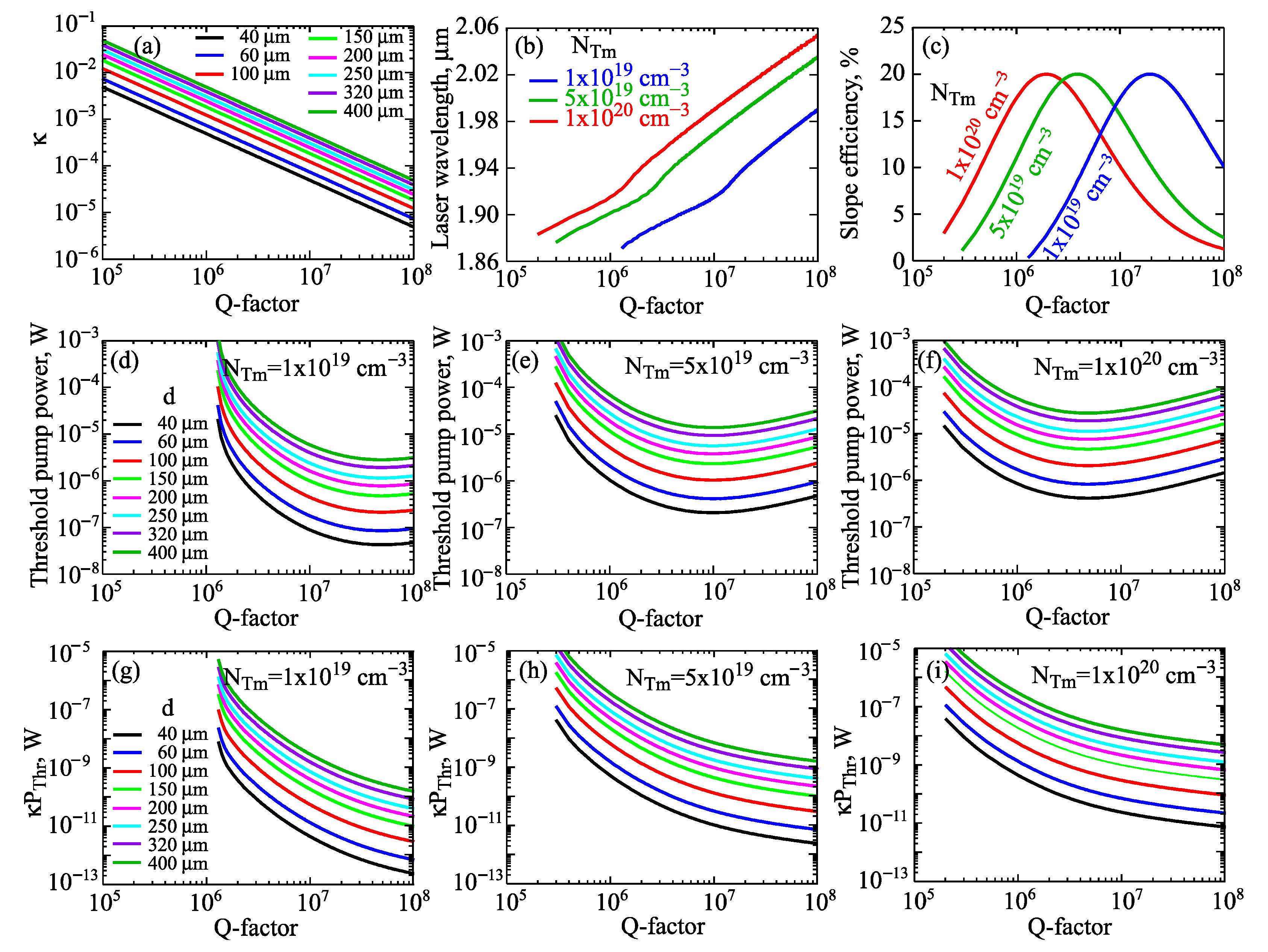

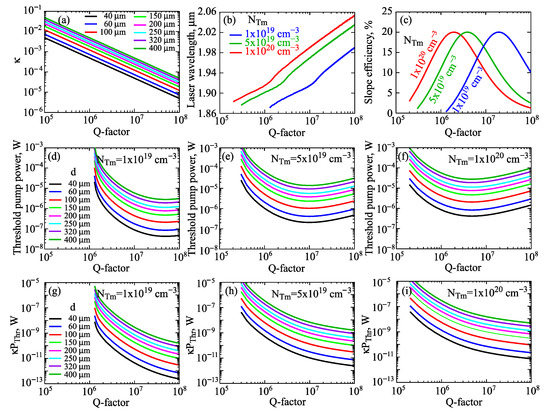

We consider critical coupling when an intrinsic Q-factor is equal to a coupling Q-factor: Q₀ = Q_ext (in other words when T_eff = T₀/2 = T_ext/2). We set σ_abs(λ_p) = 0.05·10⁻²⁰ cm² and the emission/absorption cross sections at laser wavelengths as in the paper [34]. We varied Tm³⁺ ion concentrations, microsphere diameters, Q-factors, and pump powers. The calculated coefficients κ as functions of the total Q-factor for different diameters of a tellurite microsphere ranging from 40 μm to 400 μm are plotted in Figure 3a as well as expected laser wavelengths (Figure 3b), slope efficiencies (Figure 3c), threshold pump powers (Figure 3d–f), and threshold values of coupling coefficients multiplied by pump powers (Figure 3g–i) as functions of the varied parameters of the system. Figure 3d demonstrates that for a Tm³⁺ ion concentration of 1·10¹⁹ cm⁻³, lasing is possible only if the Q-factor exceeds 10⁶. For lower Q-factors, losses are too large and the gain cannot compensate them; the laser threshold is not reached. With an increase in active ion concentrations to N_Tm = 5·10¹⁹ cm⁻³ and N_Tm = 1 10²⁰cm⁻³, the gain according to Equation (8) grows, and the minimum Q-factors required for generation become equal to 3·10⁵ and 2·10⁵, respectively (Figure 3e,f). Figure 3d–f also demonstrate that for a certain active ion concentration, the larger the microsphere diameter, the higher the threshold pump power is.

Figure 3d–f show that with an increase in the Q-factor, the threshold pump powers first decrease, then reach a minimum, and then begin to increase. This has the following explanation. At low Q-factors, a large intracavity pump power is required to overcome losses and reach the lasing threshold. As the Q-factor increases, less losses need to be compensated, so the threshold power decreases. However, at high Q-factors, the coupling coefficient is rather small (see Figure 3a), because κ is inversely proportional to the total Q-factor for the critical coupling. The intracavity pump power becomes lower than for medium Q-factors, which explains the non-monotonic behavior of the curves in Figure 3d–f. For a clearer demonstration, we plot the dependence of the threshold values of coupling coefficients multiplied by pump powers on Q-factor (Figure 3g–i). These curves are monotonic: the higher the Q-factor, the lower intracavity power is required to attain lasing.

Let us go back to the expected lasing wavelength. We found that in the used model, it does not depend on the diameter of the microsphere and the pump power, but depends on Q-factor and active ion concentration. At low Q-factors, a higher pump power is required, so the population n₂ of the level ³F₄ is rather high, so the maximum gain is achieved at shorter wavelengths near the maximum of the emission cross section (see Figure 2b). With an improved Q-factor, the laser wavelength grows smoothly. Knowing experimental λ_s and N_Tm, it is possible to compare the measured value of the Q-factor with the calculated one or even estimate the effective Q-factor (if it is not measured experimentally).

The slope efficiencies calculated for pump powers above the threshold are plotted in Figure 3c. They do not depend of microsphere diameters. There is an optimal Q-factor to attain maximum efficiency, which coincides with the general laser theory according to which there is an optimal value of transmission coefficient of a laser resonator (or optical losses) to obtain the maximum output laser power [35].

Our semi-analytical model, which allows fast simulation of a steady-state solution unlike dynamical models used previously, makes it possible to perform a scan over a broad range of laser parameters. The obtained results may serve as a guide for designing Tm-doped microlasers pumped by readily available pump sources at a telecommunication wavelength. The model describing single-mode laser generation works well for not very high excess of pump power over the threshold. To describe multi-mode laser generation in different mode families, which is observed for high excess over the threshold, the model can be modified.

4. Experimental Results and Discussion

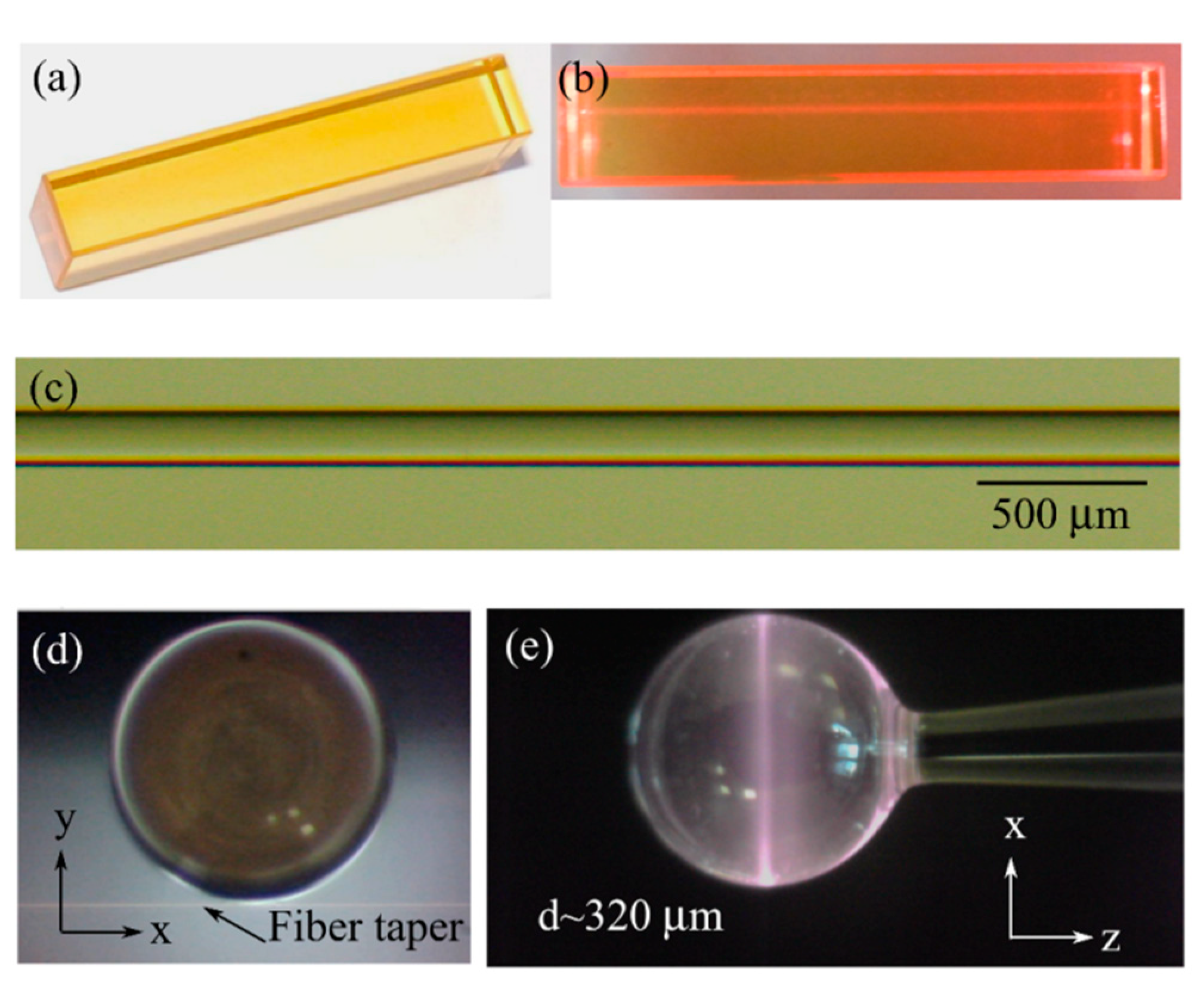

An experimental microsphere was made of TeO₂-ZnO-La₂O₃-Na₂O glass doped with thulium ions with concentration N_Tm = 5·10¹⁹ cm⁻³. This glass was similar in composition and method of preparation to the core of the fiber used for laser generation earlier [34]. The glass was prepared by melting the initial high-purity oxides and sodium carbonate Na₂CO₃ in platinum crucible inside sealed a silica chamber in the atmosphere of purified oxygen. After several hours melting at 800 °C, the melt was poured into a mold of silica glass and annealed at a glass transition temperature. A glass sample was cut, ground, and polished (see a photo in Figure 4a). The sample did not contain noticeable point scattering defects and striae in the glass volume. A polished parallelepiped was examined in a red laser beam to determine point defects. He-Ne laser beam scanning did not reveal bubbles and scattering inclusions in the volume of the samples (see Figure 4b). A single-index fiber was produced from the prepared glass (see Figure 4c). Next, we fabricated a microsphere with diameter d = 320 μm by softening the tapered end of this tellurite single-index fiber using a resistive micro-heater [36].

Coupling of the pump wave at 1.55 μm to the tellurite microsphere and outcoupling of the generated laser wave at ~1.9 μm were realized with a silica fiber taper as schematically shown in Figure 1. Despite the significant refractive index difference between silica and tellurite glasses, it is possible to achieve large (critical and even overcritical) coupling in the experiment. This is evident from the fact that at small distances between the taper and the microsphere the measured fraction of absorbed power near the resonance can be more than 0.5.

For an in-band pump and Q-factor measurements, we used a standard telecommunication C-band laser based on a micro-integrable tunable laser assembly (Pure Photonics, PPCL550-180-60, line width 10 kHz, tuning range 190.3–197.9 THz). The measured Q-factor at a wavelength of 1.52 μm was ~10⁶. To measure the Q-factor, we chose the wavelength shorter than the pump wavelength to mitigate the impact of ground state absorption of thulium ions on effective Q-factor. Note that our value Q = 10⁶ agrees well with the Q-factors of tellurite microspheres reported previously by other researches [20,24].

The experiment was conducted in an acrylic glove box to protect the microsphere and fiber taper against dust and airflows from the conditioning system [37]. The fiber taper was made of a telecommunication fiber SMF28e [38]. Coarse adjustment of relative position of the microsphere and fiber taper was done manually using two CCD cameras recording images in perpendicular planes. An example of images from CCD cameras is given in Figure 4d,e, where one can also see near-IR light (“pink belt” in the equatorial plane) that is explained by very weak (neglected in simulation) energy transfer up-conversion processes in thulium ions (the pump light at 1.55 μm is invisible to our CCD cameras). Sub 0.1-μm adjustment of the relative position between the microsphere and the silica taper was implemented with a 3-axis translation stage with precision piezo actuators (Thorlabs MAX312D). The output spectrum of the transmitted pump light was recorded by Telecom OSA (Optical Spectrum Analyzer) Yokogawa AQ6370D (600–1700 nm). To record the spectrum of laser generation beyond the spectral boundary of Telecom OSA, we used a scanning grating monochromator (MS2004i, SOL Instruments Ltd., Minsk, Belarus) and an amplified PbSe detector (PDA20H, Thorlabs) integrated into the computer controlled setup.

Figure 5 demonstrates a composite spectrum of the transmitted pump wave (in dB scale) and the generated laser wave (in linear scale). The pump power launched to the taper is about 5 mW. The laser wavelength is about 1.9 μm, which agrees with the numerical results shown in Figure 3b, where for N_Tm = 5·10¹⁹ cm⁻³ and Q-factor of the order of 10⁶, the expected laser wavelength is the same. We estimated the threshold power absorbed in the resonator as 0.5 mW. The slope efficiency estimated by modulating the pump power and measuring the response of the generated laser signal was about 10%, which also agrees with theoretical predictions (see Figure 3c, where for N_Tm = 5·10¹⁹ cm⁻³ and Q factor of 10⁶, the calculated value is 11%). Note that measurements of dependencies of the laser output characteristics on the pump power are complicated because changes in the pump power result in changes of the heat dissipated in the microresonator and the corresponding shift of WGM resonance [36], thus changing the pump coupling conditions.

Note, despite the fact that lasing in Tm-doped tellurite microspheres was achieved in several works listed in

Table 1. Performance of Tm³⁺-doped tellurite glass microsphere lasers.

Thulium Ion Content	Diameter of Microsphere, μm	Pump Source; Wavelength, μm	Laser Wavelength, μm	Reference
5·1019 cm−3	320	Telecommunication laser, 1.55	~1.9	Present study
4.2·1020 cm−3 (1mol% Tm2O3)	30	Tunable laser source, 1.504–1.629	Centered at ~1.975	[20]
0.15% Tm2O3	104	Ti: sapphire, 0.8	~1.5&1.9	[39]
0.5wt% Tm2O3	Not reported	Ti: sapphire, 0.793	~1.5&1.9	[40]
5wt%	25	Ti: sapphire, 0.793	~2.0	[19]
1mol% Tm2O3	~60	Laser diode, 0.793	~1.92&2.35; ~1.90	[21]

, an in-band pump was used only in [20]. In [20], at a Tm³⁺ concentration of 4.2 × 10²⁰ cm⁻³ for a microsphere with a Q factor of 2 × 10⁶, the central lasing wavelength was 1975 mn, which agrees with the results of our theoretical prediction. Therefore, we believe that our experimental and theoretical work can be useful in the development of relatively simple Tm-doped in-band pumped microlasers.

5. Conclusions

We have developed a simple theoretical model to describe thulium-doped glass microlasers generating in the 1.9–2 μm range with in-band CW pump at 1.55 μm. We have obtained an analytical expression for laser power assuming single-mode generation and further performed exhaustive search for each WGM from the gain band and after that chose the wavelength corresponding to a stable physically meaningful solution. This model can be used for microspheres made of different glasses such as silica, tellurite, fluorotellurite, fluoride, chalcogenide, and others. To describe the system, the following parameters are required: emission and absorption cross sections for the ³F₄ → ³H₆ energy transition, the lifetime of the ³F₄ level, linear refractive index, Tm³⁺ ion concentration, Q-factor, coupling coefficient, microsphere diameter, and pump power. We have performed a theoretical analysis for tellurite glass microspheres promising for lasing in the two-micron range. It has been shown that laser generation is possible if the Q-factor exceeds a certain value depending on active ion concentration. The expected laser wavelength depends on thulium ion concentration and Q-factor. The higher the concentration and Q-factor, the longer the laser wavelength is. There is an optimal Q-factor to attain the maximum slope efficiency for a certain thulium ion concentration. Additionally, we have fabricated a 320-μm tellurite glass microsphere doped with thulium ions with a concentration of 5·10¹⁹cm⁻³. We have attained laser generation at 1.9 μm experimentally in the produced sample with a Q-factor of 10⁶ pumped by a C-band CW narrow line laser at 1.55 μm. The observed laser wavelength and slope efficiency agree with the theoretical calculation for the same Q-factor.
